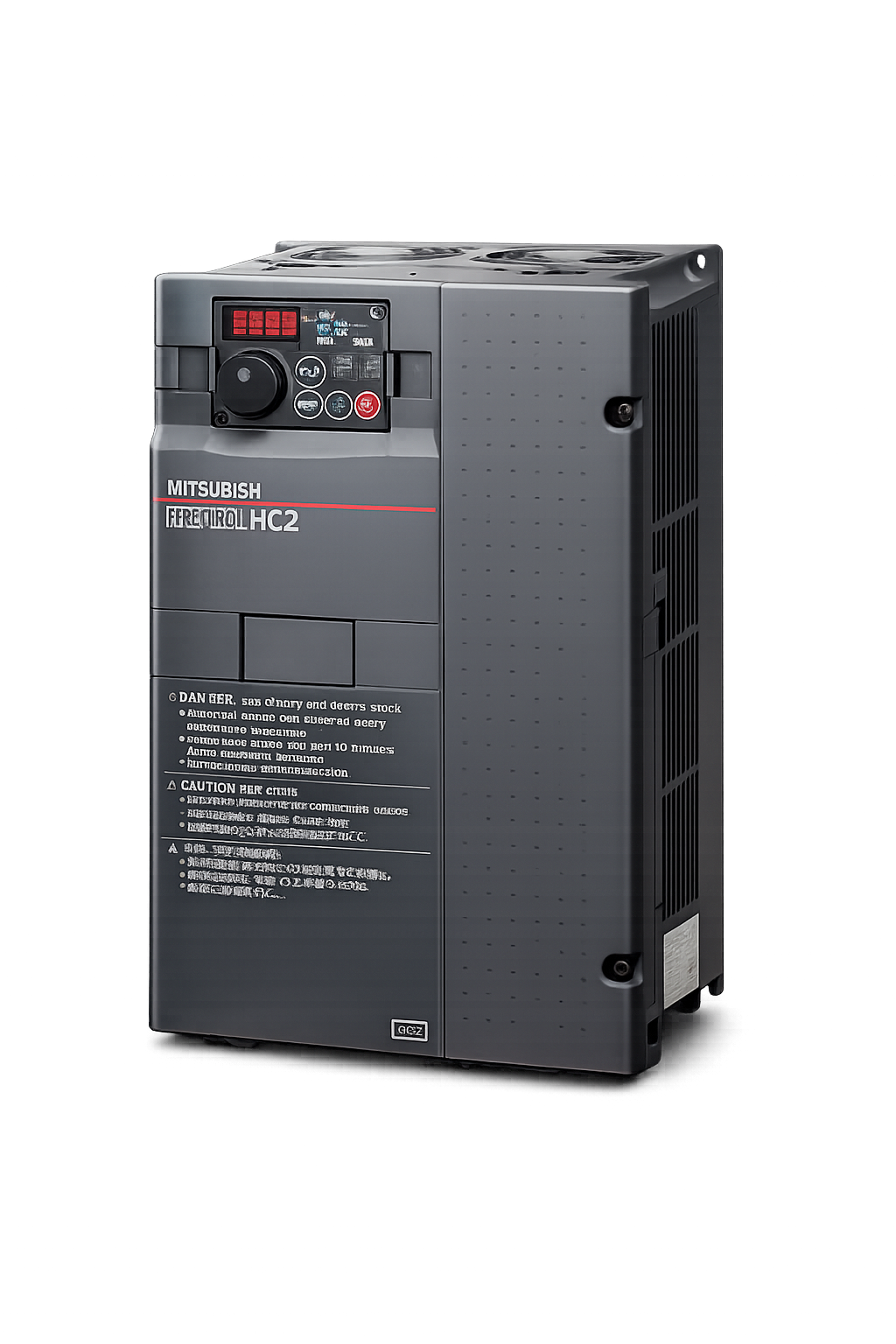

Mitsubishi Electric FR-HC2 High Power Factor Converter (3-Phase 400V, 7.5-560kW)

Mitsubishi Electric FR-HC2 High Power Factor Converter (3-Phase 400V, 7.5-560kW)

FR-HC2 high power factor converter, 3-phase 400V, 7.5-560kW.

Key features

  • Harmonic suppression (equivalent-capacity conversion coefficient K5=0), standard power regeneration (100% continuous / 150% 60s), input power factor 0.99+, up to 10 inverters connectable

Specifications

Rated Input Voltage 3-ph 380-460V 50/60Hz
Overload 150% 60s
Frequency Fluctuation +/-5%
Input Power Factor 0.99 or more (at 100% load)
Power Regeneration 100% torque continuous / 150% torque 60s max
Harmonic Suppression equivalent-capacity conversion coefficient K5=0
Multi-inverter up to 10 units connectable
Cooling Forced-air
FR-HC2-H7.5K FR-HC2 high power factor converter 7.5kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 7.5 kW | Rated DC Output Capacity: 11.0 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 17 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-506V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 14 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Closed IP20 | Cooling: Forced-air | Mass (converter): 9 kg | Included Peripherals: Reactor 1 (FR-HCL21-H7.5K), Reactor 2 (FR-HCL22-H7.5K), Outside Box (FR-HCB2-H7.5K)
FR-HC2-H15K FR-HC2 high power factor converter 15kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 15 kW | Rated DC Output Capacity: 20.2 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 31 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-506V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 26 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Closed IP20 | Cooling: Forced-air | Mass (converter): 9 kg | Included Peripherals: Reactor 1 (FR-HCL21-H15K), Reactor 2 (FR-HCL22-H15K), Outside Box (FR-HCB2-H15K)
FR-HC2-H30K FR-HC2 high power factor converter 30kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 30 kW | Rated DC Output Capacity: 37 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 57 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-506V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 47 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 26 kg | Included Peripherals: Reactor 1 (FR-HCL21-H30K), Reactor 2 (FR-HCL22-H30K), Outside Box (FR-HCB2-H30K)
FR-HC2-H55K FR-HC2 high power factor converter 55kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 55 kW | Rated DC Output Capacity: 73 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 110 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-506V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 90 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 43 kg | Included Peripherals: Reactor 1 (FR-HCL21-H55K), Reactor 2 (FR-HCL22-H55K), Outside Box (FR-HCB2-H55K)
FR-HC2-H75K FR-HC2 high power factor converter 75kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 75 kW | Rated DC Output Capacity: 92 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 139 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-460V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 113 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 37 kg | Included Peripherals: Reactor 1 (FR-HCL21-H75K), Reactor 2 (FR-HCL22-H75K), Outside Box (FR-HCB2-H75K)
FR-HC2-H110K FR-HC2 high power factor converter 110kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 110 kW | Rated DC Output Capacity: 135 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 203 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-460V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 165 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 56 kg | Included Peripherals: Reactor 1 (FR-HCL21-H110K), Reactor 2 (FR-HCL22-H110K), Outside Box (FR-HCB2-H110K)
FR-HC2-H160K FR-HC2 high power factor converter 160kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 160 kW | Rated DC Output Capacity: 192 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 290 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-460V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 235 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 120 kg | Included Peripherals: Reactor 1 (FR-HCL21-H160K), Reactor 2 (FR-HCL22-H160K), Outside Box (FR-HCB2-H160K)
FR-HC2-H220K FR-HC2 high power factor converter 220kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 220 kW | Rated DC Output Capacity: 264 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 397 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-460V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 322 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 120 kg | Included Peripherals: Reactor 1 (FR-HCL21-H220K), Reactor 2 (FR-HCL22-H220K), Outside Box (FR-HCB2-H220K)
FR-HC2-H280K FR-HC2 high power factor converter 280kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 280 kW | Rated DC Output Capacity: 336 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 506 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-460V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 410 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 160 kg | Included Peripherals: Reactor 1 (FR-HCL21-H280K), Reactor 2 (FR-HCL22-H280K), Filter Capacitor (FR-HCC2-H280K), Inrush Resistor (FR-HCR2-H280K), MC Kit (FR-HCM2-H280K)
FR-HC2-H400K FR-HC2 high power factor converter 400kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 400 kW | Rated DC Output Capacity: 476 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 716 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-460V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 580 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 250 kg | Included Peripherals: Reactor 1 (FR-HCL21-H400K), Reactor 2 (FR-HCL22-H400K), Filter Capacitor (FR-HCC2-H400K), Inrush Resistor (FR-HCR2-H400K), MC Kit (FR-HCM2-H400K)
FR-HC2-H560K FR-HC2 high power factor converter 560kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 560 kW | Rated DC Output Capacity: 660 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 993 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-460V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 804 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 250 kg | Included Peripherals: Reactor 1 (FR-HCL21-H560K), Reactor 2 (FR-HCL22-H560K), Filter Capacitor (FR-HCC2-H560K), Inrush Resistor (FR-HCR2-H560K), MC Kit (FR-HCM2-H560K)
Converter UnitsMitsubishi Electric
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-HC2 High Power Factor Converter (3-Phase 400V, 7.5-560kW)

Brand Mitsubishi Electric·Converter Units

Available part numbers (11)

FR-HC2-H7.5K, FR-HC2-H15K, FR-HC2-H30K, FR-HC2-H55K, FR-HC2-H75K, FR-HC2-H110K, FR-HC2-H160K, FR-HC2-H220K, FR-HC2-H280K, FR-HC2-H400K + 1 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-HC2-H7.5KFR-HC2 high power factor converter 7.5kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 7.5 kW | Rated DC Output Capacity: 11.0 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 17 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-506V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 14 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Closed IP20 | Cooling: Forced-air | Mass (converter): 9 kg | Included Peripherals: Reactor 1 (FR-HCL21-H7.5K), Reactor 2 (FR-HCL22-H7.5K), Outside Box (FR-HCB2-H7.5K)
FR-HC2-H15KFR-HC2 high power factor converter 15kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 15 kW | Rated DC Output Capacity: 20.2 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 31 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-506V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 26 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Closed IP20 | Cooling: Forced-air | Mass (converter): 9 kg | Included Peripherals: Reactor 1 (FR-HCL21-H15K), Reactor 2 (FR-HCL22-H15K), Outside Box (FR-HCB2-H15K)
FR-HC2-H30KFR-HC2 high power factor converter 30kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 30 kW | Rated DC Output Capacity: 37 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 57 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-506V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 47 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 26 kg | Included Peripherals: Reactor 1 (FR-HCL21-H30K), Reactor 2 (FR-HCL22-H30K), Outside Box (FR-HCB2-H30K)
FR-HC2-H55KFR-HC2 high power factor converter 55kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 55 kW | Rated DC Output Capacity: 73 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 110 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-506V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 90 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 43 kg | Included Peripherals: Reactor 1 (FR-HCL21-H55K), Reactor 2 (FR-HCL22-H55K), Outside Box (FR-HCB2-H55K)
FR-HC2-H75KFR-HC2 high power factor converter 75kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 75 kW | Rated DC Output Capacity: 92 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 139 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-460V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 113 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 37 kg | Included Peripherals: Reactor 1 (FR-HCL21-H75K), Reactor 2 (FR-HCL22-H75K), Outside Box (FR-HCB2-H75K)
FR-HC2-H110KFR-HC2 high power factor converter 110kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 110 kW | Rated DC Output Capacity: 135 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 203 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-460V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 165 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 56 kg | Included Peripherals: Reactor 1 (FR-HCL21-H110K), Reactor 2 (FR-HCL22-H110K), Outside Box (FR-HCB2-H110K)
FR-HC2-H160KFR-HC2 high power factor converter 160kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 160 kW | Rated DC Output Capacity: 192 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 290 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-460V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 235 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 120 kg | Included Peripherals: Reactor 1 (FR-HCL21-H160K), Reactor 2 (FR-HCL22-H160K), Outside Box (FR-HCB2-H160K)
FR-HC2-H220KFR-HC2 high power factor converter 220kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 220 kW | Rated DC Output Capacity: 264 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 397 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-460V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 322 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 120 kg | Included Peripherals: Reactor 1 (FR-HCL21-H220K), Reactor 2 (FR-HCL22-H220K), Outside Box (FR-HCB2-H220K)
FR-HC2-H280KFR-HC2 high power factor converter 280kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 280 kW | Rated DC Output Capacity: 336 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 506 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-460V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 410 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 160 kg | Included Peripherals: Reactor 1 (FR-HCL21-H280K), Reactor 2 (FR-HCL22-H280K), Filter Capacitor (FR-HCC2-H280K), Inrush Resistor (FR-HCR2-H280K), MC Kit (FR-HCM2-H280K)
FR-HC2-H400KFR-HC2 high power factor converter 400kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 400 kW | Rated DC Output Capacity: 476 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 716 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-460V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 580 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 250 kg | Included Peripherals: Reactor 1 (FR-HCL21-H400K), Reactor 2 (FR-HCL22-H400K), Filter Capacitor (FR-HCC2-H400K), Inrush Resistor (FR-HCR2-H400K), MC Kit (FR-HCM2-H400K)
FR-HC2-H560KFR-HC2 high power factor converter 560kW, 400V class, harmonic suppression + power regeneration | Applicable Inverter Capacity: 560 kW | Rated DC Output Capacity: 660 kW | Rated Input Voltage: 3-ph 380-460V 50/60Hz | Rated Input Current: 993 A | Overload: 150% 60s | Permissible Voltage Fluctuation: 323-460V 50/60Hz | Frequency Fluctuation: +/-5% | Input Power Factor: 0.99 or more (at 100% load) | Power Supply Capacity: 804 kVA | Power Regeneration: 100% torque continuous / 150% torque 60s max | Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 | Multi-inverter: up to 10 units connectable | Enclosure: Open IP00 | Cooling: Forced-air | Mass (converter): 250 kg | Included Peripherals: Reactor 1 (FR-HCL21-H560K), Reactor 2 (FR-HCL22-H560K), Filter Capacitor (FR-HCC2-H560K), Inrush Resistor (FR-HCR2-H560K), MC Kit (FR-HCM2-H560K)
