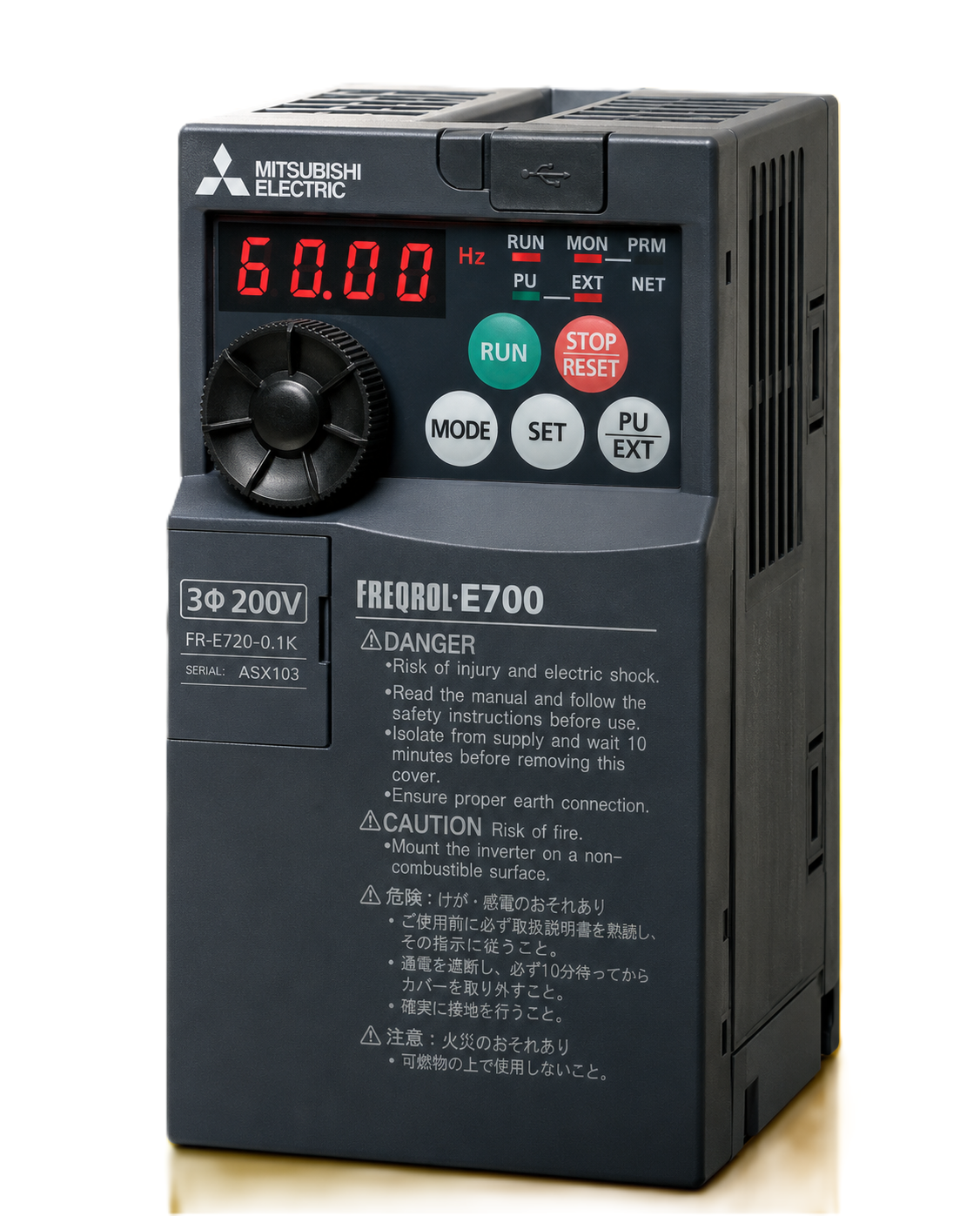

Mitsubishi Electric FREQROL-E700 3-Phase 200V VFD (Safety Stop compatible, 0.1–15kW)

Mitsubishi Electric FREQROL-E700 3-Phase 200V VFD (Safety Stop compatible, 0.1–15kW)

Mitsubishi FREQROL-E700 3-phase 200V compact VFD, 0.1–15kW.

Key features

  • Safety Stop compatible
  • Advanced magnetic flux vector control with 200%/0.5Hz starting torque (≤3.7K)
  • UL/cUL/CE compliant

Specifications

Overload Current 150% 60s, 200% 3s (inverse-time)
Output Voltage 3-Phase 200-240V
Input 3-phase 200-240V 50/60Hz
Input Voltage Range 170-264V (DC240-373V)
Frequency Tolerance ±5%
Control Method V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation
Max Frequency 400 Hz
PWM Carrier Frequency 0.7–14.5 kHz (Soft-PWM selectable)
Protection Structure IP20 (enclosed)
Communication RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1)
Safety Function EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2
Standards UL, cUL, CE
FR-E720-0.1KSC FR-E720-0.1KSC Safety Stop compatible, 0.1kW | Applied Motor: 0.1 kW | Rated Capacity: 0.3 kVA | Rated Current: 0.8 A (0.8 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 150% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 0.4 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: None (no brake resistor connection) | Cooling: Self-cooled | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 0.5 kg | Spec Type: Safety Stop compatible
FR-E720-0.2KSC FR-E720-0.2KSC Safety Stop compatible, 0.2kW | Applied Motor: 0.2 kW | Rated Capacity: 0.6 kVA | Rated Current: 1.5 A (1.4 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 150% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 0.8 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: None (no brake resistor connection) | Cooling: Self-cooled | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 0.5 kg | Spec Type: Safety Stop compatible
FR-E720-0.4KSC FR-E720-0.4KSC Safety Stop compatible, 0.4kW | Applied Motor: 0.4 kW | Rated Capacity: 1.2 kVA | Rated Current: 3 A (2.5 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 100% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 1.5 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Self-cooled | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 0.7 kg | Spec Type: Safety Stop compatible
FR-E720-0.75KSC FR-E720-0.75KSC Safety Stop compatible, 0.75kW | Applied Motor: 0.75 kW | Rated Capacity: 2.0 kVA | Rated Current: 5 A (4.1 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 100% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 2.5 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Self-cooled | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 1.0 kg | Spec Type: Safety Stop compatible
FR-E720-1.5KSC FR-E720-1.5KSC Safety Stop compatible, 1.5kW | Applied Motor: 1.5 kW | Rated Capacity: 3.2 kVA | Rated Current: 8 A (7 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 50% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 4.5 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Forced air | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 1.4 kg | Spec Type: Safety Stop compatible
FR-E720-2.2KSC FR-E720-2.2KSC Safety Stop compatible, 2.2kW | Applied Motor: 2.2 kW | Rated Capacity: 4.4 kVA | Rated Current: 11 A (10 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 20% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 5.5 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Forced air | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 1.4 kg | Spec Type: Safety Stop compatible
FR-E720-3.7KSC FR-E720-3.7KSC Safety Stop compatible, 3.7kW | Applied Motor: 3.7 kW | Rated Capacity: 7.0 kVA | Rated Current: 17.5 A (16.5 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 20% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 9 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Forced air | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 1.7 kg | Spec Type: Safety Stop compatible
FR-E720-5.5KSC FR-E720-5.5KSC Safety Stop compatible, 5.5kW | Applied Motor: 5.5 kW | Rated Capacity: 9.5 kVA | Rated Current: 24 A (23 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 20% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 12 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Forced air | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 4.3 kg | Spec Type: Safety Stop compatible
FR-E720-7.5KSC FR-E720-7.5KSC Safety Stop compatible, 7.5kW | Applied Motor: 7.5 kW | Rated Capacity: 13.1 kVA | Rated Current: 33 A (31 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 20% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 17 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Forced air | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 4.3 kg | Spec Type: Safety Stop compatible
FR-E720-11KSC FR-E720-11KSC Safety Stop compatible, 11kW | Applied Motor: 11 kW | Rated Capacity: 18.7 kVA | Rated Current: 47 A (44 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 20% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 20 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Forced air | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 6.5 kg | Spec Type: Safety Stop compatible
FR-E720-15KSC FR-E720-15KSC Safety Stop compatible, 15kW | Applied Motor: 15 kW | Rated Capacity: 23.9 kVA | Rated Current: 60 A (57 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 20% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 28 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Forced air | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 6.5 kg | Spec Type: Safety Stop compatible
Inverters (VFD)Mitsubishi Electric
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FREQROL-E700 3-Phase 200V VFD (Safety Stop compatible, 0.1–15kW)

Brand Mitsubishi Electric·Inverters (VFD)

Available part numbers (11)

FR-E720-0.1KSC, FR-E720-0.2KSC, FR-E720-0.4KSC, FR-E720-0.75KSC, FR-E720-1.5KSC, FR-E720-2.2KSC, FR-E720-3.7KSC, FR-E720-5.5KSC, FR-E720-7.5KSC, FR-E720-11KSC + 1 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-E720-0.1KSCFR-E720-0.1KSC Safety Stop compatible, 0.1kW | Applied Motor: 0.1 kW | Rated Capacity: 0.3 kVA | Rated Current: 0.8 A (0.8 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 150% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 0.4 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: None (no brake resistor connection) | Cooling: Self-cooled | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 0.5 kg | Spec Type: Safety Stop compatible
FR-E720-0.2KSCFR-E720-0.2KSC Safety Stop compatible, 0.2kW | Applied Motor: 0.2 kW | Rated Capacity: 0.6 kVA | Rated Current: 1.5 A (1.4 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 150% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 0.8 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: None (no brake resistor connection) | Cooling: Self-cooled | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 0.5 kg | Spec Type: Safety Stop compatible
FR-E720-0.4KSCFR-E720-0.4KSC Safety Stop compatible, 0.4kW | Applied Motor: 0.4 kW | Rated Capacity: 1.2 kVA | Rated Current: 3 A (2.5 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 100% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 1.5 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Self-cooled | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 0.7 kg | Spec Type: Safety Stop compatible
FR-E720-0.75KSCFR-E720-0.75KSC Safety Stop compatible, 0.75kW | Applied Motor: 0.75 kW | Rated Capacity: 2.0 kVA | Rated Current: 5 A (4.1 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 100% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 2.5 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Self-cooled | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 1.0 kg | Spec Type: Safety Stop compatible
FR-E720-1.5KSCFR-E720-1.5KSC Safety Stop compatible, 1.5kW | Applied Motor: 1.5 kW | Rated Capacity: 3.2 kVA | Rated Current: 8 A (7 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 50% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 4.5 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Forced air | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 1.4 kg | Spec Type: Safety Stop compatible
FR-E720-2.2KSCFR-E720-2.2KSC Safety Stop compatible, 2.2kW | Applied Motor: 2.2 kW | Rated Capacity: 4.4 kVA | Rated Current: 11 A (10 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 20% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 5.5 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Forced air | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 1.4 kg | Spec Type: Safety Stop compatible
FR-E720-3.7KSCFR-E720-3.7KSC Safety Stop compatible, 3.7kW | Applied Motor: 3.7 kW | Rated Capacity: 7.0 kVA | Rated Current: 17.5 A (16.5 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 20% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 9 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Forced air | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 1.7 kg | Spec Type: Safety Stop compatible
FR-E720-5.5KSCFR-E720-5.5KSC Safety Stop compatible, 5.5kW | Applied Motor: 5.5 kW | Rated Capacity: 9.5 kVA | Rated Current: 24 A (23 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 20% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 12 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Forced air | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 4.3 kg | Spec Type: Safety Stop compatible
FR-E720-7.5KSCFR-E720-7.5KSC Safety Stop compatible, 7.5kW | Applied Motor: 7.5 kW | Rated Capacity: 13.1 kVA | Rated Current: 33 A (31 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 20% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 17 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Forced air | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 4.3 kg | Spec Type: Safety Stop compatible
FR-E720-11KSCFR-E720-11KSC Safety Stop compatible, 11kW | Applied Motor: 11 kW | Rated Capacity: 18.7 kVA | Rated Current: 47 A (44 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 20% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 20 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Forced air | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 6.5 kg | Spec Type: Safety Stop compatible
FR-E720-15KSCFR-E720-15KSC Safety Stop compatible, 15kW | Applied Motor: 15 kW | Rated Capacity: 23.9 kVA | Rated Current: 60 A (57 A at 2kHz+ low-noise PWM) | Overload Current: 150% 60s, 200% 3s (inverse-time) | Output Voltage: 3-Phase 200-240V | Regenerative Torque: 20% | Input: 3-phase 200-240V 50/60Hz | Input Voltage Range: 170-264V (DC240-373V) | Frequency Tolerance: ±5% | Power Supply Capacity: 28 kVA | Control Method: V/F, General-purpose magnetic flux vector, Advanced magnetic flux vector, Optimum excitation | Max Frequency: 400 Hz | PWM Carrier Frequency: 0.7–14.5 kHz (Soft-PWM selectable) | Brake Transistor: Built-in (0.4K and above) | Cooling: Forced air | Protection Structure: IP20 (enclosed) | Communication: RS-485 (PU connector, EIA-485), USB Mini-B (Ver 1.1) | Safety Function: EN ISO 13849-1 Cat.3 PLd / EN62061 SIL2 / IEC61508 SIL2 | Standards: UL, cUL, CE | Mass: 6.5 kg | Spec Type: Safety Stop compatible
