• Mitsubishi Electric FREQROL FR-D710W Single-Phase 100V Compact Inverter (0.1-0.75kW)
1 1

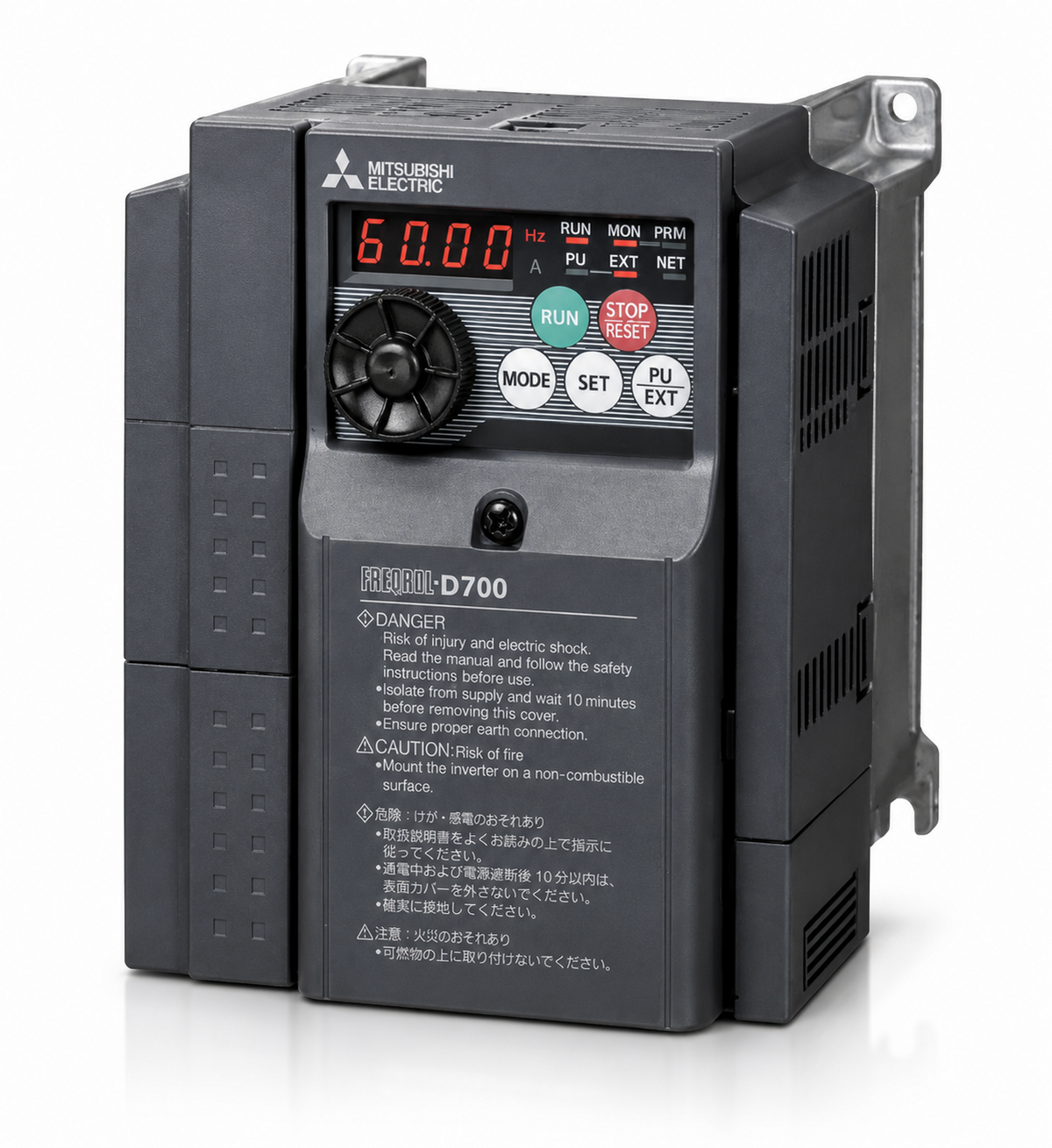

Mitsubishi Electric FREQROL FR-D710W Single-Phase 100V Compact Inverter (0.1-0.75kW)

Mitsubishi Electric FREQROL FR-D710W Single-Phase 100V Compact Inverter (0.1-0.75kW)

Mitsubishi FREQROL FR-D710W general-purpose inverter (VFD), Single-Phase 100V input, 0.1-0.75kW (3-phase 200-230V output).

Key features

  • Spring-clamp control terminals, 150% 60s / 200% 0.5s overload, IP20

Specifications

Input Power Single-phase 100-115V 50/60Hz
Output Voltage 3-phase 200-230V
Output Monitor FM terminal (pulse train output)
Cooling Self-cooling
FR-D710W-0.1K FR-D710W single-phase 100v inverter, 0.1kW, FM terminal | Applied Motor: 0.1 kW | Rated Capacity: 0.3 kVA | Rated Current: 0.8 A | Input Power: Single-phase 100-115V 50/60Hz | Output Voltage: 3-phase 200-230V | Regen Braking Torque: 150% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 0.6 kg
FR-D710W-0.2K FR-D710W single-phase 100v inverter, 0.2kW, FM terminal | Applied Motor: 0.2 kW | Rated Capacity: 0.6 kVA | Rated Current: 1.4 A | Input Power: Single-phase 100-115V 50/60Hz | Output Voltage: 3-phase 200-230V | Regen Braking Torque: 150% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 0.7 kg
FR-D710W-0.4K FR-D710W single-phase 100v inverter, 0.4kW, FM terminal | Applied Motor: 0.4 kW | Rated Capacity: 1.0 kVA | Rated Current: 2.5 A | Input Power: Single-phase 100-115V 50/60Hz | Output Voltage: 3-phase 200-230V | Regen Braking Torque: 100% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 0.9 kg
FR-D710W-0.75K FR-D710W single-phase 100v inverter, 0.75kW, FM terminal | Applied Motor: 0.75 kW | Rated Capacity: 1.7 kVA | Rated Current: 4.2 A | Input Power: Single-phase 100-115V 50/60Hz | Output Voltage: 3-phase 200-230V | Regen Braking Torque: 100% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 1.4 kg
Inverters (VFD)Mitsubishi Electric
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FREQROL FR-D710W Single-Phase 100V Compact Inverter (0.1-0.75kW)

Brand Mitsubishi Electric·Inverters (VFD)

Available part numbers (4)

FR-D710W-0.1K, FR-D710W-0.2K, FR-D710W-0.4K, FR-D710W-0.75K

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-D710W-0.1KFR-D710W single-phase 100v inverter, 0.1kW, FM terminal | Applied Motor: 0.1 kW | Rated Capacity: 0.3 kVA | Rated Current: 0.8 A | Input Power: Single-phase 100-115V 50/60Hz | Output Voltage: 3-phase 200-230V | Regen Braking Torque: 150% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 0.6 kg
FR-D710W-0.2KFR-D710W single-phase 100v inverter, 0.2kW, FM terminal | Applied Motor: 0.2 kW | Rated Capacity: 0.6 kVA | Rated Current: 1.4 A | Input Power: Single-phase 100-115V 50/60Hz | Output Voltage: 3-phase 200-230V | Regen Braking Torque: 150% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 0.7 kg
FR-D710W-0.4KFR-D710W single-phase 100v inverter, 0.4kW, FM terminal | Applied Motor: 0.4 kW | Rated Capacity: 1.0 kVA | Rated Current: 2.5 A | Input Power: Single-phase 100-115V 50/60Hz | Output Voltage: 3-phase 200-230V | Regen Braking Torque: 100% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 0.9 kg
FR-D710W-0.75KFR-D710W single-phase 100v inverter, 0.75kW, FM terminal | Applied Motor: 0.75 kW | Rated Capacity: 1.7 kVA | Rated Current: 4.2 A | Input Power: Single-phase 100-115V 50/60Hz | Output Voltage: 3-phase 200-230V | Regen Braking Torque: 100% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 1.4 kg
