• Mitsubishi Electric FREQROL FR-D720S Single-Phase 200V Compact Inverter (0.1-2.2kW)
1 1

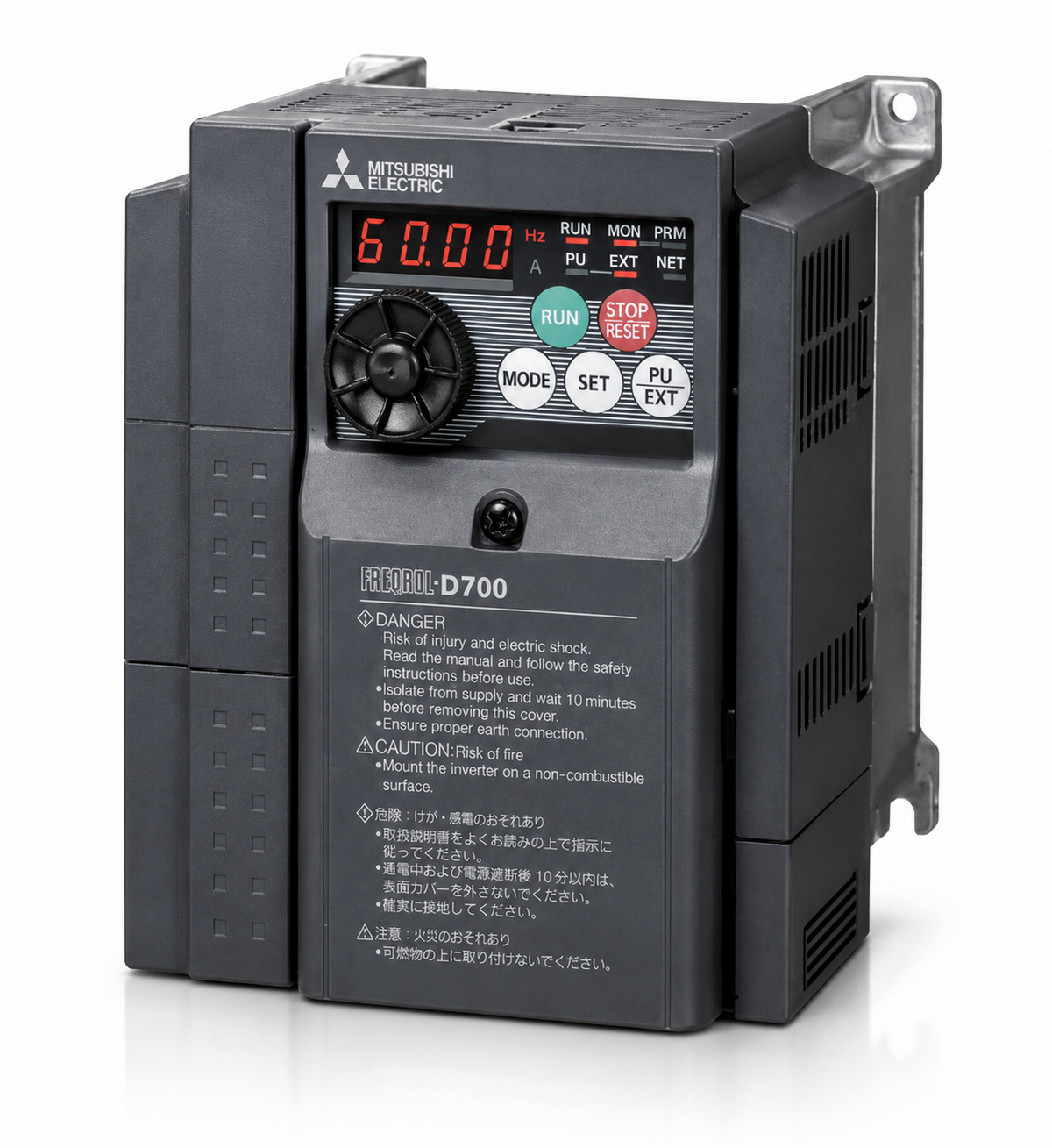

Mitsubishi Electric FREQROL FR-D720S Single-Phase 200V Compact Inverter (0.1-2.2kW)

Mitsubishi Electric FREQROL FR-D720S Single-Phase 200V Compact Inverter (0.1-2.2kW)

Mitsubishi FREQROL FR-D720S general-purpose inverter (VFD), Single-Phase 200V input, 0.1-2.2kW.

Key features

  • Spring-clamp control terminals, 150% 60s / 200% 0.5s overload, IP20; FM (pulse) and AM (0-10V) output terminal versions

Specifications

Input Power Single-phase 200-240V 50/60Hz
Output Voltage 3-phase 200-240V
FR-D720S-0.1K FR-D720S single-phase 200v inverter, 0.1kW, FM terminal | Applied Motor: 0.1 kW | Rated Capacity: 0.3 kVA | Rated Current: 0.8 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 150% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 0.5 kg
FR-D720S-0.1K-EA FR-D720S single-phase 200v inverter, 0.1kW, AM terminal | Applied Motor: 0.1 kW | Rated Capacity: 0.3 kVA | Rated Current: 0.8 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 150% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Self-cooling | Weight: 0.5 kg
FR-D720S-0.2K FR-D720S single-phase 200v inverter, 0.2kW, FM terminal | Applied Motor: 0.2 kW | Rated Capacity: 0.6 kVA | Rated Current: 1.4 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 150% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 0.5 kg
FR-D720S-0.2K-EA FR-D720S single-phase 200v inverter, 0.2kW, AM terminal | Applied Motor: 0.2 kW | Rated Capacity: 0.6 kVA | Rated Current: 1.4 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 150% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Self-cooling | Weight: 0.5 kg
FR-D720S-0.4K FR-D720S single-phase 200v inverter, 0.4kW, FM terminal | Applied Motor: 0.4 kW | Rated Capacity: 1.0 kVA | Rated Current: 2.5 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 100% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 0.9 kg
FR-D720S-0.4K-EA FR-D720S single-phase 200v inverter, 0.4kW, AM terminal | Applied Motor: 0.4 kW | Rated Capacity: 1.0 kVA | Rated Current: 2.5 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 100% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Self-cooling | Weight: 0.9 kg
FR-D720S-0.75K FR-D720S single-phase 200v inverter, 0.75kW, FM terminal | Applied Motor: 0.75 kW | Rated Capacity: 1.7 kVA | Rated Current: 4.2 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 100% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 1.1 kg
FR-D720S-0.75K-EA FR-D720S single-phase 200v inverter, 0.75kW, AM terminal | Applied Motor: 0.75 kW | Rated Capacity: 1.7 kVA | Rated Current: 4.2 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 100% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Self-cooling | Weight: 1.1 kg
FR-D720S-1.5K FR-D720S single-phase 200v inverter, 1.5kW, FM terminal | Applied Motor: 1.5 kW | Rated Capacity: 2.8 kVA | Rated Current: 7.0 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 50% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 1.5 kg
FR-D720S-1.5K-EA FR-D720S single-phase 200v inverter, 1.5kW, AM terminal | Applied Motor: 1.5 kW | Rated Capacity: 2.8 kVA | Rated Current: 7.0 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 50% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 1.5 kg
FR-D720S-2.2K FR-D720S single-phase 200v inverter, 2.2kW, FM terminal | Applied Motor: 2.2 kW | Rated Capacity: 4.0 kVA | Rated Current: 10.0 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 20% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 2.0 kg
FR-D720S-2.2K-EA FR-D720S single-phase 200v inverter, 2.2kW, AM terminal | Applied Motor: 2.2 kW | Rated Capacity: 4.0 kVA | Rated Current: 10.0 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 20% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 2.0 kg
Inverters (VFD)Mitsubishi Electric
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FREQROL FR-D720S Single-Phase 200V Compact Inverter (0.1-2.2kW)

Brand Mitsubishi Electric·Inverters (VFD)

Available part numbers (12)

FR-D720S-0.1K, FR-D720S-0.1K-EA, FR-D720S-0.2K, FR-D720S-0.2K-EA, FR-D720S-0.4K, FR-D720S-0.4K-EA, FR-D720S-0.75K, FR-D720S-0.75K-EA, FR-D720S-1.5K, FR-D720S-1.5K-EA + 2 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-D720S-0.1KFR-D720S single-phase 200v inverter, 0.1kW, FM terminal | Applied Motor: 0.1 kW | Rated Capacity: 0.3 kVA | Rated Current: 0.8 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 150% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 0.5 kg
FR-D720S-0.1K-EAFR-D720S single-phase 200v inverter, 0.1kW, AM terminal | Applied Motor: 0.1 kW | Rated Capacity: 0.3 kVA | Rated Current: 0.8 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 150% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Self-cooling | Weight: 0.5 kg
FR-D720S-0.2KFR-D720S single-phase 200v inverter, 0.2kW, FM terminal | Applied Motor: 0.2 kW | Rated Capacity: 0.6 kVA | Rated Current: 1.4 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 150% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 0.5 kg
FR-D720S-0.2K-EAFR-D720S single-phase 200v inverter, 0.2kW, AM terminal | Applied Motor: 0.2 kW | Rated Capacity: 0.6 kVA | Rated Current: 1.4 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 150% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Self-cooling | Weight: 0.5 kg
FR-D720S-0.4KFR-D720S single-phase 200v inverter, 0.4kW, FM terminal | Applied Motor: 0.4 kW | Rated Capacity: 1.0 kVA | Rated Current: 2.5 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 100% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 0.9 kg
FR-D720S-0.4K-EAFR-D720S single-phase 200v inverter, 0.4kW, AM terminal | Applied Motor: 0.4 kW | Rated Capacity: 1.0 kVA | Rated Current: 2.5 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 100% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Self-cooling | Weight: 0.9 kg
FR-D720S-0.75KFR-D720S single-phase 200v inverter, 0.75kW, FM terminal | Applied Motor: 0.75 kW | Rated Capacity: 1.7 kVA | Rated Current: 4.2 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 100% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 1.1 kg
FR-D720S-0.75K-EAFR-D720S single-phase 200v inverter, 0.75kW, AM terminal | Applied Motor: 0.75 kW | Rated Capacity: 1.7 kVA | Rated Current: 4.2 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 100% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Self-cooling | Weight: 1.1 kg
FR-D720S-1.5KFR-D720S single-phase 200v inverter, 1.5kW, FM terminal | Applied Motor: 1.5 kW | Rated Capacity: 2.8 kVA | Rated Current: 7.0 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 50% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 1.5 kg
FR-D720S-1.5K-EAFR-D720S single-phase 200v inverter, 1.5kW, AM terminal | Applied Motor: 1.5 kW | Rated Capacity: 2.8 kVA | Rated Current: 7.0 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 50% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 1.5 kg
FR-D720S-2.2KFR-D720S single-phase 200v inverter, 2.2kW, FM terminal | Applied Motor: 2.2 kW | Rated Capacity: 4.0 kVA | Rated Current: 10.0 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 20% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 2.0 kg
FR-D720S-2.2K-EAFR-D720S single-phase 200v inverter, 2.2kW, AM terminal | Applied Motor: 2.2 kW | Rated Capacity: 4.0 kVA | Rated Current: 10.0 A | Input Power: Single-phase 200-240V 50/60Hz | Output Voltage: 3-phase 200-240V | Regen Braking Torque: 20% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 2.0 kg
