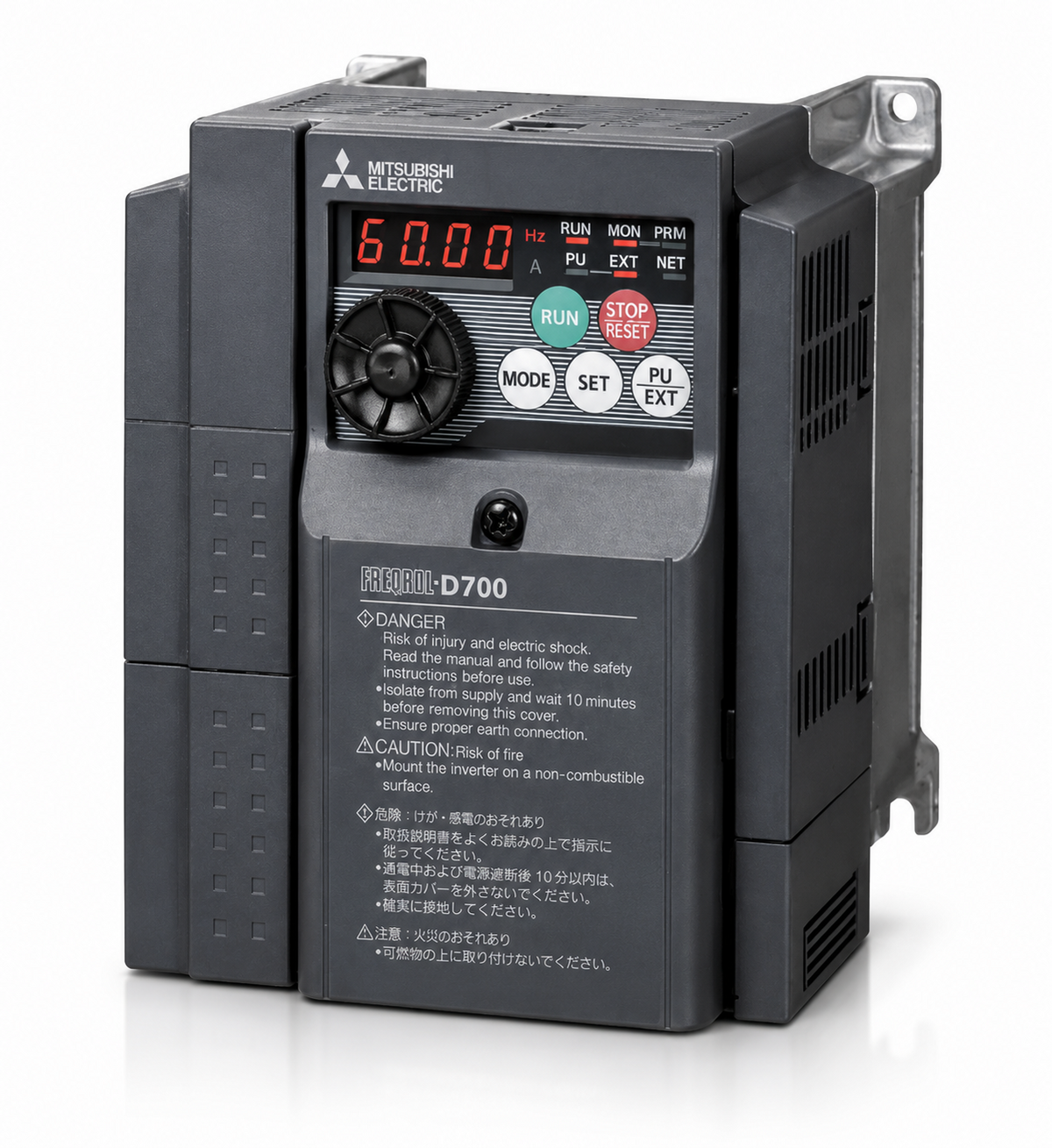

Mitsubishi Electric FREQROL FR-D740 Three-Phase 400V Compact Inverter (0.4-15kW)

Mitsubishi Electric FREQROL FR-D740 Three-Phase 400V Compact Inverter (0.4-15kW)

Mitsubishi FREQROL FR-D740 general-purpose inverter (VFD), Three-Phase 400V input, 0.4-15kW.

Key features

  • Spring-clamp control terminals, 150% 60s / 200% 0.5s overload, IP20; FM (pulse) and AM (0-10V) output terminal versions

Specifications

Input Power 3-phase 380-480V 50/60Hz
Output Voltage 3-phase 380-480V
FR-D740-0.4K FR-D740 three-phase 400v inverter, 0.4kW, FM terminal | Applied Motor: 0.4 kW | Rated Capacity: 0.9 kVA | Rated Current: 1.2 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 100% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 1.3 kg
FR-D740-0.4K-EA FR-D740 three-phase 400v inverter, 0.4kW, AM terminal | Applied Motor: 0.4 kW | Rated Capacity: 0.9 kVA | Rated Current: 1.2 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 100% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Self-cooling | Weight: 1.3 kg
FR-D740-0.75K FR-D740 three-phase 400v inverter, 0.75kW, FM terminal | Applied Motor: 0.75 kW | Rated Capacity: 1.7 kVA | Rated Current: 2.2 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 100% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 1.3 kg
FR-D740-0.75K-EA FR-D740 three-phase 400v inverter, 0.75kW, AM terminal | Applied Motor: 0.75 kW | Rated Capacity: 1.7 kVA | Rated Current: 2.2 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 100% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Self-cooling | Weight: 1.3 kg
FR-D740-1.5K FR-D740 three-phase 400v inverter, 1.5kW, FM terminal | Applied Motor: 1.5 kW | Rated Capacity: 2.7 kVA | Rated Current: 3.6 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 50% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 1.4 kg
FR-D740-1.5K-EA FR-D740 three-phase 400v inverter, 1.5kW, AM terminal | Applied Motor: 1.5 kW | Rated Capacity: 2.7 kVA | Rated Current: 3.6 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 50% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 1.4 kg
FR-D740-2.2K FR-D740 three-phase 400v inverter, 2.2kW, FM terminal | Applied Motor: 2.2 kW | Rated Capacity: 3.8 kVA | Rated Current: 5.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 1.5 kg
FR-D740-2.2K-EA FR-D740 three-phase 400v inverter, 2.2kW, AM terminal | Applied Motor: 2.2 kW | Rated Capacity: 3.8 kVA | Rated Current: 5.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 1.5 kg
FR-D740-3.7K FR-D740 three-phase 400v inverter, 3.7kW, FM terminal | Applied Motor: 3.7 kW | Rated Capacity: 6.1 kVA | Rated Current: 8.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 1.5 kg
FR-D740-3.7K-EA FR-D740 three-phase 400v inverter, 3.7kW, AM terminal | Applied Motor: 3.7 kW | Rated Capacity: 6.1 kVA | Rated Current: 8.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 1.5 kg
FR-D740-5.5K FR-D740 three-phase 400v inverter, 5.5kW, FM terminal | Applied Motor: 5.5 kW | Rated Capacity: 9.1 kVA | Rated Current: 12.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 3.3 kg
FR-D740-5.5K-EA FR-D740 three-phase 400v inverter, 5.5kW, AM terminal | Applied Motor: 5.5 kW | Rated Capacity: 9.1 kVA | Rated Current: 12.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 3.3 kg
FR-D740-7.5K FR-D740 three-phase 400v inverter, 7.5kW, FM terminal | Applied Motor: 7.5 kW | Rated Capacity: 12.2 kVA | Rated Current: 16.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 3.3 kg
FR-D740-7.5K-EA FR-D740 three-phase 400v inverter, 7.5kW, AM terminal | Applied Motor: 7.5 kW | Rated Capacity: 12.2 kVA | Rated Current: 16.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 3.3 kg
FR-D740-11K FR-D740 three-phase 400v inverter, 11kW, FM terminal | Applied Motor: 11 kW | Rated Capacity: 17.5 kVA | Rated Current: 23.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 6.0 kg
FR-D740-11K-EA FR-D740 three-phase 400v inverter, 11kW, AM terminal | Applied Motor: 11 kW | Rated Capacity: 17.5 kVA | Rated Current: 23.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 6.0 kg
FR-D740-15K FR-D740 three-phase 400v inverter, 15kW, FM terminal | Applied Motor: 15 kW | Rated Capacity: 22.5 kVA | Rated Current: 29.5 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 6.0 kg
FR-D740-15K-EA FR-D740 three-phase 400v inverter, 15kW, AM terminal | Applied Motor: 15 kW | Rated Capacity: 22.5 kVA | Rated Current: 29.5 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 6.0 kg
Inverters (VFD)Mitsubishi Electric
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FREQROL FR-D740 Three-Phase 400V Compact Inverter (0.4-15kW)

Brand Mitsubishi Electric·Inverters (VFD)

Available part numbers (18)

FR-D740-0.4K, FR-D740-0.4K-EA, FR-D740-0.75K, FR-D740-0.75K-EA, FR-D740-1.5K, FR-D740-1.5K-EA, FR-D740-2.2K, FR-D740-2.2K-EA, FR-D740-3.7K, FR-D740-3.7K-EA + 8 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-D740-0.4KFR-D740 three-phase 400v inverter, 0.4kW, FM terminal | Applied Motor: 0.4 kW | Rated Capacity: 0.9 kVA | Rated Current: 1.2 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 100% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 1.3 kg
FR-D740-0.4K-EAFR-D740 three-phase 400v inverter, 0.4kW, AM terminal | Applied Motor: 0.4 kW | Rated Capacity: 0.9 kVA | Rated Current: 1.2 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 100% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Self-cooling | Weight: 1.3 kg
FR-D740-0.75KFR-D740 three-phase 400v inverter, 0.75kW, FM terminal | Applied Motor: 0.75 kW | Rated Capacity: 1.7 kVA | Rated Current: 2.2 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 100% | Output Monitor: FM terminal (pulse train output) | Cooling: Self-cooling | Weight: 1.3 kg
FR-D740-0.75K-EAFR-D740 three-phase 400v inverter, 0.75kW, AM terminal | Applied Motor: 0.75 kW | Rated Capacity: 1.7 kVA | Rated Current: 2.2 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 100% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Self-cooling | Weight: 1.3 kg
FR-D740-1.5KFR-D740 three-phase 400v inverter, 1.5kW, FM terminal | Applied Motor: 1.5 kW | Rated Capacity: 2.7 kVA | Rated Current: 3.6 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 50% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 1.4 kg
FR-D740-1.5K-EAFR-D740 three-phase 400v inverter, 1.5kW, AM terminal | Applied Motor: 1.5 kW | Rated Capacity: 2.7 kVA | Rated Current: 3.6 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 50% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 1.4 kg
FR-D740-2.2KFR-D740 three-phase 400v inverter, 2.2kW, FM terminal | Applied Motor: 2.2 kW | Rated Capacity: 3.8 kVA | Rated Current: 5.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 1.5 kg
FR-D740-2.2K-EAFR-D740 three-phase 400v inverter, 2.2kW, AM terminal | Applied Motor: 2.2 kW | Rated Capacity: 3.8 kVA | Rated Current: 5.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 1.5 kg
FR-D740-3.7KFR-D740 three-phase 400v inverter, 3.7kW, FM terminal | Applied Motor: 3.7 kW | Rated Capacity: 6.1 kVA | Rated Current: 8.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 1.5 kg
FR-D740-3.7K-EAFR-D740 three-phase 400v inverter, 3.7kW, AM terminal | Applied Motor: 3.7 kW | Rated Capacity: 6.1 kVA | Rated Current: 8.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 1.5 kg
FR-D740-5.5KFR-D740 three-phase 400v inverter, 5.5kW, FM terminal | Applied Motor: 5.5 kW | Rated Capacity: 9.1 kVA | Rated Current: 12.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 3.3 kg
FR-D740-5.5K-EAFR-D740 three-phase 400v inverter, 5.5kW, AM terminal | Applied Motor: 5.5 kW | Rated Capacity: 9.1 kVA | Rated Current: 12.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 3.3 kg
FR-D740-7.5KFR-D740 three-phase 400v inverter, 7.5kW, FM terminal | Applied Motor: 7.5 kW | Rated Capacity: 12.2 kVA | Rated Current: 16.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 3.3 kg
FR-D740-7.5K-EAFR-D740 three-phase 400v inverter, 7.5kW, AM terminal | Applied Motor: 7.5 kW | Rated Capacity: 12.2 kVA | Rated Current: 16.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 3.3 kg
FR-D740-11KFR-D740 three-phase 400v inverter, 11kW, FM terminal | Applied Motor: 11 kW | Rated Capacity: 17.5 kVA | Rated Current: 23.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 6.0 kg
FR-D740-11K-EAFR-D740 three-phase 400v inverter, 11kW, AM terminal | Applied Motor: 11 kW | Rated Capacity: 17.5 kVA | Rated Current: 23.0 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 6.0 kg
FR-D740-15KFR-D740 three-phase 400v inverter, 15kW, FM terminal | Applied Motor: 15 kW | Rated Capacity: 22.5 kVA | Rated Current: 29.5 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: FM terminal (pulse train output) | Cooling: Forced-air cooling | Weight: 6.0 kg
FR-D740-15K-EAFR-D740 three-phase 400v inverter, 15kW, AM terminal | Applied Motor: 15 kW | Rated Capacity: 22.5 kVA | Rated Current: 29.5 A | Input Power: 3-phase 380-480V 50/60Hz | Output Voltage: 3-phase 380-480V | Regen Braking Torque: 20% | Output Monitor: AM terminal (0-10V analog output) | Cooling: Forced-air cooling | Weight: 6.0 kg
