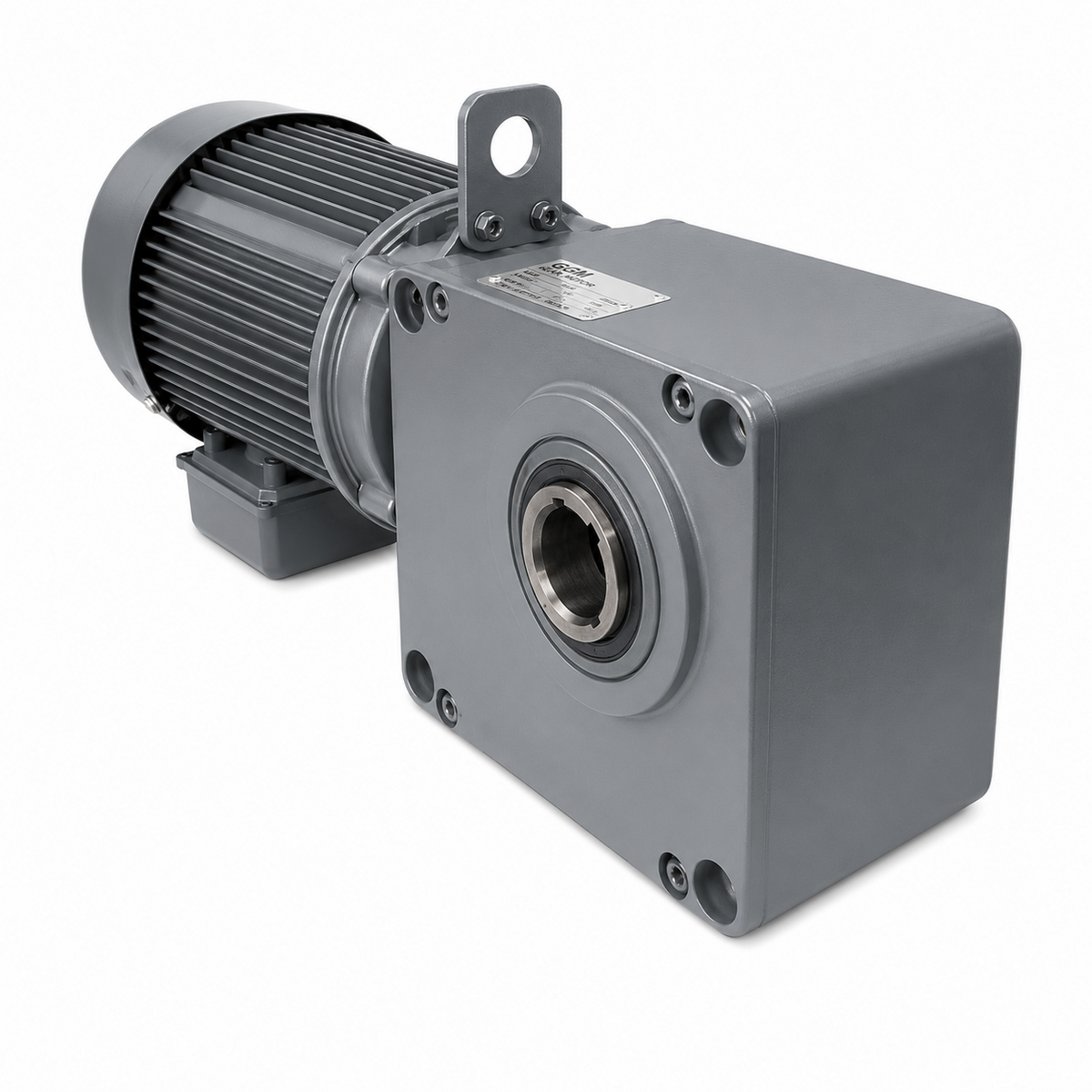

Mitsubishi Electric GM-SHYW 0.4kW Dust-Proof Waterproof IP65 Geared Motor (Right-Angle Hypoid, Leg Mount)

Mitsubishi Electric GM-SHYW 0.4kW dust-proof waterproof geared motor rated IP65 equivalent, right-angle hypoid type with leg mounting.

Key features

All models made-to-order
Brake versions manufacturable on request
Semi-standard: 400/400/440V 50/60/60Hz, terminal box B/C/D assembly
Other specifications identical to the standard GM-SHY series

Specifications

Output	0.4kW
Protection	IP65 equivalent dust-proof waterproof
Power Supply	3-phase 200/200/220V 50/60/60Hz
Poles	4P
Mount	Leg
Shaft	Solid shaft
Coating	Epoxy resin - light gray (Munsell N8.0)
Installation	Indoor and outdoor (avoid direct sunlight)
Brake	Manufacturable on request
Availability	Made-to-order

GM-SHYW 0.4kW 1/5		GM-SHYW 0.4kW ratio 1/5 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/5 \| Output Speed 50Hz: 300r/min \| Output Speed 60Hz: 360r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/7.5		GM-SHYW 0.4kW ratio 1/7.5 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/7.5 \| Output Speed 50Hz: 200r/min \| Output Speed 60Hz: 240r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/10		GM-SHYW 0.4kW ratio 1/10 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/10 \| Output Speed 50Hz: 150r/min \| Output Speed 60Hz: 180r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/12.5		GM-SHYW 0.4kW ratio 1/12.5 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/12.5 \| Output Speed 50Hz: 120r/min \| Output Speed 60Hz: 144r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/15		GM-SHYW 0.4kW ratio 1/15 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/15 \| Output Speed 50Hz: 100r/min \| Output Speed 60Hz: 120r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/20		GM-SHYW 0.4kW ratio 1/20 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/20 \| Output Speed 50Hz: 75r/min \| Output Speed 60Hz: 90r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/25		GM-SHYW 0.4kW ratio 1/25 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/25 \| Output Speed 50Hz: 60r/min \| Output Speed 60Hz: 72r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/30		GM-SHYW 0.4kW ratio 1/30 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/30 \| Output Speed 50Hz: 50r/min \| Output Speed 60Hz: 60r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/40		GM-SHYW 0.4kW ratio 1/40 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/40 \| Output Speed 50Hz: 37.5r/min \| Output Speed 60Hz: 45r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/50		GM-SHYW 0.4kW ratio 1/50 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/50 \| Output Speed 50Hz: 30r/min \| Output Speed 60Hz: 36r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/60		GM-SHYW 0.4kW ratio 1/60 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/60 \| Output Speed 50Hz: 25r/min \| Output Speed 60Hz: 30r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/80		GM-SHYW 0.4kW ratio 1/80 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/80 \| Output Speed 50Hz: 18.8r/min \| Output Speed 60Hz: 22.5r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/100		GM-SHYW 0.4kW ratio 1/100 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/100 \| Output Speed 50Hz: 15r/min \| Output Speed 60Hz: 18r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/120		GM-SHYW 0.4kW ratio 1/120 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/120 \| Output Speed 50Hz: 12.5r/min \| Output Speed 60Hz: 15r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/160		GM-SHYW 0.4kW ratio 1/160 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/160 \| Output Speed 50Hz: 9.4r/min \| Output Speed 60Hz: 11.3r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/200		GM-SHYW 0.4kW ratio 1/200 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/200 \| Output Speed 50Hz: 7.5r/min \| Output Speed 60Hz: 9r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/240		GM-SHYW 0.4kW ratio 1/240 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/240 \| Output Speed 50Hz: 6.3r/min \| Output Speed 60Hz: 7.5r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/300		GM-SHYW 0.4kW ratio 1/300 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/300 \| Output Speed 50Hz: 5r/min \| Output Speed 60Hz: 6r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/360		GM-SHYW 0.4kW ratio 1/360 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/360 \| Output Speed 50Hz: 4.2r/min \| Output Speed 60Hz: 5r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
GM-SHYW 0.4kW 1/480		GM-SHYW 0.4kW ratio 1/480 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/480 \| Output Speed 50Hz: 3.1r/min \| Output Speed 60Hz: 3.8r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order

Geared MotorsMitsubishi Electric

20 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GM-SHYW 0.4kW Dust-Proof Waterproof IP65 Geared Motor (Right-Angle Hypoid, Leg Mount)

Brand Mitsubishi Electric·Geared Motors

Available part numbers (20)

GM-SHYW 0.4kW 1/5, GM-SHYW 0.4kW 1/7.5, GM-SHYW 0.4kW 1/10, GM-SHYW 0.4kW 1/12.5, GM-SHYW 0.4kW 1/15, GM-SHYW 0.4kW 1/20, GM-SHYW 0.4kW 1/25, GM-SHYW 0.4kW 1/30, GM-SHYW 0.4kW 1/40, GM-SHYW 0.4kW 1/50 + 10 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	GM-SHYW 0.4kW 1/5	GM-SHYW 0.4kW ratio 1/5 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/5 \| Output Speed 50Hz: 300r/min \| Output Speed 60Hz: 360r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/7.5	GM-SHYW 0.4kW ratio 1/7.5 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/7.5 \| Output Speed 50Hz: 200r/min \| Output Speed 60Hz: 240r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/10	GM-SHYW 0.4kW ratio 1/10 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/10 \| Output Speed 50Hz: 150r/min \| Output Speed 60Hz: 180r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/12.5	GM-SHYW 0.4kW ratio 1/12.5 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/12.5 \| Output Speed 50Hz: 120r/min \| Output Speed 60Hz: 144r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/15	GM-SHYW 0.4kW ratio 1/15 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/15 \| Output Speed 50Hz: 100r/min \| Output Speed 60Hz: 120r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/20	GM-SHYW 0.4kW ratio 1/20 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/20 \| Output Speed 50Hz: 75r/min \| Output Speed 60Hz: 90r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/25	GM-SHYW 0.4kW ratio 1/25 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/25 \| Output Speed 50Hz: 60r/min \| Output Speed 60Hz: 72r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/30	GM-SHYW 0.4kW ratio 1/30 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/30 \| Output Speed 50Hz: 50r/min \| Output Speed 60Hz: 60r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/40	GM-SHYW 0.4kW ratio 1/40 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/40 \| Output Speed 50Hz: 37.5r/min \| Output Speed 60Hz: 45r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/50	GM-SHYW 0.4kW ratio 1/50 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/50 \| Output Speed 50Hz: 30r/min \| Output Speed 60Hz: 36r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/60	GM-SHYW 0.4kW ratio 1/60 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/60 \| Output Speed 50Hz: 25r/min \| Output Speed 60Hz: 30r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/80	GM-SHYW 0.4kW ratio 1/80 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/80 \| Output Speed 50Hz: 18.8r/min \| Output Speed 60Hz: 22.5r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/100	GM-SHYW 0.4kW ratio 1/100 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/100 \| Output Speed 50Hz: 15r/min \| Output Speed 60Hz: 18r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/120	GM-SHYW 0.4kW ratio 1/120 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/120 \| Output Speed 50Hz: 12.5r/min \| Output Speed 60Hz: 15r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/160	GM-SHYW 0.4kW ratio 1/160 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/160 \| Output Speed 50Hz: 9.4r/min \| Output Speed 60Hz: 11.3r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/200	GM-SHYW 0.4kW ratio 1/200 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/200 \| Output Speed 50Hz: 7.5r/min \| Output Speed 60Hz: 9r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/240	GM-SHYW 0.4kW ratio 1/240 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/240 \| Output Speed 50Hz: 6.3r/min \| Output Speed 60Hz: 7.5r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/300	GM-SHYW 0.4kW ratio 1/300 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/300 \| Output Speed 50Hz: 5r/min \| Output Speed 60Hz: 6r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/360	GM-SHYW 0.4kW ratio 1/360 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/360 \| Output Speed 50Hz: 4.2r/min \| Output Speed 60Hz: 5r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
	GM-SHYW 0.4kW 1/480	GM-SHYW 0.4kW ratio 1/480 IP65 waterproof, leg mount \| Output: 0.4kW \| Nominal Ratio: 1/480 \| Output Speed 50Hz: 3.1r/min \| Output Speed 60Hz: 3.8r/min \| Protection: IP65 equivalent dust-proof waterproof \| Power Supply: 3-phase 200/200/220V 50/60/60Hz \| Poles: 4P \| Mount: Leg \| Shaft: Solid shaft \| Coating: Epoxy resin - light gray (Munsell N8.0) \| Installation: Indoor and outdoor (avoid direct sunlight) \| Brake: Manufacturable on request \| Availability: Made-to-order
