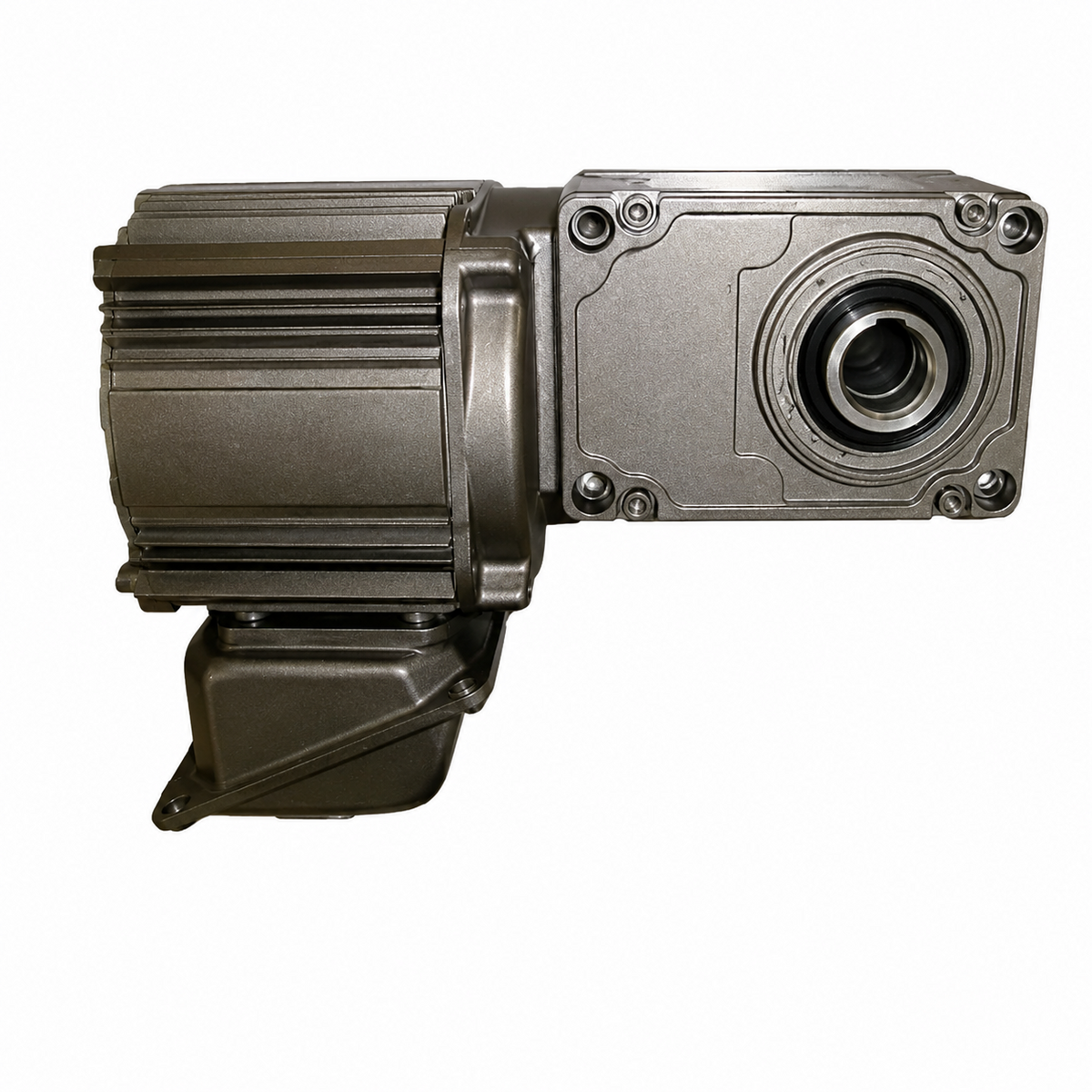

Mitsubishi Electric GV-SSYF 2.2kW S-PM Sensorless Servo Right-Angle Geared Motor (Super Heli-Cross)

Mitsubishi Electric GV-SSYF 2.2kW S-PM Sensorless Servo Right-Angle Geared Motor (Super Heli-Cross)

Mitsubishi Electric GV-SSYF 2.2kW S-PM sensorless servo super heli-cross right-angle geared motor, hollow shaft with flange/face-common mounting.

Key features

  • Permanent-magnet motor with PM sensorless vector control for wide constant-torque control
  • Nominal reduction ratios 1/7.5 to 1/25 with permissible output torque 46 to 160 Nm
  • Motor rated 3000 r/min, 6P, insulation 130(B), grease-lubricated, IP44 indoor
  • Requires a matching S-PM drive unit (3-phase 200-240V input; cannot be connected directly to commercial power)

Specifications

Series GV-SSY (S-PM sensorless servo)
Type Right-Angle Super Heli-Cross
Shaft Hollow shaft
Mount Flange / face mount (common)
Brake None
Output 2.2kW
Poles 6P
Motor Rated Voltage 155V
Motor Rated Current 9.4A
Drive Input 3-phase 200-240V 50/60Hz (drive unit required)
Insulation 130(B)
Enclosure Totally-enclosed fan-cooled (TEFC)
GV-SSYF 2.2kW 1/7.5 GV-SSYF 2.2kW 1/7.5, hollow shaft flange/face mount, 46Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 2.2kW | Poles: 6P | Nominal Ratio: 1/7.5 | Actual Ratio: 1/7.26 | Output Speed: 400 r/min (motor 3000 r/min) | Permissible Output Torque: 46 Nm | Permissible Overhang Load: 2260 N | Permissible Thrust Load: 452 N | Motor Rated Voltage: 155V | Motor Rated Current: 9.4A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 2.2kW 1/10 GV-SSYF 2.2kW 1/10, hollow shaft flange/face mount, 63Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 2.2kW | Poles: 6P | Nominal Ratio: 1/10 | Actual Ratio: 1/10.00 | Output Speed: 300 r/min (motor 3000 r/min) | Permissible Output Torque: 63 Nm | Permissible Overhang Load: 2350 N | Permissible Thrust Load: N | Motor Rated Voltage: 155V | Motor Rated Current: 9.4A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 2.2kW 1/12.5 GV-SSYF 2.2kW 1/12.5, hollow shaft flange/face mount, 78Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 2.2kW | Poles: 6P | Nominal Ratio: 1/12.5 | Actual Ratio: 1/12.42 | Output Speed: 240 r/min (motor 3000 r/min) | Permissible Output Torque: 78 Nm | Permissible Overhang Load: 2450 N | Permissible Thrust Load: 490 N | Motor Rated Voltage: 155V | Motor Rated Current: 9.4A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 2.2kW 1/15 GV-SSYF 2.2kW 1/15, hollow shaft flange/face mount, 95Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 2.2kW | Poles: 6P | Nominal Ratio: 1/15 | Actual Ratio: 1/15.00 | Output Speed: 200 r/min (motor 3000 r/min) | Permissible Output Torque: 95 Nm | Permissible Overhang Load: 2540 N | Permissible Thrust Load: N | Motor Rated Voltage: 155V | Motor Rated Current: 9.4A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 2.2kW 1/20 GV-SSYF 2.2kW 1/20, hollow shaft flange/face mount, 127Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 2.2kW | Poles: 6P | Nominal Ratio: 1/20 | Actual Ratio: 1/20.16 | Output Speed: 150 r/min (motor 3000 r/min) | Permissible Output Torque: 127 Nm | Permissible Overhang Load: 2740 N | Permissible Thrust Load: 549 N | Motor Rated Voltage: 155V | Motor Rated Current: 9.4A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 2.2kW 1/25 GV-SSYF 2.2kW 1/25, hollow shaft flange/face mount, 160Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 2.2kW | Poles: 6P | Nominal Ratio: 1/25 | Actual Ratio: 1/25.33 | Output Speed: 120 r/min (motor 3000 r/min) | Permissible Output Torque: 160 Nm | Permissible Overhang Load: 2940 N | Permissible Thrust Load: N | Motor Rated Voltage: 155V | Motor Rated Current: 9.4A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
Sensorless Servo Geared MotorsMitsubishi Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GV-SSYF 2.2kW S-PM Sensorless Servo Right-Angle Geared Motor (Super Heli-Cross)

Brand Mitsubishi Electric·Sensorless Servo Geared Motors

Available part numbers (6)

GV-SSYF 2.2kW 1/7.5, GV-SSYF 2.2kW 1/10, GV-SSYF 2.2kW 1/12.5, GV-SSYF 2.2kW 1/15, GV-SSYF 2.2kW 1/20, GV-SSYF 2.2kW 1/25

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GV-SSYF 2.2kW 1/7.5GV-SSYF 2.2kW 1/7.5, hollow shaft flange/face mount, 46Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 2.2kW | Poles: 6P | Nominal Ratio: 1/7.5 | Actual Ratio: 1/7.26 | Output Speed: 400 r/min (motor 3000 r/min) | Permissible Output Torque: 46 Nm | Permissible Overhang Load: 2260 N | Permissible Thrust Load: 452 N | Motor Rated Voltage: 155V | Motor Rated Current: 9.4A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 2.2kW 1/10GV-SSYF 2.2kW 1/10, hollow shaft flange/face mount, 63Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 2.2kW | Poles: 6P | Nominal Ratio: 1/10 | Actual Ratio: 1/10.00 | Output Speed: 300 r/min (motor 3000 r/min) | Permissible Output Torque: 63 Nm | Permissible Overhang Load: 2350 N | Permissible Thrust Load: N | Motor Rated Voltage: 155V | Motor Rated Current: 9.4A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 2.2kW 1/12.5GV-SSYF 2.2kW 1/12.5, hollow shaft flange/face mount, 78Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 2.2kW | Poles: 6P | Nominal Ratio: 1/12.5 | Actual Ratio: 1/12.42 | Output Speed: 240 r/min (motor 3000 r/min) | Permissible Output Torque: 78 Nm | Permissible Overhang Load: 2450 N | Permissible Thrust Load: 490 N | Motor Rated Voltage: 155V | Motor Rated Current: 9.4A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 2.2kW 1/15GV-SSYF 2.2kW 1/15, hollow shaft flange/face mount, 95Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 2.2kW | Poles: 6P | Nominal Ratio: 1/15 | Actual Ratio: 1/15.00 | Output Speed: 200 r/min (motor 3000 r/min) | Permissible Output Torque: 95 Nm | Permissible Overhang Load: 2540 N | Permissible Thrust Load: N | Motor Rated Voltage: 155V | Motor Rated Current: 9.4A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 2.2kW 1/20GV-SSYF 2.2kW 1/20, hollow shaft flange/face mount, 127Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 2.2kW | Poles: 6P | Nominal Ratio: 1/20 | Actual Ratio: 1/20.16 | Output Speed: 150 r/min (motor 3000 r/min) | Permissible Output Torque: 127 Nm | Permissible Overhang Load: 2740 N | Permissible Thrust Load: 549 N | Motor Rated Voltage: 155V | Motor Rated Current: 9.4A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYF 2.2kW 1/25GV-SSYF 2.2kW 1/25, hollow shaft flange/face mount, 160Nm, no brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: None | Output: 2.2kW | Poles: 6P | Nominal Ratio: 1/25 | Actual Ratio: 1/25.33 | Output Speed: 120 r/min (motor 3000 r/min) | Permissible Output Torque: 160 Nm | Permissible Overhang Load: 2940 N | Permissible Thrust Load: N | Motor Rated Voltage: 155V | Motor Rated Current: 9.4A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed fan-cooled (TEFC) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
