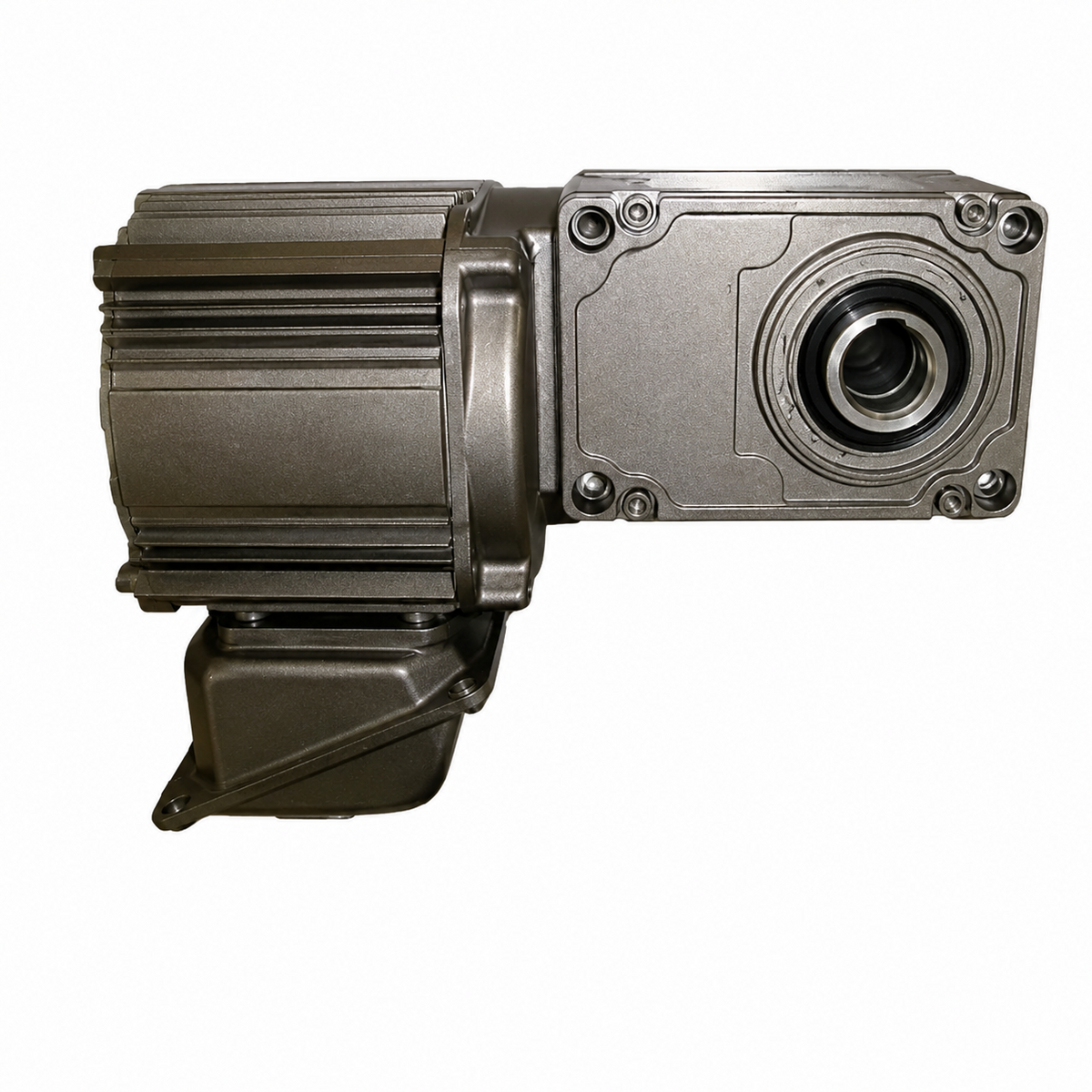

Mitsubishi Electric GV-SSYFB 0.4kW S-PM Sensorless Servo Right-Angle Geared Motor (Super Heli-Cross, Brake)

Mitsubishi Electric GV-SSYFB 0.4kW S-PM Sensorless Servo Right-Angle Geared Motor (Super Heli-Cross, Brake)

Mitsubishi Electric GV-SSYFB 0.4kW S-PM sensorless servo super heli-cross right-angle geared motor, hollow shaft with flange/face-common mounting.

Key features

  • Permanent-magnet motor with PM sensorless vector control for wide constant-torque control
  • Nominal reduction ratios 1/7.5 to 1/60 with permissible output torque 8.3 to 65 Nm
  • Motor rated 3000 r/min, 4P, insulation 130(B), grease-lubricated, IP44 indoor
  • Built-in DC spring-applied brake for load holding
  • Requires a matching S-PM drive unit (3-phase 200-240V input; cannot be connected directly to commercial power)

Specifications

Series GV-SSY (S-PM sensorless servo)
Type Right-Angle Super Heli-Cross
Shaft Hollow shaft
Mount Flange / face mount (common)
Brake Built-in DC spring-applied
Output 0.4kW
Poles 4P
Motor Rated Voltage 175V
Motor Rated Current 1.6A
Drive Input 3-phase 200-240V 50/60Hz (drive unit required)
Insulation 130(B)
Enclosure Totally-enclosed non-ventilated (TENV)
GV-SSYFB 0.4kW 1/7.5 GV-SSYFB 0.4kW 1/7.5, hollow shaft flange/face mount, 8.3Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/7.5 | Actual Ratio: 1/7.68 | Output Speed: 400 r/min (motor 3000 r/min) | Permissible Output Torque: 8.3 Nm | Permissible Overhang Load: 1000 N | Permissible Thrust Load: 200 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/10 GV-SSYFB 0.4kW 1/10, hollow shaft flange/face mount, 11Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/10 | Actual Ratio: 1/10.06 | Output Speed: 300 r/min (motor 3000 r/min) | Permissible Output Torque: 11 Nm | Permissible Overhang Load: 1050 N | Permissible Thrust Load: N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/12.5 GV-SSYFB 0.4kW 1/12.5, hollow shaft flange/face mount, 14Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/12.5 | Actual Ratio: 1/12.90 | Output Speed: 240 r/min (motor 3000 r/min) | Permissible Output Torque: 14 Nm | Permissible Overhang Load: 1150 N | Permissible Thrust Load: 230 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/15 GV-SSYFB 0.4kW 1/15, hollow shaft flange/face mount, 17Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/15 | Actual Ratio: 1/15.79 | Output Speed: 200 r/min (motor 3000 r/min) | Permissible Output Torque: 17 Nm | Permissible Overhang Load: 1320 N | Permissible Thrust Load: N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/20 GV-SSYFB 0.4kW 1/20, hollow shaft flange/face mount, 22Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/20 | Actual Ratio: 1/20.77 | Output Speed: 150 r/min (motor 3000 r/min) | Permissible Output Torque: 22 Nm | Permissible Overhang Load: 1420 N | Permissible Thrust Load: 284 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/25 GV-SSYFB 0.4kW 1/25, hollow shaft flange/face mount, 28Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/25 | Actual Ratio: 1/25.83 | Output Speed: 120 r/min (motor 3000 r/min) | Permissible Output Torque: 28 Nm | Permissible Overhang Load: 1510 N | Permissible Thrust Load: N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/30 GV-SSYFB 0.4kW 1/30, hollow shaft flange/face mount, 33Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/30 | Actual Ratio: 1/30.21 | Output Speed: 100 r/min (motor 3000 r/min) | Permissible Output Torque: 33 Nm | Permissible Overhang Load: 1610 N | Permissible Thrust Load: 323 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/40 GV-SSYFB 0.4kW 1/40, hollow shaft flange/face mount, 45Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/40 | Actual Ratio: 1/41.33 | Output Speed: 75 r/min (motor 3000 r/min) | Permissible Output Torque: 45 Nm | Permissible Overhang Load: 1760 N | Permissible Thrust Load: N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/50 GV-SSYFB 0.4kW 1/50, hollow shaft flange/face mount, 56Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/50 | Actual Ratio: 1/51.67 | Output Speed: 60 r/min (motor 3000 r/min) | Permissible Output Torque: 56 Nm | Permissible Overhang Load: 1860 N | Permissible Thrust Load: 372 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/60 GV-SSYFB 0.4kW 1/60, hollow shaft flange/face mount, 65Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/60 | Actual Ratio: 1/59.70 | Output Speed: 50 r/min (motor 3000 r/min) | Permissible Output Torque: 65 Nm | Permissible Overhang Load: 1910 N | Permissible Thrust Load: N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
Sensorless Servo Geared MotorsMitsubishi Electric
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric GV-SSYFB 0.4kW S-PM Sensorless Servo Right-Angle Geared Motor (Super Heli-Cross, Brake)

Brand Mitsubishi Electric·Sensorless Servo Geared Motors

Available part numbers (10)

GV-SSYFB 0.4kW 1/7.5, GV-SSYFB 0.4kW 1/10, GV-SSYFB 0.4kW 1/12.5, GV-SSYFB 0.4kW 1/15, GV-SSYFB 0.4kW 1/20, GV-SSYFB 0.4kW 1/25, GV-SSYFB 0.4kW 1/30, GV-SSYFB 0.4kW 1/40, GV-SSYFB 0.4kW 1/50, GV-SSYFB 0.4kW 1/60

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GV-SSYFB 0.4kW 1/7.5GV-SSYFB 0.4kW 1/7.5, hollow shaft flange/face mount, 8.3Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/7.5 | Actual Ratio: 1/7.68 | Output Speed: 400 r/min (motor 3000 r/min) | Permissible Output Torque: 8.3 Nm | Permissible Overhang Load: 1000 N | Permissible Thrust Load: 200 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/10GV-SSYFB 0.4kW 1/10, hollow shaft flange/face mount, 11Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/10 | Actual Ratio: 1/10.06 | Output Speed: 300 r/min (motor 3000 r/min) | Permissible Output Torque: 11 Nm | Permissible Overhang Load: 1050 N | Permissible Thrust Load: N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/12.5GV-SSYFB 0.4kW 1/12.5, hollow shaft flange/face mount, 14Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/12.5 | Actual Ratio: 1/12.90 | Output Speed: 240 r/min (motor 3000 r/min) | Permissible Output Torque: 14 Nm | Permissible Overhang Load: 1150 N | Permissible Thrust Load: 230 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/15GV-SSYFB 0.4kW 1/15, hollow shaft flange/face mount, 17Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/15 | Actual Ratio: 1/15.79 | Output Speed: 200 r/min (motor 3000 r/min) | Permissible Output Torque: 17 Nm | Permissible Overhang Load: 1320 N | Permissible Thrust Load: N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/20GV-SSYFB 0.4kW 1/20, hollow shaft flange/face mount, 22Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/20 | Actual Ratio: 1/20.77 | Output Speed: 150 r/min (motor 3000 r/min) | Permissible Output Torque: 22 Nm | Permissible Overhang Load: 1420 N | Permissible Thrust Load: 284 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/25GV-SSYFB 0.4kW 1/25, hollow shaft flange/face mount, 28Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/25 | Actual Ratio: 1/25.83 | Output Speed: 120 r/min (motor 3000 r/min) | Permissible Output Torque: 28 Nm | Permissible Overhang Load: 1510 N | Permissible Thrust Load: N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/30GV-SSYFB 0.4kW 1/30, hollow shaft flange/face mount, 33Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/30 | Actual Ratio: 1/30.21 | Output Speed: 100 r/min (motor 3000 r/min) | Permissible Output Torque: 33 Nm | Permissible Overhang Load: 1610 N | Permissible Thrust Load: 323 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/40GV-SSYFB 0.4kW 1/40, hollow shaft flange/face mount, 45Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/40 | Actual Ratio: 1/41.33 | Output Speed: 75 r/min (motor 3000 r/min) | Permissible Output Torque: 45 Nm | Permissible Overhang Load: 1760 N | Permissible Thrust Load: N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/50GV-SSYFB 0.4kW 1/50, hollow shaft flange/face mount, 56Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/50 | Actual Ratio: 1/51.67 | Output Speed: 60 r/min (motor 3000 r/min) | Permissible Output Torque: 56 Nm | Permissible Overhang Load: 1860 N | Permissible Thrust Load: 372 N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
GV-SSYFB 0.4kW 1/60GV-SSYFB 0.4kW 1/60, hollow shaft flange/face mount, 65Nm, brake | Series: GV-SSY (S-PM sensorless servo) | Type: Right-Angle Super Heli-Cross | Shaft: Hollow shaft | Mount: Flange / face mount (common) | Brake: Built-in DC spring-applied | Output: 0.4kW | Poles: 4P | Nominal Ratio: 1/60 | Actual Ratio: 1/59.70 | Output Speed: 50 r/min (motor 3000 r/min) | Permissible Output Torque: 65 Nm | Permissible Overhang Load: 1910 N | Permissible Thrust Load: N | Motor Rated Voltage: 175V | Motor Rated Current: 1.6A | Drive Input: 3-phase 200-240V 50/60Hz (drive unit required) | Insulation: 130(B) | Enclosure: Totally-enclosed non-ventilated (TENV) | Lubrication: Grease | Protection: IP44 (indoor) | Availability: Made-to-order
