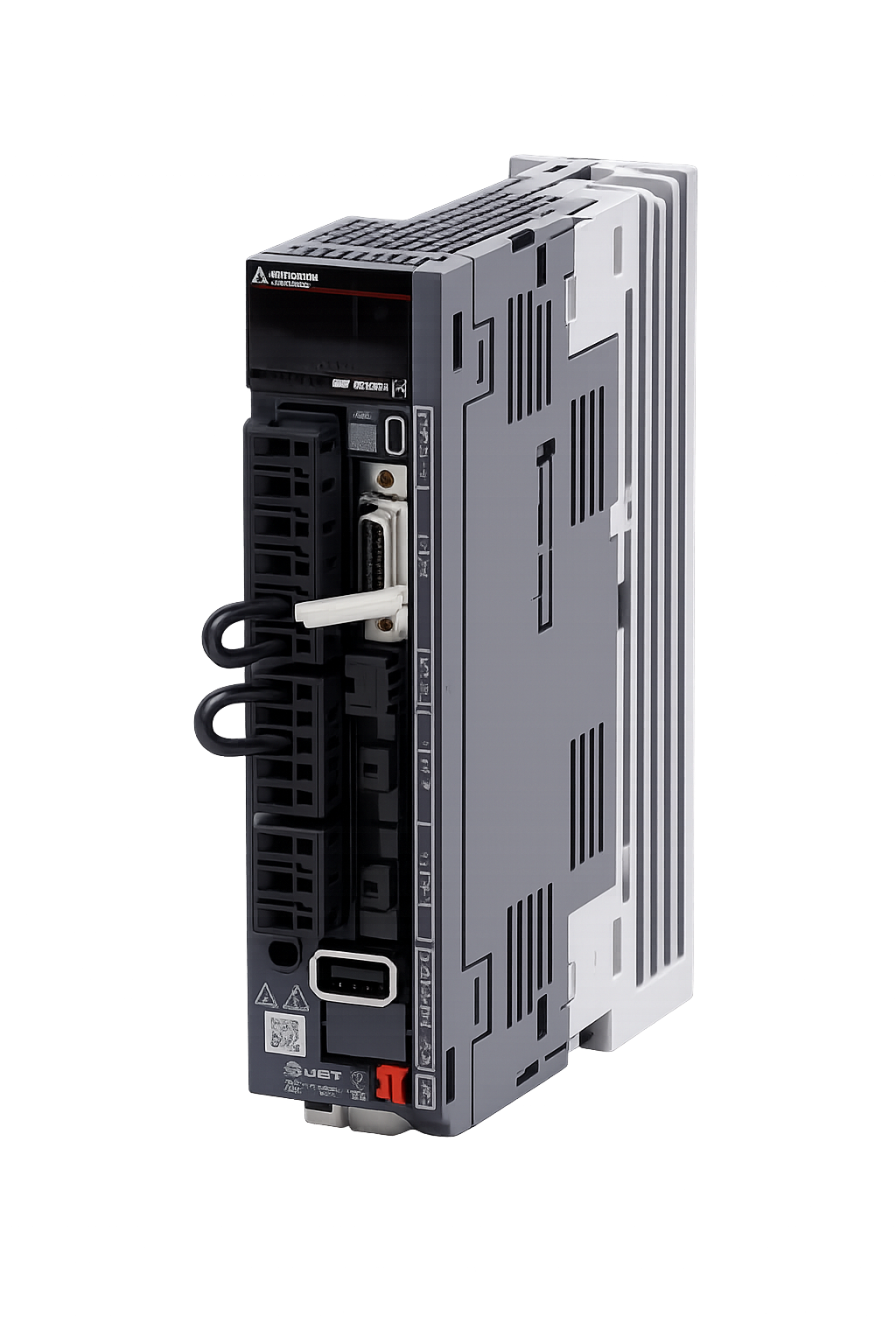

Mitsubishi Electric MELSERVO-J4 MR-J4-GF Servo Amplifier (CC-Link IE Field Network)

Mitsubishi Electric MELSERVO-J4 MR-J4-GF Servo Amplifier (CC-Link IE Field Network)

Mitsubishi MELSERVO-J4 1-axis servo amplifier with CC-Link IE Field Network interface. 3-phase 200V (0.1-7kW) and 400V (0.6-7kW), STO functional safety, one-touch tuning, HG rotary servo motor compatible.

Specifications

Interface CC-Link IE Field Network
Protection Open IP20
MR-J4-10GF MR-J4-10GF, 0.1kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 0.1kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 1.1A (output AC170V) | Cooling: Natural air | Protection: Open IP20 | Mass: 1.0kg | Compatible Servo Motor: HG-KR053/13, HG-MR053/13
MR-J4-20GF MR-J4-20GF, 0.2kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 0.2kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 1.5A (output AC170V) | Cooling: Natural air | Protection: Open IP20 | Mass: 1.0kg | Compatible Servo Motor: HG-KR23, HG-MR23
MR-J4-40GF MR-J4-40GF, 0.4kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 0.4kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 2.8A (output AC170V) | Cooling: Natural air | Protection: Open IP20 | Mass: 1.0kg | Compatible Servo Motor: HG-KR43, HG-MR43
MR-J4-60GF MR-J4-60GF, 0.6kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 0.6kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 3.2A (output AC170V) | Cooling: Forced air | Protection: Open IP20 | Mass: 1.0kg | Compatible Servo Motor: HG-SR51/52, HG-JR53
MR-J4-70GF MR-J4-70GF, 0.75kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 0.75kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 5.8A (output AC170V) | Cooling: Forced air | Protection: Open IP20 | Mass: 1.4kg | Compatible Servo Motor: HG-KR73, HG-MR73, HG-JR73, HG-UR72
MR-J4-100GF MR-J4-100GF, 1kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 1kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 6.0A (output AC170V) | Cooling: Forced air | Protection: Open IP20 | Mass: 1.4kg | Compatible Servo Motor: HG-SR81/102, HG-JR53/103
MR-J4-200GF MR-J4-200GF, 2kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 2kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 11.0A (output AC170V) | Cooling: Forced air | Protection: Open IP20 | Mass: 2.1kg | Compatible Servo Motor: HG-SR121/201/152/202, HG-JR73/103/153/203, HG-RR103/153, HG-UR152
MR-J4-350GF MR-J4-350GF, 3.5kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 3.5kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 17.0A (output AC170V) | Cooling: Forced air | Protection: Open IP20 | Mass: 2.3kg | Compatible Servo Motor: HG-SR301/352, HG-JR153/203/353, HG-RR203, HG-UR202
MR-J4-500GF MR-J4-500GF, 5kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 5kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 28.0A (output AC170V) | Cooling: Forced air | Protection: Open IP20 | Mass: 4.0kg | Compatible Servo Motor: HG-SR421/502, HG-JR353/503, HG-RR353/503, HG-UR352/502
MR-J4-700GF MR-J4-700GF, 7kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 7kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 37.0A (output AC170V) | Cooling: Forced air | Protection: Open IP20 | Mass: 6.2kg | Compatible Servo Motor: HG-SR702, HG-JR503/703/601/701M
MR-J4-60GF4 MR-J4-60GF4, 0.6kW, CC-Link IE Field, 3-phase 400V | Interface: CC-Link IE Field Network | Rated Output: 0.6kW | Power Supply: 3-phase AC380-480V | Rated Output Current: 1.5A (output AC323V) | Cooling: Natural air | Protection: Open IP20 | Mass: 1.7kg | Compatible Servo Motor: HG-SR524, HG-JR534
MR-J4-100GF4 MR-J4-100GF4, 1kW, CC-Link IE Field, 3-phase 400V | Interface: CC-Link IE Field Network | Rated Output: 1kW | Power Supply: 3-phase AC380-480V | Rated Output Current: 2.8A (output AC323V) | Cooling: Forced air | Protection: Open IP20 | Mass: 1.7kg | Compatible Servo Motor: HG-SR1024, HG-JR534/734/1034
MR-J4-200GF4 MR-J4-200GF4, 2kW, CC-Link IE Field, 3-phase 400V | Interface: CC-Link IE Field Network | Rated Output: 2kW | Power Supply: 3-phase AC380-480V | Rated Output Current: 5.4A (output AC323V) | Cooling: Forced air | Protection: Open IP20 | Mass: 2.1kg | Compatible Servo Motor: HG-SR1524/2024, HG-JR734/1034/1534/2034
MR-J4-350GF4 MR-J4-350GF4, 3.5kW, CC-Link IE Field, 3-phase 400V | Interface: CC-Link IE Field Network | Rated Output: 3.5kW | Power Supply: 3-phase AC380-480V | Rated Output Current: 8.6A (output AC323V) | Cooling: Forced air | Protection: Open IP20 | Mass: 3.6kg | Compatible Servo Motor: HG-SR3524, HG-JR1534/2034/3534
MR-J4-500GF4 MR-J4-500GF4, 5kW, CC-Link IE Field, 3-phase 400V | Interface: CC-Link IE Field Network | Rated Output: 5kW | Power Supply: 3-phase AC380-480V | Rated Output Current: 14.0A (output AC323V) | Cooling: Forced air | Protection: Open IP20 | Mass: 4.3kg | Compatible Servo Motor: HG-SR5024, HG-JR3534/5034
MR-J4-700GF4 MR-J4-700GF4, 7kW, CC-Link IE Field, 3-phase 400V | Interface: CC-Link IE Field Network | Rated Output: 7kW | Power Supply: 3-phase AC380-480V | Rated Output Current: 17.0A (output AC323V) | Cooling: Forced air | Protection: Open IP20 | Mass: 6.5kg | Compatible Servo Motor: HG-SR7024, HG-JR5034/7034/6014/701M4
Servo AmplifiersMitsubishi Electric
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric MELSERVO-J4 MR-J4-GF Servo Amplifier (CC-Link IE Field Network)

Brand Mitsubishi Electric·Servo Amplifiers

Available part numbers (16)

MR-J4-10GF, MR-J4-20GF, MR-J4-40GF, MR-J4-60GF, MR-J4-70GF, MR-J4-100GF, MR-J4-200GF, MR-J4-350GF, MR-J4-500GF, MR-J4-700GF + 6 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MR-J4-10GFMR-J4-10GF, 0.1kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 0.1kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 1.1A (output AC170V) | Cooling: Natural air | Protection: Open IP20 | Mass: 1.0kg | Compatible Servo Motor: HG-KR053/13, HG-MR053/13
MR-J4-20GFMR-J4-20GF, 0.2kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 0.2kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 1.5A (output AC170V) | Cooling: Natural air | Protection: Open IP20 | Mass: 1.0kg | Compatible Servo Motor: HG-KR23, HG-MR23
MR-J4-40GFMR-J4-40GF, 0.4kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 0.4kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 2.8A (output AC170V) | Cooling: Natural air | Protection: Open IP20 | Mass: 1.0kg | Compatible Servo Motor: HG-KR43, HG-MR43
MR-J4-60GFMR-J4-60GF, 0.6kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 0.6kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 3.2A (output AC170V) | Cooling: Forced air | Protection: Open IP20 | Mass: 1.0kg | Compatible Servo Motor: HG-SR51/52, HG-JR53
MR-J4-70GFMR-J4-70GF, 0.75kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 0.75kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 5.8A (output AC170V) | Cooling: Forced air | Protection: Open IP20 | Mass: 1.4kg | Compatible Servo Motor: HG-KR73, HG-MR73, HG-JR73, HG-UR72
MR-J4-100GFMR-J4-100GF, 1kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 1kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 6.0A (output AC170V) | Cooling: Forced air | Protection: Open IP20 | Mass: 1.4kg | Compatible Servo Motor: HG-SR81/102, HG-JR53/103
MR-J4-200GFMR-J4-200GF, 2kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 2kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 11.0A (output AC170V) | Cooling: Forced air | Protection: Open IP20 | Mass: 2.1kg | Compatible Servo Motor: HG-SR121/201/152/202, HG-JR73/103/153/203, HG-RR103/153, HG-UR152
MR-J4-350GFMR-J4-350GF, 3.5kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 3.5kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 17.0A (output AC170V) | Cooling: Forced air | Protection: Open IP20 | Mass: 2.3kg | Compatible Servo Motor: HG-SR301/352, HG-JR153/203/353, HG-RR203, HG-UR202
MR-J4-500GFMR-J4-500GF, 5kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 5kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 28.0A (output AC170V) | Cooling: Forced air | Protection: Open IP20 | Mass: 4.0kg | Compatible Servo Motor: HG-SR421/502, HG-JR353/503, HG-RR353/503, HG-UR352/502
MR-J4-700GFMR-J4-700GF, 7kW, CC-Link IE Field, 3-phase 200V | Interface: CC-Link IE Field Network | Rated Output: 7kW | Power Supply: 3-phase AC200-240V (1-phase AC200-240V for ≤2kW) | Rated Output Current: 37.0A (output AC170V) | Cooling: Forced air | Protection: Open IP20 | Mass: 6.2kg | Compatible Servo Motor: HG-SR702, HG-JR503/703/601/701M
MR-J4-60GF4MR-J4-60GF4, 0.6kW, CC-Link IE Field, 3-phase 400V | Interface: CC-Link IE Field Network | Rated Output: 0.6kW | Power Supply: 3-phase AC380-480V | Rated Output Current: 1.5A (output AC323V) | Cooling: Natural air | Protection: Open IP20 | Mass: 1.7kg | Compatible Servo Motor: HG-SR524, HG-JR534
MR-J4-100GF4MR-J4-100GF4, 1kW, CC-Link IE Field, 3-phase 400V | Interface: CC-Link IE Field Network | Rated Output: 1kW | Power Supply: 3-phase AC380-480V | Rated Output Current: 2.8A (output AC323V) | Cooling: Forced air | Protection: Open IP20 | Mass: 1.7kg | Compatible Servo Motor: HG-SR1024, HG-JR534/734/1034
MR-J4-200GF4MR-J4-200GF4, 2kW, CC-Link IE Field, 3-phase 400V | Interface: CC-Link IE Field Network | Rated Output: 2kW | Power Supply: 3-phase AC380-480V | Rated Output Current: 5.4A (output AC323V) | Cooling: Forced air | Protection: Open IP20 | Mass: 2.1kg | Compatible Servo Motor: HG-SR1524/2024, HG-JR734/1034/1534/2034
MR-J4-350GF4MR-J4-350GF4, 3.5kW, CC-Link IE Field, 3-phase 400V | Interface: CC-Link IE Field Network | Rated Output: 3.5kW | Power Supply: 3-phase AC380-480V | Rated Output Current: 8.6A (output AC323V) | Cooling: Forced air | Protection: Open IP20 | Mass: 3.6kg | Compatible Servo Motor: HG-SR3524, HG-JR1534/2034/3534
MR-J4-500GF4MR-J4-500GF4, 5kW, CC-Link IE Field, 3-phase 400V | Interface: CC-Link IE Field Network | Rated Output: 5kW | Power Supply: 3-phase AC380-480V | Rated Output Current: 14.0A (output AC323V) | Cooling: Forced air | Protection: Open IP20 | Mass: 4.3kg | Compatible Servo Motor: HG-SR5024, HG-JR3534/5034
MR-J4-700GF4MR-J4-700GF4, 7kW, CC-Link IE Field, 3-phase 400V | Interface: CC-Link IE Field Network | Rated Output: 7kW | Power Supply: 3-phase AC380-480V | Rated Output Current: 17.0A (output AC323V) | Cooling: Forced air | Protection: Open IP20 | Mass: 6.5kg | Compatible Servo Motor: HG-SR7024, HG-JR5034/7034/6014/701M4
