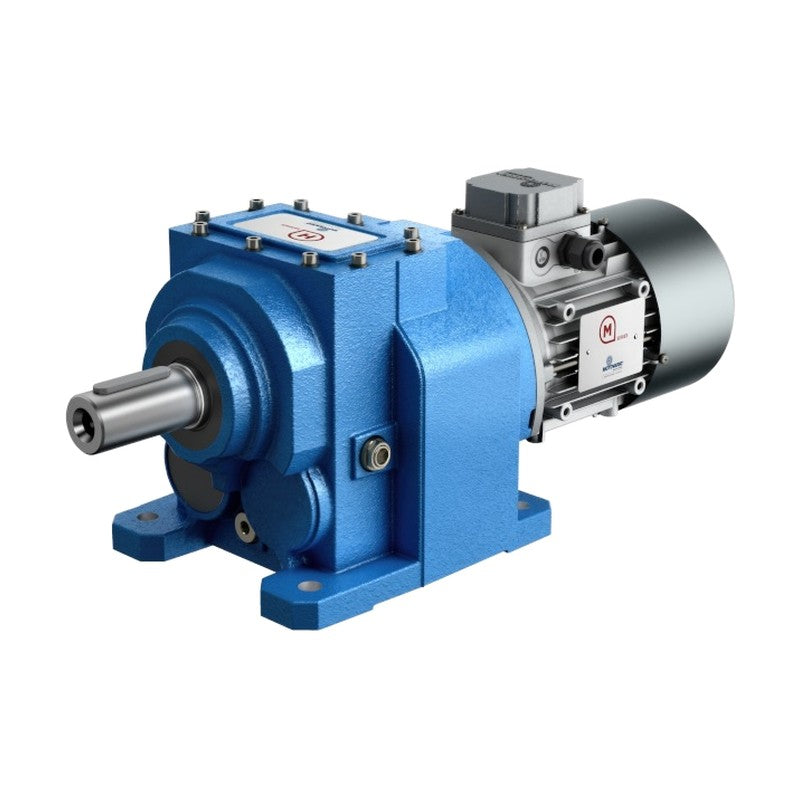

Motovario IHA Helical Inline Gear Reducers, Input Shaft (A32-A63)

Motovario IHA Helical Inline Gear Reducers, Input Shaft (A32-A63)

Motovario IHA helical inline gear reducers with solid input shaft in die-cast aluminium alloy housing, sizes A32-A63 in 1, 2 and 3 reduction stages, for coupling to any drive via the input shaft.

Key features

  • Order code = unit + ratio as printed in the IH/IHA performance tables, e.g. IHA32 5,38
  • Die-cast aluminium alloy casing with blue RAL 5010 epoxy-polyester paint
  • Single stage A41, A51, A61; double stage A32-A62; triple stage A33-A63
  • Foot (standard), F flanged and U universal casings; output flanges FA, FB, FC
  • Average efficiency 0.97 (1 stage), 0.96 (2 stages), 0.94 (3 stages)
  • Ratings published for input speeds 500 to 1750 rpm; row data at 1400 rpm

Specifications

Series HA aluminium helical inline, IH type
Input Solid input shaft (IHA, ECE)
Sizes A32-A33, A41-A43, A51-A53, A61-A63
Housing Die-cast aluminium alloy, RAL 5010
Ratio range i 1.33-353.98
Rated torque Mn2 20-500 Nm
Rated power Pn1 (1400 rpm) 0.04-11.28 kW
Rating basis (rows) Input speed n1 = 1400 rpm
Rating tables also at n1 = 1750, 1140, 900, 700, 500 rpm
Mounting positions B3, B5, B8, B6, B7, V5, V1, V6, V3
Source Motovario H Series Technical Catalogue IEC STD, p. 15-19, 39-53, 205-278
IHA32 5,38 Size: A32 | Ratio i: 5.38 | Rated torque Mn2: 80 Nm | Rated power Pn1: 2.27 kW | Output speed n2: 260.3 rpm | Radial load Fr1/Fr2: 330/1096 N
IHA32 6,52 Size: A32 | Ratio i: 6.52 | Rated torque Mn2: 80 Nm | Rated power Pn1: 1.87 kW | Output speed n2: 214.8 rpm | Radial load Fr1/Fr2: 409/1169 N
IHA32 8,11 Size: A32 | Ratio i: 8.11 | Rated torque Mn2: 75 Nm | Rated power Pn1: 1.41 kW | Output speed n2: 172.6 rpm | Radial load Fr1/Fr2: 373/1257 N
IHA32 10,94 Size: A32 | Ratio i: 10.94 | Rated torque Mn2: 90 Nm | Rated power Pn1: 1.26 kW | Output speed n2: 128.0 rpm | Radial load Fr1/Fr2: 441/1389 N
IHA32 13,25 Size: A32 | Ratio i: 13.25 | Rated torque Mn2: 80 Nm | Rated power Pn1: 0.92 kW | Output speed n2: 105.7 rpm | Radial load Fr1/Fr2: 363/1481 N
IHA32 16,49 Size: A32 | Ratio i: 16.49 | Rated torque Mn2: 80 Nm | Rated power Pn1: 0.74 kW | Output speed n2: 84.9 rpm | Radial load Fr1/Fr2: 398/1593 N
IHA32 20,26 Size: A32 | Ratio i: 20.26 | Rated torque Mn2: 90 Nm | Rated power Pn1: 0.68 kW | Output speed n2: 69.1 rpm | Radial load Fr1/Fr2: 453/1706 N
IHA32 24,55 Size: A32 | Ratio i: 24.55 | Rated torque Mn2: 85 Nm | Rated power Pn1: 0.53 kW | Output speed n2: 57.0 rpm | Radial load Fr1/Fr2: 386/1818 N
IHA32 30,55 Size: A32 | Ratio i: 30.55 | Rated torque Mn2: 80 Nm | Rated power Pn1: 0.40 kW | Output speed n2: 45.8 rpm | Radial load Fr1/Fr2: 374/1956 N
IHA32 35,44 Size: A32 | Ratio i: 35.44 | Rated torque Mn2: 90 Nm | Rated power Pn1: 0.39 kW | Output speed n2: 39.5 rpm | Radial load Fr1/Fr2: 480/2000 N
IHA32 44,10 Size: A32 | Ratio i: 44.10 | Rated torque Mn2: 90 Nm | Rated power Pn1: 0.31 kW | Output speed n2: 31.8 rpm | Radial load Fr1/Fr2: 398/2000 N
IHA33 51,32 Size: A33 | Ratio i: 51.32 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.30 kW | Output speed n2: 27.3 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 59,65 Size: A33 | Ratio i: 59.65 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.26 kW | Output speed n2: 23.5 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 72,27 Size: A33 | Ratio i: 72.27 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.22 kW | Output speed n2: 19.4 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 89,94 Size: A33 | Ratio i: 89.94 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.17 kW | Output speed n2: 15.6 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 110,51 Size: A33 | Ratio i: 110.51 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.14 kW | Output speed n2: 12.7 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 133,88 Size: A33 | Ratio i: 133.88 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.12 kW | Output speed n2: 10.5 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 166,61 Size: A33 | Ratio i: 166.61 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.09 kW | Output speed n2: 8.4 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 193,30 Size: A33 | Ratio i: 193.30 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.08 kW | Output speed n2: 7.2 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 240,55 Size: A33 | Ratio i: 240.55 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.06 kW | Output speed n2: 5.8 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 279,07 Size: A33 | Ratio i: 279.07 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.06 kW | Output speed n2: 5.0 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 347,29 Size: A33 | Ratio i: 347.29 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.04 kW | Output speed n2: 4.0 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA41 1,45 Size: A41 | Ratio i: 1.45 | Rated torque Mn2: 25 Nm | Rated power Pn1: 2.61 kW | Output speed n2: 966.7 rpm | Radial load Fr1/Fr2: 330/512 N
IHA41 2,94 Size: A41 | Ratio i: 2.94 | Rated torque Mn2: 25 Nm | Rated power Pn1: 1.28 kW | Output speed n2: 475.5 rpm | Radial load Fr1/Fr2: 330/648 N
IHA41 4,75 Size: A41 | Ratio i: 4.75 | Rated torque Mn2: 30 Nm | Rated power Pn1: 0.95 kW | Output speed n2: 294.7 rpm | Radial load Fr1/Fr2: 330/760 N
IHA41 5,45 Size: A41 | Ratio i: 5.45 | Rated torque Mn2: 30 Nm | Rated power Pn1: 0.83 kW | Output speed n2: 256.7 rpm | Radial load Fr1/Fr2: 330/796 N
IHA41 7,88 Size: A41 | Ratio i: 7.88 | Rated torque Mn2: 25 Nm | Rated power Pn1: 0.48 kW | Output speed n2: 177.8 rpm | Radial load Fr1/Fr2: 330/900 N
IHA41 10,83 Size: A41 | Ratio i: 10.83 | Rated torque Mn2: 20 Nm | Rated power Pn1: 0.28 kW | Output speed n2: 129.2 rpm | Radial load Fr1/Fr2: 330/1001 N
IHA42 5,38 Size: A42 | Ratio i: 5.38 | Rated torque Mn2: 140 Nm | Rated power Pn1: 3.97 kW | Output speed n2: 260.3 rpm | Radial load Fr1/Fr2: 330/2308 N
IHA42 6,52 Size: A42 | Ratio i: 6.52 | Rated torque Mn2: 140 Nm | Rated power Pn1: 3.28 kW | Output speed n2: 214.8 rpm | Radial load Fr1/Fr2: 409/2461 N
IHA42 8,11 Size: A42 | Ratio i: 8.11 | Rated torque Mn2: 130 Nm | Rated power Pn1: 2.45 kW | Output speed n2: 172.6 rpm | Radial load Fr1/Fr2: 369/2647 N
IHA42 10,94 Size: A42 | Ratio i: 10.94 | Rated torque Mn2: 150 Nm | Rated power Pn1: 2.09 kW | Output speed n2: 128.0 rpm | Radial load Fr1/Fr2: 424/2924 N
IHA42 13,25 Size: A42 | Ratio i: 13.25 | Rated torque Mn2: 140 Nm | Rated power Pn1: 1.61 kW | Output speed n2: 105.7 rpm | Radial load Fr1/Fr2: 381/3117 N
IHA42 16,49 Size: A42 | Ratio i: 16.49 | Rated torque Mn2: 140 Nm | Rated power Pn1: 1.30 kW | Output speed n2: 84.9 rpm | Radial load Fr1/Fr2: 398/3353 N
IHA42 20,26 Size: A42 | Ratio i: 20.26 | Rated torque Mn2: 150 Nm | Rated power Pn1: 1.13 kW | Output speed n2: 69.1 rpm | Radial load Fr1/Fr2: 432/3591 N
IHA42 24,55 Size: A42 | Ratio i: 24.55 | Rated torque Mn2: 155 Nm | Rated power Pn1: 0.96 kW | Output speed n2: 57.0 rpm | Radial load Fr1/Fr2: 422/3828 N
IHA42 30,55 Size: A42 | Ratio i: 30.55 | Rated torque Mn2: 140 Nm | Rated power Pn1: 0.70 kW | Output speed n2: 45.8 rpm | Radial load Fr1/Fr2: 359/4118 N
IHA42 35,44 Size: A42 | Ratio i: 35.44 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.65 kW | Output speed n2: 39.5 rpm | Radial load Fr1/Fr2: 457/4300 N
IHA42 44,10 Size: A42 | Ratio i: 44.10 | Rated torque Mn2: 140 Nm | Rated power Pn1: 0.48 kW | Output speed n2: 31.8 rpm | Radial load Fr1/Fr2: 371/4300 N
IHA43 51,32 Size: A43 | Ratio i: 51.32 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.46 kW | Output speed n2: 27.3 rpm | Radial load Fr1/Fr2: 427/4300 N
IHA43 59,65 Size: A43 | Ratio i: 59.65 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.39 kW | Output speed n2: 23.5 rpm | Radial load Fr1/Fr2: 426/4300 N
IHA43 72,27 Size: A43 | Ratio i: 72.27 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.32 kW | Output speed n2: 19.4 rpm | Radial load Fr1/Fr2: 409/4300 N
IHA43 89,94 Size: A43 | Ratio i: 89.94 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.26 kW | Output speed n2: 15.6 rpm | Radial load Fr1/Fr2: 398/4300 N
IHA43 110,51 Size: A43 | Ratio i: 110.51 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.21 kW | Output speed n2: 12.7 rpm | Radial load Fr1/Fr2: 403/4300 N
IHA43 133,88 Size: A43 | Ratio i: 133.88 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.17 kW | Output speed n2: 10.5 rpm | Radial load Fr1/Fr2: 409/4300 N
IHA43 166,61 Size: A43 | Ratio i: 166.61 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.14 kW | Output speed n2: 8.4 rpm | Radial load Fr1/Fr2: 398/4300 N
IHA43 193,30 Size: A43 | Ratio i: 193.30 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.12 kW | Output speed n2: 7.2 rpm | Radial load Fr1/Fr2: 427/4300 N
IHA43 240,55 Size: A43 | Ratio i: 240.55 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.10 kW | Output speed n2: 5.8 rpm | Radial load Fr1/Fr2: 398/4300 N
IHA43 279,07 Size: A43 | Ratio i: 279.07 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.08 kW | Output speed n2: 5.0 rpm | Radial load Fr1/Fr2: 427/4300 N
IHA43 347,29 Size: A43 | Ratio i: 347.29 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.07 kW | Output speed n2: 4.0 rpm | Radial load Fr1/Fr2: 398/4300 N
IHA51 1,45 Size: A51 | Ratio i: 1.45 | Rated torque Mn2: 40 Nm | Rated power Pn1: 4.17 kW | Output speed n2: 966.7 rpm | Radial load Fr1/Fr2: 330/1410 N
IHA51 2,94 Size: A51 | Ratio i: 2.94 | Rated torque Mn2: 40 Nm | Rated power Pn1: 2.05 kW | Output speed n2: 475.5 rpm | Radial load Fr1/Fr2: 330/1786 N
IHA51 4,75 Size: A51 | Ratio i: 4.75 | Rated torque Mn2: 50 Nm | Rated power Pn1: 1.59 kW | Output speed n2: 294.7 rpm | Radial load Fr1/Fr2: 330/2095 N
IHA51 5,45 Size: A51 | Ratio i: 5.45 | Rated torque Mn2: 50 Nm | Rated power Pn1: 1.39 kW | Output speed n2: 256.7 rpm | Radial load Fr1/Fr2: 330/2194 N
IHA51 7,88 Size: A51 | Ratio i: 7.88 | Rated torque Mn2: 40 Nm | Rated power Pn1: 0.77 kW | Output speed n2: 177.8 rpm | Radial load Fr1/Fr2: 330/2479 N
IHA51 10,83 Size: A51 | Ratio i: 10.83 | Rated torque Mn2: 25 Nm | Rated power Pn1: 0.35 kW | Output speed n2: 129.2 rpm | Radial load Fr1/Fr2: 330/2757 N
IHA52 5,14 Size: A52 | Ratio i: 5.14 | Rated torque Mn2: 240 Nm | Rated power Pn1: 7.13 kW | Output speed n2: 272.2 rpm | Radial load Fr1/Fr2: 550/2842 N
IHA52 6,22 Size: A52 | Ratio i: 6.22 | Rated torque Mn2: 240 Nm | Rated power Pn1: 5.89 kW | Output speed n2: 225.0 rpm | Radial load Fr1/Fr2: 682/3029 N
IHA52 7,73 Size: A52 | Ratio i: 7.73 | Rated torque Mn2: 240 Nm | Rated power Pn1: 4.74 kW | Output speed n2: 181.0 rpm | Radial load Fr1/Fr2: 664/3256 N
IHA52 9,64 Size: A52 | Ratio i: 9.64 | Rated torque Mn2: 300 Nm | Rated power Pn1: 4.75 kW | Output speed n2: 145.2 rpm | Radial load Fr1/Fr2: 827/3505 N
IHA52 11,67 Size: A52 | Ratio i: 11.67 | Rated torque Mn2: 280 Nm | Rated power Pn1: 3.66 kW | Output speed n2: 120.0 rpm | Radial load Fr1/Fr2: 636/3735 N
IHA52 14,50 Size: A52 | Ratio i: 14.50 | Rated torque Mn2: 280 Nm | Rated power Pn1: 2.95 kW | Output speed n2: 96.5 rpm | Radial load Fr1/Fr2: 664/4015 N
IHA52 16,91 Size: A52 | Ratio i: 16.91 | Rated torque Mn2: 300 Nm | Rated power Pn1: 2.71 kW | Output speed n2: 82.8 rpm | Radial load Fr1/Fr2: 758/4227 N
IHA52 20,46 Size: A52 | Ratio i: 20.46 | Rated torque Mn2: 290 Nm | Rated power Pn1: 2.16 kW | Output speed n2: 68.4 rpm | Radial load Fr1/Fr2: 659/4504 N
IHA52 25,43 Size: A52 | Ratio i: 25.43 | Rated torque Mn2: 280 Nm | Rated power Pn1: 1.68 kW | Output speed n2: 55.0 rpm | Radial load Fr1/Fr2: 641/4842 N
IHA52 29,89 Size: A52 | Ratio i: 29.89 | Rated torque Mn2: 300 Nm | Rated power Pn1: 1.53 kW | Output speed n2: 46.8 rpm | Radial load Fr1/Fr2: 752/5110 N
IHA52 36,17 Size: A52 | Ratio i: 36.17 | Rated torque Mn2: 300 Nm | Rated power Pn1: 1.27 kW | Output speed n2: 38.7 rpm | Radial load Fr1/Fr2: 682/5445 N
IHA52 44,95 Size: A52 | Ratio i: 44.95 | Rated torque Mn2: 280 Nm | Rated power Pn1: 0.95 kW | Output speed n2: 31.1 rpm | Radial load Fr1/Fr2: 620/5855 N
IHA53 49,80 Size: A53 | Ratio i: 49.80 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.94 kW | Output speed n2: 28.1 rpm | Radial load Fr1/Fr2: 330/6000 N
IHA53 60,25 Size: A53 | Ratio i: 60.25 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.78 kW | Output speed n2: 23.2 rpm | Radial load Fr1/Fr2: 409/6000 N
IHA53 74,88 Size: A53 | Ratio i: 74.88 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.62 kW | Output speed n2: 18.7 rpm | Radial load Fr1/Fr2: 398/6000 N
IHA53 88,02 Size: A53 | Ratio i: 88.02 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.53 kW | Output speed n2: 15.9 rpm | Radial load Fr1/Fr2: 421/6000 N
IHA53 111,61 Size: A53 | Ratio i: 111.61 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.42 kW | Output speed n2: 12.5 rpm | Radial load Fr1/Fr2: 390/6000 N
IHA53 138,71 Size: A53 | Ratio i: 138.71 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.34 kW | Output speed n2: 10.1 rpm | Radial load Fr1/Fr2: 398/6000 N
IHA53 163,05 Size: A53 | Ratio i: 163.05 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.29 kW | Output speed n2: 8.6 rpm | Radial load Fr1/Fr2: 421/6000 N
IHA53 200,27 Size: A53 | Ratio i: 200.27 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.23 kW | Output speed n2: 7.0 rpm | Radial load Fr1/Fr2: 403/6000 N
IHA53 235,41 Size: A53 | Ratio i: 235.41 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.20 kW | Output speed n2: 6.0 rpm | Radial load Fr1/Fr2: 421/6000 N
IHA53 284,81 Size: A53 | Ratio i: 284.81 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.16 kW | Output speed n2: 4.9 rpm | Radial load Fr1/Fr2: 409/6000 N
IHA53 353,98 Size: A53 | Ratio i: 353.98 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.13 kW | Output speed n2: 4.0 rpm | Radial load Fr1/Fr2: 398/6000 N
IHA61 1,33 Size: A61 | Ratio i: 1.33 | Rated torque Mn2: 90 Nm | Rated power Pn1: 10.20 kW | Output speed n2: 1050.0 rpm | Radial load Fr1/Fr2: 550/2053 N
IHA61 2,50 Size: A61 | Ratio i: 2.50 | Rated torque Mn2: 90 Nm | Rated power Pn1: 5.44 kW | Output speed n2: 560.0 rpm | Radial load Fr1/Fr2: 550/2531 N
IHA61 4,38 Size: A61 | Ratio i: 4.38 | Rated torque Mn2: 110 Nm | Rated power Pn1: 3.79 kW | Output speed n2: 319.3 rpm | Radial load Fr1/Fr2: 550/3053 N
IHA61 7,75 Size: A61 | Ratio i: 7.75 | Rated torque Mn2: 90 Nm | Rated power Pn1: 1.76 kW | Output speed n2: 180.7 rpm | Radial load Fr1/Fr2: 550/3691 N
IHA61 10,67 Size: A61 | Ratio i: 10.67 | Rated torque Mn2: 70 Nm | Rated power Pn1: 0.99 kW | Output speed n2: 131.2 rpm | Radial load Fr1/Fr2: 550/4106 N
IHA62 5,14 Size: A62 | Ratio i: 5.14 | Rated torque Mn2: 380 Nm | Rated power Pn1: 11.28 kW | Output speed n2: 272.2 rpm | Radial load Fr1/Fr2: 550/4195 N
IHA62 6,22 Size: A62 | Ratio i: 6.22 | Rated torque Mn2: 380 Nm | Rated power Pn1: 9.33 kW | Output speed n2: 225.0 rpm | Radial load Fr1/Fr2: 682/4470 N
IHA62 7,73 Size: A62 | Ratio i: 7.73 | Rated torque Mn2: 380 Nm | Rated power Pn1: 7.50 kW | Output speed n2: 181.0 rpm | Radial load Fr1/Fr2: 664/4806 N
IHA62 9,64 Size: A62 | Ratio i: 9.64 | Rated torque Mn2: 460 Nm | Rated power Pn1: 7.28 kW | Output speed n2: 145.2 rpm | Radial load Fr1/Fr2: 801/5173 N
IHA62 11,67 Size: A62 | Ratio i: 11.67 | Rated torque Mn2: 440 Nm | Rated power Pn1: 5.76 kW | Output speed n2: 120.0 rpm | Radial load Fr1/Fr2: 652/5512 N
IHA62 14,50 Size: A62 | Ratio i: 14.50 | Rated torque Mn2: 420 Nm | Rated power Pn1: 4.42 kW | Output speed n2: 96.5 rpm | Radial load Fr1/Fr2: 634/5926 N
IHA62 16,91 Size: A62 | Ratio i: 16.91 | Rated torque Mn2: 500 Nm | Rated power Pn1: 4.51 kW | Output speed n2: 82.8 rpm | Radial load Fr1/Fr2: 842/6238 N
IHA62 20,46 Size: A62 | Ratio i: 20.46 | Rated torque Mn2: 460 Nm | Rated power Pn1: 3.43 kW | Output speed n2: 68.4 rpm | Radial load Fr1/Fr2: 627/6647 N
IHA62 25,43 Size: A62 | Ratio i: 25.43 | Rated torque Mn2: 430 Nm | Rated power Pn1: 2.58 kW | Output speed n2: 55.0 rpm | Radial load Fr1/Fr2: 621/7147 N
IHA62 29,89 Size: A62 | Ratio i: 29.89 | Rated torque Mn2: 450 Nm | Rated power Pn1: 2.30 kW | Output speed n2: 46.8 rpm | Radial load Fr1/Fr2: 734/7543 N
IHA62 36,17 Size: A62 | Ratio i: 36.17 | Rated torque Mn2: 470 Nm | Rated power Pn1: 1.98 kW | Output speed n2: 38.7 rpm | Radial load Fr1/Fr2: 712/8000 N
IHA62 44,95 Size: A62 | Ratio i: 44.95 | Rated torque Mn2: 440 Nm | Rated power Pn1: 1.49 kW | Output speed n2: 31.1 rpm | Radial load Fr1/Fr2: 621/8000 N
IHA63 49,80 Size: A63 | Ratio i: 49.80 | Rated torque Mn2: 480 Nm | Rated power Pn1: 1.50 kW | Output speed n2: 28.1 rpm | Radial load Fr1/Fr2: 330/8000 N
IHA63 60,25 Size: A63 | Ratio i: 60.25 | Rated torque Mn2: 480 Nm | Rated power Pn1: 1.24 kW | Output speed n2: 23.2 rpm | Radial load Fr1/Fr2: 409/8000 N
IHA63 74,88 Size: A63 | Ratio i: 74.88 | Rated torque Mn2: 480 Nm | Rated power Pn1: 1.00 kW | Output speed n2: 18.7 rpm | Radial load Fr1/Fr2: 398/8000 N
IHA63 88,02 Size: A63 | Ratio i: 88.02 | Rated torque Mn2: 480 Nm | Rated power Pn1: 0.85 kW | Output speed n2: 15.9 rpm | Radial load Fr1/Fr2: 421/8000 N
IHA63 111,61 Size: A63 | Ratio i: 111.61 | Rated torque Mn2: 480 Nm | Rated power Pn1: 0.67 kW | Output speed n2: 12.5 rpm | Radial load Fr1/Fr2: 390/8000 N
IHA63 138,71 Size: A63 | Ratio i: 138.71 | Rated torque Mn2: 480 Nm | Rated power Pn1: 0.54 kW | Output speed n2: 10.1 rpm | Radial load Fr1/Fr2: 398/8000 N
IHA63 163,05 Size: A63 | Ratio i: 163.05 | Rated torque Mn2: 480 Nm | Rated power Pn1: 0.46 kW | Output speed n2: 8.6 rpm | Radial load Fr1/Fr2: 421/8000 N
IHA63 200,27 Size: A63 | Ratio i: 200.27 | Rated torque Mn2: 480 Nm | Rated power Pn1: 0.37 kW | Output speed n2: 7.0 rpm | Radial load Fr1/Fr2: 403/8000 N
IHA63 235,41 Size: A63 | Ratio i: 235.41 | Rated torque Mn2: 480 Nm | Rated power Pn1: 0.32 kW | Output speed n2: 6.0 rpm | Radial load Fr1/Fr2: 421/8000 N
IHA63 284,81 Size: A63 | Ratio i: 284.81 | Rated torque Mn2: 480 Nm | Rated power Pn1: 0.26 kW | Output speed n2: 4.9 rpm | Radial load Fr1/Fr2: 409/8000 N
IHA63 353,98 Size: A63 | Ratio i: 353.98 | Rated torque Mn2: 480 Nm | Rated power Pn1: 0.21 kW | Output speed n2: 4.0 rpm | Radial load Fr1/Fr2: 398/8000 N
IHA32 48.75 Legacy code (older edition, not in current tables) | Size: A32 | Ratio i: 48.75
IHA32 60.67 Legacy code (older edition, not in current tables) | Size: A32 | Ratio i: 60.67
IHA42 48.75 Legacy code (older edition, not in current tables) | Size: A42 | Ratio i: 48.75
IHA42 60.67 Legacy code (older edition, not in current tables) | Size: A42 | Ratio i: 60.67
IHA52 49.78 Legacy code (older edition, not in current tables) | Size: A52 | Ratio i: 49.78
IHA52 61.87 Legacy code (older edition, not in current tables) | Size: A52 | Ratio i: 61.87
IHA62 49.78 Legacy code (older edition, not in current tables) | Size: A62 | Ratio i: 49.78
IHA62 61.87 Legacy code (older edition, not in current tables) | Size: A62 | Ratio i: 61.87
IHA41 Legacy code (unit-level listing, ratio to be specified) | Size: A41 | Stages: 1
IHA51 Legacy code (unit-level listing, ratio to be specified) | Size: A51 | Stages: 1
IHA61 Legacy code (unit-level listing, ratio to be specified) | Size: A61 | Stages: 1
IHA32 Legacy code (unit-level listing, ratio to be specified) | Size: A32 | Stages: 2
IHA33 Legacy code (unit-level listing, ratio to be specified) | Size: A33 | Stages: 3
IHA42 Legacy code (unit-level listing, ratio to be specified) | Size: A42 | Stages: 2
IHA43 Legacy code (unit-level listing, ratio to be specified) | Size: A43 | Stages: 3
IHA52 Legacy code (unit-level listing, ratio to be specified) | Size: A52 | Stages: 2
IHA53 Legacy code (unit-level listing, ratio to be specified) | Size: A53 | Stages: 3
IHA62 Legacy code (unit-level listing, ratio to be specified) | Size: A62 | Stages: 2
IHA63 Legacy code (unit-level listing, ratio to be specified) | Size: A63 | Stages: 3
Helical Gear ReducersMotovario
126 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Motovario IHA Helical Inline Gear Reducers, Input Shaft (A32-A63)

Brand Motovario·Helical Gear Reducers

Available part numbers (126)

IHA32 5,38, IHA32 6,52, IHA32 8,11, IHA32 10,94, IHA32 13,25, IHA32 16,49, IHA32 20,26, IHA32 24,55, IHA32 30,55, IHA32 35,44 + 116 more — see full table ↓

How to order

Send the Motovario part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IHA32 5,38Size: A32 | Ratio i: 5.38 | Rated torque Mn2: 80 Nm | Rated power Pn1: 2.27 kW | Output speed n2: 260.3 rpm | Radial load Fr1/Fr2: 330/1096 N
IHA32 6,52Size: A32 | Ratio i: 6.52 | Rated torque Mn2: 80 Nm | Rated power Pn1: 1.87 kW | Output speed n2: 214.8 rpm | Radial load Fr1/Fr2: 409/1169 N
IHA32 8,11Size: A32 | Ratio i: 8.11 | Rated torque Mn2: 75 Nm | Rated power Pn1: 1.41 kW | Output speed n2: 172.6 rpm | Radial load Fr1/Fr2: 373/1257 N
IHA32 10,94Size: A32 | Ratio i: 10.94 | Rated torque Mn2: 90 Nm | Rated power Pn1: 1.26 kW | Output speed n2: 128.0 rpm | Radial load Fr1/Fr2: 441/1389 N
IHA32 13,25Size: A32 | Ratio i: 13.25 | Rated torque Mn2: 80 Nm | Rated power Pn1: 0.92 kW | Output speed n2: 105.7 rpm | Radial load Fr1/Fr2: 363/1481 N
IHA32 16,49Size: A32 | Ratio i: 16.49 | Rated torque Mn2: 80 Nm | Rated power Pn1: 0.74 kW | Output speed n2: 84.9 rpm | Radial load Fr1/Fr2: 398/1593 N
IHA32 20,26Size: A32 | Ratio i: 20.26 | Rated torque Mn2: 90 Nm | Rated power Pn1: 0.68 kW | Output speed n2: 69.1 rpm | Radial load Fr1/Fr2: 453/1706 N
IHA32 24,55Size: A32 | Ratio i: 24.55 | Rated torque Mn2: 85 Nm | Rated power Pn1: 0.53 kW | Output speed n2: 57.0 rpm | Radial load Fr1/Fr2: 386/1818 N
IHA32 30,55Size: A32 | Ratio i: 30.55 | Rated torque Mn2: 80 Nm | Rated power Pn1: 0.40 kW | Output speed n2: 45.8 rpm | Radial load Fr1/Fr2: 374/1956 N
IHA32 35,44Size: A32 | Ratio i: 35.44 | Rated torque Mn2: 90 Nm | Rated power Pn1: 0.39 kW | Output speed n2: 39.5 rpm | Radial load Fr1/Fr2: 480/2000 N
IHA32 44,10Size: A32 | Ratio i: 44.10 | Rated torque Mn2: 90 Nm | Rated power Pn1: 0.31 kW | Output speed n2: 31.8 rpm | Radial load Fr1/Fr2: 398/2000 N
IHA33 51,32Size: A33 | Ratio i: 51.32 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.30 kW | Output speed n2: 27.3 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 59,65Size: A33 | Ratio i: 59.65 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.26 kW | Output speed n2: 23.5 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 72,27Size: A33 | Ratio i: 72.27 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.22 kW | Output speed n2: 19.4 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 89,94Size: A33 | Ratio i: 89.94 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.17 kW | Output speed n2: 15.6 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 110,51Size: A33 | Ratio i: 110.51 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.14 kW | Output speed n2: 12.7 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 133,88Size: A33 | Ratio i: 133.88 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.12 kW | Output speed n2: 10.5 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 166,61Size: A33 | Ratio i: 166.61 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.09 kW | Output speed n2: 8.4 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 193,30Size: A33 | Ratio i: 193.30 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.08 kW | Output speed n2: 7.2 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 240,55Size: A33 | Ratio i: 240.55 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.06 kW | Output speed n2: 5.8 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 279,07Size: A33 | Ratio i: 279.07 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.06 kW | Output speed n2: 5.0 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA33 347,29Size: A33 | Ratio i: 347.29 | Rated torque Mn2: 100 Nm | Rated power Pn1: 0.04 kW | Output speed n2: 4.0 rpm | Radial load Fr1/Fr2: 472/2000 N
IHA41 1,45Size: A41 | Ratio i: 1.45 | Rated torque Mn2: 25 Nm | Rated power Pn1: 2.61 kW | Output speed n2: 966.7 rpm | Radial load Fr1/Fr2: 330/512 N
IHA41 2,94Size: A41 | Ratio i: 2.94 | Rated torque Mn2: 25 Nm | Rated power Pn1: 1.28 kW | Output speed n2: 475.5 rpm | Radial load Fr1/Fr2: 330/648 N
IHA41 4,75Size: A41 | Ratio i: 4.75 | Rated torque Mn2: 30 Nm | Rated power Pn1: 0.95 kW | Output speed n2: 294.7 rpm | Radial load Fr1/Fr2: 330/760 N
IHA41 5,45Size: A41 | Ratio i: 5.45 | Rated torque Mn2: 30 Nm | Rated power Pn1: 0.83 kW | Output speed n2: 256.7 rpm | Radial load Fr1/Fr2: 330/796 N
IHA41 7,88Size: A41 | Ratio i: 7.88 | Rated torque Mn2: 25 Nm | Rated power Pn1: 0.48 kW | Output speed n2: 177.8 rpm | Radial load Fr1/Fr2: 330/900 N
IHA41 10,83Size: A41 | Ratio i: 10.83 | Rated torque Mn2: 20 Nm | Rated power Pn1: 0.28 kW | Output speed n2: 129.2 rpm | Radial load Fr1/Fr2: 330/1001 N
IHA42 5,38Size: A42 | Ratio i: 5.38 | Rated torque Mn2: 140 Nm | Rated power Pn1: 3.97 kW | Output speed n2: 260.3 rpm | Radial load Fr1/Fr2: 330/2308 N
IHA42 6,52Size: A42 | Ratio i: 6.52 | Rated torque Mn2: 140 Nm | Rated power Pn1: 3.28 kW | Output speed n2: 214.8 rpm | Radial load Fr1/Fr2: 409/2461 N
IHA42 8,11Size: A42 | Ratio i: 8.11 | Rated torque Mn2: 130 Nm | Rated power Pn1: 2.45 kW | Output speed n2: 172.6 rpm | Radial load Fr1/Fr2: 369/2647 N
IHA42 10,94Size: A42 | Ratio i: 10.94 | Rated torque Mn2: 150 Nm | Rated power Pn1: 2.09 kW | Output speed n2: 128.0 rpm | Radial load Fr1/Fr2: 424/2924 N
IHA42 13,25Size: A42 | Ratio i: 13.25 | Rated torque Mn2: 140 Nm | Rated power Pn1: 1.61 kW | Output speed n2: 105.7 rpm | Radial load Fr1/Fr2: 381/3117 N
IHA42 16,49Size: A42 | Ratio i: 16.49 | Rated torque Mn2: 140 Nm | Rated power Pn1: 1.30 kW | Output speed n2: 84.9 rpm | Radial load Fr1/Fr2: 398/3353 N
IHA42 20,26Size: A42 | Ratio i: 20.26 | Rated torque Mn2: 150 Nm | Rated power Pn1: 1.13 kW | Output speed n2: 69.1 rpm | Radial load Fr1/Fr2: 432/3591 N
IHA42 24,55Size: A42 | Ratio i: 24.55 | Rated torque Mn2: 155 Nm | Rated power Pn1: 0.96 kW | Output speed n2: 57.0 rpm | Radial load Fr1/Fr2: 422/3828 N
IHA42 30,55Size: A42 | Ratio i: 30.55 | Rated torque Mn2: 140 Nm | Rated power Pn1: 0.70 kW | Output speed n2: 45.8 rpm | Radial load Fr1/Fr2: 359/4118 N
IHA42 35,44Size: A42 | Ratio i: 35.44 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.65 kW | Output speed n2: 39.5 rpm | Radial load Fr1/Fr2: 457/4300 N
IHA42 44,10Size: A42 | Ratio i: 44.10 | Rated torque Mn2: 140 Nm | Rated power Pn1: 0.48 kW | Output speed n2: 31.8 rpm | Radial load Fr1/Fr2: 371/4300 N
IHA43 51,32Size: A43 | Ratio i: 51.32 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.46 kW | Output speed n2: 27.3 rpm | Radial load Fr1/Fr2: 427/4300 N
IHA43 59,65Size: A43 | Ratio i: 59.65 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.39 kW | Output speed n2: 23.5 rpm | Radial load Fr1/Fr2: 426/4300 N
IHA43 72,27Size: A43 | Ratio i: 72.27 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.32 kW | Output speed n2: 19.4 rpm | Radial load Fr1/Fr2: 409/4300 N
IHA43 89,94Size: A43 | Ratio i: 89.94 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.26 kW | Output speed n2: 15.6 rpm | Radial load Fr1/Fr2: 398/4300 N
IHA43 110,51Size: A43 | Ratio i: 110.51 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.21 kW | Output speed n2: 12.7 rpm | Radial load Fr1/Fr2: 403/4300 N
IHA43 133,88Size: A43 | Ratio i: 133.88 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.17 kW | Output speed n2: 10.5 rpm | Radial load Fr1/Fr2: 409/4300 N
IHA43 166,61Size: A43 | Ratio i: 166.61 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.14 kW | Output speed n2: 8.4 rpm | Radial load Fr1/Fr2: 398/4300 N
IHA43 193,30Size: A43 | Ratio i: 193.30 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.12 kW | Output speed n2: 7.2 rpm | Radial load Fr1/Fr2: 427/4300 N
IHA43 240,55Size: A43 | Ratio i: 240.55 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.10 kW | Output speed n2: 5.8 rpm | Radial load Fr1/Fr2: 398/4300 N
IHA43 279,07Size: A43 | Ratio i: 279.07 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.08 kW | Output speed n2: 5.0 rpm | Radial load Fr1/Fr2: 427/4300 N
IHA43 347,29Size: A43 | Ratio i: 347.29 | Rated torque Mn2: 150 Nm | Rated power Pn1: 0.07 kW | Output speed n2: 4.0 rpm | Radial load Fr1/Fr2: 398/4300 N
IHA51 1,45Size: A51 | Ratio i: 1.45 | Rated torque Mn2: 40 Nm | Rated power Pn1: 4.17 kW | Output speed n2: 966.7 rpm | Radial load Fr1/Fr2: 330/1410 N
IHA51 2,94Size: A51 | Ratio i: 2.94 | Rated torque Mn2: 40 Nm | Rated power Pn1: 2.05 kW | Output speed n2: 475.5 rpm | Radial load Fr1/Fr2: 330/1786 N
IHA51 4,75Size: A51 | Ratio i: 4.75 | Rated torque Mn2: 50 Nm | Rated power Pn1: 1.59 kW | Output speed n2: 294.7 rpm | Radial load Fr1/Fr2: 330/2095 N
IHA51 5,45Size: A51 | Ratio i: 5.45 | Rated torque Mn2: 50 Nm | Rated power Pn1: 1.39 kW | Output speed n2: 256.7 rpm | Radial load Fr1/Fr2: 330/2194 N
IHA51 7,88Size: A51 | Ratio i: 7.88 | Rated torque Mn2: 40 Nm | Rated power Pn1: 0.77 kW | Output speed n2: 177.8 rpm | Radial load Fr1/Fr2: 330/2479 N
IHA51 10,83Size: A51 | Ratio i: 10.83 | Rated torque Mn2: 25 Nm | Rated power Pn1: 0.35 kW | Output speed n2: 129.2 rpm | Radial load Fr1/Fr2: 330/2757 N
IHA52 5,14Size: A52 | Ratio i: 5.14 | Rated torque Mn2: 240 Nm | Rated power Pn1: 7.13 kW | Output speed n2: 272.2 rpm | Radial load Fr1/Fr2: 550/2842 N
IHA52 6,22Size: A52 | Ratio i: 6.22 | Rated torque Mn2: 240 Nm | Rated power Pn1: 5.89 kW | Output speed n2: 225.0 rpm | Radial load Fr1/Fr2: 682/3029 N
IHA52 7,73Size: A52 | Ratio i: 7.73 | Rated torque Mn2: 240 Nm | Rated power Pn1: 4.74 kW | Output speed n2: 181.0 rpm | Radial load Fr1/Fr2: 664/3256 N
IHA52 9,64Size: A52 | Ratio i: 9.64 | Rated torque Mn2: 300 Nm | Rated power Pn1: 4.75 kW | Output speed n2: 145.2 rpm | Radial load Fr1/Fr2: 827/3505 N
IHA52 11,67Size: A52 | Ratio i: 11.67 | Rated torque Mn2: 280 Nm | Rated power Pn1: 3.66 kW | Output speed n2: 120.0 rpm | Radial load Fr1/Fr2: 636/3735 N
IHA52 14,50Size: A52 | Ratio i: 14.50 | Rated torque Mn2: 280 Nm | Rated power Pn1: 2.95 kW | Output speed n2: 96.5 rpm | Radial load Fr1/Fr2: 664/4015 N
IHA52 16,91Size: A52 | Ratio i: 16.91 | Rated torque Mn2: 300 Nm | Rated power Pn1: 2.71 kW | Output speed n2: 82.8 rpm | Radial load Fr1/Fr2: 758/4227 N
IHA52 20,46Size: A52 | Ratio i: 20.46 | Rated torque Mn2: 290 Nm | Rated power Pn1: 2.16 kW | Output speed n2: 68.4 rpm | Radial load Fr1/Fr2: 659/4504 N
IHA52 25,43Size: A52 | Ratio i: 25.43 | Rated torque Mn2: 280 Nm | Rated power Pn1: 1.68 kW | Output speed n2: 55.0 rpm | Radial load Fr1/Fr2: 641/4842 N
IHA52 29,89Size: A52 | Ratio i: 29.89 | Rated torque Mn2: 300 Nm | Rated power Pn1: 1.53 kW | Output speed n2: 46.8 rpm | Radial load Fr1/Fr2: 752/5110 N
IHA52 36,17Size: A52 | Ratio i: 36.17 | Rated torque Mn2: 300 Nm | Rated power Pn1: 1.27 kW | Output speed n2: 38.7 rpm | Radial load Fr1/Fr2: 682/5445 N
IHA52 44,95Size: A52 | Ratio i: 44.95 | Rated torque Mn2: 280 Nm | Rated power Pn1: 0.95 kW | Output speed n2: 31.1 rpm | Radial load Fr1/Fr2: 620/5855 N
IHA53 49,80Size: A53 | Ratio i: 49.80 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.94 kW | Output speed n2: 28.1 rpm | Radial load Fr1/Fr2: 330/6000 N
IHA53 60,25Size: A53 | Ratio i: 60.25 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.78 kW | Output speed n2: 23.2 rpm | Radial load Fr1/Fr2: 409/6000 N
IHA53 74,88Size: A53 | Ratio i: 74.88 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.62 kW | Output speed n2: 18.7 rpm | Radial load Fr1/Fr2: 398/6000 N
IHA53 88,02Size: A53 | Ratio i: 88.02 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.53 kW | Output speed n2: 15.9 rpm | Radial load Fr1/Fr2: 421/6000 N
IHA53 111,61Size: A53 | Ratio i: 111.61 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.42 kW | Output speed n2: 12.5 rpm | Radial load Fr1/Fr2: 390/6000 N
IHA53 138,71Size: A53 | Ratio i: 138.71 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.34 kW | Output speed n2: 10.1 rpm | Radial load Fr1/Fr2: 398/6000 N
IHA53 163,05Size: A53 | Ratio i: 163.05 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.29 kW | Output speed n2: 8.6 rpm | Radial load Fr1/Fr2: 421/6000 N
IHA53 200,27Size: A53 | Ratio i: 200.27 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.23 kW | Output speed n2: 7.0 rpm | Radial load Fr1/Fr2: 403/6000 N
IHA53 235,41Size: A53 | Ratio i: 235.41 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.20 kW | Output speed n2: 6.0 rpm | Radial load Fr1/Fr2: 421/6000 N
IHA53 284,81Size: A53 | Ratio i: 284.81 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.16 kW | Output speed n2: 4.9 rpm | Radial load Fr1/Fr2: 409/6000 N
IHA53 353,98Size: A53 | Ratio i: 353.98 | Rated torque Mn2: 300 Nm | Rated power Pn1: 0.13 kW | Output speed n2: 4.0 rpm | Radial load Fr1/Fr2: 398/6000 N
IHA61 1,33Size: A61 | Ratio i: 1.33 | Rated torque Mn2: 90 Nm | Rated power Pn1: 10.20 kW | Output speed n2: 1050.0 rpm | Radial load Fr1/Fr2: 550/2053 N
IHA61 2,50Size: A61 | Ratio i: 2.50 | Rated torque Mn2: 90 Nm | Rated power Pn1: 5.44 kW | Output speed n2: 560.0 rpm | Radial load Fr1/Fr2: 550/2531 N
IHA61 4,38Size: A61 | Ratio i: 4.38 | Rated torque Mn2: 110 Nm | Rated power Pn1: 3.79 kW | Output speed n2: 319.3 rpm | Radial load Fr1/Fr2: 550/3053 N
IHA61 7,75Size: A61 | Ratio i: 7.75 | Rated torque Mn2: 90 Nm | Rated power Pn1: 1.76 kW | Output speed n2: 180.7 rpm | Radial load Fr1/Fr2: 550/3691 N
IHA61 10,67Size: A61 | Ratio i: 10.67 | Rated torque Mn2: 70 Nm | Rated power Pn1: 0.99 kW | Output speed n2: 131.2 rpm | Radial load Fr1/Fr2: 550/4106 N
IHA62 5,14Size: A62 | Ratio i: 5.14 | Rated torque Mn2: 380 Nm | Rated power Pn1: 11.28 kW | Output speed n2: 272.2 rpm | Radial load Fr1/Fr2: 550/4195 N
IHA62 6,22Size: A62 | Ratio i: 6.22 | Rated torque Mn2: 380 Nm | Rated power Pn1: 9.33 kW | Output speed n2: 225.0 rpm | Radial load Fr1/Fr2: 682/4470 N
IHA62 7,73Size: A62 | Ratio i: 7.73 | Rated torque Mn2: 380 Nm | Rated power Pn1: 7.50 kW | Output speed n2: 181.0 rpm | Radial load Fr1/Fr2: 664/4806 N
IHA62 9,64Size: A62 | Ratio i: 9.64 | Rated torque Mn2: 460 Nm | Rated power Pn1: 7.28 kW | Output speed n2: 145.2 rpm | Radial load Fr1/Fr2: 801/5173 N
IHA62 11,67Size: A62 | Ratio i: 11.67 | Rated torque Mn2: 440 Nm | Rated power Pn1: 5.76 kW | Output speed n2: 120.0 rpm | Radial load Fr1/Fr2: 652/5512 N
IHA62 14,50Size: A62 | Ratio i: 14.50 | Rated torque Mn2: 420 Nm | Rated power Pn1: 4.42 kW | Output speed n2: 96.5 rpm | Radial load Fr1/Fr2: 634/5926 N
IHA62 16,91Size: A62 | Ratio i: 16.91 | Rated torque Mn2: 500 Nm | Rated power Pn1: 4.51 kW | Output speed n2: 82.8 rpm | Radial load Fr1/Fr2: 842/6238 N
IHA62 20,46Size: A62 | Ratio i: 20.46 | Rated torque Mn2: 460 Nm | Rated power Pn1: 3.43 kW | Output speed n2: 68.4 rpm | Radial load Fr1/Fr2: 627/6647 N
IHA62 25,43Size: A62 | Ratio i: 25.43 | Rated torque Mn2: 430 Nm | Rated power Pn1: 2.58 kW | Output speed n2: 55.0 rpm | Radial load Fr1/Fr2: 621/7147 N
IHA62 29,89Size: A62 | Ratio i: 29.89 | Rated torque Mn2: 450 Nm | Rated power Pn1: 2.30 kW | Output speed n2: 46.8 rpm | Radial load Fr1/Fr2: 734/7543 N
IHA62 36,17Size: A62 | Ratio i: 36.17 | Rated torque Mn2: 470 Nm | Rated power Pn1: 1.98 kW | Output speed n2: 38.7 rpm | Radial load Fr1/Fr2: 712/8000 N
IHA62 44,95Size: A62 | Ratio i: 44.95 | Rated torque Mn2: 440 Nm | Rated power Pn1: 1.49 kW | Output speed n2: 31.1 rpm | Radial load Fr1/Fr2: 621/8000 N
IHA63 49,80Size: A63 | Ratio i: 49.80 | Rated torque Mn2: 480 Nm | Rated power Pn1: 1.50 kW | Output speed n2: 28.1 rpm | Radial load Fr1/Fr2: 330/8000 N
IHA63 60,25Size: A63 | Ratio i: 60.25 | Rated torque Mn2: 480 Nm | Rated power Pn1: 1.24 kW | Output speed n2: 23.2 rpm | Radial load Fr1/Fr2: 409/8000 N
IHA63 74,88Size: A63 | Ratio i: 74.88 | Rated torque Mn2: 480 Nm | Rated power Pn1: 1.00 kW | Output speed n2: 18.7 rpm | Radial load Fr1/Fr2: 398/8000 N
IHA63 88,02Size: A63 | Ratio i: 88.02 | Rated torque Mn2: 480 Nm | Rated power Pn1: 0.85 kW | Output speed n2: 15.9 rpm | Radial load Fr1/Fr2: 421/8000 N
IHA63 111,61Size: A63 | Ratio i: 111.61 | Rated torque Mn2: 480 Nm | Rated power Pn1: 0.67 kW | Output speed n2: 12.5 rpm | Radial load Fr1/Fr2: 390/8000 N
IHA63 138,71Size: A63 | Ratio i: 138.71 | Rated torque Mn2: 480 Nm | Rated power Pn1: 0.54 kW | Output speed n2: 10.1 rpm | Radial load Fr1/Fr2: 398/8000 N
IHA63 163,05Size: A63 | Ratio i: 163.05 | Rated torque Mn2: 480 Nm | Rated power Pn1: 0.46 kW | Output speed n2: 8.6 rpm | Radial load Fr1/Fr2: 421/8000 N
IHA63 200,27Size: A63 | Ratio i: 200.27 | Rated torque Mn2: 480 Nm | Rated power Pn1: 0.37 kW | Output speed n2: 7.0 rpm | Radial load Fr1/Fr2: 403/8000 N
IHA63 235,41Size: A63 | Ratio i: 235.41 | Rated torque Mn2: 480 Nm | Rated power Pn1: 0.32 kW | Output speed n2: 6.0 rpm | Radial load Fr1/Fr2: 421/8000 N
IHA63 284,81Size: A63 | Ratio i: 284.81 | Rated torque Mn2: 480 Nm | Rated power Pn1: 0.26 kW | Output speed n2: 4.9 rpm | Radial load Fr1/Fr2: 409/8000 N
IHA63 353,98Size: A63 | Ratio i: 353.98 | Rated torque Mn2: 480 Nm | Rated power Pn1: 0.21 kW | Output speed n2: 4.0 rpm | Radial load Fr1/Fr2: 398/8000 N
IHA32 48.75Legacy code (older edition, not in current tables) | Size: A32 | Ratio i: 48.75
IHA32 60.67Legacy code (older edition, not in current tables) | Size: A32 | Ratio i: 60.67
IHA42 48.75Legacy code (older edition, not in current tables) | Size: A42 | Ratio i: 48.75
IHA42 60.67Legacy code (older edition, not in current tables) | Size: A42 | Ratio i: 60.67
IHA52 49.78Legacy code (older edition, not in current tables) | Size: A52 | Ratio i: 49.78
IHA52 61.87Legacy code (older edition, not in current tables) | Size: A52 | Ratio i: 61.87
IHA62 49.78Legacy code (older edition, not in current tables) | Size: A62 | Ratio i: 49.78
IHA62 61.87Legacy code (older edition, not in current tables) | Size: A62 | Ratio i: 61.87
IHA41Legacy code (unit-level listing, ratio to be specified) | Size: A41 | Stages: 1
IHA51Legacy code (unit-level listing, ratio to be specified) | Size: A51 | Stages: 1
IHA61Legacy code (unit-level listing, ratio to be specified) | Size: A61 | Stages: 1
IHA32Legacy code (unit-level listing, ratio to be specified) | Size: A32 | Stages: 2
IHA33Legacy code (unit-level listing, ratio to be specified) | Size: A33 | Stages: 3
IHA42Legacy code (unit-level listing, ratio to be specified) | Size: A42 | Stages: 2
IHA43Legacy code (unit-level listing, ratio to be specified) | Size: A43 | Stages: 3
IHA52Legacy code (unit-level listing, ratio to be specified) | Size: A52 | Stages: 2
IHA53Legacy code (unit-level listing, ratio to be specified) | Size: A53 | Stages: 3
IHA62Legacy code (unit-level listing, ratio to be specified) | Size: A62 | Stages: 2
IHA63Legacy code (unit-level listing, ratio to be specified) | Size: A63 | Stages: 3

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
