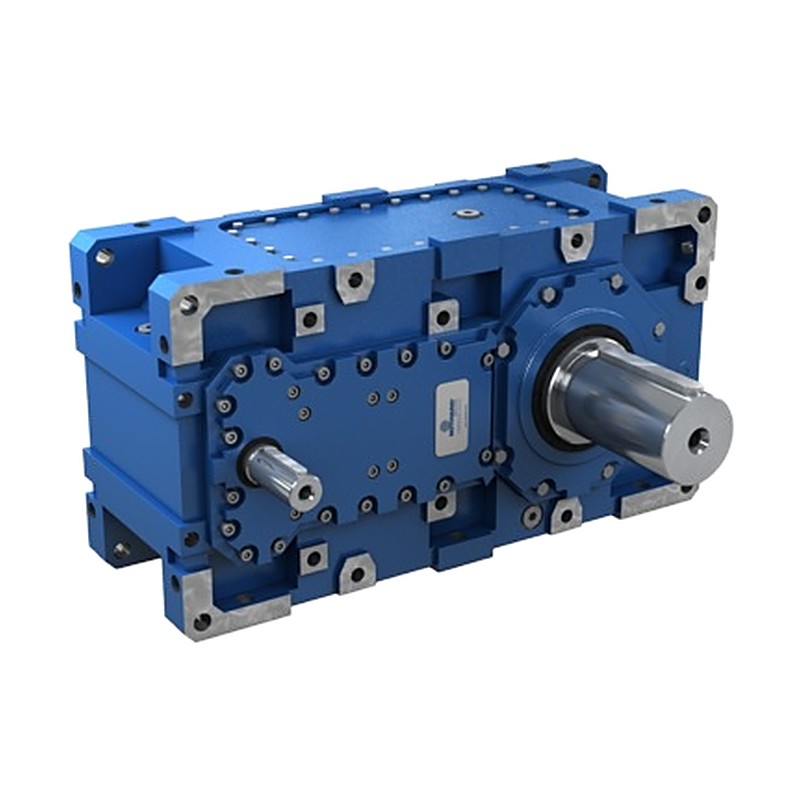

Motovario PBZ Parallel Helical Gear Reducers (P2Z/P3Z/P4Z 179-409)

Motovario PBZ parallel helical gear reducers (P2Z, P3Z, P4Z) are mid-heavy duty industrial gearboxes in spheroidal cast iron, rated up to 110,000 Nm output torque in ten frame sizes from 179 to 409.

Key features

2, 3 and 4 stage parallel shaft helical gear trains (P2Z, P3Z, P4Z), ratios approx. 6.3 to 431
Rated output torque Mn2 from 9,000 Nm (size 179) to 110,000 Nm (size 409)
Monobloc casing for sizes 179-349, split casing for sizes 399-409
Solid input shaft or IEC bell-housing with coupling for motors IEC 132-315; NEMA adapter available
Executions AZ, AU, DZ, DU; solid, hollow keyed, shrink disc, splined or double-ended output shaft
Options: cooling coil, cooling fan, oil/water heat exchanger, backstop, torque arm, lubrication pump

Specifications

Construction	Parallel shaft helical, 2-4 stages
Efficiency	P2Z 0.96, P3Z 0.94, P4Z 0.92
Executions	AZ, AU, DZ, DU
Casing	EN-GJS400-15 spheroidal cast iron
Gears	Case-hardened 21NiCrMo2 steel, ground
Frame sizes	179, 199, 219, 249, 269, 279, 319, 349, 399, 409
Rating basis	n1 = 1400 rpm (tables 500-1750 rpm)
Input	Solid shaft (I) or IEC bell-housing (P)
Output shaft	Solid, hollow keyed, shrink disc, splined
Mounting positions	B3, B3R, B6, B7, V5, V6
Source	Motovario PBZ Technical Catalogue IEC STD, p. 9-102

P2Z 179 6,37		Size: 179 \| Gear stages: 2 \| Ratio i: 6.37 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 216 kW \| Output speed n2: 220 rpm
P2Z 179 7,14		Size: 179 \| Gear stages: 2 \| Ratio i: 7.14 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 192 kW \| Output speed n2: 196 rpm
P2Z 179 8,06		Size: 179 \| Gear stages: 2 \| Ratio i: 8.06 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 171 kW \| Output speed n2: 174 rpm
P2Z 179 9,64		Size: 179 \| Gear stages: 2 \| Ratio i: 9.64 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 143 kW \| Output speed n2: 145 rpm
P2Z 179 10,5		Size: 179 \| Gear stages: 2 \| Ratio i: 10.5 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 132 kW \| Output speed n2: 134 rpm
P2Z 179 11,4		Size: 179 \| Gear stages: 2 \| Ratio i: 11.4 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 121 kW \| Output speed n2: 123 rpm
P2Z 179 13,7		Size: 179 \| Gear stages: 2 \| Ratio i: 13.7 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 100 kW \| Output speed n2: 102 rpm
P2Z 179 15,6		Size: 179 \| Gear stages: 2 \| Ratio i: 15.6 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 88.3 kW \| Output speed n2: 90.0 rpm
P2Z 179 16,8		Size: 179 \| Gear stages: 2 \| Ratio i: 16.8 \| Rated torque Mn2: 8640 Nm \| Rated power Pn1: 78.6 kW \| Output speed n2: 83.4 rpm
P2Z 179 18,2		Size: 179 \| Gear stages: 2 \| Ratio i: 18.2 \| Rated torque Mn2: 8160 Nm \| Rated power Pn1: 68.5 kW \| Output speed n2: 77.0 rpm
P2Z 179 19,2		Size: 179 \| Gear stages: 2 \| Ratio i: 19.2 \| Rated torque Mn2: 6900 Nm \| Rated power Pn1: 54.8 kW \| Output speed n2: 72.9 rpm
P2Z 179 20,9		Size: 179 \| Gear stages: 2 \| Ratio i: 20.9 \| Rated torque Mn2: 7050 Nm \| Rated power Pn1: 51.4 kW \| Output speed n2: 66.9 rpm
P2Z 199 7,91		Size: 199 \| Gear stages: 2 \| Ratio i: 7.91 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 212 kW \| Output speed n2: 177 rpm
P2Z 199 8,87		Size: 199 \| Gear stages: 2 \| Ratio i: 8.87 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 189 kW \| Output speed n2: 158 rpm
P2Z 199 10,0		Size: 199 \| Gear stages: 2 \| Ratio i: 10.0 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 168 kW \| Output speed n2: 140 rpm
P2Z 199 12,0		Size: 199 \| Gear stages: 2 \| Ratio i: 12.0 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 140 kW \| Output speed n2: 117 rpm
P2Z 199 13,0		Size: 199 \| Gear stages: 2 \| Ratio i: 13.0 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 129 kW \| Output speed n2: 108 rpm
P2Z 199 14,1		Size: 199 \| Gear stages: 2 \| Ratio i: 14.1 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 119 kW \| Output speed n2: 99.2 rpm
P2Z 199 17,0		Size: 199 \| Gear stages: 2 \| Ratio i: 17.0 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 98.8 kW \| Output speed n2: 82.4 rpm
P2Z 199 19,3		Size: 199 \| Gear stages: 2 \| Ratio i: 19.3 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 86.9 kW \| Output speed n2: 72.4 rpm
P2Z 199 20,9		Size: 199 \| Gear stages: 2 \| Ratio i: 20.9 \| Rated torque Mn2: 10700 Nm \| Rated power Pn1: 78.7 kW \| Output speed n2: 67.1 rpm
P2Z 199 22,6		Size: 199 \| Gear stages: 2 \| Ratio i: 22.6 \| Rated torque Mn2: 10100 Nm \| Rated power Pn1: 68.5 kW \| Output speed n2: 62.0 rpm
P2Z 199 23,9		Size: 199 \| Gear stages: 2 \| Ratio i: 23.9 \| Rated torque Mn2: 8570 Nm \| Rated power Pn1: 54.9 kW \| Output speed n2: 58.7 rpm
P2Z 199 26,0		Size: 199 \| Gear stages: 2 \| Ratio i: 26.0 \| Rated torque Mn2: 8760 Nm \| Rated power Pn1: 51.5 kW \| Output speed n2: 53.9 rpm
P2Z 219 6,28		Size: 219 \| Gear stages: 2 \| Ratio i: 6.28 \| Rated torque Mn2: 13300 Nm \| Rated power Pn1: 322 kW \| Output speed n2: 223 rpm
P2Z 219 7,28		Size: 219 \| Gear stages: 2 \| Ratio i: 7.28 \| Rated torque Mn2: 13900 Nm \| Rated power Pn1: 292 kW \| Output speed n2: 192 rpm
P2Z 219 7,86		Size: 219 \| Gear stages: 2 \| Ratio i: 7.86 \| Rated torque Mn2: 14300 Nm \| Rated power Pn1: 278 kW \| Output speed n2: 178 rpm
P2Z 219 8,50		Size: 219 \| Gear stages: 2 \| Ratio i: 8.50 \| Rated torque Mn2: 14700 Nm \| Rated power Pn1: 263 kW \| Output speed n2: 165 rpm
P2Z 219 9,22		Size: 219 \| Gear stages: 2 \| Ratio i: 9.22 \| Rated torque Mn2: 15100 Nm \| Rated power Pn1: 249 kW \| Output speed n2: 152 rpm
P2Z 219 10,0		Size: 219 \| Gear stages: 2 \| Ratio i: 10.0 \| Rated torque Mn2: 15500 Nm \| Rated power Pn1: 236 kW \| Output speed n2: 140 rpm
P2Z 219 11,0		Size: 219 \| Gear stages: 2 \| Ratio i: 11.0 \| Rated torque Mn2: 16000 Nm \| Rated power Pn1: 222 kW \| Output speed n2: 128 rpm
P2Z 219 12,7		Size: 219 \| Gear stages: 2 \| Ratio i: 12.7 \| Rated torque Mn2: 16700 Nm \| Rated power Pn1: 201 kW \| Output speed n2: 110 rpm
P2Z 219 14,7		Size: 219 \| Gear stages: 2 \| Ratio i: 14.7 \| Rated torque Mn2: 16200 Nm \| Rated power Pn1: 168 kW \| Output speed n2: 95.4 rpm
P2Z 219 16,1		Size: 219 \| Gear stages: 2 \| Ratio i: 16.1 \| Rated torque Mn2: 15100 Nm \| Rated power Pn1: 143 kW \| Output speed n2: 87.0 rpm
P2Z 219 17,4		Size: 219 \| Gear stages: 2 \| Ratio i: 17.4 \| Rated torque Mn2: 14300 Nm \| Rated power Pn1: 125 kW \| Output speed n2: 80.4 rpm
P2Z 219 18,9		Size: 219 \| Gear stages: 2 \| Ratio i: 18.9 \| Rated torque Mn2: 13400 Nm \| Rated power Pn1: 108 kW \| Output speed n2: 74.0 rpm
P2Z 249 7,96		Size: 249 \| Gear stages: 2 \| Ratio i: 7.96 \| Rated torque Mn2: 16800 Nm \| Rated power Pn1: 322 kW \| Output speed n2: 176 rpm
P2Z 249 9,23		Size: 249 \| Gear stages: 2 \| Ratio i: 9.23 \| Rated torque Mn2: 17700 Nm \| Rated power Pn1: 292 kW \| Output speed n2: 152 rpm
P2Z 249 9,96		Size: 249 \| Gear stages: 2 \| Ratio i: 9.96 \| Rated torque Mn2: 18100 Nm \| Rated power Pn1: 278 kW \| Output speed n2: 141 rpm
P2Z 249 10,8		Size: 249 \| Gear stages: 2 \| Ratio i: 10.8 \| Rated torque Mn2: 18600 Nm \| Rated power Pn1: 263 kW \| Output speed n2: 130 rpm
P2Z 249 11,7		Size: 249 \| Gear stages: 2 \| Ratio i: 11.7 \| Rated torque Mn2: 19100 Nm \| Rated power Pn1: 250 kW \| Output speed n2: 120 rpm
P2Z 249 12,7		Size: 249 \| Gear stages: 2 \| Ratio i: 12.7 \| Rated torque Mn2: 19700 Nm \| Rated power Pn1: 236 kW \| Output speed n2: 110 rpm
P2Z 249 13,9		Size: 249 \| Gear stages: 2 \| Ratio i: 13.9 \| Rated torque Mn2: 20200 Nm \| Rated power Pn1: 222 kW \| Output speed n2: 101 rpm
P2Z 249 16,1		Size: 249 \| Gear stages: 2 \| Ratio i: 16.1 \| Rated torque Mn2: 21200 Nm \| Rated power Pn1: 201 kW \| Output speed n2: 87.0 rpm
P2Z 249 18,6		Size: 249 \| Gear stages: 2 \| Ratio i: 18.6 \| Rated torque Mn2: 20500 Nm \| Rated power Pn1: 168 kW \| Output speed n2: 75.2 rpm
P2Z 249 20,4		Size: 249 \| Gear stages: 2 \| Ratio i: 20.4 \| Rated torque Mn2: 19100 Nm \| Rated power Pn1: 143 kW \| Output speed n2: 68.6 rpm
P2Z 249 22,1		Size: 249 \| Gear stages: 2 \| Ratio i: 22.1 \| Rated torque Mn2: 18100 Nm \| Rated power Pn1: 125 kW \| Output speed n2: 63.4 rpm
P2Z 249 24,0		Size: 249 \| Gear stages: 2 \| Ratio i: 24.0 \| Rated torque Mn2: 17000 Nm \| Rated power Pn1: 108 kW \| Output speed n2: 58.3 rpm
P2Z 269 6,44		Size: 269 \| Gear stages: 2 \| Ratio i: 6.44 \| Rated torque Mn2: 27000 Nm \| Rated power Pn1: 640 kW \| Output speed n2: 217 rpm
P2Z 269 7,47		Size: 269 \| Gear stages: 2 \| Ratio i: 7.47 \| Rated torque Mn2: 28500 Nm \| Rated power Pn1: 582 kW \| Output speed n2: 187 rpm
P2Z 269 8,74		Size: 269 \| Gear stages: 2 \| Ratio i: 8.74 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 507 kW \| Output speed n2: 160 rpm
P2Z 269 9,49		Size: 269 \| Gear stages: 2 \| Ratio i: 9.49 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 467 kW \| Output speed n2: 148 rpm
P2Z 269 10,3		Size: 269 \| Gear stages: 2 \| Ratio i: 10.3 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 429 kW \| Output speed n2: 136 rpm
P2Z 269 11,1		Size: 269 \| Gear stages: 2 \| Ratio i: 11.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 398 kW \| Output speed n2: 126 rpm
P2Z 269 12,0		Size: 269 \| Gear stages: 2 \| Ratio i: 12.0 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 368 kW \| Output speed n2: 116 rpm
P2Z 269 14,2		Size: 269 \| Gear stages: 2 \| Ratio i: 14.2 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 313 kW \| Output speed n2: 98.9 rpm
P2Z 269 16,3		Size: 269 \| Gear stages: 2 \| Ratio i: 16.3 \| Rated torque Mn2: 27700 Nm \| Rated power Pn1: 260 kW \| Output speed n2: 86.1 rpm
P2Z 269 17,5		Size: 269 \| Gear stages: 2 \| Ratio i: 17.5 \| Rated torque Mn2: 25300 Nm \| Rated power Pn1: 221 kW \| Output speed n2: 80.2 rpm
P2Z 269 18,9		Size: 269 \| Gear stages: 2 \| Ratio i: 18.9 \| Rated torque Mn2: 25500 Nm \| Rated power Pn1: 206 kW \| Output speed n2: 74.2 rpm
P2Z 269 20,7		Size: 269 \| Gear stages: 2 \| Ratio i: 20.7 \| Rated torque Mn2: 21400 Nm \| Rated power Pn1: 158 kW \| Output speed n2: 67.8 rpm
P2Z 279 7,96		Size: 279 \| Gear stages: 2 \| Ratio i: 7.96 \| Rated torque Mn2: 33500 Nm \| Rated power Pn1: 642 kW \| Output speed n2: 176 rpm
P2Z 279 9,25		Size: 279 \| Gear stages: 2 \| Ratio i: 9.25 \| Rated torque Mn2: 35200 Nm \| Rated power Pn1: 581 kW \| Output speed n2: 151 rpm
P2Z 279 10,8		Size: 279 \| Gear stages: 2 \| Ratio i: 10.8 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 509 kW \| Output speed n2: 130 rpm
P2Z 279 11,7		Size: 279 \| Gear stages: 2 \| Ratio i: 11.7 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 468 kW \| Output speed n2: 119 rpm
P2Z 279 12,8		Size: 279 \| Gear stages: 2 \| Ratio i: 12.8 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 430 kW \| Output speed n2: 110 rpm
P2Z 279 13,8		Size: 279 \| Gear stages: 2 \| Ratio i: 13.8 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 399 kW \| Output speed n2: 102 rpm
P2Z 279 14,9		Size: 279 \| Gear stages: 2 \| Ratio i: 14.9 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 369 kW \| Output speed n2: 94.0 rpm
P2Z 279 17,5		Size: 279 \| Gear stages: 2 \| Ratio i: 17.5 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 314 kW \| Output speed n2: 79.9 rpm
P2Z 279 20,1		Size: 279 \| Gear stages: 2 \| Ratio i: 20.1 \| Rated torque Mn2: 34300 Nm \| Rated power Pn1: 260 kW \| Output speed n2: 69.6 rpm
P2Z 279 21,6		Size: 279 \| Gear stages: 2 \| Ratio i: 21.6 \| Rated torque Mn2: 31300 Nm \| Rated power Pn1: 221 kW \| Output speed n2: 64.8 rpm
P2Z 279 23,4		Size: 279 \| Gear stages: 2 \| Ratio i: 23.4 \| Rated torque Mn2: 31600 Nm \| Rated power Pn1: 206 kW \| Output speed n2: 59.9 rpm
P2Z 279 25,6		Size: 279 \| Gear stages: 2 \| Ratio i: 25.6 \| Rated torque Mn2: 26500 Nm \| Rated power Pn1: 158 kW \| Output speed n2: 54.8 rpm
P2Z 319 6,33		Size: 319 \| Gear stages: 2 \| Ratio i: 6.33 \| Rated torque Mn2: 38700 Nm \| Rated power Pn1: 932 kW \| Output speed n2: 221 rpm
P2Z 319 7,31		Size: 319 \| Gear stages: 2 \| Ratio i: 7.31 \| Rated torque Mn2: 40600 Nm \| Rated power Pn1: 848 kW \| Output speed n2: 192 rpm
P2Z 319 8,50		Size: 319 \| Gear stages: 2 \| Ratio i: 8.50 \| Rated torque Mn2: 42700 Nm \| Rated power Pn1: 767 kW \| Output speed n2: 165 rpm
P2Z 319 9,73		Size: 319 \| Gear stages: 2 \| Ratio i: 9.73 \| Rated torque Mn2: 44600 Nm \| Rated power Pn1: 700 kW \| Output speed n2: 144 rpm
P2Z 319 10,6		Size: 319 \| Gear stages: 2 \| Ratio i: 10.6 \| Rated torque Mn2: 45900 Nm \| Rated power Pn1: 662 kW \| Output speed n2: 132 rpm
P2Z 319 11,6		Size: 319 \| Gear stages: 2 \| Ratio i: 11.6 \| Rated torque Mn2: 47200 Nm \| Rated power Pn1: 624 kW \| Output speed n2: 121 rpm
P2Z 319 13,3		Size: 319 \| Gear stages: 2 \| Ratio i: 13.3 \| Rated torque Mn2: 49400 Nm \| Rated power Pn1: 568 kW \| Output speed n2: 105 rpm
P2Z 319 14,4		Size: 319 \| Gear stages: 2 \| Ratio i: 14.4 \| Rated torque Mn2: 50700 Nm \| Rated power Pn1: 536 kW \| Output speed n2: 97.0 rpm
P2Z 319 15,5		Size: 319 \| Gear stages: 2 \| Ratio i: 15.5 \| Rated torque Mn2: 45200 Nm \| Rated power Pn1: 445 kW \| Output speed n2: 90.2 rpm
P2Z 319 16,7		Size: 319 \| Gear stages: 2 \| Ratio i: 16.7 \| Rated torque Mn2: 45700 Nm \| Rated power Pn1: 417 kW \| Output speed n2: 83.7 rpm
P2Z 319 19,0		Size: 319 \| Gear stages: 2 \| Ratio i: 19.0 \| Rated torque Mn2: 40100 Nm \| Rated power Pn1: 323 kW \| Output speed n2: 73.9 rpm
P2Z 319 20,5		Size: 319 \| Gear stages: 2 \| Ratio i: 20.5 \| Rated torque Mn2: 39200 Nm \| Rated power Pn1: 292 kW \| Output speed n2: 68.4 rpm
P2Z 349 8,14		Size: 349 \| Gear stages: 2 \| Ratio i: 8.14 \| Rated torque Mn2: 49700 Nm \| Rated power Pn1: 932 kW \| Output speed n2: 172 rpm
P2Z 349 9,40		Size: 349 \| Gear stages: 2 \| Ratio i: 9.40 \| Rated torque Mn2: 52200 Nm \| Rated power Pn1: 848 kW \| Output speed n2: 149 rpm
P2Z 349 10,9		Size: 349 \| Gear stages: 2 \| Ratio i: 10.9 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 768 kW \| Output speed n2: 128 rpm
P2Z 349 12,5		Size: 349 \| Gear stages: 2 \| Ratio i: 12.5 \| Rated torque Mn2: 57400 Nm \| Rated power Pn1: 700 kW \| Output speed n2: 112 rpm
P2Z 349 13,6		Size: 349 \| Gear stages: 2 \| Ratio i: 13.6 \| Rated torque Mn2: 59000 Nm \| Rated power Pn1: 661 kW \| Output speed n2: 103 rpm
P2Z 349 14,9		Size: 349 \| Gear stages: 2 \| Ratio i: 14.9 \| Rated torque Mn2: 60700 Nm \| Rated power Pn1: 624 kW \| Output speed n2: 94.3 rpm
P2Z 349 17,1		Size: 349 \| Gear stages: 2 \| Ratio i: 17.1 \| Rated torque Mn2: 63600 Nm \| Rated power Pn1: 568 kW \| Output speed n2: 81.9 rpm
P2Z 349 18,6		Size: 349 \| Gear stages: 2 \| Ratio i: 18.6 \| Rated torque Mn2: 65200 Nm \| Rated power Pn1: 536 kW \| Output speed n2: 75.4 rpm
P2Z 349 20,0		Size: 349 \| Gear stages: 2 \| Ratio i: 20.0 \| Rated torque Mn2: 58100 Nm \| Rated power Pn1: 445 kW \| Output speed n2: 70.2 rpm
P2Z 349 21,5		Size: 349 \| Gear stages: 2 \| Ratio i: 21.5 \| Rated torque Mn2: 58800 Nm \| Rated power Pn1: 417 kW \| Output speed n2: 65.1 rpm
P2Z 349 24,4		Size: 349 \| Gear stages: 2 \| Ratio i: 24.4 \| Rated torque Mn2: 51600 Nm \| Rated power Pn1: 323 kW \| Output speed n2: 57.5 rpm
P2Z 349 26,3		Size: 349 \| Gear stages: 2 \| Ratio i: 26.3 \| Rated torque Mn2: 50300 Nm \| Rated power Pn1: 292 kW \| Output speed n2: 53.2 rpm
P2Z 399 6,62		Size: 399 \| Gear stages: 2 \| Ratio i: 6.62 \| Rated torque Mn2: 70700 Nm \| Rated power Pn1: 1630 kW \| Output speed n2: 211 rpm
P2Z 399 7,57		Size: 399 \| Gear stages: 2 \| Ratio i: 7.57 \| Rated torque Mn2: 74100 Nm \| Rated power Pn1: 1490 kW \| Output speed n2: 185 rpm
P2Z 399 8,72		Size: 399 \| Gear stages: 2 \| Ratio i: 8.72 \| Rated torque Mn2: 77700 Nm \| Rated power Pn1: 1360 kW \| Output speed n2: 161 rpm
P2Z 399 9,38		Size: 399 \| Gear stages: 2 \| Ratio i: 9.38 \| Rated torque Mn2: 79600 Nm \| Rated power Pn1: 1300 kW \| Output speed n2: 149 rpm
P2Z 399 10,1		Size: 399 \| Gear stages: 2 \| Ratio i: 10.1 \| Rated torque Mn2: 81600 Nm \| Rated power Pn1: 1230 kW \| Output speed n2: 138 rpm
P2Z 399 10,9		Size: 399 \| Gear stages: 2 \| Ratio i: 10.9 \| Rated torque Mn2: 83800 Nm \| Rated power Pn1: 1170 kW \| Output speed n2: 128 rpm
P2Z 399 12,3		Size: 399 \| Gear stages: 2 \| Ratio i: 12.3 \| Rated torque Mn2: 87100 Nm \| Rated power Pn1: 1080 kW \| Output speed n2: 114 rpm
P2Z 399 13,2		Size: 399 \| Gear stages: 2 \| Ratio i: 13.2 \| Rated torque Mn2: 89200 Nm \| Rated power Pn1: 1030 kW \| Output speed n2: 106 rpm
P2Z 399 15,2		Size: 399 \| Gear stages: 2 \| Ratio i: 15.2 \| Rated torque Mn2: 86400 Nm \| Rated power Pn1: 865 kW \| Output speed n2: 91.9 rpm
P2Z 399 17,2		Size: 399 \| Gear stages: 2 \| Ratio i: 17.2 \| Rated torque Mn2: 73900 Nm \| Rated power Pn1: 656 kW \| Output speed n2: 81.4 rpm
P2Z 399 18,6		Size: 399 \| Gear stages: 2 \| Ratio i: 18.6 \| Rated torque Mn2: 74700 Nm \| Rated power Pn1: 613 kW \| Output speed n2: 75.3 rpm
P2Z 399 20,2		Size: 399 \| Gear stages: 2 \| Ratio i: 20.2 \| Rated torque Mn2: 73300 Nm \| Rated power Pn1: 554 kW \| Output speed n2: 69.3 rpm
P2Z 409 8,01		Size: 409 \| Gear stages: 2 \| Ratio i: 8.01 \| Rated torque Mn2: 85500 Nm \| Rated power Pn1: 1630 kW \| Output speed n2: 175 rpm
P2Z 409 9,16		Size: 409 \| Gear stages: 2 \| Ratio i: 9.16 \| Rated torque Mn2: 89600 Nm \| Rated power Pn1: 1490 kW \| Output speed n2: 153 rpm
P2Z 409 10,6		Size: 409 \| Gear stages: 2 \| Ratio i: 10.6 \| Rated torque Mn2: 93900 Nm \| Rated power Pn1: 1360 kW \| Output speed n2: 133 rpm
P2Z 409 11,4		Size: 409 \| Gear stages: 2 \| Ratio i: 11.4 \| Rated torque Mn2: 96300 Nm \| Rated power Pn1: 1290 kW \| Output speed n2: 123 rpm
P2Z 409 12,2		Size: 409 \| Gear stages: 2 \| Ratio i: 12.2 \| Rated torque Mn2: 98700 Nm \| Rated power Pn1: 1230 kW \| Output speed n2: 114 rpm
P2Z 409 13,2		Size: 409 \| Gear stages: 2 \| Ratio i: 13.2 \| Rated torque Mn2: 101000 Nm \| Rated power Pn1: 1170 kW \| Output speed n2: 106 rpm
P2Z 409 14,8		Size: 409 \| Gear stages: 2 \| Ratio i: 14.8 \| Rated torque Mn2: 105000 Nm \| Rated power Pn1: 1080 kW \| Output speed n2: 94.3 rpm
P2Z 409 16,0		Size: 409 \| Gear stages: 2 \| Ratio i: 16.0 \| Rated torque Mn2: 108000 Nm \| Rated power Pn1: 1030 kW \| Output speed n2: 87.6 rpm
P2Z 409 18,4		Size: 409 \| Gear stages: 2 \| Ratio i: 18.4 \| Rated torque Mn2: 105000 Nm \| Rated power Pn1: 865 kW \| Output speed n2: 75.9 rpm
P2Z 409 20,8		Size: 409 \| Gear stages: 2 \| Ratio i: 20.8 \| Rated torque Mn2: 89400 Nm \| Rated power Pn1: 656 kW \| Output speed n2: 67.3 rpm
P2Z 409 22,5		Size: 409 \| Gear stages: 2 \| Ratio i: 22.5 \| Rated torque Mn2: 90300 Nm \| Rated power Pn1: 613 kW \| Output speed n2: 62.2 rpm
P2Z 409 24,4		Size: 409 \| Gear stages: 2 \| Ratio i: 24.4 \| Rated torque Mn2: 88700 Nm \| Rated power Pn1: 554 kW \| Output speed n2: 57.3 rpm
P3Z 179 24,5		Size: 179 \| Gear stages: 3 \| Ratio i: 24.5 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 57.2 kW \| Output speed n2: 57.0 rpm
P3Z 179 28,0		Size: 179 \| Gear stages: 3 \| Ratio i: 28.0 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 50.1 kW \| Output speed n2: 50.0 rpm
P3Z 179 32,1		Size: 179 \| Gear stages: 3 \| Ratio i: 32.1 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 43.8 kW \| Output speed n2: 43.7 rpm
P3Z 179 36,9		Size: 179 \| Gear stages: 3 \| Ratio i: 36.9 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 38.0 kW \| Output speed n2: 37.9 rpm
P3Z 179 42,9		Size: 179 \| Gear stages: 3 \| Ratio i: 42.9 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 32.7 kW \| Output speed n2: 32.6 rpm
P3Z 179 46,4		Size: 179 \| Gear stages: 3 \| Ratio i: 46.4 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 30.2 kW \| Output speed n2: 30.2 rpm
P3Z 179 51,4		Size: 179 \| Gear stages: 3 \| Ratio i: 51.4 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 27.3 kW \| Output speed n2: 27.2 rpm
P3Z 179 57,7		Size: 179 \| Gear stages: 3 \| Ratio i: 57.7 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 24.3 kW \| Output speed n2: 24.3 rpm
P3Z 179 68,2		Size: 179 \| Gear stages: 3 \| Ratio i: 68.2 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 20.6 kW \| Output speed n2: 20.5 rpm
P3Z 179 73,9		Size: 179 \| Gear stages: 3 \| Ratio i: 73.9 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 19.0 kW \| Output speed n2: 18.9 rpm
P3Z 179 79,8		Size: 179 \| Gear stages: 3 \| Ratio i: 79.8 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 17.6 kW \| Output speed n2: 17.6 rpm
P3Z 179 86,2		Size: 179 \| Gear stages: 3 \| Ratio i: 86.2 \| Rated torque Mn2: 8840 Nm \| Rated power Pn1: 16.0 kW \| Output speed n2: 16.2 rpm
P3Z 199 30,5		Size: 199 \| Gear stages: 3 \| Ratio i: 30.5 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 56.3 kW \| Output speed n2: 45.9 rpm
P3Z 199 34,8		Size: 199 \| Gear stages: 3 \| Ratio i: 34.8 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 49.4 kW \| Output speed n2: 40.3 rpm
P3Z 199 39,8		Size: 199 \| Gear stages: 3 \| Ratio i: 39.8 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 43.1 kW \| Output speed n2: 35.2 rpm
P3Z 199 45,9		Size: 199 \| Gear stages: 3 \| Ratio i: 45.9 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 37.4 kW \| Output speed n2: 30.5 rpm
P3Z 199 53,3		Size: 199 \| Gear stages: 3 \| Ratio i: 53.3 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 32.2 kW \| Output speed n2: 26.3 rpm
P3Z 199 57,7		Size: 199 \| Gear stages: 3 \| Ratio i: 57.7 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 29.8 kW \| Output speed n2: 24.3 rpm
P3Z 199 63,9		Size: 199 \| Gear stages: 3 \| Ratio i: 63.9 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 26.9 kW \| Output speed n2: 21.9 rpm
P3Z 199 71,7		Size: 199 \| Gear stages: 3 \| Ratio i: 71.7 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 23.9 kW \| Output speed n2: 19.5 rpm
P3Z 199 84,7		Size: 199 \| Gear stages: 3 \| Ratio i: 84.7 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 20.2 kW \| Output speed n2: 16.5 rpm
P3Z 199 91,8		Size: 199 \| Gear stages: 3 \| Ratio i: 91.8 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 18.7 kW \| Output speed n2: 15.3 rpm
P3Z 199 99,1		Size: 199 \| Gear stages: 3 \| Ratio i: 99.1 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 17.3 kW \| Output speed n2: 14.1 rpm
P3Z 199 107		Size: 199 \| Gear stages: 3 \| Ratio i: 107 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 16.0 kW \| Output speed n2: 13.1 rpm
P3Z 219 22,6		Size: 219 \| Gear stages: 3 \| Ratio i: 22.6 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 131 kW \| Output speed n2: 62.0 rpm
P3Z 219 25,1		Size: 219 \| Gear stages: 3 \| Ratio i: 25.1 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 118 kW \| Output speed n2: 55.8 rpm
P3Z 219 28,7		Size: 219 \| Gear stages: 3 \| Ratio i: 28.7 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 103 kW \| Output speed n2: 48.8 rpm
P3Z 219 33,0		Size: 219 \| Gear stages: 3 \| Ratio i: 33.0 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 89.7 kW \| Output speed n2: 42.4 rpm
P3Z 219 38,3		Size: 219 \| Gear stages: 3 \| Ratio i: 38.3 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 77.3 kW \| Output speed n2: 36.5 rpm
P3Z 219 41,5		Size: 219 \| Gear stages: 3 \| Ratio i: 41.5 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 71.5 kW \| Output speed n2: 33.8 rpm
P3Z 219 49,8		Size: 219 \| Gear stages: 3 \| Ratio i: 49.8 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 59.5 kW \| Output speed n2: 28.1 rpm
P3Z 219 57,8		Size: 219 \| Gear stages: 3 \| Ratio i: 57.8 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 51.2 kW \| Output speed n2: 24.2 rpm
P3Z 219 62,7		Size: 219 \| Gear stages: 3 \| Ratio i: 62.7 \| Rated torque Mn2: 18400 Nm \| Rated power Pn1: 45.8 kW \| Output speed n2: 22.3 rpm
P3Z 219 70,5		Size: 219 \| Gear stages: 3 \| Ratio i: 70.5 \| Rated torque Mn2: 16100 Nm \| Rated power Pn1: 35.6 kW \| Output speed n2: 19.9 rpm
P3Z 219 75,3		Size: 219 \| Gear stages: 3 \| Ratio i: 75.3 \| Rated torque Mn2: 15500 Nm \| Rated power Pn1: 32.1 kW \| Output speed n2: 18.6 rpm
P3Z 219 81,3		Size: 219 \| Gear stages: 3 \| Ratio i: 81.3 \| Rated torque Mn2: 14600 Nm \| Rated power Pn1: 28.0 kW \| Output speed n2: 17.2 rpm
P3Z 249 28,6		Size: 249 \| Gear stages: 3 \| Ratio i: 28.6 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 131 kW \| Output speed n2: 48.9 rpm
P3Z 249 31,8		Size: 249 \| Gear stages: 3 \| Ratio i: 31.8 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 118 kW \| Output speed n2: 44.0 rpm
P3Z 249 36,4		Size: 249 \| Gear stages: 3 \| Ratio i: 36.4 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 103 kW \| Output speed n2: 38.5 rpm
P3Z 249 41,9		Size: 249 \| Gear stages: 3 \| Ratio i: 41.9 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 89.4 kW \| Output speed n2: 33.4 rpm
P3Z 249 48,6		Size: 249 \| Gear stages: 3 \| Ratio i: 48.6 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 77.0 kW \| Output speed n2: 28.8 rpm
P3Z 249 52,6		Size: 249 \| Gear stages: 3 \| Ratio i: 52.6 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 71.2 kW \| Output speed n2: 26.6 rpm
P3Z 249 63,1		Size: 249 \| Gear stages: 3 \| Ratio i: 63.1 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 59.3 kW \| Output speed n2: 22.2 rpm
P3Z 249 73,3		Size: 249 \| Gear stages: 3 \| Ratio i: 73.3 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 51.1 kW \| Output speed n2: 19.1 rpm
P3Z 249 79,4		Size: 249 \| Gear stages: 3 \| Ratio i: 79.4 \| Rated torque Mn2: 23300 Nm \| Rated power Pn1: 45.7 kW \| Output speed n2: 17.6 rpm
P3Z 249 89,4		Size: 249 \| Gear stages: 3 \| Ratio i: 89.4 \| Rated torque Mn2: 20500 Nm \| Rated power Pn1: 35.7 kW \| Output speed n2: 15.7 rpm
P3Z 249 95,4		Size: 249 \| Gear stages: 3 \| Ratio i: 95.4 \| Rated torque Mn2: 19700 Nm \| Rated power Pn1: 32.2 kW \| Output speed n2: 14.7 rpm
P3Z 249 103		Size: 249 \| Gear stages: 3 \| Ratio i: 103 \| Rated torque Mn2: 18500 Nm \| Rated power Pn1: 28.0 kW \| Output speed n2: 13.6 rpm
P3Z 269 25,1		Size: 269 \| Gear stages: 3 \| Ratio i: 25.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 180 kW \| Output speed n2: 55.9 rpm
P3Z 269 28,1		Size: 269 \| Gear stages: 3 \| Ratio i: 28.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 161 kW \| Output speed n2: 49.9 rpm
P3Z 269 31,7		Size: 269 \| Gear stages: 3 \| Ratio i: 31.7 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 143 kW \| Output speed n2: 44.2 rpm
P3Z 269 37,9		Size: 269 \| Gear stages: 3 \| Ratio i: 37.9 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 119 kW \| Output speed n2: 36.9 rpm
P3Z 269 41,1		Size: 269 \| Gear stages: 3 \| Ratio i: 41.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 110 kW \| Output speed n2: 34.0 rpm
P3Z 269 44,7		Size: 269 \| Gear stages: 3 \| Ratio i: 44.7 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 101 kW \| Output speed n2: 31.3 rpm
P3Z 269 53,9		Size: 269 \| Gear stages: 3 \| Ratio i: 53.9 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 84.0 kW \| Output speed n2: 26.0 rpm
P3Z 269 61,2		Size: 269 \| Gear stages: 3 \| Ratio i: 61.2 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 73.9 kW \| Output speed n2: 22.9 rpm
P3Z 269 66,1		Size: 269 \| Gear stages: 3 \| Ratio i: 66.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 68.5 kW \| Output speed n2: 21.2 rpm
P3Z 269 71,5		Size: 269 \| Gear stages: 3 \| Ratio i: 71.5 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 63.2 kW \| Output speed n2: 19.6 rpm
P3Z 269 75,6		Size: 269 \| Gear stages: 3 \| Ratio i: 75.6 \| Rated torque Mn2: 23900 Nm \| Rated power Pn1: 49.3 kW \| Output speed n2: 18.5 rpm
P3Z 269 82,3		Size: 269 \| Gear stages: 3 \| Ratio i: 82.3 \| Rated torque Mn2: 27200 Nm \| Rated power Pn1: 51.5 kW \| Output speed n2: 17.0 rpm
P3Z 279 31,0		Size: 279 \| Gear stages: 3 \| Ratio i: 31.0 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 181 kW \| Output speed n2: 45.1 rpm
P3Z 279 34,8		Size: 279 \| Gear stages: 3 \| Ratio i: 34.8 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 162 kW \| Output speed n2: 40.3 rpm
P3Z 279 39,2		Size: 279 \| Gear stages: 3 \| Ratio i: 39.2 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 143 kW \| Output speed n2: 35.7 rpm
P3Z 279 46,9		Size: 279 \| Gear stages: 3 \| Ratio i: 46.9 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 120 kW \| Output speed n2: 29.8 rpm
P3Z 279 50,9		Size: 279 \| Gear stages: 3 \| Ratio i: 50.9 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 110 kW \| Output speed n2: 27.5 rpm
P3Z 279 55,3		Size: 279 \| Gear stages: 3 \| Ratio i: 55.3 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 101 kW \| Output speed n2: 25.3 rpm
P3Z 279 66,6		Size: 279 \| Gear stages: 3 \| Ratio i: 66.6 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 84.3 kW \| Output speed n2: 21.0 rpm
P3Z 279 75,7		Size: 279 \| Gear stages: 3 \| Ratio i: 75.7 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 74.1 kW \| Output speed n2: 18.5 rpm
P3Z 279 81,7		Size: 279 \| Gear stages: 3 \| Ratio i: 81.7 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 68.7 kW \| Output speed n2: 17.1 rpm
P3Z 279 88,5		Size: 279 \| Gear stages: 3 \| Ratio i: 88.5 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 63.4 kW \| Output speed n2: 15.8 rpm
P3Z 279 93,5		Size: 279 \| Gear stages: 3 \| Ratio i: 93.5 \| Rated torque Mn2: 29600 Nm \| Rated power Pn1: 49.3 kW \| Output speed n2: 15.0 rpm
P3Z 279 102		Size: 279 \| Gear stages: 3 \| Ratio i: 102 \| Rated torque Mn2: 33700 Nm \| Rated power Pn1: 51.5 kW \| Output speed n2: 13.7 rpm
P3Z 319 24,3		Size: 319 \| Gear stages: 3 \| Ratio i: 24.3 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 353 kW \| Output speed n2: 57.7 rpm
P3Z 319 28,2		Size: 319 \| Gear stages: 3 \| Ratio i: 28.2 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 305 kW \| Output speed n2: 49.7 rpm
P3Z 319 30,4		Size: 319 \| Gear stages: 3 \| Ratio i: 30.4 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 282 kW \| Output speed n2: 46.1 rpm
P3Z 319 32,9		Size: 319 \| Gear stages: 3 \| Ratio i: 32.9 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 261 kW \| Output speed n2: 42.6 rpm
P3Z 319 35,7		Size: 319 \| Gear stages: 3 \| Ratio i: 35.7 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 240 kW \| Output speed n2: 39.2 rpm
P3Z 319 38,8		Size: 319 \| Gear stages: 3 \| Ratio i: 38.8 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 221 kW \| Output speed n2: 36.1 rpm
P3Z 319 42,4		Size: 319 \| Gear stages: 3 \| Ratio i: 42.4 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 203 kW \| Output speed n2: 33.1 rpm
P3Z 319 49,1		Size: 319 \| Gear stages: 3 \| Ratio i: 49.1 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 175 kW \| Output speed n2: 28.5 rpm
P3Z 319 56,8		Size: 319 \| Gear stages: 3 \| Ratio i: 56.8 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 151 kW \| Output speed n2: 24.7 rpm
P3Z 319 62,3		Size: 319 \| Gear stages: 3 \| Ratio i: 62.3 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 138 kW \| Output speed n2: 22.5 rpm
P3Z 319 67,4		Size: 319 \| Gear stages: 3 \| Ratio i: 67.4 \| Rated torque Mn2: 54100 Nm \| Rated power Pn1: 125 kW \| Output speed n2: 20.8 rpm
P3Z 319 73,2		Size: 319 \| Gear stages: 3 \| Ratio i: 73.2 \| Rated torque Mn2: 50700 Nm \| Rated power Pn1: 108 kW \| Output speed n2: 19.1 rpm
P3Z 349 31,2		Size: 349 \| Gear stages: 3 \| Ratio i: 31.2 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 350 kW \| Output speed n2: 44.8 rpm
P3Z 349 36,2		Size: 349 \| Gear stages: 3 \| Ratio i: 36.2 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 302 kW \| Output speed n2: 38.7 rpm
P3Z 349 39,1		Size: 349 \| Gear stages: 3 \| Ratio i: 39.1 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 279 kW \| Output speed n2: 35.8 rpm
P3Z 349 42,3		Size: 349 \| Gear stages: 3 \| Ratio i: 42.3 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 258 kW \| Output speed n2: 33.1 rpm
P3Z 349 45,9		Size: 349 \| Gear stages: 3 \| Ratio i: 45.9 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 238 kW \| Output speed n2: 30.5 rpm
P3Z 349 49,9		Size: 349 \| Gear stages: 3 \| Ratio i: 49.9 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 219 kW \| Output speed n2: 28.1 rpm
P3Z 349 54,5		Size: 349 \| Gear stages: 3 \| Ratio i: 54.5 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 200 kW \| Output speed n2: 25.7 rpm
P3Z 349 63,1		Size: 349 \| Gear stages: 3 \| Ratio i: 63.1 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 173 kW \| Output speed n2: 22.2 rpm
P3Z 349 73,0		Size: 349 \| Gear stages: 3 \| Ratio i: 73.0 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 150 kW \| Output speed n2: 19.2 rpm
P3Z 349 80,1		Size: 349 \| Gear stages: 3 \| Ratio i: 80.1 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 136 kW \| Output speed n2: 17.5 rpm
P3Z 349 86,6		Size: 349 \| Gear stages: 3 \| Ratio i: 86.6 \| Rated torque Mn2: 69600 Nm \| Rated power Pn1: 125 kW \| Output speed n2: 16.2 rpm
P3Z 349 94,1		Size: 349 \| Gear stages: 3 \| Ratio i: 94.1 \| Rated torque Mn2: 65200 Nm \| Rated power Pn1: 108 kW \| Output speed n2: 14.9 rpm
P3Z 399 24,9		Size: 399 \| Gear stages: 3 \| Ratio i: 24.9 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 563 kW \| Output speed n2: 56.1 rpm
P3Z 399 29,0		Size: 399 \| Gear stages: 3 \| Ratio i: 29.0 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 485 kW \| Output speed n2: 48.3 rpm
P3Z 399 33,9		Size: 399 \| Gear stages: 3 \| Ratio i: 33.9 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 414 kW \| Output speed n2: 41.3 rpm
P3Z 399 36,8		Size: 399 \| Gear stages: 3 \| Ratio i: 36.8 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 382 kW \| Output speed n2: 38.1 rpm
P3Z 399 40,0		Size: 399 \| Gear stages: 3 \| Ratio i: 40.0 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 351 kW \| Output speed n2: 35.0 rpm
P3Z 399 43,2		Size: 399 \| Gear stages: 3 \| Ratio i: 43.2 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 325 kW \| Output speed n2: 32.4 rpm
P3Z 399 46,6		Size: 399 \| Gear stages: 3 \| Ratio i: 46.6 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 301 kW \| Output speed n2: 30.0 rpm
P3Z 399 54,9		Size: 399 \| Gear stages: 3 \| Ratio i: 54.9 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 256 kW \| Output speed n2: 25.5 rpm
P3Z 399 63,0		Size: 399 \| Gear stages: 3 \| Ratio i: 63.0 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 223 kW \| Output speed n2: 22.2 rpm
P3Z 399 67,6		Size: 399 \| Gear stages: 3 \| Ratio i: 67.6 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 208 kW \| Output speed n2: 20.7 rpm
P3Z 399 73,2		Size: 399 \| Gear stages: 3 \| Ratio i: 73.2 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 192 kW \| Output speed n2: 19.1 rpm
P3Z 399 80,0		Size: 399 \| Gear stages: 3 \| Ratio i: 80.0 \| Rated torque Mn2: 81300 Nm \| Rated power Pn1: 158 kW \| Output speed n2: 17.5 rpm
P3Z 409 30,2		Size: 409 \| Gear stages: 3 \| Ratio i: 30.2 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 569 kW \| Output speed n2: 46.4 rpm
P3Z 409 35,0		Size: 409 \| Gear stages: 3 \| Ratio i: 35.0 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 490 kW \| Output speed n2: 40.0 rpm
P3Z 409 41,0		Size: 409 \| Gear stages: 3 \| Ratio i: 41.0 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 419 kW \| Output speed n2: 34.2 rpm
P3Z 409 44,5		Size: 409 \| Gear stages: 3 \| Ratio i: 44.5 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 386 kW \| Output speed n2: 31.5 rpm
P3Z 409 48,4		Size: 409 \| Gear stages: 3 \| Ratio i: 48.4 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 354 kW \| Output speed n2: 28.9 rpm
P3Z 409 52,2		Size: 409 \| Gear stages: 3 \| Ratio i: 52.2 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 328 kW \| Output speed n2: 26.8 rpm
P3Z 409 56,4		Size: 409 \| Gear stages: 3 \| Ratio i: 56.4 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 304 kW \| Output speed n2: 24.8 rpm
P3Z 409 66,4		Size: 409 \| Gear stages: 3 \| Ratio i: 66.4 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 258 kW \| Output speed n2: 21.1 rpm
P3Z 409 76,2		Size: 409 \| Gear stages: 3 \| Ratio i: 76.2 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 225 kW \| Output speed n2: 18.4 rpm
P3Z 409 81,8		Size: 409 \| Gear stages: 3 \| Ratio i: 81.8 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 210 kW \| Output speed n2: 17.1 rpm
P3Z 409 88,5		Size: 409 \| Gear stages: 3 \| Ratio i: 88.5 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 194 kW \| Output speed n2: 15.8 rpm
P3Z 409 96,8		Size: 409 \| Gear stages: 3 \| Ratio i: 96.8 \| Rated torque Mn2: 98300 Nm \| Rated power Pn1: 158 kW \| Output speed n2: 14.5 rpm
P4Z 219 87,8		Size: 219 \| Gear stages: 4 \| Ratio i: 87.8 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 34.5 kW \| Output speed n2: 15.9 rpm
P4Z 219 93,4		Size: 219 \| Gear stages: 4 \| Ratio i: 93.4 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 32.4 kW \| Output speed n2: 15.0 rpm
P4Z 219 106		Size: 219 \| Gear stages: 4 \| Ratio i: 106 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 28.6 kW \| Output speed n2: 13.2 rpm
P4Z 219 121		Size: 219 \| Gear stages: 4 \| Ratio i: 121 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 25.0 kW \| Output speed n2: 11.6 rpm
P4Z 219 139		Size: 219 \| Gear stages: 4 \| Ratio i: 139 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 21.8 kW \| Output speed n2: 10.1 rpm
P4Z 219 161		Size: 219 \| Gear stages: 4 \| Ratio i: 161 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 18.9 kW \| Output speed n2: 8.72 rpm
P4Z 219 188		Size: 219 \| Gear stages: 4 \| Ratio i: 188 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 16.1 kW \| Output speed n2: 7.45 rpm
P4Z 219 204		Size: 219 \| Gear stages: 4 \| Ratio i: 204 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 14.8 kW \| Output speed n2: 6.85 rpm
P4Z 219 224		Size: 219 \| Gear stages: 4 \| Ratio i: 224 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 13.5 kW \| Output speed n2: 6.25 rpm
P4Z 219 243		Size: 219 \| Gear stages: 4 \| Ratio i: 243 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 12.5 kW \| Output speed n2: 5.77 rpm
P4Z 219 293		Size: 219 \| Gear stages: 4 \| Ratio i: 293 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 10.3 kW \| Output speed n2: 4.78 rpm
P4Z 219 318		Size: 219 \| Gear stages: 4 \| Ratio i: 318 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 9.52 kW \| Output speed n2: 4.40 rpm
P4Z 249 111		Size: 249 \| Gear stages: 4 \| Ratio i: 111 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 34.4 kW \| Output speed n2: 12.6 rpm
P4Z 249 118		Size: 249 \| Gear stages: 4 \| Ratio i: 118 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 32.3 kW \| Output speed n2: 11.8 rpm
P4Z 249 134		Size: 249 \| Gear stages: 4 \| Ratio i: 134 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 28.5 kW \| Output speed n2: 10.4 rpm
P4Z 249 153		Size: 249 \| Gear stages: 4 \| Ratio i: 153 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 24.9 kW \| Output speed n2: 9.13 rpm
P4Z 249 176		Size: 249 \| Gear stages: 4 \| Ratio i: 176 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 21.7 kW \| Output speed n2: 7.96 rpm
P4Z 249 204		Size: 249 \| Gear stages: 4 \| Ratio i: 204 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 18.8 kW \| Output speed n2: 6.88 rpm
P4Z 249 238		Size: 249 \| Gear stages: 4 \| Ratio i: 238 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 16.1 kW \| Output speed n2: 5.88 rpm
P4Z 249 259		Size: 249 \| Gear stages: 4 \| Ratio i: 259 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 14.8 kW \| Output speed n2: 5.40 rpm
P4Z 249 284		Size: 249 \| Gear stages: 4 \| Ratio i: 284 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 13.5 kW \| Output speed n2: 4.93 rpm
P4Z 249 308		Size: 249 \| Gear stages: 4 \| Ratio i: 308 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 12.4 kW \| Output speed n2: 4.55 rpm
P4Z 249 371		Size: 249 \| Gear stages: 4 \| Ratio i: 371 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 10.3 kW \| Output speed n2: 3.77 rpm
P4Z 249 403		Size: 249 \| Gear stages: 4 \| Ratio i: 403 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 9.49 kW \| Output speed n2: 3.47 rpm
P4Z 269 96,5		Size: 269 \| Gear stages: 4 \| Ratio i: 96.5 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 47.9 kW \| Output speed n2: 14.5 rpm
P4Z 269 110		Size: 269 \| Gear stages: 4 \| Ratio i: 110 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 42.0 kW \| Output speed n2: 12.7 rpm
P4Z 269 126		Size: 269 \| Gear stages: 4 \| Ratio i: 126 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 36.6 kW \| Output speed n2: 11.1 rpm
P4Z 269 145		Size: 269 \| Gear stages: 4 \| Ratio i: 145 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 31.8 kW \| Output speed n2: 9.64 rpm
P4Z 269 169		Size: 269 \| Gear stages: 4 \| Ratio i: 169 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 27.4 kW \| Output speed n2: 8.29 rpm
P4Z 269 183		Size: 269 \| Gear stages: 4 \| Ratio i: 183 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 25.3 kW \| Output speed n2: 7.67 rpm
P4Z 269 202		Size: 269 \| Gear stages: 4 \| Ratio i: 202 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 22.8 kW \| Output speed n2: 6.92 rpm
P4Z 269 227		Size: 269 \| Gear stages: 4 \| Ratio i: 227 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 20.4 kW \| Output speed n2: 6.17 rpm
P4Z 269 268		Size: 269 \| Gear stages: 4 \| Ratio i: 268 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 17.2 kW \| Output speed n2: 5.22 rpm
P4Z 269 291		Size: 269 \| Gear stages: 4 \| Ratio i: 291 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 15.9 kW \| Output speed n2: 4.82 rpm
P4Z 269 314		Size: 269 \| Gear stages: 4 \| Ratio i: 314 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 14.7 kW \| Output speed n2: 4.46 rpm
P4Z 269 339		Size: 269 \| Gear stages: 4 \| Ratio i: 339 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 13.6 kW \| Output speed n2: 4.13 rpm
P4Z 279 119		Size: 279 \| Gear stages: 4 \| Ratio i: 119 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 48.0 kW \| Output speed n2: 11.7 rpm
P4Z 279 136		Size: 279 \| Gear stages: 4 \| Ratio i: 136 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 42.1 kW \| Output speed n2: 10.3 rpm
P4Z 279 156		Size: 279 \| Gear stages: 4 \| Ratio i: 156 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 36.8 kW \| Output speed n2: 8.97 rpm
P4Z 279 180		Size: 279 \| Gear stages: 4 \| Ratio i: 180 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 31.9 kW \| Output speed n2: 7.79 rpm
P4Z 279 209		Size: 279 \| Gear stages: 4 \| Ratio i: 209 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 27.5 kW \| Output speed n2: 6.70 rpm
P4Z 279 226		Size: 279 \| Gear stages: 4 \| Ratio i: 226 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 25.4 kW \| Output speed n2: 6.20 rpm
P4Z 279 250		Size: 279 \| Gear stages: 4 \| Ratio i: 250 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 22.9 kW \| Output speed n2: 5.59 rpm
P4Z 279 281		Size: 279 \| Gear stages: 4 \| Ratio i: 281 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 20.4 kW \| Output speed n2: 4.98 rpm
P4Z 279 332		Size: 279 \| Gear stages: 4 \| Ratio i: 332 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 17.3 kW \| Output speed n2: 4.22 rpm
P4Z 279 360		Size: 279 \| Gear stages: 4 \| Ratio i: 360 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 16.0 kW \| Output speed n2: 3.89 rpm
P4Z 279 388		Size: 279 \| Gear stages: 4 \| Ratio i: 388 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 14.8 kW \| Output speed n2: 3.61 rpm
P4Z 279 419		Size: 279 \| Gear stages: 4 \| Ratio i: 419 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 13.7 kW \| Output speed n2: 3.34 rpm
P4Z 319 87,4		Size: 319 \| Gear stages: 4 \| Ratio i: 87.4 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 100 kW \| Output speed n2: 16.0 rpm
P4Z 319 97,0		Size: 319 \| Gear stages: 4 \| Ratio i: 97.0 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 90.3 kW \| Output speed n2: 14.4 rpm
P4Z 319 111		Size: 319 \| Gear stages: 4 \| Ratio i: 111 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 79.0 kW \| Output speed n2: 12.6 rpm
P4Z 319 128		Size: 319 \| Gear stages: 4 \| Ratio i: 128 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 68.6 kW \| Output speed n2: 11.0 rpm
P4Z 319 148		Size: 319 \| Gear stages: 4 \| Ratio i: 148 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 59.1 kW \| Output speed n2: 9.44 rpm
P4Z 319 160		Size: 319 \| Gear stages: 4 \| Ratio i: 160 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 54.7 kW \| Output speed n2: 8.73 rpm
P4Z 319 192		Size: 319 \| Gear stages: 4 \| Ratio i: 192 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 45.5 kW \| Output speed n2: 7.27 rpm
P4Z 319 224		Size: 319 \| Gear stages: 4 \| Ratio i: 224 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 39.2 kW \| Output speed n2: 6.26 rpm
P4Z 319 242		Size: 319 \| Gear stages: 4 \| Ratio i: 242 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 36.2 kW \| Output speed n2: 5.78 rpm
P4Z 319 273		Size: 319 \| Gear stages: 4 \| Ratio i: 273 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 32.2 kW \| Output speed n2: 5.14 rpm
P4Z 319 291		Size: 319 \| Gear stages: 4 \| Ratio i: 291 \| Rated torque Mn2: 53400 Nm \| Rated power Pn1: 29.2 kW \| Output speed n2: 4.81 rpm
P4Z 319 314		Size: 319 \| Gear stages: 4 \| Ratio i: 314 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 27.9 kW \| Output speed n2: 4.46 rpm
P4Z 349 112		Size: 349 \| Gear stages: 4 \| Ratio i: 112 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 99.3 kW \| Output speed n2: 12.5 rpm
P4Z 349 125		Size: 349 \| Gear stages: 4 \| Ratio i: 125 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 89.4 kW \| Output speed n2: 11.2 rpm
P4Z 349 143		Size: 349 \| Gear stages: 4 \| Ratio i: 143 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 78.2 kW \| Output speed n2: 9.81 rpm
P4Z 349 164		Size: 349 \| Gear stages: 4 \| Ratio i: 164 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 67.9 kW \| Output speed n2: 8.52 rpm
P4Z 349 191		Size: 349 \| Gear stages: 4 \| Ratio i: 191 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 58.5 kW \| Output speed n2: 7.34 rpm
P4Z 349 206		Size: 349 \| Gear stages: 4 \| Ratio i: 206 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 54.1 kW \| Output speed n2: 6.79 rpm
P4Z 349 247		Size: 349 \| Gear stages: 4 \| Ratio i: 247 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 45.1 kW \| Output speed n2: 5.66 rpm
P4Z 349 287		Size: 349 \| Gear stages: 4 \| Ratio i: 287 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 38.8 kW \| Output speed n2: 4.87 rpm
P4Z 349 312		Size: 349 \| Gear stages: 4 \| Ratio i: 312 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 35.8 kW \| Output speed n2: 4.49 rpm
P4Z 349 350		Size: 349 \| Gear stages: 4 \| Ratio i: 350 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 31.8 kW \| Output speed n2: 3.99 rpm
P4Z 349 374		Size: 349 \| Gear stages: 4 \| Ratio i: 374 \| Rated torque Mn2: 68700 Nm \| Rated power Pn1: 29.3 kW \| Output speed n2: 3.74 rpm
P4Z 349 404		Size: 349 \| Gear stages: 4 \| Ratio i: 404 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 27.6 kW \| Output speed n2: 3.47 rpm
P4Z 399 97,1		Size: 399 \| Gear stages: 4 \| Ratio i: 97.1 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 148 kW \| Output speed n2: 14.4 rpm
P4Z 399 109		Size: 399 \| Gear stages: 4 \| Ratio i: 109 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 132 kW \| Output speed n2: 12.9 rpm
P4Z 399 123		Size: 399 \| Gear stages: 4 \| Ratio i: 123 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 117 kW \| Output speed n2: 11.4 rpm
P4Z 399 147		Size: 399 \| Gear stages: 4 \| Ratio i: 147 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 97.6 kW \| Output speed n2: 9.52 rpm
P4Z 399 159		Size: 399 \| Gear stages: 4 \| Ratio i: 159 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 90.0 kW \| Output speed n2: 8.79 rpm
P4Z 399 173		Size: 399 \| Gear stages: 4 \| Ratio i: 173 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 82.8 kW \| Output speed n2: 8.08 rpm
P4Z 399 209		Size: 399 \| Gear stages: 4 \| Ratio i: 209 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 68.7 kW \| Output speed n2: 6.71 rpm
P4Z 399 237		Size: 399 \| Gear stages: 4 \| Ratio i: 237 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 60.5 kW \| Output speed n2: 5.90 rpm
P4Z 399 256		Size: 399 \| Gear stages: 4 \| Ratio i: 256 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 56.0 kW \| Output speed n2: 5.47 rpm
P4Z 399 277		Size: 399 \| Gear stages: 4 \| Ratio i: 277 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 51.7 kW \| Output speed n2: 5.05 rpm
P4Z 399 293		Size: 399 \| Gear stages: 4 \| Ratio i: 293 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 49.0 kW \| Output speed n2: 4.78 rpm
P4Z 399 319		Size: 399 \| Gear stages: 4 \| Ratio i: 319 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 45.0 kW \| Output speed n2: 4.39 rpm
P4Z 409 117		Size: 409 \| Gear stages: 4 \| Ratio i: 117 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 149 kW \| Output speed n2: 11.9 rpm
P4Z 409 132		Size: 409 \| Gear stages: 4 \| Ratio i: 132 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 133 kW \| Output speed n2: 10.6 rpm
P4Z 409 149		Size: 409 \| Gear stages: 4 \| Ratio i: 149 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 118 kW \| Output speed n2: 9.42 rpm
P4Z 409 178		Size: 409 \| Gear stages: 4 \| Ratio i: 178 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 98.6 kW \| Output speed n2: 7.87 rpm
P4Z 409 193		Size: 409 \| Gear stages: 4 \| Ratio i: 193 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 90.9 kW \| Output speed n2: 7.26 rpm
P4Z 409 210		Size: 409 \| Gear stages: 4 \| Ratio i: 210 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 83.6 kW \| Output speed n2: 6.68 rpm
P4Z 409 252		Size: 409 \| Gear stages: 4 \| Ratio i: 252 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 69.4 kW \| Output speed n2: 5.55 rpm
P4Z 409 287		Size: 409 \| Gear stages: 4 \| Ratio i: 287 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 61.1 kW \| Output speed n2: 4.88 rpm
P4Z 409 310		Size: 409 \| Gear stages: 4 \| Ratio i: 310 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 56.6 kW \| Output speed n2: 4.52 rpm
P4Z 409 335		Size: 409 \| Gear stages: 4 \| Ratio i: 335 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 52.3 kW \| Output speed n2: 4.18 rpm
P4Z 409 354		Size: 409 \| Gear stages: 4 \| Ratio i: 354 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 49.4 kW \| Output speed n2: 3.95 rpm
P4Z 409 386		Size: 409 \| Gear stages: 4 \| Ratio i: 386 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 45.4 kW \| Output speed n2: 3.63 rpm

Industrial GearboxesMotovario

336 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Motovario PBZ Parallel Helical Gear Reducers (P2Z/P3Z/P4Z 179-409)

Brand Motovario·Industrial Gearboxes

Available part numbers (336)

P2Z 179 6,37, P2Z 179 7,14, P2Z 179 8,06, P2Z 179 9,64, P2Z 179 10,5, P2Z 179 11,4, P2Z 179 13,7, P2Z 179 15,6, P2Z 179 16,8, P2Z 179 18,2 + 326 more — see full table ↓

How to order

Send the Motovario part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	P2Z 179 6,37	Size: 179 \| Gear stages: 2 \| Ratio i: 6.37 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 216 kW \| Output speed n2: 220 rpm
	P2Z 179 7,14	Size: 179 \| Gear stages: 2 \| Ratio i: 7.14 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 192 kW \| Output speed n2: 196 rpm
	P2Z 179 8,06	Size: 179 \| Gear stages: 2 \| Ratio i: 8.06 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 171 kW \| Output speed n2: 174 rpm
	P2Z 179 9,64	Size: 179 \| Gear stages: 2 \| Ratio i: 9.64 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 143 kW \| Output speed n2: 145 rpm
	P2Z 179 10,5	Size: 179 \| Gear stages: 2 \| Ratio i: 10.5 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 132 kW \| Output speed n2: 134 rpm
	P2Z 179 11,4	Size: 179 \| Gear stages: 2 \| Ratio i: 11.4 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 121 kW \| Output speed n2: 123 rpm
	P2Z 179 13,7	Size: 179 \| Gear stages: 2 \| Ratio i: 13.7 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 100 kW \| Output speed n2: 102 rpm
	P2Z 179 15,6	Size: 179 \| Gear stages: 2 \| Ratio i: 15.6 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 88.3 kW \| Output speed n2: 90.0 rpm
	P2Z 179 16,8	Size: 179 \| Gear stages: 2 \| Ratio i: 16.8 \| Rated torque Mn2: 8640 Nm \| Rated power Pn1: 78.6 kW \| Output speed n2: 83.4 rpm
	P2Z 179 18,2	Size: 179 \| Gear stages: 2 \| Ratio i: 18.2 \| Rated torque Mn2: 8160 Nm \| Rated power Pn1: 68.5 kW \| Output speed n2: 77.0 rpm
	P2Z 179 19,2	Size: 179 \| Gear stages: 2 \| Ratio i: 19.2 \| Rated torque Mn2: 6900 Nm \| Rated power Pn1: 54.8 kW \| Output speed n2: 72.9 rpm
	P2Z 179 20,9	Size: 179 \| Gear stages: 2 \| Ratio i: 20.9 \| Rated torque Mn2: 7050 Nm \| Rated power Pn1: 51.4 kW \| Output speed n2: 66.9 rpm
	P2Z 199 7,91	Size: 199 \| Gear stages: 2 \| Ratio i: 7.91 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 212 kW \| Output speed n2: 177 rpm
	P2Z 199 8,87	Size: 199 \| Gear stages: 2 \| Ratio i: 8.87 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 189 kW \| Output speed n2: 158 rpm
	P2Z 199 10,0	Size: 199 \| Gear stages: 2 \| Ratio i: 10.0 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 168 kW \| Output speed n2: 140 rpm
	P2Z 199 12,0	Size: 199 \| Gear stages: 2 \| Ratio i: 12.0 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 140 kW \| Output speed n2: 117 rpm
	P2Z 199 13,0	Size: 199 \| Gear stages: 2 \| Ratio i: 13.0 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 129 kW \| Output speed n2: 108 rpm
	P2Z 199 14,1	Size: 199 \| Gear stages: 2 \| Ratio i: 14.1 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 119 kW \| Output speed n2: 99.2 rpm
	P2Z 199 17,0	Size: 199 \| Gear stages: 2 \| Ratio i: 17.0 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 98.8 kW \| Output speed n2: 82.4 rpm
	P2Z 199 19,3	Size: 199 \| Gear stages: 2 \| Ratio i: 19.3 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 86.9 kW \| Output speed n2: 72.4 rpm
	P2Z 199 20,9	Size: 199 \| Gear stages: 2 \| Ratio i: 20.9 \| Rated torque Mn2: 10700 Nm \| Rated power Pn1: 78.7 kW \| Output speed n2: 67.1 rpm
	P2Z 199 22,6	Size: 199 \| Gear stages: 2 \| Ratio i: 22.6 \| Rated torque Mn2: 10100 Nm \| Rated power Pn1: 68.5 kW \| Output speed n2: 62.0 rpm
	P2Z 199 23,9	Size: 199 \| Gear stages: 2 \| Ratio i: 23.9 \| Rated torque Mn2: 8570 Nm \| Rated power Pn1: 54.9 kW \| Output speed n2: 58.7 rpm
	P2Z 199 26,0	Size: 199 \| Gear stages: 2 \| Ratio i: 26.0 \| Rated torque Mn2: 8760 Nm \| Rated power Pn1: 51.5 kW \| Output speed n2: 53.9 rpm
	P2Z 219 6,28	Size: 219 \| Gear stages: 2 \| Ratio i: 6.28 \| Rated torque Mn2: 13300 Nm \| Rated power Pn1: 322 kW \| Output speed n2: 223 rpm
	P2Z 219 7,28	Size: 219 \| Gear stages: 2 \| Ratio i: 7.28 \| Rated torque Mn2: 13900 Nm \| Rated power Pn1: 292 kW \| Output speed n2: 192 rpm
	P2Z 219 7,86	Size: 219 \| Gear stages: 2 \| Ratio i: 7.86 \| Rated torque Mn2: 14300 Nm \| Rated power Pn1: 278 kW \| Output speed n2: 178 rpm
	P2Z 219 8,50	Size: 219 \| Gear stages: 2 \| Ratio i: 8.50 \| Rated torque Mn2: 14700 Nm \| Rated power Pn1: 263 kW \| Output speed n2: 165 rpm
	P2Z 219 9,22	Size: 219 \| Gear stages: 2 \| Ratio i: 9.22 \| Rated torque Mn2: 15100 Nm \| Rated power Pn1: 249 kW \| Output speed n2: 152 rpm
	P2Z 219 10,0	Size: 219 \| Gear stages: 2 \| Ratio i: 10.0 \| Rated torque Mn2: 15500 Nm \| Rated power Pn1: 236 kW \| Output speed n2: 140 rpm
	P2Z 219 11,0	Size: 219 \| Gear stages: 2 \| Ratio i: 11.0 \| Rated torque Mn2: 16000 Nm \| Rated power Pn1: 222 kW \| Output speed n2: 128 rpm
	P2Z 219 12,7	Size: 219 \| Gear stages: 2 \| Ratio i: 12.7 \| Rated torque Mn2: 16700 Nm \| Rated power Pn1: 201 kW \| Output speed n2: 110 rpm
	P2Z 219 14,7	Size: 219 \| Gear stages: 2 \| Ratio i: 14.7 \| Rated torque Mn2: 16200 Nm \| Rated power Pn1: 168 kW \| Output speed n2: 95.4 rpm
	P2Z 219 16,1	Size: 219 \| Gear stages: 2 \| Ratio i: 16.1 \| Rated torque Mn2: 15100 Nm \| Rated power Pn1: 143 kW \| Output speed n2: 87.0 rpm
	P2Z 219 17,4	Size: 219 \| Gear stages: 2 \| Ratio i: 17.4 \| Rated torque Mn2: 14300 Nm \| Rated power Pn1: 125 kW \| Output speed n2: 80.4 rpm
	P2Z 219 18,9	Size: 219 \| Gear stages: 2 \| Ratio i: 18.9 \| Rated torque Mn2: 13400 Nm \| Rated power Pn1: 108 kW \| Output speed n2: 74.0 rpm
	P2Z 249 7,96	Size: 249 \| Gear stages: 2 \| Ratio i: 7.96 \| Rated torque Mn2: 16800 Nm \| Rated power Pn1: 322 kW \| Output speed n2: 176 rpm
	P2Z 249 9,23	Size: 249 \| Gear stages: 2 \| Ratio i: 9.23 \| Rated torque Mn2: 17700 Nm \| Rated power Pn1: 292 kW \| Output speed n2: 152 rpm
	P2Z 249 9,96	Size: 249 \| Gear stages: 2 \| Ratio i: 9.96 \| Rated torque Mn2: 18100 Nm \| Rated power Pn1: 278 kW \| Output speed n2: 141 rpm
	P2Z 249 10,8	Size: 249 \| Gear stages: 2 \| Ratio i: 10.8 \| Rated torque Mn2: 18600 Nm \| Rated power Pn1: 263 kW \| Output speed n2: 130 rpm
	P2Z 249 11,7	Size: 249 \| Gear stages: 2 \| Ratio i: 11.7 \| Rated torque Mn2: 19100 Nm \| Rated power Pn1: 250 kW \| Output speed n2: 120 rpm
	P2Z 249 12,7	Size: 249 \| Gear stages: 2 \| Ratio i: 12.7 \| Rated torque Mn2: 19700 Nm \| Rated power Pn1: 236 kW \| Output speed n2: 110 rpm
	P2Z 249 13,9	Size: 249 \| Gear stages: 2 \| Ratio i: 13.9 \| Rated torque Mn2: 20200 Nm \| Rated power Pn1: 222 kW \| Output speed n2: 101 rpm
	P2Z 249 16,1	Size: 249 \| Gear stages: 2 \| Ratio i: 16.1 \| Rated torque Mn2: 21200 Nm \| Rated power Pn1: 201 kW \| Output speed n2: 87.0 rpm
	P2Z 249 18,6	Size: 249 \| Gear stages: 2 \| Ratio i: 18.6 \| Rated torque Mn2: 20500 Nm \| Rated power Pn1: 168 kW \| Output speed n2: 75.2 rpm
	P2Z 249 20,4	Size: 249 \| Gear stages: 2 \| Ratio i: 20.4 \| Rated torque Mn2: 19100 Nm \| Rated power Pn1: 143 kW \| Output speed n2: 68.6 rpm
	P2Z 249 22,1	Size: 249 \| Gear stages: 2 \| Ratio i: 22.1 \| Rated torque Mn2: 18100 Nm \| Rated power Pn1: 125 kW \| Output speed n2: 63.4 rpm
	P2Z 249 24,0	Size: 249 \| Gear stages: 2 \| Ratio i: 24.0 \| Rated torque Mn2: 17000 Nm \| Rated power Pn1: 108 kW \| Output speed n2: 58.3 rpm
	P2Z 269 6,44	Size: 269 \| Gear stages: 2 \| Ratio i: 6.44 \| Rated torque Mn2: 27000 Nm \| Rated power Pn1: 640 kW \| Output speed n2: 217 rpm
	P2Z 269 7,47	Size: 269 \| Gear stages: 2 \| Ratio i: 7.47 \| Rated torque Mn2: 28500 Nm \| Rated power Pn1: 582 kW \| Output speed n2: 187 rpm
	P2Z 269 8,74	Size: 269 \| Gear stages: 2 \| Ratio i: 8.74 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 507 kW \| Output speed n2: 160 rpm
	P2Z 269 9,49	Size: 269 \| Gear stages: 2 \| Ratio i: 9.49 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 467 kW \| Output speed n2: 148 rpm
	P2Z 269 10,3	Size: 269 \| Gear stages: 2 \| Ratio i: 10.3 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 429 kW \| Output speed n2: 136 rpm
	P2Z 269 11,1	Size: 269 \| Gear stages: 2 \| Ratio i: 11.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 398 kW \| Output speed n2: 126 rpm
	P2Z 269 12,0	Size: 269 \| Gear stages: 2 \| Ratio i: 12.0 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 368 kW \| Output speed n2: 116 rpm
	P2Z 269 14,2	Size: 269 \| Gear stages: 2 \| Ratio i: 14.2 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 313 kW \| Output speed n2: 98.9 rpm
	P2Z 269 16,3	Size: 269 \| Gear stages: 2 \| Ratio i: 16.3 \| Rated torque Mn2: 27700 Nm \| Rated power Pn1: 260 kW \| Output speed n2: 86.1 rpm
	P2Z 269 17,5	Size: 269 \| Gear stages: 2 \| Ratio i: 17.5 \| Rated torque Mn2: 25300 Nm \| Rated power Pn1: 221 kW \| Output speed n2: 80.2 rpm
	P2Z 269 18,9	Size: 269 \| Gear stages: 2 \| Ratio i: 18.9 \| Rated torque Mn2: 25500 Nm \| Rated power Pn1: 206 kW \| Output speed n2: 74.2 rpm
	P2Z 269 20,7	Size: 269 \| Gear stages: 2 \| Ratio i: 20.7 \| Rated torque Mn2: 21400 Nm \| Rated power Pn1: 158 kW \| Output speed n2: 67.8 rpm
	P2Z 279 7,96	Size: 279 \| Gear stages: 2 \| Ratio i: 7.96 \| Rated torque Mn2: 33500 Nm \| Rated power Pn1: 642 kW \| Output speed n2: 176 rpm
	P2Z 279 9,25	Size: 279 \| Gear stages: 2 \| Ratio i: 9.25 \| Rated torque Mn2: 35200 Nm \| Rated power Pn1: 581 kW \| Output speed n2: 151 rpm
	P2Z 279 10,8	Size: 279 \| Gear stages: 2 \| Ratio i: 10.8 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 509 kW \| Output speed n2: 130 rpm
	P2Z 279 11,7	Size: 279 \| Gear stages: 2 \| Ratio i: 11.7 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 468 kW \| Output speed n2: 119 rpm
	P2Z 279 12,8	Size: 279 \| Gear stages: 2 \| Ratio i: 12.8 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 430 kW \| Output speed n2: 110 rpm
	P2Z 279 13,8	Size: 279 \| Gear stages: 2 \| Ratio i: 13.8 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 399 kW \| Output speed n2: 102 rpm
	P2Z 279 14,9	Size: 279 \| Gear stages: 2 \| Ratio i: 14.9 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 369 kW \| Output speed n2: 94.0 rpm
	P2Z 279 17,5	Size: 279 \| Gear stages: 2 \| Ratio i: 17.5 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 314 kW \| Output speed n2: 79.9 rpm
	P2Z 279 20,1	Size: 279 \| Gear stages: 2 \| Ratio i: 20.1 \| Rated torque Mn2: 34300 Nm \| Rated power Pn1: 260 kW \| Output speed n2: 69.6 rpm
	P2Z 279 21,6	Size: 279 \| Gear stages: 2 \| Ratio i: 21.6 \| Rated torque Mn2: 31300 Nm \| Rated power Pn1: 221 kW \| Output speed n2: 64.8 rpm
	P2Z 279 23,4	Size: 279 \| Gear stages: 2 \| Ratio i: 23.4 \| Rated torque Mn2: 31600 Nm \| Rated power Pn1: 206 kW \| Output speed n2: 59.9 rpm
	P2Z 279 25,6	Size: 279 \| Gear stages: 2 \| Ratio i: 25.6 \| Rated torque Mn2: 26500 Nm \| Rated power Pn1: 158 kW \| Output speed n2: 54.8 rpm
	P2Z 319 6,33	Size: 319 \| Gear stages: 2 \| Ratio i: 6.33 \| Rated torque Mn2: 38700 Nm \| Rated power Pn1: 932 kW \| Output speed n2: 221 rpm
	P2Z 319 7,31	Size: 319 \| Gear stages: 2 \| Ratio i: 7.31 \| Rated torque Mn2: 40600 Nm \| Rated power Pn1: 848 kW \| Output speed n2: 192 rpm
	P2Z 319 8,50	Size: 319 \| Gear stages: 2 \| Ratio i: 8.50 \| Rated torque Mn2: 42700 Nm \| Rated power Pn1: 767 kW \| Output speed n2: 165 rpm
	P2Z 319 9,73	Size: 319 \| Gear stages: 2 \| Ratio i: 9.73 \| Rated torque Mn2: 44600 Nm \| Rated power Pn1: 700 kW \| Output speed n2: 144 rpm
	P2Z 319 10,6	Size: 319 \| Gear stages: 2 \| Ratio i: 10.6 \| Rated torque Mn2: 45900 Nm \| Rated power Pn1: 662 kW \| Output speed n2: 132 rpm
	P2Z 319 11,6	Size: 319 \| Gear stages: 2 \| Ratio i: 11.6 \| Rated torque Mn2: 47200 Nm \| Rated power Pn1: 624 kW \| Output speed n2: 121 rpm
	P2Z 319 13,3	Size: 319 \| Gear stages: 2 \| Ratio i: 13.3 \| Rated torque Mn2: 49400 Nm \| Rated power Pn1: 568 kW \| Output speed n2: 105 rpm
	P2Z 319 14,4	Size: 319 \| Gear stages: 2 \| Ratio i: 14.4 \| Rated torque Mn2: 50700 Nm \| Rated power Pn1: 536 kW \| Output speed n2: 97.0 rpm
	P2Z 319 15,5	Size: 319 \| Gear stages: 2 \| Ratio i: 15.5 \| Rated torque Mn2: 45200 Nm \| Rated power Pn1: 445 kW \| Output speed n2: 90.2 rpm
	P2Z 319 16,7	Size: 319 \| Gear stages: 2 \| Ratio i: 16.7 \| Rated torque Mn2: 45700 Nm \| Rated power Pn1: 417 kW \| Output speed n2: 83.7 rpm
	P2Z 319 19,0	Size: 319 \| Gear stages: 2 \| Ratio i: 19.0 \| Rated torque Mn2: 40100 Nm \| Rated power Pn1: 323 kW \| Output speed n2: 73.9 rpm
	P2Z 319 20,5	Size: 319 \| Gear stages: 2 \| Ratio i: 20.5 \| Rated torque Mn2: 39200 Nm \| Rated power Pn1: 292 kW \| Output speed n2: 68.4 rpm
	P2Z 349 8,14	Size: 349 \| Gear stages: 2 \| Ratio i: 8.14 \| Rated torque Mn2: 49700 Nm \| Rated power Pn1: 932 kW \| Output speed n2: 172 rpm
	P2Z 349 9,40	Size: 349 \| Gear stages: 2 \| Ratio i: 9.40 \| Rated torque Mn2: 52200 Nm \| Rated power Pn1: 848 kW \| Output speed n2: 149 rpm
	P2Z 349 10,9	Size: 349 \| Gear stages: 2 \| Ratio i: 10.9 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 768 kW \| Output speed n2: 128 rpm
	P2Z 349 12,5	Size: 349 \| Gear stages: 2 \| Ratio i: 12.5 \| Rated torque Mn2: 57400 Nm \| Rated power Pn1: 700 kW \| Output speed n2: 112 rpm
	P2Z 349 13,6	Size: 349 \| Gear stages: 2 \| Ratio i: 13.6 \| Rated torque Mn2: 59000 Nm \| Rated power Pn1: 661 kW \| Output speed n2: 103 rpm
	P2Z 349 14,9	Size: 349 \| Gear stages: 2 \| Ratio i: 14.9 \| Rated torque Mn2: 60700 Nm \| Rated power Pn1: 624 kW \| Output speed n2: 94.3 rpm
	P2Z 349 17,1	Size: 349 \| Gear stages: 2 \| Ratio i: 17.1 \| Rated torque Mn2: 63600 Nm \| Rated power Pn1: 568 kW \| Output speed n2: 81.9 rpm
	P2Z 349 18,6	Size: 349 \| Gear stages: 2 \| Ratio i: 18.6 \| Rated torque Mn2: 65200 Nm \| Rated power Pn1: 536 kW \| Output speed n2: 75.4 rpm
	P2Z 349 20,0	Size: 349 \| Gear stages: 2 \| Ratio i: 20.0 \| Rated torque Mn2: 58100 Nm \| Rated power Pn1: 445 kW \| Output speed n2: 70.2 rpm
	P2Z 349 21,5	Size: 349 \| Gear stages: 2 \| Ratio i: 21.5 \| Rated torque Mn2: 58800 Nm \| Rated power Pn1: 417 kW \| Output speed n2: 65.1 rpm
	P2Z 349 24,4	Size: 349 \| Gear stages: 2 \| Ratio i: 24.4 \| Rated torque Mn2: 51600 Nm \| Rated power Pn1: 323 kW \| Output speed n2: 57.5 rpm
	P2Z 349 26,3	Size: 349 \| Gear stages: 2 \| Ratio i: 26.3 \| Rated torque Mn2: 50300 Nm \| Rated power Pn1: 292 kW \| Output speed n2: 53.2 rpm
	P2Z 399 6,62	Size: 399 \| Gear stages: 2 \| Ratio i: 6.62 \| Rated torque Mn2: 70700 Nm \| Rated power Pn1: 1630 kW \| Output speed n2: 211 rpm
	P2Z 399 7,57	Size: 399 \| Gear stages: 2 \| Ratio i: 7.57 \| Rated torque Mn2: 74100 Nm \| Rated power Pn1: 1490 kW \| Output speed n2: 185 rpm
	P2Z 399 8,72	Size: 399 \| Gear stages: 2 \| Ratio i: 8.72 \| Rated torque Mn2: 77700 Nm \| Rated power Pn1: 1360 kW \| Output speed n2: 161 rpm
	P2Z 399 9,38	Size: 399 \| Gear stages: 2 \| Ratio i: 9.38 \| Rated torque Mn2: 79600 Nm \| Rated power Pn1: 1300 kW \| Output speed n2: 149 rpm
	P2Z 399 10,1	Size: 399 \| Gear stages: 2 \| Ratio i: 10.1 \| Rated torque Mn2: 81600 Nm \| Rated power Pn1: 1230 kW \| Output speed n2: 138 rpm
	P2Z 399 10,9	Size: 399 \| Gear stages: 2 \| Ratio i: 10.9 \| Rated torque Mn2: 83800 Nm \| Rated power Pn1: 1170 kW \| Output speed n2: 128 rpm
	P2Z 399 12,3	Size: 399 \| Gear stages: 2 \| Ratio i: 12.3 \| Rated torque Mn2: 87100 Nm \| Rated power Pn1: 1080 kW \| Output speed n2: 114 rpm
	P2Z 399 13,2	Size: 399 \| Gear stages: 2 \| Ratio i: 13.2 \| Rated torque Mn2: 89200 Nm \| Rated power Pn1: 1030 kW \| Output speed n2: 106 rpm
	P2Z 399 15,2	Size: 399 \| Gear stages: 2 \| Ratio i: 15.2 \| Rated torque Mn2: 86400 Nm \| Rated power Pn1: 865 kW \| Output speed n2: 91.9 rpm
	P2Z 399 17,2	Size: 399 \| Gear stages: 2 \| Ratio i: 17.2 \| Rated torque Mn2: 73900 Nm \| Rated power Pn1: 656 kW \| Output speed n2: 81.4 rpm
	P2Z 399 18,6	Size: 399 \| Gear stages: 2 \| Ratio i: 18.6 \| Rated torque Mn2: 74700 Nm \| Rated power Pn1: 613 kW \| Output speed n2: 75.3 rpm
	P2Z 399 20,2	Size: 399 \| Gear stages: 2 \| Ratio i: 20.2 \| Rated torque Mn2: 73300 Nm \| Rated power Pn1: 554 kW \| Output speed n2: 69.3 rpm
	P2Z 409 8,01	Size: 409 \| Gear stages: 2 \| Ratio i: 8.01 \| Rated torque Mn2: 85500 Nm \| Rated power Pn1: 1630 kW \| Output speed n2: 175 rpm
	P2Z 409 9,16	Size: 409 \| Gear stages: 2 \| Ratio i: 9.16 \| Rated torque Mn2: 89600 Nm \| Rated power Pn1: 1490 kW \| Output speed n2: 153 rpm
	P2Z 409 10,6	Size: 409 \| Gear stages: 2 \| Ratio i: 10.6 \| Rated torque Mn2: 93900 Nm \| Rated power Pn1: 1360 kW \| Output speed n2: 133 rpm
	P2Z 409 11,4	Size: 409 \| Gear stages: 2 \| Ratio i: 11.4 \| Rated torque Mn2: 96300 Nm \| Rated power Pn1: 1290 kW \| Output speed n2: 123 rpm
	P2Z 409 12,2	Size: 409 \| Gear stages: 2 \| Ratio i: 12.2 \| Rated torque Mn2: 98700 Nm \| Rated power Pn1: 1230 kW \| Output speed n2: 114 rpm
	P2Z 409 13,2	Size: 409 \| Gear stages: 2 \| Ratio i: 13.2 \| Rated torque Mn2: 101000 Nm \| Rated power Pn1: 1170 kW \| Output speed n2: 106 rpm
	P2Z 409 14,8	Size: 409 \| Gear stages: 2 \| Ratio i: 14.8 \| Rated torque Mn2: 105000 Nm \| Rated power Pn1: 1080 kW \| Output speed n2: 94.3 rpm
	P2Z 409 16,0	Size: 409 \| Gear stages: 2 \| Ratio i: 16.0 \| Rated torque Mn2: 108000 Nm \| Rated power Pn1: 1030 kW \| Output speed n2: 87.6 rpm
	P2Z 409 18,4	Size: 409 \| Gear stages: 2 \| Ratio i: 18.4 \| Rated torque Mn2: 105000 Nm \| Rated power Pn1: 865 kW \| Output speed n2: 75.9 rpm
	P2Z 409 20,8	Size: 409 \| Gear stages: 2 \| Ratio i: 20.8 \| Rated torque Mn2: 89400 Nm \| Rated power Pn1: 656 kW \| Output speed n2: 67.3 rpm
	P2Z 409 22,5	Size: 409 \| Gear stages: 2 \| Ratio i: 22.5 \| Rated torque Mn2: 90300 Nm \| Rated power Pn1: 613 kW \| Output speed n2: 62.2 rpm
	P2Z 409 24,4	Size: 409 \| Gear stages: 2 \| Ratio i: 24.4 \| Rated torque Mn2: 88700 Nm \| Rated power Pn1: 554 kW \| Output speed n2: 57.3 rpm
	P3Z 179 24,5	Size: 179 \| Gear stages: 3 \| Ratio i: 24.5 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 57.2 kW \| Output speed n2: 57.0 rpm
	P3Z 179 28,0	Size: 179 \| Gear stages: 3 \| Ratio i: 28.0 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 50.1 kW \| Output speed n2: 50.0 rpm
	P3Z 179 32,1	Size: 179 \| Gear stages: 3 \| Ratio i: 32.1 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 43.8 kW \| Output speed n2: 43.7 rpm
	P3Z 179 36,9	Size: 179 \| Gear stages: 3 \| Ratio i: 36.9 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 38.0 kW \| Output speed n2: 37.9 rpm
	P3Z 179 42,9	Size: 179 \| Gear stages: 3 \| Ratio i: 42.9 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 32.7 kW \| Output speed n2: 32.6 rpm
	P3Z 179 46,4	Size: 179 \| Gear stages: 3 \| Ratio i: 46.4 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 30.2 kW \| Output speed n2: 30.2 rpm
	P3Z 179 51,4	Size: 179 \| Gear stages: 3 \| Ratio i: 51.4 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 27.3 kW \| Output speed n2: 27.2 rpm
	P3Z 179 57,7	Size: 179 \| Gear stages: 3 \| Ratio i: 57.7 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 24.3 kW \| Output speed n2: 24.3 rpm
	P3Z 179 68,2	Size: 179 \| Gear stages: 3 \| Ratio i: 68.2 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 20.6 kW \| Output speed n2: 20.5 rpm
	P3Z 179 73,9	Size: 179 \| Gear stages: 3 \| Ratio i: 73.9 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 19.0 kW \| Output speed n2: 18.9 rpm
	P3Z 179 79,8	Size: 179 \| Gear stages: 3 \| Ratio i: 79.8 \| Rated torque Mn2: 9000 Nm \| Rated power Pn1: 17.6 kW \| Output speed n2: 17.6 rpm
	P3Z 179 86,2	Size: 179 \| Gear stages: 3 \| Ratio i: 86.2 \| Rated torque Mn2: 8840 Nm \| Rated power Pn1: 16.0 kW \| Output speed n2: 16.2 rpm
	P3Z 199 30,5	Size: 199 \| Gear stages: 3 \| Ratio i: 30.5 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 56.3 kW \| Output speed n2: 45.9 rpm
	P3Z 199 34,8	Size: 199 \| Gear stages: 3 \| Ratio i: 34.8 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 49.4 kW \| Output speed n2: 40.3 rpm
	P3Z 199 39,8	Size: 199 \| Gear stages: 3 \| Ratio i: 39.8 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 43.1 kW \| Output speed n2: 35.2 rpm
	P3Z 199 45,9	Size: 199 \| Gear stages: 3 \| Ratio i: 45.9 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 37.4 kW \| Output speed n2: 30.5 rpm
	P3Z 199 53,3	Size: 199 \| Gear stages: 3 \| Ratio i: 53.3 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 32.2 kW \| Output speed n2: 26.3 rpm
	P3Z 199 57,7	Size: 199 \| Gear stages: 3 \| Ratio i: 57.7 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 29.8 kW \| Output speed n2: 24.3 rpm
	P3Z 199 63,9	Size: 199 \| Gear stages: 3 \| Ratio i: 63.9 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 26.9 kW \| Output speed n2: 21.9 rpm
	P3Z 199 71,7	Size: 199 \| Gear stages: 3 \| Ratio i: 71.7 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 23.9 kW \| Output speed n2: 19.5 rpm
	P3Z 199 84,7	Size: 199 \| Gear stages: 3 \| Ratio i: 84.7 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 20.2 kW \| Output speed n2: 16.5 rpm
	P3Z 199 91,8	Size: 199 \| Gear stages: 3 \| Ratio i: 91.8 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 18.7 kW \| Output speed n2: 15.3 rpm
	P3Z 199 99,1	Size: 199 \| Gear stages: 3 \| Ratio i: 99.1 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 17.3 kW \| Output speed n2: 14.1 rpm
	P3Z 199 107	Size: 199 \| Gear stages: 3 \| Ratio i: 107 \| Rated torque Mn2: 11000 Nm \| Rated power Pn1: 16.0 kW \| Output speed n2: 13.1 rpm
	P3Z 219 22,6	Size: 219 \| Gear stages: 3 \| Ratio i: 22.6 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 131 kW \| Output speed n2: 62.0 rpm
	P3Z 219 25,1	Size: 219 \| Gear stages: 3 \| Ratio i: 25.1 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 118 kW \| Output speed n2: 55.8 rpm
	P3Z 219 28,7	Size: 219 \| Gear stages: 3 \| Ratio i: 28.7 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 103 kW \| Output speed n2: 48.8 rpm
	P3Z 219 33,0	Size: 219 \| Gear stages: 3 \| Ratio i: 33.0 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 89.7 kW \| Output speed n2: 42.4 rpm
	P3Z 219 38,3	Size: 219 \| Gear stages: 3 \| Ratio i: 38.3 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 77.3 kW \| Output speed n2: 36.5 rpm
	P3Z 219 41,5	Size: 219 \| Gear stages: 3 \| Ratio i: 41.5 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 71.5 kW \| Output speed n2: 33.8 rpm
	P3Z 219 49,8	Size: 219 \| Gear stages: 3 \| Ratio i: 49.8 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 59.5 kW \| Output speed n2: 28.1 rpm
	P3Z 219 57,8	Size: 219 \| Gear stages: 3 \| Ratio i: 57.8 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 51.2 kW \| Output speed n2: 24.2 rpm
	P3Z 219 62,7	Size: 219 \| Gear stages: 3 \| Ratio i: 62.7 \| Rated torque Mn2: 18400 Nm \| Rated power Pn1: 45.8 kW \| Output speed n2: 22.3 rpm
	P3Z 219 70,5	Size: 219 \| Gear stages: 3 \| Ratio i: 70.5 \| Rated torque Mn2: 16100 Nm \| Rated power Pn1: 35.6 kW \| Output speed n2: 19.9 rpm
	P3Z 219 75,3	Size: 219 \| Gear stages: 3 \| Ratio i: 75.3 \| Rated torque Mn2: 15500 Nm \| Rated power Pn1: 32.1 kW \| Output speed n2: 18.6 rpm
	P3Z 219 81,3	Size: 219 \| Gear stages: 3 \| Ratio i: 81.3 \| Rated torque Mn2: 14600 Nm \| Rated power Pn1: 28.0 kW \| Output speed n2: 17.2 rpm
	P3Z 249 28,6	Size: 249 \| Gear stages: 3 \| Ratio i: 28.6 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 131 kW \| Output speed n2: 48.9 rpm
	P3Z 249 31,8	Size: 249 \| Gear stages: 3 \| Ratio i: 31.8 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 118 kW \| Output speed n2: 44.0 rpm
	P3Z 249 36,4	Size: 249 \| Gear stages: 3 \| Ratio i: 36.4 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 103 kW \| Output speed n2: 38.5 rpm
	P3Z 249 41,9	Size: 249 \| Gear stages: 3 \| Ratio i: 41.9 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 89.4 kW \| Output speed n2: 33.4 rpm
	P3Z 249 48,6	Size: 249 \| Gear stages: 3 \| Ratio i: 48.6 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 77.0 kW \| Output speed n2: 28.8 rpm
	P3Z 249 52,6	Size: 249 \| Gear stages: 3 \| Ratio i: 52.6 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 71.2 kW \| Output speed n2: 26.6 rpm
	P3Z 249 63,1	Size: 249 \| Gear stages: 3 \| Ratio i: 63.1 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 59.3 kW \| Output speed n2: 22.2 rpm
	P3Z 249 73,3	Size: 249 \| Gear stages: 3 \| Ratio i: 73.3 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 51.1 kW \| Output speed n2: 19.1 rpm
	P3Z 249 79,4	Size: 249 \| Gear stages: 3 \| Ratio i: 79.4 \| Rated torque Mn2: 23300 Nm \| Rated power Pn1: 45.7 kW \| Output speed n2: 17.6 rpm
	P3Z 249 89,4	Size: 249 \| Gear stages: 3 \| Ratio i: 89.4 \| Rated torque Mn2: 20500 Nm \| Rated power Pn1: 35.7 kW \| Output speed n2: 15.7 rpm
	P3Z 249 95,4	Size: 249 \| Gear stages: 3 \| Ratio i: 95.4 \| Rated torque Mn2: 19700 Nm \| Rated power Pn1: 32.2 kW \| Output speed n2: 14.7 rpm
	P3Z 249 103	Size: 249 \| Gear stages: 3 \| Ratio i: 103 \| Rated torque Mn2: 18500 Nm \| Rated power Pn1: 28.0 kW \| Output speed n2: 13.6 rpm
	P3Z 269 25,1	Size: 269 \| Gear stages: 3 \| Ratio i: 25.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 180 kW \| Output speed n2: 55.9 rpm
	P3Z 269 28,1	Size: 269 \| Gear stages: 3 \| Ratio i: 28.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 161 kW \| Output speed n2: 49.9 rpm
	P3Z 269 31,7	Size: 269 \| Gear stages: 3 \| Ratio i: 31.7 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 143 kW \| Output speed n2: 44.2 rpm
	P3Z 269 37,9	Size: 269 \| Gear stages: 3 \| Ratio i: 37.9 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 119 kW \| Output speed n2: 36.9 rpm
	P3Z 269 41,1	Size: 269 \| Gear stages: 3 \| Ratio i: 41.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 110 kW \| Output speed n2: 34.0 rpm
	P3Z 269 44,7	Size: 269 \| Gear stages: 3 \| Ratio i: 44.7 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 101 kW \| Output speed n2: 31.3 rpm
	P3Z 269 53,9	Size: 269 \| Gear stages: 3 \| Ratio i: 53.9 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 84.0 kW \| Output speed n2: 26.0 rpm
	P3Z 269 61,2	Size: 269 \| Gear stages: 3 \| Ratio i: 61.2 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 73.9 kW \| Output speed n2: 22.9 rpm
	P3Z 269 66,1	Size: 269 \| Gear stages: 3 \| Ratio i: 66.1 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 68.5 kW \| Output speed n2: 21.2 rpm
	P3Z 269 71,5	Size: 269 \| Gear stages: 3 \| Ratio i: 71.5 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 63.2 kW \| Output speed n2: 19.6 rpm
	P3Z 269 75,6	Size: 269 \| Gear stages: 3 \| Ratio i: 75.6 \| Rated torque Mn2: 23900 Nm \| Rated power Pn1: 49.3 kW \| Output speed n2: 18.5 rpm
	P3Z 269 82,3	Size: 269 \| Gear stages: 3 \| Ratio i: 82.3 \| Rated torque Mn2: 27200 Nm \| Rated power Pn1: 51.5 kW \| Output speed n2: 17.0 rpm
	P3Z 279 31,0	Size: 279 \| Gear stages: 3 \| Ratio i: 31.0 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 181 kW \| Output speed n2: 45.1 rpm
	P3Z 279 34,8	Size: 279 \| Gear stages: 3 \| Ratio i: 34.8 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 162 kW \| Output speed n2: 40.3 rpm
	P3Z 279 39,2	Size: 279 \| Gear stages: 3 \| Ratio i: 39.2 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 143 kW \| Output speed n2: 35.7 rpm
	P3Z 279 46,9	Size: 279 \| Gear stages: 3 \| Ratio i: 46.9 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 120 kW \| Output speed n2: 29.8 rpm
	P3Z 279 50,9	Size: 279 \| Gear stages: 3 \| Ratio i: 50.9 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 110 kW \| Output speed n2: 27.5 rpm
	P3Z 279 55,3	Size: 279 \| Gear stages: 3 \| Ratio i: 55.3 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 101 kW \| Output speed n2: 25.3 rpm
	P3Z 279 66,6	Size: 279 \| Gear stages: 3 \| Ratio i: 66.6 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 84.3 kW \| Output speed n2: 21.0 rpm
	P3Z 279 75,7	Size: 279 \| Gear stages: 3 \| Ratio i: 75.7 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 74.1 kW \| Output speed n2: 18.5 rpm
	P3Z 279 81,7	Size: 279 \| Gear stages: 3 \| Ratio i: 81.7 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 68.7 kW \| Output speed n2: 17.1 rpm
	P3Z 279 88,5	Size: 279 \| Gear stages: 3 \| Ratio i: 88.5 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 63.4 kW \| Output speed n2: 15.8 rpm
	P3Z 279 93,5	Size: 279 \| Gear stages: 3 \| Ratio i: 93.5 \| Rated torque Mn2: 29600 Nm \| Rated power Pn1: 49.3 kW \| Output speed n2: 15.0 rpm
	P3Z 279 102	Size: 279 \| Gear stages: 3 \| Ratio i: 102 \| Rated torque Mn2: 33700 Nm \| Rated power Pn1: 51.5 kW \| Output speed n2: 13.7 rpm
	P3Z 319 24,3	Size: 319 \| Gear stages: 3 \| Ratio i: 24.3 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 353 kW \| Output speed n2: 57.7 rpm
	P3Z 319 28,2	Size: 319 \| Gear stages: 3 \| Ratio i: 28.2 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 305 kW \| Output speed n2: 49.7 rpm
	P3Z 319 30,4	Size: 319 \| Gear stages: 3 \| Ratio i: 30.4 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 282 kW \| Output speed n2: 46.1 rpm
	P3Z 319 32,9	Size: 319 \| Gear stages: 3 \| Ratio i: 32.9 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 261 kW \| Output speed n2: 42.6 rpm
	P3Z 319 35,7	Size: 319 \| Gear stages: 3 \| Ratio i: 35.7 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 240 kW \| Output speed n2: 39.2 rpm
	P3Z 319 38,8	Size: 319 \| Gear stages: 3 \| Ratio i: 38.8 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 221 kW \| Output speed n2: 36.1 rpm
	P3Z 319 42,4	Size: 319 \| Gear stages: 3 \| Ratio i: 42.4 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 203 kW \| Output speed n2: 33.1 rpm
	P3Z 319 49,1	Size: 319 \| Gear stages: 3 \| Ratio i: 49.1 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 175 kW \| Output speed n2: 28.5 rpm
	P3Z 319 56,8	Size: 319 \| Gear stages: 3 \| Ratio i: 56.8 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 151 kW \| Output speed n2: 24.7 rpm
	P3Z 319 62,3	Size: 319 \| Gear stages: 3 \| Ratio i: 62.3 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 138 kW \| Output speed n2: 22.5 rpm
	P3Z 319 67,4	Size: 319 \| Gear stages: 3 \| Ratio i: 67.4 \| Rated torque Mn2: 54100 Nm \| Rated power Pn1: 125 kW \| Output speed n2: 20.8 rpm
	P3Z 319 73,2	Size: 319 \| Gear stages: 3 \| Ratio i: 73.2 \| Rated torque Mn2: 50700 Nm \| Rated power Pn1: 108 kW \| Output speed n2: 19.1 rpm
	P3Z 349 31,2	Size: 349 \| Gear stages: 3 \| Ratio i: 31.2 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 350 kW \| Output speed n2: 44.8 rpm
	P3Z 349 36,2	Size: 349 \| Gear stages: 3 \| Ratio i: 36.2 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 302 kW \| Output speed n2: 38.7 rpm
	P3Z 349 39,1	Size: 349 \| Gear stages: 3 \| Ratio i: 39.1 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 279 kW \| Output speed n2: 35.8 rpm
	P3Z 349 42,3	Size: 349 \| Gear stages: 3 \| Ratio i: 42.3 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 258 kW \| Output speed n2: 33.1 rpm
	P3Z 349 45,9	Size: 349 \| Gear stages: 3 \| Ratio i: 45.9 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 238 kW \| Output speed n2: 30.5 rpm
	P3Z 349 49,9	Size: 349 \| Gear stages: 3 \| Ratio i: 49.9 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 219 kW \| Output speed n2: 28.1 rpm
	P3Z 349 54,5	Size: 349 \| Gear stages: 3 \| Ratio i: 54.5 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 200 kW \| Output speed n2: 25.7 rpm
	P3Z 349 63,1	Size: 349 \| Gear stages: 3 \| Ratio i: 63.1 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 173 kW \| Output speed n2: 22.2 rpm
	P3Z 349 73,0	Size: 349 \| Gear stages: 3 \| Ratio i: 73.0 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 150 kW \| Output speed n2: 19.2 rpm
	P3Z 349 80,1	Size: 349 \| Gear stages: 3 \| Ratio i: 80.1 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 136 kW \| Output speed n2: 17.5 rpm
	P3Z 349 86,6	Size: 349 \| Gear stages: 3 \| Ratio i: 86.6 \| Rated torque Mn2: 69600 Nm \| Rated power Pn1: 125 kW \| Output speed n2: 16.2 rpm
	P3Z 349 94,1	Size: 349 \| Gear stages: 3 \| Ratio i: 94.1 \| Rated torque Mn2: 65200 Nm \| Rated power Pn1: 108 kW \| Output speed n2: 14.9 rpm
	P3Z 399 24,9	Size: 399 \| Gear stages: 3 \| Ratio i: 24.9 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 563 kW \| Output speed n2: 56.1 rpm
	P3Z 399 29,0	Size: 399 \| Gear stages: 3 \| Ratio i: 29.0 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 485 kW \| Output speed n2: 48.3 rpm
	P3Z 399 33,9	Size: 399 \| Gear stages: 3 \| Ratio i: 33.9 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 414 kW \| Output speed n2: 41.3 rpm
	P3Z 399 36,8	Size: 399 \| Gear stages: 3 \| Ratio i: 36.8 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 382 kW \| Output speed n2: 38.1 rpm
	P3Z 399 40,0	Size: 399 \| Gear stages: 3 \| Ratio i: 40.0 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 351 kW \| Output speed n2: 35.0 rpm
	P3Z 399 43,2	Size: 399 \| Gear stages: 3 \| Ratio i: 43.2 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 325 kW \| Output speed n2: 32.4 rpm
	P3Z 399 46,6	Size: 399 \| Gear stages: 3 \| Ratio i: 46.6 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 301 kW \| Output speed n2: 30.0 rpm
	P3Z 399 54,9	Size: 399 \| Gear stages: 3 \| Ratio i: 54.9 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 256 kW \| Output speed n2: 25.5 rpm
	P3Z 399 63,0	Size: 399 \| Gear stages: 3 \| Ratio i: 63.0 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 223 kW \| Output speed n2: 22.2 rpm
	P3Z 399 67,6	Size: 399 \| Gear stages: 3 \| Ratio i: 67.6 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 208 kW \| Output speed n2: 20.7 rpm
	P3Z 399 73,2	Size: 399 \| Gear stages: 3 \| Ratio i: 73.2 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 192 kW \| Output speed n2: 19.1 rpm
	P3Z 399 80,0	Size: 399 \| Gear stages: 3 \| Ratio i: 80.0 \| Rated torque Mn2: 81300 Nm \| Rated power Pn1: 158 kW \| Output speed n2: 17.5 rpm
	P3Z 409 30,2	Size: 409 \| Gear stages: 3 \| Ratio i: 30.2 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 569 kW \| Output speed n2: 46.4 rpm
	P3Z 409 35,0	Size: 409 \| Gear stages: 3 \| Ratio i: 35.0 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 490 kW \| Output speed n2: 40.0 rpm
	P3Z 409 41,0	Size: 409 \| Gear stages: 3 \| Ratio i: 41.0 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 419 kW \| Output speed n2: 34.2 rpm
	P3Z 409 44,5	Size: 409 \| Gear stages: 3 \| Ratio i: 44.5 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 386 kW \| Output speed n2: 31.5 rpm
	P3Z 409 48,4	Size: 409 \| Gear stages: 3 \| Ratio i: 48.4 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 354 kW \| Output speed n2: 28.9 rpm
	P3Z 409 52,2	Size: 409 \| Gear stages: 3 \| Ratio i: 52.2 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 328 kW \| Output speed n2: 26.8 rpm
	P3Z 409 56,4	Size: 409 \| Gear stages: 3 \| Ratio i: 56.4 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 304 kW \| Output speed n2: 24.8 rpm
	P3Z 409 66,4	Size: 409 \| Gear stages: 3 \| Ratio i: 66.4 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 258 kW \| Output speed n2: 21.1 rpm
	P3Z 409 76,2	Size: 409 \| Gear stages: 3 \| Ratio i: 76.2 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 225 kW \| Output speed n2: 18.4 rpm
	P3Z 409 81,8	Size: 409 \| Gear stages: 3 \| Ratio i: 81.8 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 210 kW \| Output speed n2: 17.1 rpm
	P3Z 409 88,5	Size: 409 \| Gear stages: 3 \| Ratio i: 88.5 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 194 kW \| Output speed n2: 15.8 rpm
	P3Z 409 96,8	Size: 409 \| Gear stages: 3 \| Ratio i: 96.8 \| Rated torque Mn2: 98300 Nm \| Rated power Pn1: 158 kW \| Output speed n2: 14.5 rpm
	P4Z 219 87,8	Size: 219 \| Gear stages: 4 \| Ratio i: 87.8 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 34.5 kW \| Output speed n2: 15.9 rpm
	P4Z 219 93,4	Size: 219 \| Gear stages: 4 \| Ratio i: 93.4 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 32.4 kW \| Output speed n2: 15.0 rpm
	P4Z 219 106	Size: 219 \| Gear stages: 4 \| Ratio i: 106 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 28.6 kW \| Output speed n2: 13.2 rpm
	P4Z 219 121	Size: 219 \| Gear stages: 4 \| Ratio i: 121 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 25.0 kW \| Output speed n2: 11.6 rpm
	P4Z 219 139	Size: 219 \| Gear stages: 4 \| Ratio i: 139 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 21.8 kW \| Output speed n2: 10.1 rpm
	P4Z 219 161	Size: 219 \| Gear stages: 4 \| Ratio i: 161 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 18.9 kW \| Output speed n2: 8.72 rpm
	P4Z 219 188	Size: 219 \| Gear stages: 4 \| Ratio i: 188 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 16.1 kW \| Output speed n2: 7.45 rpm
	P4Z 219 204	Size: 219 \| Gear stages: 4 \| Ratio i: 204 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 14.8 kW \| Output speed n2: 6.85 rpm
	P4Z 219 224	Size: 219 \| Gear stages: 4 \| Ratio i: 224 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 13.5 kW \| Output speed n2: 6.25 rpm
	P4Z 219 243	Size: 219 \| Gear stages: 4 \| Ratio i: 243 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 12.5 kW \| Output speed n2: 5.77 rpm
	P4Z 219 293	Size: 219 \| Gear stages: 4 \| Ratio i: 293 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 10.3 kW \| Output speed n2: 4.78 rpm
	P4Z 219 318	Size: 219 \| Gear stages: 4 \| Ratio i: 318 \| Rated torque Mn2: 19000 Nm \| Rated power Pn1: 9.52 kW \| Output speed n2: 4.40 rpm
	P4Z 249 111	Size: 249 \| Gear stages: 4 \| Ratio i: 111 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 34.4 kW \| Output speed n2: 12.6 rpm
	P4Z 249 118	Size: 249 \| Gear stages: 4 \| Ratio i: 118 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 32.3 kW \| Output speed n2: 11.8 rpm
	P4Z 249 134	Size: 249 \| Gear stages: 4 \| Ratio i: 134 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 28.5 kW \| Output speed n2: 10.4 rpm
	P4Z 249 153	Size: 249 \| Gear stages: 4 \| Ratio i: 153 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 24.9 kW \| Output speed n2: 9.13 rpm
	P4Z 249 176	Size: 249 \| Gear stages: 4 \| Ratio i: 176 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 21.7 kW \| Output speed n2: 7.96 rpm
	P4Z 249 204	Size: 249 \| Gear stages: 4 \| Ratio i: 204 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 18.8 kW \| Output speed n2: 6.88 rpm
	P4Z 249 238	Size: 249 \| Gear stages: 4 \| Ratio i: 238 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 16.1 kW \| Output speed n2: 5.88 rpm
	P4Z 249 259	Size: 249 \| Gear stages: 4 \| Ratio i: 259 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 14.8 kW \| Output speed n2: 5.40 rpm
	P4Z 249 284	Size: 249 \| Gear stages: 4 \| Ratio i: 284 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 13.5 kW \| Output speed n2: 4.93 rpm
	P4Z 249 308	Size: 249 \| Gear stages: 4 \| Ratio i: 308 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 12.4 kW \| Output speed n2: 4.55 rpm
	P4Z 249 371	Size: 249 \| Gear stages: 4 \| Ratio i: 371 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 10.3 kW \| Output speed n2: 3.77 rpm
	P4Z 249 403	Size: 249 \| Gear stages: 4 \| Ratio i: 403 \| Rated torque Mn2: 24000 Nm \| Rated power Pn1: 9.49 kW \| Output speed n2: 3.47 rpm
	P4Z 269 96,5	Size: 269 \| Gear stages: 4 \| Ratio i: 96.5 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 47.9 kW \| Output speed n2: 14.5 rpm
	P4Z 269 110	Size: 269 \| Gear stages: 4 \| Ratio i: 110 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 42.0 kW \| Output speed n2: 12.7 rpm
	P4Z 269 126	Size: 269 \| Gear stages: 4 \| Ratio i: 126 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 36.6 kW \| Output speed n2: 11.1 rpm
	P4Z 269 145	Size: 269 \| Gear stages: 4 \| Ratio i: 145 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 31.8 kW \| Output speed n2: 9.64 rpm
	P4Z 269 169	Size: 269 \| Gear stages: 4 \| Ratio i: 169 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 27.4 kW \| Output speed n2: 8.29 rpm
	P4Z 269 183	Size: 269 \| Gear stages: 4 \| Ratio i: 183 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 25.3 kW \| Output speed n2: 7.67 rpm
	P4Z 269 202	Size: 269 \| Gear stages: 4 \| Ratio i: 202 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 22.8 kW \| Output speed n2: 6.92 rpm
	P4Z 269 227	Size: 269 \| Gear stages: 4 \| Ratio i: 227 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 20.4 kW \| Output speed n2: 6.17 rpm
	P4Z 269 268	Size: 269 \| Gear stages: 4 \| Ratio i: 268 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 17.2 kW \| Output speed n2: 5.22 rpm
	P4Z 269 291	Size: 269 \| Gear stages: 4 \| Ratio i: 291 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 15.9 kW \| Output speed n2: 4.82 rpm
	P4Z 269 314	Size: 269 \| Gear stages: 4 \| Ratio i: 314 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 14.7 kW \| Output speed n2: 4.46 rpm
	P4Z 269 339	Size: 269 \| Gear stages: 4 \| Ratio i: 339 \| Rated torque Mn2: 29000 Nm \| Rated power Pn1: 13.6 kW \| Output speed n2: 4.13 rpm
	P4Z 279 119	Size: 279 \| Gear stages: 4 \| Ratio i: 119 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 48.0 kW \| Output speed n2: 11.7 rpm
	P4Z 279 136	Size: 279 \| Gear stages: 4 \| Ratio i: 136 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 42.1 kW \| Output speed n2: 10.3 rpm
	P4Z 279 156	Size: 279 \| Gear stages: 4 \| Ratio i: 156 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 36.8 kW \| Output speed n2: 8.97 rpm
	P4Z 279 180	Size: 279 \| Gear stages: 4 \| Ratio i: 180 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 31.9 kW \| Output speed n2: 7.79 rpm
	P4Z 279 209	Size: 279 \| Gear stages: 4 \| Ratio i: 209 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 27.5 kW \| Output speed n2: 6.70 rpm
	P4Z 279 226	Size: 279 \| Gear stages: 4 \| Ratio i: 226 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 25.4 kW \| Output speed n2: 6.20 rpm
	P4Z 279 250	Size: 279 \| Gear stages: 4 \| Ratio i: 250 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 22.9 kW \| Output speed n2: 5.59 rpm
	P4Z 279 281	Size: 279 \| Gear stages: 4 \| Ratio i: 281 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 20.4 kW \| Output speed n2: 4.98 rpm
	P4Z 279 332	Size: 279 \| Gear stages: 4 \| Ratio i: 332 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 17.3 kW \| Output speed n2: 4.22 rpm
	P4Z 279 360	Size: 279 \| Gear stages: 4 \| Ratio i: 360 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 16.0 kW \| Output speed n2: 3.89 rpm
	P4Z 279 388	Size: 279 \| Gear stages: 4 \| Ratio i: 388 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 14.8 kW \| Output speed n2: 3.61 rpm
	P4Z 279 419	Size: 279 \| Gear stages: 4 \| Ratio i: 419 \| Rated torque Mn2: 36000 Nm \| Rated power Pn1: 13.7 kW \| Output speed n2: 3.34 rpm
	P4Z 319 87,4	Size: 319 \| Gear stages: 4 \| Ratio i: 87.4 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 100 kW \| Output speed n2: 16.0 rpm
	P4Z 319 97,0	Size: 319 \| Gear stages: 4 \| Ratio i: 97.0 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 90.3 kW \| Output speed n2: 14.4 rpm
	P4Z 319 111	Size: 319 \| Gear stages: 4 \| Ratio i: 111 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 79.0 kW \| Output speed n2: 12.6 rpm
	P4Z 319 128	Size: 319 \| Gear stages: 4 \| Ratio i: 128 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 68.6 kW \| Output speed n2: 11.0 rpm
	P4Z 319 148	Size: 319 \| Gear stages: 4 \| Ratio i: 148 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 59.1 kW \| Output speed n2: 9.44 rpm
	P4Z 319 160	Size: 319 \| Gear stages: 4 \| Ratio i: 160 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 54.7 kW \| Output speed n2: 8.73 rpm
	P4Z 319 192	Size: 319 \| Gear stages: 4 \| Ratio i: 192 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 45.5 kW \| Output speed n2: 7.27 rpm
	P4Z 319 224	Size: 319 \| Gear stages: 4 \| Ratio i: 224 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 39.2 kW \| Output speed n2: 6.26 rpm
	P4Z 319 242	Size: 319 \| Gear stages: 4 \| Ratio i: 242 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 36.2 kW \| Output speed n2: 5.78 rpm
	P4Z 319 273	Size: 319 \| Gear stages: 4 \| Ratio i: 273 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 32.2 kW \| Output speed n2: 5.14 rpm
	P4Z 319 291	Size: 319 \| Gear stages: 4 \| Ratio i: 291 \| Rated torque Mn2: 53400 Nm \| Rated power Pn1: 29.2 kW \| Output speed n2: 4.81 rpm
	P4Z 319 314	Size: 319 \| Gear stages: 4 \| Ratio i: 314 \| Rated torque Mn2: 55000 Nm \| Rated power Pn1: 27.9 kW \| Output speed n2: 4.46 rpm
	P4Z 349 112	Size: 349 \| Gear stages: 4 \| Ratio i: 112 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 99.3 kW \| Output speed n2: 12.5 rpm
	P4Z 349 125	Size: 349 \| Gear stages: 4 \| Ratio i: 125 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 89.4 kW \| Output speed n2: 11.2 rpm
	P4Z 349 143	Size: 349 \| Gear stages: 4 \| Ratio i: 143 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 78.2 kW \| Output speed n2: 9.81 rpm
	P4Z 349 164	Size: 349 \| Gear stages: 4 \| Ratio i: 164 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 67.9 kW \| Output speed n2: 8.52 rpm
	P4Z 349 191	Size: 349 \| Gear stages: 4 \| Ratio i: 191 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 58.5 kW \| Output speed n2: 7.34 rpm
	P4Z 349 206	Size: 349 \| Gear stages: 4 \| Ratio i: 206 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 54.1 kW \| Output speed n2: 6.79 rpm
	P4Z 349 247	Size: 349 \| Gear stages: 4 \| Ratio i: 247 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 45.1 kW \| Output speed n2: 5.66 rpm
	P4Z 349 287	Size: 349 \| Gear stages: 4 \| Ratio i: 287 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 38.8 kW \| Output speed n2: 4.87 rpm
	P4Z 349 312	Size: 349 \| Gear stages: 4 \| Ratio i: 312 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 35.8 kW \| Output speed n2: 4.49 rpm
	P4Z 349 350	Size: 349 \| Gear stages: 4 \| Ratio i: 350 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 31.8 kW \| Output speed n2: 3.99 rpm
	P4Z 349 374	Size: 349 \| Gear stages: 4 \| Ratio i: 374 \| Rated torque Mn2: 68700 Nm \| Rated power Pn1: 29.3 kW \| Output speed n2: 3.74 rpm
	P4Z 349 404	Size: 349 \| Gear stages: 4 \| Ratio i: 404 \| Rated torque Mn2: 70000 Nm \| Rated power Pn1: 27.6 kW \| Output speed n2: 3.47 rpm
	P4Z 399 97,1	Size: 399 \| Gear stages: 4 \| Ratio i: 97.1 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 148 kW \| Output speed n2: 14.4 rpm
	P4Z 399 109	Size: 399 \| Gear stages: 4 \| Ratio i: 109 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 132 kW \| Output speed n2: 12.9 rpm
	P4Z 399 123	Size: 399 \| Gear stages: 4 \| Ratio i: 123 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 117 kW \| Output speed n2: 11.4 rpm
	P4Z 399 147	Size: 399 \| Gear stages: 4 \| Ratio i: 147 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 97.6 kW \| Output speed n2: 9.52 rpm
	P4Z 399 159	Size: 399 \| Gear stages: 4 \| Ratio i: 159 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 90.0 kW \| Output speed n2: 8.79 rpm
	P4Z 399 173	Size: 399 \| Gear stages: 4 \| Ratio i: 173 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 82.8 kW \| Output speed n2: 8.08 rpm
	P4Z 399 209	Size: 399 \| Gear stages: 4 \| Ratio i: 209 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 68.7 kW \| Output speed n2: 6.71 rpm
	P4Z 399 237	Size: 399 \| Gear stages: 4 \| Ratio i: 237 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 60.5 kW \| Output speed n2: 5.90 rpm
	P4Z 399 256	Size: 399 \| Gear stages: 4 \| Ratio i: 256 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 56.0 kW \| Output speed n2: 5.47 rpm
	P4Z 399 277	Size: 399 \| Gear stages: 4 \| Ratio i: 277 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 51.7 kW \| Output speed n2: 5.05 rpm
	P4Z 399 293	Size: 399 \| Gear stages: 4 \| Ratio i: 293 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 49.0 kW \| Output speed n2: 4.78 rpm
	P4Z 399 319	Size: 399 \| Gear stages: 4 \| Ratio i: 319 \| Rated torque Mn2: 90000 Nm \| Rated power Pn1: 45.0 kW \| Output speed n2: 4.39 rpm
	P4Z 409 117	Size: 409 \| Gear stages: 4 \| Ratio i: 117 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 149 kW \| Output speed n2: 11.9 rpm
	P4Z 409 132	Size: 409 \| Gear stages: 4 \| Ratio i: 132 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 133 kW \| Output speed n2: 10.6 rpm
	P4Z 409 149	Size: 409 \| Gear stages: 4 \| Ratio i: 149 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 118 kW \| Output speed n2: 9.42 rpm
	P4Z 409 178	Size: 409 \| Gear stages: 4 \| Ratio i: 178 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 98.6 kW \| Output speed n2: 7.87 rpm
	P4Z 409 193	Size: 409 \| Gear stages: 4 \| Ratio i: 193 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 90.9 kW \| Output speed n2: 7.26 rpm
	P4Z 409 210	Size: 409 \| Gear stages: 4 \| Ratio i: 210 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 83.6 kW \| Output speed n2: 6.68 rpm
	P4Z 409 252	Size: 409 \| Gear stages: 4 \| Ratio i: 252 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 69.4 kW \| Output speed n2: 5.55 rpm
	P4Z 409 287	Size: 409 \| Gear stages: 4 \| Ratio i: 287 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 61.1 kW \| Output speed n2: 4.88 rpm
	P4Z 409 310	Size: 409 \| Gear stages: 4 \| Ratio i: 310 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 56.6 kW \| Output speed n2: 4.52 rpm
	P4Z 409 335	Size: 409 \| Gear stages: 4 \| Ratio i: 335 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 52.3 kW \| Output speed n2: 4.18 rpm
	P4Z 409 354	Size: 409 \| Gear stages: 4 \| Ratio i: 354 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 49.4 kW \| Output speed n2: 3.95 rpm
	P4Z 409 386	Size: 409 \| Gear stages: 4 \| Ratio i: 386 \| Rated torque Mn2: 110000 Nm \| Rated power Pn1: 45.4 kW \| Output speed n2: 3.63 rpm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

Motovario PBZ Parallel Helical Gear Reducers (P2Z/P3Z/P4Z 179-409)
