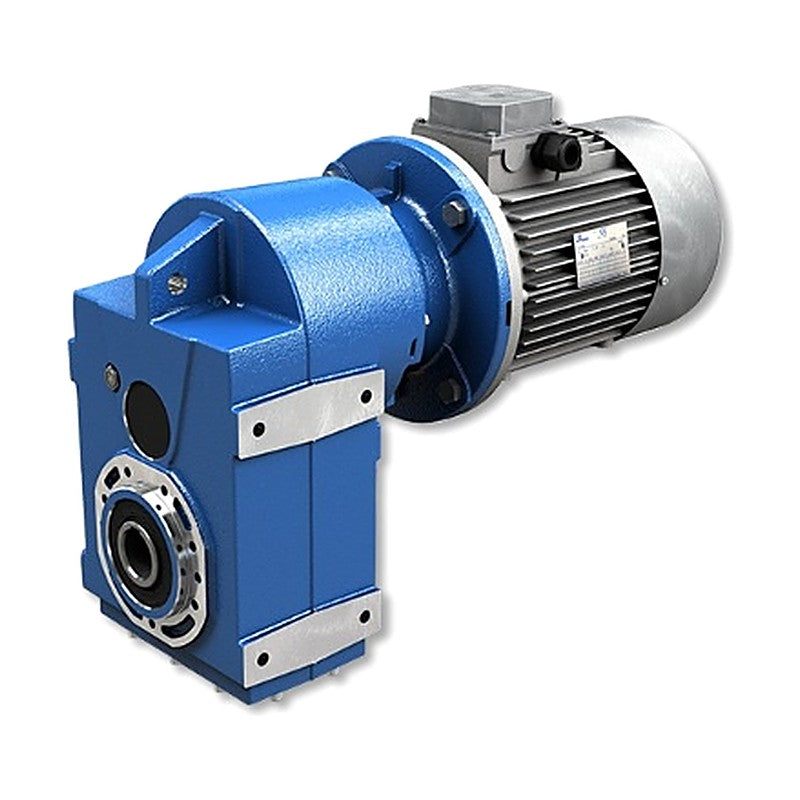

Motovario S Shaft Mounted Helical Gearmotors (S082-S103, 0.18-15 kW)

Motovario S series shaft mounted parallel-shaft helical gearmotors in cast iron, sizes S082 to S103 with 2 or 3 reduction stages, fitted with 2-, 4-, 6-pole IEC motors from 0.18 to 15 kW.

Key features

Order code as printed in the performance tables: gear reducer + ratio + motor size and poles, e.g. S083 81,71 80A6
Size code = housing size + number of stages (last digit 2 or 3); average efficiency 0.96 (2 stages), 0.94 (3 stages)
Output shaft versions C (hollow shaft), D (solid shaft) and L (shrink disc); output flanges FA, FB, FC, FG
Also built as PS (PAM motor flange with flexible coupling) and CS (compact motor-reducer); IS input-shaft version listed separately
Mounting positions B3, B8, B6, B7, V5, V6; accessories include torque arm, backstop device and reinforced oil seals
Sizes 080/100 supplied with lubricant and oil plugs for any catalogue mounting position

Specifications

Series	S shaft mounted helical gearmotor
Housing	Cast iron, blue RAL 5010 epoxy-polyester
Sizes	S082, S083, S102, S103
Reduction stages	2 or 3
Ratio range	7.34 to 394.69
Motor power range	0.18 to 15 kW
Motor poles	2, 4, 6
Supply	50 Hz
Output shafts	Hollow C, solid D, shrink disc L
Mounting positions	B3, B8, B6, B7, V5, V6
Load capacity standards	DIN 3990, ISO 6336, AGMA 2101, DIN 743
Source	Motovario S Technical Catalogue IEC STD, p. 55-120

S082 7,34 112M4		Size: S082 \| Ratio i: 7.34 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 197.6 rpm \| Output torque M2: 186 Nm
S082 7,34 112M6		Size: S082 \| Ratio i: 7.34 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 130.8 rpm \| Output torque M2: 156 Nm
S082 7,34 112MS4		Size: S082 \| Ratio i: 7.34 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 197.6 rpm \| Output torque M2: 139 Nm
S082 7,34 132M2		Size: S082 \| Ratio i: 7.34 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 402.0 rpm \| Output torque M2: 165 Nm
S082 7,34 132M4		Size: S082 \| Ratio i: 7.34 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 198.9 rpm \| Output torque M2: 346 Nm
S082 7,34 132MA6		Size: S082 \| Ratio i: 7.34 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 132.2 rpm \| Output torque M2: 280 Nm
S082 7,34 132MB6		Size: S082 \| Ratio i: 7.34 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 132.2 rpm \| Output torque M2: 385 Nm
S082 7,34 132MS4		Size: S082 \| Ratio i: 7.34 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 200.3 rpm \| Output torque M2: 252 Nm
S082 7,34 132S2		Size: S082 \| Ratio i: 7.34 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 402.0 rpm \| Output torque M2: 121 Nm
S082 7,34 132S6		Size: S082 \| Ratio i: 7.34 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 132.2 rpm \| Output torque M2: 210 Nm
S082 8,06 112M4		Size: S082 \| Ratio i: 8.06 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 179.8 rpm \| Output torque M2: 204 Nm
S082 8,06 112M6		Size: S082 \| Ratio i: 8.06 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 119.0 rpm \| Output torque M2: 171 Nm
S082 8,06 112MS4		Size: S082 \| Ratio i: 8.06 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 179.8 rpm \| Output torque M2: 153 Nm
S082 8,06 132M2		Size: S082 \| Ratio i: 8.06 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 365.9 rpm \| Output torque M2: 182 Nm
S082 8,06 132M4		Size: S082 \| Ratio i: 8.06 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 181.1 rpm \| Output torque M2: 380 Nm
S082 8,06 132MA6		Size: S082 \| Ratio i: 8.06 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 120.3 rpm \| Output torque M2: 308 Nm
S082 8,06 132MB6		Size: S082 \| Ratio i: 8.06 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 120.3 rpm \| Output torque M2: 424 Nm
S082 8,06 132MS4		Size: S082 \| Ratio i: 8.06 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 182.3 rpm \| Output torque M2: 277 Nm
S082 8,06 132S2		Size: S082 \| Ratio i: 8.06 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 365.9 rpm \| Output torque M2: 133 Nm
S082 8,06 132S6		Size: S082 \| Ratio i: 8.06 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 120.3 rpm \| Output torque M2: 231 Nm
S082 9,94 112M4		Size: S082 \| Ratio i: 9.94 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 145.8 rpm \| Output torque M2: 251 Nm
S082 9,94 112M6		Size: S082 \| Ratio i: 9.94 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 96.5 rpm \| Output torque M2: 211 Nm
S082 9,94 112MS4		Size: S082 \| Ratio i: 9.94 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 145.8 rpm \| Output torque M2: 189 Nm
S082 9,94 132M2		Size: S082 \| Ratio i: 9.94 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 296.7 rpm \| Output torque M2: 224 Nm
S082 9,94 132M4		Size: S082 \| Ratio i: 9.94 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 146.8 rpm \| Output torque M2: 469 Nm
S082 9,94 132MA6		Size: S082 \| Ratio i: 9.94 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 97.5 rpm \| Output torque M2: 380 Nm
S082 9,94 132MB6		Size: S082 \| Ratio i: 9.94 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 97.5 rpm \| Output torque M2: 523 Nm
S082 9,94 132MS4		Size: S082 \| Ratio i: 9.94 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 147.8 rpm \| Output torque M2: 341 Nm
S082 9,94 132S2		Size: S082 \| Ratio i: 9.94 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 296.7 rpm \| Output torque M2: 164 Nm
S082 9,94 132S6		Size: S082 \| Ratio i: 9.94 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 97.5 rpm \| Output torque M2: 285 Nm
S082 11,61 112M2		Size: S082 \| Ratio i: 11.61 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 252.5 rpm \| Output torque M2: 141 Nm
S082 11,61 112M4		Size: S082 \| Ratio i: 11.61 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 124.9 rpm \| Output torque M2: 294 Nm
S082 11,61 112M6		Size: S082 \| Ratio i: 11.61 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 82.7 rpm \| Output torque M2: 246 Nm
S082 11,61 112MS4		Size: S082 \| Ratio i: 11.61 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 124.9 rpm \| Output torque M2: 220 Nm
S082 11,61 132M2		Size: S082 \| Ratio i: 11.61 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 254.1 rpm \| Output torque M2: 261 Nm
S082 11,61 132M4		Size: S082 \| Ratio i: 11.61 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 125.8 rpm \| Output torque M2: 547 Nm
S082 11,61 132MA6		Size: S082 \| Ratio i: 11.61 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 83.6 rpm \| Output torque M2: 443 Nm
S082 11,61 132MB6		Size: S082 \| Ratio i: 11.61 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 83.6 rpm \| Output torque M2: 610 Nm
S082 11,61 132MS4		Size: S082 \| Ratio i: 11.61 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 126.6 rpm \| Output torque M2: 399 Nm
S082 11,61 132S2		Size: S082 \| Ratio i: 11.61 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 254.1 rpm \| Output torque M2: 191 Nm
S082 11,61 132S6		Size: S082 \| Ratio i: 11.61 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 83.6 rpm \| Output torque M2: 333 Nm
S082 12,75 112M2		Size: S082 \| Ratio i: 12.75 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 229.9 rpm \| Output torque M2: 154 Nm
S082 12,75 112M4		Size: S082 \| Ratio i: 12.75 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 113.7 rpm \| Output torque M2: 323 Nm
S082 12,75 112M6		Size: S082 \| Ratio i: 12.75 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 75.3 rpm \| Output torque M2: 271 Nm
S082 12,75 112MS4		Size: S082 \| Ratio i: 12.75 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 113.7 rpm \| Output torque M2: 242 Nm
S082 12,75 132M2		Size: S082 \| Ratio i: 12.75 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 231.3 rpm \| Output torque M2: 287 Nm
S082 12,75 132M4		Size: S082 \| Ratio i: 12.75 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 114.5 rpm \| Output torque M2: 601 Nm
S082 12,75 132MA6		Size: S082 \| Ratio i: 12.75 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 76.1 rpm \| Output torque M2: 487 Nm
S082 12,75 132MB6		Size: S082 \| Ratio i: 12.75 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 76.1 rpm \| Output torque M2: 669 Nm
S082 12,75 132MS4		Size: S082 \| Ratio i: 12.75 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 115.3 rpm \| Output torque M2: 437 Nm
S082 12,75 132S2		Size: S082 \| Ratio i: 12.75 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 231.4 rpm \| Output torque M2: 210 Nm
S082 12,75 132S6		Size: S082 \| Ratio i: 12.75 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 76.1 rpm \| Output torque M2: 365 Nm
S082 14,04 100L6		Size: S082 \| Ratio i: 14.04 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 66.9 rpm \| Output torque M2: 208 Nm
S082 14,04 100LA4		Size: S082 \| Ratio i: 14.04 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 102.5 rpm \| Output torque M2: 197 Nm
S082 14,04 112M2		Size: S082 \| Ratio i: 14.04 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 208.6 rpm \| Output torque M2: 170 Nm
S082 14,04 112M4		Size: S082 \| Ratio i: 14.04 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 103.2 rpm \| Output torque M2: 356 Nm
S082 14,04 112M6		Size: S082 \| Ratio i: 14.04 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 68.3 rpm \| Output torque M2: 298 Nm
S082 14,04 112MS4		Size: S082 \| Ratio i: 14.04 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 103.2 rpm \| Output torque M2: 266 Nm
S082 14,04 132M2		Size: S082 \| Ratio i: 14.04 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 210.1 rpm \| Output torque M2: 316 Nm
S082 14,04 132M4		Size: S082 \| Ratio i: 14.04 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 103.9 rpm \| Output torque M2: 661 Nm
S082 14,04 132MA6		Size: S082 \| Ratio i: 14.04 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 69.1 rpm \| Output torque M2: 536 Nm
S082 14,04 132MB6		Size: S082 \| Ratio i: 14.04 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 69.1 rpm \| Output torque M2: 737 Nm
S082 14,04 132MS4		Size: S082 \| Ratio i: 14.04 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 104.7 rpm \| Output torque M2: 482 Nm
S082 14,04 132S2		Size: S082 \| Ratio i: 14.04 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 210.1 rpm \| Output torque M2: 232 Nm
S082 14,04 132S6		Size: S082 \| Ratio i: 14.04 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 69.1 rpm \| Output torque M2: 402 Nm
S082 15,43 100L6		Size: S082 \| Ratio i: 15.43 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 60.9 rpm \| Output torque M2: 228 Nm
S082 15,43 100LA4		Size: S082 \| Ratio i: 15.43 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 93.3 rpm \| Output torque M2: 216 Nm
S082 15,43 112M2		Size: S082 \| Ratio i: 15.43 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 189.9 rpm \| Output torque M2: 186 Nm
S082 15,43 112M4		Size: S082 \| Ratio i: 15.43 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 93.9 rpm \| Output torque M2: 390 Nm
S082 15,43 112M6		Size: S082 \| Ratio i: 15.43 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 62.2 rpm \| Output torque M2: 327 Nm
S082 15,43 112MS4		Size: S082 \| Ratio i: 15.43 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 94.0 rpm \| Output torque M2: 293 Nm
S082 15,43 132M2		Size: S082 \| Ratio i: 15.43 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 191.2 rpm \| Output torque M2: 347 Nm
S082 15,43 132M4		Size: S082 \| Ratio i: 15.43 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 94.6 rpm \| Output torque M2: 727 Nm
S082 15,43 132MA6		Size: S082 \| Ratio i: 15.43 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 62.9 rpm \| Output torque M2: 589 Nm
S082 15,43 132MB6		Size: S082 \| Ratio i: 15.43 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 62.9 rpm \| Output torque M2: 810 Nm
S082 15,43 132MS4		Size: S082 \| Ratio i: 15.43 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 95.3 rpm \| Output torque M2: 530 Nm
S082 15,43 132S2		Size: S082 \| Ratio i: 15.43 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 191.2 rpm \| Output torque M2: 255 Nm
S082 15,43 132S6		Size: S082 \| Ratio i: 15.43 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 62.9 rpm \| Output torque M2: 442 Nm
S082 15,73 100L2		Size: S082 \| Ratio i: 15.73 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 184.4 rpm \| Output torque M2: 144 Nm
S082 15,73 100L6		Size: S082 \| Ratio i: 15.73 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 59.7 rpm \| Output torque M2: 233 Nm
S082 15,73 100LA4		Size: S082 \| Ratio i: 15.73 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 91.5 rpm \| Output torque M2: 220 Nm
S082 15,73 112M2		Size: S082 \| Ratio i: 15.73 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 186.3 rpm \| Output torque M2: 190 Nm
S082 15,73 112M4		Size: S082 \| Ratio i: 15.73 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 92.2 rpm \| Output torque M2: 398 Nm
S082 15,73 112M6		Size: S082 \| Ratio i: 15.73 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 61.0 rpm \| Output torque M2: 334 Nm
S082 15,73 112MS4		Size: S082 \| Ratio i: 15.73 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 92.2 rpm \| Output torque M2: 298 Nm
S082 15,73 132M2		Size: S082 \| Ratio i: 15.73 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 187.6 rpm \| Output torque M2: 354 Nm
S082 15,73 132M4		Size: S082 \| Ratio i: 15.73 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 92.8 rpm \| Output torque M2: 741 Nm
S082 15,73 132MA6		Size: S082 \| Ratio i: 15.73 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 61.6 rpm \| Output torque M2: 601 Nm
S082 15,73 132MB6		Size: S082 \| Ratio i: 15.73 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 61.7 rpm \| Output torque M2: 826 Nm
S082 15,73 132MS4		Size: S082 \| Ratio i: 15.73 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 93.5 rpm \| Output torque M2: 540 Nm
S082 15,73 132S2		Size: S082 \| Ratio i: 15.73 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 187.6 rpm \| Output torque M2: 259 Nm
S082 15,73 132S6		Size: S082 \| Ratio i: 15.73 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 61.6 rpm \| Output torque M2: 450 Nm
S082 17,29 100L2		Size: S082 \| Ratio i: 17.29 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 167.6 rpm \| Output torque M2: 158 Nm
S082 17,29 100L6		Size: S082 \| Ratio i: 17.29 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 54.4 rpm \| Output torque M2: 256 Nm
S082 17,29 100LA4		Size: S082 \| Ratio i: 17.29 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 83.3 rpm \| Output torque M2: 243 Nm
S082 17,29 112M2		Size: S082 \| Ratio i: 17.29 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 169.4 rpm \| Output torque M2: 209 Nm
S082 17,29 112M4		Size: S082 \| Ratio i: 17.29 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 83.8 rpm \| Output torque M2: 437 Nm
S082 17,29 112M6		Size: S082 \| Ratio i: 17.29 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 55.5 rpm \| Output torque M2: 367 Nm
S082 17,29 112MS4		Size: S082 \| Ratio i: 17.29 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 83.8 rpm \| Output torque M2: 328 Nm
S082 17,29 132M2		Size: S082 \| Ratio i: 17.29 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 170.6 rpm \| Output torque M2: 389 Nm
S082 17,29 132M4		Size: S082 \| Ratio i: 17.29 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 84.4 rpm \| Output torque M2: 815 Nm
S082 17,29 132MA6		Size: S082 \| Ratio i: 17.29 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 56.1 rpm \| Output torque M2: 660 Nm
S082 17,29 132MS4		Size: S082 \| Ratio i: 17.29 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 85.0 rpm \| Output torque M2: 593 Nm
S082 17,29 132S2		Size: S082 \| Ratio i: 17.29 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 170.6 rpm \| Output torque M2: 285 Nm
S082 17,29 132S6		Size: S082 \| Ratio i: 17.29 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 56.1 rpm \| Output torque M2: 495 Nm
S082 19,03 100L2		Size: S082 \| Ratio i: 19.03 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 152.4 rpm \| Output torque M2: 174 Nm
S082 19,03 100L6		Size: S082 \| Ratio i: 19.03 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 49.4 rpm \| Output torque M2: 281 Nm
S082 19,03 100LA4		Size: S082 \| Ratio i: 19.03 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 75.7 rpm \| Output torque M2: 267 Nm
S082 19,03 100LR6		Size: S082 \| Ratio i: 19.03 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 49.9 rpm \| Output torque M2: 204 Nm
S082 19,03 112M2		Size: S082 \| Ratio i: 19.03 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 154.0 rpm \| Output torque M2: 230 Nm
S082 19,03 112M4		Size: S082 \| Ratio i: 19.03 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 76.2 rpm \| Output torque M2: 482 Nm
S082 19,03 112M6		Size: S082 \| Ratio i: 19.03 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 50.5 rpm \| Output torque M2: 404 Nm
S082 19,03 112MS4		Size: S082 \| Ratio i: 19.03 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 76.2 rpm \| Output torque M2: 361 Nm
S082 19,03 132M2		Size: S082 \| Ratio i: 19.03 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 155.0 rpm \| Output torque M2: 428 Nm
S082 19,03 132MA6		Size: S082 \| Ratio i: 19.03 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 51.0 rpm \| Output torque M2: 727 Nm
S082 19,03 132MS4		Size: S082 \| Ratio i: 19.03 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 77.3 rpm \| Output torque M2: 653 Nm
S082 19,03 132S2		Size: S082 \| Ratio i: 19.03 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 155.0 rpm \| Output torque M2: 314 Nm
S082 19,03 132S6		Size: S082 \| Ratio i: 19.03 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 51.0 rpm \| Output torque M2: 545 Nm
S082 20,14 100L2		Size: S082 \| Ratio i: 20.14 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 144.0 rpm \| Output torque M2: 184 Nm
S082 20,14 100L6		Size: S082 \| Ratio i: 20.14 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 46.7 rpm \| Output torque M2: 298 Nm
S082 20,14 100LA4		Size: S082 \| Ratio i: 20.14 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 71.5 rpm \| Output torque M2: 282 Nm
S082 20,14 100LR6		Size: S082 \| Ratio i: 20.14 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 47.2 rpm \| Output torque M2: 216 Nm
S082 20,14 112M2		Size: S082 \| Ratio i: 20.14 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 145.5 rpm \| Output torque M2: 243 Nm
S082 20,14 112M4		Size: S082 \| Ratio i: 20.14 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 72.0 rpm \| Output torque M2: 509 Nm
S082 20,14 112M6		Size: S082 \| Ratio i: 20.14 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 47.7 rpm \| Output torque M2: 427 Nm
S082 20,14 112MS4		Size: S082 \| Ratio i: 20.14 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 72.0 rpm \| Output torque M2: 382 Nm
S082 20,14 132M2		Size: S082 \| Ratio i: 20.14 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 146.5 rpm \| Output torque M2: 453 Nm
S082 20,14 132MA6		Size: S082 \| Ratio i: 20.14 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 48.2 rpm \| Output torque M2: 769 Nm
S082 20,14 132MS4		Size: S082 \| Ratio i: 20.14 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 73.0 rpm \| Output torque M2: 691 Nm
S082 20,14 132S2		Size: S082 \| Ratio i: 20.14 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 146.5 rpm \| Output torque M2: 332 Nm
S082 20,14 132S6		Size: S082 \| Ratio i: 20.14 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 48.2 rpm \| Output torque M2: 577 Nm
S082 20,14 90L4		Size: S082 \| Ratio i: 20.14 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 71.0 rpm \| Output torque M2: 194 Nm
S082 22,13 100L2		Size: S082 \| Ratio i: 22.13 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 131.1 rpm \| Output torque M2: 203 Nm
S082 22,13 100L6		Size: S082 \| Ratio i: 22.13 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 42.5 rpm \| Output torque M2: 327 Nm
S082 22,13 100LA4		Size: S082 \| Ratio i: 22.13 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 65.1 rpm \| Output torque M2: 310 Nm
S082 22,13 100LR6		Size: S082 \| Ratio i: 22.13 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 42.9 rpm \| Output torque M2: 237 Nm
S082 22,13 112M2		Size: S082 \| Ratio i: 22.13 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 132.5 rpm \| Output torque M2: 267 Nm
S082 22,13 112M4		Size: S082 \| Ratio i: 22.13 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 65.5 rpm \| Output torque M2: 560 Nm
S082 22,13 112M6		Size: S082 \| Ratio i: 22.13 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 43.4 rpm \| Output torque M2: 470 Nm
S082 22,13 112MS4		Size: S082 \| Ratio i: 22.13 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 65.5 rpm \| Output torque M2: 420 Nm
S082 22,13 132M2		Size: S082 \| Ratio i: 22.13 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 133.3 rpm \| Output torque M2: 498 Nm
S082 22,13 132MA6		Size: S082 \| Ratio i: 22.13 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 43.9 rpm \| Output torque M2: 845 Nm
S082 22,13 132MS4		Size: S082 \| Ratio i: 22.13 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 759 Nm
S082 22,13 132S2		Size: S082 \| Ratio i: 22.13 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 133.3 rpm \| Output torque M2: 365 Nm
S082 22,13 132S6		Size: S082 \| Ratio i: 22.13 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 43.8 rpm \| Output torque M2: 634 Nm
S082 22,13 90L2		Size: S082 \| Ratio i: 22.13 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 130.2 rpm \| Output torque M2: 150 Nm
S082 22,13 90L4		Size: S082 \| Ratio i: 22.13 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 64.6 rpm \| Output torque M2: 213 Nm
S082 24,00 100L2		Size: S082 \| Ratio i: 24.00 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 120.8 rpm \| Output torque M2: 220 Nm
S082 24,00 100L6		Size: S082 \| Ratio i: 24.00 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 39.2 rpm \| Output torque M2: 355 Nm
S082 24,00 100LA4		Size: S082 \| Ratio i: 24.00 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 60.0 rpm \| Output torque M2: 337 Nm
S082 24,00 100LR6		Size: S082 \| Ratio i: 24.00 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 39.6 rpm \| Output torque M2: 257 Nm
S082 24,00 112M2		Size: S082 \| Ratio i: 24.00 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 122.1 rpm \| Output torque M2: 290 Nm
S082 24,00 112M4		Size: S082 \| Ratio i: 24.00 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 60.4 rpm \| Output torque M2: 607 Nm
S082 24,00 112M6		Size: S082 \| Ratio i: 24.00 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 40.1 rpm \| Output torque M2: 510 Nm
S082 24,00 112MS4		Size: S082 \| Ratio i: 24.00 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 60.4 rpm \| Output torque M2: 455 Nm
S082 24,00 132M2		Size: S082 \| Ratio i: 24.00 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 122.9 rpm \| Output torque M2: 540 Nm
S082 24,00 132MA6		Size: S082 \| Ratio i: 24.00 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 40.4 rpm \| Output torque M2: 916 Nm
S082 24,00 132MS4		Size: S082 \| Ratio i: 24.00 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 61.2 rpm \| Output torque M2: 824 Nm
S082 24,00 132S2		Size: S082 \| Ratio i: 24.00 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 122.9 rpm \| Output torque M2: 396 Nm
S082 24,00 132S6		Size: S082 \| Ratio i: 24.00 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 40.4 rpm \| Output torque M2: 687 Nm
S082 24,00 90L2		Size: S082 \| Ratio i: 24.00 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 120.0 rpm \| Output torque M2: 162 Nm
S082 24,00 90L4		Size: S082 \| Ratio i: 24.00 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 59.5 rpm \| Output torque M2: 231 Nm
S082 26,05 100L2		Size: S082 \| Ratio i: 26.05 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 111.4 rpm \| Output torque M2: 239 Nm
S082 26,05 100L6		Size: S082 \| Ratio i: 26.05 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 36.1 rpm \| Output torque M2: 385 Nm
S082 26,05 100LA4		Size: S082 \| Ratio i: 26.05 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 55.3 rpm \| Output torque M2: 365 Nm
S082 26,05 100LR6		Size: S082 \| Ratio i: 26.05 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 36.5 rpm \| Output torque M2: 279 Nm
S082 26,05 112M2		Size: S082 \| Ratio i: 26.05 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 112.5 rpm \| Output torque M2: 315 Nm
S082 26,05 112M4		Size: S082 \| Ratio i: 26.05 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 55.7 rpm \| Output torque M2: 659 Nm
S082 26,05 112M6		Size: S082 \| Ratio i: 26.05 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 36.9 rpm \| Output torque M2: 553 Nm
S082 26,05 112MS4		Size: S082 \| Ratio i: 26.05 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 55.7 rpm \| Output torque M2: 494 Nm
S082 26,05 132M2		Size: S082 \| Ratio i: 26.05 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 113.3 rpm \| Output torque M2: 586 Nm
S082 26,05 132S2		Size: S082 \| Ratio i: 26.05 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 113.2 rpm \| Output torque M2: 430 Nm
S082 26,05 132S6		Size: S082 \| Ratio i: 26.05 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 37.3 rpm \| Output torque M2: 746 Nm
S082 26,05 90L2		Size: S082 \| Ratio i: 26.05 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 110.6 rpm \| Output torque M2: 176 Nm
S082 26,05 90L4		Size: S082 \| Ratio i: 26.05 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 54.9 rpm \| Output torque M2: 251 Nm
S082 27,29 100L2		Size: S082 \| Ratio i: 27.29 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 106.3 rpm \| Output torque M2: 250 Nm
S082 27,29 100L6		Size: S082 \| Ratio i: 27.29 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 34.5 rpm \| Output torque M2: 404 Nm
S082 27,29 100LA4		Size: S082 \| Ratio i: 27.29 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 52.7 rpm \| Output torque M2: 383 Nm
S082 27,29 100LR6		Size: S082 \| Ratio i: 27.29 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 34.8 rpm \| Output torque M2: 293 Nm
S082 27,29 112M2		Size: S082 \| Ratio i: 27.29 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 107.4 rpm \| Output torque M2: 330 Nm
S082 27,29 112M4		Size: S082 \| Ratio i: 27.29 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 53.2 rpm \| Output torque M2: 690 Nm
S082 27,29 112M6		Size: S082 \| Ratio i: 27.29 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 35.2 rpm \| Output torque M2: 579 Nm
S082 27,29 112MS4		Size: S082 \| Ratio i: 27.29 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 53.1 rpm \| Output torque M2: 518 Nm
S082 27,29 132M2		Size: S082 \| Ratio i: 27.29 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 108.1 rpm \| Output torque M2: 614 Nm
S082 27,29 132MA6		Size: S082 \| Ratio i: 27.29 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 35.5 rpm \| Output torque M2: 1042 Nm
S082 27,29 132MS4		Size: S082 \| Ratio i: 27.29 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 53.8 rpm \| Output torque M2: 936 Nm
S082 27,29 132S2		Size: S082 \| Ratio i: 27.29 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 108.1 rpm \| Output torque M2: 450 Nm
S082 27,29 132S6		Size: S082 \| Ratio i: 27.29 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 35.6 rpm \| Output torque M2: 782 Nm
S082 27,29 90L2		Size: S082 \| Ratio i: 27.29 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 105.5 rpm \| Output torque M2: 185 Nm
S082 27,29 90L4		Size: S082 \| Ratio i: 27.29 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 52.4 rpm \| Output torque M2: 262 Nm
S082 28,67 100L2		Size: S082 \| Ratio i: 28.67 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 101.1 rpm \| Output torque M2: 262 Nm
S082 28,67 100L6		Size: S082 \| Ratio i: 28.67 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 32.8 rpm \| Output torque M2: 424 Nm
S082 28,67 100LA4		Size: S082 \| Ratio i: 28.67 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 50.2 rpm \| Output torque M2: 402 Nm
S082 28,67 100LR6		Size: S082 \| Ratio i: 28.67 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 33.1 rpm \| Output torque M2: 307 Nm
S082 28,67 112M2		Size: S082 \| Ratio i: 28.67 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 102.1 rpm \| Output torque M2: 346 Nm
S082 28,67 112M4		Size: S082 \| Ratio i: 28.67 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 50.6 rpm \| Output torque M2: 725 Nm
S082 28,67 112M6		Size: S082 \| Ratio i: 28.67 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 33.4 rpm \| Output torque M2: 608 Nm
S082 28,67 112MS4		Size: S082 \| Ratio i: 28.67 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 50.6 rpm \| Output torque M2: 544 Nm
S082 28,67 132M2		Size: S082 \| Ratio i: 28.67 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 102.9 rpm \| Output torque M2: 645 Nm
S082 28,67 132MS4		Size: S082 \| Ratio i: 28.67 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 51.3 rpm \| Output torque M2: 984 Nm
S082 28,67 132S2		Size: S082 \| Ratio i: 28.67 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 102.8 rpm \| Output torque M2: 473 Nm
S082 28,67 132S6		Size: S082 \| Ratio i: 28.67 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 33.8 rpm \| Output torque M2: 821 Nm
S082 28,67 90L2		Size: S082 \| Ratio i: 28.67 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 100.4 rpm \| Output torque M2: 194 Nm
S082 28,67 90L4		Size: S082 \| Ratio i: 28.67 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 49.8 rpm \| Output torque M2: 276 Nm
S082 29,60 100L2		Size: S082 \| Ratio i: 29.60 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 98.0 rpm \| Output torque M2: 271 Nm
S082 29,60 100L6		Size: S082 \| Ratio i: 29.60 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 31.7 rpm \| Output torque M2: 437 Nm
S082 29,60 100LA4		Size: S082 \| Ratio i: 29.60 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 48.6 rpm \| Output torque M2: 415 Nm
S082 29,60 100LR6		Size: S082 \| Ratio i: 29.60 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 32.1 rpm \| Output torque M2: 317 Nm
S082 29,60 112M2		Size: S082 \| Ratio i: 29.60 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 99.0 rpm \| Output torque M2: 358 Nm
S082 29,60 112M4		Size: S082 \| Ratio i: 29.60 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 49.0 rpm \| Output torque M2: 749 Nm
S082 29,60 112M6		Size: S082 \| Ratio i: 29.60 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 32.4 rpm \| Output torque M2: 628 Nm
S082 29,60 112MS4		Size: S082 \| Ratio i: 29.60 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 49.0 rpm \| Output torque M2: 561 Nm
S082 29,60 132M2		Size: S082 \| Ratio i: 29.60 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 99.7 rpm \| Output torque M2: 666 Nm
S082 29,60 132S2		Size: S082 \| Ratio i: 29.60 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 99.6 rpm \| Output torque M2: 488 Nm
S082 29,60 132S6		Size: S082 \| Ratio i: 29.60 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 32.7 rpm \| Output torque M2: 848 Nm
S082 29,60 90L2		Size: S082 \| Ratio i: 29.60 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 97.3 rpm \| Output torque M2: 200 Nm
S082 29,60 90L4		Size: S082 \| Ratio i: 29.60 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 48.3 rpm \| Output torque M2: 285 Nm
S082 31,78 100L2		Size: S082 \| Ratio i: 31.78 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 91.3 rpm \| Output torque M2: 291 Nm
S082 31,78 100L6		Size: S082 \| Ratio i: 31.78 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 29.6 rpm \| Output torque M2: 470 Nm
S082 31,78 100LA4		Size: S082 \| Ratio i: 31.78 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 45.3 rpm \| Output torque M2: 445 Nm
S082 31,78 100LR6		Size: S082 \| Ratio i: 31.78 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 341 Nm
S082 31,78 112M2		Size: S082 \| Ratio i: 31.78 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 92.2 rpm \| Output torque M2: 384 Nm
S082 31,78 112M4		Size: S082 \| Ratio i: 31.78 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 804 Nm
S082 31,78 112M6		Size: S082 \| Ratio i: 31.78 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 30.2 rpm \| Output torque M2: 674 Nm
S082 31,78 112MS4		Size: S082 \| Ratio i: 31.78 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 603 Nm
S082 31,78 132M2		Size: S082 \| Ratio i: 31.78 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 92.9 rpm \| Output torque M2: 715 Nm
S082 31,78 132MS4		Size: S082 \| Ratio i: 31.78 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 46.3 rpm \| Output torque M2: 1090 Nm
S082 31,78 132S2		Size: S082 \| Ratio i: 31.78 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 92.8 rpm \| Output torque M2: 524 Nm
S082 31,78 132S6		Size: S082 \| Ratio i: 31.78 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 30.5 rpm \| Output torque M2: 910 Nm
S082 31,78 90L2		Size: S082 \| Ratio i: 31.78 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 90.6 rpm \| Output torque M2: 215 Nm
S082 31,78 90L4		Size: S082 \| Ratio i: 31.78 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 45.0 rpm \| Output torque M2: 306 Nm
S082 34,91 100L2		Size: S082 \| Ratio i: 34.91 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 83.1 rpm \| Output torque M2: 320 Nm
S082 34,91 100L6		Size: S082 \| Ratio i: 34.91 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 26.9 rpm \| Output torque M2: 516 Nm
S082 34,91 100LA4		Size: S082 \| Ratio i: 34.91 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 41.3 rpm \| Output torque M2: 489 Nm
S082 34,91 100LR6		Size: S082 \| Ratio i: 34.91 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 27.2 rpm \| Output torque M2: 374 Nm
S082 34,91 112M2		Size: S082 \| Ratio i: 34.91 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 83.9 rpm \| Output torque M2: 422 Nm
S082 34,91 112M4		Size: S082 \| Ratio i: 34.91 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 41.5 rpm \| Output torque M2: 883 Nm
S082 34,91 112M6		Size: S082 \| Ratio i: 34.91 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 27.5 rpm \| Output torque M2: 741 Nm
S082 34,91 112MS4		Size: S082 \| Ratio i: 34.91 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 41.5 rpm \| Output torque M2: 662 Nm
S082 34,91 132S2		Size: S082 \| Ratio i: 34.91 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 84.5 rpm \| Output torque M2: 576 Nm
S082 34,91 132S6		Size: S082 \| Ratio i: 34.91 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 27.8 rpm \| Output torque M2: 1000 Nm
S082 34,91 90L2		Size: S082 \| Ratio i: 34.91 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 82.5 rpm \| Output torque M2: 236 Nm
S082 34,91 90L4		Size: S082 \| Ratio i: 34.91 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 41.0 rpm \| Output torque M2: 336 Nm
S082 34,91 90S4		Size: S082 \| Ratio i: 34.91 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 41.0 rpm \| Output torque M2: 246 Nm
S082 34,91 90S6		Size: S082 \| Ratio i: 34.91 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 27.0 rpm \| Output torque M2: 258 Nm
S082 35,50 100L2		Size: S082 \| Ratio i: 35.50 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 81.7 rpm \| Output torque M2: 325 Nm
S082 35,50 100L6		Size: S082 \| Ratio i: 35.50 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 26.5 rpm \| Output torque M2: 525 Nm
S082 35,50 100LA4		Size: S082 \| Ratio i: 35.50 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 40.6 rpm \| Output torque M2: 498 Nm
S082 35,50 100LR6		Size: S082 \| Ratio i: 35.50 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 26.8 rpm \| Output torque M2: 381 Nm
S082 35,50 112M2		Size: S082 \| Ratio i: 35.50 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 82.5 rpm \| Output torque M2: 429 Nm
S082 35,50 112M4		Size: S082 \| Ratio i: 35.50 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 40.8 rpm \| Output torque M2: 898 Nm
S082 35,50 112M6		Size: S082 \| Ratio i: 35.50 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 27.0 rpm \| Output torque M2: 754 Nm
S082 35,50 112MS4		Size: S082 \| Ratio i: 35.50 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 40.8 rpm \| Output torque M2: 673 Nm
S082 35,50 90L2		Size: S082 \| Ratio i: 35.50 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 81.2 rpm \| Output torque M2: 240 Nm
S082 35,50 90L4		Size: S082 \| Ratio i: 35.50 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 40.2 rpm \| Output torque M2: 342 Nm
S082 35,50 90S4		Size: S082 \| Ratio i: 35.50 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 40.2 rpm \| Output torque M2: 251 Nm
S082 35,50 90S6		Size: S082 \| Ratio i: 35.50 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 26.5 rpm \| Output torque M2: 262 Nm
S082 40,05 100L2		Size: S082 \| Ratio i: 40.05 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 72.4 rpm \| Output torque M2: 367 Nm
S082 40,05 100L6		Size: S082 \| Ratio i: 40.05 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 23.5 rpm \| Output torque M2: 592 Nm
S082 40,05 100LA4		Size: S082 \| Ratio i: 40.05 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 36.0 rpm \| Output torque M2: 561 Nm
S082 40,05 100LR6		Size: S082 \| Ratio i: 40.05 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 23.7 rpm \| Output torque M2: 429 Nm
S082 40,05 112M2		Size: S082 \| Ratio i: 40.05 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 73.2 rpm \| Output torque M2: 484 Nm
S082 40,05 112M4		Size: S082 \| Ratio i: 40.05 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 36.2 rpm \| Output torque M2: 1013 Nm
S082 40,05 112M6		Size: S082 \| Ratio i: 40.05 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 850 Nm
S082 40,05 112MS4		Size: S082 \| Ratio i: 40.05 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 36.2 rpm \| Output torque M2: 760 Nm
S082 40,05 90L2		Size: S082 \| Ratio i: 40.05 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 71.9 rpm \| Output torque M2: 271 Nm
S082 40,05 90L4		Size: S082 \| Ratio i: 40.05 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 35.8 rpm \| Output torque M2: 385 Nm
S082 40,05 90S4		Size: S082 \| Ratio i: 40.05 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 35.8 rpm \| Output torque M2: 283 Nm
S082 40,05 90S6		Size: S082 \| Ratio i: 40.05 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 23.5 rpm \| Output torque M2: 296 Nm
S082 43,05 100L2		Size: S082 \| Ratio i: 43.05 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 67.4 rpm \| Output torque M2: 394 Nm
S082 43,05 100L6		Size: S082 \| Ratio i: 43.05 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 636 Nm
S082 43,05 100LA4		Size: S082 \| Ratio i: 43.05 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 33.5 rpm \| Output torque M2: 604 Nm
S082 43,05 100LR6		Size: S082 \| Ratio i: 43.05 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 22.1 rpm \| Output torque M2: 462 Nm
S082 43,05 112M2		Size: S082 \| Ratio i: 43.05 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 520 Nm
S082 43,05 112M4		Size: S082 \| Ratio i: 43.05 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 33.7 rpm \| Output torque M2: 1089 Nm
S082 43,05 112M6		Size: S082 \| Ratio i: 43.05 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 22.3 rpm \| Output torque M2: 914 Nm
S082 43,05 112MS4		Size: S082 \| Ratio i: 43.05 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 33.7 rpm \| Output torque M2: 817 Nm
S082 43,05 132S2		Size: S082 \| Ratio i: 43.05 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 68.5 rpm \| Output torque M2: 711 Nm
S082 43,05 90L2		Size: S082 \| Ratio i: 43.05 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 66.9 rpm \| Output torque M2: 291 Nm
S082 43,05 90L4		Size: S082 \| Ratio i: 43.05 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 33.2 rpm \| Output torque M2: 414 Nm
S082 43,05 90S2		Size: S082 \| Ratio i: 43.05 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 200 Nm
S082 43,05 90S4		Size: S082 \| Ratio i: 43.05 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 33.2 rpm \| Output torque M2: 304 Nm
S082 43,05 90S6		Size: S082 \| Ratio i: 43.05 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 21.9 rpm \| Output torque M2: 318 Nm
S082 50,25 100L2		Size: S082 \| Ratio i: 50.25 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 57.7 rpm \| Output torque M2: 460 Nm
S082 50,25 100L6		Size: S082 \| Ratio i: 50.25 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 18.7 rpm \| Output torque M2: 742 Nm
S082 50,25 100LA4		Size: S082 \| Ratio i: 50.25 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 28.7 rpm \| Output torque M2: 704 Nm
S082 50,25 100LR6		Size: S082 \| Ratio i: 50.25 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 18.9 rpm \| Output torque M2: 539 Nm
S082 50,25 112M2		Size: S082 \| Ratio i: 50.25 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 58.3 rpm \| Output torque M2: 607 Nm
S082 50,25 112M6		Size: S082 \| Ratio i: 50.25 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 19.1 rpm \| Output torque M2: 1067 Nm
S082 50,25 112MS4		Size: S082 \| Ratio i: 50.25 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 28.9 rpm \| Output torque M2: 953 Nm
S082 50,25 80B6		Size: S082 \| Ratio i: 50.25 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 18.7 rpm \| Output torque M2: 272 Nm
S082 50,25 90L2		Size: S082 \| Ratio i: 50.25 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 57.3 rpm \| Output torque M2: 340 Nm
S082 50,25 90L4		Size: S082 \| Ratio i: 50.25 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 28.5 rpm \| Output torque M2: 484 Nm
S082 50,25 90S2		Size: S082 \| Ratio i: 50.25 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 56.9 rpm \| Output torque M2: 233 Nm
S082 50,25 90S4		Size: S082 \| Ratio i: 50.25 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 28.5 rpm \| Output torque M2: 354 Nm
S082 50,25 90S6		Size: S082 \| Ratio i: 50.25 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 18.7 rpm \| Output torque M2: 371 Nm
S082 54,27 100L2		Size: S082 \| Ratio i: 54.27 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 53.4 rpm \| Output torque M2: 497 Nm
S082 54,27 100L6		Size: S082 \| Ratio i: 54.27 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 17.3 rpm \| Output torque M2: 802 Nm
S082 54,27 100LA4		Size: S082 \| Ratio i: 54.27 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 26.5 rpm \| Output torque M2: 760 Nm
S082 54,27 100LR6		Size: S082 \| Ratio i: 54.27 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 582 Nm
S082 54,27 112M2		Size: S082 \| Ratio i: 54.27 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 54.0 rpm \| Output torque M2: 655 Nm
S082 54,27 112M6		Size: S082 \| Ratio i: 54.27 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 17.7 rpm \| Output torque M2: 1152 Nm
S082 54,27 112MS4		Size: S082 \| Ratio i: 54.27 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 26.7 rpm \| Output torque M2: 1029 Nm
S082 54,27 80B4		Size: S082 \| Ratio i: 54.27 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 26.5 rpm \| Output torque M2: 260 Nm
S082 54,27 80B6		Size: S082 \| Ratio i: 54.27 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 17.3 rpm \| Output torque M2: 294 Nm
S082 54,27 90L2		Size: S082 \| Ratio i: 54.27 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 53.1 rpm \| Output torque M2: 367 Nm
S082 54,27 90L4		Size: S082 \| Ratio i: 54.27 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 26.4 rpm \| Output torque M2: 522 Nm
S082 54,27 90S2		Size: S082 \| Ratio i: 54.27 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 52.7 rpm \| Output torque M2: 252 Nm
S082 54,27 90S4		Size: S082 \| Ratio i: 54.27 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 26.4 rpm \| Output torque M2: 383 Nm
S082 54,27 90S6		Size: S082 \| Ratio i: 54.27 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 17.4 rpm \| Output torque M2: 401 Nm
S082 61,98 100L2		Size: S082 \| Ratio i: 61.98 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 46.8 rpm \| Output torque M2: 567 Nm
S082 61,98 100L6		Size: S082 \| Ratio i: 61.98 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 15.2 rpm \| Output torque M2: 916 Nm
S082 61,98 100LA4		Size: S082 \| Ratio i: 61.98 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 23.2 rpm \| Output torque M2: 868 Nm
S082 61,98 100LR6		Size: S082 \| Ratio i: 61.98 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 15.3 rpm \| Output torque M2: 664 Nm
S082 61,98 112M2		Size: S082 \| Ratio i: 61.98 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 47.3 rpm \| Output torque M2: 749 Nm
S082 61,98 80B2		Size: S082 \| Ratio i: 61.98 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 46.1 rpm \| Output torque M2: 211 Nm
S082 61,98 80B4		Size: S082 \| Ratio i: 61.98 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 23.2 rpm \| Output torque M2: 296 Nm
S082 61,98 80B6		Size: S082 \| Ratio i: 61.98 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 15.2 rpm \| Output torque M2: 335 Nm
S082 61,98 90L2		Size: S082 \| Ratio i: 61.98 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 46.4 rpm \| Output torque M2: 419 Nm
S082 61,98 90L4		Size: S082 \| Ratio i: 61.98 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 23.1 rpm \| Output torque M2: 596 Nm
S082 61,98 90S2		Size: S082 \| Ratio i: 61.98 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 46.1 rpm \| Output torque M2: 288 Nm
S082 61,98 90S4		Size: S082 \| Ratio i: 61.98 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 23.1 rpm \| Output torque M2: 437 Nm
S082 61,98 90S6		Size: S082 \| Ratio i: 61.98 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 15.1 rpm \| Output torque M2: 458 Nm
S083 67,52 100L2		Size: S083 \| Ratio i: 67.52 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 42.9 rpm \| Output torque M2: 605 Nm
S083 67,52 100L6		Size: S083 \| Ratio i: 67.52 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 977 Nm
S083 67,52 100LA4		Size: S083 \| Ratio i: 67.52 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 21.3 rpm \| Output torque M2: 927 Nm
S083 67,52 100LR6		Size: S083 \| Ratio i: 67.52 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 14.1 rpm \| Output torque M2: 709 Nm
S083 67,52 80B2		Size: S083 \| Ratio i: 67.52 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 42.4 rpm \| Output torque M2: 225 Nm
S083 67,52 80B4		Size: S083 \| Ratio i: 67.52 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 21.3 rpm \| Output torque M2: 316 Nm
S083 67,52 80B6		Size: S083 \| Ratio i: 67.52 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 358 Nm
S083 67,52 90L2		Size: S083 \| Ratio i: 67.52 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 42.7 rpm \| Output torque M2: 447 Nm
S083 67,52 90L4		Size: S083 \| Ratio i: 67.52 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 21.2 rpm \| Output torque M2: 636 Nm
S083 67,52 90S2		Size: S083 \| Ratio i: 67.52 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 42.4 rpm \| Output torque M2: 307 Nm
S083 67,52 90S4		Size: S083 \| Ratio i: 67.52 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 21.1 rpm \| Output torque M2: 466 Nm
S083 67,52 90S6		Size: S083 \| Ratio i: 67.52 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 488 Nm
S083 74,18 100L2		Size: S083 \| Ratio i: 74.18 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 39.1 rpm \| Output torque M2: 665 Nm
S083 74,18 100L6		Size: S083 \| Ratio i: 74.18 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 1073 Nm
S083 74,18 100LA4		Size: S083 \| Ratio i: 74.18 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 19.4 rpm \| Output torque M2: 1018 Nm
S083 74,18 100LR6		Size: S083 \| Ratio i: 74.18 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 12.8 rpm \| Output torque M2: 779 Nm
S083 74,18 80A4		Size: S083 \| Ratio i: 74.18 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 19.2 rpm \| Output torque M2: 258 Nm
S083 74,18 80A6		Size: S083 \| Ratio i: 74.18 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 265 Nm
S083 74,18 80B2		Size: S083 \| Ratio i: 74.18 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 38.5 rpm \| Output torque M2: 247 Nm
S083 74,18 80B4		Size: S083 \| Ratio i: 74.18 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 19.4 rpm \| Output torque M2: 347 Nm
S083 74,18 80B6		Size: S083 \| Ratio i: 74.18 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 394 Nm
S083 74,18 90L2		Size: S083 \| Ratio i: 74.18 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 38.8 rpm \| Output torque M2: 491 Nm
S083 74,18 90L4		Size: S083 \| Ratio i: 74.18 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 699 Nm
S083 74,18 90S2		Size: S083 \| Ratio i: 74.18 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 38.6 rpm \| Output torque M2: 337 Nm
S083 74,18 90S4		Size: S083 \| Ratio i: 74.18 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 512 Nm
S083 74,18 90S6		Size: S083 \| Ratio i: 74.18 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 537 Nm
S083 81,71 100L2		Size: S083 \| Ratio i: 81.71 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 35.5 rpm \| Output torque M2: 732 Nm
S083 81,71 100LA4		Size: S083 \| Ratio i: 81.71 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 17.7 rpm \| Output torque M2: 1120 Nm
S083 81,71 100LR6		Size: S083 \| Ratio i: 81.71 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 11.6 rpm \| Output torque M2: 858 Nm
S083 81,71 80A2		Size: S083 \| Ratio i: 81.71 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 186 Nm
S083 81,71 80A4		Size: S083 \| Ratio i: 81.71 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 17.3 rpm \| Output torque M2: 284 Nm
S083 81,71 80A6		Size: S083 \| Ratio i: 81.71 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 11.5 rpm \| Output torque M2: 292 Nm
S083 81,71 80B2		Size: S083 \| Ratio i: 81.71 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 272 Nm
S083 81,71 80B4		Size: S083 \| Ratio i: 81.71 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 17.6 rpm \| Output torque M2: 382 Nm
S083 81,71 80B6		Size: S083 \| Ratio i: 81.71 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 11.5 rpm \| Output torque M2: 433 Nm
S083 81,71 90L2		Size: S083 \| Ratio i: 81.71 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 35.2 rpm \| Output torque M2: 541 Nm
S083 81,71 90L4		Size: S083 \| Ratio i: 81.71 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 770 Nm
S083 81,71 90S2		Size: S083 \| Ratio i: 81.71 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 371 Nm
S083 81,71 90S4		Size: S083 \| Ratio i: 81.71 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 564 Nm
S083 81,71 90S6		Size: S083 \| Ratio i: 81.71 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 11.5 rpm \| Output torque M2: 591 Nm
S083 91,49 100LR6		Size: S083 \| Ratio i: 91.49 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 10.4 rpm \| Output torque M2: 961 Nm
S083 91,49 80A2		Size: S083 \| Ratio i: 91.49 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 31.2 rpm \| Output torque M2: 208 Nm
S083 91,49 80A4		Size: S083 \| Ratio i: 91.49 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 15.5 rpm \| Output torque M2: 318 Nm
S083 91,49 80A6		Size: S083 \| Ratio i: 91.49 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 10.3 rpm \| Output torque M2: 327 Nm
S083 91,49 80B2		Size: S083 \| Ratio i: 91.49 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 31.3 rpm \| Output torque M2: 305 Nm
S083 91,49 80B4		Size: S083 \| Ratio i: 91.49 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 15.7 rpm \| Output torque M2: 428 Nm
S083 91,49 80B6		Size: S083 \| Ratio i: 91.49 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 10.3 rpm \| Output torque M2: 486 Nm
S083 91,49 90L2		Size: S083 \| Ratio i: 91.49 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 31.5 rpm \| Output torque M2: 606 Nm
S083 91,49 90L4		Size: S083 \| Ratio i: 91.49 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 15.6 rpm \| Output torque M2: 862 Nm
S083 91,49 90S2		Size: S083 \| Ratio i: 91.49 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 31.2 rpm \| Output torque M2: 416 Nm
S083 91,49 90S4		Size: S083 \| Ratio i: 91.49 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 15.6 rpm \| Output torque M2: 632 Nm
S083 91,49 90S6		Size: S083 \| Ratio i: 91.49 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 10.3 rpm \| Output torque M2: 662 Nm
S083 100,62 100LR6		Size: S083 \| Ratio i: 100.62 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 9.4 rpm \| Output torque M2: 1056 Nm
S083 100,62 80A2		Size: S083 \| Ratio i: 100.62 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 28.4 rpm \| Output torque M2: 229 Nm
S083 100,62 80A4		Size: S083 \| Ratio i: 100.62 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 14.1 rpm \| Output torque M2: 350 Nm
S083 100,62 80A6		Size: S083 \| Ratio i: 100.62 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 9.3 rpm \| Output torque M2: 359 Nm
S083 100,62 80B2		Size: S083 \| Ratio i: 100.62 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 28.4 rpm \| Output torque M2: 336 Nm
S083 100,62 80B4		Size: S083 \| Ratio i: 100.62 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 471 Nm
S083 100,62 80B6		Size: S083 \| Ratio i: 100.62 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 9.3 rpm \| Output torque M2: 534 Nm
S083 100,62 90L2		Size: S083 \| Ratio i: 100.62 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 28.6 rpm \| Output torque M2: 666 Nm
S083 100,62 90L4		Size: S083 \| Ratio i: 100.62 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 14.2 rpm \| Output torque M2: 948 Nm
S083 100,62 90S2		Size: S083 \| Ratio i: 100.62 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 28.4 rpm \| Output torque M2: 458 Nm
S083 100,62 90S4		Size: S083 \| Ratio i: 100.62 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 14.2 rpm \| Output torque M2: 695 Nm
S083 100,62 90S6		Size: S083 \| Ratio i: 100.62 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 9.3 rpm \| Output torque M2: 728 Nm
S083 117,17 71B2		Size: S083 \| Ratio i: 117.17 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 24.2 rpm \| Output torque M2: 198 Nm
S083 117,17 71B4		Size: S083 \| Ratio i: 117.17 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 278 Nm
S083 117,17 71B6		Size: S083 \| Ratio i: 117.17 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 292 Nm
S083 117,17 71C4		Size: S083 \| Ratio i: 117.17 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 413 Nm
S083 117,17 71C6		Size: S083 \| Ratio i: 117.17 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 7.7 rpm \| Output torque M2: 437 Nm
S083 117,17 80A2		Size: S083 \| Ratio i: 117.17 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 24.4 rpm \| Output torque M2: 266 Nm
S083 117,17 80A4		Size: S083 \| Ratio i: 117.17 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 413 Nm
S083 117,17 80A6		Size: S083 \| Ratio i: 117.17 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 7.7 rpm \| Output torque M2: 437 Nm
S083 117,17 80B2		Size: S083 \| Ratio i: 117.17 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 24.5 rpm \| Output torque M2: 391 Nm
S083 117,17 80B4		Size: S083 \| Ratio i: 117.17 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 12.2 rpm \| Output torque M2: 548 Nm
S083 117,17 80B6		Size: S083 \| Ratio i: 117.17 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 8.0 rpm \| Output torque M2: 621 Nm
S083 117,17 90L4		Size: S083 \| Ratio i: 117.17 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 12.2 rpm \| Output torque M2: 1103 Nm
S083 117,17 90S2		Size: S083 \| Ratio i: 117.17 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 24.4 rpm \| Output torque M2: 533 Nm
S083 117,17 90S4		Size: S083 \| Ratio i: 117.17 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 12.2 rpm \| Output torque M2: 809 Nm
S083 117,17 90S6		Size: S083 \| Ratio i: 117.17 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 8.0 rpm \| Output torque M2: 848 Nm
S083 128,73 71B2		Size: S083 \| Ratio i: 128.73 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 22.0 rpm \| Output torque M2: 216 Nm
S083 128,73 71B4		Size: S083 \| Ratio i: 128.73 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 10.9 rpm \| Output torque M2: 306 Nm
S083 128,73 71B6		Size: S083 \| Ratio i: 128.73 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 7.1 rpm \| Output torque M2: 320 Nm
S083 128,73 71C4		Size: S083 \| Ratio i: 128.73 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 454 Nm
S083 128,73 71C6		Size: S083 \| Ratio i: 128.73 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 480 Nm
S083 128,73 80A2		Size: S083 \| Ratio i: 128.73 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 293 Nm
S083 128,73 80A4		Size: S083 \| Ratio i: 128.73 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 454 Nm
S083 128,73 80A6		Size: S083 \| Ratio i: 128.73 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 480 Nm
S083 128,73 80B2		Size: S083 \| Ratio i: 128.73 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 429 Nm
S083 128,73 80B4		Size: S083 \| Ratio i: 128.73 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 602 Nm
S083 128,73 80B6		Size: S083 \| Ratio i: 128.73 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 7.3 rpm \| Output torque M2: 683 Nm
S083 128,73 90S2		Size: S083 \| Ratio i: 128.73 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 585 Nm
S083 128,73 90S4		Size: S083 \| Ratio i: 128.73 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 889 Nm
S083 128,73 90S6		Size: S083 \| Ratio i: 128.73 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 7.3 rpm \| Output torque M2: 931 Nm
S083 136,34 71B2		Size: S083 \| Ratio i: 136.34 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 20.7 rpm \| Output torque M2: 229 Nm
S083 136,34 71B4		Size: S083 \| Ratio i: 136.34 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 323 Nm
S083 136,34 71B6		Size: S083 \| Ratio i: 136.34 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 6.7 rpm \| Output torque M2: 339 Nm
S083 136,34 71C4		Size: S083 \| Ratio i: 136.34 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 480 Nm
S083 136,34 71C6		Size: S083 \| Ratio i: 136.34 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 6.6 rpm \| Output torque M2: 508 Nm
S083 136,34 80A2		Size: S083 \| Ratio i: 136.34 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 21.0 rpm \| Output torque M2: 310 Nm
S083 136,34 80A4		Size: S083 \| Ratio i: 136.34 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 480 Nm
S083 136,34 80A6		Size: S083 \| Ratio i: 136.34 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 6.6 rpm \| Output torque M2: 508 Nm
S083 136,34 80B2		Size: S083 \| Ratio i: 136.34 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 21.0 rpm \| Output torque M2: 454 Nm
S083 136,34 80B4		Size: S083 \| Ratio i: 136.34 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 10.6 rpm \| Output torque M2: 638 Nm
S083 136,34 80B6		Size: S083 \| Ratio i: 136.34 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 6.9 rpm \| Output torque M2: 723 Nm
S083 136,34 90S2		Size: S083 \| Ratio i: 136.34 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 20.9 rpm \| Output torque M2: 620 Nm
S083 136,34 90S4		Size: S083 \| Ratio i: 136.34 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 10.5 rpm \| Output torque M2: 942 Nm
S083 136,34 90S6		Size: S083 \| Ratio i: 136.34 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 987 Nm
S083 158,76 71A4		Size: S083 \| Ratio i: 158.76 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 8.7 rpm \| Output torque M2: 258 Nm
S083 158,76 71A6		Size: S083 \| Ratio i: 158.76 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 5.7 rpm \| Output torque M2: 288 Nm
S083 158,76 71B2		Size: S083 \| Ratio i: 158.76 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 17.8 rpm \| Output torque M2: 267 Nm
S083 158,76 71B4		Size: S083 \| Ratio i: 158.76 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 8.8 rpm \| Output torque M2: 377 Nm
S083 158,76 71B6		Size: S083 \| Ratio i: 158.76 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 5.8 rpm \| Output torque M2: 396 Nm
S083 158,76 71C4		Size: S083 \| Ratio i: 158.76 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 8.8 rpm \| Output torque M2: 560 Nm
S083 158,76 71C6		Size: S083 \| Ratio i: 158.76 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 592 Nm
S083 158,76 80A2		Size: S083 \| Ratio i: 158.76 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 361 Nm
S083 158,76 80A4		Size: S083 \| Ratio i: 158.76 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 8.8 rpm \| Output torque M2: 560 Nm
S083 158,76 80A6		Size: S083 \| Ratio i: 158.76 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 592 Nm
S083 158,76 80B2		Size: S083 \| Ratio i: 158.76 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 529 Nm
S083 158,76 80B4		Size: S083 \| Ratio i: 158.76 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 9.1 rpm \| Output torque M2: 743 Nm
S083 158,76 80B6		Size: S083 \| Ratio i: 158.76 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 842 Nm
S083 158,76 90S2		Size: S083 \| Ratio i: 158.76 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 722 Nm
S083 158,76 90S4		Size: S083 \| Ratio i: 158.76 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 1096 Nm
S083 158,76 90S6		Size: S083 \| Ratio i: 158.76 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 5.9 rpm \| Output torque M2: 1149 Nm
S083 184,88 71A4		Size: S083 \| Ratio i: 184.88 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 301 Nm
S083 184,88 71A6		Size: S083 \| Ratio i: 184.88 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 335 Nm
S083 184,88 71B2		Size: S083 \| Ratio i: 184.88 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 15.3 rpm \| Output torque M2: 311 Nm
S083 184,88 71B4		Size: S083 \| Ratio i: 184.88 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 439 Nm
S083 184,88 71B6		Size: S083 \| Ratio i: 184.88 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 461 Nm
S083 184,88 71C4		Size: S083 \| Ratio i: 184.88 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 652 Nm
S083 184,88 71C6		Size: S083 \| Ratio i: 184.88 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 689 Nm
S083 184,88 80A2		Size: S083 \| Ratio i: 184.88 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 15.5 rpm \| Output torque M2: 420 Nm
S083 184,88 80A4		Size: S083 \| Ratio i: 184.88 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 652 Nm
S083 184,88 80A6		Size: S083 \| Ratio i: 184.88 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 689 Nm
S083 184,88 80B2		Size: S083 \| Ratio i: 184.88 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 15.5 rpm \| Output torque M2: 616 Nm
S083 184,88 80B4		Size: S083 \| Ratio i: 184.88 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 864 Nm
S083 184,88 80B6		Size: S083 \| Ratio i: 184.88 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 981 Nm
S083 203,11 71A4		Size: S083 \| Ratio i: 203.11 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 330 Nm
S083 203,11 71A6		Size: S083 \| Ratio i: 203.11 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 368 Nm
S083 203,11 71B2		Size: S083 \| Ratio i: 203.11 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 342 Nm
S083 203,11 71B4		Size: S083 \| Ratio i: 203.11 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 6.9 rpm \| Output torque M2: 482 Nm
S083 203,11 71B6		Size: S083 \| Ratio i: 203.11 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 506 Nm
S083 203,11 71C4		Size: S083 \| Ratio i: 203.11 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 716 Nm
S083 203,11 71C6		Size: S083 \| Ratio i: 203.11 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 757 Nm
S083 203,11 80A2		Size: S083 \| Ratio i: 203.11 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 14.0 rpm \| Output torque M2: 462 Nm
S083 203,11 80A4		Size: S083 \| Ratio i: 203.11 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 716 Nm
S083 203,11 80A6		Size: S083 \| Ratio i: 203.11 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 757 Nm
S083 203,11 80B2		Size: S083 \| Ratio i: 203.11 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 14.1 rpm \| Output torque M2: 677 Nm
S083 203,11 80B4		Size: S083 \| Ratio i: 203.11 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 7.1 rpm \| Output torque M2: 950 Nm
S083 203,11 80B6		Size: S083 \| Ratio i: 203.11 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.6 rpm \| Output torque M2: 1077 Nm
S083 205,34 71A4		Size: S083 \| Ratio i: 205.34 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 334 Nm
S083 205,34 71A6		Size: S083 \| Ratio i: 205.34 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 372 Nm
S083 205,34 71B2		Size: S083 \| Ratio i: 205.34 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 13.8 rpm \| Output torque M2: 346 Nm
S083 205,34 71B4		Size: S083 \| Ratio i: 205.34 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 487 Nm
S083 205,34 71B6		Size: S083 \| Ratio i: 205.34 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 511 Nm
S083 205,34 71C4		Size: S083 \| Ratio i: 205.34 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 724 Nm
S083 205,34 71C6		Size: S083 \| Ratio i: 205.34 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 766 Nm
S083 205,34 80A2		Size: S083 \| Ratio i: 205.34 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 467 Nm
S083 205,34 80A4		Size: S083 \| Ratio i: 205.34 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 724 Nm
S083 205,34 80A6		Size: S083 \| Ratio i: 205.34 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 766 Nm
S083 205,34 80B2		Size: S083 \| Ratio i: 205.34 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 684 Nm
S083 205,34 80B4		Size: S083 \| Ratio i: 205.34 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 960 Nm
S083 205,34 80B6		Size: S083 \| Ratio i: 205.34 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.5 rpm \| Output torque M2: 1089 Nm
S083 226,04 71A4		Size: S083 \| Ratio i: 226.04 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 6.1 rpm \| Output torque M2: 368 Nm
S083 226,04 71A6		Size: S083 \| Ratio i: 226.04 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 410 Nm
S083 226,04 71B2		Size: S083 \| Ratio i: 226.04 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 12.5 rpm \| Output torque M2: 380 Nm
S083 226,04 71B4		Size: S083 \| Ratio i: 226.04 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 536 Nm
S083 226,04 71B6		Size: S083 \| Ratio i: 226.04 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 563 Nm
S083 226,04 71C4		Size: S083 \| Ratio i: 226.04 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 798 Nm
S083 226,04 71C6		Size: S083 \| Ratio i: 226.04 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 843 Nm
S083 226,04 80A2		Size: S083 \| Ratio i: 226.04 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 514 Nm
S083 226,04 80A4		Size: S083 \| Ratio i: 226.04 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 798 Nm
S083 226,04 80A6		Size: S083 \| Ratio i: 226.04 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 843 Nm
S083 226,04 80B4		Size: S083 \| Ratio i: 226.04 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 1057 Nm
S083 250,50 71A4		Size: S083 \| Ratio i: 250.50 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 407 Nm
S083 250,50 71A6		Size: S083 \| Ratio i: 250.50 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 3.6 rpm \| Output torque M2: 454 Nm
S083 250,50 71B2		Size: S083 \| Ratio i: 250.50 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 422 Nm
S083 250,50 71B4		Size: S083 \| Ratio i: 250.50 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 594 Nm
S083 250,50 71B6		Size: S083 \| Ratio i: 250.50 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 3.6 rpm \| Output torque M2: 624 Nm
S083 250,50 71C4		Size: S083 \| Ratio i: 250.50 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 884 Nm
S083 250,50 71C6		Size: S083 \| Ratio i: 250.50 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.6 rpm \| Output torque M2: 934 Nm
S083 250,50 80A2		Size: S083 \| Ratio i: 250.50 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 11.4 rpm \| Output torque M2: 569 Nm
S083 250,50 80A4		Size: S083 \| Ratio i: 250.50 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 884 Nm
S083 250,50 80A6		Size: S083 \| Ratio i: 250.50 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.6 rpm \| Output torque M2: 934 Nm
S083 266,13 71A4		Size: S083 \| Ratio i: 266.13 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 433 Nm
S083 266,13 71A6		Size: S083 \| Ratio i: 266.13 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 483 Nm
S083 266,13 71B2		Size: S083 \| Ratio i: 266.13 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 10.7 rpm \| Output torque M2: 448 Nm
S083 266,13 71B4		Size: S083 \| Ratio i: 266.13 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 5.3 rpm \| Output torque M2: 632 Nm
S083 266,13 71B6		Size: S083 \| Ratio i: 266.13 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 663 Nm
S083 266,13 71C4		Size: S083 \| Ratio i: 266.13 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 938 Nm
S083 266,13 71C6		Size: S083 \| Ratio i: 266.13 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 993 Nm
S083 266,13 80A2		Size: S083 \| Ratio i: 266.13 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 10.7 rpm \| Output torque M2: 605 Nm
S083 266,13 80A4		Size: S083 \| Ratio i: 266.13 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 938 Nm
S083 266,13 80A6		Size: S083 \| Ratio i: 266.13 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 993 Nm
S083 292,36 71A4		Size: S083 \| Ratio i: 292.36 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 475 Nm
S083 292,36 71A6		Size: S083 \| Ratio i: 292.36 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 530 Nm
S083 292,36 71B2		Size: S083 \| Ratio i: 292.36 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 9.7 rpm \| Output torque M2: 493 Nm
S083 292,36 71B4		Size: S083 \| Ratio i: 292.36 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 694 Nm
S083 292,36 71B6		Size: S083 \| Ratio i: 292.36 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 728 Nm
S083 292,36 71C4		Size: S083 \| Ratio i: 292.36 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 1031 Nm
S083 292,36 71C6		Size: S083 \| Ratio i: 292.36 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 1090 Nm
S083 292,36 80A2		Size: S083 \| Ratio i: 292.36 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 664 Nm
S083 292,36 80A4		Size: S083 \| Ratio i: 292.36 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 1031 Nm
S083 292,36 80A6		Size: S083 \| Ratio i: 292.36 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 1090 Nm
S083 315,73 71A4		Size: S083 \| Ratio i: 315.73 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 514 Nm
S083 315,73 71A6		Size: S083 \| Ratio i: 315.73 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 2.9 rpm \| Output torque M2: 573 Nm
S083 315,73 71B2		Size: S083 \| Ratio i: 315.73 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 531 Nm
S083 315,73 71B4		Size: S083 \| Ratio i: 315.73 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 4.5 rpm \| Output torque M2: 749 Nm
S083 315,73 71B6		Size: S083 \| Ratio i: 315.73 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 2.9 rpm \| Output torque M2: 786 Nm
S083 315,73 80A2		Size: S083 \| Ratio i: 315.73 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 9.1 rpm \| Output torque M2: 717 Nm
S083 315,73 80A6		Size: S083 \| Ratio i: 315.73 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 3.0 rpm \| Output torque M2: 1127 Nm
S083 360,58 71A4		Size: S083 \| Ratio i: 360.58 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 3.9 rpm \| Output torque M2: 586 Nm
S083 360,58 71A6		Size: S083 \| Ratio i: 360.58 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 2.5 rpm \| Output torque M2: 654 Nm
S083 360,58 71B2		Size: S083 \| Ratio i: 360.58 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 7.9 rpm \| Output torque M2: 607 Nm
S083 360,58 71B4		Size: S083 \| Ratio i: 360.58 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 3.9 rpm \| Output torque M2: 856 Nm
S083 360,58 71B6		Size: S083 \| Ratio i: 360.58 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 2.5 rpm \| Output torque M2: 898 Nm
S102 8,06 132M2		Size: S102 \| Ratio i: 8.06 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 365.9 rpm \| Output torque M2: 182 Nm
S102 8,06 132M4		Size: S102 \| Ratio i: 8.06 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 181.1 rpm \| Output torque M2: 380 Nm
S102 8,06 132MA6		Size: S102 \| Ratio i: 8.06 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 120.3 rpm \| Output torque M2: 308 Nm
S102 8,06 132MB6		Size: S102 \| Ratio i: 8.06 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 120.3 rpm \| Output torque M2: 424 Nm
S102 8,06 132MS4		Size: S102 \| Ratio i: 8.06 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 182.3 rpm \| Output torque M2: 277 Nm
S102 8,06 132S6		Size: S102 \| Ratio i: 8.06 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 120.3 rpm \| Output torque M2: 231 Nm
S102 8,06 160L6		Size: S102 \| Ratio i: 8.06 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 120.3 rpm \| Output torque M2: 847 Nm
S102 8,06 160LA4		Size: S102 \| Ratio i: 8.06 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 182.9 rpm \| Output torque M2: 752 Nm
S102 8,06 160MA4		Size: S102 \| Ratio i: 8.06 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 182.9 rpm \| Output torque M2: 551 Nm
S102 8,85 112M4		Size: S102 \| Ratio i: 8.85 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 163.9 rpm \| Output torque M2: 223 Nm
S102 8,85 132M2		Size: S102 \| Ratio i: 8.85 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 333.4 rpm \| Output torque M2: 199 Nm
S102 8,85 132M4		Size: S102 \| Ratio i: 8.85 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 165.0 rpm \| Output torque M2: 417 Nm
S102 8,85 132MA6		Size: S102 \| Ratio i: 8.85 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 109.6 rpm \| Output torque M2: 338 Nm
S102 8,85 132MB6		Size: S102 \| Ratio i: 8.85 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 109.6 rpm \| Output torque M2: 464 Nm
S102 8,85 132MS4		Size: S102 \| Ratio i: 8.85 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 166.1 rpm \| Output torque M2: 304 Nm
S102 8,85 132S6		Size: S102 \| Ratio i: 8.85 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 109.6 rpm \| Output torque M2: 253 Nm
S102 8,85 160L6		Size: S102 \| Ratio i: 8.85 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 109.6 rpm \| Output torque M2: 929 Nm
S102 8,85 160LA4		Size: S102 \| Ratio i: 8.85 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 166.7 rpm \| Output torque M2: 825 Nm
S102 8,85 160MA4		Size: S102 \| Ratio i: 8.85 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 166.7 rpm \| Output torque M2: 605 Nm
S102 10,88 112M4		Size: S102 \| Ratio i: 10.88 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 133.2 rpm \| Output torque M2: 275 Nm
S102 10,88 132M2		Size: S102 \| Ratio i: 10.88 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 271.0 rpm \| Output torque M2: 245 Nm
S102 10,88 132M4		Size: S102 \| Ratio i: 10.88 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 134.1 rpm \| Output torque M2: 513 Nm
S102 10,88 132MA6		Size: S102 \| Ratio i: 10.88 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 89.1 rpm \| Output torque M2: 416 Nm
S102 10,88 132MB6		Size: S102 \| Ratio i: 10.88 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 89.1 rpm \| Output torque M2: 571 Nm
S102 10,88 132MS4		Size: S102 \| Ratio i: 10.88 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 135.0 rpm \| Output torque M2: 374 Nm
S102 10,88 132S2		Size: S102 \| Ratio i: 10.88 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 271.0 rpm \| Output torque M2: 180 Nm
S102 10,88 132S6		Size: S102 \| Ratio i: 10.88 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 89.1 rpm \| Output torque M2: 312 Nm
S102 10,88 160LA4		Size: S102 \| Ratio i: 10.88 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 135.5 rpm \| Output torque M2: 1015 Nm
S102 10,88 160MA4		Size: S102 \| Ratio i: 10.88 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 135.5 rpm \| Output torque M2: 744 Nm
S102 12,75 112M4		Size: S102 \| Ratio i: 12.75 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 113.7 rpm \| Output torque M2: 323 Nm
S102 12,75 112M6		Size: S102 \| Ratio i: 12.75 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 75.3 rpm \| Output torque M2: 271 Nm
S102 12,75 132M2		Size: S102 \| Ratio i: 12.75 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 231.3 rpm \| Output torque M2: 287 Nm
S102 12,75 132M4		Size: S102 \| Ratio i: 12.75 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 114.5 rpm \| Output torque M2: 601 Nm
S102 12,75 132MA6		Size: S102 \| Ratio i: 12.75 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 76.1 rpm \| Output torque M2: 487 Nm
S102 12,75 132MB6		Size: S102 \| Ratio i: 12.75 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 76.1 rpm \| Output torque M2: 669 Nm
S102 12,75 132MS4		Size: S102 \| Ratio i: 12.75 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 115.3 rpm \| Output torque M2: 437 Nm
S102 12,75 132S2		Size: S102 \| Ratio i: 12.75 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 231.4 rpm \| Output torque M2: 210 Nm
S102 12,75 132S6		Size: S102 \| Ratio i: 12.75 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 76.1 rpm \| Output torque M2: 365 Nm
S102 12,75 160MA4		Size: S102 \| Ratio i: 12.75 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 115.7 rpm \| Output torque M2: 872 Nm
S102 13,99 112M4		Size: S102 \| Ratio i: 13.99 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 103.6 rpm \| Output torque M2: 354 Nm
S102 13,99 132M2		Size: S102 \| Ratio i: 13.99 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 210.9 rpm \| Output torque M2: 315 Nm
S102 13,99 132M4		Size: S102 \| Ratio i: 13.99 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 104.4 rpm \| Output torque M2: 659 Nm
S102 13,99 132MA6		Size: S102 \| Ratio i: 13.99 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 69.3 rpm \| Output torque M2: 534 Nm
S102 13,99 132MB6		Size: S102 \| Ratio i: 13.99 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 69.3 rpm \| Output torque M2: 734 Nm
S102 13,99 132MS4		Size: S102 \| Ratio i: 13.99 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 105.1 rpm \| Output torque M2: 480 Nm
S102 13,99 132S2		Size: S102 \| Ratio i: 13.99 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 210.9 rpm \| Output torque M2: 231 Nm
S102 13,99 132S6		Size: S102 \| Ratio i: 13.99 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 69.3 rpm \| Output torque M2: 401 Nm
S102 13,99 160LA4		Size: S102 \| Ratio i: 13.99 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 105.4 rpm \| Output torque M2: 1304 Nm
S102 13,99 160MA4		Size: S102 \| Ratio i: 13.99 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 105.4 rpm \| Output torque M2: 956 Nm
S102 15,43 112M4		Size: S102 \| Ratio i: 15.43 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 93.9 rpm \| Output torque M2: 390 Nm
S102 15,43 112M6		Size: S102 \| Ratio i: 15.43 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 62.2 rpm \| Output torque M2: 327 Nm
S102 15,43 132M2		Size: S102 \| Ratio i: 15.43 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 191.2 rpm \| Output torque M2: 347 Nm
S102 15,43 132M4		Size: S102 \| Ratio i: 15.43 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 94.6 rpm \| Output torque M2: 727 Nm
S102 15,43 132MA6		Size: S102 \| Ratio i: 15.43 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 62.9 rpm \| Output torque M2: 589 Nm
S102 15,43 132MB6		Size: S102 \| Ratio i: 15.43 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 62.9 rpm \| Output torque M2: 810 Nm
S102 15,43 132MS4		Size: S102 \| Ratio i: 15.43 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 95.3 rpm \| Output torque M2: 530 Nm
S102 15,43 132S2		Size: S102 \| Ratio i: 15.43 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 191.2 rpm \| Output torque M2: 255 Nm
S102 15,43 132S6		Size: S102 \| Ratio i: 15.43 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 62.9 rpm \| Output torque M2: 442 Nm
S102 17,21 112M4		Size: S102 \| Ratio i: 17.21 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 84.2 rpm \| Output torque M2: 435 Nm
S102 17,21 112M6		Size: S102 \| Ratio i: 17.21 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 55.7 rpm \| Output torque M2: 365 Nm
S102 17,21 112MS4		Size: S102 \| Ratio i: 17.21 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 84.2 rpm \| Output torque M2: 326 Nm
S102 17,21 132M2		Size: S102 \| Ratio i: 17.21 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 171.4 rpm \| Output torque M2: 387 Nm
S102 17,21 132M4		Size: S102 \| Ratio i: 17.21 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 84.8 rpm \| Output torque M2: 811 Nm
S102 17,21 132MA6		Size: S102 \| Ratio i: 17.21 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 56.4 rpm \| Output torque M2: 657 Nm
S102 17,21 132MB6		Size: S102 \| Ratio i: 17.21 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 56.4 rpm \| Output torque M2: 904 Nm
S102 17,21 132MS4		Size: S102 \| Ratio i: 17.21 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 85.4 rpm \| Output torque M2: 591 Nm
S102 17,21 132S2		Size: S102 \| Ratio i: 17.21 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 171.4 rpm \| Output torque M2: 284 Nm
S102 17,21 132S6		Size: S102 \| Ratio i: 17.21 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 56.4 rpm \| Output torque M2: 493 Nm
S102 17,21 160MA4		Size: S102 \| Ratio i: 17.21 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 85.7 rpm \| Output torque M2: 1177 Nm
S102 19,00 112M4		Size: S102 \| Ratio i: 19.00 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 76.3 rpm \| Output torque M2: 481 Nm
S102 19,00 112M6		Size: S102 \| Ratio i: 19.00 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 50.5 rpm \| Output torque M2: 403 Nm
S102 19,00 112MS4		Size: S102 \| Ratio i: 19.00 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 76.3 rpm \| Output torque M2: 360 Nm
S102 19,00 132M2		Size: S102 \| Ratio i: 19.00 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 155.3 rpm \| Output torque M2: 427 Nm
S102 19,00 132M4		Size: S102 \| Ratio i: 19.00 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 76.8 rpm \| Output torque M2: 895 Nm
S102 19,00 132MA6		Size: S102 \| Ratio i: 19.00 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 51.1 rpm \| Output torque M2: 726 Nm
S102 19,00 132MB6		Size: S102 \| Ratio i: 19.00 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 51.1 rpm \| Output torque M2: 998 Nm
S102 19,00 132MS4		Size: S102 \| Ratio i: 19.00 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 77.4 rpm \| Output torque M2: 652 Nm
S102 19,00 132S2		Size: S102 \| Ratio i: 19.00 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 155.3 rpm \| Output torque M2: 314 Nm
S102 19,00 132S6		Size: S102 \| Ratio i: 19.00 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 51.0 rpm \| Output torque M2: 544 Nm
S102 20,83 112M4		Size: S102 \| Ratio i: 20.83 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 69.6 rpm \| Output torque M2: 527 Nm
S102 20,83 112M6		Size: S102 \| Ratio i: 20.83 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 46.1 rpm \| Output torque M2: 442 Nm
S102 20,83 112MS4		Size: S102 \| Ratio i: 20.83 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 69.6 rpm \| Output torque M2: 395 Nm
S102 20,83 132M2		Size: S102 \| Ratio i: 20.83 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 141.7 rpm \| Output torque M2: 469 Nm
S102 20,83 132M4		Size: S102 \| Ratio i: 20.83 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 70.1 rpm \| Output torque M2: 981 Nm
S102 20,83 132MA6		Size: S102 \| Ratio i: 20.83 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 46.6 rpm \| Output torque M2: 796 Nm
S102 20,83 132MB6		Size: S102 \| Ratio i: 20.83 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 46.6 rpm \| Output torque M2: 1094 Nm
S102 20,83 132MS4		Size: S102 \| Ratio i: 20.83 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 70.6 rpm \| Output torque M2: 714 Nm
S102 20,83 132S2		Size: S102 \| Ratio i: 20.83 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 141.6 rpm \| Output torque M2: 344 Nm
S102 20,83 132S6		Size: S102 \| Ratio i: 20.83 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 46.6 rpm \| Output torque M2: 597 Nm
S102 22,13 112M2		Size: S102 \| Ratio i: 22.13 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 132.5 rpm \| Output torque M2: 267 Nm
S102 22,13 112M4		Size: S102 \| Ratio i: 22.13 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 65.5 rpm \| Output torque M2: 560 Nm
S102 22,13 112M6		Size: S102 \| Ratio i: 22.13 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 43.4 rpm \| Output torque M2: 470 Nm
S102 22,13 112MS4		Size: S102 \| Ratio i: 22.13 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 65.5 rpm \| Output torque M2: 420 Nm
S102 22,13 132M2		Size: S102 \| Ratio i: 22.13 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 133.3 rpm \| Output torque M2: 498 Nm
S102 22,13 132M4		Size: S102 \| Ratio i: 22.13 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 66.0 rpm \| Output torque M2: 1042 Nm
S102 22,13 132MA6		Size: S102 \| Ratio i: 22.13 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 43.9 rpm \| Output torque M2: 845 Nm
S102 22,13 132MB6		Size: S102 \| Ratio i: 22.13 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 43.8 rpm \| Output torque M2: 1162 Nm
S102 22,13 132MS4		Size: S102 \| Ratio i: 22.13 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 759 Nm
S102 22,13 132S2		Size: S102 \| Ratio i: 22.13 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 133.3 rpm \| Output torque M2: 365 Nm
S102 22,13 132S6		Size: S102 \| Ratio i: 22.13 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 43.8 rpm \| Output torque M2: 634 Nm
S102 24,28 112M2		Size: S102 \| Ratio i: 24.28 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 120.7 rpm \| Output torque M2: 293 Nm
S102 24,28 112M4		Size: S102 \| Ratio i: 24.28 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 59.7 rpm \| Output torque M2: 614 Nm
S102 24,28 112M6		Size: S102 \| Ratio i: 24.28 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 39.5 rpm \| Output torque M2: 515 Nm
S102 24,28 112MS4		Size: S102 \| Ratio i: 24.28 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 59.7 rpm \| Output torque M2: 460 Nm
S102 24,28 132M2		Size: S102 \| Ratio i: 24.28 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 121.5 rpm \| Output torque M2: 547 Nm
S102 24,28 132M4		Size: S102 \| Ratio i: 24.28 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 60.1 rpm \| Output torque M2: 1143 Nm
S102 24,28 132MA6		Size: S102 \| Ratio i: 24.28 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 39.9 rpm \| Output torque M2: 927 Nm
S102 24,28 132MB6		Size: S102 \| Ratio i: 24.28 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 40.0 rpm \| Output torque M2: 1275 Nm
S102 24,28 132MS4		Size: S102 \| Ratio i: 24.28 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 60.6 rpm \| Output torque M2: 833 Nm
S102 24,28 132S2		Size: S102 \| Ratio i: 24.28 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 121.5 rpm \| Output torque M2: 401 Nm
S102 24,28 132S6		Size: S102 \| Ratio i: 24.28 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 40.0 rpm \| Output torque M2: 695 Nm
S102 26,33 112M2		Size: S102 \| Ratio i: 26.33 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 111.3 rpm \| Output torque M2: 318 Nm
S102 26,33 112M4		Size: S102 \| Ratio i: 26.33 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 55.1 rpm \| Output torque M2: 666 Nm
S102 26,33 112M6		Size: S102 \| Ratio i: 26.33 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 36.5 rpm \| Output torque M2: 559 Nm
S102 26,33 112MS4		Size: S102 \| Ratio i: 26.33 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 55.1 rpm \| Output torque M2: 499 Nm
S102 26,33 132M2		Size: S102 \| Ratio i: 26.33 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 112.0 rpm \| Output torque M2: 592 Nm
S102 26,33 132M4		Size: S102 \| Ratio i: 26.33 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 55.5 rpm \| Output torque M2: 1240 Nm
S102 26,33 132MA6		Size: S102 \| Ratio i: 26.33 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 36.8 rpm \| Output torque M2: 1006 Nm
S102 26,33 132MB6		Size: S102 \| Ratio i: 26.33 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 36.8 rpm \| Output torque M2: 1383 Nm
S102 26,33 132MS4		Size: S102 \| Ratio i: 26.33 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 55.9 rpm \| Output torque M2: 904 Nm
S102 26,33 132S2		Size: S102 \| Ratio i: 26.33 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 112.0 rpm \| Output torque M2: 435 Nm
S102 26,33 132S6		Size: S102 \| Ratio i: 26.33 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 36.9 rpm \| Output torque M2: 754 Nm
S102 29,87 100L6		Size: S102 \| Ratio i: 29.87 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 31.4 rpm \| Output torque M2: 441 Nm
S102 29,87 100LA4		Size: S102 \| Ratio i: 29.87 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 48.2 rpm \| Output torque M2: 419 Nm
S102 29,87 112M2		Size: S102 \| Ratio i: 29.87 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 98.1 rpm \| Output torque M2: 361 Nm
S102 29,87 112M4		Size: S102 \| Ratio i: 29.87 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 48.5 rpm \| Output torque M2: 756 Nm
S102 29,87 112M6		Size: S102 \| Ratio i: 29.87 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 32.1 rpm \| Output torque M2: 634 Nm
S102 29,87 112MS4		Size: S102 \| Ratio i: 29.87 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 48.5 rpm \| Output torque M2: 567 Nm
S102 29,87 132M2		Size: S102 \| Ratio i: 29.87 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 98.8 rpm \| Output torque M2: 672 Nm
S102 29,87 132M4		Size: S102 \| Ratio i: 29.87 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 48.9 rpm \| Output torque M2: 1407 Nm
S102 29,87 132MA6		Size: S102 \| Ratio i: 29.87 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 32.5 rpm \| Output torque M2: 1141 Nm
S102 29,87 132MB6		Size: S102 \| Ratio i: 29.87 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 32.4 rpm \| Output torque M2: 1569 Nm
S102 29,87 132MS4		Size: S102 \| Ratio i: 29.87 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 49.2 rpm \| Output torque M2: 1025 Nm
S102 29,87 132S2		Size: S102 \| Ratio i: 29.87 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 98.8 rpm \| Output torque M2: 493 Nm
S102 29,87 132S6		Size: S102 \| Ratio i: 29.87 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 32.4 rpm \| Output torque M2: 855 Nm
S102 32,40 100L2		Size: S102 \| Ratio i: 32.40 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 89.5 rpm \| Output torque M2: 297 Nm
S102 32,40 100L6		Size: S102 \| Ratio i: 32.40 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 29.0 rpm \| Output torque M2: 479 Nm
S102 32,40 100LA4		Size: S102 \| Ratio i: 32.40 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 44.5 rpm \| Output torque M2: 454 Nm
S102 32,40 112M2		Size: S102 \| Ratio i: 32.40 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 90.4 rpm \| Output torque M2: 391 Nm
S102 32,40 112M4		Size: S102 \| Ratio i: 32.40 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 44.7 rpm \| Output torque M2: 819 Nm
S102 32,40 112M6		Size: S102 \| Ratio i: 32.40 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 29.6 rpm \| Output torque M2: 688 Nm
S102 32,40 112MS4		Size: S102 \| Ratio i: 32.40 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 44.8 rpm \| Output torque M2: 615 Nm
S102 32,40 132M2		Size: S102 \| Ratio i: 32.40 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 91.0 rpm \| Output torque M2: 729 Nm
S102 32,40 132M4		Size: S102 \| Ratio i: 32.40 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 45.1 rpm \| Output torque M2: 1526 Nm
S102 32,40 132MA6		Size: S102 \| Ratio i: 32.40 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 1237 Nm
S102 32,40 132MB6		Size: S102 \| Ratio i: 32.40 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 1701 Nm
S102 32,40 132MS4		Size: S102 \| Ratio i: 32.40 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 45.4 rpm \| Output torque M2: 1112 Nm
S102 32,40 132S2		Size: S102 \| Ratio i: 32.40 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 91.0 rpm \| Output torque M2: 535 Nm
S102 32,40 132S6		Size: S102 \| Ratio i: 32.40 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 928 Nm
S102 34,91 100L2		Size: S102 \| Ratio i: 34.91 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 83.1 rpm \| Output torque M2: 320 Nm
S102 34,91 100L6		Size: S102 \| Ratio i: 34.91 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 26.9 rpm \| Output torque M2: 516 Nm
S102 34,91 100LA4		Size: S102 \| Ratio i: 34.91 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 41.3 rpm \| Output torque M2: 489 Nm
S102 34,91 100LR6		Size: S102 \| Ratio i: 34.91 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 27.2 rpm \| Output torque M2: 374 Nm
S102 34,91 112M2		Size: S102 \| Ratio i: 34.91 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 83.9 rpm \| Output torque M2: 422 Nm
S102 34,91 112M4		Size: S102 \| Ratio i: 34.91 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 41.5 rpm \| Output torque M2: 883 Nm
S102 34,91 112M6		Size: S102 \| Ratio i: 34.91 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 27.5 rpm \| Output torque M2: 741 Nm
S102 34,91 112MS4		Size: S102 \| Ratio i: 34.91 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 41.5 rpm \| Output torque M2: 662 Nm
S102 34,91 132M2		Size: S102 \| Ratio i: 34.91 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 84.5 rpm \| Output torque M2: 786 Nm
S102 34,91 132MA6		Size: S102 \| Ratio i: 34.91 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 27.8 rpm \| Output torque M2: 1333 Nm
S102 34,91 132MS4		Size: S102 \| Ratio i: 34.91 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 42.1 rpm \| Output torque M2: 1198 Nm
S102 34,91 132S2		Size: S102 \| Ratio i: 34.91 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 84.5 rpm \| Output torque M2: 576 Nm
S102 34,91 132S6		Size: S102 \| Ratio i: 34.91 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 27.8 rpm \| Output torque M2: 1000 Nm
S102 38,30 100L2		Size: S102 \| Ratio i: 38.30 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 75.7 rpm \| Output torque M2: 351 Nm
S102 38,30 100L6		Size: S102 \| Ratio i: 38.30 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 24.5 rpm \| Output torque M2: 566 Nm
S102 38,30 100LA4		Size: S102 \| Ratio i: 38.30 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 37.6 rpm \| Output torque M2: 536 Nm
S102 38,30 100LR6		Size: S102 \| Ratio i: 38.30 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 24.8 rpm \| Output torque M2: 411 Nm
S102 38,30 112M2		Size: S102 \| Ratio i: 38.30 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 76.5 rpm \| Output torque M2: 463 Nm
S102 38,30 112M4		Size: S102 \| Ratio i: 38.30 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 37.9 rpm \| Output torque M2: 969 Nm
S102 38,30 112M6		Size: S102 \| Ratio i: 38.30 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 25.1 rpm \| Output torque M2: 813 Nm
S102 38,30 112MS4		Size: S102 \| Ratio i: 38.30 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 37.9 rpm \| Output torque M2: 727 Nm
S102 38,30 132M2		Size: S102 \| Ratio i: 38.30 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 77.0 rpm \| Output torque M2: 862 Nm
S102 38,30 132MA6		Size: S102 \| Ratio i: 38.30 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 25.3 rpm \| Output torque M2: 1463 Nm
S102 38,30 132MS4		Size: S102 \| Ratio i: 38.30 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 38.4 rpm \| Output torque M2: 1314 Nm
S102 38,30 132S2		Size: S102 \| Ratio i: 38.30 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 77.0 rpm \| Output torque M2: 632 Nm
S102 38,30 132S6		Size: S102 \| Ratio i: 38.30 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 25.3 rpm \| Output torque M2: 1097 Nm
S102 38,30 90L4		Size: S102 \| Ratio i: 38.30 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 37.4 rpm \| Output torque M2: 368 Nm
S102 42,53 100L2		Size: S102 \| Ratio i: 42.53 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 68.2 rpm \| Output torque M2: 389 Nm
S102 42,53 100L6		Size: S102 \| Ratio i: 42.53 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 22.1 rpm \| Output torque M2: 628 Nm
S102 42,53 100LA4		Size: S102 \| Ratio i: 42.53 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 33.9 rpm \| Output torque M2: 596 Nm
S102 42,53 100LR6		Size: S102 \| Ratio i: 42.53 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 22.3 rpm \| Output torque M2: 456 Nm
S102 42,53 112M2		Size: S102 \| Ratio i: 42.53 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 68.9 rpm \| Output torque M2: 514 Nm
S102 42,53 112M4		Size: S102 \| Ratio i: 42.53 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 34.1 rpm \| Output torque M2: 1076 Nm
S102 42,53 112M6		Size: S102 \| Ratio i: 42.53 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 22.6 rpm \| Output torque M2: 902 Nm
S102 42,53 112MS4		Size: S102 \| Ratio i: 42.53 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 34.1 rpm \| Output torque M2: 807 Nm
S102 42,53 132M2		Size: S102 \| Ratio i: 42.53 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 69.4 rpm \| Output torque M2: 957 Nm
S102 42,53 132MA6		Size: S102 \| Ratio i: 42.53 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 22.8 rpm \| Output torque M2: 1624 Nm
S102 42,53 132MS4		Size: S102 \| Ratio i: 42.53 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 34.5 rpm \| Output torque M2: 1459 Nm
S102 42,53 132S2		Size: S102 \| Ratio i: 42.53 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 69.3 rpm \| Output torque M2: 702 Nm
S102 42,53 132S6		Size: S102 \| Ratio i: 42.53 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 22.8 rpm \| Output torque M2: 1218 Nm
S102 42,53 90L2		Size: S102 \| Ratio i: 42.53 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 67.7 rpm \| Output torque M2: 287 Nm
S102 42,53 90L4		Size: S102 \| Ratio i: 42.53 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 33.6 rpm \| Output torque M2: 409 Nm
S102 44,00 100L2		Size: S102 \| Ratio i: 44.00 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 65.9 rpm \| Output torque M2: 403 Nm
S102 44,00 100L6		Size: S102 \| Ratio i: 44.00 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 21.3 rpm \| Output torque M2: 650 Nm
S102 44,00 100LA4		Size: S102 \| Ratio i: 44.00 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 32.7 rpm \| Output torque M2: 617 Nm
S102 44,00 100LR6		Size: S102 \| Ratio i: 44.00 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 21.6 rpm \| Output torque M2: 472 Nm
S102 44,00 112M2		Size: S102 \| Ratio i: 44.00 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 66.6 rpm \| Output torque M2: 532 Nm
S102 44,00 112M4		Size: S102 \| Ratio i: 44.00 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 32.9 rpm \| Output torque M2: 1113 Nm
S102 44,00 112M6		Size: S102 \| Ratio i: 44.00 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 934 Nm
S102 44,00 112MS4		Size: S102 \| Ratio i: 44.00 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 33.0 rpm \| Output torque M2: 835 Nm
S102 44,00 90L2		Size: S102 \| Ratio i: 44.00 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 65.5 rpm \| Output torque M2: 297 Nm
S102 44,00 90L4		Size: S102 \| Ratio i: 44.00 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 32.5 rpm \| Output torque M2: 423 Nm
S102 47,13 100L2		Size: S102 \| Ratio i: 47.13 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 61.5 rpm \| Output torque M2: 432 Nm
S102 47,13 100L6		Size: S102 \| Ratio i: 47.13 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 19.9 rpm \| Output torque M2: 697 Nm
S102 47,13 100LA4		Size: S102 \| Ratio i: 47.13 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 30.5 rpm \| Output torque M2: 660 Nm
S102 47,13 100LR6		Size: S102 \| Ratio i: 47.13 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 20.2 rpm \| Output torque M2: 505 Nm
S102 47,13 112M2		Size: S102 \| Ratio i: 47.13 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 62.1 rpm \| Output torque M2: 569 Nm
S102 47,13 112M4		Size: S102 \| Ratio i: 47.13 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 30.8 rpm \| Output torque M2: 1192 Nm
S102 47,13 112M6		Size: S102 \| Ratio i: 47.13 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 20.4 rpm \| Output torque M2: 1000 Nm
S102 47,13 112MS4		Size: S102 \| Ratio i: 47.13 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 30.8 rpm \| Output torque M2: 894 Nm
S102 47,13 132M2		Size: S102 \| Ratio i: 47.13 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 62.5 rpm \| Output torque M2: 1060 Nm
S102 47,13 132MA6		Size: S102 \| Ratio i: 47.13 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 20.6 rpm \| Output torque M2: 1800 Nm
S102 47,13 132MS4		Size: S102 \| Ratio i: 47.13 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 31.2 rpm \| Output torque M2: 1617 Nm
S102 47,13 132S2		Size: S102 \| Ratio i: 47.13 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 62.6 rpm \| Output torque M2: 777 Nm
S102 47,13 132S6		Size: S102 \| Ratio i: 47.13 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 20.6 rpm \| Output torque M2: 1350 Nm
S102 47,13 90L2		Size: S102 \| Ratio i: 47.13 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 61.1 rpm \| Output torque M2: 319 Nm
S102 47,13 90L4		Size: S102 \| Ratio i: 47.13 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 30.3 rpm \| Output torque M2: 453 Nm
S102 50,25 100L2		Size: S102 \| Ratio i: 50.25 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 57.7 rpm \| Output torque M2: 460 Nm
S102 50,25 100L6		Size: S102 \| Ratio i: 50.25 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 18.7 rpm \| Output torque M2: 742 Nm
S102 50,25 100LA4		Size: S102 \| Ratio i: 50.25 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 28.7 rpm \| Output torque M2: 704 Nm
S102 50,25 100LR6		Size: S102 \| Ratio i: 50.25 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 18.9 rpm \| Output torque M2: 539 Nm
S102 50,25 112M2		Size: S102 \| Ratio i: 50.25 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 58.3 rpm \| Output torque M2: 607 Nm
S102 50,25 112M4		Size: S102 \| Ratio i: 50.25 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 28.9 rpm \| Output torque M2: 1271 Nm
S102 50,25 112M6		Size: S102 \| Ratio i: 50.25 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 19.1 rpm \| Output torque M2: 1067 Nm
S102 50,25 112MS4		Size: S102 \| Ratio i: 50.25 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 28.9 rpm \| Output torque M2: 953 Nm
S102 50,25 90L2		Size: S102 \| Ratio i: 50.25 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 57.3 rpm \| Output torque M2: 340 Nm
S102 50,25 90L4		Size: S102 \| Ratio i: 50.25 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 28.5 rpm \| Output torque M2: 484 Nm
S102 50,25 90S4		Size: S102 \| Ratio i: 50.25 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 28.5 rpm \| Output torque M2: 354 Nm
S102 50,25 90S6		Size: S102 \| Ratio i: 50.25 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 18.7 rpm \| Output torque M2: 371 Nm
S102 55,14 100L2		Size: S102 \| Ratio i: 55.14 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 52.6 rpm \| Output torque M2: 505 Nm
S102 55,14 100L6		Size: S102 \| Ratio i: 55.14 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 17.0 rpm \| Output torque M2: 815 Nm
S102 55,14 100LA4		Size: S102 \| Ratio i: 55.14 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 26.1 rpm \| Output torque M2: 773 Nm
S102 55,14 100LR6		Size: S102 \| Ratio i: 55.14 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 17.2 rpm \| Output torque M2: 591 Nm
S102 55,14 112M2		Size: S102 \| Ratio i: 55.14 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 53.1 rpm \| Output torque M2: 666 Nm
S102 55,14 112M4		Size: S102 \| Ratio i: 55.14 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 26.3 rpm \| Output torque M2: 1394 Nm
S102 55,14 112M6		Size: S102 \| Ratio i: 55.14 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 17.4 rpm \| Output torque M2: 1170 Nm
S102 55,14 112MS4		Size: S102 \| Ratio i: 55.14 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 26.3 rpm \| Output torque M2: 1046 Nm
S102 55,14 90L2		Size: S102 \| Ratio i: 55.14 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 52.2 rpm \| Output torque M2: 373 Nm
S102 55,14 90L4		Size: S102 \| Ratio i: 55.14 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 531 Nm
S102 55,14 90S2		Size: S102 \| Ratio i: 55.14 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 51.9 rpm \| Output torque M2: 256 Nm
S102 55,14 90S4		Size: S102 \| Ratio i: 55.14 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 389 Nm
S102 55,14 90S6		Size: S102 \| Ratio i: 55.14 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 17.1 rpm \| Output torque M2: 407 Nm
S102 59,40 100L2		Size: S102 \| Ratio i: 59.40 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 48.8 rpm \| Output torque M2: 544 Nm
S102 59,40 100L6		Size: S102 \| Ratio i: 59.40 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 15.8 rpm \| Output torque M2: 878 Nm
S102 59,40 100LA4		Size: S102 \| Ratio i: 59.40 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 24.3 rpm \| Output torque M2: 832 Nm
S102 59,40 100LR6		Size: S102 \| Ratio i: 59.40 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 16.0 rpm \| Output torque M2: 637 Nm
S102 59,40 112M2		Size: S102 \| Ratio i: 59.40 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 49.3 rpm \| Output torque M2: 718 Nm
S102 59,40 112M4		Size: S102 \| Ratio i: 59.40 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 24.4 rpm \| Output torque M2: 1503 Nm
S102 59,40 112M6		Size: S102 \| Ratio i: 59.40 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 16.2 rpm \| Output torque M2: 1260 Nm
S102 59,40 112MS4		Size: S102 \| Ratio i: 59.40 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 24.4 rpm \| Output torque M2: 1127 Nm
S102 59,40 90L2		Size: S102 \| Ratio i: 59.40 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 48.4 rpm \| Output torque M2: 401 Nm
S102 59,40 90L4		Size: S102 \| Ratio i: 59.40 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 24.1 rpm \| Output torque M2: 571 Nm
S102 59,40 90S4		Size: S102 \| Ratio i: 59.40 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 24.1 rpm \| Output torque M2: 419 Nm
S102 59,40 90S6		Size: S102 \| Ratio i: 59.40 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 15.8 rpm \| Output torque M2: 439 Nm
S102 67,84 100L2		Size: S102 \| Ratio i: 67.84 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 42.7 rpm \| Output torque M2: 621 Nm
S102 67,84 100L6		Size: S102 \| Ratio i: 67.84 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 13.8 rpm \| Output torque M2: 1002 Nm
S102 67,84 100LA4		Size: S102 \| Ratio i: 67.84 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 21.2 rpm \| Output torque M2: 951 Nm
S102 67,84 100LR6		Size: S102 \| Ratio i: 67.84 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 14.0 rpm \| Output torque M2: 727 Nm
S102 67,84 112M2		Size: S102 \| Ratio i: 67.84 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 43.1 rpm \| Output torque M2: 820 Nm
S102 67,84 112M4		Size: S102 \| Ratio i: 67.84 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 21.3 rpm \| Output torque M2: 1716 Nm
S102 67,84 112M6		Size: S102 \| Ratio i: 67.84 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 14.2 rpm \| Output torque M2: 1440 Nm
S102 67,84 112MS4		Size: S102 \| Ratio i: 67.84 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 21.4 rpm \| Output torque M2: 1287 Nm
S102 67,84 90L2		Size: S102 \| Ratio i: 67.84 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 42.5 rpm \| Output torque M2: 459 Nm
S102 67,84 90L4		Size: S102 \| Ratio i: 67.84 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 21.0 rpm \| Output torque M2: 652 Nm
S102 67,84 90S2		Size: S102 \| Ratio i: 67.84 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 42.2 rpm \| Output torque M2: 315 Nm
S102 67,84 90S4		Size: S102 \| Ratio i: 67.84 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 21.0 rpm \| Output torque M2: 479 Nm
S102 67,84 90S6		Size: S102 \| Ratio i: 67.84 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 501 Nm
S103 74,18 100L2		Size: S103 \| Ratio i: 74.18 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 39.1 rpm \| Output torque M2: 665 Nm
S103 74,18 100L6		Size: S103 \| Ratio i: 74.18 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 1073 Nm
S103 74,18 100LA4		Size: S103 \| Ratio i: 74.18 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 19.4 rpm \| Output torque M2: 1018 Nm
S103 74,18 100LR6		Size: S103 \| Ratio i: 74.18 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 12.8 rpm \| Output torque M2: 779 Nm
S103 74,18 112M2		Size: S103 \| Ratio i: 74.18 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 39.5 rpm \| Output torque M2: 877 Nm
S103 74,18 112M6		Size: S103 \| Ratio i: 74.18 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 12.9 rpm \| Output torque M2: 1541 Nm
S103 74,18 112MS4		Size: S103 \| Ratio i: 74.18 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 19.5 rpm \| Output torque M2: 1378 Nm
S103 74,18 90L2		Size: S103 \| Ratio i: 74.18 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 38.8 rpm \| Output torque M2: 491 Nm
S103 74,18 90L4		Size: S103 \| Ratio i: 74.18 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 699 Nm
S103 74,18 90S2		Size: S103 \| Ratio i: 74.18 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 38.6 rpm \| Output torque M2: 337 Nm
S103 74,18 90S4		Size: S103 \| Ratio i: 74.18 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 512 Nm
S103 74,18 90S6		Size: S103 \| Ratio i: 74.18 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 537 Nm
S103 81,39 100L2		Size: S103 \| Ratio i: 81.39 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 35.7 rpm \| Output torque M2: 729 Nm
S103 81,39 100L6		Size: S103 \| Ratio i: 81.39 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 11.5 rpm \| Output torque M2: 1178 Nm
S103 81,39 100LA4		Size: S103 \| Ratio i: 81.39 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 17.7 rpm \| Output torque M2: 1116 Nm
S103 81,39 100LR6		Size: S103 \| Ratio i: 81.39 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 11.7 rpm \| Output torque M2: 855 Nm
S103 81,39 112M2		Size: S103 \| Ratio i: 81.39 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 36.0 rpm \| Output torque M2: 963 Nm
S103 81,39 112M6		Size: S103 \| Ratio i: 81.39 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 1691 Nm
S103 81,39 112MS4		Size: S103 \| Ratio i: 81.39 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 17.8 rpm \| Output torque M2: 1512 Nm
S103 81,39 80B6		Size: S103 \| Ratio i: 81.39 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 11.5 rpm \| Output torque M2: 431 Nm
S103 81,39 90L2		Size: S103 \| Ratio i: 81.39 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 35.4 rpm \| Output torque M2: 539 Nm
S103 81,39 90L4		Size: S103 \| Ratio i: 81.39 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 767 Nm
S103 81,39 90S2		Size: S103 \| Ratio i: 81.39 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 35.2 rpm \| Output torque M2: 370 Nm
S103 81,39 90S4		Size: S103 \| Ratio i: 81.39 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 17.6 rpm \| Output torque M2: 562 Nm
S103 81,39 90S6		Size: S103 \| Ratio i: 81.39 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 11.5 rpm \| Output torque M2: 589 Nm
S103 89,77 100L2		Size: S103 \| Ratio i: 89.77 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 32.3 rpm \| Output torque M2: 805 Nm
S103 89,77 100L6		Size: S103 \| Ratio i: 89.77 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 10.5 rpm \| Output torque M2: 1299 Nm
S103 89,77 100LA4		Size: S103 \| Ratio i: 89.77 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 16.0 rpm \| Output torque M2: 1231 Nm
S103 89,77 100LR6		Size: S103 \| Ratio i: 89.77 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 10.6 rpm \| Output torque M2: 942 Nm
S103 89,77 112M2		Size: S103 \| Ratio i: 89.77 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 32.6 rpm \| Output torque M2: 1062 Nm
S103 89,77 112M6		Size: S103 \| Ratio i: 89.77 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 10.7 rpm \| Output torque M2: 1865 Nm
S103 89,77 112MS4		Size: S103 \| Ratio i: 89.77 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 16.2 rpm \| Output torque M2: 1667 Nm
S103 89,77 80B2		Size: S103 \| Ratio i: 89.77 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 31.8 rpm \| Output torque M2: 299 Nm
S103 89,77 80B4		Size: S103 \| Ratio i: 89.77 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 16.0 rpm \| Output torque M2: 420 Nm
S103 89,77 80B6		Size: S103 \| Ratio i: 89.77 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 10.5 rpm \| Output torque M2: 476 Nm
S103 89,77 90L2		Size: S103 \| Ratio i: 89.77 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 32.1 rpm \| Output torque M2: 594 Nm
S103 89,77 90L4		Size: S103 \| Ratio i: 89.77 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 15.9 rpm \| Output torque M2: 845 Nm
S103 89,77 90S2		Size: S103 \| Ratio i: 89.77 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 31.8 rpm \| Output torque M2: 408 Nm
S103 89,77 90S4		Size: S103 \| Ratio i: 89.77 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 15.9 rpm \| Output torque M2: 620 Nm
S103 89,77 90S6		Size: S103 \| Ratio i: 89.77 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 10.5 rpm \| Output torque M2: 649 Nm
S103 100,15 100L2		Size: S103 \| Ratio i: 100.15 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 29.0 rpm \| Output torque M2: 898 Nm
S103 100,15 100L6		Size: S103 \| Ratio i: 100.15 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 9.4 rpm \| Output torque M2: 1449 Nm
S103 100,15 100LA4		Size: S103 \| Ratio i: 100.15 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 1374 Nm
S103 100,15 100LR6		Size: S103 \| Ratio i: 100.15 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1051 Nm
S103 100,15 112M2		Size: S103 \| Ratio i: 100.15 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 29.3 rpm \| Output torque M2: 1185 Nm
S103 100,15 80B2		Size: S103 \| Ratio i: 100.15 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 28.6 rpm \| Output torque M2: 334 Nm
S103 100,15 80B4		Size: S103 \| Ratio i: 100.15 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 469 Nm
S103 100,15 80B6		Size: S103 \| Ratio i: 100.15 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 9.4 rpm \| Output torque M2: 531 Nm
S103 100,15 90L2		Size: S103 \| Ratio i: 100.15 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 28.8 rpm \| Output torque M2: 663 Nm
S103 100,15 90L4		Size: S103 \| Ratio i: 100.15 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 943 Nm
S103 100,15 90S2		Size: S103 \| Ratio i: 100.15 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 28.6 rpm \| Output torque M2: 455 Nm
S103 100,15 90S4		Size: S103 \| Ratio i: 100.15 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 692 Nm
S103 100,15 90S6		Size: S103 \| Ratio i: 100.15 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 9.4 rpm \| Output torque M2: 724 Nm
S103 110,55 100L2		Size: S103 \| Ratio i: 110.55 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 26.2 rpm \| Output torque M2: 991 Nm
S103 110,55 100L6		Size: S103 \| Ratio i: 110.55 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 8.5 rpm \| Output torque M2: 1600 Nm
S103 110,55 100LA4		Size: S103 \| Ratio i: 110.55 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 1516 Nm
S103 110,55 100LR6		Size: S103 \| Ratio i: 110.55 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 1161 Nm
S103 110,55 71C6		Size: S103 \| Ratio i: 110.55 \| Motor: 71C6 \| Power P1: 0.37 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 412 Nm
S103 110,55 80B2		Size: S103 \| Ratio i: 110.55 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 368 Nm
S103 110,55 80B4		Size: S103 \| Ratio i: 110.55 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 13.1 rpm \| Output torque M2: 517 Nm
S103 110,55 80B6		Size: S103 \| Ratio i: 110.55 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 8.5 rpm \| Output torque M2: 587 Nm
S103 110,55 90L2		Size: S103 \| Ratio i: 110.55 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 26.1 rpm \| Output torque M2: 732 Nm
S103 110,55 90L4		Size: S103 \| Ratio i: 110.55 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 12.9 rpm \| Output torque M2: 1041 Nm
S103 110,55 90S2		Size: S103 \| Ratio i: 110.55 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 503 Nm
S103 110,55 90S4		Size: S103 \| Ratio i: 110.55 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 764 Nm
S103 110,55 90S6		Size: S103 \| Ratio i: 110.55 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 8.5 rpm \| Output torque M2: 800 Nm
S103 121,29 100L2		Size: S103 \| Ratio i: 121.29 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 23.9 rpm \| Output torque M2: 1087 Nm
S103 121,29 100L6		Size: S103 \| Ratio i: 121.29 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 1755 Nm
S103 121,29 100LA4		Size: S103 \| Ratio i: 121.29 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 1664 Nm
S103 121,29 100LR6		Size: S103 \| Ratio i: 121.29 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 1273 Nm
S103 121,29 71C4		Size: S103 \| Ratio i: 121.29 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 11.5 rpm \| Output torque M2: 428 Nm
S103 121,29 71C6		Size: S103 \| Ratio i: 121.29 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 452 Nm
S103 121,29 80A4		Size: S103 \| Ratio i: 121.29 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 11.5 rpm \| Output torque M2: 428 Nm
S103 121,29 80A6		Size: S103 \| Ratio i: 121.29 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 452 Nm
S103 121,29 80B2		Size: S103 \| Ratio i: 121.29 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 23.6 rpm \| Output torque M2: 404 Nm
S103 121,29 80B4		Size: S103 \| Ratio i: 121.29 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 567 Nm
S103 121,29 80B6		Size: S103 \| Ratio i: 121.29 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 643 Nm
S103 121,29 90L2		Size: S103 \| Ratio i: 121.29 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 23.7 rpm \| Output torque M2: 803 Nm
S103 121,29 90L4		Size: S103 \| Ratio i: 121.29 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 11.7 rpm \| Output torque M2: 1143 Nm
S103 121,29 90S2		Size: S103 \| Ratio i: 121.29 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 23.6 rpm \| Output torque M2: 551 Nm
S103 121,29 90S4		Size: S103 \| Ratio i: 121.29 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 11.7 rpm \| Output torque M2: 838 Nm
S103 121,29 90S6		Size: S103 \| Ratio i: 121.29 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 878 Nm
S103 128,73 100L2		Size: S103 \| Ratio i: 128.73 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 22.5 rpm \| Output torque M2: 1154 Nm
S103 128,73 100L6		Size: S103 \| Ratio i: 128.73 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 7.3 rpm \| Output torque M2: 1862 Nm
S103 128,73 100LA4		Size: S103 \| Ratio i: 128.73 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 1765 Nm
S103 128,73 100LR6		Size: S103 \| Ratio i: 128.73 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 1351 Nm
S103 128,73 71C4		Size: S103 \| Ratio i: 128.73 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 454 Nm
S103 128,73 71C6		Size: S103 \| Ratio i: 128.73 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 480 Nm
S103 128,73 80A4		Size: S103 \| Ratio i: 128.73 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 454 Nm
S103 128,73 80A6		Size: S103 \| Ratio i: 128.73 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 480 Nm
S103 128,73 80B2		Size: S103 \| Ratio i: 128.73 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 429 Nm
S103 128,73 80B4		Size: S103 \| Ratio i: 128.73 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 602 Nm
S103 128,73 80B6		Size: S103 \| Ratio i: 128.73 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 7.3 rpm \| Output torque M2: 683 Nm
S103 128,73 90L2		Size: S103 \| Ratio i: 128.73 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 22.4 rpm \| Output torque M2: 852 Nm
S103 128,73 90L4		Size: S103 \| Ratio i: 128.73 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 1212 Nm
S103 128,73 90S2		Size: S103 \| Ratio i: 128.73 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 585 Nm
S103 128,73 90S4		Size: S103 \| Ratio i: 128.73 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 889 Nm
S103 128,73 90S6		Size: S103 \| Ratio i: 128.73 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 7.3 rpm \| Output torque M2: 931 Nm
S103 141,24 100LR6		Size: S103 \| Ratio i: 141.24 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 6.7 rpm \| Output torque M2: 1483 Nm
S103 141,24 71C4		Size: S103 \| Ratio i: 141.24 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 9.9 rpm \| Output torque M2: 498 Nm
S103 141,24 71C6		Size: S103 \| Ratio i: 141.24 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 526 Nm
S103 141,24 80A2		Size: S103 \| Ratio i: 141.24 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 20.3 rpm \| Output torque M2: 321 Nm
S103 141,24 80A4		Size: S103 \| Ratio i: 141.24 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 9.9 rpm \| Output torque M2: 498 Nm
S103 141,24 80A6		Size: S103 \| Ratio i: 141.24 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 526 Nm
S103 141,24 80B2		Size: S103 \| Ratio i: 141.24 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 20.2 rpm \| Output torque M2: 471 Nm
S103 141,24 80B4		Size: S103 \| Ratio i: 141.24 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 660 Nm
S103 141,24 80B6		Size: S103 \| Ratio i: 141.24 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 6.7 rpm \| Output torque M2: 749 Nm
S103 141,24 90L2		Size: S103 \| Ratio i: 141.24 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 20.4 rpm \| Output torque M2: 935 Nm
S103 141,24 90L4		Size: S103 \| Ratio i: 141.24 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 10.1 rpm \| Output torque M2: 1330 Nm
S103 141,24 90S2		Size: S103 \| Ratio i: 141.24 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 20.2 rpm \| Output torque M2: 642 Nm
S103 141,24 90S4		Size: S103 \| Ratio i: 141.24 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 10.1 rpm \| Output torque M2: 975 Nm
S103 141,24 90S6		Size: S103 \| Ratio i: 141.24 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 6.7 rpm \| Output torque M2: 1022 Nm
S103 173,78 100LR6		Size: S103 \| Ratio i: 173.78 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 1824 Nm
S103 173,78 71B4		Size: S103 \| Ratio i: 173.78 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 8.0 rpm \| Output torque M2: 412 Nm
S103 173,78 71B6		Size: S103 \| Ratio i: 173.78 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 5.3 rpm \| Output torque M2: 433 Nm
S103 173,78 71C4		Size: S103 \| Ratio i: 173.78 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 8.1 rpm \| Output torque M2: 613 Nm
S103 173,78 71C6		Size: S103 \| Ratio i: 173.78 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 647 Nm
S103 173,78 80A2		Size: S103 \| Ratio i: 173.78 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 16.4 rpm \| Output torque M2: 395 Nm
S103 173,78 80A4		Size: S103 \| Ratio i: 173.78 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 8.1 rpm \| Output torque M2: 613 Nm
S103 173,78 80A6		Size: S103 \| Ratio i: 173.78 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 647 Nm
S103 173,78 80B2		Size: S103 \| Ratio i: 173.78 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 579 Nm
S103 173,78 80B4		Size: S103 \| Ratio i: 173.78 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 813 Nm
S103 173,78 80B6		Size: S103 \| Ratio i: 173.78 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 922 Nm
S103 173,78 90L2		Size: S103 \| Ratio i: 173.78 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 16.6 rpm \| Output torque M2: 1150 Nm
S103 173,78 90L4		Size: S103 \| Ratio i: 173.78 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 1637 Nm
S103 173,78 90S2		Size: S103 \| Ratio i: 173.78 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 790 Nm
S103 173,78 90S4		Size: S103 \| Ratio i: 173.78 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 1200 Nm
S103 173,78 90S6		Size: S103 \| Ratio i: 173.78 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 5.4 rpm \| Output torque M2: 1257 Nm
S103 188,51 71B2		Size: S103 \| Ratio i: 188.51 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 15.0 rpm \| Output torque M2: 318 Nm
S103 188,51 71B4		Size: S103 \| Ratio i: 188.51 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 448 Nm
S103 188,51 71B6		Size: S103 \| Ratio i: 188.51 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 470 Nm
S103 188,51 71C4		Size: S103 \| Ratio i: 188.51 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 664 Nm
S103 188,51 71C6		Size: S103 \| Ratio i: 188.51 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 703 Nm
S103 188,51 80A2		Size: S103 \| Ratio i: 188.51 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 15.2 rpm \| Output torque M2: 428 Nm
S103 188,51 80A4		Size: S103 \| Ratio i: 188.51 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 664 Nm
S103 188,51 80A6		Size: S103 \| Ratio i: 188.51 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 703 Nm
S103 188,51 80B2		Size: S103 \| Ratio i: 188.51 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 15.2 rpm \| Output torque M2: 629 Nm
S103 188,51 80B4		Size: S103 \| Ratio i: 188.51 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 7.7 rpm \| Output torque M2: 882 Nm
S103 188,51 80B6		Size: S103 \| Ratio i: 188.51 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 1000 Nm
S103 188,51 90L4		Size: S103 \| Ratio i: 188.51 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 1775 Nm
S103 188,51 90S2		Size: S103 \| Ratio i: 188.51 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 15.2 rpm \| Output torque M2: 857 Nm
S103 188,51 90S4		Size: S103 \| Ratio i: 188.51 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 1302 Nm
S103 188,51 90S6		Size: S103 \| Ratio i: 188.51 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 1364 Nm
S103 203,11 71B2		Size: S103 \| Ratio i: 203.11 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 342 Nm
S103 203,11 71B4		Size: S103 \| Ratio i: 203.11 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 6.9 rpm \| Output torque M2: 482 Nm
S103 203,11 71B6		Size: S103 \| Ratio i: 203.11 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 506 Nm
S103 203,11 71C4		Size: S103 \| Ratio i: 203.11 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 716 Nm
S103 203,11 71C6		Size: S103 \| Ratio i: 203.11 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 757 Nm
S103 203,11 80A2		Size: S103 \| Ratio i: 203.11 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 14.0 rpm \| Output torque M2: 462 Nm
S103 203,11 80A4		Size: S103 \| Ratio i: 203.11 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 716 Nm
S103 203,11 80A6		Size: S103 \| Ratio i: 203.11 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 757 Nm
S103 203,11 80B2		Size: S103 \| Ratio i: 203.11 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 14.1 rpm \| Output torque M2: 677 Nm
S103 203,11 80B4		Size: S103 \| Ratio i: 203.11 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 7.1 rpm \| Output torque M2: 950 Nm
S103 203,11 80B6		Size: S103 \| Ratio i: 203.11 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.6 rpm \| Output torque M2: 1077 Nm
S103 203,11 90S2		Size: S103 \| Ratio i: 203.11 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 14.1 rpm \| Output torque M2: 923 Nm
S103 203,11 90S4		Size: S103 \| Ratio i: 203.11 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 1403 Nm
S103 203,11 90S6		Size: S103 \| Ratio i: 203.11 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 4.6 rpm \| Output torque M2: 1469 Nm
S103 222,85 71B2		Size: S103 \| Ratio i: 222.85 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 375 Nm
S103 222,85 71B4		Size: S103 \| Ratio i: 222.85 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 528 Nm
S103 222,85 71B6		Size: S103 \| Ratio i: 222.85 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 555 Nm
S103 222,85 71C4		Size: S103 \| Ratio i: 222.85 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 786 Nm
S103 222,85 71C6		Size: S103 \| Ratio i: 222.85 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 831 Nm
S103 222,85 80A2		Size: S103 \| Ratio i: 222.85 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 12.8 rpm \| Output torque M2: 506 Nm
S103 222,85 80A4		Size: S103 \| Ratio i: 222.85 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 786 Nm
S103 222,85 80A6		Size: S103 \| Ratio i: 222.85 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 831 Nm
S103 222,85 80B2		Size: S103 \| Ratio i: 222.85 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 12.8 rpm \| Output torque M2: 743 Nm
S103 222,85 80B4		Size: S103 \| Ratio i: 222.85 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 1042 Nm
S103 222,85 80B6		Size: S103 \| Ratio i: 222.85 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 1182 Nm
S103 222,85 90S2		Size: S103 \| Ratio i: 222.85 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 12.8 rpm \| Output torque M2: 1013 Nm
S103 222,85 90S4		Size: S103 \| Ratio i: 222.85 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 1539 Nm
S103 222,85 90S6		Size: S103 \| Ratio i: 222.85 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 1612 Nm
S103 224,76 71B2		Size: S103 \| Ratio i: 224.76 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 378 Nm
S103 224,76 71B4		Size: S103 \| Ratio i: 224.76 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 533 Nm
S103 224,76 71B6		Size: S103 \| Ratio i: 224.76 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 560 Nm
S103 224,76 71C4		Size: S103 \| Ratio i: 224.76 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 793 Nm
S103 224,76 71C6		Size: S103 \| Ratio i: 224.76 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 838 Nm
S103 224,76 80A2		Size: S103 \| Ratio i: 224.76 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 511 Nm
S103 224,76 80A4		Size: S103 \| Ratio i: 224.76 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 793 Nm
S103 224,76 80A6		Size: S103 \| Ratio i: 224.76 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 838 Nm
S103 224,76 80B2		Size: S103 \| Ratio i: 224.76 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 749 Nm
S103 224,76 80B4		Size: S103 \| Ratio i: 224.76 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 1051 Nm
S103 224,76 80B6		Size: S103 \| Ratio i: 224.76 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.1 rpm \| Output torque M2: 1192 Nm
S103 224,76 90S2		Size: S103 \| Ratio i: 224.76 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 12.8 rpm \| Output torque M2: 1022 Nm
S103 224,76 90S4		Size: S103 \| Ratio i: 224.76 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 1552 Nm
S103 224,76 90S6		Size: S103 \| Ratio i: 224.76 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 1626 Nm
S103 274,20 71A4		Size: S103 \| Ratio i: 274.20 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 446 Nm
S103 274,20 71A6		Size: S103 \| Ratio i: 274.20 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 3.3 rpm \| Output torque M2: 497 Nm
S103 274,20 71B2		Size: S103 \| Ratio i: 274.20 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 10.3 rpm \| Output torque M2: 462 Nm
S103 274,20 71B4		Size: S103 \| Ratio i: 274.20 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 651 Nm
S103 274,20 71B6		Size: S103 \| Ratio i: 274.20 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 3.3 rpm \| Output torque M2: 683 Nm
S103 274,20 71C4		Size: S103 \| Ratio i: 274.20 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 967 Nm
S103 274,20 71C6		Size: S103 \| Ratio i: 274.20 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.3 rpm \| Output torque M2: 1022 Nm
S103 274,20 80A2		Size: S103 \| Ratio i: 274.20 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 10.4 rpm \| Output torque M2: 623 Nm
S103 274,20 80A4		Size: S103 \| Ratio i: 274.20 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 967 Nm
S103 274,20 80A6		Size: S103 \| Ratio i: 274.20 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.3 rpm \| Output torque M2: 1022 Nm
S103 274,20 80B2		Size: S103 \| Ratio i: 274.20 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 10.4 rpm \| Output torque M2: 914 Nm
S103 274,20 80B4		Size: S103 \| Ratio i: 274.20 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 1282 Nm
S103 274,20 80B6		Size: S103 \| Ratio i: 274.20 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 1454 Nm
S103 280,89 71A4		Size: S103 \| Ratio i: 280.89 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 457 Nm
S103 280,89 71A6		Size: S103 \| Ratio i: 280.89 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 3.2 rpm \| Output torque M2: 509 Nm
S103 280,89 71B2		Size: S103 \| Ratio i: 280.89 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 10.1 rpm \| Output torque M2: 473 Nm
S103 280,89 71B4		Size: S103 \| Ratio i: 280.89 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 666 Nm
S103 280,89 71B6		Size: S103 \| Ratio i: 280.89 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 3.2 rpm \| Output torque M2: 699 Nm
S103 280,89 71C4		Size: S103 \| Ratio i: 280.89 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 990 Nm
S103 280,89 71C6		Size: S103 \| Ratio i: 280.89 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.2 rpm \| Output torque M2: 1047 Nm
S103 280,89 80A2		Size: S103 \| Ratio i: 280.89 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 639 Nm
S103 280,89 80A4		Size: S103 \| Ratio i: 280.89 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 990 Nm
S103 280,89 80A6		Size: S103 \| Ratio i: 280.89 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.2 rpm \| Output torque M2: 1047 Nm
S103 280,89 80B2		Size: S103 \| Ratio i: 280.89 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 936 Nm
S103 280,89 80B4		Size: S103 \| Ratio i: 280.89 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 1314 Nm
S103 280,89 80B6		Size: S103 \| Ratio i: 280.89 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 3.3 rpm \| Output torque M2: 1490 Nm
S103 292,36 71A4		Size: S103 \| Ratio i: 292.36 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 475 Nm
S103 292,36 71A6		Size: S103 \| Ratio i: 292.36 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 530 Nm
S103 292,36 71B2		Size: S103 \| Ratio i: 292.36 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 9.7 rpm \| Output torque M2: 493 Nm
S103 292,36 71B4		Size: S103 \| Ratio i: 292.36 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 694 Nm
S103 292,36 71B6		Size: S103 \| Ratio i: 292.36 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 728 Nm
S103 292,36 71C4		Size: S103 \| Ratio i: 292.36 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 1031 Nm
S103 292,36 71C6		Size: S103 \| Ratio i: 292.36 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 1090 Nm
S103 292,36 80A2		Size: S103 \| Ratio i: 292.36 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 664 Nm
S103 292,36 80A4		Size: S103 \| Ratio i: 292.36 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 1031 Nm
S103 292,36 80A6		Size: S103 \| Ratio i: 292.36 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 1090 Nm
S103 292,36 80B2		Size: S103 \| Ratio i: 292.36 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 974 Nm
S103 292,36 80B4		Size: S103 \| Ratio i: 292.36 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 1367 Nm
S103 292,36 80B6		Size: S103 \| Ratio i: 292.36 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 3.2 rpm \| Output torque M2: 1551 Nm
S103 320,79 71A4		Size: S103 \| Ratio i: 320.79 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 4.3 rpm \| Output torque M2: 522 Nm
S103 320,79 71A6		Size: S103 \| Ratio i: 320.79 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 2.8 rpm \| Output torque M2: 582 Nm
S103 320,79 71B2		Size: S103 \| Ratio i: 320.79 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 8.9 rpm \| Output torque M2: 540 Nm
S103 320,79 71B4		Size: S103 \| Ratio i: 320.79 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 761 Nm
S103 320,79 71B6		Size: S103 \| Ratio i: 320.79 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 2.8 rpm \| Output torque M2: 799 Nm
S103 320,79 71C4		Size: S103 \| Ratio i: 320.79 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 1131 Nm
S103 320,79 71C6		Size: S103 \| Ratio i: 320.79 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 2.8 rpm \| Output torque M2: 1196 Nm
S103 320,79 80A2		Size: S103 \| Ratio i: 320.79 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 729 Nm
S103 320,79 80A4		Size: S103 \| Ratio i: 320.79 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 1131 Nm
S103 320,79 80A6		Size: S103 \| Ratio i: 320.79 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 2.8 rpm \| Output torque M2: 1196 Nm
S103 320,79 80B2		Size: S103 \| Ratio i: 320.79 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 8.9 rpm \| Output torque M2: 1069 Nm
S103 320,79 80B4		Size: S103 \| Ratio i: 320.79 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 4.5 rpm \| Output torque M2: 1500 Nm
S103 320,79 80B6		Size: S103 \| Ratio i: 320.79 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 2.9 rpm \| Output torque M2: 1702 Nm
S103 345,60 71A4		Size: S103 \| Ratio i: 345.60 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 562 Nm
S103 345,60 71A6		Size: S103 \| Ratio i: 345.60 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 2.6 rpm \| Output torque M2: 627 Nm
S103 345,60 71B2		Size: S103 \| Ratio i: 345.60 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 582 Nm
S103 345,60 71B4		Size: S103 \| Ratio i: 345.60 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 4.1 rpm \| Output torque M2: 820 Nm
S103 345,60 71B6		Size: S103 \| Ratio i: 345.60 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 2.6 rpm \| Output torque M2: 861 Nm
S103 345,60 71C4		Size: S103 \| Ratio i: 345.60 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 4.1 rpm \| Output torque M2: 1219 Nm
S103 345,60 71C6		Size: S103 \| Ratio i: 345.60 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 2.6 rpm \| Output torque M2: 1288 Nm
S103 345,60 80A2		Size: S103 \| Ratio i: 345.60 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 785 Nm
S103 345,60 80A4		Size: S103 \| Ratio i: 345.60 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 4.1 rpm \| Output torque M2: 1219 Nm
S103 345,60 80A6		Size: S103 \| Ratio i: 345.60 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 2.6 rpm \| Output torque M2: 1288 Nm
S103 345,60 80B2		Size: S103 \| Ratio i: 345.60 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 1152 Nm
S103 345,60 80B4		Size: S103 \| Ratio i: 345.60 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 1616 Nm
S103 345,60 80B6		Size: S103 \| Ratio i: 345.60 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 2.7 rpm \| Output torque M2: 1833 Nm
S103 394,69 71A4		Size: S103 \| Ratio i: 394.69 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 3.5 rpm \| Output torque M2: 642 Nm
S103 394,69 71A6		Size: S103 \| Ratio i: 394.69 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 2.3 rpm \| Output torque M2: 716 Nm
S103 394,69 71B2		Size: S103 \| Ratio i: 394.69 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 664 Nm
S103 394,69 71B4		Size: S103 \| Ratio i: 394.69 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 3.6 rpm \| Output torque M2: 936 Nm
S103 394,69 71B6		Size: S103 \| Ratio i: 394.69 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 2.3 rpm \| Output torque M2: 983 Nm
S103 394,69 71C4		Size: S103 \| Ratio i: 394.69 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 3.6 rpm \| Output torque M2: 1392 Nm
S103 394,69 71C6		Size: S103 \| Ratio i: 394.69 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 2.2 rpm \| Output torque M2: 1472 Nm
S103 394,69 80A2		Size: S103 \| Ratio i: 394.69 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 897 Nm
S103 394,69 80A4		Size: S103 \| Ratio i: 394.69 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 3.6 rpm \| Output torque M2: 1392 Nm
S103 394,69 80A6		Size: S103 \| Ratio i: 394.69 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 2.2 rpm \| Output torque M2: 1472 Nm
S 083 315,73 80A4		Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 315.73 \| Motor: 80A4
S 083 91,49 80C4		Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 91.49 \| Motor: 80C4
S 083 117,17 80C4		Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 117.17 \| Motor: 80C4
S 083 128,73 80C4		Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 128.73 \| Motor: 80C4
S 083 158,76 80C4		Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 158.76 \| Motor: 80C4
S 083 184,88 80C4		Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 184.88 \| Motor: 80C4
S 103 128,73 80C4		Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 128.73 \| Motor: 80C4
S 103 141,24 80C4		Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 141.24 \| Motor: 80C4
S 103 173,78 80C4		Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 173.78 \| Motor: 80C4
S 103 203,11 80C4		Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 203.11 \| Motor: 80C4
S 103 222,85 80C4		Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 222.85 \| Motor: 80C4
S 103 274,20 80C4		Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 274.20 \| Motor: 80C4
S 082 40,05 90LL4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 40.05 \| Motor: 90LL4
S 082 43,05 90LL4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 43.05 \| Motor: 90LL4
S 082 50,25 90LL4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 50.25 \| Motor: 90LL4
S 082 54,27 90LL4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 54.27 \| Motor: 90LL4
S 082 61,98 90LL4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 61.98 \| Motor: 90LL4
S 083 67,52 90LL4		Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 67.52 \| Motor: 90LL4
S 083 74,18 90LL4		Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 74.18 \| Motor: 90LL4
S 083 91,49 90LL4		Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 91.49 \| Motor: 90LL4
S 102 55,14 90LL4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 55.14 \| Motor: 90LL4
S 102 59,40 90LL4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 59.40 \| Motor: 90LL4
S 102 67,84 90LL4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 67.84 \| Motor: 90LL4
S 103 74,18 90LL4		Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 74.18 \| Motor: 90LL4
S 103 81,39 90LL4		Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 81.39 \| Motor: 90LL4
S 103 100,15 90LL4		Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 100.15 \| Motor: 90LL4
S 103 110,55 90LL4		Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 110.55 \| Motor: 90LL4
S 103 128,73 90LL4		Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 128.73 \| Motor: 90LL4
S 103 141,24 90LL4		Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 141.24 \| Motor: 90LL4
S 082 17,29 100LB4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 17.29 \| Motor: 100LB4
S 082 20,14 100LB4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 20.14 \| Motor: 100LB4
S 082 22,13 100LB4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 22.13 \| Motor: 100LB4
S 082 24,00 100LB4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 24.00 \| Motor: 100LB4
S 082 27,29 100LB4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 27.29 \| Motor: 100LB4
S 082 28,67 100LB4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 28.67 \| Motor: 100LB4
S 082 31,78 100LB4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 31.78 \| Motor: 100LB4
S 082 34,91 100LB4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 34.91 \| Motor: 100LB4
S 082 40,05 100LB4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 40.05 \| Motor: 100LB4
S 082 43,05 100LB4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 43.05 \| Motor: 100LB4
S 082 50,25 100LB4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 50.25 \| Motor: 100LB4
S 082 54,27 100LB4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 54.27 \| Motor: 100LB4
S 102 34,91 100LB4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 34.91 \| Motor: 100LB4
S 102 38,30 100LB4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 38.30 \| Motor: 100LB4
S 102 44,00 100LB4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 44.00 \| Motor: 100LB4
S 102 47,13 100LB4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 47.13 \| Motor: 100LB4
S 102 55,14 100LB4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 55.14 \| Motor: 100LB4
S 102 59,40 100LB4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 59.40 \| Motor: 100LB4
S 102 67,84 100LB4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 67.84 \| Motor: 100LB4
S 103 74,18 100LB4		Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 74.18 \| Motor: 100LB4
S 103 81,39 100LB4		Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 81.39 \| Motor: 100LB4
S 082 7,34 132S4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 7.34 \| Motor: 132S4
S 082 8,06 132S4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 8.06 \| Motor: 132S4
S 082 9,94 132S4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 9.94 \| Motor: 132S4
S 082 11,61 132S4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 11.61 \| Motor: 132S4
S 082 12,75 132S4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 12.75 \| Motor: 132S4
S 082 15,73 132S4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 15.73 \| Motor: 132S4
S 082 17,29 132S4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 17.29 \| Motor: 132S4
S 082 20,14 132S4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 20.14 \| Motor: 132S4
S 082 22,13 132S4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 22.13 \| Motor: 132S4
S 082 24,00 132S4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 24.00 \| Motor: 132S4
S 082 27,29 132S4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 27.29 \| Motor: 132S4
S 082 28,67 132S4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 28.67 \| Motor: 132S4
S 082 31,78 132S4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 31.78 \| Motor: 132S4
S 102 10,88 132S4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 10.88 \| Motor: 132S4
S 102 12,75 132S4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 12.75 \| Motor: 132S4
S 102 13,99 132S4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 13.99 \| Motor: 132S4
S 102 17,21 132S4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 17.21 \| Motor: 132S4
S 102 19,00 132S4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 19.00 \| Motor: 132S4
S 102 22,13 132S4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 22.13 \| Motor: 132S4
S 102 24,28 132S4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 24.28 \| Motor: 132S4
S 102 26,33 132S4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 26.33 \| Motor: 132S4
S 102 29,87 132S4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 29.87 \| Motor: 132S4
S 102 32,40 132S4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 32.40 \| Motor: 132S4
S 102 34,91 132S4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 34.91 \| Motor: 132S4
S 102 38,30 132S4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 38.30 \| Motor: 132S4
S 082 7,34 132L4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 7.34 \| Motor: 132L4
S 082 8,06 132L4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 8.06 \| Motor: 132L4
S 082 9,94 132L4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 9.94 \| Motor: 132L4
S 082 11,61 132L4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 11.61 \| Motor: 132L4
S 082 12,75 132L4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 12.75 \| Motor: 132L4
S 082 15,73 132L4		Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 15.73 \| Motor: 132L4
S 102 8,06 132L4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 8.06 \| Motor: 132L4
S 102 8,85 132L4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 8.85 \| Motor: 132L4
S 102 10,88 132L4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 10.88 \| Motor: 132L4
S 102 12,75 132L4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 12.75 \| Motor: 132L4
S 102 13,99 132L4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 13.99 \| Motor: 132L4
S 102 17,21 132L4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 17.21 \| Motor: 132L4
S 102 19,00 132L4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 19.00 \| Motor: 132L4
S 102 22,13 132L4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 22.13 \| Motor: 132L4
S 102 24,28 132L4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 24.28 \| Motor: 132L4
S 102 26,33 132L4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 26.33 \| Motor: 132L4
S 102 29,87 132L4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 29.87 \| Motor: 132L4
S 102 32,40 132L4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 32.40 \| Motor: 132L4
S 102 8,06 160M4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 8.06 \| Motor: 160M4
S 102 8,85 160M4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 8.85 \| Motor: 160M4
S 102 10,88 160M4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 10.88 \| Motor: 160M4
S 102 12,75 160M4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 12.75 \| Motor: 160M4
S 102 13,99 160M4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 13.99 \| Motor: 160M4
S 102 17,21 160M4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 17.21 \| Motor: 160M4
S 102 8,06 160L4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 8.06 \| Motor: 160L4
S 102 8,85 160L4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 8.85 \| Motor: 160L4
S 102 8,48 160L4		Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 8.48 \| Motor: 160L4
S083		Legacy code (size-only listing) \| Size: S083
S103		Legacy code (size-only listing) \| Size: S103
S082		Legacy code (size-only listing) \| Size: S082
S102		Legacy code (size-only listing) \| Size: S102

Shaft Mounted Gear ReducersMotovario

1170 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Motovario S Shaft Mounted Helical Gearmotors (S082-S103, 0.18-15 kW)

Brand Motovario·Shaft Mounted Gear Reducers

Available part numbers (1170)

S082 7,34 112M4, S082 7,34 112M6, S082 7,34 112MS4, S082 7,34 132M2, S082 7,34 132M4, S082 7,34 132MA6, S082 7,34 132MB6, S082 7,34 132MS4, S082 7,34 132S2, S082 7,34 132S6 + 1160 more — see full table ↓

How to order

Send the Motovario part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	S082 7,34 112M4	Size: S082 \| Ratio i: 7.34 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 197.6 rpm \| Output torque M2: 186 Nm
	S082 7,34 112M6	Size: S082 \| Ratio i: 7.34 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 130.8 rpm \| Output torque M2: 156 Nm
	S082 7,34 112MS4	Size: S082 \| Ratio i: 7.34 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 197.6 rpm \| Output torque M2: 139 Nm
	S082 7,34 132M2	Size: S082 \| Ratio i: 7.34 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 402.0 rpm \| Output torque M2: 165 Nm
	S082 7,34 132M4	Size: S082 \| Ratio i: 7.34 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 198.9 rpm \| Output torque M2: 346 Nm
	S082 7,34 132MA6	Size: S082 \| Ratio i: 7.34 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 132.2 rpm \| Output torque M2: 280 Nm
	S082 7,34 132MB6	Size: S082 \| Ratio i: 7.34 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 132.2 rpm \| Output torque M2: 385 Nm
	S082 7,34 132MS4	Size: S082 \| Ratio i: 7.34 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 200.3 rpm \| Output torque M2: 252 Nm
	S082 7,34 132S2	Size: S082 \| Ratio i: 7.34 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 402.0 rpm \| Output torque M2: 121 Nm
	S082 7,34 132S6	Size: S082 \| Ratio i: 7.34 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 132.2 rpm \| Output torque M2: 210 Nm
	S082 8,06 112M4	Size: S082 \| Ratio i: 8.06 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 179.8 rpm \| Output torque M2: 204 Nm
	S082 8,06 112M6	Size: S082 \| Ratio i: 8.06 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 119.0 rpm \| Output torque M2: 171 Nm
	S082 8,06 112MS4	Size: S082 \| Ratio i: 8.06 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 179.8 rpm \| Output torque M2: 153 Nm
	S082 8,06 132M2	Size: S082 \| Ratio i: 8.06 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 365.9 rpm \| Output torque M2: 182 Nm
	S082 8,06 132M4	Size: S082 \| Ratio i: 8.06 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 181.1 rpm \| Output torque M2: 380 Nm
	S082 8,06 132MA6	Size: S082 \| Ratio i: 8.06 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 120.3 rpm \| Output torque M2: 308 Nm
	S082 8,06 132MB6	Size: S082 \| Ratio i: 8.06 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 120.3 rpm \| Output torque M2: 424 Nm
	S082 8,06 132MS4	Size: S082 \| Ratio i: 8.06 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 182.3 rpm \| Output torque M2: 277 Nm
	S082 8,06 132S2	Size: S082 \| Ratio i: 8.06 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 365.9 rpm \| Output torque M2: 133 Nm
	S082 8,06 132S6	Size: S082 \| Ratio i: 8.06 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 120.3 rpm \| Output torque M2: 231 Nm
	S082 9,94 112M4	Size: S082 \| Ratio i: 9.94 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 145.8 rpm \| Output torque M2: 251 Nm
	S082 9,94 112M6	Size: S082 \| Ratio i: 9.94 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 96.5 rpm \| Output torque M2: 211 Nm
	S082 9,94 112MS4	Size: S082 \| Ratio i: 9.94 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 145.8 rpm \| Output torque M2: 189 Nm
	S082 9,94 132M2	Size: S082 \| Ratio i: 9.94 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 296.7 rpm \| Output torque M2: 224 Nm
	S082 9,94 132M4	Size: S082 \| Ratio i: 9.94 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 146.8 rpm \| Output torque M2: 469 Nm
	S082 9,94 132MA6	Size: S082 \| Ratio i: 9.94 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 97.5 rpm \| Output torque M2: 380 Nm
	S082 9,94 132MB6	Size: S082 \| Ratio i: 9.94 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 97.5 rpm \| Output torque M2: 523 Nm
	S082 9,94 132MS4	Size: S082 \| Ratio i: 9.94 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 147.8 rpm \| Output torque M2: 341 Nm
	S082 9,94 132S2	Size: S082 \| Ratio i: 9.94 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 296.7 rpm \| Output torque M2: 164 Nm
	S082 9,94 132S6	Size: S082 \| Ratio i: 9.94 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 97.5 rpm \| Output torque M2: 285 Nm
	S082 11,61 112M2	Size: S082 \| Ratio i: 11.61 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 252.5 rpm \| Output torque M2: 141 Nm
	S082 11,61 112M4	Size: S082 \| Ratio i: 11.61 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 124.9 rpm \| Output torque M2: 294 Nm
	S082 11,61 112M6	Size: S082 \| Ratio i: 11.61 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 82.7 rpm \| Output torque M2: 246 Nm
	S082 11,61 112MS4	Size: S082 \| Ratio i: 11.61 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 124.9 rpm \| Output torque M2: 220 Nm
	S082 11,61 132M2	Size: S082 \| Ratio i: 11.61 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 254.1 rpm \| Output torque M2: 261 Nm
	S082 11,61 132M4	Size: S082 \| Ratio i: 11.61 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 125.8 rpm \| Output torque M2: 547 Nm
	S082 11,61 132MA6	Size: S082 \| Ratio i: 11.61 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 83.6 rpm \| Output torque M2: 443 Nm
	S082 11,61 132MB6	Size: S082 \| Ratio i: 11.61 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 83.6 rpm \| Output torque M2: 610 Nm
	S082 11,61 132MS4	Size: S082 \| Ratio i: 11.61 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 126.6 rpm \| Output torque M2: 399 Nm
	S082 11,61 132S2	Size: S082 \| Ratio i: 11.61 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 254.1 rpm \| Output torque M2: 191 Nm
	S082 11,61 132S6	Size: S082 \| Ratio i: 11.61 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 83.6 rpm \| Output torque M2: 333 Nm
	S082 12,75 112M2	Size: S082 \| Ratio i: 12.75 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 229.9 rpm \| Output torque M2: 154 Nm
	S082 12,75 112M4	Size: S082 \| Ratio i: 12.75 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 113.7 rpm \| Output torque M2: 323 Nm
	S082 12,75 112M6	Size: S082 \| Ratio i: 12.75 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 75.3 rpm \| Output torque M2: 271 Nm
	S082 12,75 112MS4	Size: S082 \| Ratio i: 12.75 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 113.7 rpm \| Output torque M2: 242 Nm
	S082 12,75 132M2	Size: S082 \| Ratio i: 12.75 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 231.3 rpm \| Output torque M2: 287 Nm
	S082 12,75 132M4	Size: S082 \| Ratio i: 12.75 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 114.5 rpm \| Output torque M2: 601 Nm
	S082 12,75 132MA6	Size: S082 \| Ratio i: 12.75 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 76.1 rpm \| Output torque M2: 487 Nm
	S082 12,75 132MB6	Size: S082 \| Ratio i: 12.75 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 76.1 rpm \| Output torque M2: 669 Nm
	S082 12,75 132MS4	Size: S082 \| Ratio i: 12.75 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 115.3 rpm \| Output torque M2: 437 Nm
	S082 12,75 132S2	Size: S082 \| Ratio i: 12.75 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 231.4 rpm \| Output torque M2: 210 Nm
	S082 12,75 132S6	Size: S082 \| Ratio i: 12.75 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 76.1 rpm \| Output torque M2: 365 Nm
	S082 14,04 100L6	Size: S082 \| Ratio i: 14.04 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 66.9 rpm \| Output torque M2: 208 Nm
	S082 14,04 100LA4	Size: S082 \| Ratio i: 14.04 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 102.5 rpm \| Output torque M2: 197 Nm
	S082 14,04 112M2	Size: S082 \| Ratio i: 14.04 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 208.6 rpm \| Output torque M2: 170 Nm
	S082 14,04 112M4	Size: S082 \| Ratio i: 14.04 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 103.2 rpm \| Output torque M2: 356 Nm
	S082 14,04 112M6	Size: S082 \| Ratio i: 14.04 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 68.3 rpm \| Output torque M2: 298 Nm
	S082 14,04 112MS4	Size: S082 \| Ratio i: 14.04 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 103.2 rpm \| Output torque M2: 266 Nm
	S082 14,04 132M2	Size: S082 \| Ratio i: 14.04 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 210.1 rpm \| Output torque M2: 316 Nm
	S082 14,04 132M4	Size: S082 \| Ratio i: 14.04 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 103.9 rpm \| Output torque M2: 661 Nm
	S082 14,04 132MA6	Size: S082 \| Ratio i: 14.04 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 69.1 rpm \| Output torque M2: 536 Nm
	S082 14,04 132MB6	Size: S082 \| Ratio i: 14.04 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 69.1 rpm \| Output torque M2: 737 Nm
	S082 14,04 132MS4	Size: S082 \| Ratio i: 14.04 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 104.7 rpm \| Output torque M2: 482 Nm
	S082 14,04 132S2	Size: S082 \| Ratio i: 14.04 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 210.1 rpm \| Output torque M2: 232 Nm
	S082 14,04 132S6	Size: S082 \| Ratio i: 14.04 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 69.1 rpm \| Output torque M2: 402 Nm
	S082 15,43 100L6	Size: S082 \| Ratio i: 15.43 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 60.9 rpm \| Output torque M2: 228 Nm
	S082 15,43 100LA4	Size: S082 \| Ratio i: 15.43 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 93.3 rpm \| Output torque M2: 216 Nm
	S082 15,43 112M2	Size: S082 \| Ratio i: 15.43 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 189.9 rpm \| Output torque M2: 186 Nm
	S082 15,43 112M4	Size: S082 \| Ratio i: 15.43 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 93.9 rpm \| Output torque M2: 390 Nm
	S082 15,43 112M6	Size: S082 \| Ratio i: 15.43 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 62.2 rpm \| Output torque M2: 327 Nm
	S082 15,43 112MS4	Size: S082 \| Ratio i: 15.43 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 94.0 rpm \| Output torque M2: 293 Nm
	S082 15,43 132M2	Size: S082 \| Ratio i: 15.43 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 191.2 rpm \| Output torque M2: 347 Nm
	S082 15,43 132M4	Size: S082 \| Ratio i: 15.43 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 94.6 rpm \| Output torque M2: 727 Nm
	S082 15,43 132MA6	Size: S082 \| Ratio i: 15.43 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 62.9 rpm \| Output torque M2: 589 Nm
	S082 15,43 132MB6	Size: S082 \| Ratio i: 15.43 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 62.9 rpm \| Output torque M2: 810 Nm
	S082 15,43 132MS4	Size: S082 \| Ratio i: 15.43 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 95.3 rpm \| Output torque M2: 530 Nm
	S082 15,43 132S2	Size: S082 \| Ratio i: 15.43 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 191.2 rpm \| Output torque M2: 255 Nm
	S082 15,43 132S6	Size: S082 \| Ratio i: 15.43 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 62.9 rpm \| Output torque M2: 442 Nm
	S082 15,73 100L2	Size: S082 \| Ratio i: 15.73 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 184.4 rpm \| Output torque M2: 144 Nm
	S082 15,73 100L6	Size: S082 \| Ratio i: 15.73 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 59.7 rpm \| Output torque M2: 233 Nm
	S082 15,73 100LA4	Size: S082 \| Ratio i: 15.73 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 91.5 rpm \| Output torque M2: 220 Nm
	S082 15,73 112M2	Size: S082 \| Ratio i: 15.73 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 186.3 rpm \| Output torque M2: 190 Nm
	S082 15,73 112M4	Size: S082 \| Ratio i: 15.73 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 92.2 rpm \| Output torque M2: 398 Nm
	S082 15,73 112M6	Size: S082 \| Ratio i: 15.73 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 61.0 rpm \| Output torque M2: 334 Nm
	S082 15,73 112MS4	Size: S082 \| Ratio i: 15.73 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 92.2 rpm \| Output torque M2: 298 Nm
	S082 15,73 132M2	Size: S082 \| Ratio i: 15.73 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 187.6 rpm \| Output torque M2: 354 Nm
	S082 15,73 132M4	Size: S082 \| Ratio i: 15.73 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 92.8 rpm \| Output torque M2: 741 Nm
	S082 15,73 132MA6	Size: S082 \| Ratio i: 15.73 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 61.6 rpm \| Output torque M2: 601 Nm
	S082 15,73 132MB6	Size: S082 \| Ratio i: 15.73 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 61.7 rpm \| Output torque M2: 826 Nm
	S082 15,73 132MS4	Size: S082 \| Ratio i: 15.73 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 93.5 rpm \| Output torque M2: 540 Nm
	S082 15,73 132S2	Size: S082 \| Ratio i: 15.73 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 187.6 rpm \| Output torque M2: 259 Nm
	S082 15,73 132S6	Size: S082 \| Ratio i: 15.73 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 61.6 rpm \| Output torque M2: 450 Nm
	S082 17,29 100L2	Size: S082 \| Ratio i: 17.29 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 167.6 rpm \| Output torque M2: 158 Nm
	S082 17,29 100L6	Size: S082 \| Ratio i: 17.29 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 54.4 rpm \| Output torque M2: 256 Nm
	S082 17,29 100LA4	Size: S082 \| Ratio i: 17.29 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 83.3 rpm \| Output torque M2: 243 Nm
	S082 17,29 112M2	Size: S082 \| Ratio i: 17.29 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 169.4 rpm \| Output torque M2: 209 Nm
	S082 17,29 112M4	Size: S082 \| Ratio i: 17.29 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 83.8 rpm \| Output torque M2: 437 Nm
	S082 17,29 112M6	Size: S082 \| Ratio i: 17.29 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 55.5 rpm \| Output torque M2: 367 Nm
	S082 17,29 112MS4	Size: S082 \| Ratio i: 17.29 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 83.8 rpm \| Output torque M2: 328 Nm
	S082 17,29 132M2	Size: S082 \| Ratio i: 17.29 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 170.6 rpm \| Output torque M2: 389 Nm
	S082 17,29 132M4	Size: S082 \| Ratio i: 17.29 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 84.4 rpm \| Output torque M2: 815 Nm
	S082 17,29 132MA6	Size: S082 \| Ratio i: 17.29 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 56.1 rpm \| Output torque M2: 660 Nm
	S082 17,29 132MS4	Size: S082 \| Ratio i: 17.29 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 85.0 rpm \| Output torque M2: 593 Nm
	S082 17,29 132S2	Size: S082 \| Ratio i: 17.29 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 170.6 rpm \| Output torque M2: 285 Nm
	S082 17,29 132S6	Size: S082 \| Ratio i: 17.29 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 56.1 rpm \| Output torque M2: 495 Nm
	S082 19,03 100L2	Size: S082 \| Ratio i: 19.03 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 152.4 rpm \| Output torque M2: 174 Nm
	S082 19,03 100L6	Size: S082 \| Ratio i: 19.03 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 49.4 rpm \| Output torque M2: 281 Nm
	S082 19,03 100LA4	Size: S082 \| Ratio i: 19.03 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 75.7 rpm \| Output torque M2: 267 Nm
	S082 19,03 100LR6	Size: S082 \| Ratio i: 19.03 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 49.9 rpm \| Output torque M2: 204 Nm
	S082 19,03 112M2	Size: S082 \| Ratio i: 19.03 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 154.0 rpm \| Output torque M2: 230 Nm
	S082 19,03 112M4	Size: S082 \| Ratio i: 19.03 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 76.2 rpm \| Output torque M2: 482 Nm
	S082 19,03 112M6	Size: S082 \| Ratio i: 19.03 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 50.5 rpm \| Output torque M2: 404 Nm
	S082 19,03 112MS4	Size: S082 \| Ratio i: 19.03 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 76.2 rpm \| Output torque M2: 361 Nm
	S082 19,03 132M2	Size: S082 \| Ratio i: 19.03 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 155.0 rpm \| Output torque M2: 428 Nm
	S082 19,03 132MA6	Size: S082 \| Ratio i: 19.03 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 51.0 rpm \| Output torque M2: 727 Nm
	S082 19,03 132MS4	Size: S082 \| Ratio i: 19.03 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 77.3 rpm \| Output torque M2: 653 Nm
	S082 19,03 132S2	Size: S082 \| Ratio i: 19.03 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 155.0 rpm \| Output torque M2: 314 Nm
	S082 19,03 132S6	Size: S082 \| Ratio i: 19.03 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 51.0 rpm \| Output torque M2: 545 Nm
	S082 20,14 100L2	Size: S082 \| Ratio i: 20.14 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 144.0 rpm \| Output torque M2: 184 Nm
	S082 20,14 100L6	Size: S082 \| Ratio i: 20.14 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 46.7 rpm \| Output torque M2: 298 Nm
	S082 20,14 100LA4	Size: S082 \| Ratio i: 20.14 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 71.5 rpm \| Output torque M2: 282 Nm
	S082 20,14 100LR6	Size: S082 \| Ratio i: 20.14 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 47.2 rpm \| Output torque M2: 216 Nm
	S082 20,14 112M2	Size: S082 \| Ratio i: 20.14 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 145.5 rpm \| Output torque M2: 243 Nm
	S082 20,14 112M4	Size: S082 \| Ratio i: 20.14 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 72.0 rpm \| Output torque M2: 509 Nm
	S082 20,14 112M6	Size: S082 \| Ratio i: 20.14 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 47.7 rpm \| Output torque M2: 427 Nm
	S082 20,14 112MS4	Size: S082 \| Ratio i: 20.14 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 72.0 rpm \| Output torque M2: 382 Nm
	S082 20,14 132M2	Size: S082 \| Ratio i: 20.14 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 146.5 rpm \| Output torque M2: 453 Nm
	S082 20,14 132MA6	Size: S082 \| Ratio i: 20.14 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 48.2 rpm \| Output torque M2: 769 Nm
	S082 20,14 132MS4	Size: S082 \| Ratio i: 20.14 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 73.0 rpm \| Output torque M2: 691 Nm
	S082 20,14 132S2	Size: S082 \| Ratio i: 20.14 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 146.5 rpm \| Output torque M2: 332 Nm
	S082 20,14 132S6	Size: S082 \| Ratio i: 20.14 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 48.2 rpm \| Output torque M2: 577 Nm
	S082 20,14 90L4	Size: S082 \| Ratio i: 20.14 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 71.0 rpm \| Output torque M2: 194 Nm
	S082 22,13 100L2	Size: S082 \| Ratio i: 22.13 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 131.1 rpm \| Output torque M2: 203 Nm
	S082 22,13 100L6	Size: S082 \| Ratio i: 22.13 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 42.5 rpm \| Output torque M2: 327 Nm
	S082 22,13 100LA4	Size: S082 \| Ratio i: 22.13 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 65.1 rpm \| Output torque M2: 310 Nm
	S082 22,13 100LR6	Size: S082 \| Ratio i: 22.13 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 42.9 rpm \| Output torque M2: 237 Nm
	S082 22,13 112M2	Size: S082 \| Ratio i: 22.13 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 132.5 rpm \| Output torque M2: 267 Nm
	S082 22,13 112M4	Size: S082 \| Ratio i: 22.13 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 65.5 rpm \| Output torque M2: 560 Nm
	S082 22,13 112M6	Size: S082 \| Ratio i: 22.13 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 43.4 rpm \| Output torque M2: 470 Nm
	S082 22,13 112MS4	Size: S082 \| Ratio i: 22.13 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 65.5 rpm \| Output torque M2: 420 Nm
	S082 22,13 132M2	Size: S082 \| Ratio i: 22.13 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 133.3 rpm \| Output torque M2: 498 Nm
	S082 22,13 132MA6	Size: S082 \| Ratio i: 22.13 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 43.9 rpm \| Output torque M2: 845 Nm
	S082 22,13 132MS4	Size: S082 \| Ratio i: 22.13 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 759 Nm
	S082 22,13 132S2	Size: S082 \| Ratio i: 22.13 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 133.3 rpm \| Output torque M2: 365 Nm
	S082 22,13 132S6	Size: S082 \| Ratio i: 22.13 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 43.8 rpm \| Output torque M2: 634 Nm
	S082 22,13 90L2	Size: S082 \| Ratio i: 22.13 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 130.2 rpm \| Output torque M2: 150 Nm
	S082 22,13 90L4	Size: S082 \| Ratio i: 22.13 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 64.6 rpm \| Output torque M2: 213 Nm
	S082 24,00 100L2	Size: S082 \| Ratio i: 24.00 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 120.8 rpm \| Output torque M2: 220 Nm
	S082 24,00 100L6	Size: S082 \| Ratio i: 24.00 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 39.2 rpm \| Output torque M2: 355 Nm
	S082 24,00 100LA4	Size: S082 \| Ratio i: 24.00 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 60.0 rpm \| Output torque M2: 337 Nm
	S082 24,00 100LR6	Size: S082 \| Ratio i: 24.00 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 39.6 rpm \| Output torque M2: 257 Nm
	S082 24,00 112M2	Size: S082 \| Ratio i: 24.00 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 122.1 rpm \| Output torque M2: 290 Nm
	S082 24,00 112M4	Size: S082 \| Ratio i: 24.00 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 60.4 rpm \| Output torque M2: 607 Nm
	S082 24,00 112M6	Size: S082 \| Ratio i: 24.00 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 40.1 rpm \| Output torque M2: 510 Nm
	S082 24,00 112MS4	Size: S082 \| Ratio i: 24.00 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 60.4 rpm \| Output torque M2: 455 Nm
	S082 24,00 132M2	Size: S082 \| Ratio i: 24.00 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 122.9 rpm \| Output torque M2: 540 Nm
	S082 24,00 132MA6	Size: S082 \| Ratio i: 24.00 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 40.4 rpm \| Output torque M2: 916 Nm
	S082 24,00 132MS4	Size: S082 \| Ratio i: 24.00 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 61.2 rpm \| Output torque M2: 824 Nm
	S082 24,00 132S2	Size: S082 \| Ratio i: 24.00 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 122.9 rpm \| Output torque M2: 396 Nm
	S082 24,00 132S6	Size: S082 \| Ratio i: 24.00 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 40.4 rpm \| Output torque M2: 687 Nm
	S082 24,00 90L2	Size: S082 \| Ratio i: 24.00 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 120.0 rpm \| Output torque M2: 162 Nm
	S082 24,00 90L4	Size: S082 \| Ratio i: 24.00 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 59.5 rpm \| Output torque M2: 231 Nm
	S082 26,05 100L2	Size: S082 \| Ratio i: 26.05 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 111.4 rpm \| Output torque M2: 239 Nm
	S082 26,05 100L6	Size: S082 \| Ratio i: 26.05 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 36.1 rpm \| Output torque M2: 385 Nm
	S082 26,05 100LA4	Size: S082 \| Ratio i: 26.05 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 55.3 rpm \| Output torque M2: 365 Nm
	S082 26,05 100LR6	Size: S082 \| Ratio i: 26.05 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 36.5 rpm \| Output torque M2: 279 Nm
	S082 26,05 112M2	Size: S082 \| Ratio i: 26.05 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 112.5 rpm \| Output torque M2: 315 Nm
	S082 26,05 112M4	Size: S082 \| Ratio i: 26.05 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 55.7 rpm \| Output torque M2: 659 Nm
	S082 26,05 112M6	Size: S082 \| Ratio i: 26.05 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 36.9 rpm \| Output torque M2: 553 Nm
	S082 26,05 112MS4	Size: S082 \| Ratio i: 26.05 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 55.7 rpm \| Output torque M2: 494 Nm
	S082 26,05 132M2	Size: S082 \| Ratio i: 26.05 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 113.3 rpm \| Output torque M2: 586 Nm
	S082 26,05 132S2	Size: S082 \| Ratio i: 26.05 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 113.2 rpm \| Output torque M2: 430 Nm
	S082 26,05 132S6	Size: S082 \| Ratio i: 26.05 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 37.3 rpm \| Output torque M2: 746 Nm
	S082 26,05 90L2	Size: S082 \| Ratio i: 26.05 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 110.6 rpm \| Output torque M2: 176 Nm
	S082 26,05 90L4	Size: S082 \| Ratio i: 26.05 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 54.9 rpm \| Output torque M2: 251 Nm
	S082 27,29 100L2	Size: S082 \| Ratio i: 27.29 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 106.3 rpm \| Output torque M2: 250 Nm
	S082 27,29 100L6	Size: S082 \| Ratio i: 27.29 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 34.5 rpm \| Output torque M2: 404 Nm
	S082 27,29 100LA4	Size: S082 \| Ratio i: 27.29 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 52.7 rpm \| Output torque M2: 383 Nm
	S082 27,29 100LR6	Size: S082 \| Ratio i: 27.29 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 34.8 rpm \| Output torque M2: 293 Nm
	S082 27,29 112M2	Size: S082 \| Ratio i: 27.29 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 107.4 rpm \| Output torque M2: 330 Nm
	S082 27,29 112M4	Size: S082 \| Ratio i: 27.29 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 53.2 rpm \| Output torque M2: 690 Nm
	S082 27,29 112M6	Size: S082 \| Ratio i: 27.29 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 35.2 rpm \| Output torque M2: 579 Nm
	S082 27,29 112MS4	Size: S082 \| Ratio i: 27.29 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 53.1 rpm \| Output torque M2: 518 Nm
	S082 27,29 132M2	Size: S082 \| Ratio i: 27.29 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 108.1 rpm \| Output torque M2: 614 Nm
	S082 27,29 132MA6	Size: S082 \| Ratio i: 27.29 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 35.5 rpm \| Output torque M2: 1042 Nm
	S082 27,29 132MS4	Size: S082 \| Ratio i: 27.29 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 53.8 rpm \| Output torque M2: 936 Nm
	S082 27,29 132S2	Size: S082 \| Ratio i: 27.29 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 108.1 rpm \| Output torque M2: 450 Nm
	S082 27,29 132S6	Size: S082 \| Ratio i: 27.29 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 35.6 rpm \| Output torque M2: 782 Nm
	S082 27,29 90L2	Size: S082 \| Ratio i: 27.29 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 105.5 rpm \| Output torque M2: 185 Nm
	S082 27,29 90L4	Size: S082 \| Ratio i: 27.29 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 52.4 rpm \| Output torque M2: 262 Nm
	S082 28,67 100L2	Size: S082 \| Ratio i: 28.67 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 101.1 rpm \| Output torque M2: 262 Nm
	S082 28,67 100L6	Size: S082 \| Ratio i: 28.67 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 32.8 rpm \| Output torque M2: 424 Nm
	S082 28,67 100LA4	Size: S082 \| Ratio i: 28.67 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 50.2 rpm \| Output torque M2: 402 Nm
	S082 28,67 100LR6	Size: S082 \| Ratio i: 28.67 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 33.1 rpm \| Output torque M2: 307 Nm
	S082 28,67 112M2	Size: S082 \| Ratio i: 28.67 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 102.1 rpm \| Output torque M2: 346 Nm
	S082 28,67 112M4	Size: S082 \| Ratio i: 28.67 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 50.6 rpm \| Output torque M2: 725 Nm
	S082 28,67 112M6	Size: S082 \| Ratio i: 28.67 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 33.4 rpm \| Output torque M2: 608 Nm
	S082 28,67 112MS4	Size: S082 \| Ratio i: 28.67 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 50.6 rpm \| Output torque M2: 544 Nm
	S082 28,67 132M2	Size: S082 \| Ratio i: 28.67 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 102.9 rpm \| Output torque M2: 645 Nm
	S082 28,67 132MS4	Size: S082 \| Ratio i: 28.67 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 51.3 rpm \| Output torque M2: 984 Nm
	S082 28,67 132S2	Size: S082 \| Ratio i: 28.67 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 102.8 rpm \| Output torque M2: 473 Nm
	S082 28,67 132S6	Size: S082 \| Ratio i: 28.67 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 33.8 rpm \| Output torque M2: 821 Nm
	S082 28,67 90L2	Size: S082 \| Ratio i: 28.67 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 100.4 rpm \| Output torque M2: 194 Nm
	S082 28,67 90L4	Size: S082 \| Ratio i: 28.67 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 49.8 rpm \| Output torque M2: 276 Nm
	S082 29,60 100L2	Size: S082 \| Ratio i: 29.60 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 98.0 rpm \| Output torque M2: 271 Nm
	S082 29,60 100L6	Size: S082 \| Ratio i: 29.60 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 31.7 rpm \| Output torque M2: 437 Nm
	S082 29,60 100LA4	Size: S082 \| Ratio i: 29.60 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 48.6 rpm \| Output torque M2: 415 Nm
	S082 29,60 100LR6	Size: S082 \| Ratio i: 29.60 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 32.1 rpm \| Output torque M2: 317 Nm
	S082 29,60 112M2	Size: S082 \| Ratio i: 29.60 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 99.0 rpm \| Output torque M2: 358 Nm
	S082 29,60 112M4	Size: S082 \| Ratio i: 29.60 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 49.0 rpm \| Output torque M2: 749 Nm
	S082 29,60 112M6	Size: S082 \| Ratio i: 29.60 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 32.4 rpm \| Output torque M2: 628 Nm
	S082 29,60 112MS4	Size: S082 \| Ratio i: 29.60 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 49.0 rpm \| Output torque M2: 561 Nm
	S082 29,60 132M2	Size: S082 \| Ratio i: 29.60 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 99.7 rpm \| Output torque M2: 666 Nm
	S082 29,60 132S2	Size: S082 \| Ratio i: 29.60 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 99.6 rpm \| Output torque M2: 488 Nm
	S082 29,60 132S6	Size: S082 \| Ratio i: 29.60 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 32.7 rpm \| Output torque M2: 848 Nm
	S082 29,60 90L2	Size: S082 \| Ratio i: 29.60 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 97.3 rpm \| Output torque M2: 200 Nm
	S082 29,60 90L4	Size: S082 \| Ratio i: 29.60 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 48.3 rpm \| Output torque M2: 285 Nm
	S082 31,78 100L2	Size: S082 \| Ratio i: 31.78 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 91.3 rpm \| Output torque M2: 291 Nm
	S082 31,78 100L6	Size: S082 \| Ratio i: 31.78 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 29.6 rpm \| Output torque M2: 470 Nm
	S082 31,78 100LA4	Size: S082 \| Ratio i: 31.78 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 45.3 rpm \| Output torque M2: 445 Nm
	S082 31,78 100LR6	Size: S082 \| Ratio i: 31.78 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 341 Nm
	S082 31,78 112M2	Size: S082 \| Ratio i: 31.78 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 92.2 rpm \| Output torque M2: 384 Nm
	S082 31,78 112M4	Size: S082 \| Ratio i: 31.78 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 804 Nm
	S082 31,78 112M6	Size: S082 \| Ratio i: 31.78 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 30.2 rpm \| Output torque M2: 674 Nm
	S082 31,78 112MS4	Size: S082 \| Ratio i: 31.78 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 603 Nm
	S082 31,78 132M2	Size: S082 \| Ratio i: 31.78 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 92.9 rpm \| Output torque M2: 715 Nm
	S082 31,78 132MS4	Size: S082 \| Ratio i: 31.78 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 46.3 rpm \| Output torque M2: 1090 Nm
	S082 31,78 132S2	Size: S082 \| Ratio i: 31.78 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 92.8 rpm \| Output torque M2: 524 Nm
	S082 31,78 132S6	Size: S082 \| Ratio i: 31.78 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 30.5 rpm \| Output torque M2: 910 Nm
	S082 31,78 90L2	Size: S082 \| Ratio i: 31.78 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 90.6 rpm \| Output torque M2: 215 Nm
	S082 31,78 90L4	Size: S082 \| Ratio i: 31.78 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 45.0 rpm \| Output torque M2: 306 Nm
	S082 34,91 100L2	Size: S082 \| Ratio i: 34.91 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 83.1 rpm \| Output torque M2: 320 Nm
	S082 34,91 100L6	Size: S082 \| Ratio i: 34.91 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 26.9 rpm \| Output torque M2: 516 Nm
	S082 34,91 100LA4	Size: S082 \| Ratio i: 34.91 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 41.3 rpm \| Output torque M2: 489 Nm
	S082 34,91 100LR6	Size: S082 \| Ratio i: 34.91 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 27.2 rpm \| Output torque M2: 374 Nm
	S082 34,91 112M2	Size: S082 \| Ratio i: 34.91 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 83.9 rpm \| Output torque M2: 422 Nm
	S082 34,91 112M4	Size: S082 \| Ratio i: 34.91 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 41.5 rpm \| Output torque M2: 883 Nm
	S082 34,91 112M6	Size: S082 \| Ratio i: 34.91 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 27.5 rpm \| Output torque M2: 741 Nm
	S082 34,91 112MS4	Size: S082 \| Ratio i: 34.91 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 41.5 rpm \| Output torque M2: 662 Nm
	S082 34,91 132S2	Size: S082 \| Ratio i: 34.91 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 84.5 rpm \| Output torque M2: 576 Nm
	S082 34,91 132S6	Size: S082 \| Ratio i: 34.91 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 27.8 rpm \| Output torque M2: 1000 Nm
	S082 34,91 90L2	Size: S082 \| Ratio i: 34.91 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 82.5 rpm \| Output torque M2: 236 Nm
	S082 34,91 90L4	Size: S082 \| Ratio i: 34.91 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 41.0 rpm \| Output torque M2: 336 Nm
	S082 34,91 90S4	Size: S082 \| Ratio i: 34.91 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 41.0 rpm \| Output torque M2: 246 Nm
	S082 34,91 90S6	Size: S082 \| Ratio i: 34.91 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 27.0 rpm \| Output torque M2: 258 Nm
	S082 35,50 100L2	Size: S082 \| Ratio i: 35.50 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 81.7 rpm \| Output torque M2: 325 Nm
	S082 35,50 100L6	Size: S082 \| Ratio i: 35.50 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 26.5 rpm \| Output torque M2: 525 Nm
	S082 35,50 100LA4	Size: S082 \| Ratio i: 35.50 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 40.6 rpm \| Output torque M2: 498 Nm
	S082 35,50 100LR6	Size: S082 \| Ratio i: 35.50 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 26.8 rpm \| Output torque M2: 381 Nm
	S082 35,50 112M2	Size: S082 \| Ratio i: 35.50 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 82.5 rpm \| Output torque M2: 429 Nm
	S082 35,50 112M4	Size: S082 \| Ratio i: 35.50 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 40.8 rpm \| Output torque M2: 898 Nm
	S082 35,50 112M6	Size: S082 \| Ratio i: 35.50 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 27.0 rpm \| Output torque M2: 754 Nm
	S082 35,50 112MS4	Size: S082 \| Ratio i: 35.50 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 40.8 rpm \| Output torque M2: 673 Nm
	S082 35,50 90L2	Size: S082 \| Ratio i: 35.50 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 81.2 rpm \| Output torque M2: 240 Nm
	S082 35,50 90L4	Size: S082 \| Ratio i: 35.50 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 40.2 rpm \| Output torque M2: 342 Nm
	S082 35,50 90S4	Size: S082 \| Ratio i: 35.50 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 40.2 rpm \| Output torque M2: 251 Nm
	S082 35,50 90S6	Size: S082 \| Ratio i: 35.50 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 26.5 rpm \| Output torque M2: 262 Nm
	S082 40,05 100L2	Size: S082 \| Ratio i: 40.05 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 72.4 rpm \| Output torque M2: 367 Nm
	S082 40,05 100L6	Size: S082 \| Ratio i: 40.05 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 23.5 rpm \| Output torque M2: 592 Nm
	S082 40,05 100LA4	Size: S082 \| Ratio i: 40.05 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 36.0 rpm \| Output torque M2: 561 Nm
	S082 40,05 100LR6	Size: S082 \| Ratio i: 40.05 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 23.7 rpm \| Output torque M2: 429 Nm
	S082 40,05 112M2	Size: S082 \| Ratio i: 40.05 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 73.2 rpm \| Output torque M2: 484 Nm
	S082 40,05 112M4	Size: S082 \| Ratio i: 40.05 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 36.2 rpm \| Output torque M2: 1013 Nm
	S082 40,05 112M6	Size: S082 \| Ratio i: 40.05 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 24.0 rpm \| Output torque M2: 850 Nm
	S082 40,05 112MS4	Size: S082 \| Ratio i: 40.05 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 36.2 rpm \| Output torque M2: 760 Nm
	S082 40,05 90L2	Size: S082 \| Ratio i: 40.05 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 71.9 rpm \| Output torque M2: 271 Nm
	S082 40,05 90L4	Size: S082 \| Ratio i: 40.05 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 35.8 rpm \| Output torque M2: 385 Nm
	S082 40,05 90S4	Size: S082 \| Ratio i: 40.05 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 35.8 rpm \| Output torque M2: 283 Nm
	S082 40,05 90S6	Size: S082 \| Ratio i: 40.05 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 23.5 rpm \| Output torque M2: 296 Nm
	S082 43,05 100L2	Size: S082 \| Ratio i: 43.05 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 67.4 rpm \| Output torque M2: 394 Nm
	S082 43,05 100L6	Size: S082 \| Ratio i: 43.05 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 636 Nm
	S082 43,05 100LA4	Size: S082 \| Ratio i: 43.05 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 33.5 rpm \| Output torque M2: 604 Nm
	S082 43,05 100LR6	Size: S082 \| Ratio i: 43.05 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 22.1 rpm \| Output torque M2: 462 Nm
	S082 43,05 112M2	Size: S082 \| Ratio i: 43.05 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 520 Nm
	S082 43,05 112M4	Size: S082 \| Ratio i: 43.05 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 33.7 rpm \| Output torque M2: 1089 Nm
	S082 43,05 112M6	Size: S082 \| Ratio i: 43.05 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 22.3 rpm \| Output torque M2: 914 Nm
	S082 43,05 112MS4	Size: S082 \| Ratio i: 43.05 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 33.7 rpm \| Output torque M2: 817 Nm
	S082 43,05 132S2	Size: S082 \| Ratio i: 43.05 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 68.5 rpm \| Output torque M2: 711 Nm
	S082 43,05 90L2	Size: S082 \| Ratio i: 43.05 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 66.9 rpm \| Output torque M2: 291 Nm
	S082 43,05 90L4	Size: S082 \| Ratio i: 43.05 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 33.2 rpm \| Output torque M2: 414 Nm
	S082 43,05 90S2	Size: S082 \| Ratio i: 43.05 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 200 Nm
	S082 43,05 90S4	Size: S082 \| Ratio i: 43.05 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 33.2 rpm \| Output torque M2: 304 Nm
	S082 43,05 90S6	Size: S082 \| Ratio i: 43.05 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 21.9 rpm \| Output torque M2: 318 Nm
	S082 50,25 100L2	Size: S082 \| Ratio i: 50.25 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 57.7 rpm \| Output torque M2: 460 Nm
	S082 50,25 100L6	Size: S082 \| Ratio i: 50.25 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 18.7 rpm \| Output torque M2: 742 Nm
	S082 50,25 100LA4	Size: S082 \| Ratio i: 50.25 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 28.7 rpm \| Output torque M2: 704 Nm
	S082 50,25 100LR6	Size: S082 \| Ratio i: 50.25 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 18.9 rpm \| Output torque M2: 539 Nm
	S082 50,25 112M2	Size: S082 \| Ratio i: 50.25 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 58.3 rpm \| Output torque M2: 607 Nm
	S082 50,25 112M6	Size: S082 \| Ratio i: 50.25 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 19.1 rpm \| Output torque M2: 1067 Nm
	S082 50,25 112MS4	Size: S082 \| Ratio i: 50.25 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 28.9 rpm \| Output torque M2: 953 Nm
	S082 50,25 80B6	Size: S082 \| Ratio i: 50.25 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 18.7 rpm \| Output torque M2: 272 Nm
	S082 50,25 90L2	Size: S082 \| Ratio i: 50.25 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 57.3 rpm \| Output torque M2: 340 Nm
	S082 50,25 90L4	Size: S082 \| Ratio i: 50.25 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 28.5 rpm \| Output torque M2: 484 Nm
	S082 50,25 90S2	Size: S082 \| Ratio i: 50.25 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 56.9 rpm \| Output torque M2: 233 Nm
	S082 50,25 90S4	Size: S082 \| Ratio i: 50.25 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 28.5 rpm \| Output torque M2: 354 Nm
	S082 50,25 90S6	Size: S082 \| Ratio i: 50.25 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 18.7 rpm \| Output torque M2: 371 Nm
	S082 54,27 100L2	Size: S082 \| Ratio i: 54.27 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 53.4 rpm \| Output torque M2: 497 Nm
	S082 54,27 100L6	Size: S082 \| Ratio i: 54.27 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 17.3 rpm \| Output torque M2: 802 Nm
	S082 54,27 100LA4	Size: S082 \| Ratio i: 54.27 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 26.5 rpm \| Output torque M2: 760 Nm
	S082 54,27 100LR6	Size: S082 \| Ratio i: 54.27 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 582 Nm
	S082 54,27 112M2	Size: S082 \| Ratio i: 54.27 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 54.0 rpm \| Output torque M2: 655 Nm
	S082 54,27 112M6	Size: S082 \| Ratio i: 54.27 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 17.7 rpm \| Output torque M2: 1152 Nm
	S082 54,27 112MS4	Size: S082 \| Ratio i: 54.27 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 26.7 rpm \| Output torque M2: 1029 Nm
	S082 54,27 80B4	Size: S082 \| Ratio i: 54.27 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 26.5 rpm \| Output torque M2: 260 Nm
	S082 54,27 80B6	Size: S082 \| Ratio i: 54.27 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 17.3 rpm \| Output torque M2: 294 Nm
	S082 54,27 90L2	Size: S082 \| Ratio i: 54.27 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 53.1 rpm \| Output torque M2: 367 Nm
	S082 54,27 90L4	Size: S082 \| Ratio i: 54.27 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 26.4 rpm \| Output torque M2: 522 Nm
	S082 54,27 90S2	Size: S082 \| Ratio i: 54.27 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 52.7 rpm \| Output torque M2: 252 Nm
	S082 54,27 90S4	Size: S082 \| Ratio i: 54.27 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 26.4 rpm \| Output torque M2: 383 Nm
	S082 54,27 90S6	Size: S082 \| Ratio i: 54.27 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 17.4 rpm \| Output torque M2: 401 Nm
	S082 61,98 100L2	Size: S082 \| Ratio i: 61.98 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 46.8 rpm \| Output torque M2: 567 Nm
	S082 61,98 100L6	Size: S082 \| Ratio i: 61.98 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 15.2 rpm \| Output torque M2: 916 Nm
	S082 61,98 100LA4	Size: S082 \| Ratio i: 61.98 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 23.2 rpm \| Output torque M2: 868 Nm
	S082 61,98 100LR6	Size: S082 \| Ratio i: 61.98 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 15.3 rpm \| Output torque M2: 664 Nm
	S082 61,98 112M2	Size: S082 \| Ratio i: 61.98 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 47.3 rpm \| Output torque M2: 749 Nm
	S082 61,98 80B2	Size: S082 \| Ratio i: 61.98 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 46.1 rpm \| Output torque M2: 211 Nm
	S082 61,98 80B4	Size: S082 \| Ratio i: 61.98 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 23.2 rpm \| Output torque M2: 296 Nm
	S082 61,98 80B6	Size: S082 \| Ratio i: 61.98 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 15.2 rpm \| Output torque M2: 335 Nm
	S082 61,98 90L2	Size: S082 \| Ratio i: 61.98 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 46.4 rpm \| Output torque M2: 419 Nm
	S082 61,98 90L4	Size: S082 \| Ratio i: 61.98 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 23.1 rpm \| Output torque M2: 596 Nm
	S082 61,98 90S2	Size: S082 \| Ratio i: 61.98 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 46.1 rpm \| Output torque M2: 288 Nm
	S082 61,98 90S4	Size: S082 \| Ratio i: 61.98 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 23.1 rpm \| Output torque M2: 437 Nm
	S082 61,98 90S6	Size: S082 \| Ratio i: 61.98 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 15.1 rpm \| Output torque M2: 458 Nm
	S083 67,52 100L2	Size: S083 \| Ratio i: 67.52 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 42.9 rpm \| Output torque M2: 605 Nm
	S083 67,52 100L6	Size: S083 \| Ratio i: 67.52 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 977 Nm
	S083 67,52 100LA4	Size: S083 \| Ratio i: 67.52 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 21.3 rpm \| Output torque M2: 927 Nm
	S083 67,52 100LR6	Size: S083 \| Ratio i: 67.52 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 14.1 rpm \| Output torque M2: 709 Nm
	S083 67,52 80B2	Size: S083 \| Ratio i: 67.52 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 42.4 rpm \| Output torque M2: 225 Nm
	S083 67,52 80B4	Size: S083 \| Ratio i: 67.52 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 21.3 rpm \| Output torque M2: 316 Nm
	S083 67,52 80B6	Size: S083 \| Ratio i: 67.52 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 358 Nm
	S083 67,52 90L2	Size: S083 \| Ratio i: 67.52 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 42.7 rpm \| Output torque M2: 447 Nm
	S083 67,52 90L4	Size: S083 \| Ratio i: 67.52 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 21.2 rpm \| Output torque M2: 636 Nm
	S083 67,52 90S2	Size: S083 \| Ratio i: 67.52 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 42.4 rpm \| Output torque M2: 307 Nm
	S083 67,52 90S4	Size: S083 \| Ratio i: 67.52 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 21.1 rpm \| Output torque M2: 466 Nm
	S083 67,52 90S6	Size: S083 \| Ratio i: 67.52 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 488 Nm
	S083 74,18 100L2	Size: S083 \| Ratio i: 74.18 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 39.1 rpm \| Output torque M2: 665 Nm
	S083 74,18 100L6	Size: S083 \| Ratio i: 74.18 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 1073 Nm
	S083 74,18 100LA4	Size: S083 \| Ratio i: 74.18 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 19.4 rpm \| Output torque M2: 1018 Nm
	S083 74,18 100LR6	Size: S083 \| Ratio i: 74.18 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 12.8 rpm \| Output torque M2: 779 Nm
	S083 74,18 80A4	Size: S083 \| Ratio i: 74.18 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 19.2 rpm \| Output torque M2: 258 Nm
	S083 74,18 80A6	Size: S083 \| Ratio i: 74.18 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 265 Nm
	S083 74,18 80B2	Size: S083 \| Ratio i: 74.18 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 38.5 rpm \| Output torque M2: 247 Nm
	S083 74,18 80B4	Size: S083 \| Ratio i: 74.18 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 19.4 rpm \| Output torque M2: 347 Nm
	S083 74,18 80B6	Size: S083 \| Ratio i: 74.18 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 394 Nm
	S083 74,18 90L2	Size: S083 \| Ratio i: 74.18 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 38.8 rpm \| Output torque M2: 491 Nm
	S083 74,18 90L4	Size: S083 \| Ratio i: 74.18 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 699 Nm
	S083 74,18 90S2	Size: S083 \| Ratio i: 74.18 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 38.6 rpm \| Output torque M2: 337 Nm
	S083 74,18 90S4	Size: S083 \| Ratio i: 74.18 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 512 Nm
	S083 74,18 90S6	Size: S083 \| Ratio i: 74.18 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 537 Nm
	S083 81,71 100L2	Size: S083 \| Ratio i: 81.71 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 35.5 rpm \| Output torque M2: 732 Nm
	S083 81,71 100LA4	Size: S083 \| Ratio i: 81.71 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 17.7 rpm \| Output torque M2: 1120 Nm
	S083 81,71 100LR6	Size: S083 \| Ratio i: 81.71 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 11.6 rpm \| Output torque M2: 858 Nm
	S083 81,71 80A2	Size: S083 \| Ratio i: 81.71 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 186 Nm
	S083 81,71 80A4	Size: S083 \| Ratio i: 81.71 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 17.3 rpm \| Output torque M2: 284 Nm
	S083 81,71 80A6	Size: S083 \| Ratio i: 81.71 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 11.5 rpm \| Output torque M2: 292 Nm
	S083 81,71 80B2	Size: S083 \| Ratio i: 81.71 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 272 Nm
	S083 81,71 80B4	Size: S083 \| Ratio i: 81.71 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 17.6 rpm \| Output torque M2: 382 Nm
	S083 81,71 80B6	Size: S083 \| Ratio i: 81.71 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 11.5 rpm \| Output torque M2: 433 Nm
	S083 81,71 90L2	Size: S083 \| Ratio i: 81.71 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 35.2 rpm \| Output torque M2: 541 Nm
	S083 81,71 90L4	Size: S083 \| Ratio i: 81.71 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 770 Nm
	S083 81,71 90S2	Size: S083 \| Ratio i: 81.71 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 371 Nm
	S083 81,71 90S4	Size: S083 \| Ratio i: 81.71 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 564 Nm
	S083 81,71 90S6	Size: S083 \| Ratio i: 81.71 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 11.5 rpm \| Output torque M2: 591 Nm
	S083 91,49 100LR6	Size: S083 \| Ratio i: 91.49 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 10.4 rpm \| Output torque M2: 961 Nm
	S083 91,49 80A2	Size: S083 \| Ratio i: 91.49 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 31.2 rpm \| Output torque M2: 208 Nm
	S083 91,49 80A4	Size: S083 \| Ratio i: 91.49 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 15.5 rpm \| Output torque M2: 318 Nm
	S083 91,49 80A6	Size: S083 \| Ratio i: 91.49 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 10.3 rpm \| Output torque M2: 327 Nm
	S083 91,49 80B2	Size: S083 \| Ratio i: 91.49 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 31.3 rpm \| Output torque M2: 305 Nm
	S083 91,49 80B4	Size: S083 \| Ratio i: 91.49 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 15.7 rpm \| Output torque M2: 428 Nm
	S083 91,49 80B6	Size: S083 \| Ratio i: 91.49 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 10.3 rpm \| Output torque M2: 486 Nm
	S083 91,49 90L2	Size: S083 \| Ratio i: 91.49 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 31.5 rpm \| Output torque M2: 606 Nm
	S083 91,49 90L4	Size: S083 \| Ratio i: 91.49 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 15.6 rpm \| Output torque M2: 862 Nm
	S083 91,49 90S2	Size: S083 \| Ratio i: 91.49 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 31.2 rpm \| Output torque M2: 416 Nm
	S083 91,49 90S4	Size: S083 \| Ratio i: 91.49 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 15.6 rpm \| Output torque M2: 632 Nm
	S083 91,49 90S6	Size: S083 \| Ratio i: 91.49 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 10.3 rpm \| Output torque M2: 662 Nm
	S083 100,62 100LR6	Size: S083 \| Ratio i: 100.62 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 9.4 rpm \| Output torque M2: 1056 Nm
	S083 100,62 80A2	Size: S083 \| Ratio i: 100.62 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 28.4 rpm \| Output torque M2: 229 Nm
	S083 100,62 80A4	Size: S083 \| Ratio i: 100.62 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 14.1 rpm \| Output torque M2: 350 Nm
	S083 100,62 80A6	Size: S083 \| Ratio i: 100.62 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 9.3 rpm \| Output torque M2: 359 Nm
	S083 100,62 80B2	Size: S083 \| Ratio i: 100.62 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 28.4 rpm \| Output torque M2: 336 Nm
	S083 100,62 80B4	Size: S083 \| Ratio i: 100.62 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 471 Nm
	S083 100,62 80B6	Size: S083 \| Ratio i: 100.62 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 9.3 rpm \| Output torque M2: 534 Nm
	S083 100,62 90L2	Size: S083 \| Ratio i: 100.62 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 28.6 rpm \| Output torque M2: 666 Nm
	S083 100,62 90L4	Size: S083 \| Ratio i: 100.62 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 14.2 rpm \| Output torque M2: 948 Nm
	S083 100,62 90S2	Size: S083 \| Ratio i: 100.62 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 28.4 rpm \| Output torque M2: 458 Nm
	S083 100,62 90S4	Size: S083 \| Ratio i: 100.62 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 14.2 rpm \| Output torque M2: 695 Nm
	S083 100,62 90S6	Size: S083 \| Ratio i: 100.62 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 9.3 rpm \| Output torque M2: 728 Nm
	S083 117,17 71B2	Size: S083 \| Ratio i: 117.17 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 24.2 rpm \| Output torque M2: 198 Nm
	S083 117,17 71B4	Size: S083 \| Ratio i: 117.17 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 278 Nm
	S083 117,17 71B6	Size: S083 \| Ratio i: 117.17 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 292 Nm
	S083 117,17 71C4	Size: S083 \| Ratio i: 117.17 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 413 Nm
	S083 117,17 71C6	Size: S083 \| Ratio i: 117.17 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 7.7 rpm \| Output torque M2: 437 Nm
	S083 117,17 80A2	Size: S083 \| Ratio i: 117.17 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 24.4 rpm \| Output torque M2: 266 Nm
	S083 117,17 80A4	Size: S083 \| Ratio i: 117.17 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 413 Nm
	S083 117,17 80A6	Size: S083 \| Ratio i: 117.17 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 7.7 rpm \| Output torque M2: 437 Nm
	S083 117,17 80B2	Size: S083 \| Ratio i: 117.17 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 24.5 rpm \| Output torque M2: 391 Nm
	S083 117,17 80B4	Size: S083 \| Ratio i: 117.17 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 12.2 rpm \| Output torque M2: 548 Nm
	S083 117,17 80B6	Size: S083 \| Ratio i: 117.17 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 8.0 rpm \| Output torque M2: 621 Nm
	S083 117,17 90L4	Size: S083 \| Ratio i: 117.17 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 12.2 rpm \| Output torque M2: 1103 Nm
	S083 117,17 90S2	Size: S083 \| Ratio i: 117.17 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 24.4 rpm \| Output torque M2: 533 Nm
	S083 117,17 90S4	Size: S083 \| Ratio i: 117.17 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 12.2 rpm \| Output torque M2: 809 Nm
	S083 117,17 90S6	Size: S083 \| Ratio i: 117.17 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 8.0 rpm \| Output torque M2: 848 Nm
	S083 128,73 71B2	Size: S083 \| Ratio i: 128.73 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 22.0 rpm \| Output torque M2: 216 Nm
	S083 128,73 71B4	Size: S083 \| Ratio i: 128.73 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 10.9 rpm \| Output torque M2: 306 Nm
	S083 128,73 71B6	Size: S083 \| Ratio i: 128.73 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 7.1 rpm \| Output torque M2: 320 Nm
	S083 128,73 71C4	Size: S083 \| Ratio i: 128.73 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 454 Nm
	S083 128,73 71C6	Size: S083 \| Ratio i: 128.73 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 480 Nm
	S083 128,73 80A2	Size: S083 \| Ratio i: 128.73 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 293 Nm
	S083 128,73 80A4	Size: S083 \| Ratio i: 128.73 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 454 Nm
	S083 128,73 80A6	Size: S083 \| Ratio i: 128.73 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 480 Nm
	S083 128,73 80B2	Size: S083 \| Ratio i: 128.73 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 429 Nm
	S083 128,73 80B4	Size: S083 \| Ratio i: 128.73 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 602 Nm
	S083 128,73 80B6	Size: S083 \| Ratio i: 128.73 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 7.3 rpm \| Output torque M2: 683 Nm
	S083 128,73 90S2	Size: S083 \| Ratio i: 128.73 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 585 Nm
	S083 128,73 90S4	Size: S083 \| Ratio i: 128.73 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 889 Nm
	S083 128,73 90S6	Size: S083 \| Ratio i: 128.73 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 7.3 rpm \| Output torque M2: 931 Nm
	S083 136,34 71B2	Size: S083 \| Ratio i: 136.34 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 20.7 rpm \| Output torque M2: 229 Nm
	S083 136,34 71B4	Size: S083 \| Ratio i: 136.34 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 323 Nm
	S083 136,34 71B6	Size: S083 \| Ratio i: 136.34 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 6.7 rpm \| Output torque M2: 339 Nm
	S083 136,34 71C4	Size: S083 \| Ratio i: 136.34 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 480 Nm
	S083 136,34 71C6	Size: S083 \| Ratio i: 136.34 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 6.6 rpm \| Output torque M2: 508 Nm
	S083 136,34 80A2	Size: S083 \| Ratio i: 136.34 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 21.0 rpm \| Output torque M2: 310 Nm
	S083 136,34 80A4	Size: S083 \| Ratio i: 136.34 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 480 Nm
	S083 136,34 80A6	Size: S083 \| Ratio i: 136.34 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 6.6 rpm \| Output torque M2: 508 Nm
	S083 136,34 80B2	Size: S083 \| Ratio i: 136.34 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 21.0 rpm \| Output torque M2: 454 Nm
	S083 136,34 80B4	Size: S083 \| Ratio i: 136.34 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 10.6 rpm \| Output torque M2: 638 Nm
	S083 136,34 80B6	Size: S083 \| Ratio i: 136.34 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 6.9 rpm \| Output torque M2: 723 Nm
	S083 136,34 90S2	Size: S083 \| Ratio i: 136.34 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 20.9 rpm \| Output torque M2: 620 Nm
	S083 136,34 90S4	Size: S083 \| Ratio i: 136.34 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 10.5 rpm \| Output torque M2: 942 Nm
	S083 136,34 90S6	Size: S083 \| Ratio i: 136.34 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 987 Nm
	S083 158,76 71A4	Size: S083 \| Ratio i: 158.76 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 8.7 rpm \| Output torque M2: 258 Nm
	S083 158,76 71A6	Size: S083 \| Ratio i: 158.76 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 5.7 rpm \| Output torque M2: 288 Nm
	S083 158,76 71B2	Size: S083 \| Ratio i: 158.76 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 17.8 rpm \| Output torque M2: 267 Nm
	S083 158,76 71B4	Size: S083 \| Ratio i: 158.76 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 8.8 rpm \| Output torque M2: 377 Nm
	S083 158,76 71B6	Size: S083 \| Ratio i: 158.76 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 5.8 rpm \| Output torque M2: 396 Nm
	S083 158,76 71C4	Size: S083 \| Ratio i: 158.76 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 8.8 rpm \| Output torque M2: 560 Nm
	S083 158,76 71C6	Size: S083 \| Ratio i: 158.76 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 592 Nm
	S083 158,76 80A2	Size: S083 \| Ratio i: 158.76 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 361 Nm
	S083 158,76 80A4	Size: S083 \| Ratio i: 158.76 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 8.8 rpm \| Output torque M2: 560 Nm
	S083 158,76 80A6	Size: S083 \| Ratio i: 158.76 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 592 Nm
	S083 158,76 80B2	Size: S083 \| Ratio i: 158.76 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 529 Nm
	S083 158,76 80B4	Size: S083 \| Ratio i: 158.76 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 9.1 rpm \| Output torque M2: 743 Nm
	S083 158,76 80B6	Size: S083 \| Ratio i: 158.76 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 842 Nm
	S083 158,76 90S2	Size: S083 \| Ratio i: 158.76 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 722 Nm
	S083 158,76 90S4	Size: S083 \| Ratio i: 158.76 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 1096 Nm
	S083 158,76 90S6	Size: S083 \| Ratio i: 158.76 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 5.9 rpm \| Output torque M2: 1149 Nm
	S083 184,88 71A4	Size: S083 \| Ratio i: 184.88 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 301 Nm
	S083 184,88 71A6	Size: S083 \| Ratio i: 184.88 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 335 Nm
	S083 184,88 71B2	Size: S083 \| Ratio i: 184.88 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 15.3 rpm \| Output torque M2: 311 Nm
	S083 184,88 71B4	Size: S083 \| Ratio i: 184.88 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 439 Nm
	S083 184,88 71B6	Size: S083 \| Ratio i: 184.88 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 461 Nm
	S083 184,88 71C4	Size: S083 \| Ratio i: 184.88 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 652 Nm
	S083 184,88 71C6	Size: S083 \| Ratio i: 184.88 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 689 Nm
	S083 184,88 80A2	Size: S083 \| Ratio i: 184.88 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 15.5 rpm \| Output torque M2: 420 Nm
	S083 184,88 80A4	Size: S083 \| Ratio i: 184.88 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 652 Nm
	S083 184,88 80A6	Size: S083 \| Ratio i: 184.88 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 689 Nm
	S083 184,88 80B2	Size: S083 \| Ratio i: 184.88 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 15.5 rpm \| Output torque M2: 616 Nm
	S083 184,88 80B4	Size: S083 \| Ratio i: 184.88 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 864 Nm
	S083 184,88 80B6	Size: S083 \| Ratio i: 184.88 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 981 Nm
	S083 203,11 71A4	Size: S083 \| Ratio i: 203.11 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 330 Nm
	S083 203,11 71A6	Size: S083 \| Ratio i: 203.11 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 368 Nm
	S083 203,11 71B2	Size: S083 \| Ratio i: 203.11 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 342 Nm
	S083 203,11 71B4	Size: S083 \| Ratio i: 203.11 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 6.9 rpm \| Output torque M2: 482 Nm
	S083 203,11 71B6	Size: S083 \| Ratio i: 203.11 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 506 Nm
	S083 203,11 71C4	Size: S083 \| Ratio i: 203.11 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 716 Nm
	S083 203,11 71C6	Size: S083 \| Ratio i: 203.11 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 757 Nm
	S083 203,11 80A2	Size: S083 \| Ratio i: 203.11 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 14.0 rpm \| Output torque M2: 462 Nm
	S083 203,11 80A4	Size: S083 \| Ratio i: 203.11 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 716 Nm
	S083 203,11 80A6	Size: S083 \| Ratio i: 203.11 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 757 Nm
	S083 203,11 80B2	Size: S083 \| Ratio i: 203.11 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 14.1 rpm \| Output torque M2: 677 Nm
	S083 203,11 80B4	Size: S083 \| Ratio i: 203.11 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 7.1 rpm \| Output torque M2: 950 Nm
	S083 203,11 80B6	Size: S083 \| Ratio i: 203.11 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.6 rpm \| Output torque M2: 1077 Nm
	S083 205,34 71A4	Size: S083 \| Ratio i: 205.34 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 334 Nm
	S083 205,34 71A6	Size: S083 \| Ratio i: 205.34 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 372 Nm
	S083 205,34 71B2	Size: S083 \| Ratio i: 205.34 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 13.8 rpm \| Output torque M2: 346 Nm
	S083 205,34 71B4	Size: S083 \| Ratio i: 205.34 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 487 Nm
	S083 205,34 71B6	Size: S083 \| Ratio i: 205.34 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 511 Nm
	S083 205,34 71C4	Size: S083 \| Ratio i: 205.34 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 724 Nm
	S083 205,34 71C6	Size: S083 \| Ratio i: 205.34 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 766 Nm
	S083 205,34 80A2	Size: S083 \| Ratio i: 205.34 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 467 Nm
	S083 205,34 80A4	Size: S083 \| Ratio i: 205.34 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 724 Nm
	S083 205,34 80A6	Size: S083 \| Ratio i: 205.34 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 766 Nm
	S083 205,34 80B2	Size: S083 \| Ratio i: 205.34 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 684 Nm
	S083 205,34 80B4	Size: S083 \| Ratio i: 205.34 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 960 Nm
	S083 205,34 80B6	Size: S083 \| Ratio i: 205.34 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.5 rpm \| Output torque M2: 1089 Nm
	S083 226,04 71A4	Size: S083 \| Ratio i: 226.04 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 6.1 rpm \| Output torque M2: 368 Nm
	S083 226,04 71A6	Size: S083 \| Ratio i: 226.04 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 410 Nm
	S083 226,04 71B2	Size: S083 \| Ratio i: 226.04 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 12.5 rpm \| Output torque M2: 380 Nm
	S083 226,04 71B4	Size: S083 \| Ratio i: 226.04 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 536 Nm
	S083 226,04 71B6	Size: S083 \| Ratio i: 226.04 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 563 Nm
	S083 226,04 71C4	Size: S083 \| Ratio i: 226.04 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 798 Nm
	S083 226,04 71C6	Size: S083 \| Ratio i: 226.04 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 843 Nm
	S083 226,04 80A2	Size: S083 \| Ratio i: 226.04 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 514 Nm
	S083 226,04 80A4	Size: S083 \| Ratio i: 226.04 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 798 Nm
	S083 226,04 80A6	Size: S083 \| Ratio i: 226.04 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 843 Nm
	S083 226,04 80B4	Size: S083 \| Ratio i: 226.04 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 1057 Nm
	S083 250,50 71A4	Size: S083 \| Ratio i: 250.50 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 407 Nm
	S083 250,50 71A6	Size: S083 \| Ratio i: 250.50 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 3.6 rpm \| Output torque M2: 454 Nm
	S083 250,50 71B2	Size: S083 \| Ratio i: 250.50 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 422 Nm
	S083 250,50 71B4	Size: S083 \| Ratio i: 250.50 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 594 Nm
	S083 250,50 71B6	Size: S083 \| Ratio i: 250.50 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 3.6 rpm \| Output torque M2: 624 Nm
	S083 250,50 71C4	Size: S083 \| Ratio i: 250.50 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 884 Nm
	S083 250,50 71C6	Size: S083 \| Ratio i: 250.50 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.6 rpm \| Output torque M2: 934 Nm
	S083 250,50 80A2	Size: S083 \| Ratio i: 250.50 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 11.4 rpm \| Output torque M2: 569 Nm
	S083 250,50 80A4	Size: S083 \| Ratio i: 250.50 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 884 Nm
	S083 250,50 80A6	Size: S083 \| Ratio i: 250.50 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.6 rpm \| Output torque M2: 934 Nm
	S083 266,13 71A4	Size: S083 \| Ratio i: 266.13 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 433 Nm
	S083 266,13 71A6	Size: S083 \| Ratio i: 266.13 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 483 Nm
	S083 266,13 71B2	Size: S083 \| Ratio i: 266.13 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 10.7 rpm \| Output torque M2: 448 Nm
	S083 266,13 71B4	Size: S083 \| Ratio i: 266.13 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 5.3 rpm \| Output torque M2: 632 Nm
	S083 266,13 71B6	Size: S083 \| Ratio i: 266.13 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 663 Nm
	S083 266,13 71C4	Size: S083 \| Ratio i: 266.13 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 938 Nm
	S083 266,13 71C6	Size: S083 \| Ratio i: 266.13 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 993 Nm
	S083 266,13 80A2	Size: S083 \| Ratio i: 266.13 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 10.7 rpm \| Output torque M2: 605 Nm
	S083 266,13 80A4	Size: S083 \| Ratio i: 266.13 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 938 Nm
	S083 266,13 80A6	Size: S083 \| Ratio i: 266.13 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 993 Nm
	S083 292,36 71A4	Size: S083 \| Ratio i: 292.36 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 475 Nm
	S083 292,36 71A6	Size: S083 \| Ratio i: 292.36 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 530 Nm
	S083 292,36 71B2	Size: S083 \| Ratio i: 292.36 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 9.7 rpm \| Output torque M2: 493 Nm
	S083 292,36 71B4	Size: S083 \| Ratio i: 292.36 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 694 Nm
	S083 292,36 71B6	Size: S083 \| Ratio i: 292.36 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 728 Nm
	S083 292,36 71C4	Size: S083 \| Ratio i: 292.36 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 1031 Nm
	S083 292,36 71C6	Size: S083 \| Ratio i: 292.36 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 1090 Nm
	S083 292,36 80A2	Size: S083 \| Ratio i: 292.36 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 664 Nm
	S083 292,36 80A4	Size: S083 \| Ratio i: 292.36 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 1031 Nm
	S083 292,36 80A6	Size: S083 \| Ratio i: 292.36 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 1090 Nm
	S083 315,73 71A4	Size: S083 \| Ratio i: 315.73 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 514 Nm
	S083 315,73 71A6	Size: S083 \| Ratio i: 315.73 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 2.9 rpm \| Output torque M2: 573 Nm
	S083 315,73 71B2	Size: S083 \| Ratio i: 315.73 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 531 Nm
	S083 315,73 71B4	Size: S083 \| Ratio i: 315.73 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 4.5 rpm \| Output torque M2: 749 Nm
	S083 315,73 71B6	Size: S083 \| Ratio i: 315.73 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 2.9 rpm \| Output torque M2: 786 Nm
	S083 315,73 80A2	Size: S083 \| Ratio i: 315.73 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 9.1 rpm \| Output torque M2: 717 Nm
	S083 315,73 80A6	Size: S083 \| Ratio i: 315.73 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 3.0 rpm \| Output torque M2: 1127 Nm
	S083 360,58 71A4	Size: S083 \| Ratio i: 360.58 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 3.9 rpm \| Output torque M2: 586 Nm
	S083 360,58 71A6	Size: S083 \| Ratio i: 360.58 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 2.5 rpm \| Output torque M2: 654 Nm
	S083 360,58 71B2	Size: S083 \| Ratio i: 360.58 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 7.9 rpm \| Output torque M2: 607 Nm
	S083 360,58 71B4	Size: S083 \| Ratio i: 360.58 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 3.9 rpm \| Output torque M2: 856 Nm
	S083 360,58 71B6	Size: S083 \| Ratio i: 360.58 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 2.5 rpm \| Output torque M2: 898 Nm
	S102 8,06 132M2	Size: S102 \| Ratio i: 8.06 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 365.9 rpm \| Output torque M2: 182 Nm
	S102 8,06 132M4	Size: S102 \| Ratio i: 8.06 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 181.1 rpm \| Output torque M2: 380 Nm
	S102 8,06 132MA6	Size: S102 \| Ratio i: 8.06 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 120.3 rpm \| Output torque M2: 308 Nm
	S102 8,06 132MB6	Size: S102 \| Ratio i: 8.06 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 120.3 rpm \| Output torque M2: 424 Nm
	S102 8,06 132MS4	Size: S102 \| Ratio i: 8.06 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 182.3 rpm \| Output torque M2: 277 Nm
	S102 8,06 132S6	Size: S102 \| Ratio i: 8.06 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 120.3 rpm \| Output torque M2: 231 Nm
	S102 8,06 160L6	Size: S102 \| Ratio i: 8.06 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 120.3 rpm \| Output torque M2: 847 Nm
	S102 8,06 160LA4	Size: S102 \| Ratio i: 8.06 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 182.9 rpm \| Output torque M2: 752 Nm
	S102 8,06 160MA4	Size: S102 \| Ratio i: 8.06 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 182.9 rpm \| Output torque M2: 551 Nm
	S102 8,85 112M4	Size: S102 \| Ratio i: 8.85 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 163.9 rpm \| Output torque M2: 223 Nm
	S102 8,85 132M2	Size: S102 \| Ratio i: 8.85 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 333.4 rpm \| Output torque M2: 199 Nm
	S102 8,85 132M4	Size: S102 \| Ratio i: 8.85 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 165.0 rpm \| Output torque M2: 417 Nm
	S102 8,85 132MA6	Size: S102 \| Ratio i: 8.85 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 109.6 rpm \| Output torque M2: 338 Nm
	S102 8,85 132MB6	Size: S102 \| Ratio i: 8.85 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 109.6 rpm \| Output torque M2: 464 Nm
	S102 8,85 132MS4	Size: S102 \| Ratio i: 8.85 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 166.1 rpm \| Output torque M2: 304 Nm
	S102 8,85 132S6	Size: S102 \| Ratio i: 8.85 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 109.6 rpm \| Output torque M2: 253 Nm
	S102 8,85 160L6	Size: S102 \| Ratio i: 8.85 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 109.6 rpm \| Output torque M2: 929 Nm
	S102 8,85 160LA4	Size: S102 \| Ratio i: 8.85 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 166.7 rpm \| Output torque M2: 825 Nm
	S102 8,85 160MA4	Size: S102 \| Ratio i: 8.85 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 166.7 rpm \| Output torque M2: 605 Nm
	S102 10,88 112M4	Size: S102 \| Ratio i: 10.88 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 133.2 rpm \| Output torque M2: 275 Nm
	S102 10,88 132M2	Size: S102 \| Ratio i: 10.88 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 271.0 rpm \| Output torque M2: 245 Nm
	S102 10,88 132M4	Size: S102 \| Ratio i: 10.88 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 134.1 rpm \| Output torque M2: 513 Nm
	S102 10,88 132MA6	Size: S102 \| Ratio i: 10.88 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 89.1 rpm \| Output torque M2: 416 Nm
	S102 10,88 132MB6	Size: S102 \| Ratio i: 10.88 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 89.1 rpm \| Output torque M2: 571 Nm
	S102 10,88 132MS4	Size: S102 \| Ratio i: 10.88 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 135.0 rpm \| Output torque M2: 374 Nm
	S102 10,88 132S2	Size: S102 \| Ratio i: 10.88 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 271.0 rpm \| Output torque M2: 180 Nm
	S102 10,88 132S6	Size: S102 \| Ratio i: 10.88 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 89.1 rpm \| Output torque M2: 312 Nm
	S102 10,88 160LA4	Size: S102 \| Ratio i: 10.88 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 135.5 rpm \| Output torque M2: 1015 Nm
	S102 10,88 160MA4	Size: S102 \| Ratio i: 10.88 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 135.5 rpm \| Output torque M2: 744 Nm
	S102 12,75 112M4	Size: S102 \| Ratio i: 12.75 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 113.7 rpm \| Output torque M2: 323 Nm
	S102 12,75 112M6	Size: S102 \| Ratio i: 12.75 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 75.3 rpm \| Output torque M2: 271 Nm
	S102 12,75 132M2	Size: S102 \| Ratio i: 12.75 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 231.3 rpm \| Output torque M2: 287 Nm
	S102 12,75 132M4	Size: S102 \| Ratio i: 12.75 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 114.5 rpm \| Output torque M2: 601 Nm
	S102 12,75 132MA6	Size: S102 \| Ratio i: 12.75 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 76.1 rpm \| Output torque M2: 487 Nm
	S102 12,75 132MB6	Size: S102 \| Ratio i: 12.75 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 76.1 rpm \| Output torque M2: 669 Nm
	S102 12,75 132MS4	Size: S102 \| Ratio i: 12.75 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 115.3 rpm \| Output torque M2: 437 Nm
	S102 12,75 132S2	Size: S102 \| Ratio i: 12.75 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 231.4 rpm \| Output torque M2: 210 Nm
	S102 12,75 132S6	Size: S102 \| Ratio i: 12.75 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 76.1 rpm \| Output torque M2: 365 Nm
	S102 12,75 160MA4	Size: S102 \| Ratio i: 12.75 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 115.7 rpm \| Output torque M2: 872 Nm
	S102 13,99 112M4	Size: S102 \| Ratio i: 13.99 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 103.6 rpm \| Output torque M2: 354 Nm
	S102 13,99 132M2	Size: S102 \| Ratio i: 13.99 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 210.9 rpm \| Output torque M2: 315 Nm
	S102 13,99 132M4	Size: S102 \| Ratio i: 13.99 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 104.4 rpm \| Output torque M2: 659 Nm
	S102 13,99 132MA6	Size: S102 \| Ratio i: 13.99 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 69.3 rpm \| Output torque M2: 534 Nm
	S102 13,99 132MB6	Size: S102 \| Ratio i: 13.99 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 69.3 rpm \| Output torque M2: 734 Nm
	S102 13,99 132MS4	Size: S102 \| Ratio i: 13.99 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 105.1 rpm \| Output torque M2: 480 Nm
	S102 13,99 132S2	Size: S102 \| Ratio i: 13.99 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 210.9 rpm \| Output torque M2: 231 Nm
	S102 13,99 132S6	Size: S102 \| Ratio i: 13.99 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 69.3 rpm \| Output torque M2: 401 Nm
	S102 13,99 160LA4	Size: S102 \| Ratio i: 13.99 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 105.4 rpm \| Output torque M2: 1304 Nm
	S102 13,99 160MA4	Size: S102 \| Ratio i: 13.99 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 105.4 rpm \| Output torque M2: 956 Nm
	S102 15,43 112M4	Size: S102 \| Ratio i: 15.43 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 93.9 rpm \| Output torque M2: 390 Nm
	S102 15,43 112M6	Size: S102 \| Ratio i: 15.43 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 62.2 rpm \| Output torque M2: 327 Nm
	S102 15,43 132M2	Size: S102 \| Ratio i: 15.43 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 191.2 rpm \| Output torque M2: 347 Nm
	S102 15,43 132M4	Size: S102 \| Ratio i: 15.43 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 94.6 rpm \| Output torque M2: 727 Nm
	S102 15,43 132MA6	Size: S102 \| Ratio i: 15.43 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 62.9 rpm \| Output torque M2: 589 Nm
	S102 15,43 132MB6	Size: S102 \| Ratio i: 15.43 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 62.9 rpm \| Output torque M2: 810 Nm
	S102 15,43 132MS4	Size: S102 \| Ratio i: 15.43 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 95.3 rpm \| Output torque M2: 530 Nm
	S102 15,43 132S2	Size: S102 \| Ratio i: 15.43 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 191.2 rpm \| Output torque M2: 255 Nm
	S102 15,43 132S6	Size: S102 \| Ratio i: 15.43 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 62.9 rpm \| Output torque M2: 442 Nm
	S102 17,21 112M4	Size: S102 \| Ratio i: 17.21 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 84.2 rpm \| Output torque M2: 435 Nm
	S102 17,21 112M6	Size: S102 \| Ratio i: 17.21 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 55.7 rpm \| Output torque M2: 365 Nm
	S102 17,21 112MS4	Size: S102 \| Ratio i: 17.21 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 84.2 rpm \| Output torque M2: 326 Nm
	S102 17,21 132M2	Size: S102 \| Ratio i: 17.21 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 171.4 rpm \| Output torque M2: 387 Nm
	S102 17,21 132M4	Size: S102 \| Ratio i: 17.21 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 84.8 rpm \| Output torque M2: 811 Nm
	S102 17,21 132MA6	Size: S102 \| Ratio i: 17.21 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 56.4 rpm \| Output torque M2: 657 Nm
	S102 17,21 132MB6	Size: S102 \| Ratio i: 17.21 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 56.4 rpm \| Output torque M2: 904 Nm
	S102 17,21 132MS4	Size: S102 \| Ratio i: 17.21 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 85.4 rpm \| Output torque M2: 591 Nm
	S102 17,21 132S2	Size: S102 \| Ratio i: 17.21 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 171.4 rpm \| Output torque M2: 284 Nm
	S102 17,21 132S6	Size: S102 \| Ratio i: 17.21 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 56.4 rpm \| Output torque M2: 493 Nm
	S102 17,21 160MA4	Size: S102 \| Ratio i: 17.21 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 85.7 rpm \| Output torque M2: 1177 Nm
	S102 19,00 112M4	Size: S102 \| Ratio i: 19.00 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 76.3 rpm \| Output torque M2: 481 Nm
	S102 19,00 112M6	Size: S102 \| Ratio i: 19.00 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 50.5 rpm \| Output torque M2: 403 Nm
	S102 19,00 112MS4	Size: S102 \| Ratio i: 19.00 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 76.3 rpm \| Output torque M2: 360 Nm
	S102 19,00 132M2	Size: S102 \| Ratio i: 19.00 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 155.3 rpm \| Output torque M2: 427 Nm
	S102 19,00 132M4	Size: S102 \| Ratio i: 19.00 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 76.8 rpm \| Output torque M2: 895 Nm
	S102 19,00 132MA6	Size: S102 \| Ratio i: 19.00 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 51.1 rpm \| Output torque M2: 726 Nm
	S102 19,00 132MB6	Size: S102 \| Ratio i: 19.00 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 51.1 rpm \| Output torque M2: 998 Nm
	S102 19,00 132MS4	Size: S102 \| Ratio i: 19.00 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 77.4 rpm \| Output torque M2: 652 Nm
	S102 19,00 132S2	Size: S102 \| Ratio i: 19.00 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 155.3 rpm \| Output torque M2: 314 Nm
	S102 19,00 132S6	Size: S102 \| Ratio i: 19.00 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 51.0 rpm \| Output torque M2: 544 Nm
	S102 20,83 112M4	Size: S102 \| Ratio i: 20.83 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 69.6 rpm \| Output torque M2: 527 Nm
	S102 20,83 112M6	Size: S102 \| Ratio i: 20.83 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 46.1 rpm \| Output torque M2: 442 Nm
	S102 20,83 112MS4	Size: S102 \| Ratio i: 20.83 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 69.6 rpm \| Output torque M2: 395 Nm
	S102 20,83 132M2	Size: S102 \| Ratio i: 20.83 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 141.7 rpm \| Output torque M2: 469 Nm
	S102 20,83 132M4	Size: S102 \| Ratio i: 20.83 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 70.1 rpm \| Output torque M2: 981 Nm
	S102 20,83 132MA6	Size: S102 \| Ratio i: 20.83 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 46.6 rpm \| Output torque M2: 796 Nm
	S102 20,83 132MB6	Size: S102 \| Ratio i: 20.83 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 46.6 rpm \| Output torque M2: 1094 Nm
	S102 20,83 132MS4	Size: S102 \| Ratio i: 20.83 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 70.6 rpm \| Output torque M2: 714 Nm
	S102 20,83 132S2	Size: S102 \| Ratio i: 20.83 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 141.6 rpm \| Output torque M2: 344 Nm
	S102 20,83 132S6	Size: S102 \| Ratio i: 20.83 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 46.6 rpm \| Output torque M2: 597 Nm
	S102 22,13 112M2	Size: S102 \| Ratio i: 22.13 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 132.5 rpm \| Output torque M2: 267 Nm
	S102 22,13 112M4	Size: S102 \| Ratio i: 22.13 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 65.5 rpm \| Output torque M2: 560 Nm
	S102 22,13 112M6	Size: S102 \| Ratio i: 22.13 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 43.4 rpm \| Output torque M2: 470 Nm
	S102 22,13 112MS4	Size: S102 \| Ratio i: 22.13 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 65.5 rpm \| Output torque M2: 420 Nm
	S102 22,13 132M2	Size: S102 \| Ratio i: 22.13 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 133.3 rpm \| Output torque M2: 498 Nm
	S102 22,13 132M4	Size: S102 \| Ratio i: 22.13 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 66.0 rpm \| Output torque M2: 1042 Nm
	S102 22,13 132MA6	Size: S102 \| Ratio i: 22.13 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 43.9 rpm \| Output torque M2: 845 Nm
	S102 22,13 132MB6	Size: S102 \| Ratio i: 22.13 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 43.8 rpm \| Output torque M2: 1162 Nm
	S102 22,13 132MS4	Size: S102 \| Ratio i: 22.13 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 759 Nm
	S102 22,13 132S2	Size: S102 \| Ratio i: 22.13 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 133.3 rpm \| Output torque M2: 365 Nm
	S102 22,13 132S6	Size: S102 \| Ratio i: 22.13 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 43.8 rpm \| Output torque M2: 634 Nm
	S102 24,28 112M2	Size: S102 \| Ratio i: 24.28 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 120.7 rpm \| Output torque M2: 293 Nm
	S102 24,28 112M4	Size: S102 \| Ratio i: 24.28 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 59.7 rpm \| Output torque M2: 614 Nm
	S102 24,28 112M6	Size: S102 \| Ratio i: 24.28 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 39.5 rpm \| Output torque M2: 515 Nm
	S102 24,28 112MS4	Size: S102 \| Ratio i: 24.28 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 59.7 rpm \| Output torque M2: 460 Nm
	S102 24,28 132M2	Size: S102 \| Ratio i: 24.28 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 121.5 rpm \| Output torque M2: 547 Nm
	S102 24,28 132M4	Size: S102 \| Ratio i: 24.28 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 60.1 rpm \| Output torque M2: 1143 Nm
	S102 24,28 132MA6	Size: S102 \| Ratio i: 24.28 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 39.9 rpm \| Output torque M2: 927 Nm
	S102 24,28 132MB6	Size: S102 \| Ratio i: 24.28 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 40.0 rpm \| Output torque M2: 1275 Nm
	S102 24,28 132MS4	Size: S102 \| Ratio i: 24.28 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 60.6 rpm \| Output torque M2: 833 Nm
	S102 24,28 132S2	Size: S102 \| Ratio i: 24.28 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 121.5 rpm \| Output torque M2: 401 Nm
	S102 24,28 132S6	Size: S102 \| Ratio i: 24.28 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 40.0 rpm \| Output torque M2: 695 Nm
	S102 26,33 112M2	Size: S102 \| Ratio i: 26.33 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 111.3 rpm \| Output torque M2: 318 Nm
	S102 26,33 112M4	Size: S102 \| Ratio i: 26.33 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 55.1 rpm \| Output torque M2: 666 Nm
	S102 26,33 112M6	Size: S102 \| Ratio i: 26.33 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 36.5 rpm \| Output torque M2: 559 Nm
	S102 26,33 112MS4	Size: S102 \| Ratio i: 26.33 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 55.1 rpm \| Output torque M2: 499 Nm
	S102 26,33 132M2	Size: S102 \| Ratio i: 26.33 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 112.0 rpm \| Output torque M2: 592 Nm
	S102 26,33 132M4	Size: S102 \| Ratio i: 26.33 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 55.5 rpm \| Output torque M2: 1240 Nm
	S102 26,33 132MA6	Size: S102 \| Ratio i: 26.33 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 36.8 rpm \| Output torque M2: 1006 Nm
	S102 26,33 132MB6	Size: S102 \| Ratio i: 26.33 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 36.8 rpm \| Output torque M2: 1383 Nm
	S102 26,33 132MS4	Size: S102 \| Ratio i: 26.33 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 55.9 rpm \| Output torque M2: 904 Nm
	S102 26,33 132S2	Size: S102 \| Ratio i: 26.33 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 112.0 rpm \| Output torque M2: 435 Nm
	S102 26,33 132S6	Size: S102 \| Ratio i: 26.33 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 36.9 rpm \| Output torque M2: 754 Nm
	S102 29,87 100L6	Size: S102 \| Ratio i: 29.87 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 31.4 rpm \| Output torque M2: 441 Nm
	S102 29,87 100LA4	Size: S102 \| Ratio i: 29.87 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 48.2 rpm \| Output torque M2: 419 Nm
	S102 29,87 112M2	Size: S102 \| Ratio i: 29.87 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 98.1 rpm \| Output torque M2: 361 Nm
	S102 29,87 112M4	Size: S102 \| Ratio i: 29.87 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 48.5 rpm \| Output torque M2: 756 Nm
	S102 29,87 112M6	Size: S102 \| Ratio i: 29.87 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 32.1 rpm \| Output torque M2: 634 Nm
	S102 29,87 112MS4	Size: S102 \| Ratio i: 29.87 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 48.5 rpm \| Output torque M2: 567 Nm
	S102 29,87 132M2	Size: S102 \| Ratio i: 29.87 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 98.8 rpm \| Output torque M2: 672 Nm
	S102 29,87 132M4	Size: S102 \| Ratio i: 29.87 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 48.9 rpm \| Output torque M2: 1407 Nm
	S102 29,87 132MA6	Size: S102 \| Ratio i: 29.87 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 32.5 rpm \| Output torque M2: 1141 Nm
	S102 29,87 132MB6	Size: S102 \| Ratio i: 29.87 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 32.4 rpm \| Output torque M2: 1569 Nm
	S102 29,87 132MS4	Size: S102 \| Ratio i: 29.87 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 49.2 rpm \| Output torque M2: 1025 Nm
	S102 29,87 132S2	Size: S102 \| Ratio i: 29.87 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 98.8 rpm \| Output torque M2: 493 Nm
	S102 29,87 132S6	Size: S102 \| Ratio i: 29.87 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 32.4 rpm \| Output torque M2: 855 Nm
	S102 32,40 100L2	Size: S102 \| Ratio i: 32.40 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 89.5 rpm \| Output torque M2: 297 Nm
	S102 32,40 100L6	Size: S102 \| Ratio i: 32.40 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 29.0 rpm \| Output torque M2: 479 Nm
	S102 32,40 100LA4	Size: S102 \| Ratio i: 32.40 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 44.5 rpm \| Output torque M2: 454 Nm
	S102 32,40 112M2	Size: S102 \| Ratio i: 32.40 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 90.4 rpm \| Output torque M2: 391 Nm
	S102 32,40 112M4	Size: S102 \| Ratio i: 32.40 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 44.7 rpm \| Output torque M2: 819 Nm
	S102 32,40 112M6	Size: S102 \| Ratio i: 32.40 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 29.6 rpm \| Output torque M2: 688 Nm
	S102 32,40 112MS4	Size: S102 \| Ratio i: 32.40 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 44.8 rpm \| Output torque M2: 615 Nm
	S102 32,40 132M2	Size: S102 \| Ratio i: 32.40 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 91.0 rpm \| Output torque M2: 729 Nm
	S102 32,40 132M4	Size: S102 \| Ratio i: 32.40 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 45.1 rpm \| Output torque M2: 1526 Nm
	S102 32,40 132MA6	Size: S102 \| Ratio i: 32.40 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 1237 Nm
	S102 32,40 132MB6	Size: S102 \| Ratio i: 32.40 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 1701 Nm
	S102 32,40 132MS4	Size: S102 \| Ratio i: 32.40 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 45.4 rpm \| Output torque M2: 1112 Nm
	S102 32,40 132S2	Size: S102 \| Ratio i: 32.40 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 91.0 rpm \| Output torque M2: 535 Nm
	S102 32,40 132S6	Size: S102 \| Ratio i: 32.40 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 928 Nm
	S102 34,91 100L2	Size: S102 \| Ratio i: 34.91 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 83.1 rpm \| Output torque M2: 320 Nm
	S102 34,91 100L6	Size: S102 \| Ratio i: 34.91 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 26.9 rpm \| Output torque M2: 516 Nm
	S102 34,91 100LA4	Size: S102 \| Ratio i: 34.91 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 41.3 rpm \| Output torque M2: 489 Nm
	S102 34,91 100LR6	Size: S102 \| Ratio i: 34.91 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 27.2 rpm \| Output torque M2: 374 Nm
	S102 34,91 112M2	Size: S102 \| Ratio i: 34.91 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 83.9 rpm \| Output torque M2: 422 Nm
	S102 34,91 112M4	Size: S102 \| Ratio i: 34.91 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 41.5 rpm \| Output torque M2: 883 Nm
	S102 34,91 112M6	Size: S102 \| Ratio i: 34.91 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 27.5 rpm \| Output torque M2: 741 Nm
	S102 34,91 112MS4	Size: S102 \| Ratio i: 34.91 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 41.5 rpm \| Output torque M2: 662 Nm
	S102 34,91 132M2	Size: S102 \| Ratio i: 34.91 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 84.5 rpm \| Output torque M2: 786 Nm
	S102 34,91 132MA6	Size: S102 \| Ratio i: 34.91 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 27.8 rpm \| Output torque M2: 1333 Nm
	S102 34,91 132MS4	Size: S102 \| Ratio i: 34.91 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 42.1 rpm \| Output torque M2: 1198 Nm
	S102 34,91 132S2	Size: S102 \| Ratio i: 34.91 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 84.5 rpm \| Output torque M2: 576 Nm
	S102 34,91 132S6	Size: S102 \| Ratio i: 34.91 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 27.8 rpm \| Output torque M2: 1000 Nm
	S102 38,30 100L2	Size: S102 \| Ratio i: 38.30 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 75.7 rpm \| Output torque M2: 351 Nm
	S102 38,30 100L6	Size: S102 \| Ratio i: 38.30 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 24.5 rpm \| Output torque M2: 566 Nm
	S102 38,30 100LA4	Size: S102 \| Ratio i: 38.30 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 37.6 rpm \| Output torque M2: 536 Nm
	S102 38,30 100LR6	Size: S102 \| Ratio i: 38.30 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 24.8 rpm \| Output torque M2: 411 Nm
	S102 38,30 112M2	Size: S102 \| Ratio i: 38.30 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 76.5 rpm \| Output torque M2: 463 Nm
	S102 38,30 112M4	Size: S102 \| Ratio i: 38.30 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 37.9 rpm \| Output torque M2: 969 Nm
	S102 38,30 112M6	Size: S102 \| Ratio i: 38.30 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 25.1 rpm \| Output torque M2: 813 Nm
	S102 38,30 112MS4	Size: S102 \| Ratio i: 38.30 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 37.9 rpm \| Output torque M2: 727 Nm
	S102 38,30 132M2	Size: S102 \| Ratio i: 38.30 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 77.0 rpm \| Output torque M2: 862 Nm
	S102 38,30 132MA6	Size: S102 \| Ratio i: 38.30 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 25.3 rpm \| Output torque M2: 1463 Nm
	S102 38,30 132MS4	Size: S102 \| Ratio i: 38.30 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 38.4 rpm \| Output torque M2: 1314 Nm
	S102 38,30 132S2	Size: S102 \| Ratio i: 38.30 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 77.0 rpm \| Output torque M2: 632 Nm
	S102 38,30 132S6	Size: S102 \| Ratio i: 38.30 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 25.3 rpm \| Output torque M2: 1097 Nm
	S102 38,30 90L4	Size: S102 \| Ratio i: 38.30 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 37.4 rpm \| Output torque M2: 368 Nm
	S102 42,53 100L2	Size: S102 \| Ratio i: 42.53 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 68.2 rpm \| Output torque M2: 389 Nm
	S102 42,53 100L6	Size: S102 \| Ratio i: 42.53 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 22.1 rpm \| Output torque M2: 628 Nm
	S102 42,53 100LA4	Size: S102 \| Ratio i: 42.53 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 33.9 rpm \| Output torque M2: 596 Nm
	S102 42,53 100LR6	Size: S102 \| Ratio i: 42.53 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 22.3 rpm \| Output torque M2: 456 Nm
	S102 42,53 112M2	Size: S102 \| Ratio i: 42.53 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 68.9 rpm \| Output torque M2: 514 Nm
	S102 42,53 112M4	Size: S102 \| Ratio i: 42.53 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 34.1 rpm \| Output torque M2: 1076 Nm
	S102 42,53 112M6	Size: S102 \| Ratio i: 42.53 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 22.6 rpm \| Output torque M2: 902 Nm
	S102 42,53 112MS4	Size: S102 \| Ratio i: 42.53 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 34.1 rpm \| Output torque M2: 807 Nm
	S102 42,53 132M2	Size: S102 \| Ratio i: 42.53 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 69.4 rpm \| Output torque M2: 957 Nm
	S102 42,53 132MA6	Size: S102 \| Ratio i: 42.53 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 22.8 rpm \| Output torque M2: 1624 Nm
	S102 42,53 132MS4	Size: S102 \| Ratio i: 42.53 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 34.5 rpm \| Output torque M2: 1459 Nm
	S102 42,53 132S2	Size: S102 \| Ratio i: 42.53 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 69.3 rpm \| Output torque M2: 702 Nm
	S102 42,53 132S6	Size: S102 \| Ratio i: 42.53 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 22.8 rpm \| Output torque M2: 1218 Nm
	S102 42,53 90L2	Size: S102 \| Ratio i: 42.53 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 67.7 rpm \| Output torque M2: 287 Nm
	S102 42,53 90L4	Size: S102 \| Ratio i: 42.53 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 33.6 rpm \| Output torque M2: 409 Nm
	S102 44,00 100L2	Size: S102 \| Ratio i: 44.00 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 65.9 rpm \| Output torque M2: 403 Nm
	S102 44,00 100L6	Size: S102 \| Ratio i: 44.00 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 21.3 rpm \| Output torque M2: 650 Nm
	S102 44,00 100LA4	Size: S102 \| Ratio i: 44.00 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 32.7 rpm \| Output torque M2: 617 Nm
	S102 44,00 100LR6	Size: S102 \| Ratio i: 44.00 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 21.6 rpm \| Output torque M2: 472 Nm
	S102 44,00 112M2	Size: S102 \| Ratio i: 44.00 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 66.6 rpm \| Output torque M2: 532 Nm
	S102 44,00 112M4	Size: S102 \| Ratio i: 44.00 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 32.9 rpm \| Output torque M2: 1113 Nm
	S102 44,00 112M6	Size: S102 \| Ratio i: 44.00 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 934 Nm
	S102 44,00 112MS4	Size: S102 \| Ratio i: 44.00 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 33.0 rpm \| Output torque M2: 835 Nm
	S102 44,00 90L2	Size: S102 \| Ratio i: 44.00 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 65.5 rpm \| Output torque M2: 297 Nm
	S102 44,00 90L4	Size: S102 \| Ratio i: 44.00 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 32.5 rpm \| Output torque M2: 423 Nm
	S102 47,13 100L2	Size: S102 \| Ratio i: 47.13 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 61.5 rpm \| Output torque M2: 432 Nm
	S102 47,13 100L6	Size: S102 \| Ratio i: 47.13 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 19.9 rpm \| Output torque M2: 697 Nm
	S102 47,13 100LA4	Size: S102 \| Ratio i: 47.13 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 30.5 rpm \| Output torque M2: 660 Nm
	S102 47,13 100LR6	Size: S102 \| Ratio i: 47.13 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 20.2 rpm \| Output torque M2: 505 Nm
	S102 47,13 112M2	Size: S102 \| Ratio i: 47.13 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 62.1 rpm \| Output torque M2: 569 Nm
	S102 47,13 112M4	Size: S102 \| Ratio i: 47.13 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 30.8 rpm \| Output torque M2: 1192 Nm
	S102 47,13 112M6	Size: S102 \| Ratio i: 47.13 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 20.4 rpm \| Output torque M2: 1000 Nm
	S102 47,13 112MS4	Size: S102 \| Ratio i: 47.13 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 30.8 rpm \| Output torque M2: 894 Nm
	S102 47,13 132M2	Size: S102 \| Ratio i: 47.13 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 62.5 rpm \| Output torque M2: 1060 Nm
	S102 47,13 132MA6	Size: S102 \| Ratio i: 47.13 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 20.6 rpm \| Output torque M2: 1800 Nm
	S102 47,13 132MS4	Size: S102 \| Ratio i: 47.13 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 31.2 rpm \| Output torque M2: 1617 Nm
	S102 47,13 132S2	Size: S102 \| Ratio i: 47.13 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 62.6 rpm \| Output torque M2: 777 Nm
	S102 47,13 132S6	Size: S102 \| Ratio i: 47.13 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 20.6 rpm \| Output torque M2: 1350 Nm
	S102 47,13 90L2	Size: S102 \| Ratio i: 47.13 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 61.1 rpm \| Output torque M2: 319 Nm
	S102 47,13 90L4	Size: S102 \| Ratio i: 47.13 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 30.3 rpm \| Output torque M2: 453 Nm
	S102 50,25 100L2	Size: S102 \| Ratio i: 50.25 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 57.7 rpm \| Output torque M2: 460 Nm
	S102 50,25 100L6	Size: S102 \| Ratio i: 50.25 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 18.7 rpm \| Output torque M2: 742 Nm
	S102 50,25 100LA4	Size: S102 \| Ratio i: 50.25 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 28.7 rpm \| Output torque M2: 704 Nm
	S102 50,25 100LR6	Size: S102 \| Ratio i: 50.25 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 18.9 rpm \| Output torque M2: 539 Nm
	S102 50,25 112M2	Size: S102 \| Ratio i: 50.25 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 58.3 rpm \| Output torque M2: 607 Nm
	S102 50,25 112M4	Size: S102 \| Ratio i: 50.25 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 28.9 rpm \| Output torque M2: 1271 Nm
	S102 50,25 112M6	Size: S102 \| Ratio i: 50.25 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 19.1 rpm \| Output torque M2: 1067 Nm
	S102 50,25 112MS4	Size: S102 \| Ratio i: 50.25 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 28.9 rpm \| Output torque M2: 953 Nm
	S102 50,25 90L2	Size: S102 \| Ratio i: 50.25 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 57.3 rpm \| Output torque M2: 340 Nm
	S102 50,25 90L4	Size: S102 \| Ratio i: 50.25 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 28.5 rpm \| Output torque M2: 484 Nm
	S102 50,25 90S4	Size: S102 \| Ratio i: 50.25 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 28.5 rpm \| Output torque M2: 354 Nm
	S102 50,25 90S6	Size: S102 \| Ratio i: 50.25 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 18.7 rpm \| Output torque M2: 371 Nm
	S102 55,14 100L2	Size: S102 \| Ratio i: 55.14 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 52.6 rpm \| Output torque M2: 505 Nm
	S102 55,14 100L6	Size: S102 \| Ratio i: 55.14 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 17.0 rpm \| Output torque M2: 815 Nm
	S102 55,14 100LA4	Size: S102 \| Ratio i: 55.14 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 26.1 rpm \| Output torque M2: 773 Nm
	S102 55,14 100LR6	Size: S102 \| Ratio i: 55.14 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 17.2 rpm \| Output torque M2: 591 Nm
	S102 55,14 112M2	Size: S102 \| Ratio i: 55.14 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 53.1 rpm \| Output torque M2: 666 Nm
	S102 55,14 112M4	Size: S102 \| Ratio i: 55.14 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 26.3 rpm \| Output torque M2: 1394 Nm
	S102 55,14 112M6	Size: S102 \| Ratio i: 55.14 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 17.4 rpm \| Output torque M2: 1170 Nm
	S102 55,14 112MS4	Size: S102 \| Ratio i: 55.14 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 26.3 rpm \| Output torque M2: 1046 Nm
	S102 55,14 90L2	Size: S102 \| Ratio i: 55.14 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 52.2 rpm \| Output torque M2: 373 Nm
	S102 55,14 90L4	Size: S102 \| Ratio i: 55.14 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 531 Nm
	S102 55,14 90S2	Size: S102 \| Ratio i: 55.14 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 51.9 rpm \| Output torque M2: 256 Nm
	S102 55,14 90S4	Size: S102 \| Ratio i: 55.14 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 389 Nm
	S102 55,14 90S6	Size: S102 \| Ratio i: 55.14 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 17.1 rpm \| Output torque M2: 407 Nm
	S102 59,40 100L2	Size: S102 \| Ratio i: 59.40 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 48.8 rpm \| Output torque M2: 544 Nm
	S102 59,40 100L6	Size: S102 \| Ratio i: 59.40 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 15.8 rpm \| Output torque M2: 878 Nm
	S102 59,40 100LA4	Size: S102 \| Ratio i: 59.40 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 24.3 rpm \| Output torque M2: 832 Nm
	S102 59,40 100LR6	Size: S102 \| Ratio i: 59.40 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 16.0 rpm \| Output torque M2: 637 Nm
	S102 59,40 112M2	Size: S102 \| Ratio i: 59.40 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 49.3 rpm \| Output torque M2: 718 Nm
	S102 59,40 112M4	Size: S102 \| Ratio i: 59.40 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 24.4 rpm \| Output torque M2: 1503 Nm
	S102 59,40 112M6	Size: S102 \| Ratio i: 59.40 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 16.2 rpm \| Output torque M2: 1260 Nm
	S102 59,40 112MS4	Size: S102 \| Ratio i: 59.40 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 24.4 rpm \| Output torque M2: 1127 Nm
	S102 59,40 90L2	Size: S102 \| Ratio i: 59.40 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 48.4 rpm \| Output torque M2: 401 Nm
	S102 59,40 90L4	Size: S102 \| Ratio i: 59.40 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 24.1 rpm \| Output torque M2: 571 Nm
	S102 59,40 90S4	Size: S102 \| Ratio i: 59.40 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 24.1 rpm \| Output torque M2: 419 Nm
	S102 59,40 90S6	Size: S102 \| Ratio i: 59.40 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 15.8 rpm \| Output torque M2: 439 Nm
	S102 67,84 100L2	Size: S102 \| Ratio i: 67.84 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 42.7 rpm \| Output torque M2: 621 Nm
	S102 67,84 100L6	Size: S102 \| Ratio i: 67.84 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 13.8 rpm \| Output torque M2: 1002 Nm
	S102 67,84 100LA4	Size: S102 \| Ratio i: 67.84 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 21.2 rpm \| Output torque M2: 951 Nm
	S102 67,84 100LR6	Size: S102 \| Ratio i: 67.84 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 14.0 rpm \| Output torque M2: 727 Nm
	S102 67,84 112M2	Size: S102 \| Ratio i: 67.84 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 43.1 rpm \| Output torque M2: 820 Nm
	S102 67,84 112M4	Size: S102 \| Ratio i: 67.84 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 21.3 rpm \| Output torque M2: 1716 Nm
	S102 67,84 112M6	Size: S102 \| Ratio i: 67.84 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 14.2 rpm \| Output torque M2: 1440 Nm
	S102 67,84 112MS4	Size: S102 \| Ratio i: 67.84 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 21.4 rpm \| Output torque M2: 1287 Nm
	S102 67,84 90L2	Size: S102 \| Ratio i: 67.84 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 42.5 rpm \| Output torque M2: 459 Nm
	S102 67,84 90L4	Size: S102 \| Ratio i: 67.84 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 21.0 rpm \| Output torque M2: 652 Nm
	S102 67,84 90S2	Size: S102 \| Ratio i: 67.84 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 42.2 rpm \| Output torque M2: 315 Nm
	S102 67,84 90S4	Size: S102 \| Ratio i: 67.84 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 21.0 rpm \| Output torque M2: 479 Nm
	S102 67,84 90S6	Size: S102 \| Ratio i: 67.84 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 501 Nm
	S103 74,18 100L2	Size: S103 \| Ratio i: 74.18 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 39.1 rpm \| Output torque M2: 665 Nm
	S103 74,18 100L6	Size: S103 \| Ratio i: 74.18 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 1073 Nm
	S103 74,18 100LA4	Size: S103 \| Ratio i: 74.18 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 19.4 rpm \| Output torque M2: 1018 Nm
	S103 74,18 100LR6	Size: S103 \| Ratio i: 74.18 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 12.8 rpm \| Output torque M2: 779 Nm
	S103 74,18 112M2	Size: S103 \| Ratio i: 74.18 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 39.5 rpm \| Output torque M2: 877 Nm
	S103 74,18 112M6	Size: S103 \| Ratio i: 74.18 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 12.9 rpm \| Output torque M2: 1541 Nm
	S103 74,18 112MS4	Size: S103 \| Ratio i: 74.18 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 19.5 rpm \| Output torque M2: 1378 Nm
	S103 74,18 90L2	Size: S103 \| Ratio i: 74.18 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 38.8 rpm \| Output torque M2: 491 Nm
	S103 74,18 90L4	Size: S103 \| Ratio i: 74.18 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 699 Nm
	S103 74,18 90S2	Size: S103 \| Ratio i: 74.18 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 38.6 rpm \| Output torque M2: 337 Nm
	S103 74,18 90S4	Size: S103 \| Ratio i: 74.18 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 512 Nm
	S103 74,18 90S6	Size: S103 \| Ratio i: 74.18 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 537 Nm
	S103 81,39 100L2	Size: S103 \| Ratio i: 81.39 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 35.7 rpm \| Output torque M2: 729 Nm
	S103 81,39 100L6	Size: S103 \| Ratio i: 81.39 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 11.5 rpm \| Output torque M2: 1178 Nm
	S103 81,39 100LA4	Size: S103 \| Ratio i: 81.39 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 17.7 rpm \| Output torque M2: 1116 Nm
	S103 81,39 100LR6	Size: S103 \| Ratio i: 81.39 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 11.7 rpm \| Output torque M2: 855 Nm
	S103 81,39 112M2	Size: S103 \| Ratio i: 81.39 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 36.0 rpm \| Output torque M2: 963 Nm
	S103 81,39 112M6	Size: S103 \| Ratio i: 81.39 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 1691 Nm
	S103 81,39 112MS4	Size: S103 \| Ratio i: 81.39 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 17.8 rpm \| Output torque M2: 1512 Nm
	S103 81,39 80B6	Size: S103 \| Ratio i: 81.39 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 11.5 rpm \| Output torque M2: 431 Nm
	S103 81,39 90L2	Size: S103 \| Ratio i: 81.39 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 35.4 rpm \| Output torque M2: 539 Nm
	S103 81,39 90L4	Size: S103 \| Ratio i: 81.39 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 767 Nm
	S103 81,39 90S2	Size: S103 \| Ratio i: 81.39 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 35.2 rpm \| Output torque M2: 370 Nm
	S103 81,39 90S4	Size: S103 \| Ratio i: 81.39 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 17.6 rpm \| Output torque M2: 562 Nm
	S103 81,39 90S6	Size: S103 \| Ratio i: 81.39 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 11.5 rpm \| Output torque M2: 589 Nm
	S103 89,77 100L2	Size: S103 \| Ratio i: 89.77 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 32.3 rpm \| Output torque M2: 805 Nm
	S103 89,77 100L6	Size: S103 \| Ratio i: 89.77 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 10.5 rpm \| Output torque M2: 1299 Nm
	S103 89,77 100LA4	Size: S103 \| Ratio i: 89.77 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 16.0 rpm \| Output torque M2: 1231 Nm
	S103 89,77 100LR6	Size: S103 \| Ratio i: 89.77 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 10.6 rpm \| Output torque M2: 942 Nm
	S103 89,77 112M2	Size: S103 \| Ratio i: 89.77 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 32.6 rpm \| Output torque M2: 1062 Nm
	S103 89,77 112M6	Size: S103 \| Ratio i: 89.77 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 10.7 rpm \| Output torque M2: 1865 Nm
	S103 89,77 112MS4	Size: S103 \| Ratio i: 89.77 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 16.2 rpm \| Output torque M2: 1667 Nm
	S103 89,77 80B2	Size: S103 \| Ratio i: 89.77 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 31.8 rpm \| Output torque M2: 299 Nm
	S103 89,77 80B4	Size: S103 \| Ratio i: 89.77 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 16.0 rpm \| Output torque M2: 420 Nm
	S103 89,77 80B6	Size: S103 \| Ratio i: 89.77 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 10.5 rpm \| Output torque M2: 476 Nm
	S103 89,77 90L2	Size: S103 \| Ratio i: 89.77 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 32.1 rpm \| Output torque M2: 594 Nm
	S103 89,77 90L4	Size: S103 \| Ratio i: 89.77 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 15.9 rpm \| Output torque M2: 845 Nm
	S103 89,77 90S2	Size: S103 \| Ratio i: 89.77 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 31.8 rpm \| Output torque M2: 408 Nm
	S103 89,77 90S4	Size: S103 \| Ratio i: 89.77 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 15.9 rpm \| Output torque M2: 620 Nm
	S103 89,77 90S6	Size: S103 \| Ratio i: 89.77 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 10.5 rpm \| Output torque M2: 649 Nm
	S103 100,15 100L2	Size: S103 \| Ratio i: 100.15 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 29.0 rpm \| Output torque M2: 898 Nm
	S103 100,15 100L6	Size: S103 \| Ratio i: 100.15 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 9.4 rpm \| Output torque M2: 1449 Nm
	S103 100,15 100LA4	Size: S103 \| Ratio i: 100.15 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 1374 Nm
	S103 100,15 100LR6	Size: S103 \| Ratio i: 100.15 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1051 Nm
	S103 100,15 112M2	Size: S103 \| Ratio i: 100.15 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 29.3 rpm \| Output torque M2: 1185 Nm
	S103 100,15 80B2	Size: S103 \| Ratio i: 100.15 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 28.6 rpm \| Output torque M2: 334 Nm
	S103 100,15 80B4	Size: S103 \| Ratio i: 100.15 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 469 Nm
	S103 100,15 80B6	Size: S103 \| Ratio i: 100.15 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 9.4 rpm \| Output torque M2: 531 Nm
	S103 100,15 90L2	Size: S103 \| Ratio i: 100.15 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 28.8 rpm \| Output torque M2: 663 Nm
	S103 100,15 90L4	Size: S103 \| Ratio i: 100.15 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 943 Nm
	S103 100,15 90S2	Size: S103 \| Ratio i: 100.15 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 28.6 rpm \| Output torque M2: 455 Nm
	S103 100,15 90S4	Size: S103 \| Ratio i: 100.15 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 692 Nm
	S103 100,15 90S6	Size: S103 \| Ratio i: 100.15 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 9.4 rpm \| Output torque M2: 724 Nm
	S103 110,55 100L2	Size: S103 \| Ratio i: 110.55 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 26.2 rpm \| Output torque M2: 991 Nm
	S103 110,55 100L6	Size: S103 \| Ratio i: 110.55 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 8.5 rpm \| Output torque M2: 1600 Nm
	S103 110,55 100LA4	Size: S103 \| Ratio i: 110.55 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 1516 Nm
	S103 110,55 100LR6	Size: S103 \| Ratio i: 110.55 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 1161 Nm
	S103 110,55 71C6	Size: S103 \| Ratio i: 110.55 \| Motor: 71C6 \| Power P1: 0.37 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 412 Nm
	S103 110,55 80B2	Size: S103 \| Ratio i: 110.55 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 368 Nm
	S103 110,55 80B4	Size: S103 \| Ratio i: 110.55 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 13.1 rpm \| Output torque M2: 517 Nm
	S103 110,55 80B6	Size: S103 \| Ratio i: 110.55 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 8.5 rpm \| Output torque M2: 587 Nm
	S103 110,55 90L2	Size: S103 \| Ratio i: 110.55 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 26.1 rpm \| Output torque M2: 732 Nm
	S103 110,55 90L4	Size: S103 \| Ratio i: 110.55 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 12.9 rpm \| Output torque M2: 1041 Nm
	S103 110,55 90S2	Size: S103 \| Ratio i: 110.55 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 503 Nm
	S103 110,55 90S4	Size: S103 \| Ratio i: 110.55 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 13.0 rpm \| Output torque M2: 764 Nm
	S103 110,55 90S6	Size: S103 \| Ratio i: 110.55 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 8.5 rpm \| Output torque M2: 800 Nm
	S103 121,29 100L2	Size: S103 \| Ratio i: 121.29 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 23.9 rpm \| Output torque M2: 1087 Nm
	S103 121,29 100L6	Size: S103 \| Ratio i: 121.29 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 1755 Nm
	S103 121,29 100LA4	Size: S103 \| Ratio i: 121.29 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 1664 Nm
	S103 121,29 100LR6	Size: S103 \| Ratio i: 121.29 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 1273 Nm
	S103 121,29 71C4	Size: S103 \| Ratio i: 121.29 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 11.5 rpm \| Output torque M2: 428 Nm
	S103 121,29 71C6	Size: S103 \| Ratio i: 121.29 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 452 Nm
	S103 121,29 80A4	Size: S103 \| Ratio i: 121.29 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 11.5 rpm \| Output torque M2: 428 Nm
	S103 121,29 80A6	Size: S103 \| Ratio i: 121.29 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 452 Nm
	S103 121,29 80B2	Size: S103 \| Ratio i: 121.29 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 23.6 rpm \| Output torque M2: 404 Nm
	S103 121,29 80B4	Size: S103 \| Ratio i: 121.29 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 567 Nm
	S103 121,29 80B6	Size: S103 \| Ratio i: 121.29 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 643 Nm
	S103 121,29 90L2	Size: S103 \| Ratio i: 121.29 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 23.7 rpm \| Output torque M2: 803 Nm
	S103 121,29 90L4	Size: S103 \| Ratio i: 121.29 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 11.7 rpm \| Output torque M2: 1143 Nm
	S103 121,29 90S2	Size: S103 \| Ratio i: 121.29 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 23.6 rpm \| Output torque M2: 551 Nm
	S103 121,29 90S4	Size: S103 \| Ratio i: 121.29 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 11.7 rpm \| Output torque M2: 838 Nm
	S103 121,29 90S6	Size: S103 \| Ratio i: 121.29 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 878 Nm
	S103 128,73 100L2	Size: S103 \| Ratio i: 128.73 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 22.5 rpm \| Output torque M2: 1154 Nm
	S103 128,73 100L6	Size: S103 \| Ratio i: 128.73 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 7.3 rpm \| Output torque M2: 1862 Nm
	S103 128,73 100LA4	Size: S103 \| Ratio i: 128.73 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 1765 Nm
	S103 128,73 100LR6	Size: S103 \| Ratio i: 128.73 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 1351 Nm
	S103 128,73 71C4	Size: S103 \| Ratio i: 128.73 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 454 Nm
	S103 128,73 71C6	Size: S103 \| Ratio i: 128.73 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 480 Nm
	S103 128,73 80A4	Size: S103 \| Ratio i: 128.73 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 454 Nm
	S103 128,73 80A6	Size: S103 \| Ratio i: 128.73 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 480 Nm
	S103 128,73 80B2	Size: S103 \| Ratio i: 128.73 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 429 Nm
	S103 128,73 80B4	Size: S103 \| Ratio i: 128.73 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 602 Nm
	S103 128,73 80B6	Size: S103 \| Ratio i: 128.73 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 7.3 rpm \| Output torque M2: 683 Nm
	S103 128,73 90L2	Size: S103 \| Ratio i: 128.73 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 22.4 rpm \| Output torque M2: 852 Nm
	S103 128,73 90L4	Size: S103 \| Ratio i: 128.73 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 1212 Nm
	S103 128,73 90S2	Size: S103 \| Ratio i: 128.73 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 585 Nm
	S103 128,73 90S4	Size: S103 \| Ratio i: 128.73 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 889 Nm
	S103 128,73 90S6	Size: S103 \| Ratio i: 128.73 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 7.3 rpm \| Output torque M2: 931 Nm
	S103 141,24 100LR6	Size: S103 \| Ratio i: 141.24 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 6.7 rpm \| Output torque M2: 1483 Nm
	S103 141,24 71C4	Size: S103 \| Ratio i: 141.24 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 9.9 rpm \| Output torque M2: 498 Nm
	S103 141,24 71C6	Size: S103 \| Ratio i: 141.24 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 526 Nm
	S103 141,24 80A2	Size: S103 \| Ratio i: 141.24 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 20.3 rpm \| Output torque M2: 321 Nm
	S103 141,24 80A4	Size: S103 \| Ratio i: 141.24 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 9.9 rpm \| Output torque M2: 498 Nm
	S103 141,24 80A6	Size: S103 \| Ratio i: 141.24 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 526 Nm
	S103 141,24 80B2	Size: S103 \| Ratio i: 141.24 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 20.2 rpm \| Output torque M2: 471 Nm
	S103 141,24 80B4	Size: S103 \| Ratio i: 141.24 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 660 Nm
	S103 141,24 80B6	Size: S103 \| Ratio i: 141.24 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 6.7 rpm \| Output torque M2: 749 Nm
	S103 141,24 90L2	Size: S103 \| Ratio i: 141.24 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 20.4 rpm \| Output torque M2: 935 Nm
	S103 141,24 90L4	Size: S103 \| Ratio i: 141.24 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 10.1 rpm \| Output torque M2: 1330 Nm
	S103 141,24 90S2	Size: S103 \| Ratio i: 141.24 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 20.2 rpm \| Output torque M2: 642 Nm
	S103 141,24 90S4	Size: S103 \| Ratio i: 141.24 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 10.1 rpm \| Output torque M2: 975 Nm
	S103 141,24 90S6	Size: S103 \| Ratio i: 141.24 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 6.7 rpm \| Output torque M2: 1022 Nm
	S103 173,78 100LR6	Size: S103 \| Ratio i: 173.78 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 1824 Nm
	S103 173,78 71B4	Size: S103 \| Ratio i: 173.78 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 8.0 rpm \| Output torque M2: 412 Nm
	S103 173,78 71B6	Size: S103 \| Ratio i: 173.78 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 5.3 rpm \| Output torque M2: 433 Nm
	S103 173,78 71C4	Size: S103 \| Ratio i: 173.78 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 8.1 rpm \| Output torque M2: 613 Nm
	S103 173,78 71C6	Size: S103 \| Ratio i: 173.78 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 647 Nm
	S103 173,78 80A2	Size: S103 \| Ratio i: 173.78 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 16.4 rpm \| Output torque M2: 395 Nm
	S103 173,78 80A4	Size: S103 \| Ratio i: 173.78 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 8.1 rpm \| Output torque M2: 613 Nm
	S103 173,78 80A6	Size: S103 \| Ratio i: 173.78 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 647 Nm
	S103 173,78 80B2	Size: S103 \| Ratio i: 173.78 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 579 Nm
	S103 173,78 80B4	Size: S103 \| Ratio i: 173.78 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 813 Nm
	S103 173,78 80B6	Size: S103 \| Ratio i: 173.78 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 922 Nm
	S103 173,78 90L2	Size: S103 \| Ratio i: 173.78 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 16.6 rpm \| Output torque M2: 1150 Nm
	S103 173,78 90L4	Size: S103 \| Ratio i: 173.78 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 1637 Nm
	S103 173,78 90S2	Size: S103 \| Ratio i: 173.78 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 790 Nm
	S103 173,78 90S4	Size: S103 \| Ratio i: 173.78 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 1200 Nm
	S103 173,78 90S6	Size: S103 \| Ratio i: 173.78 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 5.4 rpm \| Output torque M2: 1257 Nm
	S103 188,51 71B2	Size: S103 \| Ratio i: 188.51 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 15.0 rpm \| Output torque M2: 318 Nm
	S103 188,51 71B4	Size: S103 \| Ratio i: 188.51 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 448 Nm
	S103 188,51 71B6	Size: S103 \| Ratio i: 188.51 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 470 Nm
	S103 188,51 71C4	Size: S103 \| Ratio i: 188.51 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 664 Nm
	S103 188,51 71C6	Size: S103 \| Ratio i: 188.51 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 703 Nm
	S103 188,51 80A2	Size: S103 \| Ratio i: 188.51 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 15.2 rpm \| Output torque M2: 428 Nm
	S103 188,51 80A4	Size: S103 \| Ratio i: 188.51 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 7.5 rpm \| Output torque M2: 664 Nm
	S103 188,51 80A6	Size: S103 \| Ratio i: 188.51 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 703 Nm
	S103 188,51 80B2	Size: S103 \| Ratio i: 188.51 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 15.2 rpm \| Output torque M2: 629 Nm
	S103 188,51 80B4	Size: S103 \| Ratio i: 188.51 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 7.7 rpm \| Output torque M2: 882 Nm
	S103 188,51 80B6	Size: S103 \| Ratio i: 188.51 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 1000 Nm
	S103 188,51 90L4	Size: S103 \| Ratio i: 188.51 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 1775 Nm
	S103 188,51 90S2	Size: S103 \| Ratio i: 188.51 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 15.2 rpm \| Output torque M2: 857 Nm
	S103 188,51 90S4	Size: S103 \| Ratio i: 188.51 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 1302 Nm
	S103 188,51 90S6	Size: S103 \| Ratio i: 188.51 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 1364 Nm
	S103 203,11 71B2	Size: S103 \| Ratio i: 203.11 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 342 Nm
	S103 203,11 71B4	Size: S103 \| Ratio i: 203.11 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 6.9 rpm \| Output torque M2: 482 Nm
	S103 203,11 71B6	Size: S103 \| Ratio i: 203.11 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 506 Nm
	S103 203,11 71C4	Size: S103 \| Ratio i: 203.11 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 716 Nm
	S103 203,11 71C6	Size: S103 \| Ratio i: 203.11 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 757 Nm
	S103 203,11 80A2	Size: S103 \| Ratio i: 203.11 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 14.0 rpm \| Output torque M2: 462 Nm
	S103 203,11 80A4	Size: S103 \| Ratio i: 203.11 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 716 Nm
	S103 203,11 80A6	Size: S103 \| Ratio i: 203.11 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 757 Nm
	S103 203,11 80B2	Size: S103 \| Ratio i: 203.11 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 14.1 rpm \| Output torque M2: 677 Nm
	S103 203,11 80B4	Size: S103 \| Ratio i: 203.11 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 7.1 rpm \| Output torque M2: 950 Nm
	S103 203,11 80B6	Size: S103 \| Ratio i: 203.11 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.6 rpm \| Output torque M2: 1077 Nm
	S103 203,11 90S2	Size: S103 \| Ratio i: 203.11 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 14.1 rpm \| Output torque M2: 923 Nm
	S103 203,11 90S4	Size: S103 \| Ratio i: 203.11 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 1403 Nm
	S103 203,11 90S6	Size: S103 \| Ratio i: 203.11 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 4.6 rpm \| Output torque M2: 1469 Nm
	S103 222,85 71B2	Size: S103 \| Ratio i: 222.85 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 375 Nm
	S103 222,85 71B4	Size: S103 \| Ratio i: 222.85 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 528 Nm
	S103 222,85 71B6	Size: S103 \| Ratio i: 222.85 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 555 Nm
	S103 222,85 71C4	Size: S103 \| Ratio i: 222.85 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 786 Nm
	S103 222,85 71C6	Size: S103 \| Ratio i: 222.85 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 831 Nm
	S103 222,85 80A2	Size: S103 \| Ratio i: 222.85 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 12.8 rpm \| Output torque M2: 506 Nm
	S103 222,85 80A4	Size: S103 \| Ratio i: 222.85 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 786 Nm
	S103 222,85 80A6	Size: S103 \| Ratio i: 222.85 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 831 Nm
	S103 222,85 80B2	Size: S103 \| Ratio i: 222.85 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 12.8 rpm \| Output torque M2: 743 Nm
	S103 222,85 80B4	Size: S103 \| Ratio i: 222.85 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 1042 Nm
	S103 222,85 80B6	Size: S103 \| Ratio i: 222.85 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 1182 Nm
	S103 222,85 90S2	Size: S103 \| Ratio i: 222.85 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 12.8 rpm \| Output torque M2: 1013 Nm
	S103 222,85 90S4	Size: S103 \| Ratio i: 222.85 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 1539 Nm
	S103 222,85 90S6	Size: S103 \| Ratio i: 222.85 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 1612 Nm
	S103 224,76 71B2	Size: S103 \| Ratio i: 224.76 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 378 Nm
	S103 224,76 71B4	Size: S103 \| Ratio i: 224.76 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 533 Nm
	S103 224,76 71B6	Size: S103 \| Ratio i: 224.76 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 560 Nm
	S103 224,76 71C4	Size: S103 \| Ratio i: 224.76 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 793 Nm
	S103 224,76 71C6	Size: S103 \| Ratio i: 224.76 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 838 Nm
	S103 224,76 80A2	Size: S103 \| Ratio i: 224.76 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 511 Nm
	S103 224,76 80A4	Size: S103 \| Ratio i: 224.76 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 793 Nm
	S103 224,76 80A6	Size: S103 \| Ratio i: 224.76 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 838 Nm
	S103 224,76 80B2	Size: S103 \| Ratio i: 224.76 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 749 Nm
	S103 224,76 80B4	Size: S103 \| Ratio i: 224.76 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 1051 Nm
	S103 224,76 80B6	Size: S103 \| Ratio i: 224.76 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.1 rpm \| Output torque M2: 1192 Nm
	S103 224,76 90S2	Size: S103 \| Ratio i: 224.76 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 12.8 rpm \| Output torque M2: 1022 Nm
	S103 224,76 90S4	Size: S103 \| Ratio i: 224.76 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 1552 Nm
	S103 224,76 90S6	Size: S103 \| Ratio i: 224.76 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 1626 Nm
	S103 274,20 71A4	Size: S103 \| Ratio i: 274.20 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 446 Nm
	S103 274,20 71A6	Size: S103 \| Ratio i: 274.20 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 3.3 rpm \| Output torque M2: 497 Nm
	S103 274,20 71B2	Size: S103 \| Ratio i: 274.20 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 10.3 rpm \| Output torque M2: 462 Nm
	S103 274,20 71B4	Size: S103 \| Ratio i: 274.20 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 651 Nm
	S103 274,20 71B6	Size: S103 \| Ratio i: 274.20 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 3.3 rpm \| Output torque M2: 683 Nm
	S103 274,20 71C4	Size: S103 \| Ratio i: 274.20 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 967 Nm
	S103 274,20 71C6	Size: S103 \| Ratio i: 274.20 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.3 rpm \| Output torque M2: 1022 Nm
	S103 274,20 80A2	Size: S103 \| Ratio i: 274.20 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 10.4 rpm \| Output torque M2: 623 Nm
	S103 274,20 80A4	Size: S103 \| Ratio i: 274.20 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 967 Nm
	S103 274,20 80A6	Size: S103 \| Ratio i: 274.20 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.3 rpm \| Output torque M2: 1022 Nm
	S103 274,20 80B2	Size: S103 \| Ratio i: 274.20 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 10.4 rpm \| Output torque M2: 914 Nm
	S103 274,20 80B4	Size: S103 \| Ratio i: 274.20 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 1282 Nm
	S103 274,20 80B6	Size: S103 \| Ratio i: 274.20 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 1454 Nm
	S103 280,89 71A4	Size: S103 \| Ratio i: 280.89 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 457 Nm
	S103 280,89 71A6	Size: S103 \| Ratio i: 280.89 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 3.2 rpm \| Output torque M2: 509 Nm
	S103 280,89 71B2	Size: S103 \| Ratio i: 280.89 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 10.1 rpm \| Output torque M2: 473 Nm
	S103 280,89 71B4	Size: S103 \| Ratio i: 280.89 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 666 Nm
	S103 280,89 71B6	Size: S103 \| Ratio i: 280.89 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 3.2 rpm \| Output torque M2: 699 Nm
	S103 280,89 71C4	Size: S103 \| Ratio i: 280.89 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 990 Nm
	S103 280,89 71C6	Size: S103 \| Ratio i: 280.89 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.2 rpm \| Output torque M2: 1047 Nm
	S103 280,89 80A2	Size: S103 \| Ratio i: 280.89 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 639 Nm
	S103 280,89 80A4	Size: S103 \| Ratio i: 280.89 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 990 Nm
	S103 280,89 80A6	Size: S103 \| Ratio i: 280.89 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.2 rpm \| Output torque M2: 1047 Nm
	S103 280,89 80B2	Size: S103 \| Ratio i: 280.89 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 936 Nm
	S103 280,89 80B4	Size: S103 \| Ratio i: 280.89 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 1314 Nm
	S103 280,89 80B6	Size: S103 \| Ratio i: 280.89 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 3.3 rpm \| Output torque M2: 1490 Nm
	S103 292,36 71A4	Size: S103 \| Ratio i: 292.36 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 475 Nm
	S103 292,36 71A6	Size: S103 \| Ratio i: 292.36 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 530 Nm
	S103 292,36 71B2	Size: S103 \| Ratio i: 292.36 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 9.7 rpm \| Output torque M2: 493 Nm
	S103 292,36 71B4	Size: S103 \| Ratio i: 292.36 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 694 Nm
	S103 292,36 71B6	Size: S103 \| Ratio i: 292.36 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 728 Nm
	S103 292,36 71C4	Size: S103 \| Ratio i: 292.36 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 1031 Nm
	S103 292,36 71C6	Size: S103 \| Ratio i: 292.36 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 1090 Nm
	S103 292,36 80A2	Size: S103 \| Ratio i: 292.36 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 664 Nm
	S103 292,36 80A4	Size: S103 \| Ratio i: 292.36 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 1031 Nm
	S103 292,36 80A6	Size: S103 \| Ratio i: 292.36 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 1090 Nm
	S103 292,36 80B2	Size: S103 \| Ratio i: 292.36 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 974 Nm
	S103 292,36 80B4	Size: S103 \| Ratio i: 292.36 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 1367 Nm
	S103 292,36 80B6	Size: S103 \| Ratio i: 292.36 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 3.2 rpm \| Output torque M2: 1551 Nm
	S103 320,79 71A4	Size: S103 \| Ratio i: 320.79 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 4.3 rpm \| Output torque M2: 522 Nm
	S103 320,79 71A6	Size: S103 \| Ratio i: 320.79 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 2.8 rpm \| Output torque M2: 582 Nm
	S103 320,79 71B2	Size: S103 \| Ratio i: 320.79 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 8.9 rpm \| Output torque M2: 540 Nm
	S103 320,79 71B4	Size: S103 \| Ratio i: 320.79 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 761 Nm
	S103 320,79 71B6	Size: S103 \| Ratio i: 320.79 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 2.8 rpm \| Output torque M2: 799 Nm
	S103 320,79 71C4	Size: S103 \| Ratio i: 320.79 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 1131 Nm
	S103 320,79 71C6	Size: S103 \| Ratio i: 320.79 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 2.8 rpm \| Output torque M2: 1196 Nm
	S103 320,79 80A2	Size: S103 \| Ratio i: 320.79 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 729 Nm
	S103 320,79 80A4	Size: S103 \| Ratio i: 320.79 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 1131 Nm
	S103 320,79 80A6	Size: S103 \| Ratio i: 320.79 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 2.8 rpm \| Output torque M2: 1196 Nm
	S103 320,79 80B2	Size: S103 \| Ratio i: 320.79 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 8.9 rpm \| Output torque M2: 1069 Nm
	S103 320,79 80B4	Size: S103 \| Ratio i: 320.79 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 4.5 rpm \| Output torque M2: 1500 Nm
	S103 320,79 80B6	Size: S103 \| Ratio i: 320.79 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 2.9 rpm \| Output torque M2: 1702 Nm
	S103 345,60 71A4	Size: S103 \| Ratio i: 345.60 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 562 Nm
	S103 345,60 71A6	Size: S103 \| Ratio i: 345.60 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 2.6 rpm \| Output torque M2: 627 Nm
	S103 345,60 71B2	Size: S103 \| Ratio i: 345.60 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 582 Nm
	S103 345,60 71B4	Size: S103 \| Ratio i: 345.60 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 4.1 rpm \| Output torque M2: 820 Nm
	S103 345,60 71B6	Size: S103 \| Ratio i: 345.60 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 2.6 rpm \| Output torque M2: 861 Nm
	S103 345,60 71C4	Size: S103 \| Ratio i: 345.60 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 4.1 rpm \| Output torque M2: 1219 Nm
	S103 345,60 71C6	Size: S103 \| Ratio i: 345.60 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 2.6 rpm \| Output torque M2: 1288 Nm
	S103 345,60 80A2	Size: S103 \| Ratio i: 345.60 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 785 Nm
	S103 345,60 80A4	Size: S103 \| Ratio i: 345.60 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 4.1 rpm \| Output torque M2: 1219 Nm
	S103 345,60 80A6	Size: S103 \| Ratio i: 345.60 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 2.6 rpm \| Output torque M2: 1288 Nm
	S103 345,60 80B2	Size: S103 \| Ratio i: 345.60 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 1152 Nm
	S103 345,60 80B4	Size: S103 \| Ratio i: 345.60 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 1616 Nm
	S103 345,60 80B6	Size: S103 \| Ratio i: 345.60 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 2.7 rpm \| Output torque M2: 1833 Nm
	S103 394,69 71A4	Size: S103 \| Ratio i: 394.69 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 3.5 rpm \| Output torque M2: 642 Nm
	S103 394,69 71A6	Size: S103 \| Ratio i: 394.69 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 2.3 rpm \| Output torque M2: 716 Nm
	S103 394,69 71B2	Size: S103 \| Ratio i: 394.69 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 664 Nm
	S103 394,69 71B4	Size: S103 \| Ratio i: 394.69 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 3.6 rpm \| Output torque M2: 936 Nm
	S103 394,69 71B6	Size: S103 \| Ratio i: 394.69 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 2.3 rpm \| Output torque M2: 983 Nm
	S103 394,69 71C4	Size: S103 \| Ratio i: 394.69 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 3.6 rpm \| Output torque M2: 1392 Nm
	S103 394,69 71C6	Size: S103 \| Ratio i: 394.69 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 2.2 rpm \| Output torque M2: 1472 Nm
	S103 394,69 80A2	Size: S103 \| Ratio i: 394.69 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 897 Nm
	S103 394,69 80A4	Size: S103 \| Ratio i: 394.69 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 3.6 rpm \| Output torque M2: 1392 Nm
	S103 394,69 80A6	Size: S103 \| Ratio i: 394.69 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 2.2 rpm \| Output torque M2: 1472 Nm
	S 083 315,73 80A4	Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 315.73 \| Motor: 80A4
	S 083 91,49 80C4	Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 91.49 \| Motor: 80C4
	S 083 117,17 80C4	Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 117.17 \| Motor: 80C4
	S 083 128,73 80C4	Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 128.73 \| Motor: 80C4
	S 083 158,76 80C4	Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 158.76 \| Motor: 80C4
	S 083 184,88 80C4	Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 184.88 \| Motor: 80C4
	S 103 128,73 80C4	Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 128.73 \| Motor: 80C4
	S 103 141,24 80C4	Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 141.24 \| Motor: 80C4
	S 103 173,78 80C4	Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 173.78 \| Motor: 80C4
	S 103 203,11 80C4	Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 203.11 \| Motor: 80C4
	S 103 222,85 80C4	Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 222.85 \| Motor: 80C4
	S 103 274,20 80C4	Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 274.20 \| Motor: 80C4
	S 082 40,05 90LL4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 40.05 \| Motor: 90LL4
	S 082 43,05 90LL4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 43.05 \| Motor: 90LL4
	S 082 50,25 90LL4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 50.25 \| Motor: 90LL4
	S 082 54,27 90LL4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 54.27 \| Motor: 90LL4
	S 082 61,98 90LL4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 61.98 \| Motor: 90LL4
	S 083 67,52 90LL4	Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 67.52 \| Motor: 90LL4
	S 083 74,18 90LL4	Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 74.18 \| Motor: 90LL4
	S 083 91,49 90LL4	Legacy code (earlier catalogue edition) \| Size: S083 \| Ratio i: 91.49 \| Motor: 90LL4
	S 102 55,14 90LL4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 55.14 \| Motor: 90LL4
	S 102 59,40 90LL4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 59.40 \| Motor: 90LL4
	S 102 67,84 90LL4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 67.84 \| Motor: 90LL4
	S 103 74,18 90LL4	Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 74.18 \| Motor: 90LL4
	S 103 81,39 90LL4	Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 81.39 \| Motor: 90LL4
	S 103 100,15 90LL4	Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 100.15 \| Motor: 90LL4
	S 103 110,55 90LL4	Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 110.55 \| Motor: 90LL4
	S 103 128,73 90LL4	Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 128.73 \| Motor: 90LL4
	S 103 141,24 90LL4	Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 141.24 \| Motor: 90LL4
	S 082 17,29 100LB4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 17.29 \| Motor: 100LB4
	S 082 20,14 100LB4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 20.14 \| Motor: 100LB4
	S 082 22,13 100LB4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 22.13 \| Motor: 100LB4
	S 082 24,00 100LB4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 24.00 \| Motor: 100LB4
	S 082 27,29 100LB4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 27.29 \| Motor: 100LB4
	S 082 28,67 100LB4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 28.67 \| Motor: 100LB4
	S 082 31,78 100LB4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 31.78 \| Motor: 100LB4
	S 082 34,91 100LB4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 34.91 \| Motor: 100LB4
	S 082 40,05 100LB4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 40.05 \| Motor: 100LB4
	S 082 43,05 100LB4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 43.05 \| Motor: 100LB4
	S 082 50,25 100LB4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 50.25 \| Motor: 100LB4
	S 082 54,27 100LB4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 54.27 \| Motor: 100LB4
	S 102 34,91 100LB4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 34.91 \| Motor: 100LB4
	S 102 38,30 100LB4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 38.30 \| Motor: 100LB4
	S 102 44,00 100LB4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 44.00 \| Motor: 100LB4
	S 102 47,13 100LB4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 47.13 \| Motor: 100LB4
	S 102 55,14 100LB4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 55.14 \| Motor: 100LB4
	S 102 59,40 100LB4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 59.40 \| Motor: 100LB4
	S 102 67,84 100LB4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 67.84 \| Motor: 100LB4
	S 103 74,18 100LB4	Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 74.18 \| Motor: 100LB4
	S 103 81,39 100LB4	Legacy code (earlier catalogue edition) \| Size: S103 \| Ratio i: 81.39 \| Motor: 100LB4
	S 082 7,34 132S4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 7.34 \| Motor: 132S4
	S 082 8,06 132S4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 8.06 \| Motor: 132S4
	S 082 9,94 132S4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 9.94 \| Motor: 132S4
	S 082 11,61 132S4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 11.61 \| Motor: 132S4
	S 082 12,75 132S4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 12.75 \| Motor: 132S4
	S 082 15,73 132S4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 15.73 \| Motor: 132S4
	S 082 17,29 132S4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 17.29 \| Motor: 132S4
	S 082 20,14 132S4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 20.14 \| Motor: 132S4
	S 082 22,13 132S4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 22.13 \| Motor: 132S4
	S 082 24,00 132S4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 24.00 \| Motor: 132S4
	S 082 27,29 132S4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 27.29 \| Motor: 132S4
	S 082 28,67 132S4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 28.67 \| Motor: 132S4
	S 082 31,78 132S4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 31.78 \| Motor: 132S4
	S 102 10,88 132S4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 10.88 \| Motor: 132S4
	S 102 12,75 132S4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 12.75 \| Motor: 132S4
	S 102 13,99 132S4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 13.99 \| Motor: 132S4
	S 102 17,21 132S4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 17.21 \| Motor: 132S4
	S 102 19,00 132S4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 19.00 \| Motor: 132S4
	S 102 22,13 132S4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 22.13 \| Motor: 132S4
	S 102 24,28 132S4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 24.28 \| Motor: 132S4
	S 102 26,33 132S4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 26.33 \| Motor: 132S4
	S 102 29,87 132S4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 29.87 \| Motor: 132S4
	S 102 32,40 132S4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 32.40 \| Motor: 132S4
	S 102 34,91 132S4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 34.91 \| Motor: 132S4
	S 102 38,30 132S4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 38.30 \| Motor: 132S4
	S 082 7,34 132L4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 7.34 \| Motor: 132L4
	S 082 8,06 132L4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 8.06 \| Motor: 132L4
	S 082 9,94 132L4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 9.94 \| Motor: 132L4
	S 082 11,61 132L4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 11.61 \| Motor: 132L4
	S 082 12,75 132L4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 12.75 \| Motor: 132L4
	S 082 15,73 132L4	Legacy code (earlier catalogue edition) \| Size: S082 \| Ratio i: 15.73 \| Motor: 132L4
	S 102 8,06 132L4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 8.06 \| Motor: 132L4
	S 102 8,85 132L4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 8.85 \| Motor: 132L4
	S 102 10,88 132L4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 10.88 \| Motor: 132L4
	S 102 12,75 132L4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 12.75 \| Motor: 132L4
	S 102 13,99 132L4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 13.99 \| Motor: 132L4
	S 102 17,21 132L4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 17.21 \| Motor: 132L4
	S 102 19,00 132L4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 19.00 \| Motor: 132L4
	S 102 22,13 132L4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 22.13 \| Motor: 132L4
	S 102 24,28 132L4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 24.28 \| Motor: 132L4
	S 102 26,33 132L4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 26.33 \| Motor: 132L4
	S 102 29,87 132L4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 29.87 \| Motor: 132L4
	S 102 32,40 132L4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 32.40 \| Motor: 132L4
	S 102 8,06 160M4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 8.06 \| Motor: 160M4
	S 102 8,85 160M4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 8.85 \| Motor: 160M4
	S 102 10,88 160M4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 10.88 \| Motor: 160M4
	S 102 12,75 160M4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 12.75 \| Motor: 160M4
	S 102 13,99 160M4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 13.99 \| Motor: 160M4
	S 102 17,21 160M4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 17.21 \| Motor: 160M4
	S 102 8,06 160L4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 8.06 \| Motor: 160L4
	S 102 8,85 160L4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 8.85 \| Motor: 160L4
	S 102 8,48 160L4	Legacy code (earlier catalogue edition) \| Size: S102 \| Ratio i: 8.48 \| Motor: 160L4
	S083	Legacy code (size-only listing) \| Size: S083
	S103	Legacy code (size-only listing) \| Size: S103
	S082	Legacy code (size-only listing) \| Size: S082
	S102	Legacy code (size-only listing) \| Size: S102

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

Motovario S Shaft Mounted Helical Gearmotors (S082-S103, 0.18-15 kW)
