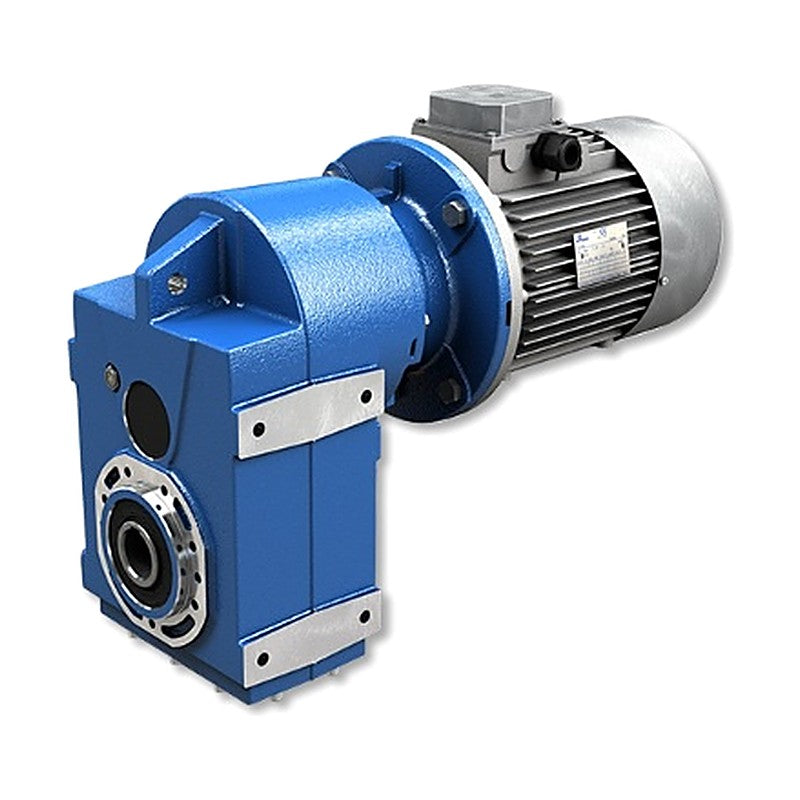

Motovario S Shaft Mounted Helical Gearmotors (S122-S153, 0.37-45 kW)

Motovario S series shaft mounted parallel-shaft helical gearmotors in cast iron, sizes S122 to S153 with 2 or 3 reduction stages, fitted with 2-, 4-, 6-pole IEC motors from 0.37 to 45 kW.

Key features

Order code as printed in the performance tables: gear reducer + ratio + motor size and poles, e.g. S123 177,53 100LR6
Size code = housing size + number of stages (last digit 2 or 3); average efficiency 0.96 (2 stages), 0.94 (3 stages)
Output shaft versions C (hollow shaft), D (solid shaft) and L (shrink disc); output flanges FA, FB, FC, FG
Also built as PS (PAM motor flange with flexible coupling) and CS (compact motor-reducer); IS input-shaft version listed separately
Mounting positions B3, B8, B6, B7, V5, V6; accessories include torque arm, backstop device and reinforced oil seals
Sizes 125/140/150 supplied without lubricant, oil plugs fitted; oil filling on request

Specifications

Series	S shaft mounted helical gearmotor
Housing	Cast iron, blue RAL 5010 epoxy-polyester
Sizes	S122, S123, S142, S143, S152, S153
Reduction stages	2 or 3
Ratio range	4.06 to 343.93
Motor power range	0.37 to 45 kW
Motor poles	2, 4, 6
Supply	50 Hz
Output shafts	Hollow C, solid D, shrink disc L
Mounting positions	B3, B8, B6, B7, V5, V6
Load capacity standards	DIN 3990, ISO 6336, AGMA 2101, DIN 743
Source	Motovario S Technical Catalogue IEC STD, p. 61-128

S122 8,48 160L6		Size: S122 \| Ratio i: 8.48 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 114.4 rpm \| Output torque M2: 891 Nm
S122 8,48 160LA4		Size: S122 \| Ratio i: 8.48 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 173.9 rpm \| Output torque M2: 791 Nm
S122 8,48 160MA4		Size: S122 \| Ratio i: 8.48 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 173.9 rpm \| Output torque M2: 580 Nm
S122 8,48 180L4		Size: S122 \| Ratio i: 8.48 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 173.3 rpm \| Output torque M2: 1164 Nm
S122 8,48 180L6		Size: S122 \| Ratio i: 8.48 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 115.5 rpm \| Output torque M2: 1202 Nm
S122 8,48 180M4		Size: S122 \| Ratio i: 8.48 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 173.3 rpm \| Output torque M2: 979 Nm
S122 8,48 200L4		Size: S122 \| Ratio i: 8.48 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 173.9 rpm \| Output torque M2: 1582 Nm
S122 8,48 200LA6		Size: S122 \| Ratio i: 8.48 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 115.5 rpm \| Output torque M2: 1483 Nm
S122 9,30 160L6		Size: S122 \| Ratio i: 9.30 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 104.3 rpm \| Output torque M2: 976 Nm
S122 9,30 160LA4		Size: S122 \| Ratio i: 9.30 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 158.6 rpm \| Output torque M2: 867 Nm
S122 9,30 160MA4		Size: S122 \| Ratio i: 9.30 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 158.6 rpm \| Output torque M2: 636 Nm
S122 9,30 180L4		Size: S122 \| Ratio i: 9.30 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 158.1 rpm \| Output torque M2: 1276 Nm
S122 9,30 180L6		Size: S122 \| Ratio i: 9.30 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 105.4 rpm \| Output torque M2: 1318 Nm
S122 9,30 180M4		Size: S122 \| Ratio i: 9.30 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 158.1 rpm \| Output torque M2: 1073 Nm
S122 9,30 200L4		Size: S122 \| Ratio i: 9.30 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 158.6 rpm \| Output torque M2: 1734 Nm
S122 9,30 200LA6		Size: S122 \| Ratio i: 9.30 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 105.4 rpm \| Output torque M2: 1625 Nm
S122 9,30 200LB6		Size: S122 \| Ratio i: 9.30 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 105.4 rpm \| Output torque M2: 1933 Nm
S122 10,24 160L6		Size: S122 \| Ratio i: 10.24 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 94.7 rpm \| Output torque M2: 1075 Nm
S122 10,24 160LA4		Size: S122 \| Ratio i: 10.24 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 144.1 rpm \| Output torque M2: 955 Nm
S122 10,24 160MA4		Size: S122 \| Ratio i: 10.24 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 144.1 rpm \| Output torque M2: 700 Nm
S122 10,24 180L4		Size: S122 \| Ratio i: 10.24 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 143.6 rpm \| Output torque M2: 1405 Nm
S122 10,24 180L6		Size: S122 \| Ratio i: 10.24 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 95.7 rpm \| Output torque M2: 1451 Nm
S122 10,24 180M4		Size: S122 \| Ratio i: 10.24 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 143.6 rpm \| Output torque M2: 1181 Nm
S122 10,24 200LA6		Size: S122 \| Ratio i: 10.24 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 95.7 rpm \| Output torque M2: 1790 Nm
S122 11,42 160L6		Size: S122 \| Ratio i: 11.42 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 85.0 rpm \| Output torque M2: 1199 Nm
S122 11,42 160LA4		Size: S122 \| Ratio i: 11.42 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 129.2 rpm \| Output torque M2: 1064 Nm
S122 11,42 160MA4		Size: S122 \| Ratio i: 11.42 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 129.2 rpm \| Output torque M2: 781 Nm
S122 11,42 180L4		Size: S122 \| Ratio i: 11.42 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 128.8 rpm \| Output torque M2: 1566 Nm
S122 11,42 180L6		Size: S122 \| Ratio i: 11.42 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 85.8 rpm \| Output torque M2: 1618 Nm
S122 11,42 180M4		Size: S122 \| Ratio i: 11.42 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 128.8 rpm \| Output torque M2: 1317 Nm
S122 11,42 200LA6		Size: S122 \| Ratio i: 11.42 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 85.8 rpm \| Output torque M2: 1996 Nm
S122 12,63 160L6		Size: S122 \| Ratio i: 12.63 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 76.8 rpm \| Output torque M2: 1326 Nm
S122 12,63 160LA4		Size: S122 \| Ratio i: 12.63 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 116.8 rpm \| Output torque M2: 1177 Nm
S122 12,63 160MA4		Size: S122 \| Ratio i: 12.63 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 116.8 rpm \| Output torque M2: 863 Nm
S122 12,63 180L4		Size: S122 \| Ratio i: 12.63 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 116.4 rpm \| Output torque M2: 1732 Nm
S122 12,63 180L6		Size: S122 \| Ratio i: 12.63 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 77.6 rpm \| Output torque M2: 1789 Nm
S122 12,63 180M4		Size: S122 \| Ratio i: 12.63 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 116.4 rpm \| Output torque M2: 1457 Nm
S122 12,63 200L4		Size: S122 \| Ratio i: 12.63 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 116.8 rpm \| Output torque M2: 2354 Nm
S122 12,63 200LA6		Size: S122 \| Ratio i: 12.63 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 77.6 rpm \| Output torque M2: 2207 Nm
S122 13,84 160L6		Size: S122 \| Ratio i: 13.84 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 70.1 rpm \| Output torque M2: 1453 Nm
S122 13,84 160LA4		Size: S122 \| Ratio i: 13.84 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 106.6 rpm \| Output torque M2: 1290 Nm
S122 13,84 160MA4		Size: S122 \| Ratio i: 13.84 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 106.6 rpm \| Output torque M2: 946 Nm
S122 13,84 180L4		Size: S122 \| Ratio i: 13.84 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 106.2 rpm \| Output torque M2: 1899 Nm
S122 13,84 180L6		Size: S122 \| Ratio i: 13.84 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 70.8 rpm \| Output torque M2: 1961 Nm
S122 13,84 180M4		Size: S122 \| Ratio i: 13.84 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 106.2 rpm \| Output torque M2: 1597 Nm
S122 13,84 200L4		Size: S122 \| Ratio i: 13.84 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 106.6 rpm \| Output torque M2: 2581 Nm
S122 13,84 200LA6		Size: S122 \| Ratio i: 13.84 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 70.8 rpm \| Output torque M2: 2419 Nm
S122 16,99 160L6		Size: S122 \| Ratio i: 16.99 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 57.1 rpm \| Output torque M2: 1784 Nm
S122 16,99 160LA4		Size: S122 \| Ratio i: 16.99 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 86.8 rpm \| Output torque M2: 1584 Nm
S122 16,99 160MA4		Size: S122 \| Ratio i: 16.99 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 86.8 rpm \| Output torque M2: 1162 Nm
S122 16,99 180L4		Size: S122 \| Ratio i: 16.99 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 86.5 rpm \| Output torque M2: 2332 Nm
S122 16,99 180L6		Size: S122 \| Ratio i: 16.99 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 57.7 rpm \| Output torque M2: 2408 Nm
S122 16,99 180M4		Size: S122 \| Ratio i: 16.99 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 86.5 rpm \| Output torque M2: 1961 Nm
S122 16,99 200LA6		Size: S122 \| Ratio i: 16.99 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 57.7 rpm \| Output torque M2: 2970 Nm
S122 21,25 132M4		Size: S122 \| Ratio i: 21.25 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 68.7 rpm \| Output torque M2: 1001 Nm
S122 21,25 132MA6		Size: S122 \| Ratio i: 21.25 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 45.7 rpm \| Output torque M2: 812 Nm
S122 21,25 132MB6		Size: S122 \| Ratio i: 21.25 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 1116 Nm
S122 21,25 132MS4		Size: S122 \| Ratio i: 21.25 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 69.2 rpm \| Output torque M2: 729 Nm
S122 21,25 160L6		Size: S122 \| Ratio i: 21.25 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 2231 Nm
S122 21,25 160LA4		Size: S122 \| Ratio i: 21.25 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 69.4 rpm \| Output torque M2: 1981 Nm
S122 21,25 160MA4		Size: S122 \| Ratio i: 21.25 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 69.4 rpm \| Output torque M2: 1453 Nm
S122 21,25 180L4		Size: S122 \| Ratio i: 21.25 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 69.2 rpm \| Output torque M2: 2916 Nm
S122 21,25 180L6		Size: S122 \| Ratio i: 21.25 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 46.1 rpm \| Output torque M2: 3012 Nm
S122 21,25 180M4		Size: S122 \| Ratio i: 21.25 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 69.2 rpm \| Output torque M2: 2452 Nm
S122 22,37 132M4		Size: S122 \| Ratio i: 22.37 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 65.2 rpm \| Output torque M2: 1054 Nm
S122 22,37 132MA6		Size: S122 \| Ratio i: 22.37 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 43.3 rpm \| Output torque M2: 854 Nm
S122 22,37 132MB6		Size: S122 \| Ratio i: 22.37 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 43.3 rpm \| Output torque M2: 1175 Nm
S122 22,37 132MS4		Size: S122 \| Ratio i: 22.37 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 65.7 rpm \| Output torque M2: 767 Nm
S122 22,37 160L6		Size: S122 \| Ratio i: 22.37 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 43.4 rpm \| Output torque M2: 2349 Nm
S122 22,37 160LA4		Size: S122 \| Ratio i: 22.37 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 65.9 rpm \| Output torque M2: 2085 Nm
S122 22,37 160MA4		Size: S122 \| Ratio i: 22.37 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 65.9 rpm \| Output torque M2: 1529 Nm
S122 22,37 180L4		Size: S122 \| Ratio i: 22.37 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 65.7 rpm \| Output torque M2: 3069 Nm
S122 22,37 180L6		Size: S122 \| Ratio i: 22.37 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 43.8 rpm \| Output torque M2: 3170 Nm
S122 22,37 180M4		Size: S122 \| Ratio i: 22.37 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 65.7 rpm \| Output torque M2: 2581 Nm
S122 23,29 132M4		Size: S122 \| Ratio i: 23.29 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 62.7 rpm \| Output torque M2: 1097 Nm
S122 23,29 132MA6		Size: S122 \| Ratio i: 23.29 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 41.6 rpm \| Output torque M2: 890 Nm
S122 23,29 132MB6		Size: S122 \| Ratio i: 23.29 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 41.6 rpm \| Output torque M2: 1223 Nm
S122 23,29 132MS4		Size: S122 \| Ratio i: 23.29 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 63.1 rpm \| Output torque M2: 799 Nm
S122 23,29 160L6		Size: S122 \| Ratio i: 23.29 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 41.6 rpm \| Output torque M2: 2446 Nm
S122 23,29 160LA4		Size: S122 \| Ratio i: 23.29 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 63.3 rpm \| Output torque M2: 2172 Nm
S122 23,29 160MA4		Size: S122 \| Ratio i: 23.29 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 63.3 rpm \| Output torque M2: 1592 Nm
S122 23,29 180L4		Size: S122 \| Ratio i: 23.29 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 63.1 rpm \| Output torque M2: 3196 Nm
S122 23,29 180L6		Size: S122 \| Ratio i: 23.29 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 42.1 rpm \| Output torque M2: 3301 Nm
S122 23,29 180M4		Size: S122 \| Ratio i: 23.29 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 63.1 rpm \| Output torque M2: 2687 Nm
S122 26,15 132M2		Size: S122 \| Ratio i: 26.15 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 112.8 rpm \| Output torque M2: 588 Nm
S122 26,15 132M4		Size: S122 \| Ratio i: 26.15 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 55.8 rpm \| Output torque M2: 1232 Nm
S122 26,15 132MA6		Size: S122 \| Ratio i: 26.15 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 37.1 rpm \| Output torque M2: 999 Nm
S122 26,15 132MB6		Size: S122 \| Ratio i: 26.15 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 37.1 rpm \| Output torque M2: 1373 Nm
S122 26,15 132MS4		Size: S122 \| Ratio i: 26.15 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 56.2 rpm \| Output torque M2: 898 Nm
S122 26,15 160L6		Size: S122 \| Ratio i: 26.15 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 37.1 rpm \| Output torque M2: 2746 Nm
S122 26,15 160LA4		Size: S122 \| Ratio i: 26.15 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 56.4 rpm \| Output torque M2: 2438 Nm
S122 26,15 160MA4		Size: S122 \| Ratio i: 26.15 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 56.4 rpm \| Output torque M2: 1788 Nm
S122 26,15 180M4		Size: S122 \| Ratio i: 26.15 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 56.2 rpm \| Output torque M2: 3018 Nm
S122 28,60 132M2		Size: S122 \| Ratio i: 28.60 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 103.1 rpm \| Output torque M2: 644 Nm
S122 28,60 132M4		Size: S122 \| Ratio i: 28.60 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 51.0 rpm \| Output torque M2: 1347 Nm
S122 28,60 132MA6		Size: S122 \| Ratio i: 28.60 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 33.9 rpm \| Output torque M2: 1092 Nm
S122 28,60 132MB6		Size: S122 \| Ratio i: 28.60 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 33.9 rpm \| Output torque M2: 1502 Nm
S122 28,60 132MS4		Size: S122 \| Ratio i: 28.60 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 51.4 rpm \| Output torque M2: 981 Nm
S122 28,60 132S6		Size: S122 \| Ratio i: 28.60 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 34.0 rpm \| Output torque M2: 819 Nm
S122 28,60 160L6		Size: S122 \| Ratio i: 28.60 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 33.9 rpm \| Output torque M2: 3003 Nm
S122 28,60 160LA4		Size: S122 \| Ratio i: 28.60 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 51.6 rpm \| Output torque M2: 2666 Nm
S122 28,60 160MA4		Size: S122 \| Ratio i: 28.60 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 51.6 rpm \| Output torque M2: 1955 Nm
S122 28,60 180M4		Size: S122 \| Ratio i: 28.60 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 51.4 rpm \| Output torque M2: 3300 Nm
S122 30,51 112M4		Size: S122 \| Ratio i: 30.51 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 47.5 rpm \| Output torque M2: 772 Nm
S122 30,51 132M2		Size: S122 \| Ratio i: 30.51 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 96.7 rpm \| Output torque M2: 687 Nm
S122 30,51 132M4		Size: S122 \| Ratio i: 30.51 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 47.8 rpm \| Output torque M2: 1437 Nm
S122 30,51 132MA6		Size: S122 \| Ratio i: 30.51 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 31.8 rpm \| Output torque M2: 1165 Nm
S122 30,51 132MB6		Size: S122 \| Ratio i: 30.51 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 31.8 rpm \| Output torque M2: 1602 Nm
S122 30,51 132MS4		Size: S122 \| Ratio i: 30.51 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 48.2 rpm \| Output torque M2: 1047 Nm
S122 30,51 132S6		Size: S122 \| Ratio i: 30.51 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 31.8 rpm \| Output torque M2: 874 Nm
S122 30,51 160L6		Size: S122 \| Ratio i: 30.51 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 31.8 rpm \| Output torque M2: 3204 Nm
S122 30,51 160LA4		Size: S122 \| Ratio i: 30.51 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 48.3 rpm \| Output torque M2: 2845 Nm
S122 30,51 160MA4		Size: S122 \| Ratio i: 30.51 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 48.3 rpm \| Output torque M2: 2086 Nm
S122 32,76 112M4		Size: S122 \| Ratio i: 32.76 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 44.3 rpm \| Output torque M2: 828 Nm
S122 32,76 132M2		Size: S122 \| Ratio i: 32.76 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 90.1 rpm \| Output torque M2: 737 Nm
S122 32,76 132M4		Size: S122 \| Ratio i: 32.76 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 44.6 rpm \| Output torque M2: 1543 Nm
S122 32,76 132MA6		Size: S122 \| Ratio i: 32.76 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 29.6 rpm \| Output torque M2: 1251 Nm
S122 32,76 132MB6		Size: S122 \| Ratio i: 32.76 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 29.6 rpm \| Output torque M2: 1720 Nm
S122 32,76 132MS4		Size: S122 \| Ratio i: 32.76 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 44.9 rpm \| Output torque M2: 1124 Nm
S122 32,76 132S6		Size: S122 \| Ratio i: 32.76 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 29.6 rpm \| Output torque M2: 938 Nm
S122 32,76 160L6		Size: S122 \| Ratio i: 32.76 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 29.6 rpm \| Output torque M2: 3440 Nm
S122 32,76 160LA4		Size: S122 \| Ratio i: 32.76 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 45.0 rpm \| Output torque M2: 3054 Nm
S122 32,76 160MA4		Size: S122 \| Ratio i: 32.76 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 45.0 rpm \| Output torque M2: 2240 Nm
S122 33,44 112M4		Size: S122 \| Ratio i: 33.44 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 43.4 rpm \| Output torque M2: 846 Nm
S122 33,44 132M2		Size: S122 \| Ratio i: 33.44 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 88.2 rpm \| Output torque M2: 753 Nm
S122 33,44 132M4		Size: S122 \| Ratio i: 33.44 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 43.7 rpm \| Output torque M2: 1575 Nm
S122 33,44 132MA6		Size: S122 \| Ratio i: 33.44 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 29.0 rpm \| Output torque M2: 1277 Nm
S122 33,44 132MB6		Size: S122 \| Ratio i: 33.44 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 29.0 rpm \| Output torque M2: 1756 Nm
S122 33,44 132MS4		Size: S122 \| Ratio i: 33.44 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 44.0 rpm \| Output torque M2: 1147 Nm
S122 33,44 132S6		Size: S122 \| Ratio i: 33.44 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 29.0 rpm \| Output torque M2: 958 Nm
S122 33,44 160LA4		Size: S122 \| Ratio i: 33.44 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 44.1 rpm \| Output torque M2: 3118 Nm
S122 33,44 160MA4		Size: S122 \| Ratio i: 33.44 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 44.1 rpm \| Output torque M2: 2287 Nm
S122 35,20 112M4		Size: S122 \| Ratio i: 35.20 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 41.2 rpm \| Output torque M2: 890 Nm
S122 35,20 132M2		Size: S122 \| Ratio i: 35.20 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 83.8 rpm \| Output torque M2: 792 Nm
S122 35,20 132M4		Size: S122 \| Ratio i: 35.20 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 41.5 rpm \| Output torque M2: 1658 Nm
S122 35,20 132MA6		Size: S122 \| Ratio i: 35.20 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 27.6 rpm \| Output torque M2: 1344 Nm
S122 35,20 132MB6		Size: S122 \| Ratio i: 35.20 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 27.6 rpm \| Output torque M2: 1848 Nm
S122 35,20 132MS4		Size: S122 \| Ratio i: 35.20 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 41.8 rpm \| Output torque M2: 1208 Nm
S122 35,20 132S2		Size: S122 \| Ratio i: 35.20 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 83.8 rpm \| Output torque M2: 581 Nm
S122 35,20 132S6		Size: S122 \| Ratio i: 35.20 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 27.6 rpm \| Output torque M2: 1009 Nm
S122 35,20 160LA4		Size: S122 \| Ratio i: 35.20 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 41.9 rpm \| Output torque M2: 3282 Nm
S122 35,20 160MA4		Size: S122 \| Ratio i: 35.20 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 41.9 rpm \| Output torque M2: 2407 Nm
S122 41,07 112M4		Size: S122 \| Ratio i: 41.07 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 35.3 rpm \| Output torque M2: 1039 Nm
S122 41,07 112M6		Size: S122 \| Ratio i: 41.07 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 23.3 rpm \| Output torque M2: 872 Nm
S122 41,07 112MS4		Size: S122 \| Ratio i: 41.07 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 35.3 rpm \| Output torque M2: 779 Nm
S122 41,07 132M2		Size: S122 \| Ratio i: 41.07 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 71.8 rpm \| Output torque M2: 924 Nm
S122 41,07 132M4		Size: S122 \| Ratio i: 41.07 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 35.6 rpm \| Output torque M2: 1934 Nm
S122 41,07 132MA6		Size: S122 \| Ratio i: 41.07 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 23.6 rpm \| Output torque M2: 1568 Nm
S122 41,07 132MB6		Size: S122 \| Ratio i: 41.07 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 23.6 rpm \| Output torque M2: 2157 Nm
S122 41,07 132MS4		Size: S122 \| Ratio i: 41.07 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 35.8 rpm \| Output torque M2: 1409 Nm
S122 41,07 132S2		Size: S122 \| Ratio i: 41.07 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 71.8 rpm \| Output torque M2: 678 Nm
S122 41,07 132S6		Size: S122 \| Ratio i: 41.07 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.6 rpm \| Output torque M2: 1176 Nm
S122 41,07 160MA4		Size: S122 \| Ratio i: 41.07 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 35.9 rpm \| Output torque M2: 2808 Nm
S122 43,60 112M4		Size: S122 \| Ratio i: 43.60 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 33.3 rpm \| Output torque M2: 1103 Nm
S122 43,60 112M6		Size: S122 \| Ratio i: 43.60 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 22.0 rpm \| Output torque M2: 925 Nm
S122 43,60 112MS4		Size: S122 \| Ratio i: 43.60 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 33.3 rpm \| Output torque M2: 827 Nm
S122 43,60 132M2		Size: S122 \| Ratio i: 43.60 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 67.7 rpm \| Output torque M2: 981 Nm
S122 43,60 132M4		Size: S122 \| Ratio i: 43.60 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 33.5 rpm \| Output torque M2: 2053 Nm
S122 43,60 132MA6		Size: S122 \| Ratio i: 43.60 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 1665 Nm
S122 43,60 132MB6		Size: S122 \| Ratio i: 43.60 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 2289 Nm
S122 43,60 132MS4		Size: S122 \| Ratio i: 43.60 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 33.7 rpm \| Output torque M2: 1496 Nm
S122 43,60 132S2		Size: S122 \| Ratio i: 43.60 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 67.6 rpm \| Output torque M2: 720 Nm
S122 43,60 132S6		Size: S122 \| Ratio i: 43.60 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 1249 Nm
S122 44,63 100L6		Size: S122 \| Ratio i: 44.63 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 21.0 rpm \| Output torque M2: 660 Nm
S122 44,63 100LA4		Size: S122 \| Ratio i: 44.63 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 32.3 rpm \| Output torque M2: 626 Nm
S122 44,63 112M2		Size: S122 \| Ratio i: 44.63 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 65.7 rpm \| Output torque M2: 539 Nm
S122 44,63 112M4		Size: S122 \| Ratio i: 44.63 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 32.5 rpm \| Output torque M2: 1129 Nm
S122 44,63 112M6		Size: S122 \| Ratio i: 44.63 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 21.5 rpm \| Output torque M2: 947 Nm
S122 44,63 112MS4		Size: S122 \| Ratio i: 44.63 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 32.5 rpm \| Output torque M2: 847 Nm
S122 44,63 132M2		Size: S122 \| Ratio i: 44.63 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 66.1 rpm \| Output torque M2: 1004 Nm
S122 44,63 132M4		Size: S122 \| Ratio i: 44.63 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 32.7 rpm \| Output torque M2: 2102 Nm
S122 44,63 132MA6		Size: S122 \| Ratio i: 44.63 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 21.7 rpm \| Output torque M2: 1704 Nm
S122 44,63 132MB6		Size: S122 \| Ratio i: 44.63 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 21.7 rpm \| Output torque M2: 2344 Nm
S122 44,63 132MS4		Size: S122 \| Ratio i: 44.63 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 32.9 rpm \| Output torque M2: 1531 Nm
S122 44,63 132S2		Size: S122 \| Ratio i: 44.63 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 66.1 rpm \| Output torque M2: 737 Nm
S122 44,63 132S6		Size: S122 \| Ratio i: 44.63 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 21.7 rpm \| Output torque M2: 1278 Nm
S122 49,04 100L2		Size: S122 \| Ratio i: 49.04 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 59.1 rpm \| Output torque M2: 449 Nm
S122 49,04 100L6		Size: S122 \| Ratio i: 49.04 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 19.2 rpm \| Output torque M2: 725 Nm
S122 49,04 100LA4		Size: S122 \| Ratio i: 49.04 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 29.4 rpm \| Output torque M2: 687 Nm
S122 49,04 112M2		Size: S122 \| Ratio i: 49.04 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 59.7 rpm \| Output torque M2: 592 Nm
S122 49,04 112M4		Size: S122 \| Ratio i: 49.04 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 29.6 rpm \| Output torque M2: 1240 Nm
S122 49,04 112M6		Size: S122 \| Ratio i: 49.04 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 19.6 rpm \| Output torque M2: 1041 Nm
S122 49,04 112MS4		Size: S122 \| Ratio i: 49.04 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 29.6 rpm \| Output torque M2: 930 Nm
S122 49,04 132M2		Size: S122 \| Ratio i: 49.04 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 60.1 rpm \| Output torque M2: 1104 Nm
S122 49,04 132M4		Size: S122 \| Ratio i: 49.04 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 29.8 rpm \| Output torque M2: 2310 Nm
S122 49,04 132MA6		Size: S122 \| Ratio i: 49.04 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 19.8 rpm \| Output torque M2: 1873 Nm
S122 49,04 132MB6		Size: S122 \| Ratio i: 49.04 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 19.8 rpm \| Output torque M2: 2575 Nm
S122 49,04 132MS4		Size: S122 \| Ratio i: 49.04 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 30.0 rpm \| Output torque M2: 1683 Nm
S122 49,04 132S2		Size: S122 \| Ratio i: 49.04 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 60.2 rpm \| Output torque M2: 809 Nm
S122 49,04 132S6		Size: S122 \| Ratio i: 49.04 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 19.8 rpm \| Output torque M2: 1404 Nm
S122 53,75 100L2		Size: S122 \| Ratio i: 53.75 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 54.0 rpm \| Output torque M2: 492 Nm
S122 53,75 100L6		Size: S122 \| Ratio i: 53.75 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 794 Nm
S122 53,75 100LA4		Size: S122 \| Ratio i: 53.75 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 26.8 rpm \| Output torque M2: 753 Nm
S122 53,75 112M2		Size: S122 \| Ratio i: 53.75 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 54.6 rpm \| Output torque M2: 649 Nm
S122 53,75 112M4		Size: S122 \| Ratio i: 53.75 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 27.0 rpm \| Output torque M2: 1360 Nm
S122 53,75 112M6		Size: S122 \| Ratio i: 53.75 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 17.9 rpm \| Output torque M2: 1141 Nm
S122 53,75 112MS4		Size: S122 \| Ratio i: 53.75 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 27.0 rpm \| Output torque M2: 1020 Nm
S122 53,75 132M2		Size: S122 \| Ratio i: 53.75 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 54.8 rpm \| Output torque M2: 1209 Nm
S122 53,75 132M4		Size: S122 \| Ratio i: 53.75 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 27.2 rpm \| Output torque M2: 2532 Nm
S122 53,75 132MA6		Size: S122 \| Ratio i: 53.75 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 18.1 rpm \| Output torque M2: 2053 Nm
S122 53,75 132MB6		Size: S122 \| Ratio i: 53.75 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 2822 Nm
S122 53,75 132MS4		Size: S122 \| Ratio i: 53.75 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 27.3 rpm \| Output torque M2: 1844 Nm
S122 53,75 132S2		Size: S122 \| Ratio i: 53.75 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 54.9 rpm \| Output torque M2: 887 Nm
S122 53,75 132S6		Size: S122 \| Ratio i: 53.75 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 1539 Nm
S122 66,00 100L2		Size: S122 \| Ratio i: 66.00 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 43.9 rpm \| Output torque M2: 604 Nm
S122 66,00 100L6		Size: S122 \| Ratio i: 66.00 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 976 Nm
S122 66,00 100LA4		Size: S122 \| Ratio i: 66.00 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 925 Nm
S122 66,00 112M2		Size: S122 \| Ratio i: 66.00 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 44.4 rpm \| Output torque M2: 797 Nm
S122 66,00 112M4		Size: S122 \| Ratio i: 66.00 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 22.0 rpm \| Output torque M2: 1669 Nm
S122 66,00 112M6		Size: S122 \| Ratio i: 66.00 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 14.5 rpm \| Output torque M2: 1401 Nm
S122 66,00 112MS4		Size: S122 \| Ratio i: 66.00 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 22.0 rpm \| Output torque M2: 1252 Nm
S122 66,00 132M2		Size: S122 \| Ratio i: 66.00 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 44.7 rpm \| Output torque M2: 1485 Nm
S122 66,00 132M4		Size: S122 \| Ratio i: 66.00 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 3109 Nm
S122 66,00 132MA6		Size: S122 \| Ratio i: 66.00 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 2520 Nm
S122 66,00 132MB6		Size: S122 \| Ratio i: 66.00 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 3465 Nm
S122 66,00 132MS4		Size: S122 \| Ratio i: 66.00 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 22.3 rpm \| Output torque M2: 2264 Nm
S122 66,00 132S2		Size: S122 \| Ratio i: 66.00 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 44.7 rpm \| Output torque M2: 1089 Nm
S122 66,00 132S6		Size: S122 \| Ratio i: 66.00 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 1890 Nm
S123 64,84 100L2		Size: S123 \| Ratio i: 64.84 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 44.7 rpm \| Output torque M2: 581 Nm
S123 64,84 100L6		Size: S123 \| Ratio i: 64.84 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 14.5 rpm \| Output torque M2: 938 Nm
S123 64,84 100LA4		Size: S123 \| Ratio i: 64.84 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 889 Nm
S123 64,84 112M2		Size: S123 \| Ratio i: 64.84 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 45.2 rpm \| Output torque M2: 767 Nm
S123 64,84 112M4		Size: S123 \| Ratio i: 64.84 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 22.4 rpm \| Output torque M2: 1606 Nm
S123 64,84 112M6		Size: S123 \| Ratio i: 64.84 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 14.8 rpm \| Output torque M2: 1348 Nm
S123 64,84 112MS4		Size: S123 \| Ratio i: 64.84 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 22.4 rpm \| Output torque M2: 1204 Nm
S123 64,84 132M2		Size: S123 \| Ratio i: 64.84 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 45.5 rpm \| Output torque M2: 1428 Nm
S123 64,84 132M4		Size: S123 \| Ratio i: 64.84 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 22.5 rpm \| Output torque M2: 2990 Nm
S123 64,84 132MA6		Size: S123 \| Ratio i: 64.84 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 15.0 rpm \| Output torque M2: 2425 Nm
S123 64,84 132MS4		Size: S123 \| Ratio i: 64.84 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 22.7 rpm \| Output torque M2: 2178 Nm
S123 64,84 132S2		Size: S123 \| Ratio i: 64.84 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 45.5 rpm \| Output torque M2: 1048 Nm
S123 64,84 132S6		Size: S123 \| Ratio i: 64.84 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 15.0 rpm \| Output torque M2: 1818 Nm
S123 71,07 100L2		Size: S123 \| Ratio i: 71.07 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 40.8 rpm \| Output torque M2: 637 Nm
S123 71,07 100L6		Size: S123 \| Ratio i: 71.07 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 1028 Nm
S123 71,07 100LA4		Size: S123 \| Ratio i: 71.07 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 20.2 rpm \| Output torque M2: 975 Nm
S123 71,07 100LR6		Size: S123 \| Ratio i: 71.07 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 13.4 rpm \| Output torque M2: 746 Nm
S123 71,07 112M2		Size: S123 \| Ratio i: 71.07 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 41.2 rpm \| Output torque M2: 840 Nm
S123 71,07 112M4		Size: S123 \| Ratio i: 71.07 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 20.4 rpm \| Output torque M2: 1760 Nm
S123 71,07 112M6		Size: S123 \| Ratio i: 71.07 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 13.5 rpm \| Output torque M2: 1477 Nm
S123 71,07 112MS4		Size: S123 \| Ratio i: 71.07 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 20.4 rpm \| Output torque M2: 1320 Nm
S123 71,07 132M2		Size: S123 \| Ratio i: 71.07 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 41.5 rpm \| Output torque M2: 1566 Nm
S123 71,07 132MA6		Size: S123 \| Ratio i: 71.07 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 13.6 rpm \| Output torque M2: 2657 Nm
S123 71,07 132MS4		Size: S123 \| Ratio i: 71.07 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 20.7 rpm \| Output torque M2: 2387 Nm
S123 71,07 132S2		Size: S123 \| Ratio i: 71.07 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 41.5 rpm \| Output torque M2: 1148 Nm
S123 71,07 132S6		Size: S123 \| Ratio i: 71.07 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 13.6 rpm \| Output torque M2: 1993 Nm
S123 78,46 100L2		Size: S123 \| Ratio i: 78.46 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 37.0 rpm \| Output torque M2: 703 Nm
S123 78,46 100L6		Size: S123 \| Ratio i: 78.46 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 1135 Nm
S123 78,46 100LA4		Size: S123 \| Ratio i: 78.46 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 18.3 rpm \| Output torque M2: 1077 Nm
S123 78,46 100LR6		Size: S123 \| Ratio i: 78.46 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 12.1 rpm \| Output torque M2: 824 Nm
S123 78,46 112M2		Size: S123 \| Ratio i: 78.46 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 37.4 rpm \| Output torque M2: 928 Nm
S123 78,46 112M4		Size: S123 \| Ratio i: 78.46 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 18.5 rpm \| Output torque M2: 1944 Nm
S123 78,46 112M6		Size: S123 \| Ratio i: 78.46 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 12.3 rpm \| Output torque M2: 1630 Nm
S123 78,46 112MS4		Size: S123 \| Ratio i: 78.46 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 18.5 rpm \| Output torque M2: 1457 Nm
S123 78,46 132M2		Size: S123 \| Ratio i: 78.46 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 37.6 rpm \| Output torque M2: 1728 Nm
S123 78,46 132MA6		Size: S123 \| Ratio i: 78.46 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 12.4 rpm \| Output torque M2: 2934 Nm
S123 78,46 132MS4		Size: S123 \| Ratio i: 78.46 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 18.8 rpm \| Output torque M2: 2636 Nm
S123 78,46 132S2		Size: S123 \| Ratio i: 78.46 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 37.6 rpm \| Output torque M2: 1268 Nm
S123 78,46 132S6		Size: S123 \| Ratio i: 78.46 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 12.3 rpm \| Output torque M2: 2200 Nm
S123 87,27 100L2		Size: S123 \| Ratio i: 87.27 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 33.2 rpm \| Output torque M2: 782 Nm
S123 87,27 100L6		Size: S123 \| Ratio i: 87.27 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 1263 Nm
S123 87,27 100LA4		Size: S123 \| Ratio i: 87.27 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 1197 Nm
S123 87,27 100LR6		Size: S123 \| Ratio i: 87.27 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 10.9 rpm \| Output torque M2: 916 Nm
S123 87,27 112M2		Size: S123 \| Ratio i: 87.27 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 33.5 rpm \| Output torque M2: 1032 Nm
S123 87,27 112M4		Size: S123 \| Ratio i: 87.27 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 16.6 rpm \| Output torque M2: 2161 Nm
S123 87,27 112M6		Size: S123 \| Ratio i: 87.27 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 11.0 rpm \| Output torque M2: 1814 Nm
S123 87,27 112MS4		Size: S123 \| Ratio i: 87.27 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 16.6 rpm \| Output torque M2: 1621 Nm
S123 87,27 132M2		Size: S123 \| Ratio i: 87.27 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 33.8 rpm \| Output torque M2: 1922 Nm
S123 87,27 132MA6		Size: S123 \| Ratio i: 87.27 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 3263 Nm
S123 87,27 132MS4		Size: S123 \| Ratio i: 87.27 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 16.8 rpm \| Output torque M2: 2931 Nm
S123 87,27 132S2		Size: S123 \| Ratio i: 87.27 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 33.8 rpm \| Output torque M2: 1410 Nm
S123 87,27 132S6		Size: S123 \| Ratio i: 87.27 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 2448 Nm
S123 105,91 100L2		Size: S123 \| Ratio i: 105.91 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 27.4 rpm \| Output torque M2: 949 Nm
S123 105,91 100L6		Size: S123 \| Ratio i: 105.91 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 8.9 rpm \| Output torque M2: 1533 Nm
S123 105,91 100LA4		Size: S123 \| Ratio i: 105.91 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 13.6 rpm \| Output torque M2: 1453 Nm
S123 105,91 100LR6		Size: S123 \| Ratio i: 105.91 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 1112 Nm
S123 105,91 112M2		Size: S123 \| Ratio i: 105.91 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 27.7 rpm \| Output torque M2: 1252 Nm
S123 105,91 112M4		Size: S123 \| Ratio i: 105.91 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 13.7 rpm \| Output torque M2: 2623 Nm
S123 105,91 112M6		Size: S123 \| Ratio i: 105.91 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 9.1 rpm \| Output torque M2: 2201 Nm
S123 105,91 112MS4		Size: S123 \| Ratio i: 105.91 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 13.7 rpm \| Output torque M2: 1967 Nm
S123 105,91 132S2		Size: S123 \| Ratio i: 105.91 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 27.9 rpm \| Output torque M2: 1711 Nm
S123 105,91 132S6		Size: S123 \| Ratio i: 105.91 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 9.2 rpm \| Output torque M2: 2970 Nm
S123 112,52 100L2		Size: S123 \| Ratio i: 112.52 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 25.8 rpm \| Output torque M2: 1008 Nm
S123 112,52 100L6		Size: S123 \| Ratio i: 112.52 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 8.4 rpm \| Output torque M2: 1628 Nm
S123 112,52 100LA4		Size: S123 \| Ratio i: 112.52 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 12.8 rpm \| Output torque M2: 1543 Nm
S123 112,52 100LR6		Size: S123 \| Ratio i: 112.52 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 8.4 rpm \| Output torque M2: 1181 Nm
S123 112,52 112M2		Size: S123 \| Ratio i: 112.52 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 26.0 rpm \| Output torque M2: 1331 Nm
S123 112,52 112M4		Size: S123 \| Ratio i: 112.52 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 12.9 rpm \| Output torque M2: 2787 Nm
S123 112,52 112M6		Size: S123 \| Ratio i: 112.52 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 8.5 rpm \| Output torque M2: 2338 Nm
S123 112,52 112MS4		Size: S123 \| Ratio i: 112.52 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 12.9 rpm \| Output torque M2: 2090 Nm
S123 112,52 132S2		Size: S123 \| Ratio i: 112.52 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 26.3 rpm \| Output torque M2: 1817 Nm
S123 112,52 132S6		Size: S123 \| Ratio i: 112.52 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 3155 Nm
S123 112,52 90L2		Size: S123 \| Ratio i: 112.52 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 25.6 rpm \| Output torque M2: 745 Nm
S123 112,52 90L4		Size: S123 \| Ratio i: 112.52 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 1060 Nm
S123 112,52 90S4		Size: S123 \| Ratio i: 112.52 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 777 Nm
S123 112,52 90S6		Size: S123 \| Ratio i: 112.52 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 8.4 rpm \| Output torque M2: 814 Nm
S123 123,33 100L2		Size: S123 \| Ratio i: 123.33 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 23.5 rpm \| Output torque M2: 1105 Nm
S123 123,33 100L6		Size: S123 \| Ratio i: 123.33 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 1785 Nm
S123 123,33 100LA4		Size: S123 \| Ratio i: 123.33 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 11.7 rpm \| Output torque M2: 1691 Nm
S123 123,33 100LR6		Size: S123 \| Ratio i: 123.33 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 7.7 rpm \| Output torque M2: 1295 Nm
S123 123,33 112M2		Size: S123 \| Ratio i: 123.33 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 23.8 rpm \| Output torque M2: 1459 Nm
S123 123,33 112M4		Size: S123 \| Ratio i: 123.33 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 3054 Nm
S123 123,33 112M6		Size: S123 \| Ratio i: 123.33 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 7.7 rpm \| Output torque M2: 2562 Nm
S123 123,33 112MS4		Size: S123 \| Ratio i: 123.33 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 2291 Nm
S123 123,33 132S2		Size: S123 \| Ratio i: 123.33 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 23.9 rpm \| Output torque M2: 1992 Nm
S123 123,33 132S6		Size: S123 \| Ratio i: 123.33 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 7.9 rpm \| Output torque M2: 3458 Nm
S123 123,33 90L2		Size: S123 \| Ratio i: 123.33 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 23.4 rpm \| Output torque M2: 816 Nm
S123 123,33 90L4		Size: S123 \| Ratio i: 123.33 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 11.6 rpm \| Output torque M2: 1161 Nm
S123 123,33 90S2		Size: S123 \| Ratio i: 123.33 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 23.2 rpm \| Output torque M2: 560 Nm
S123 123,33 90S4		Size: S123 \| Ratio i: 123.33 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 11.6 rpm \| Output torque M2: 852 Nm
S123 123,33 90S6		Size: S123 \| Ratio i: 123.33 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 7.7 rpm \| Output torque M2: 893 Nm
S123 130,04 100L2		Size: S123 \| Ratio i: 130.04 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 22.3 rpm \| Output torque M2: 1166 Nm
S123 130,04 100L6		Size: S123 \| Ratio i: 130.04 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 1882 Nm
S123 130,04 100LA4		Size: S123 \| Ratio i: 130.04 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 1784 Nm
S123 130,04 100LR6		Size: S123 \| Ratio i: 130.04 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 7.3 rpm \| Output torque M2: 1365 Nm
S123 130,04 112M2		Size: S123 \| Ratio i: 130.04 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 22.5 rpm \| Output torque M2: 1538 Nm
S123 130,04 112M4		Size: S123 \| Ratio i: 130.04 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 3221 Nm
S123 130,04 112M6		Size: S123 \| Ratio i: 130.04 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 2702 Nm
S123 130,04 112MS4		Size: S123 \| Ratio i: 130.04 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 2415 Nm
S123 130,04 132S2		Size: S123 \| Ratio i: 130.04 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 22.7 rpm \| Output torque M2: 2100 Nm
S123 130,04 90L2		Size: S123 \| Ratio i: 130.04 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 22.1 rpm \| Output torque M2: 861 Nm
S123 130,04 90L4		Size: S123 \| Ratio i: 130.04 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 11.0 rpm \| Output torque M2: 1225 Nm
S123 130,04 90S2		Size: S123 \| Ratio i: 130.04 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 22.0 rpm \| Output torque M2: 591 Nm
S123 130,04 90S4		Size: S123 \| Ratio i: 130.04 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 11.0 rpm \| Output torque M2: 898 Nm
S123 130,04 90S6		Size: S123 \| Ratio i: 130.04 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 941 Nm
S123 133,78 100L2		Size: S123 \| Ratio i: 133.78 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 21.7 rpm \| Output torque M2: 1199 Nm
S123 133,78 100L6		Size: S123 \| Ratio i: 133.78 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 1936 Nm
S123 133,78 100LA4		Size: S123 \| Ratio i: 133.78 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 1835 Nm
S123 133,78 100LR6		Size: S123 \| Ratio i: 133.78 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 7.1 rpm \| Output torque M2: 1404 Nm
S123 133,78 112M2		Size: S123 \| Ratio i: 133.78 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 21.9 rpm \| Output torque M2: 1582 Nm
S123 133,78 112M4		Size: S123 \| Ratio i: 133.78 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 3313 Nm
S123 133,78 112M6		Size: S123 \| Ratio i: 133.78 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 2780 Nm
S123 133,78 112MS4		Size: S123 \| Ratio i: 133.78 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 2485 Nm
S123 133,78 132S2		Size: S123 \| Ratio i: 133.78 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 22.1 rpm \| Output torque M2: 2161 Nm
S123 133,78 90L2		Size: S123 \| Ratio i: 133.78 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 21.5 rpm \| Output torque M2: 885 Nm
S123 133,78 90L4		Size: S123 \| Ratio i: 133.78 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 10.7 rpm \| Output torque M2: 1260 Nm
S123 133,78 90S2		Size: S123 \| Ratio i: 133.78 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 21.4 rpm \| Output torque M2: 608 Nm
S123 133,78 90S4		Size: S123 \| Ratio i: 133.78 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 10.7 rpm \| Output torque M2: 924 Nm
S123 133,78 90S6		Size: S123 \| Ratio i: 133.78 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 968 Nm
S123 151,43 100L2		Size: S123 \| Ratio i: 151.43 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 19.2 rpm \| Output torque M2: 1357 Nm
S123 151,43 100L6		Size: S123 \| Ratio i: 151.43 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 2192 Nm
S123 151,43 100LA4		Size: S123 \| Ratio i: 151.43 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 2077 Nm
S123 151,43 100LR6		Size: S123 \| Ratio i: 151.43 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 1590 Nm
S123 151,43 112M2		Size: S123 \| Ratio i: 151.43 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 1791 Nm
S123 151,43 112M6		Size: S123 \| Ratio i: 151.43 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 3147 Nm
S123 151,43 112MS4		Size: S123 \| Ratio i: 151.43 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 9.6 rpm \| Output torque M2: 2813 Nm
S123 151,43 80B6		Size: S123 \| Ratio i: 151.43 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 803 Nm
S123 151,43 90L2		Size: S123 \| Ratio i: 151.43 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 19.0 rpm \| Output torque M2: 1002 Nm
S123 151,43 90L4		Size: S123 \| Ratio i: 151.43 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 9.4 rpm \| Output torque M2: 1426 Nm
S123 151,43 90S2		Size: S123 \| Ratio i: 151.43 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 18.9 rpm \| Output torque M2: 688 Nm
S123 151,43 90S4		Size: S123 \| Ratio i: 151.43 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 9.4 rpm \| Output torque M2: 1046 Nm
S123 151,43 90S6		Size: S123 \| Ratio i: 151.43 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 1095 Nm
S123 177,53 100L2		Size: S123 \| Ratio i: 177.53 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 16.4 rpm \| Output torque M2: 1591 Nm
S123 177,53 100L6		Size: S123 \| Ratio i: 177.53 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 5.3 rpm \| Output torque M2: 2569 Nm
S123 177,53 100LA4		Size: S123 \| Ratio i: 177.53 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 8.1 rpm \| Output torque M2: 2435 Nm
S123 177,53 100LR6		Size: S123 \| Ratio i: 177.53 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 5.4 rpm \| Output torque M2: 1864 Nm
S123 177,53 112M2		Size: S123 \| Ratio i: 177.53 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 2100 Nm
S123 177,53 112MS4		Size: S123 \| Ratio i: 177.53 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 3297 Nm
S123 177,53 80B2		Size: S123 \| Ratio i: 177.53 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 16.1 rpm \| Output torque M2: 592 Nm
S123 177,53 80B4		Size: S123 \| Ratio i: 177.53 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 8.1 rpm \| Output torque M2: 830 Nm
S123 177,53 80B6		Size: S123 \| Ratio i: 177.53 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 5.3 rpm \| Output torque M2: 942 Nm
S123 177,53 90L2		Size: S123 \| Ratio i: 177.53 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 16.2 rpm \| Output torque M2: 1175 Nm
S123 177,53 90L4		Size: S123 \| Ratio i: 177.53 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 8.1 rpm \| Output torque M2: 1672 Nm
S123 177,53 90S2		Size: S123 \| Ratio i: 177.53 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 16.1 rpm \| Output torque M2: 807 Nm
S123 177,53 90S4		Size: S123 \| Ratio i: 177.53 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 8.1 rpm \| Output torque M2: 1226 Nm
S123 177,53 90S6		Size: S123 \| Ratio i: 177.53 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 5.3 rpm \| Output torque M2: 1284 Nm
S123 194,59 100L2		Size: S123 \| Ratio i: 194.59 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 14.9 rpm \| Output torque M2: 1744 Nm
S123 194,59 100L6		Size: S123 \| Ratio i: 194.59 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 2816 Nm
S123 194,59 100LA4		Size: S123 \| Ratio i: 194.59 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 2669 Nm
S123 194,59 100LR6		Size: S123 \| Ratio i: 194.59 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 2043 Nm
S123 194,59 80B2		Size: S123 \| Ratio i: 194.59 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 648 Nm
S123 194,59 80B4		Size: S123 \| Ratio i: 194.59 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 910 Nm
S123 194,59 80B6		Size: S123 \| Ratio i: 194.59 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 1032 Nm
S123 194,59 90L2		Size: S123 \| Ratio i: 194.59 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 14.8 rpm \| Output torque M2: 1288 Nm
S123 194,59 90L4		Size: S123 \| Ratio i: 194.59 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 1833 Nm
S123 194,59 90S2		Size: S123 \| Ratio i: 194.59 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 14.6 rpm \| Output torque M2: 884 Nm
S123 194,59 90S4		Size: S123 \| Ratio i: 194.59 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 7.3 rpm \| Output torque M2: 1344 Nm
S123 194,59 90S6		Size: S123 \| Ratio i: 194.59 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 1408 Nm
S123 215,60 100L2		Size: S123 \| Ratio i: 215.60 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 13.5 rpm \| Output torque M2: 1932 Nm
S123 215,60 100L6		Size: S123 \| Ratio i: 215.60 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 4.3 rpm \| Output torque M2: 3120 Nm
S123 215,60 100LA4		Size: S123 \| Ratio i: 215.60 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 6.7 rpm \| Output torque M2: 2957 Nm
S123 215,60 100LR6		Size: S123 \| Ratio i: 215.60 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 2263 Nm
S123 215,60 80A4		Size: S123 \| Ratio i: 215.60 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 6.6 rpm \| Output torque M2: 749 Nm
S123 215,60 80B2		Size: S123 \| Ratio i: 215.60 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 718 Nm
S123 215,60 80B4		Size: S123 \| Ratio i: 215.60 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 6.7 rpm \| Output torque M2: 1008 Nm
S123 215,60 80B6		Size: S123 \| Ratio i: 215.60 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.3 rpm \| Output torque M2: 1144 Nm
S123 215,60 90L2		Size: S123 \| Ratio i: 215.60 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 13.4 rpm \| Output torque M2: 1427 Nm
S123 215,60 90L4		Size: S123 \| Ratio i: 215.60 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 6.6 rpm \| Output torque M2: 2031 Nm
S123 215,60 90S2		Size: S123 \| Ratio i: 215.60 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 13.3 rpm \| Output torque M2: 980 Nm
S123 215,60 90S4		Size: S123 \| Ratio i: 215.60 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 6.6 rpm \| Output torque M2: 1489 Nm
S123 215,60 90S6		Size: S123 \| Ratio i: 215.60 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 1560 Nm
S123 238,93 100L2		Size: S123 \| Ratio i: 238.93 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 12.1 rpm \| Output torque M2: 2142 Nm
S123 238,93 100L6		Size: S123 \| Ratio i: 238.93 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.9 rpm \| Output torque M2: 3457 Nm
S123 238,93 100LA4		Size: S123 \| Ratio i: 238.93 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 3277 Nm
S123 238,93 100LR6		Size: S123 \| Ratio i: 238.93 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 2508 Nm
S123 238,93 80A4		Size: S123 \| Ratio i: 238.93 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 831 Nm
S123 238,93 80A6		Size: S123 \| Ratio i: 238.93 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 3.9 rpm \| Output torque M2: 853 Nm
S123 238,93 80B2		Size: S123 \| Ratio i: 238.93 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 797 Nm
S123 238,93 80B4		Size: S123 \| Ratio i: 238.93 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 1117 Nm
S123 238,93 80B6		Size: S123 \| Ratio i: 238.93 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 3.9 rpm \| Output torque M2: 1267 Nm
S123 238,93 90L2		Size: S123 \| Ratio i: 238.93 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 12.1 rpm \| Output torque M2: 1581 Nm
S123 238,93 90L4		Size: S123 \| Ratio i: 238.93 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 5.9 rpm \| Output torque M2: 2250 Nm
S123 238,93 90S2		Size: S123 \| Ratio i: 238.93 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 1086 Nm
S123 238,93 90S4		Size: S123 \| Ratio i: 238.93 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 1650 Nm
S123 238,93 90S6		Size: S123 \| Ratio i: 238.93 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 1728 Nm
S123 255,54 100LR6		Size: S123 \| Ratio i: 255.54 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 3.7 rpm \| Output torque M2: 2683 Nm
S123 255,54 80A2		Size: S123 \| Ratio i: 255.54 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 581 Nm
S123 255,54 80A4		Size: S123 \| Ratio i: 255.54 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 888 Nm
S123 255,54 80A6		Size: S123 \| Ratio i: 255.54 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 3.7 rpm \| Output torque M2: 912 Nm
S123 255,54 80B2		Size: S123 \| Ratio i: 255.54 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 851 Nm
S123 255,54 80B4		Size: S123 \| Ratio i: 255.54 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 1195 Nm
S123 255,54 80B6		Size: S123 \| Ratio i: 255.54 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 3.6 rpm \| Output torque M2: 1356 Nm
S123 255,54 90L2		Size: S123 \| Ratio i: 255.54 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 1691 Nm
S123 255,54 90L4		Size: S123 \| Ratio i: 255.54 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 2407 Nm
S123 255,54 90S2		Size: S123 \| Ratio i: 255.54 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 1161 Nm
S123 255,54 90S4		Size: S123 \| Ratio i: 255.54 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 1765 Nm
S123 255,54 90S6		Size: S123 \| Ratio i: 255.54 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 3.7 rpm \| Output torque M2: 1849 Nm
S123 280,10 100LR6		Size: S123 \| Ratio i: 280.10 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 2941 Nm
S123 280,10 80A2		Size: S123 \| Ratio i: 280.10 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 637 Nm
S123 280,10 80A4		Size: S123 \| Ratio i: 280.10 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 974 Nm
S123 280,10 80A6		Size: S123 \| Ratio i: 280.10 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 1000 Nm
S123 280,10 80B2		Size: S123 \| Ratio i: 280.10 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 933 Nm
S123 280,10 80B4		Size: S123 \| Ratio i: 280.10 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 1310 Nm
S123 280,10 80B6		Size: S123 \| Ratio i: 280.10 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 3.3 rpm \| Output torque M2: 1486 Nm
S123 280,10 90L2		Size: S123 \| Ratio i: 280.10 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 10.3 rpm \| Output torque M2: 1854 Nm
S123 280,10 90L4		Size: S123 \| Ratio i: 280.10 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 2638 Nm
S123 280,10 90S2		Size: S123 \| Ratio i: 280.10 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 1273 Nm
S123 280,10 90S4		Size: S123 \| Ratio i: 280.10 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 1935 Nm
S123 280,10 90S6		Size: S123 \| Ratio i: 280.10 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 2026 Nm
S123 301,16 100LR6		Size: S123 \| Ratio i: 301.16 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 3.2 rpm \| Output torque M2: 3162 Nm
S123 301,16 80A2		Size: S123 \| Ratio i: 301.16 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 684 Nm
S123 301,16 80A4		Size: S123 \| Ratio i: 301.16 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 4.7 rpm \| Output torque M2: 1047 Nm
S123 301,16 80A6		Size: S123 \| Ratio i: 301.16 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 1075 Nm
S123 301,16 80B2		Size: S123 \| Ratio i: 301.16 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1003 Nm
S123 301,16 80B4		Size: S123 \| Ratio i: 301.16 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 4.7 rpm \| Output torque M2: 1408 Nm
S123 301,16 80B6		Size: S123 \| Ratio i: 301.16 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 1598 Nm
S123 301,16 90L2		Size: S123 \| Ratio i: 301.16 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 9.6 rpm \| Output torque M2: 1993 Nm
S123 301,16 90L4		Size: S123 \| Ratio i: 301.16 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 4.7 rpm \| Output torque M2: 2836 Nm
S123 301,16 90S2		Size: S123 \| Ratio i: 301.16 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1369 Nm
S123 301,16 90S4		Size: S123 \| Ratio i: 301.16 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 4.7 rpm \| Output torque M2: 2080 Nm
S123 301,16 90S6		Size: S123 \| Ratio i: 301.16 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 2179 Nm
S123 343,93 80A2		Size: S123 \| Ratio i: 343.93 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 8.4 rpm \| Output torque M2: 782 Nm
S123 343,93 80A4		Size: S123 \| Ratio i: 343.93 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 1196 Nm
S123 343,93 80A6		Size: S123 \| Ratio i: 343.93 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 2.7 rpm \| Output torque M2: 1227 Nm
S123 343,93 80B2		Size: S123 \| Ratio i: 343.93 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 1146 Nm
S123 343,93 80B4		Size: S123 \| Ratio i: 343.93 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 1608 Nm
S123 343,93 80B6		Size: S123 \| Ratio i: 343.93 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 2.7 rpm \| Output torque M2: 1825 Nm
S123 343,93 90L4		Size: S123 \| Ratio i: 343.93 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 3239 Nm
S123 343,93 90S2		Size: S123 \| Ratio i: 343.93 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 1563 Nm
S123 343,93 90S4		Size: S123 \| Ratio i: 343.93 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 2375 Nm
S123 343,93 90S6		Size: S123 \| Ratio i: 343.93 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 2.7 rpm \| Output torque M2: 2488 Nm
S142 4,12 160L6		Size: S142 \| Ratio i: 4.12 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 235.6 rpm \| Output torque M2: 432 Nm
S142 4,12 160LA4		Size: S142 \| Ratio i: 4.12 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 358.2 rpm \| Output torque M2: 384 Nm
S142 4,12 180L4		Size: S142 \| Ratio i: 4.12 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 357.0 rpm \| Output torque M2: 565 Nm
S142 4,12 180L6		Size: S142 \| Ratio i: 4.12 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 238.0 rpm \| Output torque M2: 584 Nm
S142 4,12 180M4		Size: S142 \| Ratio i: 4.12 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 357.0 rpm \| Output torque M2: 475 Nm
S142 4,12 200L4		Size: S142 \| Ratio i: 4.12 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 358.2 rpm \| Output torque M2: 768 Nm
S142 4,12 200LA6		Size: S142 \| Ratio i: 4.12 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 238.0 rpm \| Output torque M2: 720 Nm
S142 4,12 200LB6		Size: S142 \| Ratio i: 4.12 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 238.0 rpm \| Output torque M2: 856 Nm
S142 4,59 160L6		Size: S142 \| Ratio i: 4.59 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 211.5 rpm \| Output torque M2: 482 Nm
S142 4,59 160LA4		Size: S142 \| Ratio i: 4.59 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 321.6 rpm \| Output torque M2: 428 Nm
S142 4,59 180L4		Size: S142 \| Ratio i: 4.59 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 320.5 rpm \| Output torque M2: 629 Nm
S142 4,59 180L6		Size: S142 \| Ratio i: 4.59 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 213.7 rpm \| Output torque M2: 650 Nm
S142 4,59 180M4		Size: S142 \| Ratio i: 4.59 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 320.5 rpm \| Output torque M2: 529 Nm
S142 4,59 200L4		Size: S142 \| Ratio i: 4.59 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 321.6 rpm \| Output torque M2: 855 Nm
S142 4,59 200LA6		Size: S142 \| Ratio i: 4.59 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 213.7 rpm \| Output torque M2: 802 Nm
S142 4,59 200LB6		Size: S142 \| Ratio i: 4.59 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 213.7 rpm \| Output torque M2: 953 Nm
S142 5,14 160L6		Size: S142 \| Ratio i: 5.14 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 188.6 rpm \| Output torque M2: 540 Nm
S142 5,14 160LA4		Size: S142 \| Ratio i: 5.14 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 286.8 rpm \| Output torque M2: 480 Nm
S142 5,14 180L4		Size: S142 \| Ratio i: 5.14 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 285.8 rpm \| Output torque M2: 706 Nm
S142 5,14 180L6		Size: S142 \| Ratio i: 5.14 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 190.5 rpm \| Output torque M2: 729 Nm
S142 5,14 180M4		Size: S142 \| Ratio i: 5.14 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 285.8 rpm \| Output torque M2: 593 Nm
S142 5,14 200L4		Size: S142 \| Ratio i: 5.14 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 286.8 rpm \| Output torque M2: 959 Nm
S142 5,14 200LA6		Size: S142 \| Ratio i: 5.14 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 190.5 rpm \| Output torque M2: 899 Nm
S142 5,14 200LB6		Size: S142 \| Ratio i: 5.14 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 190.5 rpm \| Output torque M2: 1069 Nm
S142 5,82 160L6		Size: S142 \| Ratio i: 5.82 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 166.7 rpm \| Output torque M2: 611 Nm
S142 5,82 160LA4		Size: S142 \| Ratio i: 5.82 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 253.5 rpm \| Output torque M2: 543 Nm
S142 5,82 180L4		Size: S142 \| Ratio i: 5.82 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 252.6 rpm \| Output torque M2: 798 Nm
S142 5,82 180L6		Size: S142 \| Ratio i: 5.82 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 168.4 rpm \| Output torque M2: 825 Nm
S142 5,82 180M4		Size: S142 \| Ratio i: 5.82 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 252.6 rpm \| Output torque M2: 671 Nm
S142 5,82 200L4		Size: S142 \| Ratio i: 5.82 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 253.5 rpm \| Output torque M2: 1085 Nm
S142 5,82 200LA6		Size: S142 \| Ratio i: 5.82 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 168.4 rpm \| Output torque M2: 1017 Nm
S142 5,82 200LB6		Size: S142 \| Ratio i: 5.82 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 168.4 rpm \| Output torque M2: 1210 Nm
S142 6,21 160L6		Size: S142 \| Ratio i: 6.21 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 156.1 rpm \| Output torque M2: 652 Nm
S142 6,21 160LA4		Size: S142 \| Ratio i: 6.21 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 237.4 rpm \| Output torque M2: 579 Nm
S142 6,21 180L4		Size: S142 \| Ratio i: 6.21 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 236.6 rpm \| Output torque M2: 852 Nm
S142 6,21 180L6		Size: S142 \| Ratio i: 6.21 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 157.7 rpm \| Output torque M2: 881 Nm
S142 6,21 180M4		Size: S142 \| Ratio i: 6.21 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 236.6 rpm \| Output torque M2: 717 Nm
S142 6,21 200L4		Size: S142 \| Ratio i: 6.21 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 237.4 rpm \| Output torque M2: 1159 Nm
S142 6,21 200LA6		Size: S142 \| Ratio i: 6.21 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 157.7 rpm \| Output torque M2: 1086 Nm
S142 6,21 200LB6		Size: S142 \| Ratio i: 6.21 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 157.7 rpm \| Output torque M2: 1291 Nm
S142 7,32 132MB6		Size: S142 \| Ratio i: 7.32 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 132.6 rpm \| Output torque M2: 384 Nm
S142 7,32 160L6		Size: S142 \| Ratio i: 7.32 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 132.6 rpm \| Output torque M2: 768 Nm
S142 7,32 160LA4		Size: S142 \| Ratio i: 7.32 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 201.6 rpm \| Output torque M2: 682 Nm
S142 7,32 160MA4		Size: S142 \| Ratio i: 7.32 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 201.6 rpm \| Output torque M2: 500 Nm
S142 7,32 180L4		Size: S142 \| Ratio i: 7.32 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 200.9 rpm \| Output torque M2: 1004 Nm
S142 7,32 180L6		Size: S142 \| Ratio i: 7.32 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 133.9 rpm \| Output torque M2: 1037 Nm
S142 7,32 180M4		Size: S142 \| Ratio i: 7.32 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 200.9 rpm \| Output torque M2: 844 Nm
S142 7,32 200L4		Size: S142 \| Ratio i: 7.32 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 201.6 rpm \| Output torque M2: 1365 Nm
S142 7,32 200LA6		Size: S142 \| Ratio i: 7.32 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 133.9 rpm \| Output torque M2: 1279 Nm
S142 7,32 200LB6		Size: S142 \| Ratio i: 7.32 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 133.9 rpm \| Output torque M2: 1521 Nm
S142 8,21 132MB6		Size: S142 \| Ratio i: 8.21 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 118.2 rpm \| Output torque M2: 431 Nm
S142 8,21 160L6		Size: S142 \| Ratio i: 8.21 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 118.2 rpm \| Output torque M2: 862 Nm
S142 8,21 160LA4		Size: S142 \| Ratio i: 8.21 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 179.7 rpm \| Output torque M2: 765 Nm
S142 8,21 160MA4		Size: S142 \| Ratio i: 8.21 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 179.7 rpm \| Output torque M2: 561 Nm
S142 8,21 180L4		Size: S142 \| Ratio i: 8.21 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 179.1 rpm \| Output torque M2: 1126 Nm
S142 8,21 180L6		Size: S142 \| Ratio i: 8.21 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 119.4 rpm \| Output torque M2: 1163 Nm
S142 8,21 180M4		Size: S142 \| Ratio i: 8.21 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 179.1 rpm \| Output torque M2: 947 Nm
S142 8,21 200L4		Size: S142 \| Ratio i: 8.21 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 179.7 rpm \| Output torque M2: 1530 Nm
S142 8,21 200LA6		Size: S142 \| Ratio i: 8.21 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 119.4 rpm \| Output torque M2: 1435 Nm
S142 8,21 200LB6		Size: S142 \| Ratio i: 8.21 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 119.4 rpm \| Output torque M2: 1706 Nm
S142 9,29 132MB6		Size: S142 \| Ratio i: 9.29 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 104.5 rpm \| Output torque M2: 488 Nm
S142 9,29 160L6		Size: S142 \| Ratio i: 9.29 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 104.5 rpm \| Output torque M2: 975 Nm
S142 9,29 160LA4		Size: S142 \| Ratio i: 9.29 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 158.9 rpm \| Output torque M2: 866 Nm
S142 9,29 160MA4		Size: S142 \| Ratio i: 9.29 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 158.9 rpm \| Output torque M2: 635 Nm
S142 9,29 180L4		Size: S142 \| Ratio i: 9.29 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 158.3 rpm \| Output torque M2: 1274 Nm
S142 9,29 180L6		Size: S142 \| Ratio i: 9.29 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 105.5 rpm \| Output torque M2: 1316 Nm
S142 9,29 180M4		Size: S142 \| Ratio i: 9.29 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 158.3 rpm \| Output torque M2: 1071 Nm
S142 9,29 200L4		Size: S142 \| Ratio i: 9.29 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 158.9 rpm \| Output torque M2: 1731 Nm
S142 9,29 200LA6		Size: S142 \| Ratio i: 9.29 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 105.5 rpm \| Output torque M2: 1623 Nm
S142 9,29 200LB6		Size: S142 \| Ratio i: 9.29 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 105.5 rpm \| Output torque M2: 1930 Nm
S142 9,91 132MB6		Size: S142 \| Ratio i: 9.91 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 97.8 rpm \| Output torque M2: 521 Nm
S142 9,91 160L6		Size: S142 \| Ratio i: 9.91 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 97.8 rpm \| Output torque M2: 1041 Nm
S142 9,91 160LA4		Size: S142 \| Ratio i: 9.91 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 148.8 rpm \| Output torque M2: 924 Nm
S142 9,91 160MA4		Size: S142 \| Ratio i: 9.91 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 148.8 rpm \| Output torque M2: 678 Nm
S142 9,91 180L4		Size: S142 \| Ratio i: 9.91 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 148.3 rpm \| Output torque M2: 1360 Nm
S142 9,91 180L6		Size: S142 \| Ratio i: 9.91 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 98.9 rpm \| Output torque M2: 1405 Nm
S142 9,91 180M4		Size: S142 \| Ratio i: 9.91 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 148.3 rpm \| Output torque M2: 1144 Nm
S142 9,91 200L4		Size: S142 \| Ratio i: 9.91 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 148.8 rpm \| Output torque M2: 1849 Nm
S142 9,91 200LA6		Size: S142 \| Ratio i: 9.91 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 98.9 rpm \| Output torque M2: 1733 Nm
S142 9,91 200LB6		Size: S142 \| Ratio i: 9.91 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 98.9 rpm \| Output torque M2: 2061 Nm
S142 11,41 132M4		Size: S142 \| Ratio i: 11.41 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 537 Nm
S142 11,41 132MB6		Size: S142 \| Ratio i: 11.41 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 85.0 rpm \| Output torque M2: 599 Nm
S142 11,41 160L6		Size: S142 \| Ratio i: 11.41 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 85.0 rpm \| Output torque M2: 1198 Nm
S142 11,41 160LA4		Size: S142 \| Ratio i: 11.41 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 129.3 rpm \| Output torque M2: 1063 Nm
S142 11,41 160MA4		Size: S142 \| Ratio i: 11.41 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 129.3 rpm \| Output torque M2: 780 Nm
S142 11,41 180L4		Size: S142 \| Ratio i: 11.41 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 128.9 rpm \| Output torque M2: 1565 Nm
S142 11,41 180L6		Size: S142 \| Ratio i: 11.41 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 85.9 rpm \| Output torque M2: 1617 Nm
S142 11,41 180M4		Size: S142 \| Ratio i: 11.41 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 128.9 rpm \| Output torque M2: 1316 Nm
S142 11,41 200L4		Size: S142 \| Ratio i: 11.41 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 129.3 rpm \| Output torque M2: 2127 Nm
S142 11,41 200LA6		Size: S142 \| Ratio i: 11.41 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 85.9 rpm \| Output torque M2: 1994 Nm
S142 11,41 200LB6		Size: S142 \| Ratio i: 11.41 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 85.9 rpm \| Output torque M2: 2371 Nm
S142 12,81 132M4		Size: S142 \| Ratio i: 12.81 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 114.0 rpm \| Output torque M2: 604 Nm
S142 12,81 132MB6		Size: S142 \| Ratio i: 12.81 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 75.7 rpm \| Output torque M2: 673 Nm
S142 12,81 160L6		Size: S142 \| Ratio i: 12.81 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 75.7 rpm \| Output torque M2: 1345 Nm
S142 12,81 160LA4		Size: S142 \| Ratio i: 12.81 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 115.1 rpm \| Output torque M2: 1195 Nm
S142 12,81 160MA4		Size: S142 \| Ratio i: 12.81 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 115.1 rpm \| Output torque M2: 876 Nm
S142 12,81 180L4		Size: S142 \| Ratio i: 12.81 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 114.7 rpm \| Output torque M2: 1758 Nm
S142 12,81 180L6		Size: S142 \| Ratio i: 12.81 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 76.5 rpm \| Output torque M2: 1816 Nm
S142 12,81 180M4		Size: S142 \| Ratio i: 12.81 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 114.7 rpm \| Output torque M2: 1478 Nm
S142 12,81 200L4		Size: S142 \| Ratio i: 12.81 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 115.1 rpm \| Output torque M2: 2389 Nm
S142 12,81 200LA6		Size: S142 \| Ratio i: 12.81 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 76.5 rpm \| Output torque M2: 2240 Nm
S142 12,81 200LB6		Size: S142 \| Ratio i: 12.81 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 76.5 rpm \| Output torque M2: 2663 Nm
S142 14,27 132M4		Size: S142 \| Ratio i: 14.27 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 102.3 rpm \| Output torque M2: 672 Nm
S142 14,27 132MA6		Size: S142 \| Ratio i: 14.27 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 68.0 rpm \| Output torque M2: 545 Nm
S142 14,27 132MB6		Size: S142 \| Ratio i: 14.27 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 68.0 rpm \| Output torque M2: 749 Nm
S142 14,27 132MS4		Size: S142 \| Ratio i: 14.27 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 103.0 rpm \| Output torque M2: 490 Nm
S142 14,27 160L6		Size: S142 \| Ratio i: 14.27 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 68.0 rpm \| Output torque M2: 1499 Nm
S142 14,27 160LA4		Size: S142 \| Ratio i: 14.27 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 103.4 rpm \| Output torque M2: 1331 Nm
S142 14,27 160MA4		Size: S142 \| Ratio i: 14.27 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 103.4 rpm \| Output torque M2: 976 Nm
S142 14,27 180L4		Size: S142 \| Ratio i: 14.27 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 103.0 rpm \| Output torque M2: 1958 Nm
S142 14,27 180L6		Size: S142 \| Ratio i: 14.27 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 68.7 rpm \| Output torque M2: 2023 Nm
S142 14,27 180M4		Size: S142 \| Ratio i: 14.27 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 103.0 rpm \| Output torque M2: 1647 Nm
S142 14,27 200L4		Size: S142 \| Ratio i: 14.27 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 103.4 rpm \| Output torque M2: 2661 Nm
S142 14,27 200LA6		Size: S142 \| Ratio i: 14.27 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 68.7 rpm \| Output torque M2: 2495 Nm
S142 16,01 132M4		Size: S142 \| Ratio i: 16.01 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 91.2 rpm \| Output torque M2: 754 Nm
S142 16,01 132MA6		Size: S142 \| Ratio i: 16.01 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 60.6 rpm \| Output torque M2: 612 Nm
S142 16,01 132MB6		Size: S142 \| Ratio i: 16.01 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 60.6 rpm \| Output torque M2: 840 Nm
S142 16,01 132MS4		Size: S142 \| Ratio i: 16.01 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 91.8 rpm \| Output torque M2: 549 Nm
S142 16,01 160L6		Size: S142 \| Ratio i: 16.01 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 60.6 rpm \| Output torque M2: 1681 Nm
S142 16,01 160LA4		Size: S142 \| Ratio i: 16.01 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 92.2 rpm \| Output torque M2: 1492 Nm
S142 16,01 160MA4		Size: S142 \| Ratio i: 16.01 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 92.2 rpm \| Output torque M2: 1094 Nm
S142 16,01 180L4		Size: S142 \| Ratio i: 16.01 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 91.8 rpm \| Output torque M2: 2196 Nm
S142 16,01 180L6		Size: S142 \| Ratio i: 16.01 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 61.2 rpm \| Output torque M2: 2269 Nm
S142 16,01 180M4		Size: S142 \| Ratio i: 16.01 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 91.8 rpm \| Output torque M2: 1847 Nm
S142 16,01 200LA6		Size: S142 \| Ratio i: 16.01 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 61.2 rpm \| Output torque M2: 2798 Nm
S142 18,11 132M4		Size: S142 \| Ratio i: 18.11 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 80.7 rpm \| Output torque M2: 853 Nm
S142 18,11 132MA6		Size: S142 \| Ratio i: 18.11 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 53.6 rpm \| Output torque M2: 692 Nm
S142 18,11 132MB6		Size: S142 \| Ratio i: 18.11 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 53.6 rpm \| Output torque M2: 951 Nm
S142 18,11 132MS4		Size: S142 \| Ratio i: 18.11 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 81.2 rpm \| Output torque M2: 621 Nm
S142 18,11 160L6		Size: S142 \| Ratio i: 18.11 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 53.6 rpm \| Output torque M2: 1901 Nm
S142 18,11 160LA4		Size: S142 \| Ratio i: 18.11 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 81.5 rpm \| Output torque M2: 1688 Nm
S142 18,11 160MA4		Size: S142 \| Ratio i: 18.11 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 81.5 rpm \| Output torque M2: 1238 Nm
S142 18,11 180L4		Size: S142 \| Ratio i: 18.11 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 81.2 rpm \| Output torque M2: 2485 Nm
S142 18,11 180L6		Size: S142 \| Ratio i: 18.11 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 54.1 rpm \| Output torque M2: 2566 Nm
S142 18,11 180M4		Size: S142 \| Ratio i: 18.11 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 81.2 rpm \| Output torque M2: 2089 Nm
S142 18,11 200LA6		Size: S142 \| Ratio i: 18.11 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 54.1 rpm \| Output torque M2: 3165 Nm
S142 19,33 132M4		Size: S142 \| Ratio i: 19.33 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 75.5 rpm \| Output torque M2: 911 Nm
S142 19,33 132MA6		Size: S142 \| Ratio i: 19.33 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 50.2 rpm \| Output torque M2: 738 Nm
S142 19,33 132MB6		Size: S142 \| Ratio i: 19.33 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 50.2 rpm \| Output torque M2: 1015 Nm
S142 19,33 132MS4		Size: S142 \| Ratio i: 19.33 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 76.0 rpm \| Output torque M2: 663 Nm
S142 19,33 160L6		Size: S142 \| Ratio i: 19.33 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 50.2 rpm \| Output torque M2: 2030 Nm
S142 19,33 160LA4		Size: S142 \| Ratio i: 19.33 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 76.3 rpm \| Output torque M2: 1803 Nm
S142 19,33 160MA4		Size: S142 \| Ratio i: 19.33 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 76.3 rpm \| Output torque M2: 1322 Nm
S142 19,33 180L4		Size: S142 \| Ratio i: 19.33 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 76.0 rpm \| Output torque M2: 2653 Nm
S142 19,33 180L6		Size: S142 \| Ratio i: 19.33 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 50.7 rpm \| Output torque M2: 2740 Nm
S142 19,33 180M4		Size: S142 \| Ratio i: 19.33 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 76.0 rpm \| Output torque M2: 2231 Nm
S142 19,33 200LA6		Size: S142 \| Ratio i: 19.33 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 50.7 rpm \| Output torque M2: 3379 Nm
S142 22,24 132M4		Size: S142 \| Ratio i: 22.24 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 65.6 rpm \| Output torque M2: 1048 Nm
S142 22,24 132MA6		Size: S142 \| Ratio i: 22.24 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 43.6 rpm \| Output torque M2: 849 Nm
S142 22,24 132MB6		Size: S142 \| Ratio i: 22.24 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 43.6 rpm \| Output torque M2: 1168 Nm
S142 22,24 132MS4		Size: S142 \| Ratio i: 22.24 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 66.1 rpm \| Output torque M2: 763 Nm
S142 22,24 132S6		Size: S142 \| Ratio i: 22.24 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 43.6 rpm \| Output torque M2: 637 Nm
S142 22,24 160L6		Size: S142 \| Ratio i: 22.24 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 43.6 rpm \| Output torque M2: 2336 Nm
S142 22,24 160LA4		Size: S142 \| Ratio i: 22.24 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 66.3 rpm \| Output torque M2: 2074 Nm
S142 22,24 160MA4		Size: S142 \| Ratio i: 22.24 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 66.3 rpm \| Output torque M2: 1521 Nm
S142 22,24 180L4		Size: S142 \| Ratio i: 22.24 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 66.1 rpm \| Output torque M2: 3052 Nm
S142 22,24 180L6		Size: S142 \| Ratio i: 22.24 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 44.1 rpm \| Output torque M2: 3153 Nm
S142 22,24 180M4		Size: S142 \| Ratio i: 22.24 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 66.1 rpm \| Output torque M2: 2567 Nm
S142 25,26 132M4		Size: S142 \| Ratio i: 25.26 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 57.8 rpm \| Output torque M2: 1190 Nm
S142 25,26 132MA6		Size: S142 \| Ratio i: 25.26 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 38.4 rpm \| Output torque M2: 965 Nm
S142 25,26 132MB6		Size: S142 \| Ratio i: 25.26 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 38.4 rpm \| Output torque M2: 1326 Nm
S142 25,26 132MS4		Size: S142 \| Ratio i: 25.26 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 58.2 rpm \| Output torque M2: 866 Nm
S142 25,26 132S6		Size: S142 \| Ratio i: 25.26 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 38.4 rpm \| Output torque M2: 723 Nm
S142 25,26 160L6		Size: S142 \| Ratio i: 25.26 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 38.4 rpm \| Output torque M2: 2653 Nm
S142 25,26 160LA4		Size: S142 \| Ratio i: 25.26 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 58.4 rpm \| Output torque M2: 2355 Nm
S142 25,26 160MA4		Size: S142 \| Ratio i: 25.26 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 58.4 rpm \| Output torque M2: 1727 Nm
S142 25,26 180M4		Size: S142 \| Ratio i: 25.26 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 58.2 rpm \| Output torque M2: 2915 Nm
S142 28,33 132M4		Size: S142 \| Ratio i: 28.33 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 51.6 rpm \| Output torque M2: 1335 Nm
S142 28,33 132MA6		Size: S142 \| Ratio i: 28.33 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 34.2 rpm \| Output torque M2: 1082 Nm
S142 28,33 132MB6		Size: S142 \| Ratio i: 28.33 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 34.2 rpm \| Output torque M2: 1488 Nm
S142 28,33 132MS4		Size: S142 \| Ratio i: 28.33 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 51.9 rpm \| Output torque M2: 972 Nm
S142 28,33 132S6		Size: S142 \| Ratio i: 28.33 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 34.3 rpm \| Output torque M2: 812 Nm
S142 28,33 160L6		Size: S142 \| Ratio i: 28.33 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 34.2 rpm \| Output torque M2: 2975 Nm
S142 28,33 160LA4		Size: S142 \| Ratio i: 28.33 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 52.1 rpm \| Output torque M2: 2642 Nm
S142 28,33 160MA4		Size: S142 \| Ratio i: 28.33 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 52.1 rpm \| Output torque M2: 1937 Nm
S142 28,33 180M4		Size: S142 \| Ratio i: 28.33 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 51.9 rpm \| Output torque M2: 3269 Nm
S142 32,05 132M4		Size: S142 \| Ratio i: 32.05 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 1510 Nm
S142 32,05 132MA6		Size: S142 \| Ratio i: 32.05 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 30.3 rpm \| Output torque M2: 1224 Nm
S142 32,05 132MB6		Size: S142 \| Ratio i: 32.05 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 30.3 rpm \| Output torque M2: 1683 Nm
S142 32,05 132MS4		Size: S142 \| Ratio i: 32.05 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 45.8 rpm \| Output torque M2: 1100 Nm
S142 32,05 132S6		Size: S142 \| Ratio i: 32.05 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 30.3 rpm \| Output torque M2: 918 Nm
S142 32,05 160L6		Size: S142 \| Ratio i: 32.05 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 30.3 rpm \| Output torque M2: 3366 Nm
S142 32,05 160LA4		Size: S142 \| Ratio i: 32.05 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 46.0 rpm \| Output torque M2: 2988 Nm
S142 32,05 160MA4		Size: S142 \| Ratio i: 32.05 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 46.0 rpm \| Output torque M2: 2191 Nm
S142 32,05 180M4		Size: S142 \| Ratio i: 32.05 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 45.9 rpm \| Output torque M2: 3698 Nm
S142 34,22 132M4		Size: S142 \| Ratio i: 34.22 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 42.7 rpm \| Output torque M2: 1612 Nm
S142 34,22 132MA6		Size: S142 \| Ratio i: 34.22 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 28.3 rpm \| Output torque M2: 1307 Nm
S142 34,22 132MB6		Size: S142 \| Ratio i: 34.22 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 28.3 rpm \| Output torque M2: 1797 Nm
S142 34,22 132MS4		Size: S142 \| Ratio i: 34.22 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 43.0 rpm \| Output torque M2: 1174 Nm
S142 34,22 132S6		Size: S142 \| Ratio i: 34.22 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 28.3 rpm \| Output torque M2: 980 Nm
S142 34,22 160L6		Size: S142 \| Ratio i: 34.22 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 28.3 rpm \| Output torque M2: 3594 Nm
S142 34,22 160LA4		Size: S142 \| Ratio i: 34.22 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 43.1 rpm \| Output torque M2: 3191 Nm
S142 34,22 160MA4		Size: S142 \| Ratio i: 34.22 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 43.1 rpm \| Output torque M2: 2340 Nm
S142 34,22 180M4		Size: S142 \| Ratio i: 34.22 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 43.0 rpm \| Output torque M2: 3949 Nm
S142 39,38 132M4		Size: S142 \| Ratio i: 39.38 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 37.1 rpm \| Output torque M2: 1854 Nm
S142 39,38 132MA6		Size: S142 \| Ratio i: 39.38 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 24.6 rpm \| Output torque M2: 1504 Nm
S142 39,38 132MB6		Size: S142 \| Ratio i: 39.38 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 24.7 rpm \| Output torque M2: 2068 Nm
S142 39,38 132MS4		Size: S142 \| Ratio i: 39.38 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 37.3 rpm \| Output torque M2: 1351 Nm
S142 39,38 160L6		Size: S142 \| Ratio i: 39.38 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 24.6 rpm \| Output torque M2: 4135 Nm
S142 39,38 160LA4		Size: S142 \| Ratio i: 39.38 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 3671 Nm
S142 39,38 160MA4		Size: S142 \| Ratio i: 39.38 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 2692 Nm
S142 39,38 180M4		Size: S142 \| Ratio i: 39.38 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 37.3 rpm \| Output torque M2: 4543 Nm
S143 45,77 112M4		Size: S143 \| Ratio i: 45.77 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 31.7 rpm \| Output torque M2: 1133 Nm
S143 45,77 132M4		Size: S143 \| Ratio i: 45.77 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 31.9 rpm \| Output torque M2: 2111 Nm
S143 45,77 132MA6		Size: S143 \| Ratio i: 45.77 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 21.2 rpm \| Output torque M2: 1711 Nm
S143 45,77 132MB6		Size: S143 \| Ratio i: 45.77 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 21.2 rpm \| Output torque M2: 2353 Nm
S143 45,77 132MS4		Size: S143 \| Ratio i: 45.77 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 32.1 rpm \| Output torque M2: 1538 Nm
S143 45,77 132S6		Size: S143 \| Ratio i: 45.77 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 21.2 rpm \| Output torque M2: 1284 Nm
S143 45,77 160LA4		Size: S143 \| Ratio i: 45.77 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 32.2 rpm \| Output torque M2: 4178 Nm
S143 45,77 160MA4		Size: S143 \| Ratio i: 45.77 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 32.2 rpm \| Output torque M2: 3064 Nm
S143 50,97 112M4		Size: S143 \| Ratio i: 50.97 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 28.5 rpm \| Output torque M2: 1262 Nm
S143 50,97 132M4		Size: S143 \| Ratio i: 50.97 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 28.6 rpm \| Output torque M2: 2351 Nm
S143 50,97 132MA6		Size: S143 \| Ratio i: 50.97 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 19.0 rpm \| Output torque M2: 1906 Nm
S143 50,97 132MB6		Size: S143 \| Ratio i: 50.97 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 19.0 rpm \| Output torque M2: 2621 Nm
S143 50,97 132MS4		Size: S143 \| Ratio i: 50.97 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 28.8 rpm \| Output torque M2: 1712 Nm
S143 50,97 132S6		Size: S143 \| Ratio i: 50.97 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 19.0 rpm \| Output torque M2: 1429 Nm
S143 50,97 160LA4		Size: S143 \| Ratio i: 50.97 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 28.9 rpm \| Output torque M2: 4653 Nm
S143 50,97 160MA4		Size: S143 \| Ratio i: 50.97 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 28.9 rpm \| Output torque M2: 3412 Nm
S143 57,17 112M4		Size: S143 \| Ratio i: 57.17 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 25.4 rpm \| Output torque M2: 1416 Nm
S143 57,17 132M4		Size: S143 \| Ratio i: 57.17 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 25.6 rpm \| Output torque M2: 2637 Nm
S143 57,17 132MA6		Size: S143 \| Ratio i: 57.17 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 17.0 rpm \| Output torque M2: 2138 Nm
S143 57,17 132MB6		Size: S143 \| Ratio i: 57.17 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 17.0 rpm \| Output torque M2: 2939 Nm
S143 57,17 132MS4		Size: S143 \| Ratio i: 57.17 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 25.8 rpm \| Output torque M2: 1921 Nm
S143 57,17 132S6		Size: S143 \| Ratio i: 57.17 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 17.0 rpm \| Output torque M2: 1603 Nm
S143 57,17 160LA4		Size: S143 \| Ratio i: 57.17 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 25.8 rpm \| Output torque M2: 5219 Nm
S143 57,17 160MA4		Size: S143 \| Ratio i: 57.17 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 25.8 rpm \| Output torque M2: 3828 Nm
S143 64,68 112M4		Size: S143 \| Ratio i: 64.68 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 22.4 rpm \| Output torque M2: 1602 Nm
S143 64,68 112M6		Size: S143 \| Ratio i: 64.68 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 14.8 rpm \| Output torque M2: 1344 Nm
S143 64,68 112MS4		Size: S143 \| Ratio i: 64.68 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 22.4 rpm \| Output torque M2: 1201 Nm
S143 64,68 132M4		Size: S143 \| Ratio i: 64.68 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 22.6 rpm \| Output torque M2: 2983 Nm
S143 64,68 132MA6		Size: S143 \| Ratio i: 64.68 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 15.0 rpm \| Output torque M2: 2418 Nm
S143 64,68 132MB6		Size: S143 \| Ratio i: 64.68 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 15.0 rpm \| Output torque M2: 3325 Nm
S143 64,68 132MS4		Size: S143 \| Ratio i: 64.68 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 22.8 rpm \| Output torque M2: 2172 Nm
S143 64,68 132S6		Size: S143 \| Ratio i: 64.68 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 15.0 rpm \| Output torque M2: 1814 Nm
S143 64,68 160MA4		Size: S143 \| Ratio i: 64.68 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 22.8 rpm \| Output torque M2: 4330 Nm
S143 69,06 112M4		Size: S143 \| Ratio i: 69.06 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 21.0 rpm \| Output torque M2: 1710 Nm
S143 69,06 112M6		Size: S143 \| Ratio i: 69.06 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 1435 Nm
S143 69,06 112MS4		Size: S143 \| Ratio i: 69.06 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 21.0 rpm \| Output torque M2: 1283 Nm
S143 69,06 132M4		Size: S143 \| Ratio i: 69.06 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 21.1 rpm \| Output torque M2: 3184 Nm
S143 69,06 132MA6		Size: S143 \| Ratio i: 69.06 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 14.0 rpm \| Output torque M2: 2582 Nm
S143 69,06 132MB6		Size: S143 \| Ratio i: 69.06 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 14.0 rpm \| Output torque M2: 3550 Nm
S143 69,06 132MS4		Size: S143 \| Ratio i: 69.06 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 21.2 rpm \| Output torque M2: 2319 Nm
S143 69,06 132S6		Size: S143 \| Ratio i: 69.06 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 14.0 rpm \| Output torque M2: 1937 Nm
S143 69,06 160MA4		Size: S143 \| Ratio i: 69.06 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 21.4 rpm \| Output torque M2: 4623 Nm
S143 79,45 100L6		Size: S143 \| Ratio i: 79.45 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 1150 Nm
S143 79,45 100LA4		Size: S143 \| Ratio i: 79.45 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 18.1 rpm \| Output torque M2: 1090 Nm
S143 79,45 112M4		Size: S143 \| Ratio i: 79.45 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 18.2 rpm \| Output torque M2: 1968 Nm
S143 79,45 112M6		Size: S143 \| Ratio i: 79.45 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 12.1 rpm \| Output torque M2: 1651 Nm
S143 79,45 112MS4		Size: S143 \| Ratio i: 79.45 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 18.2 rpm \| Output torque M2: 1476 Nm
S143 79,45 132M4		Size: S143 \| Ratio i: 79.45 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 18.4 rpm \| Output torque M2: 3664 Nm
S143 79,45 132MA6		Size: S143 \| Ratio i: 79.45 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 12.2 rpm \| Output torque M2: 2971 Nm
S143 79,45 132MB6		Size: S143 \| Ratio i: 79.45 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 12.2 rpm \| Output torque M2: 4085 Nm
S143 79,45 132MS4		Size: S143 \| Ratio i: 79.45 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 18.5 rpm \| Output torque M2: 2669 Nm
S143 79,45 132S6		Size: S143 \| Ratio i: 79.45 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 12.2 rpm \| Output torque M2: 2228 Nm
S143 98,81 100L6		Size: S143 \| Ratio i: 98.81 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1430 Nm
S143 98,81 100LA4		Size: S143 \| Ratio i: 98.81 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 14.6 rpm \| Output torque M2: 1356 Nm
S143 98,81 112M4		Size: S143 \| Ratio i: 98.81 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 2447 Nm
S143 98,81 112M6		Size: S143 \| Ratio i: 98.81 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 9.7 rpm \| Output torque M2: 2053 Nm
S143 98,81 112MS4		Size: S143 \| Ratio i: 98.81 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 1835 Nm
S143 98,81 132M4		Size: S143 \| Ratio i: 98.81 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 14.8 rpm \| Output torque M2: 4557 Nm
S143 98,81 132MA6		Size: S143 \| Ratio i: 98.81 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 3695 Nm
S143 98,81 132MB6		Size: S143 \| Ratio i: 98.81 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 5080 Nm
S143 98,81 132MS4		Size: S143 \| Ratio i: 98.81 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 14.9 rpm \| Output torque M2: 3319 Nm
S143 98,81 132S6		Size: S143 \| Ratio i: 98.81 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 2771 Nm
S143 110,05 100L6		Size: S143 \| Ratio i: 110.05 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 8.5 rpm \| Output torque M2: 1592 Nm
S143 110,05 100LA4		Size: S143 \| Ratio i: 110.05 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 13.1 rpm \| Output torque M2: 1510 Nm
S143 110,05 112M4		Size: S143 \| Ratio i: 110.05 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 2725 Nm
S143 110,05 112M6		Size: S143 \| Ratio i: 110.05 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 8.7 rpm \| Output torque M2: 2287 Nm
S143 110,05 112MS4		Size: S143 \| Ratio i: 110.05 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 2044 Nm
S143 110,05 132M4		Size: S143 \| Ratio i: 110.05 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 13.3 rpm \| Output torque M2: 5075 Nm
S143 110,05 132MA6		Size: S143 \| Ratio i: 110.05 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 8.8 rpm \| Output torque M2: 4115 Nm
S143 110,05 132MS4		Size: S143 \| Ratio i: 110.05 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 13.4 rpm \| Output torque M2: 3697 Nm
S143 110,05 132S6		Size: S143 \| Ratio i: 110.05 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 8.8 rpm \| Output torque M2: 3086 Nm
S143 123,44 100L6		Size: S143 \| Ratio i: 123.44 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 1786 Nm
S143 123,44 100LA4		Size: S143 \| Ratio i: 123.44 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 11.6 rpm \| Output torque M2: 1693 Nm
S143 123,44 100LR6		Size: S143 \| Ratio i: 123.44 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 7.7 rpm \| Output torque M2: 1296 Nm
S143 123,44 112M4		Size: S143 \| Ratio i: 123.44 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 11.7 rpm \| Output torque M2: 3057 Nm
S143 123,44 112M6		Size: S143 \| Ratio i: 123.44 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 7.7 rpm \| Output torque M2: 2565 Nm
S143 123,44 112MS4		Size: S143 \| Ratio i: 123.44 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 11.7 rpm \| Output torque M2: 2293 Nm
S143 123,44 132MA6		Size: S143 \| Ratio i: 123.44 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 7.9 rpm \| Output torque M2: 4615 Nm
S143 123,44 132MS4		Size: S143 \| Ratio i: 123.44 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 4146 Nm
S143 123,44 132S6		Size: S143 \| Ratio i: 123.44 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 7.9 rpm \| Output torque M2: 3462 Nm
S143 139,64 100L6		Size: S143 \| Ratio i: 139.64 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 2020 Nm
S143 139,64 100LA4		Size: S143 \| Ratio i: 139.64 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 10.3 rpm \| Output torque M2: 1916 Nm
S143 139,64 100LR6		Size: S143 \| Ratio i: 139.64 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 1466 Nm
S143 139,64 112M4		Size: S143 \| Ratio i: 139.64 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 10.4 rpm \| Output torque M2: 3458 Nm
S143 139,64 112M6		Size: S143 \| Ratio i: 139.64 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 6.9 rpm \| Output torque M2: 2902 Nm
S143 139,64 112MS4		Size: S143 \| Ratio i: 139.64 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 10.4 rpm \| Output torque M2: 2594 Nm
S143 139,64 132MA6		Size: S143 \| Ratio i: 139.64 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 5222 Nm
S143 139,64 132MS4		Size: S143 \| Ratio i: 139.64 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 10.5 rpm \| Output torque M2: 4690 Nm
S143 139,64 132S6		Size: S143 \| Ratio i: 139.64 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 3916 Nm
S143 149,10 100L6		Size: S143 \| Ratio i: 149.10 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 2157 Nm
S143 149,10 100LA4		Size: S143 \| Ratio i: 149.10 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 9.6 rpm \| Output torque M2: 2045 Nm
S143 149,10 100LR6		Size: S143 \| Ratio i: 149.10 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 1565 Nm
S143 149,10 112M4		Size: S143 \| Ratio i: 149.10 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 3692 Nm
S143 149,10 112M6		Size: S143 \| Ratio i: 149.10 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 3098 Nm
S143 149,10 112MS4		Size: S143 \| Ratio i: 149.10 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 9.7 rpm \| Output torque M2: 2769 Nm
S143 149,10 132MA6		Size: S143 \| Ratio i: 149.10 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 5575 Nm
S143 149,10 132MS4		Size: S143 \| Ratio i: 149.10 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 9.9 rpm \| Output torque M2: 5008 Nm
S143 149,10 132S6		Size: S143 \| Ratio i: 149.10 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 4181 Nm
S143 157,49 100L6		Size: S143 \| Ratio i: 157.49 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 2279 Nm
S143 157,49 100LA4		Size: S143 \| Ratio i: 157.49 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 9.1 rpm \| Output torque M2: 2160 Nm
S143 157,49 100LR6		Size: S143 \| Ratio i: 157.49 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 1653 Nm
S143 157,49 112M4		Size: S143 \| Ratio i: 157.49 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 9.2 rpm \| Output torque M2: 3900 Nm
S143 157,49 112M6		Size: S143 \| Ratio i: 157.49 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 6.1 rpm \| Output torque M2: 3273 Nm
S143 157,49 112MS4		Size: S143 \| Ratio i: 157.49 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 9.2 rpm \| Output torque M2: 2925 Nm
S143 171,55 100L6		Size: S143 \| Ratio i: 171.55 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 2482 Nm
S143 171,55 100LA4		Size: S143 \| Ratio i: 171.55 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 8.4 rpm \| Output torque M2: 2353 Nm
S143 171,55 100LR6		Size: S143 \| Ratio i: 171.55 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 1801 Nm
S143 171,55 112M4		Size: S143 \| Ratio i: 171.55 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 8.5 rpm \| Output torque M2: 4249 Nm
S143 171,55 112M6		Size: S143 \| Ratio i: 171.55 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 3564 Nm
S143 171,55 112MS4		Size: S143 \| Ratio i: 171.55 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 8.5 rpm \| Output torque M2: 3186 Nm
S143 171,55 132S6		Size: S143 \| Ratio i: 171.55 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.7 rpm \| Output torque M2: 4811 Nm
S143 175,41 100L6		Size: S143 \| Ratio i: 175.41 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 5.4 rpm \| Output torque M2: 2538 Nm
S143 175,41 100LA4		Size: S143 \| Ratio i: 175.41 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 2406 Nm
S143 175,41 100LR6		Size: S143 \| Ratio i: 175.41 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 5.4 rpm \| Output torque M2: 1841 Nm
S143 175,41 112M4		Size: S143 \| Ratio i: 175.41 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 4344 Nm
S143 175,41 112M6		Size: S143 \| Ratio i: 175.41 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 3645 Nm
S143 175,41 112MS4		Size: S143 \| Ratio i: 175.41 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 3258 Nm
S143 196,74 100L6		Size: S143 \| Ratio i: 196.74 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 2846 Nm
S143 196,74 100LA4		Size: S143 \| Ratio i: 196.74 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 2698 Nm
S143 196,74 100LR6		Size: S143 \| Ratio i: 196.74 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 2065 Nm
S143 196,74 112M4		Size: S143 \| Ratio i: 196.74 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 4872 Nm
S143 196,74 112M6		Size: S143 \| Ratio i: 196.74 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 4088 Nm
S143 196,74 112MS4		Size: S143 \| Ratio i: 196.74 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 3654 Nm
S143 222,57 100L6		Size: S143 \| Ratio i: 222.57 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 3220 Nm
S143 222,57 100LA4		Size: S143 \| Ratio i: 222.57 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 3053 Nm
S143 222,57 100LR6		Size: S143 \| Ratio i: 222.57 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 4.3 rpm \| Output torque M2: 2337 Nm
S143 222,57 112M6		Size: S143 \| Ratio i: 222.57 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.3 rpm \| Output torque M2: 4625 Nm
S143 222,57 112MS4		Size: S143 \| Ratio i: 222.57 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 4134 Nm
S143 237,63 100L6		Size: S143 \| Ratio i: 237.63 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.9 rpm \| Output torque M2: 3438 Nm
S143 237,63 100LA4		Size: S143 \| Ratio i: 237.63 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 3259 Nm
S143 237,63 100LR6		Size: S143 \| Ratio i: 237.63 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 2495 Nm
S143 237,63 112M6		Size: S143 \| Ratio i: 237.63 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 4938 Nm
S143 237,63 112MS4		Size: S143 \| Ratio i: 237.63 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 6.1 rpm \| Output torque M2: 4414 Nm
S143 273,41 100L6		Size: S143 \| Ratio i: 273.41 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 3956 Nm
S143 273,41 100LA4		Size: S143 \| Ratio i: 273.41 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 5.3 rpm \| Output torque M2: 3750 Nm
S143 273,41 100LR6		Size: S143 \| Ratio i: 273.41 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 3.5 rpm \| Output torque M2: 2870 Nm
S143 273,41 112MS4		Size: S143 \| Ratio i: 273.41 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 5.3 rpm \| Output torque M2: 5078 Nm
S152 4,06 200L4		Size: S152 \| Ratio i: 4.06 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 363.2 rpm \| Output torque M2: 757 Nm
S152 4,06 200LA6		Size: S152 \| Ratio i: 4.06 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 241.3 rpm \| Output torque M2: 710 Nm
S152 4,06 200LB6		Size: S152 \| Ratio i: 4.06 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 241.3 rpm \| Output torque M2: 844 Nm
S152 4,06 225M4		Size: S152 \| Ratio i: 4.06 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 365.6 rpm \| Output torque M2: 1128 Nm
S152 4,06 225S4		Size: S152 \| Ratio i: 4.06 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 365.6 rpm \| Output torque M2: 928 Nm
S152 4,53 200L4		Size: S152 \| Ratio i: 4.53 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 325.4 rpm \| Output torque M2: 845 Nm
S152 4,53 200LA6		Size: S152 \| Ratio i: 4.53 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 216.2 rpm \| Output torque M2: 792 Nm
S152 4,53 200LB6		Size: S152 \| Ratio i: 4.53 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 216.2 rpm \| Output torque M2: 942 Nm
S152 4,53 225M4		Size: S152 \| Ratio i: 4.53 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 327.6 rpm \| Output torque M2: 1259 Nm
S152 4,53 225S4		Size: S152 \| Ratio i: 4.53 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 327.6 rpm \| Output torque M2: 1035 Nm
S152 5,20 200L4		Size: S152 \| Ratio i: 5.20 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 283.4 rpm \| Output torque M2: 970 Nm
S152 5,20 200LA6		Size: S152 \| Ratio i: 5.20 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 188.3 rpm \| Output torque M2: 910 Nm
S152 5,20 200LB6		Size: S152 \| Ratio i: 5.20 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 188.3 rpm \| Output torque M2: 1082 Nm
S152 5,20 225M4		Size: S152 \| Ratio i: 5.20 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 285.4 rpm \| Output torque M2: 1446 Nm
S152 5,20 225S4		Size: S152 \| Ratio i: 5.20 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 285.4 rpm \| Output torque M2: 1189 Nm
S152 5,71 180L4		Size: S152 \| Ratio i: 5.71 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 257.4 rpm \| Output torque M2: 784 Nm
S152 5,71 180L6		Size: S152 \| Ratio i: 5.71 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 171.6 rpm \| Output torque M2: 809 Nm
S152 5,71 200L4		Size: S152 \| Ratio i: 5.71 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 258.2 rpm \| Output torque M2: 1065 Nm
S152 5,71 200LA6		Size: S152 \| Ratio i: 5.71 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 171.6 rpm \| Output torque M2: 998 Nm
S152 5,71 200LB6		Size: S152 \| Ratio i: 5.71 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 171.6 rpm \| Output torque M2: 1187 Nm
S152 5,71 225M4		Size: S152 \| Ratio i: 5.71 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 260.0 rpm \| Output torque M2: 1587 Nm
S152 5,71 225S4		Size: S152 \| Ratio i: 5.71 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 260.0 rpm \| Output torque M2: 1305 Nm
S152 6,52 180L4		Size: S152 \| Ratio i: 6.52 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 225.4 rpm \| Output torque M2: 895 Nm
S152 6,52 180L6		Size: S152 \| Ratio i: 6.52 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 150.2 rpm \| Output torque M2: 925 Nm
S152 6,52 200L4		Size: S152 \| Ratio i: 6.52 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 226.1 rpm \| Output torque M2: 1216 Nm
S152 6,52 200LA6		Size: S152 \| Ratio i: 6.52 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 150.2 rpm \| Output torque M2: 1140 Nm
S152 6,52 200LB6		Size: S152 \| Ratio i: 6.52 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 150.2 rpm \| Output torque M2: 1356 Nm
S152 6,52 225M4		Size: S152 \| Ratio i: 6.52 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 227.7 rpm \| Output torque M2: 1812 Nm
S152 6,52 225S4		Size: S152 \| Ratio i: 6.52 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 227.7 rpm \| Output torque M2: 1490 Nm
S152 7,28 180L4		Size: S152 \| Ratio i: 7.28 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 201.9 rpm \| Output torque M2: 999 Nm
S152 7,28 180L6		Size: S152 \| Ratio i: 7.28 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 134.6 rpm \| Output torque M2: 1032 Nm
S152 7,28 180M4		Size: S152 \| Ratio i: 7.28 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 201.9 rpm \| Output torque M2: 840 Nm
S152 7,28 200L4		Size: S152 \| Ratio i: 7.28 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 202.6 rpm \| Output torque M2: 1358 Nm
S152 7,28 200LA6		Size: S152 \| Ratio i: 7.28 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 134.6 rpm \| Output torque M2: 1273 Nm
S152 7,28 200LB6		Size: S152 \| Ratio i: 7.28 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 134.6 rpm \| Output torque M2: 1513 Nm
S152 7,28 225M4		Size: S152 \| Ratio i: 7.28 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 204.0 rpm \| Output torque M2: 2023 Nm
S152 7,28 225S4		Size: S152 \| Ratio i: 7.28 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 204.0 rpm \| Output torque M2: 1663 Nm
S152 8,36 180L4		Size: S152 \| Ratio i: 8.36 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 175.9 rpm \| Output torque M2: 1147 Nm
S152 8,36 180L6		Size: S152 \| Ratio i: 8.36 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 117.3 rpm \| Output torque M2: 1185 Nm
S152 8,36 180M4		Size: S152 \| Ratio i: 8.36 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 175.9 rpm \| Output torque M2: 964 Nm
S152 8,36 200L4		Size: S152 \| Ratio i: 8.36 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 176.5 rpm \| Output torque M2: 1558 Nm
S152 8,36 200LA6		Size: S152 \| Ratio i: 8.36 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 117.3 rpm \| Output torque M2: 1461 Nm
S152 8,36 200LB6		Size: S152 \| Ratio i: 8.36 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 117.3 rpm \| Output torque M2: 1737 Nm
S152 8,36 225M4		Size: S152 \| Ratio i: 8.36 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 177.7 rpm \| Output torque M2: 2322 Nm
S152 8,36 225S4		Size: S152 \| Ratio i: 8.36 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 177.7 rpm \| Output torque M2: 1909 Nm
S152 9,17 180L4		Size: S152 \| Ratio i: 9.17 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 160.3 rpm \| Output torque M2: 1259 Nm
S152 9,17 180L6		Size: S152 \| Ratio i: 9.17 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 106.8 rpm \| Output torque M2: 1300 Nm
S152 9,17 180M4		Size: S152 \| Ratio i: 9.17 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 160.3 rpm \| Output torque M2: 1058 Nm
S152 9,17 200L4		Size: S152 \| Ratio i: 9.17 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 160.8 rpm \| Output torque M2: 1710 Nm
S152 9,17 200LA6		Size: S152 \| Ratio i: 9.17 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 106.8 rpm \| Output torque M2: 1603 Nm
S152 9,17 200LB6		Size: S152 \| Ratio i: 9.17 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 106.8 rpm \| Output torque M2: 1907 Nm
S152 9,17 225M4		Size: S152 \| Ratio i: 9.17 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 161.9 rpm \| Output torque M2: 2548 Nm
S152 9,17 225S4		Size: S152 \| Ratio i: 9.17 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 161.9 rpm \| Output torque M2: 2095 Nm
S152 10,42 180L4		Size: S152 \| Ratio i: 10.42 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 141.1 rpm \| Output torque M2: 1430 Nm
S152 10,42 180L6		Size: S152 \| Ratio i: 10.42 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 94.1 rpm \| Output torque M2: 1477 Nm
S152 10,42 180M4		Size: S152 \| Ratio i: 10.42 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 141.1 rpm \| Output torque M2: 1202 Nm
S152 10,42 200L4		Size: S152 \| Ratio i: 10.42 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 141.6 rpm \| Output torque M2: 1943 Nm
S152 10,42 200LA6		Size: S152 \| Ratio i: 10.42 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 94.1 rpm \| Output torque M2: 1821 Nm
S152 10,42 200LB6		Size: S152 \| Ratio i: 10.42 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 94.1 rpm \| Output torque M2: 2166 Nm
S152 10,42 225M4		Size: S152 \| Ratio i: 10.42 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 142.5 rpm \| Output torque M2: 2895 Nm
S152 10,42 225S4		Size: S152 \| Ratio i: 10.42 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 142.5 rpm \| Output torque M2: 2380 Nm
S152 12,46 160L6		Size: S152 \| Ratio i: 12.46 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 77.8 rpm \| Output torque M2: 1309 Nm
S152 12,46 160LA4		Size: S152 \| Ratio i: 12.46 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 118.3 rpm \| Output torque M2: 1162 Nm
S152 12,46 160MA4		Size: S152 \| Ratio i: 12.46 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 118.3 rpm \| Output torque M2: 852 Nm
S152 12,46 180L4		Size: S152 \| Ratio i: 12.46 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 117.9 rpm \| Output torque M2: 1710 Nm
S152 12,46 180L6		Size: S152 \| Ratio i: 12.46 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 78.6 rpm \| Output torque M2: 1766 Nm
S152 12,46 180M4		Size: S152 \| Ratio i: 12.46 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 117.9 rpm \| Output torque M2: 1438 Nm
S152 12,46 200L4		Size: S152 \| Ratio i: 12.46 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 118.3 rpm \| Output torque M2: 2324 Nm
S152 12,46 200LA6		Size: S152 \| Ratio i: 12.46 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 78.6 rpm \| Output torque M2: 2179 Nm
S152 12,46 200LB6		Size: S152 \| Ratio i: 12.46 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 78.6 rpm \| Output torque M2: 2591 Nm
S152 12,46 225M4		Size: S152 \| Ratio i: 12.46 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 119.2 rpm \| Output torque M2: 3462 Nm
S152 12,46 225S4		Size: S152 \| Ratio i: 12.46 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 119.2 rpm \| Output torque M2: 2847 Nm
S152 13,91 160L6		Size: S152 \| Ratio i: 13.91 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 69.7 rpm \| Output torque M2: 1461 Nm
S152 13,91 160LA4		Size: S152 \| Ratio i: 13.91 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 106.0 rpm \| Output torque M2: 1297 Nm
S152 13,91 160MA4		Size: S152 \| Ratio i: 13.91 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 106.0 rpm \| Output torque M2: 951 Nm
S152 13,91 180L4		Size: S152 \| Ratio i: 13.91 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 1909 Nm
S152 13,91 180L6		Size: S152 \| Ratio i: 13.91 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 70.5 rpm \| Output torque M2: 1971 Nm
S152 13,91 180M4		Size: S152 \| Ratio i: 13.91 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 1605 Nm
S152 13,91 200L4		Size: S152 \| Ratio i: 13.91 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 106.0 rpm \| Output torque M2: 2594 Nm
S152 13,91 200LA6		Size: S152 \| Ratio i: 13.91 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 70.5 rpm \| Output torque M2: 2431 Nm
S152 13,91 200LB6		Size: S152 \| Ratio i: 13.91 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 70.5 rpm \| Output torque M2: 2891 Nm
S152 13,91 225M4		Size: S152 \| Ratio i: 13.91 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 106.8 rpm \| Output torque M2: 3864 Nm
S152 13,91 225S4		Size: S152 \| Ratio i: 13.91 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 106.8 rpm \| Output torque M2: 3177 Nm
S152 15,97 160L6		Size: S152 \| Ratio i: 15.97 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 60.7 rpm \| Output torque M2: 1677 Nm
S152 15,97 160LA4		Size: S152 \| Ratio i: 15.97 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 92.4 rpm \| Output torque M2: 1489 Nm
S152 15,97 160MA4		Size: S152 \| Ratio i: 15.97 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 92.4 rpm \| Output torque M2: 1092 Nm
S152 15,97 180L4		Size: S152 \| Ratio i: 15.97 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 92.1 rpm \| Output torque M2: 2191 Nm
S152 15,97 180L6		Size: S152 \| Ratio i: 15.97 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 61.4 rpm \| Output torque M2: 2263 Nm
S152 15,97 180M4		Size: S152 \| Ratio i: 15.97 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 92.1 rpm \| Output torque M2: 1842 Nm
S152 15,97 200L4		Size: S152 \| Ratio i: 15.97 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 92.4 rpm \| Output torque M2: 2978 Nm
S152 15,97 200LA6		Size: S152 \| Ratio i: 15.97 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 61.4 rpm \| Output torque M2: 2791 Nm
S152 15,97 200LB6		Size: S152 \| Ratio i: 15.97 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 61.4 rpm \| Output torque M2: 3319 Nm
S152 15,97 225M4		Size: S152 \| Ratio i: 15.97 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 93.0 rpm \| Output torque M2: 4436 Nm
S152 15,97 225S4		Size: S152 \| Ratio i: 15.97 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 93.0 rpm \| Output torque M2: 3648 Nm
S152 17,53 160L6		Size: S152 \| Ratio i: 17.53 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 55.3 rpm \| Output torque M2: 1840 Nm
S152 17,53 160LA4		Size: S152 \| Ratio i: 17.53 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 84.2 rpm \| Output torque M2: 1634 Nm
S152 17,53 160MA4		Size: S152 \| Ratio i: 17.53 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 84.2 rpm \| Output torque M2: 1198 Nm
S152 17,53 180L4		Size: S152 \| Ratio i: 17.53 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 83.9 rpm \| Output torque M2: 2405 Nm
S152 17,53 180L6		Size: S152 \| Ratio i: 17.53 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 55.9 rpm \| Output torque M2: 2484 Nm
S152 17,53 180M4		Size: S152 \| Ratio i: 17.53 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 83.9 rpm \| Output torque M2: 2022 Nm
S152 17,53 200L4		Size: S152 \| Ratio i: 17.53 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 84.2 rpm \| Output torque M2: 3268 Nm
S152 17,53 200LA6		Size: S152 \| Ratio i: 17.53 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 55.9 rpm \| Output torque M2: 3064 Nm
S152 17,53 200LB6		Size: S152 \| Ratio i: 17.53 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 55.9 rpm \| Output torque M2: 3643 Nm
S152 17,53 225M4		Size: S152 \| Ratio i: 17.53 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 4869 Nm
S152 17,53 225S4		Size: S152 \| Ratio i: 17.53 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 4004 Nm
S152 19,91 160L6		Size: S152 \| Ratio i: 19.91 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 48.7 rpm \| Output torque M2: 2090 Nm
S152 19,91 160LA4		Size: S152 \| Ratio i: 19.91 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 74.1 rpm \| Output torque M2: 1856 Nm
S152 19,91 160MA4		Size: S152 \| Ratio i: 19.91 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 74.1 rpm \| Output torque M2: 1361 Nm
S152 19,91 180L4		Size: S152 \| Ratio i: 19.91 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 73.8 rpm \| Output torque M2: 2731 Nm
S152 19,91 180L6		Size: S152 \| Ratio i: 19.91 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 49.2 rpm \| Output torque M2: 2821 Nm
S152 19,91 180M4		Size: S152 \| Ratio i: 19.91 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 73.8 rpm \| Output torque M2: 2297 Nm
S152 19,91 200L4		Size: S152 \| Ratio i: 19.91 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 74.1 rpm \| Output torque M2: 3712 Nm
S152 19,91 200LA6		Size: S152 \| Ratio i: 19.91 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 49.2 rpm \| Output torque M2: 3480 Nm
S152 19,91 200LB6		Size: S152 \| Ratio i: 19.91 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 49.2 rpm \| Output torque M2: 4138 Nm
S152 19,91 225M4		Size: S152 \| Ratio i: 19.91 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 74.6 rpm \| Output torque M2: 5530 Nm
S152 19,91 225S4		Size: S152 \| Ratio i: 19.91 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 74.6 rpm \| Output torque M2: 4547 Nm
S152 22,88 160L6		Size: S152 \| Ratio i: 22.88 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 42.4 rpm \| Output torque M2: 2403 Nm
S152 22,88 160LA4		Size: S152 \| Ratio i: 22.88 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 64.5 rpm \| Output torque M2: 2133 Nm
S152 22,88 160MA4		Size: S152 \| Ratio i: 22.88 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 64.5 rpm \| Output torque M2: 1564 Nm
S152 22,88 180L4		Size: S152 \| Ratio i: 22.88 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 64.2 rpm \| Output torque M2: 3140 Nm
S152 22,88 180L6		Size: S152 \| Ratio i: 22.88 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 42.8 rpm \| Output torque M2: 3243 Nm
S152 22,88 180M4		Size: S152 \| Ratio i: 22.88 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 64.2 rpm \| Output torque M2: 2640 Nm
S152 22,88 200L4		Size: S152 \| Ratio i: 22.88 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 64.5 rpm \| Output torque M2: 4267 Nm
S152 22,88 200LA6		Size: S152 \| Ratio i: 22.88 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 42.8 rpm \| Output torque M2: 4000 Nm
S152 22,88 200LB6		Size: S152 \| Ratio i: 22.88 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 42.8 rpm \| Output torque M2: 4756 Nm
S152 22,88 225M4		Size: S152 \| Ratio i: 22.88 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 64.9 rpm \| Output torque M2: 6357 Nm
S152 22,88 225S4		Size: S152 \| Ratio i: 22.88 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 64.9 rpm \| Output torque M2: 5227 Nm
S152 27,11 160L6		Size: S152 \| Ratio i: 27.11 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 35.8 rpm \| Output torque M2: 2846 Nm
S152 27,11 160LA4		Size: S152 \| Ratio i: 27.11 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 54.4 rpm \| Output torque M2: 2527 Nm
S152 27,11 160MA4		Size: S152 \| Ratio i: 27.11 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 54.4 rpm \| Output torque M2: 1853 Nm
S152 27,11 180L4		Size: S152 \| Ratio i: 27.11 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 54.2 rpm \| Output torque M2: 3719 Nm
S152 27,11 180L6		Size: S152 \| Ratio i: 27.11 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 36.2 rpm \| Output torque M2: 3842 Nm
S152 27,11 180M4		Size: S152 \| Ratio i: 27.11 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 54.2 rpm \| Output torque M2: 3127 Nm
S152 27,11 200L4		Size: S152 \| Ratio i: 27.11 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 54.4 rpm \| Output torque M2: 5054 Nm
S152 27,11 200LA6		Size: S152 \| Ratio i: 27.11 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 36.2 rpm \| Output torque M2: 4738 Nm
S152 27,11 200LB6		Size: S152 \| Ratio i: 27.11 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 36.2 rpm \| Output torque M2: 5634 Nm
S152 27,11 225S4		Size: S152 \| Ratio i: 27.11 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 54.8 rpm \| Output torque M2: 6192 Nm
S152 29,75 160L6		Size: S152 \| Ratio i: 29.75 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 32.6 rpm \| Output torque M2: 3124 Nm
S152 29,75 160LA4		Size: S152 \| Ratio i: 29.75 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 49.6 rpm \| Output torque M2: 2774 Nm
S152 29,75 160MA4		Size: S152 \| Ratio i: 29.75 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 49.6 rpm \| Output torque M2: 2034 Nm
S152 29,75 180L4		Size: S152 \| Ratio i: 29.75 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 49.4 rpm \| Output torque M2: 4082 Nm
S152 29,75 180L6		Size: S152 \| Ratio i: 29.75 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 32.9 rpm \| Output torque M2: 4216 Nm
S152 29,75 180M4		Size: S152 \| Ratio i: 29.75 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 49.4 rpm \| Output torque M2: 3433 Nm
S152 29,75 200L4		Size: S152 \| Ratio i: 29.75 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 49.6 rpm \| Output torque M2: 5547 Nm
S152 29,75 200LA6		Size: S152 \| Ratio i: 29.75 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 32.9 rpm \| Output torque M2: 5200 Nm
S152 29,75 200LB6		Size: S152 \| Ratio i: 29.75 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 32.9 rpm \| Output torque M2: 6184 Nm
S152 29,75 225S4		Size: S152 \| Ratio i: 29.75 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 49.9 rpm \| Output torque M2: 6796 Nm
S152 33,79 160L6		Size: S152 \| Ratio i: 33.79 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 28.7 rpm \| Output torque M2: 3548 Nm
S152 33,79 160LA4		Size: S152 \| Ratio i: 33.79 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 43.7 rpm \| Output torque M2: 3150 Nm
S152 33,79 160MA4		Size: S152 \| Ratio i: 33.79 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 43.7 rpm \| Output torque M2: 2310 Nm
S152 33,79 180L4		Size: S152 \| Ratio i: 33.79 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 4636 Nm
S152 33,79 180L6		Size: S152 \| Ratio i: 33.79 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 29.0 rpm \| Output torque M2: 4789 Nm
S152 33,79 180M4		Size: S152 \| Ratio i: 33.79 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 3899 Nm
S152 33,79 200L4		Size: S152 \| Ratio i: 33.79 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 43.7 rpm \| Output torque M2: 6301 Nm
S152 33,79 200LA6		Size: S152 \| Ratio i: 33.79 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 29.0 rpm \| Output torque M2: 5907 Nm
S152 33,79 200LB6		Size: S152 \| Ratio i: 33.79 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 29.0 rpm \| Output torque M2: 7024 Nm
S152 33,79 225S4		Size: S152 \| Ratio i: 33.79 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 43.9 rpm \| Output torque M2: 7719 Nm
S152 38,84 160L6		Size: S152 \| Ratio i: 38.84 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 25.0 rpm \| Output torque M2: 4078 Nm
S152 38,84 160LA4		Size: S152 \| Ratio i: 38.84 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 38.0 rpm \| Output torque M2: 3621 Nm
S152 38,84 160MA4		Size: S152 \| Ratio i: 38.84 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 38.0 rpm \| Output torque M2: 2656 Nm
S152 38,84 180L4		Size: S152 \| Ratio i: 38.84 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 37.8 rpm \| Output torque M2: 5329 Nm
S152 38,84 180L6		Size: S152 \| Ratio i: 38.84 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 25.2 rpm \| Output torque M2: 5505 Nm
S152 38,84 180M4		Size: S152 \| Ratio i: 38.84 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 37.8 rpm \| Output torque M2: 4481 Nm
S152 38,84 200L4		Size: S152 \| Ratio i: 38.84 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 38.0 rpm \| Output torque M2: 7242 Nm
S152 38,84 200LA6		Size: S152 \| Ratio i: 38.84 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 25.2 rpm \| Output torque M2: 6789 Nm
S152 38,84 200LB6		Size: S152 \| Ratio i: 38.84 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 25.2 rpm \| Output torque M2: 8074 Nm
S153 40,10 132M4		Size: S153 \| Ratio i: 40.10 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 36.4 rpm \| Output torque M2: 1849 Nm
S153 40,10 132MB6		Size: S153 \| Ratio i: 40.10 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 24.2 rpm \| Output torque M2: 2062 Nm
S153 40,10 160L6		Size: S153 \| Ratio i: 40.10 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 24.2 rpm \| Output torque M2: 4123 Nm
S153 40,10 160LA4		Size: S153 \| Ratio i: 40.10 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 36.8 rpm \| Output torque M2: 3661 Nm
S153 40,10 160MA4		Size: S153 \| Ratio i: 40.10 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 36.8 rpm \| Output torque M2: 2685 Nm
S153 40,10 180L4		Size: S153 \| Ratio i: 40.10 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 5388 Nm
S153 40,10 180L6		Size: S153 \| Ratio i: 40.10 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 24.4 rpm \| Output torque M2: 5565 Nm
S153 40,10 180M4		Size: S153 \| Ratio i: 40.10 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 4531 Nm
S153 44,76 132M4		Size: S153 \| Ratio i: 44.76 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 32.6 rpm \| Output torque M2: 2064 Nm
S153 44,76 132MB6		Size: S153 \| Ratio i: 44.76 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 21.6 rpm \| Output torque M2: 2301 Nm
S153 44,76 160L6		Size: S153 \| Ratio i: 44.76 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 21.7 rpm \| Output torque M2: 4602 Nm
S153 44,76 160LA4		Size: S153 \| Ratio i: 44.76 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 33.0 rpm \| Output torque M2: 4086 Nm
S153 44,76 160MA4		Size: S153 \| Ratio i: 44.76 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 33.0 rpm \| Output torque M2: 2996 Nm
S153 44,76 180L4		Size: S153 \| Ratio i: 44.76 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 32.8 rpm \| Output torque M2: 6013 Nm
S153 44,76 180L6		Size: S153 \| Ratio i: 44.76 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 21.9 rpm \| Output torque M2: 6211 Nm
S153 44,76 180M4		Size: S153 \| Ratio i: 44.76 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 32.8 rpm \| Output torque M2: 5056 Nm
S153 51,38 132M4		Size: S153 \| Ratio i: 51.38 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 28.4 rpm \| Output torque M2: 2370 Nm
S153 51,38 132MB6		Size: S153 \| Ratio i: 51.38 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 18.9 rpm \| Output torque M2: 2642 Nm
S153 51,38 160L6		Size: S153 \| Ratio i: 51.38 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 18.9 rpm \| Output torque M2: 5283 Nm
S153 51,38 160LA4		Size: S153 \| Ratio i: 51.38 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 28.7 rpm \| Output torque M2: 4691 Nm
S153 51,38 160MA4		Size: S153 \| Ratio i: 51.38 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 28.7 rpm \| Output torque M2: 3440 Nm
S153 51,38 180L4		Size: S153 \| Ratio i: 51.38 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 28.6 rpm \| Output torque M2: 6903 Nm
S153 51,38 180L6		Size: S153 \| Ratio i: 51.38 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 19.1 rpm \| Output torque M2: 7131 Nm
S153 51,38 180M4		Size: S153 \| Ratio i: 51.38 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 28.6 rpm \| Output torque M2: 5805 Nm
S153 56,39 132M4		Size: S153 \| Ratio i: 56.39 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 2601 Nm
S153 56,39 132MB6		Size: S153 \| Ratio i: 56.39 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 17.2 rpm \| Output torque M2: 2899 Nm
S153 56,39 160L6		Size: S153 \| Ratio i: 56.39 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 17.2 rpm \| Output torque M2: 5798 Nm
S153 56,39 160LA4		Size: S153 \| Ratio i: 56.39 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 26.2 rpm \| Output torque M2: 5148 Nm
S153 56,39 160MA4		Size: S153 \| Ratio i: 56.39 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 26.2 rpm \| Output torque M2: 3775 Nm
S153 56,39 180L4		Size: S153 \| Ratio i: 56.39 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 26.1 rpm \| Output torque M2: 7577 Nm
S153 56,39 180L6		Size: S153 \| Ratio i: 56.39 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 17.4 rpm \| Output torque M2: 7826 Nm
S153 56,39 180M4		Size: S153 \| Ratio i: 56.39 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 26.1 rpm \| Output torque M2: 6371 Nm
S153 64,05 132M4		Size: S153 \| Ratio i: 64.05 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 22.8 rpm \| Output torque M2: 2954 Nm
S153 64,05 132MA6		Size: S153 \| Ratio i: 64.05 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 15.2 rpm \| Output torque M2: 2395 Nm
S153 64,05 132MB6		Size: S153 \| Ratio i: 64.05 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 15.1 rpm \| Output torque M2: 3293 Nm
S153 64,05 160L6		Size: S153 \| Ratio i: 64.05 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 15.1 rpm \| Output torque M2: 6586 Nm
S153 64,05 160LA4		Size: S153 \| Ratio i: 64.05 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 23.0 rpm \| Output torque M2: 5847 Nm
S153 64,05 160MA4		Size: S153 \| Ratio i: 64.05 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 23.0 rpm \| Output torque M2: 4288 Nm
S153 64,05 180L4		Size: S153 \| Ratio i: 64.05 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 22.9 rpm \| Output torque M2: 8605 Nm
S153 64,05 180L6		Size: S153 \| Ratio i: 64.05 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 15.3 rpm \| Output torque M2: 8889 Nm
S153 64,05 180M4		Size: S153 \| Ratio i: 64.05 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 22.9 rpm \| Output torque M2: 7236 Nm
S153 73,63 132M4		Size: S153 \| Ratio i: 73.63 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 19.8 rpm \| Output torque M2: 3396 Nm
S153 73,63 132MA6		Size: S153 \| Ratio i: 73.63 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 2753 Nm
S153 73,63 132MB6		Size: S153 \| Ratio i: 73.63 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 3785 Nm
S153 73,63 132MS4		Size: S153 \| Ratio i: 73.63 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 19.9 rpm \| Output torque M2: 2473 Nm
S153 73,63 132S6		Size: S153 \| Ratio i: 73.63 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 2065 Nm
S153 73,63 160L6		Size: S153 \| Ratio i: 73.63 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 7570 Nm
S153 73,63 160LA4		Size: S153 \| Ratio i: 73.63 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 20.0 rpm \| Output torque M2: 6721 Nm
S153 73,63 160MA4		Size: S153 \| Ratio i: 73.63 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 20.0 rpm \| Output torque M2: 4929 Nm
S153 73,63 180M4		Size: S153 \| Ratio i: 73.63 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 20.0 rpm \| Output torque M2: 8318 Nm
S153 87,16 132M4		Size: S153 \| Ratio i: 87.16 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 16.7 rpm \| Output torque M2: 4019 Nm
S153 87,16 132MA6		Size: S153 \| Ratio i: 87.16 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 3259 Nm
S153 87,16 132MB6		Size: S153 \| Ratio i: 87.16 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 4481 Nm
S153 87,16 132MS4		Size: S153 \| Ratio i: 87.16 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 16.8 rpm \| Output torque M2: 2928 Nm
S153 87,16 132S6		Size: S153 \| Ratio i: 87.16 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 2445 Nm
S153 87,16 160MA4		Size: S153 \| Ratio i: 87.16 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 16.9 rpm \| Output torque M2: 5835 Nm
S153 97,27 132M4		Size: S153 \| Ratio i: 97.27 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 15.0 rpm \| Output torque M2: 4486 Nm
S153 97,27 132MA6		Size: S153 \| Ratio i: 97.27 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 10.0 rpm \| Output torque M2: 3637 Nm
S153 97,27 132MB6		Size: S153 \| Ratio i: 97.27 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 10.0 rpm \| Output torque M2: 5001 Nm
S153 97,27 132MS4		Size: S153 \| Ratio i: 97.27 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 15.1 rpm \| Output torque M2: 3268 Nm
S153 97,27 132S6		Size: S153 \| Ratio i: 97.27 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 10.0 rpm \| Output torque M2: 2728 Nm
S153 97,27 160MA4		Size: S153 \| Ratio i: 97.27 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 15.2 rpm \| Output torque M2: 6512 Nm
S153 111,67 132M4		Size: S153 \| Ratio i: 111.67 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 13.1 rpm \| Output torque M2: 5150 Nm
S153 111,67 132MA6		Size: S153 \| Ratio i: 111.67 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 8.7 rpm \| Output torque M2: 4176 Nm
S153 111,67 132MB6		Size: S153 \| Ratio i: 111.67 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 8.7 rpm \| Output torque M2: 5741 Nm
S153 111,67 132MS4		Size: S153 \| Ratio i: 111.67 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 3751 Nm
S153 111,67 132S6		Size: S153 \| Ratio i: 111.67 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 8.7 rpm \| Output torque M2: 3131 Nm
S153 111,67 160MA4		Size: S153 \| Ratio i: 111.67 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 7476 Nm
S153 122,57 132M4		Size: S153 \| Ratio i: 122.57 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 5652 Nm
S153 122,57 132MA6		Size: S153 \| Ratio i: 122.57 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 7.9 rpm \| Output torque M2: 4583 Nm
S153 122,57 132MB6		Size: S153 \| Ratio i: 122.57 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 7.9 rpm \| Output torque M2: 6302 Nm
S153 122,57 132MS4		Size: S153 \| Ratio i: 122.57 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 4117 Nm
S153 122,57 132S6		Size: S153 \| Ratio i: 122.57 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 7.9 rpm \| Output torque M2: 3437 Nm
S153 122,57 160MA4		Size: S153 \| Ratio i: 122.57 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 8205 Nm
S153 139,21 132M4		Size: S153 \| Ratio i: 139.21 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 10.5 rpm \| Output torque M2: 6420 Nm
S153 139,21 132MA6		Size: S153 \| Ratio i: 139.21 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 5205 Nm
S153 139,21 132MB6		Size: S153 \| Ratio i: 139.21 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 7157 Nm
S153 139,21 132MS4		Size: S153 \| Ratio i: 139.21 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 10.6 rpm \| Output torque M2: 4676 Nm
S153 139,21 132S6		Size: S153 \| Ratio i: 139.21 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 3904 Nm
S153 139,21 160MA4		Size: S153 \| Ratio i: 139.21 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 10.6 rpm \| Output torque M2: 9320 Nm
S153 154,02 132M4		Size: S153 \| Ratio i: 154.02 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 7102 Nm
S153 154,02 132MA6		Size: S153 \| Ratio i: 154.02 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 5759 Nm
S153 154,02 132MB6		Size: S153 \| Ratio i: 154.02 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 7918 Nm
S153 154,02 132MS4		Size: S153 \| Ratio i: 154.02 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 5173 Nm
S153 154,02 132S6		Size: S153 \| Ratio i: 154.02 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 4319 Nm
S153 160,02 132M4		Size: S153 \| Ratio i: 160.02 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 9.2 rpm \| Output torque M2: 7379 Nm
S153 160,02 132MA6		Size: S153 \| Ratio i: 160.02 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.1 rpm \| Output torque M2: 5983 Nm
S153 160,02 132MB6		Size: S153 \| Ratio i: 160.02 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 6.1 rpm \| Output torque M2: 8227 Nm
S153 160,02 132MS4		Size: S153 \| Ratio i: 160.02 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 9.2 rpm \| Output torque M2: 5375 Nm
S153 160,02 132S6		Size: S153 \| Ratio i: 160.02 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.1 rpm \| Output torque M2: 4487 Nm
S153 176,81 132M4		Size: S153 \| Ratio i: 176.81 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 8154 Nm
S153 176,81 132MA6		Size: S153 \| Ratio i: 176.81 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 6611 Nm
S153 176,81 132MB6		Size: S153 \| Ratio i: 176.81 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 9091 Nm
S153 176,81 132MS4		Size: S153 \| Ratio i: 176.81 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 5939 Nm
S153 176,81 132S6		Size: S153 \| Ratio i: 176.81 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 4958 Nm
S153 194,06 132M4		Size: S153 \| Ratio i: 194.06 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 8950 Nm
S153 194,06 132MA6		Size: S153 \| Ratio i: 194.06 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 7256 Nm
S153 194,06 132MB6		Size: S153 \| Ratio i: 194.06 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 9977 Nm
S153 194,06 132MS4		Size: S153 \| Ratio i: 194.06 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 6519 Nm
S153 194,06 132S6		Size: S153 \| Ratio i: 194.06 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 5442 Nm
S153 220,42 132M4		Size: S153 \| Ratio i: 220.42 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 6.6 rpm \| Output torque M2: 10165 Nm
S153 220,42 132MA6		Size: S153 \| Ratio i: 220.42 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 8241 Nm
S153 220,42 132MS4		Size: S153 \| Ratio i: 220.42 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 6.6 rpm \| Output torque M2: 7404 Nm
S153 220,42 132S6		Size: S153 \| Ratio i: 220.42 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 6181 Nm
S153 253,36 132MA6		Size: S153 \| Ratio i: 253.36 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 3.8 rpm \| Output torque M2: 9473 Nm
S153 253,36 132MS4		Size: S153 \| Ratio i: 253.36 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 5.8 rpm \| Output torque M2: 8510 Nm
S153 253,36 132S6		Size: S153 \| Ratio i: 253.36 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.8 rpm \| Output torque M2: 7105 Nm
S 123 280,10 80C4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 280.10 \| Motor: 80C4
S 123 301,16 80C4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 301.16 \| Motor: 80C4
S 123 343,93 80C4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 343.93 \| Motor: 80C4
S 123 112,52 90LL4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 112.52 \| Motor: 90LL4
S 123 123,33 90LL4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 123.33 \| Motor: 90LL4
S 123 133,78 90LL4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 133.78 \| Motor: 90LL4
S 123 151,43 90LL4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 151.43 \| Motor: 90LL4
S 123 177,53 90LL4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 177.53 \| Motor: 90LL4
S 123 194,59 90LL4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 194.59 \| Motor: 90LL4
S 123 238,93 90LL4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 238.93 \| Motor: 90LL4
S 123 280,10 90LL4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 280.10 \| Motor: 90LL4
S 122 49,04 100LB4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 49.04 \| Motor: 100LB4
S 122 53,75 100LB4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 53.75 \| Motor: 100LB4
S 122 66,00 100LB4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 66.00 \| Motor: 100LB4
S 123 71,07 100LB4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 71.07 \| Motor: 100LB4
S 123 87,27 100LB4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 87.27 \| Motor: 100LB4
S 123 112,52 100LB4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 112.52 \| Motor: 100LB4
S 123 123,33 100LB4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 123.33 \| Motor: 100LB4
S 123 133,78 100LB4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 133.78 \| Motor: 100LB4
S 123 151,43 100LB4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 151.43 \| Motor: 100LB4
S 123 177,53 100LB4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 177.53 \| Motor: 100LB4
S 122 30,51 132S4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 30.51 \| Motor: 132S4
S 122 33,44 132S4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 33.44 \| Motor: 132S4
S 122 41,07 132S4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 41.07 \| Motor: 132S4
S 122 43,60 132S4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 43.60 \| Motor: 132S4
S 122 49,04 132S4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 49.04 \| Motor: 132S4
S 122 53,75 132S4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 53.75 \| Motor: 132S4
S 122 66,00 132S4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 66.00 \| Motor: 132S4
S 123 71,07 132S4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 71.07 \| Motor: 132S4
S 123 87,27 132S4		Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 87.27 \| Motor: 132S4
S 122 26,15 132L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 26.15 \| Motor: 132L4
S 122 28,60 132L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 28.60 \| Motor: 132L4
S 122 30,51 132L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 30.51 \| Motor: 132L4
S 122 33,44 132L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 33.44 \| Motor: 132L4
S 122 35,20 132L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 35.20 \| Motor: 132L4
S 122 41,07 132L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 41.07 \| Motor: 132L4
S 122 43,60 132L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 43.60 \| Motor: 132L4
S 122 49,04 132L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 49.04 \| Motor: 132L4
S 122 53,75 132L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 53.75 \| Motor: 132L4
S 122 66,00 132L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 66.00 \| Motor: 132L4
S 122 8,48 160M4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 8.48 \| Motor: 160M4
S 122 9,30 160M4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 9.30 \| Motor: 160M4
S 122 11,42 160M4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 11.42 \| Motor: 160M4
S 122 12,63 160M4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 12.63 \| Motor: 160M4
S 122 13,84 160M4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 13.84 \| Motor: 160M4
S 122 16,99 160M4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 16.99 \| Motor: 160M4
S 122 21,25 160M4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 21.25 \| Motor: 160M4
S 122 23,29 160M4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 23.29 \| Motor: 160M4
S 122 26,15 160M4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 26.15 \| Motor: 160M4
S 122 28,60 160M4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 28.60 \| Motor: 160M4
S 122 30,51 160M4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 30.51 \| Motor: 160M4
S 122 33,44 160M4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 33.44 \| Motor: 160M4
S 122 35,20 160M4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 35.20 \| Motor: 160M4
S 122 41,07 160M4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 41.07 \| Motor: 160M4
S 122 43,60 160M4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 43.60 \| Motor: 160M4
S 122 9,30 160L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 9.30 \| Motor: 160L4
S 122 11,42 160L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 11.42 \| Motor: 160L4
S 122 12,63 160L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 12.63 \| Motor: 160L4
S 122 13,84 160L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 13.84 \| Motor: 160L4
S 122 16,99 160L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 16.99 \| Motor: 160L4
S 122 21,25 160L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 21.25 \| Motor: 160L4
S 122 23,29 160L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 23.29 \| Motor: 160L4
S 122 26,15 160L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 26.15 \| Motor: 160L4
S 122 28,60 160L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 28.60 \| Motor: 160L4
S 122 30,51 160L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 30.51 \| Motor: 160L4
S 122 33,44 160L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 33.44 \| Motor: 160L4
S 122 35,20 160L4		Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 35.20 \| Motor: 160L4
S123		Legacy code (size-only listing) \| Size: S123
S122		Legacy code (size-only listing) \| Size: S122

Shaft Mounted Gear ReducersMotovario

1130 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Motovario S Shaft Mounted Helical Gearmotors (S122-S153, 0.37-45 kW)

Brand Motovario·Shaft Mounted Gear Reducers

Available part numbers (1130)

S122 8,48 160L6, S122 8,48 160LA4, S122 8,48 160MA4, S122 8,48 180L4, S122 8,48 180L6, S122 8,48 180M4, S122 8,48 200L4, S122 8,48 200LA6, S122 9,30 160L6, S122 9,30 160LA4 + 1120 more — see full table ↓

How to order

Send the Motovario part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	S122 8,48 160L6	Size: S122 \| Ratio i: 8.48 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 114.4 rpm \| Output torque M2: 891 Nm
	S122 8,48 160LA4	Size: S122 \| Ratio i: 8.48 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 173.9 rpm \| Output torque M2: 791 Nm
	S122 8,48 160MA4	Size: S122 \| Ratio i: 8.48 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 173.9 rpm \| Output torque M2: 580 Nm
	S122 8,48 180L4	Size: S122 \| Ratio i: 8.48 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 173.3 rpm \| Output torque M2: 1164 Nm
	S122 8,48 180L6	Size: S122 \| Ratio i: 8.48 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 115.5 rpm \| Output torque M2: 1202 Nm
	S122 8,48 180M4	Size: S122 \| Ratio i: 8.48 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 173.3 rpm \| Output torque M2: 979 Nm
	S122 8,48 200L4	Size: S122 \| Ratio i: 8.48 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 173.9 rpm \| Output torque M2: 1582 Nm
	S122 8,48 200LA6	Size: S122 \| Ratio i: 8.48 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 115.5 rpm \| Output torque M2: 1483 Nm
	S122 9,30 160L6	Size: S122 \| Ratio i: 9.30 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 104.3 rpm \| Output torque M2: 976 Nm
	S122 9,30 160LA4	Size: S122 \| Ratio i: 9.30 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 158.6 rpm \| Output torque M2: 867 Nm
	S122 9,30 160MA4	Size: S122 \| Ratio i: 9.30 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 158.6 rpm \| Output torque M2: 636 Nm
	S122 9,30 180L4	Size: S122 \| Ratio i: 9.30 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 158.1 rpm \| Output torque M2: 1276 Nm
	S122 9,30 180L6	Size: S122 \| Ratio i: 9.30 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 105.4 rpm \| Output torque M2: 1318 Nm
	S122 9,30 180M4	Size: S122 \| Ratio i: 9.30 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 158.1 rpm \| Output torque M2: 1073 Nm
	S122 9,30 200L4	Size: S122 \| Ratio i: 9.30 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 158.6 rpm \| Output torque M2: 1734 Nm
	S122 9,30 200LA6	Size: S122 \| Ratio i: 9.30 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 105.4 rpm \| Output torque M2: 1625 Nm
	S122 9,30 200LB6	Size: S122 \| Ratio i: 9.30 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 105.4 rpm \| Output torque M2: 1933 Nm
	S122 10,24 160L6	Size: S122 \| Ratio i: 10.24 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 94.7 rpm \| Output torque M2: 1075 Nm
	S122 10,24 160LA4	Size: S122 \| Ratio i: 10.24 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 144.1 rpm \| Output torque M2: 955 Nm
	S122 10,24 160MA4	Size: S122 \| Ratio i: 10.24 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 144.1 rpm \| Output torque M2: 700 Nm
	S122 10,24 180L4	Size: S122 \| Ratio i: 10.24 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 143.6 rpm \| Output torque M2: 1405 Nm
	S122 10,24 180L6	Size: S122 \| Ratio i: 10.24 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 95.7 rpm \| Output torque M2: 1451 Nm
	S122 10,24 180M4	Size: S122 \| Ratio i: 10.24 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 143.6 rpm \| Output torque M2: 1181 Nm
	S122 10,24 200LA6	Size: S122 \| Ratio i: 10.24 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 95.7 rpm \| Output torque M2: 1790 Nm
	S122 11,42 160L6	Size: S122 \| Ratio i: 11.42 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 85.0 rpm \| Output torque M2: 1199 Nm
	S122 11,42 160LA4	Size: S122 \| Ratio i: 11.42 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 129.2 rpm \| Output torque M2: 1064 Nm
	S122 11,42 160MA4	Size: S122 \| Ratio i: 11.42 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 129.2 rpm \| Output torque M2: 781 Nm
	S122 11,42 180L4	Size: S122 \| Ratio i: 11.42 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 128.8 rpm \| Output torque M2: 1566 Nm
	S122 11,42 180L6	Size: S122 \| Ratio i: 11.42 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 85.8 rpm \| Output torque M2: 1618 Nm
	S122 11,42 180M4	Size: S122 \| Ratio i: 11.42 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 128.8 rpm \| Output torque M2: 1317 Nm
	S122 11,42 200LA6	Size: S122 \| Ratio i: 11.42 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 85.8 rpm \| Output torque M2: 1996 Nm
	S122 12,63 160L6	Size: S122 \| Ratio i: 12.63 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 76.8 rpm \| Output torque M2: 1326 Nm
	S122 12,63 160LA4	Size: S122 \| Ratio i: 12.63 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 116.8 rpm \| Output torque M2: 1177 Nm
	S122 12,63 160MA4	Size: S122 \| Ratio i: 12.63 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 116.8 rpm \| Output torque M2: 863 Nm
	S122 12,63 180L4	Size: S122 \| Ratio i: 12.63 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 116.4 rpm \| Output torque M2: 1732 Nm
	S122 12,63 180L6	Size: S122 \| Ratio i: 12.63 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 77.6 rpm \| Output torque M2: 1789 Nm
	S122 12,63 180M4	Size: S122 \| Ratio i: 12.63 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 116.4 rpm \| Output torque M2: 1457 Nm
	S122 12,63 200L4	Size: S122 \| Ratio i: 12.63 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 116.8 rpm \| Output torque M2: 2354 Nm
	S122 12,63 200LA6	Size: S122 \| Ratio i: 12.63 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 77.6 rpm \| Output torque M2: 2207 Nm
	S122 13,84 160L6	Size: S122 \| Ratio i: 13.84 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 70.1 rpm \| Output torque M2: 1453 Nm
	S122 13,84 160LA4	Size: S122 \| Ratio i: 13.84 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 106.6 rpm \| Output torque M2: 1290 Nm
	S122 13,84 160MA4	Size: S122 \| Ratio i: 13.84 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 106.6 rpm \| Output torque M2: 946 Nm
	S122 13,84 180L4	Size: S122 \| Ratio i: 13.84 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 106.2 rpm \| Output torque M2: 1899 Nm
	S122 13,84 180L6	Size: S122 \| Ratio i: 13.84 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 70.8 rpm \| Output torque M2: 1961 Nm
	S122 13,84 180M4	Size: S122 \| Ratio i: 13.84 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 106.2 rpm \| Output torque M2: 1597 Nm
	S122 13,84 200L4	Size: S122 \| Ratio i: 13.84 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 106.6 rpm \| Output torque M2: 2581 Nm
	S122 13,84 200LA6	Size: S122 \| Ratio i: 13.84 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 70.8 rpm \| Output torque M2: 2419 Nm
	S122 16,99 160L6	Size: S122 \| Ratio i: 16.99 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 57.1 rpm \| Output torque M2: 1784 Nm
	S122 16,99 160LA4	Size: S122 \| Ratio i: 16.99 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 86.8 rpm \| Output torque M2: 1584 Nm
	S122 16,99 160MA4	Size: S122 \| Ratio i: 16.99 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 86.8 rpm \| Output torque M2: 1162 Nm
	S122 16,99 180L4	Size: S122 \| Ratio i: 16.99 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 86.5 rpm \| Output torque M2: 2332 Nm
	S122 16,99 180L6	Size: S122 \| Ratio i: 16.99 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 57.7 rpm \| Output torque M2: 2408 Nm
	S122 16,99 180M4	Size: S122 \| Ratio i: 16.99 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 86.5 rpm \| Output torque M2: 1961 Nm
	S122 16,99 200LA6	Size: S122 \| Ratio i: 16.99 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 57.7 rpm \| Output torque M2: 2970 Nm
	S122 21,25 132M4	Size: S122 \| Ratio i: 21.25 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 68.7 rpm \| Output torque M2: 1001 Nm
	S122 21,25 132MA6	Size: S122 \| Ratio i: 21.25 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 45.7 rpm \| Output torque M2: 812 Nm
	S122 21,25 132MB6	Size: S122 \| Ratio i: 21.25 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 1116 Nm
	S122 21,25 132MS4	Size: S122 \| Ratio i: 21.25 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 69.2 rpm \| Output torque M2: 729 Nm
	S122 21,25 160L6	Size: S122 \| Ratio i: 21.25 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 2231 Nm
	S122 21,25 160LA4	Size: S122 \| Ratio i: 21.25 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 69.4 rpm \| Output torque M2: 1981 Nm
	S122 21,25 160MA4	Size: S122 \| Ratio i: 21.25 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 69.4 rpm \| Output torque M2: 1453 Nm
	S122 21,25 180L4	Size: S122 \| Ratio i: 21.25 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 69.2 rpm \| Output torque M2: 2916 Nm
	S122 21,25 180L6	Size: S122 \| Ratio i: 21.25 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 46.1 rpm \| Output torque M2: 3012 Nm
	S122 21,25 180M4	Size: S122 \| Ratio i: 21.25 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 69.2 rpm \| Output torque M2: 2452 Nm
	S122 22,37 132M4	Size: S122 \| Ratio i: 22.37 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 65.2 rpm \| Output torque M2: 1054 Nm
	S122 22,37 132MA6	Size: S122 \| Ratio i: 22.37 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 43.3 rpm \| Output torque M2: 854 Nm
	S122 22,37 132MB6	Size: S122 \| Ratio i: 22.37 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 43.3 rpm \| Output torque M2: 1175 Nm
	S122 22,37 132MS4	Size: S122 \| Ratio i: 22.37 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 65.7 rpm \| Output torque M2: 767 Nm
	S122 22,37 160L6	Size: S122 \| Ratio i: 22.37 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 43.4 rpm \| Output torque M2: 2349 Nm
	S122 22,37 160LA4	Size: S122 \| Ratio i: 22.37 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 65.9 rpm \| Output torque M2: 2085 Nm
	S122 22,37 160MA4	Size: S122 \| Ratio i: 22.37 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 65.9 rpm \| Output torque M2: 1529 Nm
	S122 22,37 180L4	Size: S122 \| Ratio i: 22.37 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 65.7 rpm \| Output torque M2: 3069 Nm
	S122 22,37 180L6	Size: S122 \| Ratio i: 22.37 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 43.8 rpm \| Output torque M2: 3170 Nm
	S122 22,37 180M4	Size: S122 \| Ratio i: 22.37 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 65.7 rpm \| Output torque M2: 2581 Nm
	S122 23,29 132M4	Size: S122 \| Ratio i: 23.29 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 62.7 rpm \| Output torque M2: 1097 Nm
	S122 23,29 132MA6	Size: S122 \| Ratio i: 23.29 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 41.6 rpm \| Output torque M2: 890 Nm
	S122 23,29 132MB6	Size: S122 \| Ratio i: 23.29 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 41.6 rpm \| Output torque M2: 1223 Nm
	S122 23,29 132MS4	Size: S122 \| Ratio i: 23.29 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 63.1 rpm \| Output torque M2: 799 Nm
	S122 23,29 160L6	Size: S122 \| Ratio i: 23.29 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 41.6 rpm \| Output torque M2: 2446 Nm
	S122 23,29 160LA4	Size: S122 \| Ratio i: 23.29 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 63.3 rpm \| Output torque M2: 2172 Nm
	S122 23,29 160MA4	Size: S122 \| Ratio i: 23.29 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 63.3 rpm \| Output torque M2: 1592 Nm
	S122 23,29 180L4	Size: S122 \| Ratio i: 23.29 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 63.1 rpm \| Output torque M2: 3196 Nm
	S122 23,29 180L6	Size: S122 \| Ratio i: 23.29 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 42.1 rpm \| Output torque M2: 3301 Nm
	S122 23,29 180M4	Size: S122 \| Ratio i: 23.29 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 63.1 rpm \| Output torque M2: 2687 Nm
	S122 26,15 132M2	Size: S122 \| Ratio i: 26.15 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 112.8 rpm \| Output torque M2: 588 Nm
	S122 26,15 132M4	Size: S122 \| Ratio i: 26.15 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 55.8 rpm \| Output torque M2: 1232 Nm
	S122 26,15 132MA6	Size: S122 \| Ratio i: 26.15 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 37.1 rpm \| Output torque M2: 999 Nm
	S122 26,15 132MB6	Size: S122 \| Ratio i: 26.15 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 37.1 rpm \| Output torque M2: 1373 Nm
	S122 26,15 132MS4	Size: S122 \| Ratio i: 26.15 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 56.2 rpm \| Output torque M2: 898 Nm
	S122 26,15 160L6	Size: S122 \| Ratio i: 26.15 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 37.1 rpm \| Output torque M2: 2746 Nm
	S122 26,15 160LA4	Size: S122 \| Ratio i: 26.15 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 56.4 rpm \| Output torque M2: 2438 Nm
	S122 26,15 160MA4	Size: S122 \| Ratio i: 26.15 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 56.4 rpm \| Output torque M2: 1788 Nm
	S122 26,15 180M4	Size: S122 \| Ratio i: 26.15 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 56.2 rpm \| Output torque M2: 3018 Nm
	S122 28,60 132M2	Size: S122 \| Ratio i: 28.60 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 103.1 rpm \| Output torque M2: 644 Nm
	S122 28,60 132M4	Size: S122 \| Ratio i: 28.60 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 51.0 rpm \| Output torque M2: 1347 Nm
	S122 28,60 132MA6	Size: S122 \| Ratio i: 28.60 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 33.9 rpm \| Output torque M2: 1092 Nm
	S122 28,60 132MB6	Size: S122 \| Ratio i: 28.60 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 33.9 rpm \| Output torque M2: 1502 Nm
	S122 28,60 132MS4	Size: S122 \| Ratio i: 28.60 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 51.4 rpm \| Output torque M2: 981 Nm
	S122 28,60 132S6	Size: S122 \| Ratio i: 28.60 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 34.0 rpm \| Output torque M2: 819 Nm
	S122 28,60 160L6	Size: S122 \| Ratio i: 28.60 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 33.9 rpm \| Output torque M2: 3003 Nm
	S122 28,60 160LA4	Size: S122 \| Ratio i: 28.60 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 51.6 rpm \| Output torque M2: 2666 Nm
	S122 28,60 160MA4	Size: S122 \| Ratio i: 28.60 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 51.6 rpm \| Output torque M2: 1955 Nm
	S122 28,60 180M4	Size: S122 \| Ratio i: 28.60 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 51.4 rpm \| Output torque M2: 3300 Nm
	S122 30,51 112M4	Size: S122 \| Ratio i: 30.51 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 47.5 rpm \| Output torque M2: 772 Nm
	S122 30,51 132M2	Size: S122 \| Ratio i: 30.51 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 96.7 rpm \| Output torque M2: 687 Nm
	S122 30,51 132M4	Size: S122 \| Ratio i: 30.51 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 47.8 rpm \| Output torque M2: 1437 Nm
	S122 30,51 132MA6	Size: S122 \| Ratio i: 30.51 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 31.8 rpm \| Output torque M2: 1165 Nm
	S122 30,51 132MB6	Size: S122 \| Ratio i: 30.51 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 31.8 rpm \| Output torque M2: 1602 Nm
	S122 30,51 132MS4	Size: S122 \| Ratio i: 30.51 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 48.2 rpm \| Output torque M2: 1047 Nm
	S122 30,51 132S6	Size: S122 \| Ratio i: 30.51 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 31.8 rpm \| Output torque M2: 874 Nm
	S122 30,51 160L6	Size: S122 \| Ratio i: 30.51 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 31.8 rpm \| Output torque M2: 3204 Nm
	S122 30,51 160LA4	Size: S122 \| Ratio i: 30.51 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 48.3 rpm \| Output torque M2: 2845 Nm
	S122 30,51 160MA4	Size: S122 \| Ratio i: 30.51 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 48.3 rpm \| Output torque M2: 2086 Nm
	S122 32,76 112M4	Size: S122 \| Ratio i: 32.76 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 44.3 rpm \| Output torque M2: 828 Nm
	S122 32,76 132M2	Size: S122 \| Ratio i: 32.76 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 90.1 rpm \| Output torque M2: 737 Nm
	S122 32,76 132M4	Size: S122 \| Ratio i: 32.76 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 44.6 rpm \| Output torque M2: 1543 Nm
	S122 32,76 132MA6	Size: S122 \| Ratio i: 32.76 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 29.6 rpm \| Output torque M2: 1251 Nm
	S122 32,76 132MB6	Size: S122 \| Ratio i: 32.76 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 29.6 rpm \| Output torque M2: 1720 Nm
	S122 32,76 132MS4	Size: S122 \| Ratio i: 32.76 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 44.9 rpm \| Output torque M2: 1124 Nm
	S122 32,76 132S6	Size: S122 \| Ratio i: 32.76 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 29.6 rpm \| Output torque M2: 938 Nm
	S122 32,76 160L6	Size: S122 \| Ratio i: 32.76 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 29.6 rpm \| Output torque M2: 3440 Nm
	S122 32,76 160LA4	Size: S122 \| Ratio i: 32.76 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 45.0 rpm \| Output torque M2: 3054 Nm
	S122 32,76 160MA4	Size: S122 \| Ratio i: 32.76 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 45.0 rpm \| Output torque M2: 2240 Nm
	S122 33,44 112M4	Size: S122 \| Ratio i: 33.44 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 43.4 rpm \| Output torque M2: 846 Nm
	S122 33,44 132M2	Size: S122 \| Ratio i: 33.44 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 88.2 rpm \| Output torque M2: 753 Nm
	S122 33,44 132M4	Size: S122 \| Ratio i: 33.44 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 43.7 rpm \| Output torque M2: 1575 Nm
	S122 33,44 132MA6	Size: S122 \| Ratio i: 33.44 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 29.0 rpm \| Output torque M2: 1277 Nm
	S122 33,44 132MB6	Size: S122 \| Ratio i: 33.44 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 29.0 rpm \| Output torque M2: 1756 Nm
	S122 33,44 132MS4	Size: S122 \| Ratio i: 33.44 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 44.0 rpm \| Output torque M2: 1147 Nm
	S122 33,44 132S6	Size: S122 \| Ratio i: 33.44 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 29.0 rpm \| Output torque M2: 958 Nm
	S122 33,44 160LA4	Size: S122 \| Ratio i: 33.44 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 44.1 rpm \| Output torque M2: 3118 Nm
	S122 33,44 160MA4	Size: S122 \| Ratio i: 33.44 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 44.1 rpm \| Output torque M2: 2287 Nm
	S122 35,20 112M4	Size: S122 \| Ratio i: 35.20 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 41.2 rpm \| Output torque M2: 890 Nm
	S122 35,20 132M2	Size: S122 \| Ratio i: 35.20 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 83.8 rpm \| Output torque M2: 792 Nm
	S122 35,20 132M4	Size: S122 \| Ratio i: 35.20 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 41.5 rpm \| Output torque M2: 1658 Nm
	S122 35,20 132MA6	Size: S122 \| Ratio i: 35.20 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 27.6 rpm \| Output torque M2: 1344 Nm
	S122 35,20 132MB6	Size: S122 \| Ratio i: 35.20 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 27.6 rpm \| Output torque M2: 1848 Nm
	S122 35,20 132MS4	Size: S122 \| Ratio i: 35.20 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 41.8 rpm \| Output torque M2: 1208 Nm
	S122 35,20 132S2	Size: S122 \| Ratio i: 35.20 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 83.8 rpm \| Output torque M2: 581 Nm
	S122 35,20 132S6	Size: S122 \| Ratio i: 35.20 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 27.6 rpm \| Output torque M2: 1009 Nm
	S122 35,20 160LA4	Size: S122 \| Ratio i: 35.20 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 41.9 rpm \| Output torque M2: 3282 Nm
	S122 35,20 160MA4	Size: S122 \| Ratio i: 35.20 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 41.9 rpm \| Output torque M2: 2407 Nm
	S122 41,07 112M4	Size: S122 \| Ratio i: 41.07 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 35.3 rpm \| Output torque M2: 1039 Nm
	S122 41,07 112M6	Size: S122 \| Ratio i: 41.07 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 23.3 rpm \| Output torque M2: 872 Nm
	S122 41,07 112MS4	Size: S122 \| Ratio i: 41.07 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 35.3 rpm \| Output torque M2: 779 Nm
	S122 41,07 132M2	Size: S122 \| Ratio i: 41.07 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 71.8 rpm \| Output torque M2: 924 Nm
	S122 41,07 132M4	Size: S122 \| Ratio i: 41.07 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 35.6 rpm \| Output torque M2: 1934 Nm
	S122 41,07 132MA6	Size: S122 \| Ratio i: 41.07 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 23.6 rpm \| Output torque M2: 1568 Nm
	S122 41,07 132MB6	Size: S122 \| Ratio i: 41.07 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 23.6 rpm \| Output torque M2: 2157 Nm
	S122 41,07 132MS4	Size: S122 \| Ratio i: 41.07 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 35.8 rpm \| Output torque M2: 1409 Nm
	S122 41,07 132S2	Size: S122 \| Ratio i: 41.07 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 71.8 rpm \| Output torque M2: 678 Nm
	S122 41,07 132S6	Size: S122 \| Ratio i: 41.07 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.6 rpm \| Output torque M2: 1176 Nm
	S122 41,07 160MA4	Size: S122 \| Ratio i: 41.07 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 35.9 rpm \| Output torque M2: 2808 Nm
	S122 43,60 112M4	Size: S122 \| Ratio i: 43.60 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 33.3 rpm \| Output torque M2: 1103 Nm
	S122 43,60 112M6	Size: S122 \| Ratio i: 43.60 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 22.0 rpm \| Output torque M2: 925 Nm
	S122 43,60 112MS4	Size: S122 \| Ratio i: 43.60 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 33.3 rpm \| Output torque M2: 827 Nm
	S122 43,60 132M2	Size: S122 \| Ratio i: 43.60 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 67.7 rpm \| Output torque M2: 981 Nm
	S122 43,60 132M4	Size: S122 \| Ratio i: 43.60 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 33.5 rpm \| Output torque M2: 2053 Nm
	S122 43,60 132MA6	Size: S122 \| Ratio i: 43.60 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 1665 Nm
	S122 43,60 132MB6	Size: S122 \| Ratio i: 43.60 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 2289 Nm
	S122 43,60 132MS4	Size: S122 \| Ratio i: 43.60 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 33.7 rpm \| Output torque M2: 1496 Nm
	S122 43,60 132S2	Size: S122 \| Ratio i: 43.60 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 67.6 rpm \| Output torque M2: 720 Nm
	S122 43,60 132S6	Size: S122 \| Ratio i: 43.60 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 1249 Nm
	S122 44,63 100L6	Size: S122 \| Ratio i: 44.63 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 21.0 rpm \| Output torque M2: 660 Nm
	S122 44,63 100LA4	Size: S122 \| Ratio i: 44.63 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 32.3 rpm \| Output torque M2: 626 Nm
	S122 44,63 112M2	Size: S122 \| Ratio i: 44.63 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 65.7 rpm \| Output torque M2: 539 Nm
	S122 44,63 112M4	Size: S122 \| Ratio i: 44.63 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 32.5 rpm \| Output torque M2: 1129 Nm
	S122 44,63 112M6	Size: S122 \| Ratio i: 44.63 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 21.5 rpm \| Output torque M2: 947 Nm
	S122 44,63 112MS4	Size: S122 \| Ratio i: 44.63 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 32.5 rpm \| Output torque M2: 847 Nm
	S122 44,63 132M2	Size: S122 \| Ratio i: 44.63 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 66.1 rpm \| Output torque M2: 1004 Nm
	S122 44,63 132M4	Size: S122 \| Ratio i: 44.63 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 32.7 rpm \| Output torque M2: 2102 Nm
	S122 44,63 132MA6	Size: S122 \| Ratio i: 44.63 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 21.7 rpm \| Output torque M2: 1704 Nm
	S122 44,63 132MB6	Size: S122 \| Ratio i: 44.63 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 21.7 rpm \| Output torque M2: 2344 Nm
	S122 44,63 132MS4	Size: S122 \| Ratio i: 44.63 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 32.9 rpm \| Output torque M2: 1531 Nm
	S122 44,63 132S2	Size: S122 \| Ratio i: 44.63 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 66.1 rpm \| Output torque M2: 737 Nm
	S122 44,63 132S6	Size: S122 \| Ratio i: 44.63 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 21.7 rpm \| Output torque M2: 1278 Nm
	S122 49,04 100L2	Size: S122 \| Ratio i: 49.04 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 59.1 rpm \| Output torque M2: 449 Nm
	S122 49,04 100L6	Size: S122 \| Ratio i: 49.04 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 19.2 rpm \| Output torque M2: 725 Nm
	S122 49,04 100LA4	Size: S122 \| Ratio i: 49.04 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 29.4 rpm \| Output torque M2: 687 Nm
	S122 49,04 112M2	Size: S122 \| Ratio i: 49.04 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 59.7 rpm \| Output torque M2: 592 Nm
	S122 49,04 112M4	Size: S122 \| Ratio i: 49.04 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 29.6 rpm \| Output torque M2: 1240 Nm
	S122 49,04 112M6	Size: S122 \| Ratio i: 49.04 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 19.6 rpm \| Output torque M2: 1041 Nm
	S122 49,04 112MS4	Size: S122 \| Ratio i: 49.04 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 29.6 rpm \| Output torque M2: 930 Nm
	S122 49,04 132M2	Size: S122 \| Ratio i: 49.04 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 60.1 rpm \| Output torque M2: 1104 Nm
	S122 49,04 132M4	Size: S122 \| Ratio i: 49.04 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 29.8 rpm \| Output torque M2: 2310 Nm
	S122 49,04 132MA6	Size: S122 \| Ratio i: 49.04 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 19.8 rpm \| Output torque M2: 1873 Nm
	S122 49,04 132MB6	Size: S122 \| Ratio i: 49.04 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 19.8 rpm \| Output torque M2: 2575 Nm
	S122 49,04 132MS4	Size: S122 \| Ratio i: 49.04 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 30.0 rpm \| Output torque M2: 1683 Nm
	S122 49,04 132S2	Size: S122 \| Ratio i: 49.04 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 60.2 rpm \| Output torque M2: 809 Nm
	S122 49,04 132S6	Size: S122 \| Ratio i: 49.04 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 19.8 rpm \| Output torque M2: 1404 Nm
	S122 53,75 100L2	Size: S122 \| Ratio i: 53.75 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 54.0 rpm \| Output torque M2: 492 Nm
	S122 53,75 100L6	Size: S122 \| Ratio i: 53.75 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 794 Nm
	S122 53,75 100LA4	Size: S122 \| Ratio i: 53.75 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 26.8 rpm \| Output torque M2: 753 Nm
	S122 53,75 112M2	Size: S122 \| Ratio i: 53.75 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 54.6 rpm \| Output torque M2: 649 Nm
	S122 53,75 112M4	Size: S122 \| Ratio i: 53.75 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 27.0 rpm \| Output torque M2: 1360 Nm
	S122 53,75 112M6	Size: S122 \| Ratio i: 53.75 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 17.9 rpm \| Output torque M2: 1141 Nm
	S122 53,75 112MS4	Size: S122 \| Ratio i: 53.75 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 27.0 rpm \| Output torque M2: 1020 Nm
	S122 53,75 132M2	Size: S122 \| Ratio i: 53.75 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 54.8 rpm \| Output torque M2: 1209 Nm
	S122 53,75 132M4	Size: S122 \| Ratio i: 53.75 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 27.2 rpm \| Output torque M2: 2532 Nm
	S122 53,75 132MA6	Size: S122 \| Ratio i: 53.75 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 18.1 rpm \| Output torque M2: 2053 Nm
	S122 53,75 132MB6	Size: S122 \| Ratio i: 53.75 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 2822 Nm
	S122 53,75 132MS4	Size: S122 \| Ratio i: 53.75 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 27.3 rpm \| Output torque M2: 1844 Nm
	S122 53,75 132S2	Size: S122 \| Ratio i: 53.75 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 54.9 rpm \| Output torque M2: 887 Nm
	S122 53,75 132S6	Size: S122 \| Ratio i: 53.75 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 18.0 rpm \| Output torque M2: 1539 Nm
	S122 66,00 100L2	Size: S122 \| Ratio i: 66.00 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 43.9 rpm \| Output torque M2: 604 Nm
	S122 66,00 100L6	Size: S122 \| Ratio i: 66.00 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 14.3 rpm \| Output torque M2: 976 Nm
	S122 66,00 100LA4	Size: S122 \| Ratio i: 66.00 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 21.8 rpm \| Output torque M2: 925 Nm
	S122 66,00 112M2	Size: S122 \| Ratio i: 66.00 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 44.4 rpm \| Output torque M2: 797 Nm
	S122 66,00 112M4	Size: S122 \| Ratio i: 66.00 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 22.0 rpm \| Output torque M2: 1669 Nm
	S122 66,00 112M6	Size: S122 \| Ratio i: 66.00 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 14.5 rpm \| Output torque M2: 1401 Nm
	S122 66,00 112MS4	Size: S122 \| Ratio i: 66.00 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 22.0 rpm \| Output torque M2: 1252 Nm
	S122 66,00 132M2	Size: S122 \| Ratio i: 66.00 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 44.7 rpm \| Output torque M2: 1485 Nm
	S122 66,00 132M4	Size: S122 \| Ratio i: 66.00 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 3109 Nm
	S122 66,00 132MA6	Size: S122 \| Ratio i: 66.00 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 2520 Nm
	S122 66,00 132MB6	Size: S122 \| Ratio i: 66.00 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 3465 Nm
	S122 66,00 132MS4	Size: S122 \| Ratio i: 66.00 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 22.3 rpm \| Output torque M2: 2264 Nm
	S122 66,00 132S2	Size: S122 \| Ratio i: 66.00 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 44.7 rpm \| Output torque M2: 1089 Nm
	S122 66,00 132S6	Size: S122 \| Ratio i: 66.00 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 1890 Nm
	S123 64,84 100L2	Size: S123 \| Ratio i: 64.84 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 44.7 rpm \| Output torque M2: 581 Nm
	S123 64,84 100L6	Size: S123 \| Ratio i: 64.84 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 14.5 rpm \| Output torque M2: 938 Nm
	S123 64,84 100LA4	Size: S123 \| Ratio i: 64.84 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 22.2 rpm \| Output torque M2: 889 Nm
	S123 64,84 112M2	Size: S123 \| Ratio i: 64.84 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 45.2 rpm \| Output torque M2: 767 Nm
	S123 64,84 112M4	Size: S123 \| Ratio i: 64.84 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 22.4 rpm \| Output torque M2: 1606 Nm
	S123 64,84 112M6	Size: S123 \| Ratio i: 64.84 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 14.8 rpm \| Output torque M2: 1348 Nm
	S123 64,84 112MS4	Size: S123 \| Ratio i: 64.84 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 22.4 rpm \| Output torque M2: 1204 Nm
	S123 64,84 132M2	Size: S123 \| Ratio i: 64.84 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 45.5 rpm \| Output torque M2: 1428 Nm
	S123 64,84 132M4	Size: S123 \| Ratio i: 64.84 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 22.5 rpm \| Output torque M2: 2990 Nm
	S123 64,84 132MA6	Size: S123 \| Ratio i: 64.84 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 15.0 rpm \| Output torque M2: 2425 Nm
	S123 64,84 132MS4	Size: S123 \| Ratio i: 64.84 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 22.7 rpm \| Output torque M2: 2178 Nm
	S123 64,84 132S2	Size: S123 \| Ratio i: 64.84 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 45.5 rpm \| Output torque M2: 1048 Nm
	S123 64,84 132S6	Size: S123 \| Ratio i: 64.84 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 15.0 rpm \| Output torque M2: 1818 Nm
	S123 71,07 100L2	Size: S123 \| Ratio i: 71.07 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 40.8 rpm \| Output torque M2: 637 Nm
	S123 71,07 100L6	Size: S123 \| Ratio i: 71.07 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 1028 Nm
	S123 71,07 100LA4	Size: S123 \| Ratio i: 71.07 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 20.2 rpm \| Output torque M2: 975 Nm
	S123 71,07 100LR6	Size: S123 \| Ratio i: 71.07 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 13.4 rpm \| Output torque M2: 746 Nm
	S123 71,07 112M2	Size: S123 \| Ratio i: 71.07 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 41.2 rpm \| Output torque M2: 840 Nm
	S123 71,07 112M4	Size: S123 \| Ratio i: 71.07 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 20.4 rpm \| Output torque M2: 1760 Nm
	S123 71,07 112M6	Size: S123 \| Ratio i: 71.07 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 13.5 rpm \| Output torque M2: 1477 Nm
	S123 71,07 112MS4	Size: S123 \| Ratio i: 71.07 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 20.4 rpm \| Output torque M2: 1320 Nm
	S123 71,07 132M2	Size: S123 \| Ratio i: 71.07 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 41.5 rpm \| Output torque M2: 1566 Nm
	S123 71,07 132MA6	Size: S123 \| Ratio i: 71.07 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 13.6 rpm \| Output torque M2: 2657 Nm
	S123 71,07 132MS4	Size: S123 \| Ratio i: 71.07 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 20.7 rpm \| Output torque M2: 2387 Nm
	S123 71,07 132S2	Size: S123 \| Ratio i: 71.07 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 41.5 rpm \| Output torque M2: 1148 Nm
	S123 71,07 132S6	Size: S123 \| Ratio i: 71.07 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 13.6 rpm \| Output torque M2: 1993 Nm
	S123 78,46 100L2	Size: S123 \| Ratio i: 78.46 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 37.0 rpm \| Output torque M2: 703 Nm
	S123 78,46 100L6	Size: S123 \| Ratio i: 78.46 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 1135 Nm
	S123 78,46 100LA4	Size: S123 \| Ratio i: 78.46 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 18.3 rpm \| Output torque M2: 1077 Nm
	S123 78,46 100LR6	Size: S123 \| Ratio i: 78.46 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 12.1 rpm \| Output torque M2: 824 Nm
	S123 78,46 112M2	Size: S123 \| Ratio i: 78.46 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 37.4 rpm \| Output torque M2: 928 Nm
	S123 78,46 112M4	Size: S123 \| Ratio i: 78.46 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 18.5 rpm \| Output torque M2: 1944 Nm
	S123 78,46 112M6	Size: S123 \| Ratio i: 78.46 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 12.3 rpm \| Output torque M2: 1630 Nm
	S123 78,46 112MS4	Size: S123 \| Ratio i: 78.46 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 18.5 rpm \| Output torque M2: 1457 Nm
	S123 78,46 132M2	Size: S123 \| Ratio i: 78.46 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 37.6 rpm \| Output torque M2: 1728 Nm
	S123 78,46 132MA6	Size: S123 \| Ratio i: 78.46 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 12.4 rpm \| Output torque M2: 2934 Nm
	S123 78,46 132MS4	Size: S123 \| Ratio i: 78.46 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 18.8 rpm \| Output torque M2: 2636 Nm
	S123 78,46 132S2	Size: S123 \| Ratio i: 78.46 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 37.6 rpm \| Output torque M2: 1268 Nm
	S123 78,46 132S6	Size: S123 \| Ratio i: 78.46 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 12.3 rpm \| Output torque M2: 2200 Nm
	S123 87,27 100L2	Size: S123 \| Ratio i: 87.27 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 33.2 rpm \| Output torque M2: 782 Nm
	S123 87,27 100L6	Size: S123 \| Ratio i: 87.27 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 1263 Nm
	S123 87,27 100LA4	Size: S123 \| Ratio i: 87.27 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 1197 Nm
	S123 87,27 100LR6	Size: S123 \| Ratio i: 87.27 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 10.9 rpm \| Output torque M2: 916 Nm
	S123 87,27 112M2	Size: S123 \| Ratio i: 87.27 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 33.5 rpm \| Output torque M2: 1032 Nm
	S123 87,27 112M4	Size: S123 \| Ratio i: 87.27 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 16.6 rpm \| Output torque M2: 2161 Nm
	S123 87,27 112M6	Size: S123 \| Ratio i: 87.27 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 11.0 rpm \| Output torque M2: 1814 Nm
	S123 87,27 112MS4	Size: S123 \| Ratio i: 87.27 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 16.6 rpm \| Output torque M2: 1621 Nm
	S123 87,27 132M2	Size: S123 \| Ratio i: 87.27 \| Motor: 132M2 \| Power P1: 7.50 kW \| Output speed n2: 33.8 rpm \| Output torque M2: 1922 Nm
	S123 87,27 132MA6	Size: S123 \| Ratio i: 87.27 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 3263 Nm
	S123 87,27 132MS4	Size: S123 \| Ratio i: 87.27 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 16.8 rpm \| Output torque M2: 2931 Nm
	S123 87,27 132S2	Size: S123 \| Ratio i: 87.27 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 33.8 rpm \| Output torque M2: 1410 Nm
	S123 87,27 132S6	Size: S123 \| Ratio i: 87.27 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 2448 Nm
	S123 105,91 100L2	Size: S123 \| Ratio i: 105.91 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 27.4 rpm \| Output torque M2: 949 Nm
	S123 105,91 100L6	Size: S123 \| Ratio i: 105.91 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 8.9 rpm \| Output torque M2: 1533 Nm
	S123 105,91 100LA4	Size: S123 \| Ratio i: 105.91 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 13.6 rpm \| Output torque M2: 1453 Nm
	S123 105,91 100LR6	Size: S123 \| Ratio i: 105.91 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 1112 Nm
	S123 105,91 112M2	Size: S123 \| Ratio i: 105.91 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 27.7 rpm \| Output torque M2: 1252 Nm
	S123 105,91 112M4	Size: S123 \| Ratio i: 105.91 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 13.7 rpm \| Output torque M2: 2623 Nm
	S123 105,91 112M6	Size: S123 \| Ratio i: 105.91 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 9.1 rpm \| Output torque M2: 2201 Nm
	S123 105,91 112MS4	Size: S123 \| Ratio i: 105.91 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 13.7 rpm \| Output torque M2: 1967 Nm
	S123 105,91 132S2	Size: S123 \| Ratio i: 105.91 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 27.9 rpm \| Output torque M2: 1711 Nm
	S123 105,91 132S6	Size: S123 \| Ratio i: 105.91 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 9.2 rpm \| Output torque M2: 2970 Nm
	S123 112,52 100L2	Size: S123 \| Ratio i: 112.52 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 25.8 rpm \| Output torque M2: 1008 Nm
	S123 112,52 100L6	Size: S123 \| Ratio i: 112.52 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 8.4 rpm \| Output torque M2: 1628 Nm
	S123 112,52 100LA4	Size: S123 \| Ratio i: 112.52 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 12.8 rpm \| Output torque M2: 1543 Nm
	S123 112,52 100LR6	Size: S123 \| Ratio i: 112.52 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 8.4 rpm \| Output torque M2: 1181 Nm
	S123 112,52 112M2	Size: S123 \| Ratio i: 112.52 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 26.0 rpm \| Output torque M2: 1331 Nm
	S123 112,52 112M4	Size: S123 \| Ratio i: 112.52 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 12.9 rpm \| Output torque M2: 2787 Nm
	S123 112,52 112M6	Size: S123 \| Ratio i: 112.52 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 8.5 rpm \| Output torque M2: 2338 Nm
	S123 112,52 112MS4	Size: S123 \| Ratio i: 112.52 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 12.9 rpm \| Output torque M2: 2090 Nm
	S123 112,52 132S2	Size: S123 \| Ratio i: 112.52 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 26.3 rpm \| Output torque M2: 1817 Nm
	S123 112,52 132S6	Size: S123 \| Ratio i: 112.52 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 8.6 rpm \| Output torque M2: 3155 Nm
	S123 112,52 90L2	Size: S123 \| Ratio i: 112.52 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 25.6 rpm \| Output torque M2: 745 Nm
	S123 112,52 90L4	Size: S123 \| Ratio i: 112.52 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 1060 Nm
	S123 112,52 90S4	Size: S123 \| Ratio i: 112.52 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 12.7 rpm \| Output torque M2: 777 Nm
	S123 112,52 90S6	Size: S123 \| Ratio i: 112.52 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 8.4 rpm \| Output torque M2: 814 Nm
	S123 123,33 100L2	Size: S123 \| Ratio i: 123.33 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 23.5 rpm \| Output torque M2: 1105 Nm
	S123 123,33 100L6	Size: S123 \| Ratio i: 123.33 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 1785 Nm
	S123 123,33 100LA4	Size: S123 \| Ratio i: 123.33 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 11.7 rpm \| Output torque M2: 1691 Nm
	S123 123,33 100LR6	Size: S123 \| Ratio i: 123.33 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 7.7 rpm \| Output torque M2: 1295 Nm
	S123 123,33 112M2	Size: S123 \| Ratio i: 123.33 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 23.8 rpm \| Output torque M2: 1459 Nm
	S123 123,33 112M4	Size: S123 \| Ratio i: 123.33 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 3054 Nm
	S123 123,33 112M6	Size: S123 \| Ratio i: 123.33 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 7.7 rpm \| Output torque M2: 2562 Nm
	S123 123,33 112MS4	Size: S123 \| Ratio i: 123.33 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 2291 Nm
	S123 123,33 132S2	Size: S123 \| Ratio i: 123.33 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 23.9 rpm \| Output torque M2: 1992 Nm
	S123 123,33 132S6	Size: S123 \| Ratio i: 123.33 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 7.9 rpm \| Output torque M2: 3458 Nm
	S123 123,33 90L2	Size: S123 \| Ratio i: 123.33 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 23.4 rpm \| Output torque M2: 816 Nm
	S123 123,33 90L4	Size: S123 \| Ratio i: 123.33 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 11.6 rpm \| Output torque M2: 1161 Nm
	S123 123,33 90S2	Size: S123 \| Ratio i: 123.33 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 23.2 rpm \| Output torque M2: 560 Nm
	S123 123,33 90S4	Size: S123 \| Ratio i: 123.33 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 11.6 rpm \| Output torque M2: 852 Nm
	S123 123,33 90S6	Size: S123 \| Ratio i: 123.33 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 7.7 rpm \| Output torque M2: 893 Nm
	S123 130,04 100L2	Size: S123 \| Ratio i: 130.04 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 22.3 rpm \| Output torque M2: 1166 Nm
	S123 130,04 100L6	Size: S123 \| Ratio i: 130.04 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 1882 Nm
	S123 130,04 100LA4	Size: S123 \| Ratio i: 130.04 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 1784 Nm
	S123 130,04 100LR6	Size: S123 \| Ratio i: 130.04 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 7.3 rpm \| Output torque M2: 1365 Nm
	S123 130,04 112M2	Size: S123 \| Ratio i: 130.04 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 22.5 rpm \| Output torque M2: 1538 Nm
	S123 130,04 112M4	Size: S123 \| Ratio i: 130.04 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 3221 Nm
	S123 130,04 112M6	Size: S123 \| Ratio i: 130.04 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 2702 Nm
	S123 130,04 112MS4	Size: S123 \| Ratio i: 130.04 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 2415 Nm
	S123 130,04 132S2	Size: S123 \| Ratio i: 130.04 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 22.7 rpm \| Output torque M2: 2100 Nm
	S123 130,04 90L2	Size: S123 \| Ratio i: 130.04 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 22.1 rpm \| Output torque M2: 861 Nm
	S123 130,04 90L4	Size: S123 \| Ratio i: 130.04 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 11.0 rpm \| Output torque M2: 1225 Nm
	S123 130,04 90S2	Size: S123 \| Ratio i: 130.04 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 22.0 rpm \| Output torque M2: 591 Nm
	S123 130,04 90S4	Size: S123 \| Ratio i: 130.04 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 11.0 rpm \| Output torque M2: 898 Nm
	S123 130,04 90S6	Size: S123 \| Ratio i: 130.04 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 941 Nm
	S123 133,78 100L2	Size: S123 \| Ratio i: 133.78 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 21.7 rpm \| Output torque M2: 1199 Nm
	S123 133,78 100L6	Size: S123 \| Ratio i: 133.78 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 1936 Nm
	S123 133,78 100LA4	Size: S123 \| Ratio i: 133.78 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 1835 Nm
	S123 133,78 100LR6	Size: S123 \| Ratio i: 133.78 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 7.1 rpm \| Output torque M2: 1404 Nm
	S123 133,78 112M2	Size: S123 \| Ratio i: 133.78 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 21.9 rpm \| Output torque M2: 1582 Nm
	S123 133,78 112M4	Size: S123 \| Ratio i: 133.78 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 3313 Nm
	S123 133,78 112M6	Size: S123 \| Ratio i: 133.78 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 7.2 rpm \| Output torque M2: 2780 Nm
	S123 133,78 112MS4	Size: S123 \| Ratio i: 133.78 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 10.8 rpm \| Output torque M2: 2485 Nm
	S123 133,78 132S2	Size: S123 \| Ratio i: 133.78 \| Motor: 132S2 \| Power P1: 5.50 kW \| Output speed n2: 22.1 rpm \| Output torque M2: 2161 Nm
	S123 133,78 90L2	Size: S123 \| Ratio i: 133.78 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 21.5 rpm \| Output torque M2: 885 Nm
	S123 133,78 90L4	Size: S123 \| Ratio i: 133.78 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 10.7 rpm \| Output torque M2: 1260 Nm
	S123 133,78 90S2	Size: S123 \| Ratio i: 133.78 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 21.4 rpm \| Output torque M2: 608 Nm
	S123 133,78 90S4	Size: S123 \| Ratio i: 133.78 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 10.7 rpm \| Output torque M2: 924 Nm
	S123 133,78 90S6	Size: S123 \| Ratio i: 133.78 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 968 Nm
	S123 151,43 100L2	Size: S123 \| Ratio i: 151.43 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 19.2 rpm \| Output torque M2: 1357 Nm
	S123 151,43 100L6	Size: S123 \| Ratio i: 151.43 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 2192 Nm
	S123 151,43 100LA4	Size: S123 \| Ratio i: 151.43 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 2077 Nm
	S123 151,43 100LR6	Size: S123 \| Ratio i: 151.43 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 1590 Nm
	S123 151,43 112M2	Size: S123 \| Ratio i: 151.43 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 19.3 rpm \| Output torque M2: 1791 Nm
	S123 151,43 112M6	Size: S123 \| Ratio i: 151.43 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 3147 Nm
	S123 151,43 112MS4	Size: S123 \| Ratio i: 151.43 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 9.6 rpm \| Output torque M2: 2813 Nm
	S123 151,43 80B6	Size: S123 \| Ratio i: 151.43 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 803 Nm
	S123 151,43 90L2	Size: S123 \| Ratio i: 151.43 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 19.0 rpm \| Output torque M2: 1002 Nm
	S123 151,43 90L4	Size: S123 \| Ratio i: 151.43 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 9.4 rpm \| Output torque M2: 1426 Nm
	S123 151,43 90S2	Size: S123 \| Ratio i: 151.43 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 18.9 rpm \| Output torque M2: 688 Nm
	S123 151,43 90S4	Size: S123 \| Ratio i: 151.43 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 9.4 rpm \| Output torque M2: 1046 Nm
	S123 151,43 90S6	Size: S123 \| Ratio i: 151.43 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 6.2 rpm \| Output torque M2: 1095 Nm
	S123 177,53 100L2	Size: S123 \| Ratio i: 177.53 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 16.4 rpm \| Output torque M2: 1591 Nm
	S123 177,53 100L6	Size: S123 \| Ratio i: 177.53 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 5.3 rpm \| Output torque M2: 2569 Nm
	S123 177,53 100LA4	Size: S123 \| Ratio i: 177.53 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 8.1 rpm \| Output torque M2: 2435 Nm
	S123 177,53 100LR6	Size: S123 \| Ratio i: 177.53 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 5.4 rpm \| Output torque M2: 1864 Nm
	S123 177,53 112M2	Size: S123 \| Ratio i: 177.53 \| Motor: 112M2 \| Power P1: 4.00 kW \| Output speed n2: 16.5 rpm \| Output torque M2: 2100 Nm
	S123 177,53 112MS4	Size: S123 \| Ratio i: 177.53 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 3297 Nm
	S123 177,53 80B2	Size: S123 \| Ratio i: 177.53 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 16.1 rpm \| Output torque M2: 592 Nm
	S123 177,53 80B4	Size: S123 \| Ratio i: 177.53 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 8.1 rpm \| Output torque M2: 830 Nm
	S123 177,53 80B6	Size: S123 \| Ratio i: 177.53 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 5.3 rpm \| Output torque M2: 942 Nm
	S123 177,53 90L2	Size: S123 \| Ratio i: 177.53 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 16.2 rpm \| Output torque M2: 1175 Nm
	S123 177,53 90L4	Size: S123 \| Ratio i: 177.53 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 8.1 rpm \| Output torque M2: 1672 Nm
	S123 177,53 90S2	Size: S123 \| Ratio i: 177.53 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 16.1 rpm \| Output torque M2: 807 Nm
	S123 177,53 90S4	Size: S123 \| Ratio i: 177.53 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 8.1 rpm \| Output torque M2: 1226 Nm
	S123 177,53 90S6	Size: S123 \| Ratio i: 177.53 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 5.3 rpm \| Output torque M2: 1284 Nm
	S123 194,59 100L2	Size: S123 \| Ratio i: 194.59 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 14.9 rpm \| Output torque M2: 1744 Nm
	S123 194,59 100L6	Size: S123 \| Ratio i: 194.59 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 2816 Nm
	S123 194,59 100LA4	Size: S123 \| Ratio i: 194.59 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 2669 Nm
	S123 194,59 100LR6	Size: S123 \| Ratio i: 194.59 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 2043 Nm
	S123 194,59 80B2	Size: S123 \| Ratio i: 194.59 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 648 Nm
	S123 194,59 80B4	Size: S123 \| Ratio i: 194.59 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 910 Nm
	S123 194,59 80B6	Size: S123 \| Ratio i: 194.59 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 1032 Nm
	S123 194,59 90L2	Size: S123 \| Ratio i: 194.59 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 14.8 rpm \| Output torque M2: 1288 Nm
	S123 194,59 90L4	Size: S123 \| Ratio i: 194.59 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 1833 Nm
	S123 194,59 90S2	Size: S123 \| Ratio i: 194.59 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 14.6 rpm \| Output torque M2: 884 Nm
	S123 194,59 90S4	Size: S123 \| Ratio i: 194.59 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 7.3 rpm \| Output torque M2: 1344 Nm
	S123 194,59 90S6	Size: S123 \| Ratio i: 194.59 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 1408 Nm
	S123 215,60 100L2	Size: S123 \| Ratio i: 215.60 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 13.5 rpm \| Output torque M2: 1932 Nm
	S123 215,60 100L6	Size: S123 \| Ratio i: 215.60 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 4.3 rpm \| Output torque M2: 3120 Nm
	S123 215,60 100LA4	Size: S123 \| Ratio i: 215.60 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 6.7 rpm \| Output torque M2: 2957 Nm
	S123 215,60 100LR6	Size: S123 \| Ratio i: 215.60 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 2263 Nm
	S123 215,60 80A4	Size: S123 \| Ratio i: 215.60 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 6.6 rpm \| Output torque M2: 749 Nm
	S123 215,60 80B2	Size: S123 \| Ratio i: 215.60 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 718 Nm
	S123 215,60 80B4	Size: S123 \| Ratio i: 215.60 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 6.7 rpm \| Output torque M2: 1008 Nm
	S123 215,60 80B6	Size: S123 \| Ratio i: 215.60 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 4.3 rpm \| Output torque M2: 1144 Nm
	S123 215,60 90L2	Size: S123 \| Ratio i: 215.60 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 13.4 rpm \| Output torque M2: 1427 Nm
	S123 215,60 90L4	Size: S123 \| Ratio i: 215.60 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 6.6 rpm \| Output torque M2: 2031 Nm
	S123 215,60 90S2	Size: S123 \| Ratio i: 215.60 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 13.3 rpm \| Output torque M2: 980 Nm
	S123 215,60 90S4	Size: S123 \| Ratio i: 215.60 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 6.6 rpm \| Output torque M2: 1489 Nm
	S123 215,60 90S6	Size: S123 \| Ratio i: 215.60 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 1560 Nm
	S123 238,93 100L2	Size: S123 \| Ratio i: 238.93 \| Motor: 100L2 \| Power P1: 3.00 kW \| Output speed n2: 12.1 rpm \| Output torque M2: 2142 Nm
	S123 238,93 100L6	Size: S123 \| Ratio i: 238.93 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.9 rpm \| Output torque M2: 3457 Nm
	S123 238,93 100LA4	Size: S123 \| Ratio i: 238.93 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 3277 Nm
	S123 238,93 100LR6	Size: S123 \| Ratio i: 238.93 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 2508 Nm
	S123 238,93 80A4	Size: S123 \| Ratio i: 238.93 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 831 Nm
	S123 238,93 80A6	Size: S123 \| Ratio i: 238.93 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 3.9 rpm \| Output torque M2: 853 Nm
	S123 238,93 80B2	Size: S123 \| Ratio i: 238.93 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 797 Nm
	S123 238,93 80B4	Size: S123 \| Ratio i: 238.93 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 1117 Nm
	S123 238,93 80B6	Size: S123 \| Ratio i: 238.93 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 3.9 rpm \| Output torque M2: 1267 Nm
	S123 238,93 90L2	Size: S123 \| Ratio i: 238.93 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 12.1 rpm \| Output torque M2: 1581 Nm
	S123 238,93 90L4	Size: S123 \| Ratio i: 238.93 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 5.9 rpm \| Output torque M2: 2250 Nm
	S123 238,93 90S2	Size: S123 \| Ratio i: 238.93 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 1086 Nm
	S123 238,93 90S4	Size: S123 \| Ratio i: 238.93 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 1650 Nm
	S123 238,93 90S6	Size: S123 \| Ratio i: 238.93 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 1728 Nm
	S123 255,54 100LR6	Size: S123 \| Ratio i: 255.54 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 3.7 rpm \| Output torque M2: 2683 Nm
	S123 255,54 80A2	Size: S123 \| Ratio i: 255.54 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 581 Nm
	S123 255,54 80A4	Size: S123 \| Ratio i: 255.54 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 888 Nm
	S123 255,54 80A6	Size: S123 \| Ratio i: 255.54 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 3.7 rpm \| Output torque M2: 912 Nm
	S123 255,54 80B2	Size: S123 \| Ratio i: 255.54 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 851 Nm
	S123 255,54 80B4	Size: S123 \| Ratio i: 255.54 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 1195 Nm
	S123 255,54 80B6	Size: S123 \| Ratio i: 255.54 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 3.6 rpm \| Output torque M2: 1356 Nm
	S123 255,54 90L2	Size: S123 \| Ratio i: 255.54 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 11.3 rpm \| Output torque M2: 1691 Nm
	S123 255,54 90L4	Size: S123 \| Ratio i: 255.54 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 2407 Nm
	S123 255,54 90S2	Size: S123 \| Ratio i: 255.54 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 1161 Nm
	S123 255,54 90S4	Size: S123 \| Ratio i: 255.54 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 1765 Nm
	S123 255,54 90S6	Size: S123 \| Ratio i: 255.54 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 3.7 rpm \| Output torque M2: 1849 Nm
	S123 280,10 100LR6	Size: S123 \| Ratio i: 280.10 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 2941 Nm
	S123 280,10 80A2	Size: S123 \| Ratio i: 280.10 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 637 Nm
	S123 280,10 80A4	Size: S123 \| Ratio i: 280.10 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 974 Nm
	S123 280,10 80A6	Size: S123 \| Ratio i: 280.10 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 1000 Nm
	S123 280,10 80B2	Size: S123 \| Ratio i: 280.10 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 933 Nm
	S123 280,10 80B4	Size: S123 \| Ratio i: 280.10 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 1310 Nm
	S123 280,10 80B6	Size: S123 \| Ratio i: 280.10 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 3.3 rpm \| Output torque M2: 1486 Nm
	S123 280,10 90L2	Size: S123 \| Ratio i: 280.10 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 10.3 rpm \| Output torque M2: 1854 Nm
	S123 280,10 90L4	Size: S123 \| Ratio i: 280.10 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 2638 Nm
	S123 280,10 90S2	Size: S123 \| Ratio i: 280.10 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 10.2 rpm \| Output torque M2: 1273 Nm
	S123 280,10 90S4	Size: S123 \| Ratio i: 280.10 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 5.1 rpm \| Output torque M2: 1935 Nm
	S123 280,10 90S6	Size: S123 \| Ratio i: 280.10 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 2026 Nm
	S123 301,16 100LR6	Size: S123 \| Ratio i: 301.16 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 3.2 rpm \| Output torque M2: 3162 Nm
	S123 301,16 80A2	Size: S123 \| Ratio i: 301.16 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 684 Nm
	S123 301,16 80A4	Size: S123 \| Ratio i: 301.16 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 4.7 rpm \| Output torque M2: 1047 Nm
	S123 301,16 80A6	Size: S123 \| Ratio i: 301.16 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 1075 Nm
	S123 301,16 80B2	Size: S123 \| Ratio i: 301.16 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1003 Nm
	S123 301,16 80B4	Size: S123 \| Ratio i: 301.16 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 4.7 rpm \| Output torque M2: 1408 Nm
	S123 301,16 80B6	Size: S123 \| Ratio i: 301.16 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 1598 Nm
	S123 301,16 90L2	Size: S123 \| Ratio i: 301.16 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 9.6 rpm \| Output torque M2: 1993 Nm
	S123 301,16 90L4	Size: S123 \| Ratio i: 301.16 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 4.7 rpm \| Output torque M2: 2836 Nm
	S123 301,16 90S2	Size: S123 \| Ratio i: 301.16 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1369 Nm
	S123 301,16 90S4	Size: S123 \| Ratio i: 301.16 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 4.7 rpm \| Output torque M2: 2080 Nm
	S123 301,16 90S6	Size: S123 \| Ratio i: 301.16 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 3.1 rpm \| Output torque M2: 2179 Nm
	S123 343,93 80A2	Size: S123 \| Ratio i: 343.93 \| Motor: 80A2 \| Power P1: 0.75 kW \| Output speed n2: 8.4 rpm \| Output torque M2: 782 Nm
	S123 343,93 80A4	Size: S123 \| Ratio i: 343.93 \| Motor: 80A4 \| Power P1: 0.55 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 1196 Nm
	S123 343,93 80A6	Size: S123 \| Ratio i: 343.93 \| Motor: 80A6 \| Power P1: 0.37 kW \| Output speed n2: 2.7 rpm \| Output torque M2: 1227 Nm
	S123 343,93 80B2	Size: S123 \| Ratio i: 343.93 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 1146 Nm
	S123 343,93 80B4	Size: S123 \| Ratio i: 343.93 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 1608 Nm
	S123 343,93 80B6	Size: S123 \| Ratio i: 343.93 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 2.7 rpm \| Output torque M2: 1825 Nm
	S123 343,93 90L4	Size: S123 \| Ratio i: 343.93 \| Motor: 90L4 \| Power P1: 1.50 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 3239 Nm
	S123 343,93 90S2	Size: S123 \| Ratio i: 343.93 \| Motor: 90S2 \| Power P1: 1.50 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 1563 Nm
	S123 343,93 90S4	Size: S123 \| Ratio i: 343.93 \| Motor: 90S4 \| Power P1: 1.10 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 2375 Nm
	S123 343,93 90S6	Size: S123 \| Ratio i: 343.93 \| Motor: 90S6 \| Power P1: 0.75 kW \| Output speed n2: 2.7 rpm \| Output torque M2: 2488 Nm
	S142 4,12 160L6	Size: S142 \| Ratio i: 4.12 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 235.6 rpm \| Output torque M2: 432 Nm
	S142 4,12 160LA4	Size: S142 \| Ratio i: 4.12 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 358.2 rpm \| Output torque M2: 384 Nm
	S142 4,12 180L4	Size: S142 \| Ratio i: 4.12 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 357.0 rpm \| Output torque M2: 565 Nm
	S142 4,12 180L6	Size: S142 \| Ratio i: 4.12 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 238.0 rpm \| Output torque M2: 584 Nm
	S142 4,12 180M4	Size: S142 \| Ratio i: 4.12 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 357.0 rpm \| Output torque M2: 475 Nm
	S142 4,12 200L4	Size: S142 \| Ratio i: 4.12 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 358.2 rpm \| Output torque M2: 768 Nm
	S142 4,12 200LA6	Size: S142 \| Ratio i: 4.12 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 238.0 rpm \| Output torque M2: 720 Nm
	S142 4,12 200LB6	Size: S142 \| Ratio i: 4.12 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 238.0 rpm \| Output torque M2: 856 Nm
	S142 4,59 160L6	Size: S142 \| Ratio i: 4.59 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 211.5 rpm \| Output torque M2: 482 Nm
	S142 4,59 160LA4	Size: S142 \| Ratio i: 4.59 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 321.6 rpm \| Output torque M2: 428 Nm
	S142 4,59 180L4	Size: S142 \| Ratio i: 4.59 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 320.5 rpm \| Output torque M2: 629 Nm
	S142 4,59 180L6	Size: S142 \| Ratio i: 4.59 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 213.7 rpm \| Output torque M2: 650 Nm
	S142 4,59 180M4	Size: S142 \| Ratio i: 4.59 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 320.5 rpm \| Output torque M2: 529 Nm
	S142 4,59 200L4	Size: S142 \| Ratio i: 4.59 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 321.6 rpm \| Output torque M2: 855 Nm
	S142 4,59 200LA6	Size: S142 \| Ratio i: 4.59 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 213.7 rpm \| Output torque M2: 802 Nm
	S142 4,59 200LB6	Size: S142 \| Ratio i: 4.59 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 213.7 rpm \| Output torque M2: 953 Nm
	S142 5,14 160L6	Size: S142 \| Ratio i: 5.14 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 188.6 rpm \| Output torque M2: 540 Nm
	S142 5,14 160LA4	Size: S142 \| Ratio i: 5.14 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 286.8 rpm \| Output torque M2: 480 Nm
	S142 5,14 180L4	Size: S142 \| Ratio i: 5.14 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 285.8 rpm \| Output torque M2: 706 Nm
	S142 5,14 180L6	Size: S142 \| Ratio i: 5.14 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 190.5 rpm \| Output torque M2: 729 Nm
	S142 5,14 180M4	Size: S142 \| Ratio i: 5.14 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 285.8 rpm \| Output torque M2: 593 Nm
	S142 5,14 200L4	Size: S142 \| Ratio i: 5.14 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 286.8 rpm \| Output torque M2: 959 Nm
	S142 5,14 200LA6	Size: S142 \| Ratio i: 5.14 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 190.5 rpm \| Output torque M2: 899 Nm
	S142 5,14 200LB6	Size: S142 \| Ratio i: 5.14 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 190.5 rpm \| Output torque M2: 1069 Nm
	S142 5,82 160L6	Size: S142 \| Ratio i: 5.82 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 166.7 rpm \| Output torque M2: 611 Nm
	S142 5,82 160LA4	Size: S142 \| Ratio i: 5.82 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 253.5 rpm \| Output torque M2: 543 Nm
	S142 5,82 180L4	Size: S142 \| Ratio i: 5.82 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 252.6 rpm \| Output torque M2: 798 Nm
	S142 5,82 180L6	Size: S142 \| Ratio i: 5.82 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 168.4 rpm \| Output torque M2: 825 Nm
	S142 5,82 180M4	Size: S142 \| Ratio i: 5.82 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 252.6 rpm \| Output torque M2: 671 Nm
	S142 5,82 200L4	Size: S142 \| Ratio i: 5.82 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 253.5 rpm \| Output torque M2: 1085 Nm
	S142 5,82 200LA6	Size: S142 \| Ratio i: 5.82 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 168.4 rpm \| Output torque M2: 1017 Nm
	S142 5,82 200LB6	Size: S142 \| Ratio i: 5.82 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 168.4 rpm \| Output torque M2: 1210 Nm
	S142 6,21 160L6	Size: S142 \| Ratio i: 6.21 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 156.1 rpm \| Output torque M2: 652 Nm
	S142 6,21 160LA4	Size: S142 \| Ratio i: 6.21 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 237.4 rpm \| Output torque M2: 579 Nm
	S142 6,21 180L4	Size: S142 \| Ratio i: 6.21 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 236.6 rpm \| Output torque M2: 852 Nm
	S142 6,21 180L6	Size: S142 \| Ratio i: 6.21 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 157.7 rpm \| Output torque M2: 881 Nm
	S142 6,21 180M4	Size: S142 \| Ratio i: 6.21 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 236.6 rpm \| Output torque M2: 717 Nm
	S142 6,21 200L4	Size: S142 \| Ratio i: 6.21 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 237.4 rpm \| Output torque M2: 1159 Nm
	S142 6,21 200LA6	Size: S142 \| Ratio i: 6.21 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 157.7 rpm \| Output torque M2: 1086 Nm
	S142 6,21 200LB6	Size: S142 \| Ratio i: 6.21 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 157.7 rpm \| Output torque M2: 1291 Nm
	S142 7,32 132MB6	Size: S142 \| Ratio i: 7.32 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 132.6 rpm \| Output torque M2: 384 Nm
	S142 7,32 160L6	Size: S142 \| Ratio i: 7.32 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 132.6 rpm \| Output torque M2: 768 Nm
	S142 7,32 160LA4	Size: S142 \| Ratio i: 7.32 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 201.6 rpm \| Output torque M2: 682 Nm
	S142 7,32 160MA4	Size: S142 \| Ratio i: 7.32 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 201.6 rpm \| Output torque M2: 500 Nm
	S142 7,32 180L4	Size: S142 \| Ratio i: 7.32 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 200.9 rpm \| Output torque M2: 1004 Nm
	S142 7,32 180L6	Size: S142 \| Ratio i: 7.32 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 133.9 rpm \| Output torque M2: 1037 Nm
	S142 7,32 180M4	Size: S142 \| Ratio i: 7.32 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 200.9 rpm \| Output torque M2: 844 Nm
	S142 7,32 200L4	Size: S142 \| Ratio i: 7.32 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 201.6 rpm \| Output torque M2: 1365 Nm
	S142 7,32 200LA6	Size: S142 \| Ratio i: 7.32 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 133.9 rpm \| Output torque M2: 1279 Nm
	S142 7,32 200LB6	Size: S142 \| Ratio i: 7.32 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 133.9 rpm \| Output torque M2: 1521 Nm
	S142 8,21 132MB6	Size: S142 \| Ratio i: 8.21 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 118.2 rpm \| Output torque M2: 431 Nm
	S142 8,21 160L6	Size: S142 \| Ratio i: 8.21 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 118.2 rpm \| Output torque M2: 862 Nm
	S142 8,21 160LA4	Size: S142 \| Ratio i: 8.21 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 179.7 rpm \| Output torque M2: 765 Nm
	S142 8,21 160MA4	Size: S142 \| Ratio i: 8.21 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 179.7 rpm \| Output torque M2: 561 Nm
	S142 8,21 180L4	Size: S142 \| Ratio i: 8.21 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 179.1 rpm \| Output torque M2: 1126 Nm
	S142 8,21 180L6	Size: S142 \| Ratio i: 8.21 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 119.4 rpm \| Output torque M2: 1163 Nm
	S142 8,21 180M4	Size: S142 \| Ratio i: 8.21 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 179.1 rpm \| Output torque M2: 947 Nm
	S142 8,21 200L4	Size: S142 \| Ratio i: 8.21 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 179.7 rpm \| Output torque M2: 1530 Nm
	S142 8,21 200LA6	Size: S142 \| Ratio i: 8.21 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 119.4 rpm \| Output torque M2: 1435 Nm
	S142 8,21 200LB6	Size: S142 \| Ratio i: 8.21 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 119.4 rpm \| Output torque M2: 1706 Nm
	S142 9,29 132MB6	Size: S142 \| Ratio i: 9.29 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 104.5 rpm \| Output torque M2: 488 Nm
	S142 9,29 160L6	Size: S142 \| Ratio i: 9.29 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 104.5 rpm \| Output torque M2: 975 Nm
	S142 9,29 160LA4	Size: S142 \| Ratio i: 9.29 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 158.9 rpm \| Output torque M2: 866 Nm
	S142 9,29 160MA4	Size: S142 \| Ratio i: 9.29 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 158.9 rpm \| Output torque M2: 635 Nm
	S142 9,29 180L4	Size: S142 \| Ratio i: 9.29 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 158.3 rpm \| Output torque M2: 1274 Nm
	S142 9,29 180L6	Size: S142 \| Ratio i: 9.29 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 105.5 rpm \| Output torque M2: 1316 Nm
	S142 9,29 180M4	Size: S142 \| Ratio i: 9.29 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 158.3 rpm \| Output torque M2: 1071 Nm
	S142 9,29 200L4	Size: S142 \| Ratio i: 9.29 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 158.9 rpm \| Output torque M2: 1731 Nm
	S142 9,29 200LA6	Size: S142 \| Ratio i: 9.29 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 105.5 rpm \| Output torque M2: 1623 Nm
	S142 9,29 200LB6	Size: S142 \| Ratio i: 9.29 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 105.5 rpm \| Output torque M2: 1930 Nm
	S142 9,91 132MB6	Size: S142 \| Ratio i: 9.91 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 97.8 rpm \| Output torque M2: 521 Nm
	S142 9,91 160L6	Size: S142 \| Ratio i: 9.91 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 97.8 rpm \| Output torque M2: 1041 Nm
	S142 9,91 160LA4	Size: S142 \| Ratio i: 9.91 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 148.8 rpm \| Output torque M2: 924 Nm
	S142 9,91 160MA4	Size: S142 \| Ratio i: 9.91 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 148.8 rpm \| Output torque M2: 678 Nm
	S142 9,91 180L4	Size: S142 \| Ratio i: 9.91 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 148.3 rpm \| Output torque M2: 1360 Nm
	S142 9,91 180L6	Size: S142 \| Ratio i: 9.91 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 98.9 rpm \| Output torque M2: 1405 Nm
	S142 9,91 180M4	Size: S142 \| Ratio i: 9.91 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 148.3 rpm \| Output torque M2: 1144 Nm
	S142 9,91 200L4	Size: S142 \| Ratio i: 9.91 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 148.8 rpm \| Output torque M2: 1849 Nm
	S142 9,91 200LA6	Size: S142 \| Ratio i: 9.91 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 98.9 rpm \| Output torque M2: 1733 Nm
	S142 9,91 200LB6	Size: S142 \| Ratio i: 9.91 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 98.9 rpm \| Output torque M2: 2061 Nm
	S142 11,41 132M4	Size: S142 \| Ratio i: 11.41 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 537 Nm
	S142 11,41 132MB6	Size: S142 \| Ratio i: 11.41 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 85.0 rpm \| Output torque M2: 599 Nm
	S142 11,41 160L6	Size: S142 \| Ratio i: 11.41 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 85.0 rpm \| Output torque M2: 1198 Nm
	S142 11,41 160LA4	Size: S142 \| Ratio i: 11.41 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 129.3 rpm \| Output torque M2: 1063 Nm
	S142 11,41 160MA4	Size: S142 \| Ratio i: 11.41 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 129.3 rpm \| Output torque M2: 780 Nm
	S142 11,41 180L4	Size: S142 \| Ratio i: 11.41 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 128.9 rpm \| Output torque M2: 1565 Nm
	S142 11,41 180L6	Size: S142 \| Ratio i: 11.41 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 85.9 rpm \| Output torque M2: 1617 Nm
	S142 11,41 180M4	Size: S142 \| Ratio i: 11.41 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 128.9 rpm \| Output torque M2: 1316 Nm
	S142 11,41 200L4	Size: S142 \| Ratio i: 11.41 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 129.3 rpm \| Output torque M2: 2127 Nm
	S142 11,41 200LA6	Size: S142 \| Ratio i: 11.41 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 85.9 rpm \| Output torque M2: 1994 Nm
	S142 11,41 200LB6	Size: S142 \| Ratio i: 11.41 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 85.9 rpm \| Output torque M2: 2371 Nm
	S142 12,81 132M4	Size: S142 \| Ratio i: 12.81 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 114.0 rpm \| Output torque M2: 604 Nm
	S142 12,81 132MB6	Size: S142 \| Ratio i: 12.81 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 75.7 rpm \| Output torque M2: 673 Nm
	S142 12,81 160L6	Size: S142 \| Ratio i: 12.81 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 75.7 rpm \| Output torque M2: 1345 Nm
	S142 12,81 160LA4	Size: S142 \| Ratio i: 12.81 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 115.1 rpm \| Output torque M2: 1195 Nm
	S142 12,81 160MA4	Size: S142 \| Ratio i: 12.81 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 115.1 rpm \| Output torque M2: 876 Nm
	S142 12,81 180L4	Size: S142 \| Ratio i: 12.81 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 114.7 rpm \| Output torque M2: 1758 Nm
	S142 12,81 180L6	Size: S142 \| Ratio i: 12.81 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 76.5 rpm \| Output torque M2: 1816 Nm
	S142 12,81 180M4	Size: S142 \| Ratio i: 12.81 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 114.7 rpm \| Output torque M2: 1478 Nm
	S142 12,81 200L4	Size: S142 \| Ratio i: 12.81 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 115.1 rpm \| Output torque M2: 2389 Nm
	S142 12,81 200LA6	Size: S142 \| Ratio i: 12.81 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 76.5 rpm \| Output torque M2: 2240 Nm
	S142 12,81 200LB6	Size: S142 \| Ratio i: 12.81 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 76.5 rpm \| Output torque M2: 2663 Nm
	S142 14,27 132M4	Size: S142 \| Ratio i: 14.27 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 102.3 rpm \| Output torque M2: 672 Nm
	S142 14,27 132MA6	Size: S142 \| Ratio i: 14.27 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 68.0 rpm \| Output torque M2: 545 Nm
	S142 14,27 132MB6	Size: S142 \| Ratio i: 14.27 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 68.0 rpm \| Output torque M2: 749 Nm
	S142 14,27 132MS4	Size: S142 \| Ratio i: 14.27 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 103.0 rpm \| Output torque M2: 490 Nm
	S142 14,27 160L6	Size: S142 \| Ratio i: 14.27 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 68.0 rpm \| Output torque M2: 1499 Nm
	S142 14,27 160LA4	Size: S142 \| Ratio i: 14.27 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 103.4 rpm \| Output torque M2: 1331 Nm
	S142 14,27 160MA4	Size: S142 \| Ratio i: 14.27 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 103.4 rpm \| Output torque M2: 976 Nm
	S142 14,27 180L4	Size: S142 \| Ratio i: 14.27 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 103.0 rpm \| Output torque M2: 1958 Nm
	S142 14,27 180L6	Size: S142 \| Ratio i: 14.27 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 68.7 rpm \| Output torque M2: 2023 Nm
	S142 14,27 180M4	Size: S142 \| Ratio i: 14.27 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 103.0 rpm \| Output torque M2: 1647 Nm
	S142 14,27 200L4	Size: S142 \| Ratio i: 14.27 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 103.4 rpm \| Output torque M2: 2661 Nm
	S142 14,27 200LA6	Size: S142 \| Ratio i: 14.27 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 68.7 rpm \| Output torque M2: 2495 Nm
	S142 16,01 132M4	Size: S142 \| Ratio i: 16.01 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 91.2 rpm \| Output torque M2: 754 Nm
	S142 16,01 132MA6	Size: S142 \| Ratio i: 16.01 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 60.6 rpm \| Output torque M2: 612 Nm
	S142 16,01 132MB6	Size: S142 \| Ratio i: 16.01 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 60.6 rpm \| Output torque M2: 840 Nm
	S142 16,01 132MS4	Size: S142 \| Ratio i: 16.01 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 91.8 rpm \| Output torque M2: 549 Nm
	S142 16,01 160L6	Size: S142 \| Ratio i: 16.01 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 60.6 rpm \| Output torque M2: 1681 Nm
	S142 16,01 160LA4	Size: S142 \| Ratio i: 16.01 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 92.2 rpm \| Output torque M2: 1492 Nm
	S142 16,01 160MA4	Size: S142 \| Ratio i: 16.01 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 92.2 rpm \| Output torque M2: 1094 Nm
	S142 16,01 180L4	Size: S142 \| Ratio i: 16.01 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 91.8 rpm \| Output torque M2: 2196 Nm
	S142 16,01 180L6	Size: S142 \| Ratio i: 16.01 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 61.2 rpm \| Output torque M2: 2269 Nm
	S142 16,01 180M4	Size: S142 \| Ratio i: 16.01 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 91.8 rpm \| Output torque M2: 1847 Nm
	S142 16,01 200LA6	Size: S142 \| Ratio i: 16.01 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 61.2 rpm \| Output torque M2: 2798 Nm
	S142 18,11 132M4	Size: S142 \| Ratio i: 18.11 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 80.7 rpm \| Output torque M2: 853 Nm
	S142 18,11 132MA6	Size: S142 \| Ratio i: 18.11 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 53.6 rpm \| Output torque M2: 692 Nm
	S142 18,11 132MB6	Size: S142 \| Ratio i: 18.11 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 53.6 rpm \| Output torque M2: 951 Nm
	S142 18,11 132MS4	Size: S142 \| Ratio i: 18.11 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 81.2 rpm \| Output torque M2: 621 Nm
	S142 18,11 160L6	Size: S142 \| Ratio i: 18.11 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 53.6 rpm \| Output torque M2: 1901 Nm
	S142 18,11 160LA4	Size: S142 \| Ratio i: 18.11 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 81.5 rpm \| Output torque M2: 1688 Nm
	S142 18,11 160MA4	Size: S142 \| Ratio i: 18.11 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 81.5 rpm \| Output torque M2: 1238 Nm
	S142 18,11 180L4	Size: S142 \| Ratio i: 18.11 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 81.2 rpm \| Output torque M2: 2485 Nm
	S142 18,11 180L6	Size: S142 \| Ratio i: 18.11 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 54.1 rpm \| Output torque M2: 2566 Nm
	S142 18,11 180M4	Size: S142 \| Ratio i: 18.11 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 81.2 rpm \| Output torque M2: 2089 Nm
	S142 18,11 200LA6	Size: S142 \| Ratio i: 18.11 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 54.1 rpm \| Output torque M2: 3165 Nm
	S142 19,33 132M4	Size: S142 \| Ratio i: 19.33 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 75.5 rpm \| Output torque M2: 911 Nm
	S142 19,33 132MA6	Size: S142 \| Ratio i: 19.33 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 50.2 rpm \| Output torque M2: 738 Nm
	S142 19,33 132MB6	Size: S142 \| Ratio i: 19.33 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 50.2 rpm \| Output torque M2: 1015 Nm
	S142 19,33 132MS4	Size: S142 \| Ratio i: 19.33 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 76.0 rpm \| Output torque M2: 663 Nm
	S142 19,33 160L6	Size: S142 \| Ratio i: 19.33 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 50.2 rpm \| Output torque M2: 2030 Nm
	S142 19,33 160LA4	Size: S142 \| Ratio i: 19.33 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 76.3 rpm \| Output torque M2: 1803 Nm
	S142 19,33 160MA4	Size: S142 \| Ratio i: 19.33 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 76.3 rpm \| Output torque M2: 1322 Nm
	S142 19,33 180L4	Size: S142 \| Ratio i: 19.33 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 76.0 rpm \| Output torque M2: 2653 Nm
	S142 19,33 180L6	Size: S142 \| Ratio i: 19.33 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 50.7 rpm \| Output torque M2: 2740 Nm
	S142 19,33 180M4	Size: S142 \| Ratio i: 19.33 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 76.0 rpm \| Output torque M2: 2231 Nm
	S142 19,33 200LA6	Size: S142 \| Ratio i: 19.33 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 50.7 rpm \| Output torque M2: 3379 Nm
	S142 22,24 132M4	Size: S142 \| Ratio i: 22.24 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 65.6 rpm \| Output torque M2: 1048 Nm
	S142 22,24 132MA6	Size: S142 \| Ratio i: 22.24 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 43.6 rpm \| Output torque M2: 849 Nm
	S142 22,24 132MB6	Size: S142 \| Ratio i: 22.24 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 43.6 rpm \| Output torque M2: 1168 Nm
	S142 22,24 132MS4	Size: S142 \| Ratio i: 22.24 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 66.1 rpm \| Output torque M2: 763 Nm
	S142 22,24 132S6	Size: S142 \| Ratio i: 22.24 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 43.6 rpm \| Output torque M2: 637 Nm
	S142 22,24 160L6	Size: S142 \| Ratio i: 22.24 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 43.6 rpm \| Output torque M2: 2336 Nm
	S142 22,24 160LA4	Size: S142 \| Ratio i: 22.24 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 66.3 rpm \| Output torque M2: 2074 Nm
	S142 22,24 160MA4	Size: S142 \| Ratio i: 22.24 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 66.3 rpm \| Output torque M2: 1521 Nm
	S142 22,24 180L4	Size: S142 \| Ratio i: 22.24 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 66.1 rpm \| Output torque M2: 3052 Nm
	S142 22,24 180L6	Size: S142 \| Ratio i: 22.24 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 44.1 rpm \| Output torque M2: 3153 Nm
	S142 22,24 180M4	Size: S142 \| Ratio i: 22.24 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 66.1 rpm \| Output torque M2: 2567 Nm
	S142 25,26 132M4	Size: S142 \| Ratio i: 25.26 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 57.8 rpm \| Output torque M2: 1190 Nm
	S142 25,26 132MA6	Size: S142 \| Ratio i: 25.26 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 38.4 rpm \| Output torque M2: 965 Nm
	S142 25,26 132MB6	Size: S142 \| Ratio i: 25.26 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 38.4 rpm \| Output torque M2: 1326 Nm
	S142 25,26 132MS4	Size: S142 \| Ratio i: 25.26 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 58.2 rpm \| Output torque M2: 866 Nm
	S142 25,26 132S6	Size: S142 \| Ratio i: 25.26 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 38.4 rpm \| Output torque M2: 723 Nm
	S142 25,26 160L6	Size: S142 \| Ratio i: 25.26 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 38.4 rpm \| Output torque M2: 2653 Nm
	S142 25,26 160LA4	Size: S142 \| Ratio i: 25.26 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 58.4 rpm \| Output torque M2: 2355 Nm
	S142 25,26 160MA4	Size: S142 \| Ratio i: 25.26 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 58.4 rpm \| Output torque M2: 1727 Nm
	S142 25,26 180M4	Size: S142 \| Ratio i: 25.26 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 58.2 rpm \| Output torque M2: 2915 Nm
	S142 28,33 132M4	Size: S142 \| Ratio i: 28.33 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 51.6 rpm \| Output torque M2: 1335 Nm
	S142 28,33 132MA6	Size: S142 \| Ratio i: 28.33 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 34.2 rpm \| Output torque M2: 1082 Nm
	S142 28,33 132MB6	Size: S142 \| Ratio i: 28.33 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 34.2 rpm \| Output torque M2: 1488 Nm
	S142 28,33 132MS4	Size: S142 \| Ratio i: 28.33 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 51.9 rpm \| Output torque M2: 972 Nm
	S142 28,33 132S6	Size: S142 \| Ratio i: 28.33 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 34.3 rpm \| Output torque M2: 812 Nm
	S142 28,33 160L6	Size: S142 \| Ratio i: 28.33 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 34.2 rpm \| Output torque M2: 2975 Nm
	S142 28,33 160LA4	Size: S142 \| Ratio i: 28.33 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 52.1 rpm \| Output torque M2: 2642 Nm
	S142 28,33 160MA4	Size: S142 \| Ratio i: 28.33 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 52.1 rpm \| Output torque M2: 1937 Nm
	S142 28,33 180M4	Size: S142 \| Ratio i: 28.33 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 51.9 rpm \| Output torque M2: 3269 Nm
	S142 32,05 132M4	Size: S142 \| Ratio i: 32.05 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 45.6 rpm \| Output torque M2: 1510 Nm
	S142 32,05 132MA6	Size: S142 \| Ratio i: 32.05 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 30.3 rpm \| Output torque M2: 1224 Nm
	S142 32,05 132MB6	Size: S142 \| Ratio i: 32.05 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 30.3 rpm \| Output torque M2: 1683 Nm
	S142 32,05 132MS4	Size: S142 \| Ratio i: 32.05 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 45.8 rpm \| Output torque M2: 1100 Nm
	S142 32,05 132S6	Size: S142 \| Ratio i: 32.05 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 30.3 rpm \| Output torque M2: 918 Nm
	S142 32,05 160L6	Size: S142 \| Ratio i: 32.05 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 30.3 rpm \| Output torque M2: 3366 Nm
	S142 32,05 160LA4	Size: S142 \| Ratio i: 32.05 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 46.0 rpm \| Output torque M2: 2988 Nm
	S142 32,05 160MA4	Size: S142 \| Ratio i: 32.05 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 46.0 rpm \| Output torque M2: 2191 Nm
	S142 32,05 180M4	Size: S142 \| Ratio i: 32.05 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 45.9 rpm \| Output torque M2: 3698 Nm
	S142 34,22 132M4	Size: S142 \| Ratio i: 34.22 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 42.7 rpm \| Output torque M2: 1612 Nm
	S142 34,22 132MA6	Size: S142 \| Ratio i: 34.22 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 28.3 rpm \| Output torque M2: 1307 Nm
	S142 34,22 132MB6	Size: S142 \| Ratio i: 34.22 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 28.3 rpm \| Output torque M2: 1797 Nm
	S142 34,22 132MS4	Size: S142 \| Ratio i: 34.22 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 43.0 rpm \| Output torque M2: 1174 Nm
	S142 34,22 132S6	Size: S142 \| Ratio i: 34.22 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 28.3 rpm \| Output torque M2: 980 Nm
	S142 34,22 160L6	Size: S142 \| Ratio i: 34.22 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 28.3 rpm \| Output torque M2: 3594 Nm
	S142 34,22 160LA4	Size: S142 \| Ratio i: 34.22 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 43.1 rpm \| Output torque M2: 3191 Nm
	S142 34,22 160MA4	Size: S142 \| Ratio i: 34.22 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 43.1 rpm \| Output torque M2: 2340 Nm
	S142 34,22 180M4	Size: S142 \| Ratio i: 34.22 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 43.0 rpm \| Output torque M2: 3949 Nm
	S142 39,38 132M4	Size: S142 \| Ratio i: 39.38 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 37.1 rpm \| Output torque M2: 1854 Nm
	S142 39,38 132MA6	Size: S142 \| Ratio i: 39.38 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 24.6 rpm \| Output torque M2: 1504 Nm
	S142 39,38 132MB6	Size: S142 \| Ratio i: 39.38 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 24.7 rpm \| Output torque M2: 2068 Nm
	S142 39,38 132MS4	Size: S142 \| Ratio i: 39.38 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 37.3 rpm \| Output torque M2: 1351 Nm
	S142 39,38 160L6	Size: S142 \| Ratio i: 39.38 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 24.6 rpm \| Output torque M2: 4135 Nm
	S142 39,38 160LA4	Size: S142 \| Ratio i: 39.38 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 3671 Nm
	S142 39,38 160MA4	Size: S142 \| Ratio i: 39.38 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 2692 Nm
	S142 39,38 180M4	Size: S142 \| Ratio i: 39.38 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 37.3 rpm \| Output torque M2: 4543 Nm
	S143 45,77 112M4	Size: S143 \| Ratio i: 45.77 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 31.7 rpm \| Output torque M2: 1133 Nm
	S143 45,77 132M4	Size: S143 \| Ratio i: 45.77 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 31.9 rpm \| Output torque M2: 2111 Nm
	S143 45,77 132MA6	Size: S143 \| Ratio i: 45.77 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 21.2 rpm \| Output torque M2: 1711 Nm
	S143 45,77 132MB6	Size: S143 \| Ratio i: 45.77 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 21.2 rpm \| Output torque M2: 2353 Nm
	S143 45,77 132MS4	Size: S143 \| Ratio i: 45.77 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 32.1 rpm \| Output torque M2: 1538 Nm
	S143 45,77 132S6	Size: S143 \| Ratio i: 45.77 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 21.2 rpm \| Output torque M2: 1284 Nm
	S143 45,77 160LA4	Size: S143 \| Ratio i: 45.77 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 32.2 rpm \| Output torque M2: 4178 Nm
	S143 45,77 160MA4	Size: S143 \| Ratio i: 45.77 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 32.2 rpm \| Output torque M2: 3064 Nm
	S143 50,97 112M4	Size: S143 \| Ratio i: 50.97 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 28.5 rpm \| Output torque M2: 1262 Nm
	S143 50,97 132M4	Size: S143 \| Ratio i: 50.97 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 28.6 rpm \| Output torque M2: 2351 Nm
	S143 50,97 132MA6	Size: S143 \| Ratio i: 50.97 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 19.0 rpm \| Output torque M2: 1906 Nm
	S143 50,97 132MB6	Size: S143 \| Ratio i: 50.97 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 19.0 rpm \| Output torque M2: 2621 Nm
	S143 50,97 132MS4	Size: S143 \| Ratio i: 50.97 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 28.8 rpm \| Output torque M2: 1712 Nm
	S143 50,97 132S6	Size: S143 \| Ratio i: 50.97 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 19.0 rpm \| Output torque M2: 1429 Nm
	S143 50,97 160LA4	Size: S143 \| Ratio i: 50.97 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 28.9 rpm \| Output torque M2: 4653 Nm
	S143 50,97 160MA4	Size: S143 \| Ratio i: 50.97 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 28.9 rpm \| Output torque M2: 3412 Nm
	S143 57,17 112M4	Size: S143 \| Ratio i: 57.17 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 25.4 rpm \| Output torque M2: 1416 Nm
	S143 57,17 132M4	Size: S143 \| Ratio i: 57.17 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 25.6 rpm \| Output torque M2: 2637 Nm
	S143 57,17 132MA6	Size: S143 \| Ratio i: 57.17 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 17.0 rpm \| Output torque M2: 2138 Nm
	S143 57,17 132MB6	Size: S143 \| Ratio i: 57.17 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 17.0 rpm \| Output torque M2: 2939 Nm
	S143 57,17 132MS4	Size: S143 \| Ratio i: 57.17 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 25.8 rpm \| Output torque M2: 1921 Nm
	S143 57,17 132S6	Size: S143 \| Ratio i: 57.17 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 17.0 rpm \| Output torque M2: 1603 Nm
	S143 57,17 160LA4	Size: S143 \| Ratio i: 57.17 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 25.8 rpm \| Output torque M2: 5219 Nm
	S143 57,17 160MA4	Size: S143 \| Ratio i: 57.17 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 25.8 rpm \| Output torque M2: 3828 Nm
	S143 64,68 112M4	Size: S143 \| Ratio i: 64.68 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 22.4 rpm \| Output torque M2: 1602 Nm
	S143 64,68 112M6	Size: S143 \| Ratio i: 64.68 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 14.8 rpm \| Output torque M2: 1344 Nm
	S143 64,68 112MS4	Size: S143 \| Ratio i: 64.68 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 22.4 rpm \| Output torque M2: 1201 Nm
	S143 64,68 132M4	Size: S143 \| Ratio i: 64.68 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 22.6 rpm \| Output torque M2: 2983 Nm
	S143 64,68 132MA6	Size: S143 \| Ratio i: 64.68 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 15.0 rpm \| Output torque M2: 2418 Nm
	S143 64,68 132MB6	Size: S143 \| Ratio i: 64.68 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 15.0 rpm \| Output torque M2: 3325 Nm
	S143 64,68 132MS4	Size: S143 \| Ratio i: 64.68 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 22.8 rpm \| Output torque M2: 2172 Nm
	S143 64,68 132S6	Size: S143 \| Ratio i: 64.68 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 15.0 rpm \| Output torque M2: 1814 Nm
	S143 64,68 160MA4	Size: S143 \| Ratio i: 64.68 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 22.8 rpm \| Output torque M2: 4330 Nm
	S143 69,06 112M4	Size: S143 \| Ratio i: 69.06 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 21.0 rpm \| Output torque M2: 1710 Nm
	S143 69,06 112M6	Size: S143 \| Ratio i: 69.06 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 13.9 rpm \| Output torque M2: 1435 Nm
	S143 69,06 112MS4	Size: S143 \| Ratio i: 69.06 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 21.0 rpm \| Output torque M2: 1283 Nm
	S143 69,06 132M4	Size: S143 \| Ratio i: 69.06 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 21.1 rpm \| Output torque M2: 3184 Nm
	S143 69,06 132MA6	Size: S143 \| Ratio i: 69.06 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 14.0 rpm \| Output torque M2: 2582 Nm
	S143 69,06 132MB6	Size: S143 \| Ratio i: 69.06 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 14.0 rpm \| Output torque M2: 3550 Nm
	S143 69,06 132MS4	Size: S143 \| Ratio i: 69.06 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 21.2 rpm \| Output torque M2: 2319 Nm
	S143 69,06 132S6	Size: S143 \| Ratio i: 69.06 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 14.0 rpm \| Output torque M2: 1937 Nm
	S143 69,06 160MA4	Size: S143 \| Ratio i: 69.06 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 21.4 rpm \| Output torque M2: 4623 Nm
	S143 79,45 100L6	Size: S143 \| Ratio i: 79.45 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 11.8 rpm \| Output torque M2: 1150 Nm
	S143 79,45 100LA4	Size: S143 \| Ratio i: 79.45 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 18.1 rpm \| Output torque M2: 1090 Nm
	S143 79,45 112M4	Size: S143 \| Ratio i: 79.45 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 18.2 rpm \| Output torque M2: 1968 Nm
	S143 79,45 112M6	Size: S143 \| Ratio i: 79.45 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 12.1 rpm \| Output torque M2: 1651 Nm
	S143 79,45 112MS4	Size: S143 \| Ratio i: 79.45 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 18.2 rpm \| Output torque M2: 1476 Nm
	S143 79,45 132M4	Size: S143 \| Ratio i: 79.45 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 18.4 rpm \| Output torque M2: 3664 Nm
	S143 79,45 132MA6	Size: S143 \| Ratio i: 79.45 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 12.2 rpm \| Output torque M2: 2971 Nm
	S143 79,45 132MB6	Size: S143 \| Ratio i: 79.45 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 12.2 rpm \| Output torque M2: 4085 Nm
	S143 79,45 132MS4	Size: S143 \| Ratio i: 79.45 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 18.5 rpm \| Output torque M2: 2669 Nm
	S143 79,45 132S6	Size: S143 \| Ratio i: 79.45 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 12.2 rpm \| Output torque M2: 2228 Nm
	S143 98,81 100L6	Size: S143 \| Ratio i: 98.81 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 1430 Nm
	S143 98,81 100LA4	Size: S143 \| Ratio i: 98.81 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 14.6 rpm \| Output torque M2: 1356 Nm
	S143 98,81 112M4	Size: S143 \| Ratio i: 98.81 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 2447 Nm
	S143 98,81 112M6	Size: S143 \| Ratio i: 98.81 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 9.7 rpm \| Output torque M2: 2053 Nm
	S143 98,81 112MS4	Size: S143 \| Ratio i: 98.81 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 1835 Nm
	S143 98,81 132M4	Size: S143 \| Ratio i: 98.81 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 14.8 rpm \| Output torque M2: 4557 Nm
	S143 98,81 132MA6	Size: S143 \| Ratio i: 98.81 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 3695 Nm
	S143 98,81 132MB6	Size: S143 \| Ratio i: 98.81 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 5080 Nm
	S143 98,81 132MS4	Size: S143 \| Ratio i: 98.81 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 14.9 rpm \| Output torque M2: 3319 Nm
	S143 98,81 132S6	Size: S143 \| Ratio i: 98.81 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 2771 Nm
	S143 110,05 100L6	Size: S143 \| Ratio i: 110.05 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 8.5 rpm \| Output torque M2: 1592 Nm
	S143 110,05 100LA4	Size: S143 \| Ratio i: 110.05 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 13.1 rpm \| Output torque M2: 1510 Nm
	S143 110,05 112M4	Size: S143 \| Ratio i: 110.05 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 2725 Nm
	S143 110,05 112M6	Size: S143 \| Ratio i: 110.05 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 8.7 rpm \| Output torque M2: 2287 Nm
	S143 110,05 112MS4	Size: S143 \| Ratio i: 110.05 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 2044 Nm
	S143 110,05 132M4	Size: S143 \| Ratio i: 110.05 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 13.3 rpm \| Output torque M2: 5075 Nm
	S143 110,05 132MA6	Size: S143 \| Ratio i: 110.05 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 8.8 rpm \| Output torque M2: 4115 Nm
	S143 110,05 132MS4	Size: S143 \| Ratio i: 110.05 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 13.4 rpm \| Output torque M2: 3697 Nm
	S143 110,05 132S6	Size: S143 \| Ratio i: 110.05 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 8.8 rpm \| Output torque M2: 3086 Nm
	S143 123,44 100L6	Size: S143 \| Ratio i: 123.44 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 1786 Nm
	S143 123,44 100LA4	Size: S143 \| Ratio i: 123.44 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 11.6 rpm \| Output torque M2: 1693 Nm
	S143 123,44 100LR6	Size: S143 \| Ratio i: 123.44 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 7.7 rpm \| Output torque M2: 1296 Nm
	S143 123,44 112M4	Size: S143 \| Ratio i: 123.44 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 11.7 rpm \| Output torque M2: 3057 Nm
	S143 123,44 112M6	Size: S143 \| Ratio i: 123.44 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 7.7 rpm \| Output torque M2: 2565 Nm
	S143 123,44 112MS4	Size: S143 \| Ratio i: 123.44 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 11.7 rpm \| Output torque M2: 2293 Nm
	S143 123,44 132MA6	Size: S143 \| Ratio i: 123.44 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 7.9 rpm \| Output torque M2: 4615 Nm
	S143 123,44 132MS4	Size: S143 \| Ratio i: 123.44 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 4146 Nm
	S143 123,44 132S6	Size: S143 \| Ratio i: 123.44 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 7.9 rpm \| Output torque M2: 3462 Nm
	S143 139,64 100L6	Size: S143 \| Ratio i: 139.64 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 2020 Nm
	S143 139,64 100LA4	Size: S143 \| Ratio i: 139.64 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 10.3 rpm \| Output torque M2: 1916 Nm
	S143 139,64 100LR6	Size: S143 \| Ratio i: 139.64 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 6.8 rpm \| Output torque M2: 1466 Nm
	S143 139,64 112M4	Size: S143 \| Ratio i: 139.64 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 10.4 rpm \| Output torque M2: 3458 Nm
	S143 139,64 112M6	Size: S143 \| Ratio i: 139.64 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 6.9 rpm \| Output torque M2: 2902 Nm
	S143 139,64 112MS4	Size: S143 \| Ratio i: 139.64 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 10.4 rpm \| Output torque M2: 2594 Nm
	S143 139,64 132MA6	Size: S143 \| Ratio i: 139.64 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 5222 Nm
	S143 139,64 132MS4	Size: S143 \| Ratio i: 139.64 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 10.5 rpm \| Output torque M2: 4690 Nm
	S143 139,64 132S6	Size: S143 \| Ratio i: 139.64 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 3916 Nm
	S143 149,10 100L6	Size: S143 \| Ratio i: 149.10 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 2157 Nm
	S143 149,10 100LA4	Size: S143 \| Ratio i: 149.10 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 9.6 rpm \| Output torque M2: 2045 Nm
	S143 149,10 100LR6	Size: S143 \| Ratio i: 149.10 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 1565 Nm
	S143 149,10 112M4	Size: S143 \| Ratio i: 149.10 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 9.8 rpm \| Output torque M2: 3692 Nm
	S143 149,10 112M6	Size: S143 \| Ratio i: 149.10 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 3098 Nm
	S143 149,10 112MS4	Size: S143 \| Ratio i: 149.10 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 9.7 rpm \| Output torque M2: 2769 Nm
	S143 149,10 132MA6	Size: S143 \| Ratio i: 149.10 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 5575 Nm
	S143 149,10 132MS4	Size: S143 \| Ratio i: 149.10 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 9.9 rpm \| Output torque M2: 5008 Nm
	S143 149,10 132S6	Size: S143 \| Ratio i: 149.10 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 4181 Nm
	S143 157,49 100L6	Size: S143 \| Ratio i: 157.49 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 2279 Nm
	S143 157,49 100LA4	Size: S143 \| Ratio i: 157.49 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 9.1 rpm \| Output torque M2: 2160 Nm
	S143 157,49 100LR6	Size: S143 \| Ratio i: 157.49 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 1653 Nm
	S143 157,49 112M4	Size: S143 \| Ratio i: 157.49 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 9.2 rpm \| Output torque M2: 3900 Nm
	S143 157,49 112M6	Size: S143 \| Ratio i: 157.49 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 6.1 rpm \| Output torque M2: 3273 Nm
	S143 157,49 112MS4	Size: S143 \| Ratio i: 157.49 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 9.2 rpm \| Output torque M2: 2925 Nm
	S143 171,55 100L6	Size: S143 \| Ratio i: 171.55 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 2482 Nm
	S143 171,55 100LA4	Size: S143 \| Ratio i: 171.55 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 8.4 rpm \| Output torque M2: 2353 Nm
	S143 171,55 100LR6	Size: S143 \| Ratio i: 171.55 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 1801 Nm
	S143 171,55 112M4	Size: S143 \| Ratio i: 171.55 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 8.5 rpm \| Output torque M2: 4249 Nm
	S143 171,55 112M6	Size: S143 \| Ratio i: 171.55 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 5.6 rpm \| Output torque M2: 3564 Nm
	S143 171,55 112MS4	Size: S143 \| Ratio i: 171.55 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 8.5 rpm \| Output torque M2: 3186 Nm
	S143 171,55 132S6	Size: S143 \| Ratio i: 171.55 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.7 rpm \| Output torque M2: 4811 Nm
	S143 175,41 100L6	Size: S143 \| Ratio i: 175.41 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 5.4 rpm \| Output torque M2: 2538 Nm
	S143 175,41 100LA4	Size: S143 \| Ratio i: 175.41 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 8.2 rpm \| Output torque M2: 2406 Nm
	S143 175,41 100LR6	Size: S143 \| Ratio i: 175.41 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 5.4 rpm \| Output torque M2: 1841 Nm
	S143 175,41 112M4	Size: S143 \| Ratio i: 175.41 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 4344 Nm
	S143 175,41 112M6	Size: S143 \| Ratio i: 175.41 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 3645 Nm
	S143 175,41 112MS4	Size: S143 \| Ratio i: 175.41 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 3258 Nm
	S143 196,74 100L6	Size: S143 \| Ratio i: 196.74 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 2846 Nm
	S143 196,74 100LA4	Size: S143 \| Ratio i: 196.74 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 2698 Nm
	S143 196,74 100LR6	Size: S143 \| Ratio i: 196.74 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 4.8 rpm \| Output torque M2: 2065 Nm
	S143 196,74 112M4	Size: S143 \| Ratio i: 196.74 \| Motor: 112M4 \| Power P1: 4.00 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 4872 Nm
	S143 196,74 112M6	Size: S143 \| Ratio i: 196.74 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.9 rpm \| Output torque M2: 4088 Nm
	S143 196,74 112MS4	Size: S143 \| Ratio i: 196.74 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 7.4 rpm \| Output torque M2: 3654 Nm
	S143 222,57 100L6	Size: S143 \| Ratio i: 222.57 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 4.2 rpm \| Output torque M2: 3220 Nm
	S143 222,57 100LA4	Size: S143 \| Ratio i: 222.57 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 3053 Nm
	S143 222,57 100LR6	Size: S143 \| Ratio i: 222.57 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 4.3 rpm \| Output torque M2: 2337 Nm
	S143 222,57 112M6	Size: S143 \| Ratio i: 222.57 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.3 rpm \| Output torque M2: 4625 Nm
	S143 222,57 112MS4	Size: S143 \| Ratio i: 222.57 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 6.5 rpm \| Output torque M2: 4134 Nm
	S143 237,63 100L6	Size: S143 \| Ratio i: 237.63 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.9 rpm \| Output torque M2: 3438 Nm
	S143 237,63 100LA4	Size: S143 \| Ratio i: 237.63 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 6.0 rpm \| Output torque M2: 3259 Nm
	S143 237,63 100LR6	Size: S143 \| Ratio i: 237.63 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 2495 Nm
	S143 237,63 112M6	Size: S143 \| Ratio i: 237.63 \| Motor: 112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.0 rpm \| Output torque M2: 4938 Nm
	S143 237,63 112MS4	Size: S143 \| Ratio i: 237.63 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 6.1 rpm \| Output torque M2: 4414 Nm
	S143 273,41 100L6	Size: S143 \| Ratio i: 273.41 \| Motor: 100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.4 rpm \| Output torque M2: 3956 Nm
	S143 273,41 100LA4	Size: S143 \| Ratio i: 273.41 \| Motor: 100LA4 \| Power P1: 2.20 kW \| Output speed n2: 5.3 rpm \| Output torque M2: 3750 Nm
	S143 273,41 100LR6	Size: S143 \| Ratio i: 273.41 \| Motor: 100LR6 \| Power P1: 1.10 kW \| Output speed n2: 3.5 rpm \| Output torque M2: 2870 Nm
	S143 273,41 112MS4	Size: S143 \| Ratio i: 273.41 \| Motor: 112MS4 \| Power P1: 3.00 kW \| Output speed n2: 5.3 rpm \| Output torque M2: 5078 Nm
	S152 4,06 200L4	Size: S152 \| Ratio i: 4.06 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 363.2 rpm \| Output torque M2: 757 Nm
	S152 4,06 200LA6	Size: S152 \| Ratio i: 4.06 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 241.3 rpm \| Output torque M2: 710 Nm
	S152 4,06 200LB6	Size: S152 \| Ratio i: 4.06 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 241.3 rpm \| Output torque M2: 844 Nm
	S152 4,06 225M4	Size: S152 \| Ratio i: 4.06 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 365.6 rpm \| Output torque M2: 1128 Nm
	S152 4,06 225S4	Size: S152 \| Ratio i: 4.06 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 365.6 rpm \| Output torque M2: 928 Nm
	S152 4,53 200L4	Size: S152 \| Ratio i: 4.53 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 325.4 rpm \| Output torque M2: 845 Nm
	S152 4,53 200LA6	Size: S152 \| Ratio i: 4.53 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 216.2 rpm \| Output torque M2: 792 Nm
	S152 4,53 200LB6	Size: S152 \| Ratio i: 4.53 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 216.2 rpm \| Output torque M2: 942 Nm
	S152 4,53 225M4	Size: S152 \| Ratio i: 4.53 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 327.6 rpm \| Output torque M2: 1259 Nm
	S152 4,53 225S4	Size: S152 \| Ratio i: 4.53 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 327.6 rpm \| Output torque M2: 1035 Nm
	S152 5,20 200L4	Size: S152 \| Ratio i: 5.20 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 283.4 rpm \| Output torque M2: 970 Nm
	S152 5,20 200LA6	Size: S152 \| Ratio i: 5.20 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 188.3 rpm \| Output torque M2: 910 Nm
	S152 5,20 200LB6	Size: S152 \| Ratio i: 5.20 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 188.3 rpm \| Output torque M2: 1082 Nm
	S152 5,20 225M4	Size: S152 \| Ratio i: 5.20 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 285.4 rpm \| Output torque M2: 1446 Nm
	S152 5,20 225S4	Size: S152 \| Ratio i: 5.20 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 285.4 rpm \| Output torque M2: 1189 Nm
	S152 5,71 180L4	Size: S152 \| Ratio i: 5.71 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 257.4 rpm \| Output torque M2: 784 Nm
	S152 5,71 180L6	Size: S152 \| Ratio i: 5.71 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 171.6 rpm \| Output torque M2: 809 Nm
	S152 5,71 200L4	Size: S152 \| Ratio i: 5.71 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 258.2 rpm \| Output torque M2: 1065 Nm
	S152 5,71 200LA6	Size: S152 \| Ratio i: 5.71 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 171.6 rpm \| Output torque M2: 998 Nm
	S152 5,71 200LB6	Size: S152 \| Ratio i: 5.71 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 171.6 rpm \| Output torque M2: 1187 Nm
	S152 5,71 225M4	Size: S152 \| Ratio i: 5.71 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 260.0 rpm \| Output torque M2: 1587 Nm
	S152 5,71 225S4	Size: S152 \| Ratio i: 5.71 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 260.0 rpm \| Output torque M2: 1305 Nm
	S152 6,52 180L4	Size: S152 \| Ratio i: 6.52 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 225.4 rpm \| Output torque M2: 895 Nm
	S152 6,52 180L6	Size: S152 \| Ratio i: 6.52 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 150.2 rpm \| Output torque M2: 925 Nm
	S152 6,52 200L4	Size: S152 \| Ratio i: 6.52 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 226.1 rpm \| Output torque M2: 1216 Nm
	S152 6,52 200LA6	Size: S152 \| Ratio i: 6.52 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 150.2 rpm \| Output torque M2: 1140 Nm
	S152 6,52 200LB6	Size: S152 \| Ratio i: 6.52 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 150.2 rpm \| Output torque M2: 1356 Nm
	S152 6,52 225M4	Size: S152 \| Ratio i: 6.52 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 227.7 rpm \| Output torque M2: 1812 Nm
	S152 6,52 225S4	Size: S152 \| Ratio i: 6.52 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 227.7 rpm \| Output torque M2: 1490 Nm
	S152 7,28 180L4	Size: S152 \| Ratio i: 7.28 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 201.9 rpm \| Output torque M2: 999 Nm
	S152 7,28 180L6	Size: S152 \| Ratio i: 7.28 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 134.6 rpm \| Output torque M2: 1032 Nm
	S152 7,28 180M4	Size: S152 \| Ratio i: 7.28 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 201.9 rpm \| Output torque M2: 840 Nm
	S152 7,28 200L4	Size: S152 \| Ratio i: 7.28 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 202.6 rpm \| Output torque M2: 1358 Nm
	S152 7,28 200LA6	Size: S152 \| Ratio i: 7.28 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 134.6 rpm \| Output torque M2: 1273 Nm
	S152 7,28 200LB6	Size: S152 \| Ratio i: 7.28 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 134.6 rpm \| Output torque M2: 1513 Nm
	S152 7,28 225M4	Size: S152 \| Ratio i: 7.28 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 204.0 rpm \| Output torque M2: 2023 Nm
	S152 7,28 225S4	Size: S152 \| Ratio i: 7.28 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 204.0 rpm \| Output torque M2: 1663 Nm
	S152 8,36 180L4	Size: S152 \| Ratio i: 8.36 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 175.9 rpm \| Output torque M2: 1147 Nm
	S152 8,36 180L6	Size: S152 \| Ratio i: 8.36 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 117.3 rpm \| Output torque M2: 1185 Nm
	S152 8,36 180M4	Size: S152 \| Ratio i: 8.36 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 175.9 rpm \| Output torque M2: 964 Nm
	S152 8,36 200L4	Size: S152 \| Ratio i: 8.36 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 176.5 rpm \| Output torque M2: 1558 Nm
	S152 8,36 200LA6	Size: S152 \| Ratio i: 8.36 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 117.3 rpm \| Output torque M2: 1461 Nm
	S152 8,36 200LB6	Size: S152 \| Ratio i: 8.36 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 117.3 rpm \| Output torque M2: 1737 Nm
	S152 8,36 225M4	Size: S152 \| Ratio i: 8.36 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 177.7 rpm \| Output torque M2: 2322 Nm
	S152 8,36 225S4	Size: S152 \| Ratio i: 8.36 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 177.7 rpm \| Output torque M2: 1909 Nm
	S152 9,17 180L4	Size: S152 \| Ratio i: 9.17 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 160.3 rpm \| Output torque M2: 1259 Nm
	S152 9,17 180L6	Size: S152 \| Ratio i: 9.17 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 106.8 rpm \| Output torque M2: 1300 Nm
	S152 9,17 180M4	Size: S152 \| Ratio i: 9.17 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 160.3 rpm \| Output torque M2: 1058 Nm
	S152 9,17 200L4	Size: S152 \| Ratio i: 9.17 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 160.8 rpm \| Output torque M2: 1710 Nm
	S152 9,17 200LA6	Size: S152 \| Ratio i: 9.17 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 106.8 rpm \| Output torque M2: 1603 Nm
	S152 9,17 200LB6	Size: S152 \| Ratio i: 9.17 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 106.8 rpm \| Output torque M2: 1907 Nm
	S152 9,17 225M4	Size: S152 \| Ratio i: 9.17 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 161.9 rpm \| Output torque M2: 2548 Nm
	S152 9,17 225S4	Size: S152 \| Ratio i: 9.17 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 161.9 rpm \| Output torque M2: 2095 Nm
	S152 10,42 180L4	Size: S152 \| Ratio i: 10.42 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 141.1 rpm \| Output torque M2: 1430 Nm
	S152 10,42 180L6	Size: S152 \| Ratio i: 10.42 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 94.1 rpm \| Output torque M2: 1477 Nm
	S152 10,42 180M4	Size: S152 \| Ratio i: 10.42 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 141.1 rpm \| Output torque M2: 1202 Nm
	S152 10,42 200L4	Size: S152 \| Ratio i: 10.42 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 141.6 rpm \| Output torque M2: 1943 Nm
	S152 10,42 200LA6	Size: S152 \| Ratio i: 10.42 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 94.1 rpm \| Output torque M2: 1821 Nm
	S152 10,42 200LB6	Size: S152 \| Ratio i: 10.42 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 94.1 rpm \| Output torque M2: 2166 Nm
	S152 10,42 225M4	Size: S152 \| Ratio i: 10.42 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 142.5 rpm \| Output torque M2: 2895 Nm
	S152 10,42 225S4	Size: S152 \| Ratio i: 10.42 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 142.5 rpm \| Output torque M2: 2380 Nm
	S152 12,46 160L6	Size: S152 \| Ratio i: 12.46 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 77.8 rpm \| Output torque M2: 1309 Nm
	S152 12,46 160LA4	Size: S152 \| Ratio i: 12.46 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 118.3 rpm \| Output torque M2: 1162 Nm
	S152 12,46 160MA4	Size: S152 \| Ratio i: 12.46 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 118.3 rpm \| Output torque M2: 852 Nm
	S152 12,46 180L4	Size: S152 \| Ratio i: 12.46 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 117.9 rpm \| Output torque M2: 1710 Nm
	S152 12,46 180L6	Size: S152 \| Ratio i: 12.46 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 78.6 rpm \| Output torque M2: 1766 Nm
	S152 12,46 180M4	Size: S152 \| Ratio i: 12.46 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 117.9 rpm \| Output torque M2: 1438 Nm
	S152 12,46 200L4	Size: S152 \| Ratio i: 12.46 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 118.3 rpm \| Output torque M2: 2324 Nm
	S152 12,46 200LA6	Size: S152 \| Ratio i: 12.46 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 78.6 rpm \| Output torque M2: 2179 Nm
	S152 12,46 200LB6	Size: S152 \| Ratio i: 12.46 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 78.6 rpm \| Output torque M2: 2591 Nm
	S152 12,46 225M4	Size: S152 \| Ratio i: 12.46 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 119.2 rpm \| Output torque M2: 3462 Nm
	S152 12,46 225S4	Size: S152 \| Ratio i: 12.46 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 119.2 rpm \| Output torque M2: 2847 Nm
	S152 13,91 160L6	Size: S152 \| Ratio i: 13.91 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 69.7 rpm \| Output torque M2: 1461 Nm
	S152 13,91 160LA4	Size: S152 \| Ratio i: 13.91 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 106.0 rpm \| Output torque M2: 1297 Nm
	S152 13,91 160MA4	Size: S152 \| Ratio i: 13.91 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 106.0 rpm \| Output torque M2: 951 Nm
	S152 13,91 180L4	Size: S152 \| Ratio i: 13.91 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 1909 Nm
	S152 13,91 180L6	Size: S152 \| Ratio i: 13.91 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 70.5 rpm \| Output torque M2: 1971 Nm
	S152 13,91 180M4	Size: S152 \| Ratio i: 13.91 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 1605 Nm
	S152 13,91 200L4	Size: S152 \| Ratio i: 13.91 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 106.0 rpm \| Output torque M2: 2594 Nm
	S152 13,91 200LA6	Size: S152 \| Ratio i: 13.91 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 70.5 rpm \| Output torque M2: 2431 Nm
	S152 13,91 200LB6	Size: S152 \| Ratio i: 13.91 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 70.5 rpm \| Output torque M2: 2891 Nm
	S152 13,91 225M4	Size: S152 \| Ratio i: 13.91 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 106.8 rpm \| Output torque M2: 3864 Nm
	S152 13,91 225S4	Size: S152 \| Ratio i: 13.91 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 106.8 rpm \| Output torque M2: 3177 Nm
	S152 15,97 160L6	Size: S152 \| Ratio i: 15.97 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 60.7 rpm \| Output torque M2: 1677 Nm
	S152 15,97 160LA4	Size: S152 \| Ratio i: 15.97 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 92.4 rpm \| Output torque M2: 1489 Nm
	S152 15,97 160MA4	Size: S152 \| Ratio i: 15.97 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 92.4 rpm \| Output torque M2: 1092 Nm
	S152 15,97 180L4	Size: S152 \| Ratio i: 15.97 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 92.1 rpm \| Output torque M2: 2191 Nm
	S152 15,97 180L6	Size: S152 \| Ratio i: 15.97 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 61.4 rpm \| Output torque M2: 2263 Nm
	S152 15,97 180M4	Size: S152 \| Ratio i: 15.97 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 92.1 rpm \| Output torque M2: 1842 Nm
	S152 15,97 200L4	Size: S152 \| Ratio i: 15.97 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 92.4 rpm \| Output torque M2: 2978 Nm
	S152 15,97 200LA6	Size: S152 \| Ratio i: 15.97 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 61.4 rpm \| Output torque M2: 2791 Nm
	S152 15,97 200LB6	Size: S152 \| Ratio i: 15.97 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 61.4 rpm \| Output torque M2: 3319 Nm
	S152 15,97 225M4	Size: S152 \| Ratio i: 15.97 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 93.0 rpm \| Output torque M2: 4436 Nm
	S152 15,97 225S4	Size: S152 \| Ratio i: 15.97 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 93.0 rpm \| Output torque M2: 3648 Nm
	S152 17,53 160L6	Size: S152 \| Ratio i: 17.53 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 55.3 rpm \| Output torque M2: 1840 Nm
	S152 17,53 160LA4	Size: S152 \| Ratio i: 17.53 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 84.2 rpm \| Output torque M2: 1634 Nm
	S152 17,53 160MA4	Size: S152 \| Ratio i: 17.53 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 84.2 rpm \| Output torque M2: 1198 Nm
	S152 17,53 180L4	Size: S152 \| Ratio i: 17.53 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 83.9 rpm \| Output torque M2: 2405 Nm
	S152 17,53 180L6	Size: S152 \| Ratio i: 17.53 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 55.9 rpm \| Output torque M2: 2484 Nm
	S152 17,53 180M4	Size: S152 \| Ratio i: 17.53 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 83.9 rpm \| Output torque M2: 2022 Nm
	S152 17,53 200L4	Size: S152 \| Ratio i: 17.53 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 84.2 rpm \| Output torque M2: 3268 Nm
	S152 17,53 200LA6	Size: S152 \| Ratio i: 17.53 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 55.9 rpm \| Output torque M2: 3064 Nm
	S152 17,53 200LB6	Size: S152 \| Ratio i: 17.53 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 55.9 rpm \| Output torque M2: 3643 Nm
	S152 17,53 225M4	Size: S152 \| Ratio i: 17.53 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 4869 Nm
	S152 17,53 225S4	Size: S152 \| Ratio i: 17.53 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 84.7 rpm \| Output torque M2: 4004 Nm
	S152 19,91 160L6	Size: S152 \| Ratio i: 19.91 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 48.7 rpm \| Output torque M2: 2090 Nm
	S152 19,91 160LA4	Size: S152 \| Ratio i: 19.91 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 74.1 rpm \| Output torque M2: 1856 Nm
	S152 19,91 160MA4	Size: S152 \| Ratio i: 19.91 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 74.1 rpm \| Output torque M2: 1361 Nm
	S152 19,91 180L4	Size: S152 \| Ratio i: 19.91 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 73.8 rpm \| Output torque M2: 2731 Nm
	S152 19,91 180L6	Size: S152 \| Ratio i: 19.91 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 49.2 rpm \| Output torque M2: 2821 Nm
	S152 19,91 180M4	Size: S152 \| Ratio i: 19.91 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 73.8 rpm \| Output torque M2: 2297 Nm
	S152 19,91 200L4	Size: S152 \| Ratio i: 19.91 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 74.1 rpm \| Output torque M2: 3712 Nm
	S152 19,91 200LA6	Size: S152 \| Ratio i: 19.91 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 49.2 rpm \| Output torque M2: 3480 Nm
	S152 19,91 200LB6	Size: S152 \| Ratio i: 19.91 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 49.2 rpm \| Output torque M2: 4138 Nm
	S152 19,91 225M4	Size: S152 \| Ratio i: 19.91 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 74.6 rpm \| Output torque M2: 5530 Nm
	S152 19,91 225S4	Size: S152 \| Ratio i: 19.91 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 74.6 rpm \| Output torque M2: 4547 Nm
	S152 22,88 160L6	Size: S152 \| Ratio i: 22.88 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 42.4 rpm \| Output torque M2: 2403 Nm
	S152 22,88 160LA4	Size: S152 \| Ratio i: 22.88 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 64.5 rpm \| Output torque M2: 2133 Nm
	S152 22,88 160MA4	Size: S152 \| Ratio i: 22.88 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 64.5 rpm \| Output torque M2: 1564 Nm
	S152 22,88 180L4	Size: S152 \| Ratio i: 22.88 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 64.2 rpm \| Output torque M2: 3140 Nm
	S152 22,88 180L6	Size: S152 \| Ratio i: 22.88 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 42.8 rpm \| Output torque M2: 3243 Nm
	S152 22,88 180M4	Size: S152 \| Ratio i: 22.88 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 64.2 rpm \| Output torque M2: 2640 Nm
	S152 22,88 200L4	Size: S152 \| Ratio i: 22.88 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 64.5 rpm \| Output torque M2: 4267 Nm
	S152 22,88 200LA6	Size: S152 \| Ratio i: 22.88 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 42.8 rpm \| Output torque M2: 4000 Nm
	S152 22,88 200LB6	Size: S152 \| Ratio i: 22.88 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 42.8 rpm \| Output torque M2: 4756 Nm
	S152 22,88 225M4	Size: S152 \| Ratio i: 22.88 \| Motor: 225M4 \| Power P1: 45.00 kW \| Output speed n2: 64.9 rpm \| Output torque M2: 6357 Nm
	S152 22,88 225S4	Size: S152 \| Ratio i: 22.88 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 64.9 rpm \| Output torque M2: 5227 Nm
	S152 27,11 160L6	Size: S152 \| Ratio i: 27.11 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 35.8 rpm \| Output torque M2: 2846 Nm
	S152 27,11 160LA4	Size: S152 \| Ratio i: 27.11 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 54.4 rpm \| Output torque M2: 2527 Nm
	S152 27,11 160MA4	Size: S152 \| Ratio i: 27.11 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 54.4 rpm \| Output torque M2: 1853 Nm
	S152 27,11 180L4	Size: S152 \| Ratio i: 27.11 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 54.2 rpm \| Output torque M2: 3719 Nm
	S152 27,11 180L6	Size: S152 \| Ratio i: 27.11 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 36.2 rpm \| Output torque M2: 3842 Nm
	S152 27,11 180M4	Size: S152 \| Ratio i: 27.11 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 54.2 rpm \| Output torque M2: 3127 Nm
	S152 27,11 200L4	Size: S152 \| Ratio i: 27.11 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 54.4 rpm \| Output torque M2: 5054 Nm
	S152 27,11 200LA6	Size: S152 \| Ratio i: 27.11 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 36.2 rpm \| Output torque M2: 4738 Nm
	S152 27,11 200LB6	Size: S152 \| Ratio i: 27.11 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 36.2 rpm \| Output torque M2: 5634 Nm
	S152 27,11 225S4	Size: S152 \| Ratio i: 27.11 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 54.8 rpm \| Output torque M2: 6192 Nm
	S152 29,75 160L6	Size: S152 \| Ratio i: 29.75 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 32.6 rpm \| Output torque M2: 3124 Nm
	S152 29,75 160LA4	Size: S152 \| Ratio i: 29.75 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 49.6 rpm \| Output torque M2: 2774 Nm
	S152 29,75 160MA4	Size: S152 \| Ratio i: 29.75 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 49.6 rpm \| Output torque M2: 2034 Nm
	S152 29,75 180L4	Size: S152 \| Ratio i: 29.75 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 49.4 rpm \| Output torque M2: 4082 Nm
	S152 29,75 180L6	Size: S152 \| Ratio i: 29.75 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 32.9 rpm \| Output torque M2: 4216 Nm
	S152 29,75 180M4	Size: S152 \| Ratio i: 29.75 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 49.4 rpm \| Output torque M2: 3433 Nm
	S152 29,75 200L4	Size: S152 \| Ratio i: 29.75 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 49.6 rpm \| Output torque M2: 5547 Nm
	S152 29,75 200LA6	Size: S152 \| Ratio i: 29.75 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 32.9 rpm \| Output torque M2: 5200 Nm
	S152 29,75 200LB6	Size: S152 \| Ratio i: 29.75 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 32.9 rpm \| Output torque M2: 6184 Nm
	S152 29,75 225S4	Size: S152 \| Ratio i: 29.75 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 49.9 rpm \| Output torque M2: 6796 Nm
	S152 33,79 160L6	Size: S152 \| Ratio i: 33.79 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 28.7 rpm \| Output torque M2: 3548 Nm
	S152 33,79 160LA4	Size: S152 \| Ratio i: 33.79 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 43.7 rpm \| Output torque M2: 3150 Nm
	S152 33,79 160MA4	Size: S152 \| Ratio i: 33.79 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 43.7 rpm \| Output torque M2: 2310 Nm
	S152 33,79 180L4	Size: S152 \| Ratio i: 33.79 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 4636 Nm
	S152 33,79 180L6	Size: S152 \| Ratio i: 33.79 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 29.0 rpm \| Output torque M2: 4789 Nm
	S152 33,79 180M4	Size: S152 \| Ratio i: 33.79 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 3899 Nm
	S152 33,79 200L4	Size: S152 \| Ratio i: 33.79 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 43.7 rpm \| Output torque M2: 6301 Nm
	S152 33,79 200LA6	Size: S152 \| Ratio i: 33.79 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 29.0 rpm \| Output torque M2: 5907 Nm
	S152 33,79 200LB6	Size: S152 \| Ratio i: 33.79 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 29.0 rpm \| Output torque M2: 7024 Nm
	S152 33,79 225S4	Size: S152 \| Ratio i: 33.79 \| Motor: 225S4 \| Power P1: 37.00 kW \| Output speed n2: 43.9 rpm \| Output torque M2: 7719 Nm
	S152 38,84 160L6	Size: S152 \| Ratio i: 38.84 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 25.0 rpm \| Output torque M2: 4078 Nm
	S152 38,84 160LA4	Size: S152 \| Ratio i: 38.84 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 38.0 rpm \| Output torque M2: 3621 Nm
	S152 38,84 160MA4	Size: S152 \| Ratio i: 38.84 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 38.0 rpm \| Output torque M2: 2656 Nm
	S152 38,84 180L4	Size: S152 \| Ratio i: 38.84 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 37.8 rpm \| Output torque M2: 5329 Nm
	S152 38,84 180L6	Size: S152 \| Ratio i: 38.84 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 25.2 rpm \| Output torque M2: 5505 Nm
	S152 38,84 180M4	Size: S152 \| Ratio i: 38.84 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 37.8 rpm \| Output torque M2: 4481 Nm
	S152 38,84 200L4	Size: S152 \| Ratio i: 38.84 \| Motor: 200L4 \| Power P1: 30.00 kW \| Output speed n2: 38.0 rpm \| Output torque M2: 7242 Nm
	S152 38,84 200LA6	Size: S152 \| Ratio i: 38.84 \| Motor: 200LA6 \| Power P1: 18.50 kW \| Output speed n2: 25.2 rpm \| Output torque M2: 6789 Nm
	S152 38,84 200LB6	Size: S152 \| Ratio i: 38.84 \| Motor: 200LB6 \| Power P1: 22.00 kW \| Output speed n2: 25.2 rpm \| Output torque M2: 8074 Nm
	S153 40,10 132M4	Size: S153 \| Ratio i: 40.10 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 36.4 rpm \| Output torque M2: 1849 Nm
	S153 40,10 132MB6	Size: S153 \| Ratio i: 40.10 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 24.2 rpm \| Output torque M2: 2062 Nm
	S153 40,10 160L6	Size: S153 \| Ratio i: 40.10 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 24.2 rpm \| Output torque M2: 4123 Nm
	S153 40,10 160LA4	Size: S153 \| Ratio i: 40.10 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 36.8 rpm \| Output torque M2: 3661 Nm
	S153 40,10 160MA4	Size: S153 \| Ratio i: 40.10 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 36.8 rpm \| Output torque M2: 2685 Nm
	S153 40,10 180L4	Size: S153 \| Ratio i: 40.10 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 5388 Nm
	S153 40,10 180L6	Size: S153 \| Ratio i: 40.10 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 24.4 rpm \| Output torque M2: 5565 Nm
	S153 40,10 180M4	Size: S153 \| Ratio i: 40.10 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 4531 Nm
	S153 44,76 132M4	Size: S153 \| Ratio i: 44.76 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 32.6 rpm \| Output torque M2: 2064 Nm
	S153 44,76 132MB6	Size: S153 \| Ratio i: 44.76 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 21.6 rpm \| Output torque M2: 2301 Nm
	S153 44,76 160L6	Size: S153 \| Ratio i: 44.76 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 21.7 rpm \| Output torque M2: 4602 Nm
	S153 44,76 160LA4	Size: S153 \| Ratio i: 44.76 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 33.0 rpm \| Output torque M2: 4086 Nm
	S153 44,76 160MA4	Size: S153 \| Ratio i: 44.76 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 33.0 rpm \| Output torque M2: 2996 Nm
	S153 44,76 180L4	Size: S153 \| Ratio i: 44.76 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 32.8 rpm \| Output torque M2: 6013 Nm
	S153 44,76 180L6	Size: S153 \| Ratio i: 44.76 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 21.9 rpm \| Output torque M2: 6211 Nm
	S153 44,76 180M4	Size: S153 \| Ratio i: 44.76 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 32.8 rpm \| Output torque M2: 5056 Nm
	S153 51,38 132M4	Size: S153 \| Ratio i: 51.38 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 28.4 rpm \| Output torque M2: 2370 Nm
	S153 51,38 132MB6	Size: S153 \| Ratio i: 51.38 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 18.9 rpm \| Output torque M2: 2642 Nm
	S153 51,38 160L6	Size: S153 \| Ratio i: 51.38 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 18.9 rpm \| Output torque M2: 5283 Nm
	S153 51,38 160LA4	Size: S153 \| Ratio i: 51.38 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 28.7 rpm \| Output torque M2: 4691 Nm
	S153 51,38 160MA4	Size: S153 \| Ratio i: 51.38 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 28.7 rpm \| Output torque M2: 3440 Nm
	S153 51,38 180L4	Size: S153 \| Ratio i: 51.38 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 28.6 rpm \| Output torque M2: 6903 Nm
	S153 51,38 180L6	Size: S153 \| Ratio i: 51.38 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 19.1 rpm \| Output torque M2: 7131 Nm
	S153 51,38 180M4	Size: S153 \| Ratio i: 51.38 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 28.6 rpm \| Output torque M2: 5805 Nm
	S153 56,39 132M4	Size: S153 \| Ratio i: 56.39 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 2601 Nm
	S153 56,39 132MB6	Size: S153 \| Ratio i: 56.39 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 17.2 rpm \| Output torque M2: 2899 Nm
	S153 56,39 160L6	Size: S153 \| Ratio i: 56.39 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 17.2 rpm \| Output torque M2: 5798 Nm
	S153 56,39 160LA4	Size: S153 \| Ratio i: 56.39 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 26.2 rpm \| Output torque M2: 5148 Nm
	S153 56,39 160MA4	Size: S153 \| Ratio i: 56.39 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 26.2 rpm \| Output torque M2: 3775 Nm
	S153 56,39 180L4	Size: S153 \| Ratio i: 56.39 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 26.1 rpm \| Output torque M2: 7577 Nm
	S153 56,39 180L6	Size: S153 \| Ratio i: 56.39 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 17.4 rpm \| Output torque M2: 7826 Nm
	S153 56,39 180M4	Size: S153 \| Ratio i: 56.39 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 26.1 rpm \| Output torque M2: 6371 Nm
	S153 64,05 132M4	Size: S153 \| Ratio i: 64.05 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 22.8 rpm \| Output torque M2: 2954 Nm
	S153 64,05 132MA6	Size: S153 \| Ratio i: 64.05 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 15.2 rpm \| Output torque M2: 2395 Nm
	S153 64,05 132MB6	Size: S153 \| Ratio i: 64.05 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 15.1 rpm \| Output torque M2: 3293 Nm
	S153 64,05 160L6	Size: S153 \| Ratio i: 64.05 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 15.1 rpm \| Output torque M2: 6586 Nm
	S153 64,05 160LA4	Size: S153 \| Ratio i: 64.05 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 23.0 rpm \| Output torque M2: 5847 Nm
	S153 64,05 160MA4	Size: S153 \| Ratio i: 64.05 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 23.0 rpm \| Output torque M2: 4288 Nm
	S153 64,05 180L4	Size: S153 \| Ratio i: 64.05 \| Motor: 180L4 \| Power P1: 22.00 kW \| Output speed n2: 22.9 rpm \| Output torque M2: 8605 Nm
	S153 64,05 180L6	Size: S153 \| Ratio i: 64.05 \| Motor: 180L6 \| Power P1: 15.00 kW \| Output speed n2: 15.3 rpm \| Output torque M2: 8889 Nm
	S153 64,05 180M4	Size: S153 \| Ratio i: 64.05 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 22.9 rpm \| Output torque M2: 7236 Nm
	S153 73,63 132M4	Size: S153 \| Ratio i: 73.63 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 19.8 rpm \| Output torque M2: 3396 Nm
	S153 73,63 132MA6	Size: S153 \| Ratio i: 73.63 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 2753 Nm
	S153 73,63 132MB6	Size: S153 \| Ratio i: 73.63 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 3785 Nm
	S153 73,63 132MS4	Size: S153 \| Ratio i: 73.63 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 19.9 rpm \| Output torque M2: 2473 Nm
	S153 73,63 132S6	Size: S153 \| Ratio i: 73.63 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 2065 Nm
	S153 73,63 160L6	Size: S153 \| Ratio i: 73.63 \| Motor: 160L6 \| Power P1: 11.00 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 7570 Nm
	S153 73,63 160LA4	Size: S153 \| Ratio i: 73.63 \| Motor: 160LA4 \| Power P1: 15.00 kW \| Output speed n2: 20.0 rpm \| Output torque M2: 6721 Nm
	S153 73,63 160MA4	Size: S153 \| Ratio i: 73.63 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 20.0 rpm \| Output torque M2: 4929 Nm
	S153 73,63 180M4	Size: S153 \| Ratio i: 73.63 \| Motor: 180M4 \| Power P1: 18.50 kW \| Output speed n2: 20.0 rpm \| Output torque M2: 8318 Nm
	S153 87,16 132M4	Size: S153 \| Ratio i: 87.16 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 16.7 rpm \| Output torque M2: 4019 Nm
	S153 87,16 132MA6	Size: S153 \| Ratio i: 87.16 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 3259 Nm
	S153 87,16 132MB6	Size: S153 \| Ratio i: 87.16 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 4481 Nm
	S153 87,16 132MS4	Size: S153 \| Ratio i: 87.16 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 16.8 rpm \| Output torque M2: 2928 Nm
	S153 87,16 132S6	Size: S153 \| Ratio i: 87.16 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 11.1 rpm \| Output torque M2: 2445 Nm
	S153 87,16 160MA4	Size: S153 \| Ratio i: 87.16 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 16.9 rpm \| Output torque M2: 5835 Nm
	S153 97,27 132M4	Size: S153 \| Ratio i: 97.27 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 15.0 rpm \| Output torque M2: 4486 Nm
	S153 97,27 132MA6	Size: S153 \| Ratio i: 97.27 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 10.0 rpm \| Output torque M2: 3637 Nm
	S153 97,27 132MB6	Size: S153 \| Ratio i: 97.27 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 10.0 rpm \| Output torque M2: 5001 Nm
	S153 97,27 132MS4	Size: S153 \| Ratio i: 97.27 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 15.1 rpm \| Output torque M2: 3268 Nm
	S153 97,27 132S6	Size: S153 \| Ratio i: 97.27 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 10.0 rpm \| Output torque M2: 2728 Nm
	S153 97,27 160MA4	Size: S153 \| Ratio i: 97.27 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 15.2 rpm \| Output torque M2: 6512 Nm
	S153 111,67 132M4	Size: S153 \| Ratio i: 111.67 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 13.1 rpm \| Output torque M2: 5150 Nm
	S153 111,67 132MA6	Size: S153 \| Ratio i: 111.67 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 8.7 rpm \| Output torque M2: 4176 Nm
	S153 111,67 132MB6	Size: S153 \| Ratio i: 111.67 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 8.7 rpm \| Output torque M2: 5741 Nm
	S153 111,67 132MS4	Size: S153 \| Ratio i: 111.67 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 3751 Nm
	S153 111,67 132S6	Size: S153 \| Ratio i: 111.67 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 8.7 rpm \| Output torque M2: 3131 Nm
	S153 111,67 160MA4	Size: S153 \| Ratio i: 111.67 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 13.2 rpm \| Output torque M2: 7476 Nm
	S153 122,57 132M4	Size: S153 \| Ratio i: 122.57 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 5652 Nm
	S153 122,57 132MA6	Size: S153 \| Ratio i: 122.57 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 7.9 rpm \| Output torque M2: 4583 Nm
	S153 122,57 132MB6	Size: S153 \| Ratio i: 122.57 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 7.9 rpm \| Output torque M2: 6302 Nm
	S153 122,57 132MS4	Size: S153 \| Ratio i: 122.57 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 4117 Nm
	S153 122,57 132S6	Size: S153 \| Ratio i: 122.57 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 7.9 rpm \| Output torque M2: 3437 Nm
	S153 122,57 160MA4	Size: S153 \| Ratio i: 122.57 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 8205 Nm
	S153 139,21 132M4	Size: S153 \| Ratio i: 139.21 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 10.5 rpm \| Output torque M2: 6420 Nm
	S153 139,21 132MA6	Size: S153 \| Ratio i: 139.21 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 5205 Nm
	S153 139,21 132MB6	Size: S153 \| Ratio i: 139.21 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 7157 Nm
	S153 139,21 132MS4	Size: S153 \| Ratio i: 139.21 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 10.6 rpm \| Output torque M2: 4676 Nm
	S153 139,21 132S6	Size: S153 \| Ratio i: 139.21 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 7.0 rpm \| Output torque M2: 3904 Nm
	S153 139,21 160MA4	Size: S153 \| Ratio i: 139.21 \| Motor: 160MA4 \| Power P1: 11.00 kW \| Output speed n2: 10.6 rpm \| Output torque M2: 9320 Nm
	S153 154,02 132M4	Size: S153 \| Ratio i: 154.02 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 7102 Nm
	S153 154,02 132MA6	Size: S153 \| Ratio i: 154.02 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 5759 Nm
	S153 154,02 132MB6	Size: S153 \| Ratio i: 154.02 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 7918 Nm
	S153 154,02 132MS4	Size: S153 \| Ratio i: 154.02 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 9.5 rpm \| Output torque M2: 5173 Nm
	S153 154,02 132S6	Size: S153 \| Ratio i: 154.02 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.3 rpm \| Output torque M2: 4319 Nm
	S153 160,02 132M4	Size: S153 \| Ratio i: 160.02 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 9.2 rpm \| Output torque M2: 7379 Nm
	S153 160,02 132MA6	Size: S153 \| Ratio i: 160.02 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.1 rpm \| Output torque M2: 5983 Nm
	S153 160,02 132MB6	Size: S153 \| Ratio i: 160.02 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 6.1 rpm \| Output torque M2: 8227 Nm
	S153 160,02 132MS4	Size: S153 \| Ratio i: 160.02 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 9.2 rpm \| Output torque M2: 5375 Nm
	S153 160,02 132S6	Size: S153 \| Ratio i: 160.02 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.1 rpm \| Output torque M2: 4487 Nm
	S153 176,81 132M4	Size: S153 \| Ratio i: 176.81 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 8154 Nm
	S153 176,81 132MA6	Size: S153 \| Ratio i: 176.81 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 6611 Nm
	S153 176,81 132MB6	Size: S153 \| Ratio i: 176.81 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 9091 Nm
	S153 176,81 132MS4	Size: S153 \| Ratio i: 176.81 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 8.3 rpm \| Output torque M2: 5939 Nm
	S153 176,81 132S6	Size: S153 \| Ratio i: 176.81 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.5 rpm \| Output torque M2: 4958 Nm
	S153 194,06 132M4	Size: S153 \| Ratio i: 194.06 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 8950 Nm
	S153 194,06 132MA6	Size: S153 \| Ratio i: 194.06 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 7256 Nm
	S153 194,06 132MB6	Size: S153 \| Ratio i: 194.06 \| Motor: 132MB6 \| Power P1: 5.50 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 9977 Nm
	S153 194,06 132MS4	Size: S153 \| Ratio i: 194.06 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 7.6 rpm \| Output torque M2: 6519 Nm
	S153 194,06 132S6	Size: S153 \| Ratio i: 194.06 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.0 rpm \| Output torque M2: 5442 Nm
	S153 220,42 132M4	Size: S153 \| Ratio i: 220.42 \| Motor: 132M4 \| Power P1: 7.50 kW \| Output speed n2: 6.6 rpm \| Output torque M2: 10165 Nm
	S153 220,42 132MA6	Size: S153 \| Ratio i: 220.42 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 8241 Nm
	S153 220,42 132MS4	Size: S153 \| Ratio i: 220.42 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 6.6 rpm \| Output torque M2: 7404 Nm
	S153 220,42 132S6	Size: S153 \| Ratio i: 220.42 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 6181 Nm
	S153 253,36 132MA6	Size: S153 \| Ratio i: 253.36 \| Motor: 132MA6 \| Power P1: 4.00 kW \| Output speed n2: 3.8 rpm \| Output torque M2: 9473 Nm
	S153 253,36 132MS4	Size: S153 \| Ratio i: 253.36 \| Motor: 132MS4 \| Power P1: 5.50 kW \| Output speed n2: 5.8 rpm \| Output torque M2: 8510 Nm
	S153 253,36 132S6	Size: S153 \| Ratio i: 253.36 \| Motor: 132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.8 rpm \| Output torque M2: 7105 Nm
	S 123 280,10 80C4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 280.10 \| Motor: 80C4
	S 123 301,16 80C4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 301.16 \| Motor: 80C4
	S 123 343,93 80C4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 343.93 \| Motor: 80C4
	S 123 112,52 90LL4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 112.52 \| Motor: 90LL4
	S 123 123,33 90LL4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 123.33 \| Motor: 90LL4
	S 123 133,78 90LL4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 133.78 \| Motor: 90LL4
	S 123 151,43 90LL4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 151.43 \| Motor: 90LL4
	S 123 177,53 90LL4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 177.53 \| Motor: 90LL4
	S 123 194,59 90LL4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 194.59 \| Motor: 90LL4
	S 123 238,93 90LL4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 238.93 \| Motor: 90LL4
	S 123 280,10 90LL4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 280.10 \| Motor: 90LL4
	S 122 49,04 100LB4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 49.04 \| Motor: 100LB4
	S 122 53,75 100LB4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 53.75 \| Motor: 100LB4
	S 122 66,00 100LB4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 66.00 \| Motor: 100LB4
	S 123 71,07 100LB4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 71.07 \| Motor: 100LB4
	S 123 87,27 100LB4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 87.27 \| Motor: 100LB4
	S 123 112,52 100LB4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 112.52 \| Motor: 100LB4
	S 123 123,33 100LB4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 123.33 \| Motor: 100LB4
	S 123 133,78 100LB4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 133.78 \| Motor: 100LB4
	S 123 151,43 100LB4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 151.43 \| Motor: 100LB4
	S 123 177,53 100LB4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 177.53 \| Motor: 100LB4
	S 122 30,51 132S4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 30.51 \| Motor: 132S4
	S 122 33,44 132S4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 33.44 \| Motor: 132S4
	S 122 41,07 132S4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 41.07 \| Motor: 132S4
	S 122 43,60 132S4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 43.60 \| Motor: 132S4
	S 122 49,04 132S4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 49.04 \| Motor: 132S4
	S 122 53,75 132S4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 53.75 \| Motor: 132S4
	S 122 66,00 132S4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 66.00 \| Motor: 132S4
	S 123 71,07 132S4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 71.07 \| Motor: 132S4
	S 123 87,27 132S4	Legacy code (earlier catalogue edition) \| Size: S123 \| Ratio i: 87.27 \| Motor: 132S4
	S 122 26,15 132L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 26.15 \| Motor: 132L4
	S 122 28,60 132L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 28.60 \| Motor: 132L4
	S 122 30,51 132L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 30.51 \| Motor: 132L4
	S 122 33,44 132L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 33.44 \| Motor: 132L4
	S 122 35,20 132L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 35.20 \| Motor: 132L4
	S 122 41,07 132L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 41.07 \| Motor: 132L4
	S 122 43,60 132L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 43.60 \| Motor: 132L4
	S 122 49,04 132L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 49.04 \| Motor: 132L4
	S 122 53,75 132L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 53.75 \| Motor: 132L4
	S 122 66,00 132L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 66.00 \| Motor: 132L4
	S 122 8,48 160M4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 8.48 \| Motor: 160M4
	S 122 9,30 160M4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 9.30 \| Motor: 160M4
	S 122 11,42 160M4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 11.42 \| Motor: 160M4
	S 122 12,63 160M4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 12.63 \| Motor: 160M4
	S 122 13,84 160M4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 13.84 \| Motor: 160M4
	S 122 16,99 160M4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 16.99 \| Motor: 160M4
	S 122 21,25 160M4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 21.25 \| Motor: 160M4
	S 122 23,29 160M4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 23.29 \| Motor: 160M4
	S 122 26,15 160M4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 26.15 \| Motor: 160M4
	S 122 28,60 160M4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 28.60 \| Motor: 160M4
	S 122 30,51 160M4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 30.51 \| Motor: 160M4
	S 122 33,44 160M4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 33.44 \| Motor: 160M4
	S 122 35,20 160M4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 35.20 \| Motor: 160M4
	S 122 41,07 160M4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 41.07 \| Motor: 160M4
	S 122 43,60 160M4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 43.60 \| Motor: 160M4
	S 122 9,30 160L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 9.30 \| Motor: 160L4
	S 122 11,42 160L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 11.42 \| Motor: 160L4
	S 122 12,63 160L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 12.63 \| Motor: 160L4
	S 122 13,84 160L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 13.84 \| Motor: 160L4
	S 122 16,99 160L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 16.99 \| Motor: 160L4
	S 122 21,25 160L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 21.25 \| Motor: 160L4
	S 122 23,29 160L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 23.29 \| Motor: 160L4
	S 122 26,15 160L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 26.15 \| Motor: 160L4
	S 122 28,60 160L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 28.60 \| Motor: 160L4
	S 122 30,51 160L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 30.51 \| Motor: 160L4
	S 122 33,44 160L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 33.44 \| Motor: 160L4
	S 122 35,20 160L4	Legacy code (earlier catalogue edition) \| Size: S122 \| Ratio i: 35.20 \| Motor: 160L4
	S123	Legacy code (size-only listing) \| Size: S123
	S122	Legacy code (size-only listing) \| Size: S122

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

Motovario S Shaft Mounted Helical Gearmotors (S122-S153, 0.37-45 kW)
