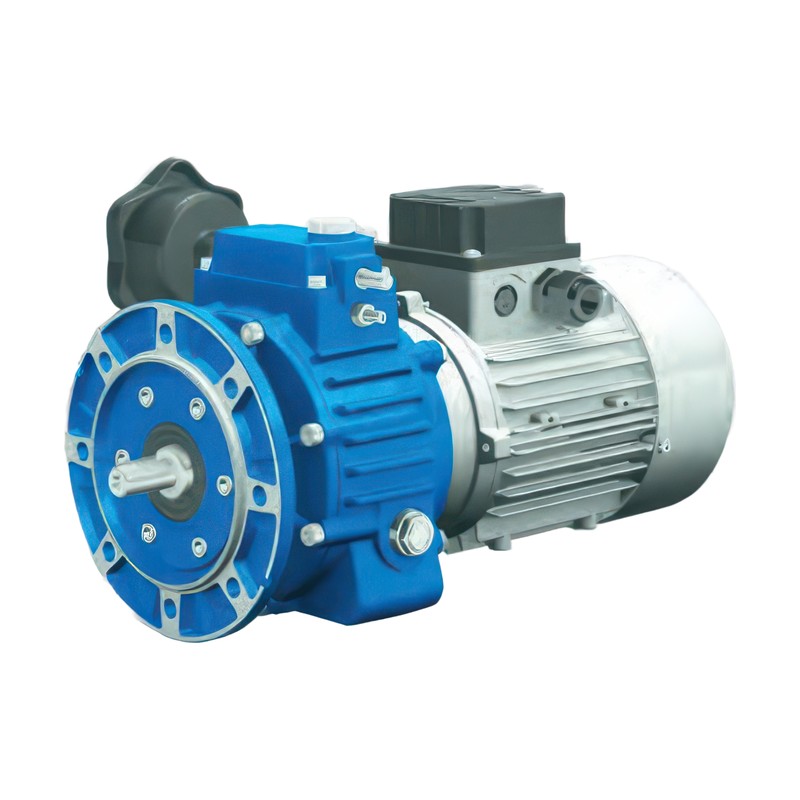

Motovario TXF+NMRV Variator Worm Gearmotors (TXF002-010, 0.09-1.5 kW)

Motovario TXF+NMRV Variator Worm Gearmotors (TXF002-010, 0.09-1.5 kW)

Motovario TXF+NMRV motovariator-worm gearmotors combine a TXF planetary mechanical speed variator with an NMRV/NMRV-P worm gear reducer for continuously adjustable right-angle output speed from 0.09 to 1.5 kW.

Key features

  • TXF variator sizes 002, 005 and 010 coupled to NMRV 030-050, NMRV-P 063-110 and NMRV 130 worm reducers
  • Worm ratios i 5 to 100; performance given at maximum (a) and minimum (b) variator speed
  • Continuous speed adjustment by control handwheel; electrical servocontrol available as an option
  • Mounting positions B5, B6, B7, B8, V1, V3; terminal box position 1 unless specified
  • Hollow output shaft as standard; low speed shafts, output flanges FA-FE, torque arm and shaft cover available
  • Fitted with TS/TH/TP IEC motors, frames 63 to 90, 2-, 4- and 6-pole

Specifications

Construction TXF variator + NMRV worm gear reducer
Variator sizes 002, 005, 010
Worm reducer sizes 030, 040, 050, P063, P075, P090, P110, 130
Motor power range 0.09-1.5 kW
Ratio range i 5-100
Speed regulation Handwheel, approx. 5:1 range
Input PAM 140/11, 160/14, 160/19, 200/19, 200/24
Mounting positions B5, B6, B7, B8, V1, V3
Output flange FA, FB, FC, FD, FE (per size)
Code format Unit / ratio i / motor (e.g. TXF010+NMRV-P063 25,00 TP80A2)
Source Motovario VAR Technical Catalogue IEC STD, p. 152-182
TXF002+NMRV030 5,00 TS63A6 Power P1: 0.09 kW | Ratio i: 5.00 | Output speed n2 (a-b): 113.0-22.0 rpm | Output torque M2 (a-b): 5-16 Nm | Service factor fs (a-b): 4.8-2.0 | Radial load Fr2: 807 N
TXF002+NMRV030 7,50 TS63A6 Power P1: 0.09 kW | Ratio i: 7.50 | Output speed n2 (a-b): 75.0-15.0 rpm | Output torque M2 (a-b): 8-23 Nm | Service factor fs (a-b): 3.3-1.4 | Radial load Fr2: 924 N
TXF002+NMRV030 10,00 TS63A6 Power P1: 0.09 kW | Ratio i: 10.00 | Output speed n2 (a-b): 57.0-11.0 rpm | Output torque M2 (a-b): 10-29 Nm | Service factor fs (a-b): 2.6-1.1 | Radial load Fr2: 1017 N
TXF002+NMRV030 15,00 TS63A6 Power P1: 0.09 kW | Ratio i: 15.00 | Output speed n2 (a-b): 38.0-7.3 rpm | Output torque M2 (a-b): 13-40 Nm | Service factor fs (a-b): 1.9-0.8 | Radial load Fr2: 1164 N
TXF002+NMRV040 15,00 TS63A6 Power P1: 0.09 kW | Ratio i: 15.00 | Output speed n2 (a-b): 38.0-7.3 rpm | Output torque M2 (a-b): 14-43 Nm | Service factor fs (a-b): 4.4-1.7 | Radial load Fr2: 2241 N
TXF002+NMRV040 20,00 TS63A6 Power P1: 0.09 kW | Ratio i: 20.00 | Output speed n2 (a-b): 28.0-5.5 rpm | Output torque M2 (a-b): 18-54 Nm | Service factor fs (a-b): 3.2-1.2 | Radial load Fr2: 2467 N
TXF002+NMRV040 25,00 TS63A6 Power P1: 0.09 kW | Ratio i: 25.00 | Output speed n2 (a-b): 23.0-4.4 rpm | Output torque M2 (a-b): 22-63 Nm | Service factor fs (a-b): 2.4-1.0 | Radial load Fr2: 2657 N
TXF002+NMRV040 30,00 TS63A6 Power P1: 0.09 kW | Ratio i: 30.00 | Output speed n2 (a-b): 19.0-3.6 rpm | Output torque M2 (a-b): 24-68 Nm | Service factor fs (a-b): 2.6-1.1 | Radial load Fr2: 2824 N
TXF002+NMRV040 40,00 TS63A6 Power P1: 0.09 kW | Ratio i: 40.00 | Output speed n2 (a-b): 14.0-2.7 rpm | Output torque M2 (a-b): 29-82 Nm | Service factor fs (a-b): 2.0-0.8 | Radial load Fr2: 3108 N
TXF002+NMRV050 40,00 TS63A6 Power P1: 0.09 kW | Ratio i: 40.00 | Output speed n2 (a-b): 14.0-2.7 rpm | Output torque M2 (a-b): 29-83 Nm | Service factor fs (a-b): 3.6-1.5 | Radial load Fr2: 4266 N
TXF002+NMRV050 50,00 TS63A6 Power P1: 0.09 kW | Ratio i: 50.00 | Output speed n2 (a-b): 11.0-2.2 rpm | Output torque M2 (a-b): 34-98 Nm | Service factor fs (a-b): 2.8-1.2 | Radial load Fr2: 4595 N
TXF002+NMRV050 60,00 TS63A6 Power P1: 0.09 kW | Ratio i: 60.00 | Output speed n2 (a-b): 9.4-1.8 rpm | Output torque M2 (a-b): 38-108 Nm | Service factor fs (a-b): 2.3-1.0 | Radial load Fr2: 4840 N
TXF002+NMRV030 5,00 TH63A4 Power P1: 0.12 kW | Ratio i: 5.00 | Output speed n2 (a-b): 176.0-34.0 rpm | Output torque M2 (a-b): 5-16 Nm | Service factor fs (a-b): 4.6-2.0 | Radial load Fr2: 697 N
TXF002+NMRV030 7,50 TH63A4 Power P1: 0.12 kW | Ratio i: 7.50 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 7-23 Nm | Service factor fs (a-b): 3.1-1.4 | Radial load Fr2: 798 N
TXF002+NMRV030 5,00 TH63B6 Power P1: 0.12 kW | Ratio i: 5.00 | Output speed n2 (a-b): 113.0-22.0 rpm | Output torque M2 (a-b): 7-16 Nm | Service factor fs (a-b): 3.6-2.0 | Radial load Fr2: 807 N
TXF002+NMRV030 10,00 TH63A4 Power P1: 0.12 kW | Ratio i: 10.00 | Output speed n2 (a-b): 88.0-17.0 rpm | Output torque M2 (a-b): 9-29 Nm | Service factor fs (a-b): 2.4-1.1 | Radial load Fr2: 878 N
TXF002+NMRV030 7,50 TH63B6 Power P1: 0.12 kW | Ratio i: 7.50 | Output speed n2 (a-b): 75.0-15.0 rpm | Output torque M2 (a-b): 10-23 Nm | Service factor fs (a-b): 2.5-1.4 | Radial load Fr2: 924 N
TXF002+NMRV030 15,00 TH63A4 Power P1: 0.12 kW | Ratio i: 15.00 | Output speed n2 (a-b): 59.0-11.0 rpm | Output torque M2 (a-b): 12-40 Nm | Service factor fs (a-b): 1.7-0.8 | Radial load Fr2: 1005 N
TXF002+NMRV040 15,00 TH63A4 Power P1: 0.12 kW | Ratio i: 15.00 | Output speed n2 (a-b): 59.0-11.0 rpm | Output torque M2 (a-b): 13-43 Nm | Service factor fs (a-b): 3.9-1.7 | Radial load Fr2: 1934 N
TXF002+NMRV030 10,00 TH63B6 Power P1: 0.12 kW | Ratio i: 10.00 | Output speed n2 (a-b): 57.0-11.0 rpm | Output torque M2 (a-b): 13-29 Nm | Service factor fs (a-b): 2.0-1.1 | Radial load Fr2: 1017 N
TXF002+NMRV040 10,00 TH63B6 Power P1: 0.12 kW | Ratio i: 10.00 | Output speed n2 (a-b): 57.0-11.0 rpm | Output torque M2 (a-b): 13-30 Nm | Service factor fs (a-b): 4.4-2.4 | Radial load Fr2: 1958 N
TXF002+NMRV040 20,00 TH63A4 Power P1: 0.12 kW | Ratio i: 20.00 | Output speed n2 (a-b): 44.0-8.5 rpm | Output torque M2 (a-b): 16-54 Nm | Service factor fs (a-b): 2.9-1.2 | Radial load Fr2: 2129 N
TXF002+NMRV030 15,00 TH63B6 Power P1: 0.12 kW | Ratio i: 15.00 | Output speed n2 (a-b): 38.0-7.3 rpm | Output torque M2 (a-b): 18-40 Nm | Service factor fs (a-b): 1.4-0.8 | Radial load Fr2: 1164 N
TXF002+NMRV040 15,00 TH63B6 Power P1: 0.12 kW | Ratio i: 15.00 | Output speed n2 (a-b): 38.0-7.3 rpm | Output torque M2 (a-b): 19-43 Nm | Service factor fs (a-b): 3.3-1.7 | Radial load Fr2: 2241 N
TXF002+NMRV040 25,00 TH63A4 Power P1: 0.12 kW | Ratio i: 25.00 | Output speed n2 (a-b): 35.0-6.8 rpm | Output torque M2 (a-b): 20-63 Nm | Service factor fs (a-b): 2.3-1.0 | Radial load Fr2: 2293 N
TXF002+NMRV040 30,00 TH63A4 Power P1: 0.12 kW | Ratio i: 30.00 | Output speed n2 (a-b): 29.0-5.7 rpm | Output torque M2 (a-b): 22-68 Nm | Service factor fs (a-b): 2.4-1.1 | Radial load Fr2: 2437 N
TXF002+NMRV040 20,00 TH63B6 Power P1: 0.12 kW | Ratio i: 20.00 | Output speed n2 (a-b): 28.0-5.5 rpm | Output torque M2 (a-b): 24-54 Nm | Service factor fs (a-b): 2.4-1.2 | Radial load Fr2: 2467 N
TXF002+NMRV040 25,00 TH63B6 Power P1: 0.12 kW | Ratio i: 25.00 | Output speed n2 (a-b): 23.0-4.4 rpm | Output torque M2 (a-b): 29-63 Nm | Service factor fs (a-b): 1.8-1.0 | Radial load Fr2: 2657 N
TXF002+NMRV040 40,00 TH63A4 Power P1: 0.12 kW | Ratio i: 40.00 | Output speed n2 (a-b): 22.0-4.3 rpm | Output torque M2 (a-b): 27-82 Nm | Service factor fs (a-b): 1.8-0.8 | Radial load Fr2: 2682 N
TXF002+NMRV050 40,00 TH63A4 Power P1: 0.12 kW | Ratio i: 40.00 | Output speed n2 (a-b): 22.0-4.3 rpm | Output torque M2 (a-b): 28-83 Nm | Service factor fs (a-b): 3.2-1.5 | Radial load Fr2: 3681 N
TXF002+NMRV040 30,00 TH63B6 Power P1: 0.12 kW | Ratio i: 30.00 | Output speed n2 (a-b): 19.0-3.6 rpm | Output torque M2 (a-b): 31-68 Nm | Service factor fs (a-b): 2.0-1.1 | Radial load Fr2: 2824 N
TXF002+NMRV050 50,00 TH63A4 Power P1: 0.12 kW | Ratio i: 50.00 | Output speed n2 (a-b): 18.0-3.4 rpm | Output torque M2 (a-b): 32-98 Nm | Service factor fs (a-b): 2.5-1.2 | Radial load Fr2: 3966 N
TXF002+NMRV050 60,00 TH63A4 Power P1: 0.12 kW | Ratio i: 60.00 | Output speed n2 (a-b): 15.0-2.8 rpm | Output torque M2 (a-b): 36-108 Nm | Service factor fs (a-b): 2.1-1.0 | Radial load Fr2: 4214 N
TXF002+NMRV040 40,00 TH63B6 Power P1: 0.12 kW | Ratio i: 40.00 | Output speed n2 (a-b): 14.0-2.7 rpm | Output torque M2 (a-b): 39-82 Nm | Service factor fs (a-b): 1.5-0.8 | Radial load Fr2: 3108 N
TXF002+NMRV050 40,00 TH63B6 Power P1: 0.12 kW | Ratio i: 40.00 | Output speed n2 (a-b): 14.0-2.7 rpm | Output torque M2 (a-b): 39-83 Nm | Service factor fs (a-b): 2.7-1.5 | Radial load Fr2: 4266 N
TXF002+NMRV050 50,00 TH63B6 Power P1: 0.12 kW | Ratio i: 50.00 | Output speed n2 (a-b): 11.0-2.2 rpm | Output torque M2 (a-b): 46-98 Nm | Service factor fs (a-b): 2.1-1.2 | Radial load Fr2: 4595 N
TXF002+NMRV050 60,00 TH63B6 Power P1: 0.12 kW | Ratio i: 60.00 | Output speed n2 (a-b): 9.4-1.8 rpm | Output torque M2 (a-b): 51-108 Nm | Service factor fs (a-b): 1.7-1.0 | Radial load Fr2: 4840 N
TXF002+NMRV030 5,00 TH63B4 Power P1: 0.18 kW | Ratio i: 5.00 | Output speed n2 (a-b): 176.0-34.0 rpm | Output torque M2 (a-b): 7-16 Nm | Service factor fs (a-b): 3.1-2.0 | Radial load Fr2: 697 N
TXF002+NMRV030 7,50 TH63B4 Power P1: 0.18 kW | Ratio i: 7.50 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 10-23 Nm | Service factor fs (a-b): 2.1-1.4 | Radial load Fr2: 798 N
TXF002+NMRV040 7,50 TH63B4 Power P1: 0.18 kW | Ratio i: 7.50 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 10-23 Nm | Service factor fs (a-b): 4.5-3.1 | Radial load Fr2: 1535 N
TXF002+NMRV030 10,00 TH63B4 Power P1: 0.18 kW | Ratio i: 10.00 | Output speed n2 (a-b): 88.0-17.0 rpm | Output torque M2 (a-b): 13-29 Nm | Service factor fs (a-b): 1.6-1.1 | Radial load Fr2: 878 N
TXF002+NMRV040 10,00 TH63B4 Power P1: 0.18 kW | Ratio i: 10.00 | Output speed n2 (a-b): 88.0-17.0 rpm | Output torque M2 (a-b): 13-30 Nm | Service factor fs (a-b): 3.6-2.4 | Radial load Fr2: 1690 N
TXF005+NMRV040 7,50 TH71A6 Power P1: 0.18 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-15.0 rpm | Output torque M2 (a-b): 14-35 Nm | Service factor fs (a-b): 4.1-2.1 | Radial load Fr2: 1705 N
TXF005+NMRV040 10,00 TH71A6 Power P1: 0.18 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 18-45 Nm | Service factor fs (a-b): 3.3-1.6 | Radial load Fr2: 1876 N
TXF002+NMRV030 15,00 TH63B4 Power P1: 0.18 kW | Ratio i: 15.00 | Output speed n2 (a-b): 59.0-11.0 rpm | Output torque M2 (a-b): 18-40 Nm | Service factor fs (a-b): 1.2-0.8 | Radial load Fr2: 1005 N
TXF002+NMRV040 15,00 TH63B4 Power P1: 0.18 kW | Ratio i: 15.00 | Output speed n2 (a-b): 59.0-11.0 rpm | Output torque M2 (a-b): 19-43 Nm | Service factor fs (a-b): 2.6-1.7 | Radial load Fr2: 1934 N
TXF002+NMRV040 20,00 TH63B4 Power P1: 0.18 kW | Ratio i: 20.00 | Output speed n2 (a-b): 44.0-8.5 rpm | Output torque M2 (a-b): 25-54 Nm | Service factor fs (a-b): 2.0-1.2 | Radial load Fr2: 2129 N
TXF005+NMRV040 15,00 TH71A6 Power P1: 0.18 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 25-64 Nm | Service factor fs (a-b): 2.5-1.1 | Radial load Fr2: 2148 N
TXF005+NMRV050 15,00 TH71A6 Power P1: 0.18 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 25-64 Nm | Service factor fs (a-b): 4.5-2.1 | Radial load Fr2: 2948 N
TXF002+NMRV040 25,00 TH63B4 Power P1: 0.18 kW | Ratio i: 25.00 | Output speed n2 (a-b): 35.0-6.8 rpm | Output torque M2 (a-b): 30-63 Nm | Service factor fs (a-b): 1.5-1.0 | Radial load Fr2: 2293 N
TXF005+NMRV040 20,00 TH71A6 Power P1: 0.18 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 32-80 Nm | Service factor fs (a-b): 1.8-0.8 | Radial load Fr2: 2364 N
TXF005+NMRV050 20,00 TH71A6 Power P1: 0.18 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 32-80 Nm | Service factor fs (a-b): 3.1-1.5 | Radial load Fr2: 3244 N
TXF002+NMRV040 30,00 TH63B4 Power P1: 0.18 kW | Ratio i: 30.00 | Output speed n2 (a-b): 29.0-5.7 rpm | Output torque M2 (a-b): 33-68 Nm | Service factor fs (a-b): 1.6-1.1 | Radial load Fr2: 2437 N
TXF005+NMRV-P063 25,00 TH71A6 Power P1: 0.18 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 39-98 Nm | Service factor fs (a-b): 4.5-2.4 | Radial load Fr2: 4568 N
TXF005+NMRV050 25,00 TH71A6 Power P1: 0.18 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 38-95 Nm | Service factor fs (a-b): 2.4-1.2 | Radial load Fr2: 3495 N
TXF002+NMRV040 40,00 TH63B4 Power P1: 0.18 kW | Ratio i: 40.00 | Output speed n2 (a-b): 22.0-4.3 rpm | Output torque M2 (a-b): 41-82 Nm | Service factor fs (a-b): 1.2-0.8 | Radial load Fr2: 2682 N
TXF002+NMRV050 40,00 TH63B4 Power P1: 0.18 kW | Ratio i: 40.00 | Output speed n2 (a-b): 22.0-4.3 rpm | Output torque M2 (a-b): 41-83 Nm | Service factor fs (a-b): 2.1-1.5 | Radial load Fr2: 3681 N
TXF005+NMRV-P063 30,00 TH71A6 Power P1: 0.18 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 43-107 Nm | Service factor fs (a-b): 4.9-2.7 | Radial load Fr2: 4854 N
TXF005+NMRV040 30,00 TH71A6 Power P1: 0.18 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 42-103 Nm | Service factor fs (a-b): 1.5-0.7 | Radial load Fr2: 2706 N
TXF005+NMRV050 30,00 TH71A6 Power P1: 0.18 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 42-104 Nm | Service factor fs (a-b): 2.7-1.4 | Radial load Fr2: 3714 N
TXF002+NMRV050 50,00 TH63B4 Power P1: 0.18 kW | Ratio i: 50.00 | Output speed n2 (a-b): 18.0-3.4 rpm | Output torque M2 (a-b): 49-98 Nm | Service factor fs (a-b): 1.7-1.2 | Radial load Fr2: 3966 N
TXF005+NMRV-P063 40,00 TH71A6 Power P1: 0.18 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 54-130 Nm | Service factor fs (a-b): 3.8-2.0 | Radial load Fr2: 5343 N
TXF005+NMRV050 40,00 TH71A6 Power P1: 0.18 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 52-125 Nm | Service factor fs (a-b): 2.0-1.0 | Radial load Fr2: 4088 N
TXF002+NMRV050 60,00 TH63B4 Power P1: 0.18 kW | Ratio i: 60.00 | Output speed n2 (a-b): 15.0-2.8 rpm | Output torque M2 (a-b): 54-108 Nm | Service factor fs (a-b): 1.4-1.0 | Radial load Fr2: 4214 N
TXF005+NMRV-P063 50,00 TH71A6 Power P1: 0.18 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 62-151 Nm | Service factor fs (a-b): 3.1-1.6 | Radial load Fr2: 5756 N
TXF005+NMRV-P075 50,00 TH71A6 Power P1: 0.18 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 65-156 Nm | Service factor fs (a-b): 4.8-2.4 | Radial load Fr2: 6793 N
TXF005+NMRV050 50,00 TH71A6 Power P1: 0.18 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 61-147 Nm | Service factor fs (a-b): 1.6-0.8 | Radial load Fr2: 4403 N
TXF005+NMRV-P063 60,00 TH71A6 Power P1: 0.18 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 70-166 Nm | Service factor fs (a-b): 2.6-1.3 | Radial load Fr2: 6116 N
TXF005+NMRV-P075 60,00 TH71A6 Power P1: 0.18 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 74-176 Nm | Service factor fs (a-b): 4.0-2.0 | Radial load Fr2: 7219 N
TXF005+NMRV-P063 80,00 TH71A6 Power P1: 0.18 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 84-192 Nm | Service factor fs (a-b): 1.8-0.9 | Radial load Fr2: 6270 N
TXF005+NMRV-P075 80,00 TH71A6 Power P1: 0.18 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 87-208 Nm | Service factor fs (a-b): 2.8-1.4 | Radial load Fr2: 7380 N
TXF005+NMRV-P063 100,00 TH71A6 Power P1: 0.18 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 94-210 Nm | Service factor fs (a-b): 1.4-0.7 | Radial load Fr2: 6270 N
TXF005+NMRV-P075 100,00 TH71A6 Power P1: 0.18 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 100-228 Nm | Service factor fs (a-b): 2.1-1.0 | Radial load Fr2: 7380 N
TXF002+NMRV030 5,00 TH63B2 Power P1: 0.25 kW | Ratio i: 5.00 | Output speed n2 (a-b): 352.0-68.0 rpm | Output torque M2 (a-b): 5-16 Nm | Service factor fs (a-b): 3.6-2.0 | Radial load Fr2: 553 N
TXF002+NMRV030 7,50 TH63B2 Power P1: 0.25 kW | Ratio i: 7.50 | Output speed n2 (a-b): 235.0-45.0 rpm | Output torque M2 (a-b): 7-23 Nm | Service factor fs (a-b): 2.5-1.4 | Radial load Fr2: 633 N
TXF005+NMRV040 5,00 TH71A4 Power P1: 0.25 kW | Ratio i: 5.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 9-24 Nm | Service factor fs (a-b): 4.9-2.8 | Radial load Fr2: 1285 N
TXF002+NMRV030 5,00 TH63D4 Power P1: 0.25 kW | Ratio i: 5.00 | Output speed n2 (a-b): 176.0-34.0 rpm | Output torque M2 (a-b): 10-16 Nm | Service factor fs (a-b): 2.2-2.0 | Radial load Fr2: 697 N
TXF002+NMRV030 10,00 TH63B2 Power P1: 0.25 kW | Ratio i: 10.00 | Output speed n2 (a-b): 176.0-34.0 rpm | Output torque M2 (a-b): 10-30 Nm | Service factor fs (a-b): 1.9-1.1 | Radial load Fr2: 697 N
TXF002+NMRV040 5,00 TH63D4 Power P1: 0.25 kW | Ratio i: 5.00 | Output speed n2 (a-b): 176.0-34.0 rpm | Output torque M2 (a-b): 10-16 Nm | Service factor fs (a-b): 4.3-4.2 | Radial load Fr2: 1341 N
TXF002+NMRV040 10,00 TH63B2 Power P1: 0.25 kW | Ratio i: 10.00 | Output speed n2 (a-b): 176.0-34.0 rpm | Output torque M2 (a-b): 10-31 Nm | Service factor fs (a-b): 4.3-2.3 | Radial load Fr2: 1341 N
TXF005+NMRV040 7,50 TH71A4 Power P1: 0.25 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 13-35 Nm | Service factor fs (a-b): 3.6-2.1 | Radial load Fr2: 1471 N
TXF005+NMRV040 5,00 TH71B6 Power P1: 0.25 kW | Ratio i: 5.00 | Output speed n2 (a-b): 129.0-22.0 rpm | Output torque M2 (a-b): 13-24 Nm | Service factor fs (a-b): 4.0-2.8 | Radial load Fr2: 1489 N
TXF002+NMRV030 7,50 TH63D4 Power P1: 0.25 kW | Ratio i: 7.50 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 14-23 Nm | Service factor fs (a-b): 1.5-1.4 | Radial load Fr2: 798 N
TXF002+NMRV030 15,00 TH63B2 Power P1: 0.25 kW | Ratio i: 15.00 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 13-41 Nm | Service factor fs (a-b): 1.3-0.7 | Radial load Fr2: 798 N
TXF002+NMRV040 7,50 TH63D4 Power P1: 0.25 kW | Ratio i: 7.50 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 14-23 Nm | Service factor fs (a-b): 3.2-3.1 | Radial load Fr2: 1535 N
TXF002+NMRV040 15,00 TH63B2 Power P1: 0.25 kW | Ratio i: 15.00 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 14-44 Nm | Service factor fs (a-b): 2.9-1.6 | Radial load Fr2: 1535 N
TXF005+NMRV040 10,00 TH71A4 Power P1: 0.25 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 17-45 Nm | Service factor fs (a-b): 2.9-1.6 | Radial load Fr2: 1619 N
TXF002+NMRV030 10,00 TH63D4 Power P1: 0.25 kW | Ratio i: 10.00 | Output speed n2 (a-b): 88.0-17.0 rpm | Output torque M2 (a-b): 18-29 Nm | Service factor fs (a-b): 1.2-1.1 | Radial load Fr2: 878 N
TXF002+NMRV040 10,00 TH63D4 Power P1: 0.25 kW | Ratio i: 10.00 | Output speed n2 (a-b): 88.0-17.0 rpm | Output torque M2 (a-b): 19-30 Nm | Service factor fs (a-b): 2.6-2.4 | Radial load Fr2: 1690 N
TXF002+NMRV040 20,00 TH63B2 Power P1: 0.25 kW | Ratio i: 20.00 | Output speed n2 (a-b): 88.0-17.0 rpm | Output torque M2 (a-b): 18-55 Nm | Service factor fs (a-b): 2.3-1.2 | Radial load Fr2: 1690 N
TXF005+NMRV040 7,50 TH71B6 Power P1: 0.25 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-15.0 rpm | Output torque M2 (a-b): 19-35 Nm | Service factor fs (a-b): 3.0-2.1 | Radial load Fr2: 1705 N
TXF002+NMRV040 25,00 TH63B2 Power P1: 0.25 kW | Ratio i: 25.00 | Output speed n2 (a-b): 70.0-14.0 rpm | Output torque M2 (a-b): 22-65 Nm | Service factor fs (a-b): 1.7-0.9 | Radial load Fr2: 1820 N
TXF005+NMRV040 15,00 TH71A4 Power P1: 0.25 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 24-64 Nm | Service factor fs (a-b): 2.1-1.1 | Radial load Fr2: 1853 N
TXF005+NMRV050 15,00 TH71A4 Power P1: 0.25 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 24-64 Nm | Service factor fs (a-b): 3.9-2.1 | Radial load Fr2: 2544 N
TXF005+NMRV040 10,00 TH71B6 Power P1: 0.25 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 24-45 Nm | Service factor fs (a-b): 2.4-1.6 | Radial load Fr2: 1876 N
TXF005+NMRV050 10,00 TH71B6 Power P1: 0.25 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 25-46 Nm | Service factor fs (a-b): 4.6-3.0 | Radial load Fr2: 2575 N
TXF002+NMRV030 15,00 TH63D4 Power P1: 0.25 kW | Ratio i: 15.00 | Output speed n2 (a-b): 59.0-11.0 rpm | Output torque M2 (a-b): 25-40 Nm | Service factor fs (a-b): 0.8-0.8 | Radial load Fr2: 1005 N
TXF002+NMRV040 15,00 TH63D4 Power P1: 0.25 kW | Ratio i: 15.00 | Output speed n2 (a-b): 59.0-11.0 rpm | Output torque M2 (a-b): 27-43 Nm | Service factor fs (a-b): 1.9-1.7 | Radial load Fr2: 1934 N
TXF002+NMRV040 30,00 TH63B2 Power P1: 0.25 kW | Ratio i: 30.00 | Output speed n2 (a-b): 59.0-11.0 rpm | Output torque M2 (a-b): 24-71 Nm | Service factor fs (a-b): 1.9-1.0 | Radial load Fr2: 1934 N
TXF005+NMRV040 20,00 TH71A4 Power P1: 0.25 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 30-80 Nm | Service factor fs (a-b): 1.6-0.8 | Radial load Fr2: 2040 N
TXF005+NMRV050 20,00 TH71A4 Power P1: 0.25 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 31-80 Nm | Service factor fs (a-b): 2.7-1.5 | Radial load Fr2: 2800 N
TXF002+NMRV040 20,00 TH63D4 Power P1: 0.25 kW | Ratio i: 20.00 | Output speed n2 (a-b): 44.0-8.5 rpm | Output torque M2 (a-b): 34-54 Nm | Service factor fs (a-b): 1.4-1.2 | Radial load Fr2: 2129 N
TXF002+NMRV040 40,00 TH63B2 Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 44.0-8.5 rpm | Output torque M2 (a-b): 30-85 Nm | Service factor fs (a-b): 1.4-0.8 | Radial load Fr2: 2129 N
TXF002+NMRV050 40,00 TH63B2 Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 44.0-8.5 rpm | Output torque M2 (a-b): 31-86 Nm | Service factor fs (a-b): 2.5-1.4 | Radial load Fr2: 2922 N
TXF005+NMRV040 15,00 TH71B6 Power P1: 0.25 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 34-64 Nm | Service factor fs (a-b): 1.8-1.1 | Radial load Fr2: 2148 N
TXF005+NMRV050 15,00 TH71B6 Power P1: 0.25 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 35-64 Nm | Service factor fs (a-b): 3.2-2.1 | Radial load Fr2: 2948 N
TXF005+NMRV-P063 25,00 TH71A4 Power P1: 0.25 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 38-98 Nm | Service factor fs (a-b): 3.9-2.4 | Radial load Fr2: 3943 N
TXF005+NMRV050 25,00 TH71A4 Power P1: 0.25 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 37-95 Nm | Service factor fs (a-b): 2.1-1.2 | Radial load Fr2: 3016 N
TXF002+NMRV040 25,00 TH63D4 Power P1: 0.25 kW | Ratio i: 25.00 | Output speed n2 (a-b): 35.0-6.8 rpm | Output torque M2 (a-b): 41-63 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 2293 N
TXF002+NMRV050 50,00 TH63B2 Power P1: 0.25 kW | Ratio i: 50.00 | Output speed n2 (a-b): 35.0-6.8 rpm | Output torque M2 (a-b): 37-100 Nm | Service factor fs (a-b): 2.0-1.2 | Radial load Fr2: 3148 N
TXF005+NMRV-P063 30,00 TH71A4 Power P1: 0.25 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 42-107 Nm | Service factor fs (a-b): 4.2-2.7 | Radial load Fr2: 4190 N
TXF005+NMRV040 30,00 TH71A4 Power P1: 0.25 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 40-103 Nm | Service factor fs (a-b): 1.3-0.7 | Radial load Fr2: 2335 N
TXF005+NMRV050 30,00 TH71A4 Power P1: 0.25 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 41-104 Nm | Service factor fs (a-b): 2.3-1.4 | Radial load Fr2: 3205 N
TXF005+NMRV-P063 20,00 TH71B6 Power P1: 0.25 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 45-82 Nm | Service factor fs (a-b): 4.3-3.1 | Radial load Fr2: 4241 N
TXF005+NMRV040 20,00 TH71B6 Power P1: 0.25 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 44-80 Nm | Service factor fs (a-b): 1.3-0.8 | Radial load Fr2: 2364 N
TXF005+NMRV050 20,00 TH71B6 Power P1: 0.25 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 45-80 Nm | Service factor fs (a-b): 2.2-1.5 | Radial load Fr2: 3244 N
TXF002+NMRV040 30,00 TH63D4 Power P1: 0.25 kW | Ratio i: 30.00 | Output speed n2 (a-b): 29.0-5.7 rpm | Output torque M2 (a-b): 45-68 Nm | Service factor fs (a-b): 1.2-1.1 | Radial load Fr2: 2437 N
TXF002+NMRV050 60,00 TH63B2 Power P1: 0.25 kW | Ratio i: 60.00 | Output speed n2 (a-b): 29.0-5.7 rpm | Output torque M2 (a-b): 41-110 Nm | Service factor fs (a-b): 1.7-1.0 | Radial load Fr2: 3345 N
TXF005+NMRV-P063 25,00 TH71B6 Power P1: 0.25 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 54-98 Nm | Service factor fs (a-b): 3.3-2.4 | Radial load Fr2: 4568 N
TXF005+NMRV050 25,00 TH71B6 Power P1: 0.25 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 53-95 Nm | Service factor fs (a-b): 1.7-1.2 | Radial load Fr2: 3495 N
TXF005+NMRV-P063 40,00 TH71A4 Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 53-130 Nm | Service factor fs (a-b): 3.3-2.0 | Radial load Fr2: 4611 N
TXF005+NMRV050 40,00 TH71A4 Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 51-125 Nm | Service factor fs (a-b): 1.7-1.0 | Radial load Fr2: 3528 N
TXF002+NMRV040 40,00 TH63D4 Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 22.0-4.3 rpm | Output torque M2 (a-b): 57-82 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 2682 N
TXF002+NMRV050 40,00 TH63D4 Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 22.0-4.3 rpm | Output torque M2 (a-b): 58-83 Nm | Service factor fs (a-b): 1.5-1.5 | Radial load Fr2: 3681 N
TXF005+NMRV-P063 30,00 TH71B6 Power P1: 0.25 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 60-107 Nm | Service factor fs (a-b): 3.6-2.7 | Radial load Fr2: 4854 N
TXF005+NMRV040 30,00 TH71B6 Power P1: 0.25 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 58-103 Nm | Service factor fs (a-b): 1.1-0.7 | Radial load Fr2: 2706 N
TXF005+NMRV050 30,00 TH71B6 Power P1: 0.25 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 59-104 Nm | Service factor fs (a-b): 1.9-1.4 | Radial load Fr2: 3714 N
TXF005+NMRV-P063 50,00 TH71A4 Power P1: 0.25 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 62-151 Nm | Service factor fs (a-b): 2.6-1.6 | Radial load Fr2: 4967 N
TXF005+NMRV-P075 50,00 TH71A4 Power P1: 0.25 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 64-156 Nm | Service factor fs (a-b): 4.0-2.4 | Radial load Fr2: 5863 N
TXF005+NMRV050 50,00 TH71A4 Power P1: 0.25 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 60-147 Nm | Service factor fs (a-b): 1.4-0.8 | Radial load Fr2: 3800 N
TXF005+NMRV-P063 60,00 TH71A4 Power P1: 0.25 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 70-166 Nm | Service factor fs (a-b): 2.2-1.3 | Radial load Fr2: 5279 N
TXF005+NMRV-P075 60,00 TH71A4 Power P1: 0.25 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 74-176 Nm | Service factor fs (a-b): 3.3-2.0 | Radial load Fr2: 6231 N
TXF005+NMRV-P063 40,00 TH71B6 Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 75-130 Nm | Service factor fs (a-b): 2.8-2.0 | Radial load Fr2: 5343 N
TXF005+NMRV-P075 40,00 TH71B6 Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 77-138 Nm | Service factor fs (a-b): 4.4-3.0 | Radial load Fr2: 6307 N
TXF005+NMRV050 40,00 TH71B6 Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 72-125 Nm | Service factor fs (a-b): 1.4-1.0 | Radial load Fr2: 4088 N
TXF002+NMRV050 60,00 TH63D4 Power P1: 0.25 kW | Ratio i: 60.00 | Output speed n2 (a-b): 15.0-2.8 rpm | Output torque M2 (a-b): 76-108 Nm | Service factor fs (a-b): 1.0-1.0 | Radial load Fr2: 4214 N
TXF005+NMRV-P063 50,00 TH71B6 Power P1: 0.25 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 86-151 Nm | Service factor fs (a-b): 2.3-1.6 | Radial load Fr2: 5756 N
TXF005+NMRV-P075 50,00 TH71B6 Power P1: 0.25 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 91-156 Nm | Service factor fs (a-b): 3.5-2.4 | Radial load Fr2: 6793 N
TXF005+NMRV050 50,00 TH71B6 Power P1: 0.25 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 85-147 Nm | Service factor fs (a-b): 1.1-0.8 | Radial load Fr2: 4403 N
TXF005+NMRV-P063 80,00 TH71A4 Power P1: 0.25 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 84-192 Nm | Service factor fs (a-b): 1.6-0.9 | Radial load Fr2: 5810 N
TXF005+NMRV-P075 80,00 TH71A4 Power P1: 0.25 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 89-208 Nm | Service factor fs (a-b): 2.5-1.4 | Radial load Fr2: 6858 N
TXF005+NMRV-P063 60,00 TH71B6 Power P1: 0.25 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 98-166 Nm | Service factor fs (a-b): 1.8-1.3 | Radial load Fr2: 6116 N
TXF005+NMRV-P075 60,00 TH71B6 Power P1: 0.25 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 103-176 Nm | Service factor fs (a-b): 2.9-2.0 | Radial load Fr2: 7219 N
TXF005+NMRV-P063 100,00 TH71A4 Power P1: 0.25 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 95-210 Nm | Service factor fs (a-b): 1.3-0.7 | Radial load Fr2: 6259 N
TXF005+NMRV-P075 100,00 TH71A4 Power P1: 0.25 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 101-228 Nm | Service factor fs (a-b): 1.9-1.0 | Radial load Fr2: 7380 N
TXF005+NMRV-P063 80,00 TH71B6 Power P1: 0.25 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 116-192 Nm | Service factor fs (a-b): 1.3-0.9 | Radial load Fr2: 6270 N
TXF005+NMRV-P075 80,00 TH71B6 Power P1: 0.25 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 121-208 Nm | Service factor fs (a-b): 2.0-1.4 | Radial load Fr2: 7380 N
TXF005+NMRV-P063 100,00 TH71B6 Power P1: 0.25 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 130-210 Nm | Service factor fs (a-b): 1.0-0.7 | Radial load Fr2: 6270 N
TXF005+NMRV-P075 100,00 TH71B6 Power P1: 0.25 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 139-228 Nm | Service factor fs (a-b): 1.5-1.0 | Radial load Fr2: 7380 N
TXF002+NMRV030 5,00 TH63C2 Power P1: 0.37 kW | Ratio i: 5.00 | Output speed n2 (a-b): 352.0-68.0 rpm | Output torque M2 (a-b): 7-16 Nm | Service factor fs (a-b): 2.5-2.0 | Radial load Fr2: 553 N
TXF002+NMRV040 5,00 TH63C2 Power P1: 0.37 kW | Ratio i: 5.00 | Output speed n2 (a-b): 352.0-68.0 rpm | Output torque M2 (a-b): 8-17 Nm | Service factor fs (a-b): 4.5-4.1 | Radial load Fr2: 1064 N
TXF005+NMRV040 7,50 TH71A2 Power P1: 0.37 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-45.0 rpm | Output torque M2 (a-b): 10-36 Nm | Service factor fs (a-b): 4.1-2.0 | Radial load Fr2: 1168 N
TXF002+NMRV030 7,50 TH63C2 Power P1: 0.37 kW | Ratio i: 7.50 | Output speed n2 (a-b): 235.0-45.0 rpm | Output torque M2 (a-b): 11-23 Nm | Service factor fs (a-b): 1.7-1.4 | Radial load Fr2: 633 N
TXF002+NMRV040 7,50 TH63C2 Power P1: 0.37 kW | Ratio i: 7.50 | Output speed n2 (a-b): 235.0-45.0 rpm | Output torque M2 (a-b): 11-24 Nm | Service factor fs (a-b): 3.6-3.0 | Radial load Fr2: 1218 N
TXF005+NMRV040 5,00 TH71B4 Power P1: 0.37 kW | Ratio i: 5.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 13-24 Nm | Service factor fs (a-b): 3.3-2.8 | Radial load Fr2: 1285 N
TXF005+NMRV040 10,00 TH71A2 Power P1: 0.37 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 13-46 Nm | Service factor fs (a-b): 3.3-1.5 | Radial load Fr2: 1285 N
TXF002+NMRV030 10,00 TH63C2 Power P1: 0.37 kW | Ratio i: 10.00 | Output speed n2 (a-b): 176.0-34.0 rpm | Output torque M2 (a-b): 14-30 Nm | Service factor fs (a-b): 1.3-1.1 | Radial load Fr2: 697 N
TXF002+NMRV040 10,00 TH63C2 Power P1: 0.37 kW | Ratio i: 10.00 | Output speed n2 (a-b): 176.0-34.0 rpm | Output torque M2 (a-b): 14-31 Nm | Service factor fs (a-b): 2.9-2.3 | Radial load Fr2: 1341 N
TXF005+NMRV040 7,50 TH71B4 Power P1: 0.37 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 19-35 Nm | Service factor fs (a-b): 2.5-2.1 | Radial load Fr2: 1471 N
TXF005+NMRV040 15,00 TH71A2 Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 19-66 Nm | Service factor fs (a-b): 2.2-1.1 | Radial load Fr2: 1471 N
TXF005+NMRV050 7,50 TH71B4 Power P1: 0.37 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 19-36 Nm | Service factor fs (a-b): 4.8-3.9 | Radial load Fr2: 2019 N
TXF005+NMRV050 15,00 TH71A2 Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 19-66 Nm | Service factor fs (a-b): 4.1-2.1 | Radial load Fr2: 2019 N
TXF002+NMRV030 15,00 TH63C2 Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 20-41 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 798 N
TXF002+NMRV040 15,00 TH63C2 Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 21-44 Nm | Service factor fs (a-b): 2.0-1.6 | Radial load Fr2: 1535 N
TXF005+NMRV040 10,00 TH71B4 Power P1: 0.37 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 24-45 Nm | Service factor fs (a-b): 2.0-1.6 | Radial load Fr2: 1619 N
TXF005+NMRV040 20,00 TH71A2 Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 24-83 Nm | Service factor fs (a-b): 1.7-0.8 | Radial load Fr2: 1619 N
TXF005+NMRV050 10,00 TH71B4 Power P1: 0.37 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 25-46 Nm | Service factor fs (a-b): 3.7-3.0 | Radial load Fr2: 2222 N
TXF005+NMRV050 20,00 TH71A2 Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 24-83 Nm | Service factor fs (a-b): 3.1-1.4 | Radial load Fr2: 2222 N
TXF002+NMRV040 20,00 TH63C2 Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 88.0-17.0 rpm | Output torque M2 (a-b): 27-55 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 1690 N
TXF005+NMRV050 7,50 TH71C6/80A6 Power P1: 0.37 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-15.0 rpm | Output torque M2 (a-b): 28-36 Nm | Service factor fs (a-b): 4.0-3.9 | Radial load Fr2: 2340 N
TXF010+NMRV050 7,50 TH80A6 Power P1: 0.37 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-15.0 rpm | Output torque M2 (a-b): 28-71 Nm | Service factor fs (a-b): 4.0-2.0 | Radial load Fr2: 2340 N
TXF005+NMRV-P063 25,00 TH71A2 Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 30-101 Nm | Service factor fs (a-b): 4.3-2.3 | Radial load Fr2: 3129 N
TXF005+NMRV050 25,00 TH71A2 Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 29-98 Nm | Service factor fs (a-b): 2.3-1.1 | Radial load Fr2: 2394 N
TXF002+NMRV040 25,00 TH63C2 Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 70.0-14.0 rpm | Output torque M2 (a-b): 32-65 Nm | Service factor fs (a-b): 1.2-0.9 | Radial load Fr2: 1820 N
TXF005+NMRV-P063 15,00 TH71B4 Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 36-65 Nm | Service factor fs (a-b): 4.7-4.2 | Radial load Fr2: 3325 N
TXF005+NMRV-P063 30,00 TH71A2 Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 34-110 Nm | Service factor fs (a-b): 4.5-2.5 | Radial load Fr2: 3325 N
TXF005+NMRV040 15,00 TH71B4 Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 35-64 Nm | Service factor fs (a-b): 1.4-1.1 | Radial load Fr2: 1853 N
TXF005+NMRV050 15,00 TH71B4 Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 35-64 Nm | Service factor fs (a-b): 2.6-2.1 | Radial load Fr2: 2544 N
TXF005+NMRV050 30,00 TH71A2 Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 33-108 Nm | Service factor fs (a-b): 2.6-1.3 | Radial load Fr2: 2544 N
TXF005+NMRV040 10,00 TH71C6/80A6 Power P1: 0.37 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 36-45 Nm | Service factor fs (a-b): 1.6-1.6 | Radial load Fr2: 1876 N
TXF005+NMRV050 10,00 TH71C6/80A6 Power P1: 0.37 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 37-46 Nm | Service factor fs (a-b): 3.1-3.0 | Radial load Fr2: 2575 N
TXF010+NMRV050 10,00 TH80A6 Power P1: 0.37 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 37-92 Nm | Service factor fs (a-b): 3.1-1.5 | Radial load Fr2: 2575 N
TXF002+NMRV040 30,00 TH63C2 Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 59.0-11.0 rpm | Output torque M2 (a-b): 36-71 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 1934 N
TXF005+NMRV-P063 20,00 TH71B4 Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 46-82 Nm | Service factor fs (a-b): 3.6-3.1 | Radial load Fr2: 3660 N
TXF005+NMRV-P063 40,00 TH71A2 Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 43-134 Nm | Service factor fs (a-b): 3.3-1.9 | Radial load Fr2: 3660 N
TXF005+NMRV040 20,00 TH71B4 Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 45-80 Nm | Service factor fs (a-b): 1.1-0.8 | Radial load Fr2: 2040 N
TXF005+NMRV050 20,00 TH71B4 Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 45-80 Nm | Service factor fs (a-b): 1.8-1.5 | Radial load Fr2: 2800 N
TXF005+NMRV050 40,00 TH71A2 Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 41-130 Nm | Service factor fs (a-b): 1.9-1.0 | Radial load Fr2: 2800 N
TXF002+NMRV040 40,00 TH63C2 Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 44.0-8.5 rpm | Output torque M2 (a-b): 45-85 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 2129 N
TXF002+NMRV050 40,00 TH63C2 Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 44.0-8.5 rpm | Output torque M2 (a-b): 46-86 Nm | Service factor fs (a-b): 1.7-1.4 | Radial load Fr2: 2922 N
TXF005+NMRV040 15,00 TH71C6/80A6 Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 51-64 Nm | Service factor fs (a-b): 1.2-1.1 | Radial load Fr2: 2148 N
TXF005+NMRV050 15,00 TH71C6/80A6 Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 52-64 Nm | Service factor fs (a-b): 2.2-2.1 | Radial load Fr2: 2948 N
TXF010+NMRV-P063 15,00 TH80A6 Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 52-131 Nm | Service factor fs (a-b): 3.8-2.1 | Radial load Fr2: 3853 N
TXF010+NMRV050 15,00 TH80A6 Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 52-128 Nm | Service factor fs (a-b): 2.2-1.1 | Radial load Fr2: 2948 N
TXF005+NMRV-P063 25,00 TH71B4 Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 56-98 Nm | Service factor fs (a-b): 2.7-2.4 | Radial load Fr2: 3943 N
TXF005+NMRV-P063 50,00 TH71A2 Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 51-156 Nm | Service factor fs (a-b): 2.7-1.5 | Radial load Fr2: 3943 N
TXF005+NMRV-P075 25,00 TH71B4 Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 57-101 Nm | Service factor fs (a-b): 4.2-3.8 | Radial load Fr2: 4654 N
TXF005+NMRV-P075 50,00 TH71A2 Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 53-162 Nm | Service factor fs (a-b): 4.0-2.3 | Radial load Fr2: 4654 N
TXF005+NMRV050 25,00 TH71B4 Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 54-95 Nm | Service factor fs (a-b): 1.4-1.2 | Radial load Fr2: 3016 N
TXF005+NMRV050 50,00 TH71A2 Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 48-150 Nm | Service factor fs (a-b): 1.5-0.8 | Radial load Fr2: 3016 N
TXF002+NMRV050 50,00 TH63C2 Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 35.0-6.8 rpm | Output torque M2 (a-b): 54-100 Nm | Service factor fs (a-b): 1.3-1.2 | Radial load Fr2: 3148 N
TXF005+NMRV-P063 30,00 TH71B4 Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 63-107 Nm | Service factor fs (a-b): 2.8-2.7 | Radial load Fr2: 4190 N
TXF005+NMRV-P063 60,00 TH71A2 Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 58-173 Nm | Service factor fs (a-b): 2.2-1.3 | Radial load Fr2: 4190 N
TXF005+NMRV-P075 30,00 TH71B4 Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 65-112 Nm | Service factor fs (a-b): 4.4-4.0 | Radial load Fr2: 4945 N
TXF005+NMRV-P075 60,00 TH71A2 Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 60-184 Nm | Service factor fs (a-b): 3.3-1.9 | Radial load Fr2: 4945 N
TXF005+NMRV040 30,00 TH71B4 Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 59-103 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 2335 N
TXF005+NMRV050 30,00 TH71B4 Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 61-104 Nm | Service factor fs (a-b): 1.5-1.4 | Radial load Fr2: 3205 N
TXF005+NMRV040 20,00 TH71C6/80A6 Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 65-80 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 2364 N
TXF005+NMRV050 20,00 TH71C6/80A6 Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 66-80 Nm | Service factor fs (a-b): 1.5-1.5 | Radial load Fr2: 3244 N
TXF010+NMRV-P063 20,00 TH80A6 Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 67-164 Nm | Service factor fs (a-b): 2.9-1.5 | Radial load Fr2: 4241 N
TXF010+NMRV-P075 20,00 TH80A6 Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 69-169 Nm | Service factor fs (a-b): 4.7-2.5 | Radial load Fr2: 5005 N
TXF010+NMRV050 20,00 TH80A6 Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 66-161 Nm | Service factor fs (a-b): 1.5-0.7 | Radial load Fr2: 3244 N
TXF002+NMRV050 60,00 TH63C2 Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 29.0-5.7 rpm | Output torque M2 (a-b): 61-110 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 3345 N
TXF005+NMRV050 25,00 TH71C6/80A6 Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 78-95 Nm | Service factor fs (a-b): 1.2-1.2 | Radial load Fr2: 3495 N
TXF010+NMRV-P063 25,00 TH80A6 Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 80-196 Nm | Service factor fs (a-b): 2.2-1.2 | Radial load Fr2: 4568 N
TXF010+NMRV-P075 25,00 TH80A6 Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 83-202 Nm | Service factor fs (a-b): 3.5-1.9 | Radial load Fr2: 5392 N
TXF005+NMRV-P063 40,00 TH71B4 Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 78-130 Nm | Service factor fs (a-b): 2.2-2.0 | Radial load Fr2: 4611 N
TXF005+NMRV-P063 80,00 TH71A2 Power P1: 0.37 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 71-202 Nm | Service factor fs (a-b): 1.6-0.9 | Radial load Fr2: 4611 N
TXF005+NMRV-P075 40,00 TH71B4 Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 81-138 Nm | Service factor fs (a-b): 3.4-3.0 | Radial load Fr2: 5443 N
TXF005+NMRV-P075 80,00 TH71A2 Power P1: 0.37 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 75-216 Nm | Service factor fs (a-b): 2.5-1.3 | Radial load Fr2: 5443 N
TXF005+NMRV050 40,00 TH71B4 Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 75-125 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 3528 N
TXF005+NMRV040 30,00 TH71C6/80A6 Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 86-103 Nm | Service factor fs (a-b): 0.7-0.7 | Radial load Fr2: 2706 N
TXF010+NMRV-P063 30,00 TH80A6 Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 89-214 Nm | Service factor fs (a-b): 2.4-1.3 | Radial load Fr2: 4854 N
TXF010+NMRV-P075 30,00 TH80A6 Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 93-224 Nm | Service factor fs (a-b): 3.7-2.0 | Radial load Fr2: 5730 N
TXF005+NMRV-P063 50,00 TH71B4 Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 91-151 Nm | Service factor fs (a-b): 1.8-1.6 | Radial load Fr2: 4967 N
TXF005+NMRV-P075 50,00 TH71B4 Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 94-156 Nm | Service factor fs (a-b): 2.7-2.4 | Radial load Fr2: 5863 N
TXF005+NMRV-P075 100,00 TH71A2 Power P1: 0.37 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 86-240 Nm | Service factor fs (a-b): 2.0-1.0 | Radial load Fr2: 5863 N
TXF005+NMRV050 50,00 TH71B4 Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 88-147 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 3800 N
TXF005+NMRV-P063 60,00 TH71B4 Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 104-166 Nm | Service factor fs (a-b): 1.5-1.3 | Radial load Fr2: 5279 N
TXF005+NMRV-P075 60,00 TH71B4 Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 110-176 Nm | Service factor fs (a-b): 2.3-2.0 | Radial load Fr2: 6231 N
TXF010+NMRV-P063 40,00 TH80A6 Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 111-259 Nm | Service factor fs (a-b): 1.9-1.0 | Radial load Fr2: 5343 N
TXF010+NMRV-P075 40,00 TH80A6 Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 114-275 Nm | Service factor fs (a-b): 2.9-1.5 | Radial load Fr2: 6307 N
TXF010+NMRV-P090 40,00 TH80A6 Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 120-290 Nm | Service factor fs (a-b): 4.4-2.1 | Radial load Fr2: 6978 N
TXF010+NMRV-P063 50,00 TH80A6 Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 127-302 Nm | Service factor fs (a-b): 1.5-0.8 | Radial load Fr2: 5756 N
TXF010+NMRV-P075 50,00 TH80A6 Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 134-312 Nm | Service factor fs (a-b): 2.3-1.2 | Radial load Fr2: 6793 N
TXF010+NMRV-P090 50,00 TH80A6 Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 143-336 Nm | Service factor fs (a-b): 3.5-1.7 | Radial load Fr2: 7517 N
TXF005+NMRV-P063 80,00 TH71B4 Power P1: 0.37 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 125-192 Nm | Service factor fs (a-b): 1.1-0.9 | Radial load Fr2: 5810 N
TXF005+NMRV-P075 80,00 TH71B4 Power P1: 0.37 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 132-208 Nm | Service factor fs (a-b): 1.7-1.4 | Radial load Fr2: 6858 N
TXF005+NMRV-P075 60,00 TH71C6/80A6 Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 153-176 Nm | Service factor fs (a-b): 2.0-2.0 | Radial load Fr2: 7219 N
TXF010+NMRV-P075 60,00 TH80A6 Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 153-353 Nm | Service factor fs (a-b): 2.0-1.0 | Radial load Fr2: 7219 N
TXF010+NMRV-P090 60,00 TH80A6 Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 161-374 Nm | Service factor fs (a-b): 2.7-1.3 | Radial load Fr2: 7988 N
TXF010+NMRV-P110 60,00 TH80A6 Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 172-403 Nm | Service factor fs (a-b): 4.5-2.5 | Radial load Fr2: 10093 N
TXF005+NMRV-P063 100,00 TH71B4 Power P1: 0.37 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 141-210 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 6259 N
TXF005+NMRV-P075 100,00 TH71B4 Power P1: 0.37 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 150-228 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 7380 N
TXF005+NMRV-P075 80,00 TH71C6/80A6 Power P1: 0.37 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 179-208 Nm | Service factor fs (a-b): 1.4-1.4 | Radial load Fr2: 7380 N
TXF010+NMRV-P090 80,00 TH80A6 Power P1: 0.37 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 193-454 Nm | Service factor fs (a-b): 1.9-1.0 | Radial load Fr2: 8180 N
TXF010+NMRV-P110 80,00 TH80A6 Power P1: 0.37 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 207-493 Nm | Service factor fs (a-b): 3.2-1.7 | Radial load Fr2: 10320 N
TXF010+NMRV130 80,00 TH80A6 Power P1: 0.37 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 211-490 Nm | Service factor fs (a-b): 4.6-2.5 | Radial load Fr2: 13500 N
TXF005+NMRV-P075 100,00 TH71C6/80A6 Power P1: 0.37 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 206-228 Nm | Service factor fs (a-b): 1.0-1.0 | Radial load Fr2: 7380 N
TXF010+NMRV-P090 100,00 TH80A6 Power P1: 0.37 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 224-504 Nm | Service factor fs (a-b): 1.5-0.8 | Radial load Fr2: 8180 N
TXF010+NMRV-P110 100,00 TH80A6 Power P1: 0.37 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 241-552 Nm | Service factor fs (a-b): 2.5-1.4 | Radial load Fr2: 10320 N
TXF010+NMRV130 100,00 TH80A6 Power P1: 0.37 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 241-564 Nm | Service factor fs (a-b): 3.6-2.0 | Radial load Fr2: 13500 N
TXF005+NMRV040 5,00 TH71B2 Power P1: 0.55 kW | Ratio i: 5.00 | Output speed n2 (a-b): 400.0-68.0 rpm | Output torque M2 (a-b): 10-25 Nm | Service factor fs (a-b): 3.5-2.7 | Radial load Fr2: 1020 N
TXF005+NMRV040 7,50 TH71B2 Power P1: 0.55 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-45.0 rpm | Output torque M2 (a-b): 15-36 Nm | Service factor fs (a-b): 2.7-2.0 | Radial load Fr2: 1168 N
TXF005+NMRV050 7,50 TH71B2 Power P1: 0.55 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-45.0 rpm | Output torque M2 (a-b): 15-36 Nm | Service factor fs (a-b): 5.0-3.8 | Radial load Fr2: 1603 N
TXF005+NMRV040 10,00 TH71B2 Power P1: 0.55 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 19-46 Nm | Service factor fs (a-b): 2.2-1.5 | Radial load Fr2: 1285 N
TXF005+NMRV050 10,00 TH71B2 Power P1: 0.55 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 19-47 Nm | Service factor fs (a-b): 3.9-2.9 | Radial load Fr2: 1764 N
TXF010+NMRV050 5,00 TH80A4 Power P1: 0.55 kW | Ratio i: 5.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 19-49 Nm | Service factor fs (a-b): 4.3-2.6 | Radial load Fr2: 1764 N
TXF005+NMRV-P063 15,00 TH71B2 Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 28-67 Nm | Service factor fs (a-b): 4.9-3.9 | Radial load Fr2: 2639 N
TXF005+NMRV040 15,00 TH71B2 Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 28-66 Nm | Service factor fs (a-b): 1.5-1.1 | Radial load Fr2: 1471 N
TXF005+NMRV050 15,00 TH71B2 Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 28-66 Nm | Service factor fs (a-b): 2.8-2.1 | Radial load Fr2: 2019 N
TXF010+NMRV050 7,50 TH80A4 Power P1: 0.55 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 28-71 Nm | Service factor fs (a-b): 3.2-2.0 | Radial load Fr2: 2019 N
TXF010+NMRV050 5,00 TH80B6 Power P1: 0.55 kW | Ratio i: 5.00 | Output speed n2 (a-b): 129.0-22.0 rpm | Output torque M2 (a-b): 29-49 Nm | Service factor fs (a-b): 3.5-2.6 | Radial load Fr2: 2044 N
TXF005+NMRV-P063 20,00 TH71B2 Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 37-84 Nm | Service factor fs (a-b): 3.8-3.0 | Radial load Fr2: 2905 N
TXF005+NMRV040 20,00 TH71B2 Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 35-83 Nm | Service factor fs (a-b): 1.2-0.8 | Radial load Fr2: 1619 N
TXF005+NMRV050 20,00 TH71B2 Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 36-83 Nm | Service factor fs (a-b): 2.1-1.4 | Radial load Fr2: 2222 N
TXF010+NMRV-P063 10,00 TH80A4 Power P1: 0.55 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 37-94 Nm | Service factor fs (a-b): 4.1-2.9 | Radial load Fr2: 2905 N
TXF010+NMRV050 10,00 TH80A4 Power P1: 0.55 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 37-92 Nm | Service factor fs (a-b): 2.5-1.5 | Radial load Fr2: 2222 N
TXF010+NMRV-P063 7,50 TH80B6 Power P1: 0.55 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-15.0 rpm | Output torque M2 (a-b): 43-74 Nm | Service factor fs (a-b): 4.3-3.7 | Radial load Fr2: 3058 N
TXF010+NMRV050 7,50 TH80B6 Power P1: 0.55 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-15.0 rpm | Output torque M2 (a-b): 42-71 Nm | Service factor fs (a-b): 2.7-2.0 | Radial load Fr2: 2340 N
TXF005+NMRV-P063 25,00 TH71B2 Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 44-101 Nm | Service factor fs (a-b): 2.9-2.3 | Radial load Fr2: 3129 N
TXF005+NMRV-P075 25,00 TH71B2 Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 45-104 Nm | Service factor fs (a-b): 4.4-3.7 | Radial load Fr2: 3694 N
TXF005+NMRV050 25,00 TH71B2 Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 43-98 Nm | Service factor fs (a-b): 1.6-1.1 | Radial load Fr2: 2394 N
TXF005+NMRV-P063 30,00 TH71B2 Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 51-110 Nm | Service factor fs (a-b): 3.0-2.5 | Radial load Fr2: 3325 N
TXF005+NMRV-P075 30,00 TH71B2 Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 52-115 Nm | Service factor fs (a-b): 4.4-3.9 | Radial load Fr2: 3925 N
TXF005+NMRV050 30,00 TH71B2 Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 49-108 Nm | Service factor fs (a-b): 1.7-1.3 | Radial load Fr2: 2544 N
TXF010+NMRV-P063 15,00 TH80A4 Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 54-131 Nm | Service factor fs (a-b): 3.2-2.1 | Radial load Fr2: 3325 N
TXF010+NMRV-P075 15,00 TH80A4 Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 54-134 Nm | Service factor fs (a-b): 4.8-3.2 | Radial load Fr2: 3925 N
TXF010+NMRV050 15,00 TH80A4 Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 53-128 Nm | Service factor fs (a-b): 1.8-1.1 | Radial load Fr2: 2544 N
TXF010+NMRV-P063 10,00 TH80B6 Power P1: 0.55 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 54-94 Nm | Service factor fs (a-b): 3.4-2.9 | Radial load Fr2: 3366 N
TXF010+NMRV-P075 10,00 TH80B6 Power P1: 0.55 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 55-95 Nm | Service factor fs (a-b): 4.9-4.5 | Radial load Fr2: 3973 N
TXF010+NMRV050 10,00 TH80B6 Power P1: 0.55 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 54-92 Nm | Service factor fs (a-b): 2.1-1.5 | Radial load Fr2: 2575 N
TXF005+NMRV-P063 40,00 TH71B2 Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 64-134 Nm | Service factor fs (a-b): 2.2-1.9 | Radial load Fr2: 3660 N
TXF005+NMRV-P075 40,00 TH71B2 Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 66-142 Nm | Service factor fs (a-b): 3.5-2.9 | Radial load Fr2: 4320 N
TXF005+NMRV050 40,00 TH71B2 Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 60-130 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 2800 N
TXF010+NMRV-P063 20,00 TH80A4 Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 68-164 Nm | Service factor fs (a-b): 2.4-1.5 | Radial load Fr2: 3660 N
TXF010+NMRV-P075 20,00 TH80A4 Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 70-169 Nm | Service factor fs (a-b): 3.8-2.5 | Radial load Fr2: 4320 N
TXF010+NMRV050 20,00 TH80A4 Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 67-161 Nm | Service factor fs (a-b): 1.2-0.7 | Radial load Fr2: 2800 N
TXF010+NMRV-P063 15,00 TH80B6 Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 78-131 Nm | Service factor fs (a-b): 2.6-2.1 | Radial load Fr2: 3853 N
TXF010+NMRV-P075 15,00 TH80B6 Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 80-134 Nm | Service factor fs (a-b): 4.0-3.2 | Radial load Fr2: 4548 N
TXF010+NMRV050 15,00 TH80B6 Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 77-128 Nm | Service factor fs (a-b): 1.5-1.1 | Radial load Fr2: 2948 N
TXF005+NMRV-P063 50,00 TH71B2 Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 76-156 Nm | Service factor fs (a-b): 1.8-1.5 | Radial load Fr2: 3943 N
TXF005+NMRV-P075 50,00 TH71B2 Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 79-162 Nm | Service factor fs (a-b): 2.7-2.3 | Radial load Fr2: 4654 N
TXF005+NMRV050 50,00 TH71B2 Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 71-150 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 3016 N
TXF010+NMRV-P063 25,00 TH80A4 Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 83-196 Nm | Service factor fs (a-b): 1.8-1.2 | Radial load Fr2: 3943 N
TXF010+NMRV-P075 25,00 TH80A4 Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 85-202 Nm | Service factor fs (a-b): 2.8-1.9 | Radial load Fr2: 4654 N
TXF010+NMRV-P090 25,00 TH80A4 Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 88-212 Nm | Service factor fs (a-b): 4.7-2.7 | Radial load Fr2: 5149 N
TXF005+NMRV-P063 60,00 TH71B2 Power P1: 0.55 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 86-173 Nm | Service factor fs (a-b): 1.5-1.3 | Radial load Fr2: 4190 N
TXF005+NMRV-P075 60,00 TH71B2 Power P1: 0.55 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 90-184 Nm | Service factor fs (a-b): 2.2-1.9 | Radial load Fr2: 4945 N
TXF010+NMRV-P063 30,00 TH80A4 Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 93-214 Nm | Service factor fs (a-b): 1.9-1.3 | Radial load Fr2: 4190 N
TXF010+NMRV-P075 30,00 TH80A4 Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 97-224 Nm | Service factor fs (a-b): 2.9-2.0 | Radial load Fr2: 4945 N
TXF010+NMRV-P090 30,00 TH80A4 Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 100-235 Nm | Service factor fs (a-b): 4.9-3.0 | Radial load Fr2: 5472 N
TXF010+NMRV-P063 20,00 TH80B6 Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 100-164 Nm | Service factor fs (a-b): 1.9-1.5 | Radial load Fr2: 4241 N
TXF010+NMRV-P075 20,00 TH80B6 Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 102-169 Nm | Service factor fs (a-b): 3.2-2.5 | Radial load Fr2: 5005 N
TXF010+NMRV-P090 20,00 TH80B6 Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 105-177 Nm | Service factor fs (a-b): 4.9-3.5 | Radial load Fr2: 5538 N
TXF010+NMRV050 20,00 TH80B6 Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 98-161 Nm | Service factor fs (a-b): 1.0-0.7 | Radial load Fr2: 3244 N
TXF010+NMRV-P063 25,00 TH80B6 Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 120-196 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 4568 N
TXF010+NMRV-P075 25,00 TH80B6 Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 123-202 Nm | Service factor fs (a-b): 2.4-1.9 | Radial load Fr2: 5392 N
TXF010+NMRV-P090 25,00 TH80B6 Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 126-212 Nm | Service factor fs (a-b): 3.8-2.7 | Radial load Fr2: 5966 N
TXF005+NMRV-P063 80,00 TH71B2 Power P1: 0.55 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 106-202 Nm | Service factor fs (a-b): 1.1-0.9 | Radial load Fr2: 4611 N
TXF005+NMRV-P075 80,00 TH71B2 Power P1: 0.55 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 111-216 Nm | Service factor fs (a-b): 1.7-1.3 | Radial load Fr2: 5443 N
TXF010+NMRV-P063 40,00 TH80A4 Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 116-259 Nm | Service factor fs (a-b): 1.5-1.0 | Radial load Fr2: 4611 N
TXF010+NMRV-P075 40,00 TH80A4 Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 121-275 Nm | Service factor fs (a-b): 2.3-1.5 | Radial load Fr2: 5443 N
TXF010+NMRV-P090 40,00 TH80A4 Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 126-290 Nm | Service factor fs (a-b): 3.6-2.1 | Radial load Fr2: 6022 N
TXF010+NMRV-P063 30,00 TH80B6 Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 132-214 Nm | Service factor fs (a-b): 1.6-1.3 | Radial load Fr2: 4854 N
TXF010+NMRV-P075 30,00 TH80B6 Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 138-224 Nm | Service factor fs (a-b): 2.5-2.0 | Radial load Fr2: 5730 N
TXF010+NMRV-P090 30,00 TH80B6 Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 144-235 Nm | Service factor fs (a-b): 4.0-3.0 | Radial load Fr2: 6340 N
TXF005+NMRV-P075 100,00 TH71B2 Power P1: 0.55 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 127-240 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 5863 N
TXF010+NMRV-P063 50,00 TH80A4 Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 136-302 Nm | Service factor fs (a-b): 1.2-0.8 | Radial load Fr2: 4967 N
TXF010+NMRV-P075 50,00 TH80A4 Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 140-312 Nm | Service factor fs (a-b): 1.8-1.2 | Radial load Fr2: 5863 N
TXF010+NMRV-P090 50,00 TH80A4 Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 151-336 Nm | Service factor fs (a-b): 2.8-1.7 | Radial load Fr2: 6487 N
TXF010+NMRV-P110 50,00 TH80A4 Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 158-362 Nm | Service factor fs (a-b): 4.7-3.0 | Radial load Fr2: 8198 N
TXF010+NMRV-P075 60,00 TH80A4 Power P1: 0.55 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 163-353 Nm | Service factor fs (a-b): 1.5-1.0 | Radial load Fr2: 6231 N
TXF010+NMRV-P090 60,00 TH80A4 Power P1: 0.55 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 171-374 Nm | Service factor fs (a-b): 2.3-1.3 | Radial load Fr2: 6894 N
TXF010+NMRV-P110 60,00 TH80A4 Power P1: 0.55 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 181-403 Nm | Service factor fs (a-b): 3.8-2.5 | Radial load Fr2: 8711 N
TXF010+NMRV-P063 40,00 TH80B6 Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 165-259 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 5343 N
TXF010+NMRV-P075 40,00 TH80B6 Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 170-275 Nm | Service factor fs (a-b): 2.0-1.5 | Radial load Fr2: 6307 N
TXF010+NMRV-P090 40,00 TH80B6 Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 178-290 Nm | Service factor fs (a-b): 3.0-2.1 | Radial load Fr2: 6978 N
TXF010+NMRV-P110 40,00 TH80B6 Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 189-302 Nm | Service factor fs (a-b): 4.9-3.9 | Radial load Fr2: 8817 N
TXF010+NMRV-P063 50,00 TH80B6 Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 189-302 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 5756 N
TXF010+NMRV-P075 50,00 TH80B6 Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 199-312 Nm | Service factor fs (a-b): 1.6-1.2 | Radial load Fr2: 6793 N
TXF010+NMRV-P090 50,00 TH80B6 Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 213-336 Nm | Service factor fs (a-b): 2.3-1.7 | Radial load Fr2: 7517 N
TXF010+NMRV-P110 50,00 TH80B6 Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 223-362 Nm | Service factor fs (a-b): 4.0-3.0 | Radial load Fr2: 9498 N
TXF010+NMRV-P090 80,00 TH80A4 Power P1: 0.55 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 210-454 Nm | Service factor fs (a-b): 1.5-1.0 | Radial load Fr2: 7588 N
TXF010+NMRV-P110 80,00 TH80A4 Power P1: 0.55 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 224-493 Nm | Service factor fs (a-b): 2.5-1.7 | Radial load Fr2: 9588 N
TXF010+NMRV130 80,00 TH80A4 Power P1: 0.55 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 228-490 Nm | Service factor fs (a-b): 3.8-2.5 | Radial load Fr2: 12540 N
TXF010+NMRV-P075 60,00 TH80B6 Power P1: 0.55 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 227-353 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 7219 N
TXF010+NMRV-P090 60,00 TH80B6 Power P1: 0.55 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 239-374 Nm | Service factor fs (a-b): 1.8-1.3 | Radial load Fr2: 7988 N
TXF010+NMRV-P110 60,00 TH80B6 Power P1: 0.55 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 255-403 Nm | Service factor fs (a-b): 3.1-2.5 | Radial load Fr2: 10093 N
TXF010+NMRV-P090 100,00 TH80A4 Power P1: 0.55 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 241-504 Nm | Service factor fs (a-b): 1.2-0.8 | Radial load Fr2: 8174 N
TXF010+NMRV-P110 100,00 TH80A4 Power P1: 0.55 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 258-552 Nm | Service factor fs (a-b): 2.0-1.4 | Radial load Fr2: 10320 N
TXF010+NMRV130 100,00 TH80A4 Power P1: 0.55 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 263-564 Nm | Service factor fs (a-b): 3.0-2.0 | Radial load Fr2: 13500 N
TXF010+NMRV-P090 80,00 TH80B6 Power P1: 0.55 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 287-454 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 8180 N
TXF010+NMRV-P110 80,00 TH80B6 Power P1: 0.55 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 308-493 Nm | Service factor fs (a-b): 2.1-1.7 | Radial load Fr2: 10320 N
TXF010+NMRV130 80,00 TH80B6 Power P1: 0.55 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 314-490 Nm | Service factor fs (a-b): 3.1-2.5 | Radial load Fr2: 13500 N
TXF010+NMRV-P090 100,00 TH80B6 Power P1: 0.55 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 332-504 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 8180 N
TXF010+NMRV-P110 100,00 TH80B6 Power P1: 0.55 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 359-552 Nm | Service factor fs (a-b): 1.7-1.4 | Radial load Fr2: 10320 N
TXF010+NMRV130 100,00 TH80B6 Power P1: 0.55 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 359-564 Nm | Service factor fs (a-b): 2.4-2.0 | Radial load Fr2: 13500 N
TXF010+NMRV050 5,00 TP80A2 Power P1: 0.75 kW | Ratio i: 5.00 | Output speed n2 (a-b): 400.0-68.0 rpm | Output torque M2 (a-b): 13-50 Nm | Service factor fs (a-b): 4.8-2.6 | Radial load Fr2: 1400 N
TXF005+NMRV040 7,50 TP80A2 Power P1: 0.75 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-45.0 rpm | Output torque M2 (a-b): 20-36 Nm | Service factor fs (a-b): 2.0-2.0 | Radial load Fr2: 1168 N
TXF010+NMRV050 7,50 TP80A2 Power P1: 0.75 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-45.0 rpm | Output torque M2 (a-b): 20-73 Nm | Service factor fs (a-b): 3.7-1.9 | Radial load Fr2: 1603 N
TXF005+NMRV040 10,00 TP80A2 Power P1: 0.75 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 26-46 Nm | Service factor fs (a-b): 1.6-1.5 | Radial load Fr2: 1285 N
TXF010+NMRV-P063 10,00 TP80A2 Power P1: 0.75 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 27-95 Nm | Service factor fs (a-b): 4.7-2.7 | Radial load Fr2: 2306 N
TXF010+NMRV050 5,00 TP80B4 Power P1: 0.75 kW | Ratio i: 5.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 26-49 Nm | Service factor fs (a-b): 3.1-2.6 | Radial load Fr2: 1764 N
TXF010+NMRV050 10,00 TP80A2 Power P1: 0.75 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 26-95 Nm | Service factor fs (a-b): 2.8-1.4 | Radial load Fr2: 1764 N
TXF005+NMRV040 15,00 TP80A2 Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 38-66 Nm | Service factor fs (a-b): 1.1-1.1 | Radial load Fr2: 1471 N
TXF010+NMRV-P063 7,50 TP80B4 Power P1: 0.75 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 39-74 Nm | Service factor fs (a-b): 3.8-3.7 | Radial load Fr2: 2639 N
TXF010+NMRV-P063 15,00 TP80A2 Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 39-133 Nm | Service factor fs (a-b): 3.6-2.0 | Radial load Fr2: 2639 N
TXF010+NMRV050 7,50 TP80B4 Power P1: 0.75 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 38-71 Nm | Service factor fs (a-b): 2.4-2.0 | Radial load Fr2: 2019 N
TXF010+NMRV050 15,00 TP80A2 Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 38-131 Nm | Service factor fs (a-b): 2.0-1.0 | Radial load Fr2: 2019 N
TXF005+NMRV040 20,00 TP80A2 Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 48-83 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 1619 N
TXF005+NMRV050 20,00 TP80A2 Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 49-83 Nm | Service factor fs (a-b): 1.5-1.4 | Radial load Fr2: 2222 N
TXF010+NMRV-P063 10,00 TP80B4 Power P1: 0.75 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 51-94 Nm | Service factor fs (a-b): 3.0-2.9 | Radial load Fr2: 2905 N
TXF010+NMRV-P063 20,00 TP80A2 Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 50-168 Nm | Service factor fs (a-b): 2.8-1.5 | Radial load Fr2: 2905 N
TXF010+NMRV-P075 20,00 TP80A2 Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 51-173 Nm | Service factor fs (a-b): 4.4-2.4 | Radial load Fr2: 3429 N
TXF010+NMRV050 10,00 TP80B4 Power P1: 0.75 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 51-92 Nm | Service factor fs (a-b): 1.8-1.5 | Radial load Fr2: 2222 N
TXF010+NMRV050 20,00 TP80A2 Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 49-166 Nm | Service factor fs (a-b): 1.5-0.7 | Radial load Fr2: 2222 N
TXF010+NMRV050 7,50 TP90S6 Power P1: 0.75 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-15.0 rpm | Output torque M2 (a-b): 57-71 Nm | Service factor fs (a-b): 2.0-2.0 | Radial load Fr2: 2340 N
TXF005+NMRV050 25,00 TP80A2 Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 58-98 Nm | Service factor fs (a-b): 1.2-1.1 | Radial load Fr2: 2394 N
TXF010+NMRV-P063 25,00 TP80A2 Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 61-201 Nm | Service factor fs (a-b): 2.1-1.1 | Radial load Fr2: 3129 N
TXF010+NMRV-P075 25,00 TP80A2 Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 62-207 Nm | Service factor fs (a-b): 3.3-1.8 | Radial load Fr2: 3694 N
TXF010+NMRV-P063 15,00 TP80B4 Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 73-131 Nm | Service factor fs (a-b): 2.3-2.1 | Radial load Fr2: 3325 N
TXF010+NMRV-P063 30,00 TP80A2 Power P1: 0.75 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 69-220 Nm | Service factor fs (a-b): 2.2-1.2 | Radial load Fr2: 3325 N
TXF010+NMRV-P075 15,00 TP80B4 Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 74-134 Nm | Service factor fs (a-b): 3.6-3.2 | Radial load Fr2: 3925 N
TXF010+NMRV-P075 30,00 TP80A2 Power P1: 0.75 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 71-230 Nm | Service factor fs (a-b): 3.2-1.9 | Radial load Fr2: 3925 N
TXF010+NMRV050 15,00 TP80B4 Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 72-128 Nm | Service factor fs (a-b): 1.3-1.1 | Radial load Fr2: 2544 N
TXF010+NMRV050 10,00 TP90S6 Power P1: 0.75 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 74-92 Nm | Service factor fs (a-b): 1.5-1.5 | Radial load Fr2: 2575 N
TXF010+NMRV-P063 20,00 TP80B4 Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 93-164 Nm | Service factor fs (a-b): 1.8-1.5 | Radial load Fr2: 3660 N
TXF010+NMRV-P063 40,00 TP80A2 Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 87-269 Nm | Service factor fs (a-b): 1.6-0.9 | Radial load Fr2: 3660 N
TXF010+NMRV-P075 20,00 TP80B4 Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 95-169 Nm | Service factor fs (a-b): 2.8-2.5 | Radial load Fr2: 4320 N
TXF010+NMRV-P075 40,00 TP80A2 Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 90-283 Nm | Service factor fs (a-b): 2.6-1.5 | Radial load Fr2: 4320 N
TXF010+NMRV-P090 20,00 TP80B4 Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 98-177 Nm | Service factor fs (a-b): 4.4-3.5 | Radial load Fr2: 4780 N
TXF010+NMRV-P090 40,00 TP80A2 Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 93-298 Nm | Service factor fs (a-b): 4.0-2.0 | Radial load Fr2: 4780 N
TXF010+NMRV050 20,00 TP80B4 Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 92-161 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 2800 N
TXF010+NMRV-P090 15,00 TP90S6 Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 111-138 Nm | Service factor fs (a-b): 4.8-4.8 | Radial load Fr2: 5032 N
TXF010+NMRV050 15,00 TP90S6 Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 105-128 Nm | Service factor fs (a-b): 1.1-1.1 | Radial load Fr2: 2948 N
TXF010+NMRV-P063 25,00 TP80B4 Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 113-196 Nm | Service factor fs (a-b): 1.3-1.2 | Radial load Fr2: 3943 N
TXF010+NMRV-P063 50,00 TP80A2 Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 103-312 Nm | Service factor fs (a-b): 1.3-0.8 | Radial load Fr2: 3943 N
TXF010+NMRV-P075 25,00 TP80B4 Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 116-202 Nm | Service factor fs (a-b): 2.1-1.9 | Radial load Fr2: 4654 N
TXF010+NMRV-P075 50,00 TP80A2 Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 108-324 Nm | Service factor fs (a-b): 2.0-1.1 | Radial load Fr2: 4654 N
TXF010+NMRV-P090 25,00 TP80B4 Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 119-212 Nm | Service factor fs (a-b): 3.4-2.7 | Radial load Fr2: 5149 N
TXF010+NMRV-P090 50,00 TP80A2 Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 112-348 Nm | Service factor fs (a-b): 3.2-1.6 | Radial load Fr2: 5149 N
TXF010+NMRV-P063 30,00 TP80B4 Power P1: 0.75 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 127-214 Nm | Service factor fs (a-b): 1.4-1.3 | Radial load Fr2: 4190 N
TXF010+NMRV-P075 30,00 TP80B4 Power P1: 0.75 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 132-224 Nm | Service factor fs (a-b): 2.1-2.0 | Radial load Fr2: 4945 N
TXF010+NMRV-P075 60,00 TP80A2 Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 122-367 Nm | Service factor fs (a-b): 1.6-0.9 | Radial load Fr2: 4945 N
TXF010+NMRV-P090 30,00 TP80B4 Power P1: 0.75 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 136-235 Nm | Service factor fs (a-b): 3.6-3.0 | Radial load Fr2: 5472 N
TXF010+NMRV-P090 60,00 TP80A2 Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 129-389 Nm | Service factor fs (a-b): 2.6-1.3 | Radial load Fr2: 5472 N
TXF010+NMRV-P110 60,00 TP80A2 Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 136-418 Nm | Service factor fs (a-b): 4.3-2.4 | Radial load Fr2: 6914 N
TXF010+NMRV-P090 20,00 TP90S6 Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 143-177 Nm | Service factor fs (a-b): 3.6-3.5 | Radial load Fr2: 5538 N
TXF010+NMRV-P090 25,00 TP90S6 Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 172-212 Nm | Service factor fs (a-b): 2.8-2.7 | Radial load Fr2: 5966 N
TXF010+NMRV-P063 40,00 TP80B4 Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 158-259 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 4611 N
TXF010+NMRV-P075 40,00 TP80B4 Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 165-275 Nm | Service factor fs (a-b): 1.7-1.5 | Radial load Fr2: 5443 N
TXF010+NMRV-P090 40,00 TP80B4 Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 172-290 Nm | Service factor fs (a-b): 2.6-2.1 | Radial load Fr2: 6022 N
TXF010+NMRV-P090 80,00 TP80A2 Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 158-470 Nm | Service factor fs (a-b): 1.7-1.0 | Radial load Fr2: 6022 N
TXF010+NMRV-P110 40,00 TP80B4 Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 179-302 Nm | Service factor fs (a-b): 4.4-3.9 | Radial load Fr2: 7610 N
TXF010+NMRV-P110 80,00 TP80A2 Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 168-509 Nm | Service factor fs (a-b): 2.9-1.6 | Radial load Fr2: 7610 N
TXF010+NMRV130 80,00 TP80A2 Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 167-509 Nm | Service factor fs (a-b): 4.8-2.4 | Radial load Fr2: 9953 N
TXF005+NMRV-P075 100,00 TP80A2 Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 174-240 Nm | Service factor fs (a-b): 1.0-1.0 | Radial load Fr2: 5863 N
TXF010+NMRV-P063 50,00 TP80B4 Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 185-302 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 4967 N
TXF010+NMRV-P075 50,00 TP80B4 Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 191-312 Nm | Service factor fs (a-b): 1.3-1.2 | Radial load Fr2: 5863 N
TXF010+NMRV-P090 50,00 TP80B4 Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 206-336 Nm | Service factor fs (a-b): 2.1-1.7 | Radial load Fr2: 6487 N
TXF010+NMRV-P090 100,00 TP80A2 Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 186-528 Nm | Service factor fs (a-b): 1.4-0.8 | Radial load Fr2: 6487 N
TXF010+NMRV-P110 50,00 TP80B4 Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 215-362 Nm | Service factor fs (a-b): 3.5-3.0 | Radial load Fr2: 8198 N
TXF010+NMRV-P110 100,00 TP80A2 Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 198-576 Nm | Service factor fs (a-b): 2.3-1.3 | Radial load Fr2: 8198 N
TXF010+NMRV130 100,00 TP80A2 Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 197-576 Nm | Service factor fs (a-b): 3.6-1.9 | Radial load Fr2: 10722 N
TXF010+NMRV-P075 60,00 TP80B4 Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 222-353 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 6231 N
TXF010+NMRV-P090 60,00 TP80B4 Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 233-374 Nm | Service factor fs (a-b): 1.7-1.3 | Radial load Fr2: 6894 N
TXF010+NMRV-P110 60,00 TP80B4 Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 247-403 Nm | Service factor fs (a-b): 2.8-2.5 | Radial load Fr2: 8711 N
TXF010+NMRV-P090 40,00 TP90S6 Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 243-290 Nm | Service factor fs (a-b): 2.2-2.1 | Radial load Fr2: 6978 N
TXF010+NMRV-P090 50,00 TP90S6 Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 290-336 Nm | Service factor fs (a-b): 1.7-1.7 | Radial load Fr2: 7517 N
TXF010+NMRV-P090 80,00 TP80B4 Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 286-454 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 7588 N
TXF010+NMRV-P110 80,00 TP80B4 Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 306-493 Nm | Service factor fs (a-b): 1.9-1.7 | Radial load Fr2: 9588 N
TXF010+NMRV130 80,00 TP80B4 Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 310-490 Nm | Service factor fs (a-b): 2.8-2.5 | Radial load Fr2: 12540 N
TXF010+NMRV-P090 60,00 TP90S6 Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 326-374 Nm | Service factor fs (a-b): 1.3-1.3 | Radial load Fr2: 7988 N
TXF010+NMRV-P090 100,00 TP80B4 Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 328-504 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 8174 N
TXF010+NMRV-P110 100,00 TP80B4 Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 352-552 Nm | Service factor fs (a-b): 1.5-1.4 | Radial load Fr2: 10320 N
TXF010+NMRV130 100,00 TP80B4 Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 358-564 Nm | Service factor fs (a-b): 2.2-2.0 | Radial load Fr2: 13500 N
TXF010+NMRV050 5,00 TP80B2 Power P1: 1.10 kW | Ratio i: 5.00 | Output speed n2 (a-b): 400.0-68.0 rpm | Output torque M2 (a-b): 20-50 Nm | Service factor fs (a-b): 3.3-2.6 | Radial load Fr2: 1400 N
TXF010+NMRV-P063 7,50 TP80B2 Power P1: 1.10 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-45.0 rpm | Output torque M2 (a-b): 30-75 Nm | Service factor fs (a-b): 4.1-3.4 | Radial load Fr2: 2095 N
TXF010+NMRV050 7,50 TP80B2 Power P1: 1.10 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-45.0 rpm | Output torque M2 (a-b): 29-73 Nm | Service factor fs (a-b): 2.5-1.9 | Radial load Fr2: 1603 N
TXF010+NMRV-P063 10,00 TP80B2 Power P1: 1.10 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 39-95 Nm | Service factor fs (a-b): 3.2-2.7 | Radial load Fr2: 2306 N
TXF010+NMRV-P075 10,00 TP80B2 Power P1: 1.10 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 39-96 Nm | Service factor fs (a-b): 4.8-4.2 | Radial load Fr2: 2721 N
TXF010+NMRV050 10,00 TP80B2 Power P1: 1.10 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 39-95 Nm | Service factor fs (a-b): 1.9-1.4 | Radial load Fr2: 1764 N
TXF010+NMRV-P063 15,00 TP80B2 Power P1: 1.10 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 56-133 Nm | Service factor fs (a-b): 2.5-2.0 | Radial load Fr2: 2639 N
TXF010+NMRV-P075 15,00 TP80B2 Power P1: 1.10 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 58-137 Nm | Service factor fs (a-b): 3.7-3.1 | Radial load Fr2: 3115 N
TXF010+NMRV050 15,00 TP80B2 Power P1: 1.10 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 55-131 Nm | Service factor fs (a-b): 1.4-1.0 | Radial load Fr2: 2019 N
TXF010+NMRV-P063 20,00 TP80B2 Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 74-168 Nm | Service factor fs (a-b): 1.9-1.5 | Radial load Fr2: 2905 N
TXF010+NMRV-P075 20,00 TP80B2 Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 74-173 Nm | Service factor fs (a-b): 3.0-2.4 | Radial load Fr2: 3429 N
TXF010+NMRV-P090 20,00 TP80B2 Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 76-180 Nm | Service factor fs (a-b): 4.9-3.4 | Radial load Fr2: 3794 N
TXF010+NMRV050 20,00 TP80B2 Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 71-166 Nm | Service factor fs (a-b): 1.0-0.7 | Radial load Fr2: 2222 N
TXF010+NMRV-P063 25,00 TP80B2 Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 89-201 Nm | Service factor fs (a-b): 1.4-1.1 | Radial load Fr2: 3129 N
TXF010+NMRV-P075 25,00 TP80B2 Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 91-207 Nm | Service factor fs (a-b): 2.2-1.8 | Radial load Fr2: 3694 N
TXF010+NMRV-P090 25,00 TP80B2 Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 93-216 Nm | Service factor fs (a-b): 3.8-2.6 | Radial load Fr2: 4087 N
TXF010+NMRV-P063 30,00 TP80B2 Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 101-220 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 3325 N
TXF010+NMRV-P075 30,00 TP80B2 Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 104-230 Nm | Service factor fs (a-b): 2.2-1.9 | Radial load Fr2: 3925 N
TXF010+NMRV-P090 30,00 TP80B2 Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 107-241 Nm | Service factor fs (a-b): 3.9-2.9 | Radial load Fr2: 4343 N
TXF010+NMRV-P063 40,00 TP80B2 Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 128-269 Nm | Service factor fs (a-b): 1.1-0.9 | Radial load Fr2: 3660 N
TXF010+NMRV-P075 40,00 TP80B2 Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 132-283 Nm | Service factor fs (a-b): 1.7-1.5 | Radial load Fr2: 4320 N
TXF010+NMRV-P090 40,00 TP80B2 Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 137-298 Nm | Service factor fs (a-b): 2.8-2.0 | Radial load Fr2: 4780 N
TXF010+NMRV-P110 40,00 TP80B2 Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 142-312 Nm | Service factor fs (a-b): 4.7-3.8 | Radial load Fr2: 6040 N
TXF010+NMRV-P063 50,00 TP80B2 Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 151-312 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 3943 N
TXF010+NMRV-P075 50,00 TP80B2 Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 158-324 Nm | Service factor fs (a-b): 1.3-1.1 | Radial load Fr2: 4654 N
TXF010+NMRV-P090 50,00 TP80B2 Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 164-348 Nm | Service factor fs (a-b): 2.2-1.6 | Radial load Fr2: 5149 N
TXF010+NMRV-P110 50,00 TP80B2 Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 171-372 Nm | Service factor fs (a-b): 3.7-3.0 | Radial load Fr2: 6506 N
TXF010+NMRV-P075 60,00 TP80B2 Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 180-367 Nm | Service factor fs (a-b): 1.1-0.9 | Radial load Fr2: 4945 N
TXF010+NMRV-P090 60,00 TP80B2 Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 190-389 Nm | Service factor fs (a-b): 1.8-1.3 | Radial load Fr2: 5472 N
TXF010+NMRV-P110 60,00 TP80B2 Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 200-418 Nm | Service factor fs (a-b): 2.9-2.4 | Radial load Fr2: 6914 N
TXF010+NMRV-P090 80,00 TP80B2 Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 232-470 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 6022 N
TXF010+NMRV-P110 80,00 TP80B2 Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 247-509 Nm | Service factor fs (a-b): 2.0-1.6 | Radial load Fr2: 7610 N
TXF010+NMRV130 80,00 TP80B2 Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 246-509 Nm | Service factor fs (a-b): 3.2-2.4 | Radial load Fr2: 9953 N
TXF010+NMRV-P090 100,00 TP80B2 Power P1: 1.10 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 273-528 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 6487 N
TXF010+NMRV-P110 100,00 TP80B2 Power P1: 1.10 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 290-576 Nm | Service factor fs (a-b): 1.6-1.3 | Radial load Fr2: 8198 N
TXF010+NMRV130 100,00 TP80B2 Power P1: 1.10 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 289-576 Nm | Service factor fs (a-b): 2.4-1.9 | Radial load Fr2: 10722 N
TXF010+NMRV-P090 15,00 TP90S2 Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 80-140 Nm | Service factor fs (a-b): 4.7-4.7 | Radial load Fr2: 3447 N
TXF010+NMRV-P090 20,00 TP90S2 Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 104-180 Nm | Service factor fs (a-b): 3.6-3.4 | Radial load Fr2: 3794 N
TXF010+NMRV050 20,00 TP90S2 Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 97-166 Nm | Service factor fs (a-b): 0.8-0.7 | Radial load Fr2: 2222 N
TXF010+NMRV-P090 25,00 TP90S2 Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 127-216 Nm | Service factor fs (a-b): 2.8-2.6 | Radial load Fr2: 4087 N
TXF002 NMRV030 5 63C6 Legacy code (older edition) | Unit: TXF002 NMRV030 | Ratio i: 5 | Motor: 63C6
TXF002 NMRV030 7,5 63C6 Legacy code (older edition) | Unit: TXF002 NMRV030 | Ratio i: 7.5 | Motor: 63C6
TXF002 NMRV030 10 63C6 Legacy code (older edition) | Unit: TXF002 NMRV030 | Ratio i: 10 | Motor: 63C6
TXF002 NMRV030 5 63C4 Legacy code (older edition) | Unit: TXF002 NMRV030 | Ratio i: 5 | Motor: 63C4
TXF002 NMRV030 7,5 63C4 Legacy code (older edition) | Unit: TXF002 NMRV030 | Ratio i: 7.5 | Motor: 63C4
TXF002 NMRV030 10 63C4 Legacy code (older edition) | Unit: TXF002 NMRV030 | Ratio i: 10 | Motor: 63C4
TXF002 NMRV030 5 63C2 Legacy code (older edition) | Unit: TXF002 NMRV030 | Ratio i: 5 | Motor: 63C2
TXF002 NMRV030 7,5 63C2 Legacy code (older edition) | Unit: TXF002 NMRV030 | Ratio i: 7.5 | Motor: 63C2
TXF002 NMRV040 5 63C6 Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 5 | Motor: 63C6
TXF002 NMRV040 7,5 63C6 Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 7.5 | Motor: 63C6
TXF002 NMRV040 10 63C6 Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 10 | Motor: 63C6
TXF002 NMRV040 15 63C6 Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 15 | Motor: 63C6
TXF002 NMRV040 20 63C6 Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 20 | Motor: 63C6
TXF002 NMRV040 25 63C6 Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 25 | Motor: 63C6
TXF002 NMRV040 30 63C6 Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 30 | Motor: 63C6
TXF002 NMRV040 5 63C4 Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 5 | Motor: 63C4
TXF002 NMRV040 7,5 63C4 Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 7.5 | Motor: 63C4
TXF002 NMRV040 10 63C4 Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 10 | Motor: 63C4
TXF002 NMRV040 15 63C4 Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 15 | Motor: 63C4
TXF002 NMRV040 20 63C4 Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 20 | Motor: 63C4
TXF002 NMRV040 30 63C4 Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 30 | Motor: 63C4
TXF002 NMRV040 5 63C2 Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 5 | Motor: 63C2
TXF002 NMRV040 7,5 63C2 Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 7.5 | Motor: 63C2
TXF002 NMRV040 10 63C2 Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 10 | Motor: 63C2
TXF002 NMRV040 15 63C2 Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 15 | Motor: 63C2
TXF002 NMRV050 40 63C6 Legacy code (older edition) | Unit: TXF002 NMRV050 | Ratio i: 40 | Motor: 63C6
TXF002 NMRV050 50 63C6 Legacy code (older edition) | Unit: TXF002 NMRV050 | Ratio i: 50 | Motor: 63C6
TXF002 NMRV050 60 63C6 Legacy code (older edition) | Unit: TXF002 NMRV050 | Ratio i: 60 | Motor: 63C6
TXF002 NMRV050 40 63C4 Legacy code (older edition) | Unit: TXF002 NMRV050 | Ratio i: 40 | Motor: 63C4
TXF002 NMRV050 50 63C4 Legacy code (older edition) | Unit: TXF002 NMRV050 | Ratio i: 50 | Motor: 63C4
TXF002 NMRV050 40 63C2 Legacy code (older edition) | Unit: TXF002 NMRV050 | Ratio i: 40 | Motor: 63C2
TXF005 NMRV040 5 71A4 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 5 | Motor: 71A4
TXF005 NMRV040 5 71B6 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 5 | Motor: 71B6
TXF005 NMRV040 7,5 71A4 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 7.5 | Motor: 71A4
TXF005 NMRV040 7,5 71B6 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 7.5 | Motor: 71B6
TXF005 NMRV040 10 71A4 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 10 | Motor: 71A4
TXF005 NMRV040 10 71B6 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 10 | Motor: 71B6
TXF005 NMRV040 15 71A4 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 15 | Motor: 71A4
TXF005 NMRV040 15 71B6 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 15 | Motor: 71B6
TXF005 NMRV040 5 71B2 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 5 | Motor: 71B2
TXF005 NMRV040 5 71B4 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 5 | Motor: 71B4
TXF005 NMRV040 7,5 71B4 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 7.5 | Motor: 71B4
TXF005 NMRV040 10 71B4 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 10 | Motor: 71B4
TXF005 NMRV040 15 71B4 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 15 | Motor: 71B4
TXF005 NMRV040 5 71C2 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 5 | Motor: 71C2
TXF005 NMRV040 5 71C4 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 5 | Motor: 71C4
TXF005 NMRV040 7,5 71B2 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 7.5 | Motor: 71B2
TXF005 NMRV040 7,5 71C4 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 7.5 | Motor: 71C4
TXF005 NMRV040 10 71B2 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 10 | Motor: 71B2
TXF005 NMRV040 10 71C4 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 10 | Motor: 71C4
TXF005 NMRV040 15 71C4 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 15 | Motor: 71C4
TXF005 NMRV040 7,5 71C2 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 7.5 | Motor: 71C2
TXF005 NMRV040 10 71C2 Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 10 | Motor: 71C2
TXF005 NMRV050 5 71A4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 5 | Motor: 71A4
TXF005 NMRV050 7,5 71A4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 71A4
TXF005 NMRV050 7,5 71B6 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 71B6
TXF005 NMRV050 10 71A4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 71A4
TXF005 NMRV050 10 71B6 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 71B6
TXF005 NMRV050 15 71A4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 71A4
TXF005 NMRV050 15 71B6 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 71B6
TXF005 NMRV050 20 71A4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 71A4
TXF005 NMRV050 20 71B6 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 71B6
TXF005 NMRV050 25 71A4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 25 | Motor: 71A4
TXF005 NMRV050 25 71B6 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 25 | Motor: 71B6
TXF005 NMRV050 30 71A4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 30 | Motor: 71A4
TXF005 NMRV050 30 71B6 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 30 | Motor: 71B6
TXF005 NMRV050 40 71B6 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 40 | Motor: 71B6
TXF005 NMRV050 50 71B6 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 50 | Motor: 71B6
TXF005 NMRV050 5 71B4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 5 | Motor: 71B4
TXF005 NMRV050 7,5 71B4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 71B4
TXF005 NMRV050 10 71B4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 71B4
TXF005 NMRV050 15 71B4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 71B4
TXF005 NMRV050 20 71B4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 71B4
TXF005 NMRV050 25 71B4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 25 | Motor: 71B4
TXF005 NMRV050 30 71B4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 30 | Motor: 71B4
TXF005 NMRV050 5 71C4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 5 | Motor: 71C4
TXF005 NMRV050 5 80B6 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 5 | Motor: 80B6
TXF005 NMRV050 7,5 71B2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 71B2
TXF005 NMRV050 7,5 71C4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 71C4
TXF005 NMRV050 7,5 80B6 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 80B6
TXF005 NMRV050 10 71B2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 71B2
TXF005 NMRV050 10 71C4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 71C4
TXF005 NMRV050 10 80B6 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 80B6
TXF005 NMRV050 15 71B2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 71B2
TXF005 NMRV050 15 71C4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 71C4
TXF005 NMRV050 15 80B6 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 80B6
TXF005 NMRV050 20 71B2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 71B2
TXF005 NMRV050 20 71C4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 71C4
TXF005 NMRV050 20 80B6 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 80B6
TXF005 NMRV050 25 71C4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 25 | Motor: 71C4
TXF005 NMRV050 25 80B6 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 25 | Motor: 80B6
TXF005 NMRV050 30 71C4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 30 | Motor: 71C4
TXF005 NMRV050 30 80B6 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 30 | Motor: 80B6
TXF005 NMRV050 40 80B6 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 40 | Motor: 80B6
TXF005 NMRV050 50 80B6 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 50 | Motor: 80B6
TXF005 NMRV050 5 71C2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 5 | Motor: 71C2
TXF005 NMRV050 5 80B4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 5 | Motor: 80B4
TXF005 NMRV050 7,5 71C2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 71C2
TXF005 NMRV050 7,5 80B4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 80B4
TXF005 NMRV050 10 71C2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 71C2
TXF005 NMRV050 10 80B4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 80B4
TXF005 NMRV050 15 71C2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 71C2
TXF005 NMRV050 15 80B4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 80B4
TXF005 NMRV050 20 71C2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 71C2
TXF005 NMRV050 20 80B4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 80B4
TXF005 NMRV050 25 80B4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 25 | Motor: 80B4
TXF005 NMRV050 30 80B4 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 30 | Motor: 80B4
TXF005 NMRV050 5 80B2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 5 | Motor: 80B2
TXF005 NMRV050 7,5 80B2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 80B2
TXF005 NMRV050 10 80B2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 80B2
TXF005 NMRV050 15 80B2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 80B2
TXF005 NMRV050 20 80B2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 80B2
TXF005 NMRV050 5 80C2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 5 | Motor: 80C2
TXF005 NMRV050 7,5 80C2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 80C2
TXF005 NMRV050 10 80C2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 80C2
TXF005 NMRV050 15 80C2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 80C2
TXF005 NMRV050 20 80C2 Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 80C2
TXF005 NMRV063 40 71A4 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 71A4
TXF005 NMRV063 40 71B6 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 71B6
TXF005 NMRV063 50 71A4 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 71A4
TXF005 NMRV063 50 71B6 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 71B6
TXF005 NMRV063 60 71A4 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 60 | Motor: 71A4
TXF005 NMRV063 60 71B6 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 60 | Motor: 71B6
TXF005 NMRV063 80 71B6 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 80 | Motor: 71B6
TXF005 NMRV063 40 71B4 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 71B4
TXF005 NMRV063 50 71B4 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 71B4
TXF005 NMRV063 60 71B4 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 60 | Motor: 71B4
TXF005 NMRV063 40 71B2 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 71B2
TXF005 NMRV063 40 71C4 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 71C4
TXF005 NMRV063 40 80B6 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 80B6
TXF005 NMRV063 50 71B2 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 71B2
TXF005 NMRV063 50 71C4 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 71C4
TXF005 NMRV063 50 80B6 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 80B6
TXF005 NMRV063 60 71C4 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 60 | Motor: 71C4
TXF005 NMRV063 60 80B6 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 60 | Motor: 80B6
TXF005 NMRV063 80 80B6 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 80 | Motor: 80B6
TXF005 NMRV063 40 71C2 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 71C2
TXF005 NMRV063 40 80B4 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 80B4
TXF005 NMRV063 50 71C2 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 71C2
TXF005 NMRV063 50 80B4 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 80B4
TXF005 NMRV063 60 80B4 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 60 | Motor: 80B4
TXF005 NMRV063 40 80B2 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 80B2
TXF005 NMRV063 50 80B2 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 80B2
TXF005 NMRV063 40 80C2 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 80C2
TXF005 NMRV063 50 80C2 Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 80C2
TXF005 NMRV075 50 71A4 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 71A4
TXF005 NMRV075 50 71B6 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 71B6
TXF005 NMRV075 60 71A4 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 71A4
TXF005 NMRV075 60 71B6 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 71B6
TXF005 NMRV075 80 71A4 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 71A4
TXF005 NMRV075 80 71B6 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 71B6
TXF005 NMRV075 100 71A4 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 100 | Motor: 71A4
TXF005 NMRV075 100 71B6 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 100 | Motor: 71B6
TXF005 NMRV075 50 71B4 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 71B4
TXF005 NMRV075 60 71B4 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 71B4
TXF005 NMRV075 80 71B4 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 71B4
TXF005 NMRV075 50 71B2 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 71B2
TXF005 NMRV075 50 71C4 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 71C4
TXF005 NMRV075 50 80B6 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 80B6
TXF005 NMRV075 60 71B2 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 71B2
TXF005 NMRV075 60 71C4 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 71C4
TXF005 NMRV075 60 80B6 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 80B6
TXF005 NMRV075 80 71B2 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 71B2
TXF005 NMRV075 80 71C4 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 71C4
TXF005 NMRV075 80 80B6 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 80B6
TXF005 NMRV075 100 71C4 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 100 | Motor: 71C4
TXF005 NMRV075 50 71C2 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 71C2
TXF005 NMRV075 50 80B4 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 80B4
TXF005 NMRV075 60 71C2 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 71C2
TXF005 NMRV075 60 80B4 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 80B4
TXF005 NMRV075 80 71C2 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 71C2
TXF005 NMRV075 80 80B4 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 80B4
TXF005 NMRV075 100 80B4 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 100 | Motor: 80B4
TXF005 NMRV075 50 80B2 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 80B2
TXF005 NMRV075 60 80B2 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 80B2
TXF005 NMRV075 80 80B2 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 80B2
TXF005 NMRV075 50 80C2 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 80C2
TXF005 NMRV075 60 80C2 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 80C2
TXF005 NMRV075 80 80C2 Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 80C2
TXF010 NMRV063 7,5 80A4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 80A4
TXF010 NMRV063 7,5 80B6 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 80B6
TXF010 NMRV063 10 80A4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 80A4
TXF010 NMRV063 10 80B6 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 80B6
TXF010 NMRV063 15 80A4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 80A4
TXF010 NMRV063 15 80B6 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 80B6
TXF010 NMRV063 20 80A4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 80A4
TXF010 NMRV063 20 80B6 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 80B6
TXF010 NMRV063 25 80A4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 25 | Motor: 80A4
TXF010 NMRV063 25 80B6 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 25 | Motor: 80B6
TXF010 NMRV063 30 80A4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 30 | Motor: 80A4
TXF010 NMRV063 30 80B6 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 30 | Motor: 80B6
TXF010 NMRV063 40 80B6 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 40 | Motor: 80B6
TXF010 NMRV063 7,5 80B4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 80B4
TXF010 NMRV063 7,5 90S6 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 90S6
TXF010 NMRV063 10 80B4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 80B4
TXF010 NMRV063 10 90S6 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 90S6
TXF010 NMRV063 15 80B4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 80B4
TXF010 NMRV063 15 90S6 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 90S6
TXF010 NMRV063 20 80B4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 80B4
TXF010 NMRV063 20 90S6 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 90S6
TXF010 NMRV063 25 80B4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 25 | Motor: 80B4
TXF010 NMRV063 25 90S6 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 25 | Motor: 90S6
TXF010 NMRV063 30 80B4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 30 | Motor: 80B4
TXF010 NMRV063 30 90S6 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 30 | Motor: 90S6
TXF010 NMRV063 40 90S6 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 40 | Motor: 90S6
TXF010 NMRV063 7,5 80C4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 80C4
TXF010 NMRV063 10 80C4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 80C4
TXF010 NMRV063 15 80C4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 80C4
TXF010 NMRV063 20 80C4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 80C4
TXF010 NMRV063 25 80C4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 25 | Motor: 80C4
TXF010 NMRV063 30 80C4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 30 | Motor: 80C4
TXF010 NMRV063 7,5 80B2 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 80B2
TXF010 NMRV063 7,5 90S4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 90S4
TXF010 NMRV063 10 80B2 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 80B2
TXF010 NMRV063 10 90S4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 90S4
TXF010 NMRV063 15 80B2 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 80B2
TXF010 NMRV063 15 90S4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 90S4
TXF010 NMRV063 20 80B2 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 80B2
TXF010 NMRV063 20 90S4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 90S4
TXF010 NMRV063 25 90S4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 25 | Motor: 90S4
TXF010 NMRV063 30 90S4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 30 | Motor: 90S4
TXF010 NMRV063 7,5 80C2 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 80C2
TXF010 NMRV063 7,5 90L2 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 90L2
TXF010 NMRV063 7,5 90L4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 90L4
TXF010 NMRV063 10 80C2 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 80C2
TXF010 NMRV063 10 90L4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 90L4
TXF010 NMRV063 15 80C2 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 80C2
TXF010 NMRV063 15 90L4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 90L4
TXF010 NMRV063 20 80C2 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 80C2
TXF010 NMRV063 20 90L4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 90L4
TXF010 NMRV063 25 90L4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 25 | Motor: 90L4
TXF010 NMRV063 30 90L4 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 30 | Motor: 90L4
TXF010 NMRV063 10 90L2 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 90L2
TXF010 NMRV063 15 90L2 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 90L2
TXF010 NMRV063 20 90L2 Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 90L2
TXF010 NMRV075 7,5 80A4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 80A4
TXF010 NMRV075 7,5 80B6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 80B6
TXF010 NMRV075 10 80A4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 80A4
TXF010 NMRV075 10 80B6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 80B6
TXF010 NMRV075 15 80A4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 80A4
TXF010 NMRV075 15 80B6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 80B6
TXF010 NMRV075 20 80A4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 80A4
TXF010 NMRV075 20 80B6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 80B6
TXF010 NMRV075 25 80A4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 80A4
TXF010 NMRV075 25 80B6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 80B6
TXF010 NMRV075 30 80A4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 80A4
TXF010 NMRV075 30 80B6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 80B6
TXF010 NMRV075 40 80A4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 40 | Motor: 80A4
TXF010 NMRV075 40 80B6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 40 | Motor: 80B6
TXF010 NMRV075 50 80B6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 50 | Motor: 80B6
TXF010 NMRV075 60 80B6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 60 | Motor: 80B6
TXF010 NMRV075 7,5 80B4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 80B4
TXF010 NMRV075 7,5 90S6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 90S6
TXF010 NMRV075 10 80B4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 80B4
TXF010 NMRV075 10 90S6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 90S6
TXF010 NMRV075 15 80B4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 80B4
TXF010 NMRV075 15 90S6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 90S6
TXF010 NMRV075 20 80B4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 80B4
TXF010 NMRV075 20 90S6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 90S6
TXF010 NMRV075 25 80B4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 80B4
TXF010 NMRV075 25 90S6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 90S6
TXF010 NMRV075 30 80B4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 80B4
TXF010 NMRV075 30 90S6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 90S6
TXF010 NMRV075 40 80B4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 40 | Motor: 80B4
TXF010 NMRV075 40 90S6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 40 | Motor: 90S6
TXF010 NMRV075 50 90S6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 50 | Motor: 90S6
TXF010 NMRV075 60 90S6 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 60 | Motor: 90S6
TXF010 NMRV075 7,5 80C4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 80C4
TXF010 NMRV075 10 80C4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 80C4
TXF010 NMRV075 15 80C4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 80C4
TXF010 NMRV075 20 80C4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 80C4
TXF010 NMRV075 25 80C4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 80C4
TXF010 NMRV075 30 80C4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 80C4
TXF010 NMRV075 40 80C4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 40 | Motor: 80C4
TXF010 NMRV075 7,5 80B2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 80B2
TXF010 NMRV075 7,5 90S4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 90S4
TXF010 NMRV075 10 80B2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 80B2
TXF010 NMRV075 10 90S4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 90S4
TXF010 NMRV075 15 80B2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 80B2
TXF010 NMRV075 15 90S4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 90S4
TXF010 NMRV075 20 80B2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 80B2
TXF010 NMRV075 20 90S4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 90S4
TXF010 NMRV075 25 80B2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 80B2
TXF010 NMRV075 25 90S4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 90S4
TXF010 NMRV075 30 80B2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 80B2
TXF010 NMRV075 30 90S4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 90S4
TXF010 NMRV075 40 90S4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 40 | Motor: 90S4
TXF010 NMRV075 7,5 80C2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 80C2
TXF010 NMRV075 7,5 90L4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 90L4
TXF010 NMRV075 10 80C2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 80C2
TXF010 NMRV075 10 90L4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 90L4
TXF010 NMRV075 15 80C2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 80C2
TXF010 NMRV075 15 90L4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 90L4
TXF010 NMRV075 20 80C2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 80C2
TXF010 NMRV075 20 90L4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 90L4
TXF010 NMRV075 25 80C2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 80C2
TXF010 NMRV075 25 90L4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 90L4
TXF010 NMRV075 30 80C2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 80C2
TXF010 NMRV075 30 90L4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 90L4
TXF010 NMRV075 40 90L4 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 40 | Motor: 90L4
TXF010 NMRV075 7,5 90L2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 90L2
TXF010 NMRV075 10 90L2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 90L2
TXF010 NMRV075 15 90L2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 90L2
TXF010 NMRV075 20 90L2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 90L2
TXF010 NMRV075 25 90L2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 90L2
TXF010 NMRV075 30 90L2 Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 90L2
TXF010 NMRV090 7,5 80A4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 80A4
TXF010 NMRV090 7,5 80B6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 80B6
TXF010 NMRV090 10 80A4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 80A4
TXF010 NMRV090 10 80B6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 80B6
TXF010 NMRV090 15 80A4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 80A4
TXF010 NMRV090 15 80B6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 80B6
TXF010 NMRV090 20 80A4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 80A4
TXF010 NMRV090 20 80B6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 80B6
TXF010 NMRV090 25 80A4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 80A4
TXF010 NMRV090 25 80B6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 80B6
TXF010 NMRV090 30 80A4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 80A4
TXF010 NMRV090 30 80B6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 80B6
TXF010 NMRV090 40 80A4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 80A4
TXF010 NMRV090 40 80B6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 80B6
TXF010 NMRV090 50 80A4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 80A4
TXF010 NMRV090 50 80B6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 80B6
TXF010 NMRV090 60 80A4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 80A4
TXF010 NMRV090 60 80B6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 80B6
TXF010 NMRV090 80 80B6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 80 | Motor: 80B6
TXF010 NMRV090 7,5 80B4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 80B4
TXF010 NMRV090 7,5 90S6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 90S6
TXF010 NMRV090 10 80B4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 80B4
TXF010 NMRV090 10 90S6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 90S6
TXF010 NMRV090 15 80B4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 80B4
TXF010 NMRV090 15 90S6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 90S6
TXF010 NMRV090 20 80B4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 80B4
TXF010 NMRV090 20 90S6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 90S6
TXF010 NMRV090 25 80B4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 80B4
TXF010 NMRV090 25 90S6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 90S6
TXF010 NMRV090 30 80B4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 80B4
TXF010 NMRV090 30 90S6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 90S6
TXF010 NMRV090 40 80B4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 80B4
TXF010 NMRV090 40 90S6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 90S6
TXF010 NMRV090 50 80B4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 80B4
TXF010 NMRV090 50 90S6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 90S6
TXF010 NMRV090 60 80B4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 80B4
TXF010 NMRV090 60 90S6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 90S6
TXF010 NMRV090 80 90S6 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 80 | Motor: 90S6
TXF010 NMRV090 7,5 80C4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 80C4
TXF010 NMRV090 10 80C4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 80C4
TXF010 NMRV090 15 80C4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 80C4
TXF010 NMRV090 20 80C4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 80C4
TXF010 NMRV090 25 80C4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 80C4
TXF010 NMRV090 30 80C4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 80C4
TXF010 NMRV090 40 80C4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 80C4
TXF010 NMRV090 50 80C4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 80C4
TXF010 NMRV090 60 80C4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 80C4
TXF010 NMRV090 7,5 80B2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 80B2
TXF010 NMRV090 7,5 90S4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 90S4
TXF010 NMRV090 10 80B2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 80B2
TXF010 NMRV090 10 90S4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 90S4
TXF010 NMRV090 15 80B2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 80B2
TXF010 NMRV090 15 90S4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 90S4
TXF010 NMRV090 20 80B2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 80B2
TXF010 NMRV090 20 90S4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 90S4
TXF010 NMRV090 25 80B2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 80B2
TXF010 NMRV090 25 90S4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 90S4
TXF010 NMRV090 30 80B2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 80B2
TXF010 NMRV090 30 90S4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 90S4
TXF010 NMRV090 40 80B2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 80B2
TXF010 NMRV090 40 90S4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 90S4
TXF010 NMRV090 50 80B2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 80B2
TXF010 NMRV090 50 90S4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 90S4
TXF010 NMRV090 60 80B2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 80B2
TXF010 NMRV090 60 90S4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 90S4
TXF010 NMRV090 7,5 80C2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 80C2
TXF010 NMRV090 7,5 90L4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 90L4
TXF010 NMRV090 10 80C2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 80C2
TXF010 NMRV090 10 90L4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 90L4
TXF010 NMRV090 15 80C2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 80C2
TXF010 NMRV090 15 90L4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 90L4
TXF010 NMRV090 20 80C2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 80C2
TXF010 NMRV090 20 90L4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 90L4
TXF010 NMRV090 25 80C2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 80C2
TXF010 NMRV090 25 90L4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 90L4
TXF010 NMRV090 30 80C2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 80C2
TXF010 NMRV090 30 90L4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 90L4
TXF010 NMRV090 40 80C2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 80C2
TXF010 NMRV090 40 90L4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 90L4
TXF010 NMRV090 50 80C2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 80C2
TXF010 NMRV090 50 90L4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 90L4
TXF010 NMRV090 60 80C2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 80C2
TXF010 NMRV090 60 90L4 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 90L4
TXF010 NMRV090 7,5 90L2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 90L2
TXF010 NMRV090 10 90L2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 90L2
TXF010 NMRV090 15 90L2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 90L2
TXF010 NMRV090 20 90L2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 90L2
TXF010 NMRV090 25 90L2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 90L2
TXF010 NMRV090 30 90L2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 90L2
TXF010 NMRV090 40 90L2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 90L2
TXF010 NMRV090 50 90L2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 90L2
TXF010 NMRV090 60 90L2 Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 90L2
TXF010 NMRV105 25 80A4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 80A4
TXF010 NMRV105 25 80B6 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 80B6
TXF010 NMRV105 30 80A4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 80A4
TXF010 NMRV105 30 80B6 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 80B6
TXF010 NMRV105 40 80A4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 80A4
TXF010 NMRV105 40 80B6 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 80B6
TXF010 NMRV105 50 80A4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 80A4
TXF010 NMRV105 50 80B6 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 80B6
TXF010 NMRV105 60 80A4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 80A4
TXF010 NMRV105 60 80B6 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 80B6
TXF010 NMRV105 80 80A4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 80A4
TXF010 NMRV105 80 80B6 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 80B6
TXF010 NMRV105 100 80A4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 100 | Motor: 80A4
TXF010 NMRV105 100 80B6 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 100 | Motor: 80B6
TXF010 NMRV105 25 80B4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 80B4
TXF010 NMRV105 25 90S6 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 90S6
TXF010 NMRV105 30 80B4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 80B4
TXF010 NMRV105 30 90S6 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 90S6
TXF010 NMRV105 40 80B4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 80B4
TXF010 NMRV105 40 90S6 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 90S6
TXF010 NMRV105 50 80B4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 80B4
TXF010 NMRV105 50 90S6 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 90S6
TXF010 NMRV105 60 80B4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 80B4
TXF010 NMRV105 60 90S6 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 90S6
TXF010 NMRV105 80 80B4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 80B4
TXF010 NMRV105 80 90S6 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 90S6
TXF010 NMRV105 100 80B4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 100 | Motor: 80B4
TXF010 NMRV105 100 90S6 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 100 | Motor: 90S6
TXF010 NMRV105 25 80C4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 80C4
TXF010 NMRV105 30 80C4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 80C4
TXF010 NMRV105 40 80C4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 80C4
TXF010 NMRV105 50 80C4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 80C4
TXF010 NMRV105 60 80C4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 80C4
TXF010 NMRV105 80 80C4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 80C4
TXF010 NMRV105 100 80C4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 100 | Motor: 80C4
TXF010 NMRV105 25 80B2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 80B2
TXF010 NMRV105 25 90S4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 90S4
TXF010 NMRV105 30 80B2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 80B2
TXF010 NMRV105 30 90S4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 90S4
TXF010 NMRV105 40 80B2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 80B2
TXF010 NMRV105 40 90S4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 90S4
TXF010 NMRV105 50 80B2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 80B2
TXF010 NMRV105 50 90S4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 90S4
TXF010 NMRV105 60 80B2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 80B2
TXF010 NMRV105 60 90S4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 90S4
TXF010 NMRV105 80 80B2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 80B2
TXF010 NMRV105 80 90S4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 90S4
TXF010 NMRV105 100 90S4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 100 | Motor: 90S4
TXF010 NMRV105 25 80C2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 80C2
TXF010 NMRV105 25 90L4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 90L4
TXF010 NMRV105 30 80C2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 80C2
TXF010 NMRV105 30 90L4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 90L4
TXF010 NMRV105 40 80C2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 80C2
TXF010 NMRV105 40 90L4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 90L4
TXF010 NMRV105 50 80C2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 80C2
TXF010 NMRV105 50 90L4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 90L4
TXF010 NMRV105 60 80C2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 80C2
TXF010 NMRV105 60 90L4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 90L4
TXF010 NMRV105 80 80C2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 80C2
TXF010 NMRV105 80 90L4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 90L4
TXF010 NMRV105 100 90L4 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 100 | Motor: 90L4
TXF010 NMRV105 25 90L2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 90L2
TXF010 NMRV105 30 90L2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 90L2
TXF010 NMRV105 40 90L2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 90L2
TXF010 NMRV105 50 90L2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 90L2
TXF010 NMRV105 60 90L2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 90L2
TXF010 NMRV105 80 90L2 Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 90L2
TXF010 NMRV110 100 80B2 Legacy code (older edition) | Unit: TXF010 NMRV110 | Ratio i: 100 | Motor: 80B2
TXF010 NMRV110 100 80C2 Legacy code (older edition) | Unit: TXF010 NMRV110 | Ratio i: 100 | Motor: 80C2
TXF010 NMRV110 100 90L2 Legacy code (older edition) | Unit: TXF010 NMRV110 | Ratio i: 100 | Motor: 90L2
TXF010 NMRV130 80 80A4 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 80A4
TXF010 NMRV130 80 80B6 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 80B6
TXF010 NMRV130 100 80A4 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 80A4
TXF010 NMRV130 100 80B6 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 80B6
TXF010 NMRV130 80 80B4 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 80B4
TXF010 NMRV130 80 90S6 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 90S6
TXF010 NMRV130 100 80B4 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 80B4
TXF010 NMRV130 100 90S6 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 90S6
TXF010 NMRV130 80 80C4 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 80C4
TXF010 NMRV130 100 80C4 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 80C4
TXF010 NMRV130 80 80B2 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 80B2
TXF010 NMRV130 80 90S4 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 90S4
TXF010 NMRV130 100 80B2 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 80B2
TXF010 NMRV130 100 90S4 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 90S4
TXF010 NMRV130 80 80C2 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 80C2
TXF010 NMRV130 80 90L4 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 90L4
TXF010 NMRV130 100 80C2 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 80C2
TXF010 NMRV130 80 90L2 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 90L2
TXF010 NMRV130 100 90L2 Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 90L2
TXF002 NMRV030 Legacy code (older edition) | Unit: TXF002 NMRV030
TXF002 NMRV040 Legacy code (older edition) | Unit: TXF002 NMRV040
TXF002 NMRV050 Legacy code (older edition) | Unit: TXF002 NMRV050
TXF005 NMRV040 Legacy code (older edition) | Unit: TXF005 NMRV040
TXF005 NMRV050 Legacy code (older edition) | Unit: TXF005 NMRV050
TXF005 NMRV063 Legacy code (older edition) | Unit: TXF005 NMRV063
TXF005 NMRV075 Legacy code (older edition) | Unit: TXF005 NMRV075
TXF010 NMRV063 Legacy code (older edition) | Unit: TXF010 NMRV063
TXF010 NMRV075 Legacy code (older edition) | Unit: TXF010 NMRV075
TXF010 NMRV090 Legacy code (older edition) | Unit: TXF010 NMRV090
TXF010 NMRV105 Legacy code (older edition) | Unit: TXF010 NMRV105
TXF010 NMRV130 Legacy code (older edition) | Unit: TXF010 NMRV130
TXF010 NMRV110 Legacy code (older edition) | Unit: TXF010 NMRV110
Speed VariatorsMotovario
967 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Motovario TXF+NMRV Variator Worm Gearmotors (TXF002-010, 0.09-1.5 kW)

Brand Motovario·Speed Variators

Available part numbers (967)

TXF002+NMRV030 5,00 TS63A6, TXF002+NMRV030 7,50 TS63A6, TXF002+NMRV030 10,00 TS63A6, TXF002+NMRV030 15,00 TS63A6, TXF002+NMRV040 15,00 TS63A6, TXF002+NMRV040 20,00 TS63A6, TXF002+NMRV040 25,00 TS63A6, TXF002+NMRV040 30,00 TS63A6, TXF002+NMRV040 40,00 TS63A6, TXF002+NMRV050 40,00 TS63A6 + 957 more — see full table ↓

How to order

Send the Motovario part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TXF002+NMRV030 5,00 TS63A6Power P1: 0.09 kW | Ratio i: 5.00 | Output speed n2 (a-b): 113.0-22.0 rpm | Output torque M2 (a-b): 5-16 Nm | Service factor fs (a-b): 4.8-2.0 | Radial load Fr2: 807 N
TXF002+NMRV030 7,50 TS63A6Power P1: 0.09 kW | Ratio i: 7.50 | Output speed n2 (a-b): 75.0-15.0 rpm | Output torque M2 (a-b): 8-23 Nm | Service factor fs (a-b): 3.3-1.4 | Radial load Fr2: 924 N
TXF002+NMRV030 10,00 TS63A6Power P1: 0.09 kW | Ratio i: 10.00 | Output speed n2 (a-b): 57.0-11.0 rpm | Output torque M2 (a-b): 10-29 Nm | Service factor fs (a-b): 2.6-1.1 | Radial load Fr2: 1017 N
TXF002+NMRV030 15,00 TS63A6Power P1: 0.09 kW | Ratio i: 15.00 | Output speed n2 (a-b): 38.0-7.3 rpm | Output torque M2 (a-b): 13-40 Nm | Service factor fs (a-b): 1.9-0.8 | Radial load Fr2: 1164 N
TXF002+NMRV040 15,00 TS63A6Power P1: 0.09 kW | Ratio i: 15.00 | Output speed n2 (a-b): 38.0-7.3 rpm | Output torque M2 (a-b): 14-43 Nm | Service factor fs (a-b): 4.4-1.7 | Radial load Fr2: 2241 N
TXF002+NMRV040 20,00 TS63A6Power P1: 0.09 kW | Ratio i: 20.00 | Output speed n2 (a-b): 28.0-5.5 rpm | Output torque M2 (a-b): 18-54 Nm | Service factor fs (a-b): 3.2-1.2 | Radial load Fr2: 2467 N
TXF002+NMRV040 25,00 TS63A6Power P1: 0.09 kW | Ratio i: 25.00 | Output speed n2 (a-b): 23.0-4.4 rpm | Output torque M2 (a-b): 22-63 Nm | Service factor fs (a-b): 2.4-1.0 | Radial load Fr2: 2657 N
TXF002+NMRV040 30,00 TS63A6Power P1: 0.09 kW | Ratio i: 30.00 | Output speed n2 (a-b): 19.0-3.6 rpm | Output torque M2 (a-b): 24-68 Nm | Service factor fs (a-b): 2.6-1.1 | Radial load Fr2: 2824 N
TXF002+NMRV040 40,00 TS63A6Power P1: 0.09 kW | Ratio i: 40.00 | Output speed n2 (a-b): 14.0-2.7 rpm | Output torque M2 (a-b): 29-82 Nm | Service factor fs (a-b): 2.0-0.8 | Radial load Fr2: 3108 N
TXF002+NMRV050 40,00 TS63A6Power P1: 0.09 kW | Ratio i: 40.00 | Output speed n2 (a-b): 14.0-2.7 rpm | Output torque M2 (a-b): 29-83 Nm | Service factor fs (a-b): 3.6-1.5 | Radial load Fr2: 4266 N
TXF002+NMRV050 50,00 TS63A6Power P1: 0.09 kW | Ratio i: 50.00 | Output speed n2 (a-b): 11.0-2.2 rpm | Output torque M2 (a-b): 34-98 Nm | Service factor fs (a-b): 2.8-1.2 | Radial load Fr2: 4595 N
TXF002+NMRV050 60,00 TS63A6Power P1: 0.09 kW | Ratio i: 60.00 | Output speed n2 (a-b): 9.4-1.8 rpm | Output torque M2 (a-b): 38-108 Nm | Service factor fs (a-b): 2.3-1.0 | Radial load Fr2: 4840 N
TXF002+NMRV030 5,00 TH63A4Power P1: 0.12 kW | Ratio i: 5.00 | Output speed n2 (a-b): 176.0-34.0 rpm | Output torque M2 (a-b): 5-16 Nm | Service factor fs (a-b): 4.6-2.0 | Radial load Fr2: 697 N
TXF002+NMRV030 7,50 TH63A4Power P1: 0.12 kW | Ratio i: 7.50 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 7-23 Nm | Service factor fs (a-b): 3.1-1.4 | Radial load Fr2: 798 N
TXF002+NMRV030 5,00 TH63B6Power P1: 0.12 kW | Ratio i: 5.00 | Output speed n2 (a-b): 113.0-22.0 rpm | Output torque M2 (a-b): 7-16 Nm | Service factor fs (a-b): 3.6-2.0 | Radial load Fr2: 807 N
TXF002+NMRV030 10,00 TH63A4Power P1: 0.12 kW | Ratio i: 10.00 | Output speed n2 (a-b): 88.0-17.0 rpm | Output torque M2 (a-b): 9-29 Nm | Service factor fs (a-b): 2.4-1.1 | Radial load Fr2: 878 N
TXF002+NMRV030 7,50 TH63B6Power P1: 0.12 kW | Ratio i: 7.50 | Output speed n2 (a-b): 75.0-15.0 rpm | Output torque M2 (a-b): 10-23 Nm | Service factor fs (a-b): 2.5-1.4 | Radial load Fr2: 924 N
TXF002+NMRV030 15,00 TH63A4Power P1: 0.12 kW | Ratio i: 15.00 | Output speed n2 (a-b): 59.0-11.0 rpm | Output torque M2 (a-b): 12-40 Nm | Service factor fs (a-b): 1.7-0.8 | Radial load Fr2: 1005 N
TXF002+NMRV040 15,00 TH63A4Power P1: 0.12 kW | Ratio i: 15.00 | Output speed n2 (a-b): 59.0-11.0 rpm | Output torque M2 (a-b): 13-43 Nm | Service factor fs (a-b): 3.9-1.7 | Radial load Fr2: 1934 N
TXF002+NMRV030 10,00 TH63B6Power P1: 0.12 kW | Ratio i: 10.00 | Output speed n2 (a-b): 57.0-11.0 rpm | Output torque M2 (a-b): 13-29 Nm | Service factor fs (a-b): 2.0-1.1 | Radial load Fr2: 1017 N
TXF002+NMRV040 10,00 TH63B6Power P1: 0.12 kW | Ratio i: 10.00 | Output speed n2 (a-b): 57.0-11.0 rpm | Output torque M2 (a-b): 13-30 Nm | Service factor fs (a-b): 4.4-2.4 | Radial load Fr2: 1958 N
TXF002+NMRV040 20,00 TH63A4Power P1: 0.12 kW | Ratio i: 20.00 | Output speed n2 (a-b): 44.0-8.5 rpm | Output torque M2 (a-b): 16-54 Nm | Service factor fs (a-b): 2.9-1.2 | Radial load Fr2: 2129 N
TXF002+NMRV030 15,00 TH63B6Power P1: 0.12 kW | Ratio i: 15.00 | Output speed n2 (a-b): 38.0-7.3 rpm | Output torque M2 (a-b): 18-40 Nm | Service factor fs (a-b): 1.4-0.8 | Radial load Fr2: 1164 N
TXF002+NMRV040 15,00 TH63B6Power P1: 0.12 kW | Ratio i: 15.00 | Output speed n2 (a-b): 38.0-7.3 rpm | Output torque M2 (a-b): 19-43 Nm | Service factor fs (a-b): 3.3-1.7 | Radial load Fr2: 2241 N
TXF002+NMRV040 25,00 TH63A4Power P1: 0.12 kW | Ratio i: 25.00 | Output speed n2 (a-b): 35.0-6.8 rpm | Output torque M2 (a-b): 20-63 Nm | Service factor fs (a-b): 2.3-1.0 | Radial load Fr2: 2293 N
TXF002+NMRV040 30,00 TH63A4Power P1: 0.12 kW | Ratio i: 30.00 | Output speed n2 (a-b): 29.0-5.7 rpm | Output torque M2 (a-b): 22-68 Nm | Service factor fs (a-b): 2.4-1.1 | Radial load Fr2: 2437 N
TXF002+NMRV040 20,00 TH63B6Power P1: 0.12 kW | Ratio i: 20.00 | Output speed n2 (a-b): 28.0-5.5 rpm | Output torque M2 (a-b): 24-54 Nm | Service factor fs (a-b): 2.4-1.2 | Radial load Fr2: 2467 N
TXF002+NMRV040 25,00 TH63B6Power P1: 0.12 kW | Ratio i: 25.00 | Output speed n2 (a-b): 23.0-4.4 rpm | Output torque M2 (a-b): 29-63 Nm | Service factor fs (a-b): 1.8-1.0 | Radial load Fr2: 2657 N
TXF002+NMRV040 40,00 TH63A4Power P1: 0.12 kW | Ratio i: 40.00 | Output speed n2 (a-b): 22.0-4.3 rpm | Output torque M2 (a-b): 27-82 Nm | Service factor fs (a-b): 1.8-0.8 | Radial load Fr2: 2682 N
TXF002+NMRV050 40,00 TH63A4Power P1: 0.12 kW | Ratio i: 40.00 | Output speed n2 (a-b): 22.0-4.3 rpm | Output torque M2 (a-b): 28-83 Nm | Service factor fs (a-b): 3.2-1.5 | Radial load Fr2: 3681 N
TXF002+NMRV040 30,00 TH63B6Power P1: 0.12 kW | Ratio i: 30.00 | Output speed n2 (a-b): 19.0-3.6 rpm | Output torque M2 (a-b): 31-68 Nm | Service factor fs (a-b): 2.0-1.1 | Radial load Fr2: 2824 N
TXF002+NMRV050 50,00 TH63A4Power P1: 0.12 kW | Ratio i: 50.00 | Output speed n2 (a-b): 18.0-3.4 rpm | Output torque M2 (a-b): 32-98 Nm | Service factor fs (a-b): 2.5-1.2 | Radial load Fr2: 3966 N
TXF002+NMRV050 60,00 TH63A4Power P1: 0.12 kW | Ratio i: 60.00 | Output speed n2 (a-b): 15.0-2.8 rpm | Output torque M2 (a-b): 36-108 Nm | Service factor fs (a-b): 2.1-1.0 | Radial load Fr2: 4214 N
TXF002+NMRV040 40,00 TH63B6Power P1: 0.12 kW | Ratio i: 40.00 | Output speed n2 (a-b): 14.0-2.7 rpm | Output torque M2 (a-b): 39-82 Nm | Service factor fs (a-b): 1.5-0.8 | Radial load Fr2: 3108 N
TXF002+NMRV050 40,00 TH63B6Power P1: 0.12 kW | Ratio i: 40.00 | Output speed n2 (a-b): 14.0-2.7 rpm | Output torque M2 (a-b): 39-83 Nm | Service factor fs (a-b): 2.7-1.5 | Radial load Fr2: 4266 N
TXF002+NMRV050 50,00 TH63B6Power P1: 0.12 kW | Ratio i: 50.00 | Output speed n2 (a-b): 11.0-2.2 rpm | Output torque M2 (a-b): 46-98 Nm | Service factor fs (a-b): 2.1-1.2 | Radial load Fr2: 4595 N
TXF002+NMRV050 60,00 TH63B6Power P1: 0.12 kW | Ratio i: 60.00 | Output speed n2 (a-b): 9.4-1.8 rpm | Output torque M2 (a-b): 51-108 Nm | Service factor fs (a-b): 1.7-1.0 | Radial load Fr2: 4840 N
TXF002+NMRV030 5,00 TH63B4Power P1: 0.18 kW | Ratio i: 5.00 | Output speed n2 (a-b): 176.0-34.0 rpm | Output torque M2 (a-b): 7-16 Nm | Service factor fs (a-b): 3.1-2.0 | Radial load Fr2: 697 N
TXF002+NMRV030 7,50 TH63B4Power P1: 0.18 kW | Ratio i: 7.50 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 10-23 Nm | Service factor fs (a-b): 2.1-1.4 | Radial load Fr2: 798 N
TXF002+NMRV040 7,50 TH63B4Power P1: 0.18 kW | Ratio i: 7.50 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 10-23 Nm | Service factor fs (a-b): 4.5-3.1 | Radial load Fr2: 1535 N
TXF002+NMRV030 10,00 TH63B4Power P1: 0.18 kW | Ratio i: 10.00 | Output speed n2 (a-b): 88.0-17.0 rpm | Output torque M2 (a-b): 13-29 Nm | Service factor fs (a-b): 1.6-1.1 | Radial load Fr2: 878 N
TXF002+NMRV040 10,00 TH63B4Power P1: 0.18 kW | Ratio i: 10.00 | Output speed n2 (a-b): 88.0-17.0 rpm | Output torque M2 (a-b): 13-30 Nm | Service factor fs (a-b): 3.6-2.4 | Radial load Fr2: 1690 N
TXF005+NMRV040 7,50 TH71A6Power P1: 0.18 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-15.0 rpm | Output torque M2 (a-b): 14-35 Nm | Service factor fs (a-b): 4.1-2.1 | Radial load Fr2: 1705 N
TXF005+NMRV040 10,00 TH71A6Power P1: 0.18 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 18-45 Nm | Service factor fs (a-b): 3.3-1.6 | Radial load Fr2: 1876 N
TXF002+NMRV030 15,00 TH63B4Power P1: 0.18 kW | Ratio i: 15.00 | Output speed n2 (a-b): 59.0-11.0 rpm | Output torque M2 (a-b): 18-40 Nm | Service factor fs (a-b): 1.2-0.8 | Radial load Fr2: 1005 N
TXF002+NMRV040 15,00 TH63B4Power P1: 0.18 kW | Ratio i: 15.00 | Output speed n2 (a-b): 59.0-11.0 rpm | Output torque M2 (a-b): 19-43 Nm | Service factor fs (a-b): 2.6-1.7 | Radial load Fr2: 1934 N
TXF002+NMRV040 20,00 TH63B4Power P1: 0.18 kW | Ratio i: 20.00 | Output speed n2 (a-b): 44.0-8.5 rpm | Output torque M2 (a-b): 25-54 Nm | Service factor fs (a-b): 2.0-1.2 | Radial load Fr2: 2129 N
TXF005+NMRV040 15,00 TH71A6Power P1: 0.18 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 25-64 Nm | Service factor fs (a-b): 2.5-1.1 | Radial load Fr2: 2148 N
TXF005+NMRV050 15,00 TH71A6Power P1: 0.18 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 25-64 Nm | Service factor fs (a-b): 4.5-2.1 | Radial load Fr2: 2948 N
TXF002+NMRV040 25,00 TH63B4Power P1: 0.18 kW | Ratio i: 25.00 | Output speed n2 (a-b): 35.0-6.8 rpm | Output torque M2 (a-b): 30-63 Nm | Service factor fs (a-b): 1.5-1.0 | Radial load Fr2: 2293 N
TXF005+NMRV040 20,00 TH71A6Power P1: 0.18 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 32-80 Nm | Service factor fs (a-b): 1.8-0.8 | Radial load Fr2: 2364 N
TXF005+NMRV050 20,00 TH71A6Power P1: 0.18 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 32-80 Nm | Service factor fs (a-b): 3.1-1.5 | Radial load Fr2: 3244 N
TXF002+NMRV040 30,00 TH63B4Power P1: 0.18 kW | Ratio i: 30.00 | Output speed n2 (a-b): 29.0-5.7 rpm | Output torque M2 (a-b): 33-68 Nm | Service factor fs (a-b): 1.6-1.1 | Radial load Fr2: 2437 N
TXF005+NMRV-P063 25,00 TH71A6Power P1: 0.18 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 39-98 Nm | Service factor fs (a-b): 4.5-2.4 | Radial load Fr2: 4568 N
TXF005+NMRV050 25,00 TH71A6Power P1: 0.18 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 38-95 Nm | Service factor fs (a-b): 2.4-1.2 | Radial load Fr2: 3495 N
TXF002+NMRV040 40,00 TH63B4Power P1: 0.18 kW | Ratio i: 40.00 | Output speed n2 (a-b): 22.0-4.3 rpm | Output torque M2 (a-b): 41-82 Nm | Service factor fs (a-b): 1.2-0.8 | Radial load Fr2: 2682 N
TXF002+NMRV050 40,00 TH63B4Power P1: 0.18 kW | Ratio i: 40.00 | Output speed n2 (a-b): 22.0-4.3 rpm | Output torque M2 (a-b): 41-83 Nm | Service factor fs (a-b): 2.1-1.5 | Radial load Fr2: 3681 N
TXF005+NMRV-P063 30,00 TH71A6Power P1: 0.18 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 43-107 Nm | Service factor fs (a-b): 4.9-2.7 | Radial load Fr2: 4854 N
TXF005+NMRV040 30,00 TH71A6Power P1: 0.18 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 42-103 Nm | Service factor fs (a-b): 1.5-0.7 | Radial load Fr2: 2706 N
TXF005+NMRV050 30,00 TH71A6Power P1: 0.18 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 42-104 Nm | Service factor fs (a-b): 2.7-1.4 | Radial load Fr2: 3714 N
TXF002+NMRV050 50,00 TH63B4Power P1: 0.18 kW | Ratio i: 50.00 | Output speed n2 (a-b): 18.0-3.4 rpm | Output torque M2 (a-b): 49-98 Nm | Service factor fs (a-b): 1.7-1.2 | Radial load Fr2: 3966 N
TXF005+NMRV-P063 40,00 TH71A6Power P1: 0.18 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 54-130 Nm | Service factor fs (a-b): 3.8-2.0 | Radial load Fr2: 5343 N
TXF005+NMRV050 40,00 TH71A6Power P1: 0.18 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 52-125 Nm | Service factor fs (a-b): 2.0-1.0 | Radial load Fr2: 4088 N
TXF002+NMRV050 60,00 TH63B4Power P1: 0.18 kW | Ratio i: 60.00 | Output speed n2 (a-b): 15.0-2.8 rpm | Output torque M2 (a-b): 54-108 Nm | Service factor fs (a-b): 1.4-1.0 | Radial load Fr2: 4214 N
TXF005+NMRV-P063 50,00 TH71A6Power P1: 0.18 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 62-151 Nm | Service factor fs (a-b): 3.1-1.6 | Radial load Fr2: 5756 N
TXF005+NMRV-P075 50,00 TH71A6Power P1: 0.18 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 65-156 Nm | Service factor fs (a-b): 4.8-2.4 | Radial load Fr2: 6793 N
TXF005+NMRV050 50,00 TH71A6Power P1: 0.18 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 61-147 Nm | Service factor fs (a-b): 1.6-0.8 | Radial load Fr2: 4403 N
TXF005+NMRV-P063 60,00 TH71A6Power P1: 0.18 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 70-166 Nm | Service factor fs (a-b): 2.6-1.3 | Radial load Fr2: 6116 N
TXF005+NMRV-P075 60,00 TH71A6Power P1: 0.18 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 74-176 Nm | Service factor fs (a-b): 4.0-2.0 | Radial load Fr2: 7219 N
TXF005+NMRV-P063 80,00 TH71A6Power P1: 0.18 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 84-192 Nm | Service factor fs (a-b): 1.8-0.9 | Radial load Fr2: 6270 N
TXF005+NMRV-P075 80,00 TH71A6Power P1: 0.18 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 87-208 Nm | Service factor fs (a-b): 2.8-1.4 | Radial load Fr2: 7380 N
TXF005+NMRV-P063 100,00 TH71A6Power P1: 0.18 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 94-210 Nm | Service factor fs (a-b): 1.4-0.7 | Radial load Fr2: 6270 N
TXF005+NMRV-P075 100,00 TH71A6Power P1: 0.18 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 100-228 Nm | Service factor fs (a-b): 2.1-1.0 | Radial load Fr2: 7380 N
TXF002+NMRV030 5,00 TH63B2Power P1: 0.25 kW | Ratio i: 5.00 | Output speed n2 (a-b): 352.0-68.0 rpm | Output torque M2 (a-b): 5-16 Nm | Service factor fs (a-b): 3.6-2.0 | Radial load Fr2: 553 N
TXF002+NMRV030 7,50 TH63B2Power P1: 0.25 kW | Ratio i: 7.50 | Output speed n2 (a-b): 235.0-45.0 rpm | Output torque M2 (a-b): 7-23 Nm | Service factor fs (a-b): 2.5-1.4 | Radial load Fr2: 633 N
TXF005+NMRV040 5,00 TH71A4Power P1: 0.25 kW | Ratio i: 5.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 9-24 Nm | Service factor fs (a-b): 4.9-2.8 | Radial load Fr2: 1285 N
TXF002+NMRV030 5,00 TH63D4Power P1: 0.25 kW | Ratio i: 5.00 | Output speed n2 (a-b): 176.0-34.0 rpm | Output torque M2 (a-b): 10-16 Nm | Service factor fs (a-b): 2.2-2.0 | Radial load Fr2: 697 N
TXF002+NMRV030 10,00 TH63B2Power P1: 0.25 kW | Ratio i: 10.00 | Output speed n2 (a-b): 176.0-34.0 rpm | Output torque M2 (a-b): 10-30 Nm | Service factor fs (a-b): 1.9-1.1 | Radial load Fr2: 697 N
TXF002+NMRV040 5,00 TH63D4Power P1: 0.25 kW | Ratio i: 5.00 | Output speed n2 (a-b): 176.0-34.0 rpm | Output torque M2 (a-b): 10-16 Nm | Service factor fs (a-b): 4.3-4.2 | Radial load Fr2: 1341 N
TXF002+NMRV040 10,00 TH63B2Power P1: 0.25 kW | Ratio i: 10.00 | Output speed n2 (a-b): 176.0-34.0 rpm | Output torque M2 (a-b): 10-31 Nm | Service factor fs (a-b): 4.3-2.3 | Radial load Fr2: 1341 N
TXF005+NMRV040 7,50 TH71A4Power P1: 0.25 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 13-35 Nm | Service factor fs (a-b): 3.6-2.1 | Radial load Fr2: 1471 N
TXF005+NMRV040 5,00 TH71B6Power P1: 0.25 kW | Ratio i: 5.00 | Output speed n2 (a-b): 129.0-22.0 rpm | Output torque M2 (a-b): 13-24 Nm | Service factor fs (a-b): 4.0-2.8 | Radial load Fr2: 1489 N
TXF002+NMRV030 7,50 TH63D4Power P1: 0.25 kW | Ratio i: 7.50 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 14-23 Nm | Service factor fs (a-b): 1.5-1.4 | Radial load Fr2: 798 N
TXF002+NMRV030 15,00 TH63B2Power P1: 0.25 kW | Ratio i: 15.00 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 13-41 Nm | Service factor fs (a-b): 1.3-0.7 | Radial load Fr2: 798 N
TXF002+NMRV040 7,50 TH63D4Power P1: 0.25 kW | Ratio i: 7.50 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 14-23 Nm | Service factor fs (a-b): 3.2-3.1 | Radial load Fr2: 1535 N
TXF002+NMRV040 15,00 TH63B2Power P1: 0.25 kW | Ratio i: 15.00 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 14-44 Nm | Service factor fs (a-b): 2.9-1.6 | Radial load Fr2: 1535 N
TXF005+NMRV040 10,00 TH71A4Power P1: 0.25 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 17-45 Nm | Service factor fs (a-b): 2.9-1.6 | Radial load Fr2: 1619 N
TXF002+NMRV030 10,00 TH63D4Power P1: 0.25 kW | Ratio i: 10.00 | Output speed n2 (a-b): 88.0-17.0 rpm | Output torque M2 (a-b): 18-29 Nm | Service factor fs (a-b): 1.2-1.1 | Radial load Fr2: 878 N
TXF002+NMRV040 10,00 TH63D4Power P1: 0.25 kW | Ratio i: 10.00 | Output speed n2 (a-b): 88.0-17.0 rpm | Output torque M2 (a-b): 19-30 Nm | Service factor fs (a-b): 2.6-2.4 | Radial load Fr2: 1690 N
TXF002+NMRV040 20,00 TH63B2Power P1: 0.25 kW | Ratio i: 20.00 | Output speed n2 (a-b): 88.0-17.0 rpm | Output torque M2 (a-b): 18-55 Nm | Service factor fs (a-b): 2.3-1.2 | Radial load Fr2: 1690 N
TXF005+NMRV040 7,50 TH71B6Power P1: 0.25 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-15.0 rpm | Output torque M2 (a-b): 19-35 Nm | Service factor fs (a-b): 3.0-2.1 | Radial load Fr2: 1705 N
TXF002+NMRV040 25,00 TH63B2Power P1: 0.25 kW | Ratio i: 25.00 | Output speed n2 (a-b): 70.0-14.0 rpm | Output torque M2 (a-b): 22-65 Nm | Service factor fs (a-b): 1.7-0.9 | Radial load Fr2: 1820 N
TXF005+NMRV040 15,00 TH71A4Power P1: 0.25 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 24-64 Nm | Service factor fs (a-b): 2.1-1.1 | Radial load Fr2: 1853 N
TXF005+NMRV050 15,00 TH71A4Power P1: 0.25 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 24-64 Nm | Service factor fs (a-b): 3.9-2.1 | Radial load Fr2: 2544 N
TXF005+NMRV040 10,00 TH71B6Power P1: 0.25 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 24-45 Nm | Service factor fs (a-b): 2.4-1.6 | Radial load Fr2: 1876 N
TXF005+NMRV050 10,00 TH71B6Power P1: 0.25 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 25-46 Nm | Service factor fs (a-b): 4.6-3.0 | Radial load Fr2: 2575 N
TXF002+NMRV030 15,00 TH63D4Power P1: 0.25 kW | Ratio i: 15.00 | Output speed n2 (a-b): 59.0-11.0 rpm | Output torque M2 (a-b): 25-40 Nm | Service factor fs (a-b): 0.8-0.8 | Radial load Fr2: 1005 N
TXF002+NMRV040 15,00 TH63D4Power P1: 0.25 kW | Ratio i: 15.00 | Output speed n2 (a-b): 59.0-11.0 rpm | Output torque M2 (a-b): 27-43 Nm | Service factor fs (a-b): 1.9-1.7 | Radial load Fr2: 1934 N
TXF002+NMRV040 30,00 TH63B2Power P1: 0.25 kW | Ratio i: 30.00 | Output speed n2 (a-b): 59.0-11.0 rpm | Output torque M2 (a-b): 24-71 Nm | Service factor fs (a-b): 1.9-1.0 | Radial load Fr2: 1934 N
TXF005+NMRV040 20,00 TH71A4Power P1: 0.25 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 30-80 Nm | Service factor fs (a-b): 1.6-0.8 | Radial load Fr2: 2040 N
TXF005+NMRV050 20,00 TH71A4Power P1: 0.25 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 31-80 Nm | Service factor fs (a-b): 2.7-1.5 | Radial load Fr2: 2800 N
TXF002+NMRV040 20,00 TH63D4Power P1: 0.25 kW | Ratio i: 20.00 | Output speed n2 (a-b): 44.0-8.5 rpm | Output torque M2 (a-b): 34-54 Nm | Service factor fs (a-b): 1.4-1.2 | Radial load Fr2: 2129 N
TXF002+NMRV040 40,00 TH63B2Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 44.0-8.5 rpm | Output torque M2 (a-b): 30-85 Nm | Service factor fs (a-b): 1.4-0.8 | Radial load Fr2: 2129 N
TXF002+NMRV050 40,00 TH63B2Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 44.0-8.5 rpm | Output torque M2 (a-b): 31-86 Nm | Service factor fs (a-b): 2.5-1.4 | Radial load Fr2: 2922 N
TXF005+NMRV040 15,00 TH71B6Power P1: 0.25 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 34-64 Nm | Service factor fs (a-b): 1.8-1.1 | Radial load Fr2: 2148 N
TXF005+NMRV050 15,00 TH71B6Power P1: 0.25 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 35-64 Nm | Service factor fs (a-b): 3.2-2.1 | Radial load Fr2: 2948 N
TXF005+NMRV-P063 25,00 TH71A4Power P1: 0.25 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 38-98 Nm | Service factor fs (a-b): 3.9-2.4 | Radial load Fr2: 3943 N
TXF005+NMRV050 25,00 TH71A4Power P1: 0.25 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 37-95 Nm | Service factor fs (a-b): 2.1-1.2 | Radial load Fr2: 3016 N
TXF002+NMRV040 25,00 TH63D4Power P1: 0.25 kW | Ratio i: 25.00 | Output speed n2 (a-b): 35.0-6.8 rpm | Output torque M2 (a-b): 41-63 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 2293 N
TXF002+NMRV050 50,00 TH63B2Power P1: 0.25 kW | Ratio i: 50.00 | Output speed n2 (a-b): 35.0-6.8 rpm | Output torque M2 (a-b): 37-100 Nm | Service factor fs (a-b): 2.0-1.2 | Radial load Fr2: 3148 N
TXF005+NMRV-P063 30,00 TH71A4Power P1: 0.25 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 42-107 Nm | Service factor fs (a-b): 4.2-2.7 | Radial load Fr2: 4190 N
TXF005+NMRV040 30,00 TH71A4Power P1: 0.25 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 40-103 Nm | Service factor fs (a-b): 1.3-0.7 | Radial load Fr2: 2335 N
TXF005+NMRV050 30,00 TH71A4Power P1: 0.25 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 41-104 Nm | Service factor fs (a-b): 2.3-1.4 | Radial load Fr2: 3205 N
TXF005+NMRV-P063 20,00 TH71B6Power P1: 0.25 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 45-82 Nm | Service factor fs (a-b): 4.3-3.1 | Radial load Fr2: 4241 N
TXF005+NMRV040 20,00 TH71B6Power P1: 0.25 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 44-80 Nm | Service factor fs (a-b): 1.3-0.8 | Radial load Fr2: 2364 N
TXF005+NMRV050 20,00 TH71B6Power P1: 0.25 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 45-80 Nm | Service factor fs (a-b): 2.2-1.5 | Radial load Fr2: 3244 N
TXF002+NMRV040 30,00 TH63D4Power P1: 0.25 kW | Ratio i: 30.00 | Output speed n2 (a-b): 29.0-5.7 rpm | Output torque M2 (a-b): 45-68 Nm | Service factor fs (a-b): 1.2-1.1 | Radial load Fr2: 2437 N
TXF002+NMRV050 60,00 TH63B2Power P1: 0.25 kW | Ratio i: 60.00 | Output speed n2 (a-b): 29.0-5.7 rpm | Output torque M2 (a-b): 41-110 Nm | Service factor fs (a-b): 1.7-1.0 | Radial load Fr2: 3345 N
TXF005+NMRV-P063 25,00 TH71B6Power P1: 0.25 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 54-98 Nm | Service factor fs (a-b): 3.3-2.4 | Radial load Fr2: 4568 N
TXF005+NMRV050 25,00 TH71B6Power P1: 0.25 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 53-95 Nm | Service factor fs (a-b): 1.7-1.2 | Radial load Fr2: 3495 N
TXF005+NMRV-P063 40,00 TH71A4Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 53-130 Nm | Service factor fs (a-b): 3.3-2.0 | Radial load Fr2: 4611 N
TXF005+NMRV050 40,00 TH71A4Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 51-125 Nm | Service factor fs (a-b): 1.7-1.0 | Radial load Fr2: 3528 N
TXF002+NMRV040 40,00 TH63D4Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 22.0-4.3 rpm | Output torque M2 (a-b): 57-82 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 2682 N
TXF002+NMRV050 40,00 TH63D4Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 22.0-4.3 rpm | Output torque M2 (a-b): 58-83 Nm | Service factor fs (a-b): 1.5-1.5 | Radial load Fr2: 3681 N
TXF005+NMRV-P063 30,00 TH71B6Power P1: 0.25 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 60-107 Nm | Service factor fs (a-b): 3.6-2.7 | Radial load Fr2: 4854 N
TXF005+NMRV040 30,00 TH71B6Power P1: 0.25 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 58-103 Nm | Service factor fs (a-b): 1.1-0.7 | Radial load Fr2: 2706 N
TXF005+NMRV050 30,00 TH71B6Power P1: 0.25 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 59-104 Nm | Service factor fs (a-b): 1.9-1.4 | Radial load Fr2: 3714 N
TXF005+NMRV-P063 50,00 TH71A4Power P1: 0.25 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 62-151 Nm | Service factor fs (a-b): 2.6-1.6 | Radial load Fr2: 4967 N
TXF005+NMRV-P075 50,00 TH71A4Power P1: 0.25 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 64-156 Nm | Service factor fs (a-b): 4.0-2.4 | Radial load Fr2: 5863 N
TXF005+NMRV050 50,00 TH71A4Power P1: 0.25 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 60-147 Nm | Service factor fs (a-b): 1.4-0.8 | Radial load Fr2: 3800 N
TXF005+NMRV-P063 60,00 TH71A4Power P1: 0.25 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 70-166 Nm | Service factor fs (a-b): 2.2-1.3 | Radial load Fr2: 5279 N
TXF005+NMRV-P075 60,00 TH71A4Power P1: 0.25 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 74-176 Nm | Service factor fs (a-b): 3.3-2.0 | Radial load Fr2: 6231 N
TXF005+NMRV-P063 40,00 TH71B6Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 75-130 Nm | Service factor fs (a-b): 2.8-2.0 | Radial load Fr2: 5343 N
TXF005+NMRV-P075 40,00 TH71B6Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 77-138 Nm | Service factor fs (a-b): 4.4-3.0 | Radial load Fr2: 6307 N
TXF005+NMRV050 40,00 TH71B6Power P1: 0.25 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 72-125 Nm | Service factor fs (a-b): 1.4-1.0 | Radial load Fr2: 4088 N
TXF002+NMRV050 60,00 TH63D4Power P1: 0.25 kW | Ratio i: 60.00 | Output speed n2 (a-b): 15.0-2.8 rpm | Output torque M2 (a-b): 76-108 Nm | Service factor fs (a-b): 1.0-1.0 | Radial load Fr2: 4214 N
TXF005+NMRV-P063 50,00 TH71B6Power P1: 0.25 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 86-151 Nm | Service factor fs (a-b): 2.3-1.6 | Radial load Fr2: 5756 N
TXF005+NMRV-P075 50,00 TH71B6Power P1: 0.25 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 91-156 Nm | Service factor fs (a-b): 3.5-2.4 | Radial load Fr2: 6793 N
TXF005+NMRV050 50,00 TH71B6Power P1: 0.25 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 85-147 Nm | Service factor fs (a-b): 1.1-0.8 | Radial load Fr2: 4403 N
TXF005+NMRV-P063 80,00 TH71A4Power P1: 0.25 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 84-192 Nm | Service factor fs (a-b): 1.6-0.9 | Radial load Fr2: 5810 N
TXF005+NMRV-P075 80,00 TH71A4Power P1: 0.25 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 89-208 Nm | Service factor fs (a-b): 2.5-1.4 | Radial load Fr2: 6858 N
TXF005+NMRV-P063 60,00 TH71B6Power P1: 0.25 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 98-166 Nm | Service factor fs (a-b): 1.8-1.3 | Radial load Fr2: 6116 N
TXF005+NMRV-P075 60,00 TH71B6Power P1: 0.25 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 103-176 Nm | Service factor fs (a-b): 2.9-2.0 | Radial load Fr2: 7219 N
TXF005+NMRV-P063 100,00 TH71A4Power P1: 0.25 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 95-210 Nm | Service factor fs (a-b): 1.3-0.7 | Radial load Fr2: 6259 N
TXF005+NMRV-P075 100,00 TH71A4Power P1: 0.25 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 101-228 Nm | Service factor fs (a-b): 1.9-1.0 | Radial load Fr2: 7380 N
TXF005+NMRV-P063 80,00 TH71B6Power P1: 0.25 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 116-192 Nm | Service factor fs (a-b): 1.3-0.9 | Radial load Fr2: 6270 N
TXF005+NMRV-P075 80,00 TH71B6Power P1: 0.25 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 121-208 Nm | Service factor fs (a-b): 2.0-1.4 | Radial load Fr2: 7380 N
TXF005+NMRV-P063 100,00 TH71B6Power P1: 0.25 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 130-210 Nm | Service factor fs (a-b): 1.0-0.7 | Radial load Fr2: 6270 N
TXF005+NMRV-P075 100,00 TH71B6Power P1: 0.25 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 139-228 Nm | Service factor fs (a-b): 1.5-1.0 | Radial load Fr2: 7380 N
TXF002+NMRV030 5,00 TH63C2Power P1: 0.37 kW | Ratio i: 5.00 | Output speed n2 (a-b): 352.0-68.0 rpm | Output torque M2 (a-b): 7-16 Nm | Service factor fs (a-b): 2.5-2.0 | Radial load Fr2: 553 N
TXF002+NMRV040 5,00 TH63C2Power P1: 0.37 kW | Ratio i: 5.00 | Output speed n2 (a-b): 352.0-68.0 rpm | Output torque M2 (a-b): 8-17 Nm | Service factor fs (a-b): 4.5-4.1 | Radial load Fr2: 1064 N
TXF005+NMRV040 7,50 TH71A2Power P1: 0.37 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-45.0 rpm | Output torque M2 (a-b): 10-36 Nm | Service factor fs (a-b): 4.1-2.0 | Radial load Fr2: 1168 N
TXF002+NMRV030 7,50 TH63C2Power P1: 0.37 kW | Ratio i: 7.50 | Output speed n2 (a-b): 235.0-45.0 rpm | Output torque M2 (a-b): 11-23 Nm | Service factor fs (a-b): 1.7-1.4 | Radial load Fr2: 633 N
TXF002+NMRV040 7,50 TH63C2Power P1: 0.37 kW | Ratio i: 7.50 | Output speed n2 (a-b): 235.0-45.0 rpm | Output torque M2 (a-b): 11-24 Nm | Service factor fs (a-b): 3.6-3.0 | Radial load Fr2: 1218 N
TXF005+NMRV040 5,00 TH71B4Power P1: 0.37 kW | Ratio i: 5.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 13-24 Nm | Service factor fs (a-b): 3.3-2.8 | Radial load Fr2: 1285 N
TXF005+NMRV040 10,00 TH71A2Power P1: 0.37 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 13-46 Nm | Service factor fs (a-b): 3.3-1.5 | Radial load Fr2: 1285 N
TXF002+NMRV030 10,00 TH63C2Power P1: 0.37 kW | Ratio i: 10.00 | Output speed n2 (a-b): 176.0-34.0 rpm | Output torque M2 (a-b): 14-30 Nm | Service factor fs (a-b): 1.3-1.1 | Radial load Fr2: 697 N
TXF002+NMRV040 10,00 TH63C2Power P1: 0.37 kW | Ratio i: 10.00 | Output speed n2 (a-b): 176.0-34.0 rpm | Output torque M2 (a-b): 14-31 Nm | Service factor fs (a-b): 2.9-2.3 | Radial load Fr2: 1341 N
TXF005+NMRV040 7,50 TH71B4Power P1: 0.37 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 19-35 Nm | Service factor fs (a-b): 2.5-2.1 | Radial load Fr2: 1471 N
TXF005+NMRV040 15,00 TH71A2Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 19-66 Nm | Service factor fs (a-b): 2.2-1.1 | Radial load Fr2: 1471 N
TXF005+NMRV050 7,50 TH71B4Power P1: 0.37 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 19-36 Nm | Service factor fs (a-b): 4.8-3.9 | Radial load Fr2: 2019 N
TXF005+NMRV050 15,00 TH71A2Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 19-66 Nm | Service factor fs (a-b): 4.1-2.1 | Radial load Fr2: 2019 N
TXF002+NMRV030 15,00 TH63C2Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 20-41 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 798 N
TXF002+NMRV040 15,00 TH63C2Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 117.0-23.0 rpm | Output torque M2 (a-b): 21-44 Nm | Service factor fs (a-b): 2.0-1.6 | Radial load Fr2: 1535 N
TXF005+NMRV040 10,00 TH71B4Power P1: 0.37 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 24-45 Nm | Service factor fs (a-b): 2.0-1.6 | Radial load Fr2: 1619 N
TXF005+NMRV040 20,00 TH71A2Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 24-83 Nm | Service factor fs (a-b): 1.7-0.8 | Radial load Fr2: 1619 N
TXF005+NMRV050 10,00 TH71B4Power P1: 0.37 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 25-46 Nm | Service factor fs (a-b): 3.7-3.0 | Radial load Fr2: 2222 N
TXF005+NMRV050 20,00 TH71A2Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 24-83 Nm | Service factor fs (a-b): 3.1-1.4 | Radial load Fr2: 2222 N
TXF002+NMRV040 20,00 TH63C2Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 88.0-17.0 rpm | Output torque M2 (a-b): 27-55 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 1690 N
TXF005+NMRV050 7,50 TH71C6/80A6Power P1: 0.37 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-15.0 rpm | Output torque M2 (a-b): 28-36 Nm | Service factor fs (a-b): 4.0-3.9 | Radial load Fr2: 2340 N
TXF010+NMRV050 7,50 TH80A6Power P1: 0.37 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-15.0 rpm | Output torque M2 (a-b): 28-71 Nm | Service factor fs (a-b): 4.0-2.0 | Radial load Fr2: 2340 N
TXF005+NMRV-P063 25,00 TH71A2Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 30-101 Nm | Service factor fs (a-b): 4.3-2.3 | Radial load Fr2: 3129 N
TXF005+NMRV050 25,00 TH71A2Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 29-98 Nm | Service factor fs (a-b): 2.3-1.1 | Radial load Fr2: 2394 N
TXF002+NMRV040 25,00 TH63C2Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 70.0-14.0 rpm | Output torque M2 (a-b): 32-65 Nm | Service factor fs (a-b): 1.2-0.9 | Radial load Fr2: 1820 N
TXF005+NMRV-P063 15,00 TH71B4Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 36-65 Nm | Service factor fs (a-b): 4.7-4.2 | Radial load Fr2: 3325 N
TXF005+NMRV-P063 30,00 TH71A2Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 34-110 Nm | Service factor fs (a-b): 4.5-2.5 | Radial load Fr2: 3325 N
TXF005+NMRV040 15,00 TH71B4Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 35-64 Nm | Service factor fs (a-b): 1.4-1.1 | Radial load Fr2: 1853 N
TXF005+NMRV050 15,00 TH71B4Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 35-64 Nm | Service factor fs (a-b): 2.6-2.1 | Radial load Fr2: 2544 N
TXF005+NMRV050 30,00 TH71A2Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 33-108 Nm | Service factor fs (a-b): 2.6-1.3 | Radial load Fr2: 2544 N
TXF005+NMRV040 10,00 TH71C6/80A6Power P1: 0.37 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 36-45 Nm | Service factor fs (a-b): 1.6-1.6 | Radial load Fr2: 1876 N
TXF005+NMRV050 10,00 TH71C6/80A6Power P1: 0.37 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 37-46 Nm | Service factor fs (a-b): 3.1-3.0 | Radial load Fr2: 2575 N
TXF010+NMRV050 10,00 TH80A6Power P1: 0.37 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 37-92 Nm | Service factor fs (a-b): 3.1-1.5 | Radial load Fr2: 2575 N
TXF002+NMRV040 30,00 TH63C2Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 59.0-11.0 rpm | Output torque M2 (a-b): 36-71 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 1934 N
TXF005+NMRV-P063 20,00 TH71B4Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 46-82 Nm | Service factor fs (a-b): 3.6-3.1 | Radial load Fr2: 3660 N
TXF005+NMRV-P063 40,00 TH71A2Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 43-134 Nm | Service factor fs (a-b): 3.3-1.9 | Radial load Fr2: 3660 N
TXF005+NMRV040 20,00 TH71B4Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 45-80 Nm | Service factor fs (a-b): 1.1-0.8 | Radial load Fr2: 2040 N
TXF005+NMRV050 20,00 TH71B4Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 45-80 Nm | Service factor fs (a-b): 1.8-1.5 | Radial load Fr2: 2800 N
TXF005+NMRV050 40,00 TH71A2Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 41-130 Nm | Service factor fs (a-b): 1.9-1.0 | Radial load Fr2: 2800 N
TXF002+NMRV040 40,00 TH63C2Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 44.0-8.5 rpm | Output torque M2 (a-b): 45-85 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 2129 N
TXF002+NMRV050 40,00 TH63C2Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 44.0-8.5 rpm | Output torque M2 (a-b): 46-86 Nm | Service factor fs (a-b): 1.7-1.4 | Radial load Fr2: 2922 N
TXF005+NMRV040 15,00 TH71C6/80A6Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 51-64 Nm | Service factor fs (a-b): 1.2-1.1 | Radial load Fr2: 2148 N
TXF005+NMRV050 15,00 TH71C6/80A6Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 52-64 Nm | Service factor fs (a-b): 2.2-2.1 | Radial load Fr2: 2948 N
TXF010+NMRV-P063 15,00 TH80A6Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 52-131 Nm | Service factor fs (a-b): 3.8-2.1 | Radial load Fr2: 3853 N
TXF010+NMRV050 15,00 TH80A6Power P1: 0.37 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 52-128 Nm | Service factor fs (a-b): 2.2-1.1 | Radial load Fr2: 2948 N
TXF005+NMRV-P063 25,00 TH71B4Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 56-98 Nm | Service factor fs (a-b): 2.7-2.4 | Radial load Fr2: 3943 N
TXF005+NMRV-P063 50,00 TH71A2Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 51-156 Nm | Service factor fs (a-b): 2.7-1.5 | Radial load Fr2: 3943 N
TXF005+NMRV-P075 25,00 TH71B4Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 57-101 Nm | Service factor fs (a-b): 4.2-3.8 | Radial load Fr2: 4654 N
TXF005+NMRV-P075 50,00 TH71A2Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 53-162 Nm | Service factor fs (a-b): 4.0-2.3 | Radial load Fr2: 4654 N
TXF005+NMRV050 25,00 TH71B4Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 54-95 Nm | Service factor fs (a-b): 1.4-1.2 | Radial load Fr2: 3016 N
TXF005+NMRV050 50,00 TH71A2Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 48-150 Nm | Service factor fs (a-b): 1.5-0.8 | Radial load Fr2: 3016 N
TXF002+NMRV050 50,00 TH63C2Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 35.0-6.8 rpm | Output torque M2 (a-b): 54-100 Nm | Service factor fs (a-b): 1.3-1.2 | Radial load Fr2: 3148 N
TXF005+NMRV-P063 30,00 TH71B4Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 63-107 Nm | Service factor fs (a-b): 2.8-2.7 | Radial load Fr2: 4190 N
TXF005+NMRV-P063 60,00 TH71A2Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 58-173 Nm | Service factor fs (a-b): 2.2-1.3 | Radial load Fr2: 4190 N
TXF005+NMRV-P075 30,00 TH71B4Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 65-112 Nm | Service factor fs (a-b): 4.4-4.0 | Radial load Fr2: 4945 N
TXF005+NMRV-P075 60,00 TH71A2Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 60-184 Nm | Service factor fs (a-b): 3.3-1.9 | Radial load Fr2: 4945 N
TXF005+NMRV040 30,00 TH71B4Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 59-103 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 2335 N
TXF005+NMRV050 30,00 TH71B4Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 61-104 Nm | Service factor fs (a-b): 1.5-1.4 | Radial load Fr2: 3205 N
TXF005+NMRV040 20,00 TH71C6/80A6Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 65-80 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 2364 N
TXF005+NMRV050 20,00 TH71C6/80A6Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 66-80 Nm | Service factor fs (a-b): 1.5-1.5 | Radial load Fr2: 3244 N
TXF010+NMRV-P063 20,00 TH80A6Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 67-164 Nm | Service factor fs (a-b): 2.9-1.5 | Radial load Fr2: 4241 N
TXF010+NMRV-P075 20,00 TH80A6Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 69-169 Nm | Service factor fs (a-b): 4.7-2.5 | Radial load Fr2: 5005 N
TXF010+NMRV050 20,00 TH80A6Power P1: 0.37 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 66-161 Nm | Service factor fs (a-b): 1.5-0.7 | Radial load Fr2: 3244 N
TXF002+NMRV050 60,00 TH63C2Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 29.0-5.7 rpm | Output torque M2 (a-b): 61-110 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 3345 N
TXF005+NMRV050 25,00 TH71C6/80A6Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 78-95 Nm | Service factor fs (a-b): 1.2-1.2 | Radial load Fr2: 3495 N
TXF010+NMRV-P063 25,00 TH80A6Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 80-196 Nm | Service factor fs (a-b): 2.2-1.2 | Radial load Fr2: 4568 N
TXF010+NMRV-P075 25,00 TH80A6Power P1: 0.37 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 83-202 Nm | Service factor fs (a-b): 3.5-1.9 | Radial load Fr2: 5392 N
TXF005+NMRV-P063 40,00 TH71B4Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 78-130 Nm | Service factor fs (a-b): 2.2-2.0 | Radial load Fr2: 4611 N
TXF005+NMRV-P063 80,00 TH71A2Power P1: 0.37 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 71-202 Nm | Service factor fs (a-b): 1.6-0.9 | Radial load Fr2: 4611 N
TXF005+NMRV-P075 40,00 TH71B4Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 81-138 Nm | Service factor fs (a-b): 3.4-3.0 | Radial load Fr2: 5443 N
TXF005+NMRV-P075 80,00 TH71A2Power P1: 0.37 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 75-216 Nm | Service factor fs (a-b): 2.5-1.3 | Radial load Fr2: 5443 N
TXF005+NMRV050 40,00 TH71B4Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 75-125 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 3528 N
TXF005+NMRV040 30,00 TH71C6/80A6Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 86-103 Nm | Service factor fs (a-b): 0.7-0.7 | Radial load Fr2: 2706 N
TXF010+NMRV-P063 30,00 TH80A6Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 89-214 Nm | Service factor fs (a-b): 2.4-1.3 | Radial load Fr2: 4854 N
TXF010+NMRV-P075 30,00 TH80A6Power P1: 0.37 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 93-224 Nm | Service factor fs (a-b): 3.7-2.0 | Radial load Fr2: 5730 N
TXF005+NMRV-P063 50,00 TH71B4Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 91-151 Nm | Service factor fs (a-b): 1.8-1.6 | Radial load Fr2: 4967 N
TXF005+NMRV-P075 50,00 TH71B4Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 94-156 Nm | Service factor fs (a-b): 2.7-2.4 | Radial load Fr2: 5863 N
TXF005+NMRV-P075 100,00 TH71A2Power P1: 0.37 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 86-240 Nm | Service factor fs (a-b): 2.0-1.0 | Radial load Fr2: 5863 N
TXF005+NMRV050 50,00 TH71B4Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 88-147 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 3800 N
TXF005+NMRV-P063 60,00 TH71B4Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 104-166 Nm | Service factor fs (a-b): 1.5-1.3 | Radial load Fr2: 5279 N
TXF005+NMRV-P075 60,00 TH71B4Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 110-176 Nm | Service factor fs (a-b): 2.3-2.0 | Radial load Fr2: 6231 N
TXF010+NMRV-P063 40,00 TH80A6Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 111-259 Nm | Service factor fs (a-b): 1.9-1.0 | Radial load Fr2: 5343 N
TXF010+NMRV-P075 40,00 TH80A6Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 114-275 Nm | Service factor fs (a-b): 2.9-1.5 | Radial load Fr2: 6307 N
TXF010+NMRV-P090 40,00 TH80A6Power P1: 0.37 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 120-290 Nm | Service factor fs (a-b): 4.4-2.1 | Radial load Fr2: 6978 N
TXF010+NMRV-P063 50,00 TH80A6Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 127-302 Nm | Service factor fs (a-b): 1.5-0.8 | Radial load Fr2: 5756 N
TXF010+NMRV-P075 50,00 TH80A6Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 134-312 Nm | Service factor fs (a-b): 2.3-1.2 | Radial load Fr2: 6793 N
TXF010+NMRV-P090 50,00 TH80A6Power P1: 0.37 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 143-336 Nm | Service factor fs (a-b): 3.5-1.7 | Radial load Fr2: 7517 N
TXF005+NMRV-P063 80,00 TH71B4Power P1: 0.37 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 125-192 Nm | Service factor fs (a-b): 1.1-0.9 | Radial load Fr2: 5810 N
TXF005+NMRV-P075 80,00 TH71B4Power P1: 0.37 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 132-208 Nm | Service factor fs (a-b): 1.7-1.4 | Radial load Fr2: 6858 N
TXF005+NMRV-P075 60,00 TH71C6/80A6Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 153-176 Nm | Service factor fs (a-b): 2.0-2.0 | Radial load Fr2: 7219 N
TXF010+NMRV-P075 60,00 TH80A6Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 153-353 Nm | Service factor fs (a-b): 2.0-1.0 | Radial load Fr2: 7219 N
TXF010+NMRV-P090 60,00 TH80A6Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 161-374 Nm | Service factor fs (a-b): 2.7-1.3 | Radial load Fr2: 7988 N
TXF010+NMRV-P110 60,00 TH80A6Power P1: 0.37 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 172-403 Nm | Service factor fs (a-b): 4.5-2.5 | Radial load Fr2: 10093 N
TXF005+NMRV-P063 100,00 TH71B4Power P1: 0.37 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 141-210 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 6259 N
TXF005+NMRV-P075 100,00 TH71B4Power P1: 0.37 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 150-228 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 7380 N
TXF005+NMRV-P075 80,00 TH71C6/80A6Power P1: 0.37 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 179-208 Nm | Service factor fs (a-b): 1.4-1.4 | Radial load Fr2: 7380 N
TXF010+NMRV-P090 80,00 TH80A6Power P1: 0.37 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 193-454 Nm | Service factor fs (a-b): 1.9-1.0 | Radial load Fr2: 8180 N
TXF010+NMRV-P110 80,00 TH80A6Power P1: 0.37 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 207-493 Nm | Service factor fs (a-b): 3.2-1.7 | Radial load Fr2: 10320 N
TXF010+NMRV130 80,00 TH80A6Power P1: 0.37 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 211-490 Nm | Service factor fs (a-b): 4.6-2.5 | Radial load Fr2: 13500 N
TXF005+NMRV-P075 100,00 TH71C6/80A6Power P1: 0.37 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 206-228 Nm | Service factor fs (a-b): 1.0-1.0 | Radial load Fr2: 7380 N
TXF010+NMRV-P090 100,00 TH80A6Power P1: 0.37 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 224-504 Nm | Service factor fs (a-b): 1.5-0.8 | Radial load Fr2: 8180 N
TXF010+NMRV-P110 100,00 TH80A6Power P1: 0.37 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 241-552 Nm | Service factor fs (a-b): 2.5-1.4 | Radial load Fr2: 10320 N
TXF010+NMRV130 100,00 TH80A6Power P1: 0.37 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 241-564 Nm | Service factor fs (a-b): 3.6-2.0 | Radial load Fr2: 13500 N
TXF005+NMRV040 5,00 TH71B2Power P1: 0.55 kW | Ratio i: 5.00 | Output speed n2 (a-b): 400.0-68.0 rpm | Output torque M2 (a-b): 10-25 Nm | Service factor fs (a-b): 3.5-2.7 | Radial load Fr2: 1020 N
TXF005+NMRV040 7,50 TH71B2Power P1: 0.55 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-45.0 rpm | Output torque M2 (a-b): 15-36 Nm | Service factor fs (a-b): 2.7-2.0 | Radial load Fr2: 1168 N
TXF005+NMRV050 7,50 TH71B2Power P1: 0.55 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-45.0 rpm | Output torque M2 (a-b): 15-36 Nm | Service factor fs (a-b): 5.0-3.8 | Radial load Fr2: 1603 N
TXF005+NMRV040 10,00 TH71B2Power P1: 0.55 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 19-46 Nm | Service factor fs (a-b): 2.2-1.5 | Radial load Fr2: 1285 N
TXF005+NMRV050 10,00 TH71B2Power P1: 0.55 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 19-47 Nm | Service factor fs (a-b): 3.9-2.9 | Radial load Fr2: 1764 N
TXF010+NMRV050 5,00 TH80A4Power P1: 0.55 kW | Ratio i: 5.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 19-49 Nm | Service factor fs (a-b): 4.3-2.6 | Radial load Fr2: 1764 N
TXF005+NMRV-P063 15,00 TH71B2Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 28-67 Nm | Service factor fs (a-b): 4.9-3.9 | Radial load Fr2: 2639 N
TXF005+NMRV040 15,00 TH71B2Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 28-66 Nm | Service factor fs (a-b): 1.5-1.1 | Radial load Fr2: 1471 N
TXF005+NMRV050 15,00 TH71B2Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 28-66 Nm | Service factor fs (a-b): 2.8-2.1 | Radial load Fr2: 2019 N
TXF010+NMRV050 7,50 TH80A4Power P1: 0.55 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 28-71 Nm | Service factor fs (a-b): 3.2-2.0 | Radial load Fr2: 2019 N
TXF010+NMRV050 5,00 TH80B6Power P1: 0.55 kW | Ratio i: 5.00 | Output speed n2 (a-b): 129.0-22.0 rpm | Output torque M2 (a-b): 29-49 Nm | Service factor fs (a-b): 3.5-2.6 | Radial load Fr2: 2044 N
TXF005+NMRV-P063 20,00 TH71B2Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 37-84 Nm | Service factor fs (a-b): 3.8-3.0 | Radial load Fr2: 2905 N
TXF005+NMRV040 20,00 TH71B2Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 35-83 Nm | Service factor fs (a-b): 1.2-0.8 | Radial load Fr2: 1619 N
TXF005+NMRV050 20,00 TH71B2Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 36-83 Nm | Service factor fs (a-b): 2.1-1.4 | Radial load Fr2: 2222 N
TXF010+NMRV-P063 10,00 TH80A4Power P1: 0.55 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 37-94 Nm | Service factor fs (a-b): 4.1-2.9 | Radial load Fr2: 2905 N
TXF010+NMRV050 10,00 TH80A4Power P1: 0.55 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 37-92 Nm | Service factor fs (a-b): 2.5-1.5 | Radial load Fr2: 2222 N
TXF010+NMRV-P063 7,50 TH80B6Power P1: 0.55 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-15.0 rpm | Output torque M2 (a-b): 43-74 Nm | Service factor fs (a-b): 4.3-3.7 | Radial load Fr2: 3058 N
TXF010+NMRV050 7,50 TH80B6Power P1: 0.55 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-15.0 rpm | Output torque M2 (a-b): 42-71 Nm | Service factor fs (a-b): 2.7-2.0 | Radial load Fr2: 2340 N
TXF005+NMRV-P063 25,00 TH71B2Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 44-101 Nm | Service factor fs (a-b): 2.9-2.3 | Radial load Fr2: 3129 N
TXF005+NMRV-P075 25,00 TH71B2Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 45-104 Nm | Service factor fs (a-b): 4.4-3.7 | Radial load Fr2: 3694 N
TXF005+NMRV050 25,00 TH71B2Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 43-98 Nm | Service factor fs (a-b): 1.6-1.1 | Radial load Fr2: 2394 N
TXF005+NMRV-P063 30,00 TH71B2Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 51-110 Nm | Service factor fs (a-b): 3.0-2.5 | Radial load Fr2: 3325 N
TXF005+NMRV-P075 30,00 TH71B2Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 52-115 Nm | Service factor fs (a-b): 4.4-3.9 | Radial load Fr2: 3925 N
TXF005+NMRV050 30,00 TH71B2Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 49-108 Nm | Service factor fs (a-b): 1.7-1.3 | Radial load Fr2: 2544 N
TXF010+NMRV-P063 15,00 TH80A4Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 54-131 Nm | Service factor fs (a-b): 3.2-2.1 | Radial load Fr2: 3325 N
TXF010+NMRV-P075 15,00 TH80A4Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 54-134 Nm | Service factor fs (a-b): 4.8-3.2 | Radial load Fr2: 3925 N
TXF010+NMRV050 15,00 TH80A4Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 53-128 Nm | Service factor fs (a-b): 1.8-1.1 | Radial load Fr2: 2544 N
TXF010+NMRV-P063 10,00 TH80B6Power P1: 0.55 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 54-94 Nm | Service factor fs (a-b): 3.4-2.9 | Radial load Fr2: 3366 N
TXF010+NMRV-P075 10,00 TH80B6Power P1: 0.55 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 55-95 Nm | Service factor fs (a-b): 4.9-4.5 | Radial load Fr2: 3973 N
TXF010+NMRV050 10,00 TH80B6Power P1: 0.55 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 54-92 Nm | Service factor fs (a-b): 2.1-1.5 | Radial load Fr2: 2575 N
TXF005+NMRV-P063 40,00 TH71B2Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 64-134 Nm | Service factor fs (a-b): 2.2-1.9 | Radial load Fr2: 3660 N
TXF005+NMRV-P075 40,00 TH71B2Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 66-142 Nm | Service factor fs (a-b): 3.5-2.9 | Radial load Fr2: 4320 N
TXF005+NMRV050 40,00 TH71B2Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 60-130 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 2800 N
TXF010+NMRV-P063 20,00 TH80A4Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 68-164 Nm | Service factor fs (a-b): 2.4-1.5 | Radial load Fr2: 3660 N
TXF010+NMRV-P075 20,00 TH80A4Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 70-169 Nm | Service factor fs (a-b): 3.8-2.5 | Radial load Fr2: 4320 N
TXF010+NMRV050 20,00 TH80A4Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 67-161 Nm | Service factor fs (a-b): 1.2-0.7 | Radial load Fr2: 2800 N
TXF010+NMRV-P063 15,00 TH80B6Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 78-131 Nm | Service factor fs (a-b): 2.6-2.1 | Radial load Fr2: 3853 N
TXF010+NMRV-P075 15,00 TH80B6Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 80-134 Nm | Service factor fs (a-b): 4.0-3.2 | Radial load Fr2: 4548 N
TXF010+NMRV050 15,00 TH80B6Power P1: 0.55 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 77-128 Nm | Service factor fs (a-b): 1.5-1.1 | Radial load Fr2: 2948 N
TXF005+NMRV-P063 50,00 TH71B2Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 76-156 Nm | Service factor fs (a-b): 1.8-1.5 | Radial load Fr2: 3943 N
TXF005+NMRV-P075 50,00 TH71B2Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 79-162 Nm | Service factor fs (a-b): 2.7-2.3 | Radial load Fr2: 4654 N
TXF005+NMRV050 50,00 TH71B2Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 71-150 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 3016 N
TXF010+NMRV-P063 25,00 TH80A4Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 83-196 Nm | Service factor fs (a-b): 1.8-1.2 | Radial load Fr2: 3943 N
TXF010+NMRV-P075 25,00 TH80A4Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 85-202 Nm | Service factor fs (a-b): 2.8-1.9 | Radial load Fr2: 4654 N
TXF010+NMRV-P090 25,00 TH80A4Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 88-212 Nm | Service factor fs (a-b): 4.7-2.7 | Radial load Fr2: 5149 N
TXF005+NMRV-P063 60,00 TH71B2Power P1: 0.55 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 86-173 Nm | Service factor fs (a-b): 1.5-1.3 | Radial load Fr2: 4190 N
TXF005+NMRV-P075 60,00 TH71B2Power P1: 0.55 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 90-184 Nm | Service factor fs (a-b): 2.2-1.9 | Radial load Fr2: 4945 N
TXF010+NMRV-P063 30,00 TH80A4Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 93-214 Nm | Service factor fs (a-b): 1.9-1.3 | Radial load Fr2: 4190 N
TXF010+NMRV-P075 30,00 TH80A4Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 97-224 Nm | Service factor fs (a-b): 2.9-2.0 | Radial load Fr2: 4945 N
TXF010+NMRV-P090 30,00 TH80A4Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 100-235 Nm | Service factor fs (a-b): 4.9-3.0 | Radial load Fr2: 5472 N
TXF010+NMRV-P063 20,00 TH80B6Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 100-164 Nm | Service factor fs (a-b): 1.9-1.5 | Radial load Fr2: 4241 N
TXF010+NMRV-P075 20,00 TH80B6Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 102-169 Nm | Service factor fs (a-b): 3.2-2.5 | Radial load Fr2: 5005 N
TXF010+NMRV-P090 20,00 TH80B6Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 105-177 Nm | Service factor fs (a-b): 4.9-3.5 | Radial load Fr2: 5538 N
TXF010+NMRV050 20,00 TH80B6Power P1: 0.55 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 98-161 Nm | Service factor fs (a-b): 1.0-0.7 | Radial load Fr2: 3244 N
TXF010+NMRV-P063 25,00 TH80B6Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 120-196 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 4568 N
TXF010+NMRV-P075 25,00 TH80B6Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 123-202 Nm | Service factor fs (a-b): 2.4-1.9 | Radial load Fr2: 5392 N
TXF010+NMRV-P090 25,00 TH80B6Power P1: 0.55 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 126-212 Nm | Service factor fs (a-b): 3.8-2.7 | Radial load Fr2: 5966 N
TXF005+NMRV-P063 80,00 TH71B2Power P1: 0.55 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 106-202 Nm | Service factor fs (a-b): 1.1-0.9 | Radial load Fr2: 4611 N
TXF005+NMRV-P075 80,00 TH71B2Power P1: 0.55 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 111-216 Nm | Service factor fs (a-b): 1.7-1.3 | Radial load Fr2: 5443 N
TXF010+NMRV-P063 40,00 TH80A4Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 116-259 Nm | Service factor fs (a-b): 1.5-1.0 | Radial load Fr2: 4611 N
TXF010+NMRV-P075 40,00 TH80A4Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 121-275 Nm | Service factor fs (a-b): 2.3-1.5 | Radial load Fr2: 5443 N
TXF010+NMRV-P090 40,00 TH80A4Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 126-290 Nm | Service factor fs (a-b): 3.6-2.1 | Radial load Fr2: 6022 N
TXF010+NMRV-P063 30,00 TH80B6Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 132-214 Nm | Service factor fs (a-b): 1.6-1.3 | Radial load Fr2: 4854 N
TXF010+NMRV-P075 30,00 TH80B6Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 138-224 Nm | Service factor fs (a-b): 2.5-2.0 | Radial load Fr2: 5730 N
TXF010+NMRV-P090 30,00 TH80B6Power P1: 0.55 kW | Ratio i: 30.00 | Output speed n2 (a-b): 21.0-3.6 rpm | Output torque M2 (a-b): 144-235 Nm | Service factor fs (a-b): 4.0-3.0 | Radial load Fr2: 6340 N
TXF005+NMRV-P075 100,00 TH71B2Power P1: 0.55 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 127-240 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 5863 N
TXF010+NMRV-P063 50,00 TH80A4Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 136-302 Nm | Service factor fs (a-b): 1.2-0.8 | Radial load Fr2: 4967 N
TXF010+NMRV-P075 50,00 TH80A4Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 140-312 Nm | Service factor fs (a-b): 1.8-1.2 | Radial load Fr2: 5863 N
TXF010+NMRV-P090 50,00 TH80A4Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 151-336 Nm | Service factor fs (a-b): 2.8-1.7 | Radial load Fr2: 6487 N
TXF010+NMRV-P110 50,00 TH80A4Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 158-362 Nm | Service factor fs (a-b): 4.7-3.0 | Radial load Fr2: 8198 N
TXF010+NMRV-P075 60,00 TH80A4Power P1: 0.55 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 163-353 Nm | Service factor fs (a-b): 1.5-1.0 | Radial load Fr2: 6231 N
TXF010+NMRV-P090 60,00 TH80A4Power P1: 0.55 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 171-374 Nm | Service factor fs (a-b): 2.3-1.3 | Radial load Fr2: 6894 N
TXF010+NMRV-P110 60,00 TH80A4Power P1: 0.55 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 181-403 Nm | Service factor fs (a-b): 3.8-2.5 | Radial load Fr2: 8711 N
TXF010+NMRV-P063 40,00 TH80B6Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 165-259 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 5343 N
TXF010+NMRV-P075 40,00 TH80B6Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 170-275 Nm | Service factor fs (a-b): 2.0-1.5 | Radial load Fr2: 6307 N
TXF010+NMRV-P090 40,00 TH80B6Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 178-290 Nm | Service factor fs (a-b): 3.0-2.1 | Radial load Fr2: 6978 N
TXF010+NMRV-P110 40,00 TH80B6Power P1: 0.55 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 189-302 Nm | Service factor fs (a-b): 4.9-3.9 | Radial load Fr2: 8817 N
TXF010+NMRV-P063 50,00 TH80B6Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 189-302 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 5756 N
TXF010+NMRV-P075 50,00 TH80B6Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 199-312 Nm | Service factor fs (a-b): 1.6-1.2 | Radial load Fr2: 6793 N
TXF010+NMRV-P090 50,00 TH80B6Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 213-336 Nm | Service factor fs (a-b): 2.3-1.7 | Radial load Fr2: 7517 N
TXF010+NMRV-P110 50,00 TH80B6Power P1: 0.55 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 223-362 Nm | Service factor fs (a-b): 4.0-3.0 | Radial load Fr2: 9498 N
TXF010+NMRV-P090 80,00 TH80A4Power P1: 0.55 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 210-454 Nm | Service factor fs (a-b): 1.5-1.0 | Radial load Fr2: 7588 N
TXF010+NMRV-P110 80,00 TH80A4Power P1: 0.55 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 224-493 Nm | Service factor fs (a-b): 2.5-1.7 | Radial load Fr2: 9588 N
TXF010+NMRV130 80,00 TH80A4Power P1: 0.55 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 228-490 Nm | Service factor fs (a-b): 3.8-2.5 | Radial load Fr2: 12540 N
TXF010+NMRV-P075 60,00 TH80B6Power P1: 0.55 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 227-353 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 7219 N
TXF010+NMRV-P090 60,00 TH80B6Power P1: 0.55 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 239-374 Nm | Service factor fs (a-b): 1.8-1.3 | Radial load Fr2: 7988 N
TXF010+NMRV-P110 60,00 TH80B6Power P1: 0.55 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 255-403 Nm | Service factor fs (a-b): 3.1-2.5 | Radial load Fr2: 10093 N
TXF010+NMRV-P090 100,00 TH80A4Power P1: 0.55 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 241-504 Nm | Service factor fs (a-b): 1.2-0.8 | Radial load Fr2: 8174 N
TXF010+NMRV-P110 100,00 TH80A4Power P1: 0.55 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 258-552 Nm | Service factor fs (a-b): 2.0-1.4 | Radial load Fr2: 10320 N
TXF010+NMRV130 100,00 TH80A4Power P1: 0.55 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 263-564 Nm | Service factor fs (a-b): 3.0-2.0 | Radial load Fr2: 13500 N
TXF010+NMRV-P090 80,00 TH80B6Power P1: 0.55 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 287-454 Nm | Service factor fs (a-b): 1.3-1.0 | Radial load Fr2: 8180 N
TXF010+NMRV-P110 80,00 TH80B6Power P1: 0.55 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 308-493 Nm | Service factor fs (a-b): 2.1-1.7 | Radial load Fr2: 10320 N
TXF010+NMRV130 80,00 TH80B6Power P1: 0.55 kW | Ratio i: 80.00 | Output speed n2 (a-b): 8.0-1.4 rpm | Output torque M2 (a-b): 314-490 Nm | Service factor fs (a-b): 3.1-2.5 | Radial load Fr2: 13500 N
TXF010+NMRV-P090 100,00 TH80B6Power P1: 0.55 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 332-504 Nm | Service factor fs (a-b): 1.0-0.8 | Radial load Fr2: 8180 N
TXF010+NMRV-P110 100,00 TH80B6Power P1: 0.55 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 359-552 Nm | Service factor fs (a-b): 1.7-1.4 | Radial load Fr2: 10320 N
TXF010+NMRV130 100,00 TH80B6Power P1: 0.55 kW | Ratio i: 100.00 | Output speed n2 (a-b): 6.4-1.1 rpm | Output torque M2 (a-b): 359-564 Nm | Service factor fs (a-b): 2.4-2.0 | Radial load Fr2: 13500 N
TXF010+NMRV050 5,00 TP80A2Power P1: 0.75 kW | Ratio i: 5.00 | Output speed n2 (a-b): 400.0-68.0 rpm | Output torque M2 (a-b): 13-50 Nm | Service factor fs (a-b): 4.8-2.6 | Radial load Fr2: 1400 N
TXF005+NMRV040 7,50 TP80A2Power P1: 0.75 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-45.0 rpm | Output torque M2 (a-b): 20-36 Nm | Service factor fs (a-b): 2.0-2.0 | Radial load Fr2: 1168 N
TXF010+NMRV050 7,50 TP80A2Power P1: 0.75 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-45.0 rpm | Output torque M2 (a-b): 20-73 Nm | Service factor fs (a-b): 3.7-1.9 | Radial load Fr2: 1603 N
TXF005+NMRV040 10,00 TP80A2Power P1: 0.75 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 26-46 Nm | Service factor fs (a-b): 1.6-1.5 | Radial load Fr2: 1285 N
TXF010+NMRV-P063 10,00 TP80A2Power P1: 0.75 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 27-95 Nm | Service factor fs (a-b): 4.7-2.7 | Radial load Fr2: 2306 N
TXF010+NMRV050 5,00 TP80B4Power P1: 0.75 kW | Ratio i: 5.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 26-49 Nm | Service factor fs (a-b): 3.1-2.6 | Radial load Fr2: 1764 N
TXF010+NMRV050 10,00 TP80A2Power P1: 0.75 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 26-95 Nm | Service factor fs (a-b): 2.8-1.4 | Radial load Fr2: 1764 N
TXF005+NMRV040 15,00 TP80A2Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 38-66 Nm | Service factor fs (a-b): 1.1-1.1 | Radial load Fr2: 1471 N
TXF010+NMRV-P063 7,50 TP80B4Power P1: 0.75 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 39-74 Nm | Service factor fs (a-b): 3.8-3.7 | Radial load Fr2: 2639 N
TXF010+NMRV-P063 15,00 TP80A2Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 39-133 Nm | Service factor fs (a-b): 3.6-2.0 | Radial load Fr2: 2639 N
TXF010+NMRV050 7,50 TP80B4Power P1: 0.75 kW | Ratio i: 7.50 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 38-71 Nm | Service factor fs (a-b): 2.4-2.0 | Radial load Fr2: 2019 N
TXF010+NMRV050 15,00 TP80A2Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 38-131 Nm | Service factor fs (a-b): 2.0-1.0 | Radial load Fr2: 2019 N
TXF005+NMRV040 20,00 TP80A2Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 48-83 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 1619 N
TXF005+NMRV050 20,00 TP80A2Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 49-83 Nm | Service factor fs (a-b): 1.5-1.4 | Radial load Fr2: 2222 N
TXF010+NMRV-P063 10,00 TP80B4Power P1: 0.75 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 51-94 Nm | Service factor fs (a-b): 3.0-2.9 | Radial load Fr2: 2905 N
TXF010+NMRV-P063 20,00 TP80A2Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 50-168 Nm | Service factor fs (a-b): 2.8-1.5 | Radial load Fr2: 2905 N
TXF010+NMRV-P075 20,00 TP80A2Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 51-173 Nm | Service factor fs (a-b): 4.4-2.4 | Radial load Fr2: 3429 N
TXF010+NMRV050 10,00 TP80B4Power P1: 0.75 kW | Ratio i: 10.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 51-92 Nm | Service factor fs (a-b): 1.8-1.5 | Radial load Fr2: 2222 N
TXF010+NMRV050 20,00 TP80A2Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 49-166 Nm | Service factor fs (a-b): 1.5-0.7 | Radial load Fr2: 2222 N
TXF010+NMRV050 7,50 TP90S6Power P1: 0.75 kW | Ratio i: 7.50 | Output speed n2 (a-b): 86.0-15.0 rpm | Output torque M2 (a-b): 57-71 Nm | Service factor fs (a-b): 2.0-2.0 | Radial load Fr2: 2340 N
TXF005+NMRV050 25,00 TP80A2Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 58-98 Nm | Service factor fs (a-b): 1.2-1.1 | Radial load Fr2: 2394 N
TXF010+NMRV-P063 25,00 TP80A2Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 61-201 Nm | Service factor fs (a-b): 2.1-1.1 | Radial load Fr2: 3129 N
TXF010+NMRV-P075 25,00 TP80A2Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 62-207 Nm | Service factor fs (a-b): 3.3-1.8 | Radial load Fr2: 3694 N
TXF010+NMRV-P063 15,00 TP80B4Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 73-131 Nm | Service factor fs (a-b): 2.3-2.1 | Radial load Fr2: 3325 N
TXF010+NMRV-P063 30,00 TP80A2Power P1: 0.75 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 69-220 Nm | Service factor fs (a-b): 2.2-1.2 | Radial load Fr2: 3325 N
TXF010+NMRV-P075 15,00 TP80B4Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 74-134 Nm | Service factor fs (a-b): 3.6-3.2 | Radial load Fr2: 3925 N
TXF010+NMRV-P075 30,00 TP80A2Power P1: 0.75 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 71-230 Nm | Service factor fs (a-b): 3.2-1.9 | Radial load Fr2: 3925 N
TXF010+NMRV050 15,00 TP80B4Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 72-128 Nm | Service factor fs (a-b): 1.3-1.1 | Radial load Fr2: 2544 N
TXF010+NMRV050 10,00 TP90S6Power P1: 0.75 kW | Ratio i: 10.00 | Output speed n2 (a-b): 64.0-11.0 rpm | Output torque M2 (a-b): 74-92 Nm | Service factor fs (a-b): 1.5-1.5 | Radial load Fr2: 2575 N
TXF010+NMRV-P063 20,00 TP80B4Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 93-164 Nm | Service factor fs (a-b): 1.8-1.5 | Radial load Fr2: 3660 N
TXF010+NMRV-P063 40,00 TP80A2Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 87-269 Nm | Service factor fs (a-b): 1.6-0.9 | Radial load Fr2: 3660 N
TXF010+NMRV-P075 20,00 TP80B4Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 95-169 Nm | Service factor fs (a-b): 2.8-2.5 | Radial load Fr2: 4320 N
TXF010+NMRV-P075 40,00 TP80A2Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 90-283 Nm | Service factor fs (a-b): 2.6-1.5 | Radial load Fr2: 4320 N
TXF010+NMRV-P090 20,00 TP80B4Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 98-177 Nm | Service factor fs (a-b): 4.4-3.5 | Radial load Fr2: 4780 N
TXF010+NMRV-P090 40,00 TP80A2Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 93-298 Nm | Service factor fs (a-b): 4.0-2.0 | Radial load Fr2: 4780 N
TXF010+NMRV050 20,00 TP80B4Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 92-161 Nm | Service factor fs (a-b): 0.9-0.7 | Radial load Fr2: 2800 N
TXF010+NMRV-P090 15,00 TP90S6Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 111-138 Nm | Service factor fs (a-b): 4.8-4.8 | Radial load Fr2: 5032 N
TXF010+NMRV050 15,00 TP90S6Power P1: 0.75 kW | Ratio i: 15.00 | Output speed n2 (a-b): 43.0-7.3 rpm | Output torque M2 (a-b): 105-128 Nm | Service factor fs (a-b): 1.1-1.1 | Radial load Fr2: 2948 N
TXF010+NMRV-P063 25,00 TP80B4Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 113-196 Nm | Service factor fs (a-b): 1.3-1.2 | Radial load Fr2: 3943 N
TXF010+NMRV-P063 50,00 TP80A2Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 103-312 Nm | Service factor fs (a-b): 1.3-0.8 | Radial load Fr2: 3943 N
TXF010+NMRV-P075 25,00 TP80B4Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 116-202 Nm | Service factor fs (a-b): 2.1-1.9 | Radial load Fr2: 4654 N
TXF010+NMRV-P075 50,00 TP80A2Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 108-324 Nm | Service factor fs (a-b): 2.0-1.1 | Radial load Fr2: 4654 N
TXF010+NMRV-P090 25,00 TP80B4Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 119-212 Nm | Service factor fs (a-b): 3.4-2.7 | Radial load Fr2: 5149 N
TXF010+NMRV-P090 50,00 TP80A2Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 112-348 Nm | Service factor fs (a-b): 3.2-1.6 | Radial load Fr2: 5149 N
TXF010+NMRV-P063 30,00 TP80B4Power P1: 0.75 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 127-214 Nm | Service factor fs (a-b): 1.4-1.3 | Radial load Fr2: 4190 N
TXF010+NMRV-P075 30,00 TP80B4Power P1: 0.75 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 132-224 Nm | Service factor fs (a-b): 2.1-2.0 | Radial load Fr2: 4945 N
TXF010+NMRV-P075 60,00 TP80A2Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 122-367 Nm | Service factor fs (a-b): 1.6-0.9 | Radial load Fr2: 4945 N
TXF010+NMRV-P090 30,00 TP80B4Power P1: 0.75 kW | Ratio i: 30.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 136-235 Nm | Service factor fs (a-b): 3.6-3.0 | Radial load Fr2: 5472 N
TXF010+NMRV-P090 60,00 TP80A2Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 129-389 Nm | Service factor fs (a-b): 2.6-1.3 | Radial load Fr2: 5472 N
TXF010+NMRV-P110 60,00 TP80A2Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 136-418 Nm | Service factor fs (a-b): 4.3-2.4 | Radial load Fr2: 6914 N
TXF010+NMRV-P090 20,00 TP90S6Power P1: 0.75 kW | Ratio i: 20.00 | Output speed n2 (a-b): 32.0-5.5 rpm | Output torque M2 (a-b): 143-177 Nm | Service factor fs (a-b): 3.6-3.5 | Radial load Fr2: 5538 N
TXF010+NMRV-P090 25,00 TP90S6Power P1: 0.75 kW | Ratio i: 25.00 | Output speed n2 (a-b): 26.0-4.4 rpm | Output torque M2 (a-b): 172-212 Nm | Service factor fs (a-b): 2.8-2.7 | Radial load Fr2: 5966 N
TXF010+NMRV-P063 40,00 TP80B4Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 158-259 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 4611 N
TXF010+NMRV-P075 40,00 TP80B4Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 165-275 Nm | Service factor fs (a-b): 1.7-1.5 | Radial load Fr2: 5443 N
TXF010+NMRV-P090 40,00 TP80B4Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 172-290 Nm | Service factor fs (a-b): 2.6-2.1 | Radial load Fr2: 6022 N
TXF010+NMRV-P090 80,00 TP80A2Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 158-470 Nm | Service factor fs (a-b): 1.7-1.0 | Radial load Fr2: 6022 N
TXF010+NMRV-P110 40,00 TP80B4Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 179-302 Nm | Service factor fs (a-b): 4.4-3.9 | Radial load Fr2: 7610 N
TXF010+NMRV-P110 80,00 TP80A2Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 168-509 Nm | Service factor fs (a-b): 2.9-1.6 | Radial load Fr2: 7610 N
TXF010+NMRV130 80,00 TP80A2Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 167-509 Nm | Service factor fs (a-b): 4.8-2.4 | Radial load Fr2: 9953 N
TXF005+NMRV-P075 100,00 TP80A2Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 174-240 Nm | Service factor fs (a-b): 1.0-1.0 | Radial load Fr2: 5863 N
TXF010+NMRV-P063 50,00 TP80B4Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 185-302 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 4967 N
TXF010+NMRV-P075 50,00 TP80B4Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 191-312 Nm | Service factor fs (a-b): 1.3-1.2 | Radial load Fr2: 5863 N
TXF010+NMRV-P090 50,00 TP80B4Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 206-336 Nm | Service factor fs (a-b): 2.1-1.7 | Radial load Fr2: 6487 N
TXF010+NMRV-P090 100,00 TP80A2Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 186-528 Nm | Service factor fs (a-b): 1.4-0.8 | Radial load Fr2: 6487 N
TXF010+NMRV-P110 50,00 TP80B4Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 215-362 Nm | Service factor fs (a-b): 3.5-3.0 | Radial load Fr2: 8198 N
TXF010+NMRV-P110 100,00 TP80A2Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 198-576 Nm | Service factor fs (a-b): 2.3-1.3 | Radial load Fr2: 8198 N
TXF010+NMRV130 100,00 TP80A2Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 197-576 Nm | Service factor fs (a-b): 3.6-1.9 | Radial load Fr2: 10722 N
TXF010+NMRV-P075 60,00 TP80B4Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 222-353 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 6231 N
TXF010+NMRV-P090 60,00 TP80B4Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 233-374 Nm | Service factor fs (a-b): 1.7-1.3 | Radial load Fr2: 6894 N
TXF010+NMRV-P110 60,00 TP80B4Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 17.0-2.8 rpm | Output torque M2 (a-b): 247-403 Nm | Service factor fs (a-b): 2.8-2.5 | Radial load Fr2: 8711 N
TXF010+NMRV-P090 40,00 TP90S6Power P1: 0.75 kW | Ratio i: 40.00 | Output speed n2 (a-b): 16.0-2.7 rpm | Output torque M2 (a-b): 243-290 Nm | Service factor fs (a-b): 2.2-2.1 | Radial load Fr2: 6978 N
TXF010+NMRV-P090 50,00 TP90S6Power P1: 0.75 kW | Ratio i: 50.00 | Output speed n2 (a-b): 13.0-2.2 rpm | Output torque M2 (a-b): 290-336 Nm | Service factor fs (a-b): 1.7-1.7 | Radial load Fr2: 7517 N
TXF010+NMRV-P090 80,00 TP80B4Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 286-454 Nm | Service factor fs (a-b): 1.1-1.0 | Radial load Fr2: 7588 N
TXF010+NMRV-P110 80,00 TP80B4Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 306-493 Nm | Service factor fs (a-b): 1.9-1.7 | Radial load Fr2: 9588 N
TXF010+NMRV130 80,00 TP80B4Power P1: 0.75 kW | Ratio i: 80.00 | Output speed n2 (a-b): 13.0-2.1 rpm | Output torque M2 (a-b): 310-490 Nm | Service factor fs (a-b): 2.8-2.5 | Radial load Fr2: 12540 N
TXF010+NMRV-P090 60,00 TP90S6Power P1: 0.75 kW | Ratio i: 60.00 | Output speed n2 (a-b): 11.0-1.8 rpm | Output torque M2 (a-b): 326-374 Nm | Service factor fs (a-b): 1.3-1.3 | Radial load Fr2: 7988 N
TXF010+NMRV-P090 100,00 TP80B4Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 328-504 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 8174 N
TXF010+NMRV-P110 100,00 TP80B4Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 352-552 Nm | Service factor fs (a-b): 1.5-1.4 | Radial load Fr2: 10320 N
TXF010+NMRV130 100,00 TP80B4Power P1: 0.75 kW | Ratio i: 100.00 | Output speed n2 (a-b): 10.0-1.7 rpm | Output torque M2 (a-b): 358-564 Nm | Service factor fs (a-b): 2.2-2.0 | Radial load Fr2: 13500 N
TXF010+NMRV050 5,00 TP80B2Power P1: 1.10 kW | Ratio i: 5.00 | Output speed n2 (a-b): 400.0-68.0 rpm | Output torque M2 (a-b): 20-50 Nm | Service factor fs (a-b): 3.3-2.6 | Radial load Fr2: 1400 N
TXF010+NMRV-P063 7,50 TP80B2Power P1: 1.10 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-45.0 rpm | Output torque M2 (a-b): 30-75 Nm | Service factor fs (a-b): 4.1-3.4 | Radial load Fr2: 2095 N
TXF010+NMRV050 7,50 TP80B2Power P1: 1.10 kW | Ratio i: 7.50 | Output speed n2 (a-b): 267.0-45.0 rpm | Output torque M2 (a-b): 29-73 Nm | Service factor fs (a-b): 2.5-1.9 | Radial load Fr2: 1603 N
TXF010+NMRV-P063 10,00 TP80B2Power P1: 1.10 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 39-95 Nm | Service factor fs (a-b): 3.2-2.7 | Radial load Fr2: 2306 N
TXF010+NMRV-P075 10,00 TP80B2Power P1: 1.10 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 39-96 Nm | Service factor fs (a-b): 4.8-4.2 | Radial load Fr2: 2721 N
TXF010+NMRV050 10,00 TP80B2Power P1: 1.10 kW | Ratio i: 10.00 | Output speed n2 (a-b): 200.0-34.0 rpm | Output torque M2 (a-b): 39-95 Nm | Service factor fs (a-b): 1.9-1.4 | Radial load Fr2: 1764 N
TXF010+NMRV-P063 15,00 TP80B2Power P1: 1.10 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 56-133 Nm | Service factor fs (a-b): 2.5-2.0 | Radial load Fr2: 2639 N
TXF010+NMRV-P075 15,00 TP80B2Power P1: 1.10 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 58-137 Nm | Service factor fs (a-b): 3.7-3.1 | Radial load Fr2: 3115 N
TXF010+NMRV050 15,00 TP80B2Power P1: 1.10 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 55-131 Nm | Service factor fs (a-b): 1.4-1.0 | Radial load Fr2: 2019 N
TXF010+NMRV-P063 20,00 TP80B2Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 74-168 Nm | Service factor fs (a-b): 1.9-1.5 | Radial load Fr2: 2905 N
TXF010+NMRV-P075 20,00 TP80B2Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 74-173 Nm | Service factor fs (a-b): 3.0-2.4 | Radial load Fr2: 3429 N
TXF010+NMRV-P090 20,00 TP80B2Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 76-180 Nm | Service factor fs (a-b): 4.9-3.4 | Radial load Fr2: 3794 N
TXF010+NMRV050 20,00 TP80B2Power P1: 1.10 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 71-166 Nm | Service factor fs (a-b): 1.0-0.7 | Radial load Fr2: 2222 N
TXF010+NMRV-P063 25,00 TP80B2Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 89-201 Nm | Service factor fs (a-b): 1.4-1.1 | Radial load Fr2: 3129 N
TXF010+NMRV-P075 25,00 TP80B2Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 91-207 Nm | Service factor fs (a-b): 2.2-1.8 | Radial load Fr2: 3694 N
TXF010+NMRV-P090 25,00 TP80B2Power P1: 1.10 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 93-216 Nm | Service factor fs (a-b): 3.8-2.6 | Radial load Fr2: 4087 N
TXF010+NMRV-P063 30,00 TP80B2Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 101-220 Nm | Service factor fs (a-b): 1.5-1.2 | Radial load Fr2: 3325 N
TXF010+NMRV-P075 30,00 TP80B2Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 104-230 Nm | Service factor fs (a-b): 2.2-1.9 | Radial load Fr2: 3925 N
TXF010+NMRV-P090 30,00 TP80B2Power P1: 1.10 kW | Ratio i: 30.00 | Output speed n2 (a-b): 67.0-11.0 rpm | Output torque M2 (a-b): 107-241 Nm | Service factor fs (a-b): 3.9-2.9 | Radial load Fr2: 4343 N
TXF010+NMRV-P063 40,00 TP80B2Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 128-269 Nm | Service factor fs (a-b): 1.1-0.9 | Radial load Fr2: 3660 N
TXF010+NMRV-P075 40,00 TP80B2Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 132-283 Nm | Service factor fs (a-b): 1.7-1.5 | Radial load Fr2: 4320 N
TXF010+NMRV-P090 40,00 TP80B2Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 137-298 Nm | Service factor fs (a-b): 2.8-2.0 | Radial load Fr2: 4780 N
TXF010+NMRV-P110 40,00 TP80B2Power P1: 1.10 kW | Ratio i: 40.00 | Output speed n2 (a-b): 50.0-8.5 rpm | Output torque M2 (a-b): 142-312 Nm | Service factor fs (a-b): 4.7-3.8 | Radial load Fr2: 6040 N
TXF010+NMRV-P063 50,00 TP80B2Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 151-312 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 3943 N
TXF010+NMRV-P075 50,00 TP80B2Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 158-324 Nm | Service factor fs (a-b): 1.3-1.1 | Radial load Fr2: 4654 N
TXF010+NMRV-P090 50,00 TP80B2Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 164-348 Nm | Service factor fs (a-b): 2.2-1.6 | Radial load Fr2: 5149 N
TXF010+NMRV-P110 50,00 TP80B2Power P1: 1.10 kW | Ratio i: 50.00 | Output speed n2 (a-b): 40.0-6.8 rpm | Output torque M2 (a-b): 171-372 Nm | Service factor fs (a-b): 3.7-3.0 | Radial load Fr2: 6506 N
TXF010+NMRV-P075 60,00 TP80B2Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 180-367 Nm | Service factor fs (a-b): 1.1-0.9 | Radial load Fr2: 4945 N
TXF010+NMRV-P090 60,00 TP80B2Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 190-389 Nm | Service factor fs (a-b): 1.8-1.3 | Radial load Fr2: 5472 N
TXF010+NMRV-P110 60,00 TP80B2Power P1: 1.10 kW | Ratio i: 60.00 | Output speed n2 (a-b): 33.0-5.7 rpm | Output torque M2 (a-b): 200-418 Nm | Service factor fs (a-b): 2.9-2.4 | Radial load Fr2: 6914 N
TXF010+NMRV-P090 80,00 TP80B2Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 232-470 Nm | Service factor fs (a-b): 1.2-1.0 | Radial load Fr2: 6022 N
TXF010+NMRV-P110 80,00 TP80B2Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 247-509 Nm | Service factor fs (a-b): 2.0-1.6 | Radial load Fr2: 7610 N
TXF010+NMRV130 80,00 TP80B2Power P1: 1.10 kW | Ratio i: 80.00 | Output speed n2 (a-b): 25.0-4.3 rpm | Output torque M2 (a-b): 246-509 Nm | Service factor fs (a-b): 3.2-2.4 | Radial load Fr2: 9953 N
TXF010+NMRV-P090 100,00 TP80B2Power P1: 1.10 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 273-528 Nm | Service factor fs (a-b): 0.9-0.8 | Radial load Fr2: 6487 N
TXF010+NMRV-P110 100,00 TP80B2Power P1: 1.10 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 290-576 Nm | Service factor fs (a-b): 1.6-1.3 | Radial load Fr2: 8198 N
TXF010+NMRV130 100,00 TP80B2Power P1: 1.10 kW | Ratio i: 100.00 | Output speed n2 (a-b): 20.0-3.4 rpm | Output torque M2 (a-b): 289-576 Nm | Service factor fs (a-b): 2.4-1.9 | Radial load Fr2: 10722 N
TXF010+NMRV-P090 15,00 TP90S2Power P1: 1.50 kW | Ratio i: 15.00 | Output speed n2 (a-b): 133.0-23.0 rpm | Output torque M2 (a-b): 80-140 Nm | Service factor fs (a-b): 4.7-4.7 | Radial load Fr2: 3447 N
TXF010+NMRV-P090 20,00 TP90S2Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 104-180 Nm | Service factor fs (a-b): 3.6-3.4 | Radial load Fr2: 3794 N
TXF010+NMRV050 20,00 TP90S2Power P1: 1.50 kW | Ratio i: 20.00 | Output speed n2 (a-b): 100.0-17.0 rpm | Output torque M2 (a-b): 97-166 Nm | Service factor fs (a-b): 0.8-0.7 | Radial load Fr2: 2222 N
TXF010+NMRV-P090 25,00 TP90S2Power P1: 1.50 kW | Ratio i: 25.00 | Output speed n2 (a-b): 80.0-14.0 rpm | Output torque M2 (a-b): 127-216 Nm | Service factor fs (a-b): 2.8-2.6 | Radial load Fr2: 4087 N
TXF002 NMRV030 5 63C6Legacy code (older edition) | Unit: TXF002 NMRV030 | Ratio i: 5 | Motor: 63C6
TXF002 NMRV030 7,5 63C6Legacy code (older edition) | Unit: TXF002 NMRV030 | Ratio i: 7.5 | Motor: 63C6
TXF002 NMRV030 10 63C6Legacy code (older edition) | Unit: TXF002 NMRV030 | Ratio i: 10 | Motor: 63C6
TXF002 NMRV030 5 63C4Legacy code (older edition) | Unit: TXF002 NMRV030 | Ratio i: 5 | Motor: 63C4
TXF002 NMRV030 7,5 63C4Legacy code (older edition) | Unit: TXF002 NMRV030 | Ratio i: 7.5 | Motor: 63C4
TXF002 NMRV030 10 63C4Legacy code (older edition) | Unit: TXF002 NMRV030 | Ratio i: 10 | Motor: 63C4
TXF002 NMRV030 5 63C2Legacy code (older edition) | Unit: TXF002 NMRV030 | Ratio i: 5 | Motor: 63C2
TXF002 NMRV030 7,5 63C2Legacy code (older edition) | Unit: TXF002 NMRV030 | Ratio i: 7.5 | Motor: 63C2
TXF002 NMRV040 5 63C6Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 5 | Motor: 63C6
TXF002 NMRV040 7,5 63C6Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 7.5 | Motor: 63C6
TXF002 NMRV040 10 63C6Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 10 | Motor: 63C6
TXF002 NMRV040 15 63C6Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 15 | Motor: 63C6
TXF002 NMRV040 20 63C6Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 20 | Motor: 63C6
TXF002 NMRV040 25 63C6Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 25 | Motor: 63C6
TXF002 NMRV040 30 63C6Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 30 | Motor: 63C6
TXF002 NMRV040 5 63C4Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 5 | Motor: 63C4
TXF002 NMRV040 7,5 63C4Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 7.5 | Motor: 63C4
TXF002 NMRV040 10 63C4Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 10 | Motor: 63C4
TXF002 NMRV040 15 63C4Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 15 | Motor: 63C4
TXF002 NMRV040 20 63C4Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 20 | Motor: 63C4
TXF002 NMRV040 30 63C4Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 30 | Motor: 63C4
TXF002 NMRV040 5 63C2Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 5 | Motor: 63C2
TXF002 NMRV040 7,5 63C2Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 7.5 | Motor: 63C2
TXF002 NMRV040 10 63C2Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 10 | Motor: 63C2
TXF002 NMRV040 15 63C2Legacy code (older edition) | Unit: TXF002 NMRV040 | Ratio i: 15 | Motor: 63C2
TXF002 NMRV050 40 63C6Legacy code (older edition) | Unit: TXF002 NMRV050 | Ratio i: 40 | Motor: 63C6
TXF002 NMRV050 50 63C6Legacy code (older edition) | Unit: TXF002 NMRV050 | Ratio i: 50 | Motor: 63C6
TXF002 NMRV050 60 63C6Legacy code (older edition) | Unit: TXF002 NMRV050 | Ratio i: 60 | Motor: 63C6
TXF002 NMRV050 40 63C4Legacy code (older edition) | Unit: TXF002 NMRV050 | Ratio i: 40 | Motor: 63C4
TXF002 NMRV050 50 63C4Legacy code (older edition) | Unit: TXF002 NMRV050 | Ratio i: 50 | Motor: 63C4
TXF002 NMRV050 40 63C2Legacy code (older edition) | Unit: TXF002 NMRV050 | Ratio i: 40 | Motor: 63C2
TXF005 NMRV040 5 71A4Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 5 | Motor: 71A4
TXF005 NMRV040 5 71B6Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 5 | Motor: 71B6
TXF005 NMRV040 7,5 71A4Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 7.5 | Motor: 71A4
TXF005 NMRV040 7,5 71B6Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 7.5 | Motor: 71B6
TXF005 NMRV040 10 71A4Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 10 | Motor: 71A4
TXF005 NMRV040 10 71B6Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 10 | Motor: 71B6
TXF005 NMRV040 15 71A4Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 15 | Motor: 71A4
TXF005 NMRV040 15 71B6Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 15 | Motor: 71B6
TXF005 NMRV040 5 71B2Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 5 | Motor: 71B2
TXF005 NMRV040 5 71B4Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 5 | Motor: 71B4
TXF005 NMRV040 7,5 71B4Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 7.5 | Motor: 71B4
TXF005 NMRV040 10 71B4Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 10 | Motor: 71B4
TXF005 NMRV040 15 71B4Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 15 | Motor: 71B4
TXF005 NMRV040 5 71C2Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 5 | Motor: 71C2
TXF005 NMRV040 5 71C4Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 5 | Motor: 71C4
TXF005 NMRV040 7,5 71B2Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 7.5 | Motor: 71B2
TXF005 NMRV040 7,5 71C4Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 7.5 | Motor: 71C4
TXF005 NMRV040 10 71B2Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 10 | Motor: 71B2
TXF005 NMRV040 10 71C4Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 10 | Motor: 71C4
TXF005 NMRV040 15 71C4Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 15 | Motor: 71C4
TXF005 NMRV040 7,5 71C2Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 7.5 | Motor: 71C2
TXF005 NMRV040 10 71C2Legacy code (older edition) | Unit: TXF005 NMRV040 | Ratio i: 10 | Motor: 71C2
TXF005 NMRV050 5 71A4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 5 | Motor: 71A4
TXF005 NMRV050 7,5 71A4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 71A4
TXF005 NMRV050 7,5 71B6Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 71B6
TXF005 NMRV050 10 71A4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 71A4
TXF005 NMRV050 10 71B6Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 71B6
TXF005 NMRV050 15 71A4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 71A4
TXF005 NMRV050 15 71B6Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 71B6
TXF005 NMRV050 20 71A4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 71A4
TXF005 NMRV050 20 71B6Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 71B6
TXF005 NMRV050 25 71A4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 25 | Motor: 71A4
TXF005 NMRV050 25 71B6Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 25 | Motor: 71B6
TXF005 NMRV050 30 71A4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 30 | Motor: 71A4
TXF005 NMRV050 30 71B6Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 30 | Motor: 71B6
TXF005 NMRV050 40 71B6Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 40 | Motor: 71B6
TXF005 NMRV050 50 71B6Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 50 | Motor: 71B6
TXF005 NMRV050 5 71B4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 5 | Motor: 71B4
TXF005 NMRV050 7,5 71B4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 71B4
TXF005 NMRV050 10 71B4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 71B4
TXF005 NMRV050 15 71B4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 71B4
TXF005 NMRV050 20 71B4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 71B4
TXF005 NMRV050 25 71B4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 25 | Motor: 71B4
TXF005 NMRV050 30 71B4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 30 | Motor: 71B4
TXF005 NMRV050 5 71C4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 5 | Motor: 71C4
TXF005 NMRV050 5 80B6Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 5 | Motor: 80B6
TXF005 NMRV050 7,5 71B2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 71B2
TXF005 NMRV050 7,5 71C4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 71C4
TXF005 NMRV050 7,5 80B6Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 80B6
TXF005 NMRV050 10 71B2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 71B2
TXF005 NMRV050 10 71C4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 71C4
TXF005 NMRV050 10 80B6Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 80B6
TXF005 NMRV050 15 71B2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 71B2
TXF005 NMRV050 15 71C4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 71C4
TXF005 NMRV050 15 80B6Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 80B6
TXF005 NMRV050 20 71B2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 71B2
TXF005 NMRV050 20 71C4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 71C4
TXF005 NMRV050 20 80B6Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 80B6
TXF005 NMRV050 25 71C4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 25 | Motor: 71C4
TXF005 NMRV050 25 80B6Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 25 | Motor: 80B6
TXF005 NMRV050 30 71C4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 30 | Motor: 71C4
TXF005 NMRV050 30 80B6Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 30 | Motor: 80B6
TXF005 NMRV050 40 80B6Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 40 | Motor: 80B6
TXF005 NMRV050 50 80B6Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 50 | Motor: 80B6
TXF005 NMRV050 5 71C2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 5 | Motor: 71C2
TXF005 NMRV050 5 80B4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 5 | Motor: 80B4
TXF005 NMRV050 7,5 71C2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 71C2
TXF005 NMRV050 7,5 80B4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 80B4
TXF005 NMRV050 10 71C2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 71C2
TXF005 NMRV050 10 80B4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 80B4
TXF005 NMRV050 15 71C2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 71C2
TXF005 NMRV050 15 80B4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 80B4
TXF005 NMRV050 20 71C2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 71C2
TXF005 NMRV050 20 80B4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 80B4
TXF005 NMRV050 25 80B4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 25 | Motor: 80B4
TXF005 NMRV050 30 80B4Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 30 | Motor: 80B4
TXF005 NMRV050 5 80B2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 5 | Motor: 80B2
TXF005 NMRV050 7,5 80B2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 80B2
TXF005 NMRV050 10 80B2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 80B2
TXF005 NMRV050 15 80B2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 80B2
TXF005 NMRV050 20 80B2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 80B2
TXF005 NMRV050 5 80C2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 5 | Motor: 80C2
TXF005 NMRV050 7,5 80C2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 7.5 | Motor: 80C2
TXF005 NMRV050 10 80C2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 10 | Motor: 80C2
TXF005 NMRV050 15 80C2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 15 | Motor: 80C2
TXF005 NMRV050 20 80C2Legacy code (older edition) | Unit: TXF005 NMRV050 | Ratio i: 20 | Motor: 80C2
TXF005 NMRV063 40 71A4Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 71A4
TXF005 NMRV063 40 71B6Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 71B6
TXF005 NMRV063 50 71A4Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 71A4
TXF005 NMRV063 50 71B6Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 71B6
TXF005 NMRV063 60 71A4Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 60 | Motor: 71A4
TXF005 NMRV063 60 71B6Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 60 | Motor: 71B6
TXF005 NMRV063 80 71B6Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 80 | Motor: 71B6
TXF005 NMRV063 40 71B4Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 71B4
TXF005 NMRV063 50 71B4Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 71B4
TXF005 NMRV063 60 71B4Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 60 | Motor: 71B4
TXF005 NMRV063 40 71B2Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 71B2
TXF005 NMRV063 40 71C4Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 71C4
TXF005 NMRV063 40 80B6Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 80B6
TXF005 NMRV063 50 71B2Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 71B2
TXF005 NMRV063 50 71C4Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 71C4
TXF005 NMRV063 50 80B6Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 80B6
TXF005 NMRV063 60 71C4Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 60 | Motor: 71C4
TXF005 NMRV063 60 80B6Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 60 | Motor: 80B6
TXF005 NMRV063 80 80B6Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 80 | Motor: 80B6
TXF005 NMRV063 40 71C2Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 71C2
TXF005 NMRV063 40 80B4Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 80B4
TXF005 NMRV063 50 71C2Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 71C2
TXF005 NMRV063 50 80B4Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 80B4
TXF005 NMRV063 60 80B4Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 60 | Motor: 80B4
TXF005 NMRV063 40 80B2Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 80B2
TXF005 NMRV063 50 80B2Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 80B2
TXF005 NMRV063 40 80C2Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 40 | Motor: 80C2
TXF005 NMRV063 50 80C2Legacy code (older edition) | Unit: TXF005 NMRV063 | Ratio i: 50 | Motor: 80C2
TXF005 NMRV075 50 71A4Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 71A4
TXF005 NMRV075 50 71B6Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 71B6
TXF005 NMRV075 60 71A4Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 71A4
TXF005 NMRV075 60 71B6Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 71B6
TXF005 NMRV075 80 71A4Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 71A4
TXF005 NMRV075 80 71B6Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 71B6
TXF005 NMRV075 100 71A4Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 100 | Motor: 71A4
TXF005 NMRV075 100 71B6Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 100 | Motor: 71B6
TXF005 NMRV075 50 71B4Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 71B4
TXF005 NMRV075 60 71B4Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 71B4
TXF005 NMRV075 80 71B4Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 71B4
TXF005 NMRV075 50 71B2Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 71B2
TXF005 NMRV075 50 71C4Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 71C4
TXF005 NMRV075 50 80B6Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 80B6
TXF005 NMRV075 60 71B2Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 71B2
TXF005 NMRV075 60 71C4Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 71C4
TXF005 NMRV075 60 80B6Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 80B6
TXF005 NMRV075 80 71B2Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 71B2
TXF005 NMRV075 80 71C4Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 71C4
TXF005 NMRV075 80 80B6Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 80B6
TXF005 NMRV075 100 71C4Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 100 | Motor: 71C4
TXF005 NMRV075 50 71C2Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 71C2
TXF005 NMRV075 50 80B4Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 80B4
TXF005 NMRV075 60 71C2Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 71C2
TXF005 NMRV075 60 80B4Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 80B4
TXF005 NMRV075 80 71C2Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 71C2
TXF005 NMRV075 80 80B4Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 80B4
TXF005 NMRV075 100 80B4Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 100 | Motor: 80B4
TXF005 NMRV075 50 80B2Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 80B2
TXF005 NMRV075 60 80B2Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 80B2
TXF005 NMRV075 80 80B2Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 80B2
TXF005 NMRV075 50 80C2Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 50 | Motor: 80C2
TXF005 NMRV075 60 80C2Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 60 | Motor: 80C2
TXF005 NMRV075 80 80C2Legacy code (older edition) | Unit: TXF005 NMRV075 | Ratio i: 80 | Motor: 80C2
TXF010 NMRV063 7,5 80A4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 80A4
TXF010 NMRV063 7,5 80B6Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 80B6
TXF010 NMRV063 10 80A4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 80A4
TXF010 NMRV063 10 80B6Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 80B6
TXF010 NMRV063 15 80A4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 80A4
TXF010 NMRV063 15 80B6Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 80B6
TXF010 NMRV063 20 80A4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 80A4
TXF010 NMRV063 20 80B6Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 80B6
TXF010 NMRV063 25 80A4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 25 | Motor: 80A4
TXF010 NMRV063 25 80B6Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 25 | Motor: 80B6
TXF010 NMRV063 30 80A4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 30 | Motor: 80A4
TXF010 NMRV063 30 80B6Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 30 | Motor: 80B6
TXF010 NMRV063 40 80B6Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 40 | Motor: 80B6
TXF010 NMRV063 7,5 80B4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 80B4
TXF010 NMRV063 7,5 90S6Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 90S6
TXF010 NMRV063 10 80B4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 80B4
TXF010 NMRV063 10 90S6Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 90S6
TXF010 NMRV063 15 80B4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 80B4
TXF010 NMRV063 15 90S6Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 90S6
TXF010 NMRV063 20 80B4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 80B4
TXF010 NMRV063 20 90S6Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 90S6
TXF010 NMRV063 25 80B4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 25 | Motor: 80B4
TXF010 NMRV063 25 90S6Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 25 | Motor: 90S6
TXF010 NMRV063 30 80B4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 30 | Motor: 80B4
TXF010 NMRV063 30 90S6Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 30 | Motor: 90S6
TXF010 NMRV063 40 90S6Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 40 | Motor: 90S6
TXF010 NMRV063 7,5 80C4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 80C4
TXF010 NMRV063 10 80C4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 80C4
TXF010 NMRV063 15 80C4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 80C4
TXF010 NMRV063 20 80C4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 80C4
TXF010 NMRV063 25 80C4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 25 | Motor: 80C4
TXF010 NMRV063 30 80C4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 30 | Motor: 80C4
TXF010 NMRV063 7,5 80B2Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 80B2
TXF010 NMRV063 7,5 90S4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 90S4
TXF010 NMRV063 10 80B2Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 80B2
TXF010 NMRV063 10 90S4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 90S4
TXF010 NMRV063 15 80B2Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 80B2
TXF010 NMRV063 15 90S4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 90S4
TXF010 NMRV063 20 80B2Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 80B2
TXF010 NMRV063 20 90S4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 90S4
TXF010 NMRV063 25 90S4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 25 | Motor: 90S4
TXF010 NMRV063 30 90S4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 30 | Motor: 90S4
TXF010 NMRV063 7,5 80C2Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 80C2
TXF010 NMRV063 7,5 90L2Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 90L2
TXF010 NMRV063 7,5 90L4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 7.5 | Motor: 90L4
TXF010 NMRV063 10 80C2Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 80C2
TXF010 NMRV063 10 90L4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 90L4
TXF010 NMRV063 15 80C2Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 80C2
TXF010 NMRV063 15 90L4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 90L4
TXF010 NMRV063 20 80C2Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 80C2
TXF010 NMRV063 20 90L4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 90L4
TXF010 NMRV063 25 90L4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 25 | Motor: 90L4
TXF010 NMRV063 30 90L4Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 30 | Motor: 90L4
TXF010 NMRV063 10 90L2Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 10 | Motor: 90L2
TXF010 NMRV063 15 90L2Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 15 | Motor: 90L2
TXF010 NMRV063 20 90L2Legacy code (older edition) | Unit: TXF010 NMRV063 | Ratio i: 20 | Motor: 90L2
TXF010 NMRV075 7,5 80A4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 80A4
TXF010 NMRV075 7,5 80B6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 80B6
TXF010 NMRV075 10 80A4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 80A4
TXF010 NMRV075 10 80B6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 80B6
TXF010 NMRV075 15 80A4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 80A4
TXF010 NMRV075 15 80B6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 80B6
TXF010 NMRV075 20 80A4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 80A4
TXF010 NMRV075 20 80B6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 80B6
TXF010 NMRV075 25 80A4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 80A4
TXF010 NMRV075 25 80B6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 80B6
TXF010 NMRV075 30 80A4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 80A4
TXF010 NMRV075 30 80B6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 80B6
TXF010 NMRV075 40 80A4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 40 | Motor: 80A4
TXF010 NMRV075 40 80B6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 40 | Motor: 80B6
TXF010 NMRV075 50 80B6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 50 | Motor: 80B6
TXF010 NMRV075 60 80B6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 60 | Motor: 80B6
TXF010 NMRV075 7,5 80B4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 80B4
TXF010 NMRV075 7,5 90S6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 90S6
TXF010 NMRV075 10 80B4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 80B4
TXF010 NMRV075 10 90S6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 90S6
TXF010 NMRV075 15 80B4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 80B4
TXF010 NMRV075 15 90S6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 90S6
TXF010 NMRV075 20 80B4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 80B4
TXF010 NMRV075 20 90S6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 90S6
TXF010 NMRV075 25 80B4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 80B4
TXF010 NMRV075 25 90S6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 90S6
TXF010 NMRV075 30 80B4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 80B4
TXF010 NMRV075 30 90S6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 90S6
TXF010 NMRV075 40 80B4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 40 | Motor: 80B4
TXF010 NMRV075 40 90S6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 40 | Motor: 90S6
TXF010 NMRV075 50 90S6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 50 | Motor: 90S6
TXF010 NMRV075 60 90S6Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 60 | Motor: 90S6
TXF010 NMRV075 7,5 80C4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 80C4
TXF010 NMRV075 10 80C4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 80C4
TXF010 NMRV075 15 80C4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 80C4
TXF010 NMRV075 20 80C4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 80C4
TXF010 NMRV075 25 80C4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 80C4
TXF010 NMRV075 30 80C4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 80C4
TXF010 NMRV075 40 80C4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 40 | Motor: 80C4
TXF010 NMRV075 7,5 80B2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 80B2
TXF010 NMRV075 7,5 90S4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 90S4
TXF010 NMRV075 10 80B2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 80B2
TXF010 NMRV075 10 90S4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 90S4
TXF010 NMRV075 15 80B2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 80B2
TXF010 NMRV075 15 90S4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 90S4
TXF010 NMRV075 20 80B2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 80B2
TXF010 NMRV075 20 90S4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 90S4
TXF010 NMRV075 25 80B2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 80B2
TXF010 NMRV075 25 90S4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 90S4
TXF010 NMRV075 30 80B2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 80B2
TXF010 NMRV075 30 90S4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 90S4
TXF010 NMRV075 40 90S4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 40 | Motor: 90S4
TXF010 NMRV075 7,5 80C2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 80C2
TXF010 NMRV075 7,5 90L4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 90L4
TXF010 NMRV075 10 80C2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 80C2
TXF010 NMRV075 10 90L4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 90L4
TXF010 NMRV075 15 80C2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 80C2
TXF010 NMRV075 15 90L4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 90L4
TXF010 NMRV075 20 80C2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 80C2
TXF010 NMRV075 20 90L4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 90L4
TXF010 NMRV075 25 80C2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 80C2
TXF010 NMRV075 25 90L4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 90L4
TXF010 NMRV075 30 80C2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 80C2
TXF010 NMRV075 30 90L4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 90L4
TXF010 NMRV075 40 90L4Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 40 | Motor: 90L4
TXF010 NMRV075 7,5 90L2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 7.5 | Motor: 90L2
TXF010 NMRV075 10 90L2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 10 | Motor: 90L2
TXF010 NMRV075 15 90L2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 15 | Motor: 90L2
TXF010 NMRV075 20 90L2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 20 | Motor: 90L2
TXF010 NMRV075 25 90L2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 25 | Motor: 90L2
TXF010 NMRV075 30 90L2Legacy code (older edition) | Unit: TXF010 NMRV075 | Ratio i: 30 | Motor: 90L2
TXF010 NMRV090 7,5 80A4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 80A4
TXF010 NMRV090 7,5 80B6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 80B6
TXF010 NMRV090 10 80A4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 80A4
TXF010 NMRV090 10 80B6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 80B6
TXF010 NMRV090 15 80A4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 80A4
TXF010 NMRV090 15 80B6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 80B6
TXF010 NMRV090 20 80A4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 80A4
TXF010 NMRV090 20 80B6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 80B6
TXF010 NMRV090 25 80A4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 80A4
TXF010 NMRV090 25 80B6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 80B6
TXF010 NMRV090 30 80A4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 80A4
TXF010 NMRV090 30 80B6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 80B6
TXF010 NMRV090 40 80A4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 80A4
TXF010 NMRV090 40 80B6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 80B6
TXF010 NMRV090 50 80A4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 80A4
TXF010 NMRV090 50 80B6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 80B6
TXF010 NMRV090 60 80A4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 80A4
TXF010 NMRV090 60 80B6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 80B6
TXF010 NMRV090 80 80B6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 80 | Motor: 80B6
TXF010 NMRV090 7,5 80B4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 80B4
TXF010 NMRV090 7,5 90S6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 90S6
TXF010 NMRV090 10 80B4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 80B4
TXF010 NMRV090 10 90S6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 90S6
TXF010 NMRV090 15 80B4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 80B4
TXF010 NMRV090 15 90S6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 90S6
TXF010 NMRV090 20 80B4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 80B4
TXF010 NMRV090 20 90S6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 90S6
TXF010 NMRV090 25 80B4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 80B4
TXF010 NMRV090 25 90S6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 90S6
TXF010 NMRV090 30 80B4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 80B4
TXF010 NMRV090 30 90S6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 90S6
TXF010 NMRV090 40 80B4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 80B4
TXF010 NMRV090 40 90S6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 90S6
TXF010 NMRV090 50 80B4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 80B4
TXF010 NMRV090 50 90S6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 90S6
TXF010 NMRV090 60 80B4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 80B4
TXF010 NMRV090 60 90S6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 90S6
TXF010 NMRV090 80 90S6Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 80 | Motor: 90S6
TXF010 NMRV090 7,5 80C4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 80C4
TXF010 NMRV090 10 80C4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 80C4
TXF010 NMRV090 15 80C4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 80C4
TXF010 NMRV090 20 80C4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 80C4
TXF010 NMRV090 25 80C4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 80C4
TXF010 NMRV090 30 80C4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 80C4
TXF010 NMRV090 40 80C4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 80C4
TXF010 NMRV090 50 80C4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 80C4
TXF010 NMRV090 60 80C4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 80C4
TXF010 NMRV090 7,5 80B2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 80B2
TXF010 NMRV090 7,5 90S4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 90S4
TXF010 NMRV090 10 80B2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 80B2
TXF010 NMRV090 10 90S4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 90S4
TXF010 NMRV090 15 80B2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 80B2
TXF010 NMRV090 15 90S4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 90S4
TXF010 NMRV090 20 80B2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 80B2
TXF010 NMRV090 20 90S4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 90S4
TXF010 NMRV090 25 80B2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 80B2
TXF010 NMRV090 25 90S4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 90S4
TXF010 NMRV090 30 80B2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 80B2
TXF010 NMRV090 30 90S4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 90S4
TXF010 NMRV090 40 80B2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 80B2
TXF010 NMRV090 40 90S4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 90S4
TXF010 NMRV090 50 80B2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 80B2
TXF010 NMRV090 50 90S4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 90S4
TXF010 NMRV090 60 80B2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 80B2
TXF010 NMRV090 60 90S4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 90S4
TXF010 NMRV090 7,5 80C2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 80C2
TXF010 NMRV090 7,5 90L4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 90L4
TXF010 NMRV090 10 80C2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 80C2
TXF010 NMRV090 10 90L4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 90L4
TXF010 NMRV090 15 80C2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 80C2
TXF010 NMRV090 15 90L4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 90L4
TXF010 NMRV090 20 80C2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 80C2
TXF010 NMRV090 20 90L4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 90L4
TXF010 NMRV090 25 80C2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 80C2
TXF010 NMRV090 25 90L4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 90L4
TXF010 NMRV090 30 80C2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 80C2
TXF010 NMRV090 30 90L4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 90L4
TXF010 NMRV090 40 80C2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 80C2
TXF010 NMRV090 40 90L4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 90L4
TXF010 NMRV090 50 80C2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 80C2
TXF010 NMRV090 50 90L4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 90L4
TXF010 NMRV090 60 80C2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 80C2
TXF010 NMRV090 60 90L4Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 90L4
TXF010 NMRV090 7,5 90L2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 7.5 | Motor: 90L2
TXF010 NMRV090 10 90L2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 10 | Motor: 90L2
TXF010 NMRV090 15 90L2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 15 | Motor: 90L2
TXF010 NMRV090 20 90L2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 20 | Motor: 90L2
TXF010 NMRV090 25 90L2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 25 | Motor: 90L2
TXF010 NMRV090 30 90L2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 30 | Motor: 90L2
TXF010 NMRV090 40 90L2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 40 | Motor: 90L2
TXF010 NMRV090 50 90L2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 50 | Motor: 90L2
TXF010 NMRV090 60 90L2Legacy code (older edition) | Unit: TXF010 NMRV090 | Ratio i: 60 | Motor: 90L2
TXF010 NMRV105 25 80A4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 80A4
TXF010 NMRV105 25 80B6Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 80B6
TXF010 NMRV105 30 80A4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 80A4
TXF010 NMRV105 30 80B6Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 80B6
TXF010 NMRV105 40 80A4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 80A4
TXF010 NMRV105 40 80B6Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 80B6
TXF010 NMRV105 50 80A4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 80A4
TXF010 NMRV105 50 80B6Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 80B6
TXF010 NMRV105 60 80A4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 80A4
TXF010 NMRV105 60 80B6Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 80B6
TXF010 NMRV105 80 80A4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 80A4
TXF010 NMRV105 80 80B6Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 80B6
TXF010 NMRV105 100 80A4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 100 | Motor: 80A4
TXF010 NMRV105 100 80B6Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 100 | Motor: 80B6
TXF010 NMRV105 25 80B4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 80B4
TXF010 NMRV105 25 90S6Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 90S6
TXF010 NMRV105 30 80B4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 80B4
TXF010 NMRV105 30 90S6Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 90S6
TXF010 NMRV105 40 80B4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 80B4
TXF010 NMRV105 40 90S6Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 90S6
TXF010 NMRV105 50 80B4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 80B4
TXF010 NMRV105 50 90S6Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 90S6
TXF010 NMRV105 60 80B4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 80B4
TXF010 NMRV105 60 90S6Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 90S6
TXF010 NMRV105 80 80B4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 80B4
TXF010 NMRV105 80 90S6Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 90S6
TXF010 NMRV105 100 80B4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 100 | Motor: 80B4
TXF010 NMRV105 100 90S6Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 100 | Motor: 90S6
TXF010 NMRV105 25 80C4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 80C4
TXF010 NMRV105 30 80C4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 80C4
TXF010 NMRV105 40 80C4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 80C4
TXF010 NMRV105 50 80C4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 80C4
TXF010 NMRV105 60 80C4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 80C4
TXF010 NMRV105 80 80C4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 80C4
TXF010 NMRV105 100 80C4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 100 | Motor: 80C4
TXF010 NMRV105 25 80B2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 80B2
TXF010 NMRV105 25 90S4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 90S4
TXF010 NMRV105 30 80B2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 80B2
TXF010 NMRV105 30 90S4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 90S4
TXF010 NMRV105 40 80B2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 80B2
TXF010 NMRV105 40 90S4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 90S4
TXF010 NMRV105 50 80B2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 80B2
TXF010 NMRV105 50 90S4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 90S4
TXF010 NMRV105 60 80B2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 80B2
TXF010 NMRV105 60 90S4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 90S4
TXF010 NMRV105 80 80B2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 80B2
TXF010 NMRV105 80 90S4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 90S4
TXF010 NMRV105 100 90S4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 100 | Motor: 90S4
TXF010 NMRV105 25 80C2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 80C2
TXF010 NMRV105 25 90L4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 90L4
TXF010 NMRV105 30 80C2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 80C2
TXF010 NMRV105 30 90L4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 90L4
TXF010 NMRV105 40 80C2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 80C2
TXF010 NMRV105 40 90L4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 90L4
TXF010 NMRV105 50 80C2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 80C2
TXF010 NMRV105 50 90L4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 90L4
TXF010 NMRV105 60 80C2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 80C2
TXF010 NMRV105 60 90L4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 90L4
TXF010 NMRV105 80 80C2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 80C2
TXF010 NMRV105 80 90L4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 90L4
TXF010 NMRV105 100 90L4Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 100 | Motor: 90L4
TXF010 NMRV105 25 90L2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 25 | Motor: 90L2
TXF010 NMRV105 30 90L2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 30 | Motor: 90L2
TXF010 NMRV105 40 90L2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 40 | Motor: 90L2
TXF010 NMRV105 50 90L2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 50 | Motor: 90L2
TXF010 NMRV105 60 90L2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 60 | Motor: 90L2
TXF010 NMRV105 80 90L2Legacy code (older edition) | Unit: TXF010 NMRV105 | Ratio i: 80 | Motor: 90L2
TXF010 NMRV110 100 80B2Legacy code (older edition) | Unit: TXF010 NMRV110 | Ratio i: 100 | Motor: 80B2
TXF010 NMRV110 100 80C2Legacy code (older edition) | Unit: TXF010 NMRV110 | Ratio i: 100 | Motor: 80C2
TXF010 NMRV110 100 90L2Legacy code (older edition) | Unit: TXF010 NMRV110 | Ratio i: 100 | Motor: 90L2
TXF010 NMRV130 80 80A4Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 80A4
TXF010 NMRV130 80 80B6Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 80B6
TXF010 NMRV130 100 80A4Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 80A4
TXF010 NMRV130 100 80B6Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 80B6
TXF010 NMRV130 80 80B4Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 80B4
TXF010 NMRV130 80 90S6Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 90S6
TXF010 NMRV130 100 80B4Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 80B4
TXF010 NMRV130 100 90S6Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 90S6
TXF010 NMRV130 80 80C4Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 80C4
TXF010 NMRV130 100 80C4Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 80C4
TXF010 NMRV130 80 80B2Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 80B2
TXF010 NMRV130 80 90S4Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 90S4
TXF010 NMRV130 100 80B2Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 80B2
TXF010 NMRV130 100 90S4Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 90S4
TXF010 NMRV130 80 80C2Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 80C2
TXF010 NMRV130 80 90L4Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 90L4
TXF010 NMRV130 100 80C2Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 80C2
TXF010 NMRV130 80 90L2Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 80 | Motor: 90L2
TXF010 NMRV130 100 90L2Legacy code (older edition) | Unit: TXF010 NMRV130 | Ratio i: 100 | Motor: 90L2
TXF002 NMRV030Legacy code (older edition) | Unit: TXF002 NMRV030
TXF002 NMRV040Legacy code (older edition) | Unit: TXF002 NMRV040
TXF002 NMRV050Legacy code (older edition) | Unit: TXF002 NMRV050
TXF005 NMRV040Legacy code (older edition) | Unit: TXF005 NMRV040
TXF005 NMRV050Legacy code (older edition) | Unit: TXF005 NMRV050
TXF005 NMRV063Legacy code (older edition) | Unit: TXF005 NMRV063
TXF005 NMRV075Legacy code (older edition) | Unit: TXF005 NMRV075
TXF010 NMRV063Legacy code (older edition) | Unit: TXF010 NMRV063
TXF010 NMRV075Legacy code (older edition) | Unit: TXF010 NMRV075
TXF010 NMRV090Legacy code (older edition) | Unit: TXF010 NMRV090
TXF010 NMRV105Legacy code (older edition) | Unit: TXF010 NMRV105
TXF010 NMRV130Legacy code (older edition) | Unit: TXF010 NMRV130
TXF010 NMRV110Legacy code (older edition) | Unit: TXF010 NMRV110

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
