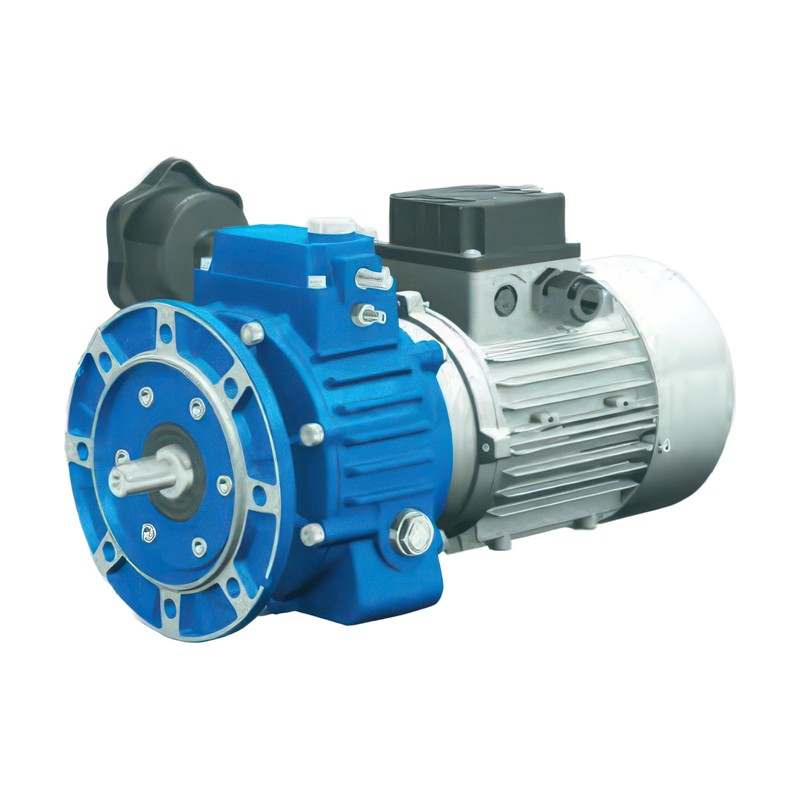

Motovario VH Motovariator-Helical Gearmotors (VH030-VH100, cast iron)

Motovario VH motovariator-gear reducers in sizes VH030 to VH100 combine an S mechanical speed variator with a cast iron H/HR helical gear unit, listed with every ratio and motor combination printed in the VH performance tables.

Key features

S variator sizes 030, 050 and 100 coupled to cast iron H helical reducers (062, 081, 082, 101, 102, 103, 121, 122, 123)
Helical ratios 1.23 to 128.18, stepless output speed 1-813 rpm
Output torque up to 6096 Nm at minimum speed; radial load Fr2 up to 30000 N
Supplied with IEC motors TS (IE1), TH (IE2) and TP (IE3), 1.5-15 kW
Reducer casing in grey cast iron; RAL 5010 blue epoxy-polyester paint
Foot, flange and universal versions (VH/VHR, F, U, M); optional differential D, backstop

Specifications

Brand	Motovario (Italy)
Product	Motovariator + helical gear reducer
Variator	S friction-disc, handwheel control
Variator sizes	030, 050, 100
Helical reducers	062,081,082,101,102,103,121,122,123
Reducer housing	Grey cast iron (H / HR)
Ratio range	1.23 to 128.18
Motor power range	1.5-15 kW
Versions	VH, VHR, VHF, VHU, VHRM
Variator oil	ENI BLASIA 32 mineral oil
Code format	<Gear reducer> <ratio i> <motor>
Source	Motovario VAR Technical Catalogue IEC STD, p. 61-151

VH030/081 3,25 TP100L6		Unit: VH030/081 \| Ratio i: 3.25 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 38.0-198.0 rpm \| Output torque M2: 57-151 Nm
VH030/081 3,72 TP100L6		Unit: VH030/081 \| Ratio i: 3.72 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 33.0-173.0 rpm \| Output torque M2: 65-173 Nm
VH030/081 4,00 TP100L6		Unit: VH030/081 \| Ratio i: 4.00 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 31.0-161.0 rpm \| Output torque M2: 70-186 Nm
VH030/081 4,67 TP100L6		Unit: VH030/081 \| Ratio i: 4.67 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 26.0-138.0 rpm \| Output torque M2: 82-217 Nm
VH030/062 5,38 TP100L6		Unit: VH030/062 \| Ratio i: 5.38 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 23.0-120.0 rpm \| Output torque M2: 94-248 Nm
VH030/081 5,54 TP100L6		Unit: VH030/081 \| Ratio i: 5.54 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 22.0-116.0 rpm \| Output torque M2: 97-258 Nm
VH030/062 5,93 TP100L6		Unit: VH030/062 \| Ratio i: 5.93 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 21.0-108.0 rpm \| Output torque M2: 103-273 Nm
VH030/081 6,08 TP100L6		Unit: VH030/081 \| Ratio i: 6.08 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 20.0-106.0 rpm \| Output torque M2: 107-283 Nm
VH030/062 7,39 TP100L6		Unit: VH030/062 \| Ratio i: 7.39 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 17.0-87.0 rpm \| Output torque M2: 129-341 Nm
VH030/081 7,50 TP100L6		Unit: VH030/081 \| Ratio i: 7.50 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 16.0-86.0 rpm \| Output torque M2: 132-349 Nm
VH030/101 7,55 TP100L6		Unit: VH030/101 \| Ratio i: 7.55 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 16.0-85.0 rpm \| Output torque M2: 133-351 Nm
VH030/101 8,40 TP100L6		Unit: VH030/101 \| Ratio i: 8.40 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 15.0-77.0 rpm \| Output torque M2: 148-391 Nm
VH030/062 8,50 TP100L6		Unit: VH030/062 \| Ratio i: 8.50 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 14.0-76.0 rpm \| Output torque M2: 148-392 Nm
VH030/081 8,44 TP100L6		Unit: VH030/081 \| Ratio i: 8.44 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 14.0-76.0 rpm \| Output torque M2: 148-393 Nm
VH030/062 9,39 TP100L6		Unit: VH030/062 \| Ratio i: 9.39 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 13.0-68.0 rpm \| Output torque M2: 163-432 Nm
VH030/062 11,69 TP100L6		Unit: VH030/062 \| Ratio i: 11.69 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 10.0-55.0 rpm \| Output torque M2: 203-539 Nm
VH030/062 12,67 TP100L6		Unit: VH030/062 \| Ratio i: 12.67 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 9.6-51.0 rpm \| Output torque M2: 220-584 Nm
VH030/062 14,75 TP100L6		Unit: VH030/062 \| Ratio i: 14.75 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 8.3-44.0 rpm \| Output torque M2: 257-680 Nm
VH030/062 16,29 TP100L6		Unit: VH030/062 \| Ratio i: 16.29 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 7.5-39.0 rpm \| Output torque M2: 283-750 Nm
VH030/082 16,62 TP100L6		Unit: VH030/082 \| Ratio i: 16.62 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 7.4-39.0 rpm \| Output torque M2: 289-766 Nm
VH030/062 17,67 TP100L6		Unit: VH030/062 \| Ratio i: 17.67 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 6.9-36.0 rpm \| Output torque M2: 307-814 Nm
VH030/082 18,53 TP100L6		Unit: VH030/082 \| Ratio i: 18.53 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 6.6-35.0 rpm \| Output torque M2: 322-854 Nm
VH030/082 19,38 TP100L6		Unit: VH030/082 \| Ratio i: 19.38 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 6.3-33.0 rpm \| Output torque M2: 337-893 Nm
VH030/062 20,28 TP100L6		Unit: VH030/062 \| Ratio i: 20.28 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 6.0-32.0 rpm \| Output torque M2: 353-935 Nm
VH030/082 21,39 TP100L6		Unit: VH030/082 \| Ratio i: 21.39 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 372-986 Nm
VH030/082 22,80 TP100L6		Unit: VH030/082 \| Ratio i: 22.80 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 5.4-28.0 rpm \| Output torque M2: 397-1051 Nm
VH030/082 26,60 TP100L6		Unit: VH030/082 \| Ratio i: 26.60 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 463-1226 Nm
VH030/082 27,88 TP100L6		Unit: VH030/082 \| Ratio i: 27.88 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 485-1285 Nm
VH030/082 31,15 TP100L6		Unit: VH030/082 \| Ratio i: 31.15 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.9-21.0 rpm \| Output torque M2: 542-1436 Nm
VH030/082 34,38 TP100L6		Unit: VH030/082 \| Ratio i: 34.38 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 598-1584 Nm
VH030/102 34,20 TP100L6		Unit: VH030/102 \| Ratio i: 34.20 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 595-1576 Nm
VH030/082 38,70 TP100L6		Unit: VH030/082 \| Ratio i: 38.70 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 673-1783 Nm
VH030/102 38,45 TP100L6		Unit: VH030/102 \| Ratio i: 38.45 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 669-1772 Nm
VH030/102 41,30 TP100L6		Unit: VH030/102 \| Ratio i: 41.30 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.0-16.0 rpm \| Output torque M2: 719-1903 Nm
VH030/102 45,82 TP100L6		Unit: VH030/102 \| Ratio i: 45.82 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 797-2111 Nm
VH030/102 51,52 TP100L6		Unit: VH030/102 \| Ratio i: 51.52 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 2.4-12.0 rpm \| Output torque M2: 896-2374 Nm
VH030/103 55,47 TP100L6		Unit: VH030/103 \| Ratio i: 55.47 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 945-2503 Nm
VH030/123 55,87 TP100L6		Unit: VH030/123 \| Ratio i: 55.87 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 952-2521 Nm
VH030/123 67,32 TP100L6		Unit: VH030/123 \| Ratio i: 67.32 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.8-9.5 rpm \| Output torque M2: 1147-3038 Nm
VH030/103 69,69 TP100L6		Unit: VH030/103 \| Ratio i: 69.69 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 1187-3144 Nm
VH030/123 73,71 TP100L6		Unit: VH030/123 \| Ratio i: 73.71 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.7-8.7 rpm \| Output torque M2: 1256-3326 Nm
VH030/103 79,82 TP100L6		Unit: VH030/103 \| Ratio i: 79.82 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.5-8.1 rpm \| Output torque M2: 1360-3601 Nm
VH030/123 83,34 TP100L6		Unit: VH030/123 \| Ratio i: 83.34 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.5-7.7 rpm \| Output torque M2: 1420-3760 Nm
VH030/103 84,16 TP100L6		Unit: VH030/103 \| Ratio i: 84.16 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.5-7.6 rpm \| Output torque M2: 1434-3797 Nm
VH030/123 89,97 TP100L6		Unit: VH030/123 \| Ratio i: 89.97 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.4-7.1 rpm \| Output torque M2: 1533-4059 Nm
VH030/103 93,36 TP100L6		Unit: VH030/103 \| Ratio i: 93.36 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.3-6.9 rpm \| Output torque M2: 1590-4213 Nm
VH030/123 100,29 TP100L6		Unit: VH030/123 \| Ratio i: 100.29 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.2-6.4 rpm \| Output torque M2: 1708-4525 Nm
VH030/123 108,34 TP100L6		Unit: VH030/123 \| Ratio i: 108.34 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.1-5.9 rpm \| Output torque M2: 1846-4888 Nm
VH030/123 118,62 TP100L6		Unit: VH030/123 \| Ratio i: 118.62 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.0-5.4 rpm \| Output torque M2: 2021-5352 Nm
VH030/123 128,18 TP100L6		Unit: VH030/123 \| Ratio i: 128.18 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.0-5.0 rpm \| Output torque M2: 2184-5783 Nm
VH030/081 1,93 TP112M6		Unit: VH030/081 \| Ratio i: 1.93 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 63.0-333.0 rpm \| Output torque M2: 50-90 Nm
VH030/081 3,25 TP100LA4		Unit: VH030/081 \| Ratio i: 3.25 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 58.0-308.0 rpm \| Output torque M2: 55-151 Nm
VH030/081 3,72 TP100LA4		Unit: VH030/081 \| Ratio i: 3.72 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 51.0-269.0 rpm \| Output torque M2: 63-173 Nm
VH030/081 2,54 TP112M6		Unit: VH030/081 \| Ratio i: 2.54 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 48.0-253.0 rpm \| Output torque M2: 66-118 Nm
VH030/081 4,00 TP100LA4		Unit: VH030/081 \| Ratio i: 4.00 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 48.0-250.0 rpm \| Output torque M2: 68-186 Nm
VH030/081 4,67 TP100LA4		Unit: VH030/081 \| Ratio i: 4.67 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 41.0-214.0 rpm \| Output torque M2: 79-217 Nm
VH030/081 3,25 TP112M6		Unit: VH030/081 \| Ratio i: 3.25 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 38.0-198.0 rpm \| Output torque M2: 84-151 Nm
VH030/062 5,38 TP100LA4		Unit: VH030/062 \| Ratio i: 5.38 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 35.0-186.0 rpm \| Output torque M2: 90-248 Nm
VH030/081 5,54 TP100LA4		Unit: VH030/081 \| Ratio i: 5.54 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 34.0-181.0 rpm \| Output torque M2: 94-258 Nm
VH030/081 3,72 TP112M6		Unit: VH030/081 \| Ratio i: 3.72 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 33.0-173.0 rpm \| Output torque M2: 96-173 Nm
VH030/062 5,93 TP100LA4		Unit: VH030/062 \| Ratio i: 5.93 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 32.0-168.0 rpm \| Output torque M2: 100-273 Nm
VH030/081 6,08 TP100LA4		Unit: VH030/081 \| Ratio i: 6.08 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 31.0-164.0 rpm \| Output torque M2: 103-283 Nm
VH030/081 4,00 TP112M6		Unit: VH030/081 \| Ratio i: 4.00 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 31.0-161.0 rpm \| Output torque M2: 103-186 Nm
VH030/081 4,67 TP112M6		Unit: VH030/081 \| Ratio i: 4.67 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 26.0-138.0 rpm \| Output torque M2: 120-217 Nm
VH030/062 7,39 TP100LA4		Unit: VH030/062 \| Ratio i: 7.39 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 26.0-135.0 rpm \| Output torque M2: 124-341 Nm
VH030/081 7,50 TP100LA4		Unit: VH030/081 \| Ratio i: 7.50 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 25.0-133.0 rpm \| Output torque M2: 127-349 Nm
VH030/101 7,55 TP100LA4		Unit: VH030/101 \| Ratio i: 7.55 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 25.0-133.0 rpm \| Output torque M2: 128-351 Nm
VH030/101 4,88 TP112M6		Unit: VH030/101 \| Ratio i: 4.88 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 25.0-132.0 rpm \| Output torque M2: 126-227 Nm
VH050/101 4,88 TP112M6		Unit: VH050/101 \| Ratio i: 4.88 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 25.0-132.0 rpm \| Output torque M2: 126-303 Nm
VH030/101 5,27 TP112M6		Unit: VH030/101 \| Ratio i: 5.27 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 136-245 Nm
VH050/101 5,27 TP112M6		Unit: VH050/101 \| Ratio i: 5.27 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 136-327 Nm
VH030/062 5,38 TP112M6		Unit: VH030/062 \| Ratio i: 5.38 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 23.0-120.0 rpm \| Output torque M2: 137-248 Nm
VH030/082 5,39 TP112M6		Unit: VH030/082 \| Ratio i: 5.39 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 23.0-119.0 rpm \| Output torque M2: 138-248 Nm
VH030/101 8,40 TP100LA4		Unit: VH030/101 \| Ratio i: 8.40 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 23.0-119.0 rpm \| Output torque M2: 143-391 Nm
VH030/081 8,44 TP100LA4		Unit: VH030/081 \| Ratio i: 8.44 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 23.0-118.0 rpm \| Output torque M2: 143-393 Nm
VH030/062 8,50 TP100LA4		Unit: VH030/062 \| Ratio i: 8.50 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 22.0-118.0 rpm \| Output torque M2: 143-392 Nm
VH030/081 5,54 TP112M6		Unit: VH030/081 \| Ratio i: 5.54 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 22.0-116.0 rpm \| Output torque M2: 143-258 Nm
VH030/062 5,93 TP112M6		Unit: VH030/062 \| Ratio i: 5.93 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 21.0-108.0 rpm \| Output torque M2: 151-273 Nm
VH030/082 5,95 TP112M6		Unit: VH030/082 \| Ratio i: 5.95 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 21.0-108.0 rpm \| Output torque M2: 152-274 Nm
VH030/062 9,39 TP100LA4		Unit: VH030/062 \| Ratio i: 9.39 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 20.0-107.0 rpm \| Output torque M2: 158-432 Nm
VH030/081 6,08 TP112M6		Unit: VH030/081 \| Ratio i: 6.08 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 20.0-106.0 rpm \| Output torque M2: 157-283 Nm
VH030/101 6,23 TP112M6		Unit: VH030/101 \| Ratio i: 6.23 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 161-290 Nm
VH030/121 6,25 TP112M6		Unit: VH030/121 \| Ratio i: 6.25 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 161-291 Nm
VH050/101 6,23 TP112M6		Unit: VH050/101 \| Ratio i: 6.23 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 161-387 Nm
VH050/121 6,25 TP112M6		Unit: VH050/121 \| Ratio i: 6.25 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 161-388 Nm
VH030/062 7,39 TP112M6		Unit: VH030/062 \| Ratio i: 7.39 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 17.0-87.0 rpm \| Output torque M2: 189-341 Nm
VH030/082 7,39 TP112M6		Unit: VH030/082 \| Ratio i: 7.39 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 17.0-87.0 rpm \| Output torque M2: 189-341 Nm
VH030/062 11,69 TP100LA4		Unit: VH030/062 \| Ratio i: 11.69 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 16.0-86.0 rpm \| Output torque M2: 196-539 Nm
VH030/081 7,50 TP112M6		Unit: VH030/081 \| Ratio i: 7.50 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 16.0-86.0 rpm \| Output torque M2: 193-349 Nm
VH030/101 7,55 TP112M6		Unit: VH030/101 \| Ratio i: 7.55 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 16.0-85.0 rpm \| Output torque M2: 195-351 Nm
VH050/101 7,55 TP112M6		Unit: VH050/101 \| Ratio i: 7.55 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 16.0-85.0 rpm \| Output torque M2: 195-468 Nm
VH030/121 7,70 TP112M6		Unit: VH030/121 \| Ratio i: 7.70 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 16.0-83.0 rpm \| Output torque M2: 199-359 Nm
VH050/121 7,70 TP112M6		Unit: VH050/121 \| Ratio i: 7.70 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 16.0-83.0 rpm \| Output torque M2: 199-478 Nm
VH030/082 8,02 TP112M6		Unit: VH030/082 \| Ratio i: 8.02 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 15.0-80.0 rpm \| Output torque M2: 205-370 Nm
VH030/062 12,67 TP100LA4		Unit: VH030/062 \| Ratio i: 12.67 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 15.0-79.0 rpm \| Output torque M2: 213-584 Nm
VH030/101 8,40 TP112M6		Unit: VH030/101 \| Ratio i: 8.40 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 15.0-77.0 rpm \| Output torque M2: 217-391 Nm
VH050/101 8,40 TP112M6		Unit: VH050/101 \| Ratio i: 8.40 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 15.0-77.0 rpm \| Output torque M2: 217-521 Nm
VH030/062 8,50 TP112M6		Unit: VH030/062 \| Ratio i: 8.50 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 14.0-76.0 rpm \| Output torque M2: 217-392 Nm
VH030/081 8,44 TP112M6		Unit: VH030/081 \| Ratio i: 8.44 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 14.0-76.0 rpm \| Output torque M2: 218-393 Nm
VH030/082 8,85 TP112M6		Unit: VH030/082 \| Ratio i: 8.85 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 14.0-73.0 rpm \| Output torque M2: 226-408 Nm
VH030/062 9,39 TP112M6		Unit: VH030/062 \| Ratio i: 9.39 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 13.0-68.0 rpm \| Output torque M2: 239-432 Nm
VH030/062 14,75 TP100LA4		Unit: VH030/062 \| Ratio i: 14.75 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 13.0-68.0 rpm \| Output torque M2: 248-680 Nm
VH030/062 16,29 TP100LA4		Unit: VH030/062 \| Ratio i: 16.29 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 12.0-61.0 rpm \| Output torque M2: 274-750 Nm
VH030/082 16,62 TP100LA4		Unit: VH030/082 \| Ratio i: 16.62 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 11.0-60.0 rpm \| Output torque M2: 279-766 Nm
VH030/082 11,01 TP112M6		Unit: VH030/082 \| Ratio i: 11.01 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 11.0-58.0 rpm \| Output torque M2: 281-507 Nm
VH030/062 17,67 TP100LA4		Unit: VH030/062 \| Ratio i: 17.67 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 11.0-57.0 rpm \| Output torque M2: 297-814 Nm
VH030/062 11,69 TP112M6		Unit: VH030/062 \| Ratio i: 11.69 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 10.0-55.0 rpm \| Output torque M2: 298-539 Nm
VH030/082 18,53 TP100LA4		Unit: VH030/082 \| Ratio i: 18.53 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 10.0-54.0 rpm \| Output torque M2: 311-854 Nm
VH030/082 19,38 TP100LA4		Unit: VH030/082 \| Ratio i: 19.38 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 9.8-52.0 rpm \| Output torque M2: 326-893 Nm
VH030/062 12,67 TP112M6		Unit: VH030/062 \| Ratio i: 12.67 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 9.6-51.0 rpm \| Output torque M2: 323-584 Nm
VH030/062 20,28 TP100LA4		Unit: VH030/062 \| Ratio i: 20.28 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 9.4-49.0 rpm \| Output torque M2: 341-935 Nm
VH030/082 13,50 TP112M6		Unit: VH030/082 \| Ratio i: 13.50 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 9.0-48.0 rpm \| Output torque M2: 344-622 Nm
VH030/082 21,39 TP100LA4		Unit: VH030/082 \| Ratio i: 21.39 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 8.9-47.0 rpm \| Output torque M2: 359-986 Nm
VH030/062 14,75 TP112M6		Unit: VH030/062 \| Ratio i: 14.75 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 8.3-44.0 rpm \| Output torque M2: 376-680 Nm
VH030/082 22,80 TP100LA4		Unit: VH030/082 \| Ratio i: 22.80 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 8.3-44.0 rpm \| Output torque M2: 383-1051 Nm
VH030/082 14,90 TP112M6		Unit: VH030/082 \| Ratio i: 14.90 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 8.2-43.0 rpm \| Output torque M2: 380-686 Nm
VH030/062 16,29 TP112M6		Unit: VH030/062 \| Ratio i: 16.29 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 7.5-39.0 rpm \| Output torque M2: 416-750 Nm
VH030/082 16,62 TP112M6		Unit: VH030/082 \| Ratio i: 16.62 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 7.4-39.0 rpm \| Output torque M2: 424-766 Nm
VH030/082 26,60 TP100LA4		Unit: VH030/082 \| Ratio i: 26.60 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 7.1-38.0 rpm \| Output torque M2: 447-1226 Nm
VH030/062 17,67 TP112M6		Unit: VH030/062 \| Ratio i: 17.67 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 6.9-36.0 rpm \| Output torque M2: 451-814 Nm
VH030/082 27,88 TP100LA4		Unit: VH030/082 \| Ratio i: 27.88 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 468-1285 Nm
VH030/082 18,53 TP112M6		Unit: VH030/082 \| Ratio i: 18.53 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 6.6-35.0 rpm \| Output torque M2: 473-854 Nm
VH030/082 19,38 TP112M6		Unit: VH030/082 \| Ratio i: 19.38 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 6.3-33.0 rpm \| Output torque M2: 495-893 Nm
VH030/082 31,15 TP100LA4		Unit: VH030/082 \| Ratio i: 31.15 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 6.1-32.0 rpm \| Output torque M2: 523-1436 Nm
VH030/062 20,28 TP112M6		Unit: VH030/062 \| Ratio i: 20.28 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 6.0-32.0 rpm \| Output torque M2: 518-935 Nm
VH030/082 21,39 TP112M6		Unit: VH030/082 \| Ratio i: 21.39 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 546-986 Nm
VH030/102 34,20 TP100LA4		Unit: VH030/102 \| Ratio i: 34.20 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 5.6-29.0 rpm \| Output torque M2: 575-1576 Nm
VH030/082 34,38 TP100LA4		Unit: VH030/082 \| Ratio i: 34.38 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 5.5-29.0 rpm \| Output torque M2: 578-1584 Nm
VH030/082 22,80 TP112M6		Unit: VH030/082 \| Ratio i: 22.80 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 5.4-28.0 rpm \| Output torque M2: 582-1051 Nm
VH030/102 23,97 TP112M6		Unit: VH030/102 \| Ratio i: 23.97 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 5.1-27.0 rpm \| Output torque M2: 612-1104 Nm
VH050/102 23,97 TP112M6		Unit: VH050/102 \| Ratio i: 23.97 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 5.1-27.0 rpm \| Output torque M2: 612-1473 Nm
VH030/082 38,70 TP100LA4		Unit: VH030/082 \| Ratio i: 38.70 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 4.9-26.0 rpm \| Output torque M2: 650-1783 Nm
VH030/102 38,45 TP100LA4		Unit: VH030/102 \| Ratio i: 38.45 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 4.9-26.0 rpm \| Output torque M2: 646-1772 Nm
VH030/102 25,89 TP112M6		Unit: VH030/102 \| Ratio i: 25.89 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.7-25.0 rpm \| Output torque M2: 661-1193 Nm
VH050/102 25,89 TP112M6		Unit: VH050/102 \| Ratio i: 25.89 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.7-25.0 rpm \| Output torque M2: 661-1591 Nm
VH030/082 26,60 TP112M6		Unit: VH030/082 \| Ratio i: 26.60 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 679-1226 Nm
VH030/102 41,30 TP100LA4		Unit: VH030/102 \| Ratio i: 41.30 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 694-1903 Nm
VH030/082 27,88 TP112M6		Unit: VH030/082 \| Ratio i: 27.88 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 711-1285 Nm
VH030/102 28,73 TP112M6		Unit: VH030/102 \| Ratio i: 28.73 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.3-22.0 rpm \| Output torque M2: 733-1324 Nm
VH050/102 28,73 TP112M6		Unit: VH050/102 \| Ratio i: 28.73 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.3-22.0 rpm \| Output torque M2: 733-1765 Nm
VH030/102 45,82 TP100LA4		Unit: VH030/102 \| Ratio i: 45.82 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 770-2111 Nm
VH030/102 30,72 TP112M6		Unit: VH030/102 \| Ratio i: 30.72 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.0-21.0 rpm \| Output torque M2: 784-1416 Nm
VH050/102 30,72 TP112M6		Unit: VH050/102 \| Ratio i: 30.72 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.0-21.0 rpm \| Output torque M2: 784-1887 Nm
VH030/082 31,15 TP112M6		Unit: VH030/082 \| Ratio i: 31.15 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.9-21.0 rpm \| Output torque M2: 795-1436 Nm
VH030/102 51,52 TP100LA4		Unit: VH030/102 \| Ratio i: 51.52 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 866-2374 Nm
VH030/082 34,38 TP112M6		Unit: VH030/082 \| Ratio i: 34.38 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 877-1584 Nm
VH030/102 34,20 TP112M6		Unit: VH030/102 \| Ratio i: 34.20 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 873-1576 Nm
VH050/102 34,20 TP112M6		Unit: VH050/102 \| Ratio i: 34.20 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 873-2101 Nm
VH030/103 55,47 TP100LA4		Unit: VH030/103 \| Ratio i: 55.47 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 913-2503 Nm
VH030/122 36,13 TP112M6		Unit: VH030/122 \| Ratio i: 36.13 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 922-1665 Nm
VH030/123 55,87 TP100LA4		Unit: VH030/123 \| Ratio i: 55.87 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 919-2521 Nm
VH050/122 36,13 TP112M6		Unit: VH050/122 \| Ratio i: 36.13 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 922-2220 Nm
VH030/082 38,70 TP112M6		Unit: VH030/082 \| Ratio i: 38.70 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 988-1783 Nm
VH030/102 38,45 TP112M6		Unit: VH030/102 \| Ratio i: 38.45 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 981-1772 Nm
VH050/102 38,45 TP112M6		Unit: VH050/102 \| Ratio i: 38.45 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 981-2363 Nm
VH030/102 41,30 TP112M6		Unit: VH030/102 \| Ratio i: 41.30 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.0-16.0 rpm \| Output torque M2: 1054-1903 Nm
VH050/102 41,30 TP112M6		Unit: VH050/102 \| Ratio i: 41.30 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.0-16.0 rpm \| Output torque M2: 1054-2537 Nm
VH030/122 44,10 TP112M6		Unit: VH030/122 \| Ratio i: 44.10 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 1125-2032 Nm
VH030/123 67,32 TP100LA4		Unit: VH030/123 \| Ratio i: 67.32 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 1108-3038 Nm
VH050/122 44,10 TP112M6		Unit: VH050/122 \| Ratio i: 44.10 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 1125-2710 Nm
VH030/102 45,82 TP112M6		Unit: VH030/102 \| Ratio i: 45.82 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1169-2111 Nm
VH030/103 69,69 TP100LA4		Unit: VH030/103 \| Ratio i: 69.69 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1147-3144 Nm
VH030/123 45,77 TP112M6		Unit: VH030/123 \| Ratio i: 45.77 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1144-2065 Nm
VH050/102 45,82 TP112M6		Unit: VH050/102 \| Ratio i: 45.82 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1169-2815 Nm
VH050/123 45,77 TP112M6		Unit: VH050/123 \| Ratio i: 45.77 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1144-2754 Nm
VH030/123 73,71 TP100LA4		Unit: VH030/123 \| Ratio i: 73.71 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 2.6-14.0 rpm \| Output torque M2: 1213-3326 Nm
VH030/103 79,82 TP100LA4		Unit: VH030/103 \| Ratio i: 79.82 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 2.4-13.0 rpm \| Output torque M2: 1313-3601 Nm
VH030/102 51,52 TP112M6		Unit: VH030/102 \| Ratio i: 51.52 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.4-12.0 rpm \| Output torque M2: 1315-2374 Nm
VH050/102 51,52 TP112M6		Unit: VH050/102 \| Ratio i: 51.52 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.4-12.0 rpm \| Output torque M2: 1315-3165 Nm
VH030/103 84,16 TP100LA4		Unit: VH030/103 \| Ratio i: 84.16 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 2.3-12.0 rpm \| Output torque M2: 1385-3797 Nm
VH030/123 83,34 TP100LA4		Unit: VH030/123 \| Ratio i: 83.34 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 2.3-12.0 rpm \| Output torque M2: 1371-3760 Nm
VH030/103 55,47 TP112M6		Unit: VH030/103 \| Ratio i: 55.47 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 1386-2503 Nm
VH030/123 55,87 TP112M6		Unit: VH030/123 \| Ratio i: 55.87 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 1396-2521 Nm
VH050/103 55,47 TP112M6		Unit: VH050/103 \| Ratio i: 55.47 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 1386-3337 Nm
VH050/123 55,87 TP112M6		Unit: VH050/123 \| Ratio i: 55.87 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 1396-3361 Nm
VH030/123 89,97 TP100LA4		Unit: VH030/123 \| Ratio i: 89.97 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 2.1-11.0 rpm \| Output torque M2: 1480-4059 Nm
VH030/103 93,36 TP100LA4		Unit: VH030/103 \| Ratio i: 93.36 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 2.0-11.0 rpm \| Output torque M2: 1536-4213 Nm
VH030/123 100,29 TP100LA4		Unit: VH030/123 \| Ratio i: 100.29 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 1.9-10.0 rpm \| Output torque M2: 1650-4525 Nm
VH030/123 67,32 TP112M6		Unit: VH030/123 \| Ratio i: 67.32 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.8-9.5 rpm \| Output torque M2: 1682-3038 Nm
VH050/123 67,32 TP112M6		Unit: VH050/123 \| Ratio i: 67.32 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.8-9.5 rpm \| Output torque M2: 1682-4050 Nm
VH030/103 69,69 TP112M6		Unit: VH030/103 \| Ratio i: 69.69 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 1741-3144 Nm
VH030/123 108,34 TP100LA4		Unit: VH030/123 \| Ratio i: 108.34 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 1783-4888 Nm
VH050/103 69,69 TP112M6		Unit: VH050/103 \| Ratio i: 69.69 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 1741-4193 Nm
VH030/123 73,71 TP112M6		Unit: VH030/123 \| Ratio i: 73.71 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.7-8.7 rpm \| Output torque M2: 1842-3326 Nm
VH050/123 73,71 TP112M6		Unit: VH050/123 \| Ratio i: 73.71 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.7-8.7 rpm \| Output torque M2: 1842-4435 Nm
VH030/123 118,62 TP100LA4		Unit: VH030/123 \| Ratio i: 118.62 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 1.6-8.4 rpm \| Output torque M2: 1952-5352 Nm
VH030/103 79,82 TP112M6		Unit: VH030/103 \| Ratio i: 79.82 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.5-8.1 rpm \| Output torque M2: 1994-3601 Nm
VH030/123 128,18 TP100LA4		Unit: VH030/123 \| Ratio i: 128.18 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 1.5-7.8 rpm \| Output torque M2: 2109-5783 Nm
VH030/123 83,34 TP112M6		Unit: VH030/123 \| Ratio i: 83.34 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.5-7.7 rpm \| Output torque M2: 2082-3760 Nm
VH050/123 83,34 TP112M6		Unit: VH050/123 \| Ratio i: 83.34 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.5-7.7 rpm \| Output torque M2: 2082-5013 Nm
VH030/103 84,16 TP112M6		Unit: VH030/103 \| Ratio i: 84.16 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.5-7.6 rpm \| Output torque M2: 2103-3797 Nm
VH030/123 89,97 TP112M6		Unit: VH030/123 \| Ratio i: 89.97 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.4-7.1 rpm \| Output torque M2: 2248-4059 Nm
VH050/123 89,97 TP112M6		Unit: VH050/123 \| Ratio i: 89.97 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.4-7.1 rpm \| Output torque M2: 2248-5413 Nm
VH030/103 93,36 TP112M6		Unit: VH030/103 \| Ratio i: 93.36 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.3-6.9 rpm \| Output torque M2: 2333-4213 Nm
VH030/123 100,29 TP112M6		Unit: VH030/123 \| Ratio i: 100.29 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.2-6.4 rpm \| Output torque M2: 2506-4525 Nm
VH050/123 100,29 TP112M6		Unit: VH050/123 \| Ratio i: 100.29 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.2-6.4 rpm \| Output torque M2: 2506-6033 Nm
VH030/123 108,34 TP112M6		Unit: VH030/123 \| Ratio i: 108.34 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.1-5.9 rpm \| Output torque M2: 2707-4888 Nm
VH030/123 118,62 TP112M6		Unit: VH030/123 \| Ratio i: 118.62 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.0-5.4 rpm \| Output torque M2: 2964-5352 Nm
VH030/123 128,18 TP112M6		Unit: VH030/123 \| Ratio i: 128.18 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.0-5.0 rpm \| Output torque M2: 3202-5783 Nm
VH030/081 1,93 TP112MS4		Unit: VH030/081 \| Ratio i: 1.93 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 98.0-518.0 rpm \| Output torque M2: 45-90 Nm
VH030/081 1,30 TP132S6		Unit: VH030/081 \| Ratio i: 1.30 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 94.0-496.0 rpm \| Output torque M2: 46-60 Nm
VH030/081 1,43 TP132S6		Unit: VH030/081 \| Ratio i: 1.43 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 86.0-450.0 rpm \| Output torque M2: 50-67 Nm
VH030/081 4,67 TP100L2		Unit: VH030/081 \| Ratio i: 4.67 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 81.0-429.0 rpm \| Output torque M2: 55-217 Nm
VH030/081 2,54 TP112MS4		Unit: VH030/081 \| Ratio i: 2.54 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 75.0-393.0 rpm \| Output torque M2: 59-118 Nm
VH030/081 5,54 TP100L2		Unit: VH030/081 \| Ratio i: 5.54 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 69.0-361.0 rpm \| Output torque M2: 65-258 Nm
VH030/081 1,93 TP132S6		Unit: VH030/081 \| Ratio i: 1.93 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 63.0-333.0 rpm \| Output torque M2: 68-90 Nm
VH030/081 6,08 TP100L2		Unit: VH030/081 \| Ratio i: 6.08 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 62.0-329.0 rpm \| Output torque M2: 72-283 Nm
VH030/081 3,25 TP112MS4		Unit: VH030/081 \| Ratio i: 3.25 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 58.0-308.0 rpm \| Output torque M2: 75-151 Nm
VH030/062 7,39 TP100L2		Unit: VH030/062 \| Ratio i: 7.39 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 51.0-271.0 rpm \| Output torque M2: 86-341 Nm
VH030/081 3,72 TP112MS4		Unit: VH030/081 \| Ratio i: 3.72 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 51.0-269.0 rpm \| Output torque M2: 86-173 Nm
VH030/081 7,50 TP100L2		Unit: VH030/081 \| Ratio i: 7.50 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 51.0-267.0 rpm \| Output torque M2: 88-349 Nm
VH030/081 2,54 TP132S6		Unit: VH030/081 \| Ratio i: 2.54 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 48.0-253.0 rpm \| Output torque M2: 89-118 Nm
VH030/081 4,00 TP112MS4		Unit: VH030/081 \| Ratio i: 4.00 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 48.0-250.0 rpm \| Output torque M2: 93-186 Nm
VH030/101 8,40 TP100L2		Unit: VH030/101 \| Ratio i: 8.40 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 45.0-238.0 rpm \| Output torque M2: 99-391 Nm
VH030/081 8,44 TP100L2		Unit: VH030/081 \| Ratio i: 8.44 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 45.0-237.0 rpm \| Output torque M2: 99-393 Nm
VH030/062 8,50 TP100L2		Unit: VH030/062 \| Ratio i: 8.50 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 45.0-235.0 rpm \| Output torque M2: 99-392 Nm
VH030/081 4,67 TP112MS4		Unit: VH030/081 \| Ratio i: 4.67 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 41.0-214.0 rpm \| Output torque M2: 108-217 Nm
VH030/062 9,39 TP100L2		Unit: VH030/062 \| Ratio i: 9.39 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 40.0-213.0 rpm \| Output torque M2: 109-432 Nm
VH030/101 4,88 TP112MS4		Unit: VH030/101 \| Ratio i: 4.88 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 39.0-205.0 rpm \| Output torque M2: 113-227 Nm
VH030/081 3,25 TP132S6		Unit: VH030/081 \| Ratio i: 3.25 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 38.0-198.0 rpm \| Output torque M2: 114-151 Nm
VH030/101 3,27 TP132S6		Unit: VH030/101 \| Ratio i: 3.27 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 37.0-196.0 rpm \| Output torque M2: 115-152 Nm
VH050/101 3,27 TP132S6		Unit: VH050/101 \| Ratio i: 3.27 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 37.0-196.0 rpm \| Output torque M2: 115-203 Nm
VH100/101 3,27 TP132S6		Unit: VH100/101 \| Ratio i: 3.27 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 37.0-196.0 rpm \| Output torque M2: 115-457 Nm
VH030/101 5,27 TP112MS4		Unit: VH030/101 \| Ratio i: 5.27 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 36.0-190.0 rpm \| Output torque M2: 122-245 Nm
VH030/062 5,38 TP112MS4		Unit: VH030/062 \| Ratio i: 5.38 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 35.0-186.0 rpm \| Output torque M2: 123-248 Nm
VH030/082 5,39 TP112MS4		Unit: VH030/082 \| Ratio i: 5.39 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 35.0-186.0 rpm \| Output torque M2: 123-248 Nm
VH030/081 5,54 TP112MS4		Unit: VH030/081 \| Ratio i: 5.54 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 34.0-181.0 rpm \| Output torque M2: 128-258 Nm
VH030/101 3,70 TP132S6		Unit: VH030/101 \| Ratio i: 3.70 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 33.0-174.0 rpm \| Output torque M2: 130-172 Nm
VH050/101 3,70 TP132S6		Unit: VH050/101 \| Ratio i: 3.70 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 33.0-174.0 rpm \| Output torque M2: 130-230 Nm
VH100/101 3,70 TP132S6		Unit: VH100/101 \| Ratio i: 3.70 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 33.0-174.0 rpm \| Output torque M2: 130-517 Nm
VH030/081 3,72 TP132S6		Unit: VH030/081 \| Ratio i: 3.72 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 33.0-173.0 rpm \| Output torque M2: 131-173 Nm
VH030/062 11,69 TP100L2		Unit: VH030/062 \| Ratio i: 11.69 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 33.0-171.0 rpm \| Output torque M2: 136-539 Nm
VH030/062 5,93 TP112MS4		Unit: VH030/062 \| Ratio i: 5.93 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 32.0-168.0 rpm \| Output torque M2: 136-273 Nm
VH030/082 5,95 TP112MS4		Unit: VH030/082 \| Ratio i: 5.95 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 32.0-168.0 rpm \| Output torque M2: 136-274 Nm
VH030/081 6,08 TP112MS4		Unit: VH030/081 \| Ratio i: 6.08 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 31.0-164.0 rpm \| Output torque M2: 141-283 Nm
VH030/081 4,00 TP132S6		Unit: VH030/081 \| Ratio i: 4.00 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 31.0-161.0 rpm \| Output torque M2: 141-186 Nm
VH030/101 6,23 TP112MS4		Unit: VH030/101 \| Ratio i: 6.23 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 30.0-160.0 rpm \| Output torque M2: 144-290 Nm
VH030/062 12,67 TP100L2		Unit: VH030/062 \| Ratio i: 12.67 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 30.0-158.0 rpm \| Output torque M2: 148-584 Nm
VH030/101 4,22 TP132S6		Unit: VH030/101 \| Ratio i: 4.22 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 29.0-152.0 rpm \| Output torque M2: 148-197 Nm
VH050/101 4,22 TP132S6		Unit: VH050/101 \| Ratio i: 4.22 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 29.0-152.0 rpm \| Output torque M2: 148-262 Nm
VH100/101 4,22 TP132S6		Unit: VH100/101 \| Ratio i: 4.22 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 29.0-152.0 rpm \| Output torque M2: 148-590 Nm
VH030/081 4,67 TP132S6		Unit: VH030/081 \| Ratio i: 4.67 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 26.0-138.0 rpm \| Output torque M2: 164-217 Nm
VH030/062 14,75 TP100L2		Unit: VH030/062 \| Ratio i: 14.75 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 26.0-136.0 rpm \| Output torque M2: 172-680 Nm
VH030/062 7,39 TP112MS4		Unit: VH030/062 \| Ratio i: 7.39 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 26.0-135.0 rpm \| Output torque M2: 169-341 Nm
VH030/082 7,39 TP112MS4		Unit: VH030/082 \| Ratio i: 7.39 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 26.0-135.0 rpm \| Output torque M2: 169-341 Nm
VH030/121 4,80 TP132S6		Unit: VH030/121 \| Ratio i: 4.80 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 25.0-134.0 rpm \| Output torque M2: 169-223 Nm
VH050/121 4,80 TP132S6		Unit: VH050/121 \| Ratio i: 4.80 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 25.0-134.0 rpm \| Output torque M2: 169-298 Nm
VH100/121 4,80 TP132S6		Unit: VH100/121 \| Ratio i: 4.80 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 25.0-134.0 rpm \| Output torque M2: 169-670 Nm
VH030/081 7,50 TP112MS4		Unit: VH030/081 \| Ratio i: 7.50 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 25.0-133.0 rpm \| Output torque M2: 174-349 Nm
VH030/101 7,55 TP112MS4		Unit: VH030/101 \| Ratio i: 7.55 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 25.0-133.0 rpm \| Output torque M2: 175-351 Nm
VH030/101 4,88 TP132S6		Unit: VH030/101 \| Ratio i: 4.88 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 25.0-132.0 rpm \| Output torque M2: 171-227 Nm
VH050/101 4,88 TP132S6		Unit: VH050/101 \| Ratio i: 4.88 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 25.0-132.0 rpm \| Output torque M2: 171-303 Nm
VH100/101 4,88 TP132S6		Unit: VH100/101 \| Ratio i: 4.88 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 25.0-132.0 rpm \| Output torque M2: 171-681 Nm
VH030/121 7,70 TP112MS4		Unit: VH030/121 \| Ratio i: 7.70 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 25.0-130.0 rpm \| Output torque M2: 178-359 Nm
VH030/082 8,02 TP112MS4		Unit: VH030/082 \| Ratio i: 8.02 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 24.0-125.0 rpm \| Output torque M2: 184-370 Nm
VH030/062 16,29 TP100L2		Unit: VH030/062 \| Ratio i: 16.29 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 23.0-123.0 rpm \| Output torque M2: 190-750 Nm
VH030/121 5,21 TP132S6		Unit: VH030/121 \| Ratio i: 5.21 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.0-123.0 rpm \| Output torque M2: 183-243 Nm
VH050/121 5,21 TP132S6		Unit: VH050/121 \| Ratio i: 5.21 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.0-123.0 rpm \| Output torque M2: 183-324 Nm
VH100/121 5,21 TP132S6		Unit: VH100/121 \| Ratio i: 5.21 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.0-123.0 rpm \| Output torque M2: 183-728 Nm
VH030/101 5,27 TP132S6		Unit: VH030/101 \| Ratio i: 5.27 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 185-245 Nm
VH050/101 5,27 TP132S6		Unit: VH050/101 \| Ratio i: 5.27 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 185-327 Nm
VH100/101 5,27 TP132S6		Unit: VH100/101 \| Ratio i: 5.27 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 185-736 Nm
VH030/062 5,38 TP132S6		Unit: VH030/062 \| Ratio i: 5.38 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.0-120.0 rpm \| Output torque M2: 187-248 Nm
VH030/082 5,39 TP132S6		Unit: VH030/082 \| Ratio i: 5.39 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.0-119.0 rpm \| Output torque M2: 188-248 Nm
VH030/101 8,40 TP112MS4		Unit: VH030/101 \| Ratio i: 8.40 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 23.0-119.0 rpm \| Output torque M2: 194-391 Nm
VH030/081 8,44 TP112MS4		Unit: VH030/081 \| Ratio i: 8.44 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 23.0-118.0 rpm \| Output torque M2: 196-393 Nm
VH030/062 8,50 TP112MS4		Unit: VH030/062 \| Ratio i: 8.50 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 22.0-118.0 rpm \| Output torque M2: 195-392 Nm
VH030/081 5,54 TP132S6		Unit: VH030/081 \| Ratio i: 5.54 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 22.0-116.0 rpm \| Output torque M2: 195-258 Nm
VH030/062 17,67 TP100L2		Unit: VH030/062 \| Ratio i: 17.67 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 22.0-113.0 rpm \| Output torque M2: 206-814 Nm
VH030/082 8,85 TP112MS4		Unit: VH030/082 \| Ratio i: 8.85 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 21.0-113.0 rpm \| Output torque M2: 203-408 Nm
VH030/062 5,93 TP132S6		Unit: VH030/062 \| Ratio i: 5.93 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 21.0-108.0 rpm \| Output torque M2: 207-273 Nm
VH030/082 5,95 TP132S6		Unit: VH030/082 \| Ratio i: 5.95 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 21.0-108.0 rpm \| Output torque M2: 207-274 Nm
VH030/062 9,39 TP112MS4		Unit: VH030/062 \| Ratio i: 9.39 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 20.0-107.0 rpm \| Output torque M2: 215-432 Nm
VH030/081 6,08 TP132S6		Unit: VH030/081 \| Ratio i: 6.08 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 20.0-106.0 rpm \| Output torque M2: 214-283 Nm
VH030/101 6,23 TP132S6		Unit: VH030/101 \| Ratio i: 6.23 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 219-290 Nm
VH030/121 6,25 TP132S6		Unit: VH030/121 \| Ratio i: 6.25 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 220-291 Nm
VH050/101 6,23 TP132S6		Unit: VH050/101 \| Ratio i: 6.23 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 219-387 Nm
VH050/121 6,25 TP132S6		Unit: VH050/121 \| Ratio i: 6.25 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 220-388 Nm
VH100/121 6,25 TP132S6		Unit: VH100/121 \| Ratio i: 6.25 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 220-873 Nm
VH030/062 20,28 TP100L2		Unit: VH030/062 \| Ratio i: 20.28 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 19.0-99.0 rpm \| Output torque M2: 236-935 Nm
VH030/082 21,39 TP100L2		Unit: VH030/082 \| Ratio i: 21.39 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 18.0-94.0 rpm \| Output torque M2: 249-986 Nm
VH030/082 11,01 TP112MS4		Unit: VH030/082 \| Ratio i: 11.01 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 17.0-91.0 rpm \| Output torque M2: 252-507 Nm
VH030/082 22,80 TP100L2		Unit: VH030/082 \| Ratio i: 22.80 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 17.0-88.0 rpm \| Output torque M2: 266-1051 Nm
VH030/062 7,39 TP132S6		Unit: VH030/062 \| Ratio i: 7.39 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 17.0-87.0 rpm \| Output torque M2: 257-341 Nm
VH030/082 7,39 TP132S6		Unit: VH030/082 \| Ratio i: 7.39 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 17.0-87.0 rpm \| Output torque M2: 257-341 Nm
VH030/062 11,69 TP112MS4		Unit: VH030/062 \| Ratio i: 11.69 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 16.0-86.0 rpm \| Output torque M2: 268-539 Nm
VH030/081 7,50 TP132S6		Unit: VH030/081 \| Ratio i: 7.50 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 16.0-86.0 rpm \| Output torque M2: 264-349 Nm
VH030/101 7,55 TP132S6		Unit: VH030/101 \| Ratio i: 7.55 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 16.0-85.0 rpm \| Output torque M2: 265-351 Nm
VH050/101 7,55 TP132S6		Unit: VH050/101 \| Ratio i: 7.55 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 16.0-85.0 rpm \| Output torque M2: 265-468 Nm
VH030/121 7,70 TP132S6		Unit: VH030/121 \| Ratio i: 7.70 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 16.0-83.0 rpm \| Output torque M2: 271-359 Nm
VH050/121 7,70 TP132S6		Unit: VH050/121 \| Ratio i: 7.70 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 16.0-83.0 rpm \| Output torque M2: 271-478 Nm
VH100/121 7,70 TP132S6		Unit: VH100/121 \| Ratio i: 7.70 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 16.0-83.0 rpm \| Output torque M2: 271-1076 Nm
VH030/082 8,02 TP132S6		Unit: VH030/082 \| Ratio i: 8.02 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 15.0-80.0 rpm \| Output torque M2: 279-370 Nm
VH030/062 12,67 TP112MS4		Unit: VH030/062 \| Ratio i: 12.67 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 15.0-79.0 rpm \| Output torque M2: 290-584 Nm
VH030/101 8,40 TP132S6		Unit: VH030/101 \| Ratio i: 8.40 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 15.0-77.0 rpm \| Output torque M2: 295-391 Nm
VH050/101 8,40 TP132S6		Unit: VH050/101 \| Ratio i: 8.40 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 15.0-77.0 rpm \| Output torque M2: 295-521 Nm
VH030/062 8,50 TP132S6		Unit: VH030/062 \| Ratio i: 8.50 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 14.0-76.0 rpm \| Output torque M2: 296-392 Nm
VH030/081 8,44 TP132S6		Unit: VH030/081 \| Ratio i: 8.44 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 14.0-76.0 rpm \| Output torque M2: 297-393 Nm
VH030/082 26,60 TP100L2		Unit: VH030/082 \| Ratio i: 26.60 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 14.0-75.0 rpm \| Output torque M2: 310-1226 Nm
VH030/082 13,50 TP112MS4		Unit: VH030/082 \| Ratio i: 13.50 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 14.0-74.0 rpm \| Output torque M2: 309-622 Nm
VH030/082 8,85 TP132S6		Unit: VH030/082 \| Ratio i: 8.85 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 14.0-73.0 rpm \| Output torque M2: 308-408 Nm
VH030/082 27,88 TP100L2		Unit: VH030/082 \| Ratio i: 27.88 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 14.0-72.0 rpm \| Output torque M2: 325-1285 Nm
VH030/062 9,39 TP132S6		Unit: VH030/062 \| Ratio i: 9.39 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 13.0-68.0 rpm \| Output torque M2: 327-432 Nm
VH030/062 14,75 TP112MS4		Unit: VH030/062 \| Ratio i: 14.75 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 13.0-68.0 rpm \| Output torque M2: 338-680 Nm
VH030/082 14,90 TP112MS4		Unit: VH030/082 \| Ratio i: 14.90 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 13.0-67.0 rpm \| Output torque M2: 341-686 Nm
VH030/082 31,15 TP100L2		Unit: VH030/082 \| Ratio i: 31.15 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 12.0-64.0 rpm \| Output torque M2: 363-1436 Nm
VH030/062 16,29 TP112MS4		Unit: VH030/062 \| Ratio i: 16.29 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 12.0-61.0 rpm \| Output torque M2: 373-750 Nm
VH030/082 16,62 TP112MS4		Unit: VH030/082 \| Ratio i: 16.62 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 11.0-60.0 rpm \| Output torque M2: 381-766 Nm
VH030/082 11,01 TP132S6		Unit: VH030/082 \| Ratio i: 11.01 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 11.0-58.0 rpm \| Output torque M2: 383-507 Nm
VH030/082 34,38 TP100L2		Unit: VH030/082 \| Ratio i: 34.38 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 11.0-58.0 rpm \| Output torque M2: 400-1584 Nm
VH030/062 17,67 TP112MS4		Unit: VH030/062 \| Ratio i: 17.67 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 11.0-57.0 rpm \| Output torque M2: 405-814 Nm
VH030/062 11,69 TP132S6		Unit: VH030/062 \| Ratio i: 11.69 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 10.0-55.0 rpm \| Output torque M2: 407-539 Nm
VH030/082 18,53 TP112MS4		Unit: VH030/082 \| Ratio i: 18.53 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 10.0-54.0 rpm \| Output torque M2: 424-854 Nm
VH030/102 38,45 TP100L2		Unit: VH030/102 \| Ratio i: 38.45 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 9.9-52.0 rpm \| Output torque M2: 448-1772 Nm
VH030/082 19,38 TP112MS4		Unit: VH030/082 \| Ratio i: 19.38 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 9.8-52.0 rpm \| Output torque M2: 444-893 Nm
VH030/082 38,70 TP100L2		Unit: VH030/082 \| Ratio i: 38.70 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 9.8-52.0 rpm \| Output torque M2: 451-1783 Nm
VH030/062 12,67 TP132S6		Unit: VH030/062 \| Ratio i: 12.67 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 9.6-51.0 rpm \| Output torque M2: 441-584 Nm
VH030/062 20,28 TP112MS4		Unit: VH030/062 \| Ratio i: 20.28 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 9.4-49.0 rpm \| Output torque M2: 465-935 Nm
VH030/082 13,50 TP132S6		Unit: VH030/082 \| Ratio i: 13.50 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 9.0-48.0 rpm \| Output torque M2: 470-622 Nm
VH030/082 21,39 TP112MS4		Unit: VH030/082 \| Ratio i: 21.39 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 8.9-47.0 rpm \| Output torque M2: 490-986 Nm
VH030/062 14,75 TP132S6		Unit: VH030/062 \| Ratio i: 14.75 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 8.3-44.0 rpm \| Output torque M2: 513-680 Nm
VH030/082 22,80 TP112MS4		Unit: VH030/082 \| Ratio i: 22.80 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 8.3-44.0 rpm \| Output torque M2: 522-1051 Nm
VH030/102 45,82 TP100L2		Unit: VH030/102 \| Ratio i: 45.82 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 8.3-44.0 rpm \| Output torque M2: 534-2111 Nm
VH030/082 14,90 TP132S6		Unit: VH030/082 \| Ratio i: 14.90 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 8.2-43.0 rpm \| Output torque M2: 518-686 Nm
VH030/062 16,29 TP132S6		Unit: VH030/062 \| Ratio i: 16.29 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 7.5-39.0 rpm \| Output torque M2: 567-750 Nm
VH030/082 16,62 TP132S6		Unit: VH030/082 \| Ratio i: 16.62 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 7.4-39.0 rpm \| Output torque M2: 578-766 Nm
VH030/102 51,52 TP100L2		Unit: VH030/102 \| Ratio i: 51.52 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 7.4-39.0 rpm \| Output torque M2: 600-2374 Nm
VH030/102 25,89 TP112MS4		Unit: VH030/102 \| Ratio i: 25.89 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 7.3-39.0 rpm \| Output torque M2: 593-1193 Nm
VH030/082 26,60 TP112MS4		Unit: VH030/082 \| Ratio i: 26.60 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 7.1-38.0 rpm \| Output torque M2: 609-1226 Nm
VH030/062 17,67 TP132S6		Unit: VH030/062 \| Ratio i: 17.67 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.9-36.0 rpm \| Output torque M2: 615-814 Nm
VH030/103 55,47 TP100L2		Unit: VH030/103 \| Ratio i: 55.47 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 6.9-36.0 rpm \| Output torque M2: 633-2503 Nm
VH030/082 27,88 TP112MS4		Unit: VH030/082 \| Ratio i: 27.88 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 639-1285 Nm
VH030/102 17,85 TP132S6		Unit: VH030/102 \| Ratio i: 17.85 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 621-823 Nm
VH050/102 17,85 TP132S6		Unit: VH050/102 \| Ratio i: 17.85 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 621-1097 Nm
VH100/102 17,85 TP132S6		Unit: VH100/102 \| Ratio i: 17.85 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 621-2468 Nm
VH030/082 18,53 TP132S6		Unit: VH030/082 \| Ratio i: 18.53 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.6-35.0 rpm \| Output torque M2: 645-854 Nm
VH030/102 28,73 TP112MS4		Unit: VH030/102 \| Ratio i: 28.73 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 6.6-35.0 rpm \| Output torque M2: 658-1324 Nm
VH030/082 19,38 TP132S6		Unit: VH030/082 \| Ratio i: 19.38 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.3-33.0 rpm \| Output torque M2: 675-893 Nm
VH030/102 30,72 TP112MS4		Unit: VH030/102 \| Ratio i: 30.72 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 6.2-33.0 rpm \| Output torque M2: 704-1416 Nm
VH030/102 19,85 TP132S6		Unit: VH030/102 \| Ratio i: 19.85 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.2-32.0 rpm \| Output torque M2: 691-915 Nm
VH050/102 19,85 TP132S6		Unit: VH050/102 \| Ratio i: 19.85 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.2-32.0 rpm \| Output torque M2: 691-1219 Nm
VH100/102 19,85 TP132S6		Unit: VH100/102 \| Ratio i: 19.85 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.2-32.0 rpm \| Output torque M2: 691-2744 Nm
VH030/082 31,15 TP112MS4		Unit: VH030/082 \| Ratio i: 31.15 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 6.1-32.0 rpm \| Output torque M2: 714-1436 Nm
VH030/062 20,28 TP132S6		Unit: VH030/062 \| Ratio i: 20.28 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.0-32.0 rpm \| Output torque M2: 706-935 Nm
VH030/082 21,39 TP132S6		Unit: VH030/082 \| Ratio i: 21.39 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 744-986 Nm
VH030/102 21,44 TP132S6		Unit: VH030/102 \| Ratio i: 21.44 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 746-988 Nm
VH050/102 21,44 TP132S6		Unit: VH050/102 \| Ratio i: 21.44 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 746-1317 Nm
VH100/102 21,44 TP132S6		Unit: VH100/102 \| Ratio i: 21.44 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 746-2964 Nm
VH030/123 67,32 TP100L2		Unit: VH030/123 \| Ratio i: 67.32 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 5.6-30.0 rpm \| Output torque M2: 768-3038 Nm
VH030/102 34,20 TP112MS4		Unit: VH030/102 \| Ratio i: 34.20 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 5.6-29.0 rpm \| Output torque M2: 784-1576 Nm
VH030/082 34,38 TP112MS4		Unit: VH030/082 \| Ratio i: 34.38 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 5.5-29.0 rpm \| Output torque M2: 788-1584 Nm
VH030/103 69,69 TP100L2		Unit: VH030/103 \| Ratio i: 69.69 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 5.5-29.0 rpm \| Output torque M2: 795-3144 Nm
VH030/082 22,80 TP132S6		Unit: VH030/082 \| Ratio i: 22.80 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.4-28.0 rpm \| Output torque M2: 793-1051 Nm
VH030/123 73,71 TP100L2		Unit: VH030/123 \| Ratio i: 73.71 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 5.2-27.0 rpm \| Output torque M2: 841-3326 Nm
VH030/102 23,97 TP132S6		Unit: VH030/102 \| Ratio i: 23.97 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.1-27.0 rpm \| Output torque M2: 834-1104 Nm
VH050/102 23,97 TP132S6		Unit: VH050/102 \| Ratio i: 23.97 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.1-27.0 rpm \| Output torque M2: 834-1473 Nm
VH100/102 23,97 TP132S6		Unit: VH100/102 \| Ratio i: 23.97 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.1-27.0 rpm \| Output torque M2: 834-3313 Nm
VH030/082 38,70 TP112MS4		Unit: VH030/082 \| Ratio i: 38.70 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 4.9-26.0 rpm \| Output torque M2: 887-1783 Nm
VH030/102 38,45 TP112MS4		Unit: VH030/102 \| Ratio i: 38.45 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 4.9-26.0 rpm \| Output torque M2: 881-1772 Nm
VH030/103 79,82 TP100L2		Unit: VH030/103 \| Ratio i: 79.82 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 4.8-25.0 rpm \| Output torque M2: 910-3601 Nm
VH030/102 25,89 TP132S6		Unit: VH030/102 \| Ratio i: 25.89 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.7-25.0 rpm \| Output torque M2: 901-1193 Nm
VH050/102 25,89 TP132S6		Unit: VH050/102 \| Ratio i: 25.89 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.7-25.0 rpm \| Output torque M2: 901-1591 Nm
VH100/102 25,89 TP132S6		Unit: VH100/102 \| Ratio i: 25.89 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.7-25.0 rpm \| Output torque M2: 901-3580 Nm
VH030/082 26,60 TP132S6		Unit: VH030/082 \| Ratio i: 26.60 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 926-1226 Nm
VH030/102 41,30 TP112MS4		Unit: VH030/102 \| Ratio i: 41.30 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 946-1903 Nm
VH030/123 83,34 TP100L2		Unit: VH030/123 \| Ratio i: 83.34 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 950-3760 Nm
VH030/103 84,16 TP100L2		Unit: VH030/103 \| Ratio i: 84.16 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 4.5-24.0 rpm \| Output torque M2: 960-3797 Nm
VH030/082 27,88 TP132S6		Unit: VH030/082 \| Ratio i: 27.88 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 970-1285 Nm
VH030/122 27,49 TP132S6		Unit: VH030/122 \| Ratio i: 27.49 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 957-1267 Nm
VH050/122 27,49 TP132S6		Unit: VH050/122 \| Ratio i: 27.49 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 957-1689 Nm
VH100/122 27,49 TP132S6		Unit: VH100/122 \| Ratio i: 27.49 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 957-3800 Nm
VH030/122 44,10 TP112MS4		Unit: VH030/122 \| Ratio i: 44.10 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 4.3-23.0 rpm \| Output torque M2: 1010-2032 Nm
VH030/102 28,73 TP132S6		Unit: VH030/102 \| Ratio i: 28.73 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.3-22.0 rpm \| Output torque M2: 1000-1324 Nm
VH050/102 28,73 TP132S6		Unit: VH050/102 \| Ratio i: 28.73 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.3-22.0 rpm \| Output torque M2: 1000-1765 Nm
VH100/102 28,73 TP132S6		Unit: VH100/102 \| Ratio i: 28.73 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.3-22.0 rpm \| Output torque M2: 1000-3971 Nm
VH030/123 45,77 TP112MS4		Unit: VH030/123 \| Ratio i: 45.77 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 4.2-22.0 rpm \| Output torque M2: 1027-2065 Nm
VH030/123 89,97 TP100L2		Unit: VH030/123 \| Ratio i: 89.97 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 4.2-22.0 rpm \| Output torque M2: 1026-4059 Nm
VH030/102 45,82 TP112MS4		Unit: VH030/102 \| Ratio i: 45.82 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1050-2111 Nm
VH030/122 29,86 TP132S6		Unit: VH030/122 \| Ratio i: 29.86 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1039-1376 Nm
VH050/122 29,86 TP132S6		Unit: VH050/122 \| Ratio i: 29.86 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1039-1835 Nm
VH100/122 29,86 TP132S6		Unit: VH100/122 \| Ratio i: 29.86 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1039-4128 Nm
VH030/103 93,36 TP100L2		Unit: VH030/103 \| Ratio i: 93.36 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 4.1-21.0 rpm \| Output torque M2: 1065-4213 Nm
VH030/102 30,72 TP132S6		Unit: VH030/102 \| Ratio i: 30.72 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.0-21.0 rpm \| Output torque M2: 1069-1416 Nm
VH050/102 30,72 TP132S6		Unit: VH050/102 \| Ratio i: 30.72 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.0-21.0 rpm \| Output torque M2: 1069-1887 Nm
VH030/082 31,15 TP132S6		Unit: VH030/082 \| Ratio i: 31.15 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.9-21.0 rpm \| Output torque M2: 1084-1436 Nm
VH030/123 100,29 TP100L2		Unit: VH030/123 \| Ratio i: 100.29 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 3.8-20.0 rpm \| Output torque M2: 1144-4525 Nm
VH030/102 51,52 TP112MS4		Unit: VH030/102 \| Ratio i: 51.52 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 1180-2374 Nm
VH030/122 33,00 TP132S6		Unit: VH030/122 \| Ratio i: 33.00 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 1148-1521 Nm
VH050/122 33,00 TP132S6		Unit: VH050/122 \| Ratio i: 33.00 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 1148-2028 Nm
VH100/122 33,00 TP132S6		Unit: VH100/122 \| Ratio i: 33.00 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 1148-4562 Nm
VH030/082 34,38 TP132S6		Unit: VH030/082 \| Ratio i: 34.38 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 1196-1584 Nm
VH030/102 34,20 TP132S6		Unit: VH030/102 \| Ratio i: 34.20 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 1190-1576 Nm
VH050/102 34,20 TP132S6		Unit: VH050/102 \| Ratio i: 34.20 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 1190-2101 Nm
VH030/123 108,34 TP100L2		Unit: VH030/123 \| Ratio i: 108.34 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 3.5-18.0 rpm \| Output torque M2: 1236-4888 Nm
VH030/103 55,47 TP112MS4		Unit: VH030/103 \| Ratio i: 55.47 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1245-2503 Nm
VH030/122 36,13 TP132S6		Unit: VH030/122 \| Ratio i: 36.13 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1257-1665 Nm
VH030/123 55,87 TP112MS4		Unit: VH030/123 \| Ratio i: 55.87 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1253-2521 Nm
VH050/122 36,13 TP132S6		Unit: VH050/122 \| Ratio i: 36.13 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1257-2220 Nm
VH100/122 36,13 TP132S6		Unit: VH100/122 \| Ratio i: 36.13 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1257-4995 Nm
VH030/082 38,70 TP132S6		Unit: VH030/082 \| Ratio i: 38.70 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 1347-1783 Nm
VH030/102 38,45 TP132S6		Unit: VH030/102 \| Ratio i: 38.45 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 1338-1772 Nm
VH030/123 118,62 TP100L2		Unit: VH030/123 \| Ratio i: 118.62 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 1353-5352 Nm
VH050/102 38,45 TP132S6		Unit: VH050/102 \| Ratio i: 38.45 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 1338-2363 Nm
VH030/102 41,30 TP132S6		Unit: VH030/102 \| Ratio i: 41.30 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.0-16.0 rpm \| Output torque M2: 1437-1903 Nm
VH030/123 128,18 TP100L2		Unit: VH030/123 \| Ratio i: 128.18 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 3.0-16.0 rpm \| Output torque M2: 1462-5783 Nm
VH050/102 41,30 TP132S6		Unit: VH050/102 \| Ratio i: 41.30 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.0-16.0 rpm \| Output torque M2: 1437-2537 Nm
VH030/122 44,10 TP132S6		Unit: VH030/122 \| Ratio i: 44.10 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 1534-2032 Nm
VH030/123 67,32 TP112MS4		Unit: VH030/123 \| Ratio i: 67.32 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 1510-3038 Nm
VH050/122 44,10 TP132S6		Unit: VH050/122 \| Ratio i: 44.10 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 1534-2710 Nm
VH100/122 44,10 TP132S6		Unit: VH100/122 \| Ratio i: 44.10 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 1534-6096 Nm
VH030/102 45,82 TP132S6		Unit: VH030/102 \| Ratio i: 45.82 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1594-2111 Nm
VH030/103 69,69 TP112MS4		Unit: VH030/103 \| Ratio i: 69.69 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1564-3144 Nm
VH030/123 45,77 TP132S6		Unit: VH030/123 \| Ratio i: 45.77 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1560-2065 Nm
VH050/102 45,82 TP132S6		Unit: VH050/102 \| Ratio i: 45.82 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1594-2815 Nm
VH050/123 45,77 TP132S6		Unit: VH050/123 \| Ratio i: 45.77 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1560-2754 Nm
VH030/123 73,71 TP112MS4		Unit: VH030/123 \| Ratio i: 73.71 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 2.6-14.0 rpm \| Output torque M2: 1654-3326 Nm
VH030/103 79,82 TP112MS4		Unit: VH030/103 \| Ratio i: 79.82 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 2.4-13.0 rpm \| Output torque M2: 1791-3601 Nm
VH030/102 51,52 TP132S6		Unit: VH030/102 \| Ratio i: 51.52 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.4-12.0 rpm \| Output torque M2: 1793-2374 Nm
VH050/102 51,52 TP132S6		Unit: VH050/102 \| Ratio i: 51.52 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.4-12.0 rpm \| Output torque M2: 1793-3165 Nm
VH030/103 84,16 TP112MS4		Unit: VH030/103 \| Ratio i: 84.16 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 2.3-12.0 rpm \| Output torque M2: 1888-3797 Nm
VH030/123 83,34 TP112MS4		Unit: VH030/123 \| Ratio i: 83.34 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 2.3-12.0 rpm \| Output torque M2: 1870-3760 Nm
VH030/103 55,47 TP132S6		Unit: VH030/103 \| Ratio i: 55.47 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 1890-2503 Nm
VH030/123 55,87 TP132S6		Unit: VH030/123 \| Ratio i: 55.87 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 1903-2521 Nm
VH050/103 55,47 TP132S6		Unit: VH050/103 \| Ratio i: 55.47 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 1890-3337 Nm
VH050/123 55,87 TP132S6		Unit: VH050/123 \| Ratio i: 55.87 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 1903-3361 Nm
VH030/123 89,97 TP112MS4		Unit: VH030/123 \| Ratio i: 89.97 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 2.1-11.0 rpm \| Output torque M2: 2019-4059 Nm
VH030/103 93,36 TP112MS4		Unit: VH030/103 \| Ratio i: 93.36 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 2.0-11.0 rpm \| Output torque M2: 2095-4213 Nm
VH030/123 100,29 TP112MS4		Unit: VH030/123 \| Ratio i: 100.29 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 1.9-10.0 rpm \| Output torque M2: 2250-4525 Nm
VH030/123 67,32 TP132S6		Unit: VH030/123 \| Ratio i: 67.32 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.8-9.5 rpm \| Output torque M2: 2294-3038 Nm
VH050/123 67,32 TP132S6		Unit: VH050/123 \| Ratio i: 67.32 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.8-9.5 rpm \| Output torque M2: 2294-4050 Nm
VH030/103 69,69 TP132S6		Unit: VH030/103 \| Ratio i: 69.69 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 2374-3144 Nm
VH030/123 108,34 TP112MS4		Unit: VH030/123 \| Ratio i: 108.34 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 2431-4888 Nm
VH050/103 69,69 TP132S6		Unit: VH050/103 \| Ratio i: 69.69 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 2374-4193 Nm
VH030/123 73,71 TP132S6		Unit: VH030/123 \| Ratio i: 73.71 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.7-8.7 rpm \| Output torque M2: 2511-3326 Nm
VH050/123 73,71 TP132S6		Unit: VH050/123 \| Ratio i: 73.71 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.7-8.7 rpm \| Output torque M2: 2511-4435 Nm
VH030/123 118,62 TP112MS4		Unit: VH030/123 \| Ratio i: 118.62 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 1.6-8.4 rpm \| Output torque M2: 2661-5352 Nm
VH030/103 79,82 TP132S6		Unit: VH030/103 \| Ratio i: 79.82 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.5-8.1 rpm \| Output torque M2: 2719-3601 Nm
VH030/123 128,18 TP112MS4		Unit: VH030/123 \| Ratio i: 128.18 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 1.5-7.8 rpm \| Output torque M2: 2876-5783 Nm
VH030/123 83,34 TP132S6		Unit: VH030/123 \| Ratio i: 83.34 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.5-7.7 rpm \| Output torque M2: 2839-3760 Nm
VH050/123 83,34 TP132S6		Unit: VH050/123 \| Ratio i: 83.34 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.5-7.7 rpm \| Output torque M2: 2839-5013 Nm
VH030/103 84,16 TP132S6		Unit: VH030/103 \| Ratio i: 84.16 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.5-7.6 rpm \| Output torque M2: 2867-3797 Nm
VH030/123 89,97 TP132S6		Unit: VH030/123 \| Ratio i: 89.97 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.4-7.1 rpm \| Output torque M2: 3065-4059 Nm
VH050/123 89,97 TP132S6		Unit: VH050/123 \| Ratio i: 89.97 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.4-7.1 rpm \| Output torque M2: 3065-5413 Nm
VH030/103 93,36 TP132S6		Unit: VH030/103 \| Ratio i: 93.36 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.3-6.9 rpm \| Output torque M2: 3181-4213 Nm
VH030/123 100,29 TP132S6		Unit: VH030/123 \| Ratio i: 100.29 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.2-6.4 rpm \| Output torque M2: 3417-4525 Nm
VH050/123 100,29 TP132S6		Unit: VH050/123 \| Ratio i: 100.29 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.2-6.4 rpm \| Output torque M2: 3417-6033 Nm
VH030/123 108,34 TP132S6		Unit: VH030/123 \| Ratio i: 108.34 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.1-5.9 rpm \| Output torque M2: 3691-4888 Nm
VH030/123 118,62 TP132S6		Unit: VH030/123 \| Ratio i: 118.62 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.0-5.4 rpm \| Output torque M2: 4042-5352 Nm
VH030/123 128,18 TP132S6		Unit: VH030/123 \| Ratio i: 128.18 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.0-5.0 rpm \| Output torque M2: 4367-5783 Nm
VH030/081 1,30 TP112M4		Unit: VH030/081 \| Ratio i: 1.30 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 146.0-771.0 rpm \| Output torque M2: 40-60 Nm
VH030/081 1,43 TP112M4		Unit: VH030/081 \| Ratio i: 1.43 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 133.0-700.0 rpm \| Output torque M2: 44-67 Nm
VH030/081 1,93 TP112M4		Unit: VH030/081 \| Ratio i: 1.93 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 98.0-518.0 rpm \| Output torque M2: 60-90 Nm
VH030/081 2,54 TP112M4		Unit: VH030/081 \| Ratio i: 2.54 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 75.0-393.0 rpm \| Output torque M2: 78-118 Nm
VH050/101 2,03 TP132MA6		Unit: VH050/101 \| Ratio i: 2.03 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 60.0-316.0 rpm \| Output torque M2: 95-126 Nm
VH100/101 2,03 TP132MA6		Unit: VH100/101 \| Ratio i: 2.03 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 60.0-316.0 rpm \| Output torque M2: 95-284 Nm
VH030/081 3,25 TP112M4		Unit: VH030/081 \| Ratio i: 3.25 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 58.0-308.0 rpm \| Output torque M2: 100-151 Nm
VH030/101 3,70 TP112M4		Unit: VH030/101 \| Ratio i: 3.70 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 51.0-270.0 rpm \| Output torque M2: 114-172 Nm
VH050/101 3,70 TP112M4		Unit: VH050/101 \| Ratio i: 3.70 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 51.0-270.0 rpm \| Output torque M2: 114-230 Nm
VH030/081 3,72 TP112M4		Unit: VH030/081 \| Ratio i: 3.72 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 51.0-269.0 rpm \| Output torque M2: 115-173 Nm
VH050/101 2,48 TP132MA6		Unit: VH050/101 \| Ratio i: 2.48 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 49.0-259.0 rpm \| Output torque M2: 116-154 Nm
VH100/101 2,48 TP132MA6		Unit: VH100/101 \| Ratio i: 2.48 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 49.0-259.0 rpm \| Output torque M2: 116-347 Nm
VH030/081 4,00 TP112M4		Unit: VH030/081 \| Ratio i: 4.00 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 48.0-250.0 rpm \| Output torque M2: 123-186 Nm
VH030/101 4,22 TP112M4		Unit: VH030/101 \| Ratio i: 4.22 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 45.0-237.0 rpm \| Output torque M2: 130-197 Nm
VH050/101 4,22 TP112M4		Unit: VH050/101 \| Ratio i: 4.22 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 45.0-237.0 rpm \| Output torque M2: 130-262 Nm
VH030/081 4,67 TP112M4		Unit: VH030/081 \| Ratio i: 4.67 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 41.0-214.0 rpm \| Output torque M2: 144-217 Nm
VH030/101 4,88 TP112M4		Unit: VH030/101 \| Ratio i: 4.88 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 39.0-205.0 rpm \| Output torque M2: 150-227 Nm
VH050/101 4,88 TP112M4		Unit: VH050/101 \| Ratio i: 4.88 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 39.0-205.0 rpm \| Output torque M2: 150-303 Nm
VH050/121 3,14 TP132MA6		Unit: VH050/121 \| Ratio i: 3.14 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 39.0-205.0 rpm \| Output torque M2: 147-195 Nm
VH100/121 3,14 TP132MA6		Unit: VH100/121 \| Ratio i: 3.14 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 39.0-205.0 rpm \| Output torque M2: 147-439 Nm
VH050/101 3,27 TP132MA6		Unit: VH050/101 \| Ratio i: 3.27 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 37.0-196.0 rpm \| Output torque M2: 153-203 Nm
VH100/101 3,27 TP132MA6		Unit: VH100/101 \| Ratio i: 3.27 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 37.0-196.0 rpm \| Output torque M2: 153-457 Nm
VH030/121 5,21 TP112M4		Unit: VH030/121 \| Ratio i: 5.21 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 36.0-192.0 rpm \| Output torque M2: 161-243 Nm
VH050/121 5,21 TP112M4		Unit: VH050/121 \| Ratio i: 5.21 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 36.0-192.0 rpm \| Output torque M2: 161-324 Nm
VH030/101 5,27 TP112M4		Unit: VH030/101 \| Ratio i: 5.27 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 36.0-190.0 rpm \| Output torque M2: 163-245 Nm
VH050/101 5,27 TP112M4		Unit: VH050/101 \| Ratio i: 5.27 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 36.0-190.0 rpm \| Output torque M2: 163-327 Nm
VH030/062 5,38 TP112M4		Unit: VH030/062 \| Ratio i: 5.38 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 35.0-186.0 rpm \| Output torque M2: 164-248 Nm
VH030/082 5,39 TP112M4		Unit: VH030/082 \| Ratio i: 5.39 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 35.0-186.0 rpm \| Output torque M2: 165-248 Nm
VH030/081 5,54 TP112M4		Unit: VH030/081 \| Ratio i: 5.54 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 34.0-181.0 rpm \| Output torque M2: 171-258 Nm
VH050/121 3,58 TP132MA6		Unit: VH050/121 \| Ratio i: 3.58 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 34.0-180.0 rpm \| Output torque M2: 168-222 Nm
VH100/121 3,58 TP132MA6		Unit: VH100/121 \| Ratio i: 3.58 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 34.0-180.0 rpm \| Output torque M2: 168-500 Nm
VH050/101 3,70 TP132MA6		Unit: VH050/101 \| Ratio i: 3.70 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 33.0-174.0 rpm \| Output torque M2: 173-230 Nm
VH100/101 3,70 TP132MA6		Unit: VH100/101 \| Ratio i: 3.70 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 33.0-174.0 rpm \| Output torque M2: 173-517 Nm
VH030/062 5,93 TP112M4		Unit: VH030/062 \| Ratio i: 5.93 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 32.0-168.0 rpm \| Output torque M2: 181-273 Nm
VH030/082 5,95 TP112M4		Unit: VH030/082 \| Ratio i: 5.95 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 32.0-168.0 rpm \| Output torque M2: 182-274 Nm
VH030/081 6,08 TP112M4		Unit: VH030/081 \| Ratio i: 6.08 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 31.0-164.0 rpm \| Output torque M2: 188-283 Nm
VH030/101 6,23 TP112M4		Unit: VH030/101 \| Ratio i: 6.23 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 30.0-160.0 rpm \| Output torque M2: 192-290 Nm
VH030/121 6,25 TP112M4		Unit: VH030/121 \| Ratio i: 6.25 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 30.0-160.0 rpm \| Output torque M2: 193-291 Nm
VH050/101 6,23 TP112M4		Unit: VH050/101 \| Ratio i: 6.23 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 30.0-160.0 rpm \| Output torque M2: 192-387 Nm
VH050/121 6,25 TP112M4		Unit: VH050/121 \| Ratio i: 6.25 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 30.0-160.0 rpm \| Output torque M2: 193-388 Nm
VH050/121 4,12 TP132MA6		Unit: VH050/121 \| Ratio i: 4.12 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 30.0-156.0 rpm \| Output torque M2: 193-256 Nm
VH100/121 4,12 TP132MA6		Unit: VH100/121 \| Ratio i: 4.12 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 30.0-156.0 rpm \| Output torque M2: 193-575 Nm
VH050/101 4,22 TP132MA6		Unit: VH050/101 \| Ratio i: 4.22 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 29.0-152.0 rpm \| Output torque M2: 198-262 Nm
VH100/101 4,22 TP132MA6		Unit: VH100/101 \| Ratio i: 4.22 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 29.0-152.0 rpm \| Output torque M2: 198-590 Nm
VH030/062 7,39 TP112M4		Unit: VH030/062 \| Ratio i: 7.39 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 26.0-135.0 rpm \| Output torque M2: 226-341 Nm
VH030/082 7,39 TP112M4		Unit: VH030/082 \| Ratio i: 7.39 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 26.0-135.0 rpm \| Output torque M2: 226-341 Nm
VH050/121 4,80 TP132MA6		Unit: VH050/121 \| Ratio i: 4.80 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 25.0-134.0 rpm \| Output torque M2: 225-298 Nm
VH100/121 4,80 TP132MA6		Unit: VH100/121 \| Ratio i: 4.80 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 25.0-134.0 rpm \| Output torque M2: 225-670 Nm
VH030/081 7,50 TP112M4		Unit: VH030/081 \| Ratio i: 7.50 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 25.0-133.0 rpm \| Output torque M2: 232-349 Nm
VH030/101 7,55 TP112M4		Unit: VH030/101 \| Ratio i: 7.55 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 25.0-133.0 rpm \| Output torque M2: 233-351 Nm
VH050/101 7,55 TP112M4		Unit: VH050/101 \| Ratio i: 7.55 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 25.0-133.0 rpm \| Output torque M2: 233-468 Nm
VH050/101 4,88 TP132MA6		Unit: VH050/101 \| Ratio i: 4.88 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 25.0-132.0 rpm \| Output torque M2: 229-303 Nm
VH100/101 4,88 TP132MA6		Unit: VH100/101 \| Ratio i: 4.88 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 25.0-132.0 rpm \| Output torque M2: 229-681 Nm
VH030/121 7,70 TP112M4		Unit: VH030/121 \| Ratio i: 7.70 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 25.0-130.0 rpm \| Output torque M2: 238-359 Nm
VH050/121 7,70 TP112M4		Unit: VH050/121 \| Ratio i: 7.70 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 25.0-130.0 rpm \| Output torque M2: 238-478 Nm
VH030/082 8,02 TP112M4		Unit: VH030/082 \| Ratio i: 8.02 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 24.0-125.0 rpm \| Output torque M2: 245-370 Nm
VH050/121 5,21 TP132MA6		Unit: VH050/121 \| Ratio i: 5.21 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 23.0-123.0 rpm \| Output torque M2: 244-324 Nm
VH100/121 5,21 TP132MA6		Unit: VH100/121 \| Ratio i: 5.21 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 23.0-123.0 rpm \| Output torque M2: 244-728 Nm
VH050/101 5,27 TP132MA6		Unit: VH050/101 \| Ratio i: 5.27 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 247-327 Nm
VH100/101 5,27 TP132MA6		Unit: VH100/101 \| Ratio i: 5.27 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 247-736 Nm
VH030/101 8,40 TP112M4		Unit: VH030/101 \| Ratio i: 8.40 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 23.0-119.0 rpm \| Output torque M2: 259-391 Nm
VH050/101 8,40 TP112M4		Unit: VH050/101 \| Ratio i: 8.40 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 23.0-119.0 rpm \| Output torque M2: 259-521 Nm
VH030/081 8,44 TP112M4		Unit: VH030/081 \| Ratio i: 8.44 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 23.0-118.0 rpm \| Output torque M2: 261-393 Nm
VH030/062 8,50 TP112M4		Unit: VH030/062 \| Ratio i: 8.50 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 22.0-118.0 rpm \| Output torque M2: 260-392 Nm
VH030/082 8,85 TP112M4		Unit: VH030/082 \| Ratio i: 8.85 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 21.0-113.0 rpm \| Output torque M2: 270-408 Nm
VH030/062 9,39 TP112M4		Unit: VH030/062 \| Ratio i: 9.39 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 20.0-107.0 rpm \| Output torque M2: 287-432 Nm
VH050/101 6,23 TP132MA6		Unit: VH050/101 \| Ratio i: 6.23 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 292-387 Nm
VH050/121 6,25 TP132MA6		Unit: VH050/121 \| Ratio i: 6.25 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 293-388 Nm
VH100/121 6,25 TP132MA6		Unit: VH100/121 \| Ratio i: 6.25 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 293-873 Nm
VH030/082 11,01 TP112M4		Unit: VH030/082 \| Ratio i: 11.01 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 17.0-91.0 rpm \| Output torque M2: 336-507 Nm
VH030/062 11,69 TP112M4		Unit: VH030/062 \| Ratio i: 11.69 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 16.0-86.0 rpm \| Output torque M2: 357-539 Nm
VH050/101 7,55 TP132MA6		Unit: VH050/101 \| Ratio i: 7.55 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 16.0-85.0 rpm \| Output torque M2: 354-468 Nm
VH050/121 7,70 TP132MA6		Unit: VH050/121 \| Ratio i: 7.70 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 16.0-83.0 rpm \| Output torque M2: 361-478 Nm
VH100/121 7,70 TP132MA6		Unit: VH100/121 \| Ratio i: 7.70 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 16.0-83.0 rpm \| Output torque M2: 361-1076 Nm
VH030/062 12,67 TP112M4		Unit: VH030/062 \| Ratio i: 12.67 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 15.0-79.0 rpm \| Output torque M2: 387-584 Nm
VH050/101 8,40 TP132MA6		Unit: VH050/101 \| Ratio i: 8.40 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 15.0-77.0 rpm \| Output torque M2: 394-521 Nm
VH030/082 13,50 TP112M4		Unit: VH030/082 \| Ratio i: 13.50 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 14.0-74.0 rpm \| Output torque M2: 412-622 Nm
VH030/062 14,75 TP112M4		Unit: VH030/062 \| Ratio i: 14.75 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 13.0-68.0 rpm \| Output torque M2: 451-680 Nm
VH030/082 14,90 TP112M4		Unit: VH030/082 \| Ratio i: 14.90 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 13.0-67.0 rpm \| Output torque M2: 455-686 Nm
VH030/062 16,29 TP112M4		Unit: VH030/062 \| Ratio i: 16.29 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 12.0-61.0 rpm \| Output torque M2: 498-750 Nm
VH030/082 16,62 TP112M4		Unit: VH030/082 \| Ratio i: 16.62 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 11.0-60.0 rpm \| Output torque M2: 508-766 Nm
VH030/062 17,67 TP112M4		Unit: VH030/062 \| Ratio i: 17.67 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 11.0-57.0 rpm \| Output torque M2: 540-814 Nm
VH030/082 18,53 TP112M4		Unit: VH030/082 \| Ratio i: 18.53 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 10.0-54.0 rpm \| Output torque M2: 566-854 Nm
VH030/082 19,38 TP112M4		Unit: VH030/082 \| Ratio i: 19.38 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 9.8-52.0 rpm \| Output torque M2: 592-893 Nm
VH030/102 19,85 TP112M4		Unit: VH030/102 \| Ratio i: 19.85 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 9.6-50.0 rpm \| Output torque M2: 606-915 Nm
VH050/102 19,85 TP112M4		Unit: VH050/102 \| Ratio i: 19.85 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 9.6-50.0 rpm \| Output torque M2: 606-1219 Nm
VH030/062 20,28 TP112M4		Unit: VH030/062 \| Ratio i: 20.28 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 9.4-49.0 rpm \| Output torque M2: 620-935 Nm
VH050/102 13,32 TP132MA6		Unit: VH050/102 \| Ratio i: 13.32 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 9.2-48.0 rpm \| Output torque M2: 618-819 Nm
VH100/102 13,32 TP132MA6		Unit: VH100/102 \| Ratio i: 13.32 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 9.2-48.0 rpm \| Output torque M2: 618-1842 Nm
VH030/082 21,39 TP112M4		Unit: VH030/082 \| Ratio i: 21.39 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 8.9-47.0 rpm \| Output torque M2: 653-986 Nm
VH030/102 21,44 TP112M4		Unit: VH030/102 \| Ratio i: 21.44 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 8.9-47.0 rpm \| Output torque M2: 655-988 Nm
VH050/102 21,44 TP112M4		Unit: VH050/102 \| Ratio i: 21.44 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 8.9-47.0 rpm \| Output torque M2: 655-1317 Nm
VH030/082 22,80 TP112M4		Unit: VH030/082 \| Ratio i: 22.80 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 8.3-44.0 rpm \| Output torque M2: 697-1051 Nm
VH030/102 23,97 TP112M4		Unit: VH030/102 \| Ratio i: 23.97 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 7.9-42.0 rpm \| Output torque M2: 732-1104 Nm
VH050/102 23,97 TP112M4		Unit: VH050/102 \| Ratio i: 23.97 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 7.9-42.0 rpm \| Output torque M2: 732-1473 Nm
VH050/102 16,09 TP132MA6		Unit: VH050/102 \| Ratio i: 16.09 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 7.6-40.0 rpm \| Output torque M2: 747-989 Nm
VH100/102 16,09 TP132MA6		Unit: VH100/102 \| Ratio i: 16.09 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 7.6-40.0 rpm \| Output torque M2: 747-2224 Nm
VH030/102 25,89 TP112M4		Unit: VH030/102 \| Ratio i: 25.89 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 7.3-39.0 rpm \| Output torque M2: 791-1193 Nm
VH050/102 25,89 TP112M4		Unit: VH050/102 \| Ratio i: 25.89 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 7.3-39.0 rpm \| Output torque M2: 791-1591 Nm
VH030/082 26,60 TP112M4		Unit: VH030/082 \| Ratio i: 26.60 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 7.1-38.0 rpm \| Output torque M2: 813-1226 Nm
VH030/082 27,88 TP112M4		Unit: VH030/082 \| Ratio i: 27.88 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 852-1285 Nm
VH050/102 17,85 TP132MA6		Unit: VH050/102 \| Ratio i: 17.85 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 828-1097 Nm
VH100/102 17,85 TP132MA6		Unit: VH100/102 \| Ratio i: 17.85 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 828-2468 Nm
VH030/102 28,73 TP112M4		Unit: VH030/102 \| Ratio i: 28.73 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 6.6-35.0 rpm \| Output torque M2: 878-1324 Nm
VH050/102 28,73 TP112M4		Unit: VH050/102 \| Ratio i: 28.73 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 6.6-35.0 rpm \| Output torque M2: 878-1765 Nm
VH030/122 29,86 TP112M4		Unit: VH030/122 \| Ratio i: 29.86 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 6.4-33.0 rpm \| Output torque M2: 912-1376 Nm
VH050/122 29,86 TP112M4		Unit: VH050/122 \| Ratio i: 29.86 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 6.4-33.0 rpm \| Output torque M2: 912-1835 Nm
VH050/122 19,32 TP132MA6		Unit: VH050/122 \| Ratio i: 19.32 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.3-33.0 rpm \| Output torque M2: 896-1187 Nm
VH100/122 19,32 TP132MA6		Unit: VH100/122 \| Ratio i: 19.32 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.3-33.0 rpm \| Output torque M2: 896-2671 Nm
VH030/102 30,72 TP112M4		Unit: VH030/102 \| Ratio i: 30.72 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 6.2-33.0 rpm \| Output torque M2: 939-1416 Nm
VH050/102 30,72 TP112M4		Unit: VH050/102 \| Ratio i: 30.72 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 6.2-33.0 rpm \| Output torque M2: 939-1887 Nm
VH050/102 19,85 TP132MA6		Unit: VH050/102 \| Ratio i: 19.85 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.2-32.0 rpm \| Output torque M2: 921-1219 Nm
VH100/102 19,85 TP132MA6		Unit: VH100/102 \| Ratio i: 19.85 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.2-32.0 rpm \| Output torque M2: 921-2744 Nm
VH030/082 31,15 TP112M4		Unit: VH030/082 \| Ratio i: 31.15 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 6.1-32.0 rpm \| Output torque M2: 952-1436 Nm
VH050/122 20,57 TP132MA6		Unit: VH050/122 \| Ratio i: 20.57 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.9-31.0 rpm \| Output torque M2: 954-1264 Nm
VH100/122 20,57 TP132MA6		Unit: VH100/122 \| Ratio i: 20.57 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.9-31.0 rpm \| Output torque M2: 954-2844 Nm
VH030/122 33,00 TP112M4		Unit: VH030/122 \| Ratio i: 33.00 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 5.8-30.0 rpm \| Output torque M2: 1008-1521 Nm
VH050/122 33,00 TP112M4		Unit: VH050/122 \| Ratio i: 33.00 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 5.8-30.0 rpm \| Output torque M2: 1008-2028 Nm
VH050/102 21,44 TP132MA6		Unit: VH050/102 \| Ratio i: 21.44 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 995-1317 Nm
VH100/102 21,44 TP132MA6		Unit: VH100/102 \| Ratio i: 21.44 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 995-2964 Nm
VH030/102 34,20 TP112M4		Unit: VH030/102 \| Ratio i: 34.20 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 5.6-29.0 rpm \| Output torque M2: 1045-1576 Nm
VH050/102 34,20 TP112M4		Unit: VH050/102 \| Ratio i: 34.20 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 5.6-29.0 rpm \| Output torque M2: 1045-2101 Nm
VH030/082 34,38 TP112M4		Unit: VH030/082 \| Ratio i: 34.38 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 5.5-29.0 rpm \| Output torque M2: 1050-1584 Nm
VH050/122 22,52 TP132MA6		Unit: VH050/122 \| Ratio i: 22.52 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.4-29.0 rpm \| Output torque M2: 1045-1384 Nm
VH100/122 22,52 TP132MA6		Unit: VH100/122 \| Ratio i: 22.52 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.4-29.0 rpm \| Output torque M2: 1045-3114 Nm
VH030/122 36,13 TP112M4		Unit: VH030/122 \| Ratio i: 36.13 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 5.3-28.0 rpm \| Output torque M2: 1104-1665 Nm
VH050/122 36,13 TP112M4		Unit: VH050/122 \| Ratio i: 36.13 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 5.3-28.0 rpm \| Output torque M2: 1104-2220 Nm
VH050/102 23,97 TP132MA6		Unit: VH050/102 \| Ratio i: 23.97 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.1-27.0 rpm \| Output torque M2: 1112-1473 Nm
VH100/102 23,97 TP132MA6		Unit: VH100/102 \| Ratio i: 23.97 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.1-27.0 rpm \| Output torque M2: 1112-3313 Nm
VH050/122 24,47 TP132MA6		Unit: VH050/122 \| Ratio i: 24.47 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.0-26.0 rpm \| Output torque M2: 1135-1503 Nm
VH100/122 24,47 TP132MA6		Unit: VH100/122 \| Ratio i: 24.47 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.0-26.0 rpm \| Output torque M2: 1135-3382 Nm
VH030/082 38,70 TP112M4		Unit: VH030/082 \| Ratio i: 38.70 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.9-26.0 rpm \| Output torque M2: 1182-1783 Nm
VH030/102 38,45 TP112M4		Unit: VH030/102 \| Ratio i: 38.45 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.9-26.0 rpm \| Output torque M2: 1175-1772 Nm
VH050/102 38,45 TP112M4		Unit: VH050/102 \| Ratio i: 38.45 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.9-26.0 rpm \| Output torque M2: 1175-2363 Nm
VH050/102 25,89 TP132MA6		Unit: VH050/102 \| Ratio i: 25.89 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.7-25.0 rpm \| Output torque M2: 1201-1591 Nm
VH100/102 25,89 TP132MA6		Unit: VH100/102 \| Ratio i: 25.89 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.7-25.0 rpm \| Output torque M2: 1201-3580 Nm
VH030/102 41,30 TP112M4		Unit: VH030/102 \| Ratio i: 41.30 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 1262-1903 Nm
VH050/102 41,30 TP112M4		Unit: VH050/102 \| Ratio i: 41.30 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 1262-2537 Nm
VH050/122 27,49 TP132MA6		Unit: VH050/122 \| Ratio i: 27.49 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 1275-1689 Nm
VH100/122 27,49 TP132MA6		Unit: VH100/122 \| Ratio i: 27.49 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 1275-3800 Nm
VH030/122 44,10 TP112M4		Unit: VH030/122 \| Ratio i: 44.10 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.3-23.0 rpm \| Output torque M2: 1347-2032 Nm
VH050/122 44,10 TP112M4		Unit: VH050/122 \| Ratio i: 44.10 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.3-23.0 rpm \| Output torque M2: 1347-2710 Nm
VH050/102 28,73 TP132MA6		Unit: VH050/102 \| Ratio i: 28.73 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.3-22.0 rpm \| Output torque M2: 1333-1765 Nm
VH100/102 28,73 TP132MA6		Unit: VH100/102 \| Ratio i: 28.73 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.3-22.0 rpm \| Output torque M2: 1333-3971 Nm
VH030/123 45,77 TP112M4		Unit: VH030/123 \| Ratio i: 45.77 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.2-22.0 rpm \| Output torque M2: 1369-2065 Nm
VH050/123 45,77 TP112M4		Unit: VH050/123 \| Ratio i: 45.77 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.2-22.0 rpm \| Output torque M2: 1369-2754 Nm
VH030/102 45,82 TP112M4		Unit: VH030/102 \| Ratio i: 45.82 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1400-2111 Nm
VH050/102 45,82 TP112M4		Unit: VH050/102 \| Ratio i: 45.82 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1400-2815 Nm
VH050/122 29,86 TP132MA6		Unit: VH050/122 \| Ratio i: 29.86 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1385-1835 Nm
VH100/122 29,86 TP132MA6		Unit: VH100/122 \| Ratio i: 29.86 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1385-4128 Nm
VH050/102 30,72 TP132MA6		Unit: VH050/102 \| Ratio i: 30.72 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.0-21.0 rpm \| Output torque M2: 1425-1887 Nm
VH030/102 51,52 TP112M4		Unit: VH030/102 \| Ratio i: 51.52 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 1574-2374 Nm
VH050/102 51,52 TP112M4		Unit: VH050/102 \| Ratio i: 51.52 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 1574-3165 Nm
VH050/122 33,00 TP132MA6		Unit: VH050/122 \| Ratio i: 33.00 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 1531-2028 Nm
VH100/122 33,00 TP132MA6		Unit: VH100/122 \| Ratio i: 33.00 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 1531-4562 Nm
VH050/102 34,20 TP132MA6		Unit: VH050/102 \| Ratio i: 34.20 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 1587-2101 Nm
VH030/103 55,47 TP112M4		Unit: VH030/103 \| Ratio i: 55.47 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1659-2503 Nm
VH030/123 55,87 TP112M4		Unit: VH030/123 \| Ratio i: 55.87 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1671-2521 Nm
VH050/103 55,47 TP112M4		Unit: VH050/103 \| Ratio i: 55.47 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1659-3337 Nm
VH050/122 36,13 TP132MA6		Unit: VH050/122 \| Ratio i: 36.13 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1676-2220 Nm
VH050/123 55,87 TP112M4		Unit: VH050/123 \| Ratio i: 55.87 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1671-3361 Nm
VH100/122 36,13 TP132MA6		Unit: VH100/122 \| Ratio i: 36.13 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1676-4995 Nm
VH050/102 38,45 TP132MA6		Unit: VH050/102 \| Ratio i: 38.45 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 1784-2363 Nm
VH050/102 41,30 TP132MA6		Unit: VH050/102 \| Ratio i: 41.30 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 3.0-16.0 rpm \| Output torque M2: 1916-2537 Nm
VH030/123 67,32 TP112M4		Unit: VH030/123 \| Ratio i: 67.32 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 2014-3038 Nm
VH050/122 44,10 TP132MA6		Unit: VH050/122 \| Ratio i: 44.10 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 2046-2710 Nm
VH050/123 67,32 TP112M4		Unit: VH050/123 \| Ratio i: 67.32 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 2014-4050 Nm
VH100/122 44,10 TP132MA6		Unit: VH100/122 \| Ratio i: 44.10 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 2046-6096 Nm
VH030/103 69,69 TP112M4		Unit: VH030/103 \| Ratio i: 69.69 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 2085-3144 Nm
VH050/102 45,82 TP132MA6		Unit: VH050/102 \| Ratio i: 45.82 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 2126-2815 Nm
VH050/103 69,69 TP112M4		Unit: VH050/103 \| Ratio i: 69.69 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 2085-4193 Nm
VH050/123 45,77 TP132MA6		Unit: VH050/123 \| Ratio i: 45.77 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 2079-2754 Nm
VH030/123 73,71 TP112M4		Unit: VH030/123 \| Ratio i: 73.71 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.6-14.0 rpm \| Output torque M2: 2205-3326 Nm
VH050/123 73,71 TP112M4		Unit: VH050/123 \| Ratio i: 73.71 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.6-14.0 rpm \| Output torque M2: 2205-4435 Nm
VH030/103 79,82 TP112M4		Unit: VH030/103 \| Ratio i: 79.82 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.4-13.0 rpm \| Output torque M2: 2388-3601 Nm
VH050/102 51,52 TP132MA6		Unit: VH050/102 \| Ratio i: 51.52 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 2.4-12.0 rpm \| Output torque M2: 2390-3165 Nm
VH030/103 84,16 TP112M4		Unit: VH030/103 \| Ratio i: 84.16 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.3-12.0 rpm \| Output torque M2: 2517-3797 Nm
VH030/123 83,34 TP112M4		Unit: VH030/123 \| Ratio i: 83.34 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.3-12.0 rpm \| Output torque M2: 2493-3760 Nm
VH050/123 83,34 TP112M4		Unit: VH050/123 \| Ratio i: 83.34 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.3-12.0 rpm \| Output torque M2: 2493-5013 Nm
VH050/103 55,47 TP132MA6		Unit: VH050/103 \| Ratio i: 55.47 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 2520-3337 Nm
VH050/123 55,87 TP132MA6		Unit: VH050/123 \| Ratio i: 55.87 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 2538-3361 Nm
VH030/123 89,97 TP112M4		Unit: VH030/123 \| Ratio i: 89.97 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.1-11.0 rpm \| Output torque M2: 2691-4059 Nm
VH050/123 89,97 TP112M4		Unit: VH050/123 \| Ratio i: 89.97 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.1-11.0 rpm \| Output torque M2: 2691-5413 Nm
VH030/103 93,36 TP112M4		Unit: VH030/103 \| Ratio i: 93.36 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.0-11.0 rpm \| Output torque M2: 2793-4213 Nm
VH030/123 100,29 TP112M4		Unit: VH030/123 \| Ratio i: 100.29 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 1.9-10.0 rpm \| Output torque M2: 3000-4525 Nm
VH050/123 100,29 TP112M4		Unit: VH050/123 \| Ratio i: 100.29 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 1.9-10.0 rpm \| Output torque M2: 3000-6033 Nm
VH050/123 67,32 TP132MA6		Unit: VH050/123 \| Ratio i: 67.32 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 1.8-9.5 rpm \| Output torque M2: 3058-4050 Nm
VH030/123 108,34 TP112M4		Unit: VH030/123 \| Ratio i: 108.34 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 3241-4888 Nm
VH050/103 69,69 TP132MA6		Unit: VH050/103 \| Ratio i: 69.69 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 3166-4193 Nm
VH050/123 73,71 TP132MA6		Unit: VH050/123 \| Ratio i: 73.71 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 1.7-8.7 rpm \| Output torque M2: 3349-4435 Nm
VH030/123 118,62 TP112M4		Unit: VH030/123 \| Ratio i: 118.62 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 1.6-8.4 rpm \| Output torque M2: 3548-5352 Nm
VH030/123 128,18 TP112M4		Unit: VH030/123 \| Ratio i: 128.18 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 1.5-7.8 rpm \| Output torque M2: 3834-5783 Nm
VH050/123 83,34 TP132MA6		Unit: VH050/123 \| Ratio i: 83.34 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 1.5-7.7 rpm \| Output torque M2: 3786-5013 Nm
VH050/123 89,97 TP132MA6		Unit: VH050/123 \| Ratio i: 89.97 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 1.4-7.1 rpm \| Output torque M2: 4087-5413 Nm
VH050/123 100,29 TP132MA6		Unit: VH050/123 \| Ratio i: 100.29 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 1.2-6.4 rpm \| Output torque M2: 4556-6033 Nm
VH100/101 1,29 TP132MB6		Unit: VH100/101 \| Ratio i: 1.29 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 94.0-497.0 rpm \| Output torque M2: 83-181 Nm
VH050/101 2,03 TP132MS4		Unit: VH050/101 \| Ratio i: 2.03 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 93.0-492.0 rpm \| Output torque M2: 86-126 Nm
VH100/101 2,03 TP132MS4		Unit: VH100/101 \| Ratio i: 2.03 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 93.0-492.0 rpm \| Output torque M2: 86-284 Nm
VH100/101 1,41 TP132MB6		Unit: VH100/101 \| Ratio i: 1.41 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 87.0-456.0 rpm \| Output torque M2: 91-197 Nm
VH050/101 2,48 TP132MS4		Unit: VH050/101 \| Ratio i: 2.48 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 77.0-403.0 rpm \| Output torque M2: 105-154 Nm
VH100/101 2,48 TP132MS4		Unit: VH100/101 \| Ratio i: 2.48 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 77.0-403.0 rpm \| Output torque M2: 105-347 Nm
VH100/101 2,03 TP132MB6		Unit: VH100/101 \| Ratio i: 2.03 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 60.0-316.0 rpm \| Output torque M2: 131-284 Nm
VH050/101 3,27 TP132MS4		Unit: VH050/101 \| Ratio i: 3.27 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 58.0-306.0 rpm \| Output torque M2: 139-203 Nm
VH100/101 3,27 TP132MS4		Unit: VH100/101 \| Ratio i: 3.27 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 58.0-306.0 rpm \| Output torque M2: 139-457 Nm
VH050/121 3,58 TP132MS4		Unit: VH050/121 \| Ratio i: 3.58 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 53.0-279.0 rpm \| Output torque M2: 152-222 Nm
VH100/121 3,58 TP132MS4		Unit: VH100/121 \| Ratio i: 3.58 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 53.0-279.0 rpm \| Output torque M2: 152-500 Nm
VH050/101 3,70 TP132MS4		Unit: VH050/101 \| Ratio i: 3.70 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 51.0-270.0 rpm \| Output torque M2: 157-230 Nm
VH100/101 3,70 TP132MS4		Unit: VH100/101 \| Ratio i: 3.70 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 51.0-270.0 rpm \| Output torque M2: 157-517 Nm
VH100/101 2,48 TP132MB6		Unit: VH100/101 \| Ratio i: 2.48 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 49.0-259.0 rpm \| Output torque M2: 160-347 Nm
VH100/121 2,48 TP132MB6		Unit: VH100/121 \| Ratio i: 2.48 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 49.0-259.0 rpm \| Output torque M2: 160-346 Nm
VH050/121 4,12 TP132MS4		Unit: VH050/121 \| Ratio i: 4.12 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 46.0-243.0 rpm \| Output torque M2: 175-256 Nm
VH100/121 4,12 TP132MS4		Unit: VH100/121 \| Ratio i: 4.12 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 46.0-243.0 rpm \| Output torque M2: 175-575 Nm
VH050/101 4,22 TP132MS4		Unit: VH050/101 \| Ratio i: 4.22 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 45.0-237.0 rpm \| Output torque M2: 179-262 Nm
VH100/101 4,22 TP132MS4		Unit: VH100/101 \| Ratio i: 4.22 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 45.0-237.0 rpm \| Output torque M2: 179-590 Nm
VH100/121 2,95 TP132MB6		Unit: VH100/121 \| Ratio i: 2.95 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 41.0-218.0 rpm \| Output torque M2: 190-413 Nm
VH050/121 4,80 TP132MS4		Unit: VH050/121 \| Ratio i: 4.80 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 40.0-208.0 rpm \| Output torque M2: 204-298 Nm
VH100/121 4,80 TP132MS4		Unit: VH100/121 \| Ratio i: 4.80 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 40.0-208.0 rpm \| Output torque M2: 204-670 Nm
VH050/101 4,88 TP132MS4		Unit: VH050/101 \| Ratio i: 4.88 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 39.0-205.0 rpm \| Output torque M2: 207-303 Nm
VH100/101 4,88 TP132MS4		Unit: VH100/101 \| Ratio i: 4.88 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 39.0-205.0 rpm \| Output torque M2: 207-681 Nm
VH100/121 3,14 TP132MB6		Unit: VH100/121 \| Ratio i: 3.14 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 39.0-205.0 rpm \| Output torque M2: 203-439 Nm
VH100/101 3,27 TP132MB6		Unit: VH100/101 \| Ratio i: 3.27 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 37.0-196.0 rpm \| Output torque M2: 211-457 Nm
VH050/121 5,21 TP132MS4		Unit: VH050/121 \| Ratio i: 5.21 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 36.0-192.0 rpm \| Output torque M2: 221-324 Nm
VH100/121 5,21 TP132MS4		Unit: VH100/121 \| Ratio i: 5.21 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 36.0-192.0 rpm \| Output torque M2: 221-728 Nm
VH050/101 5,27 TP132MS4		Unit: VH050/101 \| Ratio i: 5.27 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 36.0-190.0 rpm \| Output torque M2: 224-327 Nm
VH100/101 5,27 TP132MS4		Unit: VH100/101 \| Ratio i: 5.27 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 36.0-190.0 rpm \| Output torque M2: 224-736 Nm
VH100/121 3,58 TP132MB6		Unit: VH100/121 \| Ratio i: 3.58 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 34.0-180.0 rpm \| Output torque M2: 231-500 Nm
VH100/101 3,70 TP132MB6		Unit: VH100/101 \| Ratio i: 3.70 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 33.0-174.0 rpm \| Output torque M2: 238-517 Nm
VH050/101 6,23 TP132MS4		Unit: VH050/101 \| Ratio i: 6.23 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 30.0-160.0 rpm \| Output torque M2: 264-387 Nm
VH050/121 6,25 TP132MS4		Unit: VH050/121 \| Ratio i: 6.25 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 30.0-160.0 rpm \| Output torque M2: 265-388 Nm
VH100/121 6,25 TP132MS4		Unit: VH100/121 \| Ratio i: 6.25 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 30.0-160.0 rpm \| Output torque M2: 265-873 Nm
VH100/121 4,12 TP132MB6		Unit: VH100/121 \| Ratio i: 4.12 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 30.0-156.0 rpm \| Output torque M2: 265-575 Nm
VH100/101 4,22 TP132MB6		Unit: VH100/101 \| Ratio i: 4.22 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 29.0-152.0 rpm \| Output torque M2: 272-590 Nm
VH100/121 4,80 TP132MB6		Unit: VH100/121 \| Ratio i: 4.80 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 25.0-134.0 rpm \| Output torque M2: 309-670 Nm
VH050/101 7,55 TP132MS4		Unit: VH050/101 \| Ratio i: 7.55 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 25.0-133.0 rpm \| Output torque M2: 320-468 Nm
VH100/101 4,88 TP132MB6		Unit: VH100/101 \| Ratio i: 4.88 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 25.0-132.0 rpm \| Output torque M2: 314-681 Nm
VH050/121 7,70 TP132MS4		Unit: VH050/121 \| Ratio i: 7.70 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 25.0-130.0 rpm \| Output torque M2: 327-478 Nm
VH100/121 7,70 TP132MS4		Unit: VH100/121 \| Ratio i: 7.70 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 25.0-130.0 rpm \| Output torque M2: 327-1076 Nm
VH100/121 5,21 TP132MB6		Unit: VH100/121 \| Ratio i: 5.21 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 23.0-123.0 rpm \| Output torque M2: 336-728 Nm
VH100/101 5,27 TP132MB6		Unit: VH100/101 \| Ratio i: 5.27 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 339-736 Nm
VH100/102 5,26 TP132MB6		Unit: VH100/102 \| Ratio i: 5.26 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 336-728 Nm
VH050/101 8,40 TP132MS4		Unit: VH050/101 \| Ratio i: 8.40 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 23.0-119.0 rpm \| Output torque M2: 357-521 Nm
VH100/121 6,25 TP132MB6		Unit: VH100/121 \| Ratio i: 6.25 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 403-873 Nm
VH100/102 6,36 TP132MB6		Unit: VH100/102 \| Ratio i: 6.36 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 19.0-101.0 rpm \| Output torque M2: 405-879 Nm
VH100/102 7,05 TP132MB6		Unit: VH100/102 \| Ratio i: 7.05 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 17.0-91.0 rpm \| Output torque M2: 450-975 Nm
VH100/121 7,70 TP132MB6		Unit: VH100/121 \| Ratio i: 7.70 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 16.0-83.0 rpm \| Output torque M2: 496-1076 Nm
VH100/102 8,27 TP132MB6		Unit: VH100/102 \| Ratio i: 8.27 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 15.0-78.0 rpm \| Output torque M2: 528-1144 Nm
VH050/102 13,32 TP132MS4		Unit: VH050/102 \| Ratio i: 13.32 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 14.0-75.0 rpm \| Output torque M2: 560-819 Nm
VH100/102 13,32 TP132MS4		Unit: VH100/102 \| Ratio i: 13.32 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 14.0-75.0 rpm \| Output torque M2: 560-1842 Nm
VH100/102 9,99 TP132MB6		Unit: VH100/102 \| Ratio i: 9.99 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 12.0-64.0 rpm \| Output torque M2: 637-1381 Nm
VH050/102 16,09 TP132MS4		Unit: VH050/102 \| Ratio i: 16.09 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 12.0-62.0 rpm \| Output torque M2: 676-989 Nm
VH100/102 16,09 TP132MS4		Unit: VH100/102 \| Ratio i: 16.09 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 12.0-62.0 rpm \| Output torque M2: 676-2224 Nm
VH100/102 11,09 TP132MB6		Unit: VH100/102 \| Ratio i: 11.09 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 11.0-58.0 rpm \| Output torque M2: 707-1532 Nm
VH050/102 17,85 TP132MS4		Unit: VH050/102 \| Ratio i: 17.85 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 11.0-56.0 rpm \| Output torque M2: 750-1097 Nm
VH100/102 17,85 TP132MS4		Unit: VH100/102 \| Ratio i: 17.85 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 11.0-56.0 rpm \| Output torque M2: 750-2468 Nm
VH100/122 12,66 TP132MB6		Unit: VH100/122 \| Ratio i: 12.66 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 9.6-51.0 rpm \| Output torque M2: 808-1750 Nm
VH050/102 19,85 TP132MS4		Unit: VH050/102 \| Ratio i: 19.85 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 9.6-50.0 rpm \| Output torque M2: 834-1219 Nm
VH100/102 19,85 TP132MS4		Unit: VH100/102 \| Ratio i: 19.85 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 9.6-50.0 rpm \| Output torque M2: 834-2744 Nm
VH100/102 13,32 TP132MB6		Unit: VH100/102 \| Ratio i: 13.32 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 9.2-48.0 rpm \| Output torque M2: 850-1842 Nm
VH050/102 21,44 TP132MS4		Unit: VH050/102 \| Ratio i: 21.44 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 8.9-47.0 rpm \| Output torque M2: 901-1317 Nm
VH100/102 21,44 TP132MS4		Unit: VH100/102 \| Ratio i: 21.44 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 8.9-47.0 rpm \| Output torque M2: 901-2964 Nm
VH100/122 13,86 TP132MB6		Unit: VH100/122 \| Ratio i: 13.86 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 8.8-46.0 rpm \| Output torque M2: 884-1917 Nm
VH050/122 22,52 TP132MS4		Unit: VH050/122 \| Ratio i: 22.52 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 8.4-44.0 rpm \| Output torque M2: 946-1384 Nm
VH100/122 22,52 TP132MS4		Unit: VH100/122 \| Ratio i: 22.52 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 8.4-44.0 rpm \| Output torque M2: 946-3114 Nm
VH050/102 23,97 TP132MS4		Unit: VH050/102 \| Ratio i: 23.97 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 7.9-42.0 rpm \| Output torque M2: 1007-1473 Nm
VH100/102 23,97 TP132MS4		Unit: VH100/102 \| Ratio i: 23.97 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 7.9-42.0 rpm \| Output torque M2: 1007-3313 Nm
VH050/122 24,47 TP132MS4		Unit: VH050/122 \| Ratio i: 24.47 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 7.8-41.0 rpm \| Output torque M2: 1028-1503 Nm
VH100/122 24,47 TP132MS4		Unit: VH100/122 \| Ratio i: 24.47 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 7.8-41.0 rpm \| Output torque M2: 1028-3382 Nm
VH100/102 16,09 TP132MB6		Unit: VH100/102 \| Ratio i: 16.09 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 7.6-40.0 rpm \| Output torque M2: 1026-2224 Nm
VH050/102 25,89 TP132MS4		Unit: VH050/102 \| Ratio i: 25.89 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 7.3-39.0 rpm \| Output torque M2: 1088-1591 Nm
VH100/102 25,89 TP132MS4		Unit: VH100/102 \| Ratio i: 25.89 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 7.3-39.0 rpm \| Output torque M2: 1088-3580 Nm
VH100/122 16,92 TP132MB6		Unit: VH100/122 \| Ratio i: 16.92 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 7.2-38.0 rpm \| Output torque M2: 1079-2339 Nm
VH050/122 27,49 TP132MS4		Unit: VH050/122 \| Ratio i: 27.49 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 6.9-36.0 rpm \| Output torque M2: 1155-1689 Nm
VH100/122 27,49 TP132MS4		Unit: VH100/122 \| Ratio i: 27.49 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 6.9-36.0 rpm \| Output torque M2: 1155-3800 Nm
VH100/102 17,85 TP132MB6		Unit: VH100/102 \| Ratio i: 17.85 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 1139-2468 Nm
VH050/102 28,73 TP132MS4		Unit: VH050/102 \| Ratio i: 28.73 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 6.6-35.0 rpm \| Output torque M2: 1207-1765 Nm
VH100/102 28,73 TP132MS4		Unit: VH100/102 \| Ratio i: 28.73 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 6.6-35.0 rpm \| Output torque M2: 1207-3971 Nm
VH050/122 29,86 TP132MS4		Unit: VH050/122 \| Ratio i: 29.86 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 6.4-33.0 rpm \| Output torque M2: 1254-1835 Nm
VH100/122 29,86 TP132MS4		Unit: VH100/122 \| Ratio i: 29.86 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 6.4-33.0 rpm \| Output torque M2: 1254-4128 Nm
VH100/122 19,32 TP132MB6		Unit: VH100/122 \| Ratio i: 19.32 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 6.3-33.0 rpm \| Output torque M2: 1233-2671 Nm
VH050/102 30,72 TP132MS4		Unit: VH050/102 \| Ratio i: 30.72 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 6.2-33.0 rpm \| Output torque M2: 1290-1887 Nm
VH100/102 19,85 TP132MB6		Unit: VH100/102 \| Ratio i: 19.85 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 6.2-32.0 rpm \| Output torque M2: 1266-2744 Nm
VH100/122 20,57 TP132MB6		Unit: VH100/122 \| Ratio i: 20.57 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 5.9-31.0 rpm \| Output torque M2: 1312-2844 Nm
VH050/122 33,00 TP132MS4		Unit: VH050/122 \| Ratio i: 33.00 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 5.8-30.0 rpm \| Output torque M2: 1386-2028 Nm
VH100/122 33,00 TP132MS4		Unit: VH100/122 \| Ratio i: 33.00 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 5.8-30.0 rpm \| Output torque M2: 1386-4562 Nm
VH100/102 21,44 TP132MB6		Unit: VH100/102 \| Ratio i: 21.44 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 1368-2964 Nm
VH050/102 34,20 TP132MS4		Unit: VH050/102 \| Ratio i: 34.20 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 5.6-29.0 rpm \| Output torque M2: 1437-2101 Nm
VH100/122 22,52 TP132MB6		Unit: VH100/122 \| Ratio i: 22.52 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 5.4-29.0 rpm \| Output torque M2: 1437-3114 Nm
VH050/122 36,13 TP132MS4		Unit: VH050/122 \| Ratio i: 36.13 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 5.3-28.0 rpm \| Output torque M2: 1518-2220 Nm
VH100/122 36,13 TP132MS4		Unit: VH100/122 \| Ratio i: 36.13 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 5.3-28.0 rpm \| Output torque M2: 1518-4995 Nm
VH100/102 23,97 TP132MB6		Unit: VH100/102 \| Ratio i: 23.97 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 5.1-27.0 rpm \| Output torque M2: 1529-3313 Nm
VH100/122 24,47 TP132MB6		Unit: VH100/122 \| Ratio i: 24.47 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 5.0-26.0 rpm \| Output torque M2: 1561-3382 Nm
VH050/102 38,45 TP132MS4		Unit: VH050/102 \| Ratio i: 38.45 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 4.9-26.0 rpm \| Output torque M2: 1615-2363 Nm
VH100/102 25,89 TP132MB6		Unit: VH100/102 \| Ratio i: 25.89 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 4.7-25.0 rpm \| Output torque M2: 1652-3580 Nm
VH050/102 41,30 TP132MS4		Unit: VH050/102 \| Ratio i: 41.30 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 1735-2537 Nm
VH100/122 27,49 TP132MB6		Unit: VH100/122 \| Ratio i: 27.49 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 1754-3800 Nm
VH050/122 44,10 TP132MS4		Unit: VH050/122 \| Ratio i: 44.10 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 4.3-23.0 rpm \| Output torque M2: 1853-2710 Nm
VH100/102 28,73 TP132MB6		Unit: VH100/102 \| Ratio i: 28.73 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 4.3-22.0 rpm \| Output torque M2: 1833-3971 Nm
VH050/123 45,77 TP132MS4		Unit: VH050/123 \| Ratio i: 45.77 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 4.2-22.0 rpm \| Output torque M2: 1883-2754 Nm
VH050/102 45,82 TP132MS4		Unit: VH050/102 \| Ratio i: 45.82 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1925-2815 Nm
VH100/122 29,86 TP132MB6		Unit: VH100/122 \| Ratio i: 29.86 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1905-4128 Nm
VH050/102 51,52 TP132MS4		Unit: VH050/102 \| Ratio i: 51.52 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 2164-3165 Nm
VH100/122 33,00 TP132MB6		Unit: VH100/122 \| Ratio i: 33.00 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 2105-4562 Nm
VH050/103 55,47 TP132MS4		Unit: VH050/103 \| Ratio i: 55.47 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 2282-3337 Nm
VH050/123 55,87 TP132MS4		Unit: VH050/123 \| Ratio i: 55.87 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 2298-3361 Nm
VH100/122 36,13 TP132MB6		Unit: VH100/122 \| Ratio i: 36.13 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 2305-4995 Nm
VH050/123 67,32 TP132MS4		Unit: VH050/123 \| Ratio i: 67.32 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 2769-4050 Nm
VH100/122 44,10 TP132MB6		Unit: VH100/122 \| Ratio i: 44.10 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 2813-6096 Nm
VH050/103 69,69 TP132MS4		Unit: VH050/103 \| Ratio i: 69.69 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 2866-4193 Nm
VH050/123 73,71 TP132MS4		Unit: VH050/123 \| Ratio i: 73.71 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 2.6-14.0 rpm \| Output torque M2: 3032-4435 Nm
VH050/123 83,34 TP132MS4		Unit: VH050/123 \| Ratio i: 83.34 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 2.3-12.0 rpm \| Output torque M2: 3428-5013 Nm
VH050/123 89,97 TP132MS4		Unit: VH050/123 \| Ratio i: 89.97 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 2.1-11.0 rpm \| Output torque M2: 3701-5413 Nm
VH050/123 100,29 TP132MS4		Unit: VH050/123 \| Ratio i: 100.29 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 1.9-10.0 rpm \| Output torque M2: 4125-6033 Nm
VH050/101 1,29 TP132M4		Unit: VH050/101 \| Ratio i: 1.29 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 147.0-774.0 rpm \| Output torque M2: 75-80 Nm
VH100/101 1,29 TP132M4		Unit: VH100/101 \| Ratio i: 1.29 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 147.0-774.0 rpm \| Output torque M2: 75-181 Nm
VH050/101 1,41 TP132M4		Unit: VH050/101 \| Ratio i: 1.41 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 135.0-709.0 rpm \| Output torque M2: 82-88 Nm
VH100/101 1,41 TP132M4		Unit: VH100/101 \| Ratio i: 1.41 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 135.0-709.0 rpm \| Output torque M2: 82-197 Nm
VH100/101 1,29 TP160M6		Unit: VH100/101 \| Ratio i: 1.29 \| Motor: TP160M6 \| Power P1: 7.50 kW \| Output speed n2: 94.0-497.0 rpm \| Output torque M2: 114-181 Nm
VH050/101 2,03 TP132M4		Unit: VH050/101 \| Ratio i: 2.03 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 93.0-492.0 rpm \| Output torque M2: 118-126 Nm
VH100/101 2,03 TP132M4		Unit: VH100/101 \| Ratio i: 2.03 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 93.0-492.0 rpm \| Output torque M2: 118-284 Nm
VH100/101 1,41 TP160M6		Unit: VH100/101 \| Ratio i: 1.41 \| Motor: TP160M6 \| Power P1: 7.50 kW \| Output speed n2: 87.0-456.0 rpm \| Output torque M2: 124-197 Nm
VH050/101 2,48 TP132M4		Unit: VH050/101 \| Ratio i: 2.48 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 77.0-403.0 rpm \| Output torque M2: 144-154 Nm
VH050/121 2,48 TP132M4		Unit: VH050/121 \| Ratio i: 2.48 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 77.0-403.0 rpm \| Output torque M2: 144-154 Nm
VH100/101 2,48 TP132M4		Unit: VH100/101 \| Ratio i: 2.48 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 77.0-403.0 rpm \| Output torque M2: 144-347 Nm
VH100/121 2,48 TP132M4		Unit: VH100/121 \| Ratio i: 2.48 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 77.0-403.0 rpm \| Output torque M2: 144-346 Nm
VH100/121 1,81 TP160M6		Unit: VH100/121 \| Ratio i: 1.81 \| Motor: TP160M6 \| Power P1: 7.50 kW \| Output speed n2: 68.0-356.0 rpm \| Output torque M2: 159-252 Nm
VH050/121 2,95 TP132M4		Unit: VH050/121 \| Ratio i: 2.95 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 64.0-338.0 rpm \| Output torque M2: 171-183 Nm
VH100/121 2,95 TP132M4		Unit: VH100/121 \| Ratio i: 2.95 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 64.0-338.0 rpm \| Output torque M2: 171-413 Nm
VH100/121 2,00 TP160M6		Unit: VH100/121 \| Ratio i: 2.00 \| Motor: TP160M6 \| Power P1: 7.50 kW \| Output speed n2: 61.0-321.0 rpm \| Output torque M2: 176-279 Nm
VH050/121 3,14 TP132M4		Unit: VH050/121 \| Ratio i: 3.14 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 60.0-318.0 rpm \| Output torque M2: 182-195 Nm
VH100/121 3,14 TP132M4		Unit: VH100/121 \| Ratio i: 3.14 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 60.0-318.0 rpm \| Output torque M2: 182-439 Nm
VH100/101 2,03 TP160M6		Unit: VH100/101 \| Ratio i: 2.03 \| Motor: TP160M6 \| Power P1: 7.50 kW \| Output speed n2: 60.0-316.0 rpm \| Output torque M2: 179-284 Nm
VH050/101 3,27 TP132M4		Unit: VH050/101 \| Ratio i: 3.27 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 58.0-306.0 rpm \| Output torque M2: 189-203 Nm
VH100/101 3,27 TP132M4		Unit: VH100/101 \| Ratio i: 3.27 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 58.0-306.0 rpm \| Output torque M2: 189-457 Nm
VH050/121 3,58 TP132M4		Unit: VH050/121 \| Ratio i: 3.58 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 53.0-279.0 rpm \| Output torque M2: 207-222 Nm
VH100/121 3,58 TP132M4		Unit: VH100/121 \| Ratio i: 3.58 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 53.0-279.0 rpm \| Output torque M2: 207-500 Nm
VH050/101 3,70 TP132M4		Unit: VH050/101 \| Ratio i: 3.70 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 51.0-270.0 rpm \| Output torque M2: 214-230 Nm
VH100/101 3,70 TP132M4		Unit: VH100/101 \| Ratio i: 3.70 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 51.0-270.0 rpm \| Output torque M2: 214-517 Nm
VH100/101 2,48 TP160M6		Unit: VH100/101 \| Ratio i: 2.48 \| Motor: TP160M6 \| Power P1: 7.50 kW \| Output speed n2: 49.0-259.0 rpm \| Output torque M2: 218-347 Nm
VH100/121 2,48 TP160M6		Unit: VH100/121 \| Ratio i: 2.48 \| Motor: TP160M6 \| Power P1: 7.50 kW \| Output speed n2: 49.0-259.0 rpm \| Output torque M2: 218-346 Nm
VH050/121 4,12 TP132M4		Unit: VH050/121 \| Ratio i: 4.12 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 46.0-243.0 rpm \| Output torque M2: 238-256 Nm
VH100/121 4,12 TP132M4		Unit: VH100/121 \| Ratio i: 4.12 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 46.0-243.0 rpm \| Output torque M2: 238-575 Nm
VH050/101 4,22 TP132M4		Unit: VH050/101 \| Ratio i: 4.22 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 45.0-237.0 rpm \| Output torque M2: 244-262 Nm
VH100/101 4,22 TP132M4		Unit: VH100/101 \| Ratio i: 4.22 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 45.0-237.0 rpm \| Output torque M2: 244-590 Nm
VH100/121 2,95 TP160M6		Unit: VH100/121 \| Ratio i: 2.95 \| Motor: TP160M6 \| Power P1: 7.50 kW \| Output speed n2: 41.0-218.0 rpm \| Output torque M2: 260-413 Nm

Speed VariatorsMotovario

793 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Motovario VH Motovariator-Helical Gearmotors (VH030-VH100, cast iron)

Brand Motovario·Speed Variators

Available part numbers (793)

VH030/081 3,25 TP100L6, VH030/081 3,72 TP100L6, VH030/081 4,00 TP100L6, VH030/081 4,67 TP100L6, VH030/062 5,38 TP100L6, VH030/081 5,54 TP100L6, VH030/062 5,93 TP100L6, VH030/081 6,08 TP100L6, VH030/062 7,39 TP100L6, VH030/081 7,50 TP100L6 + 783 more — see full table ↓

How to order

Send the Motovario part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VH030/081 3,25 TP100L6	Unit: VH030/081 \| Ratio i: 3.25 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 38.0-198.0 rpm \| Output torque M2: 57-151 Nm
	VH030/081 3,72 TP100L6	Unit: VH030/081 \| Ratio i: 3.72 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 33.0-173.0 rpm \| Output torque M2: 65-173 Nm
	VH030/081 4,00 TP100L6	Unit: VH030/081 \| Ratio i: 4.00 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 31.0-161.0 rpm \| Output torque M2: 70-186 Nm
	VH030/081 4,67 TP100L6	Unit: VH030/081 \| Ratio i: 4.67 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 26.0-138.0 rpm \| Output torque M2: 82-217 Nm
	VH030/062 5,38 TP100L6	Unit: VH030/062 \| Ratio i: 5.38 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 23.0-120.0 rpm \| Output torque M2: 94-248 Nm
	VH030/081 5,54 TP100L6	Unit: VH030/081 \| Ratio i: 5.54 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 22.0-116.0 rpm \| Output torque M2: 97-258 Nm
	VH030/062 5,93 TP100L6	Unit: VH030/062 \| Ratio i: 5.93 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 21.0-108.0 rpm \| Output torque M2: 103-273 Nm
	VH030/081 6,08 TP100L6	Unit: VH030/081 \| Ratio i: 6.08 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 20.0-106.0 rpm \| Output torque M2: 107-283 Nm
	VH030/062 7,39 TP100L6	Unit: VH030/062 \| Ratio i: 7.39 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 17.0-87.0 rpm \| Output torque M2: 129-341 Nm
	VH030/081 7,50 TP100L6	Unit: VH030/081 \| Ratio i: 7.50 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 16.0-86.0 rpm \| Output torque M2: 132-349 Nm
	VH030/101 7,55 TP100L6	Unit: VH030/101 \| Ratio i: 7.55 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 16.0-85.0 rpm \| Output torque M2: 133-351 Nm
	VH030/101 8,40 TP100L6	Unit: VH030/101 \| Ratio i: 8.40 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 15.0-77.0 rpm \| Output torque M2: 148-391 Nm
	VH030/062 8,50 TP100L6	Unit: VH030/062 \| Ratio i: 8.50 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 14.0-76.0 rpm \| Output torque M2: 148-392 Nm
	VH030/081 8,44 TP100L6	Unit: VH030/081 \| Ratio i: 8.44 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 14.0-76.0 rpm \| Output torque M2: 148-393 Nm
	VH030/062 9,39 TP100L6	Unit: VH030/062 \| Ratio i: 9.39 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 13.0-68.0 rpm \| Output torque M2: 163-432 Nm
	VH030/062 11,69 TP100L6	Unit: VH030/062 \| Ratio i: 11.69 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 10.0-55.0 rpm \| Output torque M2: 203-539 Nm
	VH030/062 12,67 TP100L6	Unit: VH030/062 \| Ratio i: 12.67 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 9.6-51.0 rpm \| Output torque M2: 220-584 Nm
	VH030/062 14,75 TP100L6	Unit: VH030/062 \| Ratio i: 14.75 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 8.3-44.0 rpm \| Output torque M2: 257-680 Nm
	VH030/062 16,29 TP100L6	Unit: VH030/062 \| Ratio i: 16.29 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 7.5-39.0 rpm \| Output torque M2: 283-750 Nm
	VH030/082 16,62 TP100L6	Unit: VH030/082 \| Ratio i: 16.62 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 7.4-39.0 rpm \| Output torque M2: 289-766 Nm
	VH030/062 17,67 TP100L6	Unit: VH030/062 \| Ratio i: 17.67 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 6.9-36.0 rpm \| Output torque M2: 307-814 Nm
	VH030/082 18,53 TP100L6	Unit: VH030/082 \| Ratio i: 18.53 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 6.6-35.0 rpm \| Output torque M2: 322-854 Nm
	VH030/082 19,38 TP100L6	Unit: VH030/082 \| Ratio i: 19.38 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 6.3-33.0 rpm \| Output torque M2: 337-893 Nm
	VH030/062 20,28 TP100L6	Unit: VH030/062 \| Ratio i: 20.28 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 6.0-32.0 rpm \| Output torque M2: 353-935 Nm
	VH030/082 21,39 TP100L6	Unit: VH030/082 \| Ratio i: 21.39 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 372-986 Nm
	VH030/082 22,80 TP100L6	Unit: VH030/082 \| Ratio i: 22.80 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 5.4-28.0 rpm \| Output torque M2: 397-1051 Nm
	VH030/082 26,60 TP100L6	Unit: VH030/082 \| Ratio i: 26.60 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 463-1226 Nm
	VH030/082 27,88 TP100L6	Unit: VH030/082 \| Ratio i: 27.88 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 485-1285 Nm
	VH030/082 31,15 TP100L6	Unit: VH030/082 \| Ratio i: 31.15 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.9-21.0 rpm \| Output torque M2: 542-1436 Nm
	VH030/082 34,38 TP100L6	Unit: VH030/082 \| Ratio i: 34.38 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 598-1584 Nm
	VH030/102 34,20 TP100L6	Unit: VH030/102 \| Ratio i: 34.20 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 595-1576 Nm
	VH030/082 38,70 TP100L6	Unit: VH030/082 \| Ratio i: 38.70 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 673-1783 Nm
	VH030/102 38,45 TP100L6	Unit: VH030/102 \| Ratio i: 38.45 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 669-1772 Nm
	VH030/102 41,30 TP100L6	Unit: VH030/102 \| Ratio i: 41.30 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 3.0-16.0 rpm \| Output torque M2: 719-1903 Nm
	VH030/102 45,82 TP100L6	Unit: VH030/102 \| Ratio i: 45.82 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 797-2111 Nm
	VH030/102 51,52 TP100L6	Unit: VH030/102 \| Ratio i: 51.52 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 2.4-12.0 rpm \| Output torque M2: 896-2374 Nm
	VH030/103 55,47 TP100L6	Unit: VH030/103 \| Ratio i: 55.47 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 945-2503 Nm
	VH030/123 55,87 TP100L6	Unit: VH030/123 \| Ratio i: 55.87 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 952-2521 Nm
	VH030/123 67,32 TP100L6	Unit: VH030/123 \| Ratio i: 67.32 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.8-9.5 rpm \| Output torque M2: 1147-3038 Nm
	VH030/103 69,69 TP100L6	Unit: VH030/103 \| Ratio i: 69.69 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 1187-3144 Nm
	VH030/123 73,71 TP100L6	Unit: VH030/123 \| Ratio i: 73.71 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.7-8.7 rpm \| Output torque M2: 1256-3326 Nm
	VH030/103 79,82 TP100L6	Unit: VH030/103 \| Ratio i: 79.82 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.5-8.1 rpm \| Output torque M2: 1360-3601 Nm
	VH030/123 83,34 TP100L6	Unit: VH030/123 \| Ratio i: 83.34 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.5-7.7 rpm \| Output torque M2: 1420-3760 Nm
	VH030/103 84,16 TP100L6	Unit: VH030/103 \| Ratio i: 84.16 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.5-7.6 rpm \| Output torque M2: 1434-3797 Nm
	VH030/123 89,97 TP100L6	Unit: VH030/123 \| Ratio i: 89.97 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.4-7.1 rpm \| Output torque M2: 1533-4059 Nm
	VH030/103 93,36 TP100L6	Unit: VH030/103 \| Ratio i: 93.36 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.3-6.9 rpm \| Output torque M2: 1590-4213 Nm
	VH030/123 100,29 TP100L6	Unit: VH030/123 \| Ratio i: 100.29 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.2-6.4 rpm \| Output torque M2: 1708-4525 Nm
	VH030/123 108,34 TP100L6	Unit: VH030/123 \| Ratio i: 108.34 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.1-5.9 rpm \| Output torque M2: 1846-4888 Nm
	VH030/123 118,62 TP100L6	Unit: VH030/123 \| Ratio i: 118.62 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.0-5.4 rpm \| Output torque M2: 2021-5352 Nm
	VH030/123 128,18 TP100L6	Unit: VH030/123 \| Ratio i: 128.18 \| Motor: TP100L6 \| Power P1: 1.50 kW \| Output speed n2: 1.0-5.0 rpm \| Output torque M2: 2184-5783 Nm
	VH030/081 1,93 TP112M6	Unit: VH030/081 \| Ratio i: 1.93 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 63.0-333.0 rpm \| Output torque M2: 50-90 Nm
	VH030/081 3,25 TP100LA4	Unit: VH030/081 \| Ratio i: 3.25 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 58.0-308.0 rpm \| Output torque M2: 55-151 Nm
	VH030/081 3,72 TP100LA4	Unit: VH030/081 \| Ratio i: 3.72 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 51.0-269.0 rpm \| Output torque M2: 63-173 Nm
	VH030/081 2,54 TP112M6	Unit: VH030/081 \| Ratio i: 2.54 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 48.0-253.0 rpm \| Output torque M2: 66-118 Nm
	VH030/081 4,00 TP100LA4	Unit: VH030/081 \| Ratio i: 4.00 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 48.0-250.0 rpm \| Output torque M2: 68-186 Nm
	VH030/081 4,67 TP100LA4	Unit: VH030/081 \| Ratio i: 4.67 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 41.0-214.0 rpm \| Output torque M2: 79-217 Nm
	VH030/081 3,25 TP112M6	Unit: VH030/081 \| Ratio i: 3.25 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 38.0-198.0 rpm \| Output torque M2: 84-151 Nm
	VH030/062 5,38 TP100LA4	Unit: VH030/062 \| Ratio i: 5.38 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 35.0-186.0 rpm \| Output torque M2: 90-248 Nm
	VH030/081 5,54 TP100LA4	Unit: VH030/081 \| Ratio i: 5.54 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 34.0-181.0 rpm \| Output torque M2: 94-258 Nm
	VH030/081 3,72 TP112M6	Unit: VH030/081 \| Ratio i: 3.72 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 33.0-173.0 rpm \| Output torque M2: 96-173 Nm
	VH030/062 5,93 TP100LA4	Unit: VH030/062 \| Ratio i: 5.93 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 32.0-168.0 rpm \| Output torque M2: 100-273 Nm
	VH030/081 6,08 TP100LA4	Unit: VH030/081 \| Ratio i: 6.08 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 31.0-164.0 rpm \| Output torque M2: 103-283 Nm
	VH030/081 4,00 TP112M6	Unit: VH030/081 \| Ratio i: 4.00 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 31.0-161.0 rpm \| Output torque M2: 103-186 Nm
	VH030/081 4,67 TP112M6	Unit: VH030/081 \| Ratio i: 4.67 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 26.0-138.0 rpm \| Output torque M2: 120-217 Nm
	VH030/062 7,39 TP100LA4	Unit: VH030/062 \| Ratio i: 7.39 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 26.0-135.0 rpm \| Output torque M2: 124-341 Nm
	VH030/081 7,50 TP100LA4	Unit: VH030/081 \| Ratio i: 7.50 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 25.0-133.0 rpm \| Output torque M2: 127-349 Nm
	VH030/101 7,55 TP100LA4	Unit: VH030/101 \| Ratio i: 7.55 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 25.0-133.0 rpm \| Output torque M2: 128-351 Nm
	VH030/101 4,88 TP112M6	Unit: VH030/101 \| Ratio i: 4.88 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 25.0-132.0 rpm \| Output torque M2: 126-227 Nm
	VH050/101 4,88 TP112M6	Unit: VH050/101 \| Ratio i: 4.88 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 25.0-132.0 rpm \| Output torque M2: 126-303 Nm
	VH030/101 5,27 TP112M6	Unit: VH030/101 \| Ratio i: 5.27 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 136-245 Nm
	VH050/101 5,27 TP112M6	Unit: VH050/101 \| Ratio i: 5.27 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 136-327 Nm
	VH030/062 5,38 TP112M6	Unit: VH030/062 \| Ratio i: 5.38 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 23.0-120.0 rpm \| Output torque M2: 137-248 Nm
	VH030/082 5,39 TP112M6	Unit: VH030/082 \| Ratio i: 5.39 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 23.0-119.0 rpm \| Output torque M2: 138-248 Nm
	VH030/101 8,40 TP100LA4	Unit: VH030/101 \| Ratio i: 8.40 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 23.0-119.0 rpm \| Output torque M2: 143-391 Nm
	VH030/081 8,44 TP100LA4	Unit: VH030/081 \| Ratio i: 8.44 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 23.0-118.0 rpm \| Output torque M2: 143-393 Nm
	VH030/062 8,50 TP100LA4	Unit: VH030/062 \| Ratio i: 8.50 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 22.0-118.0 rpm \| Output torque M2: 143-392 Nm
	VH030/081 5,54 TP112M6	Unit: VH030/081 \| Ratio i: 5.54 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 22.0-116.0 rpm \| Output torque M2: 143-258 Nm
	VH030/062 5,93 TP112M6	Unit: VH030/062 \| Ratio i: 5.93 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 21.0-108.0 rpm \| Output torque M2: 151-273 Nm
	VH030/082 5,95 TP112M6	Unit: VH030/082 \| Ratio i: 5.95 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 21.0-108.0 rpm \| Output torque M2: 152-274 Nm
	VH030/062 9,39 TP100LA4	Unit: VH030/062 \| Ratio i: 9.39 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 20.0-107.0 rpm \| Output torque M2: 158-432 Nm
	VH030/081 6,08 TP112M6	Unit: VH030/081 \| Ratio i: 6.08 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 20.0-106.0 rpm \| Output torque M2: 157-283 Nm
	VH030/101 6,23 TP112M6	Unit: VH030/101 \| Ratio i: 6.23 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 161-290 Nm
	VH030/121 6,25 TP112M6	Unit: VH030/121 \| Ratio i: 6.25 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 161-291 Nm
	VH050/101 6,23 TP112M6	Unit: VH050/101 \| Ratio i: 6.23 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 161-387 Nm
	VH050/121 6,25 TP112M6	Unit: VH050/121 \| Ratio i: 6.25 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 161-388 Nm
	VH030/062 7,39 TP112M6	Unit: VH030/062 \| Ratio i: 7.39 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 17.0-87.0 rpm \| Output torque M2: 189-341 Nm
	VH030/082 7,39 TP112M6	Unit: VH030/082 \| Ratio i: 7.39 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 17.0-87.0 rpm \| Output torque M2: 189-341 Nm
	VH030/062 11,69 TP100LA4	Unit: VH030/062 \| Ratio i: 11.69 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 16.0-86.0 rpm \| Output torque M2: 196-539 Nm
	VH030/081 7,50 TP112M6	Unit: VH030/081 \| Ratio i: 7.50 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 16.0-86.0 rpm \| Output torque M2: 193-349 Nm
	VH030/101 7,55 TP112M6	Unit: VH030/101 \| Ratio i: 7.55 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 16.0-85.0 rpm \| Output torque M2: 195-351 Nm
	VH050/101 7,55 TP112M6	Unit: VH050/101 \| Ratio i: 7.55 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 16.0-85.0 rpm \| Output torque M2: 195-468 Nm
	VH030/121 7,70 TP112M6	Unit: VH030/121 \| Ratio i: 7.70 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 16.0-83.0 rpm \| Output torque M2: 199-359 Nm
	VH050/121 7,70 TP112M6	Unit: VH050/121 \| Ratio i: 7.70 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 16.0-83.0 rpm \| Output torque M2: 199-478 Nm
	VH030/082 8,02 TP112M6	Unit: VH030/082 \| Ratio i: 8.02 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 15.0-80.0 rpm \| Output torque M2: 205-370 Nm
	VH030/062 12,67 TP100LA4	Unit: VH030/062 \| Ratio i: 12.67 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 15.0-79.0 rpm \| Output torque M2: 213-584 Nm
	VH030/101 8,40 TP112M6	Unit: VH030/101 \| Ratio i: 8.40 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 15.0-77.0 rpm \| Output torque M2: 217-391 Nm
	VH050/101 8,40 TP112M6	Unit: VH050/101 \| Ratio i: 8.40 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 15.0-77.0 rpm \| Output torque M2: 217-521 Nm
	VH030/062 8,50 TP112M6	Unit: VH030/062 \| Ratio i: 8.50 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 14.0-76.0 rpm \| Output torque M2: 217-392 Nm
	VH030/081 8,44 TP112M6	Unit: VH030/081 \| Ratio i: 8.44 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 14.0-76.0 rpm \| Output torque M2: 218-393 Nm
	VH030/082 8,85 TP112M6	Unit: VH030/082 \| Ratio i: 8.85 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 14.0-73.0 rpm \| Output torque M2: 226-408 Nm
	VH030/062 9,39 TP112M6	Unit: VH030/062 \| Ratio i: 9.39 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 13.0-68.0 rpm \| Output torque M2: 239-432 Nm
	VH030/062 14,75 TP100LA4	Unit: VH030/062 \| Ratio i: 14.75 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 13.0-68.0 rpm \| Output torque M2: 248-680 Nm
	VH030/062 16,29 TP100LA4	Unit: VH030/062 \| Ratio i: 16.29 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 12.0-61.0 rpm \| Output torque M2: 274-750 Nm
	VH030/082 16,62 TP100LA4	Unit: VH030/082 \| Ratio i: 16.62 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 11.0-60.0 rpm \| Output torque M2: 279-766 Nm
	VH030/082 11,01 TP112M6	Unit: VH030/082 \| Ratio i: 11.01 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 11.0-58.0 rpm \| Output torque M2: 281-507 Nm
	VH030/062 17,67 TP100LA4	Unit: VH030/062 \| Ratio i: 17.67 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 11.0-57.0 rpm \| Output torque M2: 297-814 Nm
	VH030/062 11,69 TP112M6	Unit: VH030/062 \| Ratio i: 11.69 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 10.0-55.0 rpm \| Output torque M2: 298-539 Nm
	VH030/082 18,53 TP100LA4	Unit: VH030/082 \| Ratio i: 18.53 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 10.0-54.0 rpm \| Output torque M2: 311-854 Nm
	VH030/082 19,38 TP100LA4	Unit: VH030/082 \| Ratio i: 19.38 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 9.8-52.0 rpm \| Output torque M2: 326-893 Nm
	VH030/062 12,67 TP112M6	Unit: VH030/062 \| Ratio i: 12.67 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 9.6-51.0 rpm \| Output torque M2: 323-584 Nm
	VH030/062 20,28 TP100LA4	Unit: VH030/062 \| Ratio i: 20.28 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 9.4-49.0 rpm \| Output torque M2: 341-935 Nm
	VH030/082 13,50 TP112M6	Unit: VH030/082 \| Ratio i: 13.50 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 9.0-48.0 rpm \| Output torque M2: 344-622 Nm
	VH030/082 21,39 TP100LA4	Unit: VH030/082 \| Ratio i: 21.39 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 8.9-47.0 rpm \| Output torque M2: 359-986 Nm
	VH030/062 14,75 TP112M6	Unit: VH030/062 \| Ratio i: 14.75 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 8.3-44.0 rpm \| Output torque M2: 376-680 Nm
	VH030/082 22,80 TP100LA4	Unit: VH030/082 \| Ratio i: 22.80 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 8.3-44.0 rpm \| Output torque M2: 383-1051 Nm
	VH030/082 14,90 TP112M6	Unit: VH030/082 \| Ratio i: 14.90 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 8.2-43.0 rpm \| Output torque M2: 380-686 Nm
	VH030/062 16,29 TP112M6	Unit: VH030/062 \| Ratio i: 16.29 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 7.5-39.0 rpm \| Output torque M2: 416-750 Nm
	VH030/082 16,62 TP112M6	Unit: VH030/082 \| Ratio i: 16.62 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 7.4-39.0 rpm \| Output torque M2: 424-766 Nm
	VH030/082 26,60 TP100LA4	Unit: VH030/082 \| Ratio i: 26.60 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 7.1-38.0 rpm \| Output torque M2: 447-1226 Nm
	VH030/062 17,67 TP112M6	Unit: VH030/062 \| Ratio i: 17.67 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 6.9-36.0 rpm \| Output torque M2: 451-814 Nm
	VH030/082 27,88 TP100LA4	Unit: VH030/082 \| Ratio i: 27.88 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 468-1285 Nm
	VH030/082 18,53 TP112M6	Unit: VH030/082 \| Ratio i: 18.53 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 6.6-35.0 rpm \| Output torque M2: 473-854 Nm
	VH030/082 19,38 TP112M6	Unit: VH030/082 \| Ratio i: 19.38 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 6.3-33.0 rpm \| Output torque M2: 495-893 Nm
	VH030/082 31,15 TP100LA4	Unit: VH030/082 \| Ratio i: 31.15 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 6.1-32.0 rpm \| Output torque M2: 523-1436 Nm
	VH030/062 20,28 TP112M6	Unit: VH030/062 \| Ratio i: 20.28 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 6.0-32.0 rpm \| Output torque M2: 518-935 Nm
	VH030/082 21,39 TP112M6	Unit: VH030/082 \| Ratio i: 21.39 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 546-986 Nm
	VH030/102 34,20 TP100LA4	Unit: VH030/102 \| Ratio i: 34.20 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 5.6-29.0 rpm \| Output torque M2: 575-1576 Nm
	VH030/082 34,38 TP100LA4	Unit: VH030/082 \| Ratio i: 34.38 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 5.5-29.0 rpm \| Output torque M2: 578-1584 Nm
	VH030/082 22,80 TP112M6	Unit: VH030/082 \| Ratio i: 22.80 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 5.4-28.0 rpm \| Output torque M2: 582-1051 Nm
	VH030/102 23,97 TP112M6	Unit: VH030/102 \| Ratio i: 23.97 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 5.1-27.0 rpm \| Output torque M2: 612-1104 Nm
	VH050/102 23,97 TP112M6	Unit: VH050/102 \| Ratio i: 23.97 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 5.1-27.0 rpm \| Output torque M2: 612-1473 Nm
	VH030/082 38,70 TP100LA4	Unit: VH030/082 \| Ratio i: 38.70 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 4.9-26.0 rpm \| Output torque M2: 650-1783 Nm
	VH030/102 38,45 TP100LA4	Unit: VH030/102 \| Ratio i: 38.45 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 4.9-26.0 rpm \| Output torque M2: 646-1772 Nm
	VH030/102 25,89 TP112M6	Unit: VH030/102 \| Ratio i: 25.89 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.7-25.0 rpm \| Output torque M2: 661-1193 Nm
	VH050/102 25,89 TP112M6	Unit: VH050/102 \| Ratio i: 25.89 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.7-25.0 rpm \| Output torque M2: 661-1591 Nm
	VH030/082 26,60 TP112M6	Unit: VH030/082 \| Ratio i: 26.60 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 679-1226 Nm
	VH030/102 41,30 TP100LA4	Unit: VH030/102 \| Ratio i: 41.30 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 694-1903 Nm
	VH030/082 27,88 TP112M6	Unit: VH030/082 \| Ratio i: 27.88 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 711-1285 Nm
	VH030/102 28,73 TP112M6	Unit: VH030/102 \| Ratio i: 28.73 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.3-22.0 rpm \| Output torque M2: 733-1324 Nm
	VH050/102 28,73 TP112M6	Unit: VH050/102 \| Ratio i: 28.73 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.3-22.0 rpm \| Output torque M2: 733-1765 Nm
	VH030/102 45,82 TP100LA4	Unit: VH030/102 \| Ratio i: 45.82 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 770-2111 Nm
	VH030/102 30,72 TP112M6	Unit: VH030/102 \| Ratio i: 30.72 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.0-21.0 rpm \| Output torque M2: 784-1416 Nm
	VH050/102 30,72 TP112M6	Unit: VH050/102 \| Ratio i: 30.72 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 4.0-21.0 rpm \| Output torque M2: 784-1887 Nm
	VH030/082 31,15 TP112M6	Unit: VH030/082 \| Ratio i: 31.15 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.9-21.0 rpm \| Output torque M2: 795-1436 Nm
	VH030/102 51,52 TP100LA4	Unit: VH030/102 \| Ratio i: 51.52 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 866-2374 Nm
	VH030/082 34,38 TP112M6	Unit: VH030/082 \| Ratio i: 34.38 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 877-1584 Nm
	VH030/102 34,20 TP112M6	Unit: VH030/102 \| Ratio i: 34.20 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 873-1576 Nm
	VH050/102 34,20 TP112M6	Unit: VH050/102 \| Ratio i: 34.20 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 873-2101 Nm
	VH030/103 55,47 TP100LA4	Unit: VH030/103 \| Ratio i: 55.47 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 913-2503 Nm
	VH030/122 36,13 TP112M6	Unit: VH030/122 \| Ratio i: 36.13 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 922-1665 Nm
	VH030/123 55,87 TP100LA4	Unit: VH030/123 \| Ratio i: 55.87 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 919-2521 Nm
	VH050/122 36,13 TP112M6	Unit: VH050/122 \| Ratio i: 36.13 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 922-2220 Nm
	VH030/082 38,70 TP112M6	Unit: VH030/082 \| Ratio i: 38.70 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 988-1783 Nm
	VH030/102 38,45 TP112M6	Unit: VH030/102 \| Ratio i: 38.45 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 981-1772 Nm
	VH050/102 38,45 TP112M6	Unit: VH050/102 \| Ratio i: 38.45 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 981-2363 Nm
	VH030/102 41,30 TP112M6	Unit: VH030/102 \| Ratio i: 41.30 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.0-16.0 rpm \| Output torque M2: 1054-1903 Nm
	VH050/102 41,30 TP112M6	Unit: VH050/102 \| Ratio i: 41.30 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 3.0-16.0 rpm \| Output torque M2: 1054-2537 Nm
	VH030/122 44,10 TP112M6	Unit: VH030/122 \| Ratio i: 44.10 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 1125-2032 Nm
	VH030/123 67,32 TP100LA4	Unit: VH030/123 \| Ratio i: 67.32 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 1108-3038 Nm
	VH050/122 44,10 TP112M6	Unit: VH050/122 \| Ratio i: 44.10 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 1125-2710 Nm
	VH030/102 45,82 TP112M6	Unit: VH030/102 \| Ratio i: 45.82 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1169-2111 Nm
	VH030/103 69,69 TP100LA4	Unit: VH030/103 \| Ratio i: 69.69 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1147-3144 Nm
	VH030/123 45,77 TP112M6	Unit: VH030/123 \| Ratio i: 45.77 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1144-2065 Nm
	VH050/102 45,82 TP112M6	Unit: VH050/102 \| Ratio i: 45.82 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1169-2815 Nm
	VH050/123 45,77 TP112M6	Unit: VH050/123 \| Ratio i: 45.77 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1144-2754 Nm
	VH030/123 73,71 TP100LA4	Unit: VH030/123 \| Ratio i: 73.71 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 2.6-14.0 rpm \| Output torque M2: 1213-3326 Nm
	VH030/103 79,82 TP100LA4	Unit: VH030/103 \| Ratio i: 79.82 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 2.4-13.0 rpm \| Output torque M2: 1313-3601 Nm
	VH030/102 51,52 TP112M6	Unit: VH030/102 \| Ratio i: 51.52 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.4-12.0 rpm \| Output torque M2: 1315-2374 Nm
	VH050/102 51,52 TP112M6	Unit: VH050/102 \| Ratio i: 51.52 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.4-12.0 rpm \| Output torque M2: 1315-3165 Nm
	VH030/103 84,16 TP100LA4	Unit: VH030/103 \| Ratio i: 84.16 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 2.3-12.0 rpm \| Output torque M2: 1385-3797 Nm
	VH030/123 83,34 TP100LA4	Unit: VH030/123 \| Ratio i: 83.34 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 2.3-12.0 rpm \| Output torque M2: 1371-3760 Nm
	VH030/103 55,47 TP112M6	Unit: VH030/103 \| Ratio i: 55.47 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 1386-2503 Nm
	VH030/123 55,87 TP112M6	Unit: VH030/123 \| Ratio i: 55.87 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 1396-2521 Nm
	VH050/103 55,47 TP112M6	Unit: VH050/103 \| Ratio i: 55.47 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 1386-3337 Nm
	VH050/123 55,87 TP112M6	Unit: VH050/123 \| Ratio i: 55.87 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 1396-3361 Nm
	VH030/123 89,97 TP100LA4	Unit: VH030/123 \| Ratio i: 89.97 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 2.1-11.0 rpm \| Output torque M2: 1480-4059 Nm
	VH030/103 93,36 TP100LA4	Unit: VH030/103 \| Ratio i: 93.36 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 2.0-11.0 rpm \| Output torque M2: 1536-4213 Nm
	VH030/123 100,29 TP100LA4	Unit: VH030/123 \| Ratio i: 100.29 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 1.9-10.0 rpm \| Output torque M2: 1650-4525 Nm
	VH030/123 67,32 TP112M6	Unit: VH030/123 \| Ratio i: 67.32 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.8-9.5 rpm \| Output torque M2: 1682-3038 Nm
	VH050/123 67,32 TP112M6	Unit: VH050/123 \| Ratio i: 67.32 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.8-9.5 rpm \| Output torque M2: 1682-4050 Nm
	VH030/103 69,69 TP112M6	Unit: VH030/103 \| Ratio i: 69.69 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 1741-3144 Nm
	VH030/123 108,34 TP100LA4	Unit: VH030/123 \| Ratio i: 108.34 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 1783-4888 Nm
	VH050/103 69,69 TP112M6	Unit: VH050/103 \| Ratio i: 69.69 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 1741-4193 Nm
	VH030/123 73,71 TP112M6	Unit: VH030/123 \| Ratio i: 73.71 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.7-8.7 rpm \| Output torque M2: 1842-3326 Nm
	VH050/123 73,71 TP112M6	Unit: VH050/123 \| Ratio i: 73.71 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.7-8.7 rpm \| Output torque M2: 1842-4435 Nm
	VH030/123 118,62 TP100LA4	Unit: VH030/123 \| Ratio i: 118.62 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 1.6-8.4 rpm \| Output torque M2: 1952-5352 Nm
	VH030/103 79,82 TP112M6	Unit: VH030/103 \| Ratio i: 79.82 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.5-8.1 rpm \| Output torque M2: 1994-3601 Nm
	VH030/123 128,18 TP100LA4	Unit: VH030/123 \| Ratio i: 128.18 \| Motor: TP100LA4 \| Power P1: 2.20 kW \| Output speed n2: 1.5-7.8 rpm \| Output torque M2: 2109-5783 Nm
	VH030/123 83,34 TP112M6	Unit: VH030/123 \| Ratio i: 83.34 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.5-7.7 rpm \| Output torque M2: 2082-3760 Nm
	VH050/123 83,34 TP112M6	Unit: VH050/123 \| Ratio i: 83.34 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.5-7.7 rpm \| Output torque M2: 2082-5013 Nm
	VH030/103 84,16 TP112M6	Unit: VH030/103 \| Ratio i: 84.16 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.5-7.6 rpm \| Output torque M2: 2103-3797 Nm
	VH030/123 89,97 TP112M6	Unit: VH030/123 \| Ratio i: 89.97 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.4-7.1 rpm \| Output torque M2: 2248-4059 Nm
	VH050/123 89,97 TP112M6	Unit: VH050/123 \| Ratio i: 89.97 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.4-7.1 rpm \| Output torque M2: 2248-5413 Nm
	VH030/103 93,36 TP112M6	Unit: VH030/103 \| Ratio i: 93.36 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.3-6.9 rpm \| Output torque M2: 2333-4213 Nm
	VH030/123 100,29 TP112M6	Unit: VH030/123 \| Ratio i: 100.29 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.2-6.4 rpm \| Output torque M2: 2506-4525 Nm
	VH050/123 100,29 TP112M6	Unit: VH050/123 \| Ratio i: 100.29 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.2-6.4 rpm \| Output torque M2: 2506-6033 Nm
	VH030/123 108,34 TP112M6	Unit: VH030/123 \| Ratio i: 108.34 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.1-5.9 rpm \| Output torque M2: 2707-4888 Nm
	VH030/123 118,62 TP112M6	Unit: VH030/123 \| Ratio i: 118.62 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.0-5.4 rpm \| Output torque M2: 2964-5352 Nm
	VH030/123 128,18 TP112M6	Unit: VH030/123 \| Ratio i: 128.18 \| Motor: TP112M6 \| Power P1: 2.20 kW \| Output speed n2: 1.0-5.0 rpm \| Output torque M2: 3202-5783 Nm
	VH030/081 1,93 TP112MS4	Unit: VH030/081 \| Ratio i: 1.93 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 98.0-518.0 rpm \| Output torque M2: 45-90 Nm
	VH030/081 1,30 TP132S6	Unit: VH030/081 \| Ratio i: 1.30 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 94.0-496.0 rpm \| Output torque M2: 46-60 Nm
	VH030/081 1,43 TP132S6	Unit: VH030/081 \| Ratio i: 1.43 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 86.0-450.0 rpm \| Output torque M2: 50-67 Nm
	VH030/081 4,67 TP100L2	Unit: VH030/081 \| Ratio i: 4.67 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 81.0-429.0 rpm \| Output torque M2: 55-217 Nm
	VH030/081 2,54 TP112MS4	Unit: VH030/081 \| Ratio i: 2.54 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 75.0-393.0 rpm \| Output torque M2: 59-118 Nm
	VH030/081 5,54 TP100L2	Unit: VH030/081 \| Ratio i: 5.54 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 69.0-361.0 rpm \| Output torque M2: 65-258 Nm
	VH030/081 1,93 TP132S6	Unit: VH030/081 \| Ratio i: 1.93 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 63.0-333.0 rpm \| Output torque M2: 68-90 Nm
	VH030/081 6,08 TP100L2	Unit: VH030/081 \| Ratio i: 6.08 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 62.0-329.0 rpm \| Output torque M2: 72-283 Nm
	VH030/081 3,25 TP112MS4	Unit: VH030/081 \| Ratio i: 3.25 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 58.0-308.0 rpm \| Output torque M2: 75-151 Nm
	VH030/062 7,39 TP100L2	Unit: VH030/062 \| Ratio i: 7.39 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 51.0-271.0 rpm \| Output torque M2: 86-341 Nm
	VH030/081 3,72 TP112MS4	Unit: VH030/081 \| Ratio i: 3.72 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 51.0-269.0 rpm \| Output torque M2: 86-173 Nm
	VH030/081 7,50 TP100L2	Unit: VH030/081 \| Ratio i: 7.50 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 51.0-267.0 rpm \| Output torque M2: 88-349 Nm
	VH030/081 2,54 TP132S6	Unit: VH030/081 \| Ratio i: 2.54 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 48.0-253.0 rpm \| Output torque M2: 89-118 Nm
	VH030/081 4,00 TP112MS4	Unit: VH030/081 \| Ratio i: 4.00 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 48.0-250.0 rpm \| Output torque M2: 93-186 Nm
	VH030/101 8,40 TP100L2	Unit: VH030/101 \| Ratio i: 8.40 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 45.0-238.0 rpm \| Output torque M2: 99-391 Nm
	VH030/081 8,44 TP100L2	Unit: VH030/081 \| Ratio i: 8.44 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 45.0-237.0 rpm \| Output torque M2: 99-393 Nm
	VH030/062 8,50 TP100L2	Unit: VH030/062 \| Ratio i: 8.50 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 45.0-235.0 rpm \| Output torque M2: 99-392 Nm
	VH030/081 4,67 TP112MS4	Unit: VH030/081 \| Ratio i: 4.67 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 41.0-214.0 rpm \| Output torque M2: 108-217 Nm
	VH030/062 9,39 TP100L2	Unit: VH030/062 \| Ratio i: 9.39 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 40.0-213.0 rpm \| Output torque M2: 109-432 Nm
	VH030/101 4,88 TP112MS4	Unit: VH030/101 \| Ratio i: 4.88 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 39.0-205.0 rpm \| Output torque M2: 113-227 Nm
	VH030/081 3,25 TP132S6	Unit: VH030/081 \| Ratio i: 3.25 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 38.0-198.0 rpm \| Output torque M2: 114-151 Nm
	VH030/101 3,27 TP132S6	Unit: VH030/101 \| Ratio i: 3.27 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 37.0-196.0 rpm \| Output torque M2: 115-152 Nm
	VH050/101 3,27 TP132S6	Unit: VH050/101 \| Ratio i: 3.27 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 37.0-196.0 rpm \| Output torque M2: 115-203 Nm
	VH100/101 3,27 TP132S6	Unit: VH100/101 \| Ratio i: 3.27 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 37.0-196.0 rpm \| Output torque M2: 115-457 Nm
	VH030/101 5,27 TP112MS4	Unit: VH030/101 \| Ratio i: 5.27 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 36.0-190.0 rpm \| Output torque M2: 122-245 Nm
	VH030/062 5,38 TP112MS4	Unit: VH030/062 \| Ratio i: 5.38 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 35.0-186.0 rpm \| Output torque M2: 123-248 Nm
	VH030/082 5,39 TP112MS4	Unit: VH030/082 \| Ratio i: 5.39 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 35.0-186.0 rpm \| Output torque M2: 123-248 Nm
	VH030/081 5,54 TP112MS4	Unit: VH030/081 \| Ratio i: 5.54 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 34.0-181.0 rpm \| Output torque M2: 128-258 Nm
	VH030/101 3,70 TP132S6	Unit: VH030/101 \| Ratio i: 3.70 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 33.0-174.0 rpm \| Output torque M2: 130-172 Nm
	VH050/101 3,70 TP132S6	Unit: VH050/101 \| Ratio i: 3.70 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 33.0-174.0 rpm \| Output torque M2: 130-230 Nm
	VH100/101 3,70 TP132S6	Unit: VH100/101 \| Ratio i: 3.70 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 33.0-174.0 rpm \| Output torque M2: 130-517 Nm
	VH030/081 3,72 TP132S6	Unit: VH030/081 \| Ratio i: 3.72 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 33.0-173.0 rpm \| Output torque M2: 131-173 Nm
	VH030/062 11,69 TP100L2	Unit: VH030/062 \| Ratio i: 11.69 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 33.0-171.0 rpm \| Output torque M2: 136-539 Nm
	VH030/062 5,93 TP112MS4	Unit: VH030/062 \| Ratio i: 5.93 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 32.0-168.0 rpm \| Output torque M2: 136-273 Nm
	VH030/082 5,95 TP112MS4	Unit: VH030/082 \| Ratio i: 5.95 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 32.0-168.0 rpm \| Output torque M2: 136-274 Nm
	VH030/081 6,08 TP112MS4	Unit: VH030/081 \| Ratio i: 6.08 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 31.0-164.0 rpm \| Output torque M2: 141-283 Nm
	VH030/081 4,00 TP132S6	Unit: VH030/081 \| Ratio i: 4.00 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 31.0-161.0 rpm \| Output torque M2: 141-186 Nm
	VH030/101 6,23 TP112MS4	Unit: VH030/101 \| Ratio i: 6.23 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 30.0-160.0 rpm \| Output torque M2: 144-290 Nm
	VH030/062 12,67 TP100L2	Unit: VH030/062 \| Ratio i: 12.67 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 30.0-158.0 rpm \| Output torque M2: 148-584 Nm
	VH030/101 4,22 TP132S6	Unit: VH030/101 \| Ratio i: 4.22 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 29.0-152.0 rpm \| Output torque M2: 148-197 Nm
	VH050/101 4,22 TP132S6	Unit: VH050/101 \| Ratio i: 4.22 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 29.0-152.0 rpm \| Output torque M2: 148-262 Nm
	VH100/101 4,22 TP132S6	Unit: VH100/101 \| Ratio i: 4.22 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 29.0-152.0 rpm \| Output torque M2: 148-590 Nm
	VH030/081 4,67 TP132S6	Unit: VH030/081 \| Ratio i: 4.67 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 26.0-138.0 rpm \| Output torque M2: 164-217 Nm
	VH030/062 14,75 TP100L2	Unit: VH030/062 \| Ratio i: 14.75 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 26.0-136.0 rpm \| Output torque M2: 172-680 Nm
	VH030/062 7,39 TP112MS4	Unit: VH030/062 \| Ratio i: 7.39 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 26.0-135.0 rpm \| Output torque M2: 169-341 Nm
	VH030/082 7,39 TP112MS4	Unit: VH030/082 \| Ratio i: 7.39 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 26.0-135.0 rpm \| Output torque M2: 169-341 Nm
	VH030/121 4,80 TP132S6	Unit: VH030/121 \| Ratio i: 4.80 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 25.0-134.0 rpm \| Output torque M2: 169-223 Nm
	VH050/121 4,80 TP132S6	Unit: VH050/121 \| Ratio i: 4.80 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 25.0-134.0 rpm \| Output torque M2: 169-298 Nm
	VH100/121 4,80 TP132S6	Unit: VH100/121 \| Ratio i: 4.80 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 25.0-134.0 rpm \| Output torque M2: 169-670 Nm
	VH030/081 7,50 TP112MS4	Unit: VH030/081 \| Ratio i: 7.50 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 25.0-133.0 rpm \| Output torque M2: 174-349 Nm
	VH030/101 7,55 TP112MS4	Unit: VH030/101 \| Ratio i: 7.55 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 25.0-133.0 rpm \| Output torque M2: 175-351 Nm
	VH030/101 4,88 TP132S6	Unit: VH030/101 \| Ratio i: 4.88 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 25.0-132.0 rpm \| Output torque M2: 171-227 Nm
	VH050/101 4,88 TP132S6	Unit: VH050/101 \| Ratio i: 4.88 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 25.0-132.0 rpm \| Output torque M2: 171-303 Nm
	VH100/101 4,88 TP132S6	Unit: VH100/101 \| Ratio i: 4.88 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 25.0-132.0 rpm \| Output torque M2: 171-681 Nm
	VH030/121 7,70 TP112MS4	Unit: VH030/121 \| Ratio i: 7.70 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 25.0-130.0 rpm \| Output torque M2: 178-359 Nm
	VH030/082 8,02 TP112MS4	Unit: VH030/082 \| Ratio i: 8.02 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 24.0-125.0 rpm \| Output torque M2: 184-370 Nm
	VH030/062 16,29 TP100L2	Unit: VH030/062 \| Ratio i: 16.29 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 23.0-123.0 rpm \| Output torque M2: 190-750 Nm
	VH030/121 5,21 TP132S6	Unit: VH030/121 \| Ratio i: 5.21 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.0-123.0 rpm \| Output torque M2: 183-243 Nm
	VH050/121 5,21 TP132S6	Unit: VH050/121 \| Ratio i: 5.21 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.0-123.0 rpm \| Output torque M2: 183-324 Nm
	VH100/121 5,21 TP132S6	Unit: VH100/121 \| Ratio i: 5.21 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.0-123.0 rpm \| Output torque M2: 183-728 Nm
	VH030/101 5,27 TP132S6	Unit: VH030/101 \| Ratio i: 5.27 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 185-245 Nm
	VH050/101 5,27 TP132S6	Unit: VH050/101 \| Ratio i: 5.27 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 185-327 Nm
	VH100/101 5,27 TP132S6	Unit: VH100/101 \| Ratio i: 5.27 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 185-736 Nm
	VH030/062 5,38 TP132S6	Unit: VH030/062 \| Ratio i: 5.38 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.0-120.0 rpm \| Output torque M2: 187-248 Nm
	VH030/082 5,39 TP132S6	Unit: VH030/082 \| Ratio i: 5.39 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 23.0-119.0 rpm \| Output torque M2: 188-248 Nm
	VH030/101 8,40 TP112MS4	Unit: VH030/101 \| Ratio i: 8.40 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 23.0-119.0 rpm \| Output torque M2: 194-391 Nm
	VH030/081 8,44 TP112MS4	Unit: VH030/081 \| Ratio i: 8.44 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 23.0-118.0 rpm \| Output torque M2: 196-393 Nm
	VH030/062 8,50 TP112MS4	Unit: VH030/062 \| Ratio i: 8.50 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 22.0-118.0 rpm \| Output torque M2: 195-392 Nm
	VH030/081 5,54 TP132S6	Unit: VH030/081 \| Ratio i: 5.54 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 22.0-116.0 rpm \| Output torque M2: 195-258 Nm
	VH030/062 17,67 TP100L2	Unit: VH030/062 \| Ratio i: 17.67 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 22.0-113.0 rpm \| Output torque M2: 206-814 Nm
	VH030/082 8,85 TP112MS4	Unit: VH030/082 \| Ratio i: 8.85 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 21.0-113.0 rpm \| Output torque M2: 203-408 Nm
	VH030/062 5,93 TP132S6	Unit: VH030/062 \| Ratio i: 5.93 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 21.0-108.0 rpm \| Output torque M2: 207-273 Nm
	VH030/082 5,95 TP132S6	Unit: VH030/082 \| Ratio i: 5.95 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 21.0-108.0 rpm \| Output torque M2: 207-274 Nm
	VH030/062 9,39 TP112MS4	Unit: VH030/062 \| Ratio i: 9.39 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 20.0-107.0 rpm \| Output torque M2: 215-432 Nm
	VH030/081 6,08 TP132S6	Unit: VH030/081 \| Ratio i: 6.08 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 20.0-106.0 rpm \| Output torque M2: 214-283 Nm
	VH030/101 6,23 TP132S6	Unit: VH030/101 \| Ratio i: 6.23 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 219-290 Nm
	VH030/121 6,25 TP132S6	Unit: VH030/121 \| Ratio i: 6.25 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 220-291 Nm
	VH050/101 6,23 TP132S6	Unit: VH050/101 \| Ratio i: 6.23 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 219-387 Nm
	VH050/121 6,25 TP132S6	Unit: VH050/121 \| Ratio i: 6.25 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 220-388 Nm
	VH100/121 6,25 TP132S6	Unit: VH100/121 \| Ratio i: 6.25 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 220-873 Nm
	VH030/062 20,28 TP100L2	Unit: VH030/062 \| Ratio i: 20.28 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 19.0-99.0 rpm \| Output torque M2: 236-935 Nm
	VH030/082 21,39 TP100L2	Unit: VH030/082 \| Ratio i: 21.39 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 18.0-94.0 rpm \| Output torque M2: 249-986 Nm
	VH030/082 11,01 TP112MS4	Unit: VH030/082 \| Ratio i: 11.01 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 17.0-91.0 rpm \| Output torque M2: 252-507 Nm
	VH030/082 22,80 TP100L2	Unit: VH030/082 \| Ratio i: 22.80 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 17.0-88.0 rpm \| Output torque M2: 266-1051 Nm
	VH030/062 7,39 TP132S6	Unit: VH030/062 \| Ratio i: 7.39 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 17.0-87.0 rpm \| Output torque M2: 257-341 Nm
	VH030/082 7,39 TP132S6	Unit: VH030/082 \| Ratio i: 7.39 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 17.0-87.0 rpm \| Output torque M2: 257-341 Nm
	VH030/062 11,69 TP112MS4	Unit: VH030/062 \| Ratio i: 11.69 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 16.0-86.0 rpm \| Output torque M2: 268-539 Nm
	VH030/081 7,50 TP132S6	Unit: VH030/081 \| Ratio i: 7.50 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 16.0-86.0 rpm \| Output torque M2: 264-349 Nm
	VH030/101 7,55 TP132S6	Unit: VH030/101 \| Ratio i: 7.55 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 16.0-85.0 rpm \| Output torque M2: 265-351 Nm
	VH050/101 7,55 TP132S6	Unit: VH050/101 \| Ratio i: 7.55 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 16.0-85.0 rpm \| Output torque M2: 265-468 Nm
	VH030/121 7,70 TP132S6	Unit: VH030/121 \| Ratio i: 7.70 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 16.0-83.0 rpm \| Output torque M2: 271-359 Nm
	VH050/121 7,70 TP132S6	Unit: VH050/121 \| Ratio i: 7.70 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 16.0-83.0 rpm \| Output torque M2: 271-478 Nm
	VH100/121 7,70 TP132S6	Unit: VH100/121 \| Ratio i: 7.70 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 16.0-83.0 rpm \| Output torque M2: 271-1076 Nm
	VH030/082 8,02 TP132S6	Unit: VH030/082 \| Ratio i: 8.02 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 15.0-80.0 rpm \| Output torque M2: 279-370 Nm
	VH030/062 12,67 TP112MS4	Unit: VH030/062 \| Ratio i: 12.67 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 15.0-79.0 rpm \| Output torque M2: 290-584 Nm
	VH030/101 8,40 TP132S6	Unit: VH030/101 \| Ratio i: 8.40 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 15.0-77.0 rpm \| Output torque M2: 295-391 Nm
	VH050/101 8,40 TP132S6	Unit: VH050/101 \| Ratio i: 8.40 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 15.0-77.0 rpm \| Output torque M2: 295-521 Nm
	VH030/062 8,50 TP132S6	Unit: VH030/062 \| Ratio i: 8.50 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 14.0-76.0 rpm \| Output torque M2: 296-392 Nm
	VH030/081 8,44 TP132S6	Unit: VH030/081 \| Ratio i: 8.44 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 14.0-76.0 rpm \| Output torque M2: 297-393 Nm
	VH030/082 26,60 TP100L2	Unit: VH030/082 \| Ratio i: 26.60 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 14.0-75.0 rpm \| Output torque M2: 310-1226 Nm
	VH030/082 13,50 TP112MS4	Unit: VH030/082 \| Ratio i: 13.50 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 14.0-74.0 rpm \| Output torque M2: 309-622 Nm
	VH030/082 8,85 TP132S6	Unit: VH030/082 \| Ratio i: 8.85 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 14.0-73.0 rpm \| Output torque M2: 308-408 Nm
	VH030/082 27,88 TP100L2	Unit: VH030/082 \| Ratio i: 27.88 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 14.0-72.0 rpm \| Output torque M2: 325-1285 Nm
	VH030/062 9,39 TP132S6	Unit: VH030/062 \| Ratio i: 9.39 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 13.0-68.0 rpm \| Output torque M2: 327-432 Nm
	VH030/062 14,75 TP112MS4	Unit: VH030/062 \| Ratio i: 14.75 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 13.0-68.0 rpm \| Output torque M2: 338-680 Nm
	VH030/082 14,90 TP112MS4	Unit: VH030/082 \| Ratio i: 14.90 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 13.0-67.0 rpm \| Output torque M2: 341-686 Nm
	VH030/082 31,15 TP100L2	Unit: VH030/082 \| Ratio i: 31.15 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 12.0-64.0 rpm \| Output torque M2: 363-1436 Nm
	VH030/062 16,29 TP112MS4	Unit: VH030/062 \| Ratio i: 16.29 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 12.0-61.0 rpm \| Output torque M2: 373-750 Nm
	VH030/082 16,62 TP112MS4	Unit: VH030/082 \| Ratio i: 16.62 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 11.0-60.0 rpm \| Output torque M2: 381-766 Nm
	VH030/082 11,01 TP132S6	Unit: VH030/082 \| Ratio i: 11.01 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 11.0-58.0 rpm \| Output torque M2: 383-507 Nm
	VH030/082 34,38 TP100L2	Unit: VH030/082 \| Ratio i: 34.38 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 11.0-58.0 rpm \| Output torque M2: 400-1584 Nm
	VH030/062 17,67 TP112MS4	Unit: VH030/062 \| Ratio i: 17.67 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 11.0-57.0 rpm \| Output torque M2: 405-814 Nm
	VH030/062 11,69 TP132S6	Unit: VH030/062 \| Ratio i: 11.69 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 10.0-55.0 rpm \| Output torque M2: 407-539 Nm
	VH030/082 18,53 TP112MS4	Unit: VH030/082 \| Ratio i: 18.53 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 10.0-54.0 rpm \| Output torque M2: 424-854 Nm
	VH030/102 38,45 TP100L2	Unit: VH030/102 \| Ratio i: 38.45 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 9.9-52.0 rpm \| Output torque M2: 448-1772 Nm
	VH030/082 19,38 TP112MS4	Unit: VH030/082 \| Ratio i: 19.38 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 9.8-52.0 rpm \| Output torque M2: 444-893 Nm
	VH030/082 38,70 TP100L2	Unit: VH030/082 \| Ratio i: 38.70 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 9.8-52.0 rpm \| Output torque M2: 451-1783 Nm
	VH030/062 12,67 TP132S6	Unit: VH030/062 \| Ratio i: 12.67 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 9.6-51.0 rpm \| Output torque M2: 441-584 Nm
	VH030/062 20,28 TP112MS4	Unit: VH030/062 \| Ratio i: 20.28 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 9.4-49.0 rpm \| Output torque M2: 465-935 Nm
	VH030/082 13,50 TP132S6	Unit: VH030/082 \| Ratio i: 13.50 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 9.0-48.0 rpm \| Output torque M2: 470-622 Nm
	VH030/082 21,39 TP112MS4	Unit: VH030/082 \| Ratio i: 21.39 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 8.9-47.0 rpm \| Output torque M2: 490-986 Nm
	VH030/062 14,75 TP132S6	Unit: VH030/062 \| Ratio i: 14.75 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 8.3-44.0 rpm \| Output torque M2: 513-680 Nm
	VH030/082 22,80 TP112MS4	Unit: VH030/082 \| Ratio i: 22.80 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 8.3-44.0 rpm \| Output torque M2: 522-1051 Nm
	VH030/102 45,82 TP100L2	Unit: VH030/102 \| Ratio i: 45.82 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 8.3-44.0 rpm \| Output torque M2: 534-2111 Nm
	VH030/082 14,90 TP132S6	Unit: VH030/082 \| Ratio i: 14.90 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 8.2-43.0 rpm \| Output torque M2: 518-686 Nm
	VH030/062 16,29 TP132S6	Unit: VH030/062 \| Ratio i: 16.29 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 7.5-39.0 rpm \| Output torque M2: 567-750 Nm
	VH030/082 16,62 TP132S6	Unit: VH030/082 \| Ratio i: 16.62 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 7.4-39.0 rpm \| Output torque M2: 578-766 Nm
	VH030/102 51,52 TP100L2	Unit: VH030/102 \| Ratio i: 51.52 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 7.4-39.0 rpm \| Output torque M2: 600-2374 Nm
	VH030/102 25,89 TP112MS4	Unit: VH030/102 \| Ratio i: 25.89 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 7.3-39.0 rpm \| Output torque M2: 593-1193 Nm
	VH030/082 26,60 TP112MS4	Unit: VH030/082 \| Ratio i: 26.60 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 7.1-38.0 rpm \| Output torque M2: 609-1226 Nm
	VH030/062 17,67 TP132S6	Unit: VH030/062 \| Ratio i: 17.67 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.9-36.0 rpm \| Output torque M2: 615-814 Nm
	VH030/103 55,47 TP100L2	Unit: VH030/103 \| Ratio i: 55.47 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 6.9-36.0 rpm \| Output torque M2: 633-2503 Nm
	VH030/082 27,88 TP112MS4	Unit: VH030/082 \| Ratio i: 27.88 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 639-1285 Nm
	VH030/102 17,85 TP132S6	Unit: VH030/102 \| Ratio i: 17.85 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 621-823 Nm
	VH050/102 17,85 TP132S6	Unit: VH050/102 \| Ratio i: 17.85 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 621-1097 Nm
	VH100/102 17,85 TP132S6	Unit: VH100/102 \| Ratio i: 17.85 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 621-2468 Nm
	VH030/082 18,53 TP132S6	Unit: VH030/082 \| Ratio i: 18.53 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.6-35.0 rpm \| Output torque M2: 645-854 Nm
	VH030/102 28,73 TP112MS4	Unit: VH030/102 \| Ratio i: 28.73 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 6.6-35.0 rpm \| Output torque M2: 658-1324 Nm
	VH030/082 19,38 TP132S6	Unit: VH030/082 \| Ratio i: 19.38 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.3-33.0 rpm \| Output torque M2: 675-893 Nm
	VH030/102 30,72 TP112MS4	Unit: VH030/102 \| Ratio i: 30.72 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 6.2-33.0 rpm \| Output torque M2: 704-1416 Nm
	VH030/102 19,85 TP132S6	Unit: VH030/102 \| Ratio i: 19.85 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.2-32.0 rpm \| Output torque M2: 691-915 Nm
	VH050/102 19,85 TP132S6	Unit: VH050/102 \| Ratio i: 19.85 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.2-32.0 rpm \| Output torque M2: 691-1219 Nm
	VH100/102 19,85 TP132S6	Unit: VH100/102 \| Ratio i: 19.85 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.2-32.0 rpm \| Output torque M2: 691-2744 Nm
	VH030/082 31,15 TP112MS4	Unit: VH030/082 \| Ratio i: 31.15 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 6.1-32.0 rpm \| Output torque M2: 714-1436 Nm
	VH030/062 20,28 TP132S6	Unit: VH030/062 \| Ratio i: 20.28 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 6.0-32.0 rpm \| Output torque M2: 706-935 Nm
	VH030/082 21,39 TP132S6	Unit: VH030/082 \| Ratio i: 21.39 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 744-986 Nm
	VH030/102 21,44 TP132S6	Unit: VH030/102 \| Ratio i: 21.44 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 746-988 Nm
	VH050/102 21,44 TP132S6	Unit: VH050/102 \| Ratio i: 21.44 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 746-1317 Nm
	VH100/102 21,44 TP132S6	Unit: VH100/102 \| Ratio i: 21.44 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 746-2964 Nm
	VH030/123 67,32 TP100L2	Unit: VH030/123 \| Ratio i: 67.32 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 5.6-30.0 rpm \| Output torque M2: 768-3038 Nm
	VH030/102 34,20 TP112MS4	Unit: VH030/102 \| Ratio i: 34.20 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 5.6-29.0 rpm \| Output torque M2: 784-1576 Nm
	VH030/082 34,38 TP112MS4	Unit: VH030/082 \| Ratio i: 34.38 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 5.5-29.0 rpm \| Output torque M2: 788-1584 Nm
	VH030/103 69,69 TP100L2	Unit: VH030/103 \| Ratio i: 69.69 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 5.5-29.0 rpm \| Output torque M2: 795-3144 Nm
	VH030/082 22,80 TP132S6	Unit: VH030/082 \| Ratio i: 22.80 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.4-28.0 rpm \| Output torque M2: 793-1051 Nm
	VH030/123 73,71 TP100L2	Unit: VH030/123 \| Ratio i: 73.71 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 5.2-27.0 rpm \| Output torque M2: 841-3326 Nm
	VH030/102 23,97 TP132S6	Unit: VH030/102 \| Ratio i: 23.97 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.1-27.0 rpm \| Output torque M2: 834-1104 Nm
	VH050/102 23,97 TP132S6	Unit: VH050/102 \| Ratio i: 23.97 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.1-27.0 rpm \| Output torque M2: 834-1473 Nm
	VH100/102 23,97 TP132S6	Unit: VH100/102 \| Ratio i: 23.97 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 5.1-27.0 rpm \| Output torque M2: 834-3313 Nm
	VH030/082 38,70 TP112MS4	Unit: VH030/082 \| Ratio i: 38.70 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 4.9-26.0 rpm \| Output torque M2: 887-1783 Nm
	VH030/102 38,45 TP112MS4	Unit: VH030/102 \| Ratio i: 38.45 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 4.9-26.0 rpm \| Output torque M2: 881-1772 Nm
	VH030/103 79,82 TP100L2	Unit: VH030/103 \| Ratio i: 79.82 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 4.8-25.0 rpm \| Output torque M2: 910-3601 Nm
	VH030/102 25,89 TP132S6	Unit: VH030/102 \| Ratio i: 25.89 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.7-25.0 rpm \| Output torque M2: 901-1193 Nm
	VH050/102 25,89 TP132S6	Unit: VH050/102 \| Ratio i: 25.89 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.7-25.0 rpm \| Output torque M2: 901-1591 Nm
	VH100/102 25,89 TP132S6	Unit: VH100/102 \| Ratio i: 25.89 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.7-25.0 rpm \| Output torque M2: 901-3580 Nm
	VH030/082 26,60 TP132S6	Unit: VH030/082 \| Ratio i: 26.60 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 926-1226 Nm
	VH030/102 41,30 TP112MS4	Unit: VH030/102 \| Ratio i: 41.30 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 946-1903 Nm
	VH030/123 83,34 TP100L2	Unit: VH030/123 \| Ratio i: 83.34 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 950-3760 Nm
	VH030/103 84,16 TP100L2	Unit: VH030/103 \| Ratio i: 84.16 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 4.5-24.0 rpm \| Output torque M2: 960-3797 Nm
	VH030/082 27,88 TP132S6	Unit: VH030/082 \| Ratio i: 27.88 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 970-1285 Nm
	VH030/122 27,49 TP132S6	Unit: VH030/122 \| Ratio i: 27.49 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 957-1267 Nm
	VH050/122 27,49 TP132S6	Unit: VH050/122 \| Ratio i: 27.49 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 957-1689 Nm
	VH100/122 27,49 TP132S6	Unit: VH100/122 \| Ratio i: 27.49 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 957-3800 Nm
	VH030/122 44,10 TP112MS4	Unit: VH030/122 \| Ratio i: 44.10 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 4.3-23.0 rpm \| Output torque M2: 1010-2032 Nm
	VH030/102 28,73 TP132S6	Unit: VH030/102 \| Ratio i: 28.73 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.3-22.0 rpm \| Output torque M2: 1000-1324 Nm
	VH050/102 28,73 TP132S6	Unit: VH050/102 \| Ratio i: 28.73 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.3-22.0 rpm \| Output torque M2: 1000-1765 Nm
	VH100/102 28,73 TP132S6	Unit: VH100/102 \| Ratio i: 28.73 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.3-22.0 rpm \| Output torque M2: 1000-3971 Nm
	VH030/123 45,77 TP112MS4	Unit: VH030/123 \| Ratio i: 45.77 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 4.2-22.0 rpm \| Output torque M2: 1027-2065 Nm
	VH030/123 89,97 TP100L2	Unit: VH030/123 \| Ratio i: 89.97 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 4.2-22.0 rpm \| Output torque M2: 1026-4059 Nm
	VH030/102 45,82 TP112MS4	Unit: VH030/102 \| Ratio i: 45.82 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1050-2111 Nm
	VH030/122 29,86 TP132S6	Unit: VH030/122 \| Ratio i: 29.86 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1039-1376 Nm
	VH050/122 29,86 TP132S6	Unit: VH050/122 \| Ratio i: 29.86 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1039-1835 Nm
	VH100/122 29,86 TP132S6	Unit: VH100/122 \| Ratio i: 29.86 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1039-4128 Nm
	VH030/103 93,36 TP100L2	Unit: VH030/103 \| Ratio i: 93.36 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 4.1-21.0 rpm \| Output torque M2: 1065-4213 Nm
	VH030/102 30,72 TP132S6	Unit: VH030/102 \| Ratio i: 30.72 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.0-21.0 rpm \| Output torque M2: 1069-1416 Nm
	VH050/102 30,72 TP132S6	Unit: VH050/102 \| Ratio i: 30.72 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 4.0-21.0 rpm \| Output torque M2: 1069-1887 Nm
	VH030/082 31,15 TP132S6	Unit: VH030/082 \| Ratio i: 31.15 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.9-21.0 rpm \| Output torque M2: 1084-1436 Nm
	VH030/123 100,29 TP100L2	Unit: VH030/123 \| Ratio i: 100.29 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 3.8-20.0 rpm \| Output torque M2: 1144-4525 Nm
	VH030/102 51,52 TP112MS4	Unit: VH030/102 \| Ratio i: 51.52 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 1180-2374 Nm
	VH030/122 33,00 TP132S6	Unit: VH030/122 \| Ratio i: 33.00 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 1148-1521 Nm
	VH050/122 33,00 TP132S6	Unit: VH050/122 \| Ratio i: 33.00 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 1148-2028 Nm
	VH100/122 33,00 TP132S6	Unit: VH100/122 \| Ratio i: 33.00 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 1148-4562 Nm
	VH030/082 34,38 TP132S6	Unit: VH030/082 \| Ratio i: 34.38 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 1196-1584 Nm
	VH030/102 34,20 TP132S6	Unit: VH030/102 \| Ratio i: 34.20 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 1190-1576 Nm
	VH050/102 34,20 TP132S6	Unit: VH050/102 \| Ratio i: 34.20 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 1190-2101 Nm
	VH030/123 108,34 TP100L2	Unit: VH030/123 \| Ratio i: 108.34 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 3.5-18.0 rpm \| Output torque M2: 1236-4888 Nm
	VH030/103 55,47 TP112MS4	Unit: VH030/103 \| Ratio i: 55.47 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1245-2503 Nm
	VH030/122 36,13 TP132S6	Unit: VH030/122 \| Ratio i: 36.13 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1257-1665 Nm
	VH030/123 55,87 TP112MS4	Unit: VH030/123 \| Ratio i: 55.87 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1253-2521 Nm
	VH050/122 36,13 TP132S6	Unit: VH050/122 \| Ratio i: 36.13 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1257-2220 Nm
	VH100/122 36,13 TP132S6	Unit: VH100/122 \| Ratio i: 36.13 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1257-4995 Nm
	VH030/082 38,70 TP132S6	Unit: VH030/082 \| Ratio i: 38.70 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 1347-1783 Nm
	VH030/102 38,45 TP132S6	Unit: VH030/102 \| Ratio i: 38.45 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 1338-1772 Nm
	VH030/123 118,62 TP100L2	Unit: VH030/123 \| Ratio i: 118.62 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 1353-5352 Nm
	VH050/102 38,45 TP132S6	Unit: VH050/102 \| Ratio i: 38.45 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 1338-2363 Nm
	VH030/102 41,30 TP132S6	Unit: VH030/102 \| Ratio i: 41.30 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.0-16.0 rpm \| Output torque M2: 1437-1903 Nm
	VH030/123 128,18 TP100L2	Unit: VH030/123 \| Ratio i: 128.18 \| Motor: TP100L2 \| Power P1: 3.00 kW \| Output speed n2: 3.0-16.0 rpm \| Output torque M2: 1462-5783 Nm
	VH050/102 41,30 TP132S6	Unit: VH050/102 \| Ratio i: 41.30 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 3.0-16.0 rpm \| Output torque M2: 1437-2537 Nm
	VH030/122 44,10 TP132S6	Unit: VH030/122 \| Ratio i: 44.10 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 1534-2032 Nm
	VH030/123 67,32 TP112MS4	Unit: VH030/123 \| Ratio i: 67.32 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 1510-3038 Nm
	VH050/122 44,10 TP132S6	Unit: VH050/122 \| Ratio i: 44.10 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 1534-2710 Nm
	VH100/122 44,10 TP132S6	Unit: VH100/122 \| Ratio i: 44.10 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 1534-6096 Nm
	VH030/102 45,82 TP132S6	Unit: VH030/102 \| Ratio i: 45.82 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1594-2111 Nm
	VH030/103 69,69 TP112MS4	Unit: VH030/103 \| Ratio i: 69.69 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1564-3144 Nm
	VH030/123 45,77 TP132S6	Unit: VH030/123 \| Ratio i: 45.77 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1560-2065 Nm
	VH050/102 45,82 TP132S6	Unit: VH050/102 \| Ratio i: 45.82 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1594-2815 Nm
	VH050/123 45,77 TP132S6	Unit: VH050/123 \| Ratio i: 45.77 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 1560-2754 Nm
	VH030/123 73,71 TP112MS4	Unit: VH030/123 \| Ratio i: 73.71 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 2.6-14.0 rpm \| Output torque M2: 1654-3326 Nm
	VH030/103 79,82 TP112MS4	Unit: VH030/103 \| Ratio i: 79.82 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 2.4-13.0 rpm \| Output torque M2: 1791-3601 Nm
	VH030/102 51,52 TP132S6	Unit: VH030/102 \| Ratio i: 51.52 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.4-12.0 rpm \| Output torque M2: 1793-2374 Nm
	VH050/102 51,52 TP132S6	Unit: VH050/102 \| Ratio i: 51.52 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.4-12.0 rpm \| Output torque M2: 1793-3165 Nm
	VH030/103 84,16 TP112MS4	Unit: VH030/103 \| Ratio i: 84.16 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 2.3-12.0 rpm \| Output torque M2: 1888-3797 Nm
	VH030/123 83,34 TP112MS4	Unit: VH030/123 \| Ratio i: 83.34 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 2.3-12.0 rpm \| Output torque M2: 1870-3760 Nm
	VH030/103 55,47 TP132S6	Unit: VH030/103 \| Ratio i: 55.47 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 1890-2503 Nm
	VH030/123 55,87 TP132S6	Unit: VH030/123 \| Ratio i: 55.87 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 1903-2521 Nm
	VH050/103 55,47 TP132S6	Unit: VH050/103 \| Ratio i: 55.47 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 1890-3337 Nm
	VH050/123 55,87 TP132S6	Unit: VH050/123 \| Ratio i: 55.87 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 1903-3361 Nm
	VH030/123 89,97 TP112MS4	Unit: VH030/123 \| Ratio i: 89.97 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 2.1-11.0 rpm \| Output torque M2: 2019-4059 Nm
	VH030/103 93,36 TP112MS4	Unit: VH030/103 \| Ratio i: 93.36 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 2.0-11.0 rpm \| Output torque M2: 2095-4213 Nm
	VH030/123 100,29 TP112MS4	Unit: VH030/123 \| Ratio i: 100.29 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 1.9-10.0 rpm \| Output torque M2: 2250-4525 Nm
	VH030/123 67,32 TP132S6	Unit: VH030/123 \| Ratio i: 67.32 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.8-9.5 rpm \| Output torque M2: 2294-3038 Nm
	VH050/123 67,32 TP132S6	Unit: VH050/123 \| Ratio i: 67.32 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.8-9.5 rpm \| Output torque M2: 2294-4050 Nm
	VH030/103 69,69 TP132S6	Unit: VH030/103 \| Ratio i: 69.69 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 2374-3144 Nm
	VH030/123 108,34 TP112MS4	Unit: VH030/123 \| Ratio i: 108.34 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 2431-4888 Nm
	VH050/103 69,69 TP132S6	Unit: VH050/103 \| Ratio i: 69.69 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 2374-4193 Nm
	VH030/123 73,71 TP132S6	Unit: VH030/123 \| Ratio i: 73.71 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.7-8.7 rpm \| Output torque M2: 2511-3326 Nm
	VH050/123 73,71 TP132S6	Unit: VH050/123 \| Ratio i: 73.71 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.7-8.7 rpm \| Output torque M2: 2511-4435 Nm
	VH030/123 118,62 TP112MS4	Unit: VH030/123 \| Ratio i: 118.62 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 1.6-8.4 rpm \| Output torque M2: 2661-5352 Nm
	VH030/103 79,82 TP132S6	Unit: VH030/103 \| Ratio i: 79.82 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.5-8.1 rpm \| Output torque M2: 2719-3601 Nm
	VH030/123 128,18 TP112MS4	Unit: VH030/123 \| Ratio i: 128.18 \| Motor: TP112MS4 \| Power P1: 3.00 kW \| Output speed n2: 1.5-7.8 rpm \| Output torque M2: 2876-5783 Nm
	VH030/123 83,34 TP132S6	Unit: VH030/123 \| Ratio i: 83.34 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.5-7.7 rpm \| Output torque M2: 2839-3760 Nm
	VH050/123 83,34 TP132S6	Unit: VH050/123 \| Ratio i: 83.34 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.5-7.7 rpm \| Output torque M2: 2839-5013 Nm
	VH030/103 84,16 TP132S6	Unit: VH030/103 \| Ratio i: 84.16 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.5-7.6 rpm \| Output torque M2: 2867-3797 Nm
	VH030/123 89,97 TP132S6	Unit: VH030/123 \| Ratio i: 89.97 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.4-7.1 rpm \| Output torque M2: 3065-4059 Nm
	VH050/123 89,97 TP132S6	Unit: VH050/123 \| Ratio i: 89.97 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.4-7.1 rpm \| Output torque M2: 3065-5413 Nm
	VH030/103 93,36 TP132S6	Unit: VH030/103 \| Ratio i: 93.36 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.3-6.9 rpm \| Output torque M2: 3181-4213 Nm
	VH030/123 100,29 TP132S6	Unit: VH030/123 \| Ratio i: 100.29 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.2-6.4 rpm \| Output torque M2: 3417-4525 Nm
	VH050/123 100,29 TP132S6	Unit: VH050/123 \| Ratio i: 100.29 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.2-6.4 rpm \| Output torque M2: 3417-6033 Nm
	VH030/123 108,34 TP132S6	Unit: VH030/123 \| Ratio i: 108.34 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.1-5.9 rpm \| Output torque M2: 3691-4888 Nm
	VH030/123 118,62 TP132S6	Unit: VH030/123 \| Ratio i: 118.62 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.0-5.4 rpm \| Output torque M2: 4042-5352 Nm
	VH030/123 128,18 TP132S6	Unit: VH030/123 \| Ratio i: 128.18 \| Motor: TP132S6 \| Power P1: 3.00 kW \| Output speed n2: 1.0-5.0 rpm \| Output torque M2: 4367-5783 Nm
	VH030/081 1,30 TP112M4	Unit: VH030/081 \| Ratio i: 1.30 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 146.0-771.0 rpm \| Output torque M2: 40-60 Nm
	VH030/081 1,43 TP112M4	Unit: VH030/081 \| Ratio i: 1.43 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 133.0-700.0 rpm \| Output torque M2: 44-67 Nm
	VH030/081 1,93 TP112M4	Unit: VH030/081 \| Ratio i: 1.93 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 98.0-518.0 rpm \| Output torque M2: 60-90 Nm
	VH030/081 2,54 TP112M4	Unit: VH030/081 \| Ratio i: 2.54 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 75.0-393.0 rpm \| Output torque M2: 78-118 Nm
	VH050/101 2,03 TP132MA6	Unit: VH050/101 \| Ratio i: 2.03 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 60.0-316.0 rpm \| Output torque M2: 95-126 Nm
	VH100/101 2,03 TP132MA6	Unit: VH100/101 \| Ratio i: 2.03 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 60.0-316.0 rpm \| Output torque M2: 95-284 Nm
	VH030/081 3,25 TP112M4	Unit: VH030/081 \| Ratio i: 3.25 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 58.0-308.0 rpm \| Output torque M2: 100-151 Nm
	VH030/101 3,70 TP112M4	Unit: VH030/101 \| Ratio i: 3.70 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 51.0-270.0 rpm \| Output torque M2: 114-172 Nm
	VH050/101 3,70 TP112M4	Unit: VH050/101 \| Ratio i: 3.70 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 51.0-270.0 rpm \| Output torque M2: 114-230 Nm
	VH030/081 3,72 TP112M4	Unit: VH030/081 \| Ratio i: 3.72 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 51.0-269.0 rpm \| Output torque M2: 115-173 Nm
	VH050/101 2,48 TP132MA6	Unit: VH050/101 \| Ratio i: 2.48 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 49.0-259.0 rpm \| Output torque M2: 116-154 Nm
	VH100/101 2,48 TP132MA6	Unit: VH100/101 \| Ratio i: 2.48 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 49.0-259.0 rpm \| Output torque M2: 116-347 Nm
	VH030/081 4,00 TP112M4	Unit: VH030/081 \| Ratio i: 4.00 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 48.0-250.0 rpm \| Output torque M2: 123-186 Nm
	VH030/101 4,22 TP112M4	Unit: VH030/101 \| Ratio i: 4.22 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 45.0-237.0 rpm \| Output torque M2: 130-197 Nm
	VH050/101 4,22 TP112M4	Unit: VH050/101 \| Ratio i: 4.22 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 45.0-237.0 rpm \| Output torque M2: 130-262 Nm
	VH030/081 4,67 TP112M4	Unit: VH030/081 \| Ratio i: 4.67 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 41.0-214.0 rpm \| Output torque M2: 144-217 Nm
	VH030/101 4,88 TP112M4	Unit: VH030/101 \| Ratio i: 4.88 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 39.0-205.0 rpm \| Output torque M2: 150-227 Nm
	VH050/101 4,88 TP112M4	Unit: VH050/101 \| Ratio i: 4.88 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 39.0-205.0 rpm \| Output torque M2: 150-303 Nm
	VH050/121 3,14 TP132MA6	Unit: VH050/121 \| Ratio i: 3.14 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 39.0-205.0 rpm \| Output torque M2: 147-195 Nm
	VH100/121 3,14 TP132MA6	Unit: VH100/121 \| Ratio i: 3.14 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 39.0-205.0 rpm \| Output torque M2: 147-439 Nm
	VH050/101 3,27 TP132MA6	Unit: VH050/101 \| Ratio i: 3.27 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 37.0-196.0 rpm \| Output torque M2: 153-203 Nm
	VH100/101 3,27 TP132MA6	Unit: VH100/101 \| Ratio i: 3.27 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 37.0-196.0 rpm \| Output torque M2: 153-457 Nm
	VH030/121 5,21 TP112M4	Unit: VH030/121 \| Ratio i: 5.21 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 36.0-192.0 rpm \| Output torque M2: 161-243 Nm
	VH050/121 5,21 TP112M4	Unit: VH050/121 \| Ratio i: 5.21 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 36.0-192.0 rpm \| Output torque M2: 161-324 Nm
	VH030/101 5,27 TP112M4	Unit: VH030/101 \| Ratio i: 5.27 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 36.0-190.0 rpm \| Output torque M2: 163-245 Nm
	VH050/101 5,27 TP112M4	Unit: VH050/101 \| Ratio i: 5.27 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 36.0-190.0 rpm \| Output torque M2: 163-327 Nm
	VH030/062 5,38 TP112M4	Unit: VH030/062 \| Ratio i: 5.38 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 35.0-186.0 rpm \| Output torque M2: 164-248 Nm
	VH030/082 5,39 TP112M4	Unit: VH030/082 \| Ratio i: 5.39 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 35.0-186.0 rpm \| Output torque M2: 165-248 Nm
	VH030/081 5,54 TP112M4	Unit: VH030/081 \| Ratio i: 5.54 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 34.0-181.0 rpm \| Output torque M2: 171-258 Nm
	VH050/121 3,58 TP132MA6	Unit: VH050/121 \| Ratio i: 3.58 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 34.0-180.0 rpm \| Output torque M2: 168-222 Nm
	VH100/121 3,58 TP132MA6	Unit: VH100/121 \| Ratio i: 3.58 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 34.0-180.0 rpm \| Output torque M2: 168-500 Nm
	VH050/101 3,70 TP132MA6	Unit: VH050/101 \| Ratio i: 3.70 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 33.0-174.0 rpm \| Output torque M2: 173-230 Nm
	VH100/101 3,70 TP132MA6	Unit: VH100/101 \| Ratio i: 3.70 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 33.0-174.0 rpm \| Output torque M2: 173-517 Nm
	VH030/062 5,93 TP112M4	Unit: VH030/062 \| Ratio i: 5.93 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 32.0-168.0 rpm \| Output torque M2: 181-273 Nm
	VH030/082 5,95 TP112M4	Unit: VH030/082 \| Ratio i: 5.95 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 32.0-168.0 rpm \| Output torque M2: 182-274 Nm
	VH030/081 6,08 TP112M4	Unit: VH030/081 \| Ratio i: 6.08 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 31.0-164.0 rpm \| Output torque M2: 188-283 Nm
	VH030/101 6,23 TP112M4	Unit: VH030/101 \| Ratio i: 6.23 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 30.0-160.0 rpm \| Output torque M2: 192-290 Nm
	VH030/121 6,25 TP112M4	Unit: VH030/121 \| Ratio i: 6.25 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 30.0-160.0 rpm \| Output torque M2: 193-291 Nm
	VH050/101 6,23 TP112M4	Unit: VH050/101 \| Ratio i: 6.23 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 30.0-160.0 rpm \| Output torque M2: 192-387 Nm
	VH050/121 6,25 TP112M4	Unit: VH050/121 \| Ratio i: 6.25 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 30.0-160.0 rpm \| Output torque M2: 193-388 Nm
	VH050/121 4,12 TP132MA6	Unit: VH050/121 \| Ratio i: 4.12 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 30.0-156.0 rpm \| Output torque M2: 193-256 Nm
	VH100/121 4,12 TP132MA6	Unit: VH100/121 \| Ratio i: 4.12 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 30.0-156.0 rpm \| Output torque M2: 193-575 Nm
	VH050/101 4,22 TP132MA6	Unit: VH050/101 \| Ratio i: 4.22 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 29.0-152.0 rpm \| Output torque M2: 198-262 Nm
	VH100/101 4,22 TP132MA6	Unit: VH100/101 \| Ratio i: 4.22 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 29.0-152.0 rpm \| Output torque M2: 198-590 Nm
	VH030/062 7,39 TP112M4	Unit: VH030/062 \| Ratio i: 7.39 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 26.0-135.0 rpm \| Output torque M2: 226-341 Nm
	VH030/082 7,39 TP112M4	Unit: VH030/082 \| Ratio i: 7.39 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 26.0-135.0 rpm \| Output torque M2: 226-341 Nm
	VH050/121 4,80 TP132MA6	Unit: VH050/121 \| Ratio i: 4.80 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 25.0-134.0 rpm \| Output torque M2: 225-298 Nm
	VH100/121 4,80 TP132MA6	Unit: VH100/121 \| Ratio i: 4.80 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 25.0-134.0 rpm \| Output torque M2: 225-670 Nm
	VH030/081 7,50 TP112M4	Unit: VH030/081 \| Ratio i: 7.50 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 25.0-133.0 rpm \| Output torque M2: 232-349 Nm
	VH030/101 7,55 TP112M4	Unit: VH030/101 \| Ratio i: 7.55 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 25.0-133.0 rpm \| Output torque M2: 233-351 Nm
	VH050/101 7,55 TP112M4	Unit: VH050/101 \| Ratio i: 7.55 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 25.0-133.0 rpm \| Output torque M2: 233-468 Nm
	VH050/101 4,88 TP132MA6	Unit: VH050/101 \| Ratio i: 4.88 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 25.0-132.0 rpm \| Output torque M2: 229-303 Nm
	VH100/101 4,88 TP132MA6	Unit: VH100/101 \| Ratio i: 4.88 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 25.0-132.0 rpm \| Output torque M2: 229-681 Nm
	VH030/121 7,70 TP112M4	Unit: VH030/121 \| Ratio i: 7.70 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 25.0-130.0 rpm \| Output torque M2: 238-359 Nm
	VH050/121 7,70 TP112M4	Unit: VH050/121 \| Ratio i: 7.70 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 25.0-130.0 rpm \| Output torque M2: 238-478 Nm
	VH030/082 8,02 TP112M4	Unit: VH030/082 \| Ratio i: 8.02 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 24.0-125.0 rpm \| Output torque M2: 245-370 Nm
	VH050/121 5,21 TP132MA6	Unit: VH050/121 \| Ratio i: 5.21 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 23.0-123.0 rpm \| Output torque M2: 244-324 Nm
	VH100/121 5,21 TP132MA6	Unit: VH100/121 \| Ratio i: 5.21 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 23.0-123.0 rpm \| Output torque M2: 244-728 Nm
	VH050/101 5,27 TP132MA6	Unit: VH050/101 \| Ratio i: 5.27 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 247-327 Nm
	VH100/101 5,27 TP132MA6	Unit: VH100/101 \| Ratio i: 5.27 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 247-736 Nm
	VH030/101 8,40 TP112M4	Unit: VH030/101 \| Ratio i: 8.40 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 23.0-119.0 rpm \| Output torque M2: 259-391 Nm
	VH050/101 8,40 TP112M4	Unit: VH050/101 \| Ratio i: 8.40 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 23.0-119.0 rpm \| Output torque M2: 259-521 Nm
	VH030/081 8,44 TP112M4	Unit: VH030/081 \| Ratio i: 8.44 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 23.0-118.0 rpm \| Output torque M2: 261-393 Nm
	VH030/062 8,50 TP112M4	Unit: VH030/062 \| Ratio i: 8.50 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 22.0-118.0 rpm \| Output torque M2: 260-392 Nm
	VH030/082 8,85 TP112M4	Unit: VH030/082 \| Ratio i: 8.85 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 21.0-113.0 rpm \| Output torque M2: 270-408 Nm
	VH030/062 9,39 TP112M4	Unit: VH030/062 \| Ratio i: 9.39 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 20.0-107.0 rpm \| Output torque M2: 287-432 Nm
	VH050/101 6,23 TP132MA6	Unit: VH050/101 \| Ratio i: 6.23 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 292-387 Nm
	VH050/121 6,25 TP132MA6	Unit: VH050/121 \| Ratio i: 6.25 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 293-388 Nm
	VH100/121 6,25 TP132MA6	Unit: VH100/121 \| Ratio i: 6.25 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 293-873 Nm
	VH030/082 11,01 TP112M4	Unit: VH030/082 \| Ratio i: 11.01 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 17.0-91.0 rpm \| Output torque M2: 336-507 Nm
	VH030/062 11,69 TP112M4	Unit: VH030/062 \| Ratio i: 11.69 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 16.0-86.0 rpm \| Output torque M2: 357-539 Nm
	VH050/101 7,55 TP132MA6	Unit: VH050/101 \| Ratio i: 7.55 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 16.0-85.0 rpm \| Output torque M2: 354-468 Nm
	VH050/121 7,70 TP132MA6	Unit: VH050/121 \| Ratio i: 7.70 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 16.0-83.0 rpm \| Output torque M2: 361-478 Nm
	VH100/121 7,70 TP132MA6	Unit: VH100/121 \| Ratio i: 7.70 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 16.0-83.0 rpm \| Output torque M2: 361-1076 Nm
	VH030/062 12,67 TP112M4	Unit: VH030/062 \| Ratio i: 12.67 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 15.0-79.0 rpm \| Output torque M2: 387-584 Nm
	VH050/101 8,40 TP132MA6	Unit: VH050/101 \| Ratio i: 8.40 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 15.0-77.0 rpm \| Output torque M2: 394-521 Nm
	VH030/082 13,50 TP112M4	Unit: VH030/082 \| Ratio i: 13.50 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 14.0-74.0 rpm \| Output torque M2: 412-622 Nm
	VH030/062 14,75 TP112M4	Unit: VH030/062 \| Ratio i: 14.75 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 13.0-68.0 rpm \| Output torque M2: 451-680 Nm
	VH030/082 14,90 TP112M4	Unit: VH030/082 \| Ratio i: 14.90 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 13.0-67.0 rpm \| Output torque M2: 455-686 Nm
	VH030/062 16,29 TP112M4	Unit: VH030/062 \| Ratio i: 16.29 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 12.0-61.0 rpm \| Output torque M2: 498-750 Nm
	VH030/082 16,62 TP112M4	Unit: VH030/082 \| Ratio i: 16.62 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 11.0-60.0 rpm \| Output torque M2: 508-766 Nm
	VH030/062 17,67 TP112M4	Unit: VH030/062 \| Ratio i: 17.67 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 11.0-57.0 rpm \| Output torque M2: 540-814 Nm
	VH030/082 18,53 TP112M4	Unit: VH030/082 \| Ratio i: 18.53 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 10.0-54.0 rpm \| Output torque M2: 566-854 Nm
	VH030/082 19,38 TP112M4	Unit: VH030/082 \| Ratio i: 19.38 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 9.8-52.0 rpm \| Output torque M2: 592-893 Nm
	VH030/102 19,85 TP112M4	Unit: VH030/102 \| Ratio i: 19.85 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 9.6-50.0 rpm \| Output torque M2: 606-915 Nm
	VH050/102 19,85 TP112M4	Unit: VH050/102 \| Ratio i: 19.85 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 9.6-50.0 rpm \| Output torque M2: 606-1219 Nm
	VH030/062 20,28 TP112M4	Unit: VH030/062 \| Ratio i: 20.28 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 9.4-49.0 rpm \| Output torque M2: 620-935 Nm
	VH050/102 13,32 TP132MA6	Unit: VH050/102 \| Ratio i: 13.32 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 9.2-48.0 rpm \| Output torque M2: 618-819 Nm
	VH100/102 13,32 TP132MA6	Unit: VH100/102 \| Ratio i: 13.32 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 9.2-48.0 rpm \| Output torque M2: 618-1842 Nm
	VH030/082 21,39 TP112M4	Unit: VH030/082 \| Ratio i: 21.39 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 8.9-47.0 rpm \| Output torque M2: 653-986 Nm
	VH030/102 21,44 TP112M4	Unit: VH030/102 \| Ratio i: 21.44 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 8.9-47.0 rpm \| Output torque M2: 655-988 Nm
	VH050/102 21,44 TP112M4	Unit: VH050/102 \| Ratio i: 21.44 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 8.9-47.0 rpm \| Output torque M2: 655-1317 Nm
	VH030/082 22,80 TP112M4	Unit: VH030/082 \| Ratio i: 22.80 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 8.3-44.0 rpm \| Output torque M2: 697-1051 Nm
	VH030/102 23,97 TP112M4	Unit: VH030/102 \| Ratio i: 23.97 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 7.9-42.0 rpm \| Output torque M2: 732-1104 Nm
	VH050/102 23,97 TP112M4	Unit: VH050/102 \| Ratio i: 23.97 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 7.9-42.0 rpm \| Output torque M2: 732-1473 Nm
	VH050/102 16,09 TP132MA6	Unit: VH050/102 \| Ratio i: 16.09 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 7.6-40.0 rpm \| Output torque M2: 747-989 Nm
	VH100/102 16,09 TP132MA6	Unit: VH100/102 \| Ratio i: 16.09 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 7.6-40.0 rpm \| Output torque M2: 747-2224 Nm
	VH030/102 25,89 TP112M4	Unit: VH030/102 \| Ratio i: 25.89 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 7.3-39.0 rpm \| Output torque M2: 791-1193 Nm
	VH050/102 25,89 TP112M4	Unit: VH050/102 \| Ratio i: 25.89 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 7.3-39.0 rpm \| Output torque M2: 791-1591 Nm
	VH030/082 26,60 TP112M4	Unit: VH030/082 \| Ratio i: 26.60 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 7.1-38.0 rpm \| Output torque M2: 813-1226 Nm
	VH030/082 27,88 TP112M4	Unit: VH030/082 \| Ratio i: 27.88 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 852-1285 Nm
	VH050/102 17,85 TP132MA6	Unit: VH050/102 \| Ratio i: 17.85 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 828-1097 Nm
	VH100/102 17,85 TP132MA6	Unit: VH100/102 \| Ratio i: 17.85 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 828-2468 Nm
	VH030/102 28,73 TP112M4	Unit: VH030/102 \| Ratio i: 28.73 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 6.6-35.0 rpm \| Output torque M2: 878-1324 Nm
	VH050/102 28,73 TP112M4	Unit: VH050/102 \| Ratio i: 28.73 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 6.6-35.0 rpm \| Output torque M2: 878-1765 Nm
	VH030/122 29,86 TP112M4	Unit: VH030/122 \| Ratio i: 29.86 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 6.4-33.0 rpm \| Output torque M2: 912-1376 Nm
	VH050/122 29,86 TP112M4	Unit: VH050/122 \| Ratio i: 29.86 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 6.4-33.0 rpm \| Output torque M2: 912-1835 Nm
	VH050/122 19,32 TP132MA6	Unit: VH050/122 \| Ratio i: 19.32 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.3-33.0 rpm \| Output torque M2: 896-1187 Nm
	VH100/122 19,32 TP132MA6	Unit: VH100/122 \| Ratio i: 19.32 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.3-33.0 rpm \| Output torque M2: 896-2671 Nm
	VH030/102 30,72 TP112M4	Unit: VH030/102 \| Ratio i: 30.72 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 6.2-33.0 rpm \| Output torque M2: 939-1416 Nm
	VH050/102 30,72 TP112M4	Unit: VH050/102 \| Ratio i: 30.72 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 6.2-33.0 rpm \| Output torque M2: 939-1887 Nm
	VH050/102 19,85 TP132MA6	Unit: VH050/102 \| Ratio i: 19.85 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.2-32.0 rpm \| Output torque M2: 921-1219 Nm
	VH100/102 19,85 TP132MA6	Unit: VH100/102 \| Ratio i: 19.85 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 6.2-32.0 rpm \| Output torque M2: 921-2744 Nm
	VH030/082 31,15 TP112M4	Unit: VH030/082 \| Ratio i: 31.15 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 6.1-32.0 rpm \| Output torque M2: 952-1436 Nm
	VH050/122 20,57 TP132MA6	Unit: VH050/122 \| Ratio i: 20.57 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.9-31.0 rpm \| Output torque M2: 954-1264 Nm
	VH100/122 20,57 TP132MA6	Unit: VH100/122 \| Ratio i: 20.57 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.9-31.0 rpm \| Output torque M2: 954-2844 Nm
	VH030/122 33,00 TP112M4	Unit: VH030/122 \| Ratio i: 33.00 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 5.8-30.0 rpm \| Output torque M2: 1008-1521 Nm
	VH050/122 33,00 TP112M4	Unit: VH050/122 \| Ratio i: 33.00 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 5.8-30.0 rpm \| Output torque M2: 1008-2028 Nm
	VH050/102 21,44 TP132MA6	Unit: VH050/102 \| Ratio i: 21.44 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 995-1317 Nm
	VH100/102 21,44 TP132MA6	Unit: VH100/102 \| Ratio i: 21.44 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 995-2964 Nm
	VH030/102 34,20 TP112M4	Unit: VH030/102 \| Ratio i: 34.20 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 5.6-29.0 rpm \| Output torque M2: 1045-1576 Nm
	VH050/102 34,20 TP112M4	Unit: VH050/102 \| Ratio i: 34.20 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 5.6-29.0 rpm \| Output torque M2: 1045-2101 Nm
	VH030/082 34,38 TP112M4	Unit: VH030/082 \| Ratio i: 34.38 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 5.5-29.0 rpm \| Output torque M2: 1050-1584 Nm
	VH050/122 22,52 TP132MA6	Unit: VH050/122 \| Ratio i: 22.52 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.4-29.0 rpm \| Output torque M2: 1045-1384 Nm
	VH100/122 22,52 TP132MA6	Unit: VH100/122 \| Ratio i: 22.52 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.4-29.0 rpm \| Output torque M2: 1045-3114 Nm
	VH030/122 36,13 TP112M4	Unit: VH030/122 \| Ratio i: 36.13 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 5.3-28.0 rpm \| Output torque M2: 1104-1665 Nm
	VH050/122 36,13 TP112M4	Unit: VH050/122 \| Ratio i: 36.13 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 5.3-28.0 rpm \| Output torque M2: 1104-2220 Nm
	VH050/102 23,97 TP132MA6	Unit: VH050/102 \| Ratio i: 23.97 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.1-27.0 rpm \| Output torque M2: 1112-1473 Nm
	VH100/102 23,97 TP132MA6	Unit: VH100/102 \| Ratio i: 23.97 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.1-27.0 rpm \| Output torque M2: 1112-3313 Nm
	VH050/122 24,47 TP132MA6	Unit: VH050/122 \| Ratio i: 24.47 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.0-26.0 rpm \| Output torque M2: 1135-1503 Nm
	VH100/122 24,47 TP132MA6	Unit: VH100/122 \| Ratio i: 24.47 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 5.0-26.0 rpm \| Output torque M2: 1135-3382 Nm
	VH030/082 38,70 TP112M4	Unit: VH030/082 \| Ratio i: 38.70 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.9-26.0 rpm \| Output torque M2: 1182-1783 Nm
	VH030/102 38,45 TP112M4	Unit: VH030/102 \| Ratio i: 38.45 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.9-26.0 rpm \| Output torque M2: 1175-1772 Nm
	VH050/102 38,45 TP112M4	Unit: VH050/102 \| Ratio i: 38.45 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.9-26.0 rpm \| Output torque M2: 1175-2363 Nm
	VH050/102 25,89 TP132MA6	Unit: VH050/102 \| Ratio i: 25.89 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.7-25.0 rpm \| Output torque M2: 1201-1591 Nm
	VH100/102 25,89 TP132MA6	Unit: VH100/102 \| Ratio i: 25.89 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.7-25.0 rpm \| Output torque M2: 1201-3580 Nm
	VH030/102 41,30 TP112M4	Unit: VH030/102 \| Ratio i: 41.30 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 1262-1903 Nm
	VH050/102 41,30 TP112M4	Unit: VH050/102 \| Ratio i: 41.30 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 1262-2537 Nm
	VH050/122 27,49 TP132MA6	Unit: VH050/122 \| Ratio i: 27.49 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 1275-1689 Nm
	VH100/122 27,49 TP132MA6	Unit: VH100/122 \| Ratio i: 27.49 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 1275-3800 Nm
	VH030/122 44,10 TP112M4	Unit: VH030/122 \| Ratio i: 44.10 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.3-23.0 rpm \| Output torque M2: 1347-2032 Nm
	VH050/122 44,10 TP112M4	Unit: VH050/122 \| Ratio i: 44.10 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.3-23.0 rpm \| Output torque M2: 1347-2710 Nm
	VH050/102 28,73 TP132MA6	Unit: VH050/102 \| Ratio i: 28.73 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.3-22.0 rpm \| Output torque M2: 1333-1765 Nm
	VH100/102 28,73 TP132MA6	Unit: VH100/102 \| Ratio i: 28.73 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.3-22.0 rpm \| Output torque M2: 1333-3971 Nm
	VH030/123 45,77 TP112M4	Unit: VH030/123 \| Ratio i: 45.77 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.2-22.0 rpm \| Output torque M2: 1369-2065 Nm
	VH050/123 45,77 TP112M4	Unit: VH050/123 \| Ratio i: 45.77 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.2-22.0 rpm \| Output torque M2: 1369-2754 Nm
	VH030/102 45,82 TP112M4	Unit: VH030/102 \| Ratio i: 45.82 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1400-2111 Nm
	VH050/102 45,82 TP112M4	Unit: VH050/102 \| Ratio i: 45.82 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1400-2815 Nm
	VH050/122 29,86 TP132MA6	Unit: VH050/122 \| Ratio i: 29.86 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1385-1835 Nm
	VH100/122 29,86 TP132MA6	Unit: VH100/122 \| Ratio i: 29.86 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1385-4128 Nm
	VH050/102 30,72 TP132MA6	Unit: VH050/102 \| Ratio i: 30.72 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 4.0-21.0 rpm \| Output torque M2: 1425-1887 Nm
	VH030/102 51,52 TP112M4	Unit: VH030/102 \| Ratio i: 51.52 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 1574-2374 Nm
	VH050/102 51,52 TP112M4	Unit: VH050/102 \| Ratio i: 51.52 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 1574-3165 Nm
	VH050/122 33,00 TP132MA6	Unit: VH050/122 \| Ratio i: 33.00 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 1531-2028 Nm
	VH100/122 33,00 TP132MA6	Unit: VH100/122 \| Ratio i: 33.00 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 1531-4562 Nm
	VH050/102 34,20 TP132MA6	Unit: VH050/102 \| Ratio i: 34.20 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 3.6-19.0 rpm \| Output torque M2: 1587-2101 Nm
	VH030/103 55,47 TP112M4	Unit: VH030/103 \| Ratio i: 55.47 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1659-2503 Nm
	VH030/123 55,87 TP112M4	Unit: VH030/123 \| Ratio i: 55.87 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1671-2521 Nm
	VH050/103 55,47 TP112M4	Unit: VH050/103 \| Ratio i: 55.47 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1659-3337 Nm
	VH050/122 36,13 TP132MA6	Unit: VH050/122 \| Ratio i: 36.13 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1676-2220 Nm
	VH050/123 55,87 TP112M4	Unit: VH050/123 \| Ratio i: 55.87 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1671-3361 Nm
	VH100/122 36,13 TP132MA6	Unit: VH100/122 \| Ratio i: 36.13 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 1676-4995 Nm
	VH050/102 38,45 TP132MA6	Unit: VH050/102 \| Ratio i: 38.45 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 3.2-17.0 rpm \| Output torque M2: 1784-2363 Nm
	VH050/102 41,30 TP132MA6	Unit: VH050/102 \| Ratio i: 41.30 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 3.0-16.0 rpm \| Output torque M2: 1916-2537 Nm
	VH030/123 67,32 TP112M4	Unit: VH030/123 \| Ratio i: 67.32 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 2014-3038 Nm
	VH050/122 44,10 TP132MA6	Unit: VH050/122 \| Ratio i: 44.10 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 2046-2710 Nm
	VH050/123 67,32 TP112M4	Unit: VH050/123 \| Ratio i: 67.32 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 2014-4050 Nm
	VH100/122 44,10 TP132MA6	Unit: VH100/122 \| Ratio i: 44.10 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 2046-6096 Nm
	VH030/103 69,69 TP112M4	Unit: VH030/103 \| Ratio i: 69.69 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 2085-3144 Nm
	VH050/102 45,82 TP132MA6	Unit: VH050/102 \| Ratio i: 45.82 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 2126-2815 Nm
	VH050/103 69,69 TP112M4	Unit: VH050/103 \| Ratio i: 69.69 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 2085-4193 Nm
	VH050/123 45,77 TP132MA6	Unit: VH050/123 \| Ratio i: 45.77 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 2079-2754 Nm
	VH030/123 73,71 TP112M4	Unit: VH030/123 \| Ratio i: 73.71 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.6-14.0 rpm \| Output torque M2: 2205-3326 Nm
	VH050/123 73,71 TP112M4	Unit: VH050/123 \| Ratio i: 73.71 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.6-14.0 rpm \| Output torque M2: 2205-4435 Nm
	VH030/103 79,82 TP112M4	Unit: VH030/103 \| Ratio i: 79.82 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.4-13.0 rpm \| Output torque M2: 2388-3601 Nm
	VH050/102 51,52 TP132MA6	Unit: VH050/102 \| Ratio i: 51.52 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 2.4-12.0 rpm \| Output torque M2: 2390-3165 Nm
	VH030/103 84,16 TP112M4	Unit: VH030/103 \| Ratio i: 84.16 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.3-12.0 rpm \| Output torque M2: 2517-3797 Nm
	VH030/123 83,34 TP112M4	Unit: VH030/123 \| Ratio i: 83.34 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.3-12.0 rpm \| Output torque M2: 2493-3760 Nm
	VH050/123 83,34 TP112M4	Unit: VH050/123 \| Ratio i: 83.34 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.3-12.0 rpm \| Output torque M2: 2493-5013 Nm
	VH050/103 55,47 TP132MA6	Unit: VH050/103 \| Ratio i: 55.47 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 2520-3337 Nm
	VH050/123 55,87 TP132MA6	Unit: VH050/123 \| Ratio i: 55.87 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 2.2-12.0 rpm \| Output torque M2: 2538-3361 Nm
	VH030/123 89,97 TP112M4	Unit: VH030/123 \| Ratio i: 89.97 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.1-11.0 rpm \| Output torque M2: 2691-4059 Nm
	VH050/123 89,97 TP112M4	Unit: VH050/123 \| Ratio i: 89.97 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.1-11.0 rpm \| Output torque M2: 2691-5413 Nm
	VH030/103 93,36 TP112M4	Unit: VH030/103 \| Ratio i: 93.36 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 2.0-11.0 rpm \| Output torque M2: 2793-4213 Nm
	VH030/123 100,29 TP112M4	Unit: VH030/123 \| Ratio i: 100.29 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 1.9-10.0 rpm \| Output torque M2: 3000-4525 Nm
	VH050/123 100,29 TP112M4	Unit: VH050/123 \| Ratio i: 100.29 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 1.9-10.0 rpm \| Output torque M2: 3000-6033 Nm
	VH050/123 67,32 TP132MA6	Unit: VH050/123 \| Ratio i: 67.32 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 1.8-9.5 rpm \| Output torque M2: 3058-4050 Nm
	VH030/123 108,34 TP112M4	Unit: VH030/123 \| Ratio i: 108.34 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 3241-4888 Nm
	VH050/103 69,69 TP132MA6	Unit: VH050/103 \| Ratio i: 69.69 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 1.8-9.2 rpm \| Output torque M2: 3166-4193 Nm
	VH050/123 73,71 TP132MA6	Unit: VH050/123 \| Ratio i: 73.71 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 1.7-8.7 rpm \| Output torque M2: 3349-4435 Nm
	VH030/123 118,62 TP112M4	Unit: VH030/123 \| Ratio i: 118.62 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 1.6-8.4 rpm \| Output torque M2: 3548-5352 Nm
	VH030/123 128,18 TP112M4	Unit: VH030/123 \| Ratio i: 128.18 \| Motor: TP112M4 \| Power P1: 4.00 kW \| Output speed n2: 1.5-7.8 rpm \| Output torque M2: 3834-5783 Nm
	VH050/123 83,34 TP132MA6	Unit: VH050/123 \| Ratio i: 83.34 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 1.5-7.7 rpm \| Output torque M2: 3786-5013 Nm
	VH050/123 89,97 TP132MA6	Unit: VH050/123 \| Ratio i: 89.97 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 1.4-7.1 rpm \| Output torque M2: 4087-5413 Nm
	VH050/123 100,29 TP132MA6	Unit: VH050/123 \| Ratio i: 100.29 \| Motor: TP132MA6 \| Power P1: 4.00 kW \| Output speed n2: 1.2-6.4 rpm \| Output torque M2: 4556-6033 Nm
	VH100/101 1,29 TP132MB6	Unit: VH100/101 \| Ratio i: 1.29 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 94.0-497.0 rpm \| Output torque M2: 83-181 Nm
	VH050/101 2,03 TP132MS4	Unit: VH050/101 \| Ratio i: 2.03 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 93.0-492.0 rpm \| Output torque M2: 86-126 Nm
	VH100/101 2,03 TP132MS4	Unit: VH100/101 \| Ratio i: 2.03 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 93.0-492.0 rpm \| Output torque M2: 86-284 Nm
	VH100/101 1,41 TP132MB6	Unit: VH100/101 \| Ratio i: 1.41 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 87.0-456.0 rpm \| Output torque M2: 91-197 Nm
	VH050/101 2,48 TP132MS4	Unit: VH050/101 \| Ratio i: 2.48 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 77.0-403.0 rpm \| Output torque M2: 105-154 Nm
	VH100/101 2,48 TP132MS4	Unit: VH100/101 \| Ratio i: 2.48 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 77.0-403.0 rpm \| Output torque M2: 105-347 Nm
	VH100/101 2,03 TP132MB6	Unit: VH100/101 \| Ratio i: 2.03 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 60.0-316.0 rpm \| Output torque M2: 131-284 Nm
	VH050/101 3,27 TP132MS4	Unit: VH050/101 \| Ratio i: 3.27 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 58.0-306.0 rpm \| Output torque M2: 139-203 Nm
	VH100/101 3,27 TP132MS4	Unit: VH100/101 \| Ratio i: 3.27 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 58.0-306.0 rpm \| Output torque M2: 139-457 Nm
	VH050/121 3,58 TP132MS4	Unit: VH050/121 \| Ratio i: 3.58 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 53.0-279.0 rpm \| Output torque M2: 152-222 Nm
	VH100/121 3,58 TP132MS4	Unit: VH100/121 \| Ratio i: 3.58 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 53.0-279.0 rpm \| Output torque M2: 152-500 Nm
	VH050/101 3,70 TP132MS4	Unit: VH050/101 \| Ratio i: 3.70 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 51.0-270.0 rpm \| Output torque M2: 157-230 Nm
	VH100/101 3,70 TP132MS4	Unit: VH100/101 \| Ratio i: 3.70 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 51.0-270.0 rpm \| Output torque M2: 157-517 Nm
	VH100/101 2,48 TP132MB6	Unit: VH100/101 \| Ratio i: 2.48 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 49.0-259.0 rpm \| Output torque M2: 160-347 Nm
	VH100/121 2,48 TP132MB6	Unit: VH100/121 \| Ratio i: 2.48 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 49.0-259.0 rpm \| Output torque M2: 160-346 Nm
	VH050/121 4,12 TP132MS4	Unit: VH050/121 \| Ratio i: 4.12 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 46.0-243.0 rpm \| Output torque M2: 175-256 Nm
	VH100/121 4,12 TP132MS4	Unit: VH100/121 \| Ratio i: 4.12 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 46.0-243.0 rpm \| Output torque M2: 175-575 Nm
	VH050/101 4,22 TP132MS4	Unit: VH050/101 \| Ratio i: 4.22 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 45.0-237.0 rpm \| Output torque M2: 179-262 Nm
	VH100/101 4,22 TP132MS4	Unit: VH100/101 \| Ratio i: 4.22 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 45.0-237.0 rpm \| Output torque M2: 179-590 Nm
	VH100/121 2,95 TP132MB6	Unit: VH100/121 \| Ratio i: 2.95 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 41.0-218.0 rpm \| Output torque M2: 190-413 Nm
	VH050/121 4,80 TP132MS4	Unit: VH050/121 \| Ratio i: 4.80 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 40.0-208.0 rpm \| Output torque M2: 204-298 Nm
	VH100/121 4,80 TP132MS4	Unit: VH100/121 \| Ratio i: 4.80 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 40.0-208.0 rpm \| Output torque M2: 204-670 Nm
	VH050/101 4,88 TP132MS4	Unit: VH050/101 \| Ratio i: 4.88 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 39.0-205.0 rpm \| Output torque M2: 207-303 Nm
	VH100/101 4,88 TP132MS4	Unit: VH100/101 \| Ratio i: 4.88 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 39.0-205.0 rpm \| Output torque M2: 207-681 Nm
	VH100/121 3,14 TP132MB6	Unit: VH100/121 \| Ratio i: 3.14 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 39.0-205.0 rpm \| Output torque M2: 203-439 Nm
	VH100/101 3,27 TP132MB6	Unit: VH100/101 \| Ratio i: 3.27 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 37.0-196.0 rpm \| Output torque M2: 211-457 Nm
	VH050/121 5,21 TP132MS4	Unit: VH050/121 \| Ratio i: 5.21 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 36.0-192.0 rpm \| Output torque M2: 221-324 Nm
	VH100/121 5,21 TP132MS4	Unit: VH100/121 \| Ratio i: 5.21 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 36.0-192.0 rpm \| Output torque M2: 221-728 Nm
	VH050/101 5,27 TP132MS4	Unit: VH050/101 \| Ratio i: 5.27 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 36.0-190.0 rpm \| Output torque M2: 224-327 Nm
	VH100/101 5,27 TP132MS4	Unit: VH100/101 \| Ratio i: 5.27 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 36.0-190.0 rpm \| Output torque M2: 224-736 Nm
	VH100/121 3,58 TP132MB6	Unit: VH100/121 \| Ratio i: 3.58 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 34.0-180.0 rpm \| Output torque M2: 231-500 Nm
	VH100/101 3,70 TP132MB6	Unit: VH100/101 \| Ratio i: 3.70 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 33.0-174.0 rpm \| Output torque M2: 238-517 Nm
	VH050/101 6,23 TP132MS4	Unit: VH050/101 \| Ratio i: 6.23 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 30.0-160.0 rpm \| Output torque M2: 264-387 Nm
	VH050/121 6,25 TP132MS4	Unit: VH050/121 \| Ratio i: 6.25 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 30.0-160.0 rpm \| Output torque M2: 265-388 Nm
	VH100/121 6,25 TP132MS4	Unit: VH100/121 \| Ratio i: 6.25 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 30.0-160.0 rpm \| Output torque M2: 265-873 Nm
	VH100/121 4,12 TP132MB6	Unit: VH100/121 \| Ratio i: 4.12 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 30.0-156.0 rpm \| Output torque M2: 265-575 Nm
	VH100/101 4,22 TP132MB6	Unit: VH100/101 \| Ratio i: 4.22 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 29.0-152.0 rpm \| Output torque M2: 272-590 Nm
	VH100/121 4,80 TP132MB6	Unit: VH100/121 \| Ratio i: 4.80 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 25.0-134.0 rpm \| Output torque M2: 309-670 Nm
	VH050/101 7,55 TP132MS4	Unit: VH050/101 \| Ratio i: 7.55 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 25.0-133.0 rpm \| Output torque M2: 320-468 Nm
	VH100/101 4,88 TP132MB6	Unit: VH100/101 \| Ratio i: 4.88 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 25.0-132.0 rpm \| Output torque M2: 314-681 Nm
	VH050/121 7,70 TP132MS4	Unit: VH050/121 \| Ratio i: 7.70 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 25.0-130.0 rpm \| Output torque M2: 327-478 Nm
	VH100/121 7,70 TP132MS4	Unit: VH100/121 \| Ratio i: 7.70 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 25.0-130.0 rpm \| Output torque M2: 327-1076 Nm
	VH100/121 5,21 TP132MB6	Unit: VH100/121 \| Ratio i: 5.21 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 23.0-123.0 rpm \| Output torque M2: 336-728 Nm
	VH100/101 5,27 TP132MB6	Unit: VH100/101 \| Ratio i: 5.27 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 339-736 Nm
	VH100/102 5,26 TP132MB6	Unit: VH100/102 \| Ratio i: 5.26 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 23.0-122.0 rpm \| Output torque M2: 336-728 Nm
	VH050/101 8,40 TP132MS4	Unit: VH050/101 \| Ratio i: 8.40 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 23.0-119.0 rpm \| Output torque M2: 357-521 Nm
	VH100/121 6,25 TP132MB6	Unit: VH100/121 \| Ratio i: 6.25 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 20.0-103.0 rpm \| Output torque M2: 403-873 Nm
	VH100/102 6,36 TP132MB6	Unit: VH100/102 \| Ratio i: 6.36 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 19.0-101.0 rpm \| Output torque M2: 405-879 Nm
	VH100/102 7,05 TP132MB6	Unit: VH100/102 \| Ratio i: 7.05 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 17.0-91.0 rpm \| Output torque M2: 450-975 Nm
	VH100/121 7,70 TP132MB6	Unit: VH100/121 \| Ratio i: 7.70 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 16.0-83.0 rpm \| Output torque M2: 496-1076 Nm
	VH100/102 8,27 TP132MB6	Unit: VH100/102 \| Ratio i: 8.27 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 15.0-78.0 rpm \| Output torque M2: 528-1144 Nm
	VH050/102 13,32 TP132MS4	Unit: VH050/102 \| Ratio i: 13.32 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 14.0-75.0 rpm \| Output torque M2: 560-819 Nm
	VH100/102 13,32 TP132MS4	Unit: VH100/102 \| Ratio i: 13.32 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 14.0-75.0 rpm \| Output torque M2: 560-1842 Nm
	VH100/102 9,99 TP132MB6	Unit: VH100/102 \| Ratio i: 9.99 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 12.0-64.0 rpm \| Output torque M2: 637-1381 Nm
	VH050/102 16,09 TP132MS4	Unit: VH050/102 \| Ratio i: 16.09 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 12.0-62.0 rpm \| Output torque M2: 676-989 Nm
	VH100/102 16,09 TP132MS4	Unit: VH100/102 \| Ratio i: 16.09 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 12.0-62.0 rpm \| Output torque M2: 676-2224 Nm
	VH100/102 11,09 TP132MB6	Unit: VH100/102 \| Ratio i: 11.09 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 11.0-58.0 rpm \| Output torque M2: 707-1532 Nm
	VH050/102 17,85 TP132MS4	Unit: VH050/102 \| Ratio i: 17.85 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 11.0-56.0 rpm \| Output torque M2: 750-1097 Nm
	VH100/102 17,85 TP132MS4	Unit: VH100/102 \| Ratio i: 17.85 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 11.0-56.0 rpm \| Output torque M2: 750-2468 Nm
	VH100/122 12,66 TP132MB6	Unit: VH100/122 \| Ratio i: 12.66 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 9.6-51.0 rpm \| Output torque M2: 808-1750 Nm
	VH050/102 19,85 TP132MS4	Unit: VH050/102 \| Ratio i: 19.85 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 9.6-50.0 rpm \| Output torque M2: 834-1219 Nm
	VH100/102 19,85 TP132MS4	Unit: VH100/102 \| Ratio i: 19.85 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 9.6-50.0 rpm \| Output torque M2: 834-2744 Nm
	VH100/102 13,32 TP132MB6	Unit: VH100/102 \| Ratio i: 13.32 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 9.2-48.0 rpm \| Output torque M2: 850-1842 Nm
	VH050/102 21,44 TP132MS4	Unit: VH050/102 \| Ratio i: 21.44 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 8.9-47.0 rpm \| Output torque M2: 901-1317 Nm
	VH100/102 21,44 TP132MS4	Unit: VH100/102 \| Ratio i: 21.44 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 8.9-47.0 rpm \| Output torque M2: 901-2964 Nm
	VH100/122 13,86 TP132MB6	Unit: VH100/122 \| Ratio i: 13.86 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 8.8-46.0 rpm \| Output torque M2: 884-1917 Nm
	VH050/122 22,52 TP132MS4	Unit: VH050/122 \| Ratio i: 22.52 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 8.4-44.0 rpm \| Output torque M2: 946-1384 Nm
	VH100/122 22,52 TP132MS4	Unit: VH100/122 \| Ratio i: 22.52 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 8.4-44.0 rpm \| Output torque M2: 946-3114 Nm
	VH050/102 23,97 TP132MS4	Unit: VH050/102 \| Ratio i: 23.97 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 7.9-42.0 rpm \| Output torque M2: 1007-1473 Nm
	VH100/102 23,97 TP132MS4	Unit: VH100/102 \| Ratio i: 23.97 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 7.9-42.0 rpm \| Output torque M2: 1007-3313 Nm
	VH050/122 24,47 TP132MS4	Unit: VH050/122 \| Ratio i: 24.47 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 7.8-41.0 rpm \| Output torque M2: 1028-1503 Nm
	VH100/122 24,47 TP132MS4	Unit: VH100/122 \| Ratio i: 24.47 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 7.8-41.0 rpm \| Output torque M2: 1028-3382 Nm
	VH100/102 16,09 TP132MB6	Unit: VH100/102 \| Ratio i: 16.09 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 7.6-40.0 rpm \| Output torque M2: 1026-2224 Nm
	VH050/102 25,89 TP132MS4	Unit: VH050/102 \| Ratio i: 25.89 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 7.3-39.0 rpm \| Output torque M2: 1088-1591 Nm
	VH100/102 25,89 TP132MS4	Unit: VH100/102 \| Ratio i: 25.89 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 7.3-39.0 rpm \| Output torque M2: 1088-3580 Nm
	VH100/122 16,92 TP132MB6	Unit: VH100/122 \| Ratio i: 16.92 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 7.2-38.0 rpm \| Output torque M2: 1079-2339 Nm
	VH050/122 27,49 TP132MS4	Unit: VH050/122 \| Ratio i: 27.49 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 6.9-36.0 rpm \| Output torque M2: 1155-1689 Nm
	VH100/122 27,49 TP132MS4	Unit: VH100/122 \| Ratio i: 27.49 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 6.9-36.0 rpm \| Output torque M2: 1155-3800 Nm
	VH100/102 17,85 TP132MB6	Unit: VH100/102 \| Ratio i: 17.85 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 6.8-36.0 rpm \| Output torque M2: 1139-2468 Nm
	VH050/102 28,73 TP132MS4	Unit: VH050/102 \| Ratio i: 28.73 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 6.6-35.0 rpm \| Output torque M2: 1207-1765 Nm
	VH100/102 28,73 TP132MS4	Unit: VH100/102 \| Ratio i: 28.73 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 6.6-35.0 rpm \| Output torque M2: 1207-3971 Nm
	VH050/122 29,86 TP132MS4	Unit: VH050/122 \| Ratio i: 29.86 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 6.4-33.0 rpm \| Output torque M2: 1254-1835 Nm
	VH100/122 29,86 TP132MS4	Unit: VH100/122 \| Ratio i: 29.86 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 6.4-33.0 rpm \| Output torque M2: 1254-4128 Nm
	VH100/122 19,32 TP132MB6	Unit: VH100/122 \| Ratio i: 19.32 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 6.3-33.0 rpm \| Output torque M2: 1233-2671 Nm
	VH050/102 30,72 TP132MS4	Unit: VH050/102 \| Ratio i: 30.72 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 6.2-33.0 rpm \| Output torque M2: 1290-1887 Nm
	VH100/102 19,85 TP132MB6	Unit: VH100/102 \| Ratio i: 19.85 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 6.2-32.0 rpm \| Output torque M2: 1266-2744 Nm
	VH100/122 20,57 TP132MB6	Unit: VH100/122 \| Ratio i: 20.57 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 5.9-31.0 rpm \| Output torque M2: 1312-2844 Nm
	VH050/122 33,00 TP132MS4	Unit: VH050/122 \| Ratio i: 33.00 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 5.8-30.0 rpm \| Output torque M2: 1386-2028 Nm
	VH100/122 33,00 TP132MS4	Unit: VH100/122 \| Ratio i: 33.00 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 5.8-30.0 rpm \| Output torque M2: 1386-4562 Nm
	VH100/102 21,44 TP132MB6	Unit: VH100/102 \| Ratio i: 21.44 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 5.7-30.0 rpm \| Output torque M2: 1368-2964 Nm
	VH050/102 34,20 TP132MS4	Unit: VH050/102 \| Ratio i: 34.20 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 5.6-29.0 rpm \| Output torque M2: 1437-2101 Nm
	VH100/122 22,52 TP132MB6	Unit: VH100/122 \| Ratio i: 22.52 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 5.4-29.0 rpm \| Output torque M2: 1437-3114 Nm
	VH050/122 36,13 TP132MS4	Unit: VH050/122 \| Ratio i: 36.13 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 5.3-28.0 rpm \| Output torque M2: 1518-2220 Nm
	VH100/122 36,13 TP132MS4	Unit: VH100/122 \| Ratio i: 36.13 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 5.3-28.0 rpm \| Output torque M2: 1518-4995 Nm
	VH100/102 23,97 TP132MB6	Unit: VH100/102 \| Ratio i: 23.97 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 5.1-27.0 rpm \| Output torque M2: 1529-3313 Nm
	VH100/122 24,47 TP132MB6	Unit: VH100/122 \| Ratio i: 24.47 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 5.0-26.0 rpm \| Output torque M2: 1561-3382 Nm
	VH050/102 38,45 TP132MS4	Unit: VH050/102 \| Ratio i: 38.45 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 4.9-26.0 rpm \| Output torque M2: 1615-2363 Nm
	VH100/102 25,89 TP132MB6	Unit: VH100/102 \| Ratio i: 25.89 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 4.7-25.0 rpm \| Output torque M2: 1652-3580 Nm
	VH050/102 41,30 TP132MS4	Unit: VH050/102 \| Ratio i: 41.30 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 4.6-24.0 rpm \| Output torque M2: 1735-2537 Nm
	VH100/122 27,49 TP132MB6	Unit: VH100/122 \| Ratio i: 27.49 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 4.4-23.0 rpm \| Output torque M2: 1754-3800 Nm
	VH050/122 44,10 TP132MS4	Unit: VH050/122 \| Ratio i: 44.10 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 4.3-23.0 rpm \| Output torque M2: 1853-2710 Nm
	VH100/102 28,73 TP132MB6	Unit: VH100/102 \| Ratio i: 28.73 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 4.3-22.0 rpm \| Output torque M2: 1833-3971 Nm
	VH050/123 45,77 TP132MS4	Unit: VH050/123 \| Ratio i: 45.77 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 4.2-22.0 rpm \| Output torque M2: 1883-2754 Nm
	VH050/102 45,82 TP132MS4	Unit: VH050/102 \| Ratio i: 45.82 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1925-2815 Nm
	VH100/122 29,86 TP132MB6	Unit: VH100/122 \| Ratio i: 29.86 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 4.1-22.0 rpm \| Output torque M2: 1905-4128 Nm
	VH050/102 51,52 TP132MS4	Unit: VH050/102 \| Ratio i: 51.52 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 2164-3165 Nm
	VH100/122 33,00 TP132MB6	Unit: VH100/122 \| Ratio i: 33.00 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 3.7-19.0 rpm \| Output torque M2: 2105-4562 Nm
	VH050/103 55,47 TP132MS4	Unit: VH050/103 \| Ratio i: 55.47 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 2282-3337 Nm
	VH050/123 55,87 TP132MS4	Unit: VH050/123 \| Ratio i: 55.87 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 2298-3361 Nm
	VH100/122 36,13 TP132MB6	Unit: VH100/122 \| Ratio i: 36.13 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 3.4-18.0 rpm \| Output torque M2: 2305-4995 Nm
	VH050/123 67,32 TP132MS4	Unit: VH050/123 \| Ratio i: 67.32 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 2769-4050 Nm
	VH100/122 44,10 TP132MB6	Unit: VH100/122 \| Ratio i: 44.10 \| Motor: TP132MB6 \| Power P1: 5.50 kW \| Output speed n2: 2.8-15.0 rpm \| Output torque M2: 2813-6096 Nm
	VH050/103 69,69 TP132MS4	Unit: VH050/103 \| Ratio i: 69.69 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 2.7-14.0 rpm \| Output torque M2: 2866-4193 Nm
	VH050/123 73,71 TP132MS4	Unit: VH050/123 \| Ratio i: 73.71 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 2.6-14.0 rpm \| Output torque M2: 3032-4435 Nm
	VH050/123 83,34 TP132MS4	Unit: VH050/123 \| Ratio i: 83.34 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 2.3-12.0 rpm \| Output torque M2: 3428-5013 Nm
	VH050/123 89,97 TP132MS4	Unit: VH050/123 \| Ratio i: 89.97 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 2.1-11.0 rpm \| Output torque M2: 3701-5413 Nm
	VH050/123 100,29 TP132MS4	Unit: VH050/123 \| Ratio i: 100.29 \| Motor: TP132MS4 \| Power P1: 5.50 kW \| Output speed n2: 1.9-10.0 rpm \| Output torque M2: 4125-6033 Nm
	VH050/101 1,29 TP132M4	Unit: VH050/101 \| Ratio i: 1.29 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 147.0-774.0 rpm \| Output torque M2: 75-80 Nm
	VH100/101 1,29 TP132M4	Unit: VH100/101 \| Ratio i: 1.29 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 147.0-774.0 rpm \| Output torque M2: 75-181 Nm
	VH050/101 1,41 TP132M4	Unit: VH050/101 \| Ratio i: 1.41 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 135.0-709.0 rpm \| Output torque M2: 82-88 Nm
	VH100/101 1,41 TP132M4	Unit: VH100/101 \| Ratio i: 1.41 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 135.0-709.0 rpm \| Output torque M2: 82-197 Nm
	VH100/101 1,29 TP160M6	Unit: VH100/101 \| Ratio i: 1.29 \| Motor: TP160M6 \| Power P1: 7.50 kW \| Output speed n2: 94.0-497.0 rpm \| Output torque M2: 114-181 Nm
	VH050/101 2,03 TP132M4	Unit: VH050/101 \| Ratio i: 2.03 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 93.0-492.0 rpm \| Output torque M2: 118-126 Nm
	VH100/101 2,03 TP132M4	Unit: VH100/101 \| Ratio i: 2.03 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 93.0-492.0 rpm \| Output torque M2: 118-284 Nm
	VH100/101 1,41 TP160M6	Unit: VH100/101 \| Ratio i: 1.41 \| Motor: TP160M6 \| Power P1: 7.50 kW \| Output speed n2: 87.0-456.0 rpm \| Output torque M2: 124-197 Nm
	VH050/101 2,48 TP132M4	Unit: VH050/101 \| Ratio i: 2.48 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 77.0-403.0 rpm \| Output torque M2: 144-154 Nm
	VH050/121 2,48 TP132M4	Unit: VH050/121 \| Ratio i: 2.48 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 77.0-403.0 rpm \| Output torque M2: 144-154 Nm
	VH100/101 2,48 TP132M4	Unit: VH100/101 \| Ratio i: 2.48 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 77.0-403.0 rpm \| Output torque M2: 144-347 Nm
	VH100/121 2,48 TP132M4	Unit: VH100/121 \| Ratio i: 2.48 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 77.0-403.0 rpm \| Output torque M2: 144-346 Nm
	VH100/121 1,81 TP160M6	Unit: VH100/121 \| Ratio i: 1.81 \| Motor: TP160M6 \| Power P1: 7.50 kW \| Output speed n2: 68.0-356.0 rpm \| Output torque M2: 159-252 Nm
	VH050/121 2,95 TP132M4	Unit: VH050/121 \| Ratio i: 2.95 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 64.0-338.0 rpm \| Output torque M2: 171-183 Nm
	VH100/121 2,95 TP132M4	Unit: VH100/121 \| Ratio i: 2.95 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 64.0-338.0 rpm \| Output torque M2: 171-413 Nm
	VH100/121 2,00 TP160M6	Unit: VH100/121 \| Ratio i: 2.00 \| Motor: TP160M6 \| Power P1: 7.50 kW \| Output speed n2: 61.0-321.0 rpm \| Output torque M2: 176-279 Nm
	VH050/121 3,14 TP132M4	Unit: VH050/121 \| Ratio i: 3.14 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 60.0-318.0 rpm \| Output torque M2: 182-195 Nm
	VH100/121 3,14 TP132M4	Unit: VH100/121 \| Ratio i: 3.14 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 60.0-318.0 rpm \| Output torque M2: 182-439 Nm
	VH100/101 2,03 TP160M6	Unit: VH100/101 \| Ratio i: 2.03 \| Motor: TP160M6 \| Power P1: 7.50 kW \| Output speed n2: 60.0-316.0 rpm \| Output torque M2: 179-284 Nm
	VH050/101 3,27 TP132M4	Unit: VH050/101 \| Ratio i: 3.27 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 58.0-306.0 rpm \| Output torque M2: 189-203 Nm
	VH100/101 3,27 TP132M4	Unit: VH100/101 \| Ratio i: 3.27 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 58.0-306.0 rpm \| Output torque M2: 189-457 Nm
	VH050/121 3,58 TP132M4	Unit: VH050/121 \| Ratio i: 3.58 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 53.0-279.0 rpm \| Output torque M2: 207-222 Nm
	VH100/121 3,58 TP132M4	Unit: VH100/121 \| Ratio i: 3.58 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 53.0-279.0 rpm \| Output torque M2: 207-500 Nm
	VH050/101 3,70 TP132M4	Unit: VH050/101 \| Ratio i: 3.70 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 51.0-270.0 rpm \| Output torque M2: 214-230 Nm
	VH100/101 3,70 TP132M4	Unit: VH100/101 \| Ratio i: 3.70 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 51.0-270.0 rpm \| Output torque M2: 214-517 Nm
	VH100/101 2,48 TP160M6	Unit: VH100/101 \| Ratio i: 2.48 \| Motor: TP160M6 \| Power P1: 7.50 kW \| Output speed n2: 49.0-259.0 rpm \| Output torque M2: 218-347 Nm
	VH100/121 2,48 TP160M6	Unit: VH100/121 \| Ratio i: 2.48 \| Motor: TP160M6 \| Power P1: 7.50 kW \| Output speed n2: 49.0-259.0 rpm \| Output torque M2: 218-346 Nm
	VH050/121 4,12 TP132M4	Unit: VH050/121 \| Ratio i: 4.12 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 46.0-243.0 rpm \| Output torque M2: 238-256 Nm
	VH100/121 4,12 TP132M4	Unit: VH100/121 \| Ratio i: 4.12 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 46.0-243.0 rpm \| Output torque M2: 238-575 Nm
	VH050/101 4,22 TP132M4	Unit: VH050/101 \| Ratio i: 4.22 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 45.0-237.0 rpm \| Output torque M2: 244-262 Nm
	VH100/101 4,22 TP132M4	Unit: VH100/101 \| Ratio i: 4.22 \| Motor: TP132M4 \| Power P1: 7.50 kW \| Output speed n2: 45.0-237.0 rpm \| Output torque M2: 244-590 Nm
	VH100/121 2,95 TP160M6	Unit: VH100/121 \| Ratio i: 2.95 \| Motor: TP160M6 \| Power P1: 7.50 kW \| Output speed n2: 41.0-218.0 rpm \| Output torque M2: 260-413 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

Motovario VH Motovariator-Helical Gearmotors (VH030-VH100, cast iron)
