• Omron E3AS-F1500IM Distance-settable Photoelectric Sensor (Metal Case, 1500 mm, NPN/PNP, IO-Link)
1 1

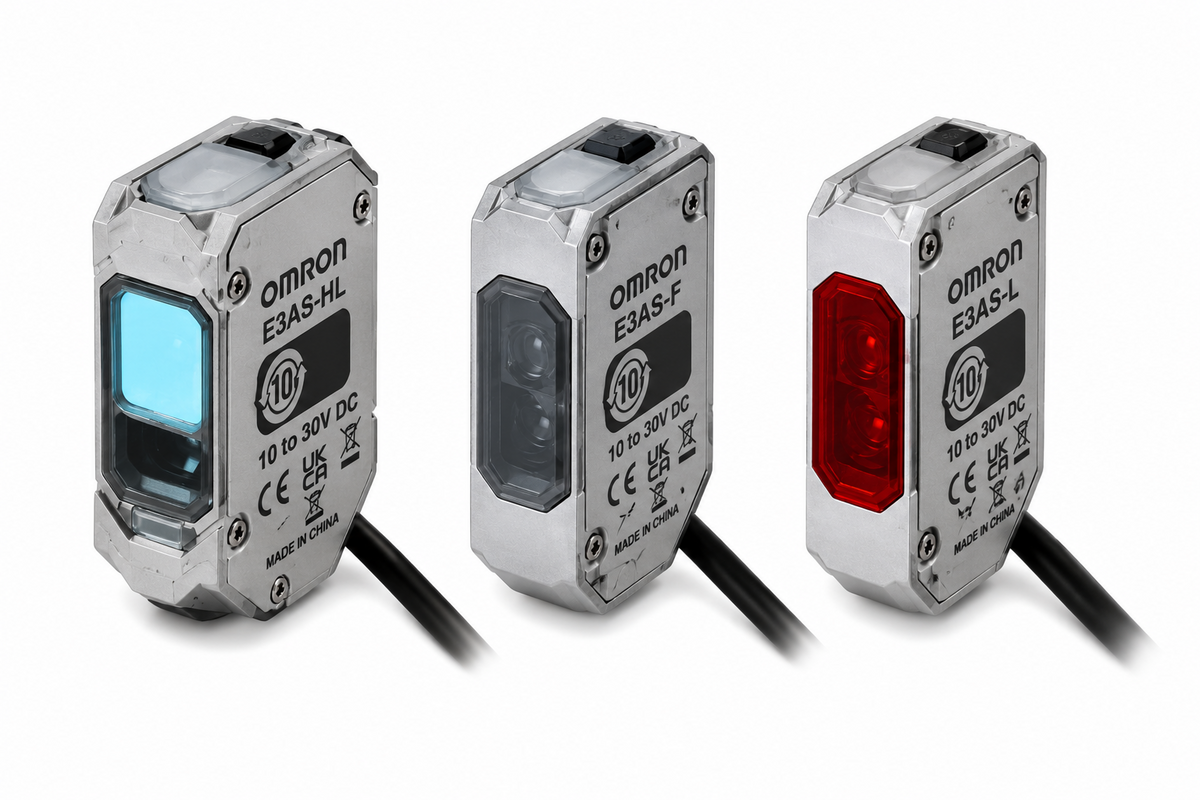

Omron E3AS-F1500IM Distance-settable Photoelectric Sensor (Metal Case, 1500 mm, NPN/PNP, IO-Link)

Omron E3AS-F1500IM Distance-settable Photoelectric Sensor (Metal Case, 1500 mm, NPN/PNP, IO-Link)

OMRON E3AS-F Series distance-settable photoelectric sensor, metal case, 1500 mm sensing distance (white paper, infrared light).

Key features

  • IO-Link COM3 (230.4 kbps)
  • NPN and PNP output
  • Connection: pre-wired 2 m / 5 m, M8 connector, M12 Smartclick 0.3 m
  • Mounting brackets E39-L201/202/203/204/211/212/214 (F/L-specific) and E39-L261/262/263 (common) sold separately
  • COM2 (38.4 kbps) and M8 pre-wired models available on request

Specifications

Sensing Distance 1,500 mm (white paper)
Light Source Infrared
Beam Type Spot
IO-Link COM3 (230.4 kbps)
Note COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix
Case Metal
E3AS-F1500IMN 2M Spot NPN Pre-wired 2 m | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: NPN | Connection: Pre-wired 2 m
E3AS-F1500IMT 2M Spot PNP Pre-wired 2 m | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: PNP | Connection: Pre-wired 2 m
E3AS-F1500IMN 5M Spot NPN Pre-wired 5 m | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: NPN | Connection: Pre-wired 5 m
E3AS-F1500IMT 5M Spot PNP Pre-wired 5 m | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: PNP | Connection: Pre-wired 5 m
E3AS-F1500IMN M3 Spot NPN M8 Connector | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: NPN | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3AS-F1500IMT M3 Spot PNP M8 Connector | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: PNP | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3AS-F1500IMN-M1TJ 0.3M Spot NPN M12 Pre-wired Smartclick Connector 0.3 m | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: NPN | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E3AS-F1500IMT-M1TJ 0.3M Spot PNP M12 Pre-wired Smartclick Connector 0.3 m | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: PNP | Connection: M12 Pre-wired Smartclick Connector 0.3 m
PhotoelectricOmron
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E3AS-F1500IM Distance-settable Photoelectric Sensor (Metal Case, 1500 mm, NPN/PNP, IO-Link)

Brand Omron·Photoelectric

Available part numbers (8)

E3AS-F1500IMN 2M, E3AS-F1500IMT 2M, E3AS-F1500IMN 5M, E3AS-F1500IMT 5M, E3AS-F1500IMN M3, E3AS-F1500IMT M3, E3AS-F1500IMN-M1TJ 0.3M, E3AS-F1500IMT-M1TJ 0.3M

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E3AS-F1500IMN 2MSpot NPN Pre-wired 2 m | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: NPN | Connection: Pre-wired 2 m
E3AS-F1500IMT 2MSpot PNP Pre-wired 2 m | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: PNP | Connection: Pre-wired 2 m
E3AS-F1500IMN 5MSpot NPN Pre-wired 5 m | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: NPN | Connection: Pre-wired 5 m
E3AS-F1500IMT 5MSpot PNP Pre-wired 5 m | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: PNP | Connection: Pre-wired 5 m
E3AS-F1500IMN M3Spot NPN M8 Connector | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: NPN | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3AS-F1500IMT M3Spot PNP M8 Connector | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: PNP | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3AS-F1500IMN-M1TJ 0.3MSpot NPN M12 Pre-wired Smartclick Connector 0.3 m | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: NPN | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E3AS-F1500IMT-M1TJ 0.3MSpot PNP M12 Pre-wired Smartclick Connector 0.3 m | Sensing Distance: 1,500 mm (white paper) | Light Source: Infrared | Beam Type: Spot | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Case: Metal | Output: PNP | Connection: M12 Pre-wired Smartclick Connector 0.3 m
