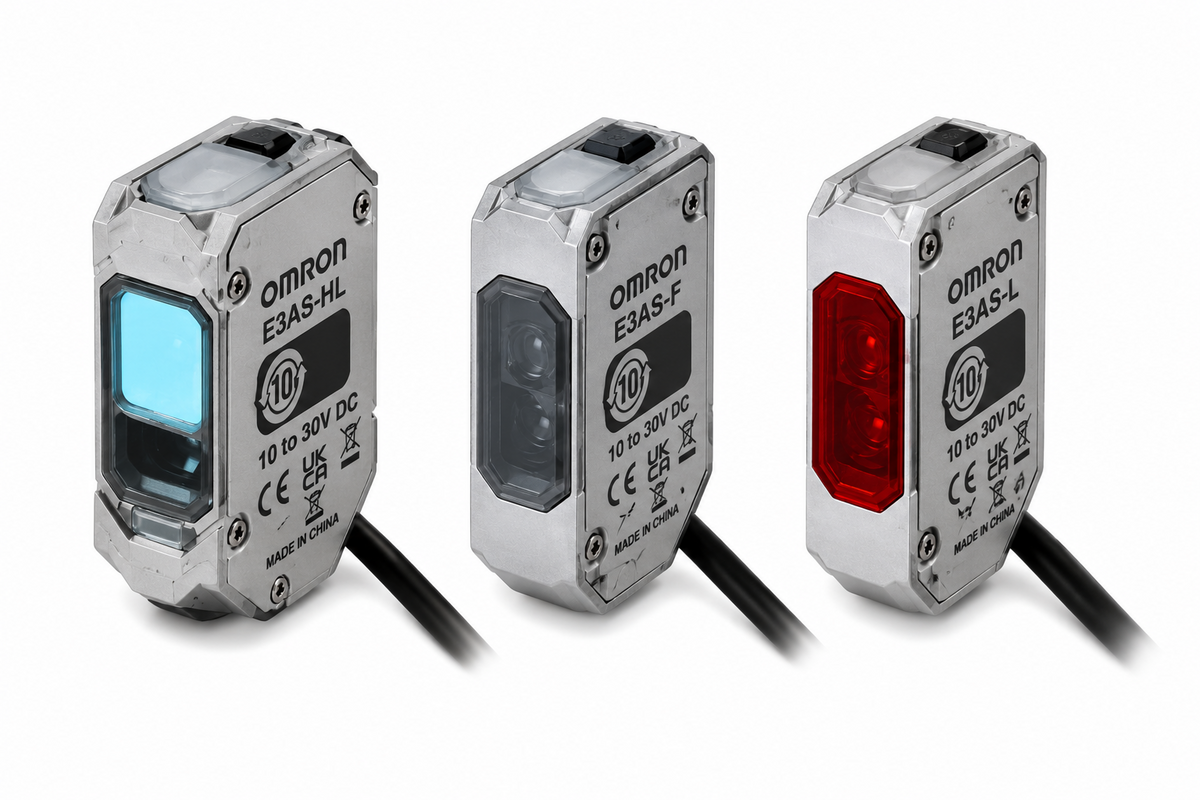

Omron E3AS-HL150LM Distance-settable Photoelectric Sensor (Line Beam, 150 mm, NPN/PNP, IO-Link)

Omron E3AS-HL150LM Distance-settable Photoelectric Sensor (Line Beam, 150 mm, NPN/PNP, IO-Link)

OMRON E3AS-HL Series distance-settable photoelectric sensor, line beam type, 150 mm sensing distance (white paper, red light).

Key features

  • IO-Link COM3 (230.4 kbps)
  • NPN and PNP output
  • Connection: pre-wired 2 m / 5 m, M8 connector, M12 Smartclick 0.3 m
  • Mounting brackets E39-L221/222/223/224/231/232/234 (HL-specific) and E39-L261/262/263 (common) sold separately
  • COM2 (38.4 kbps) and M8 pre-wired models available on request

Specifications

Sensing Distance 150 mm (white paper)
Light Source Red light
Beam Type Line beam
IO-Link COM3 (230.4 kbps)
Note COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix
E3AS-HL150LMN 2M Line beam NPN Pre-wired 2 m | Sensing Distance: 150 mm (white paper) | Light Source: Red light | Beam Type: Line beam | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Output: NPN | Connection: Pre-wired 2 m
E3AS-HL150LMT 2M Line beam PNP Pre-wired 2 m | Sensing Distance: 150 mm (white paper) | Light Source: Red light | Beam Type: Line beam | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Output: PNP | Connection: Pre-wired 2 m
E3AS-HL150LMN 5M Line beam NPN Pre-wired 5 m | Sensing Distance: 150 mm (white paper) | Light Source: Red light | Beam Type: Line beam | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Output: NPN | Connection: Pre-wired 5 m
E3AS-HL150LMT 5M Line beam PNP Pre-wired 5 m | Sensing Distance: 150 mm (white paper) | Light Source: Red light | Beam Type: Line beam | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Output: PNP | Connection: Pre-wired 5 m
E3AS-HL150LMN M3 Line beam NPN M8 Connector | Sensing Distance: 150 mm (white paper) | Light Source: Red light | Beam Type: Line beam | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Output: NPN | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3AS-HL150LMT M3 Line beam PNP M8 Connector | Sensing Distance: 150 mm (white paper) | Light Source: Red light | Beam Type: Line beam | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Output: PNP | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3AS-HL150LMN-M1TJ 0.3M Line beam NPN M12 Pre-wired Smartclick Connector 0.3 m | Sensing Distance: 150 mm (white paper) | Light Source: Red light | Beam Type: Line beam | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Output: NPN | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E3AS-HL150LMT-M1TJ 0.3M Line beam PNP M12 Pre-wired Smartclick Connector 0.3 m | Sensing Distance: 150 mm (white paper) | Light Source: Red light | Beam Type: Line beam | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Output: PNP | Connection: M12 Pre-wired Smartclick Connector 0.3 m
PhotoelectricOmron
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E3AS-HL150LM Distance-settable Photoelectric Sensor (Line Beam, 150 mm, NPN/PNP, IO-Link)

Brand Omron·Photoelectric

Available part numbers (8)

E3AS-HL150LMN 2M, E3AS-HL150LMT 2M, E3AS-HL150LMN 5M, E3AS-HL150LMT 5M, E3AS-HL150LMN M3, E3AS-HL150LMT M3, E3AS-HL150LMN-M1TJ 0.3M, E3AS-HL150LMT-M1TJ 0.3M

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E3AS-HL150LMN 2MLine beam NPN Pre-wired 2 m | Sensing Distance: 150 mm (white paper) | Light Source: Red light | Beam Type: Line beam | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Output: NPN | Connection: Pre-wired 2 m
E3AS-HL150LMT 2MLine beam PNP Pre-wired 2 m | Sensing Distance: 150 mm (white paper) | Light Source: Red light | Beam Type: Line beam | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Output: PNP | Connection: Pre-wired 2 m
E3AS-HL150LMN 5MLine beam NPN Pre-wired 5 m | Sensing Distance: 150 mm (white paper) | Light Source: Red light | Beam Type: Line beam | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Output: NPN | Connection: Pre-wired 5 m
E3AS-HL150LMT 5MLine beam PNP Pre-wired 5 m | Sensing Distance: 150 mm (white paper) | Light Source: Red light | Beam Type: Line beam | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Output: PNP | Connection: Pre-wired 5 m
E3AS-HL150LMN M3Line beam NPN M8 Connector | Sensing Distance: 150 mm (white paper) | Light Source: Red light | Beam Type: Line beam | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Output: NPN | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3AS-HL150LMT M3Line beam PNP M8 Connector | Sensing Distance: 150 mm (white paper) | Light Source: Red light | Beam Type: Line beam | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Output: PNP | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3AS-HL150LMN-M1TJ 0.3MLine beam NPN M12 Pre-wired Smartclick Connector 0.3 m | Sensing Distance: 150 mm (white paper) | Light Source: Red light | Beam Type: Line beam | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Output: NPN | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E3AS-HL150LMT-M1TJ 0.3MLine beam PNP M12 Pre-wired Smartclick Connector 0.3 m | Sensing Distance: 150 mm (white paper) | Light Source: Red light | Beam Type: Line beam | IO-Link: COM3 (230.4 kbps) | Note: COM2 (38.4 kbps) models also available — add 'D' suffix; M8 pre-wired models — add '-M3J 0.3M' suffix | Output: PNP | Connection: M12 Pre-wired Smartclick Connector 0.3 m
