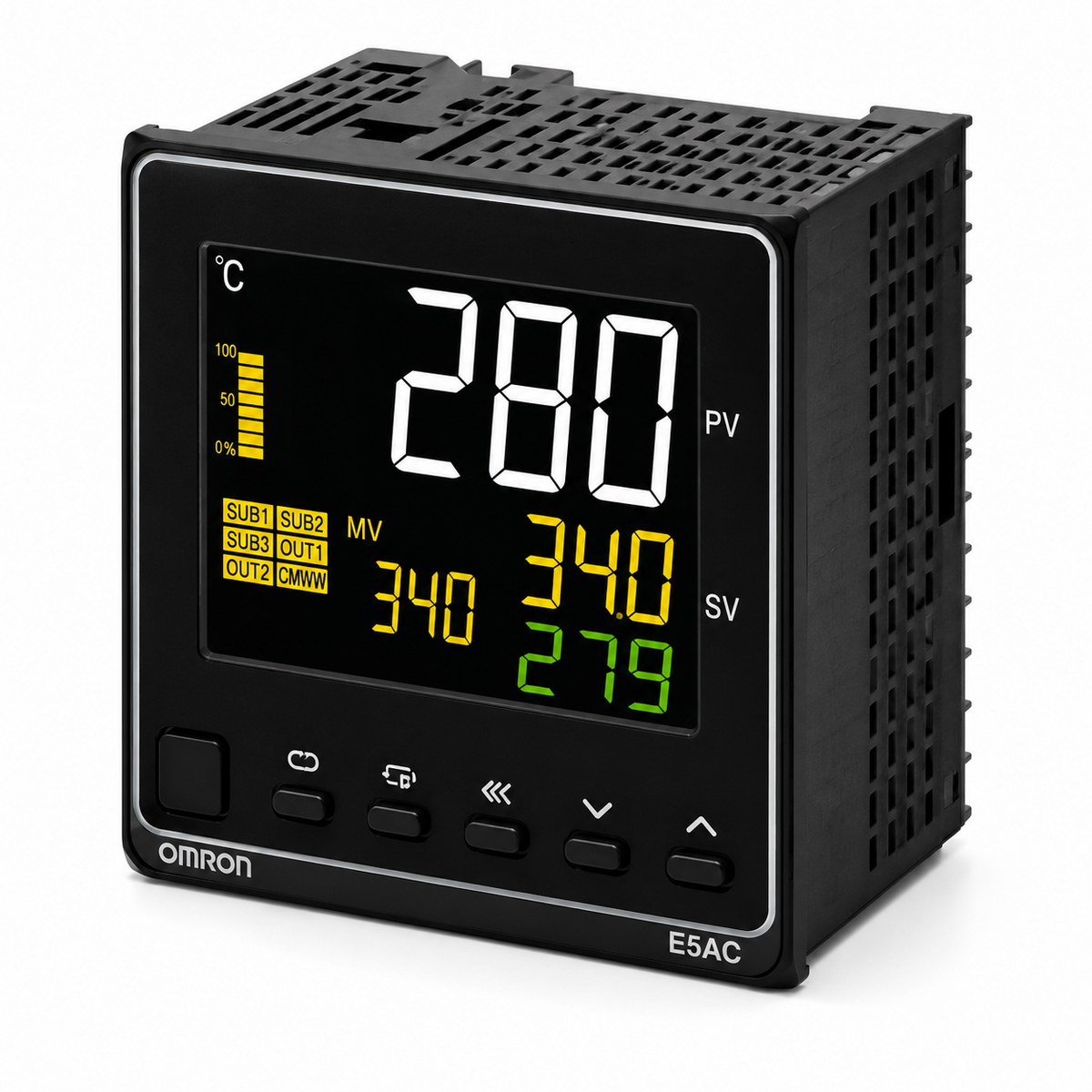

• Omron E5AC-QX45AM Digital Temperature Controller (96x96mm, Voltage Pulse Output, 100~240VAC, Screw Terminal)
1 1

Omron E5AC-QX45AM Digital Temperature Controller (96x96mm, Voltage Pulse Output, 100~240VAC, Screw Terminal)

Omron E5AC-QX45AM Digital Temperature Controller (96x96mm, Voltage Pulse Output, 100~240VAC, Screw Terminal)

96 x 96 mm.

Key features

  • Large White PV Display That's Easier to Read
  • Easy to Use, from Model Selection to Setup and Operation
  • Control output 1: Voltage Pulse
  • Control output 2: None
  • Auxiliary outputs: 4
  • Power supply: 100~240VAC

Specifications

Size 96x96mm
Control Output 1 Voltage Pulse
Control Output 2 None
Auxiliary Outputs 4
Power Supply 100~240VAC
Terminal Screw Terminal (with cover)
Input Universal (M)
E5AC-QX45AM-000 E5AC, Voltage Pulse+None, 4 aux, 100~240VAC, Screw, No options | Size: 96x96mm | Control Output 1: Voltage Pulse | Control Output 2: None | Auxiliary Outputs: 4 | Power Supply: 100~240VAC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: No options
E5AC-QX45AM-004 E5AC, Voltage Pulse+None, 4 aux, 100~240VAC, Screw, RS-485 + 2 event inputs | Size: 96x96mm | Control Output 1: Voltage Pulse | Control Output 2: None | Auxiliary Outputs: 4 | Power Supply: 100~240VAC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: RS-485 + 2 event inputs
E5AC-QX45AM-005 E5AC, Voltage Pulse+None, 4 aux, 100~240VAC, Screw, 4 event inputs | Size: 96x96mm | Control Output 1: Voltage Pulse | Control Output 2: None | Auxiliary Outputs: 4 | Power Supply: 100~240VAC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: 4 event inputs
E5AC-QX45AM-009 E5AC, Voltage Pulse+None, 4 aux, 100~240VAC, Screw, HB/HS alarm (for 3-phase heaters) + RS-485 + 2 event inputs | Size: 96x96mm | Control Output 1: Voltage Pulse | Control Output 2: None | Auxiliary Outputs: 4 | Power Supply: 100~240VAC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: HB/HS alarm (for 3-phase heaters) + RS-485 + 2 event inputs
E5AC-QX45AM-010 E5AC, Voltage Pulse+None, 4 aux, 100~240VAC, Screw, HB/HS alarm + 1 event input | Size: 96x96mm | Control Output 1: Voltage Pulse | Control Output 2: None | Auxiliary Outputs: 4 | Power Supply: 100~240VAC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: HB/HS alarm + 1 event input
E5AC-QX45AM-011 E5AC, Voltage Pulse+None, 4 aux, 100~240VAC, Screw, HB/HS alarm + 1 event input + 6 event inputs total | Size: 96x96mm | Control Output 1: Voltage Pulse | Control Output 2: None | Auxiliary Outputs: 4 | Power Supply: 100~240VAC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: HB/HS alarm + 1 event input + 6 event inputs total
E5AC-QX45AM-013 E5AC, Voltage Pulse+None, 4 aux, 100~240VAC, Screw, 6 event inputs + Remote SP + Transfer output | Size: 96x96mm | Control Output 1: Voltage Pulse | Control Output 2: None | Auxiliary Outputs: 4 | Power Supply: 100~240VAC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: 6 event inputs + Remote SP + Transfer output
E5AC-QX45AM-014 E5AC, Voltage Pulse+None, 4 aux, 100~240VAC, Screw, RS-485 + 4 event inputs + Remote SP + Transfer output | Size: 96x96mm | Control Output 1: Voltage Pulse | Control Output 2: None | Auxiliary Outputs: 4 | Power Supply: 100~240VAC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: RS-485 + 4 event inputs + Remote SP + Transfer output
Temperature ControllerOmron
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E5AC-QX45AM Digital Temperature Controller (96x96mm, Voltage Pulse Output, 100~240VAC, Screw Terminal)

Brand Omron·Temperature Controller

Available part numbers (8)

E5AC-QX45AM-000, E5AC-QX45AM-004, E5AC-QX45AM-005, E5AC-QX45AM-009, E5AC-QX45AM-010, E5AC-QX45AM-011, E5AC-QX45AM-013, E5AC-QX45AM-014

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E5AC-QX45AM-000E5AC, Voltage Pulse+None, 4 aux, 100~240VAC, Screw, No options | Size: 96x96mm | Control Output 1: Voltage Pulse | Control Output 2: None | Auxiliary Outputs: 4 | Power Supply: 100~240VAC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: No options
E5AC-QX45AM-004E5AC, Voltage Pulse+None, 4 aux, 100~240VAC, Screw, RS-485 + 2 event inputs | Size: 96x96mm | Control Output 1: Voltage Pulse | Control Output 2: None | Auxiliary Outputs: 4 | Power Supply: 100~240VAC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: RS-485 + 2 event inputs
E5AC-QX45AM-005E5AC, Voltage Pulse+None, 4 aux, 100~240VAC, Screw, 4 event inputs | Size: 96x96mm | Control Output 1: Voltage Pulse | Control Output 2: None | Auxiliary Outputs: 4 | Power Supply: 100~240VAC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: 4 event inputs
E5AC-QX45AM-009E5AC, Voltage Pulse+None, 4 aux, 100~240VAC, Screw, HB/HS alarm (for 3-phase heaters) + RS-485 + 2 event inputs | Size: 96x96mm | Control Output 1: Voltage Pulse | Control Output 2: None | Auxiliary Outputs: 4 | Power Supply: 100~240VAC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: HB/HS alarm (for 3-phase heaters) + RS-485 + 2 event inputs
E5AC-QX45AM-010E5AC, Voltage Pulse+None, 4 aux, 100~240VAC, Screw, HB/HS alarm + 1 event input | Size: 96x96mm | Control Output 1: Voltage Pulse | Control Output 2: None | Auxiliary Outputs: 4 | Power Supply: 100~240VAC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: HB/HS alarm + 1 event input
E5AC-QX45AM-011E5AC, Voltage Pulse+None, 4 aux, 100~240VAC, Screw, HB/HS alarm + 1 event input + 6 event inputs total | Size: 96x96mm | Control Output 1: Voltage Pulse | Control Output 2: None | Auxiliary Outputs: 4 | Power Supply: 100~240VAC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: HB/HS alarm + 1 event input + 6 event inputs total
E5AC-QX45AM-013E5AC, Voltage Pulse+None, 4 aux, 100~240VAC, Screw, 6 event inputs + Remote SP + Transfer output | Size: 96x96mm | Control Output 1: Voltage Pulse | Control Output 2: None | Auxiliary Outputs: 4 | Power Supply: 100~240VAC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: 6 event inputs + Remote SP + Transfer output
E5AC-QX45AM-014E5AC, Voltage Pulse+None, 4 aux, 100~240VAC, Screw, RS-485 + 4 event inputs + Remote SP + Transfer output | Size: 96x96mm | Control Output 1: Voltage Pulse | Control Output 2: None | Auxiliary Outputs: 4 | Power Supply: 100~240VAC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: RS-485 + 4 event inputs + Remote SP + Transfer output
