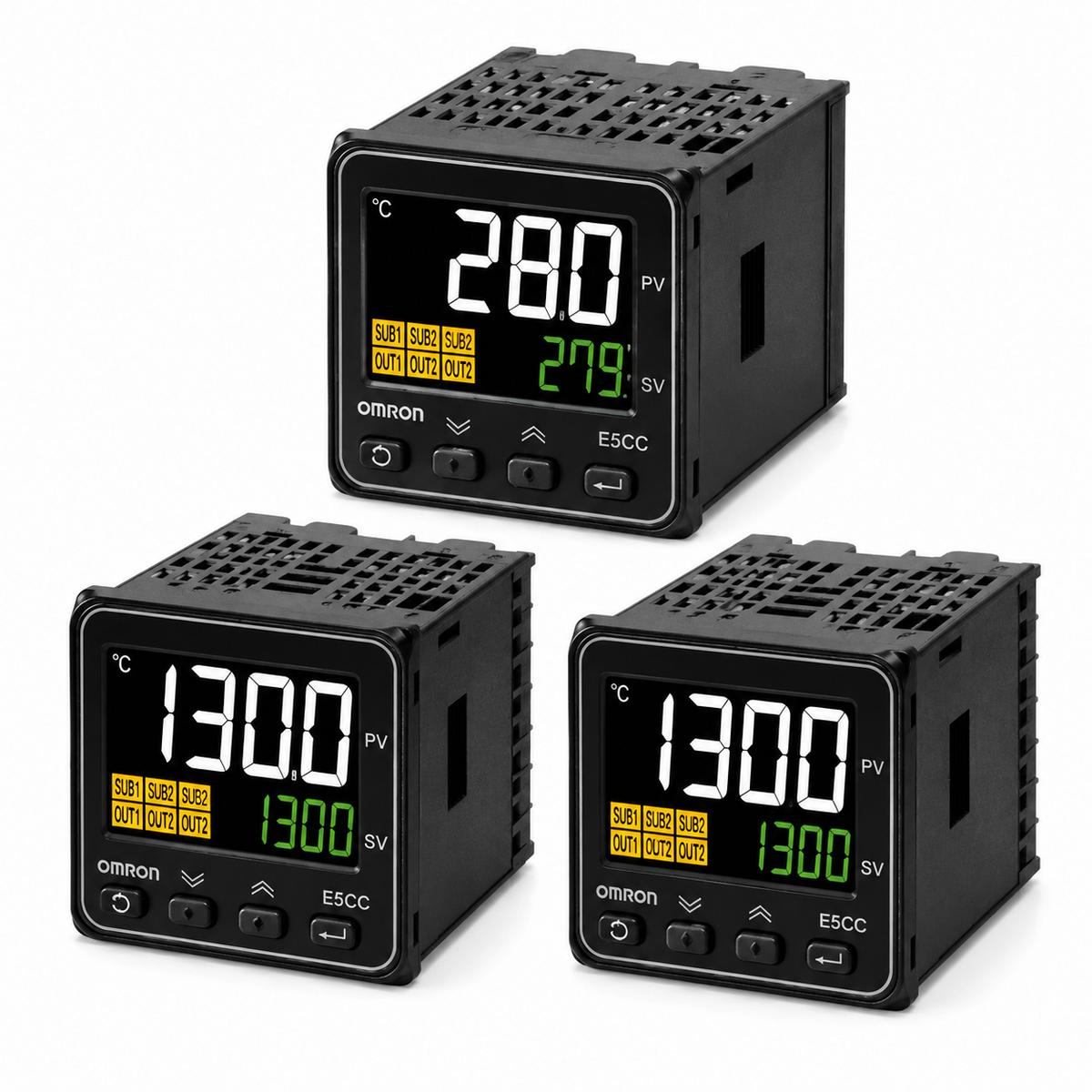

• Omron E5CC-RW[0/1/2]DUM Digital Temperature Controller (48x48mm, Relay (SPDT) Output, 24VAC/VDC, Plug-in)
1 1

Omron E5CC-RW[0/1/2]DUM Digital Temperature Controller (48x48mm, Relay (SPDT) Output, 24VAC/VDC, Plug-in)

Omron E5CC-RW[0/1/2]DUM Digital Temperature Controller (48x48mm, Relay (SPDT) Output, 24VAC/VDC, Plug-in)

48 x 48 mm.

Key features

  • Plug-in model (E5CC-U)
  • Control output: Relay (SPDT)
  • Power supply: 24VAC/VDC
  • Plug-in terminal
  • Universal input

Specifications

Size 48x48mm
Control Output 1 Relay (SPDT)
Control Output 2 None
Power Supply 24VAC/VDC
Terminal Plug-in (U)
Input Universal (M)
Option No options
E5CC-RW0DUM-000 E5CC-U, Relay (SPDT), 0 aux, 24VAC/VDC, Plug-in, No options | Size: 48x48mm | Control Output 1: Relay (SPDT) | Control Output 2: None | Auxiliary Outputs: 0 | Power Supply: 24VAC/VDC | Terminal: Plug-in (U) | Input: Universal (M) | Option: No options
E5CC-RW1DUM-000 E5CC-U, Relay (SPDT), 1 aux, 24VAC/VDC, Plug-in, No options | Size: 48x48mm | Control Output 1: Relay (SPDT) | Control Output 2: None | Auxiliary Outputs: 1 | Power Supply: 24VAC/VDC | Terminal: Plug-in (U) | Input: Universal (M) | Option: No options
E5CC-RW2DUM-000 E5CC-U, Relay (SPDT), 2 aux, 24VAC/VDC, Plug-in, No options | Size: 48x48mm | Control Output 1: Relay (SPDT) | Control Output 2: None | Auxiliary Outputs: 2 | Power Supply: 24VAC/VDC | Terminal: Plug-in (U) | Input: Universal (M) | Option: No options
Temperature ControllerOmron
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E5CC-RW[0/1/2]DUM Digital Temperature Controller (48x48mm, Relay (SPDT) Output, 24VAC/VDC, Plug-in)

Brand Omron·Temperature Controller

Available part numbers (3)

E5CC-RW0DUM-000, E5CC-RW1DUM-000, E5CC-RW2DUM-000

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E5CC-RW0DUM-000E5CC-U, Relay (SPDT), 0 aux, 24VAC/VDC, Plug-in, No options | Size: 48x48mm | Control Output 1: Relay (SPDT) | Control Output 2: None | Auxiliary Outputs: 0 | Power Supply: 24VAC/VDC | Terminal: Plug-in (U) | Input: Universal (M) | Option: No options
E5CC-RW1DUM-000E5CC-U, Relay (SPDT), 1 aux, 24VAC/VDC, Plug-in, No options | Size: 48x48mm | Control Output 1: Relay (SPDT) | Control Output 2: None | Auxiliary Outputs: 1 | Power Supply: 24VAC/VDC | Terminal: Plug-in (U) | Input: Universal (M) | Option: No options
E5CC-RW2DUM-000E5CC-U, Relay (SPDT), 2 aux, 24VAC/VDC, Plug-in, No options | Size: 48x48mm | Control Output 1: Relay (SPDT) | Control Output 2: None | Auxiliary Outputs: 2 | Power Supply: 24VAC/VDC | Terminal: Plug-in (U) | Input: Universal (M) | Option: No options
