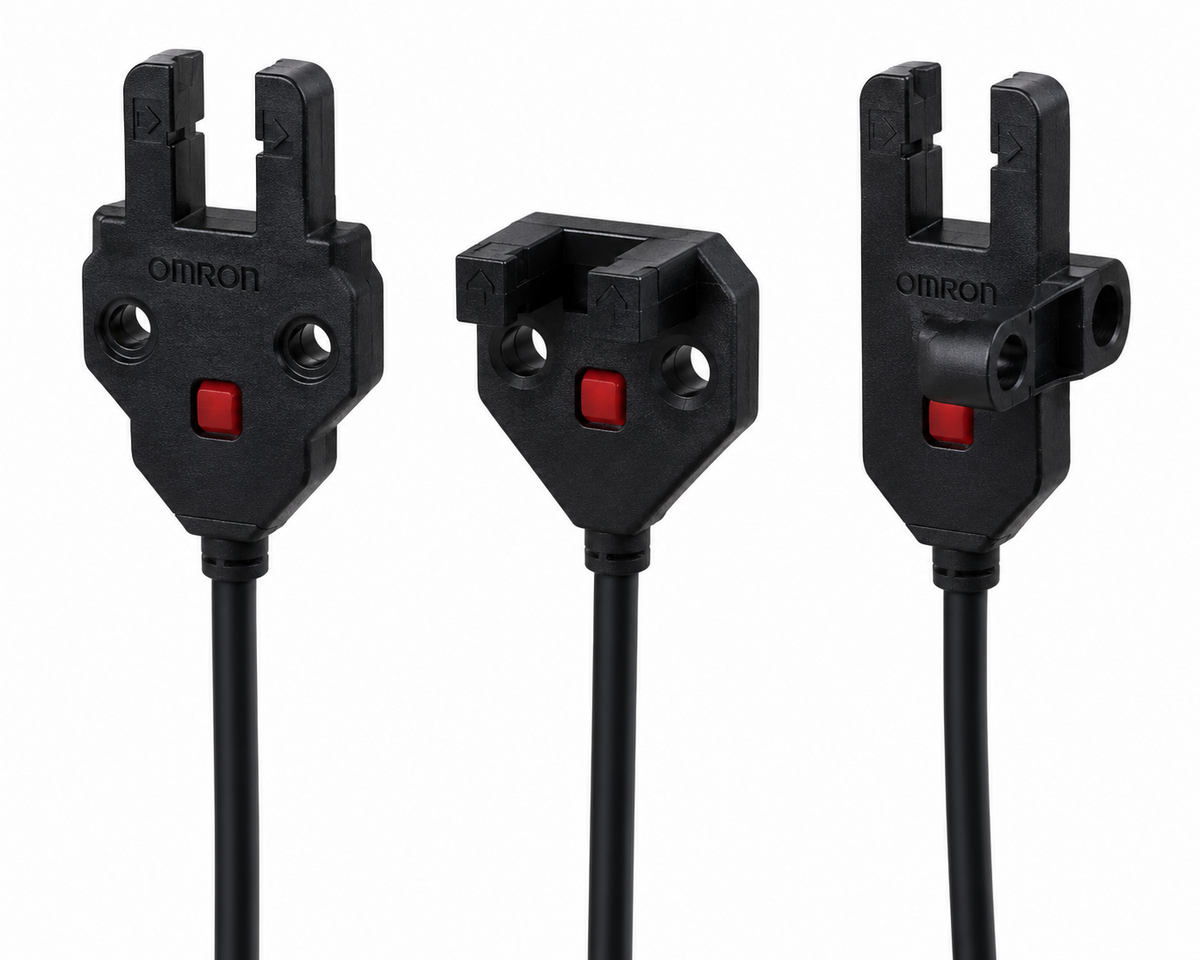

Omron EE-SX77 / EE-SX87 Slim Cable Photomicrosensor (5mm Slot, NPN/PNP, Standard/L/T-shaped)

OMRON EE-SX77 / EE-SX87 Series slim compact photomicrosensor (non-modulated).

Key features

Through-beam with 5mm slot
Infrared
Pre-wired 2m
ISO13849-1 (PLc, cat1). 3 shapes: Standard/L/T
Dark-ON and Light-ON
NPN and PNP

Specifications

Sensing Method	Through-beam with slot
Slot Width	5 mm
Light	Infrared
Cable	Pre-wired 2 m
Standard	ISO13849-1 PLc cat1

EE-SX770 2M		EE-SX77/87 Standard Dark-ON Incident light NPN 2m \| Shape: Standard \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: Incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX770A 2M		EE-SX77/87 Standard Dark-ON No incident light NPN 2m \| Shape: Standard \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: No incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX770P 2M		EE-SX77/87 Standard Dark-ON Incident light PNP 2m \| Shape: Standard \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: Incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX770R 2M		EE-SX77/87 Standard Dark-ON No incident light PNP 2m \| Shape: Standard \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: No incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX870 2M		EE-SX77/87 Standard Light-ON Incident light NPN 2m \| Shape: Standard \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: Incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX870A 2M		EE-SX77/87 Standard Light-ON No incident light NPN 2m \| Shape: Standard \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: No incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX870P 2M		EE-SX77/87 Standard Light-ON Incident light PNP 2m \| Shape: Standard \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: Incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX870R 2M		EE-SX77/87 Standard Light-ON No incident light PNP 2m \| Shape: Standard \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: No incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX771 2M		EE-SX77/87 L-shaped Dark-ON Incident light NPN 2m \| Shape: L-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: Incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX771A 2M		EE-SX77/87 L-shaped Dark-ON No incident light NPN 2m \| Shape: L-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: No incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX771P 2M		EE-SX77/87 L-shaped Dark-ON Incident light PNP 2m \| Shape: L-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: Incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX771R 2M		EE-SX77/87 L-shaped Dark-ON No incident light PNP 2m \| Shape: L-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: No incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX871 2M		EE-SX77/87 L-shaped Light-ON Incident light NPN 2m \| Shape: L-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: Incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX871A 2M		EE-SX77/87 L-shaped Light-ON No incident light NPN 2m \| Shape: L-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: No incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX871P 2M		EE-SX77/87 L-shaped Light-ON Incident light PNP 2m \| Shape: L-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: Incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX871R 2M		EE-SX77/87 L-shaped Light-ON No incident light PNP 2m \| Shape: L-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: No incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX772 2M		EE-SX77/87 T-shaped Dark-ON Incident light NPN 2m \| Shape: T-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: Incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX772A 2M		EE-SX77/87 T-shaped Dark-ON No incident light NPN 2m \| Shape: T-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: No incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX772P 2M		EE-SX77/87 T-shaped Dark-ON Incident light PNP 2m \| Shape: T-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: Incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX772R 2M		EE-SX77/87 T-shaped Dark-ON No incident light PNP 2m \| Shape: T-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: No incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX872 2M		EE-SX77/87 T-shaped Light-ON Incident light NPN 2m \| Shape: T-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: Incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX872A 2M		EE-SX77/87 T-shaped Light-ON No incident light NPN 2m \| Shape: T-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: No incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX872P 2M		EE-SX77/87 T-shaped Light-ON Incident light PNP 2m \| Shape: T-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: Incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
EE-SX872R 2M		EE-SX77/87 T-shaped Light-ON No incident light PNP 2m \| Shape: T-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: No incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1

PhotomicroOmron

24 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron EE-SX77 / EE-SX87 Slim Cable Photomicrosensor (5mm Slot, NPN/PNP, Standard/L/T-shaped)

Brand Omron·Photomicro

Available part numbers (24)

EE-SX770 2M, EE-SX770A 2M, EE-SX770P 2M, EE-SX770R 2M, EE-SX870 2M, EE-SX870A 2M, EE-SX870P 2M, EE-SX870R 2M, EE-SX771 2M, EE-SX771A 2M + 14 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	EE-SX770 2M	EE-SX77/87 Standard Dark-ON Incident light NPN 2m \| Shape: Standard \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: Incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX770A 2M	EE-SX77/87 Standard Dark-ON No incident light NPN 2m \| Shape: Standard \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: No incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX770P 2M	EE-SX77/87 Standard Dark-ON Incident light PNP 2m \| Shape: Standard \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: Incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX770R 2M	EE-SX77/87 Standard Dark-ON No incident light PNP 2m \| Shape: Standard \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: No incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX870 2M	EE-SX77/87 Standard Light-ON Incident light NPN 2m \| Shape: Standard \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: Incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX870A 2M	EE-SX77/87 Standard Light-ON No incident light NPN 2m \| Shape: Standard \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: No incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX870P 2M	EE-SX77/87 Standard Light-ON Incident light PNP 2m \| Shape: Standard \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: Incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX870R 2M	EE-SX77/87 Standard Light-ON No incident light PNP 2m \| Shape: Standard \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: No incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX771 2M	EE-SX77/87 L-shaped Dark-ON Incident light NPN 2m \| Shape: L-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: Incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX771A 2M	EE-SX77/87 L-shaped Dark-ON No incident light NPN 2m \| Shape: L-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: No incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX771P 2M	EE-SX77/87 L-shaped Dark-ON Incident light PNP 2m \| Shape: L-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: Incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX771R 2M	EE-SX77/87 L-shaped Dark-ON No incident light PNP 2m \| Shape: L-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: No incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX871 2M	EE-SX77/87 L-shaped Light-ON Incident light NPN 2m \| Shape: L-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: Incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX871A 2M	EE-SX77/87 L-shaped Light-ON No incident light NPN 2m \| Shape: L-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: No incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX871P 2M	EE-SX77/87 L-shaped Light-ON Incident light PNP 2m \| Shape: L-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: Incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX871R 2M	EE-SX77/87 L-shaped Light-ON No incident light PNP 2m \| Shape: L-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: No incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX772 2M	EE-SX77/87 T-shaped Dark-ON Incident light NPN 2m \| Shape: T-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: Incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX772A 2M	EE-SX77/87 T-shaped Dark-ON No incident light NPN 2m \| Shape: T-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: No incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX772P 2M	EE-SX77/87 T-shaped Dark-ON Incident light PNP 2m \| Shape: T-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: Incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX772R 2M	EE-SX77/87 T-shaped Dark-ON No incident light PNP 2m \| Shape: T-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Dark-ON \| Indicator: No incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX872 2M	EE-SX77/87 T-shaped Light-ON Incident light NPN 2m \| Shape: T-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: Incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX872A 2M	EE-SX77/87 T-shaped Light-ON No incident light NPN 2m \| Shape: T-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: No incident light \| Output: NPN \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX872P 2M	EE-SX77/87 T-shaped Light-ON Incident light PNP 2m \| Shape: T-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: Incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
	EE-SX872R 2M	EE-SX77/87 T-shaped Light-ON No incident light PNP 2m \| Shape: T-shaped \| Sensing Method: Through-beam with slot \| Slot Width: 5 mm \| Light: Infrared \| Operation Mode: Light-ON \| Indicator: No incident light \| Output: PNP \| Cable: Pre-wired 2 m \| Standard: ISO13849-1 PLc cat1
