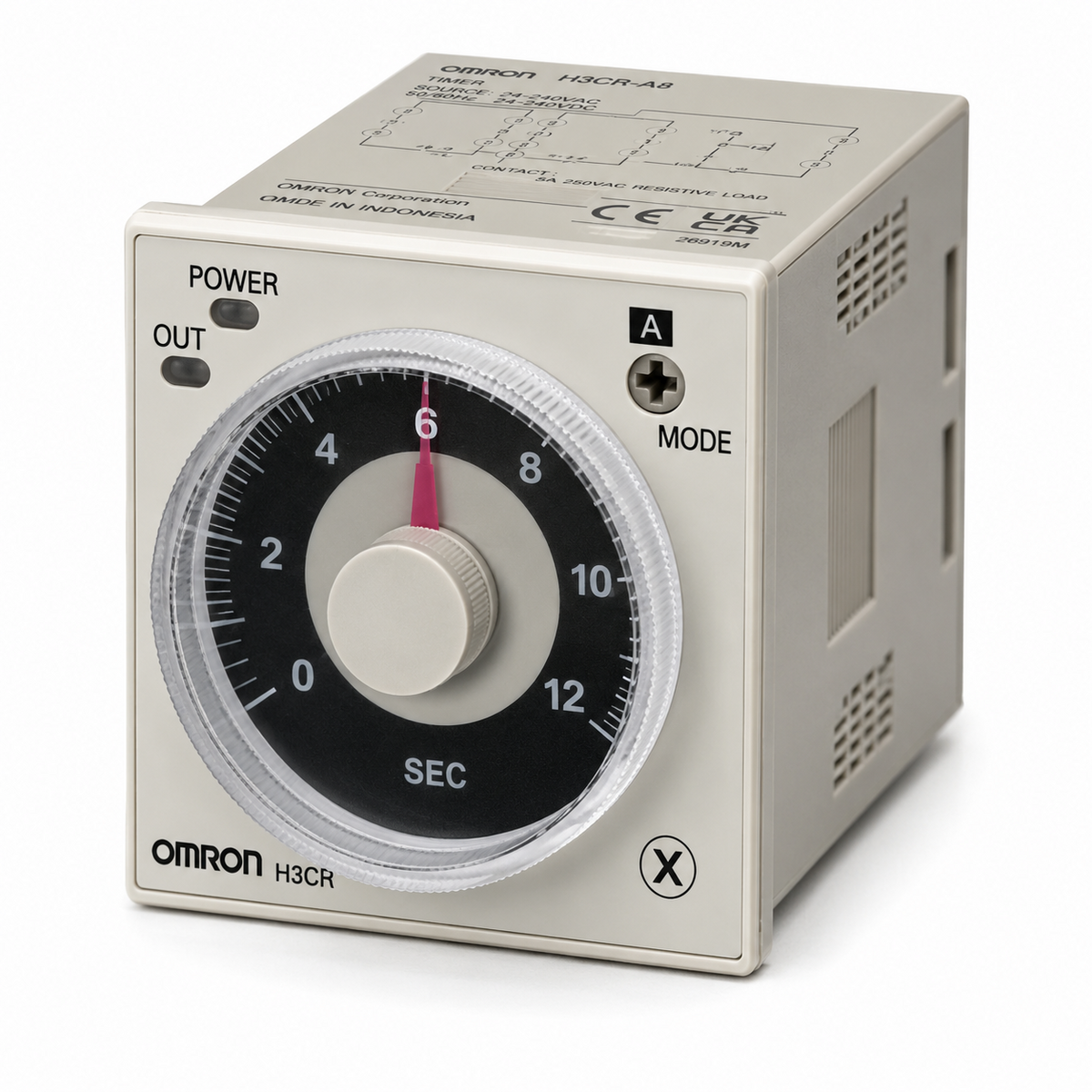

• Omron H3CR-A Solid-state Multi-functional Timer (48x48mm, 8 Operating Modes, 0.05s~600h, Contact/Transistor Output)
1 1

Omron H3CR-A Solid-state Multi-functional Timer (48x48mm, 8 Operating Modes, 0.05s~600h, Contact/Transistor Output)

Omron H3CR-A Solid-state Multi-functional Timer (48x48mm, 8 Operating Modes, 0.05s~600h, Contact/Transistor Output)

Multiple Operating Modes and Multiple Time Ranges.

Key features

  • DIN 48x48mm Multifunctional Timer. 11-pin models: 8 multi-modes (A/B/B2/C/D/E/G/J). 8-pin models: 5 multi-modes (A/B/B2/E/J, power supply start)
  • Time ranges: 0.05s~300h or 0.1s~600h
  • Contact and Transistor (Photocoupler) output variants
H3CR-A 11-pin, Contact output, No-voltage input, 0.05s~300h, 8 modes, 100~240VAC/100~125VDC or 24~48VAC/12~48VDC | Pins: 11 | Output: Contact | Input: No-voltage | Time Range: 0.05s to 300h | Modes: A/B/B2/C/D/E/G/J (8 modes) | Supply Voltage: 100~240VAC (50/60Hz) / 100~125VDC or 24~48VAC (50/60Hz) / 12~48VDC
H3CR-AP 11-pin, Contact output, Voltage input, 0.05s~300h, 8 modes, 100~240VAC/100~125VDC or 24~48VAC/12~48VDC | Pins: 11 | Output: Contact | Input: Voltage input | Time Range: 0.05s to 300h | Modes: A/B/B2/C/D/E/G/J (8 modes) | Supply Voltage: 100~240VAC (50/60Hz) / 100~125VDC or 24~48VAC (50/60Hz) / 12~48VDC
H3CR-A-301 11-pin, Contact output, No-voltage input, 0.1s~600h, 8 modes, 100~240VAC/100~125VDC or 24~48VAC/12~48VDC | Pins: 11 | Output: Contact | Input: No-voltage | Time Range: 0.1s to 600h | Modes: A/B/B2/C/D/E/G/J (8 modes) | Supply Voltage: 100~240VAC (50/60Hz) / 100~125VDC or 24~48VAC (50/60Hz) / 12~48VDC
H3CR-AS 11-pin, Transistor (Photocoupler) output, No-voltage input, 0.05s~300h, 8 modes, 24~48VAC/12~48VDC | Pins: 11 | Output: Transistor (Photocoupler) | Input: No-voltage | Time Range: 0.05s to 300h | Modes: A/B/B2/C/D/E/G/J (8 modes) | Supply Voltage: 24~48VAC (50/60Hz) / 12~48VDC
H3CR-A8 8-pin, Contact output, No-input, 0.05s~300h, 5 modes, 100~240VAC/100~125VDC or 24~48VAC/12~48VDC | Pins: 8 | Output: Contact | Input: No-input available | Time Range: 0.05s to 300h | Modes: A/B/B2/E/J (5 modes, power supply start) | Supply Voltage: 100~240VAC (50/60Hz) / 100~125VDC or 24~48VAC (50/60Hz) / 12~48VDC
H3CR-A8-301 8-pin, Contact output, No-input, 0.1s~600h, 5 modes, 100~240VAC/100~125VDC or 24~48VAC/12~48VDC | Pins: 8 | Output: Contact | Input: No-input available | Time Range: 0.1s to 600h | Modes: A/B/B2/E/J (5 modes, power supply start) | Supply Voltage: 100~240VAC (50/60Hz) / 100~125VDC or 24~48VAC (50/60Hz) / 12~48VDC
H3CR-A8S 8-pin, Transistor (Photocoupler) output, No-input, 0.05s~300h, 5 modes, 24~48VAC/12~48VDC | Pins: 8 | Output: Transistor (Photocoupler) | Input: No-input available | Time Range: 0.05s to 300h | Modes: A/B/B2/E/J (5 modes, power supply start) | Supply Voltage: 24~48VAC (50/60Hz) / 12~48VDC
H3CR-A8E 8-pin, Time-limit + Instantaneous contact output, No-input, 0.05s~300h, 5 modes, 100~240VAC or 24~48VAC/VDC | Pins: 8 | Output: Time-limit contact + Instantaneous contact | Input: No-input available | Time Range: 0.05s to 300h | Modes: A/B/B2/E/J (5 modes, power supply start) | Supply Voltage: 100~240VAC (50/60Hz) / 100~125VDC or 24~48VAC/VDC (50/60Hz)
TimerOmron
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron H3CR-A Solid-state Multi-functional Timer (48x48mm, 8 Operating Modes, 0.05s~600h, Contact/Transistor Output)

Brand Omron·Timer

Available part numbers (8)

H3CR-A, H3CR-AP, H3CR-A-301, H3CR-AS, H3CR-A8, H3CR-A8-301, H3CR-A8S, H3CR-A8E

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
H3CR-A11-pin, Contact output, No-voltage input, 0.05s~300h, 8 modes, 100~240VAC/100~125VDC or 24~48VAC/12~48VDC | Pins: 11 | Output: Contact | Input: No-voltage | Time Range: 0.05s to 300h | Modes: A/B/B2/C/D/E/G/J (8 modes) | Supply Voltage: 100~240VAC (50/60Hz) / 100~125VDC or 24~48VAC (50/60Hz) / 12~48VDC
H3CR-AP11-pin, Contact output, Voltage input, 0.05s~300h, 8 modes, 100~240VAC/100~125VDC or 24~48VAC/12~48VDC | Pins: 11 | Output: Contact | Input: Voltage input | Time Range: 0.05s to 300h | Modes: A/B/B2/C/D/E/G/J (8 modes) | Supply Voltage: 100~240VAC (50/60Hz) / 100~125VDC or 24~48VAC (50/60Hz) / 12~48VDC
H3CR-A-30111-pin, Contact output, No-voltage input, 0.1s~600h, 8 modes, 100~240VAC/100~125VDC or 24~48VAC/12~48VDC | Pins: 11 | Output: Contact | Input: No-voltage | Time Range: 0.1s to 600h | Modes: A/B/B2/C/D/E/G/J (8 modes) | Supply Voltage: 100~240VAC (50/60Hz) / 100~125VDC or 24~48VAC (50/60Hz) / 12~48VDC
H3CR-AS11-pin, Transistor (Photocoupler) output, No-voltage input, 0.05s~300h, 8 modes, 24~48VAC/12~48VDC | Pins: 11 | Output: Transistor (Photocoupler) | Input: No-voltage | Time Range: 0.05s to 300h | Modes: A/B/B2/C/D/E/G/J (8 modes) | Supply Voltage: 24~48VAC (50/60Hz) / 12~48VDC
H3CR-A88-pin, Contact output, No-input, 0.05s~300h, 5 modes, 100~240VAC/100~125VDC or 24~48VAC/12~48VDC | Pins: 8 | Output: Contact | Input: No-input available | Time Range: 0.05s to 300h | Modes: A/B/B2/E/J (5 modes, power supply start) | Supply Voltage: 100~240VAC (50/60Hz) / 100~125VDC or 24~48VAC (50/60Hz) / 12~48VDC
H3CR-A8-3018-pin, Contact output, No-input, 0.1s~600h, 5 modes, 100~240VAC/100~125VDC or 24~48VAC/12~48VDC | Pins: 8 | Output: Contact | Input: No-input available | Time Range: 0.1s to 600h | Modes: A/B/B2/E/J (5 modes, power supply start) | Supply Voltage: 100~240VAC (50/60Hz) / 100~125VDC or 24~48VAC (50/60Hz) / 12~48VDC
H3CR-A8S8-pin, Transistor (Photocoupler) output, No-input, 0.05s~300h, 5 modes, 24~48VAC/12~48VDC | Pins: 8 | Output: Transistor (Photocoupler) | Input: No-input available | Time Range: 0.05s to 300h | Modes: A/B/B2/E/J (5 modes, power supply start) | Supply Voltage: 24~48VAC (50/60Hz) / 12~48VDC
H3CR-A8E8-pin, Time-limit + Instantaneous contact output, No-input, 0.05s~300h, 5 modes, 100~240VAC or 24~48VAC/VDC | Pins: 8 | Output: Time-limit contact + Instantaneous contact | Input: No-input available | Time Range: 0.05s to 300h | Modes: A/B/B2/E/J (5 modes, power supply start) | Supply Voltage: 100~240VAC (50/60Hz) / 100~125VDC or 24~48VAC/VDC (50/60Hz)
