• Omron K8DT-TH Temperature Monitoring Relay (Thermocouple/Pt, 0~999°C, Relay/Transistor)
1 1

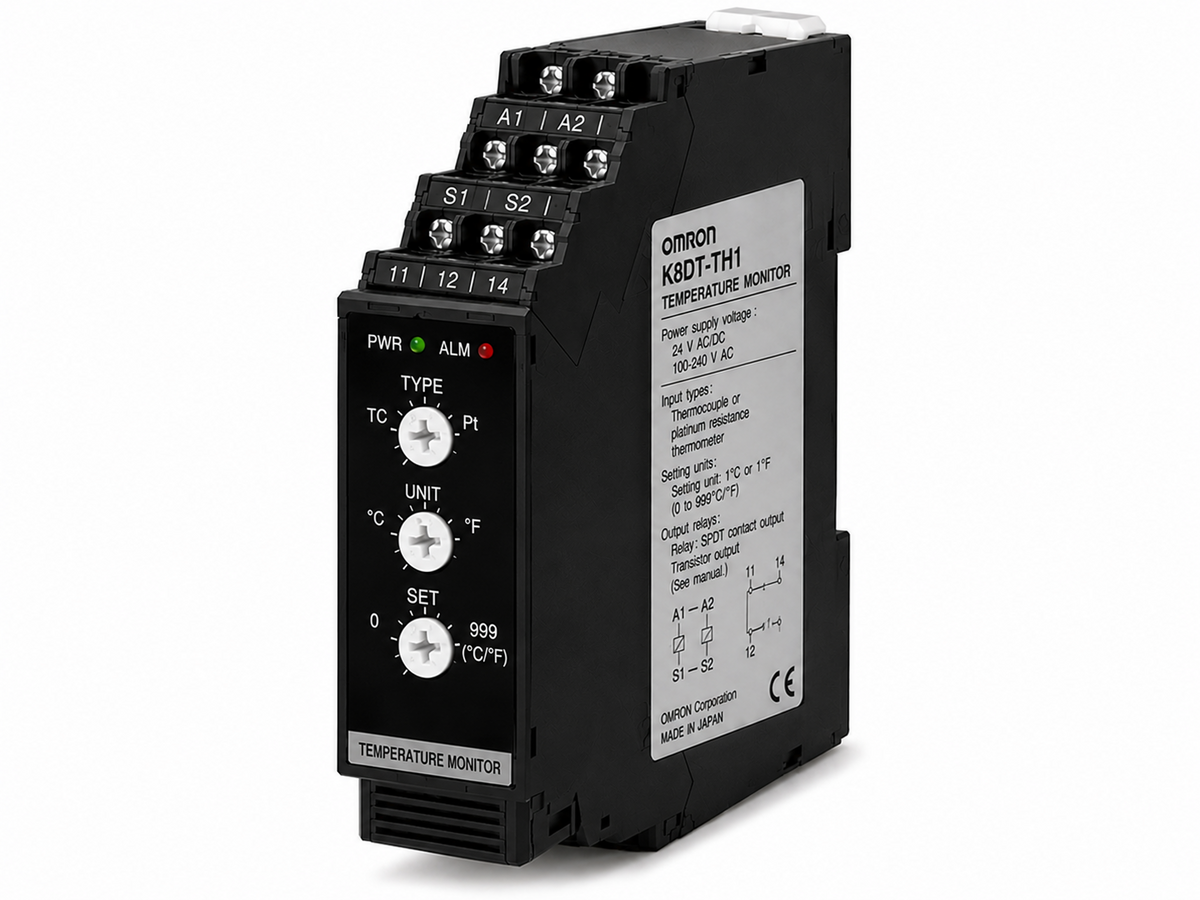

Omron K8DT-TH Temperature Monitoring Relay (Thermocouple/Pt, 0~999°C, Relay/Transistor)

Omron K8DT-TH Temperature Monitoring Relay (Thermocouple/Pt, 0~999°C, Relay/Transistor)

OMRON K8DT-TH Series temperature monitoring relay.

Key features

  • Prevents heater overheating
  • Self-latching output for safe operation
  • K8DT-TH1: Thermocouple or Pt resistance thermometer, 1°C/°F steps, 0~999°C/°F
  • K8DT-TH2: Thermocouple only, 10°C/°F steps
  • Power supply: 24 VAC/DC or 100~240 VAC
  • Output: Relay SPDT or Transistor

Specifications

Type Temperature Monitoring Relay
Feature Self-latching output; heater overheating protection
K8DT-TH1CD K8DT-TH TH1 24 VAC/DC Relay SPDT | Type: Temperature Monitoring Relay | Input Type: Thermocouple or Pt resistance thermometer | Setting Unit: 1°C or 1°F (0~999°C/°F) | Power Supply: 24 VAC/DC | Output: Relay SPDT | Feature: Self-latching output; heater overheating protection
K8DT-TH1TD K8DT-TH TH1 24 VAC/DC Transistor | Type: Temperature Monitoring Relay | Input Type: Thermocouple or Pt resistance thermometer | Setting Unit: 1°C or 1°F (0~999°C/°F) | Power Supply: 24 VAC/DC | Output: Transistor | Feature: Self-latching output; heater overheating protection
K8DT-TH1CA K8DT-TH TH1 100~240 VAC Relay SPDT | Type: Temperature Monitoring Relay | Input Type: Thermocouple or Pt resistance thermometer | Setting Unit: 1°C or 1°F (0~999°C/°F) | Power Supply: 100~240 VAC | Output: Relay SPDT | Feature: Self-latching output; heater overheating protection
K8DT-TH1TA K8DT-TH TH1 100~240 VAC Transistor | Type: Temperature Monitoring Relay | Input Type: Thermocouple or Pt resistance thermometer | Setting Unit: 1°C or 1°F (0~999°C/°F) | Power Supply: 100~240 VAC | Output: Transistor | Feature: Self-latching output; heater overheating protection
K8DT-TH2CD K8DT-TH TH2 24 VAC/DC Relay SPDT | Type: Temperature Monitoring Relay | Input Type: Thermocouple only | Setting Unit: 10°C or 10°F (see catalog for range) | Power Supply: 24 VAC/DC | Output: Relay SPDT | Feature: Self-latching output; heater overheating protection
K8DT-TH2TD K8DT-TH TH2 24 VAC/DC Transistor | Type: Temperature Monitoring Relay | Input Type: Thermocouple only | Setting Unit: 10°C or 10°F (see catalog for range) | Power Supply: 24 VAC/DC | Output: Transistor | Feature: Self-latching output; heater overheating protection
K8DT-TH2CA K8DT-TH TH2 100~240 VAC Relay SPDT | Type: Temperature Monitoring Relay | Input Type: Thermocouple only | Setting Unit: 10°C or 10°F (see catalog for range) | Power Supply: 100~240 VAC | Output: Relay SPDT | Feature: Self-latching output; heater overheating protection
K8DT-TH2TA K8DT-TH TH2 100~240 VAC Transistor | Type: Temperature Monitoring Relay | Input Type: Thermocouple only | Setting Unit: 10°C or 10°F (see catalog for range) | Power Supply: 100~240 VAC | Output: Transistor | Feature: Self-latching output; heater overheating protection
Monitoring RelaysOmron
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron K8DT-TH Temperature Monitoring Relay (Thermocouple/Pt, 0~999°C, Relay/Transistor)

Brand Omron·Monitoring Relays

Available part numbers (8)

K8DT-TH1CD, K8DT-TH1TD, K8DT-TH1CA, K8DT-TH1TA, K8DT-TH2CD, K8DT-TH2TD, K8DT-TH2CA, K8DT-TH2TA

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K8DT-TH1CDK8DT-TH TH1 24 VAC/DC Relay SPDT | Type: Temperature Monitoring Relay | Input Type: Thermocouple or Pt resistance thermometer | Setting Unit: 1°C or 1°F (0~999°C/°F) | Power Supply: 24 VAC/DC | Output: Relay SPDT | Feature: Self-latching output; heater overheating protection
K8DT-TH1TDK8DT-TH TH1 24 VAC/DC Transistor | Type: Temperature Monitoring Relay | Input Type: Thermocouple or Pt resistance thermometer | Setting Unit: 1°C or 1°F (0~999°C/°F) | Power Supply: 24 VAC/DC | Output: Transistor | Feature: Self-latching output; heater overheating protection
K8DT-TH1CAK8DT-TH TH1 100~240 VAC Relay SPDT | Type: Temperature Monitoring Relay | Input Type: Thermocouple or Pt resistance thermometer | Setting Unit: 1°C or 1°F (0~999°C/°F) | Power Supply: 100~240 VAC | Output: Relay SPDT | Feature: Self-latching output; heater overheating protection
K8DT-TH1TAK8DT-TH TH1 100~240 VAC Transistor | Type: Temperature Monitoring Relay | Input Type: Thermocouple or Pt resistance thermometer | Setting Unit: 1°C or 1°F (0~999°C/°F) | Power Supply: 100~240 VAC | Output: Transistor | Feature: Self-latching output; heater overheating protection
K8DT-TH2CDK8DT-TH TH2 24 VAC/DC Relay SPDT | Type: Temperature Monitoring Relay | Input Type: Thermocouple only | Setting Unit: 10°C or 10°F (see catalog for range) | Power Supply: 24 VAC/DC | Output: Relay SPDT | Feature: Self-latching output; heater overheating protection
K8DT-TH2TDK8DT-TH TH2 24 VAC/DC Transistor | Type: Temperature Monitoring Relay | Input Type: Thermocouple only | Setting Unit: 10°C or 10°F (see catalog for range) | Power Supply: 24 VAC/DC | Output: Transistor | Feature: Self-latching output; heater overheating protection
K8DT-TH2CAK8DT-TH TH2 100~240 VAC Relay SPDT | Type: Temperature Monitoring Relay | Input Type: Thermocouple only | Setting Unit: 10°C or 10°F (see catalog for range) | Power Supply: 100~240 VAC | Output: Relay SPDT | Feature: Self-latching output; heater overheating protection
K8DT-TH2TAK8DT-TH TH2 100~240 VAC Transistor | Type: Temperature Monitoring Relay | Input Type: Thermocouple only | Setting Unit: 10°C or 10°F (see catalog for range) | Power Supply: 100~240 VAC | Output: Transistor | Feature: Self-latching output; heater overheating protection
