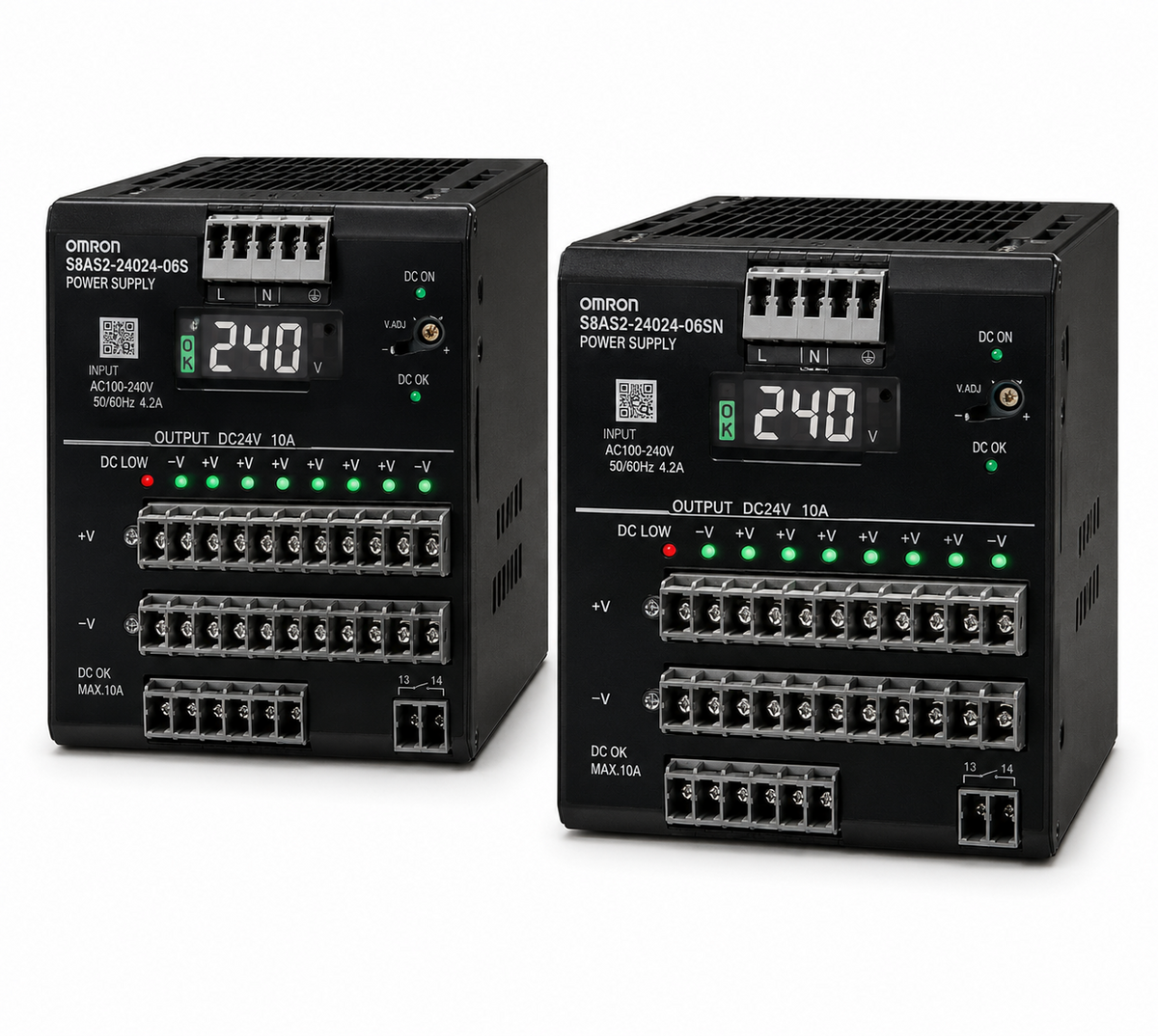

Omron S8AS2 Smart Power Supply (240W/480W, 24VDC, 6/8 Branch Outputs, 100~240VAC)

Omron S8AS2 Smart Power Supply (240W/480W, 24VDC, 6/8 Branch Outputs, 100~240VAC)

Inheriting tripping performance with the renewal, while renewing Efficiency, size, and design. 240W (6 outputs, 10A total) and 480W (8 outputs, 20A total) variants. 24VDC output, 3.8A per branch.

Key features

  • Changeable and Non-changeable parameter settings
  • Input: 100~240VAC

Specifications

Type Smart Power Supply
Input 100~240VAC
Output 24VDC
Max per Branch 3.8A
S8AS2-24024-06S 240W, 100~240VAC, 24VDC, 6 outputs 10A total, 3.8A/branch, Changeable settings | Type: Smart Power Supply | Capacity: 240W | Input: 100~240VAC | Output: 24VDC | Total Output Current: 10A | Output Branches: 6 | Max per Branch: 3.8A | Parameter Settings: Changeable
S8AS2-24024-06SN 240W, 100~240VAC, 24VDC, 6 outputs 10A total, 3.8A/branch, Non-changeable settings | Type: Smart Power Supply | Capacity: 240W | Input: 100~240VAC | Output: 24VDC | Total Output Current: 10A | Output Branches: 6 | Max per Branch: 3.8A | Parameter Settings: Not Changeable
S8AS2-48024-08S 480W, 100~240VAC, 24VDC, 8 outputs 20A total, 3.8A/branch, Changeable settings | Type: Smart Power Supply | Capacity: 480W | Input: 100~240VAC | Output: 24VDC | Total Output Current: 20A | Output Branches: 8 | Max per Branch: 3.8A | Parameter Settings: Changeable
S8AS2-48024-08SN 480W, 100~240VAC, 24VDC, 8 outputs 20A total, 3.8A/branch, Non-changeable settings | Type: Smart Power Supply | Capacity: 480W | Input: 100~240VAC | Output: 24VDC | Total Output Current: 20A | Output Branches: 8 | Max per Branch: 3.8A | Parameter Settings: Not Changeable
Power SuppliesOmron
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron S8AS2 Smart Power Supply (240W/480W, 24VDC, 6/8 Branch Outputs, 100~240VAC)

Brand Omron·Power Supplies

Available part numbers (4)

S8AS2-24024-06S, S8AS2-24024-06SN, S8AS2-48024-08S, S8AS2-48024-08SN

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S8AS2-24024-06S240W, 100~240VAC, 24VDC, 6 outputs 10A total, 3.8A/branch, Changeable settings | Type: Smart Power Supply | Capacity: 240W | Input: 100~240VAC | Output: 24VDC | Total Output Current: 10A | Output Branches: 6 | Max per Branch: 3.8A | Parameter Settings: Changeable
S8AS2-24024-06SN240W, 100~240VAC, 24VDC, 6 outputs 10A total, 3.8A/branch, Non-changeable settings | Type: Smart Power Supply | Capacity: 240W | Input: 100~240VAC | Output: 24VDC | Total Output Current: 10A | Output Branches: 6 | Max per Branch: 3.8A | Parameter Settings: Not Changeable
S8AS2-48024-08S480W, 100~240VAC, 24VDC, 8 outputs 20A total, 3.8A/branch, Changeable settings | Type: Smart Power Supply | Capacity: 480W | Input: 100~240VAC | Output: 24VDC | Total Output Current: 20A | Output Branches: 8 | Max per Branch: 3.8A | Parameter Settings: Changeable
S8AS2-48024-08SN480W, 100~240VAC, 24VDC, 8 outputs 20A total, 3.8A/branch, Non-changeable settings | Type: Smart Power Supply | Capacity: 480W | Input: 100~240VAC | Output: 24VDC | Total Output Current: 20A | Output Branches: 8 | Max per Branch: 3.8A | Parameter Settings: Not Changeable
