• PATLITE BDV MP3 Voice Annunciator for Panel Mounting, 80 mm Square
1 1

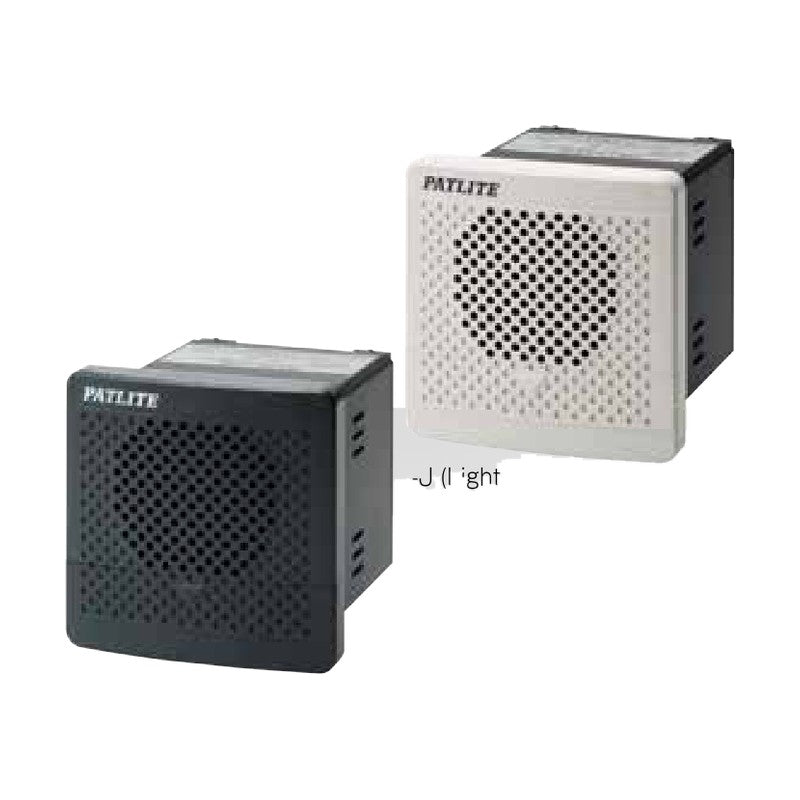

PATLITE BDV MP3 Voice Annunciator for Panel Mounting, 80 mm Square

PATLITE BDV MP3 Voice Annunciator for Panel Mounting, 80 mm Square

Panel-mount 80 mm square MP3 voice annunciator with 4/15 bit/binary inputs and up to 63.5 s of playback.

Key features

  • Messages programmed from a PC via SD card (SDV-2GP). 87 dB
  • Mounting hole compliant with IEC 61554 (DIN 43700)
  • IP54

Specifications

Size 80 mm square
Supported Transistors NPN
Sound File Format MP3 (64 kbps, 44.1 kHz)
Use Indoor
Ambient Temperature -10 to +50°C
Ingress Protection IP54
Approvals CE (DC type), UKCA (DC type), RoHS10
BDV-15JF-J Rated Voltage: 12-24V DC | Color: Light gray | Power Consumption: 4 W | Mass: 0.22 kg
BDV-15JF-K Rated Voltage: 12-24V DC | Color: Dark gray | Power Consumption: 4 W | Mass: 0.22 kg
BDV-15KF-J Rated Voltage: 100/220V AC | Color: Light gray | Power Consumption: 5 W | Mass: 0.34 kg
BDV-15KF-K Rated Voltage: 100/220V AC | Color: Dark gray | Power Consumption: 5 W | Mass: 0.34 kg
Voice AnnunciatorsPATLITE
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE BDV MP3 Voice Annunciator for Panel Mounting, 80 mm Square

Brand PATLITE·Voice Annunciators

Available part numbers (4)

BDV-15JF-J, BDV-15JF-K, BDV-15KF-J, BDV-15KF-K

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BDV-15JF-JRated Voltage: 12-24V DC | Color: Light gray | Power Consumption: 4 W | Mass: 0.22 kg
BDV-15JF-KRated Voltage: 12-24V DC | Color: Dark gray | Power Consumption: 4 W | Mass: 0.22 kg
BDV-15KF-JRated Voltage: 100/220V AC | Color: Light gray | Power Consumption: 5 W | Mass: 0.34 kg
BDV-15KF-KRated Voltage: 100/220V AC | Color: Dark gray | Power Consumption: 5 W | Mass: 0.34 kg
