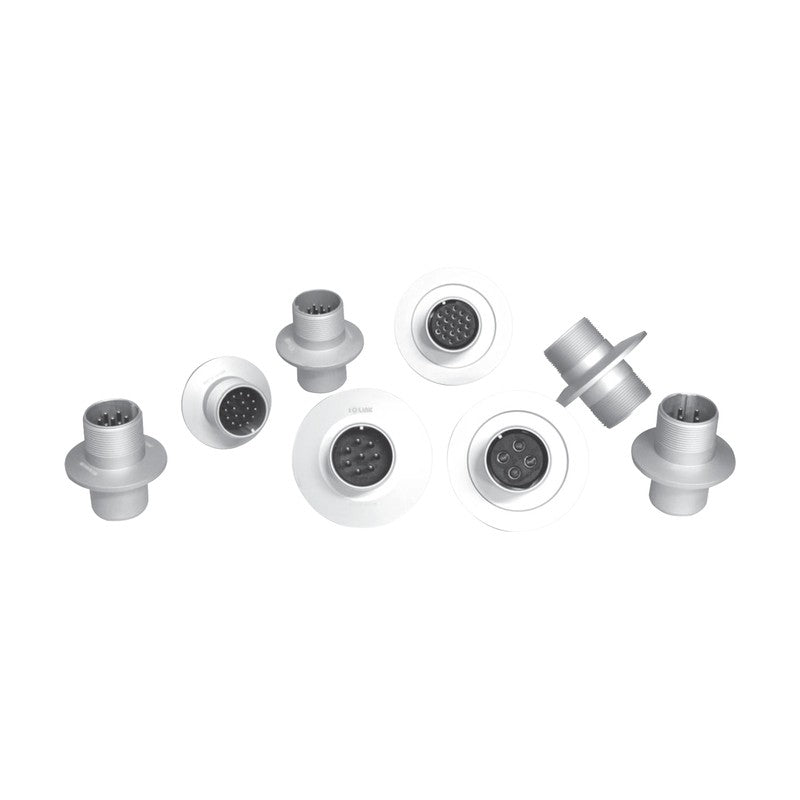

Samwon ACT MSC40/MSC50 Series MS Hermetic Connector, NW40/NW50 Flange Mount

Samwon ACT MSC40/MSC50 Series MS Hermetic Connector, NW40/NW50 Flange Mount

Hermetic feedthrough with MIL-compatible MS connectors on an NW40 or NW50 vacuum flange for vacuum and nitrogen gas equipment, leak-tight to 1 x 10^-7 torr.

Key features

  • High-vacuum hermetic connector for LCD/OLED equipment with nitrogen gas and vacuum environments
  • Compatible with MIL standard MS connectors for easy sourcing of mating connectors
  • NW40 / NW50 flange mounting for easy maintenance
  • Every unit leak-tested with a helium leak detector

Specifications

Pressure Seal 1 x 10^-7 torr (helium leak rate)
Insulation Resistance 2,000 MΩ min. (at DC500V)
Withstanding Voltage AC2,000V 2 s
Temperature -10 to +80 °C
Body AL alloy 6061, anodized
Contact Brass, electroless nickel plating
O-Ring Viton
Rubber Shell CR (chloroprene rubber)
Mounting Flange (NW40 / NW50)
Rated Current #16: 13A, #12: 23A, #8: 46A
MSC40-20-4B Pins: 4 | Contact Size: #12 | Mating Connectors: MS3106 20-4S (outside) / MS3106 20-4P (inside) | Rating Class: D (1,250V DC / 900V AC) | Flange Size: NW40
MSC40-20-15B Pins: 7 | Contact Size: #12 | Mating Connectors: MS3106 20-15S (outside) / MS3106 20-15P (inside) | Rating Class: A (700V DC / 500V AC) | Flange Size: NW40
MSC40-20-27B Pins: 14 | Contact Size: #16 | Mating Connectors: MS3106 20-27S (outside) / MS3106 20-27P (inside) | Rating Class: A (700V DC / 500V AC) | Flange Size: NW40
MSC40-20-29B Pins: 17 | Contact Size: #16 | Mating Connectors: MS3106 20-29S (outside) / MS3106 20-29P (inside) | Rating Class: A (700V DC / 500V AC) | Flange Size: NW40
MSC50-22-14B Pins: 19 | Contact Size: #16 | Mating Connectors: MS3106 22-14S (outside) / MS3106 22-14P (inside) | Rating Class: A (700V DC / 500V AC) | Flange Size: NW50
MSC50-22-18B Pins: 8 | Contact Size: #16 | Mating Connectors: MS3106 22-18S (outside) / MS3106 22-18P (inside) | Rating Class: A (700V DC / 500V AC) | Flange Size: NW50
MSC50-22-22B Pins: 4 | Contact Size: #8 | Mating Connectors: MS3106 22-22S (outside) / MS3106 22-22P (inside) | Rating Class: A (700V DC / 500V AC) | Flange Size: NW50
MSC50-22-23B Pins: 8 | Contact Size: #12 | Mating Connectors: MS3106 22-23S (outside) / MS3106 22-23P (inside) | Rating Class: A (700V DC / 500V AC) | Flange Size: NW50
ConnectorsSamwon ACT
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT MSC40/MSC50 Series MS Hermetic Connector, NW40/NW50 Flange Mount

Brand Samwon ACT·Connectors

Available part numbers (8)

MSC40-20-4B, MSC40-20-15B, MSC40-20-27B, MSC40-20-29B, MSC50-22-14B, MSC50-22-18B, MSC50-22-22B, MSC50-22-23B

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MSC40-20-4BPins: 4 | Contact Size: #12 | Mating Connectors: MS3106 20-4S (outside) / MS3106 20-4P (inside) | Rating Class: D (1,250V DC / 900V AC) | Flange Size: NW40
MSC40-20-15BPins: 7 | Contact Size: #12 | Mating Connectors: MS3106 20-15S (outside) / MS3106 20-15P (inside) | Rating Class: A (700V DC / 500V AC) | Flange Size: NW40
MSC40-20-27BPins: 14 | Contact Size: #16 | Mating Connectors: MS3106 20-27S (outside) / MS3106 20-27P (inside) | Rating Class: A (700V DC / 500V AC) | Flange Size: NW40
MSC40-20-29BPins: 17 | Contact Size: #16 | Mating Connectors: MS3106 20-29S (outside) / MS3106 20-29P (inside) | Rating Class: A (700V DC / 500V AC) | Flange Size: NW40
MSC50-22-14BPins: 19 | Contact Size: #16 | Mating Connectors: MS3106 22-14S (outside) / MS3106 22-14P (inside) | Rating Class: A (700V DC / 500V AC) | Flange Size: NW50
MSC50-22-18BPins: 8 | Contact Size: #16 | Mating Connectors: MS3106 22-18S (outside) / MS3106 22-18P (inside) | Rating Class: A (700V DC / 500V AC) | Flange Size: NW50
MSC50-22-22BPins: 4 | Contact Size: #8 | Mating Connectors: MS3106 22-22S (outside) / MS3106 22-22P (inside) | Rating Class: A (700V DC / 500V AC) | Flange Size: NW50
MSC50-22-23BPins: 8 | Contact Size: #12 | Mating Connectors: MS3106 22-23S (outside) / MS3106 22-23P (inside) | Rating Class: A (700V DC / 500V AC) | Flange Size: NW50
