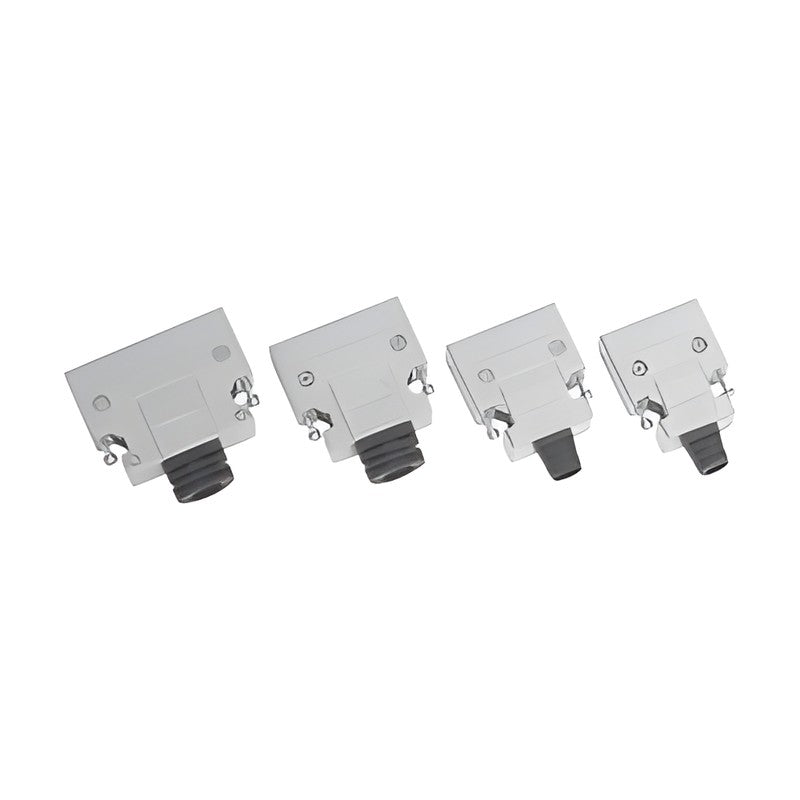

Samwon ACT IMH Series EMI Shielded MDR (IEEE1284) Connector Hood

Samwon ACT IMH Series EMI Shielded MDR (IEEE1284) Connector Hood

Plated EMI-shielding hood for half-pitch MDR (IEEE1284) connectors with 20 to 68 pins, with screw or one-touch locking (connector sold separately).

Key features

  • Hood for half-pitch MDR connectors, usable with solder and IDC (press-fit) connectors
  • Plated surface suitable for EMI countermeasures
  • Screw lock (M2.6) or one-touch clip lock versions
  • For 20, 26, 36, 50 and 68 pin connectors
  • Connector sold separately; IDC connectors need a dedicated tool

Specifications

Cable Exit Straight
IMH-20SA Pins: 20 | Locking: M2.6 screw | Solder Connector: 10120-3000PE | IDC Connector: 1020-6000EL | Cable OD: Ø7.0 / Ø8.5 max.
IMH-26SA Pins: 26 | Locking: M2.6 screw | Solder Connector: 10126-3000PE | IDC Connector: 1026-6000EL | Cable OD: Ø7.0 / Ø8.5 max.
IMH-36SA Pins: 36 | Locking: M2.6 screw | Solder Connector: 10136-3000PE | IDC Connector: 1036-6000EL | Cable OD: Ø7.0 / Ø8.5 max.
IMH-50SA Pins: 50 | Locking: M2.6 screw | Solder Connector: 10150-3000PE | IDC Connector: 1050-6000EL | Cable OD: Ø9.5 max.
IMH-68SA Pins: 68 | Locking: M2.6 screw | Solder Connector: - | IDC Connector: 1068-6000EL | Cable OD: Ø9.5 max.
IMH-20SF Pins: 20 | Locking: One-touch clip | Solder Connector: 10120-3000PE | IDC Connector: 1020-6000EL | Cable OD: Ø7.0 / Ø8.5 max.
IMH-26SF Pins: 26 | Locking: One-touch clip | Solder Connector: 10126-3000PE | IDC Connector: 1026-6000EL | Cable OD: Ø7.0 / Ø8.5 max.
IMH-36SF Pins: 36 | Locking: One-touch clip | Solder Connector: 10136-3000PE | IDC Connector: 1036-6000EL | Cable OD: Ø7.0 / Ø8.5 max.
IMH-50SF Pins: 50 | Locking: One-touch clip | Solder Connector: 10150-3000PE | IDC Connector: 1050-6000EL | Cable OD: Ø9.5 max.
IMH-68SF Pins: 68 | Locking: One-touch clip | Solder Connector: - | IDC Connector: 1068-6000EL | Cable OD: Ø9.5 max.
