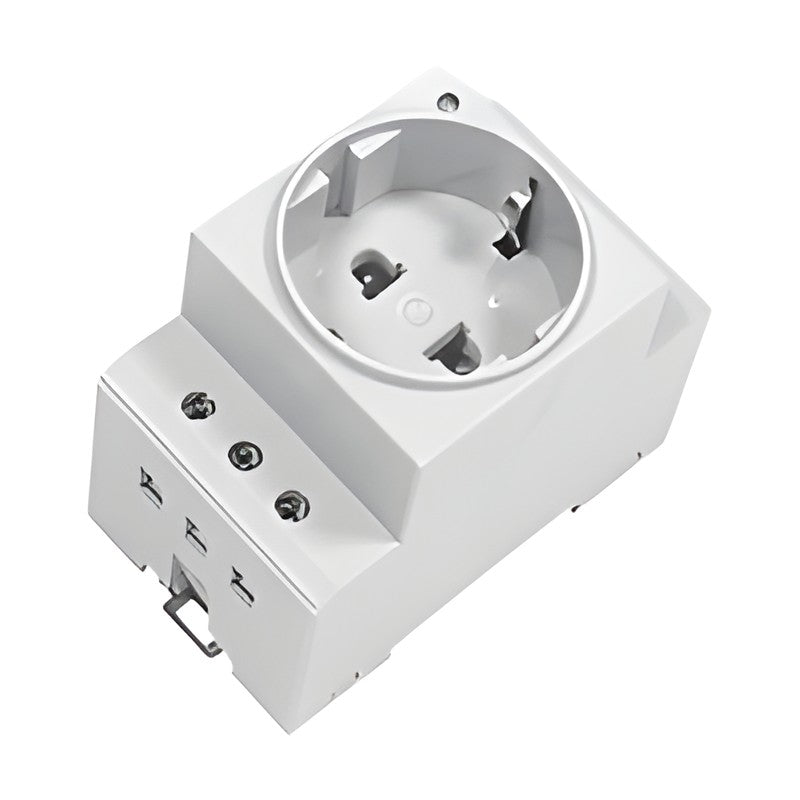

Samwon ACT DRC-220V-16A DIN Rail 220V AC Power Outlet

DIN-rail-mounted 220 V AC power outlet with LED power indicator that needs no separate assembly.

Key features

Saves assembly labor compared with built-up outlets
LED shows that power is applied
Mounts on a channel (DIN rail) for easy installation
Accepts 110 V flat two-pin plugs

Specifications

Rated Voltage	250V AC
Rated Current	16A
Wire	AWG24~12 (0.2~2.5 mm²)
Strip Length	8 mm max.
Terminal Screw	M3
Screw Torque	1 N·m max.
Ambient Temperature	-20 to +60 °C
Terminal Block	PA66
Rail Clip	Metal

DRC-220V-16A
