PATLITE BSV / BSV-L Slim MP3 Voice Annunciator, 75 mm Square

PATLITE BSV / BSV-L Slim MP3 Voice Annunciator, 75 mm Square

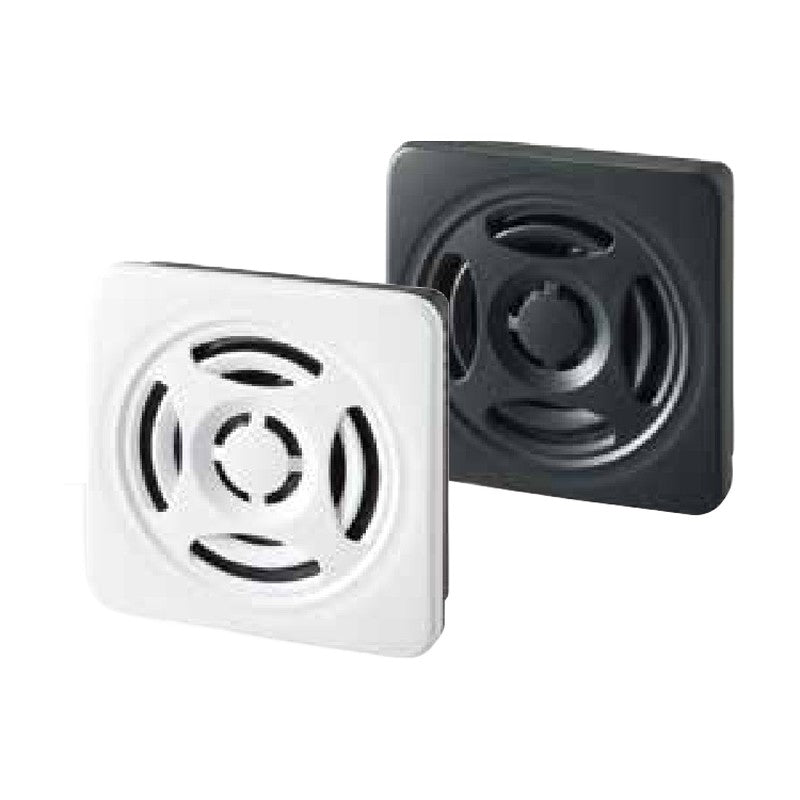

Slim 75 mm square MP3 voice annunciator for panel or wall mounting that plays messages and alarm sounds stored on an SD card.

Key features

  • Up to 15 messages via bit/binary inputs (4/15)
  • Playback length 63 s (BSV) or 520 s (BSV-L). 87 dB; 15 built-in standard alarm sounds
  • MP3 files easily programmed from a PC via SD card (SDV-2GP sold separately)

Specifications

Size 75 mm square
Rated Voltage 12-24V DC
Power Consumption 3.5 W
Mass 0.1 kg
Use Indoor/Outdoor
Ambient Temperature -10 to +50°C
Ingress Protection IP54 (panel mounting)
Volume Control Rotating knob
Sound File Format MP3 (32/64 kbps)
Approvals CE, UKCA, UL, FCC
BSV-24N-W Supported Transistors: NPN | Recording Time: 63 s | Pre-recorded Message: No (15 built-in sounds) | Cover Color: Off-white
BSV-24N-D Supported Transistors: NPN | Recording Time: 63 s | Pre-recorded Message: No (15 built-in sounds) | Cover Color: Dark gray
BSV-24N-S Supported Transistors: NPN | Recording Time: 63 s | Pre-recorded Message: No (15 built-in sounds) | Cover Color: Silver
BSV-24NL-W Supported Transistors: NPN | Recording Time: 520 s | Pre-recorded Message: No (15 built-in sounds) | Cover Color: Off-white
BSV-24NL-D Supported Transistors: NPN | Recording Time: 520 s | Pre-recorded Message: No (15 built-in sounds) | Cover Color: Dark gray
BSV-24NL-S Supported Transistors: NPN | Recording Time: 520 s | Pre-recorded Message: No (15 built-in sounds) | Cover Color: Silver
BSV-24P-W Supported Transistors: PNP | Recording Time: 63 s | Pre-recorded Message: No (15 built-in sounds) | Cover Color: Off-white
BSV-24P-D Supported Transistors: PNP | Recording Time: 63 s | Pre-recorded Message: No (15 built-in sounds) | Cover Color: Dark gray
BSV-24P-S Supported Transistors: PNP | Recording Time: 63 s | Pre-recorded Message: No (15 built-in sounds) | Cover Color: Silver
BSV-24PL-W Supported Transistors: PNP | Recording Time: 520 s | Pre-recorded Message: No (15 built-in sounds) | Cover Color: Off-white
BSV-24PL-D Supported Transistors: PNP | Recording Time: 520 s | Pre-recorded Message: No (15 built-in sounds) | Cover Color: Dark gray
BSV-24PL-S Supported Transistors: PNP | Recording Time: 520 s | Pre-recorded Message: No (15 built-in sounds) | Cover Color: Silver
BSV-24NM-W Supported Transistors: NPN | Recording Time: 63 s | Pre-recorded Message: Yes | Cover Color: Off-white
BSV-24NM-D Supported Transistors: NPN | Recording Time: 63 s | Pre-recorded Message: Yes | Cover Color: Dark gray
BSV-24NM-S Supported Transistors: NPN | Recording Time: 63 s | Pre-recorded Message: Yes | Cover Color: Silver
BSV-24NLM-W Supported Transistors: NPN | Recording Time: 520 s | Pre-recorded Message: Yes | Cover Color: Off-white
BSV-24NLM-D Supported Transistors: NPN | Recording Time: 520 s | Pre-recorded Message: Yes | Cover Color: Dark gray
BSV-24NLM-S Supported Transistors: NPN | Recording Time: 520 s | Pre-recorded Message: Yes | Cover Color: Silver
BSV-24PM-W Supported Transistors: PNP | Recording Time: 63 s | Pre-recorded Message: Yes | Cover Color: Off-white
BSV-24PM-D Supported Transistors: PNP | Recording Time: 63 s | Pre-recorded Message: Yes | Cover Color: Dark gray
BSV-24PM-S Supported Transistors: PNP | Recording Time: 63 s | Pre-recorded Message: Yes | Cover Color: Silver
BSV-24PLM-W Supported Transistors: PNP | Recording Time: 520 s | Pre-recorded Message: Yes | Cover Color: Off-white
BSV-24PLM-D Supported Transistors: PNP | Recording Time: 520 s | Pre-recorded Message: Yes | Cover Color: Dark gray
BSV-24PLM-S Supported Transistors: PNP | Recording Time: 520 s | Pre-recorded Message: Yes | Cover Color: Silver
Voice AnnunciatorsPATLITE
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE BSV / BSV-L Slim MP3 Voice Annunciator, 75 mm Square

Brand PATLITE·Voice Annunciators

Available part numbers (24)

BSV-24N-W, BSV-24N-D, BSV-24N-S, BSV-24NL-W, BSV-24NL-D, BSV-24NL-S, BSV-24P-W, BSV-24P-D, BSV-24P-S, BSV-24PL-W + 14 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
