PATLITE CLA-A LED Work Light, IP69K

PATLITE CLA-A LED Work Light, IP69K

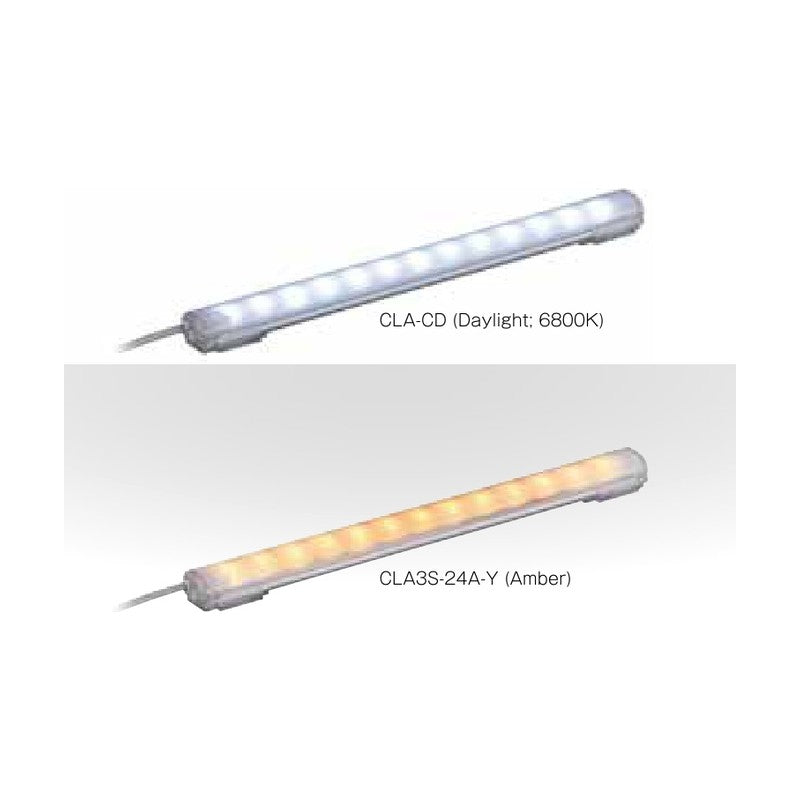

Slim bar-type LED work light rated IP66/IP67/IP69K, in 100 to 1200 mm lengths with daylight or amber light.

Key features

  • IP66, IP67 and IP69K protection
  • Daylight (6800 K) or amber (300 mm only)
  • Cable length 0.5 m or 3.0 m (-30)
  • Wide range of screw and magnetic mounting brackets

Specifications

Rated Voltage 24V DC
Use Indoor
Mounting Direction All directions
Ambient Temperature -40 to +60°C
Ingress Protection IP66, IP67, IP69K
Approvals CE, RoHS10, UL
CLA1S-24A-CD Illuminated Length: 100mm | Luminous Color: Daylight | Cable Length: 0.5 m | Power Consumption: 2.5 W | Mass: 0.08 kg
CLA1S-24A-CD-30 Illuminated Length: 100mm | Luminous Color: Daylight | Cable Length: 3.0 m | Power Consumption: 2.5 W | Mass: 0.165 kg
CLA2S-24A-CD Illuminated Length: 200mm | Luminous Color: Daylight | Cable Length: 0.5 m | Power Consumption: 5 W | Mass: 0.13 kg
CLA2S-24A-CD-30 Illuminated Length: 200mm | Luminous Color: Daylight | Cable Length: 3.0 m | Power Consumption: 5 W | Mass: 0.215 kg
CLA3S-24A-CD Illuminated Length: 300mm | Luminous Color: Daylight | Cable Length: 0.5 m | Power Consumption: 5.7 W | Mass: 0.18 kg
CLA3S-24A-CD-30 Illuminated Length: 300mm | Luminous Color: Daylight | Cable Length: 3.0 m | Power Consumption: 5.7 W | Mass: 0.265 kg
CLA3S-24A-Y Illuminated Length: 300mm | Luminous Color: Amber | Cable Length: 0.5 m | Power Consumption: 5.7 W | Mass: 0.18 kg
CLA6S-24A-CD Illuminated Length: 600mm | Luminous Color: Daylight | Cable Length: 0.5 m | Power Consumption: 11.6 W | Mass: 0.34 kg
CLA6S-24A-CD-30 Illuminated Length: 600mm | Luminous Color: Daylight | Cable Length: 3.0 m | Power Consumption: 11.6 W | Mass: 0.425 kg
CLA9S-24A-CD Illuminated Length: 900mm | Luminous Color: Daylight | Cable Length: 0.5 m | Power Consumption: 17.3 W | Mass: 0.5 kg
CLA9S-24A-CD-30 Illuminated Length: 900mm | Luminous Color: Daylight | Cable Length: 3.0 m | Power Consumption: 17.3 W | Mass: 0.585 kg
CLA12S-24A-CD Illuminated Length: 1200mm | Luminous Color: Daylight | Cable Length: 0.5 m | Power Consumption: 23 W | Mass: 0.66 kg
CLA12S-24A-CD-30 Illuminated Length: 1200mm | Luminous Color: Daylight | Cable Length: 3.0 m | Power Consumption: 23 W | Mass: 0.745 kg
LED Work LightsPATLITE
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE CLA-A LED Work Light, IP69K

Brand PATLITE·LED Work Lights

Available part numbers (13)

CLA1S-24A-CD, CLA1S-24A-CD-30, CLA2S-24A-CD, CLA2S-24A-CD-30, CLA3S-24A-CD, CLA3S-24A-CD-30, CLA3S-24A-Y, CLA6S-24A-CD, CLA6S-24A-CD-30, CLA9S-24A-CD + 3 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CLA1S-24A-CDIlluminated Length: 100mm | Luminous Color: Daylight | Cable Length: 0.5 m | Power Consumption: 2.5 W | Mass: 0.08 kg
CLA1S-24A-CD-30Illuminated Length: 100mm | Luminous Color: Daylight | Cable Length: 3.0 m | Power Consumption: 2.5 W | Mass: 0.165 kg
CLA2S-24A-CDIlluminated Length: 200mm | Luminous Color: Daylight | Cable Length: 0.5 m | Power Consumption: 5 W | Mass: 0.13 kg
CLA2S-24A-CD-30Illuminated Length: 200mm | Luminous Color: Daylight | Cable Length: 3.0 m | Power Consumption: 5 W | Mass: 0.215 kg
CLA3S-24A-CDIlluminated Length: 300mm | Luminous Color: Daylight | Cable Length: 0.5 m | Power Consumption: 5.7 W | Mass: 0.18 kg
CLA3S-24A-CD-30Illuminated Length: 300mm | Luminous Color: Daylight | Cable Length: 3.0 m | Power Consumption: 5.7 W | Mass: 0.265 kg
CLA3S-24A-YIlluminated Length: 300mm | Luminous Color: Amber | Cable Length: 0.5 m | Power Consumption: 5.7 W | Mass: 0.18 kg
CLA6S-24A-CDIlluminated Length: 600mm | Luminous Color: Daylight | Cable Length: 0.5 m | Power Consumption: 11.6 W | Mass: 0.34 kg
CLA6S-24A-CD-30Illuminated Length: 600mm | Luminous Color: Daylight | Cable Length: 3.0 m | Power Consumption: 11.6 W | Mass: 0.425 kg
CLA9S-24A-CDIlluminated Length: 900mm | Luminous Color: Daylight | Cable Length: 0.5 m | Power Consumption: 17.3 W | Mass: 0.5 kg
CLA9S-24A-CD-30Illuminated Length: 900mm | Luminous Color: Daylight | Cable Length: 3.0 m | Power Consumption: 17.3 W | Mass: 0.585 kg
CLA12S-24A-CDIlluminated Length: 1200mm | Luminous Color: Daylight | Cable Length: 0.5 m | Power Consumption: 23 W | Mass: 0.66 kg
CLA12S-24A-CD-30Illuminated Length: 1200mm | Luminous Color: Daylight | Cable Length: 3.0 m | Power Consumption: 23 W | Mass: 0.745 kg
