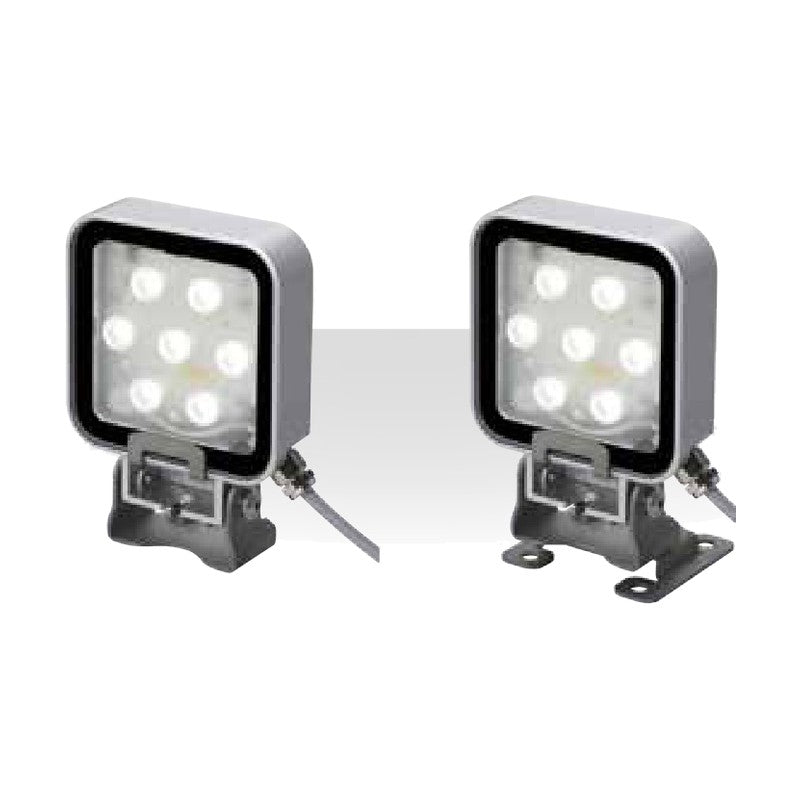

PATLITE CLN-A LED Work Light, Square, Tilt / Pan-Tilt

Square 85 mm LED spot work light with tilt or pan/tilt bracket, rated IP66G/IP67G/IP69K.

Key features

Tilt type adjusts 180° and folds to 33 mm; pan/tilt type also rotates 120°. Illuminance 820 lx at 1 m
Cable 3000 mm, AWG22 x 2 core

Specifications

Rated Voltage	24V DC
Luminous Color	Daylight
Power Consumption	4.2 W
Use	Indoor
Ambient Temperature	-40 to +60°C
Ingress Protection	IP66G, IP67G, IP69K
Approvals	CE, RoHS10, UL

CLN-24A-CD-T		Mounting: Tilt type \| Mass: 0.39 kg
CLN-24A-CD-PT		Mounting: Pan/tilt type \| Mass: 0.46 kg

LED Work LightsPATLITE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE CLN-A LED Work Light, Square, Tilt / Pan-Tilt

Brand PATLITE·LED Work Lights

Available part numbers (2)

CLN-24A-CD-T, CLN-24A-CD-PT

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
