PATLITE CWF LED Work Light, Daylight

PATLITE CWF LED Work Light, Daylight

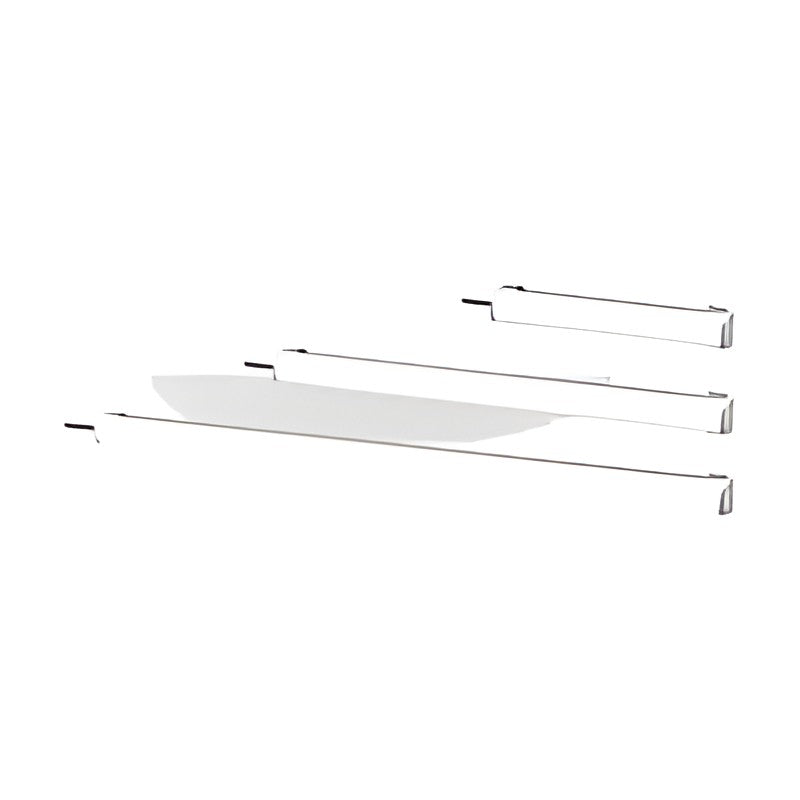

Tubular LED work light for machine interiors in 300, 600 and 900 mm lengths, in 24V DC and 100-240V AC versions.

Key features

  • Daylight color
  • Mounting in all directions with standard mounting brackets (2 pcs)
  • Optional swivel and magnetic mounting brackets
  • Cable length 3000 mm

Specifications

Luminous Color Daylight
Use Indoor
Ambient Temperature -25 to +60°C (DC), -20 to +50°C (AC)
Ingress Protection IP20
Approvals CE (DC type), RoHS10, UL, FCC
CWF3S-24-CD Length: 300 mm | Rated Voltage: 24V DC | Illuminance (1 m): 165 lx | Power Consumption: 5 W | Mass: 0.42 kg
CWF6S-24-CD Length: 600 mm | Rated Voltage: 24V DC | Illuminance (1 m): 320 lx | Power Consumption: 10 W | Mass: 0.57 kg
CWF6S-M2U-CD Length: 600 mm | Rated Voltage: 100-240V AC | Illuminance (1 m): 320 lx | Power Consumption: 10 W | Mass: 0.68 kg
CWF9S-M2U-CD Length: 900 mm | Rated Voltage: 100-240V AC | Illuminance (1 m): 445 lx | Power Consumption: 15 W | Mass: 0.84 kg
LED Work LightsPATLITE
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE CWF LED Work Light, Daylight

Brand PATLITE·LED Work Lights

Available part numbers (4)

CWF3S-24-CD, CWF6S-24-CD, CWF6S-M2U-CD, CWF9S-M2U-CD

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CWF3S-24-CDLength: 300 mm | Rated Voltage: 24V DC | Illuminance (1 m): 165 lx | Power Consumption: 5 W | Mass: 0.42 kg
CWF6S-24-CDLength: 600 mm | Rated Voltage: 24V DC | Illuminance (1 m): 320 lx | Power Consumption: 10 W | Mass: 0.57 kg
CWF6S-M2U-CDLength: 600 mm | Rated Voltage: 100-240V AC | Illuminance (1 m): 320 lx | Power Consumption: 10 W | Mass: 0.68 kg
CWF9S-M2U-CDLength: 900 mm | Rated Voltage: 100-240V AC | Illuminance (1 m): 445 lx | Power Consumption: 15 W | Mass: 0.84 kg
