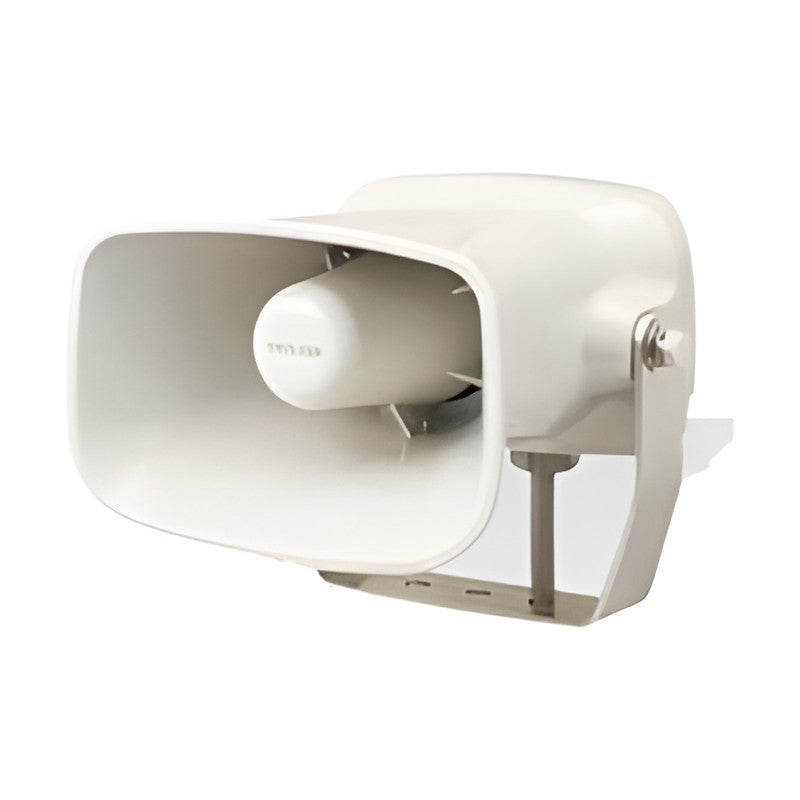

PATLITE EHS Audible Alarm Horn, 110 dB

PATLITE EHS Audible Alarm Horn, 110 dB

Indoor/outdoor horn-type electronic audible alarm with 8/32 bit/binary inputs and 32 alarm sounds at 110 dB. 32 alarm sounds selectable from sound charts Type A, C, D or E. 110 dB.

Key features

  • Cable or terminal block wiring; M3 type (12-48V DC) mountable in vehicles
  • IP65

Specifications

Supported Transistors M1: NPN/PNP; M2/M3: NPN
Mass 1.25 kg
Volume Control Rotating knob
Use Indoor/Outdoor
Ambient Temperature -20 to +50°C
Ingress Protection IP65
Approvals CE (DC type), UKCA (DC type), RoHS10, UL, FCC, KC
EHS-M1HA Rated Voltage: 12-24V DC | Wiring: Cable | Alarm Type: Type A | Power Consumption: 7.6 W
EHS-M1HC Rated Voltage: 12-24V DC | Wiring: Cable | Alarm Type: Type C | Power Consumption: 7.6 W
EHS-M1HD Rated Voltage: 12-24V DC | Wiring: Cable | Alarm Type: Type D | Power Consumption: 7.6 W
EHS-M1HE Rated Voltage: 12-24V DC | Wiring: Cable | Alarm Type: Type E | Power Consumption: 7.6 W
EHS-M1TA Rated Voltage: 12-24V DC | Wiring: Terminal block | Alarm Type: Type A | Power Consumption: 7.6 W
EHS-M1TC Rated Voltage: 12-24V DC | Wiring: Terminal block | Alarm Type: Type C | Power Consumption: 7.6 W
EHS-M1TD Rated Voltage: 12-24V DC | Wiring: Terminal block | Alarm Type: Type D | Power Consumption: 7.6 W
EHS-M1TE Rated Voltage: 12-24V DC | Wiring: Terminal block | Alarm Type: Type E | Power Consumption: 7.6 W
EHS-M2HA Rated Voltage: 100-240V AC | Wiring: Cable | Alarm Type: Type A | Power Consumption: 7.3 W
EHS-M2HC Rated Voltage: 100-240V AC | Wiring: Cable | Alarm Type: Type C | Power Consumption: 7.3 W
EHS-M2HD Rated Voltage: 100-240V AC | Wiring: Cable | Alarm Type: Type D | Power Consumption: 7.3 W
EHS-M2HE Rated Voltage: 100-240V AC | Wiring: Cable | Alarm Type: Type E | Power Consumption: 7.3 W
EHS-M2TA Rated Voltage: 100-240V AC | Wiring: Terminal block | Alarm Type: Type A | Power Consumption: 7.3 W
EHS-M2TC Rated Voltage: 100-240V AC | Wiring: Terminal block | Alarm Type: Type C | Power Consumption: 7.3 W
EHS-M2TD Rated Voltage: 100-240V AC | Wiring: Terminal block | Alarm Type: Type D | Power Consumption: 7.3 W
EHS-M2TE Rated Voltage: 100-240V AC | Wiring: Terminal block | Alarm Type: Type E | Power Consumption: 7.3 W
EHS-M3HA Rated Voltage: 12-48V DC | Wiring: Cable | Alarm Type: Type A | Power Consumption: 5.5 W | Note: Mountable in vehicle
EHS-M3HC Rated Voltage: 12-48V DC | Wiring: Cable | Alarm Type: Type C | Power Consumption: 5.5 W | Note: Mountable in vehicle
EHS-M3HD Rated Voltage: 12-48V DC | Wiring: Cable | Alarm Type: Type D | Power Consumption: 5.5 W | Note: Mountable in vehicle
EHS-M3HE Rated Voltage: 12-48V DC | Wiring: Cable | Alarm Type: Type E | Power Consumption: 5.5 W | Note: Mountable in vehicle
Signal HornsPATLITE
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE EHS Audible Alarm Horn, 110 dB

Brand PATLITE·Signal Horns

Available part numbers (20)

EHS-M1HA, EHS-M1HC, EHS-M1HD, EHS-M1HE, EHS-M1TA, EHS-M1TC, EHS-M1TD, EHS-M1TE, EHS-M2HA, EHS-M2HC + 10 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EHS-M1HARated Voltage: 12-24V DC | Wiring: Cable | Alarm Type: Type A | Power Consumption: 7.6 W
EHS-M1HCRated Voltage: 12-24V DC | Wiring: Cable | Alarm Type: Type C | Power Consumption: 7.6 W
EHS-M1HDRated Voltage: 12-24V DC | Wiring: Cable | Alarm Type: Type D | Power Consumption: 7.6 W
EHS-M1HERated Voltage: 12-24V DC | Wiring: Cable | Alarm Type: Type E | Power Consumption: 7.6 W
EHS-M1TARated Voltage: 12-24V DC | Wiring: Terminal block | Alarm Type: Type A | Power Consumption: 7.6 W
EHS-M1TCRated Voltage: 12-24V DC | Wiring: Terminal block | Alarm Type: Type C | Power Consumption: 7.6 W
EHS-M1TDRated Voltage: 12-24V DC | Wiring: Terminal block | Alarm Type: Type D | Power Consumption: 7.6 W
EHS-M1TERated Voltage: 12-24V DC | Wiring: Terminal block | Alarm Type: Type E | Power Consumption: 7.6 W
EHS-M2HARated Voltage: 100-240V AC | Wiring: Cable | Alarm Type: Type A | Power Consumption: 7.3 W
EHS-M2HCRated Voltage: 100-240V AC | Wiring: Cable | Alarm Type: Type C | Power Consumption: 7.3 W
EHS-M2HDRated Voltage: 100-240V AC | Wiring: Cable | Alarm Type: Type D | Power Consumption: 7.3 W
EHS-M2HERated Voltage: 100-240V AC | Wiring: Cable | Alarm Type: Type E | Power Consumption: 7.3 W
EHS-M2TARated Voltage: 100-240V AC | Wiring: Terminal block | Alarm Type: Type A | Power Consumption: 7.3 W
EHS-M2TCRated Voltage: 100-240V AC | Wiring: Terminal block | Alarm Type: Type C | Power Consumption: 7.3 W
EHS-M2TDRated Voltage: 100-240V AC | Wiring: Terminal block | Alarm Type: Type D | Power Consumption: 7.3 W
EHS-M2TERated Voltage: 100-240V AC | Wiring: Terminal block | Alarm Type: Type E | Power Consumption: 7.3 W
EHS-M3HARated Voltage: 12-48V DC | Wiring: Cable | Alarm Type: Type A | Power Consumption: 5.5 W | Note: Mountable in vehicle
EHS-M3HCRated Voltage: 12-48V DC | Wiring: Cable | Alarm Type: Type C | Power Consumption: 5.5 W | Note: Mountable in vehicle
EHS-M3HDRated Voltage: 12-48V DC | Wiring: Cable | Alarm Type: Type D | Power Consumption: 5.5 W | Note: Mountable in vehicle
EHS-M3HERated Voltage: 12-48V DC | Wiring: Cable | Alarm Type: Type E | Power Consumption: 5.5 W | Note: Mountable in vehicle
