• PATLITE EHV MP3 Voice Annunciator Horn, 110 dB
1 1

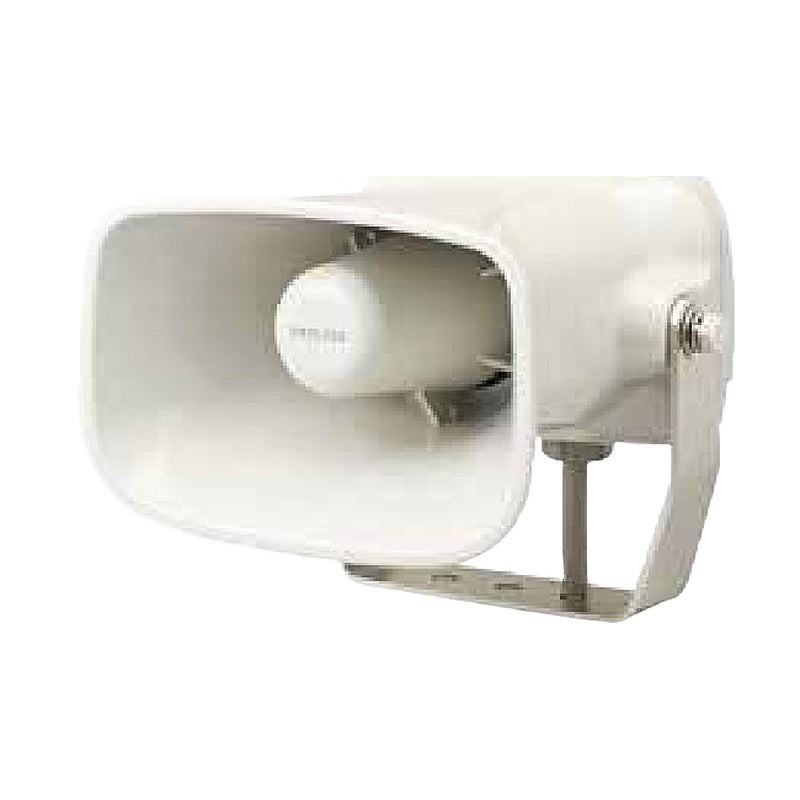

PATLITE EHV MP3 Voice Annunciator Horn, 110 dB

PATLITE EHV MP3 Voice Annunciator Horn, 110 dB

Indoor/outdoor horn-type MP3 voice annunciator with 8/63 bit/binary inputs, 63 alarm sounds and up to 220 s of playback. 63 built-in sounds from sound charts Type F or G; MP3 messages via SD card. 110 dB (MP3 105 dB).

Key features

  • Volume by knob or program (-10/-20/-30 dB)
  • IP65

Specifications

Supported Transistors M1: NPN/PNP; M2/M3: NPN
Mass 1.25 kg
Sound File Format MP3 (32/64/128 kbps, 44.1 kHz)
Use Indoor/Outdoor
Ambient Temperature -20 to +50°C
Ingress Protection IP65
Approvals CE (DC type), UKCA (DC type), RoHS10, UL/FCC/KC (excluding M3)
EHV-M1HF Rated Voltage: 12-24V DC | Wiring: Cable | Alarm Type: Type F | Pre-recorded Message: No | Power Consumption: 8.0 W
EHV-M1HG Rated Voltage: 12-24V DC | Wiring: Cable | Alarm Type: Type G | Pre-recorded Message: No | Power Consumption: 8.0 W
EHV-M1TF Rated Voltage: 12-24V DC | Wiring: Terminal block | Alarm Type: Type F | Pre-recorded Message: No | Power Consumption: 8.0 W
EHV-M1TG Rated Voltage: 12-24V DC | Wiring: Terminal block | Alarm Type: Type G | Pre-recorded Message: No | Power Consumption: 8.0 W
EHV-M2HF Rated Voltage: 100-240V AC | Wiring: Cable | Alarm Type: Type F | Pre-recorded Message: No | Power Consumption: 7.9 W
EHV-M2HG Rated Voltage: 100-240V AC | Wiring: Cable | Alarm Type: Type G | Pre-recorded Message: No | Power Consumption: 7.9 W
EHV-M2TF Rated Voltage: 100-240V AC | Wiring: Terminal block | Alarm Type: Type F | Pre-recorded Message: No | Power Consumption: 7.9 W
EHV-M2TG Rated Voltage: 100-240V AC | Wiring: Terminal block | Alarm Type: Type G | Pre-recorded Message: No | Power Consumption: 7.9 W
EHV-M1HFM Rated Voltage: 12-24V DC | Wiring: Cable | Alarm Type: Type F | Pre-recorded Message: Yes | Power Consumption: 8.0 W
EHV-M1HGM Rated Voltage: 12-24V DC | Wiring: Cable | Alarm Type: Type G | Pre-recorded Message: Yes | Power Consumption: 8.0 W
EHV-M1TFM Rated Voltage: 12-24V DC | Wiring: Terminal block | Alarm Type: Type F | Pre-recorded Message: Yes | Power Consumption: 8.0 W
EHV-M1TGM Rated Voltage: 12-24V DC | Wiring: Terminal block | Alarm Type: Type G | Pre-recorded Message: Yes | Power Consumption: 8.0 W
EHV-M2HFM Rated Voltage: 100-240V AC | Wiring: Cable | Alarm Type: Type F | Pre-recorded Message: Yes | Power Consumption: 7.9 W
EHV-M2HGM Rated Voltage: 100-240V AC | Wiring: Cable | Alarm Type: Type G | Pre-recorded Message: Yes | Power Consumption: 7.9 W
EHV-M2TFM Rated Voltage: 100-240V AC | Wiring: Terminal block | Alarm Type: Type F | Pre-recorded Message: Yes | Power Consumption: 7.9 W
EHV-M2TGM Rated Voltage: 100-240V AC | Wiring: Terminal block | Alarm Type: Type G | Pre-recorded Message: Yes | Power Consumption: 7.9 W
EHV-M3HF Rated Voltage: 12-48V DC | Wiring: Cable | Alarm Type: Type F | Pre-recorded Message: No | Power Consumption: 6.1 W
EHV-M3HG Rated Voltage: 12-48V DC | Wiring: Cable | Alarm Type: Type G | Pre-recorded Message: No | Power Consumption: 6.1 W
EHV-M3HFM Rated Voltage: 12-48V DC | Wiring: Cable | Alarm Type: Type F | Pre-recorded Message: Yes | Power Consumption: 6.1 W
EHV-M3HGM Rated Voltage: 12-48V DC | Wiring: Cable | Alarm Type: Type G | Pre-recorded Message: Yes | Power Consumption: 6.1 W
Signal HornsPATLITE
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE EHV MP3 Voice Annunciator Horn, 110 dB

Brand PATLITE·Signal Horns

Available part numbers (20)

EHV-M1HF, EHV-M1HG, EHV-M1TF, EHV-M1TG, EHV-M2HF, EHV-M2HG, EHV-M2TF, EHV-M2TG, EHV-M1HFM, EHV-M1HGM + 10 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EHV-M1HFRated Voltage: 12-24V DC | Wiring: Cable | Alarm Type: Type F | Pre-recorded Message: No | Power Consumption: 8.0 W
EHV-M1HGRated Voltage: 12-24V DC | Wiring: Cable | Alarm Type: Type G | Pre-recorded Message: No | Power Consumption: 8.0 W
EHV-M1TFRated Voltage: 12-24V DC | Wiring: Terminal block | Alarm Type: Type F | Pre-recorded Message: No | Power Consumption: 8.0 W
EHV-M1TGRated Voltage: 12-24V DC | Wiring: Terminal block | Alarm Type: Type G | Pre-recorded Message: No | Power Consumption: 8.0 W
EHV-M2HFRated Voltage: 100-240V AC | Wiring: Cable | Alarm Type: Type F | Pre-recorded Message: No | Power Consumption: 7.9 W
EHV-M2HGRated Voltage: 100-240V AC | Wiring: Cable | Alarm Type: Type G | Pre-recorded Message: No | Power Consumption: 7.9 W
EHV-M2TFRated Voltage: 100-240V AC | Wiring: Terminal block | Alarm Type: Type F | Pre-recorded Message: No | Power Consumption: 7.9 W
EHV-M2TGRated Voltage: 100-240V AC | Wiring: Terminal block | Alarm Type: Type G | Pre-recorded Message: No | Power Consumption: 7.9 W
EHV-M1HFMRated Voltage: 12-24V DC | Wiring: Cable | Alarm Type: Type F | Pre-recorded Message: Yes | Power Consumption: 8.0 W
EHV-M1HGMRated Voltage: 12-24V DC | Wiring: Cable | Alarm Type: Type G | Pre-recorded Message: Yes | Power Consumption: 8.0 W
EHV-M1TFMRated Voltage: 12-24V DC | Wiring: Terminal block | Alarm Type: Type F | Pre-recorded Message: Yes | Power Consumption: 8.0 W
EHV-M1TGMRated Voltage: 12-24V DC | Wiring: Terminal block | Alarm Type: Type G | Pre-recorded Message: Yes | Power Consumption: 8.0 W
EHV-M2HFMRated Voltage: 100-240V AC | Wiring: Cable | Alarm Type: Type F | Pre-recorded Message: Yes | Power Consumption: 7.9 W
EHV-M2HGMRated Voltage: 100-240V AC | Wiring: Cable | Alarm Type: Type G | Pre-recorded Message: Yes | Power Consumption: 7.9 W
EHV-M2TFMRated Voltage: 100-240V AC | Wiring: Terminal block | Alarm Type: Type F | Pre-recorded Message: Yes | Power Consumption: 7.9 W
EHV-M2TGMRated Voltage: 100-240V AC | Wiring: Terminal block | Alarm Type: Type G | Pre-recorded Message: Yes | Power Consumption: 7.9 W
EHV-M3HFRated Voltage: 12-48V DC | Wiring: Cable | Alarm Type: Type F | Pre-recorded Message: No | Power Consumption: 6.1 W
EHV-M3HGRated Voltage: 12-48V DC | Wiring: Cable | Alarm Type: Type G | Pre-recorded Message: No | Power Consumption: 6.1 W
EHV-M3HFMRated Voltage: 12-48V DC | Wiring: Cable | Alarm Type: Type F | Pre-recorded Message: Yes | Power Consumption: 6.1 W
EHV-M3HGMRated Voltage: 12-48V DC | Wiring: Cable | Alarm Type: Type G | Pre-recorded Message: Yes | Power Consumption: 6.1 W
