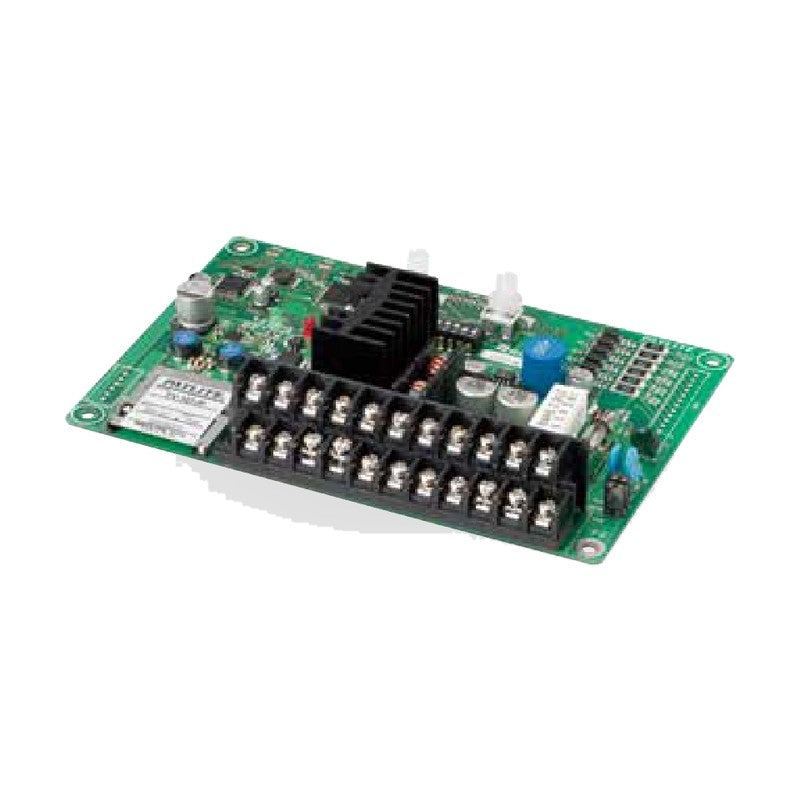

PATLITE FV-127JP MP3 File Playback Circuit Board

Printed circuit board that plays up to 127 MP3 messages from an SD card via 7/127 bit/binary inputs, for building into equipment with an external speaker.

Key features

Up to 127 messages; playback 8 min (240 min with SD card)
Connect optional PATLITE speakers (2 W to 10 W, 8 Ω)
Rotating knob volume control

Specifications

Rated Voltage	24V DC
Power Consumption	15 W
Mass	0.16 kg
Supported Transistors	NPN
Sound File Format	MP3 (32/64/128 kbps, 44.1 kHz)
Ambient Temperature	-10 to +50°C
Approvals	RoHS10

FV-127JP

Messages: 127

Voice AnnunciatorsPATLITE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE FV-127JP MP3 File Playback Circuit Board

Brand PATLITE·Voice Annunciators

Available part numbers (1)

FV-127JP

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
