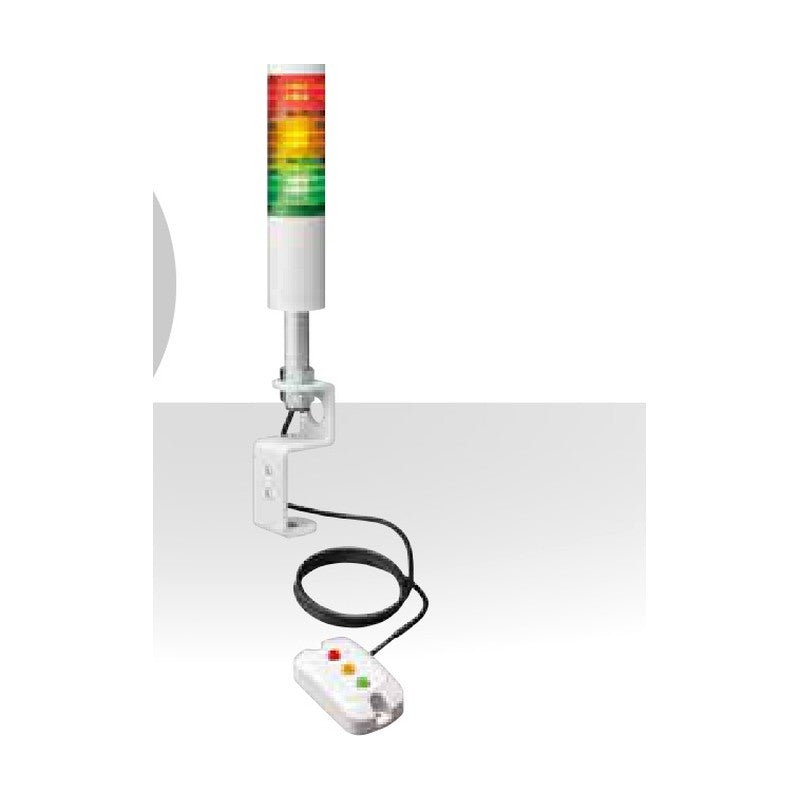

PATLITE HSST-3M2-RYG Signal Tower with Switch Box, 3 Tiers

Kit of a Φ50 mm 3-tier LED signal tower with a hand switch box for manually lighting red, amber and green, supplied with poles, bracket and AC adapter.

Key features

Switch box lights each tier manually, no PLC required
Table, partition or wall mounting
Supplied with short and long poles, fixing bracket, screws, double-sided tape, switch box and AC adapter
Compatible with the WD wireless data acquisition system

Specifications

Size	Φ50 mm
Tiers	3
Luminous Color	Red, Amber, Green
Rated Voltage	100-240V AC
Power Consumption	4 W
Mass	Signal tower 0.36 kg (short pole) / 0.47 kg (long pole); bracket 0.33 kg; switch box 0.07 kg
Ambient Temperature	0 to +40°C
Ingress Protection	IP54 (signal tower), IP20 (switch box)
Use	Indoor
Approvals	CE, UL, FCC

HSST-3M2-RYG

Lighting: Continuous on
