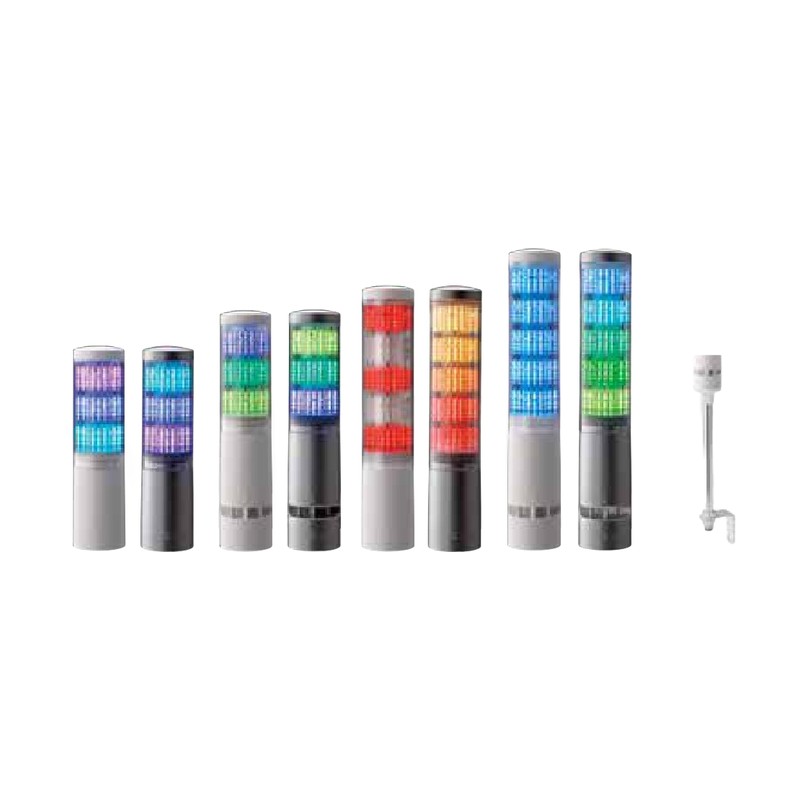

PATLITE LA6 Multi-color LED Signal Tower, Φ60 mm

PATLITE LA6 Multi-color LED Signal Tower, Φ60 mm

Φ60 mm LED signal tower in which every tier can show any of 21 colors, available in 3- and 5-tier versions with optional flashing and buzzer.

Key features

  • Each tier can display 21 colors; colors can be changed after purchase
  • Continuous, blinking and pulse lighting; 11 alarm sounds (85 dB)
  • Direct mount with terminal block or cable, or pole mount with L-bracket. 24V DC (NPN/PNP) and 100-240V AC (NPN) versions

Specifications

Size Φ60 mm
Luminous Color Multi-color (21 colors)
Use Indoor
Mounting Direction Upright/Inverted
Ambient Temperature -25 to +60°C
Sound Level 85 dB
Ingress Protection IP65 (IP54 with buzzer)
Volume Control 4 levels by push button
LA6-3DWJWB-RYG Tiers: 3 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Cable | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Off-white | Power Consumption: 4.5 W | Mass: 0.45 kg
LA6-3DWJWN-RYG Tiers: 3 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Cable | Function: Continuous On | Buzzer: None | Body Color: Off-white | Power Consumption: 4.5 W | Mass: 0.40 kg
LA6-3DWJUB-RYG Tiers: 3 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Cable | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Silver | Power Consumption: 4.5 W | Mass: 0.45 kg
LA6-3DWJUN-RYG Tiers: 3 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Cable | Function: Continuous On | Buzzer: None | Body Color: Silver | Power Consumption: 4.5 W | Mass: 0.45 kg
LA6-3DTNWB-RYG Tiers: 3 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Terminal block | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Off-white | Power Consumption: 5.5 W | Mass: 0.48 kg
LA6-3DTNWN-RYG Tiers: 3 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Terminal block | Function: Continuous On | Buzzer: None | Body Color: Off-white | Power Consumption: 4.5 W | Mass: 0.42 kg
LA6-3DTNUB-RYG Tiers: 3 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Terminal block | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Silver | Power Consumption: 5.5 W | Mass: 0.48 kg
LA6-3DTNUN-RYG Tiers: 3 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Terminal block | Function: Continuous On | Buzzer: None | Body Color: Silver | Power Consumption: 4.5 W | Mass: 0.42 kg
LA6-3DLJWB-RYG Tiers: 3 | Rated Voltage: 24V DC | Mounting: Pole with L-bracket | Wiring: Cable | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Off-white | Power Consumption: 5.5 W | Mass: 0.98 kg
LA6-3DLJWN-RYG Tiers: 3 | Rated Voltage: 24V DC | Mounting: Pole with L-bracket | Wiring: Cable | Function: Continuous On | Buzzer: None | Body Color: Off-white | Power Consumption: 4.5 W | Mass: 0.93 kg
LA6-5DTNWB-RYGBC Tiers: 5 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Terminal block | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Off-white | Power Consumption: 8 W | Mass: 0.59 kg
LA6-5DTNWN-RYGBC Tiers: 5 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Terminal block | Function: Continuous On | Buzzer: None | Body Color: Off-white | Power Consumption: 7 W | Mass: 0.53 kg
LA6-5DTNUB-RYGBC Tiers: 5 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Terminal block | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Silver | Power Consumption: 8 W | Mass: 0.59 kg
LA6-5DTNUN-RYGBC Tiers: 5 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Terminal block | Function: Continuous On | Buzzer: None | Body Color: Silver | Power Consumption: 7 W | Mass: 0.53 kg
LA6-5DWJWB-RYGBC Tiers: 5 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Cable | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Off-white | Power Consumption: 8 W | Mass: 0.56 kg
LA6-5DWJWN-RYGBC Tiers: 5 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Cable | Function: Continuous On | Buzzer: None | Body Color: Off-white | Power Consumption: 8 W | Mass: 0.51 kg
LA6-5DWJUB-RYGBC Tiers: 5 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Cable | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Silver | Power Consumption: 8 W | Mass: 0.56 kg
LA6-5DWJUN-RYGBC Tiers: 5 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Cable | Function: Continuous On | Buzzer: None | Body Color: Silver | Power Consumption: 8 W | Mass: 0.51 kg
LA6-5DLJWB-RYGBC Tiers: 5 | Rated Voltage: 24V DC | Mounting: Pole with L-bracket | Wiring: Cable | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Off-white | Power Consumption: 8 W | Mass: 1.09 kg
LA6-5DLJWN-RYGBC Tiers: 5 | Rated Voltage: 24V DC | Mounting: Pole with L-bracket | Wiring: Cable | Function: Continuous On | Buzzer: None | Body Color: Off-white | Power Consumption: 7 W | Mass: 1.04 kg
LA6-5AWJWB-RYGBC Tiers: 5 | Rated Voltage: 100-240V AC | Mounting: Direct | Wiring: Cable | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Off-white | Power Consumption: 7.5 W | Mass: 0.74 kg
Signal TowersPATLITE
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE LA6 Multi-color LED Signal Tower, Φ60 mm

Brand PATLITE·Signal Towers

Available part numbers (21)

LA6-3DWJWB-RYG, LA6-3DWJWN-RYG, LA6-3DWJUB-RYG, LA6-3DWJUN-RYG, LA6-3DTNWB-RYG, LA6-3DTNWN-RYG, LA6-3DTNUB-RYG, LA6-3DTNUN-RYG, LA6-3DLJWB-RYG, LA6-3DLJWN-RYG + 11 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LA6-3DWJWB-RYGTiers: 3 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Cable | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Off-white | Power Consumption: 4.5 W | Mass: 0.45 kg
LA6-3DWJWN-RYGTiers: 3 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Cable | Function: Continuous On | Buzzer: None | Body Color: Off-white | Power Consumption: 4.5 W | Mass: 0.40 kg
LA6-3DWJUB-RYGTiers: 3 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Cable | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Silver | Power Consumption: 4.5 W | Mass: 0.45 kg
LA6-3DWJUN-RYGTiers: 3 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Cable | Function: Continuous On | Buzzer: None | Body Color: Silver | Power Consumption: 4.5 W | Mass: 0.45 kg
LA6-3DTNWB-RYGTiers: 3 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Terminal block | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Off-white | Power Consumption: 5.5 W | Mass: 0.48 kg
LA6-3DTNWN-RYGTiers: 3 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Terminal block | Function: Continuous On | Buzzer: None | Body Color: Off-white | Power Consumption: 4.5 W | Mass: 0.42 kg
LA6-3DTNUB-RYGTiers: 3 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Terminal block | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Silver | Power Consumption: 5.5 W | Mass: 0.48 kg
LA6-3DTNUN-RYGTiers: 3 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Terminal block | Function: Continuous On | Buzzer: None | Body Color: Silver | Power Consumption: 4.5 W | Mass: 0.42 kg
LA6-3DLJWB-RYGTiers: 3 | Rated Voltage: 24V DC | Mounting: Pole with L-bracket | Wiring: Cable | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Off-white | Power Consumption: 5.5 W | Mass: 0.98 kg
LA6-3DLJWN-RYGTiers: 3 | Rated Voltage: 24V DC | Mounting: Pole with L-bracket | Wiring: Cable | Function: Continuous On | Buzzer: None | Body Color: Off-white | Power Consumption: 4.5 W | Mass: 0.93 kg
LA6-5DTNWB-RYGBCTiers: 5 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Terminal block | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Off-white | Power Consumption: 8 W | Mass: 0.59 kg
LA6-5DTNWN-RYGBCTiers: 5 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Terminal block | Function: Continuous On | Buzzer: None | Body Color: Off-white | Power Consumption: 7 W | Mass: 0.53 kg
LA6-5DTNUB-RYGBCTiers: 5 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Terminal block | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Silver | Power Consumption: 8 W | Mass: 0.59 kg
LA6-5DTNUN-RYGBCTiers: 5 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Terminal block | Function: Continuous On | Buzzer: None | Body Color: Silver | Power Consumption: 7 W | Mass: 0.53 kg
LA6-5DWJWB-RYGBCTiers: 5 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Cable | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Off-white | Power Consumption: 8 W | Mass: 0.56 kg
LA6-5DWJWN-RYGBCTiers: 5 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Cable | Function: Continuous On | Buzzer: None | Body Color: Off-white | Power Consumption: 8 W | Mass: 0.51 kg
LA6-5DWJUB-RYGBCTiers: 5 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Cable | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Silver | Power Consumption: 8 W | Mass: 0.56 kg
LA6-5DWJUN-RYGBCTiers: 5 | Rated Voltage: 24V DC | Mounting: Direct | Wiring: Cable | Function: Continuous On | Buzzer: None | Body Color: Silver | Power Consumption: 8 W | Mass: 0.51 kg
LA6-5DLJWB-RYGBCTiers: 5 | Rated Voltage: 24V DC | Mounting: Pole with L-bracket | Wiring: Cable | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Off-white | Power Consumption: 8 W | Mass: 1.09 kg
LA6-5DLJWN-RYGBCTiers: 5 | Rated Voltage: 24V DC | Mounting: Pole with L-bracket | Wiring: Cable | Function: Continuous On | Buzzer: None | Body Color: Off-white | Power Consumption: 7 W | Mass: 1.04 kg
LA6-5AWJWB-RYGBCTiers: 5 | Rated Voltage: 100-240V AC | Mounting: Direct | Wiring: Cable | Function: Continuous On and flashing | Buzzer: Yes | Body Color: Off-white | Power Consumption: 7.5 W | Mass: 0.74 kg
