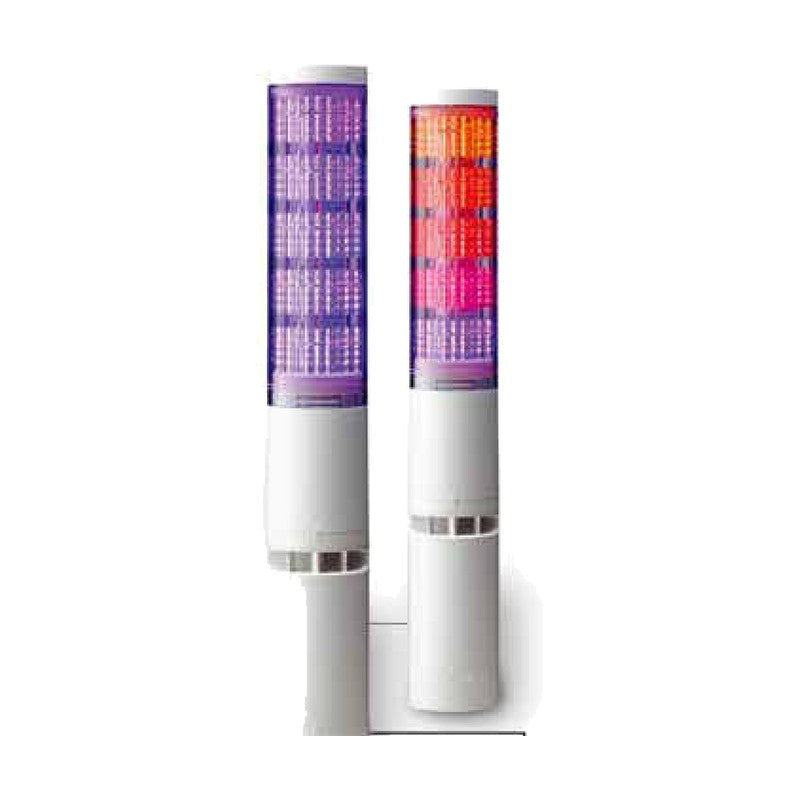

PATLITE LA6-POE 60 mm Smart Network Multi-color Signal Tower with PoE
PATLITE LA6-POE 60 mm Smart Network Multi-color Signal Tower with PoE
Programmable 60 mm multi-color signal tower with Ethernet/PoE that replaces standard stack lights and can mirror its signal to remote units.
Key features
- 21 LED colors and 11 alarm types in a single unit
- Ethernet with PoE (IEEE802.3af) for single-cable installation, or 24V DC
- Controlled by HTTPS, SOCKET (PNS) and Modbus TCP/UDP commands or terminal block inputs
- Mirroring function replicates signals on up to 8 slave devices
- Smart modes (time trigger, pulse trigger, single light) configured with EDITOR software
- Built-in web interface for configuration
Specifications
| Size | Φ60 |
|---|---|
| LED tiers | 5 |
| LED colors | 21 |
| Alarm types | 11 |
| Sound pressure | Max. 85 dB or more |
| Volume | Loud, medium, soft, off (set from web browser) |
| Power | PoE (IEEE802.3af, 48V DC) / 24V DC |
| Inputs | Terminal block, 7 inputs + mode change |
| Lead wire | UL1007 / UL1430, 0.2 to 1.5 mm² (AWG24-16) |
| Software | EDITOR for LA Series |
| LA6-5DTNWB-POE | Mounting: Direct mount | Option bracket: SZK-003W+FO044 wall-mount | |
| LA6-5DSNWB-POE | Mounting: Stationary | Option bracket: NH-WST2 wall-mount |
Network Signal TowersPATLITE
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
PATLITE LA6-POE 60 mm Smart Network Multi-color Signal Tower with PoE
Available part numbers (2)
LA6-5DTNWB-POE, LA6-5DSNWB-POE
How to order
Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
PATLITE
Network Signal Towers
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| LA6-5DTNWB-POE | Mounting: Direct mount | Option bracket: SZK-003W+FO044 wall-mount | ||
| LA6-5DSNWB-POE | Mounting: Stationary | Option bracket: NH-WST2 wall-mount |
