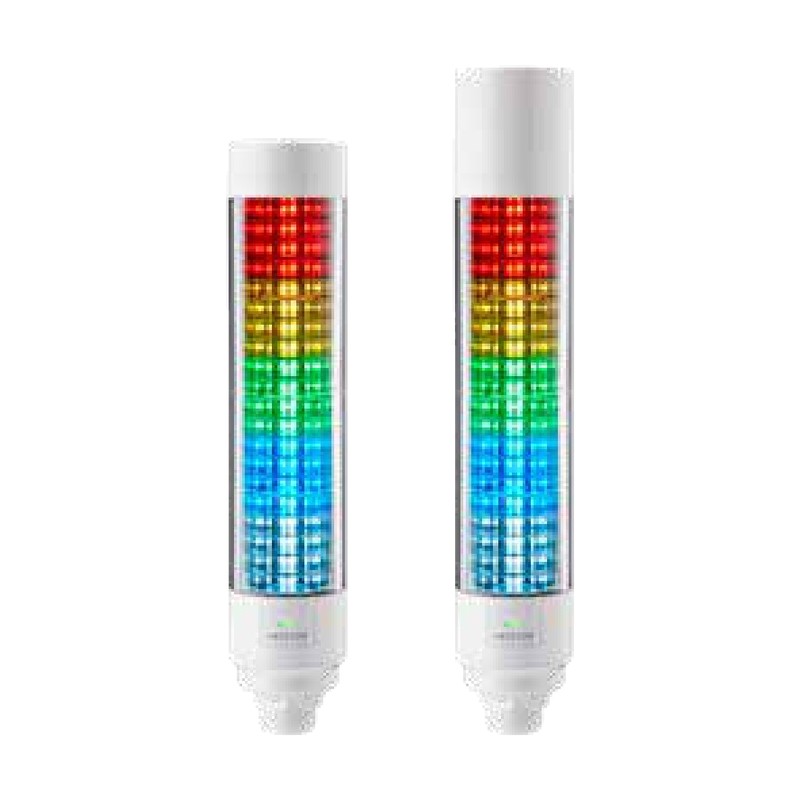

PATLITE LB6-IL Signal Tower with IO-Link

Φ60 20-segment LED signal tower controlled over IO-Link, wired with a single M12 cable for status, takt time and level indication.

Key features

Wiring with one IO-Link cable, no tools needed
Factory settings automatically restored when a replacement is connected
21 colors and 10 lighting patterns; lighting area freely divided into 1 to 5 tiers
Simple, animation and level meter operating modes
Setup with IODD file and PATLITE setup tool

Specifications

Rated voltage	24V DC
Protection	IP65 (upright only)
Luminous color	21 colors
Lighting patterns	10
Dimming	0-100% (10% steps)
IO-Link revision	1.1.3
Connection	M12 connector, 5-pin, A-coded
Mounting	Direct mount
Body color	Off-white

PATLITE LB6-IL Signal Tower with IO-Link - reference 2

LB6-20ILWCNW		Buzzer: None \| Height: 281 mm
LB6-20ILWCBW		Buzzer: Built-in, Typ. 88 dB, 9 sound types (incl. OFF), volume 0-100% (10% steps) \| Height: 315.5 mm

Signal TowersPATLITE

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE LB6-IL Signal Tower with IO-Link

Brand PATLITE·Signal Towers

Available part numbers (2)

LB6-20ILWCNW, LB6-20ILWCBW

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LB6-20ILWCNW	Buzzer: None \| Height: 281 mm
	LB6-20ILWCBW	Buzzer: Built-in, Typ. 88 dB, 9 sound types (incl. OFF), volume 0-100% (10% steps) \| Height: 315.5 mm
