• PATLITE LFH Flashing LED Signal Beacon, Φ100 mm
1 1

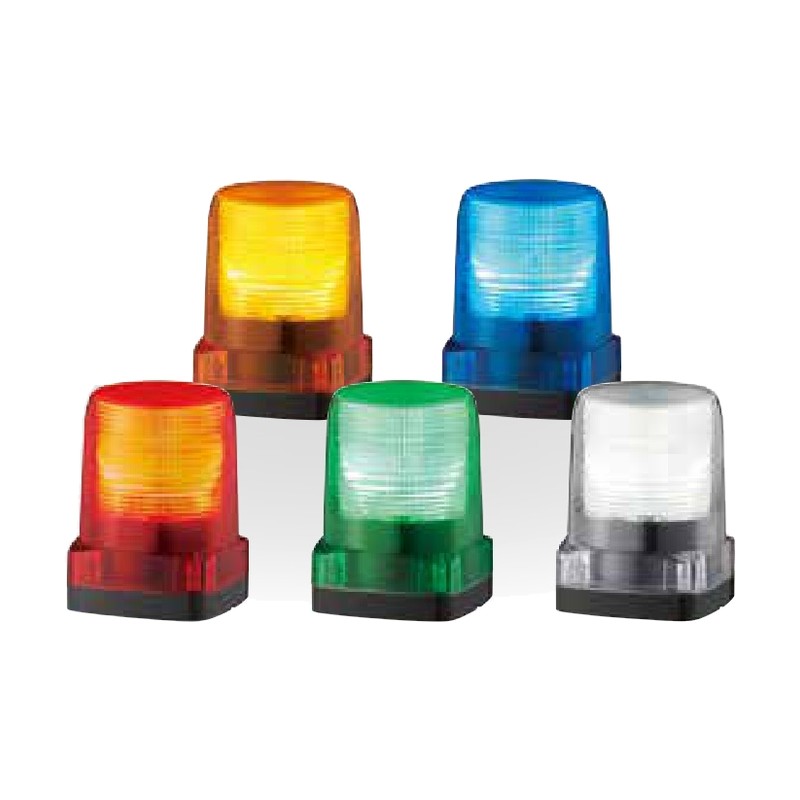

PATLITE LFH Flashing LED Signal Beacon, Φ100 mm

PATLITE LFH Flashing LED Signal Beacon, Φ100 mm

Φ100 mm LED flashing beacon for indoor/outdoor use with 110 or 140 flashes per minute. 110 flashes/min (LFH) or 140 flashes/min (LFH-S).

Key features

  • Vibration resistance 90 m/s² (excluding LFH-M2)
  • IP66
  • Mounting upright, sideways or inverted

Specifications

Size Φ100 mm
Use Indoor/Outdoor
Ambient Temperature -30 to +70°C (DC), -20 to +60°C (AC)
Ingress Protection IP66
LFH-12-R Rated Voltage: 12V DC | Flashes per Minute: 110 | Luminous Color: Red | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-12-Y Rated Voltage: 12V DC | Flashes per Minute: 110 | Luminous Color: Amber | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-12-G Rated Voltage: 12V DC | Flashes per Minute: 110 | Luminous Color: Green | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-12-B Rated Voltage: 12V DC | Flashes per Minute: 110 | Luminous Color: Blue | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-12-C Rated Voltage: 12V DC | Flashes per Minute: 110 | Luminous Color: White | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-24-R Rated Voltage: 24V DC | Flashes per Minute: 110 | Luminous Color: Red | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-24-Y Rated Voltage: 24V DC | Flashes per Minute: 110 | Luminous Color: Amber | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-24-G Rated Voltage: 24V DC | Flashes per Minute: 110 | Luminous Color: Green | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-24-B Rated Voltage: 24V DC | Flashes per Minute: 110 | Luminous Color: Blue | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-24-C Rated Voltage: 24V DC | Flashes per Minute: 110 | Luminous Color: White | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-48-R Rated Voltage: 48V DC | Flashes per Minute: 110 | Luminous Color: Red | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-48-Y Rated Voltage: 48V DC | Flashes per Minute: 110 | Luminous Color: Amber | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-48-G Rated Voltage: 48V DC | Flashes per Minute: 110 | Luminous Color: Green | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-48-B Rated Voltage: 48V DC | Flashes per Minute: 110 | Luminous Color: Blue | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-48-C Rated Voltage: 48V DC | Flashes per Minute: 110 | Luminous Color: White | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-M2-R Rated Voltage: 100/120/200/230V AC | Flashes per Minute: 110 | Luminous Color: Red | Power Consumption: 6.8 W | Mass: 0.61 kg
LFH-M2-Y Rated Voltage: 100/120/200/230V AC | Flashes per Minute: 110 | Luminous Color: Amber | Power Consumption: 6.8 W | Mass: 0.61 kg
LFH-M2-G Rated Voltage: 100/120/200/230V AC | Flashes per Minute: 110 | Luminous Color: Green | Power Consumption: 6.8 W | Mass: 0.61 kg
LFH-M2-B Rated Voltage: 100/120/200/230V AC | Flashes per Minute: 110 | Luminous Color: Blue | Power Consumption: 6.8 W | Mass: 0.61 kg
LFH-M2-C Rated Voltage: 100/120/200/230V AC | Flashes per Minute: 110 | Luminous Color: White | Power Consumption: 6.8 W | Mass: 0.61 kg
LFH-12S-R Rated Voltage: 12V DC | Flashes per Minute: 140 | Luminous Color: Red | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-12S-Y Rated Voltage: 12V DC | Flashes per Minute: 140 | Luminous Color: Amber | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-12S-G Rated Voltage: 12V DC | Flashes per Minute: 140 | Luminous Color: Green | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-12S-B Rated Voltage: 12V DC | Flashes per Minute: 140 | Luminous Color: Blue | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-12S-C Rated Voltage: 12V DC | Flashes per Minute: 140 | Luminous Color: White | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-24S-R Rated Voltage: 24V DC | Flashes per Minute: 140 | Luminous Color: Red | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-24S-Y Rated Voltage: 24V DC | Flashes per Minute: 140 | Luminous Color: Amber | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-24S-G Rated Voltage: 24V DC | Flashes per Minute: 140 | Luminous Color: Green | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-24S-B Rated Voltage: 24V DC | Flashes per Minute: 140 | Luminous Color: Blue | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-24S-C Rated Voltage: 24V DC | Flashes per Minute: 140 | Luminous Color: White | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-48S-R Rated Voltage: 48V DC | Flashes per Minute: 140 | Luminous Color: Red | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-48S-Y Rated Voltage: 48V DC | Flashes per Minute: 140 | Luminous Color: Amber | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-48S-G Rated Voltage: 48V DC | Flashes per Minute: 140 | Luminous Color: Green | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-48S-B Rated Voltage: 48V DC | Flashes per Minute: 140 | Luminous Color: Blue | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-48S-C Rated Voltage: 48V DC | Flashes per Minute: 140 | Luminous Color: White | Power Consumption: 7.5 W | Mass: 0.57 kg
Signal BeaconsPATLITE
35 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE LFH Flashing LED Signal Beacon, Φ100 mm

Brand PATLITE·Signal Beacons

Available part numbers (35)

LFH-12-R, LFH-12-Y, LFH-12-G, LFH-12-B, LFH-12-C, LFH-24-R, LFH-24-Y, LFH-24-G, LFH-24-B, LFH-24-C + 25 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LFH-12-RRated Voltage: 12V DC | Flashes per Minute: 110 | Luminous Color: Red | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-12-YRated Voltage: 12V DC | Flashes per Minute: 110 | Luminous Color: Amber | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-12-GRated Voltage: 12V DC | Flashes per Minute: 110 | Luminous Color: Green | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-12-BRated Voltage: 12V DC | Flashes per Minute: 110 | Luminous Color: Blue | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-12-CRated Voltage: 12V DC | Flashes per Minute: 110 | Luminous Color: White | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-24-RRated Voltage: 24V DC | Flashes per Minute: 110 | Luminous Color: Red | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-24-YRated Voltage: 24V DC | Flashes per Minute: 110 | Luminous Color: Amber | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-24-GRated Voltage: 24V DC | Flashes per Minute: 110 | Luminous Color: Green | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-24-BRated Voltage: 24V DC | Flashes per Minute: 110 | Luminous Color: Blue | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-24-CRated Voltage: 24V DC | Flashes per Minute: 110 | Luminous Color: White | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-48-RRated Voltage: 48V DC | Flashes per Minute: 110 | Luminous Color: Red | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-48-YRated Voltage: 48V DC | Flashes per Minute: 110 | Luminous Color: Amber | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-48-GRated Voltage: 48V DC | Flashes per Minute: 110 | Luminous Color: Green | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-48-BRated Voltage: 48V DC | Flashes per Minute: 110 | Luminous Color: Blue | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-48-CRated Voltage: 48V DC | Flashes per Minute: 110 | Luminous Color: White | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-M2-RRated Voltage: 100/120/200/230V AC | Flashes per Minute: 110 | Luminous Color: Red | Power Consumption: 6.8 W | Mass: 0.61 kg
LFH-M2-YRated Voltage: 100/120/200/230V AC | Flashes per Minute: 110 | Luminous Color: Amber | Power Consumption: 6.8 W | Mass: 0.61 kg
LFH-M2-GRated Voltage: 100/120/200/230V AC | Flashes per Minute: 110 | Luminous Color: Green | Power Consumption: 6.8 W | Mass: 0.61 kg
LFH-M2-BRated Voltage: 100/120/200/230V AC | Flashes per Minute: 110 | Luminous Color: Blue | Power Consumption: 6.8 W | Mass: 0.61 kg
LFH-M2-CRated Voltage: 100/120/200/230V AC | Flashes per Minute: 110 | Luminous Color: White | Power Consumption: 6.8 W | Mass: 0.61 kg
LFH-12S-RRated Voltage: 12V DC | Flashes per Minute: 140 | Luminous Color: Red | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-12S-YRated Voltage: 12V DC | Flashes per Minute: 140 | Luminous Color: Amber | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-12S-GRated Voltage: 12V DC | Flashes per Minute: 140 | Luminous Color: Green | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-12S-BRated Voltage: 12V DC | Flashes per Minute: 140 | Luminous Color: Blue | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-12S-CRated Voltage: 12V DC | Flashes per Minute: 140 | Luminous Color: White | Power Consumption: 6.0 W | Mass: 0.57 kg
LFH-24S-RRated Voltage: 24V DC | Flashes per Minute: 140 | Luminous Color: Red | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-24S-YRated Voltage: 24V DC | Flashes per Minute: 140 | Luminous Color: Amber | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-24S-GRated Voltage: 24V DC | Flashes per Minute: 140 | Luminous Color: Green | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-24S-BRated Voltage: 24V DC | Flashes per Minute: 140 | Luminous Color: Blue | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-24S-CRated Voltage: 24V DC | Flashes per Minute: 140 | Luminous Color: White | Power Consumption: 5.5 W | Mass: 0.57 kg
LFH-48S-RRated Voltage: 48V DC | Flashes per Minute: 140 | Luminous Color: Red | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-48S-YRated Voltage: 48V DC | Flashes per Minute: 140 | Luminous Color: Amber | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-48S-GRated Voltage: 48V DC | Flashes per Minute: 140 | Luminous Color: Green | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-48S-BRated Voltage: 48V DC | Flashes per Minute: 140 | Luminous Color: Blue | Power Consumption: 7.5 W | Mass: 0.57 kg
LFH-48S-CRated Voltage: 48V DC | Flashes per Minute: 140 | Luminous Color: White | Power Consumption: 7.5 W | Mass: 0.57 kg
