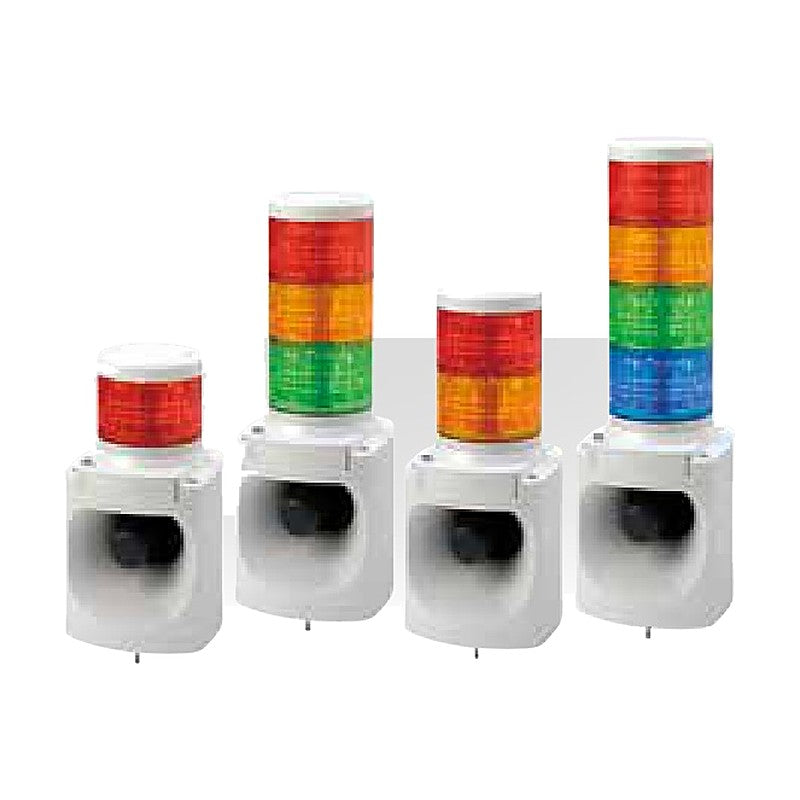

PATLITE LKEH-FV Signal Tower with MP3 Voice Annunciator Horn, Φ100 mm

PATLITE LKEH-FV Signal Tower with MP3 Voice Annunciator Horn, Φ100 mm

Φ100 mm LED signal tower combined with a 105 dB MP3 voice annunciator horn with 5/31 bit/binary inputs and up to 63 s of playback.

Key features

  • MP3 messages programmed via SD card (SDV-2GP). 105 dB horn and 60 flashes/min
  • UL certified versions (UL) for 24V DC
  • IP53

Specifications

Size Φ100 mm
Supported Transistors NPN (PNP on custom order)
Sound File Format MP3 (64 kbps, 44.1 kHz)
Volume Control Rotating knob
Use Indoor/Outdoor
Ambient Temperature -10 to +50°C
Ingress Protection IP53
Note Not recommended for vehicle use
LKEH-102FV-R Tiers: 1 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Red | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-102FV-Y Tiers: 1 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Amber | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-102FV-G Tiers: 1 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Green | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-102FV-B Tiers: 1 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Blue | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-102FV-C Tiers: 1 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: White | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-110FV-R Tiers: 1 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Red | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-110FV-Y Tiers: 1 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Amber | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-110FV-G Tiers: 1 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Green | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-110FV-B Tiers: 1 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Blue | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-110FV-C Tiers: 1 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: White | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-120FV-R Tiers: 1 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: Red | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-120FV-Y Tiers: 1 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: Amber | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-120FV-G Tiers: 1 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: Green | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-120FV-B Tiers: 1 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: Blue | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-120FV-C Tiers: 1 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: White | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-202FV-RY Tiers: 2 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Red, Amber | Power Consumption: 12.4 W | Mass: 1.6 kg
LKEH-202FV-RG Tiers: 2 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Red, Green | Power Consumption: 12.4 W | Mass: 1.6 kg
LKEH-210FV-RY Tiers: 2 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Red, Amber | Power Consumption: 20 W | Mass: 2.3 kg
LKEH-210FV-RG Tiers: 2 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Red, Green | Power Consumption: 20 W | Mass: 2.3 kg
LKEH-220FV-RY Tiers: 2 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: Red, Amber | Power Consumption: 20 W | Mass: 2.3 kg
LKEH-220FV-RG Tiers: 2 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: Red, Green | Power Consumption: 20 W | Mass: 2.3 kg
LKEH-302FV-RYG Tiers: 3 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Red, Amber, Green | Power Consumption: 14.2 W | Mass: 1.8 kg
LKEH-310FV-RYG Tiers: 3 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Red, Amber, Green | Power Consumption: 23 W | Mass: 2.5 kg
LKEH-320FV-RYG Tiers: 3 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: Red, Amber, Green | Power Consumption: 23 W | Mass: 2.5 kg
LKEH-402FV-RYGB Tiers: 4 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 16 W | Mass: 2.0 kg
LKEH-410FV-RYGB Tiers: 4 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 26 W | Mass: 2.7 kg
LKEH-420FV-RYGB Tiers: 4 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 26 W | Mass: 2.7 kg
LKEH-102FVUL-R Tiers: 1 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Red | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-102FVUL-Y Tiers: 1 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Amber | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-102FVUL-G Tiers: 1 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Green | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-102FVUL-B Tiers: 1 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Blue | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-102FVUL-C Tiers: 1 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: White | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-202FVUL-RY Tiers: 2 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Red, Amber | Power Consumption: 12.4 W | Mass: 1.6 kg
LKEH-202FVUL-RG Tiers: 2 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Red, Green | Power Consumption: 12.4 W | Mass: 1.6 kg
LKEH-302FVUL-RYG Tiers: 3 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Red, Amber, Green | Power Consumption: 14.2 W | Mass: 1.8 kg
LKEH-402FVUL-RYGB Tiers: 4 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 16 W | Mass: 2.0 kg
Signal TowersPATLITE
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE LKEH-FV Signal Tower with MP3 Voice Annunciator Horn, Φ100 mm

Brand PATLITE·Signal Towers

Available part numbers (36)

LKEH-102FV-R, LKEH-102FV-Y, LKEH-102FV-G, LKEH-102FV-B, LKEH-102FV-C, LKEH-110FV-R, LKEH-110FV-Y, LKEH-110FV-G, LKEH-110FV-B, LKEH-110FV-C + 26 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LKEH-102FV-RTiers: 1 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Red | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-102FV-YTiers: 1 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Amber | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-102FV-GTiers: 1 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Green | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-102FV-BTiers: 1 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Blue | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-102FV-CTiers: 1 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: White | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-110FV-RTiers: 1 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Red | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-110FV-YTiers: 1 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Amber | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-110FV-GTiers: 1 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Green | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-110FV-BTiers: 1 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Blue | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-110FV-CTiers: 1 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: White | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-120FV-RTiers: 1 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: Red | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-120FV-YTiers: 1 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: Amber | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-120FV-GTiers: 1 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: Green | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-120FV-BTiers: 1 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: Blue | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-120FV-CTiers: 1 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: White | Power Consumption: 17 W | Mass: 2.1 kg
LKEH-202FV-RYTiers: 2 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Red, Amber | Power Consumption: 12.4 W | Mass: 1.6 kg
LKEH-202FV-RGTiers: 2 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Red, Green | Power Consumption: 12.4 W | Mass: 1.6 kg
LKEH-210FV-RYTiers: 2 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Red, Amber | Power Consumption: 20 W | Mass: 2.3 kg
LKEH-210FV-RGTiers: 2 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Red, Green | Power Consumption: 20 W | Mass: 2.3 kg
LKEH-220FV-RYTiers: 2 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: Red, Amber | Power Consumption: 20 W | Mass: 2.3 kg
LKEH-220FV-RGTiers: 2 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: Red, Green | Power Consumption: 20 W | Mass: 2.3 kg
LKEH-302FV-RYGTiers: 3 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Red, Amber, Green | Power Consumption: 14.2 W | Mass: 1.8 kg
LKEH-310FV-RYGTiers: 3 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Red, Amber, Green | Power Consumption: 23 W | Mass: 2.5 kg
LKEH-320FV-RYGTiers: 3 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: Red, Amber, Green | Power Consumption: 23 W | Mass: 2.5 kg
LKEH-402FV-RYGBTiers: 4 | Rated Voltage: 24V DC | UL Certified: No | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 16 W | Mass: 2.0 kg
LKEH-410FV-RYGBTiers: 4 | Rated Voltage: 100V AC | UL Certified: No | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 26 W | Mass: 2.7 kg
LKEH-420FV-RYGBTiers: 4 | Rated Voltage: 220V AC | UL Certified: No | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 26 W | Mass: 2.7 kg
LKEH-102FVUL-RTiers: 1 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Red | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-102FVUL-YTiers: 1 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Amber | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-102FVUL-GTiers: 1 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Green | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-102FVUL-BTiers: 1 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Blue | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-102FVUL-CTiers: 1 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: White | Power Consumption: 10.6 W | Mass: 1.4 kg
LKEH-202FVUL-RYTiers: 2 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Red, Amber | Power Consumption: 12.4 W | Mass: 1.6 kg
LKEH-202FVUL-RGTiers: 2 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Red, Green | Power Consumption: 12.4 W | Mass: 1.6 kg
LKEH-302FVUL-RYGTiers: 3 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Red, Amber, Green | Power Consumption: 14.2 W | Mass: 1.8 kg
LKEH-402FVUL-RYGBTiers: 4 | Rated Voltage: 24V DC | UL Certified: Yes | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 16 W | Mass: 2.0 kg
