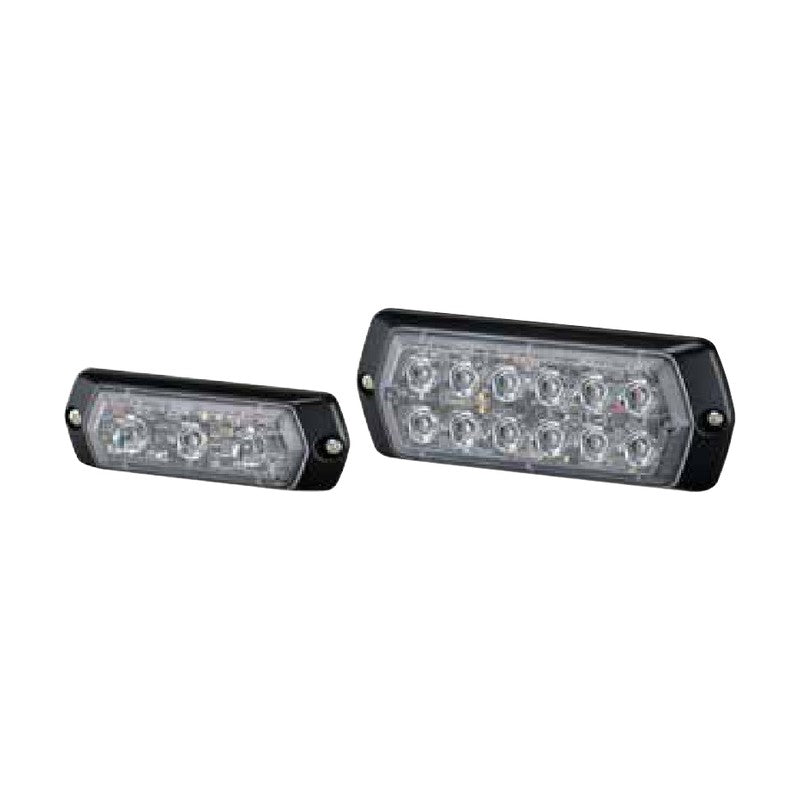

PATLITE LPT Warning Light, Surface Mount LED

PATLITE LPT Warning Light, Surface Mount LED

Low-profile (13.5 mm) surface-mount LED warning light with triple flash, extreme warning flash, blinking and continuous modes.

Key features

  • Up to 400 flashes/min (triple/extreme warning) or 67 flashes/min (blinking)
  • Vibration resistance 90 m/s², IP68, NEMA 4X/13
  • Up to 20 units can be connected for simultaneous or alternating flash
  • Lead wires AVS 0.5 mm² x 4, 500 mm

Specifications

Rated Voltage 12-24V DC
Use Indoor/Outdoor
Mounting Direction All directions
Ambient Temperature -30 to +75°C
Ingress Protection IP68
Approvals CE, UKCA, FCC
LPT-1M1-R Size: 86.0 x 28.0 mm | Luminous Color: Red | Power Consumption: 3.6 W | Mass: 0.072 kg
LPT-1M1-Y Size: 86.0 x 28.0 mm | Luminous Color: Amber | Power Consumption: 3.6 W | Mass: 0.072 kg
LPT-1M1-G Size: 86.0 x 28.0 mm | Luminous Color: Green | Power Consumption: 7.2 W | Mass: 0.072 kg
LPT-1M1-B Size: 86.0 x 28.0 mm | Luminous Color: Blue | Power Consumption: 6.0 W | Mass: 0.072 kg
LPT-2M1-R Size: 114.4 x 43.4 mm | Luminous Color: Red | Power Consumption: 13.2 W | Mass: 0.13 kg
LPT-2M1-Y Size: 114.4 x 43.4 mm | Luminous Color: Amber | Power Consumption: 13.2 W | Mass: 0.13 kg
LPT-2M1-G Size: 114.4 x 43.4 mm | Luminous Color: Green | Power Consumption: 15.6 W | Mass: 0.13 kg
LPT-2M1-B Size: 114.4 x 43.4 mm | Luminous Color: Blue | Power Consumption: 14.4 W | Mass: 0.13 kg
Warning Light BarsPATLITE
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE LPT Warning Light, Surface Mount LED

Brand PATLITE·Warning Light Bars

Available part numbers (8)

LPT-1M1-R, LPT-1M1-Y, LPT-1M1-G, LPT-1M1-B, LPT-2M1-R, LPT-2M1-Y, LPT-2M1-G, LPT-2M1-B

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LPT-1M1-RSize: 86.0 x 28.0 mm | Luminous Color: Red | Power Consumption: 3.6 W | Mass: 0.072 kg
LPT-1M1-YSize: 86.0 x 28.0 mm | Luminous Color: Amber | Power Consumption: 3.6 W | Mass: 0.072 kg
LPT-1M1-GSize: 86.0 x 28.0 mm | Luminous Color: Green | Power Consumption: 7.2 W | Mass: 0.072 kg
LPT-1M1-BSize: 86.0 x 28.0 mm | Luminous Color: Blue | Power Consumption: 6.0 W | Mass: 0.072 kg
LPT-2M1-RSize: 114.4 x 43.4 mm | Luminous Color: Red | Power Consumption: 13.2 W | Mass: 0.13 kg
LPT-2M1-YSize: 114.4 x 43.4 mm | Luminous Color: Amber | Power Consumption: 13.2 W | Mass: 0.13 kg
LPT-2M1-GSize: 114.4 x 43.4 mm | Luminous Color: Green | Power Consumption: 15.6 W | Mass: 0.13 kg
LPT-2M1-BSize: 114.4 x 43.4 mm | Luminous Color: Blue | Power Consumption: 14.4 W | Mass: 0.13 kg
