• PATLITE LR4/LR5/LR6/LR7 LED Units for Signal Towers
1 1

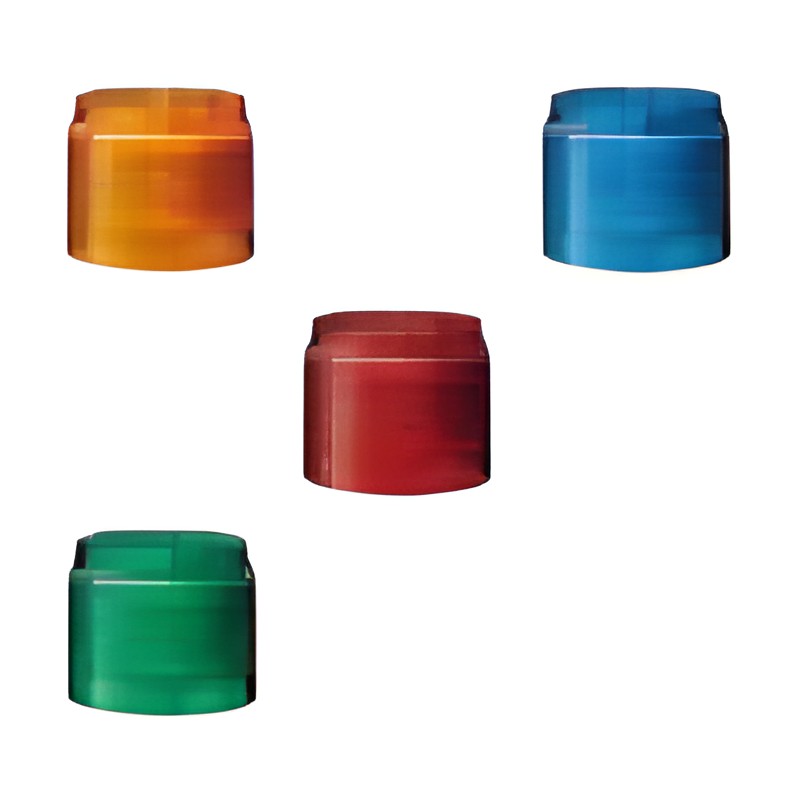

PATLITE LR4/LR5/LR6/LR7 LED Units for Signal Towers

PATLITE LR4/LR5/LR6/LR7 LED Units for Signal Towers

Single-tier LED units used to build or change LR series signal towers, in colored or clear lens versions.

Key features

  • Attach one LED unit at a time to the body unit; tiers can be added or changed after purchase
  • Red, amber, green, blue and white; clear-lens versions and a 7-color multi-color unit (LR6)

Specifications

Compatible Series LR4, LR5, LR6, LR7
LR4-E-R Size: Φ40 | Luminous Color: Red | Lens: Colored | Mass: 0.035 kg
LR4-E-Y Size: Φ40 | Luminous Color: Amber | Lens: Colored | Mass: 0.035 kg
LR4-E-G Size: Φ40 | Luminous Color: Green | Lens: Colored | Mass: 0.035 kg
LR4-E-B Size: Φ40 | Luminous Color: Blue | Lens: Colored | Mass: 0.035 kg
LR4-E-C Size: Φ40 | Luminous Color: White | Lens: Colored | Mass: 0.035 kg
LR4-E-RZ Size: Φ40 | Luminous Color: Red | Lens: Clear | Mass: 0.035 kg
LR4-E-YZ Size: Φ40 | Luminous Color: Amber | Lens: Clear | Mass: 0.035 kg
LR4-E-GZ Size: Φ40 | Luminous Color: Green | Lens: Clear | Mass: 0.035 kg
LR4-E-BZ Size: Φ40 | Luminous Color: Blue | Lens: Clear | Mass: 0.035 kg
LR5-E-R Size: Φ50 | Luminous Color: Red | Lens: Colored | Mass: 0.04 kg
LR5-E-Y Size: Φ50 | Luminous Color: Amber | Lens: Colored | Mass: 0.04 kg
LR5-E-G Size: Φ50 | Luminous Color: Green | Lens: Colored | Mass: 0.04 kg
LR5-E-B Size: Φ50 | Luminous Color: Blue | Lens: Colored | Mass: 0.04 kg
LR5-E-C Size: Φ50 | Luminous Color: White | Lens: Colored | Mass: 0.04 kg
LR5-E-RZ Size: Φ50 | Luminous Color: Red | Lens: Clear | Mass: 0.04 kg
LR5-E-YZ Size: Φ50 | Luminous Color: Amber | Lens: Clear | Mass: 0.04 kg
LR5-E-GZ Size: Φ50 | Luminous Color: Green | Lens: Clear | Mass: 0.04 kg
LR5-E-BZ Size: Φ50 | Luminous Color: Blue | Lens: Clear | Mass: 0.04 kg
LR6-E-R Size: Φ60 | Luminous Color: Red | Lens: Colored | Mass: 0.04 kg
LR6-E-Y Size: Φ60 | Luminous Color: Amber | Lens: Colored | Mass: 0.04 kg
LR6-E-G Size: Φ60 | Luminous Color: Green | Lens: Colored | Mass: 0.04 kg
LR6-E-B Size: Φ60 | Luminous Color: Blue | Lens: Colored | Mass: 0.04 kg
LR6-E-C Size: Φ60 | Luminous Color: White | Lens: Colored | Mass: 0.04 kg
LR6-E-RZ Size: Φ60 | Luminous Color: Red | Lens: Clear | Mass: 0.06 kg
LR6-E-YZ Size: Φ60 | Luminous Color: Amber | Lens: Clear | Mass: 0.06 kg
LR6-E-GZ Size: Φ60 | Luminous Color: Green | Lens: Clear | Mass: 0.06 kg
LR6-E-BZ Size: Φ60 | Luminous Color: Blue | Lens: Clear | Mass: 0.06 kg
LR7-E-R Size: Φ70 | Luminous Color: Red | Lens: Colored | Mass: 0.065 kg
LR7-E-Y Size: Φ70 | Luminous Color: Amber | Lens: Colored | Mass: 0.065 kg
LR7-E-G Size: Φ70 | Luminous Color: Green | Lens: Colored | Mass: 0.065 kg
LR7-E-B Size: Φ70 | Luminous Color: Blue | Lens: Colored | Mass: 0.065 kg
LR7-E-C Size: Φ70 | Luminous Color: White | Lens: Colored | Mass: 0.065 kg
Signal Tower AccessoriesPATLITE
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE LR4/LR5/LR6/LR7 LED Units for Signal Towers

Brand PATLITE·Signal Tower Accessories

Available part numbers (32)

LR4-E-R, LR4-E-Y, LR4-E-G, LR4-E-B, LR4-E-C, LR4-E-RZ, LR4-E-YZ, LR4-E-GZ, LR4-E-BZ, LR5-E-R + 22 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LR4-E-RSize: Φ40 | Luminous Color: Red | Lens: Colored | Mass: 0.035 kg
LR4-E-YSize: Φ40 | Luminous Color: Amber | Lens: Colored | Mass: 0.035 kg
LR4-E-GSize: Φ40 | Luminous Color: Green | Lens: Colored | Mass: 0.035 kg
LR4-E-BSize: Φ40 | Luminous Color: Blue | Lens: Colored | Mass: 0.035 kg
LR4-E-CSize: Φ40 | Luminous Color: White | Lens: Colored | Mass: 0.035 kg
LR4-E-RZSize: Φ40 | Luminous Color: Red | Lens: Clear | Mass: 0.035 kg
LR4-E-YZSize: Φ40 | Luminous Color: Amber | Lens: Clear | Mass: 0.035 kg
LR4-E-GZSize: Φ40 | Luminous Color: Green | Lens: Clear | Mass: 0.035 kg
LR4-E-BZSize: Φ40 | Luminous Color: Blue | Lens: Clear | Mass: 0.035 kg
LR5-E-RSize: Φ50 | Luminous Color: Red | Lens: Colored | Mass: 0.04 kg
LR5-E-YSize: Φ50 | Luminous Color: Amber | Lens: Colored | Mass: 0.04 kg
LR5-E-GSize: Φ50 | Luminous Color: Green | Lens: Colored | Mass: 0.04 kg
LR5-E-BSize: Φ50 | Luminous Color: Blue | Lens: Colored | Mass: 0.04 kg
LR5-E-CSize: Φ50 | Luminous Color: White | Lens: Colored | Mass: 0.04 kg
LR5-E-RZSize: Φ50 | Luminous Color: Red | Lens: Clear | Mass: 0.04 kg
LR5-E-YZSize: Φ50 | Luminous Color: Amber | Lens: Clear | Mass: 0.04 kg
LR5-E-GZSize: Φ50 | Luminous Color: Green | Lens: Clear | Mass: 0.04 kg
LR5-E-BZSize: Φ50 | Luminous Color: Blue | Lens: Clear | Mass: 0.04 kg
LR6-E-RSize: Φ60 | Luminous Color: Red | Lens: Colored | Mass: 0.04 kg
LR6-E-YSize: Φ60 | Luminous Color: Amber | Lens: Colored | Mass: 0.04 kg
LR6-E-GSize: Φ60 | Luminous Color: Green | Lens: Colored | Mass: 0.04 kg
LR6-E-BSize: Φ60 | Luminous Color: Blue | Lens: Colored | Mass: 0.04 kg
LR6-E-CSize: Φ60 | Luminous Color: White | Lens: Colored | Mass: 0.04 kg
LR6-E-RZSize: Φ60 | Luminous Color: Red | Lens: Clear | Mass: 0.06 kg
LR6-E-YZSize: Φ60 | Luminous Color: Amber | Lens: Clear | Mass: 0.06 kg
LR6-E-GZSize: Φ60 | Luminous Color: Green | Lens: Clear | Mass: 0.06 kg
LR6-E-BZSize: Φ60 | Luminous Color: Blue | Lens: Clear | Mass: 0.06 kg
LR7-E-RSize: Φ70 | Luminous Color: Red | Lens: Colored | Mass: 0.065 kg
LR7-E-YSize: Φ70 | Luminous Color: Amber | Lens: Colored | Mass: 0.065 kg
LR7-E-GSize: Φ70 | Luminous Color: Green | Lens: Colored | Mass: 0.065 kg
LR7-E-BSize: Φ70 | Luminous Color: Blue | Lens: Colored | Mass: 0.065 kg
LR7-E-CSize: Φ70 | Luminous Color: White | Lens: Colored | Mass: 0.065 kg

Need a different model, or a part not listed here? Send us your parts list →
