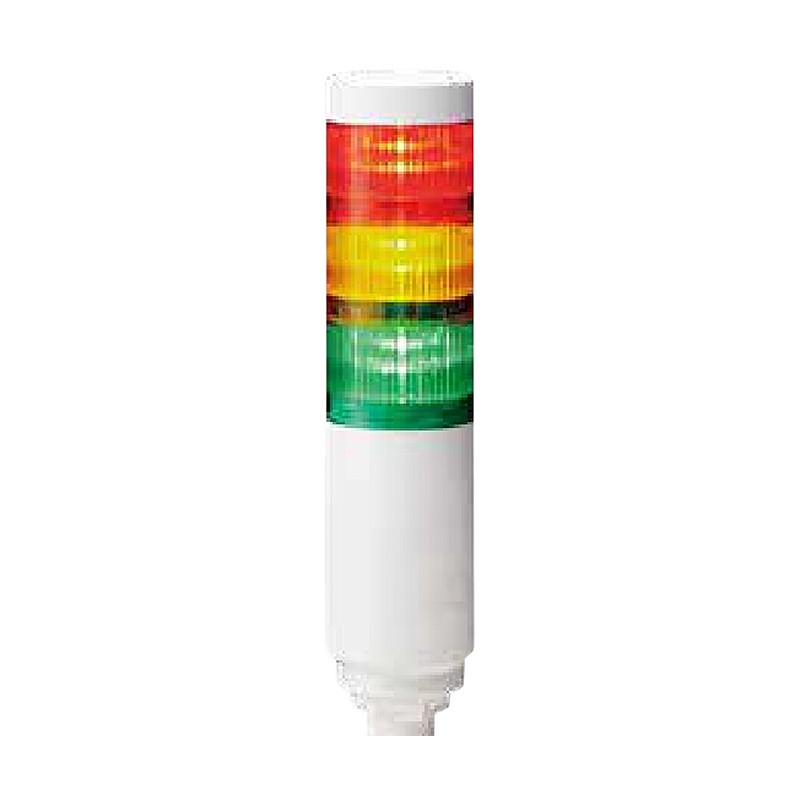

PATLITE LR6+FB295 Signal Tower, IP69K Rated, Φ60 mm

PATLITE LR6+FB295 Signal Tower, IP69K Rated, Φ60 mm

IP69K/IP67 rated Φ60 mm LED signal tower with M12 connector, for wash-down environments.

Key features

  • IP69K and IP67 protection
  • Direct mount with M12 connector: M30 nut (WC) or 3 hexagon bolts (WM). 60 flashes/min and 4 buzzer sounds (88 dB) on buzzer models
  • Number of tiers can be changed

Specifications

Size Φ60 mm
Rated Voltage 24V DC
Use Indoor
Mounting Direction Upright
Ambient Temperature -20 to +50°C
Ingress Protection IP67, IP69K
Approvals CE, UKCA, UL, FCC, KC
LR6-102WCNW-R+FB295 Tiers: 1 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red | Lens: Colored | Power Consumption: 1.3 W | Mass: 0.23 kg
LR6-202WCNW-RG+FB295 Tiers: 2 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red, Green | Lens: Colored | Power Consumption: 2.6 W | Mass: 0.29 kg
LR6-302WCNW-RYG+FB295 Tiers: 3 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red, Amber, Green | Lens: Colored | Power Consumption: 3.9 W | Mass: 0.35 kg
LR6-402WCNW-RYGB+FB295 Tiers: 4 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red, Amber, Green, Blue | Lens: Colored | Power Consumption: 5.2 W | Mass: 0.41 kg
LR6-502WCNW-RYGBC+FB295 Tiers: 5 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red, Amber, Green, Blue, White | Lens: Colored | Power Consumption: 6.5 W | Mass: 0.47 kg
LR6-102WCBW-R+FB295 Tiers: 1 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red | Lens: Colored | Power Consumption: 2.6 W | Mass: 0.29 kg
LR6-202WCBW-RG+FB295 Tiers: 2 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red, Green | Lens: Colored | Power Consumption: 3.9 W | Mass: 0.35 kg
LR6-302WCBW-RYG+FB295 Tiers: 3 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red, Amber, Green | Lens: Colored | Power Consumption: 5.2 W | Mass: 0.41 kg
LR6-402WCBW-RYGB+FB295 Tiers: 4 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red, Amber, Green, Blue | Lens: Colored | Power Consumption: 6.5 W | Mass: 0.47 kg
LR6-502WCBW-RYGBC+FB295 Tiers: 5 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red, Amber, Green, Blue, White | Lens: Colored | Power Consumption: 7.8 W | Mass: 0.53 kg
LR6-102WMNW-R+FB295 Tiers: 1 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red | Lens: Colored | Power Consumption: 1.3 W | Mass: 0.27 kg
LR6-202WMNW-RG+FB295 Tiers: 2 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red, Green | Lens: Colored | Power Consumption: 2.6 W | Mass: 0.33 kg
LR6-302WMNW-RYG+FB295 Tiers: 3 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red, Amber, Green | Lens: Colored | Power Consumption: 3.9 W | Mass: 0.39 kg
LR6-402WMNW-RYGB+FB295 Tiers: 4 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red, Amber, Green, Blue | Lens: Colored | Power Consumption: 5.2 W | Mass: 0.45 kg
LR6-502WMNW-RYGBC+FB295 Tiers: 5 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red, Amber, Green, Blue, White | Lens: Colored | Power Consumption: 6.5 W | Mass: 0.51 kg
LR6-102WMBW-R+FB295 Tiers: 1 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red | Lens: Colored | Power Consumption: 2.6 W | Mass: 0.33 kg
LR6-202WMBW-RG+FB295 Tiers: 2 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red, Green | Lens: Colored | Power Consumption: 3.9 W | Mass: 0.39 kg
LR6-302WMBW-RYG+FB295 Tiers: 3 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red, Amber, Green | Lens: Colored | Power Consumption: 5.2 W | Mass: 0.45 kg
LR6-402WMBW-RYGB+FB295 Tiers: 4 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red, Amber, Green, Blue | Lens: Colored | Power Consumption: 6.5 W | Mass: 0.51 kg
LR6-502WMBW-RYGBC+FB295 Tiers: 5 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red, Amber, Green, Blue, White | Lens: Colored | Power Consumption: 7.8 W | Mass: 0.57 kg
Signal TowersPATLITE
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE LR6+FB295 Signal Tower, IP69K Rated, Φ60 mm

Brand PATLITE·Signal Towers

Available part numbers (20)

LR6-102WCNW-R+FB295, LR6-202WCNW-RG+FB295, LR6-302WCNW-RYG+FB295, LR6-402WCNW-RYGB+FB295, LR6-502WCNW-RYGBC+FB295, LR6-102WCBW-R+FB295, LR6-202WCBW-RG+FB295, LR6-302WCBW-RYG+FB295, LR6-402WCBW-RYGB+FB295, LR6-502WCBW-RYGBC+FB295 + 10 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LR6-102WCNW-R+FB295Tiers: 1 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red | Lens: Colored | Power Consumption: 1.3 W | Mass: 0.23 kg
LR6-202WCNW-RG+FB295Tiers: 2 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red, Green | Lens: Colored | Power Consumption: 2.6 W | Mass: 0.29 kg
LR6-302WCNW-RYG+FB295Tiers: 3 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red, Amber, Green | Lens: Colored | Power Consumption: 3.9 W | Mass: 0.35 kg
LR6-402WCNW-RYGB+FB295Tiers: 4 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red, Amber, Green, Blue | Lens: Colored | Power Consumption: 5.2 W | Mass: 0.41 kg
LR6-502WCNW-RYGBC+FB295Tiers: 5 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red, Amber, Green, Blue, White | Lens: Colored | Power Consumption: 6.5 W | Mass: 0.47 kg
LR6-102WCBW-R+FB295Tiers: 1 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red | Lens: Colored | Power Consumption: 2.6 W | Mass: 0.29 kg
LR6-202WCBW-RG+FB295Tiers: 2 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red, Green | Lens: Colored | Power Consumption: 3.9 W | Mass: 0.35 kg
LR6-302WCBW-RYG+FB295Tiers: 3 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red, Amber, Green | Lens: Colored | Power Consumption: 5.2 W | Mass: 0.41 kg
LR6-402WCBW-RYGB+FB295Tiers: 4 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red, Amber, Green, Blue | Lens: Colored | Power Consumption: 6.5 W | Mass: 0.47 kg
LR6-502WCBW-RYGBC+FB295Tiers: 5 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (M30 nut) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red, Amber, Green, Blue, White | Lens: Colored | Power Consumption: 7.8 W | Mass: 0.53 kg
LR6-102WMNW-R+FB295Tiers: 1 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red | Lens: Colored | Power Consumption: 1.3 W | Mass: 0.27 kg
LR6-202WMNW-RG+FB295Tiers: 2 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red, Green | Lens: Colored | Power Consumption: 2.6 W | Mass: 0.33 kg
LR6-302WMNW-RYG+FB295Tiers: 3 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red, Amber, Green | Lens: Colored | Power Consumption: 3.9 W | Mass: 0.39 kg
LR6-402WMNW-RYGB+FB295Tiers: 4 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red, Amber, Green, Blue | Lens: Colored | Power Consumption: 5.2 W | Mass: 0.45 kg
LR6-502WMNW-RYGBC+FB295Tiers: 5 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: No | Body Color: Off-white | Luminous Color: Red, Amber, Green, Blue, White | Lens: Colored | Power Consumption: 6.5 W | Mass: 0.51 kg
LR6-102WMBW-R+FB295Tiers: 1 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red | Lens: Colored | Power Consumption: 2.6 W | Mass: 0.33 kg
LR6-202WMBW-RG+FB295Tiers: 2 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red, Green | Lens: Colored | Power Consumption: 3.9 W | Mass: 0.39 kg
LR6-302WMBW-RYG+FB295Tiers: 3 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red, Amber, Green | Lens: Colored | Power Consumption: 5.2 W | Mass: 0.45 kg
LR6-402WMBW-RYGB+FB295Tiers: 4 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red, Amber, Green, Blue | Lens: Colored | Power Consumption: 6.5 W | Mass: 0.51 kg
LR6-502WMBW-RYGBC+FB295Tiers: 5 | Rated Voltage: 24V DC | Mounting/Wiring: Direct mount / M12 connector (3 hexagon bolts) | Flashing/Buzzer: Yes | Body Color: Off-white | Luminous Color: Red, Amber, Green, Blue, White | Lens: Colored | Power Consumption: 7.8 W | Mass: 0.57 kg
