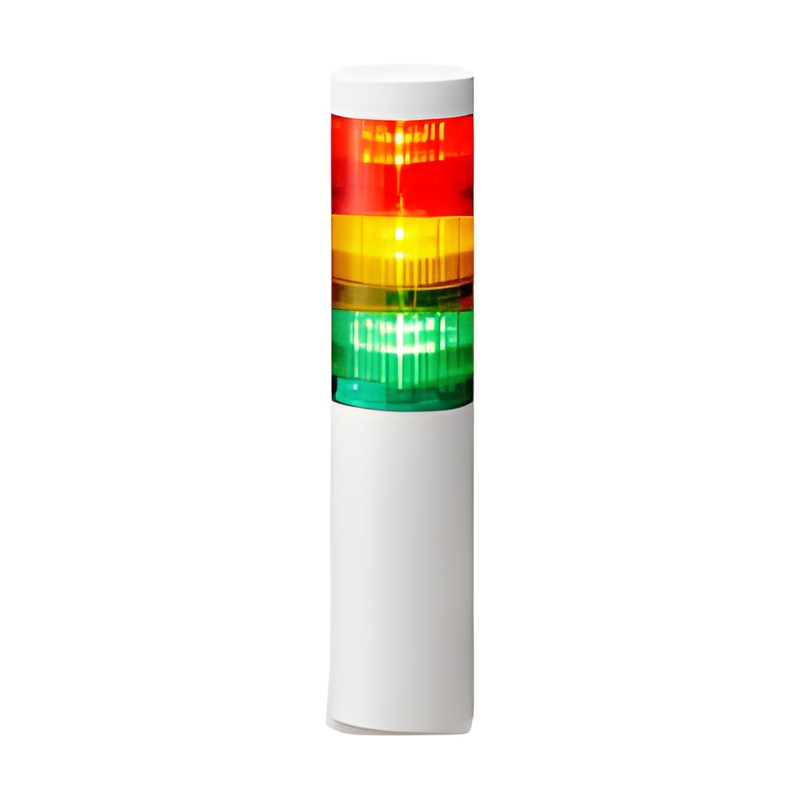

PATLITE LR6-IL Signal Tower with IO-Link

PATLITE LR6-IL Signal Tower with IO-Link

Φ60 modular signal tower that integrates with IO-Link masters through a built-in 5-pin M12 connector.

Key features

  • Built-in M12 connector for quick installation
  • Any combination of solid color, multi-color and clear lens LED units
  • Optional buzzer unit LR6-BW and wireless data acquisition

Specifications

Size Φ60
Rated voltage 24V DC
Mounting location Indoors, upright
Tiers Max. 5 LED units and one buzzer unit
LED unit modes Continuous / flashing
Alarm Typ. 84 dB, 4 sound types (with LR6-BW)
Protection IP65; NEMA TYPE 4X, 13
Connection M12 connector, 5-pin, A-coded
Standards EMC Directive, RoHS, UL 508, CSA C22.2 No. 14, FCC Part 15 Subpart B Class A, KC
PATLITE LR6-IL Signal Tower with IO-Link - reference 2
LR6-3ILWMNW-RYG Type: Pre-assembled, 3 tiers | LED colors: Red, Amber, Green | Mounting: Direct mount (3-point) | Buzzer: None | Body color: Off-white | Height: 271 mm
LR6-ILWMNW Type: Body unit (LED units sold separately) | Mounting: Direct mount (3-point) | Buzzer: None | Body color: Off-white
LR6-ILWCNW Type: Body unit (LED units sold separately) | Mounting: 1/2" NPT pipe or direct mount (M30 nut) | Buzzer: None | Body color: Off-white
Signal TowersPATLITE
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE LR6-IL Signal Tower with IO-Link

Brand PATLITE·Signal Towers

Available part numbers (3)

LR6-3ILWMNW-RYG, LR6-ILWMNW, LR6-ILWCNW

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
PATLITE LR6-IL Signal Tower with IO-Link - reference 2
0 selected
RFQ List (0)
Product codeSpec
LR6-3ILWMNW-RYGType: Pre-assembled, 3 tiers | LED colors: Red, Amber, Green | Mounting: Direct mount (3-point) | Buzzer: None | Body color: Off-white | Height: 271 mm
LR6-ILWMNWType: Body unit (LED units sold separately) | Mounting: Direct mount (3-point) | Buzzer: None | Body color: Off-white
LR6-ILWCNWType: Body unit (LED units sold separately) | Mounting: 1/2" NPT pipe or direct mount (M30 nut) | Buzzer: None | Body color: Off-white
