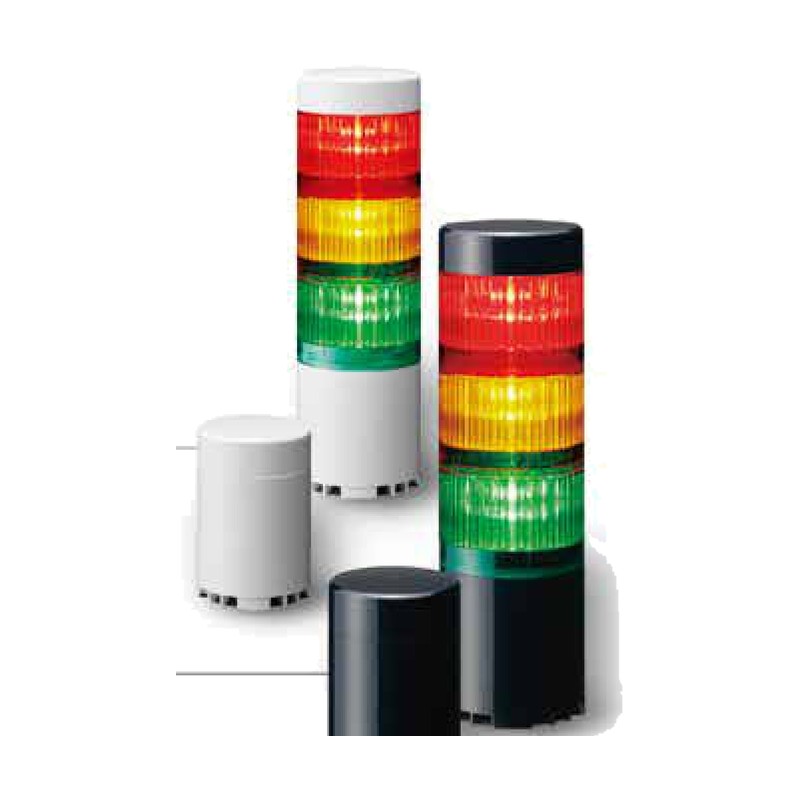

PATLITE LR6-USB 60 mm USB Signal Tower

PATLITE LR6-USB 60 mm USB Signal Tower

Φ60 signal tower powered and controlled over USB from a PC or HMI, with an included DLL library for custom software.

Key features

  • Powered over USB for single-cord installation
  • USB HID class compatible: no dedicated driver required
  • Included DLL software library; Windows and Linux compatible
  • Supports solid color, clear lens and multi-color LED units

Specifications

Size Φ60
Protection IP65 (IEC60529) / NEMA TYPE 4X, 13
Communication USB 2.0 Full Speed
Power 5V DC (USB bus power)
LED unit control On / off / 4 flashing patterns
Alarm control Play/stop, 4 patterns / 13-scale sound pattern
LED units LR6-E-□, LR6-E-□Z, LR6-E-MZ (up to 5)
Height 79 mm (0 tiers) to 279 mm (5 tiers)
PATLITE LR6-USB 60 mm USB Signal Tower - reference 2
LR6-3USBW-RYG Type: Pre-assembled, 3 tiers | Body color: Off-white | LED colors: Red, Amber, Green (top to bottom)
LR6-USBW Type: Body unit (LED units sold separately) | Body color: Off-white
LR6-3USBK-RYG Type: Pre-assembled, 3 tiers | Body color: Black | LED colors: Red, Amber, Green (top to bottom)
LR6-USBK Type: Body unit (LED units sold separately) | Body color: Black
Signal TowersPATLITE
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE LR6-USB 60 mm USB Signal Tower

Brand PATLITE·Signal Towers

Available part numbers (4)

LR6-3USBW-RYG, LR6-USBW, LR6-3USBK-RYG, LR6-USBK

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
PATLITE LR6-USB 60 mm USB Signal Tower - reference 2
0 selected
RFQ List (0)
Product codeSpec
LR6-3USBW-RYGType: Pre-assembled, 3 tiers | Body color: Off-white | LED colors: Red, Amber, Green (top to bottom)
LR6-USBWType: Body unit (LED units sold separately) | Body color: Off-white
LR6-3USBK-RYGType: Pre-assembled, 3 tiers | Body color: Black | LED colors: Red, Amber, Green (top to bottom)
LR6-USBKType: Body unit (LED units sold separately) | Body color: Black
