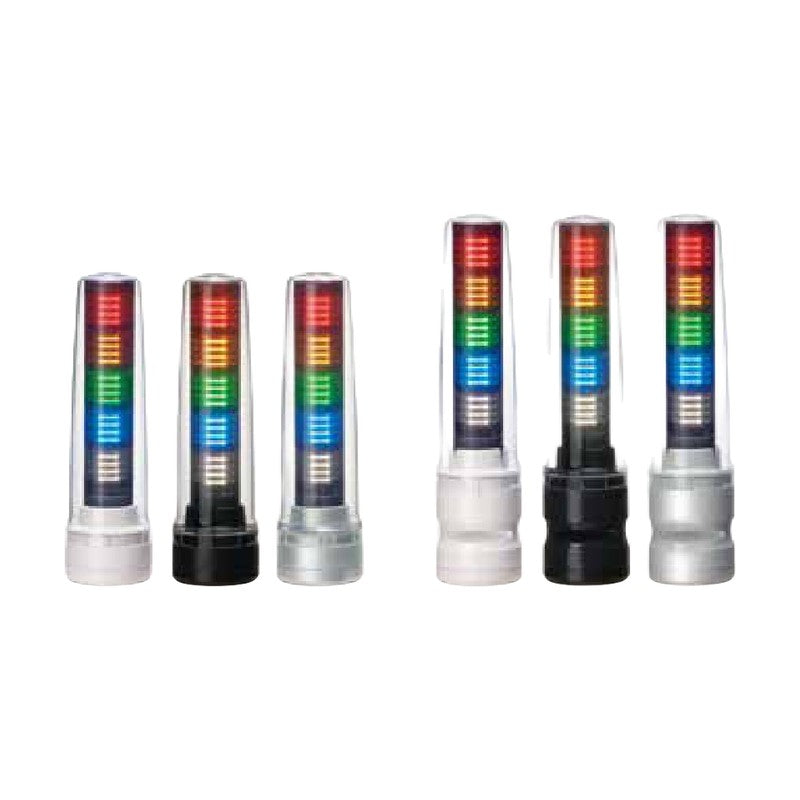

PATLITE LS7 Signal Tower, Φ70 mm, Clear Lens

PATLITE LS7 Signal Tower, Φ70 mm, Clear Lens

Φ70 mm LED signal tower with clear outer cover and 3 or 5 LED segments, available with lead wires or M12 connector.

Key features

  • Clear lens model; segment order is fixed from top to bottom
  • FB type: flashing and 2 alarm sounds (lead wire type); B type: continuous on with 1 alarm sound (M12 type)
  • Off-white, dark gray and silver body colors. 60 flashes/min, 85 dB buzzer

Specifications

Size Φ70 mm
Rated Voltage 24V DC
Supported Transistors NPN/PNP
Use Indoor
Mounting Upright
Ambient Temperature -30 to +60°C
Ingress Protection IP65 (IP54 with buzzer)
Volume Control Rotating switch
Approvals RoHS10, UKCA, UL
LS7-302SFBWH-RYGNN Tiers: 3 | Body Color: Silver | Function: Continuous On and flashing | Buzzer: Yes | Wiring: Lead wire | Luminous Color: Red, Amber, Green | Power Consumption: 3.8 W | Mass: 0.37 kg
LS7-302BWC-RYGNN Tiers: 3 | Body Color: Off-white | Function: Continuous On | Buzzer: Yes | Wiring: M12 connector | Luminous Color: Red, Amber, Green | Power Consumption: 4.1 W | Mass: 0.26 kg
LS7-302DBWC-RYGNN Tiers: 3 | Body Color: Dark gray | Function: Continuous On | Buzzer: Yes | Wiring: M12 connector | Luminous Color: Red, Amber, Green | Power Consumption: 4.1 W | Mass: 0.35 kg
LS7-302DFBWH-RYGNN Tiers: 3 | Body Color: Dark gray | Function: Continuous On and flashing | Buzzer: Yes | Wiring: Lead wire | Luminous Color: Red, Amber, Green | Power Consumption: 3.8 W | Mass: 0.37 kg
LS7-302DWC-RYGNN Tiers: 3 | Body Color: Dark gray | Function: Continuous On | Buzzer: None | Wiring: M12 connector | Luminous Color: Red, Amber, Green | Power Consumption: 2.8 W | Mass: 0.26 kg
LS7-302DWH-RYGNN Tiers: 3 | Body Color: Dark gray | Function: Continuous On | Buzzer: None | Wiring: Lead wire | Luminous Color: Red, Amber, Green | Power Consumption: 2.8 W | Mass: 0.28 kg
LS7-302FBWH-RYGNN Tiers: 3 | Body Color: Off-white | Function: Continuous On and flashing | Buzzer: Yes | Wiring: Lead wire | Luminous Color: Red, Amber, Green | Power Consumption: 3.8 W | Mass: 0.37 kg
LS7-302SBWC-RYGNN Tiers: 3 | Body Color: Silver | Function: Continuous On | Buzzer: Yes | Wiring: M12 connector | Luminous Color: Red, Amber, Green | Power Consumption: 4.1 W | Mass: 0.35 kg
LS7-302SWC-RYGNN Tiers: 3 | Body Color: Silver | Function: Continuous On | Buzzer: None | Wiring: M12 connector | Luminous Color: Red, Amber, Green | Power Consumption: 2.8 W | Mass: 0.26 kg
LS7-302SWH-RYGNN Tiers: 3 | Body Color: Silver | Function: Continuous On | Buzzer: None | Wiring: Lead wire | Luminous Color: Red, Amber, Green | Power Consumption: 2.8 W | Mass: 0.28 kg
LS7-302WC-RYGNN Tiers: 3 | Body Color: Off-white | Function: Continuous On | Buzzer: None | Wiring: M12 connector | Luminous Color: Red, Amber, Green | Power Consumption: 2.8 W | Mass: 0.26 kg
LS7-302WH-RYGNN Tiers: 3 | Body Color: Off-white | Function: Continuous On | Buzzer: None | Wiring: Lead wire | Luminous Color: Red, Amber, Green | Power Consumption: 2.8 W | Mass: 0.28 kg
LS7-502BWC-RYGBC Tiers: 5 | Body Color: Off-white | Function: Continuous On | Buzzer: Yes | Wiring: M12 connector | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 6.0 W | Mass: 0.35 kg
LS7-502DBWC-RYGBC Tiers: 5 | Body Color: Dark gray | Function: Continuous On | Buzzer: Yes | Wiring: M12 connector | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 6.0 W | Mass: 0.35 kg
LS7-502DFBWH-RYGBC Tiers: 5 | Body Color: Dark gray | Function: Continuous On and flashing | Buzzer: Yes | Wiring: Lead wire | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 5.7 W | Mass: 0.37 kg
LS7-502DWC-RYGBC Tiers: 5 | Body Color: Dark gray | Function: Continuous On | Buzzer: None | Wiring: M12 connector | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 4.7 W | Mass: 0.26 kg
LS7-502DWH-RYGBC Tiers: 5 | Body Color: Dark gray | Function: Continuous On | Buzzer: None | Wiring: Lead wire | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 4.7 W | Mass: 0.28 kg
LS7-502FBWH-RYGBC Tiers: 5 | Body Color: Off-white | Function: Continuous On and flashing | Buzzer: Yes | Wiring: Lead wire | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 5.7 W | Mass: 0.37 kg
LS7-502SBWC-RYGBC Tiers: 5 | Body Color: Silver | Function: Continuous On | Buzzer: Yes | Wiring: M12 connector | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 6.0 W | Mass: 0.35 kg
LS7-502SFBWH-RYGBC Tiers: 5 | Body Color: Silver | Function: Continuous On and flashing | Buzzer: Yes | Wiring: Lead wire | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 5.7 W | Mass: 0.37 kg
LS7-502SWC-RYGBC Tiers: 5 | Body Color: Silver | Function: Continuous On | Buzzer: None | Wiring: M12 connector | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 4.7 W | Mass: 0.26 kg
LS7-502SWH-RYGBC Tiers: 5 | Body Color: Silver | Function: Continuous On | Buzzer: None | Wiring: Lead wire | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 4.7 W | Mass: 0.28 kg
LS7-502WC-RYGBC Tiers: 5 | Body Color: Off-white | Function: Continuous On | Buzzer: None | Wiring: M12 connector | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 4.7 W | Mass: 0.26 kg
LS7-502WH-RYGBC Tiers: 5 | Body Color: Off-white | Function: Continuous On | Buzzer: None | Wiring: Lead wire | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 4.7 W | Mass: 0.28 kg
Signal TowersPATLITE
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE LS7 Signal Tower, Φ70 mm, Clear Lens

Brand PATLITE·Signal Towers

Available part numbers (24)

LS7-302SFBWH-RYGNN, LS7-302BWC-RYGNN, LS7-302DBWC-RYGNN, LS7-302DFBWH-RYGNN, LS7-302DWC-RYGNN, LS7-302DWH-RYGNN, LS7-302FBWH-RYGNN, LS7-302SBWC-RYGNN, LS7-302SWC-RYGNN, LS7-302SWH-RYGNN + 14 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LS7-302SFBWH-RYGNNTiers: 3 | Body Color: Silver | Function: Continuous On and flashing | Buzzer: Yes | Wiring: Lead wire | Luminous Color: Red, Amber, Green | Power Consumption: 3.8 W | Mass: 0.37 kg
LS7-302BWC-RYGNNTiers: 3 | Body Color: Off-white | Function: Continuous On | Buzzer: Yes | Wiring: M12 connector | Luminous Color: Red, Amber, Green | Power Consumption: 4.1 W | Mass: 0.26 kg
LS7-302DBWC-RYGNNTiers: 3 | Body Color: Dark gray | Function: Continuous On | Buzzer: Yes | Wiring: M12 connector | Luminous Color: Red, Amber, Green | Power Consumption: 4.1 W | Mass: 0.35 kg
LS7-302DFBWH-RYGNNTiers: 3 | Body Color: Dark gray | Function: Continuous On and flashing | Buzzer: Yes | Wiring: Lead wire | Luminous Color: Red, Amber, Green | Power Consumption: 3.8 W | Mass: 0.37 kg
LS7-302DWC-RYGNNTiers: 3 | Body Color: Dark gray | Function: Continuous On | Buzzer: None | Wiring: M12 connector | Luminous Color: Red, Amber, Green | Power Consumption: 2.8 W | Mass: 0.26 kg
LS7-302DWH-RYGNNTiers: 3 | Body Color: Dark gray | Function: Continuous On | Buzzer: None | Wiring: Lead wire | Luminous Color: Red, Amber, Green | Power Consumption: 2.8 W | Mass: 0.28 kg
LS7-302FBWH-RYGNNTiers: 3 | Body Color: Off-white | Function: Continuous On and flashing | Buzzer: Yes | Wiring: Lead wire | Luminous Color: Red, Amber, Green | Power Consumption: 3.8 W | Mass: 0.37 kg
LS7-302SBWC-RYGNNTiers: 3 | Body Color: Silver | Function: Continuous On | Buzzer: Yes | Wiring: M12 connector | Luminous Color: Red, Amber, Green | Power Consumption: 4.1 W | Mass: 0.35 kg
LS7-302SWC-RYGNNTiers: 3 | Body Color: Silver | Function: Continuous On | Buzzer: None | Wiring: M12 connector | Luminous Color: Red, Amber, Green | Power Consumption: 2.8 W | Mass: 0.26 kg
LS7-302SWH-RYGNNTiers: 3 | Body Color: Silver | Function: Continuous On | Buzzer: None | Wiring: Lead wire | Luminous Color: Red, Amber, Green | Power Consumption: 2.8 W | Mass: 0.28 kg
LS7-302WC-RYGNNTiers: 3 | Body Color: Off-white | Function: Continuous On | Buzzer: None | Wiring: M12 connector | Luminous Color: Red, Amber, Green | Power Consumption: 2.8 W | Mass: 0.26 kg
LS7-302WH-RYGNNTiers: 3 | Body Color: Off-white | Function: Continuous On | Buzzer: None | Wiring: Lead wire | Luminous Color: Red, Amber, Green | Power Consumption: 2.8 W | Mass: 0.28 kg
LS7-502BWC-RYGBCTiers: 5 | Body Color: Off-white | Function: Continuous On | Buzzer: Yes | Wiring: M12 connector | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 6.0 W | Mass: 0.35 kg
LS7-502DBWC-RYGBCTiers: 5 | Body Color: Dark gray | Function: Continuous On | Buzzer: Yes | Wiring: M12 connector | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 6.0 W | Mass: 0.35 kg
LS7-502DFBWH-RYGBCTiers: 5 | Body Color: Dark gray | Function: Continuous On and flashing | Buzzer: Yes | Wiring: Lead wire | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 5.7 W | Mass: 0.37 kg
LS7-502DWC-RYGBCTiers: 5 | Body Color: Dark gray | Function: Continuous On | Buzzer: None | Wiring: M12 connector | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 4.7 W | Mass: 0.26 kg
LS7-502DWH-RYGBCTiers: 5 | Body Color: Dark gray | Function: Continuous On | Buzzer: None | Wiring: Lead wire | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 4.7 W | Mass: 0.28 kg
LS7-502FBWH-RYGBCTiers: 5 | Body Color: Off-white | Function: Continuous On and flashing | Buzzer: Yes | Wiring: Lead wire | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 5.7 W | Mass: 0.37 kg
LS7-502SBWC-RYGBCTiers: 5 | Body Color: Silver | Function: Continuous On | Buzzer: Yes | Wiring: M12 connector | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 6.0 W | Mass: 0.35 kg
LS7-502SFBWH-RYGBCTiers: 5 | Body Color: Silver | Function: Continuous On and flashing | Buzzer: Yes | Wiring: Lead wire | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 5.7 W | Mass: 0.37 kg
LS7-502SWC-RYGBCTiers: 5 | Body Color: Silver | Function: Continuous On | Buzzer: None | Wiring: M12 connector | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 4.7 W | Mass: 0.26 kg
LS7-502SWH-RYGBCTiers: 5 | Body Color: Silver | Function: Continuous On | Buzzer: None | Wiring: Lead wire | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 4.7 W | Mass: 0.28 kg
LS7-502WC-RYGBCTiers: 5 | Body Color: Off-white | Function: Continuous On | Buzzer: None | Wiring: M12 connector | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 4.7 W | Mass: 0.26 kg
LS7-502WH-RYGBCTiers: 5 | Body Color: Off-white | Function: Continuous On | Buzzer: None | Wiring: Lead wire | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 4.7 W | Mass: 0.28 kg
