• PATLITE ME-A / MES-A Slim Signal Tower, Φ25 mm
1 1

PATLITE ME-A / MES-A Slim Signal Tower, Φ25 mm

PATLITE ME-A / MES-A Slim Signal Tower, Φ25 mm

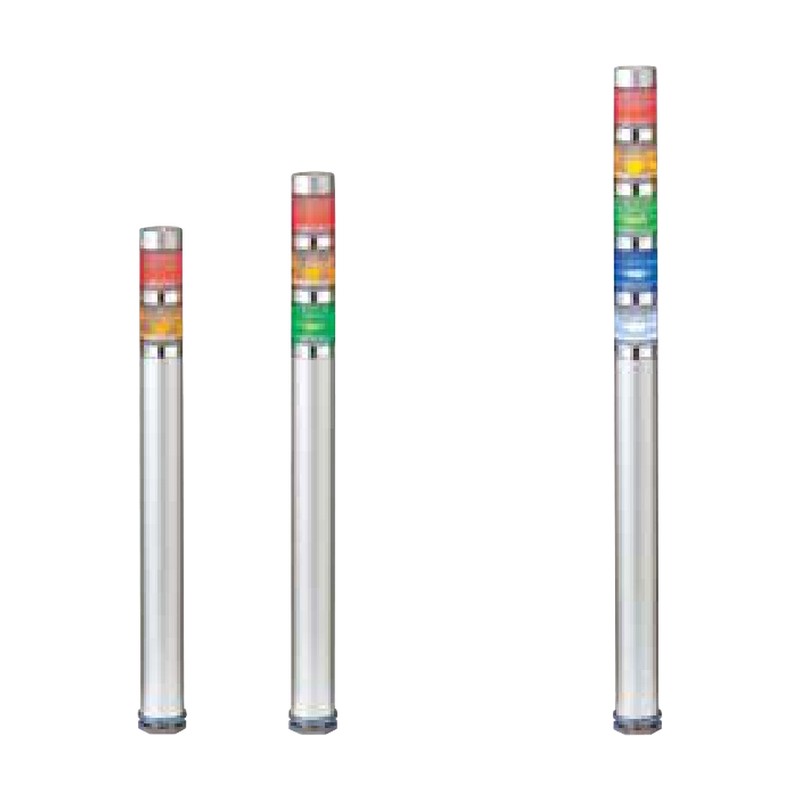

Slim Φ25 mm LED signal tower with clear lenses, available with a standard 200 mm body (ME) or a short 40 mm body (MES).

Key features

  • Compact Φ25 mm diameter
  • Number of tiers can be changed with optional reconfiguration parts
  • Mounts on a horizontal surface with lock nut (PF1/2 thread)

Specifications

Size Φ25 mm
Rated Voltage 24V DC
Supported Transistors NPN
Lighting Continuous on
Lens Clear
Use Indoor
Ambient Temperature -10 to +55°C
Ingress Protection IP42
Approvals CE, UKCA, UL
ME-102A-R Body: Standard body (200 mm) | Tiers: 1 | Luminous Color: Red | Power Consumption: 0.8 W | Mass: 0.22 kg
MES-102A-R Body: Short body (40 mm) | Tiers: 1 | Luminous Color: Red | Power Consumption: 0.8 W | Mass: 0.12 kg
ME-102A-Y Body: Standard body (200 mm) | Tiers: 1 | Luminous Color: Amber | Power Consumption: 0.8 W | Mass: 0.22 kg
MES-102A-Y Body: Short body (40 mm) | Tiers: 1 | Luminous Color: Amber | Power Consumption: 0.8 W | Mass: 0.12 kg
ME-102A-G Body: Standard body (200 mm) | Tiers: 1 | Luminous Color: Green | Power Consumption: 0.5 W | Mass: 0.22 kg
MES-102A-G Body: Short body (40 mm) | Tiers: 1 | Luminous Color: Green | Power Consumption: 0.5 W | Mass: 0.12 kg
ME-102A-B Body: Standard body (200 mm) | Tiers: 1 | Luminous Color: Blue | Power Consumption: 0.5 W | Mass: 0.22 kg
MES-102A-B Body: Short body (40 mm) | Tiers: 1 | Luminous Color: Blue | Power Consumption: 0.5 W | Mass: 0.12 kg
ME-102A-C Body: Standard body (200 mm) | Tiers: 1 | Luminous Color: White | Power Consumption: 0.5 W | Mass: 0.22 kg
MES-102A-C Body: Short body (40 mm) | Tiers: 1 | Luminous Color: White | Power Consumption: 0.5 W | Mass: 0.12 kg
ME-202A-RY Body: Standard body (200 mm) | Tiers: 2 | Luminous Color: Red, Amber | Power Consumption: 1.5 W | Mass: 0.23 kg
MES-202A-RY Body: Short body (40 mm) | Tiers: 2 | Luminous Color: Red, Amber | Power Consumption: 1.5 W | Mass: 0.13 kg
ME-202A-RG Body: Standard body (200 mm) | Tiers: 2 | Luminous Color: Red, Green | Power Consumption: 1.2 W | Mass: 0.23 kg
MES-202A-RG Body: Short body (40 mm) | Tiers: 2 | Luminous Color: Red, Green | Power Consumption: 1.2 W | Mass: 0.13 kg
ME-302A-RYG Body: Standard body (200 mm) | Tiers: 3 | Luminous Color: Red, Amber, Green | Power Consumption: 1.9 W | Mass: 0.24 kg
MES-302A-RYG Body: Short body (40 mm) | Tiers: 3 | Luminous Color: Red, Amber, Green | Power Consumption: 1.9 W | Mass: 0.14 kg
ME-402A-RYGB Body: Standard body (200 mm) | Tiers: 4 | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 2.3 W | Mass: 0.25 kg
MES-402A-RYGB Body: Short body (40 mm) | Tiers: 4 | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 2.3 W | Mass: 0.15 kg
ME-502A-RYGBC Body: Standard body (200 mm) | Tiers: 5 | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 2.7 W | Mass: 0.26 kg
MES-502A-RYGBC Body: Short body (40 mm) | Tiers: 5 | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 2.7 W | Mass: 0.16 kg
Signal TowersPATLITE
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE ME-A / MES-A Slim Signal Tower, Φ25 mm

Brand PATLITE·Signal Towers

Available part numbers (20)

ME-102A-R, MES-102A-R, ME-102A-Y, MES-102A-Y, ME-102A-G, MES-102A-G, ME-102A-B, MES-102A-B, ME-102A-C, MES-102A-C + 10 more — see full table ↓

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ME-102A-RBody: Standard body (200 mm) | Tiers: 1 | Luminous Color: Red | Power Consumption: 0.8 W | Mass: 0.22 kg
MES-102A-RBody: Short body (40 mm) | Tiers: 1 | Luminous Color: Red | Power Consumption: 0.8 W | Mass: 0.12 kg
ME-102A-YBody: Standard body (200 mm) | Tiers: 1 | Luminous Color: Amber | Power Consumption: 0.8 W | Mass: 0.22 kg
MES-102A-YBody: Short body (40 mm) | Tiers: 1 | Luminous Color: Amber | Power Consumption: 0.8 W | Mass: 0.12 kg
ME-102A-GBody: Standard body (200 mm) | Tiers: 1 | Luminous Color: Green | Power Consumption: 0.5 W | Mass: 0.22 kg
MES-102A-GBody: Short body (40 mm) | Tiers: 1 | Luminous Color: Green | Power Consumption: 0.5 W | Mass: 0.12 kg
ME-102A-BBody: Standard body (200 mm) | Tiers: 1 | Luminous Color: Blue | Power Consumption: 0.5 W | Mass: 0.22 kg
MES-102A-BBody: Short body (40 mm) | Tiers: 1 | Luminous Color: Blue | Power Consumption: 0.5 W | Mass: 0.12 kg
ME-102A-CBody: Standard body (200 mm) | Tiers: 1 | Luminous Color: White | Power Consumption: 0.5 W | Mass: 0.22 kg
MES-102A-CBody: Short body (40 mm) | Tiers: 1 | Luminous Color: White | Power Consumption: 0.5 W | Mass: 0.12 kg
ME-202A-RYBody: Standard body (200 mm) | Tiers: 2 | Luminous Color: Red, Amber | Power Consumption: 1.5 W | Mass: 0.23 kg
MES-202A-RYBody: Short body (40 mm) | Tiers: 2 | Luminous Color: Red, Amber | Power Consumption: 1.5 W | Mass: 0.13 kg
ME-202A-RGBody: Standard body (200 mm) | Tiers: 2 | Luminous Color: Red, Green | Power Consumption: 1.2 W | Mass: 0.23 kg
MES-202A-RGBody: Short body (40 mm) | Tiers: 2 | Luminous Color: Red, Green | Power Consumption: 1.2 W | Mass: 0.13 kg
ME-302A-RYGBody: Standard body (200 mm) | Tiers: 3 | Luminous Color: Red, Amber, Green | Power Consumption: 1.9 W | Mass: 0.24 kg
MES-302A-RYGBody: Short body (40 mm) | Tiers: 3 | Luminous Color: Red, Amber, Green | Power Consumption: 1.9 W | Mass: 0.14 kg
ME-402A-RYGBBody: Standard body (200 mm) | Tiers: 4 | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 2.3 W | Mass: 0.25 kg
MES-402A-RYGBBody: Short body (40 mm) | Tiers: 4 | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 2.3 W | Mass: 0.15 kg
ME-502A-RYGBCBody: Standard body (200 mm) | Tiers: 5 | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 2.7 W | Mass: 0.26 kg
MES-502A-RYGBCBody: Short body (40 mm) | Tiers: 5 | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 2.7 W | Mass: 0.16 kg
