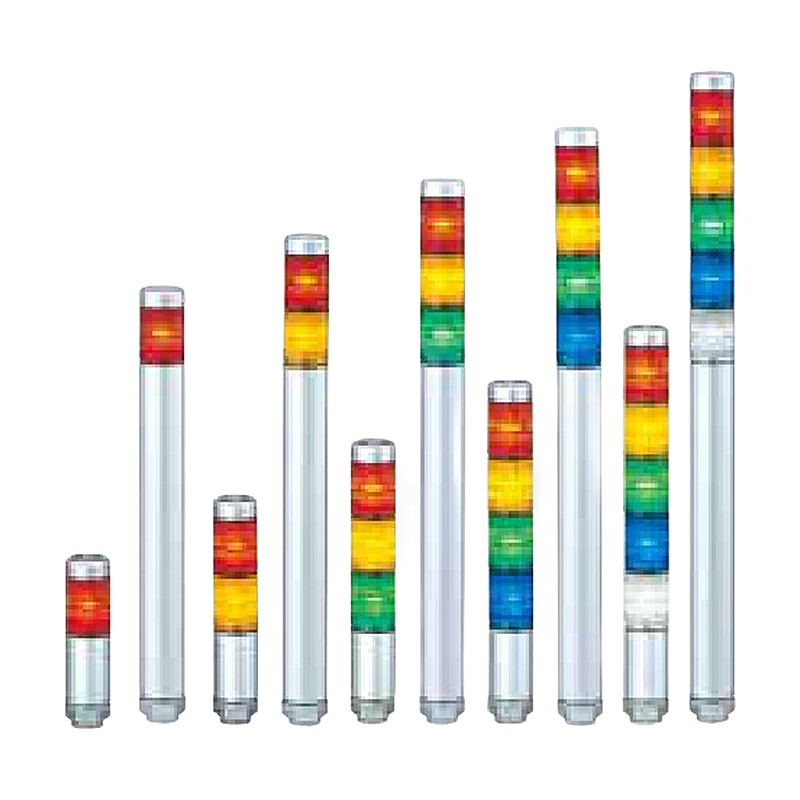

PATLITE MP / MPS Slim Signal Tower, Φ30 mm

PATLITE MP / MPS Slim Signal Tower, Φ30 mm

Slim Φ30 mm LED signal tower with standard (220 mm) or short (45 mm) body, with lead wires or M12 quick-disconnect connector. Φ30 mm slim design for compact machines.

Key features

  • Lead-wire type supports NPN/PNP; M12 connector type NPN
  • Optional MP-B buzzer unit
  • Number of tiers can be changed (lead-wire type)

Specifications

Size Φ30 mm
Lighting Continuous on
Use Indoor
Mounting Upright
Ingress Protection IP65
Approvals CE, UKCA, UL
MP-102-R Body: Standard body | Tiers: 1 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Red | Power Consumption: 0.8 W | Mass: 0.21 kg
MP-102-Y Body: Standard body | Tiers: 1 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Amber | Power Consumption: 0.9 W | Mass: 0.21 kg
MP-102-G Body: Standard body | Tiers: 1 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Green | Power Consumption: 0.6 W | Mass: 0.21 kg
MP-102-B Body: Standard body | Tiers: 1 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Blue | Power Consumption: 0.6 W | Mass: 0.21 kg
MP-102-C Body: Standard body | Tiers: 1 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: White | Power Consumption: 0.6 W | Mass: 0.21 kg
MP-202-RY Body: Standard body | Tiers: 2 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Red, Amber | Power Consumption: 1.7 W | Mass: 0.23 kg
MP-202-RG Body: Standard body | Tiers: 2 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Red, Green | Power Consumption: 1.3 W | Mass: 0.23 kg
MP-302-RYG Body: Standard body | Tiers: 3 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Red, Amber, Green | Power Consumption: 2.2 W | Mass: 0.25 kg
MP-402-RYGB Body: Standard body | Tiers: 4 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 2.7 W | Mass: 0.27 kg
MP-502-RYGBC Body: Standard body | Tiers: 5 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 3.2 W | Mass: 0.29 kg
MPS-102-R Body: Short body | Tiers: 1 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Red | Power Consumption: 0.8 W | Mass: 0.11 kg
MPS-102-Y Body: Short body | Tiers: 1 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Amber | Power Consumption: 0.9 W | Mass: 0.11 kg
MPS-102-G Body: Short body | Tiers: 1 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Green | Power Consumption: 0.6 W | Mass: 0.11 kg
MPS-102-B Body: Short body | Tiers: 1 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Blue | Power Consumption: 0.6 W | Mass: 0.11 kg
MPS-102-C Body: Short body | Tiers: 1 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: White | Power Consumption: 0.6 W | Mass: 0.11 kg
MPS-202-RY Body: Short body | Tiers: 2 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Red, Amber | Power Consumption: 1.7 W | Mass: 0.13 kg
MPS-202-RG Body: Short body | Tiers: 2 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Red, Green | Power Consumption: 1.3 W | Mass: 0.13 kg
MPS-202-YG Body: Short body | Tiers: 2 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Amber, Green | Power Consumption: 1.4 W | Mass: 0.13 kg
MPS-302-RYG Body: Short body | Tiers: 3 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Red, Amber, Green | Power Consumption: 2.2 W | Mass: 0.15 kg
MPS-402-RYGB Body: Short body | Tiers: 4 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Red, Amber, Green, Blue | Power Consumption: 2.7 W | Mass: 0.17 kg
MPS-502-RYGBC Body: Short body | Tiers: 5 | Rated Voltage: 24V AC/DC | Wiring: Lead wires | Luminous Color: Red, Amber, Green, Blue, White | Power Consumption: 3.2 W | Mass: 0.19 kg
MP-102C-R Body: Standard body | Tiers: 1 | Rated Voltage: 24V DC | Wiring: M12 connector | Luminous Color: Red | Power Consumption: 0.8 W | Mass: 0.24 kg
MP-102C-Y Body: Standard body | Tiers: 1 | Rated Voltage: 24V DC | Wiring: M12 connector | Luminous Color: Amber | Power Consumption: 0.8 W | Mass: 0.24 kg
MP-102C-G Body: Standard body | Tiers: 1 | Rated Voltage: 24V DC | Wiring: M12 connector | Luminous Color: Green | Power Consumption: 0.6 W | Mass: 0.24 kg
MP-202C-RG Body: Standard body | Tiers: 2 | Rated Voltage: 24V DC | Wiring: M12 connector | Luminous Color: Red, Green | Power Consumption: 1.3 W | Mass: 0.26 kg
MP-202C-YG Body: Standard body | Tiers: 2 | Rated Voltage: 24V DC | Wiring: M12 connector | Luminous Color: Amber, Green | Power Consumption: 1.3 W | Mass: 0.26 kg
MP-202C-GR Body: Standard body | Tiers: 2 | Rated Voltage: 24V DC | Wiring: M12 connector | Luminous Color: Green, Red | Power Consumption: 1.3 W | Mass: 0.26 kg
MP-302C-RYG Body: Standard body | Tiers: 3 | Rated Voltage: 24V DC | Wiring: M12 connector | Luminous Color: Red, Amber, Green | Power Consumption: 2.1 W | Mass: 0.28 kg
MP-302C-YGR Body: Standard body | Tiers: 3 | Rated Voltage: 24V DC | Wiring: M12 connector | Luminous Color: Amber, Green, Red | Power Consumption: 2.1 W | Mass: 0.28 kg
MPS-302C-RYG+FB247 Body: Short body | Tiers: 3 | Rated Voltage: 24V DC | Wiring: M12 connector | Luminous Color: Red, Amber, Green | Power Consumption: 2.1 W | Mass: 0.18 kg
