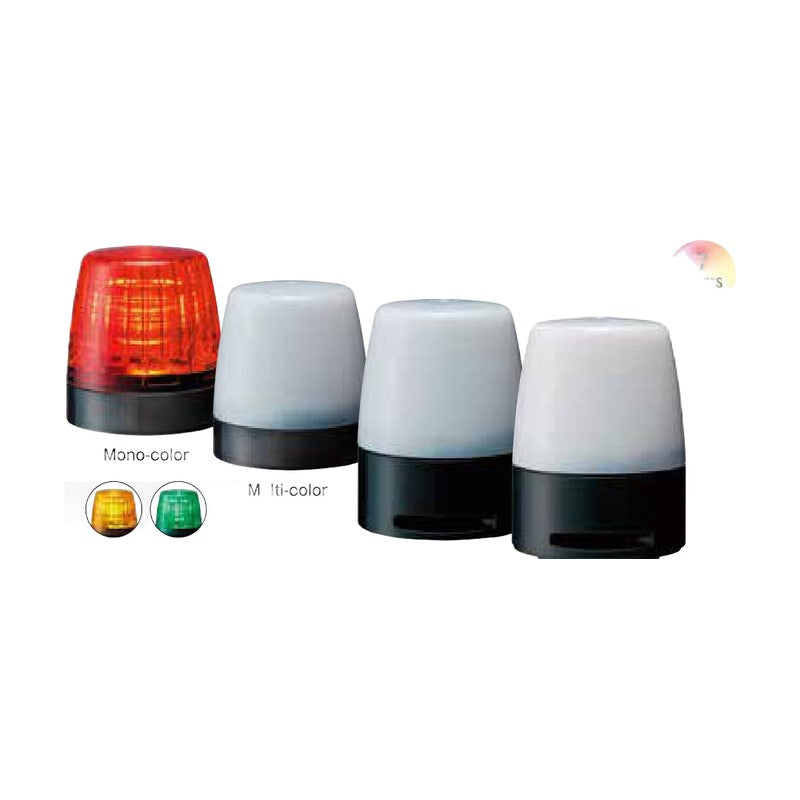

PATLITE NE-A Signal Beacon, Φ56 mm

PATLITE NE-A Signal Beacon, Φ56 mm

Compact Φ56 mm LED signal beacon in single-color or 7-color multi-color versions, with optional buzzer, touch sensor and M12 connector.

Key features

  • Multi-color models display 7 colors from one beacon
  • Touch sensor model (M1ATB)
  • Mounting in all directions
  • IP65 (IP67 for M1ANN), NEMA 4X/13

Specifications

Size Φ56 mm
Use Indoor
Alarm Sound 2 sounds (intermittent, continuous), 88 dB
Approvals CE, UKCA, UL, FCC, ICES, KC
NE-24A-R Rated Voltage: 24V DC | Touch Sensor: No | Buzzer: No | Wiring: Cable | Luminous Color: Red | Power Consumption: 0.7 W | Mass: 0.06 kg
NE-24A-Y Rated Voltage: 24V DC | Touch Sensor: No | Buzzer: No | Wiring: Cable | Luminous Color: Amber | Power Consumption: 0.7 W | Mass: 0.06 kg
NE-24A-G Rated Voltage: 24V DC | Touch Sensor: No | Buzzer: No | Wiring: Cable | Luminous Color: Green | Power Consumption: 0.7 W | Mass: 0.06 kg
NE-24A-B Rated Voltage: 24V DC | Touch Sensor: No | Buzzer: No | Wiring: Cable | Luminous Color: Blue | Power Consumption: 0.7 W | Mass: 0.06 kg
NE-24A-C Rated Voltage: 24V DC | Touch Sensor: No | Buzzer: No | Wiring: Cable | Luminous Color: White | Power Consumption: 0.7 W | Mass: 0.06 kg
NE-M1ANN-M Rated Voltage: 12-24V DC | Touch Sensor: No | Buzzer: No | Wiring: Cable | Luminous Color: Multi-color (7 colors) | Power Consumption: 1.2 W | Mass: 0.15 kg
NE-M1ANB-M Rated Voltage: 12-24V DC | Touch Sensor: No | Buzzer: Yes | Wiring: Cable | Luminous Color: Multi-color (7 colors) | Power Consumption: 1.8 W | Mass: 0.17 kg
NE-M1ATB-M Rated Voltage: 12-24V DC | Touch Sensor: Yes | Buzzer: Yes | Wiring: Cable | Luminous Color: Multi-color (7 colors) | Power Consumption: 1.8 W | Mass: 0.17 kg
NE-M1ACNB-M Rated Voltage: 12-24V DC | Touch Sensor: No | Buzzer: Yes | Wiring: M12 connector | Luminous Color: Multi-color (7 colors) | Power Consumption: 1.8 W | Mass: 0.10 kg
Signal BeaconsPATLITE
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE NE-A Signal Beacon, Φ56 mm

Brand PATLITE·Signal Beacons

Available part numbers (9)

NE-24A-R, NE-24A-Y, NE-24A-G, NE-24A-B, NE-24A-C, NE-M1ANN-M, NE-M1ANB-M, NE-M1ATB-M, NE-M1ACNB-M

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NE-24A-RRated Voltage: 24V DC | Touch Sensor: No | Buzzer: No | Wiring: Cable | Luminous Color: Red | Power Consumption: 0.7 W | Mass: 0.06 kg
NE-24A-YRated Voltage: 24V DC | Touch Sensor: No | Buzzer: No | Wiring: Cable | Luminous Color: Amber | Power Consumption: 0.7 W | Mass: 0.06 kg
NE-24A-GRated Voltage: 24V DC | Touch Sensor: No | Buzzer: No | Wiring: Cable | Luminous Color: Green | Power Consumption: 0.7 W | Mass: 0.06 kg
NE-24A-BRated Voltage: 24V DC | Touch Sensor: No | Buzzer: No | Wiring: Cable | Luminous Color: Blue | Power Consumption: 0.7 W | Mass: 0.06 kg
NE-24A-CRated Voltage: 24V DC | Touch Sensor: No | Buzzer: No | Wiring: Cable | Luminous Color: White | Power Consumption: 0.7 W | Mass: 0.06 kg
NE-M1ANN-MRated Voltage: 12-24V DC | Touch Sensor: No | Buzzer: No | Wiring: Cable | Luminous Color: Multi-color (7 colors) | Power Consumption: 1.2 W | Mass: 0.15 kg
NE-M1ANB-MRated Voltage: 12-24V DC | Touch Sensor: No | Buzzer: Yes | Wiring: Cable | Luminous Color: Multi-color (7 colors) | Power Consumption: 1.8 W | Mass: 0.17 kg
NE-M1ATB-MRated Voltage: 12-24V DC | Touch Sensor: Yes | Buzzer: Yes | Wiring: Cable | Luminous Color: Multi-color (7 colors) | Power Consumption: 1.8 W | Mass: 0.17 kg
NE-M1ACNB-MRated Voltage: 12-24V DC | Touch Sensor: No | Buzzer: Yes | Wiring: M12 connector | Luminous Color: Multi-color (7 colors) | Power Consumption: 1.8 W | Mass: 0.10 kg
