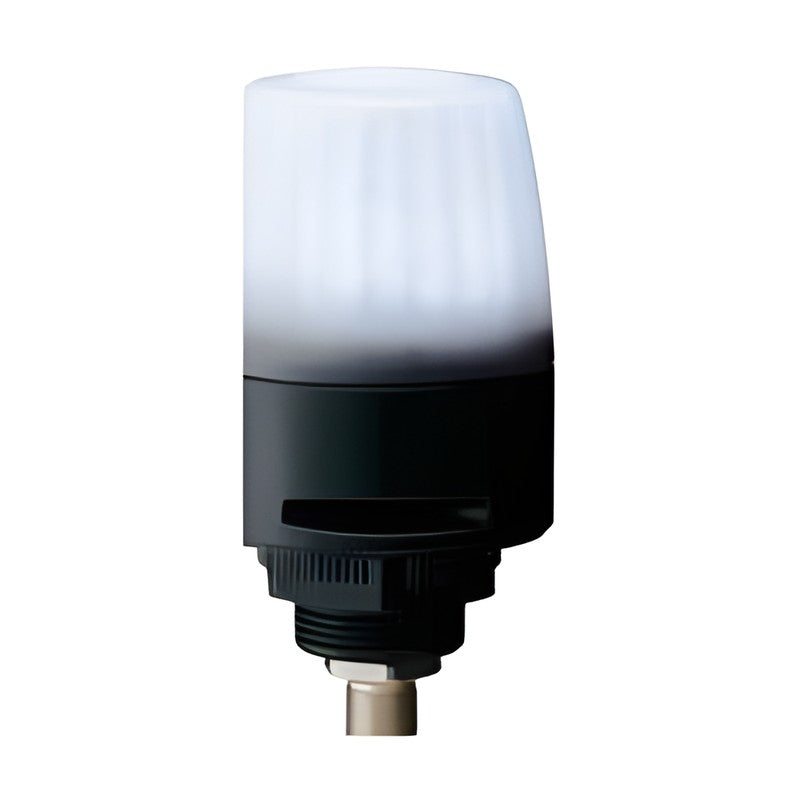

PATLITE NE-IL Signal Beacon with IO-Link
PATLITE NE-IL Signal Beacon with IO-Link
Φ56 multi-color IO-Link signal beacon with optional touch sensor and digital/analog input that acts as an I/O hub for non-IO-Link devices.
Key features
- Up to 7 colors to indicate different equipment conditions
- Capacitive touch sensor for real-time status confirmation
- Digital/analog input model sends sensor data to the IO-Link master
- M12 connection for quick installation
Specifications
| Size | Φ56 |
|---|---|
| Rated voltage | 24V DC |
| Mounting location | Indoors, upright |
| Protection | IP65; NEMA TYPE 4X, 13 |
| LED color | Multi-color (Red, Amber, Green, Blue, White, Purple, Cyan) |
| LED modes | Continuous / flashing |
| Standards | EMC Directive, RoHS, UL 508, CSA C22.2 No. 14, FCC Part 15 Subpart B Class A, KC |
| NE-ILNB-M | Alarm: Typ. 88 dB, 8 sound types | Touch sensor: None | Connection: M12 5-pin A-coded | |
| NE-ILTB-M | Alarm: Typ. 88 dB, 8 sound types | Touch sensor: Capacitive | Connection: M12 5-pin A-coded | |
| NE-ILXB-M | Alarm: Typ. 88 dB, 8 sound types | Touch sensor: Capacitive | Input: Digital / analog | Connection: M12 8-pin A-coded | |
| NE-ILNN-M | Alarm: None | Touch sensor: None | Connection: M12 5-pin A-coded | |
| NE-ILTN-M | Alarm: None | Touch sensor: Capacitive | Connection: M12 5-pin A-coded |
Signal BeaconsPATLITE
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
PATLITE NE-IL Signal Beacon with IO-Link
Available part numbers (5)
NE-ILNB-M, NE-ILTB-M, NE-ILXB-M, NE-ILNN-M, NE-ILTN-M
How to order
Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
PATLITE
Signal Beacons
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| NE-ILNB-M | Alarm: Typ. 88 dB, 8 sound types | Touch sensor: None | Connection: M12 5-pin A-coded | ||
| NE-ILTB-M | Alarm: Typ. 88 dB, 8 sound types | Touch sensor: Capacitive | Connection: M12 5-pin A-coded | ||
| NE-ILXB-M | Alarm: Typ. 88 dB, 8 sound types | Touch sensor: Capacitive | Input: Digital / analog | Connection: M12 8-pin A-coded | ||
| NE-ILNN-M | Alarm: None | Touch sensor: None | Connection: M12 5-pin A-coded | ||
| NE-ILTN-M | Alarm: None | Touch sensor: Capacitive | Connection: M12 5-pin A-coded |
Need a different model, or a part not listed here? Send us your parts list →
